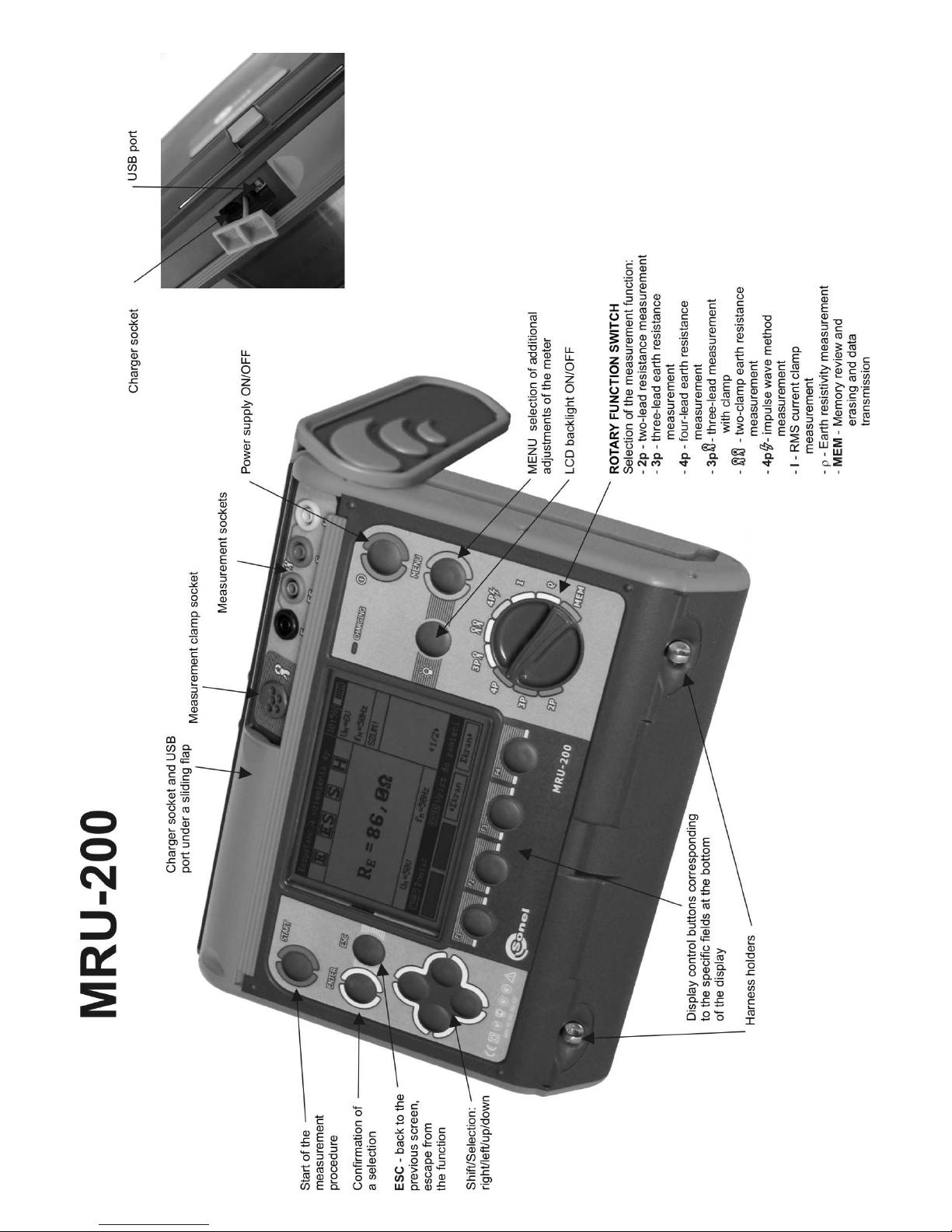

OPERATING MANUAL
EARTH RESISTANCE METER
MRU-200
SONEL S. A.
ul. Wokulskiego 11
58-100 Świdnica
Version 5.0 February 22, 2017
Page 4
MRU-200 OPERATING MANUAL Version 5.0
2
The MRU-200 meter is a modern, easy and safe measuring device. Please acquaint yourself with the
present manual in order to avoid measuring errors and prevent possible problems related to operation of the meter.
Page 5
MRU-200 OPERATING MANUAL Version 5.0
3
TABLE OF CONTENTS
1 SAFETY ................................................................................................................... 5
2 MENU ....................................................................................................................... 6
2.1 WIRELESS TRANSMISSION ....................................................................................... 6
2.2 MEASUREMENT SETTINGS ....................................................................................... 6
2.2.1 Mains frequency ........................................................................................... 7
2.2.2 Calibration of the measurement clamp ........................................................ 7
2.2.3 Earth resistivity settings ............................................................................. 11
2.3 METER SETTINGS................................................................................................... 11
2.3.1 LCD contrast .............................................................................................. 11
2.3.2 LCD Backlight ............................................................................................ 12
2.3.3 AUTO-OFF settings ................................................................................... 12
2.3.4 Display settings .......................................................................................... 12
2.3.5 Date and time ............................................................................................. 13
2.3.6 Battery discharging .................................................................................... 13
2.3.7 Programme update ................................................................ ..................... 13
2.4 LANGUAGE CHOICE ............................................................................................... 13
2.5 INFORMATION ON THE MANUFACTURER ................................................................ 13
3 MEASUREMENTS ............................................................................................... 14
3.1 MEASUREMENT OF EARTH CONNECTION AND EQUIPOTENTIAL BONDING (2P) ....... 14
3.2 CALIBRATION OF THE TEST LEADS ......................................................................... 15
3.2.1 Auto-zeroing on .......................................................................................... 15
3.2.2 Auto-zeroing off .......................................................................................... 16
3.3 MEASUREMENT 3P ................................................................................................ 17
3.4 MEASUREMENT 4P ................................................................................................ 20
3.5 MEASUREMENT 3P + CLAMP ................................................................................. 23
3.6 MEASUREMENT 3P + ERP-1 ADAPTER .................................................................. 26
3.7 TWO-CLAMP MEASUREMENT ................................................................................. 29
3.8 MEASUREMENT 4P .............................................................................................. 31
3.9 CURRENT MEASUREMENT ..................................................................................... 34
3.10 EARTH RESISTIVITY MEASUREMENTS ................................................................. 36
4 MEMORY ................................ ................................ ................................ .............. 40
4.1 SAVING OF THE MEASUREMENT RESULTS IN THE MEMORY .................................... 40
4.2 MEMORY ERASING ................................................................................................ 41
4.3 MEMORY BROWSING ............................................................................................. 42
5 DATA TRANSMISSION ...................................................................................... 43
5.1 COMPUTER CONNECTION ACCESSORIES................................................................. 43
5.2 CONNECTION OF THE METER TO A COMPUTER ....................................................... 43
5.3 DATA TRANSMISSION WITH OR-1 RADIO MODULE ................................................. 43
Page 6
MRU-200 OPERATING MANUAL Version 5.0
4
6 POWER SUPPLY .................................................................................................. 45
6.1 MONITORING OF THE POWER SUPPLY VOLTAGE ..................................................... 45
6.2 REPLACEMENT OF ACCUMULATORS ....................................................................... 45
6.3 FUSE REPLACEMENT .............................................................................................. 46
6.4 CHARGING OF ACCUMULATORS ............................................................................. 46
6.5 DISCHARGING OF ACCUMULATORS ........................................................................ 48
6.6 GENERAL PRINCIPLES REGARDING USING NI-MH ACCUMULATORS ....................... 48
7 CLEANING AND MAINTENANCE ................................................................... 49
8 STORAGE .............................................................................................................. 49
9 DISMANTLING AND DISPOSAL ................................................................ ...... 49
10 TECHNICAL DATA ............................................................................................. 50
10.1 BASIC DATA ........................................................................................................ 50
10.2 ADDITIONAL DATA.............................................................................................. 53
10.2.1 Influence of the serial interference voltage UZ upon earth resistance
measurements for functions 3P, 4P, 3P + clamp ........................................ 53
10.2.2 Influence of the serial interference voltage UZ upon earth resistance
measurements for function ρ ....................................................................... 53
10.2.3 Influence of the auxiliary electrodes upon earth resistance measurements
for function 3P, 4P, 3P + clamp ................................................................. 53
10.2.4 Influence of the auxiliary electrodes upon earth resistance measurements
for function ρ ............................................................................................... 54
10.2.5 Influence of the auxiliary electrodes upon earth resistance measurements
by means of the percussive method ............................................................. 54
10.2.6 Influence of the interference current IZ upon the result of the earth
resistance measurement 3P+clamp ............................................................ 55
10.2.7 Influence of interference current upon the result of the earth resistance
measurement using double clamps ............................................................. 55
10.2.8 Influence of the relation of the resistance measured with clamp for the
multiple earthing branch to the resultant resistance (3P + clamp) ............ 55
10.2.9 Additional uncertainties in accordance with IEC 61557-4 (2P) ................ 55
10.2.10 Additional uncertainties in accordance with IEC 61557-5 (3P, 4P,
3P + clamp) ................................................................ ................................ 56
11 ACCESSORIES ..................................................................................................... 56
11.1 BASIC ACCESSORIES ................................ ................................ ........................... 56
11.2 ADDITIONAL ACCESSORIES ................................................................................. 57
12 POSITIONS OF THE METER’S COVER ......................................................... 58
13 MANUFACTURER ............................................................................................... 59
Page 7
MRU-200 OPERATING MANUAL Version 5.0
5
1 Safety
The MRU-200 meter has been designed to realize measurements whose results determine the
safety conditions of the installation. Therefore, in order to provide conditions for correct operation and
the correctness of the obtained results, the following recommendations must be observed:
Before you proceed to operate the meter, acquaint yourself thoroughly with the present manual
and observe the safety regulations and specifications determined by the producer.
The MRU-200 meter has been designed for the purpose of measurements of earth connection
and equipotential bonding, ground resistivity, as well as clamps current measurements. Any application that differs from those specified in the present manual may result in a damage to the device and constitute a source of danger for the user.
The device must be operated solely by appropriately qualified personnel with relevant certificates
to realize measurements of electric installation. Operation of the meter realized by unauthorized
personnel may result in damage to the device and constitute a source of danger for the user.
Using this manual does not exclude the need to comply with occupational health and safety regu-
lations and with other relevant fire regulations required during the performance of a particular type
of work. Before starting the work with the device in special environments, e.g. potentially firerisk/explosive environment, it is necessary to consult it with the person responsible for health and
safety.
It is unacceptable to operate the following:
A damaged meter which is completely or partially out of order,
A meter with damaged test leads insulation,
A meter stored for an excessive period of time in disadvantageous conditions (e.g. exces-
sive humidity). If the meter has been transferred from a cool to a warm environment of
a high level of relative humidity, do not realize measurements until the meter has
been warmed up to the ambient temperature (approximately 30 minutes).
Before measurements may commence, make sure the test leads are connected to the appropri-
ate measurement sockets.
Do not operate a meter with an open or incorrectly closed battery (accumulator) compartment or
power it from other sources than those specified in the present manual.
The meter’s inputs are electronically protected from power surge, as a result for example, of ac-
cidental connection to the power supply source:
- for all input combinations – up to 276V for 30 seconds.
Repairs may be realized solely by an authorized service point.
The device complies with the following norms; EN 61010-1 and EN 61557-1, -4, -5.
Note:
The manufacturer reserves the right to modify the appearance, accessories and
technical data of the meter.
Note:
An attempt to install drivers in 64-bit Windows 8 and Windows 10 may result in
displaying "Installation failed" message.
Cause: Windows 8 and Windows 10 by default blocks drivers without a digital
signature.
Solution: Disable the driver signature enforcement in Windows.
Page 8
MRU-200 OPERATING MANUAL Version 5.0
6

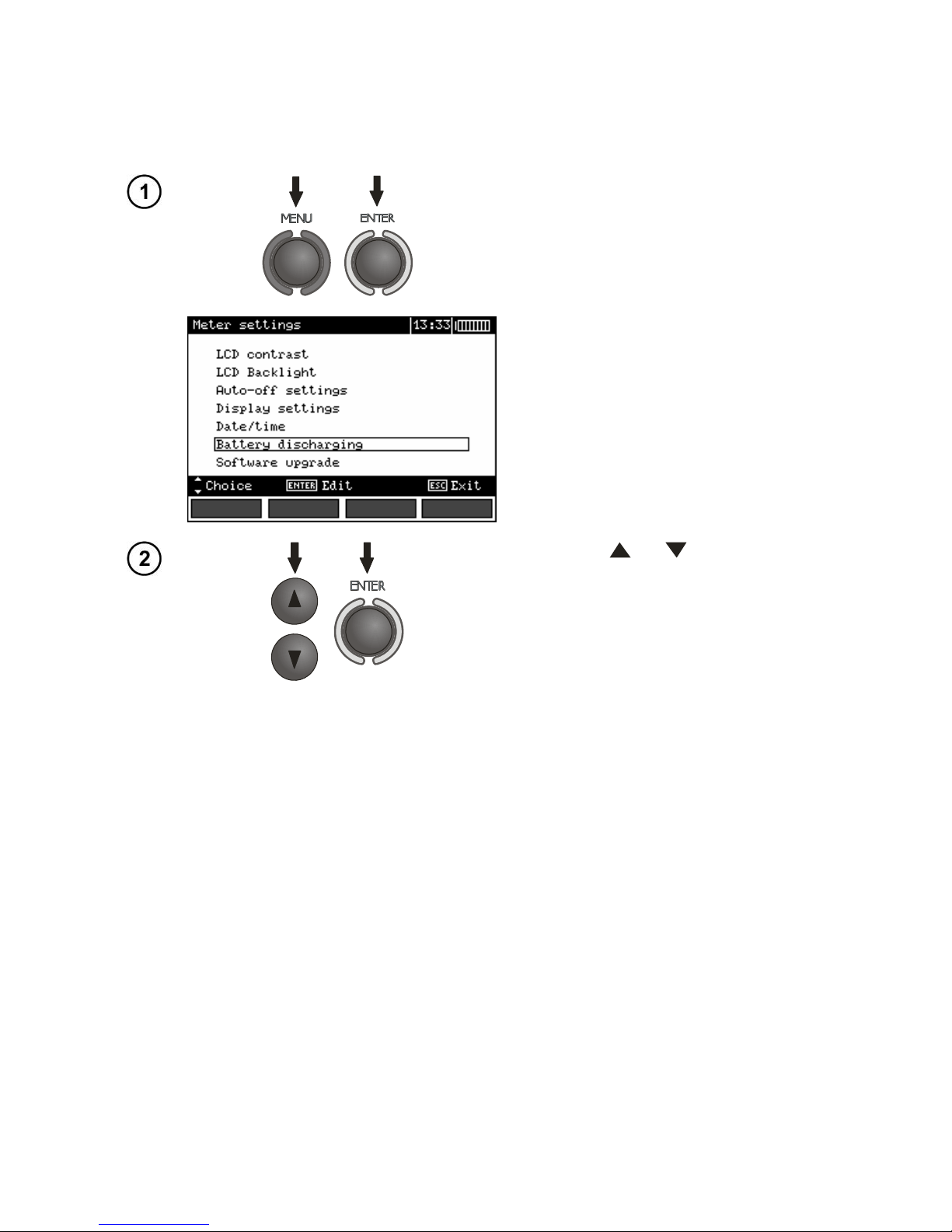

2 Menu
The menu is available at any position of the knob.

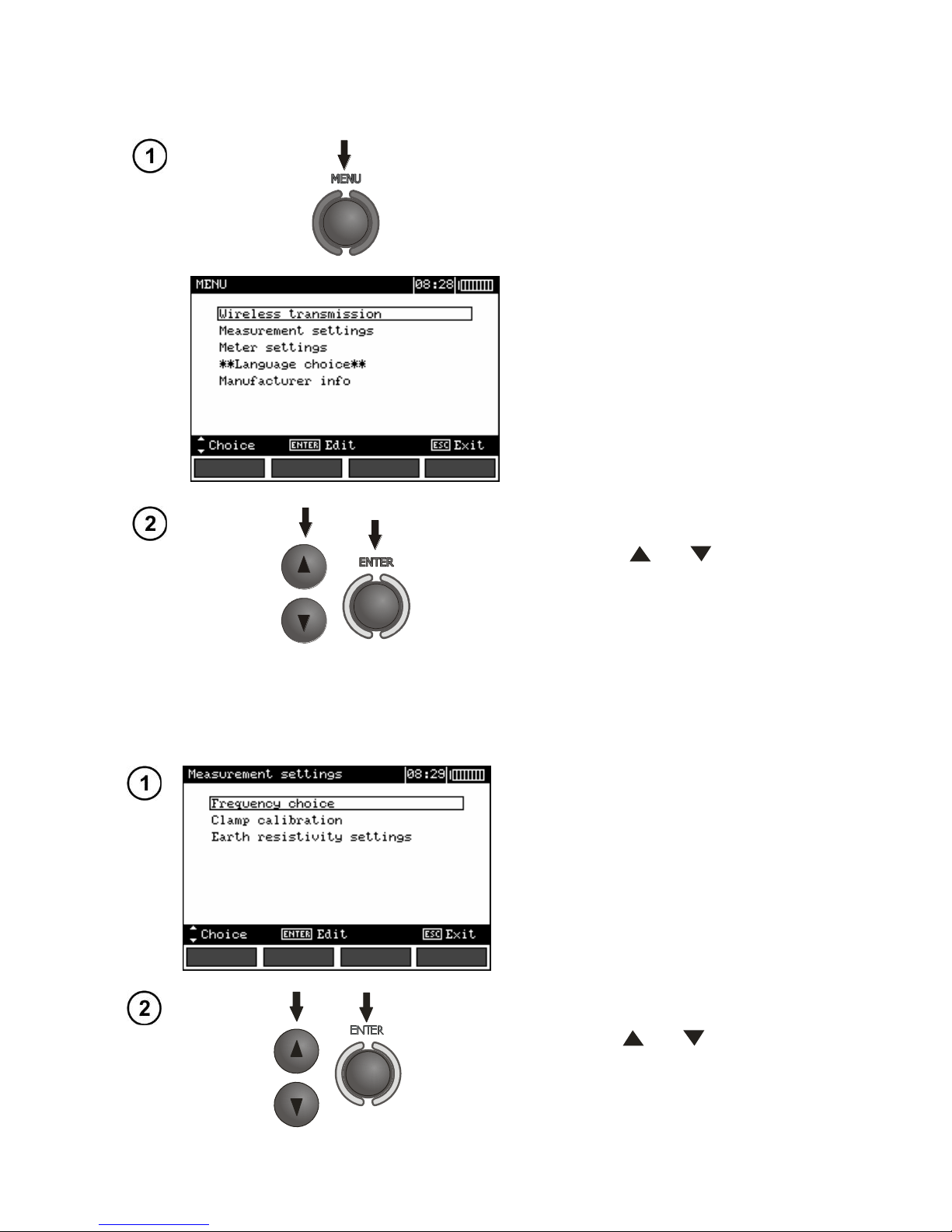

Press MENU.
Using buttons and highlight
the required position.
Press ENTER to select the option.

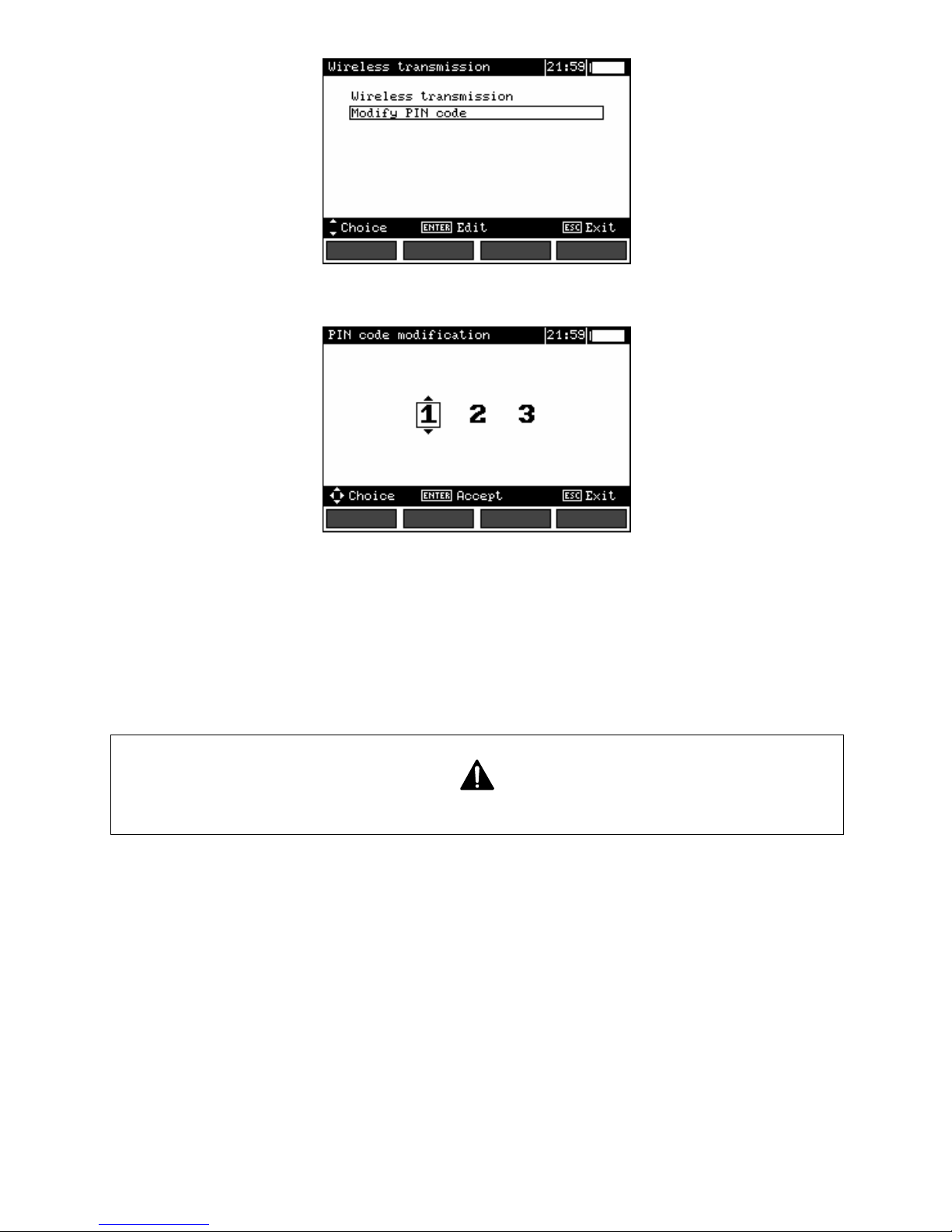

2.1 Wireless transmission
See chapter 5.3.
2.2 Measurement settings
Using buttons and highlight
the required position.
Press ENTER to select the option.
Page 9
MRU-200 OPERATING MANUAL Version 5.0
7
2.2.1 Mains frequency

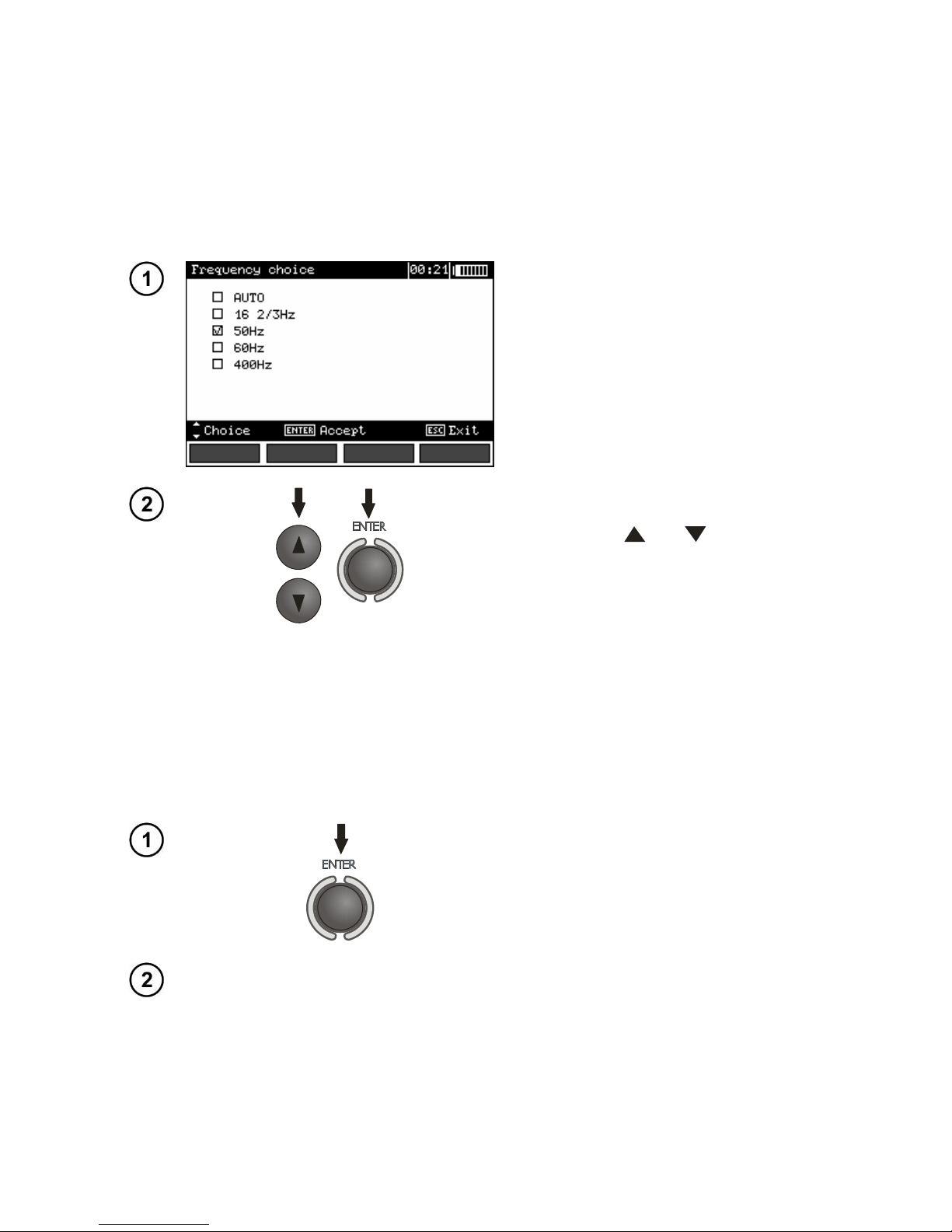

It is necessary to determine the frequency of the mains which is the source of potential interference in order to select the appropriate frequency of the measurement signal. Solely measurements
based upon the correct frequency of the measurement signal will guarantee the optimum interference
filtering. The meter is adapted for filtering of interference from 16 2/3Hz, 50Hz, 60Hz and 400Hz networks. It also has the function of automatic specification of the parameter in question (selection of the
mains frequency = AUTO), which is based upon the result of measurements of the interference voltage realized before the earth resistance measurement. The function is active if the interference voltage UN ≥ 1V. Otherwise the meter adopts the last frequency value selected from the MENU.
Using buttons and select
the frequency and press ENTER to select the option.
2.2.2 Calibration of the measurement clamp
The clamp bought apart for a meter that was purchased before must be calibrated before it is
used for the first time. It may be periodically calibrated in order to avoid the influence of the ageing
elements upon the resolution of measurements. The procedure of calibration must be realized also
after clamp has been replaced.
Calibration of hard clamps
Having read the preliminary information ENTER.
Follow the displayed instructions.
Page 10
MRU-200 OPERATING MANUAL Version 5.0
8
Once the calibration has been successfully concluded,
The following will be displayed.
The meter has determined the correction factor for connected clamp. The factor is saved in the
memory also when the power supply of the meter is off until the following successful calibration of the
clamp has been performed.

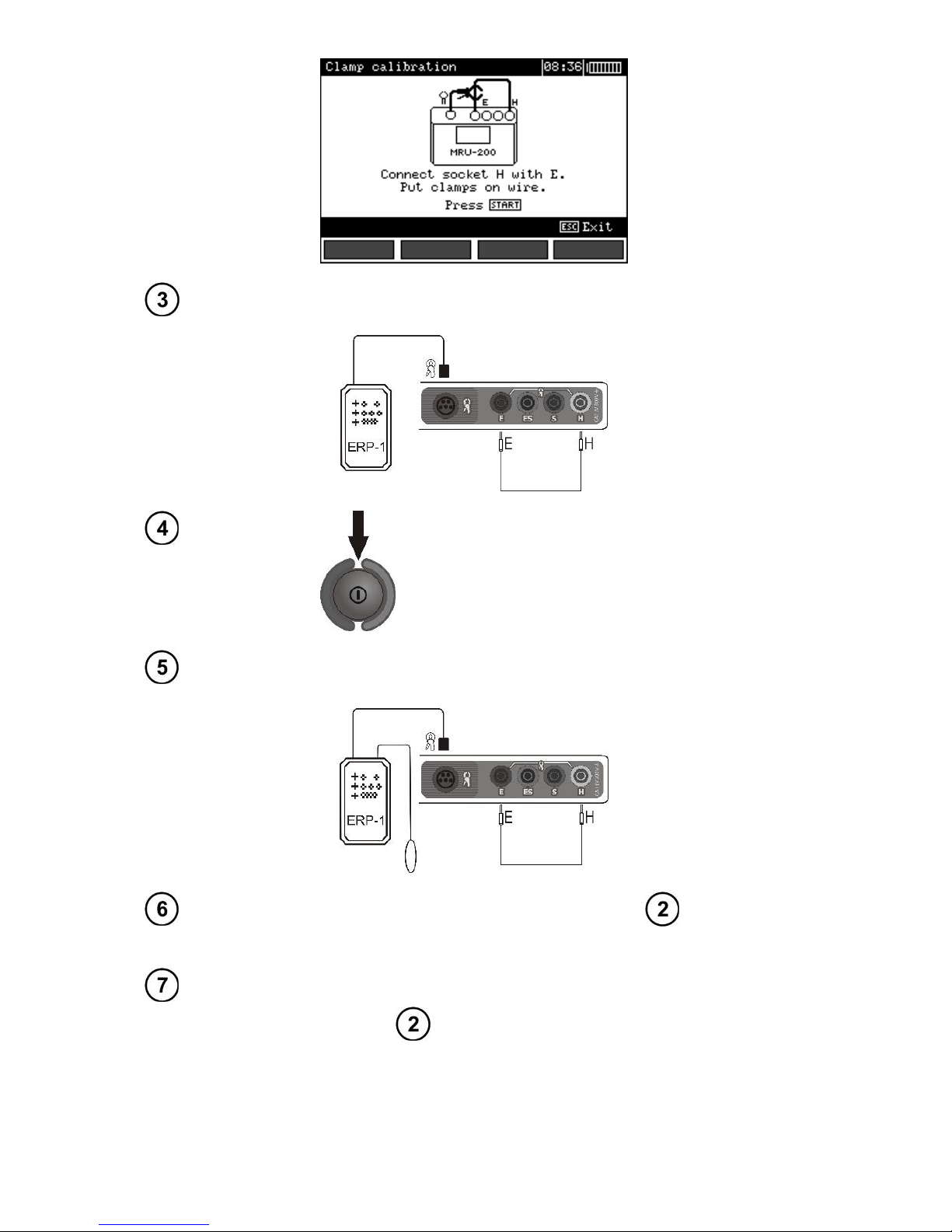

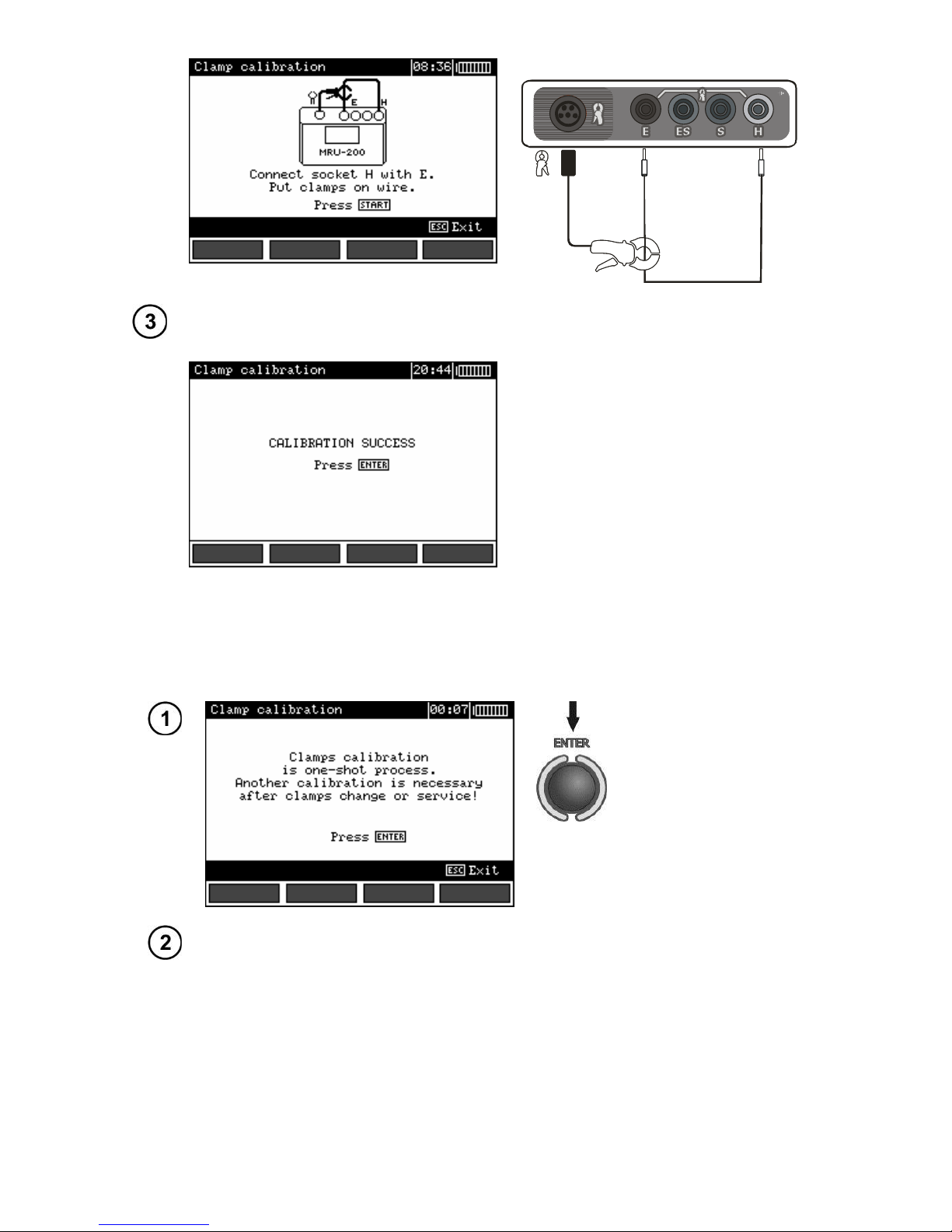

Calibration of flexible clamps (using ERP-1 adapter)
After reading the introductory information
press ENTER.
Follow on-screen prompts displayed by the meter and short H and E sockets with
a wire.
Page 11
MRU-200 OPERATING MANUAL Version 5.0
9
Connect ERP-1 adapter to the terminal of the clamps.
Turn ERP-1 adapter ON.
Connect flexible clamps to ERP-1 adapter.
Wrap the clamps around the wire referred to in sec. (up to 4 times).
Use FLEX and TURNS buttons on ERP-1 adapter to select the clamps
and number of wraps, according to the actual situation around the wire
referred to in sec. .
Page 12
MRU-200 OPERATING MANUAL Version 5.0
10
Press START button on MRU meter.

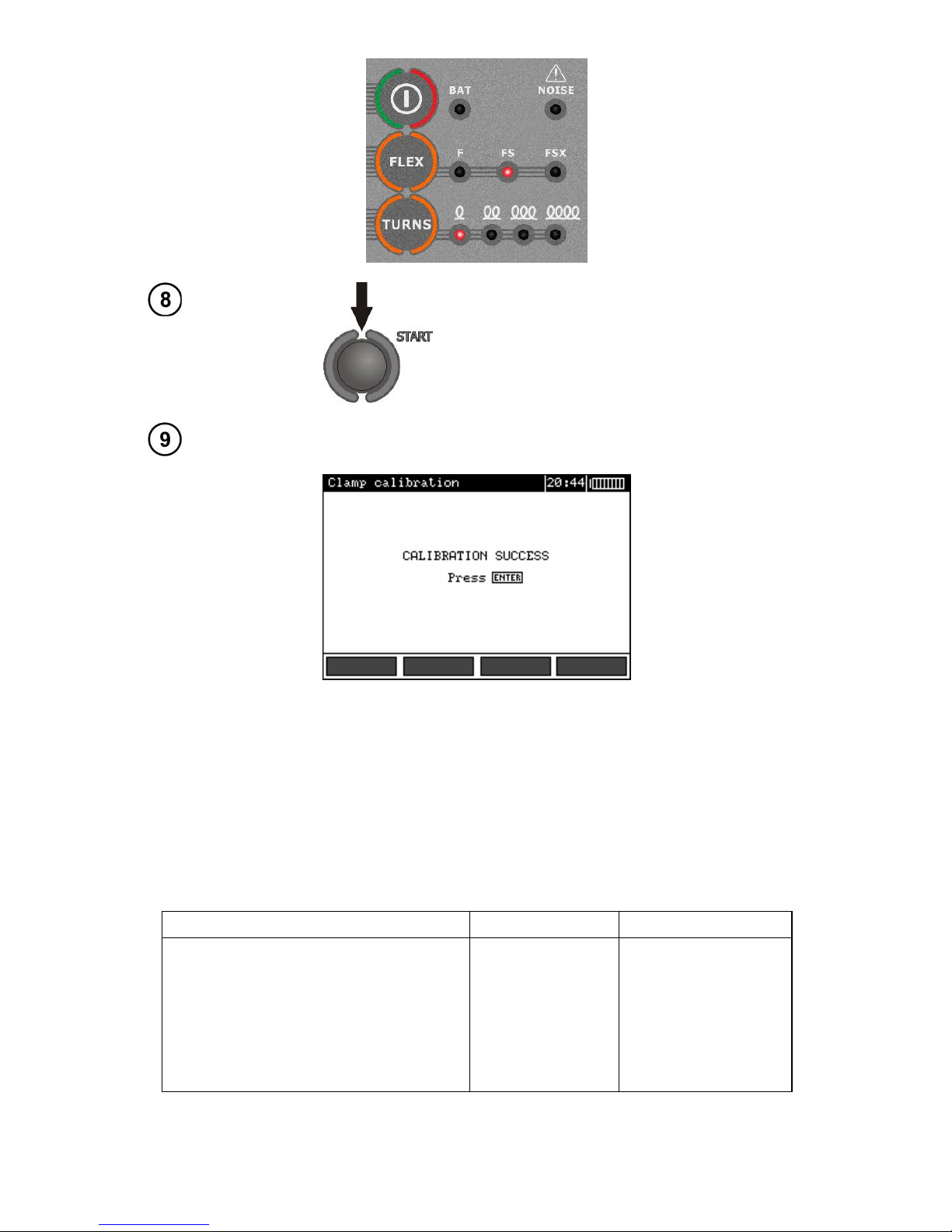

If the calibration is successful, you will see the following screen.
The meter has determined the correction factor for connected clamp. The factor is saved in the
memory also when the power supply of the meter is off until the following successful calibration of the
clamp has been performed.
Note:
- Make sure the test lead passes centrally through the clamp.
Additional information displayed by the meter
Message
Cause
Procedure
ERROR: CLAMP NOT CONNECTED
OR NOT PUT ON WIRE
CONNECTED TO H AND E SOCKET!
The clamp is not
connected
Check whether the
clamp is connected
to the device or
whether it is placed
upon the test lead
used by the meter
to force the passage of current.
Page 13
MRU-200 OPERATING MANUAL Version 5.0
11
Message
Cause
Procedure
ERROR: WIRE NOT CONNECTED
TO H AND E TERMINAL!
CALIBRATION ABORTED. PRESS
ENTER
No wire
Revise the connections
ERROR: CALIBRATION
COEFFICIENT OUT OF RANGE.
CALIBRATION ABORTED. PRESS
ENTER
Incorrect calibration factor
Check the quality of
the connections
and/or replace the
clamp.

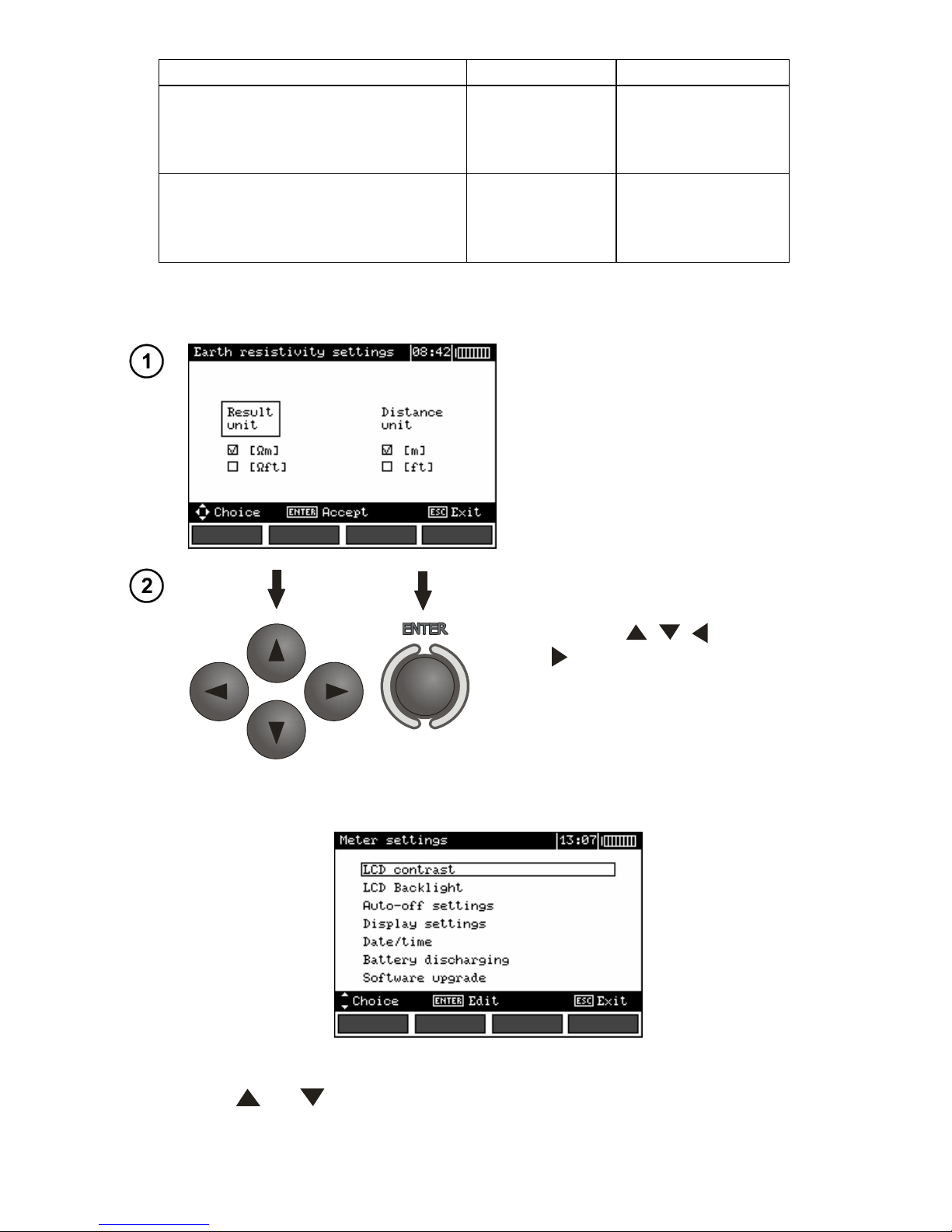

2.2.3 Earth resistivity settings
Using buttons , ,
and select the result and the
distance unit and press
ENTER to confirm.
2.3 Meter settings
2.3.1 LCD contrast
Using the buttons and set the contrast value and press ENTER.
Page 14
MRU-200 OPERATING MANUAL Version 5.0
12
2.3.2 LCD Backlight
Use , to set the time for LCD
backlight shut-off and press ENTER
to confirm.
2.3.3 AUTO-OFF settings
The setting determines the time before the automatic turning-off of the device when it is not in use.
Use buttons and to set the time or AUTO-OFF disable, press ENTER.
2.3.4 Display settings
The setting permits to turn on/off the setting bar display. Use buttons and to set the dis-
play of the setting bar (measurement parameters), press ENTER.
Visible bar
Hidden bar
Page 15
MRU-200 OPERATING MANUAL Version 5.0
13

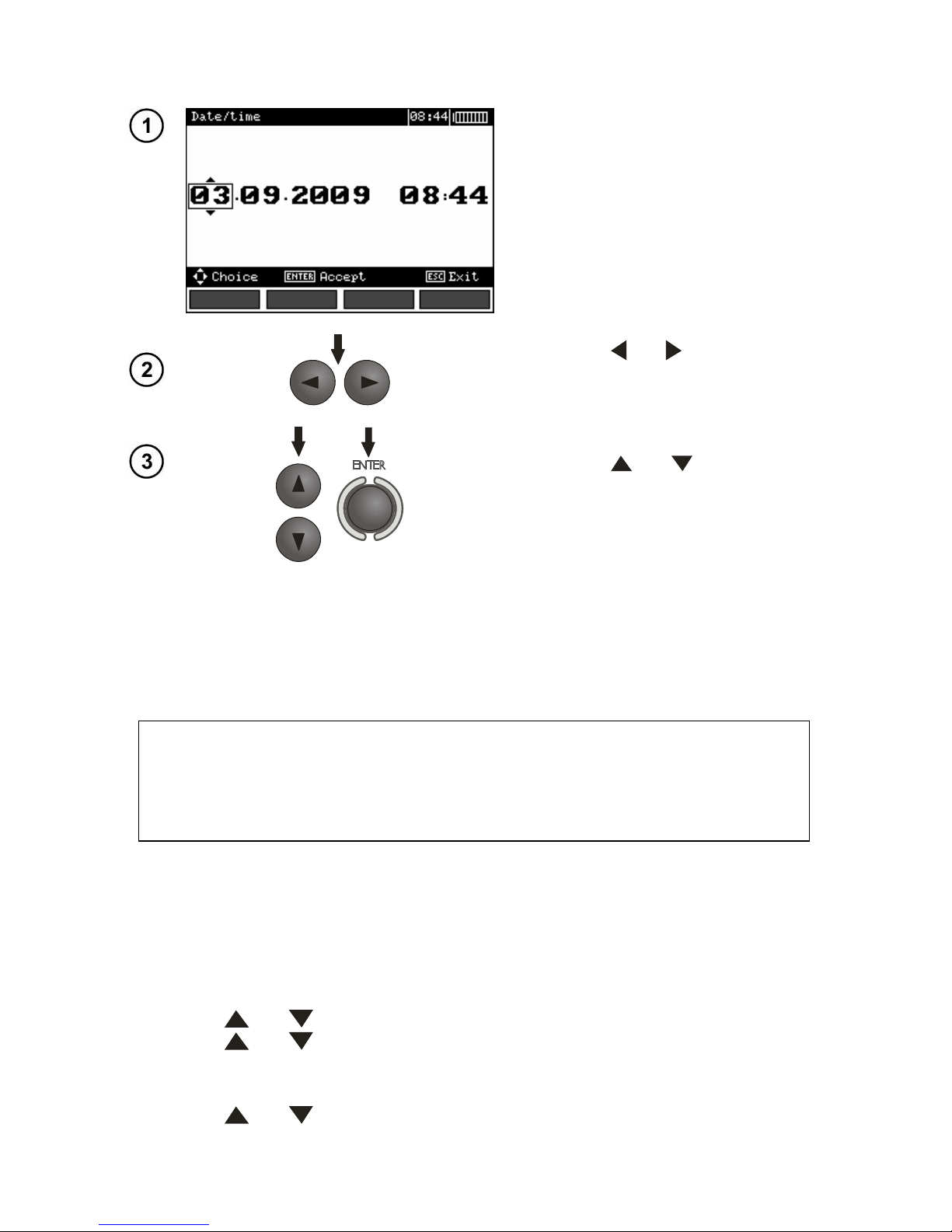

2.3.5 Date and time
Use buttons and to select
the value to be modified (Day,
month, hour, minute).
Use buttons and to set
the value. Once the date and
time have been set, press
ENTER.
2.3.6 Battery discharging
The procedure is fully described in chapter 6.5
2.3.7 Programme update
NOTE!
Before you proceed to programming, charge the accumulators.
During programming do not turn the meter off or disconnect the transmission cable.
Before you proceed to updating the programme, download from the manufacturer’s web page
(www.sonel.pl) the meter programming software, install it in the computer and connect the meter to
the computer.
Having chosen the Program update in the MENU, proceed in accordance with the instructions
displayed by the programme.
2.4 Language choice
Use buttons and to select **Language choice** in the main MENU and press ENTER.
Use buttons and to select the language and press ENTER.
2.5 Information on the manufacturer
Use buttons and in order to select Product info and press ENTER.
Page 16
MRU-200 OPERATING MANUAL Version 5.0
14
3 Measurements
Note:
During measurements the status bar is displayed.
3.1 Measurement of earth connection and equipotential bonding
(2P)
Note:
The measurement complies with the requirements specified in the norm
EN 61557-4 (U<24V, I>200mA for R≤10Ω).
Turn the meter on.
Set the rotational
function selector at 2P.
Connect the object being measured to the terminals S and E of the meter.
The meter is ready for measurement.
The auxiliary display shows the value
of the interference voltage and its frequency. The setting bat shows the
mains frequency set in the MENU.
Page 17
MRU-200 OPERATING MANUAL Version 5.0
15
Press START In order for the test to
commence.
Read out the result.
The result is displayer for 20s.
It may be displayed again ENTER is pressed.
Additional information displayed by the meter
R>19,99kΩ
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.

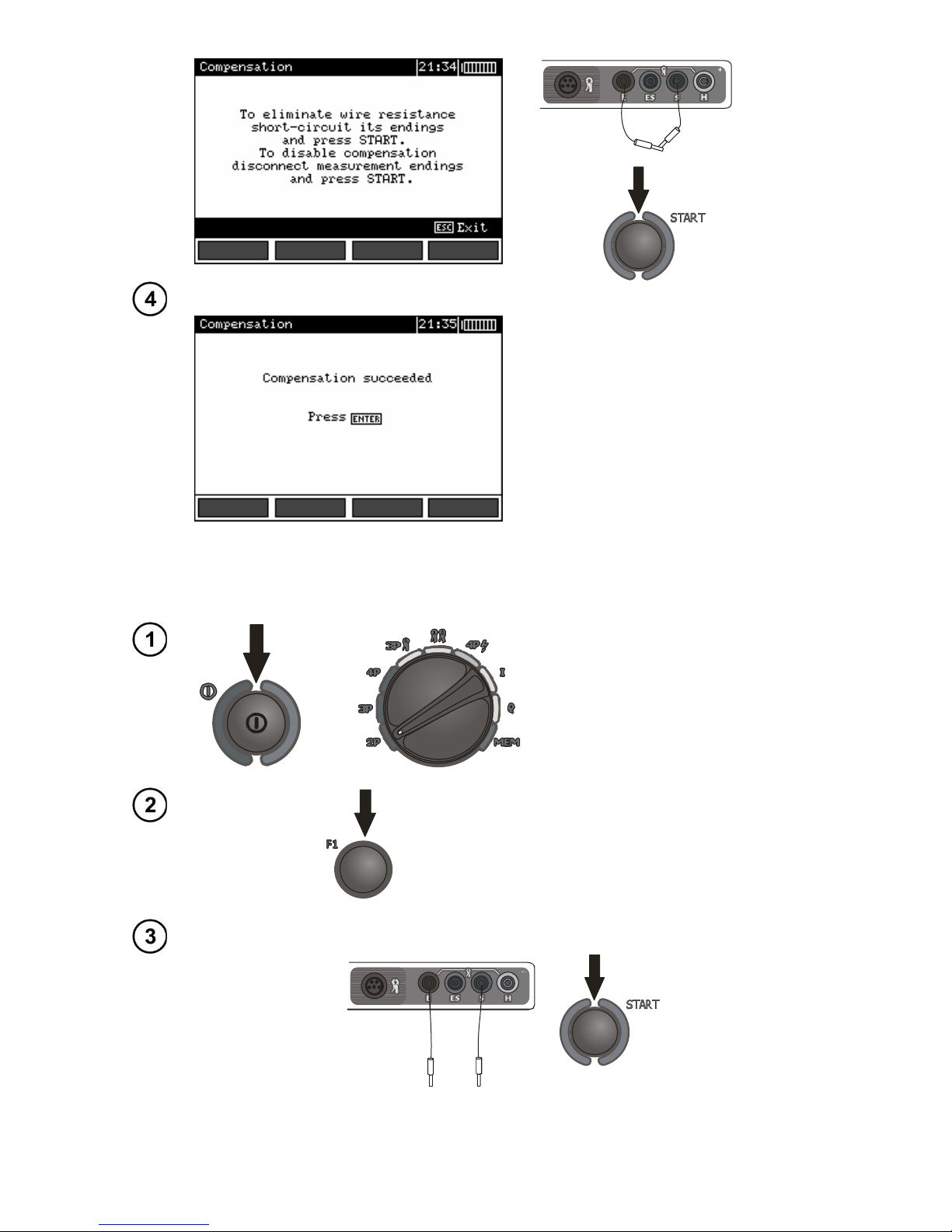

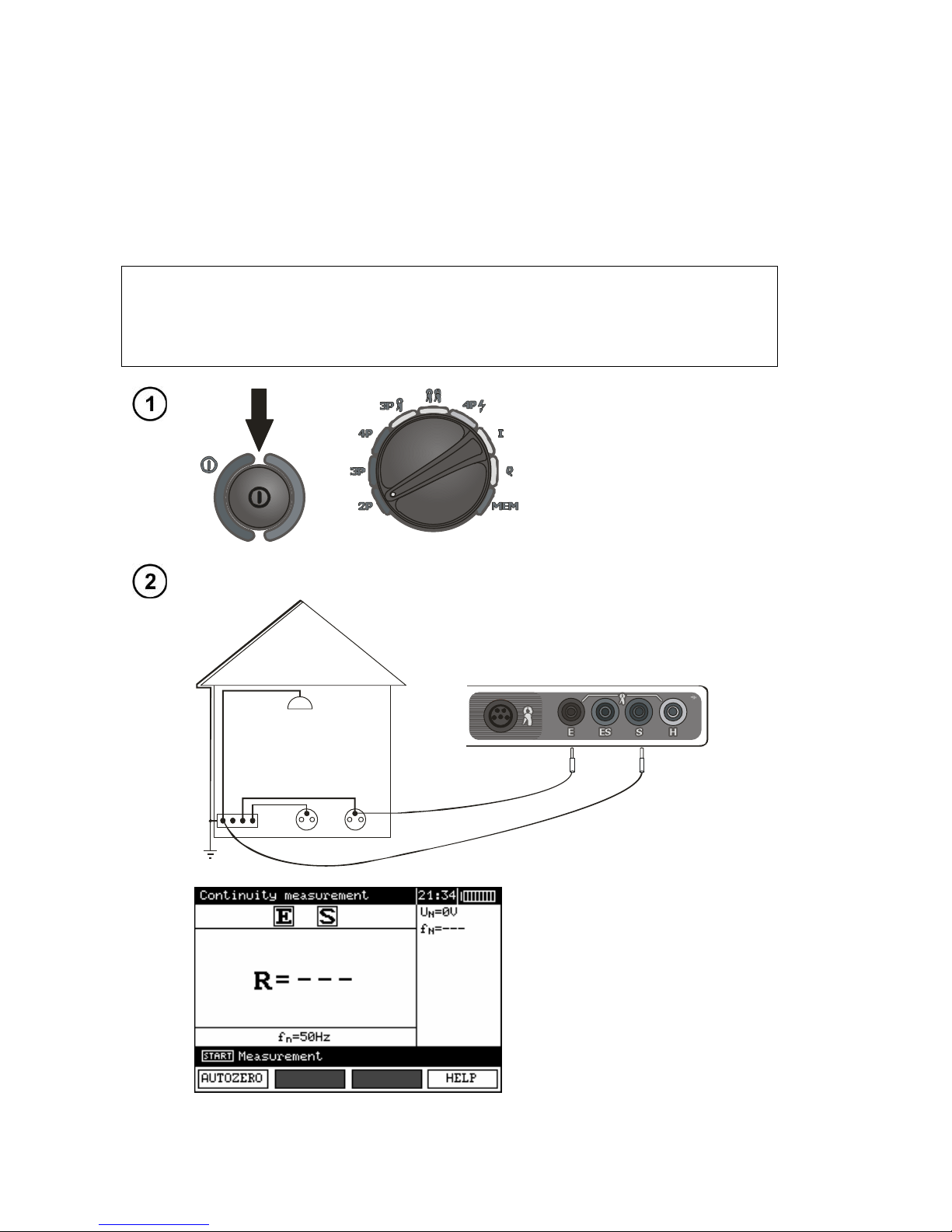

3.2 Calibration of the test leads
In order to eliminate the influence of the resistance of the test leads over the result of the measurement, it is possible to realize its compensation (auto-zeroing). In order to do so the measurement
function 2P includes the AUTOZERO subfunction.

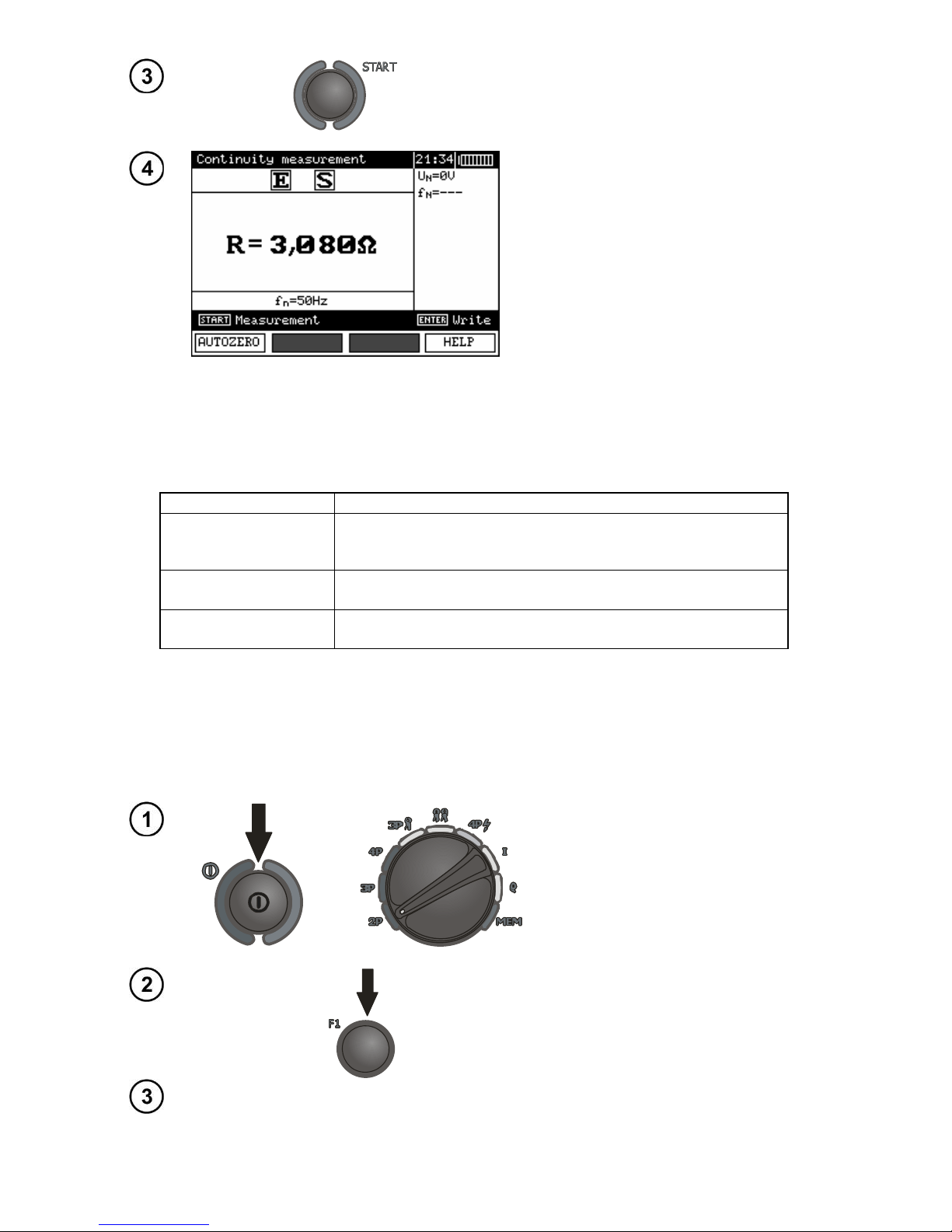

3.2.1 Auto-zeroing on
Turn the meter on.
Set the rotational
function selector at 2P.
Press F1.
Follow the displayed instructions.
Page 18
MRU-200 OPERATING MANUAL Version 5.0
16
E S
CAT IV 300V
Once the auto-reset function has concluded the following will be displayed:
Auto-zeroing is signalled by the legend AUTOZERO on the right-hand side of the display.
3.2.2 Auto-zeroing off
Turn the meter on.
Set the rotational
function selector at 2P.
Press F1.
Separate the test leads. Press START.
S
E
CAT IV 300V
Page 19
MRU-200 OPERATING MANUAL Version 5.0
17
Once the auto-zeroing function has been turned off, the legend AUTOZERO will be no longer displayed.
Note:
- It is sufficient to realize compensation once for the given test leads. It is also remembered once the
meter has been turned off.

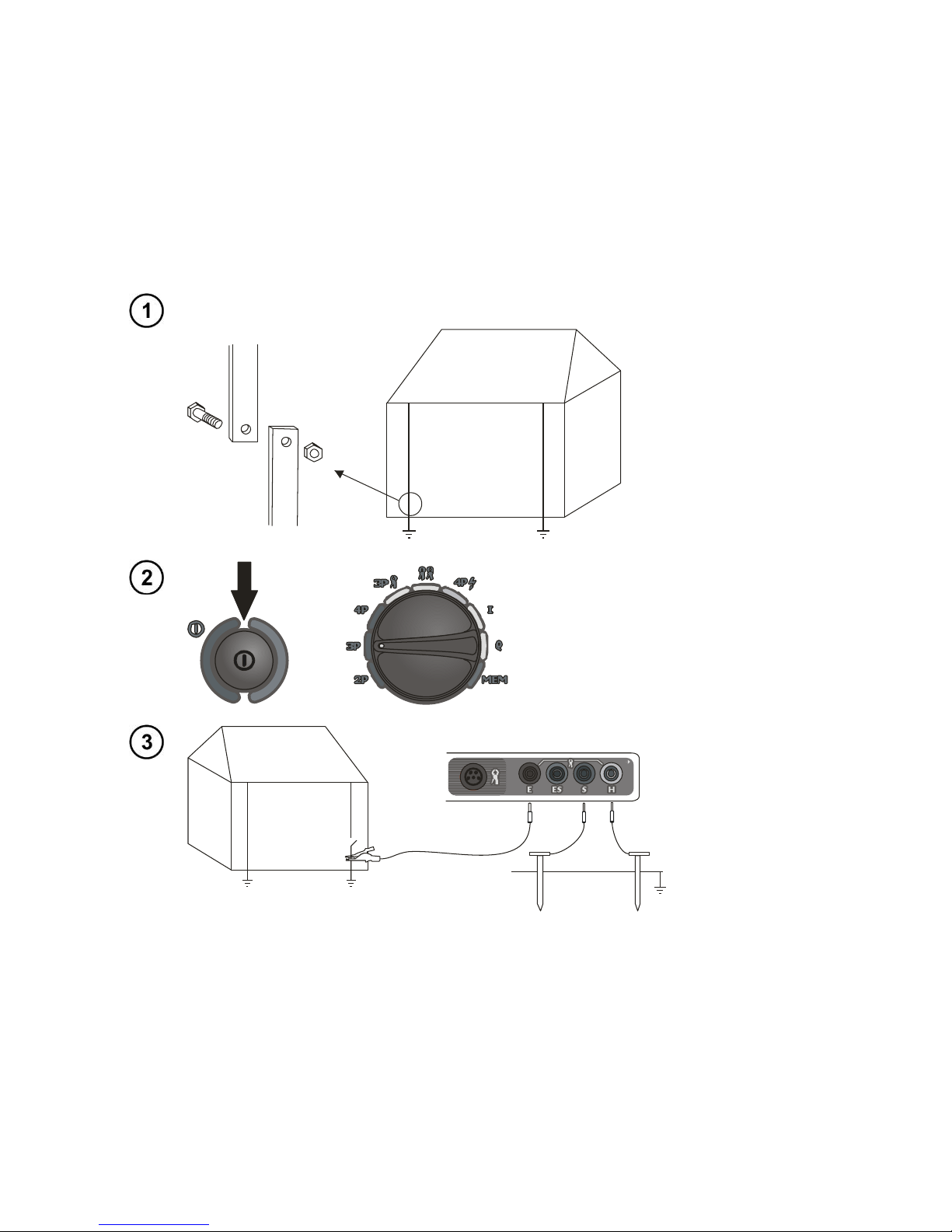

3.3 Measurement 3P
The basic kind of the earth resistance measurement is three-pole measurement.
Disconnect the tested earth electrode for the object installation.
Turn the meter on.
Set the rotational
function selector at 3P.
E S H
CAT IV 300V
Connect the current electrode driver into ground to the H socket of the meter.
Connect the voltage electrode driver into ground to the S socket of the meter.
Connect the tested earth electrode to the E socket of the meter.
The tested earth electrode as well as the current electrode and voltage electrode
should be aligned.
Page 20
MRU-200 OPERATING MANUAL Version 5.0
18
The meter is ready for measurement.

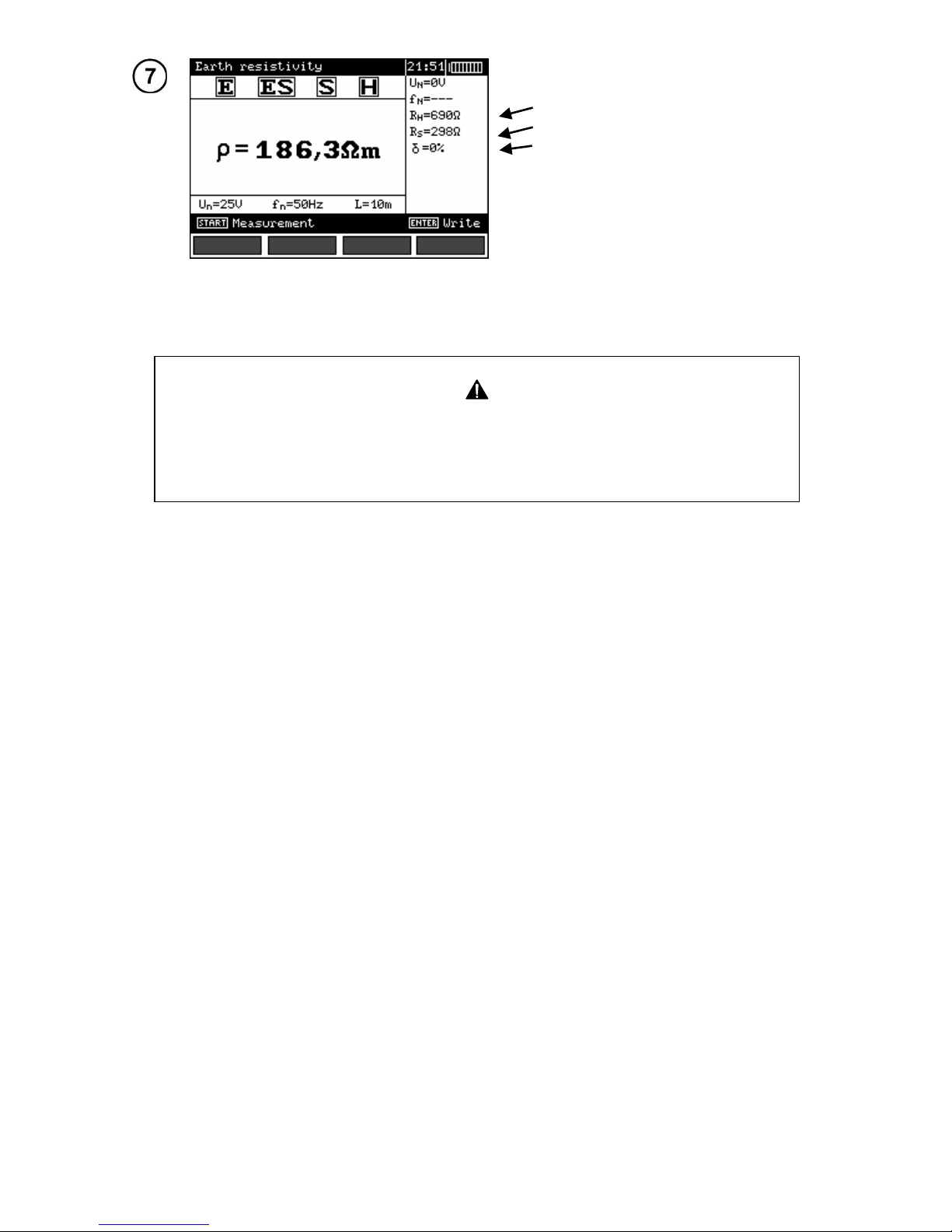

The auxiliary display shows the value of
the interference voltage and its frequency. The setting bar shows the
mains frequency set in the MENU.

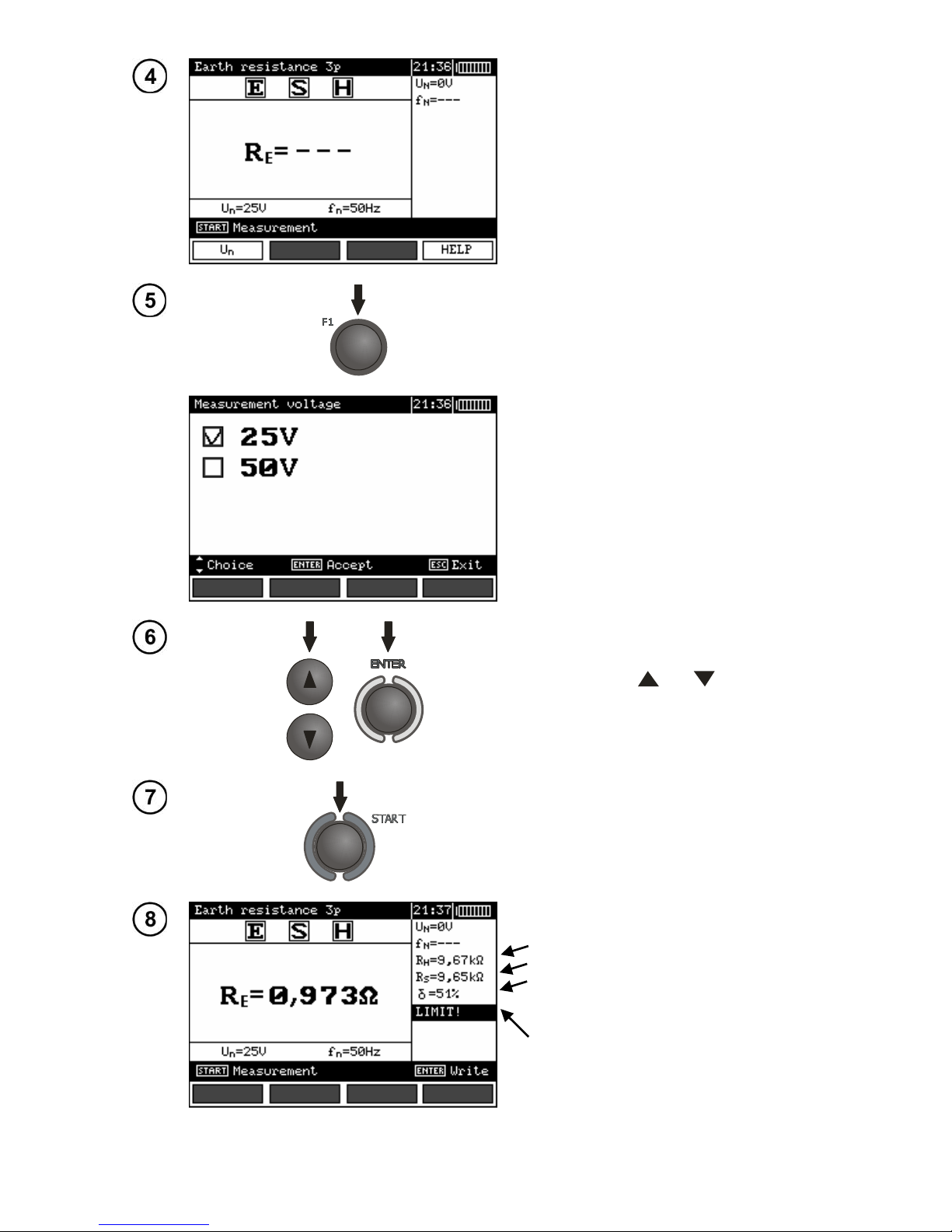

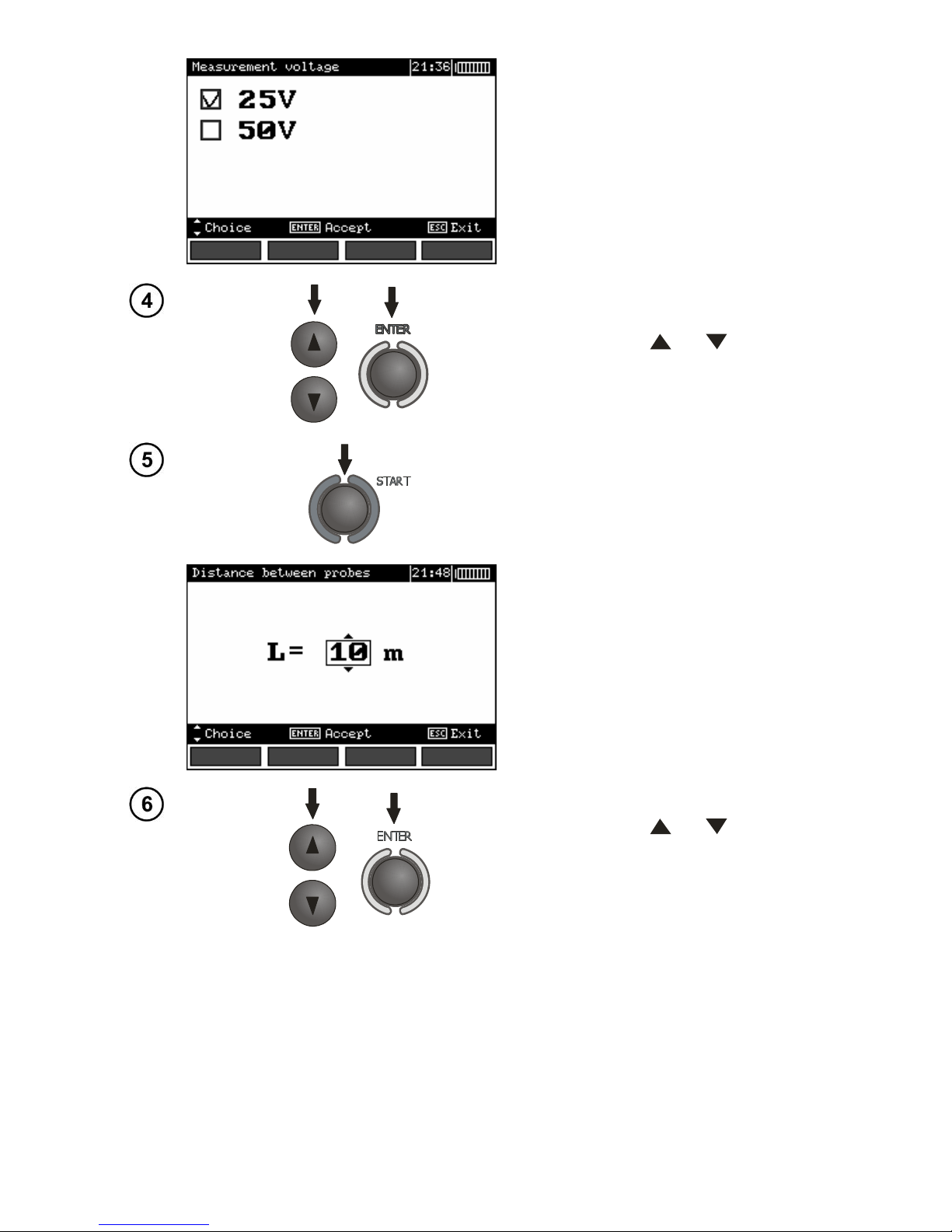

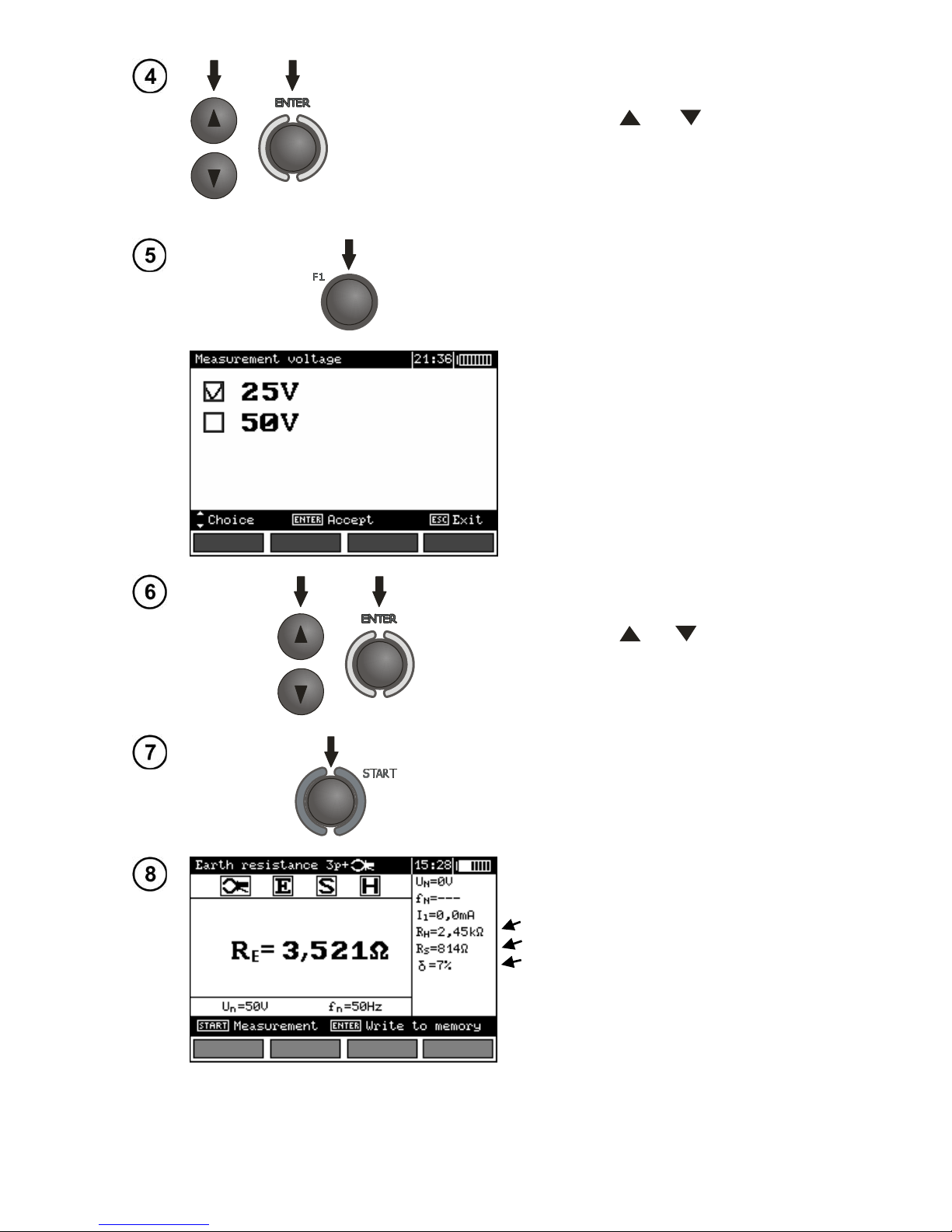

Press F1 to order to modify the
measuring voltage.
Use buttons and to set the
measuring voltage and press
ENTER.
Press START In order for the test to
commence measurement.
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by the
resistance of the electrodes
Displayed, when δ>30%
Page 21
MRU-200 OPERATING MANUAL Version 5.0
19
The result is displayer for 20s. It may be displayed again ENTER is pressed.
S

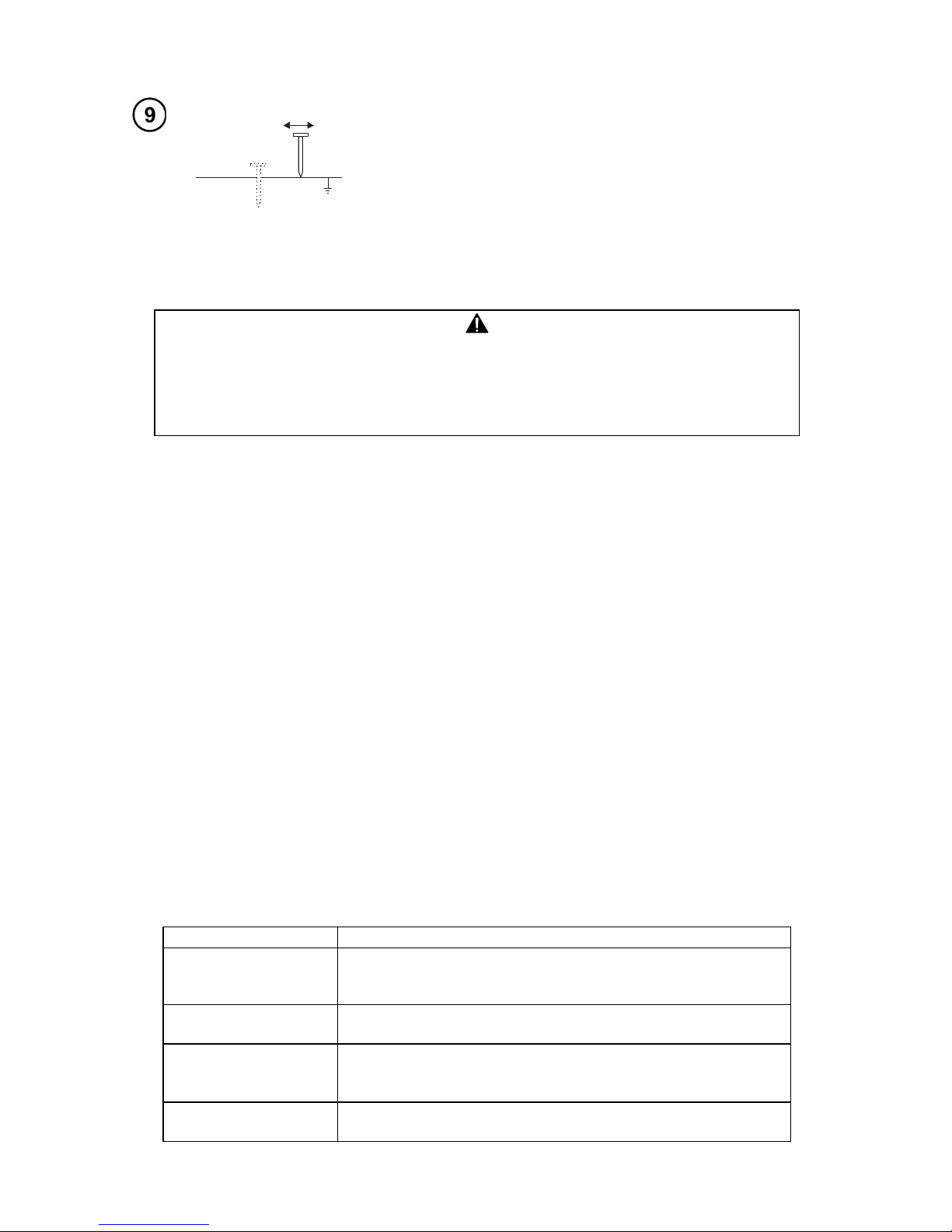

Repeat the measurements (see points 3, 7 and 8) moving
the voltage electrode by a couple of meters: approaching it to
and moving it away from the tested earth electrode.
If the RE test results differ more than 3%, then it is necessary
to increase significantly the distance between the current
electrode from the earth electrode in question and repeat the
measurement.
Note:
Earth resistance measurement may be realised if the interference voltage does
not exceed 24V. The interference voltage is measured up to 100V,
but over 50V is it signalled as hazardous.
Do not connect the meter to a voltage exceeding 100V.
- Pay particular attention to the quality of the connection of the tested object with the test leads –
the contact area must be cleaned of paint, rust, etc.
- If the resistance of the measurement probes is too high, then the measurement of the RE earth
electrode will be distorted by additional uncertainty. A particularly high measurement uncertainty is
generated if we measure a low value of the earth resistance with probes of a weak contact with the
ground (such a situation occurs often if the earth electrode is properly made and the upper layer of
the ground is dry and characterized by a low conductivity). Then the relation between the probe resistance and the resistance of the measured earthing is very high, and so is the case of the measurement uncertainty which depends on it. What may be done then is to perform, in accordance with
the formulae specified in point 10.2, calculations, which will permit to evaluate the influence of the
measurement conditions. It is also possible to improve the contact of the probe with the ground, for
example by means of moistening of the place when the probe is driven, its driving into the ground in
another place or using a 80-centimetre probe. Check also the test leads and make sure the insulation
is not damaged and the contacts: test lead – banana plug – probe are not corroded or loosened. In
most cases the achieved resolution of the measurement is sufficient, but it is necessary to be conscious of the uncertainty the measurement is burdened with.
- If the resistance of H and S probes or one of them exceeds 19,9kΩ, an appropriate message is displayed: "R_H and R_S electrodes resistance are higher than 19.9 kΩ! Measurement impossi-
ble!".
- Manufacturer’s calibration doesn’t include the resistance of test leads. Displayed result is sum of
measured object and test leads resistance.
Additional information displayed by the meter
RE>19,99kΩ
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncertainties calculated on the basis of the measured values)
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
Page 22
MRU-200 OPERATING MANUAL Version 5.0
20

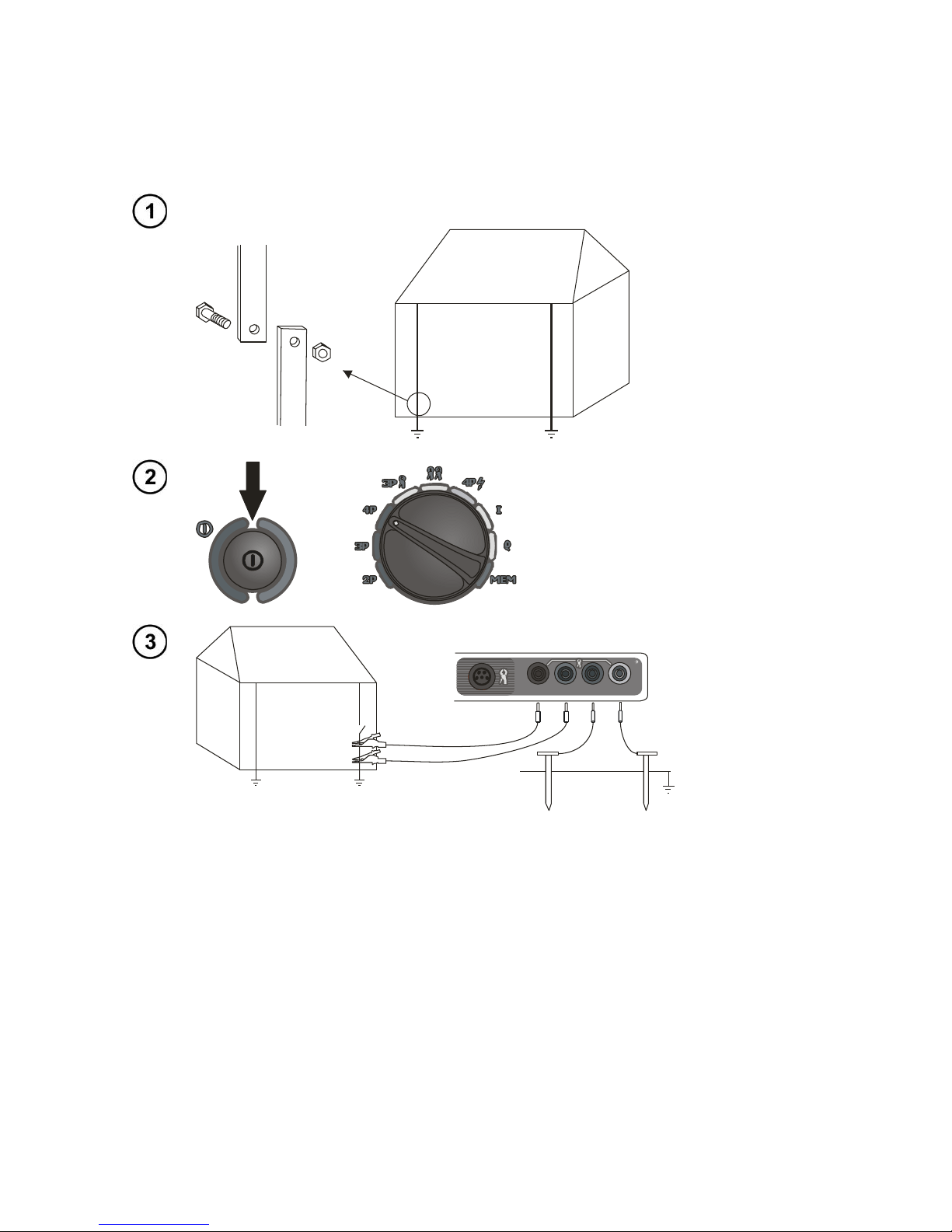

3.4 Measurement 4p
The four-pole method is recommended in the case of measurements of earth resistance of very
low values. It permits to eliminate the influence of the test leads resistance over the result of the
measurement. In order to evaluate the resistance of the ground it is recommended to use the dedicated measurement function (point 3.9).
Disconnect the tested earth electrode for the object installation.
Turn the meter on.
Set the rotational
function selector at 4P.
E S H
E ES S H
CAT IV 300V
ES
Connect the current electrode driver into ground to the H socket of the meter.
Connect the voltage electrode driver into ground to the S socket of the meter.
Connect the tested earth electrode to the E socket of the meter.
Connect the ES socket to the earth electrode In question below the E cable.
The tested earth electrode as well as the current electrode and voltage electrode
should be aligned.
Page 23
MRU-200 OPERATING MANUAL Version 5.0
21
The meter is ready for measurement.
The auxiliary display shows the value
of the interference voltage and its frequency. The setting bar shows the
mains frequency set in the MENU.

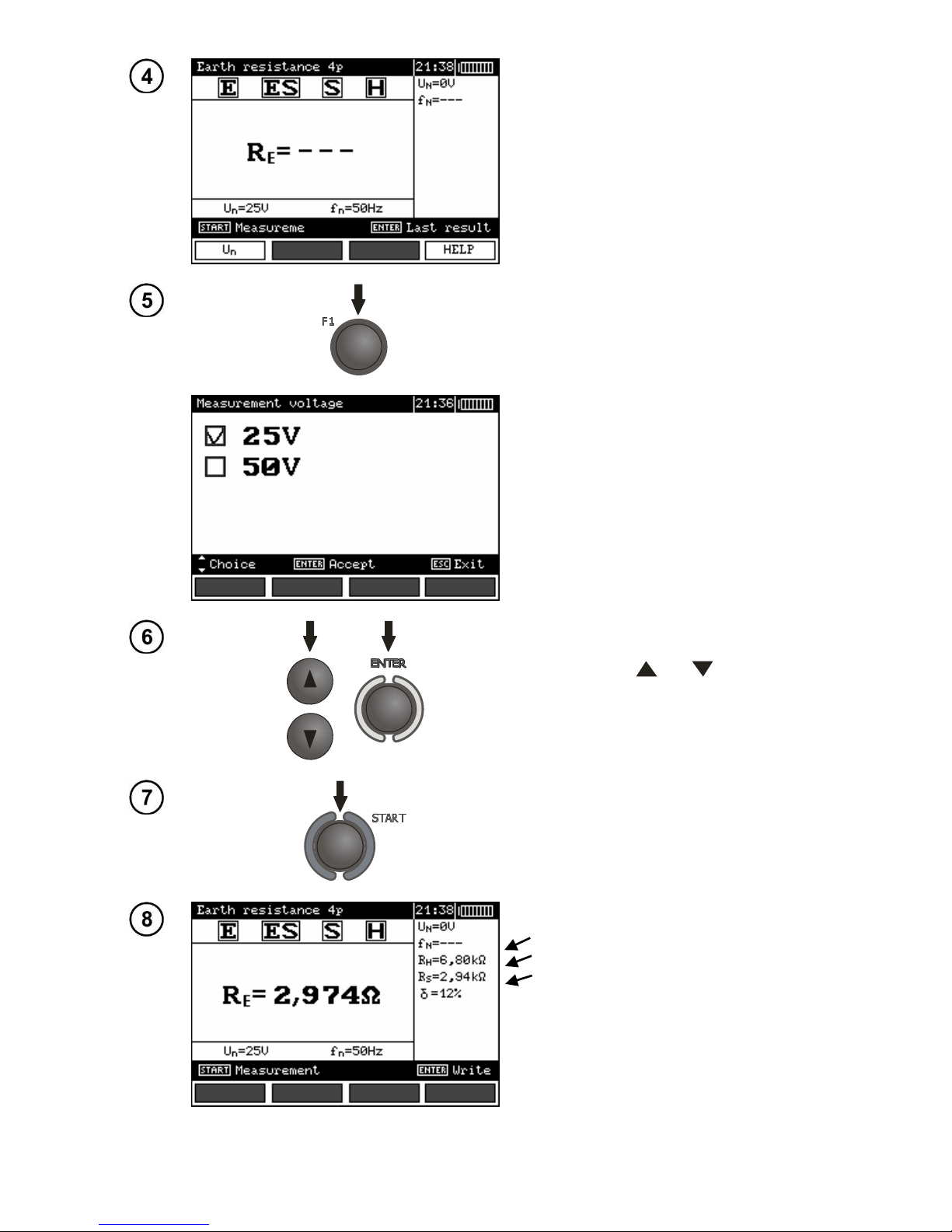

Press F1 to order to modify the
measuring voltage.
Use buttons and to set the
measuring voltage and press
ENTER.
Press START In order for the test to
commence measurement.
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by the
resistance of the electrodes
Page 24
MRU-200 OPERATING MANUAL Version 5.0
22
The result is displayer for 20s. It may be displayed again ENTER is pressed.
S
Repeat the measurements (see points 3, 7 and 8) moving
the voltage electrode by a couple of meters: approaching it
to and moving it away from the tested earth electrode.
If the RE test results differ more than 3%, then it is necessary to increase significantly the distance between the current electrode from the earth electrode in question and repeat the measurement.
Note:
Earth resistance measurement may be realized if the interference voltage does
not exceed 24V. The interference voltage is measured up to 100V, but over 50V
is it signalled as hazardous.
Do not connect the meter to a voltage exceeding 100V.
- Pay particular attention to the quality of the connection of the tested object with the test leads –
the contact area must be cleaned of paint, rust, etc.
- If the resistance of the measurement probes is too high, then the measurement of the RE earth
electrode will be distorted by additional uncertainty. A particularly high measurement uncertainty is
generated if we measure a low value of the earth resistance with probes of a weak contact with the
ground (such a situation occurs often if the earth electrode is properly made and the upper layer of
the ground is dry and characterized by a low conductivity). Then the relation between the probe resistance and the resistance of the measured earthing is very high, and so is the case of the measurement uncertainty which depends on it. What may be done then is to perform, in accordance with
the formulae specified in point 10.2, calculations, which will permit to evaluate the influence of the
measurement conditions. It is also possible to improve the contact of the probe with the ground, for
example by means of moistening of the place when the probe is driven, its driving into the ground in
another place or using a 80-centimetre probe. Check also the test leads and make sure the insulation
is not damaged and the contacts: test lead – banana plug – probe are not corroded or loosened. In
most cases the achieved resolution of the measurement is sufficient, but it is necessary to be conscious of the uncertainty the measurement is burdened with.
- If the resistance of H and S probes or one of them exceeds 19,9kΩ, an appropriate message is displayed: "R_H and R_S electrodes resistance are higher than 19.9 kΩ! Measurement impossi-
ble!".
- Manufacturer’s calibration doesn’t include the resistance of test leads. Displayed result is sum of
measured object and test leads resistance.
Additional information displayed by the meter
RE>19,99kΩ
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncertainties calculated on the basis of the measured values)
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
Page 25
MRU-200 OPERATING MANUAL Version 5.0
23

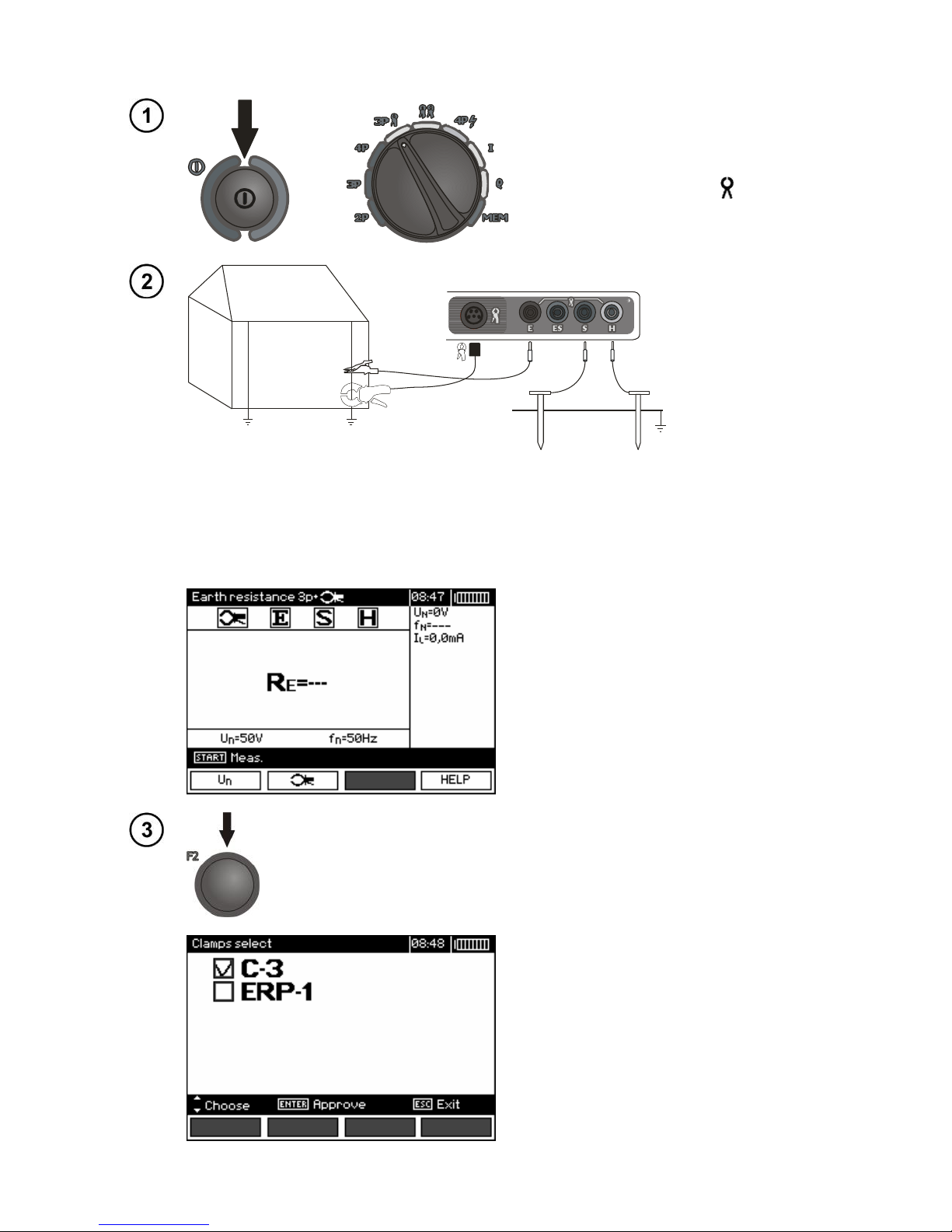

3.5 Measurement 3p + clamp
Turn the meter on.
Set the rotational
function selector at 3P .
E S H
CAT IV 300V
Connect the current electrode driver into ground to the H socket of the meter.
Connect the voltage electrode driver into ground to the S socket of the meter.
Connect the tested earth electrode to the E socket of the meter.
The tested earth electrode as well as the current electrode and voltage electrode
should be aligned.
Snap the clamp on the tested earth electrode below the E cable connection.
The meter is ready for measurement.
The auxiliary display shows the value of
the interference voltage and its frequency. The setting bar shows the mains frequency set in the MENU.
Press button F2 to select measurement
with C-3 clamp.
Page 26
MRU-200 OPERATING MANUAL Version 5.0
24
Use buttons and to select C-3
clamp and press ENTER.
Press F1 to ordered to modify the measuring voltage.
Use buttons and to set the measuring voltage and press ENTER.
Press START in order for the test to
commence measurement.
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by
the resistance of the electrodes.
The result is displayer for 20s.
It may be displayed again ENTER is pressed.
Page 27
MRU-200 OPERATING MANUAL Version 5.0
25
S

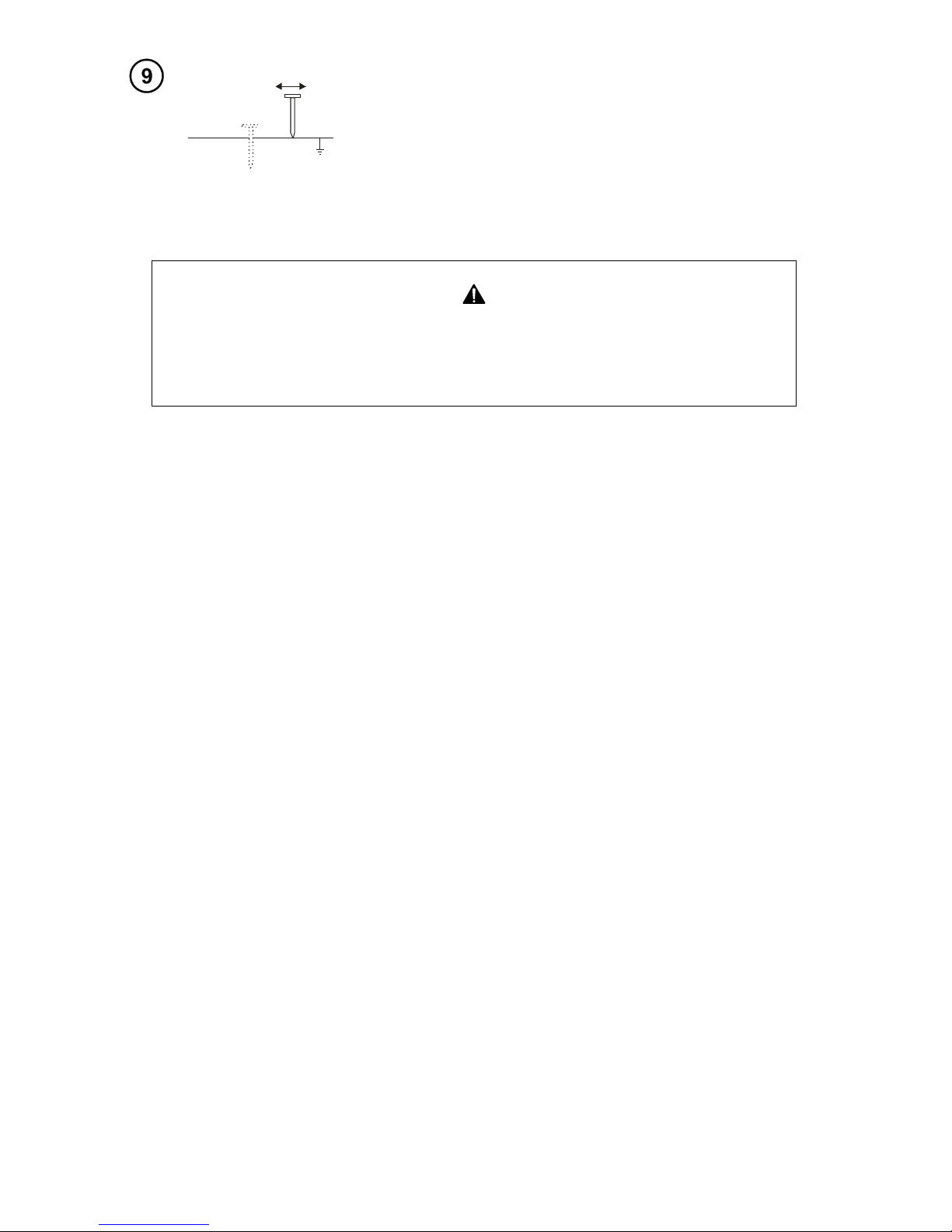

Repeat the measurements (see points 2 and 5) moving the
voltage electrode by a couple of meters: approaching it to and
moving it away from the tested earth electrode.
If the RE test results differ more than 3%, then it is necessary
to increase significantly the distance between the current electrode from the earth electrode in question and repeat the gauging.
Notes:
Earth resistance measurement may be realized if the interference voltage does
not exceed 24V. The interference voltage is measured up to 100V, but over 50V
is it signalled as hazardous.
Do not connect the meter to a voltage exceeding 100V.
- The clamps are not the part of meter basic accessories, you have to purchase them apart.
- The clamp must be calibrated before it is used for the first time. It may be periodically calibrated in
order to avoid the influence of the ageing elements upon the resolution of measurements. The clamp
calibration option is in the MENU.
- Pay particular attention to the quality of the connection of the tested object with the test leads – the
contact area must be cleaned of paint, rust, etc.
- If the resistance of the measurement probes is too high, then the measurement of the RE earth
electrode will be distorted by additional uncertainty. A particularly high measurement uncertainty is
generated if we measure a low value of the earth resistance with probes of a weak contact with the
ground (such a situation occurs often if the earth electrode is properly made and the upper layer of
the ground is dry and characterized by a low conductivity). Then the relation between the probe resistance and the resistance of the measured earthing is very high, and so is the case of the measurement uncertainty which depends on it. What may be done then is to perform, in accordance with
the formulae specified in point 10.2, calculations, which will permit to evaluate the influence of the
measurement conditions. It is also possible to improve the contact of the probe with the ground, for
example by means of moistening of the place when the probe is driven, its driving into the ground in
another place or using a 80-centimetre probe. Check also the test leads and make sure the insulation
is not damaged and the contacts: test lead – banana plug – probe are not corroded or loosened. In
most cases the achieved resolution of the measurement is sufficient, but it is necessary to be conscious of the uncertainty the measurement is burdened with.
- If the resistance of H and S probes or one of them exceeds 19,9kΩ, an appropriate message is displayed: "R_H and R_S electrodes resistance are higher than 19.9 kΩ! Measurement impossi-
ble!".
- Manufacturer’s calibration doesn’t include the resistance of test leads. Displayed result is sum of
measured object and test leads resistance.
Page 28
MRU-200 OPERATING MANUAL Version 5.0
26
Additional information displayed by the meter
RE>1999Ω
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncertainties calculated on the basis of the measured values)
IL>max
Excessive interfering current, the measurement error may
exceed the basic error

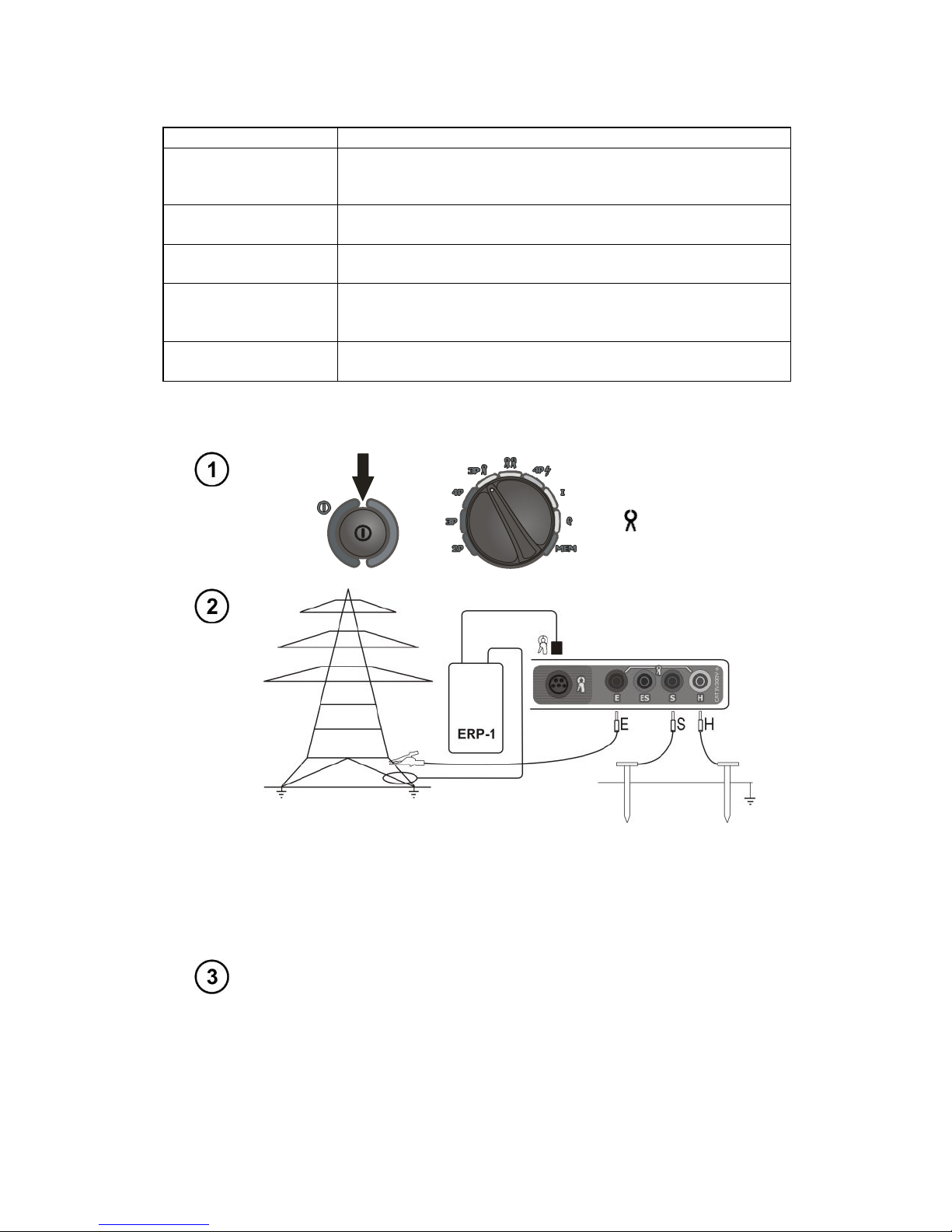

3.6 Measurement 3p + ERP-1 adapter
Turn the meter on.
Set the rotational
function selector at
3P .
The current electrode (driven into earth) should be connected to H socket of the meter.
The voltage electrode (driven into earth) should be connected to S socket of the meter.
The tested leg of the pole should be connected to E socket of the meter with the lead.
The tested leg of the pole, the current electrode and the voltage electrode should be arranged in one
line.
Clamps should be attached to the tested leg of the pole below the connection point of E lead.
Select voltage measurement as described in par. 3.5.
Page 29
MRU-200 OPERATING MANUAL Version 5.0
27

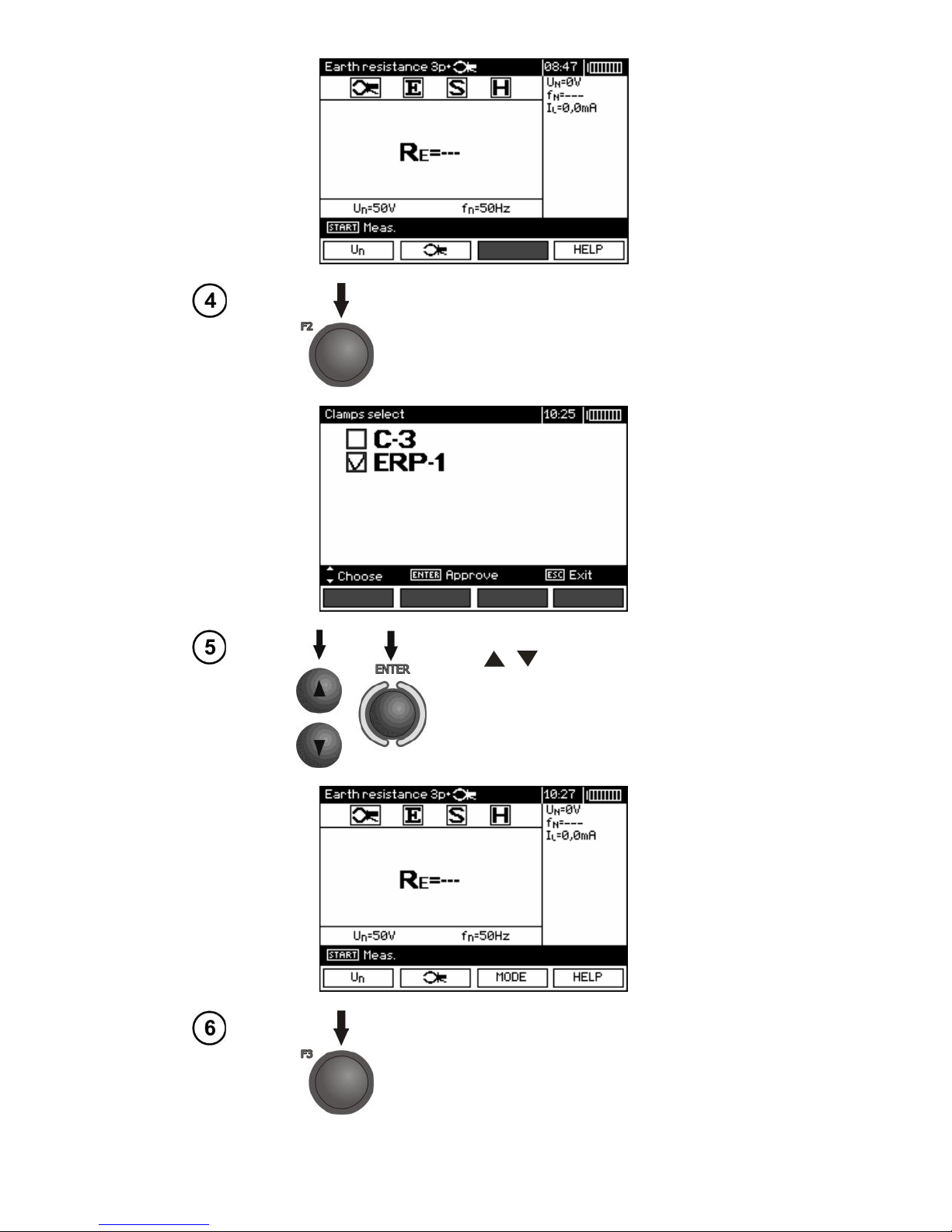

Press F2 button to select the measurement
in ERP-1.
Use , buttons to select the measurement with ERP-1, press ENTER.
Press F3 button to select the number of
pole legs.
Page 30
MRU-200 OPERATING MANUAL Version 5.0
28
Use , buttons to select the number
of pole legs, press ENTER.

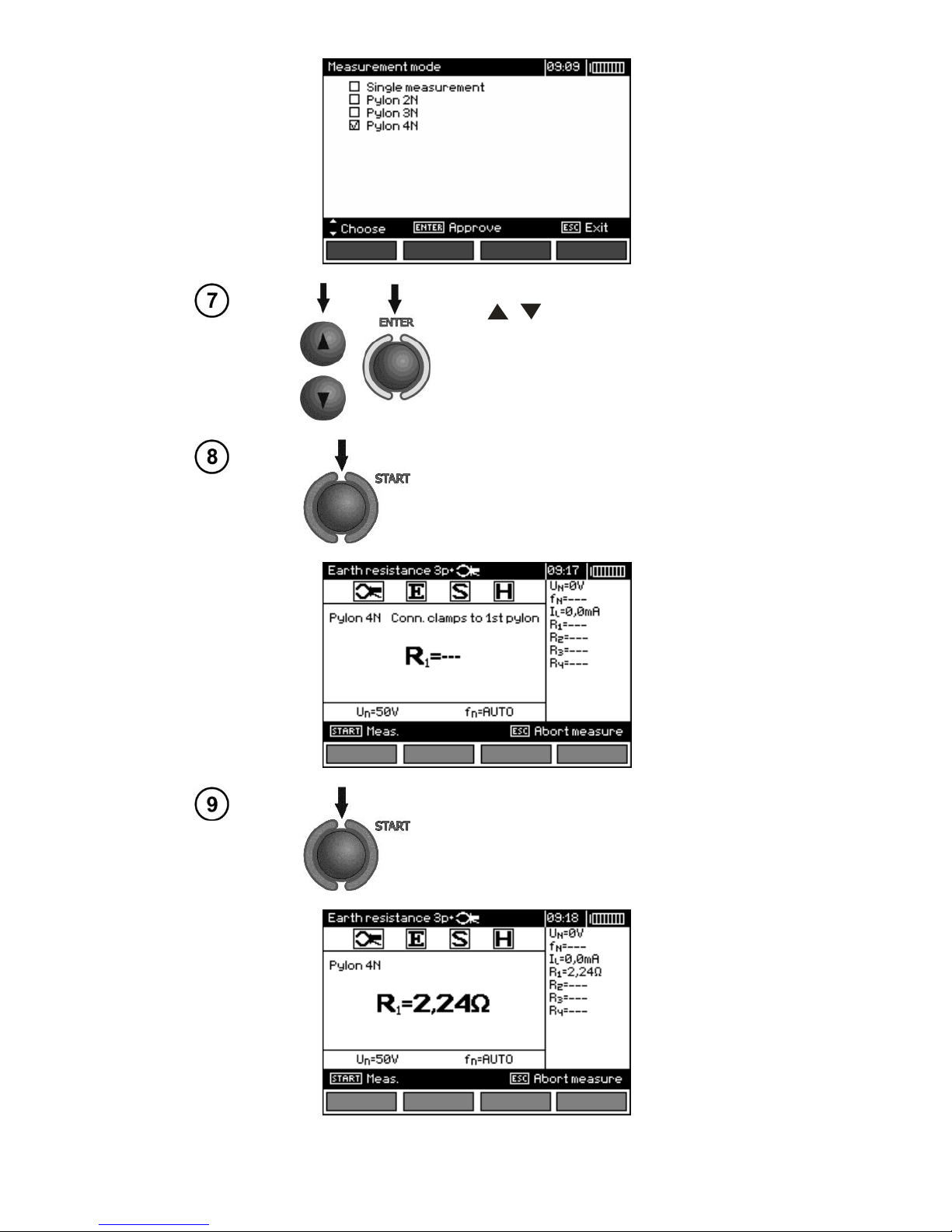

Press START. Follow the command on the
screen and fix the clamps to the first leg (if
not already done).
To start the measurement, press START
push-button again.
Page 31
MRU-200 OPERATING MANUAL Version 5.0
29

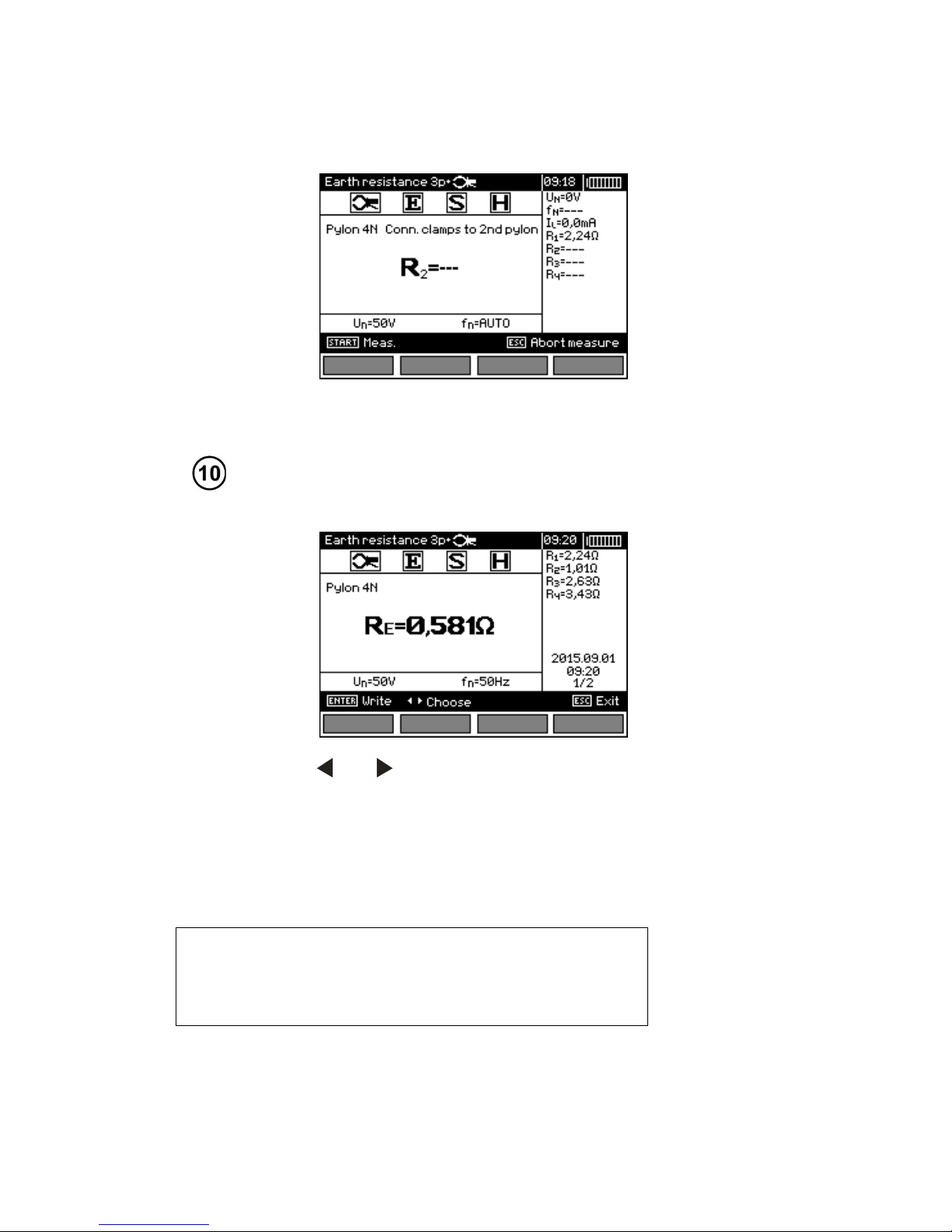

After the measurement of the first leg of the pole, the measured resistance value of the tested leg is shown on the main screen as R1 for
5 seconds. After this time, the meter transfer R1 result to the window
on the right side and displays a message to the user to connect the
clamps to another leg of the pole.
This result may be restored on the main screen for another 5 seconds
by pressing ENTER.
After performing the measurement on the last leg of the pole and
displaying for 5 seconds the resistance result "Rn", the device
displays the resultant earth resistance RE.
Use buttons and to change results displayed in the window on
the right side of the screen.
3.7 Two-clamp measurement
Two-clamp measurements are applied where there is no possibility of using ground-driven elec-
trodes.
NOTE!
The two-clamp method may be used solely in the case of
multiple earthing measurements.
Page 32
MRU-200 OPERATING MANUAL Version 5.0
30

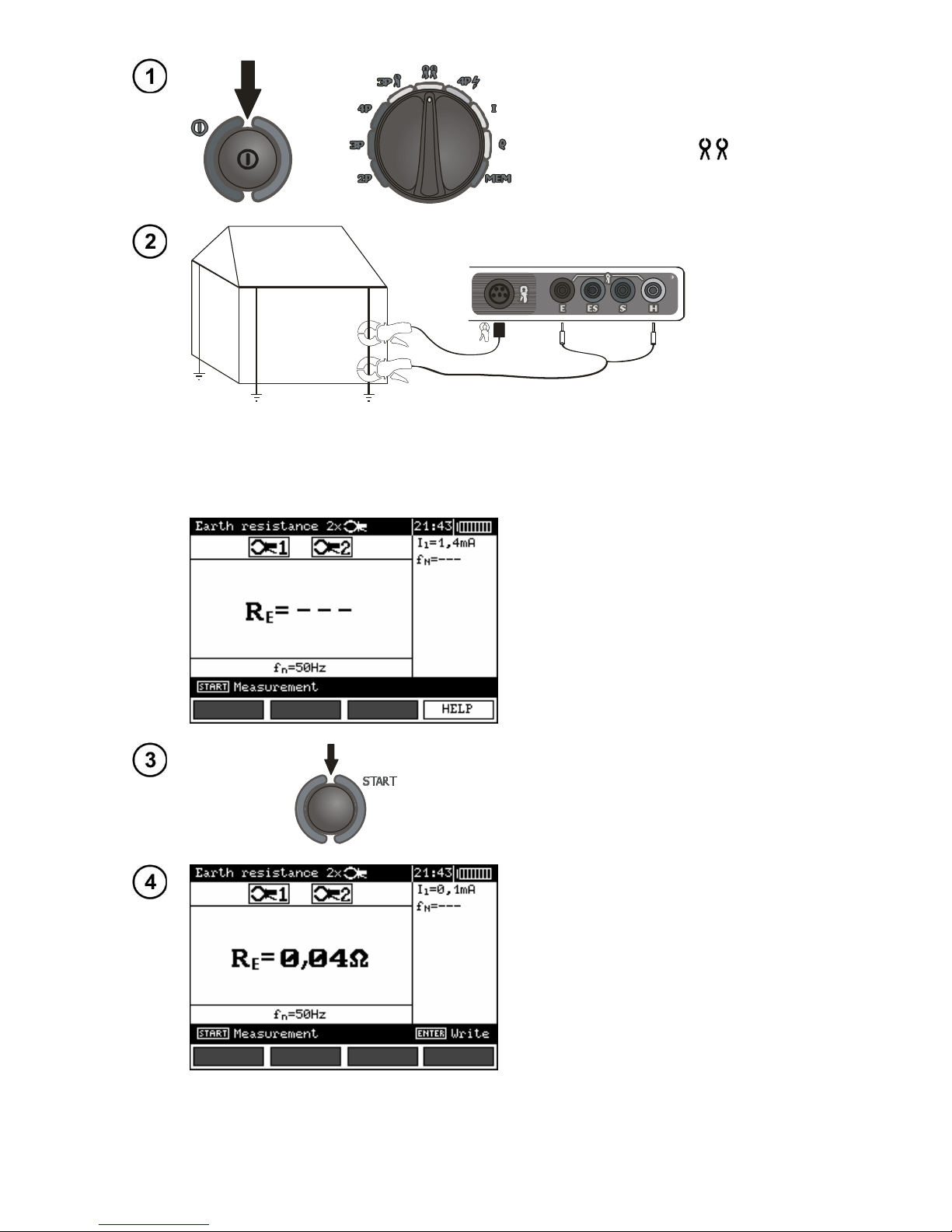

Turn the meter on.
Set the rotational
function selector at .
CAT IV 300V
H
E
C-3
N-1
Connect the transmission clam to sockets H and E, while the measurements clamp
should be connected to the clamp socket.
Snap the transmission clamp and measurement clamp on the tested earth electrode AT east 30cm from each other.
The meter is ready for measurement.
The auxiliary display shows the value of the
leakage current passing through the clamp
and its frequency.
Press START In order for the test to commence measurement.
Read out the result.
The result is displayer for 20s.
It may be displayed again ENTER is pressed.
Page 33
MRU-200 OPERATING MANUAL Version 5.0
31
Notes:
Measurements may be performed in the presence of interference current not
exceeding 3A rms and whose frequency complies with the value set in the
MENU.
Flexible clamp must not be used for this measurement.
- The clamps are not the part of meter basic accessories, you have to purchase them apart.
- The clamp must be calibrated before it is used for the first time. It may be periodically calibrated in
order to avoid the influence of the ageing elements upon the resolution of measurements. The clamp
calibration option is in the MENU.
- If the clamp current is insufficient, an appropriate message is displayed: "Measured current is too
low. Measurement impossible!".
Additional information displayed by the meter
RE>149,9Ω
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
3.8 Measurement 4P
The impulse method is applied in the case of measurement of the dynamic impedance of lightning arrester earthing systems. It must not be used for the purpose of measurements of protective
and working earthing systems.
Due to the high steepness of the test pulse leading edge the inductivity of the earth electrode
highly influences its impedance. Therefore the impedance of the earth electrode measured by means
of the impulse method depends upon its length and the steepness of the test pulse leading edge.
The inductivity of the earth electrode causes a shift between the current spikes and the resultant
voltage drop. Hence extensive earth electrodes of a low resistance measured by means of the lowfrequency method may have a much higher value of the dynamic impedance.
The impulse impedance is calculated on the basis of the following formula:
S
S
E
I
U
Z
Where US, IS – peak value of the current and voltage.
The impulse method is used to determine the resultant earth impedance. Therefore the control
measurement points must not be undone.
It is recommended to place the test leads in such a manner that the angle between them is at
least 60°.
Page 34
MRU-200 OPERATING MANUAL Version 5.0
32
Note:
Measuring leads must be completely unrolled. Otherwise the result of the
measure may be wrong.

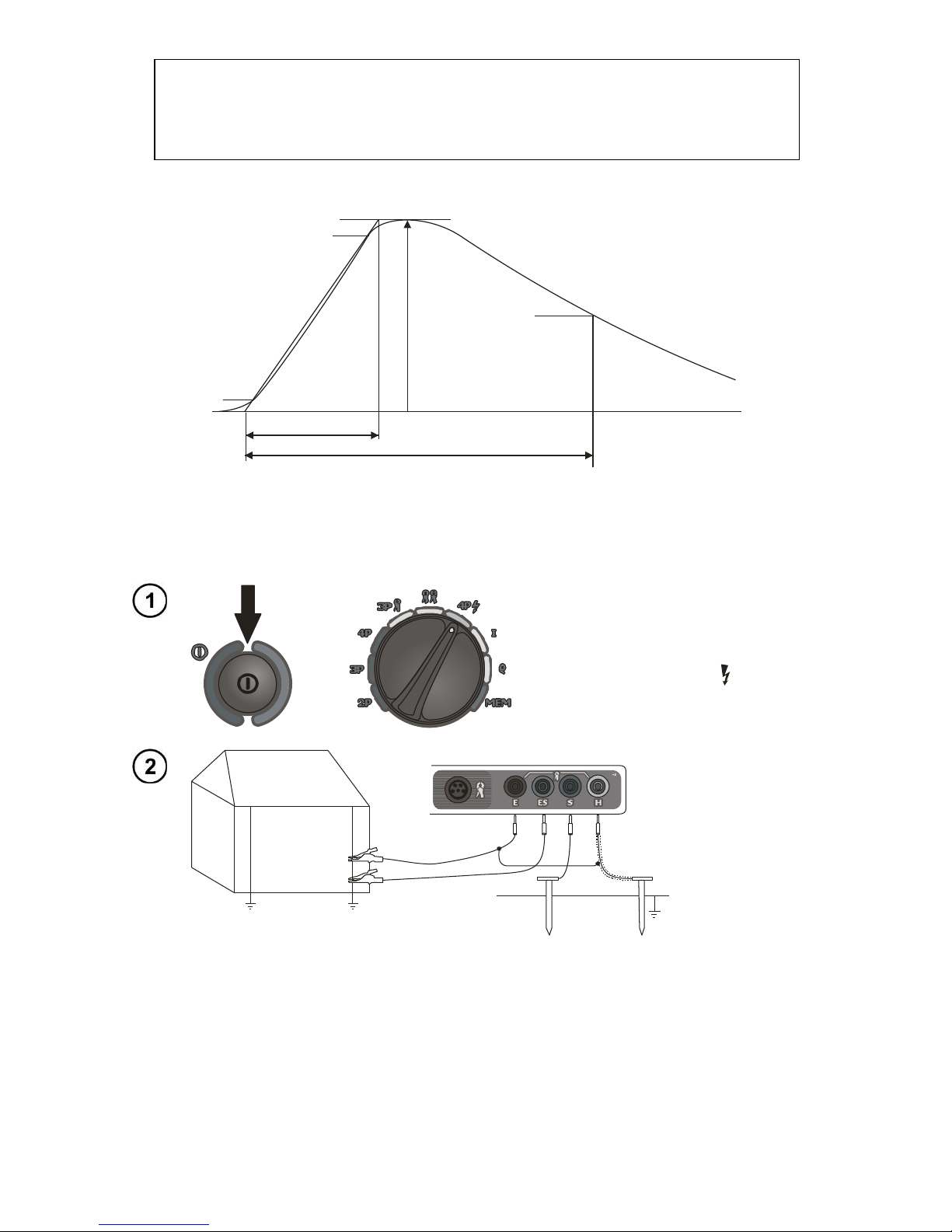

The following illustration explains the numbers which determine the shape of the pulse (in ac-
cordance with EN 62305-1 Lightning protection – Section 1. General Requirements).
10%
90%
50%
T
1
T
2
t
t = current amplitude
T1 = pulse leading edge duration
T2 = time to semi-spike
The pulse shape is determined by the relation T1/T2 eg: 4/10μs.
Turn the meter on.
Set the rotational
function selector at 4P .
ES
S
CAT IV 300V
HE
Connect the current electrode driver into ground to the H socket of the meter.
Connect the voltage electrode driver into ground to the S socket of the meter.
Connect the tested earth electrode to the E socket and the shield of the H cable.
Connect the ES socket to the earth electrode in question below the E cable.
The tested earth electrode and the current electrode and voltage electrode should be
placed in such a manner than the angle between the gauging aligned amount to 60°.
Page 35
MRU-200 OPERATING MANUAL Version 5.0
33
The meter is ready for measurement.
The auxiliary display shows the value of
the interference voltage and its frequency. The setting bar shows the pulse build
up time.

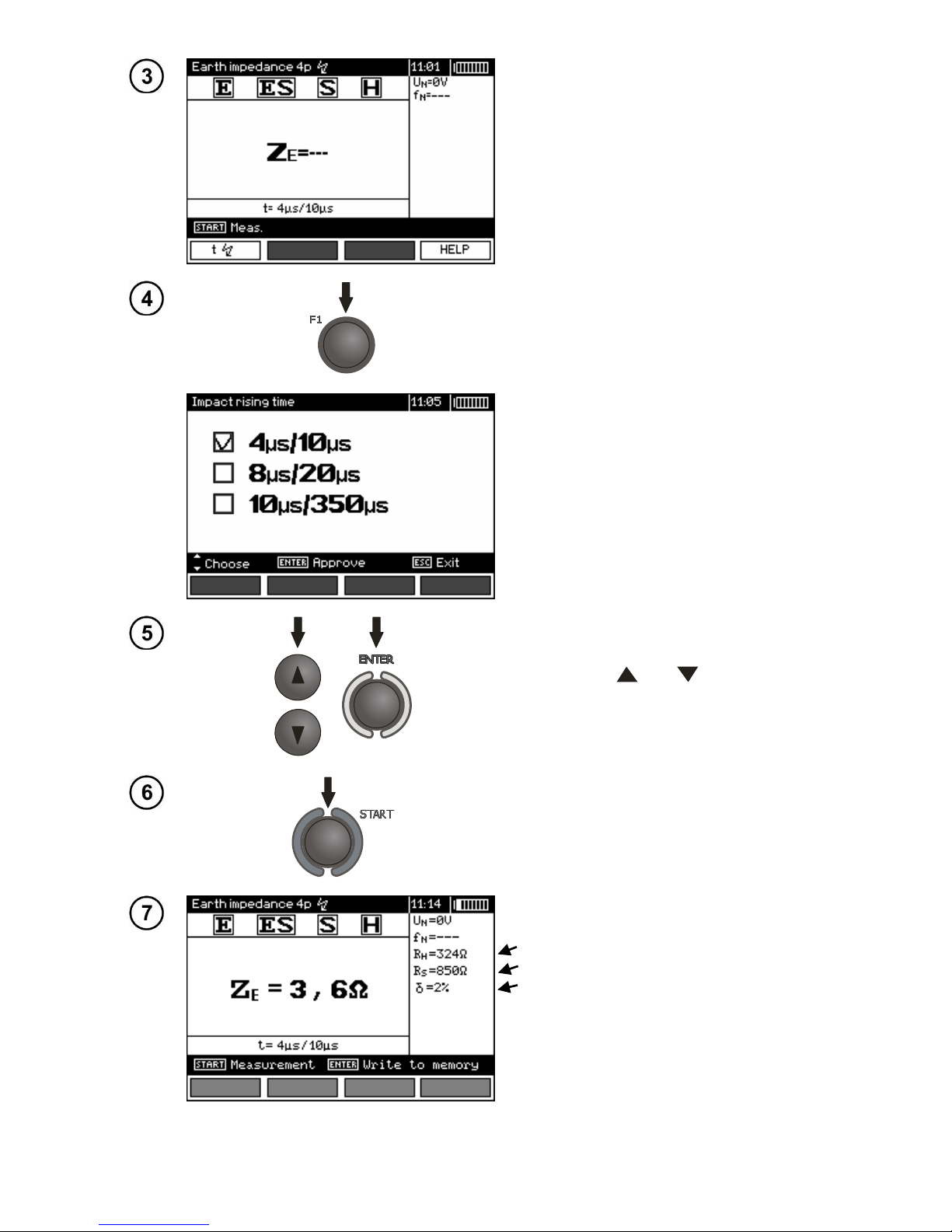

Press F1 in order to modify the pulse
shape.
Use buttons and to set the pulse
shape and press ENTER.
Press START In order for the test to
commence measurement.
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by
the resistance of the electrodes.
The result is displayer for 20s. It may be displayed again when ENTER is pressed.
Page 36
MRU-200 OPERATING MANUAL Version 5.0
34
Notes:
Earth impedance measurement may be realized if the interference voltage does
not exceed 24V. The interference voltage is measured up to 100V, but over 50V
is it signalled as hazardous.
Do not connect the meter to a voltage exceeding 100V.
- Impulse 8/20μs is available from firmware version 2.04.
- RH i RS are measured by means of the low-frequency method.
- Pay particular attention to the quality of the connection of the tested object with the test leads – the
contact area must be cleaned of paint, rust, etc.
- If the resistance of the measurement probes is too high, then the measurement of the ZE earth electrode will be distorted by additional uncertainty. A particularly high measurement uncertainty is generated if we measure a low value of the earth resistance with probes of a weak contact with the
ground (such a situation occurs often if the earth electrode is properly made and the upper layer of
the ground is dry and characterized by a low conductivity). Then the relation between the probe resistance and the resistance of the measured earthing is very high, and so is the case of the measurement uncertainty which depends on it. What may be done then is to perform, in accordance with
the formulae specified in point 10.2, calculations, which will permit to evaluate the influence of the
measurement conditions. It is also possible to improve the contact of the probe with the ground, for
example by means of moistening of the place when the probe is driven, its driving into the ground in
another place or using a 80-centimetre probe. Check also the test leads and make sure the insulation
is not damaged and the contacts: test lead – banana plug – probe are not corroded or loosened. In
most cases the achieved resolution of the measurement is sufficient, but it is necessary to be conscious of the uncertainty the measurement is burdened with.
- If the resistance of H and S probes or one of them exceeds 1kΩ, an appropriate message is displayed: "R_H and R_S electrodes resistance are higher than 1 kΩ! Measurement impossible!".
Additional information displayed by the meter
ZE>199Ω
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncertainties calculated on the basis of the measured values)
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
3.9 Current measurement
The present function facilitates measurements of the current effective value using measurement
clamp. It may be used for example for the purpose of measurements of the leakage current in the installation in question. It is possible to choose between several types of clamps, which differ in regard
to diameter and measured current range (see Technical Data).
Page 37
MRU-200 OPERATING MANUAL Version 5.0
35
Turn the meter on.
Set the rotational
function selector at I.
Press F1 to select type of clamp.
Use buttons and to select
the type of clamp and press
ENTER.
Notes:
- Measurements are continuous and there is no possibility of their being saved.
- Flexible clamp F series may be used solely for the purpose of measurements of currents > 1A.
Page 38
MRU-200 OPERATING MANUAL Version 5.0
36
3.10 Earth resistivity measurements
For the purpose of earth resistivity measurements – which are used as a preliminary measure for
the project of earthing systems or in geology – there is a separate function, which is selected by
means of the rotational function selector: earth resistivity measurements . The function is metrologically identical as the four-pole earth resistance measurement, but it includes an additional procedure of storing of the distance between the electrodes. The result of the measurement is the resistance value which is calculated automatically in accordance with the following formula: ρ = 2LRE,
which is used in the Wenner’s measurement method. The method in question assumes equal distances between electrodes.
Turn the meter on.
Set the rotational
function selector at ρ.
E
L L L
S HES
Connect the four aligned and equally spacer probes, which are driven into the ground, to
the meter, and do so In accordance with the diagram above
The meter is ready for measurement.
The auxiliary display shows the value of
the interference voltage and its frequency. The setting bar shows the
measurement voltage, mains frequency
set in the MENU and the distance between the electrodes.
Press F1 to change the measurement
voltage.
Page 39
MRU-200 OPERATING MANUAL Version 5.0
37
Use buttons and to set the
measuring voltage and press ENTER.
Press START to commerce measurement. The meter will activate the mode
of selection of the distance between
probes.
Use buttons and to set the distance between probes and press
ENTER In order to commerce measurement.
Page 40
MRU-200 OPERATING MANUAL Version 5.0
38
Read out the result.
Current electrode resistance
Voltage electrode resistance
Additional uncertainty caused by
the resistance of the electrodes
The result is displayer for 20s. It may be displayed again ENTER is pressed.
Notes:
Earth resistance measurement may be realized if the interference voltage does
not exceed 24V. The interference voltage is measured up to 100V, but over 50V
is it signalled as hazardous.
Do not connect the meter to a voltage exceeding 100V.
- Calculations are based upon the assumption that the distances between the specific measurement
electrodes are equal (the Wenner’s method). If this is not the case the earthing resistance measurement must be realized by means of the four-pole method and calculations must be performed individually.
- Pay particular attention to the quality of the connection of the tested object with the test leads – the
contact area must be cleaned of paint, rust, etc.
- If the resistance of the measurement probes is too high, then the measurement of the RE earth
electrode will be distorted by additional uncertainty. A particularly high measurement uncertainty is
generated if we measure a low value of the earth resistance with probes of a weak contact with the
ground (such a situation occurs often if the earth electrode is properly made and the upper layer of
the ground is dry and characterized by a low conductivity). Then the relation between the probe resistance and the resistance of the measured earthing is very high, and so is the case of the measurement uncertainty which depends on it. What may be done then is to perform, in accordance with
the formulae specified in point 10.2, calculations, which will permit to evaluate the influence of the
measurement conditions. It is also possible to improve the contact of the probe with the ground, for
example by means of moistening of the place when the probe is driven, its driving into the ground in
another place or using a 80-centimetre probe. Check also the test leads and make sure the insulation
is not damaged and the contacts: test lead – banana plug – probe are not corroded or loosened. In
most cases the achieved resolution of the measurement is sufficient, but it is necessary to be conscious of the uncertainty the measurement is burdened with.
- If the resistance of H and S probes or one of them exceeds 19,9kΩ, an appropriate message is displayed: "R_H and R_S electrodes resistance are higher than 19.9 kΩ! Measurement impossi-
ble!".
Page 41
MRU-200 OPERATING MANUAL Version 5.0
39
Additional information displayed by the meter
ρ >999kΩm
Measurement range exceeded.
UN>40V! and a continuous sonic signal
The voltage on the measurement points exceeds 40V,
the measurement is blocked.
UN>24V!
The voltage on the measurement points exceeds 24V
but lower than 40V, the measurement is blocked.
LIMIT!
The uncertainty of the electrode resistance > 30%. (Uncertainties calculated on the basis of the measured values)
NOISE!
The value of the interfering signal is too high,
the result may be distorted by additional uncertainty.
Page 42
MRU-200 OPERATING MANUAL Version 5.0
40
4 Memory
The MRU-200 meters are equipped with a memory whose capacity is 990 results of resistance
measurements. Individual measurements are saved in memory cells. The whole memory is divided
into 10 banks with 99 cells each. Each result may be saved in a cell of a defined number and in the
selected bank, so the user of the meter may, at their own discretion assign numbers of the cells to
individual measurement points and the numbers of the banks to individual objects, realize measurements in any order and repeat them without loosing other data.
The memory of the results of the measurements is not deleted when the meter is turned on, so
they may be read further on or transmitted to the computer. The number of the current cell and the
bank is not modified either.
It is recommended to delete the memory once the data have been read or before a new series of
measurements is realized. New measurements may be saved in the same cells as the previous ones.
4.1 Saving of the measurement results in the memory

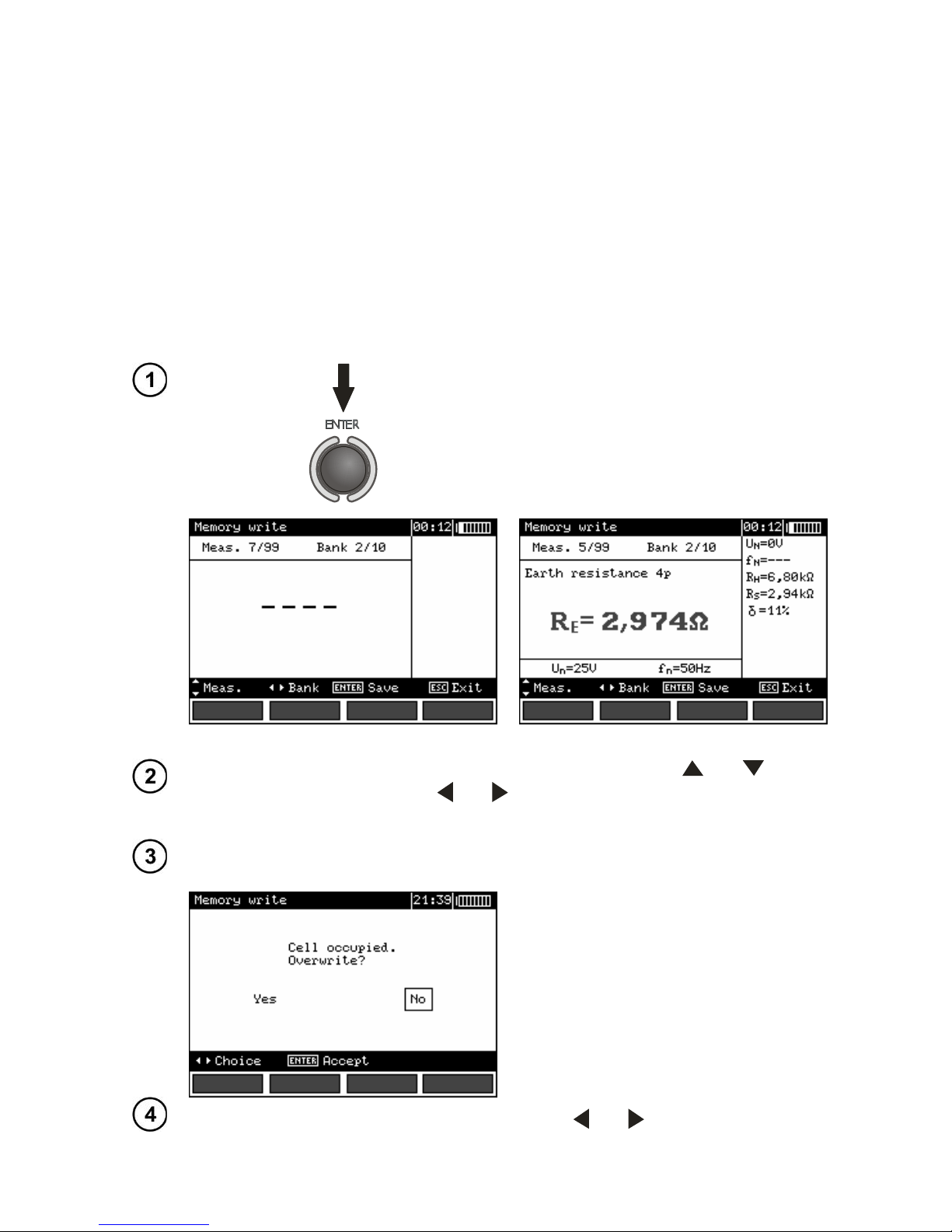

Once the measurement has finished
press ENTER.
Empty cell
Occupied cell
Selection of the measure (cell) is realized by means of the buttons and . Bank
May be selected with the buttons and .
To save press ENTER.
Should you intend to save data In an occupied cell, the following message will be displayed:
Once the option has been selected with the buttons and press ENTER.
Page 43
MRU-200 OPERATING MANUAL Version 5.0
41
4.2 Memory erasing
Note:
- During the process of memory erasing the progress bar is being displayed.
Turn the meter on.
Set the rotational
function selector at MEM.

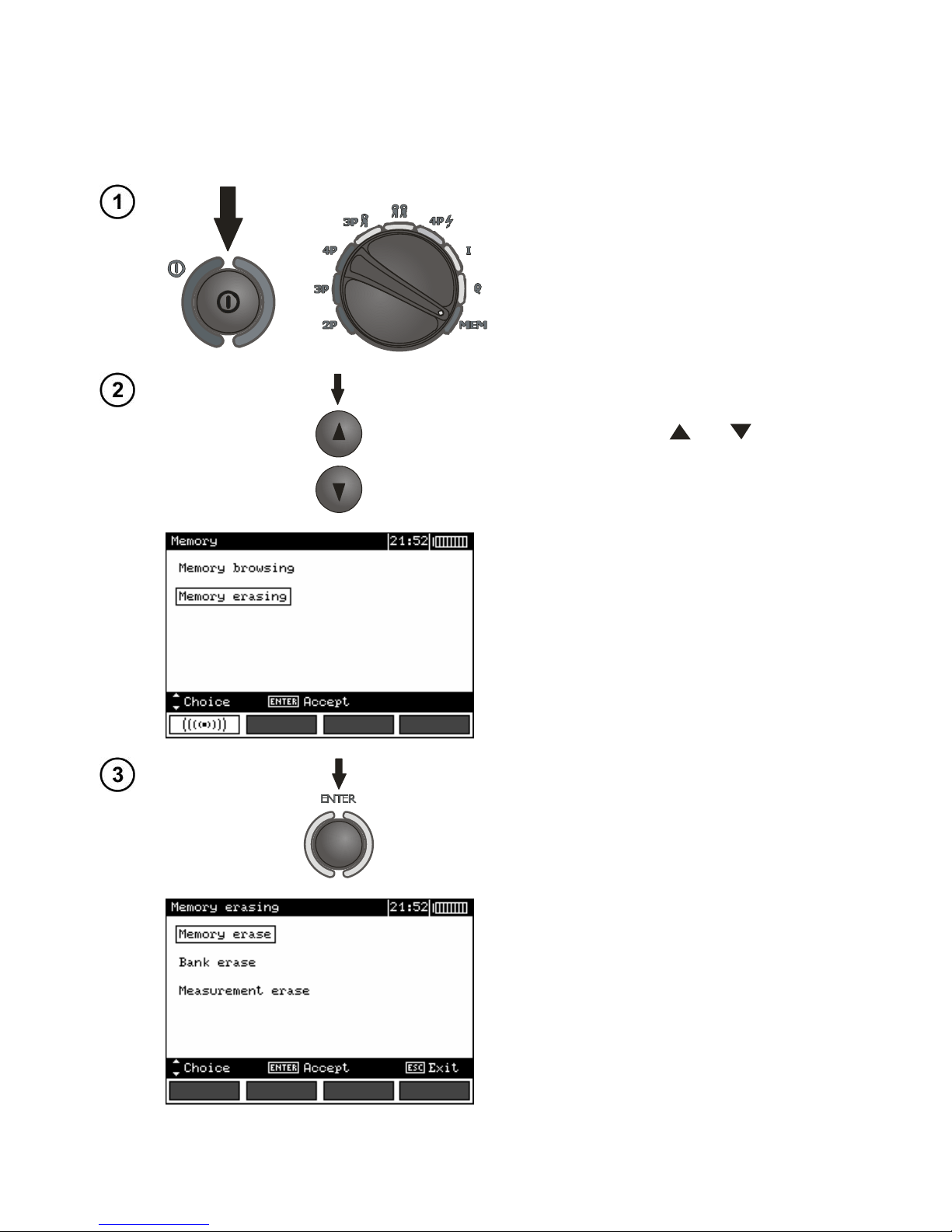

Using the buttons and highlight
“Memory erasing”.
Press ENTER.
Page 44
MRU-200 OPERATING MANUAL Version 5.0
42
Use the buttons and to select
complete "Memory erase", "Bank erase"
or "Measurement erase"
Follow the displayed instructions.

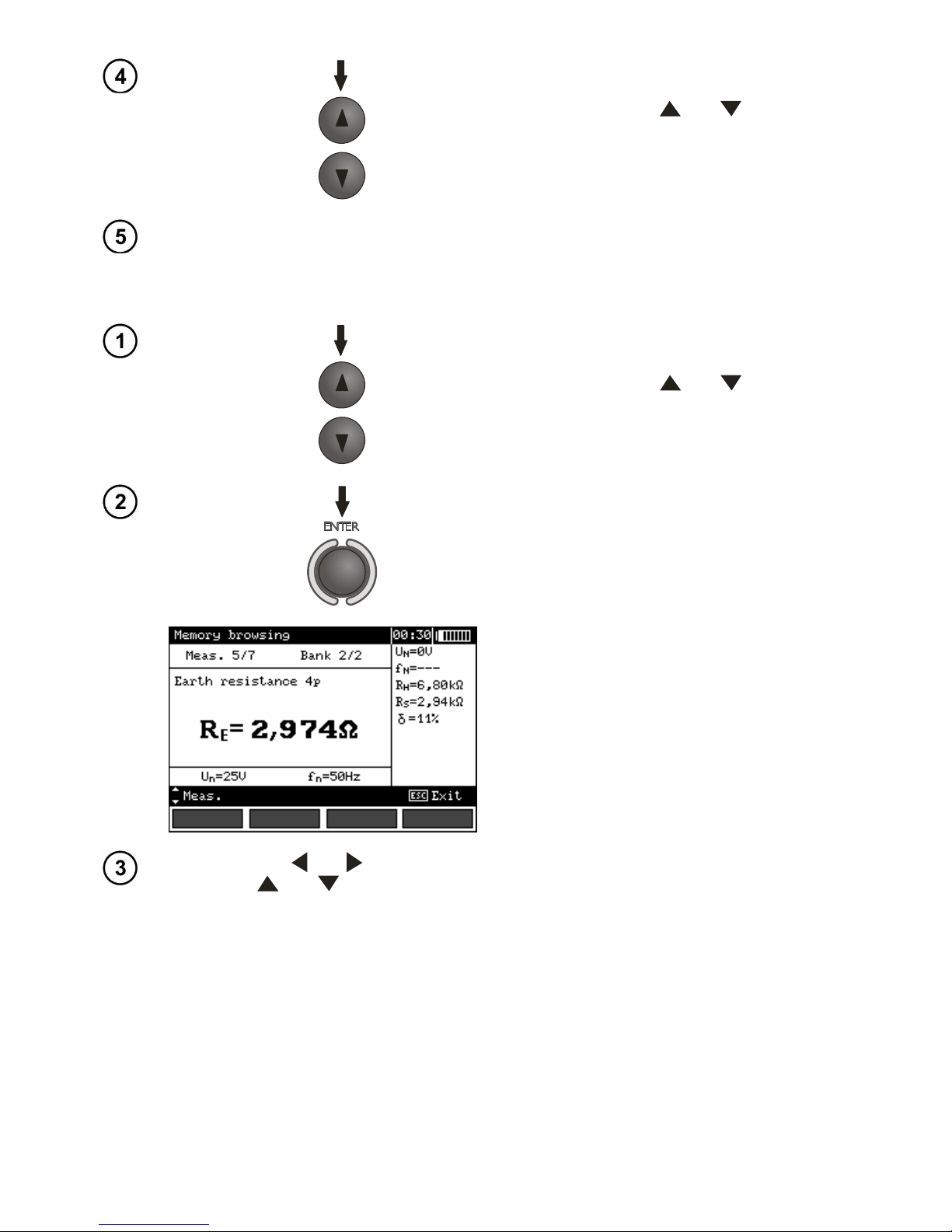

4.3 Memory browsing
Use the buttons and to highlight
“Memory browsing”.
Press ENTER.
Use the buttons and to select bank and
the buttons and to select a cell.
Note:
- During a memory search empty cells and banks are unavailable. „Meas. 1/20” means the first
measurement in a group of 20; cells 21…99 are empty and unavailable. The same principle refers to
banks. If the memory is not filled in a continuous manner, then empty measurements and banks are
skipped during browsing.
Page 45
MRU-200 OPERATING MANUAL Version 5.0
43
5 Data transmission
Remarks:
- Data transmission is not possible during the charging of accumulators.
5.1 Computer connection accessories
What is necessary in order to operate the meter with a computer is additional accessories, namely a USB cable and appropriate software. If the required accessories such have not been purchased
along with the meter, then they are available from the manufacturer or an authorized distributor.
The accessories may be used in case of many devices manufactured by SONEL S.A. which are
equipped with the USB interface.
Detailed information regarding software is available from the manufacturer or an authorized distributor.
5.2 Connection of the meter to a computer
1. Set the rotational function selector at MEM.
2. Connect the cable to the USB port of the computer and the USB socket of the meter.
3. Start the SONEL READER programme.
5.3 Data transmission with OR-1 radio module
1. Connect OR-1 module to the USB socket of the PC.
2. Start data filing SONEL READER programme.

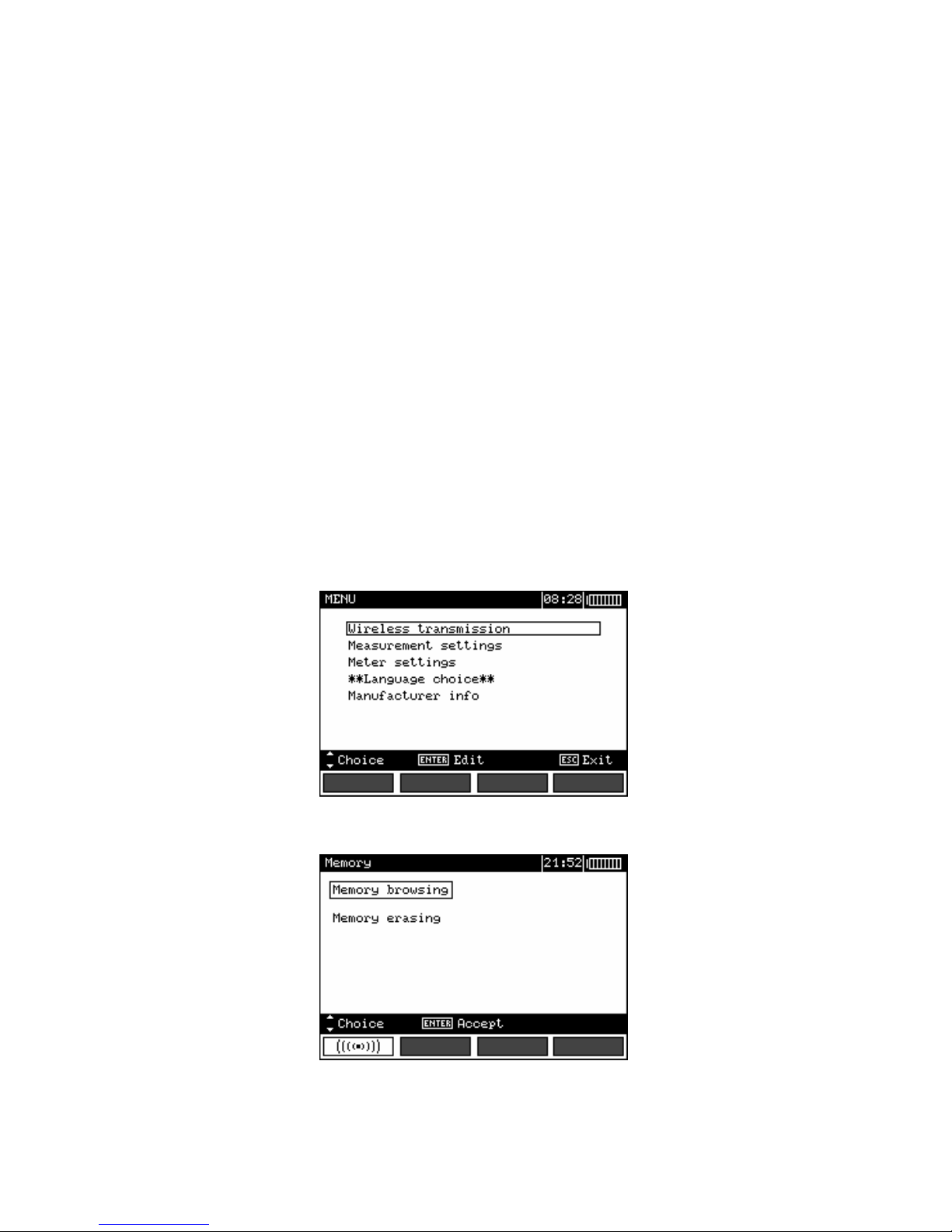

3. Select Wireless transmission in the main MENU of the meter.
or set the function switch to MEM and press F1.
4. If a PIN code change is necessary, select Modify PIN code.
Page 46
MRU-200 OPERATING MANUAL Version 5.0
44
5. Set the required code with the cursors.
The same code must be entered in the computer programme. It is used for securing transmission.
6. To start transmission, select Wireless transmission in the MENU or press F1 in the MEM position. The following messages will be displayed: Establishing RF connection and then Active wire-
less connection. If it is impossible to establish connection the message Wireless connection lost
will appear. Once the connection is established, follow the SONEL READER programme manual for
data filing.
Note:
Standard PIN code for OR-1 is „123”.
Page 47
MRU-200 OPERATING MANUAL Version 5.0
45
6 Power supply
Note:
Instrument MRU-200 has been designed for use only with the supplied rechargeable batteries. Using disposable instead of rechargeable batteries can
take place only in emergency cases (e.g. total discharge of batteries during
field measurements of electric poles). However, a rapid discharge of disposable batteries (several measurements) and malfunction of the instrument at high
instantaneous power consumption should be expected.
6.1 Monitoring of the power supply voltage

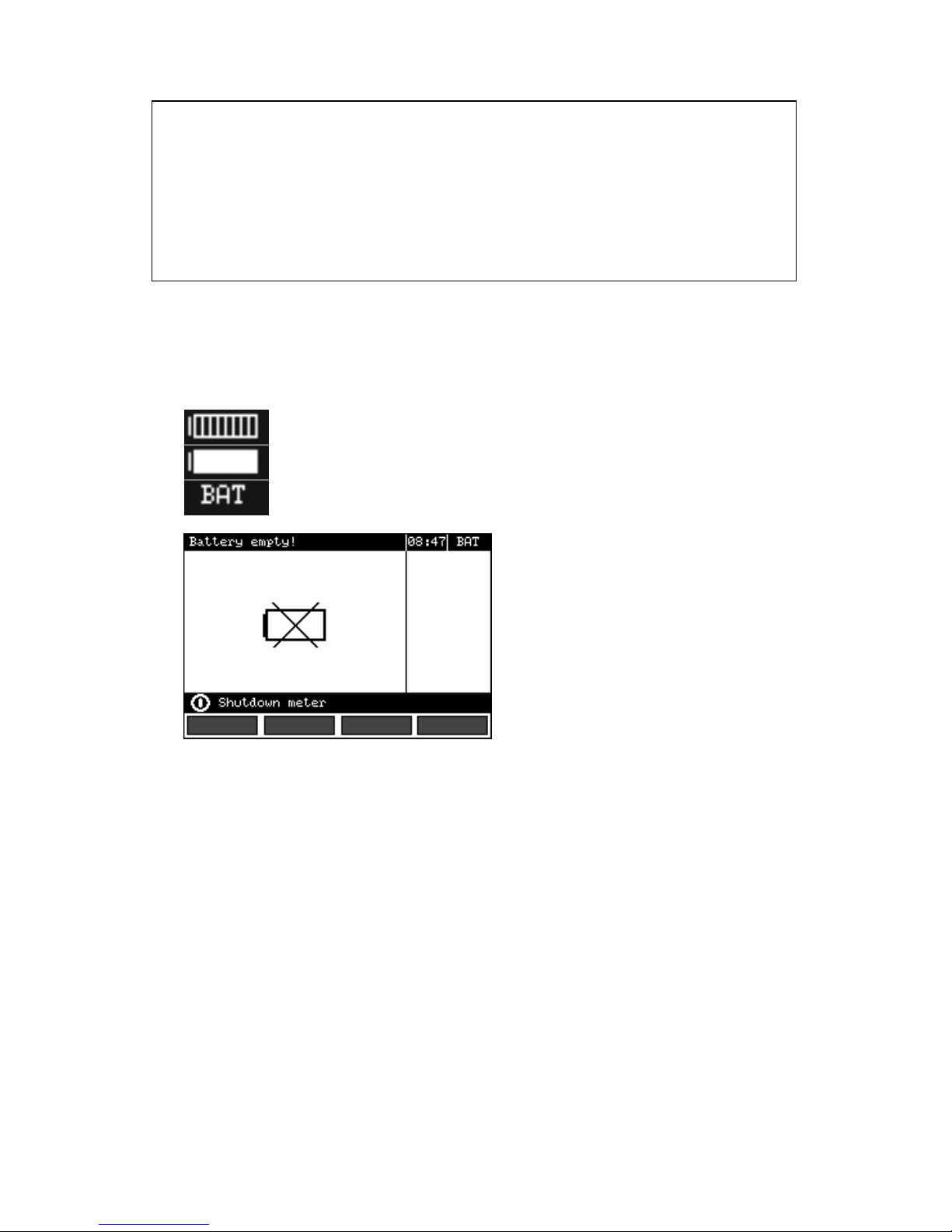

The level of the charge of the batteries or accumulators is currently indicated by the symbol in the
right upper corner of the display:
Battery charged.
Battery low.
Battery fully discharged.
Battery fully discharged,
Measuring blocked.
Note:
- The displayed BAT symbol means insufficient power supply voltage and the need to charge the accumulators,
- Measurements realized with an insufficient meter power supply voltage are distorted with additional
errors which are impossible to ascertain by the user and thus they cannot constitute a basis for a
conclusion of correctness of the tested earthing system.
6.2 Replacement of accumulators
The MRU-200 meter is equipped with a package of NiMH accumulators and charger.
The package of accumulators is placed in a compartment. The charger is installed inside the meter
casing and it may be used solely to charge the original accumulators. It is powered from an external
power supply. It is also possible to use a car lighter socket.
Page 48
MRU-200 OPERATING MANUAL Version 5.0
46
WARNING:
If the test leads are left in the sockets during replacement of the batteries or the
package of accumulators, there is a risk of electric shock with a dangerous
voltage.

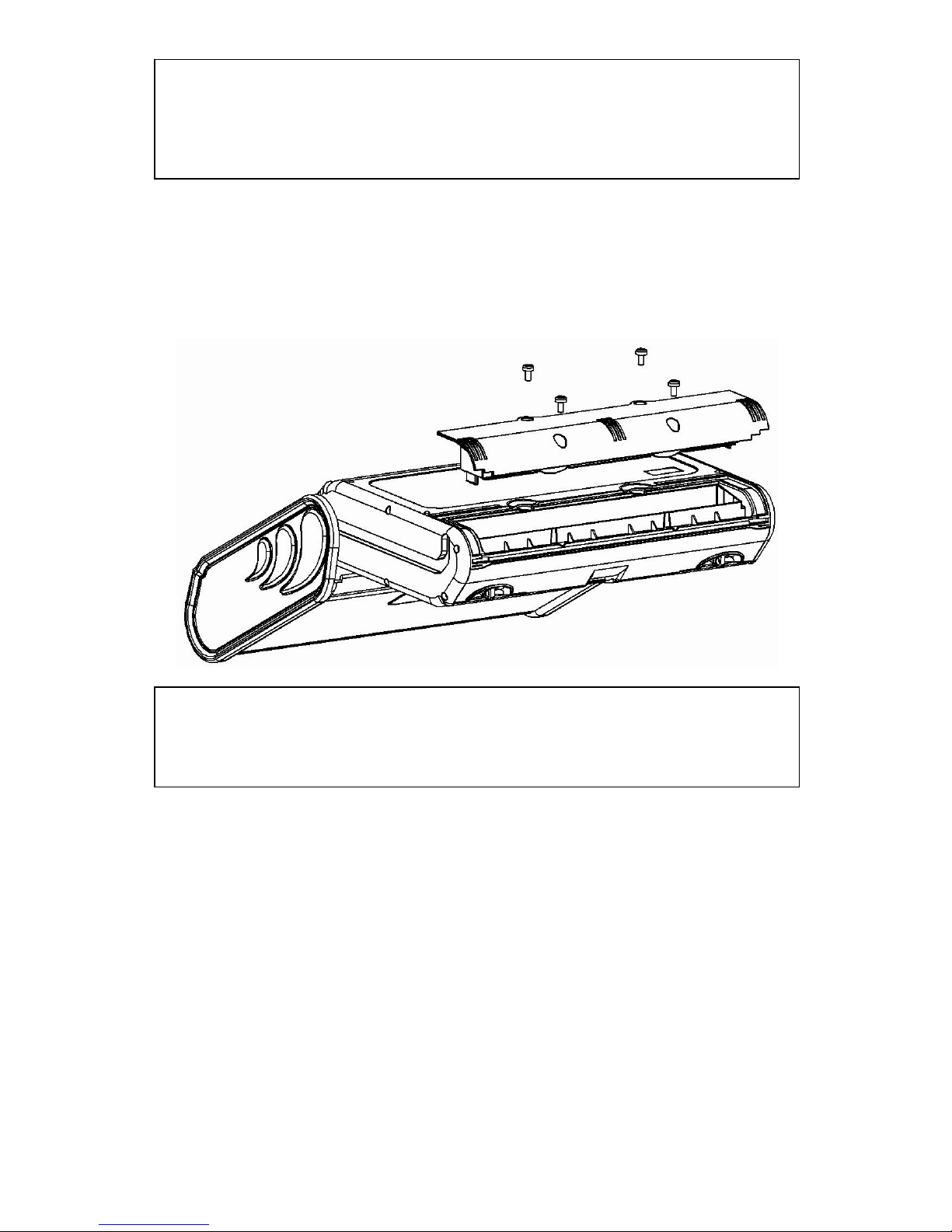

In order to replace the package of accumulators it is necessary to do the following:
Remove all the test leads from the sockets and turn the meter off,
Remove the four screws of the accumulators/batteries compartment (in the lower part of the
casing),
Remove the compartment,
Insert the compartment in the meter,
Replace the four screws of the accumulators/batteries compartment.
NOTE!
Do not use the meter when the accumulator compartment is removed or open
or power it from other sources than those mentioned in the present manual.
6.3 Fuse replacement
Remove the battery compartment to get access to two replaceable fuses:
- FST 250Vac 1A, 5x20mm and
- 2A 250Vac, time-delay fuse, 5x20mm.
If the instrument or battery charger does not work, before sending it for servicing, check the fuses
and, if they are blown, replace them with identical ones. The fuses are placed in holders, near the
centre of the cavity. To remove the fuses, use a narrow tool (e.g. a screwdriver).
6.4 Charging of accumulators
Charging commences once the power supply has been connected to the meter regardless of the
fact whether the meter is on or off. During charging the screen looks as it is presented in the following illustration. The accumulators are charged in accordance with the algorithm of „quick charge” –
this process permits to reduce the duration of charging to approximately four hours. The end of the
process of charging is signalled by: Charging concluded. In order to turn the device off, remove the
power supply plug of the charger.
Page 49
MRU-200 OPERATING MANUAL Version 5.0
47
Operating mode
Messages regarding the process of
charging

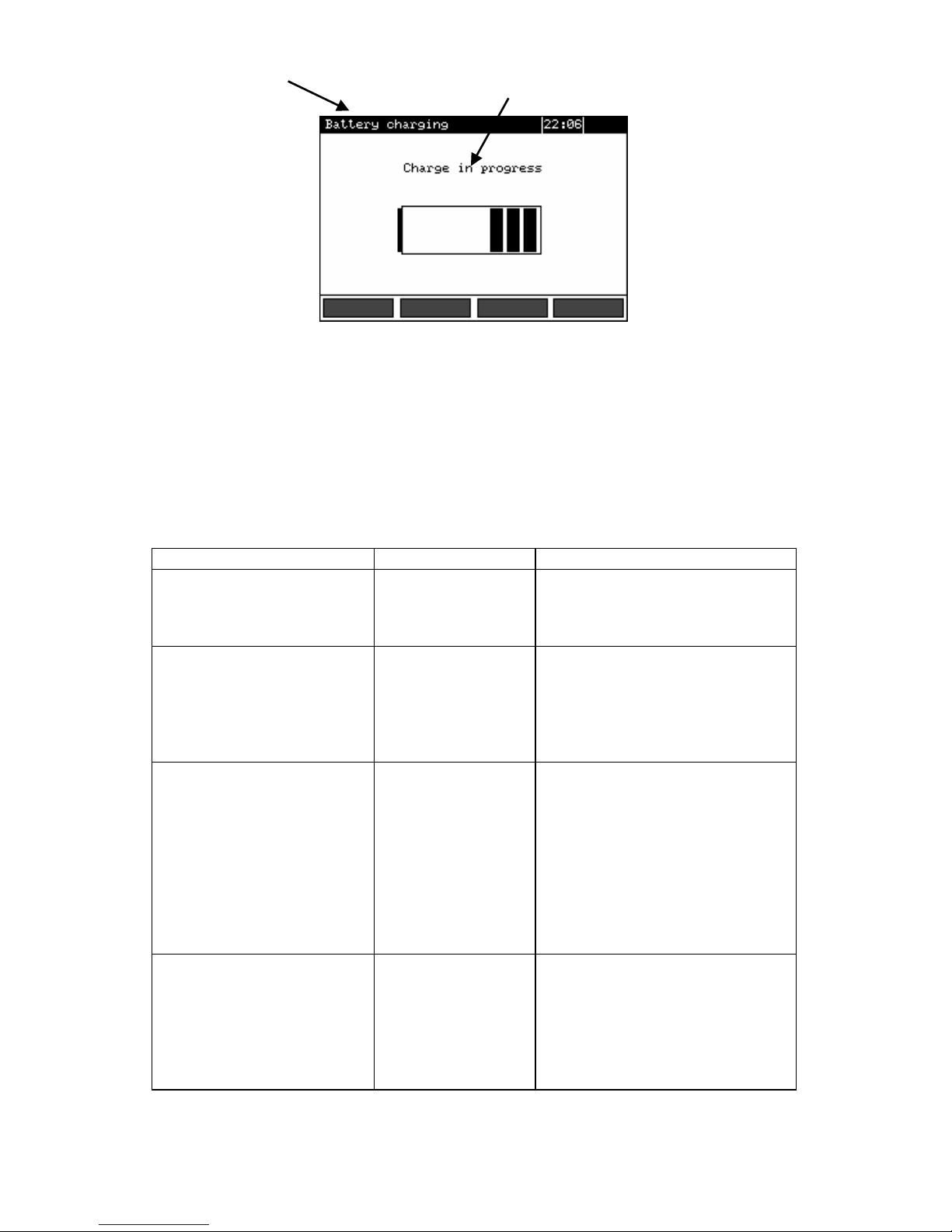

Charging Progress, the changing interior symbolizes charging.
Note:
- As a result of interferences in the network it is possible that the process of charging of accumulators
will finish too fast. In the case too short a time of charging is detected it is necessary to remove the
plug of the charger and start charging anew.
Additional information displayed by the meter
Message
Cause
Proceeding
Battery connection error!
Excessive voltage
at the accumulator
package during
charging.
Check the contacts of the accumulator package. Should the
problem persist, replace the
package.
No battery!
No communication
with the accumulator controller or batteries compartment
put in.
Check the contacts of the accumulator package. Should the
problem persist, replace the
package. Put the accumulators
compartment instead of batteries.
Battery temperature too
low!
The ambient temperature is lower
than 10C
It is not possible to charge the
accumulators correctly in such a
temperature. Place the meter in
a warm place and commence the
charging mode anew.
The present message may be
displayed also in the case of
deep discharging of the accumulators. It is then recommended to
try to turn the charger repeatedly.
Precharge error
A damaged or
deeply discharged
accumulator package
The message is displayd for a
while and then the precharge
process begins again. If after
several attempts the message:
Battery temperature too high!
is displayed, replace the package.
Page 50
MRU-200 OPERATING MANUAL Version 5.0
48
6.5 Discharging of accumulators
In order to guarantee proper functioning of the accumulators (charge indications) and prolong
their durability, it is recommended to charge them from zero from time to time. Proceed as follows in
order to discharge the accumulators:
Press MENU and highlight
Meter settings. Press ENTER.
Use buttons and to select
Battery discharging, and press ENTER.
Read the displayed text and accept.
Discharging, which may last up to 10 hours depending on the level of the charge of the package,
is signalled with the following message: Discharging of accumulators in progress.
6.6 General principles regarding using Ni-MH accumulators
- If you do not use the device for a prolonged period of time, then it is recommended to remove the
accumulators and store them separately.
- Store the accumulators in a dry, cool and well ventilated place and protect them from direct sunlight.
The temperature of the environment in the case of prolonged storage should not exceed 30C. If the
accumulators are stored for a long time in a high temperature, then the occurring chemical processes
may reduce their lifetime.
- Accumulators Ni-MH resist normally 500-1000 charging cycles. The accumulators reach their maximum capacity after being formatted (2-3 charge and discharge cycles). The most important factor
which influences the lifetime of an accumulator is the depth of discharge. The deeper the discharge
of the accumulator, the shorter its lifetime.
- The memory effect is limited in the case of Ni-MH accumulator. These accumulators may be
charged at any point with no serious consequences. However, it is recommended to discharge them
completely every few cycles.
- During storage of Ni-MH accumulators they are discharged at the rate of approximately 30% per
month. Keeping accumulators at high temperatures may accelerate this process even 100%. In order
to prevent excessive discharge of accumulators, after which it would be necessary to format them, it
is recommended to charge the accumulators from time to time (even if not in use).
Page 51
MRU-200 OPERATING MANUAL Version 5.0
49
- Modern fast chargers detect both too low and too high a temperature of accumulators and react to
the situation adequately. Too low a temperature should prevent the start of the process of charging,
which might damage the accumulator irreparably. An increase of the temperature of the accumulator
is a signal to stop charging and is a typical phenomenon. However charging at a high temperature of
the environment apart from reducing the lifetime causes an accelerated increase of the temperature
of the accumulator, which will be not charged to its full capacity.
- Remember that in the case of quick charging accumulators are charged to approximately 80% of
their capacity; better results may be obtained if the process of charging is continued: the charger
goes then to the phase of charging with a low current and after next couple of hours the accumulators
are charged to their full capacity.
- Do not charge or use accumulators in extreme temperatures. Extreme temperatures reduce the lifetime of batteries and accumulators. Avoid placing devices powered from accumulators in very hot environments. The nominal working temperature must be absolutely observed.
7 Cleaning and maintenance
NOTE!
Apply solely the maintenance methods specified by the manufacturer within
the present manual.
The casing of the meter may be cleaned with a soft, damp cloth using all-purpose detergents. Do
not use any solvents or cleaning agents which might scratch the casing (powders, pastes, etc.).
Clean the probe with water and dry it. Before the probe is stored for a prolonged period of time it
is recommended to grease it with any machine lubricant.
The reels and test leads should be cleaned with water and detergents, and then dried.
The electronic system of the meter does not require maintenance.
8 Storage
In the case of storage of the device, the following recommendations must be observed:
Disconnect all the test leads from the meter.
Clean the meter and all its accessories thoroughly.
Wind the long test leads onto the reels.
In the case the meter is to be stored for a prolonged period of time, the batteries must be re-
moved from the device.
In order to prevent a total discharge of the accumulators in the case of a prolonged storage,
charge them from time to time.
9 Dismantling and disposal
Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be
placed with waste of another kind.
Worn-out electronic equipment should be sent to a collection point in accordance with the law of
worn-out electric and electronic equipment.
Before the equipment is sent to a collection point, do not dismantle any elements.
Observe the local regulations concerning disposal of packages, worn-out batteries and accumula-
tors.
Page 52
MRU-200 OPERATING MANUAL Version 5.0
50
10 Technical data
The specified accuracy applies to meter terminals.
The abbreviation „m.v.” in the basic uncertainty definition means the measured value.
10.1 Basic data
Interference voltage measurement UN (RMS)
Range
Resolution
Basic uncertainty
0...100V
1V
±(2% m.v. + 3 digits)
measurement for fN 15…450 Hz
frequency of measurements – minimum two measurements/s
Interference frequency measurement fN
Range
Resolution
Basic uncertainty
15...450Hz
1Hz
±(1% m.v. + 2 digits)
measurement for interference voltage >1V (for interference voltage <1V the following is
displayed: f=---)
Measurement of connection and equipotential bonding resistance (two-cable method)
The measurement method: technical, in accordance with IEC 61557-5
Range of measurement in accordance with IEC 61557-4: 0,045 ... 19,99k
Range
Resolution
Basic uncertainty
0,000...3,999Ω *
0,001Ω
±(2% m.v. + 4 digits)
4,00…39,99Ω
0,01Ω
±(2% m.v. + 2 digits)
40,0…399,9Ω
0,1Ω
400…3999Ω
1Ω
4,00…19,99kΩ
0,01kΩ
±(5% m.v. + 2 digits)
* In 0,000...0,045Ω range uncertainty is unspecified.
Measurement of earth resistance (3, 4-cable method)
The measurement method: technical, in accordance with IEC 61557-5
Range of measurement in accordance with IEC 61557-5: 0,100 ... 19,99k
Range
Resolution
Basic uncertainty
0,000...3,999Ω *
0,001Ω
±(2% m.v. + 4 digits)
4,00…39,99Ω
0,01Ω
±(2% m.v. + 2 digits)
40,0…399,9Ω
0,1Ω
400…3999Ω
1Ω
4,00…19,99kΩ
0,01kΩ
±(5% m.v. + 2 digits)
* For 3-cable method in 0,000...0,045Ω range uncertainty is unspecified.
Page 53
MRU-200 OPERATING MANUAL Version 5.0
51
Measurement of the auxiliary electrode resistance
Range
Resolution
Basic uncertainty
0...999Ω
1Ω
±(5% (R
E+RH+RS
) + 8 dig-
its)
1,00...9,99kΩ
0,01kΩ
10,0…19,9kΩ
0,1kΩ
Measurement of multiple earth resistance with clamp (three-cable with clamp)
Range of measurement in accordance with IEC 61557-5: 0,120 ... 1999
Range
Resolution
Basic uncertainty
0,000...3,999Ω *
0,001Ω
±(8% m.v. + 4 digits)
4,00...39,99Ω
0,01Ω
±(8% m.v. + 3 digits)
40,0...399,9Ω
0,1Ω
400....1999Ω
1Ω
* In 0,000...0,045Ω range uncertainty is unspecified.
Measurement of multiple earth resistance with double clamp
Range
Resolution
Basic uncertainty
0,00...19,99Ω
0,01Ω
±(10% m.v. + 3 digits)
20,0...149,9Ω
0,1Ω
±(20% m.v. + 3 digits)
Ground resistivity measurements
The measurement method: Wenner’s, ρ = 2πLRE
Range
Resolution
Basic uncertainty
0,0..199,9Ωm
0,1Ωm
Depends on the basic uncertainty of the RE 4P measurement but not less
than ±1 digit.
200..1999Ωm
1Ωm
2,00..19,99kΩm
0,01kΩm
20,0..99,9kΩm
0,1kΩm
100..999kΩm
1kΩm
distance between measurement probes (L): 1...50m
Page 54
MRU-200 OPERATING MANUAL Version 5.0
52
Measurement of leakage damage current (rms)
Range
Resolution
Basic uncertainty
0,1..99,9mA
1
0,1mA
±(8% m.v. + 5 digits)
100..999mA
1
1mA
±(8% m.v. + 3 digits)
1,00..4,99A
1,2,3,4
0,01A
±(5% m.v. + 5 digits)
1,3,4
unspecified 2
unspecified 0..2 A 3
unspecified 0..1 A 4
5,00..9,99A
1,2,3,4
0,01A
±(5% m.v. + 5 digits)
10,0..99,9A
1,2,3,4
0,1A
100 … 300A
1,2,3,4
1A
1
– clamp (diameter 52mm) – C-3
2
– flexible clamp – F series
3
– flexible clamp – FS-2
4
– flexible clamp – FSX-3
frequency range: 45...400Hz
Earth resistance measurement by means of the impulse method
Range
Resolution
Basic uncertainty
0,0...99,9Ω
0,1Ω
±(2,5% m.v. + 3 digits)
100… 199Ω
1Ω
impulse shape: 4/10µs, 8/20μs (from 2.04 software version) or 10/350µs
impulse measurement current: approximately 1A
spike voltage: approximately 1500V
Other technical data
a) Kind of insulation ...................................... double, in accordance with EN 61010-1 and IEC 61557
b) Measurement category ..................................................................................................................
.. IV 300V (< 2000m above sea level), IV 255V (< 3000m above sea level) EN 61010-1 compliant
c) Protection grade of the casing in accordance with EN 60529 .................................................. IP54
d) Maximum interference voltage AC + DC at which a measurement may be performed ............ 24 V
e) Maximum measured interference voltage ............................................................................. 100 V
f) Maximum interference current at which a measurement of the earth resistance by means of the
clamp method is performed ................................................................................................ 3 Arms
g) Frequency of the measurement current .........................................................................................
.......................................... 125Hz for the 16 2/3Hz, 50Hz, 400Hz, and 150Hz for the 60Hz mains
h) Measurement voltage and current for 2P .................................. U<24 Vrms, I≥200 mA for R≤60
i) Measurement voltage for 3P, 4P ................................ .................................................... 25 or 50 V
j) Measurement current (short-circuit current) for 3P, 4P..................................................... >200 mA
k) Maximum resistance of measurement electrodes ................................................................. 20 k
l) Signalling of insufficient clamp current for ......................................................................... ≤0,5 mA
m) Power supply of the meter .......................... accumulator package type SONEL NiMH 4,8V 4,2 Ah
n) parameters of AC adapter for the battery charge .............................. 100 V…240 V, 50 Hz…60 Hz
o) Number of measurements for R 2P ....................................... >1500 (1, 2 measurement/minute)
p) Number of measurements for RE ........... > 1200 (RE=10, RH=RS=100, 2 measurement/minute)
q) Duration of a resistance measurement by means of the two-pole method ............................... <6 s
r) Duration of a resistance and resistivity measurement by means of other methods .................. <8 s
Page 55
MRU-200 OPERATING MANUAL Version 5.0
53
s) Dimensions ...................................................................................................... 288 x 223 x 75 mm
t) Mass of the meter with accumulators ................................................................................ ok. 2 kg
u) Working temperature .................................................................................................... -10..+50 C
v) Temperature range suitable for initiating battery charging ................................... +10 C to +40 C
w) Temperatures at which loading is interrupted ............. below +5 C and above (or equal to) +50 C
x) Reference temperature ..................................................................................................... 23 ±2 C
y) Storage temperature ................................................................ ..................................... -20..+80 C
z) Relative humidity ............................................................................................................... 20..90%
aa) Relative humidity nominal .................................................................................................. 40..60%
bb) altitude (above sea level) ................................................................................................... <2000m
cc) Quality standard ............................................ design and production in accordance with ISO 9001
dd) The product meets EMC requirements according to the following standards ..................................
..................................................................................... EN 61326-1:2006 and EN 61326-2-2:2006
10.2 Additional data
Data regarding additional uncertainties are useful mainly in the case the meter is used under
non-standard conditions as well as for measurement laboratories for the purpose of calibration.
10.2.1 Influence of the serial interference voltage UZ upon earth resistance
measurements for functions 3P, 4P, 3P + clamp
R Additional uncertainty [Ω]
0,000…3,999Ω
z
E
z
E
U
R
U
R
)1021025(
4
4
>3,999Ω
zE
UR
)102105(
24
10.2.2 Influence of the serial interference voltage UZ upon earth resistance
measurements for function ρ
add
[Ω] =
ZZHE
UURR
)1010(5,2
63
,
where
L
R
E
2
10.2.3 Influence of the auxiliary electrodes upon earth resistance measurements for function 3P, 4P, 3P + clamp
RE
RH,R
S
Additional uncertainty [%]
0,000…
…3,999Ω
RH≤500Ω and
RS≤500Ω
within the range of the basic uncertainty
RH>500Ω or
RS>500Ω or
RH and RS>500Ω
)104)
1
1(105
200
200
10
(
43
2
6
H
EHE
H
S
S
R
RRR
R
R
R
>3,999Ω
RH≤1kΩ and RS≤1kΩ
within the range of the basic uncertainty
RH>1kΩ or
RS>1kΩ or
RH and RS>1kΩ
)104105
200
200
10
(
43
2
6
H
HE
H
S
S
R
RR
R
R
R
R
E
[Ω], R
S
[Ω] and RH[Ω] are values which are displayed by the device.
Page 56
MRU-200 OPERATING MANUAL Version 5.0
54
For measurements with the use of ERP-1
RE
RH,R
S
Additional uncertainty for U = 25 V [%]
0,000 Ω
..3,999 Ω
RH≤500 Ω and RS≤500 Ω
within the range of the basic uncertainty
RH>500 Ω or
RS>500 Ω or
RH and RS>500 Ω
)104)
1
1(105
200
200
10
(
43
2
6
H
EHE
H
S
S
R
RRR
R
R
R
>3,999 Ω
RH≤1 kΩ i RS≤1 kΩ
within the range of the basic uncertainty
RH>1 kΩ or
RS>1 kΩ or
RH and RS>1 kΩ
)1020105
200
200
10
(
43
2
6
H
HE
H
S
S
R
RR
R
R
R
RE
RH,R
S
Additional uncertainty for U = 50 V [%]
0,000 Ω
..3,999 Ω
RH≤500 Ω and RS≤500 Ω
within the range of the basic uncertainty
RH>500 Ω or
RS>500 Ω or
RH and RS>500 Ω
)104)
1
1(105
200
200
10
(
43
2
6
H
EHE
H
S
S
R
RRR
R
R
R
>3,999 Ω
RH≤1 kΩ i RS≤1 kΩ
within the range of the basic uncertainty
RH>1 kΩ or
RS>1 kΩ or
RH and RS>1 kΩ
)1015105
200
200
10
(
43
2
6
H
HE
H
S
S
R
RR
R
R
R
R
E
[Ω], R
S
[Ω] and RH[Ω] are values which are displayed by the device.
10.2.4 Influence of the auxiliary electrodes upon earth resistance measurements for function ρ
RH,R
S
Uncertainty [%]
R
H
≤1kΩ
and R
S
≤1kΩ
within the range of the basic uncertainty
RH>1kΩ or
RS>1kΩ or
RH and RS >1kΩ
)104102,3
30000
(
22
47
SH
E
SH
RR
R
RR
R
E
[Ω], R
S
[Ω] and RH[Ω] are values which are displayed by the device.
10.2.5 Influence of the auxiliary electrodes upon earth resistance measurements by means of the percussive method
RH Z
E
Uncertainty [%]
RH≤150Ω
0,0…199Ω
within the range of the basic
uncertainty
RH >150Ω
0,0…4,9Ω
)104
100
(
2
E
H
Z
R
5,0…199Ω
)107)100((
3
H
R
ZE[Ω] and RH[Ω] are values which are displayed by the device.
Page 57
MRU-200 OPERATING MANUAL Version 5.0
55
10.2.6 Influence of the interference current IZ upon the result of the earth
resistance measurement 3P+clamp
The MRU-200 meter may perform a measurement, if the value of the interference current does
not exceed 3A rms and the frequency complies with the value set in the MENU.
RE U
out
Uncertainty []
≤50
25V
)105(
2
3
zaklE
IR
50V
)105,2(
2
3
zaklE
IR
>50
25V
)1070(
22
6
zaklE
IR
50V
)1050(
22
6
zaklE
IR
If the interference current exceeds 3A the possibility of measurement is blocked.
10.2.7 Influence of interference current upon the result of the earth resistance measurement using double clamps
The MRU-200 meter may perform a measurement, if the value of the interference current does
not exceed 3A rms and the frequency complies with the value set in the MENU.
R
E
Uncertainty [Ω]
0,00...4,99Ω
within the range of the basic uncertainty
5,00...19,9Ω
)105(
32
3
zaklE
IR
20,0...149,9Ω
)106(
32
2
zaklE
IR
If the interference current exceeds 3A the possibility of measurement is blocked.
10.2.8 Influence of the relation of the resistance measured with clamp for
the multiple earthing branch to the resultant resistance (3P + clamp)
R
C
Uncertainty [Ω]
≤99,9Ω
)103(
2
3
w
C
R
R
>99,9Ω
)106(
2
2
w
C
R
R
RC[Ω] is the value of the resistance measured with clamps for the branch displayed by the device,
and RW[Ω] is the value of the resultant multiple earth resistance.
10.2.9 Additional uncertainties in accordance with IEC 61557-4 (2P)
Influencing factor
Symbol
Additional uncertainty
Location
E
1
0%
Power supply voltage
E
2
0% ( not displayed)
Temperature
E
3
R≤3,999Ω
±0,3digits/°C
R>3,999Ω and
<1kΩ
±0,2digits/°C
R≥1kΩ
±0,07%/°C
±0,2 digits/°C
Page 58
MRU-200 OPERATING MANUAL Version 5.0
56
10.2.10 Additional uncertainties in accordance with IEC 61557-5 (3P, 4P,
3P + clamp)
Influencing factor
Symbol
Additional uncertainty
Location
E
1
0%
Power supply voltage
E
2
0% ( not displayed)
Temperature
E
3
R≤3,999 Ω
±0,3digits/°C
R>3,999Ω and
<1kΩ
±0,2digits/°C
R≥1kΩ
±0,07%/°C
±0,2 digits/°C
Serial interference voltage
E
4
In accordance with formula In
10.2.1 (Uz=3V 50/60/400/16 2/3Hz)
Resistance of electrodes and
auxiliary earth electrodes
E
5
In accordance with the formula in
10.2.3
11 Accessories
11.1 Basic accessories
30 cm probes (4 pieces) – WASONG30,
2.2-metre black test lead with banana plugs at one end, with a test prod – WAPRZ2X2BLBB,
25-metre blue (WAPRZ025BUBBSZ) and red (WAPRZ025REBBSZ) test leads (2 pieces) with
banana plugs at both ends, wound upon reels which permit to elongate the test leads (for the
purpose of measurements of extensive earthing systems),
1.2-metre red test lead – WAPRZ1X2REBB,
50-metre, yellow shielded test lead wound upon a reel with banana plugs at both ends –
WAPRZ050YEBBSZE,
Black crocodile clip – WAKROBL20K01,
Red crocodile clip – WAKRORE20K02,
Vice – WAZACIMA1,
Rechargeable batteries – WAAKU07,
Meter protective cover – WAFUTL2,
Harness to carry the device, two pieces (short and long) – WAPOZSZEKPL,
USB cable – WAPRZUSB,
Cable to charge the accumulators from the car lighter socket – WAPRZLAD12SAM,
Accumulator charger (to be used in different countries) – WAZASZ7,
Operating manual.
Page 59
MRU-200 OPERATING MANUAL Version 5.0
57

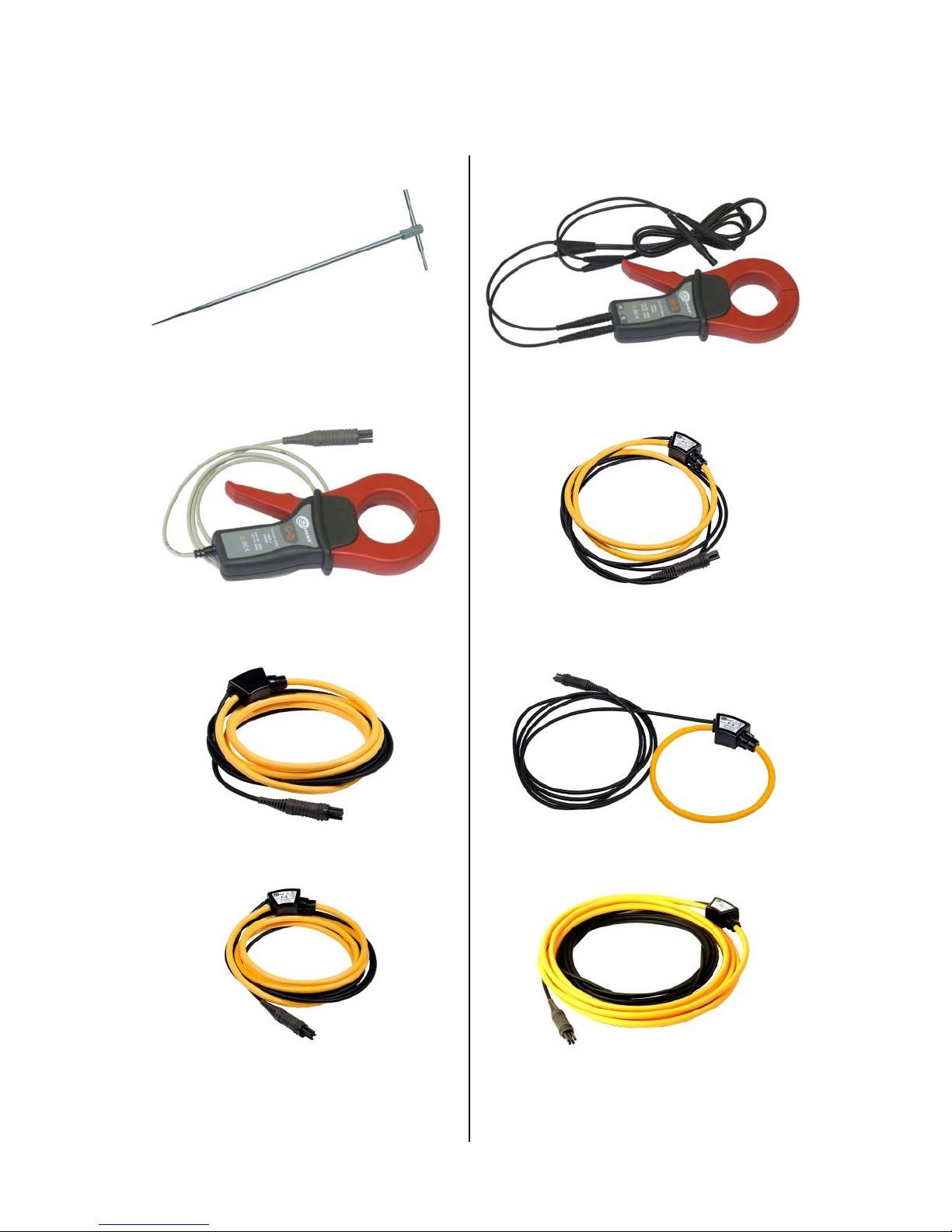

11.2 Additional accessories
Furthermore, the manufacturer and authorised distributors offer the following elements which are
not included in the basic accessories package:
WASONG80
80cm measurement probe to be driven
into the ground
WACEGC3OKR
Reception clamp C-3
WACEGF2AOKR
Flexible clamp F-2A
WACEGF4AOKR
Flexible clamp F-4A
WACEGN1BB
Transmission clamp N-1
WACEGF1AOKR
Flexible clamp F-1A
WACEGF3AOKR
Flexible clamp F-3A
WACEGFS2OKR
Flexible clamp FS-2
Page 60
MRU-200 OPERATING MANUAL Version 5.0
58

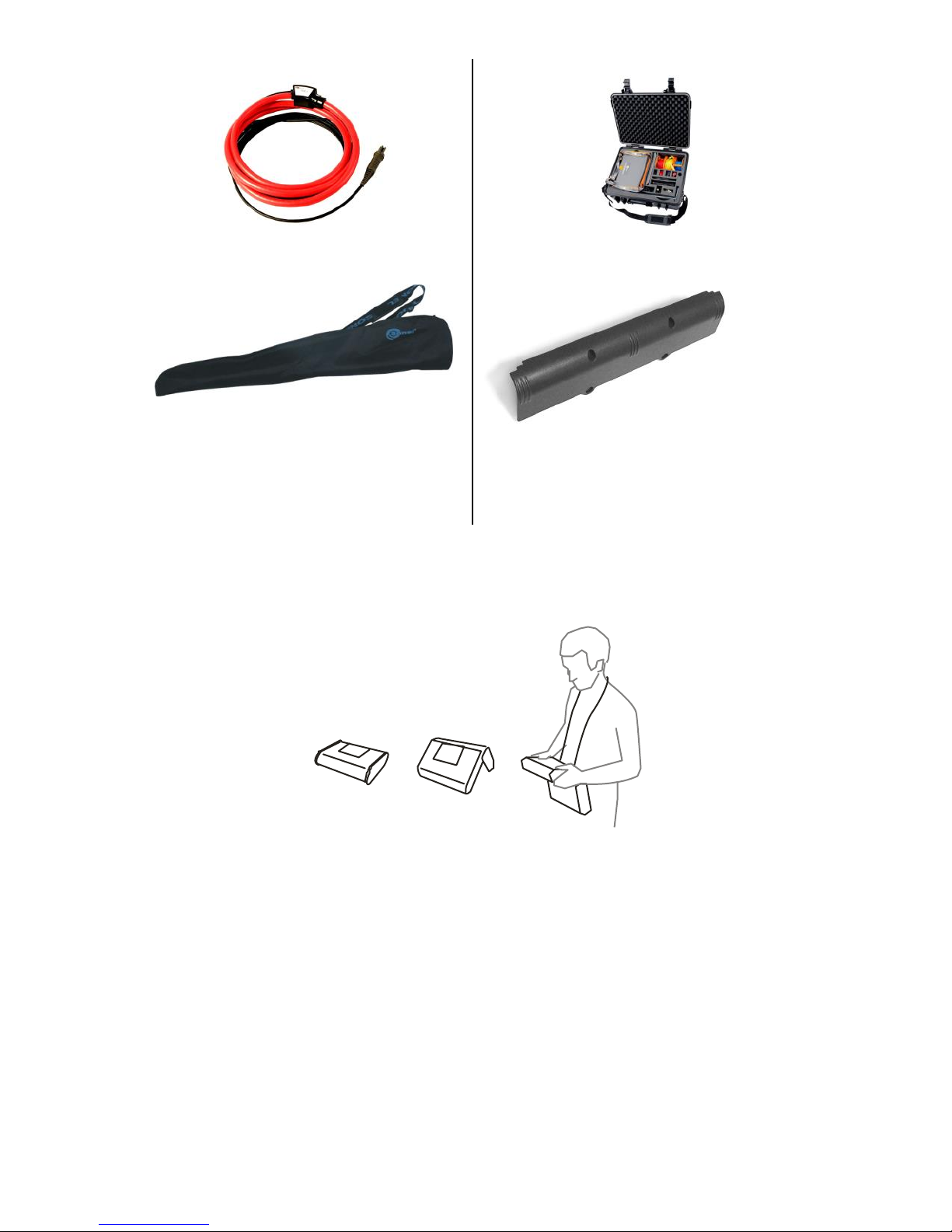

WACEGFSX3OKR
Flexible clamp FSX-3
WAFUTL3
80cm probe protective cover
WAWALXL3
Case XL3 for the meter and accessories
WAPOJ1
Batteries compartment
LSWPLMRU200
Certificate of calibration
12 Positions of the meter’s cover
The movable cover enables using the meter in various positions.
1 2 3
1 – Cover as the bottom of the meter
2 – Cover used as a support
3 – Cover in the position that enables convenient use of the meter suspended on the neck by means
of hanging straps
Page 61
MRU-200 OPERATING MANUAL Version 5.0
59
13 Manufacturer
The manufacturer of the device, which also provides guarantee and post-guarantee service is the
following company:
SONEL S.A.
ul. Wokulskiego 11
58-100 Świdnica
Poland
tel. +48 74 858 38 60
fax +48 74 858 38 09
E-mail: [email protected]
Web page: www.sonel.pl
Attention:
Service repairs must be realized solely by the manufacturer.
Page 62
MRU-200 OPERATING MANUAL Version 5.0
60
NOTES
Page 63
Page 64
Loading...
