Sonel MPU-1 Operation Manual

OPERATING MANUAL

MPU-1

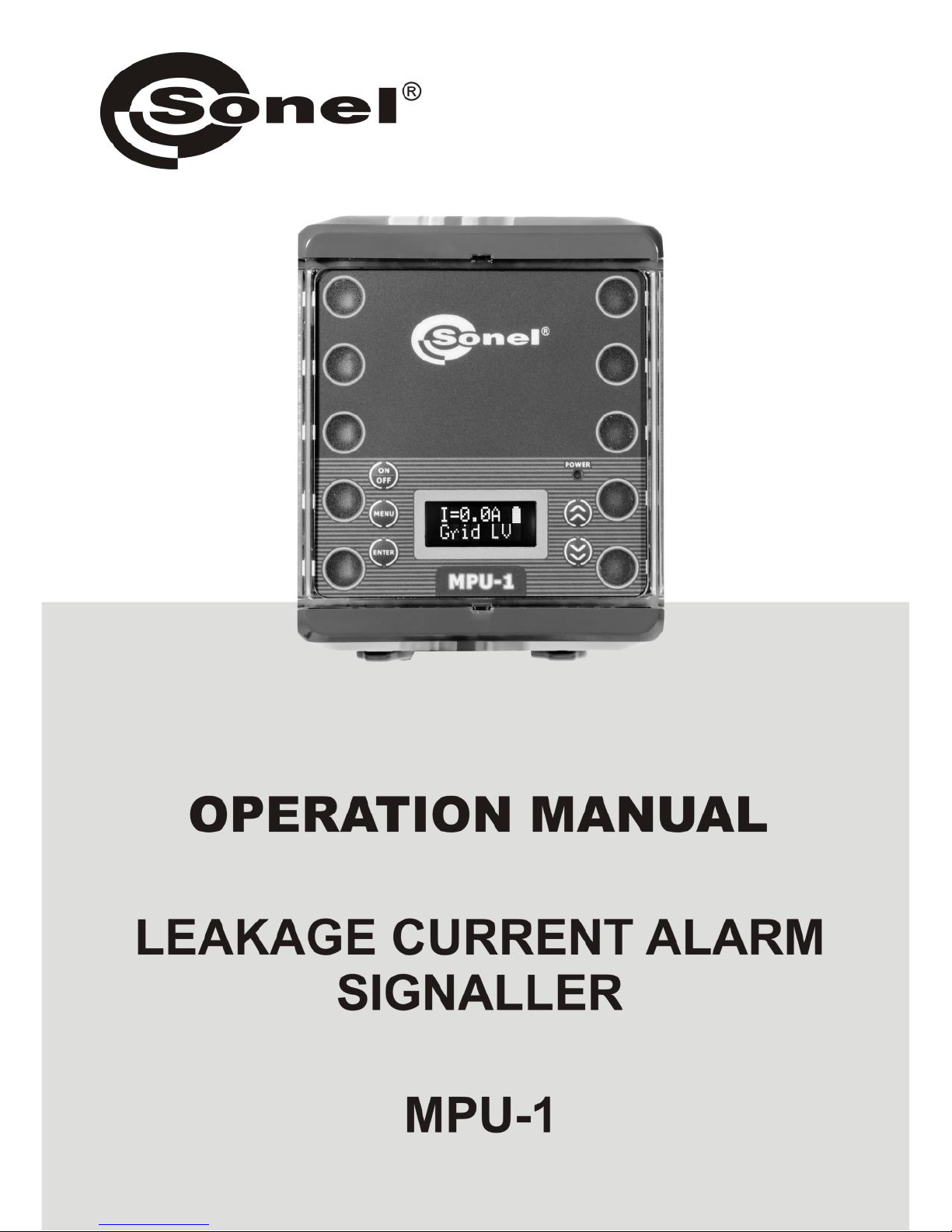

LEAKAGE CURRENT ALARM SIGNALLER

SONEL SA

ul. Wokulskiego 11

58-100 Świdnica, Poland

Version 1.5 27.04.2017

OPERATING MANUAL MPU-1 version 1.5

2

OPERATING MANUAL MPU-1 version 1.5

3

CONTENTS

1 PREFACE ................................................................................................................ 5

2 INTRODUCTION ................................................................................................... 6

3 SAFETY ................................................................................................................... 6

4 DESCRIPTION AND FEATURES ....................................................................... 7

4.1 CHARACTERISTICS OF MPU-1 ................................................................................. 7

4.2 ARRANGEMENT OF SOCKETS AND BUTTONS ............................................................ 7

4.2.1 Keyboard ...................................................................................................... 8

4.2.2 Sockets .......................................................................................................... 9

4.3 GRAPHIC DISPLAY (LCD) ..................................................................................... 10

4.4 ACOUSTIC/VISUAL SIGNALS. ................................................................................. 10

4.5 MEASURING CLAMPS ................................................................ ............................ 10

5 STARTING THE OPERATION .......................................................................... 11

6 OPERATION ......................................................................................................... 11

6.1 PREPARING MPU-1 FOR OPERATION ..................................................................... 11

6.2 MONITORING THE POWER SUPPLY VOLTAGE (RECHARGEABLE BATTERY) ............. 12

6.3 CONNECTING THE DEVICE. .................................................................................... 12

6.4 OPERATING THE INTERFACE. ................................................................................. 13

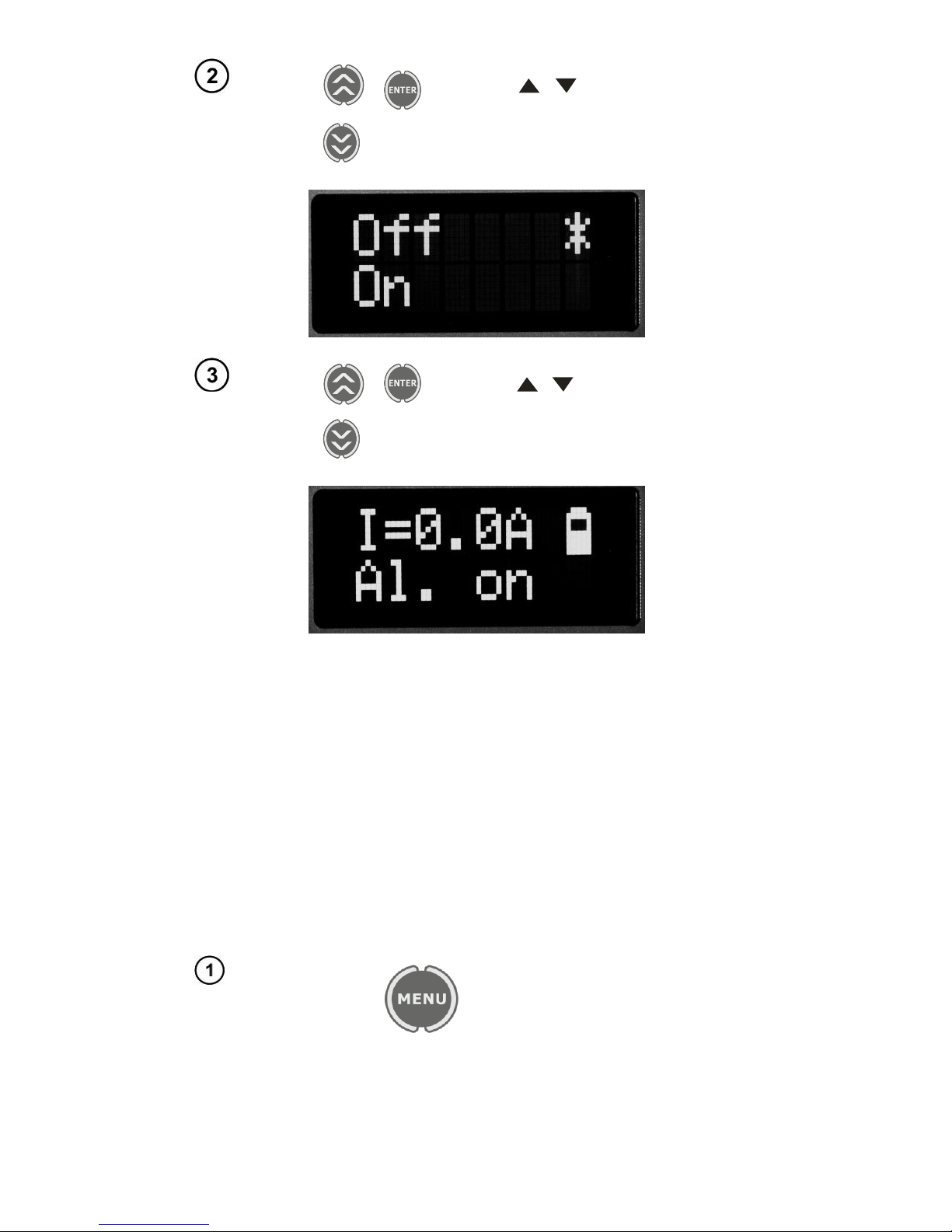

6.4.1 Monitoring the leakage current with “Alarm on” mode ............................ 14

6.4.2 Leakage current measurement in "Alarm off" mode, with displaying the

measured value on the screen. .................................................................... 16

6.4.3 Changing the frequency of the monitored network. .................................... 17

6.4.4 DEMO function. ......................................................................................... 18

6.4.5 Function for informing about the operational status of the device............. 19

6.4.6 Changing the language ............................................................................... 20

6.4.7 Reset function. ............................................................................................ 21

7 TROUBLESHOOTING ........................................................................................ 23

7.1 WARNINGS AND INFORMATION DISPLAYED BY THE DEVICE. ................................. 23

8 POWER SUPPLY OF THE DEVICE ................................................................ . 24

8.1 MONITORING THE POWER SUPPLY VOLTAGE ......................................................... 24

8.2 REPLACING RECHARGEABLE BATTERIES ............................................................... 24

8.3 CHARGING RECHARGEABLE BATTERY ................................................................... 24

8.4 GENERAL PRINCIPLES FOR USING NI-MH RECHARGEABLE BATTERIES .................. 25

9 CLEANING AND MAINTENANCE .................................................................. 26

10 STORAGE ............................................................................................................. 26

11 DISMANTLING AND DISPOSAL ..................................................................... 26

12 TECHNICAL SPECIFICATIONS ...................................................................... 26

OPERATING MANUAL MPU-1 version 1.5

4

12.1 BASIC DATA ....................................................................................................... 26

12.2 OTHER TECHNICAL SPECIFICATIONS ................................................................... 27

13 ACCESSORIES ..................................................................................................... 27

13.1 BASIC ACCESSORIES ........................................................................................... 27

13.2 OPTIONAL ACCESSORIES .................................................................................... 27

14 MANUFACTURER ............................................................................................... 28

OPERATING MANUAL MPU-1 version 1.5

5

1 Preface

Thank you for purchasing leakage current alarm signaller. MPU-1 is a modern, easy and safe in
use signalling device. Please acquaint yourself with this manual in order to avoid measuring errors and
prevent possible problems in operation of the device.

This manual contains three types of warnings. They are presented as a framed text describing the
possible risks for the user and the device. Texts starting with word ‘WARNING:’ describe situations,
which may endanger user's life or health, when instructions are not followed. Word ‘CAUTION!’ begins
a description of a situation, which may result in device damage, when instructions are not followed.

Indication of possible problems is preceded by word ‘Note:’.

WARNING:
Before operating the device, read thoroughly this manual and observe the safety regulations
and guidelines provided by the producer.

WARNING:
MPU-1 is not the only device required to ensure 100% safety of works with electricity. Moreo­ver, the user's alarm response time he must be taken into account MPU-1 is designed to pro­vide additional protection against electric shock in the workplace, therefore using MPU-1 must
not substitute any other protection measure in the workplace and/or personal protection
equipment used by employees. Appropriate occupational health and safety regulations must
be observed along with other instructions, rules and basic safety measures, in accordance
with local or national regulations.

WARNING:
Leakage current alarm signaller is designed for monitoring (measuring) the leakage current in
LV and MV networks. Any application that differs from those specified in the present manual
may result in a damage to the device and constitute a source of danger for the user.

WARNING:
MPU-1 signallers may be used only by qualified persons, certified to perform measurements
on LV and MV live networks. Operating the device by unauthorised personnel may result in
damage to the device and constitute a source of danger for the user.

WARNING:
Using this manual does not exclude the need to comply with occupational health and safety
regulations and with other relevant fire regulations required during the performance of a par­ticular type of work. Before starting the work with the device in special environments, e.g.
potentially fire-risk/explosive environment, it is necessary to consult it with the person re­sponsible for health and safety.

OPERATING MANUAL MPU-1 version 1.5

6

2 Introduction

This manual describes the operation of MPU-1 leakage current alarm signaller. We recommend
reading the manual thoroughly in order to avoid errors that may result in danger to the user or an incor­rect assessment of the tested network. For more information on safety during measurements -see
Chapter 3 – Safety. Before first use of the device, be sure to read Chapter 5 – Starting the operation.
For additional information related to interpreting the warnings and information displayed by the device,
it is recommended to read Chapter 7 – Troubleshooting. All information on operating the device may
be found in Chapter 6 – Operation.

3 Safety

Sonel has made every effort to ensure that our product MPU-1 is reliable and of the highest quality.
Remember that MPU-1 is not the only device required to ensure 100% safety of works with electricity.
Moreover, the user's alarm response time he must be taken into account MPU-1 is designed to provide
additional protection against electric shock in the workplace, therefore using MPU-1 must not substi-
tute any other protection measure in the workplace and/or personal protection equipment used by em­ployees. Appropriate occupational health and safety regulations must be observed along with other
instructions, rules and basic safety measures.

MPU-1 is designed for monitoring (measuring) the leakage current in LV and MV AC power
systems; it is used for measurements that provide results required for assessing safety of the
monitored network in terms of leakage current. The device allows its users to set a threshold of
leakage current flowing through a network, above which a visual/acoustic alarm will be trig­gered. Therefore, in order to provide conditions for correct operation and accuracy of obtained
results, the following recommendations must be observed:

 before using the device read carefully this manual,
 the meter should be operated only by qualified persons that have passed health and safety training,
 It is unacceptable to operate the following:

 a damaged device, which is completely or partially out of order,

 a device with damaged insulation of test leads,

 a device stored for an excessive period of time in disadvantageous conditions (e.g. excessive

humidity).

 before using the device, make sure the leads are connected to the appropriate measurement sock-

ets.
 repairs may be performed only by an authorised service point.

In addition, please note that:

 discharged battery symbol appears on the display when the supply voltage is too low and indicates

the need to recharge the batteries,
 when the power supply voltage is too low, the measurements performed with the device may include

additional errors undetected by the user and they may not be used to confirm that the tested cir-

cuit/network are properly protected.
 using MPU-1 must not substitute any other protection measure in the workplace and/or personal

protection equipment used by employees. Appropriate occupational health and safety regulations

must be observed along with other instructions, rules and basic safety measures, in accordance

with local or national regulations. Avoid working alone.
 Caution is required for AC voltages with RMS value exceeding 30 V or when their peak value ex-

ceeds 42 V. Be also careful when DC voltages exceeding 60 V. Such voltages generate a risk of

electric shock.

OPERATING MANUAL MPU-1 version 1.5

7

4 Description and Features

4.1 Characteristics of MPU-1

MPU-1 is designed for monitoring (measuring) the leakage current in LV and MV AC power
systems; it is used for measurements in grounding systems to provide results required for as­sessing safety of the monitored network in terms of leakage current. The device allows its users
to set a threshold of leakage current flowing through a network, above which a visual/acoustic
alarm will be triggered.

The most important features of MPU-1 include:
 constant monitoring of current flowing through the grounding of poles, in the range of 0.1 ... 299A,

in LV and MV 50Hz or 60Hz networks (after proper configuration in MENU), automatic selection of
the measuring range

 measurement with one or two clamps at the same time; with double-clamp measurement the current

is summed, providing the opportunity to cover the twin poles (vortex), independent clamps for each
component pole,

 triggering alarm when the current flow exceeds the alarm threshold (default setting at 1A), acoustic

and visual alarm (a speaker built-in within the housing),

 no measurement for direct currents,
 measurement with Sonel flexible clamps of F series (Rogowski coil), the option of changing the

diameter of clamps without the need to re-calibrate the device,

 monitoring the battery charge status, LED indicator for operation mode,
 ergonomic operation,
 IP 67.

4.2 Arrangement of sockets and buttons

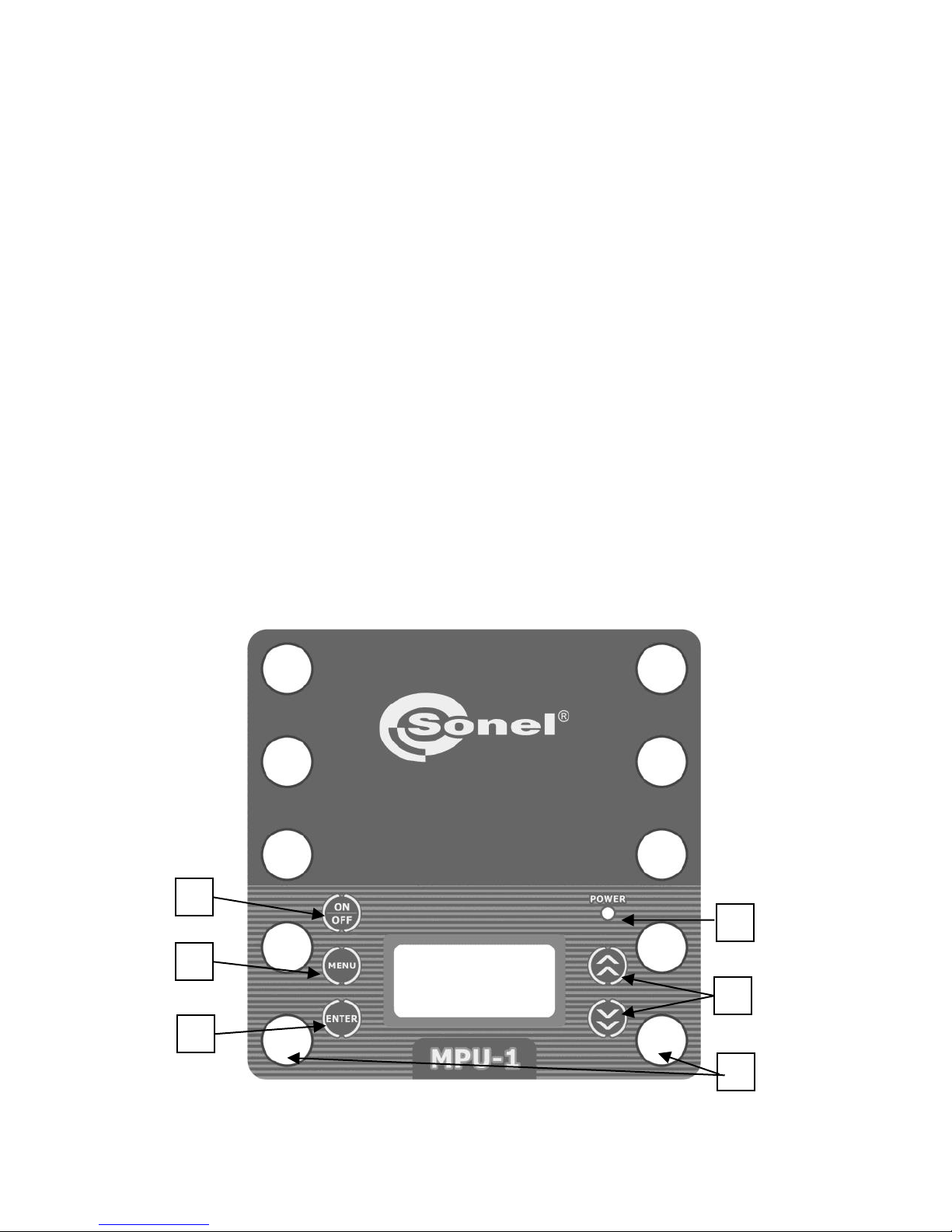

Fig.1. Arrangement of LEDs and buttons (front panel).

1

2

3

4

5

6

OPERATING MANUAL MPU-1 version 1.5

8

4.2.1 Keyboard

1 ON/OFF button

Turning the device ON/OFF.

2 MENU button

Selecting the measurement function:

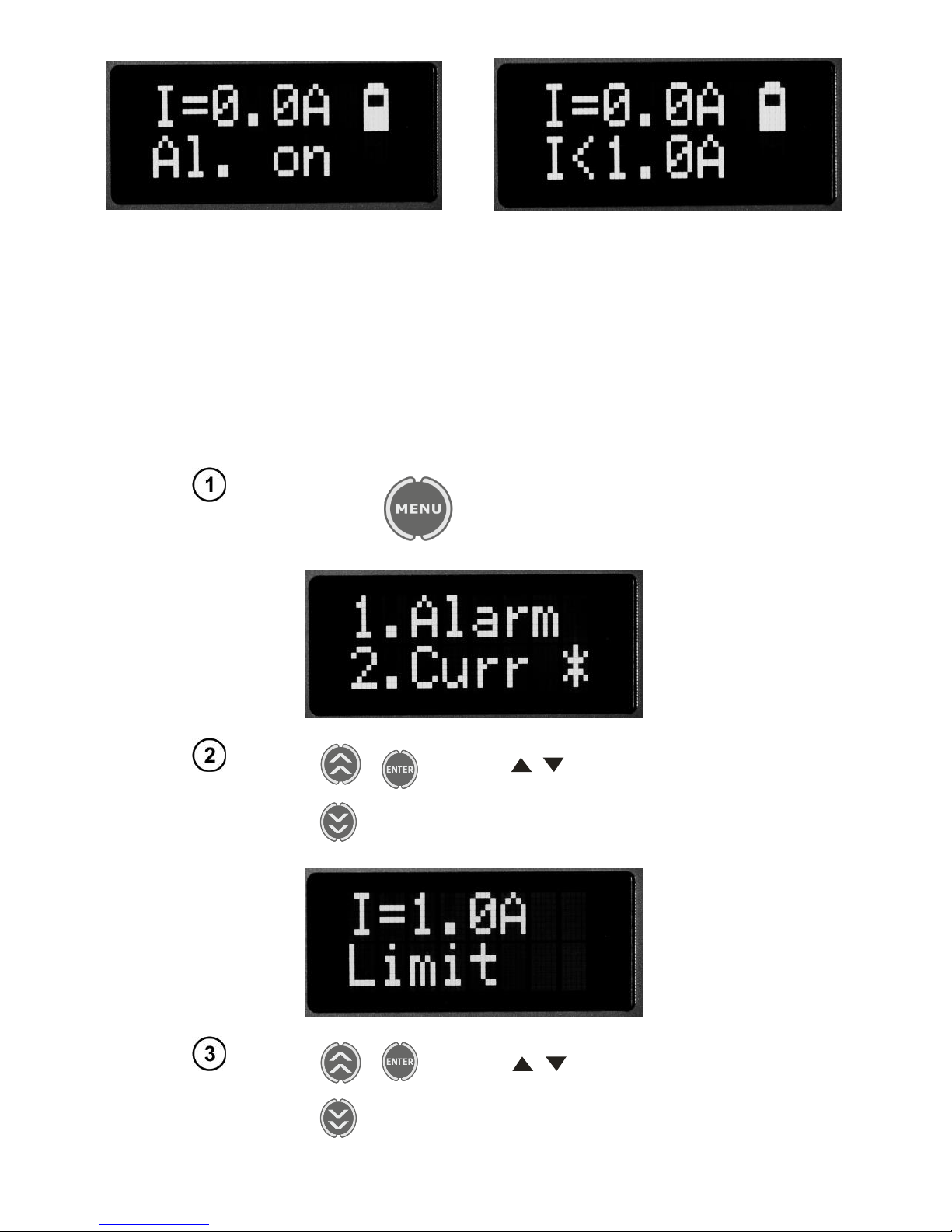

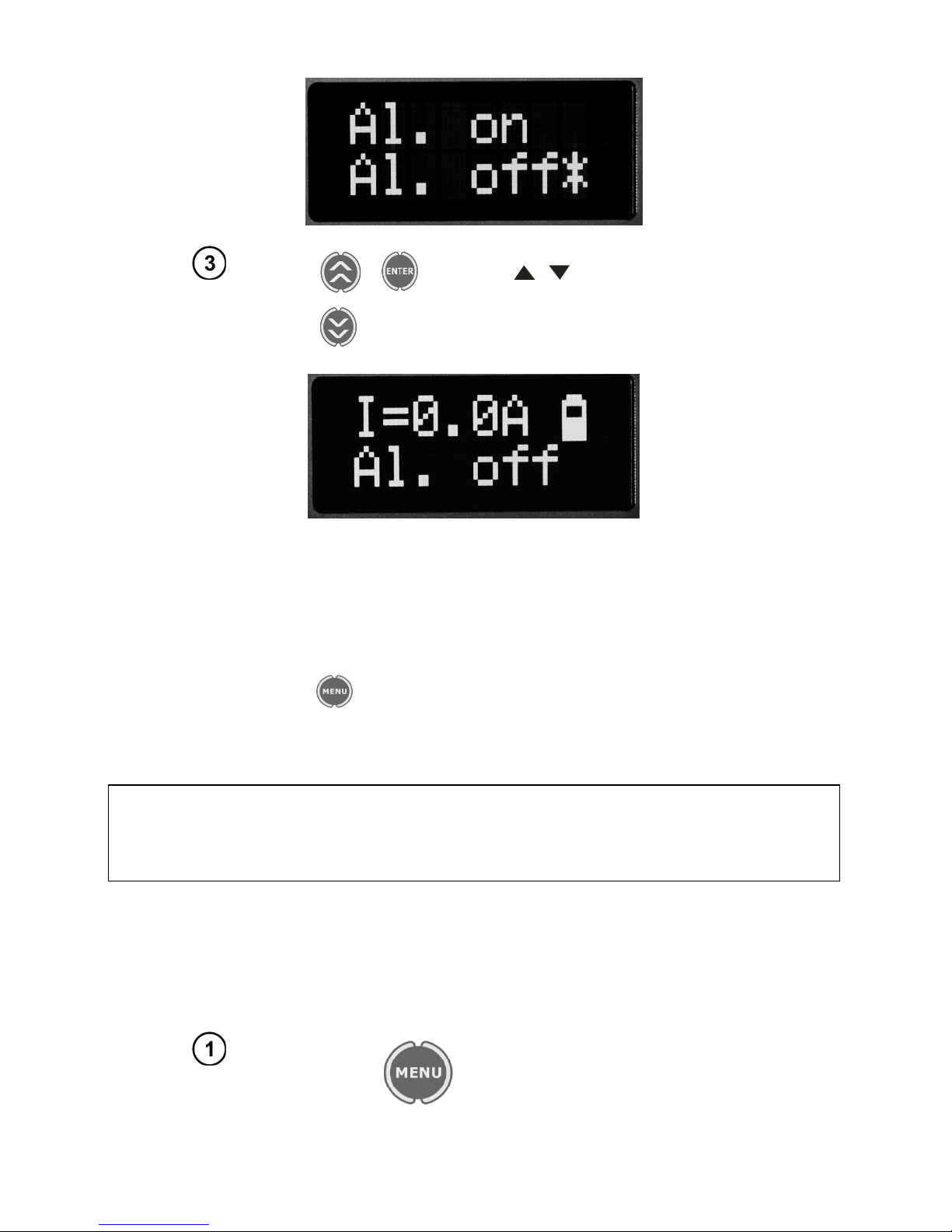

 Alarm – setting the alarm on or off;

 Curr – setting the alarm threshold for current flow;

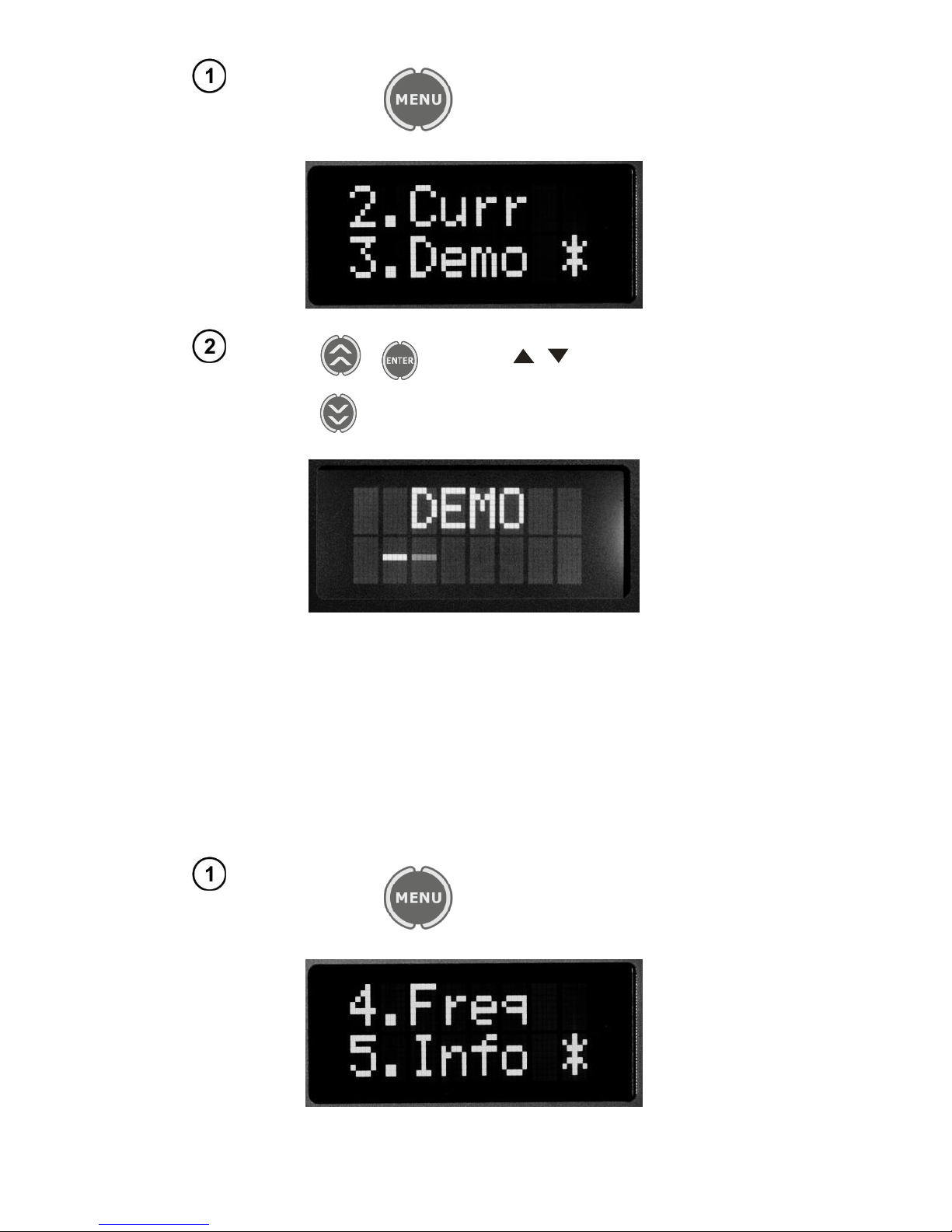

 Demo – simulation of an alarm condition;

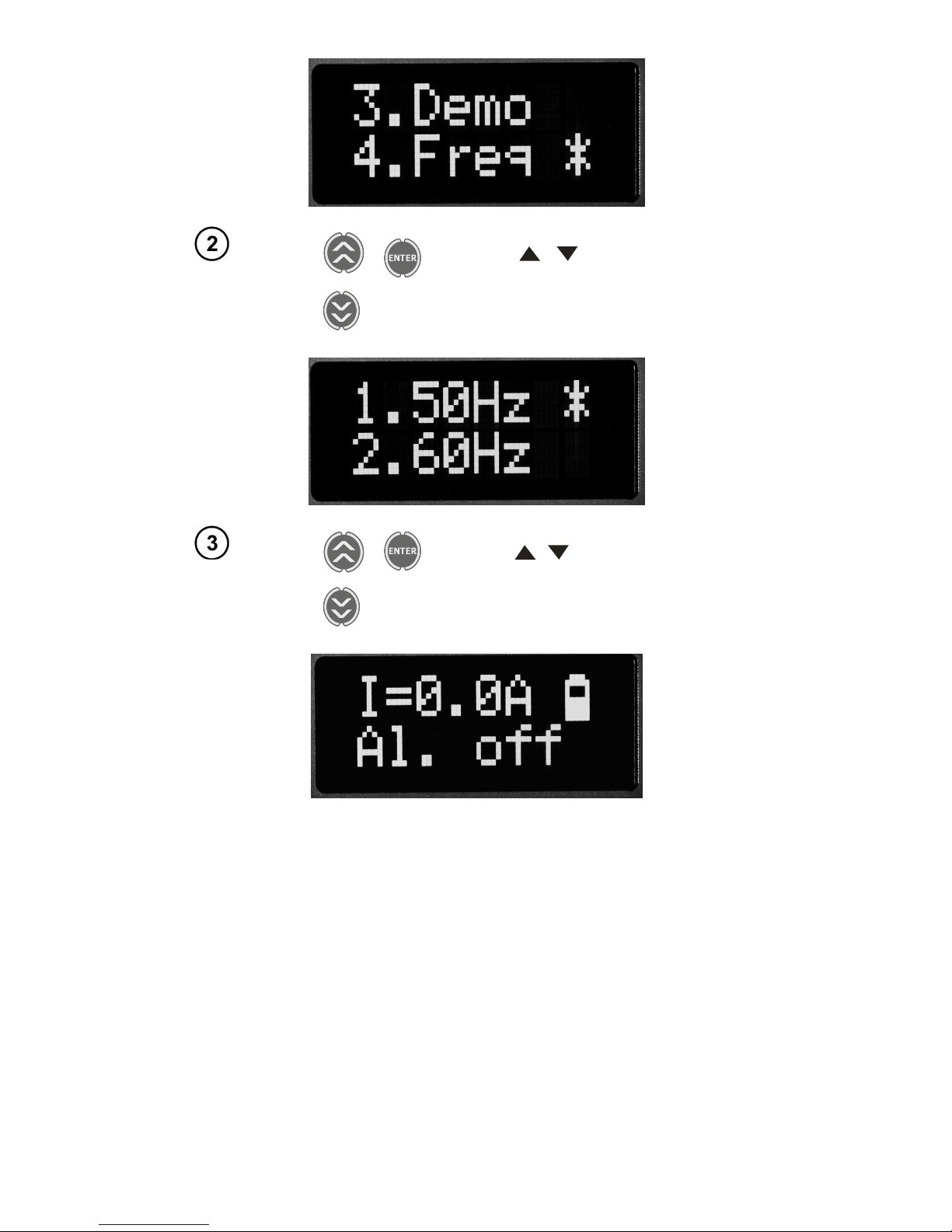

 Freq – setting the rated frequency of the network (50Hz or 60Hz);

 Info – activation of information about the operation of the device;

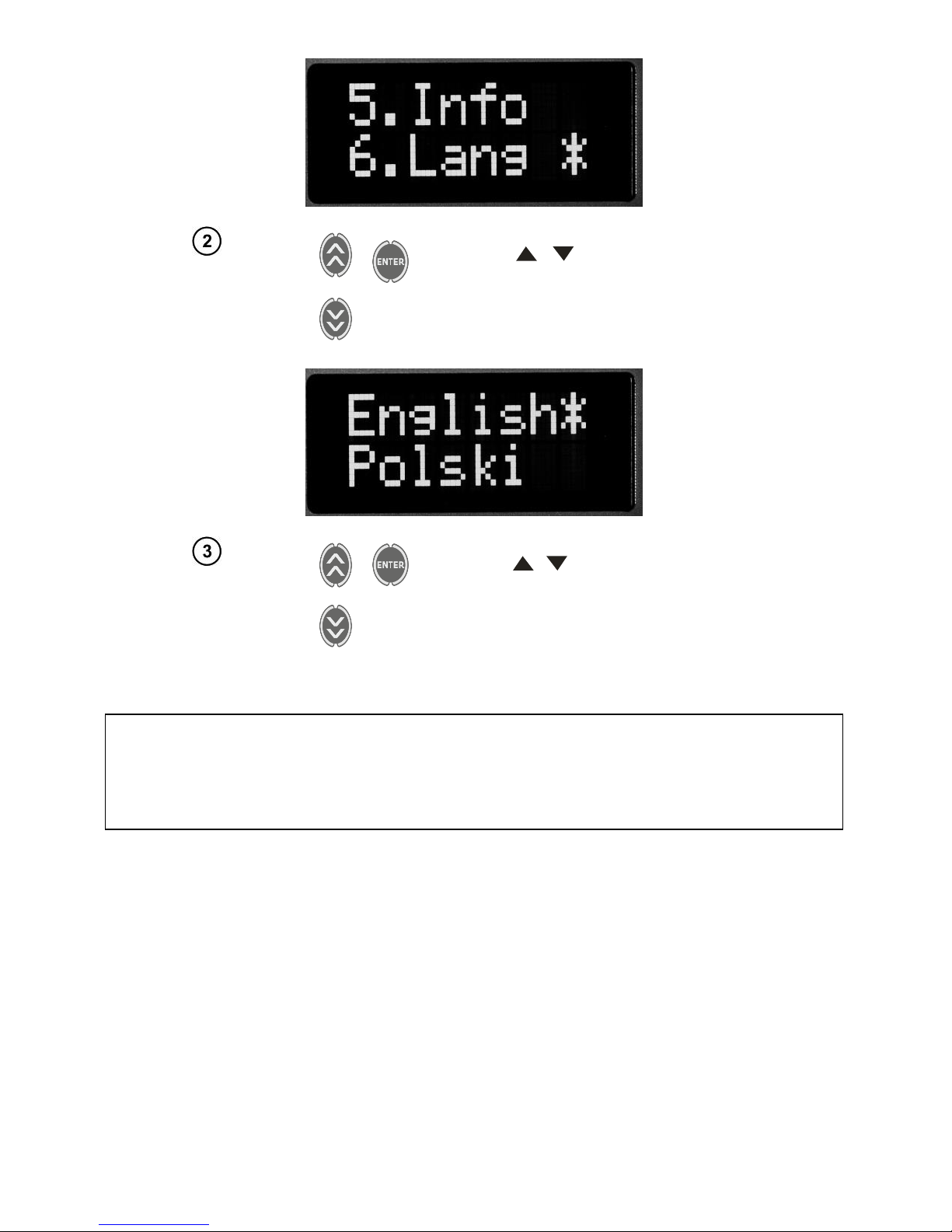

 Lang – selection of the user interface language;

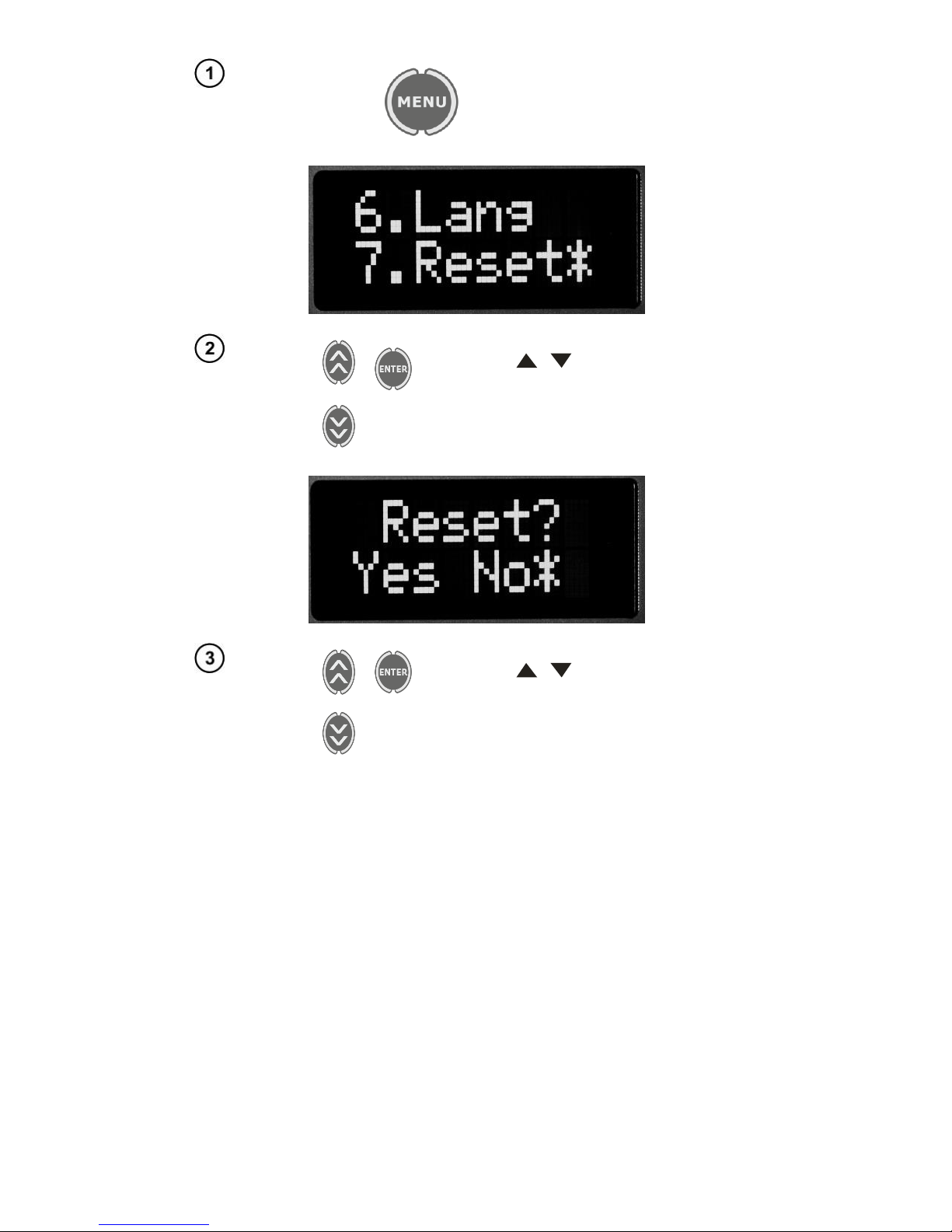

 Reset – restoring factory (default) settings.

3 ENTER button

Approving entered settings, exiting to menu.

4 LED indicating the operational status of the device

 Measuring Mode:

- LED is illuminated in green – the device is in operational mode,

- LED is illuminated in red – device error (additional error code is displayed, as described
below),

- LED flashes red – low battery charge level,

 Battery charging mode"

- LED flashes red – low battery charge level,

- LED flashes green – charging the battery,

- LED is illuminated in green – battery fully charged,

5 Buttons and

A set of cursors with auto-repetition for choosing MENU options and changing setting values
6 Alarm LEDs

A set of red alarm LEDs arranged in two rows on the front panel (5 LEDs in each row), and in two

rows at the sides of the device (5 LEDs on each side). Their operation is described in the next

sections.

OPERATING MANUAL MPU-1 version 1.5

9

4.2.2 Sockets

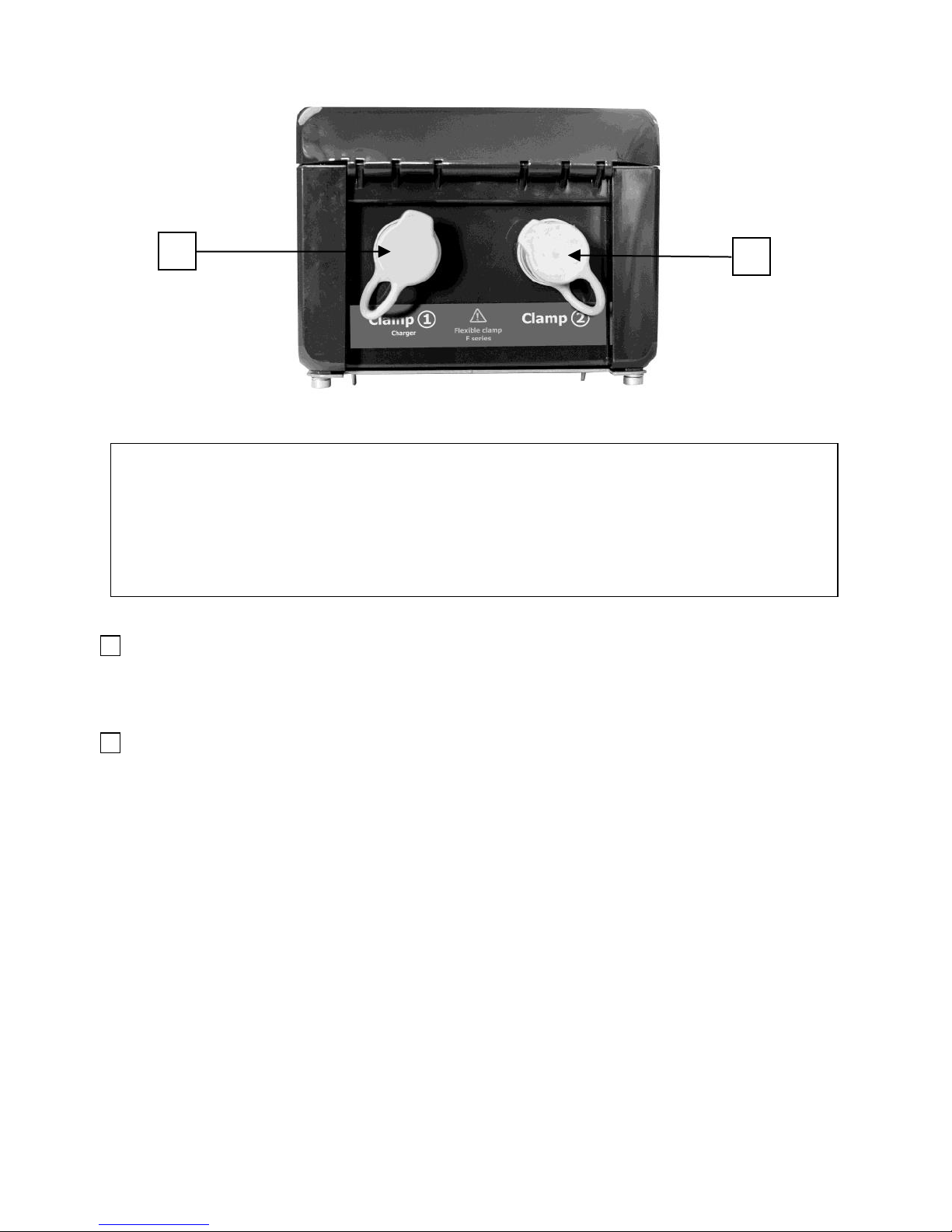

Fig.2. Arrangement of sockets in MPU-1.

CAUTION!
MPU-1 signaller is designed to measure the current flowing through the clamps with phase
voltages up to 1000V.

Connecting voltage higher than 25V, between any of the test terminals may damage the
device.

7 Measuring socket [Clamp (1) / Charger]

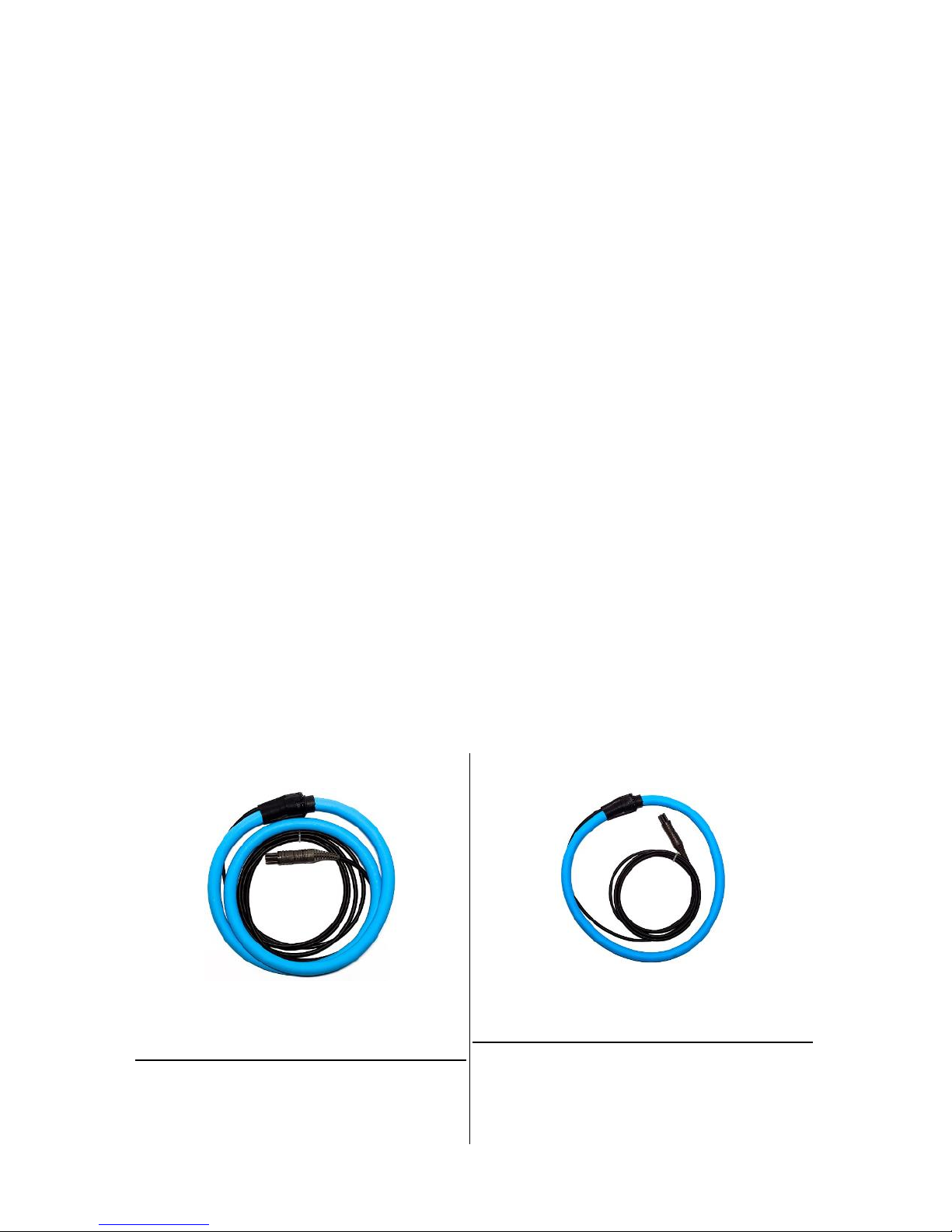

The socket for connecting Sonel measuring clamps of F-Series (Rogowski coil), used for measurements
with single clamps or for connecting the battery charger. Unused socket should be secured with a flex­ible socket plug.

8 Measuring [Clamp (2)]
The socket for connecting Sonel measuring clamps of F-Series (Rogowski coil), used for measurements
with double clamps. Unused socket should be secured with a flexible socket plug.

The device sums up current values from the two sockets, it is the mathematical sum (it does not
take into account the phase shifts).

7

8

OPERATING MANUAL MPU-1 version 1.5

10

4.3 Graphic display (LCD)

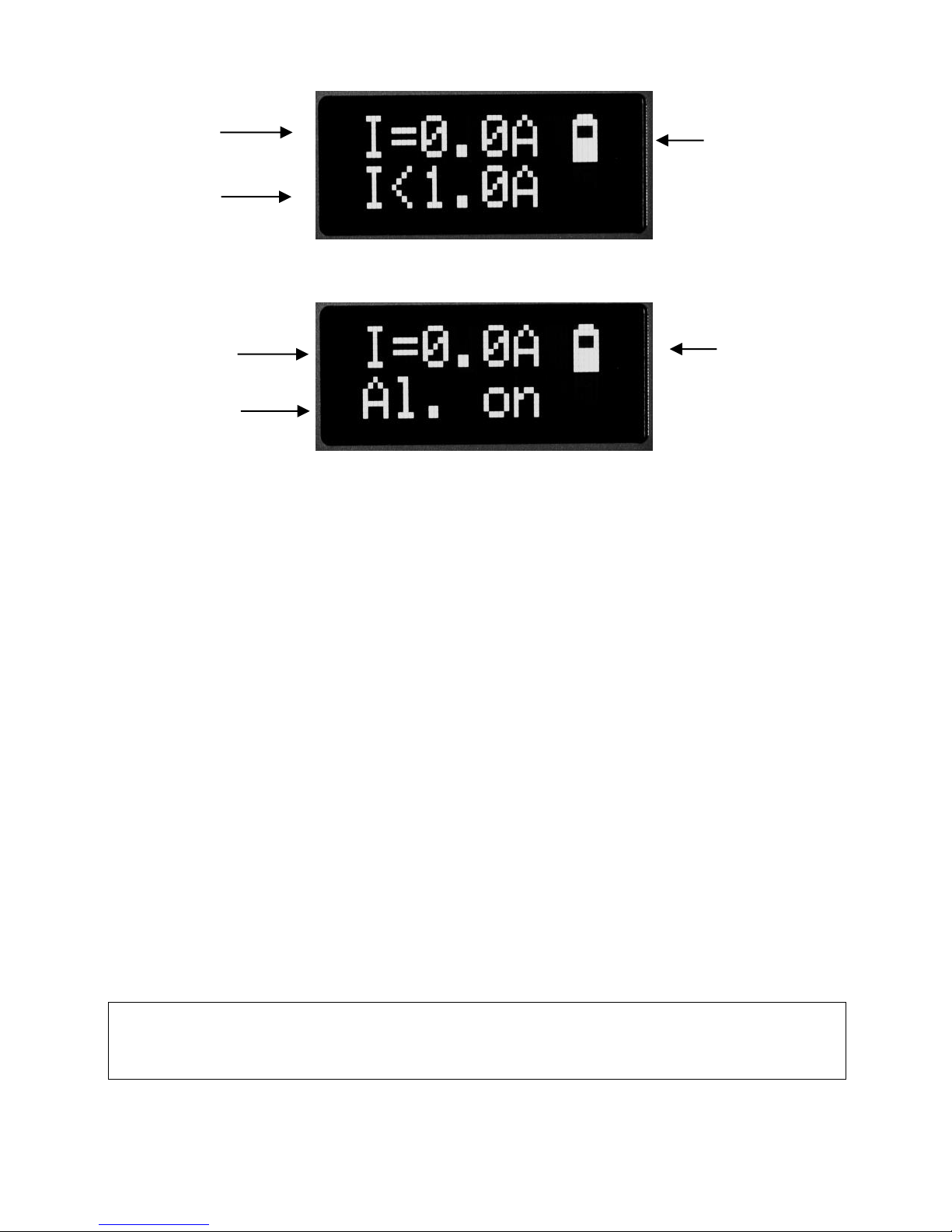

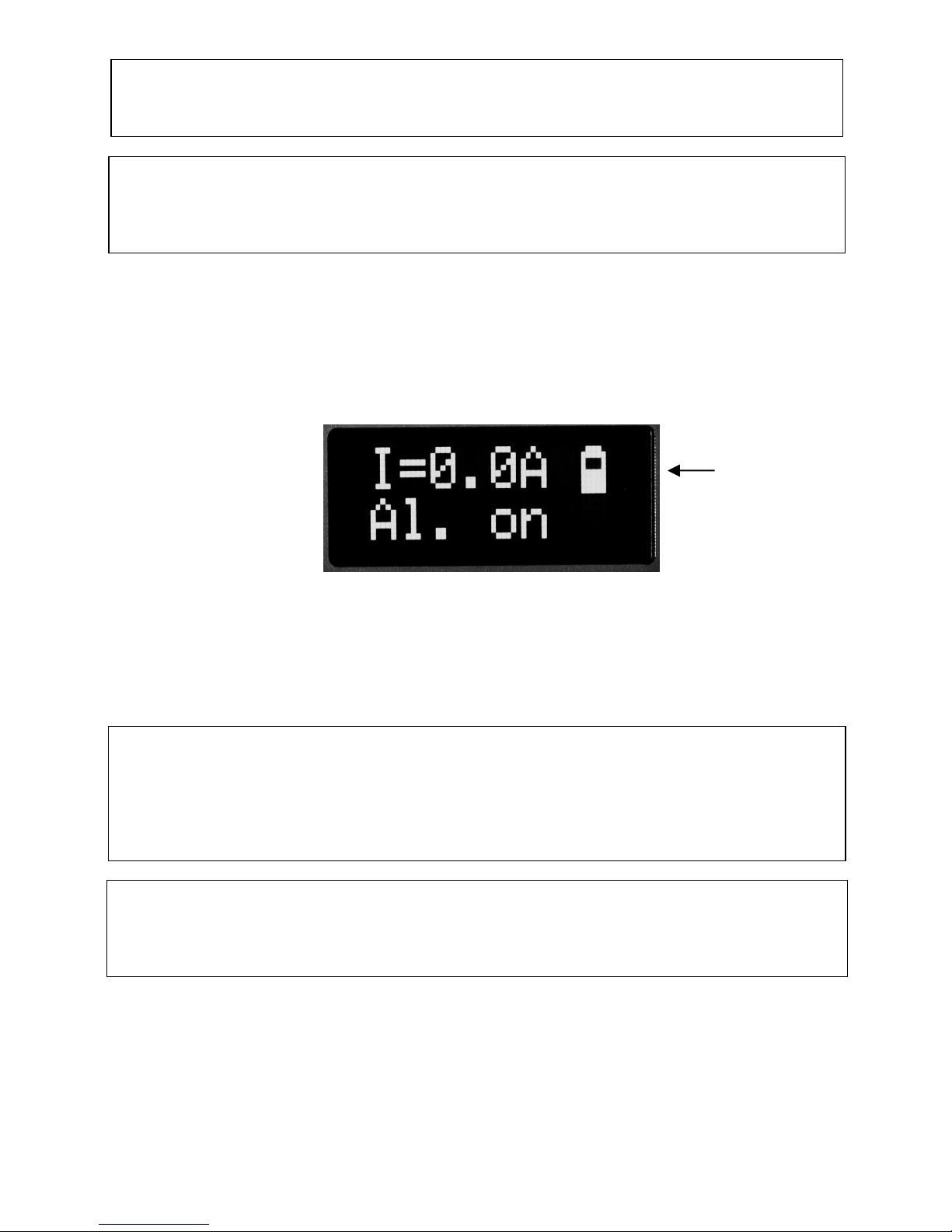

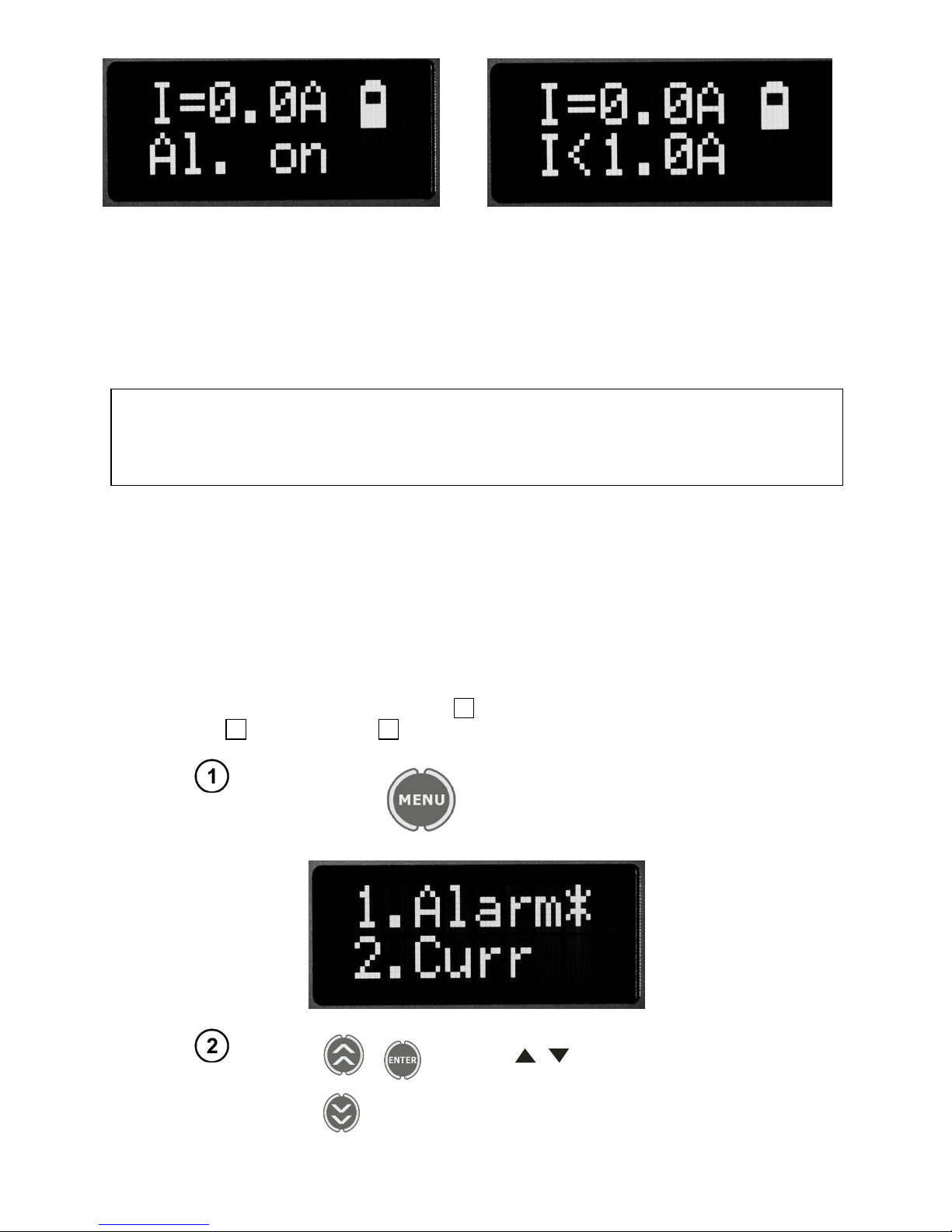

Fig.2. The view of the screen when alarm is off.

Fig.3. The view of the screen during the measurement of LV network.

4.4 Acoustic/visual signals.

Warning signals:

Continuous two-tone beep with flashing alarm LEDs (mode: "Alarm on"):

 ALARM status, the current flowing through the clamps exceeded the set threshold. The beep lasts

for 30 seconds, then it is muted - when the alarm status continues, then it is indicated by flashing
alarm LEDs.

Two long beeps with illuminated alarm LEDs, repeated every 15 seconds.

 low level of battery charge, the device should be switched off or it will turn off automatically in a

short time, more information on discharged batteries - see Chapter 8 "Power supply of the de­vice".

Short, two acoustic signals [beeps] (with active Info option):
 the signal indicating the device operation, working when you turn Info function, the signal is re-

peated approx. every 60 seconds.

4.5 Measuring Clamps

 MPU-1 is calibrated in the factory, taking into account the parameters of original Sonel clamps of

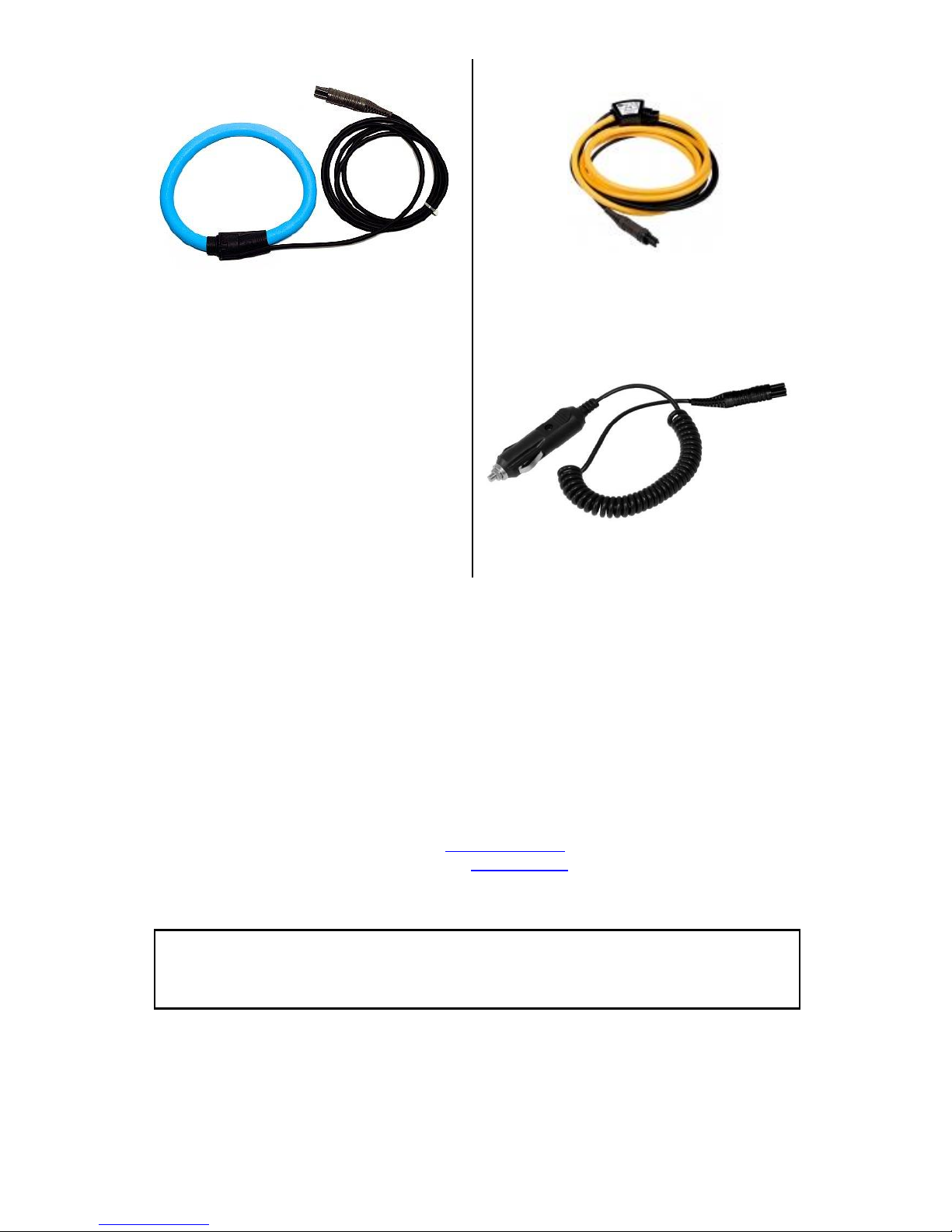

F-Series, The examples of clamp models compatible with MPU-1 are listed in Chapter 13 "Acces­sories".

WARNING:

Connecting wrong or damaged clamps may cause electric shock (dangerous voltage).

The value of measured

Current flowing through
the clamps.

Device operation

mode / value of the set

alarm threshold.

Indication of the bat-

tery charge status,

The value of measured

current flowing
through the clamps.

Device operation

mode.

Indication of the bat-

tery charge status,

OPERATING MANUAL MPU-1 version 1.5

11

Note:
The manufacturer guarantees the accuracy of device readings, only when it is used with
measuring clamps supplied with the device or purchased from manufacturer's authorized
source. Using extension cords or other modifications and aftermarket clamps may be a
source of additional errors.

Note:

"CAT III 1000V" marking on accessories is equivalent to "CAT IV 600V" marking.

5 Starting the operation

Before starting the operation of the device:

 check the contents of the package
 check and modify (if needed) the settings of the device (displaying results, operating mode, alarm

threshold, etc.)

6 Operation

Read thoroughly this chapter, as it describes metering circuits, measurement methods, settings and
other important issues.

6.1 Preparing MPU-1 for operation

Before performing the measurement:

 make sure that the battery level is sufficient for measurements,
 check the device and accessories for damage
 check the proper connection of clamps and adequate fixing of the device in its workplace.

WARNING:

Connecting wrong or damaged clamps may cause electric shock (dangerous voltage).

WARNING:
Do not use the device with a damaged housing and do not power it from sources other than
those listed in this manual.

WARNING:

Do not leave unattended device connected to the tested circuit.

Do not touch the equipment connected to the tested circuit/network.

WARNING:
Do not use the device if it was stored for an excessive period of time in disadvantageous
conditions (e.g. excessive humidity)

OPERATING MANUAL MPU-1 version 1.5

12

Note:

Do not use the device if its display is completely unreadable.

Note:
Using accessories other than those specified by the manufacturer is prohibited and may
result in a danger to the user or damage to the device.

6.2 Monitoring the power supply voltage (rechargeable battery)

It is important that MPU-1 has properly charged batteries before using it. The charge level of the
rechargeable battery is indicated by the symbol in the right upper corner of the display on a current
basis.

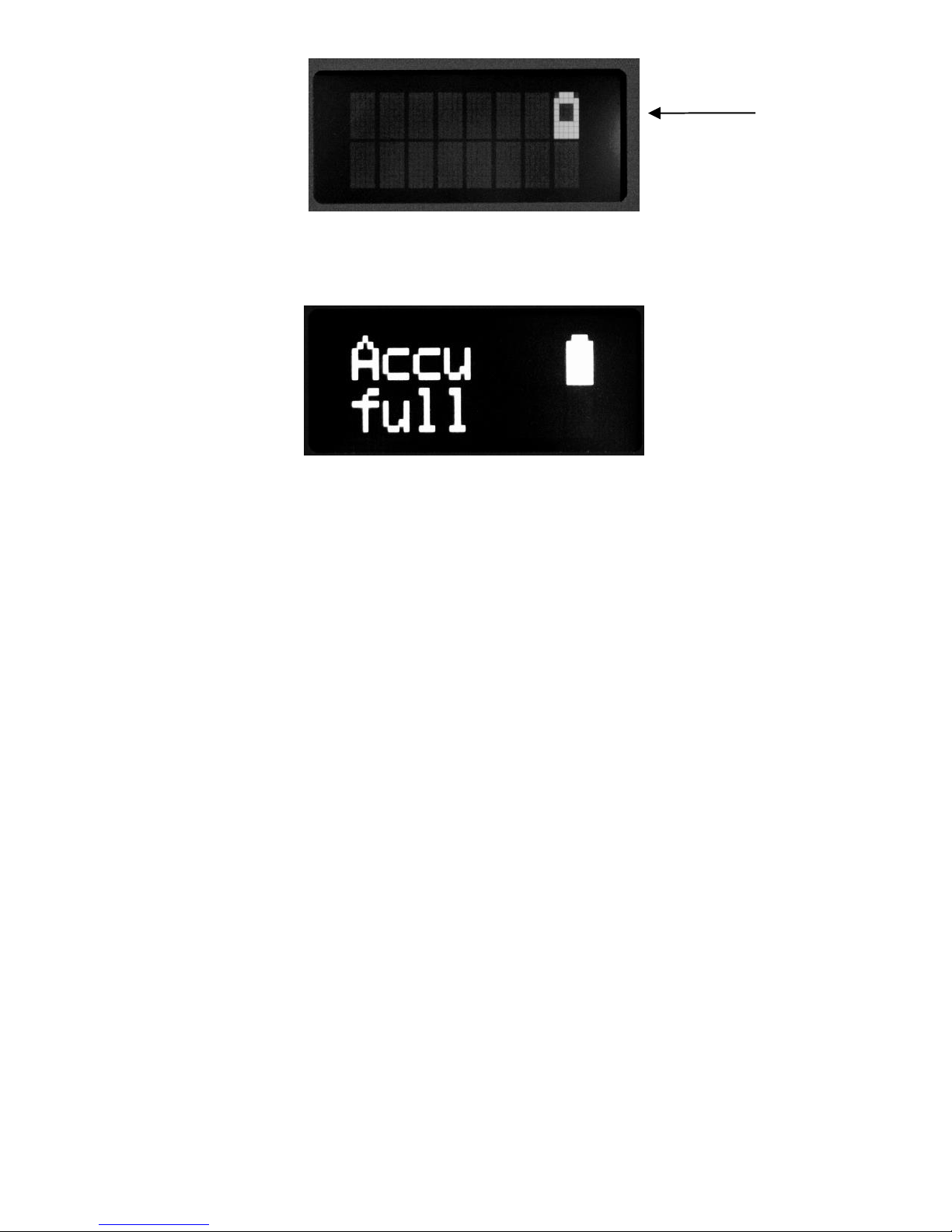

Fig. 7. Monitoring the battery charge status

In order to get more information on power supply of the device, read Chapter 8 "Power supply of
the device".

6.3 Connecting the device.

CAUTION!
Pay attention to the correct connection of plugs of the clamps, as the accuracy of the meas­urements depends on the connection quality. They must ensure good contact and provide
uninterrupted measurement current flow. Using extension cords or other modifications and
aftermarket clamps is unacceptable.

CAUTION!
Connecting voltage higher than 25 V, between any of the test terminals may damage the
device.

The device is connected to the tested power network or to the tested device, as shown in the draw­ings below:

Indication of the bat­tery charge status,

OPERATING MANUAL MPU-1 version 1.5

13

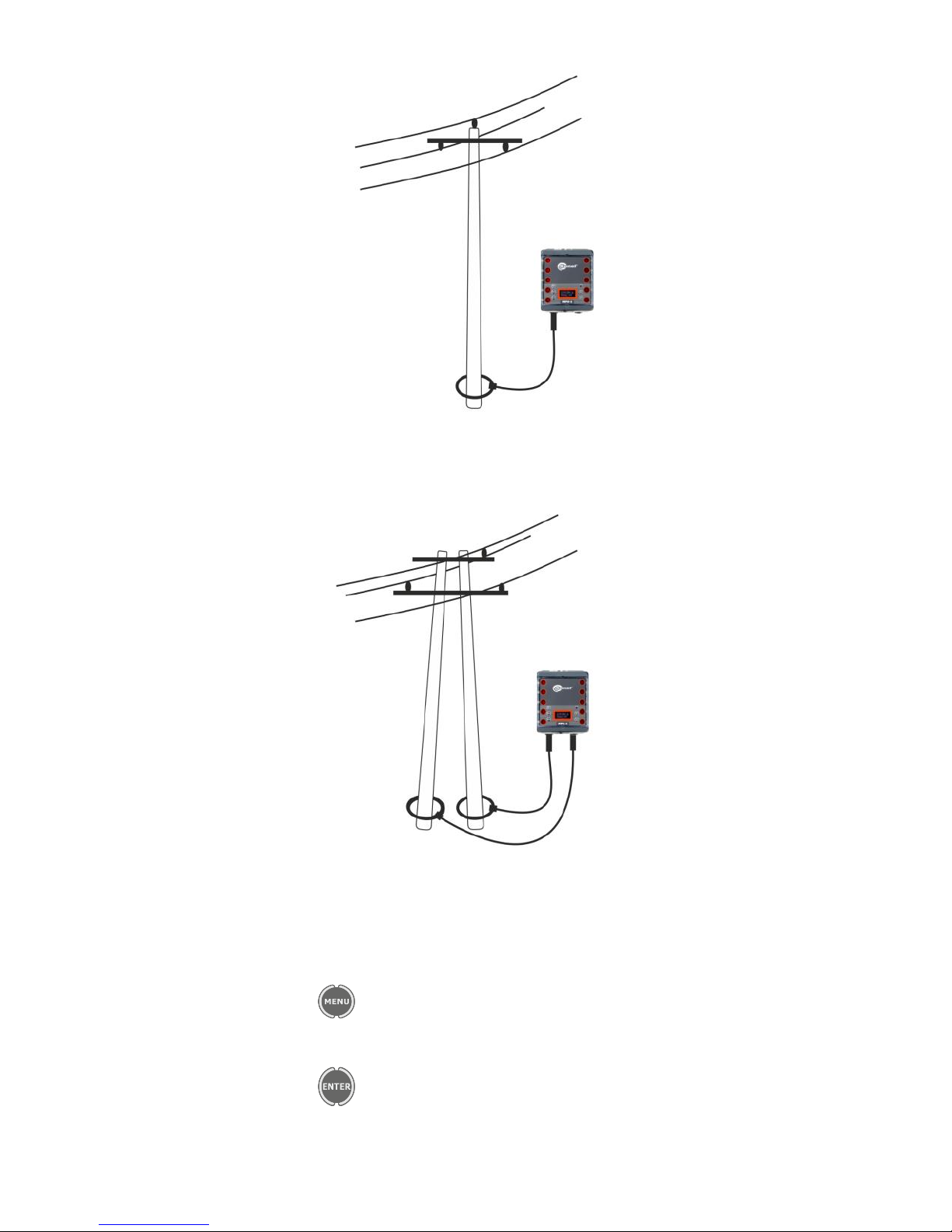

Fig.9. Operating the device with single clamps

Fig.10. Operating the device with double clamps

6.4 Operating the interface.

Additional information:

Pressing MENU button when viewing
the MENU options results in exiting the
current MENU option without approv­ing the selected value(s). Its function is
equal to BACK /CANCEL button.
Any changes / selected options are ap­proved by pressing ENTER.

OPERATING MANUAL MPU-1 version 1.5

14

6.4.1 Monitoring the leakage current with “Alarm on” mode

CAUTION!
Connecting voltage higher than 25 V, between any of the test terminals may damage the
device.

“Alarm on” mode is a standard operation mode of MPU-1. After switching off and restarting the
device, it is always activated in alarm on mode (it remembers the settings entered before switching off).
In order to monitor the leakage current flowing through the clamps in this mode proceed as follows:

Connect clamps to the socket: 7 "Clamp (1)" to perform single-clamps measurement or to sockets
"Clamp (1)" 7 and "Clamp (2)" 8 to perform double-clamps measurement.

Then:

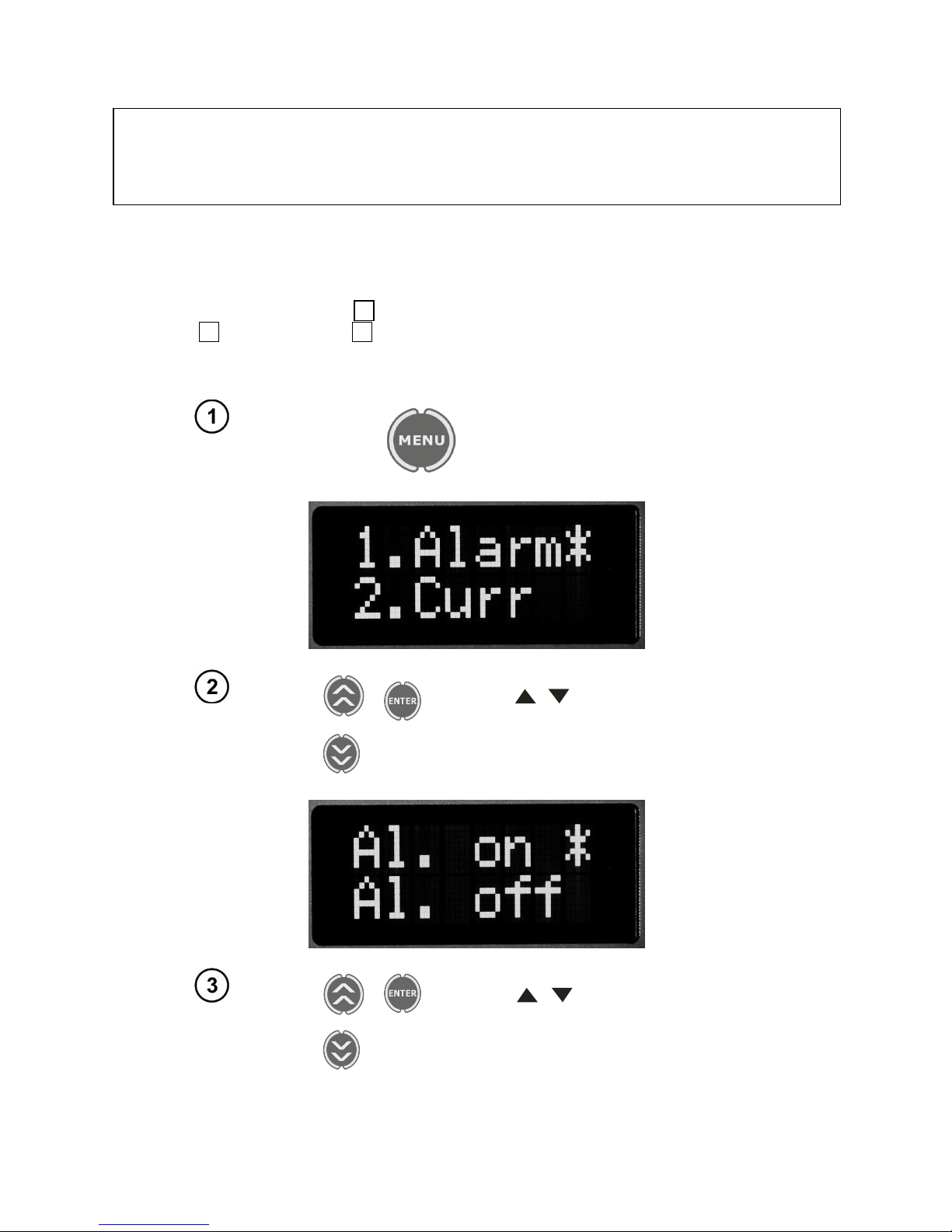

Press MENU button.

,

Use , buttons to select Alarm.
Confirm your choice by pressing
ENTER button.

,

Use , buttons to select Alarm

on. Confirm your choice by pressing
ENTER button.

OPERATING MANUAL MPU-1 version 1.5

15



The device is in operating mode with alarm on. The top line of the display indicates the measured
value of the current flowing through the clamps, the bottom line alternately displays: the mode in which
the device operates (Alarm on) and the values set as alarm threshold values (limit). Depending on the
value of the measured current, the symbol shown in the bottom line indicates whether the measured
current is: lower (I <), equal (I =) or higher (I>) from the set limit.
The device monitors/measures alternating current with rated frequency of 50Hz or 60Hz depending on
user settings. When the measured current exceeds the set alarm threshold, acoustic and visual alarm
will be triggered. The beep lasts for 30 seconds, then it is muted - when the alarm status continues,
then it is indicated by flashing alarm LEDs.

To set the alarm threshold (limit) for the current flowing through the clamps, proceed as follows:

Press MENU button.

,

Use , buttons to select Current.
Confirm your choice by pressing
ENTER button.

,

Use , buttons to select the cur­rent value above which the alarm will
be triggered. Confirm your choice by
pressing ENTER button.

OPERATING MANUAL MPU-1 version 1.5

16



After pressing ENTER the device automatically display screen of "Alarm on" mode and begins to

monitor the current flowing through the clamps.

The set Limit is saved and remembered by the device even after it is turned OFF and ON again.

CAUTION: In "Alarm on" mode - in order to reduce energy consumption, the display goes blank
after 5 min. from switching the device ON or from the last pressing of any button. Pressing any button
will re-activate the display.

WARNING:

Do not leave unattended device connected to the tested circuit.

Do not touch the equipment connected to the tested circuit/network.

6.4.2 Leakage current measurement in "Alarm off" mode, with displaying the

measured value on the screen.

Remember that after switching off and restarting the device, it is always activated in “Alarm on”
mode, even when before switching off, it operated in “Alarm off”.
In order to measure the leakage current flowing through the clamps in “Alarm off” mode proceed as
follows:

Connect clamps to the socket: "Clamp (1)" 7 to perform single-clamps measurement; or to sock­ets "Clamp (1)" 7 and "Clamp (2)" 8 to perform double-clamps measurement. Then:

Press MENU button.

,

Use , buttons to select Alarm.
Confirm your choice by pressing
ENTER button.

OPERATING MANUAL MPU-1 version 1.5

17

,

Use , buttons to select Alarm

off. Confirm your choice by pressing
ENTER button.

After pressing ENTER the device automatically displays screen of “Alarm off” mode. The signaller
in “Alarm off” mode, displays in real-time the measured value of the current flowing through the clamps.
The device monitors/measures alternating current with rated frequency of 50Hz or 60Hz depending on
user settings.

Additional information:

Pressing MENU button when viewing the MENU op-
tions results in exiting the current MENU option with­out approving the selected value(s). Its function is
equal to BACK/CANCEL button.

WARNING:

Do not leave unattended device connected to the tested circuit.

Do not touch the equipment connected to the tested circuit/network.

6.4.3 Changing the frequency of the monitored network.

In order to measure the leakage current flowing through the clamps - both in "Alarm on" mode
and in "Alarm off" mode, set the rated frequency of tested network as 50Hz or 60Hz.
In order to introduce a change or to check frequency settings, proceed as follows:

Press MENU button.

OPERATING MANUAL MPU-1 version 1.5

18

,

Use , buttons to select Fre-
quency. Confirm your choice by
pressing ENTER button.

,

Use , buttons to select 50Hz or

60Hz. Confirm your choice by pressing
ENTER button.

After pressing ENTER the device automatically displays screen of monitoring/measurement mode.
The device is in the operational mode in which it was before the user entered MENU to change the
frequency.
The set frequency of the network is saved and remembered by the device even after it is turned
OFF and ON again.

6.4.4 DEMO function.

As the device is designed to protect employees working with electricity (including those that did not
read the manual), we have introduced DEMO function, which may be used to show its operation - after
selecting DEMO function the device enters alarm mode for 5 sec. (as in when threshold of the monitored
current is exceeded in "Alarm on" mode). This allows to demonstrate the alarm signal to users.

To start DEMO mode:

OPERATING MANUAL MPU-1 version 1.5

19

Press MENU button.

,

Use , buttons to select Demo.
Confirm your choice by pressing
ENTER button.

After pressing ENTER the device starts the alarm mode for about 5 seconds, then automatically
switches the screen to monitoring/measurement mode, which was displayed before the user entered
the menu to launch the DEMO function.

6.4.5 Function for informing about the operational status of the device.

Info function enables user to activate the acoustic signal that indicates that the device is activated
and operational. Selecting "On" from Info menu activates the Info mode to operate with the frequency
of approx. 60s; Selecting "Off" disables the function. To do this:

Press MENU button.

OPERATING MANUAL MPU-1 version 1.5

20

,

Use , buttons to select Info.
Confirm your choice by pressing
ENTER button.

,

Use , buttons to select On or

Off. Confirm your choice by pressing
ENTER button.

Pressing ENTER automatically switches the screen to monitoring/measurement mode, which was
displayed before the user entered MENU to change settings of Info function.

Operation of Info function is interrupted during the charging process and when the user explores
MENU of the device.

Setting of Info function is saved and remembered by the device even after it is turned OFF and ON
again.

6.4.6 Changing the language

Language function is used to change the user interface language.
To do this:

Press MENU button.

OPERATING MANUAL MPU-1 version 1.5

21

,

Use , buttons to select Lan­guage. Confirm your choice by press-

ing ENTER button.

,

Use , buttons to select desired
language. Confirm your choice by
pressing ENTER button.

Introduced change is saved after the device is turned off and on again.

Note:
Interface language versions may differ from each other, not only by language, but also by
functionality or operational features. After changing the language, use instructions adequate
for the activated language.

6.4.7 Reset function.

Reset function allows user to restore factory settings - after using this function the device:

- will set alarm threshold at 1 A,

- will disable Info function

- the network frequency will change to 50 Hz
The following features will remain unchanged:

- selected language.

To do this:

OPERATING MANUAL MPU-1 version 1.5

22

Press MENU button.

,

Use , buttons to select Reset.
Confirm your choice by pressing
ENTER button.

,

Use , buttons to select Yes to
reset settings or No to cancel. Confirm
your choice by pressing ENTER but­ton.

After pressing ENTER, the meter will introduce the changes and turn off. It will turn on again auto­matically.

OPERATING MANUAL MPU-1 version 1.5

23

7 Troubleshooting

7.1 Warnings and information displayed by the device.

MPU-1 indicates on its display conditions that require warnings - they may be related to the opera­tion of the device or to external conditions affecting the measurement process.

Display mes-

sage

Cause

Notes

Solution

I >299A

Measured current
exceeds 299A /
message only in
mode: "Alarm
off".

In "Alarm on" mode, the
current exceeding the limit
value will be always indi­cated by alarm mode - in
both cases: when the
measuring range of the
meter is exceeded and
when the user-set limit is
exceeded.

Potentially hazardous situa­tion. Disconnect the device
from the network!

Err 310

Temperature of
rechargeable bat­tery is too low.

Concerns the battery
charging process.

Stop the charging process and
re-start it in a correct ambient
temperature. If the problem per­sists - contact the manufactu­rer's service.

Err 311

Temperature of
rechargeable bat­tery is too high.

Concerns the battery
charging process.

Stop the charging process and
re-start it in a correct ambient
temperature. If the problem per­sists - contact the manufactu­rer's service.

Err 312

Damaged battery

Concerns the battery
charging process.

Contact the manufacturer's se­rvice.

Err 313

No charging.
Damaged battery
or a problem with
the power supply
adapter.

Concerns the battery
charging process.

Check the power supply con­nection, if the problem persists

- contact the manufacturer's
service.

Err 550

Incorrect calibra­tion parameters.

The instrument has de­tected a loss of calibration
data.

Contact the manufacturer's se­rvice.

Err XXX

Other error.

XXX – any other number
than those described
above.

Contact the manufacturer's se­rvice.

OPERATING MANUAL MPU-1 version 1.5

24

8 Power supply of the device

Note:
MPU-1 is designed to operate only with built-in rechargeable batteries installed in the factory
and with factory accessories for charging them.

CAUTION!
Connecting voltage higher than 25 V, between any of the test terminals may damage the
device.

8.1 Monitoring the power supply voltage

The charge level of the rechargeable battery is indicated by the symbol in the right upper corner
of the display on a current basis:

Batteries charged.
Batteries low.

Note:
 The symbol of discharged battery appearing on the display, along with blinking red LED (status

LED), indicate that the supply voltage is too low and batteries need to be recharged,

 Additionally extremely low battery charge level is indicated by two long beeps with alarm LEDs

blinking -it is repeated every 15 seconds.

 Low battery charge level, the device should be switched off or it will switch off automatically in a

short time, measurements performed with an insufficient supply voltage feature additional errors
which the user is unable to evaluate. Consequently, such measurements cannot prove that the
tested circuit system is correct.

8.2 Replacing rechargeable batteries

The manufacturer does not allow the user to replace the battery. When it is required, the battery
may be replaced only in the manufacturer's service department.

8.3 Charging rechargeable battery

In order to charge the batteries, connect the AC adapter to the socket marked Clamp (1) /
Charger. When the charging process starts, the battery icon is animated, LED indicator flashes green.

OPERATING MANUAL MPU-1 version 1.5

25

In addition, after 30 seconds, the display blanks out to save power. It may be re-activated pressing
any button. After the charging process ends, LED indicator is continuously green and the screen dis­plays message "Accu full".

Note:

- Due to interferences in the mains, the process of battery charging may finish prematurely. When
charging time is too short, turn off the meter, disconnect the charger and start charging again.

8.4 General principles for using Ni-MH rechargeable batteries

- If you do not use the device for a prolonged period of time, then it is recommended to remove the
rechargeable batteries and store them separately.

- Store the accumulators in a dry, cool and well ventilated place and protect them from direct sunlight.

The temperature of the environment in the case of prolonged storage should not exceed 30°C. If the

rechargeable batteries are stored for a long time in a high temperature, then the occurring chemical
processes may reduce their lifetime.

- Rechargeable batteries Ni-MH usually lasts for 500-1000 charging cycles. The rechargeable batteries
reach their maximum capacity after being formatted (2-3 charge and discharge cycles). The most im­portant factor which influences the lifetime of rechargeable batteries is the level of their discharge. The
deeper the discharge level of the batteries, the shorter their lifetime.

- The memory effect is limited in the case of Ni-MH batteries. These batteries may be charged at any
point with no serious consequences. However, it is recommended to discharge them completely every
few cycles.

- During storage of Ni-MH rechargeable batteries they are discharged at the rate of approximately 30%
per month. Keeping rechargeable batteries at high temperatures may accelerate this process even
100%. In order to prevent excessive discharge of rechargeable batteries, after which it would be nec­essary to format them, it is recommended to charge them from time to time (even if they are not used).

- Modern fast chargers detect both too low and too high temperature of rechargeable batteries and react
to the situation adequately. Too low temperature should prevent starting the process of charging, which
might irreparably damage rechargeable batteries. An increase of the temperature of the rechargeable
batteries is a signal to stop charging and is a typical phenomenon. However charging at a high ambient
temperature apart from reducing batteries' lifetime causes an accelerated increase of their temperature
and the result is that the batteries are not charged to their full capacity.

- Please note that when the batteries are charged with a fast-charger they are charged only to approx.
80% of their capacity - better results can be achieved by continuing charging: the charger enters trickle­charging mode and during the next few hours batteries are charged to their full capacity.

Charging progress is
shown in the battery
symbol.

OPERATING MANUAL MPU-1 version 1.5

26

- Do not charge or use rechargeable batteries in extreme temperatures. Extreme temperatures reduce
the lifetime of batteries and rechargeable batteries. Avoid placing devices powered by rechargeable
batteries in very hot environments. The nominal working temperature must be absolutely observed.

9 Cleaning and maintenance

CAUTION!

Use only the maintenance methods specified by the manufacturer in this manual.

The casing of the device may be cleaned with a soft, damp cloth using all-purpose detergents. Do
not use any solvents or cleaning agents which might scratch the casing (powders, pastes, etc.).
Clamps should be cleaned using the same methods as the housing of the device.
Clamps and test leads should be cleaned with water and detergents, and then dried.
The electronic system of the device does not require maintenance.

10 Storage

During the storage of the device, the following recommendations must be observed:

 disconnect all the test leads from the device,
 clean thoroughly the device and all its accessories,
 in order to prevent total discharge of the rechargeable batteries due to the prolonged storage,

charge them from time to time,

 storage temperatures must be in accordance with those defined in technical specifications.

11 Dismantling and Disposal

Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be placed
with waste of another kind.

Worn-out electronic equipment should be sent to a collection point in accordance with the law of

waste electrical and electronic equipment.

Before the equipment is sent to a collection point, do not dismantle any elements.
Observe local regulations concerning disposal of packages, waste batteries and accumulators.

12 Technical specifications

 The specified accuracy relates to the devices terminals.
 Abbreviation "m.v." used in the specification of measurement uncertainty means a standard meas-

ured value.

12.1 Basic data

Measuring leakage current flowing through the clamps:

Current range

Resolution

Basic uncertainty

0.1 A.. 9.9 A

0.1 A

±(5% m.v. + 2 digits)

10 A..299 A

1 A

±(5% m.v. + 2 digits)

 frequency range: 50Hz or 60Hz.
 flexible current clamps – F-1

OPERATING MANUAL MPU-1 version 1.5

27

12.2 Other technical specifications

a) degree of housing protection acc. to EN 60529................................ ........................................ IP67

b) power supply of the device ................................. 9.4 V 2.1 Ah Ni-MH battery pack of SONEL type

c) parameters of AC adapter for the battery charge .............................. 100 V…240 V, 50 Hz…60 Hz

d) standby mode time: ................................................................................................ ............... >18 h

e) alarm mode time: ..................................................................................................................... >3 h

f) alarm threshold setting range ..................................................................................... 0,5 A…9,9 A

g) dimensions ......................................................................................... 125 mm x 150 mm x 95 mm

h) weight of the device with batteries ............................................................................ approx. 1.1 kg

i) working temperature .................................................................................................. -10C..+50C

j) charger working temperature .................................................................................... +10C..+35C

k) reference temperature ................................................................................................ ... 23C ±2C

l) storage temperature ................................................................................................ .. -20C..+80C

m) relative humidity................................................................................................................. 20..90%

n) nominal relative humidity ................................................................................................... 40..60%

o) altitude (above sea level) ................................................................................................ ... <2000m

p) quality standard ........................... design, construction and manufacturing are ISO 9001 compliant

q) the product meets EMC requirements acc. to ............... EN 61326-1:2013 and EN 61326-2-2:2013

13 Accessories

13.1 Basic accessories

 a set of bands for attaching the signaller and clamps – WAPOZOPAKPL,
 transport case - WAWALL5,
 power supply adapter for battery charging – WAZASZ11,
 power cord of the adapter - WAPRZLAD230,
 guarantee card,
 operating manual

13.2 Optional accessories

Additionally, the following items that are not included in the scope of standard equipment can be

purchased from the manufacturer or the distributors:

WACEGF1OKR

Flexible clamps F-1 (Rogowski coil) with
a diameter of 40 cm (perimeter: 120 cm)

WACEGF2OKR

Flexible clamps F-2 (Rogowski coil) with a
diameter of 25 cm (perimeter: 80 cm)

OPERATING MANUAL MPU-1 version 1.5

28

WACEGF3OKR

Flexible clamps F-3 (Rogowski coil) with
a diameter of 13 cm (perimeter: 45 cm)

WACEGF4OKR

Flexible clamps F4 (Rogowski coil) (perim­eter: 200 cm)

WAPRZLAD1212V2

Charger for charging the battery from 12V
car socket.

Note: The colour and design of the clamps may vary from the shown image.

14 Manufacturer

The manufacturer of the device and provider of guarantee and post-guarantee service:

SONEL SA

ul. Wokulskiego 11

58-100 Świdnica, Poland

Poland
tel. [phone]
fax [phone]

E-mail: [email protected]

Web page: www.sonel.pl

Made in Poland.

Note:

Service repairs must be performed only by the manufacturer.

________________________________________________________________________________
Note: Due to constant product development, Sonel S.A. reserves the right to change the parameters
and functions of devices (including manuals) without prior notice. If the purchased device differs from
the description given in this manual, use the appropriate manual version or contact the manufacturer.
