USER MANUAL
INSULATION RESISTANCE METERS

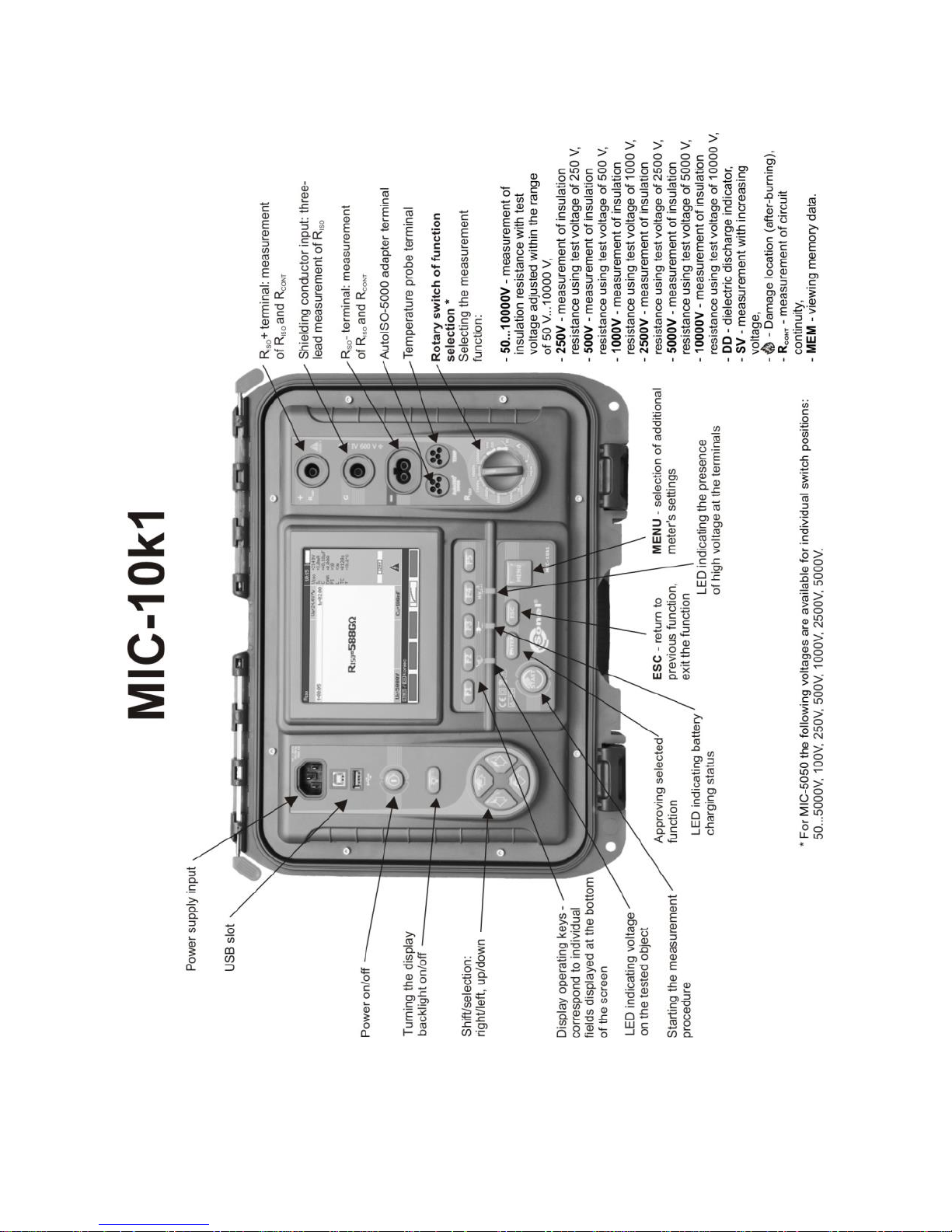

MIC-10k1 and MIC-5050
SONEL S.A.
Wokulskiego 11
58-100 Świdnica, Poland
Version 1.12 07.06.2018
Page 6
MIC-10k1, MIC-5050 – USER MANUAL
2

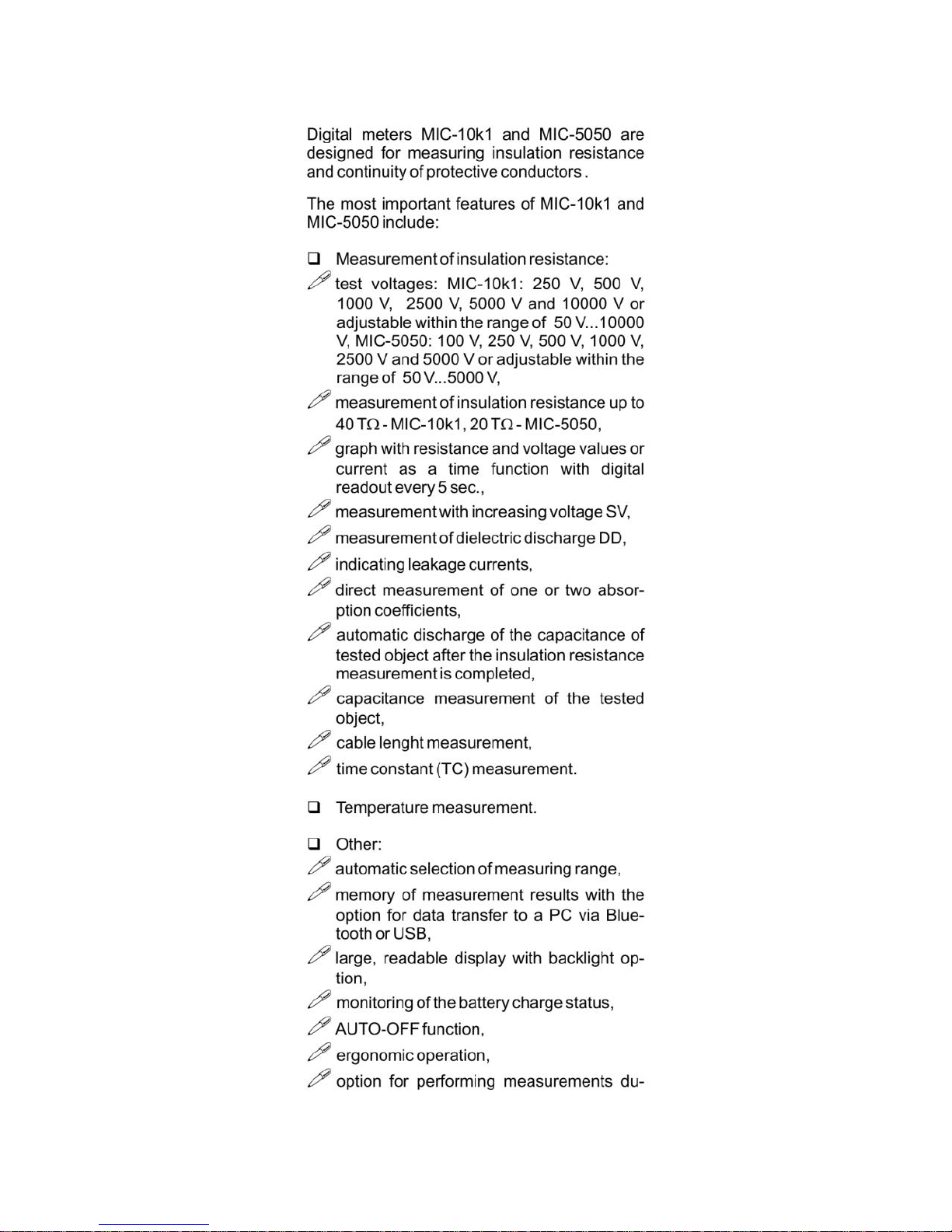

MIC-10k1 and MIC-5050 meters are modern, high-quality meters, easy and safe in operation. Please
acquaint yourself with this manual in order to avoid measuring errors and prevent possible problems
in operation of the meter.
Page 7
MIC-10k1, MIC-5050 – USER MANUAL
3
CONTENTS
1 Safety ................................................................................................................ 5
2 Menu .................................................................................................................. 6
2.1 Wireless transmission ............................................................................................... 6
2.2 Measurement Settings .............................................................................................. 7
2.2.1 Mains frequency ................................................................................................................ 7
2.2.2 Times t1, t2, t3 for calculating absorption coefficients ........................................................ 8
2.2.3 Type of absorption coefficients .......................................................................................... 8
2.2.4 I
ISO
test current .................................................................................................................. 8
2.2.5 Setting limit values ............................................................................................................ 9
2.2.6 Temperature unit ............................................................................................................... 9
2.2.7 Auto-incrementing of the memory cell number ................................................................ 10
2.2.8 Filter ................................................................................................................................ 10
2.2.9 Chart type selection ........................................................................................................ 10
2.3 Meter Settings ......................................................................................................... 11
2.3.1 LCD contrast ................................................................................................................... 12
2.3.2 Automatic shut-off (Auto-OFF) ........................................................................................ 12
2.3.3 Date and time .................................................................................................................. 12
2.3.4 Factory (default) settings ................................................................................................. 13
2.3.5 Software update .............................................................................................................. 13
2.3.6 Key sounds ..................................................................................................................... 14
2.3.7 Wireless communication ................................................................................................. 14
2.4 Language choice ..................................................................................................... 15
2.5 Information about manufacturer .............................................................................. 15
3 Measurements ................................................................................................ 15
3.1 Diagnostics performed by the meter - limits ............................................................ 16
3.2 Measurement of insulation resistance ..................................................................... 16
3.2.1 Double-lead measurement ................................................................ .............................. 17
3.2.2 Three-lead measurement ................................................................................................ 22
3.2.3 Measurements with AutoISO-5000 .................................................................................. 24
3.2.4 Measurements with increasing voltage - SV .................................................................... 27
3.2.5 Dielectric Discharge Indicator - DD .................................................................................. 29
3.2.6 Damage location (after-burning) ...................................................................................... 31
3.3 Low-voltage measurement of resistance ................................................................. 33
3.3.1 Measurement of resistance of protective conductors and equipotential bonding with ±200
mA current ...................................................................................................................... 33
3.3.2 Calibration of test leads ................................................................................................... 35
3.4 Temperature Measurement ..................................................................................... 36
4 Memory of measurement results ................................................................. 37
4.1 Structure of the Memory .......................................................................................... 37
4.1.1 The appearance of main windows in the measurement recording mode .......................... 37
4.2 Storing the measurement results in the memory ..................................................... 39
4.2.1 Entering the results without extending the memory structure ........................................... 39
4.2.2 Extending the memory structure ................................ ...................................................... 40
4.3 Viewing memory data .............................................................................................. 45
4.4 Deleting memory data ............................................................................................. 47
Page 8
MIC-10k1, MIC-5050 – USER MANUAL
4
5 Data transmission .......................................................................................... 48
5.1 Set of accessories to connect the meter to a PC .................................................... 48
5.2 Data transmission through USB port ....................................................................... 48
5.3 Connecting to Bluetooth mini-keyboard................................................................... 49
5.3.1 Manual connection .......................................................................................................... 49
5.3.2 Automatic connection ...................................................................................................... 51
5.4 Data transmission using Bluetooth module ............................................................. 51
5.5 Read-out and change of PIN code for Bluetooth connections ................................. 52
6 Power supply of the meter ............................................................................ 53
6.1 Monitoring the power supply voltage ....................................................................... 53
6.2 Battery power .......................................................................................................... 53
6.3 Charging rechargeable battery ................................................................................ 53
6.4 Power supply from mains ........................................................................................ 54
6.5 General principles for using Li-Ion rechargeable batteries ...................................... 54
6.6 General principles for using gel (lead) rechargeable batteries ................................ 55
7 Cleaning and maintenance ........................................................................... 55
8 Storage ............................................................................................................ 56
9 Dismantling and utilisation ........................................................................... 56
10 Technical specifications ............................................................................... 56
10.1 Basic data ............................................................................................................... 56
10.2 Additional data ........................................................................................................ 59
10.2.1 Additional uncertainties according to EN 61557-2 (R
ISO
) .................................................. 59
10.2.2 Additional uncertainties according to EN 61557-4 (R
CONT
) ............................................... 60
11 Equipment ...................................................................................................... 60
11.1 Standard equipment ................................................................................................ 60
11.2 Optional accessories ............................................................................................... 60
12 Manufacturer .................................................................................................. 62
Page 9
MIC-10k1, MIC-5050 – USER MANUAL
5
1 Safety
MIC-10k1 and MIC-5050 meters are designed for performing check tests of protection against
electric shock in mains systems. The meters are used for making measurements and providing results
to determine safety of electrical installations. Therefore, in order to provide conditions for correct operation and accuracy of obtained results, the following recommendations must be observed:
Before you proceed to operate the meter, acquaint yourself thoroughly with the present manual
and observe the safety regulations and specifications provided by the producer.
Any application that differs from those specified in the present manual may result in a damage to
the device and constitute a source of danger for the user.
MIC-10k1 and MIC-5050 meters must be operated only by appropriately qualified personnel with
relevant certificates authorising the personnel to perform works on electric systems. Operating the
meter by unauthorised personnel may result in damage to the device and constitute a source of
danger for the user.
During measurements of insulation resistance, dangerous voltage up to 10 kV (MIC-10k1) or 5 kV
(MIC-5050) occurs at the ends of test leads of the meter.
Before the measurement of insulation resistance you must be sure that tested object is discon-
nected from the power supply.
During the measurement of insulation resistance do not disconnect test leads from the tested ob-
ject before the measurement is completed (see par. 0); otherwise the capacitance of the object will
not be discharged, creating the risk of electric shock.
Using this manual does not exclude the need to comply with occupational health and safety regu-
lations and with other relevant fire regulations required during the performance of a particular type
of work. Before starting the work with the device in special environments, e.g. potentially firerisk/explosive environment, it is necessary to consult it with the person responsible for health and
safety.
It is unacceptable to operate:
a damaged meter which is completely or partially out of order,
a meter with damaged insulation,
a meter stored for an excessive period of time in disadvantageous conditions (e.g. excessive
humidity). If the meter has been transferred from a cool to a warm environment with a high
level of relative humidity, do not start measurements until the meter is warmed up to the ambient temperature (approximately 30 minutes).

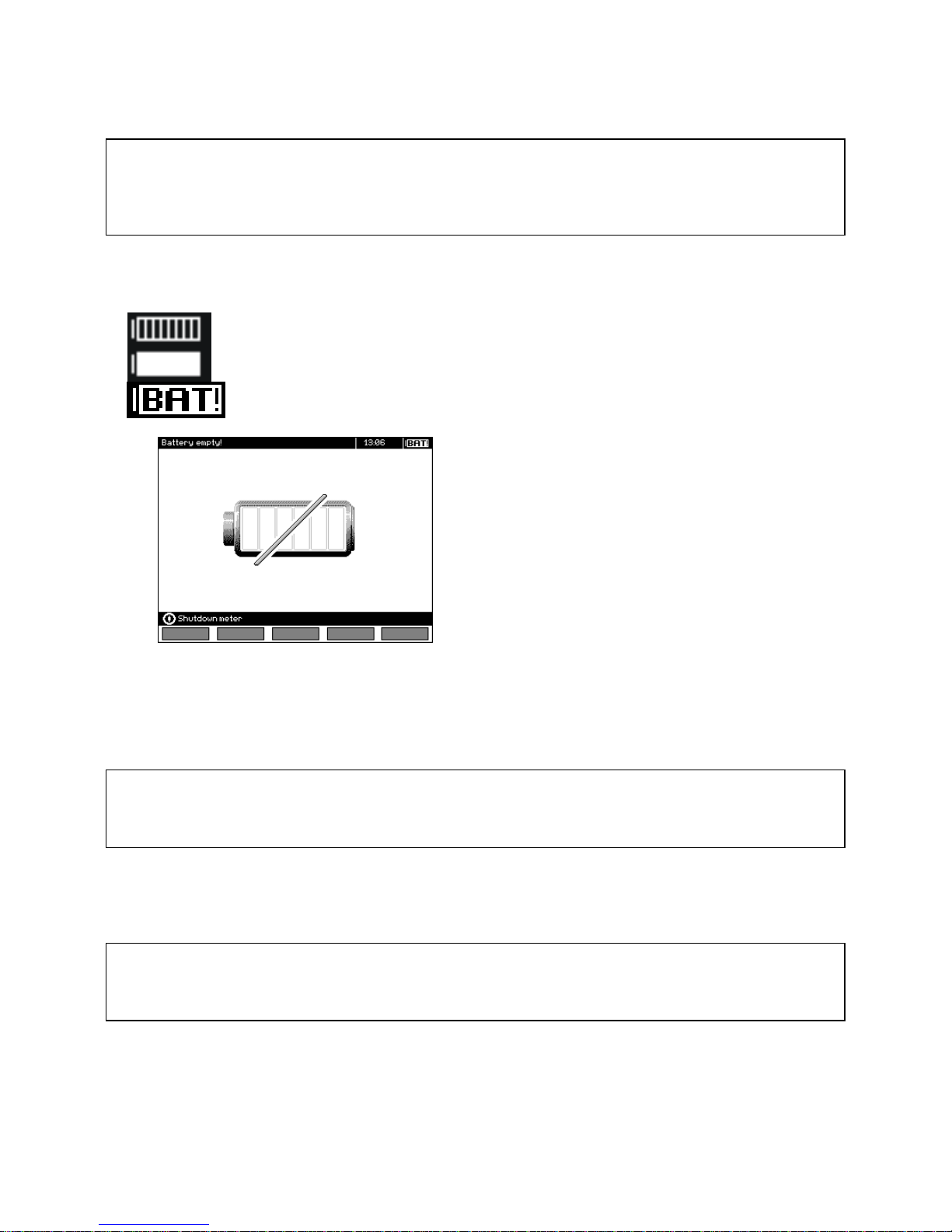

Remember that BAT! message appearing on the display indicates insufficient voltage of power
supply and the need to recharge the batteries.
Before measurement, choose a correct measurement function and make sure that test leads are
connected to respective measuring terminals.
Do not power the meter from sources other than those listed in this manual.
R
ISO
meter inputs are electronically protected against overloads (caused by e.g. connecting the
meter to a live circuit) up to 825 V for 60 seconds.
Repairs may be performed only by an authorised service point.
ATTENTION!
11 kV DC crocodile clips and probes are designed to work only on objects without voltage.
Note:
Due to continuous development of the meter’s software, the actual appearance of the display, in case of some of the functions, may slightly differ from the display presented in this
operating manual.
Page 10
MIC-10k1, MIC-5050 – USER MANUAL
6
ATTENTION!
To display the correct battery discharge status, it is necessary to completely discharge
and then fully charge the battery, before starting the regular use of the meter.
Note:
An attempt to install drivers in 64-bit Windows 8 may result in displaying "Installation
failed" message.
Cause: Windows 8 by default blocks drivers without a digital signature.
Solution: Disable the driver signature enforcement in Windows.

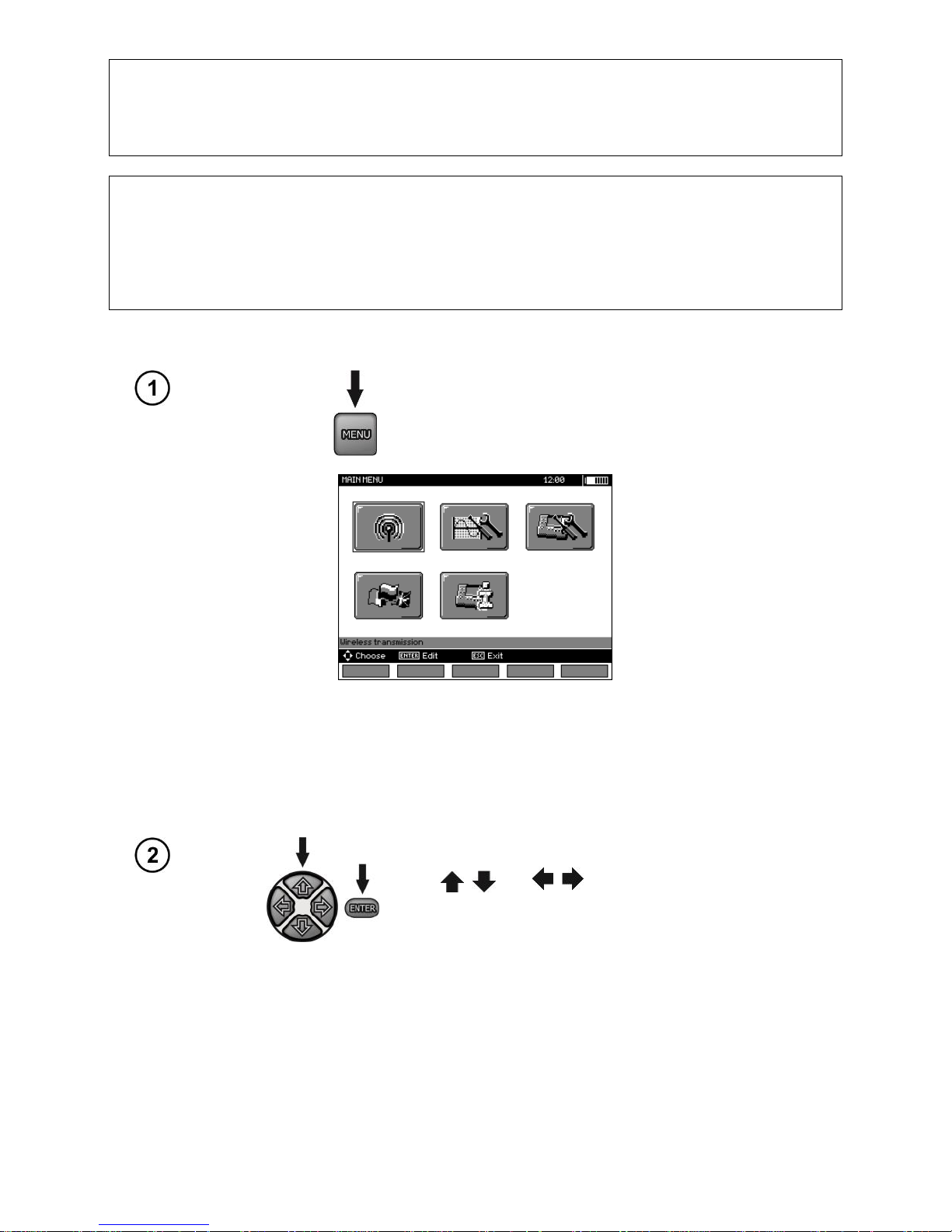

2 Menu
Press MENU button.
The main menu contains the following items:
Wireless transmission
Measurement Settings
Meter Settings
Language selection
Information about manufacturer
Use , and , buttons to select desired position. Enter a selected option by pressing ENTER.
2.1 Wireless transmission
See sections 5.3 to 5.5.
Page 11
MIC-10k1, MIC-5050 – USER MANUAL
7
2.2 Measurement Settings
The option of Measurement settings consists of:
Mains frequency
Times t1, t2, t3 for calculating absorption coefficients
Absorption coefficients Ab1, Ab2 or DAR PI
I
ISO
test current
Setting limit values
Temperature unit
Cell autoincrementing
Filter - restricting R
ISO
display
Chart type selection
Use , and , buttons to select desired position. Enter a selected option by pressing ENTER.

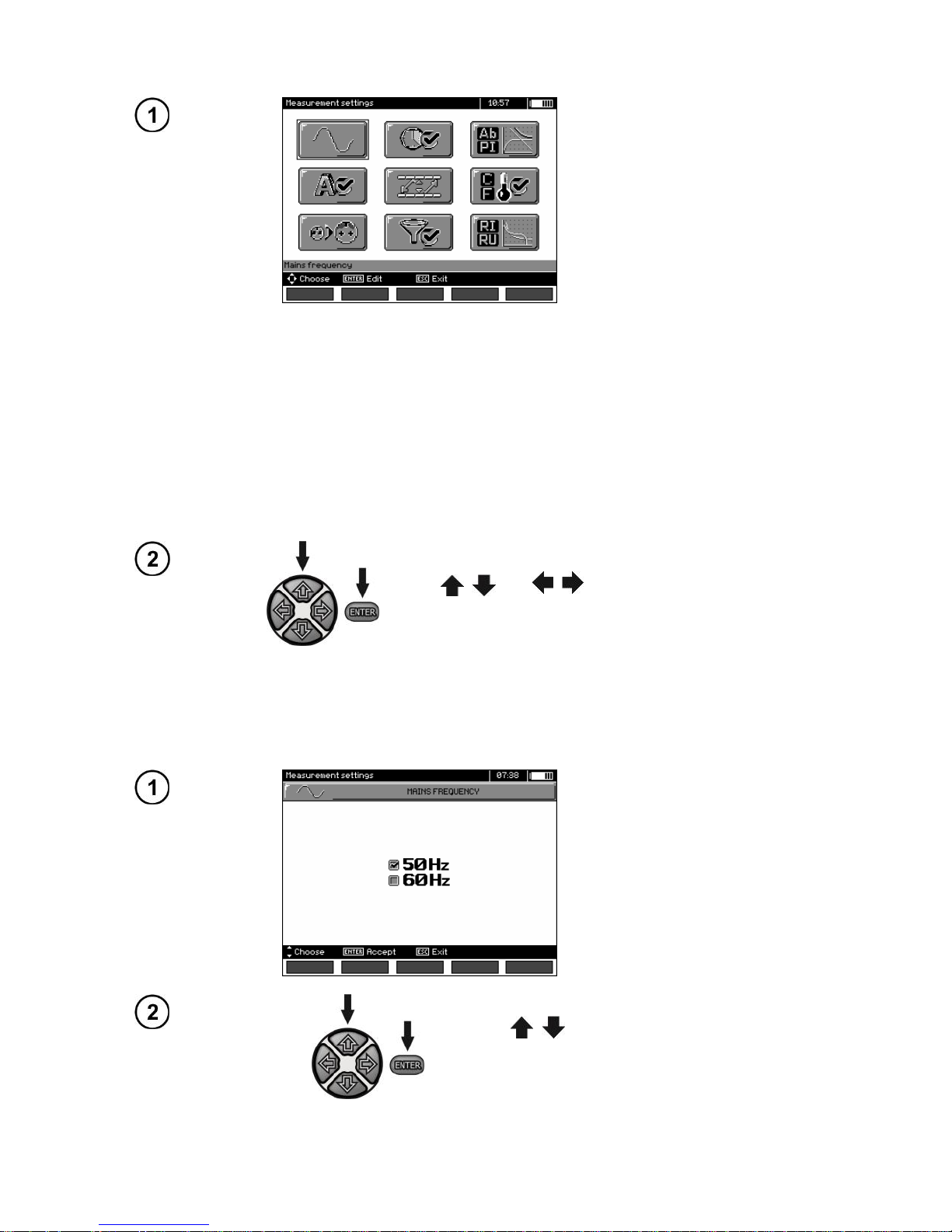

2.2.1 Mains frequency
Only the measurement with a properly selected mains frequency will ensure optimum filtration of
interferences. The meter is designed for filtration of interferences generated by 50 Hz and 60 Hz networks.
Use , to select the mains frequency.
Confirm your choice by pressing ENTER button.
Page 12
MIC-10k1, MIC-5050 – USER MANUAL
8

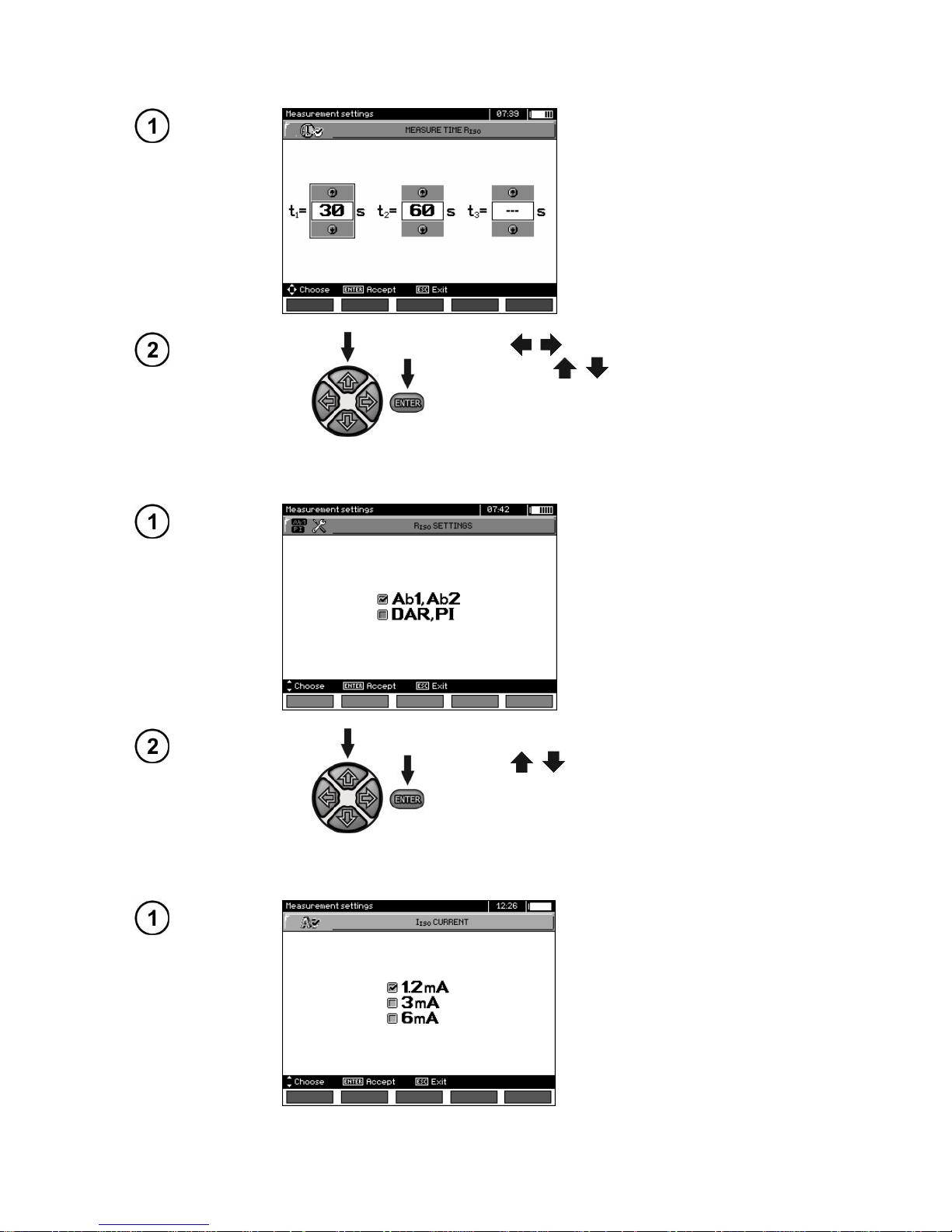

2.2.2 Times t1, t2, t3 for calculating absorption coefficients
Use , buttons to scroll between times
and press , buttons to set time values.
Confirm your choice by pressing ENTER button. Selection range: (1 s...600 s), t2 (1 s ...
600 s, but >t1), t3 (1 s...600 s, but >t2).
2.2.3 Type of absorption coefficients
Use , buttons to select the type of coefficients: Ab or DAR PI. Confirm your choice by
pressing ENTER button.
2.2.4 I
ISO
test current
Page 13
MIC-10k1, MIC-5050 – USER MANUAL
9
Use , buttons to select the current value. Confirm your choice by pressing ENTER
button.

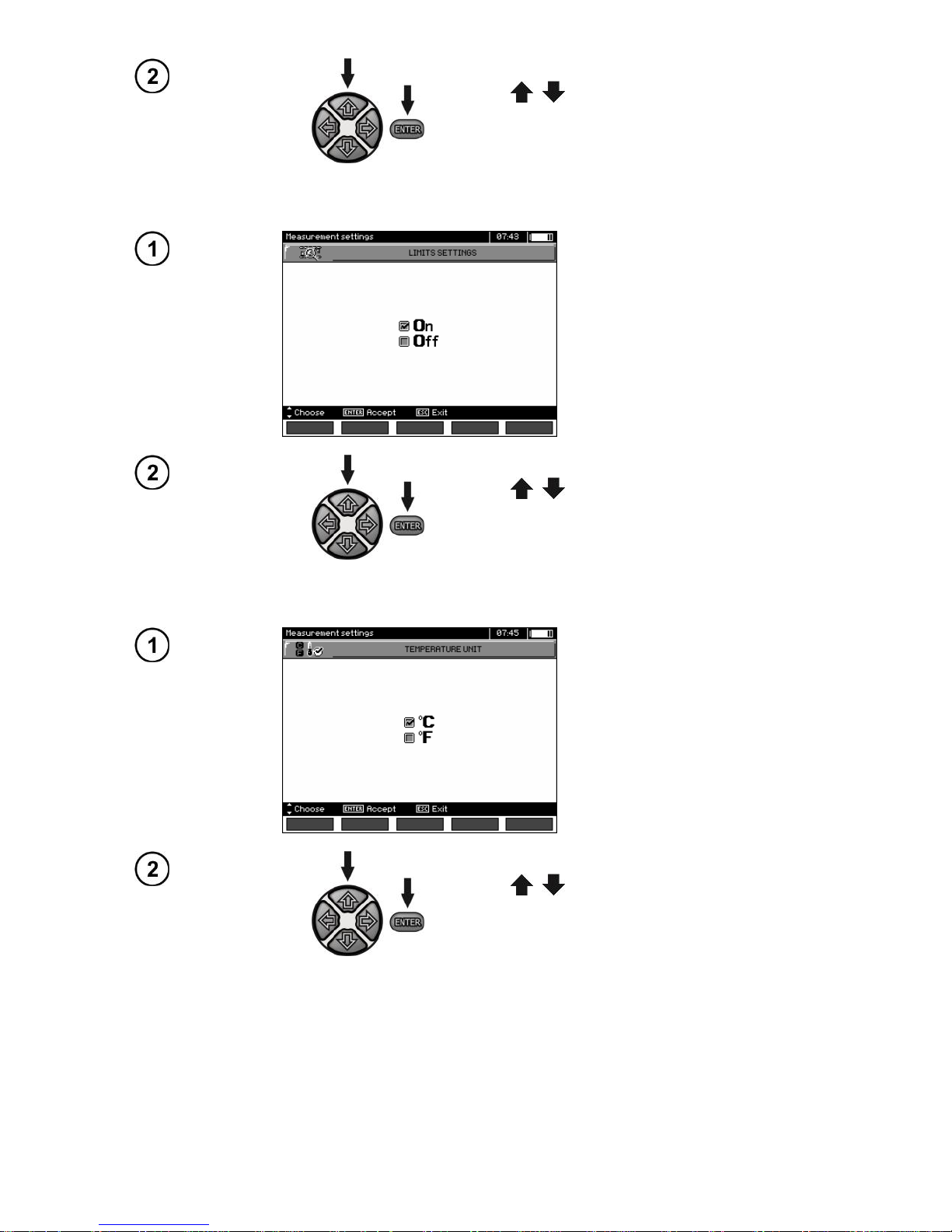

2.2.5 Setting limit values
Use , buttons to switch on/off limit values. Confirm your choice by pressing ENTER
button.
2.2.6 Temperature unit
Use , to select the temperature unit.
Confirm your choice by pressing ENTER button.
Page 14
MIC-10k1, MIC-5050 – USER MANUAL
10

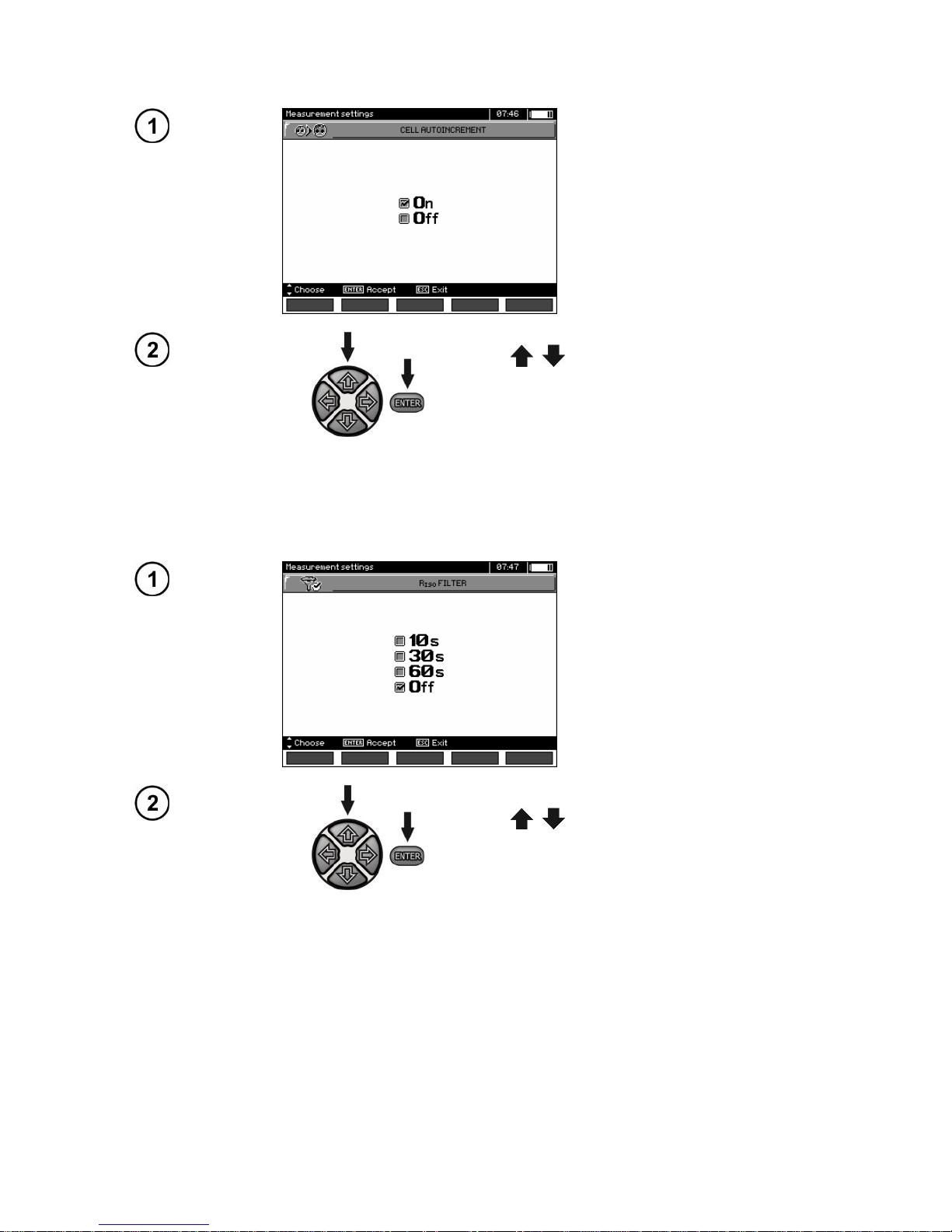

2.2.7 Auto-incrementing of the memory cell number
Use , to switch on/off the function of
Auto-incrementing of the memory cell number.
Confirm your choice by pressing ENTER button.
2.2.8 Filter
The meter is equipped with an advanced digital filter for result stabilisation in difficult and unstable measurement conditions. The meter displays a filtered value of measurements for a specified time
period, which may be 10 s, 30 s or 60 s.
Use , to select a time period or to
switch off the filter. Confirm your choice by
pressing ENTER button.

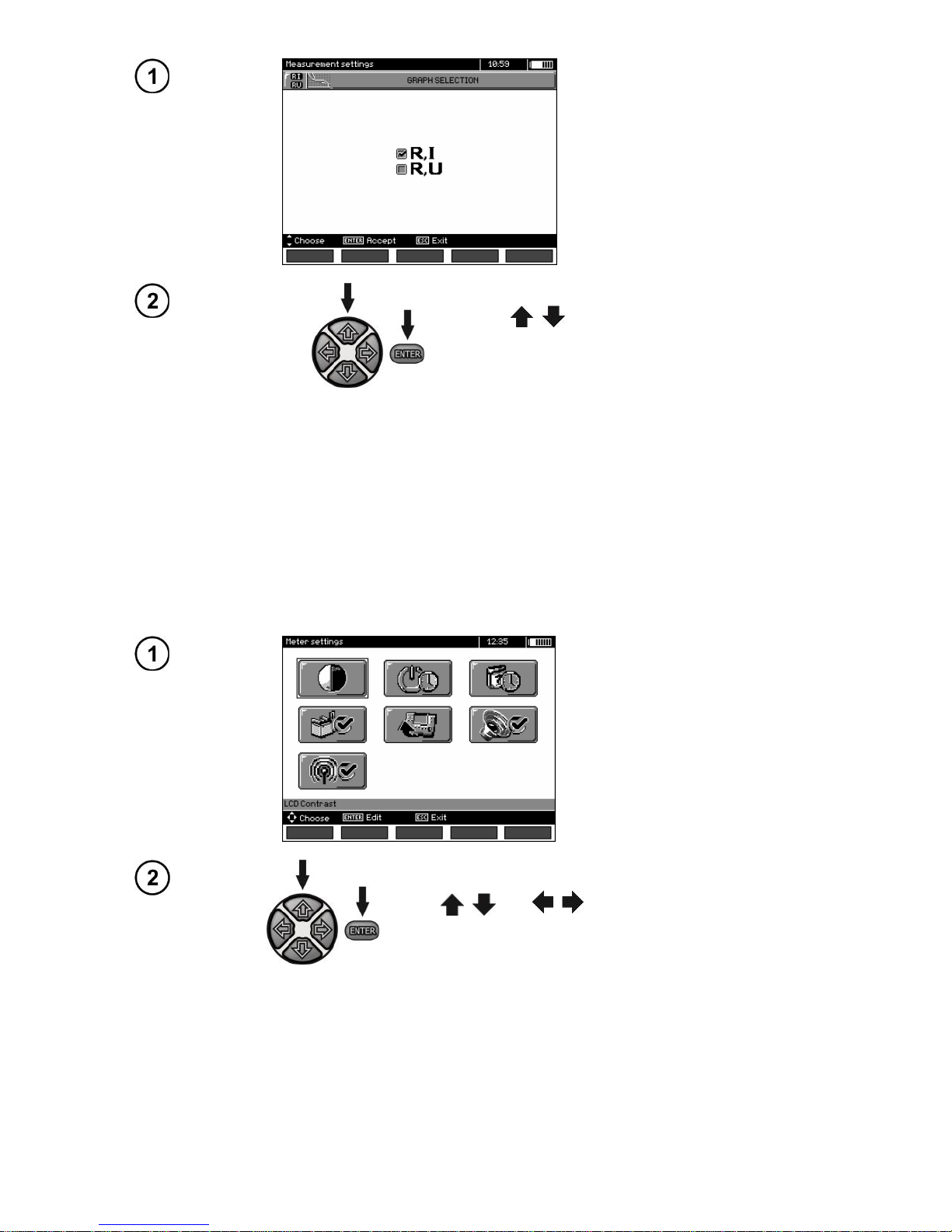

2.2.9 Chart type selection
To illustrate the measurement results on the chart, you may select current and resistance (R, I)
or voltage and resistance (R, U).
Page 15
MIC-10k1, MIC-5050 – USER MANUAL
11
Use , buttons to select the values to be
displayed on the chart. Confirm your choice
by pressing ENTER button.
2.3 Meter Settings
The option of Meter Settings consists of:
LCD contrast
Automatic shut-off
Date and time
Factory (default) settings
Program update
Button tones
Wireless communication
Use , and , buttons to select desired position. Enter a selected option by pressing ENTER.
Page 16
MIC-10k1, MIC-5050 – USER MANUAL
12
2.3.1 LCD contrast
Select contrast value using , and ,
buttons; confirm your choice by pressing
ENTER.
2.3.2 Automatic shut-off (Auto-OFF)
The setting defines the shut-off time of idle meter.
Use , buttons to set Auto-OFF time;
confirm your choice by pressing ENTER.
2.3.3 Date and time
Page 17
MIC-10k1, MIC-5050 – USER MANUAL
13
Use , buttons to select the value to be
changed (day, month, year, hour, minute). Set
a required value using , buttons. When
required settings are made, press ENTER .

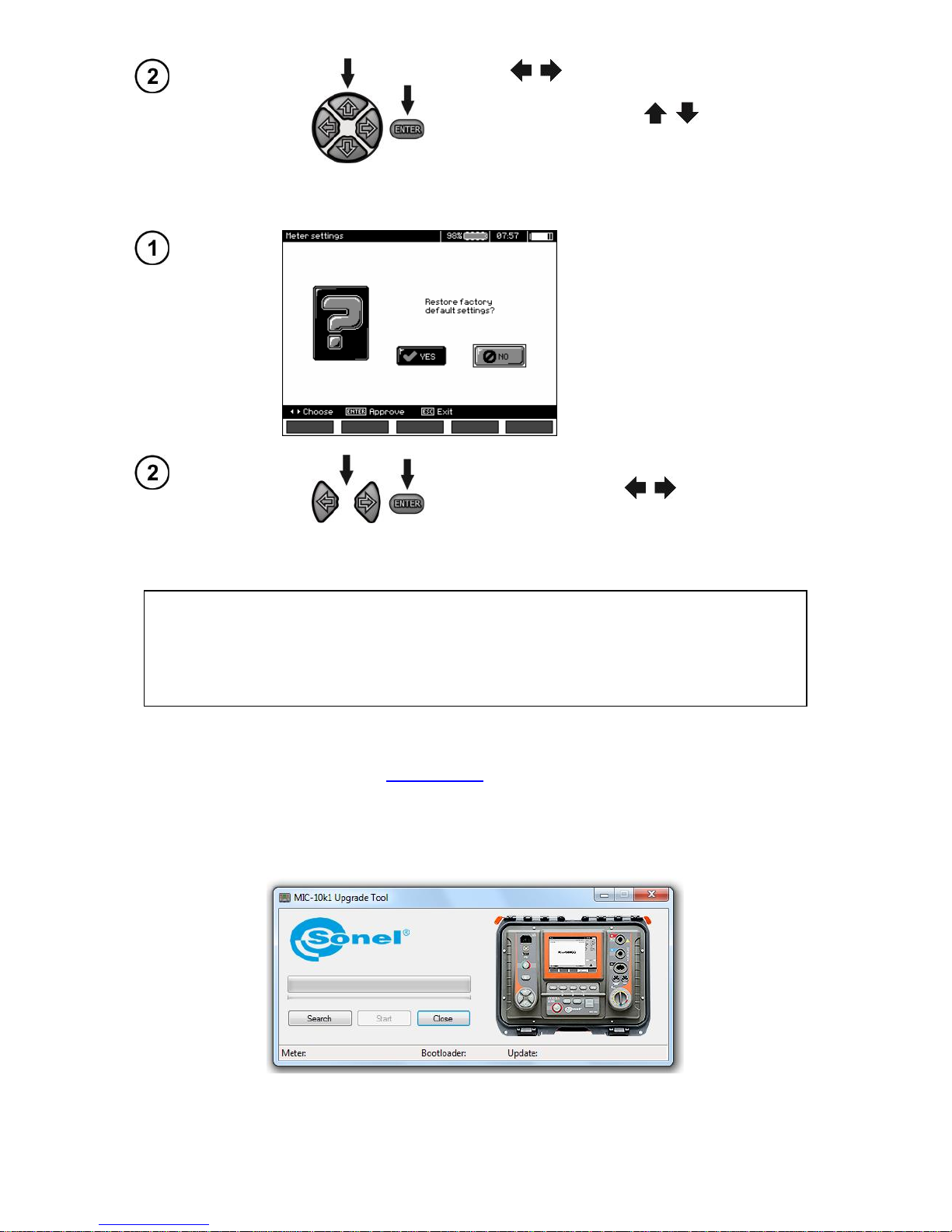

2.3.4 Factory (default) settings
In order to introduce factory (default) settings,
highlight YES using , buttons and press
ENTER .
2.3.5 Software update
ATTENTION!
Before programming, charge the battery.
During programming the meter must not be switched off as well as the transmission cable must not be disconnected.
1. Before updating the program, download necessary data to a preferred data carrier, because during the updating process all data will be lost.
2. From the manufacturer's website (www.sonel.pl) download the meter programming software, unzip the file and install the program on your computer.
3. Run the program and follow the displayed instructions:
- select Software update in MENU of the meter
- connect the meter to your PC.

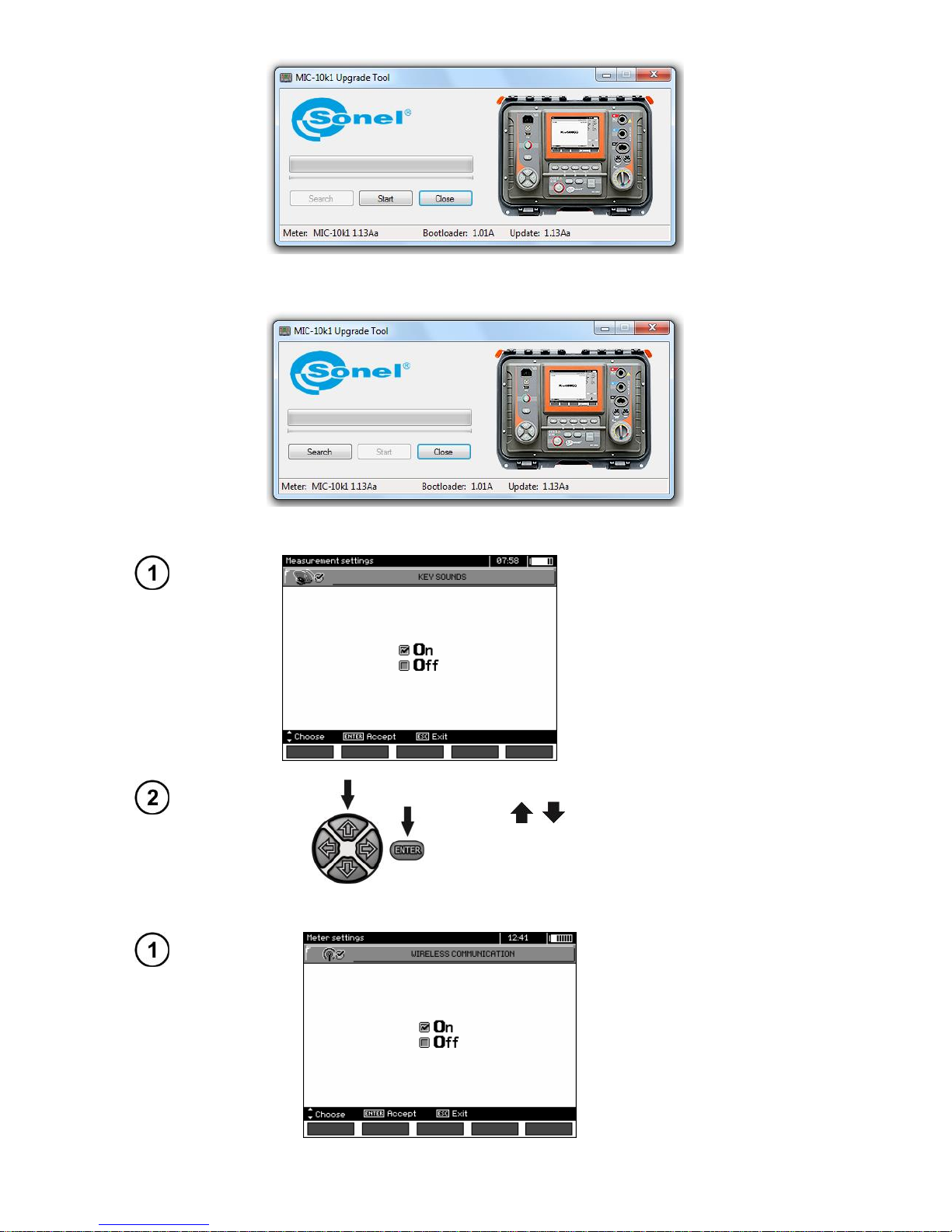

4. After displaying the following screen, click Search button,
wait until the program finds the meter and click Start.
Page 18
MIC-10k1, MIC-5050 – USER MANUAL
14
5. After completing the update, disconnect the meter from the computer and click Close button.
2.3.6 Key sounds
Use , buttons to switch on/off key
sounds. Confirm your choice by pressing
ENTER button.

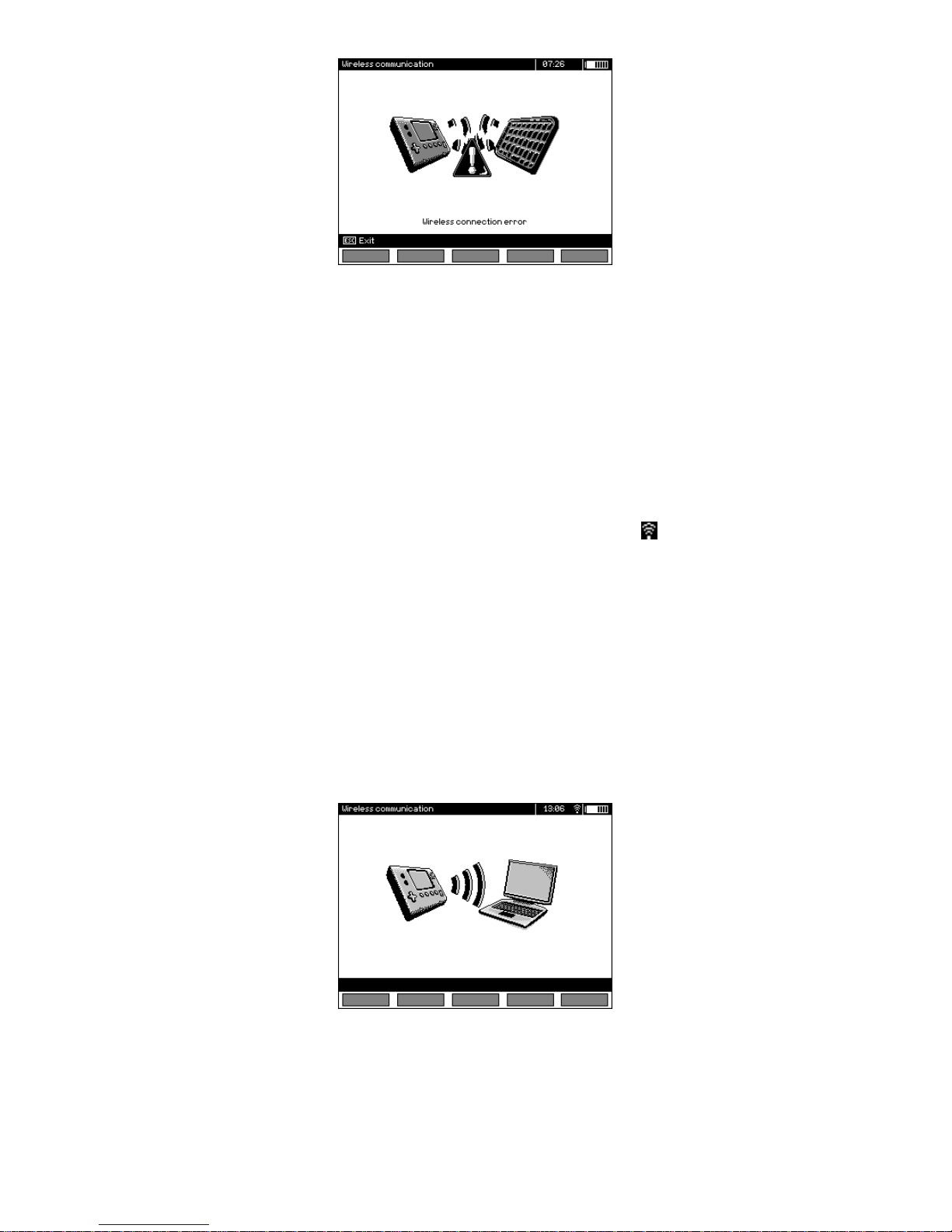

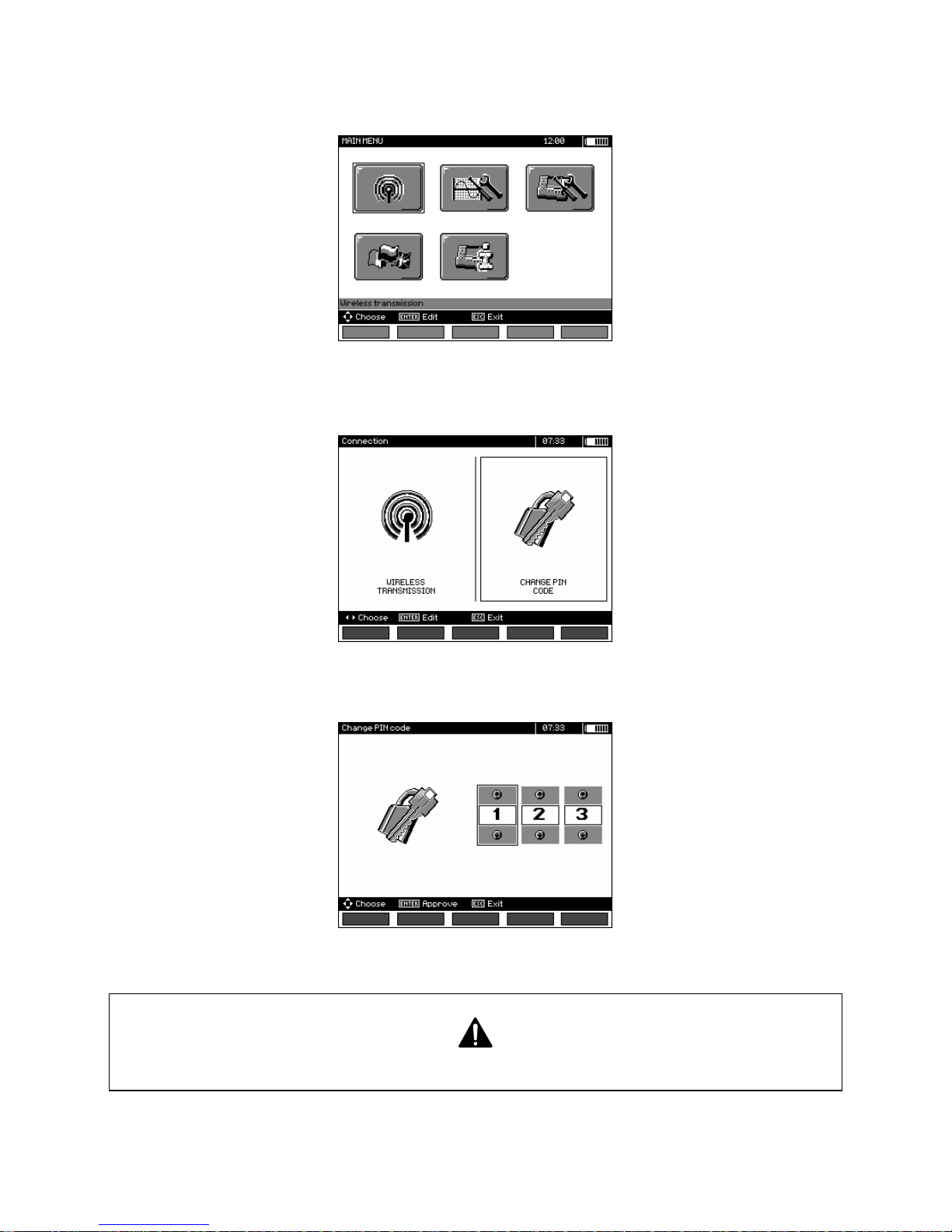

2.3.7 Wireless communication
Page 19
MIC-10k1, MIC-5050 – USER MANUAL
15
Use , buttons to switch on/off wireless
communication. Confirm your choice by
pressing ENTER button.

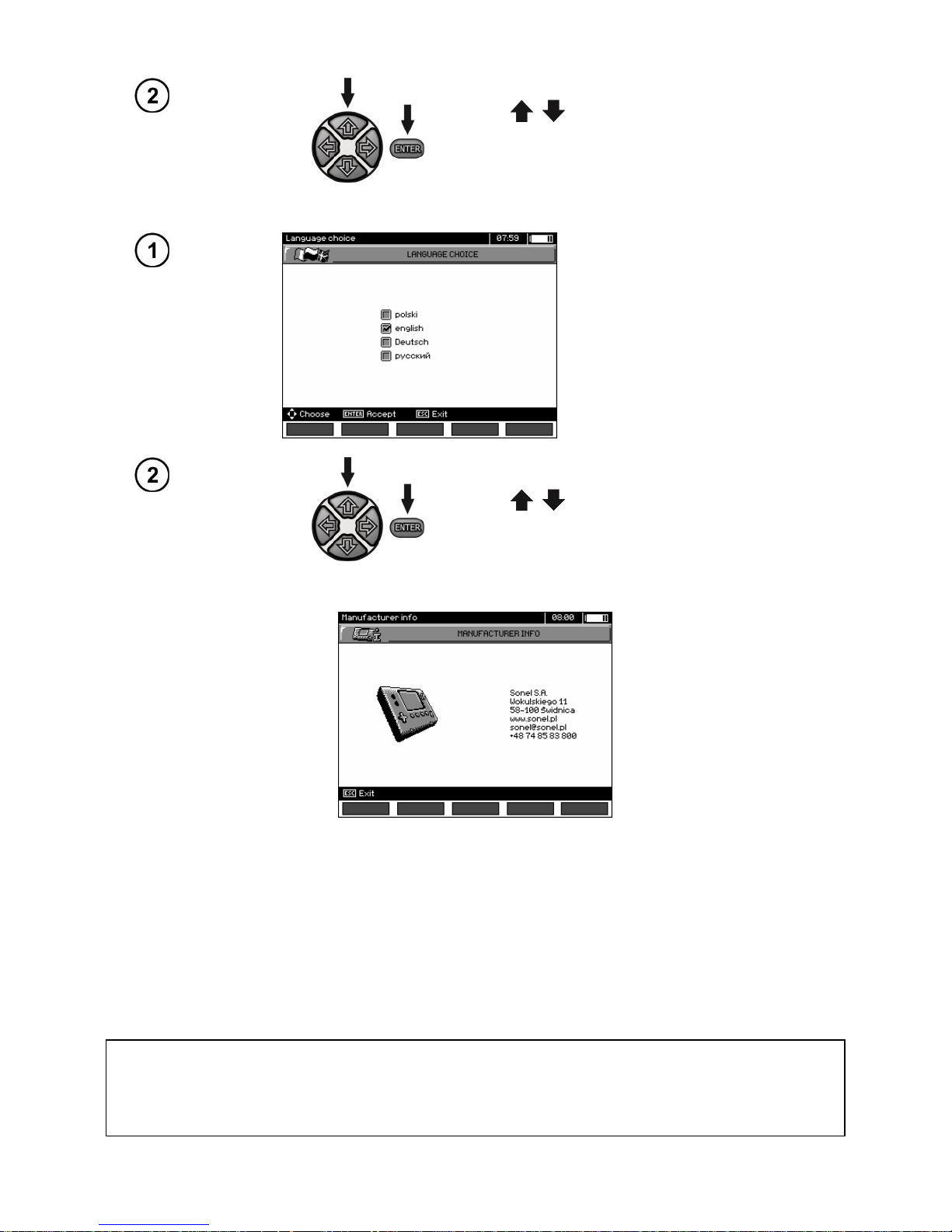

2.4 Language choice
Use , buttons to select desired language and press ENTER.
2.5 Information about manufacturer
3 Measurements
Notes:
The result of the latest measurement is remembered by the meter until the next measurement is
started or the measuring function is changed by means of the rotary switch. The result of the latest
measurement is displayed on the screen for 20 seconds. Then it may be recalled by pressing ENTER,
also after the meter is turned off and turned back on again.
WARNING:
During a measurement, switching of the range switch is forbidden because it may damage
the meter and pose a threat to the user.
Page 20
MIC-10k1, MIC-5050 – USER MANUAL
16
3.1 Diagnostics performed by the meter - limits
The meter is able to assess whether the measurement result is within acceptable limits. The user may set a limit, i.e. maximum or minimum value, which should not be exceeded by the result. For
measurements of insulation resistance, the set limit is the minimum value, whereas for measurements
of continuity of protective conductors and equipotential bonding- it is the maximum value.
The limits are activated globally in the main menu (Section 2.1.5). When the function of setting
limits is activated, the display, in its lower left corner, shows the symbols with the following meaning:
- : the result is correct, it is within the set limits,
- : the result is incorrect, it is outside the set limits,
The method for setting limits is described in the chapters describing the measurement data. In
DD, SV functions and in after-burning - it is not possible to set limits.
3.2 Measurement of insulation resistance
WARNING:
The tested object must not be live.
Note:
During measurement, especially of high resistances, make sure that test leads do not touch
each other and probes (crocodile clips), because such a contact may cause the flow of surface currents resulting in additional error in measurement results.
Inverter output current is limited at 1,2 mA, 3 mA or 6 mA level. Activation of the current limit is
indicated by a continuous beep. The measurement result is correct, but on the test terminals the test
voltage is lower than voltage selected before the measurement. The current limitation occurs in the
first phase of the measurement due to charging the capacity of the tested object.

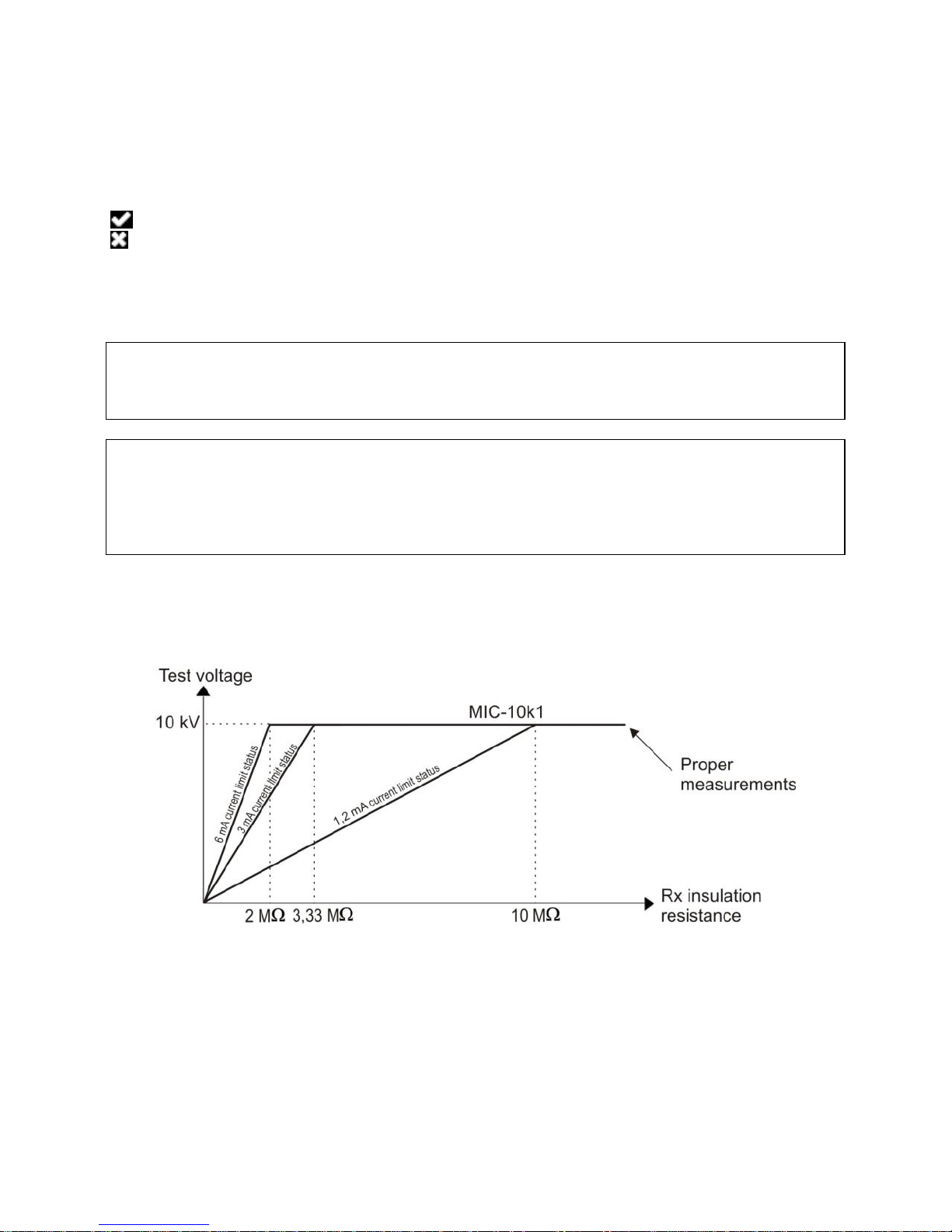

MIC-10k1 - The actual test voltage as a function of the measured insulation resistance RX (for
maximum rated voltage)
Page 21
MIC-10k1, MIC-5050 – USER MANUAL
17

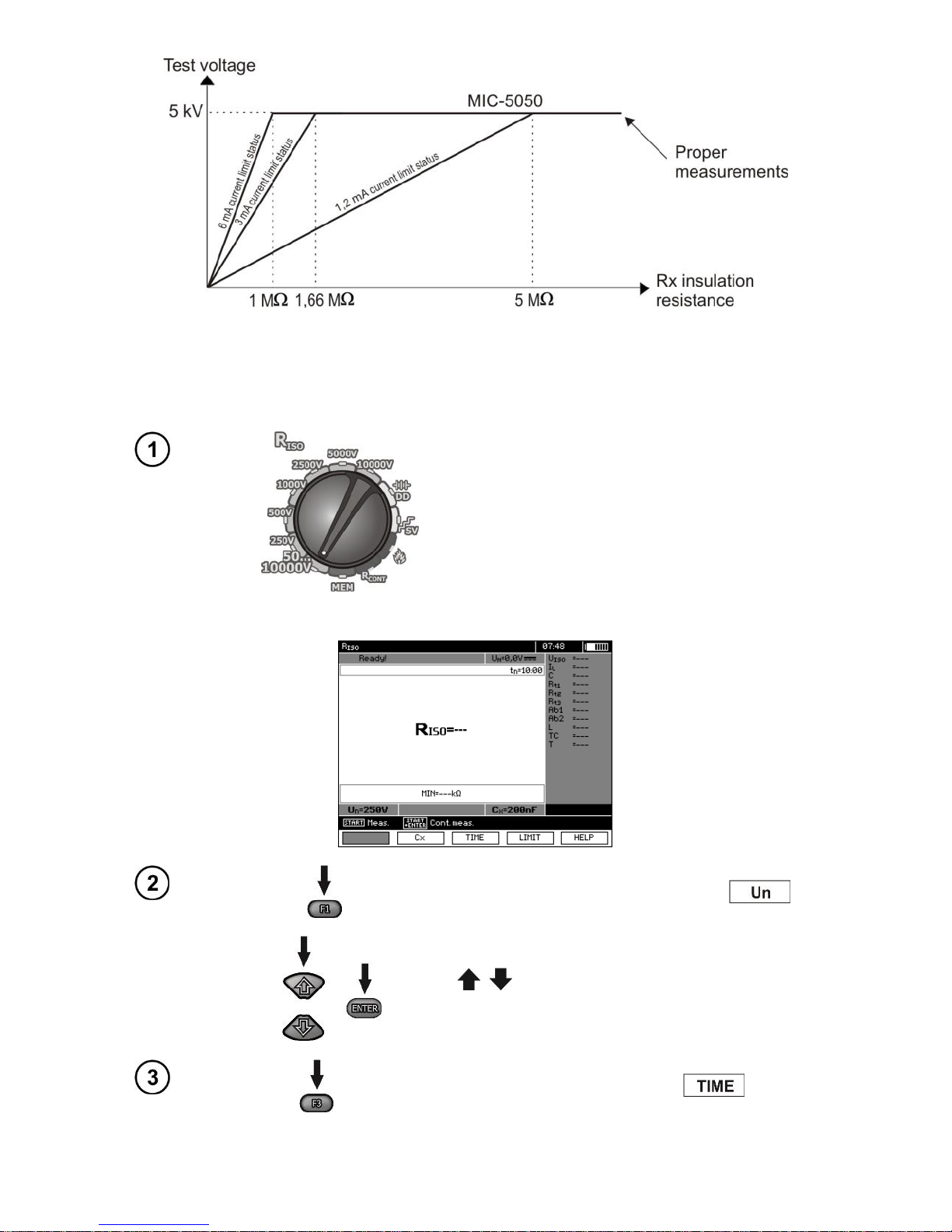

MIC-5050 - The actual test voltage as a function of the measured insulation resistance RX (for
maximum rated voltage)
3.2.1 Double-lead measurement
Set the rotary switch of function selection at
one of R
ISO
positions, selecting simultaneously
measuring voltage (for MIC-10k1 at
50...10000V voltage is adjusted as follows:
50 V...1 kV in 10V steps, 1 kV...10 kV in 25V
steps; for MIC-5050 at 50...5000V voltage is
adjusted as follows: 50 V...1 kV in 10V steps, 1
kV...5 kV in 25V steps). The meter is in the
mode of measuring interference voltage of the
tested object UN.
To change the measuring voltage, press F1 .
Use , buttons to set voltage value; confirm
your choice by pressing ENTER.
To set the measurement time, press F3 .
Page 22
MIC-10k1, MIC-5050 – USER MANUAL
18

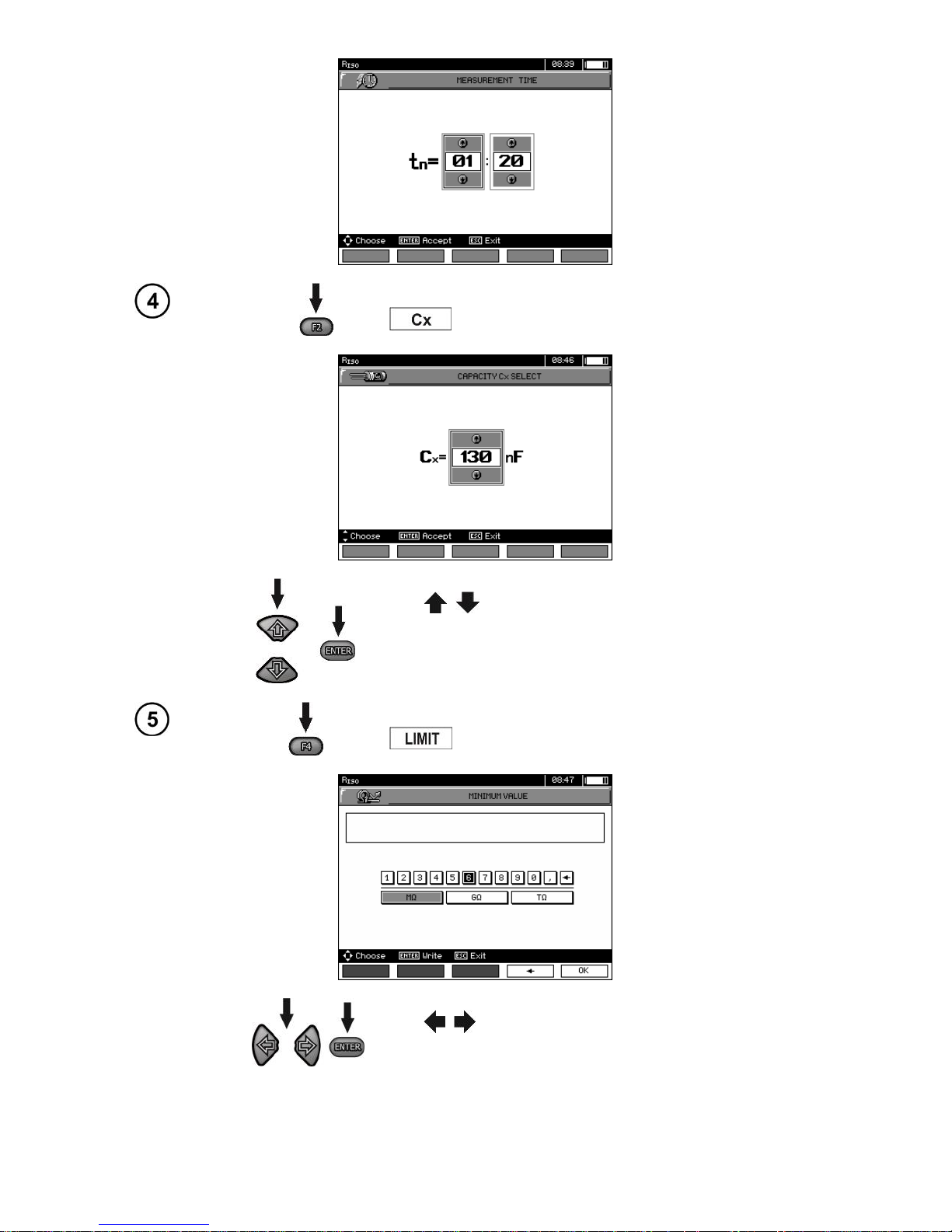

To set the capacity of the tested object [nF/km] press F2
.
Use , buttons to set capacity value; confirm your
choice by pressing ENTER. The range of changes: from
10 nF to 990 nF. When setting --- (below 10 nF or above
990 nF) the function to calculate the length is switched off.

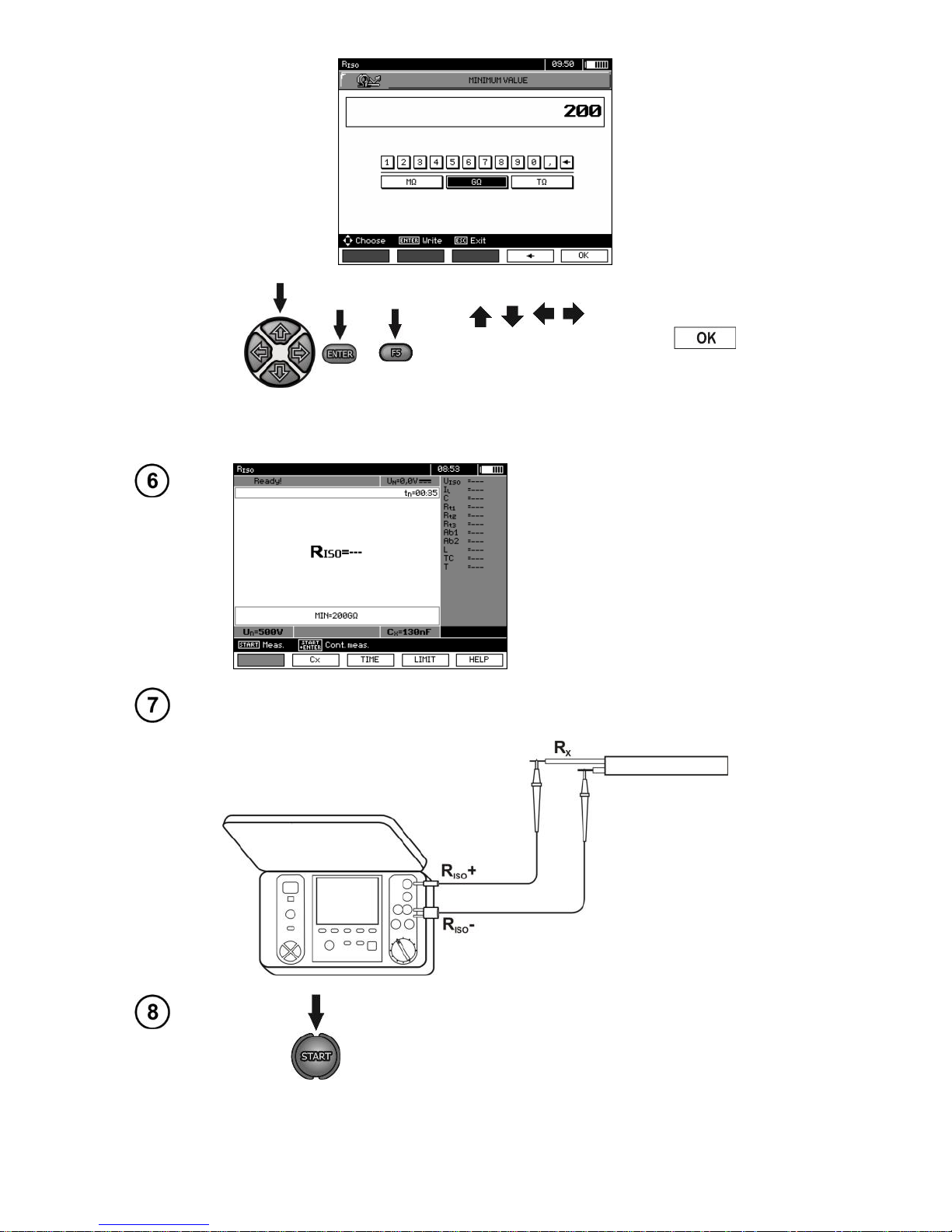

In order to set the limit (minimum resistance), press F4
.
Use , and ENTER buttons to enter the resistance
value.
Page 23
MIC-10k1, MIC-5050 – USER MANUAL
19
Use , , , and ENTER buttons to select
the unit. Confirm by pressing F5 .
For R
ISO
the limit is the minimum value. The range of setting the limit value is as follows: from
1 kΩ to 40 TΩ for MIC-10k1 or to 20 TΩ for MIC-5050.
The meter is ready for measurement.
Value of interference voltage can be
read on the display.
Connect test leads according to the drawing.
Press and hold the START button for 5 seconds.
After 5 seconds, the measurement will be started and
continued until the programmed time is reached or
ESC button pressed.
5 s
Page 24
MIC-10k1, MIC-5050 – USER MANUAL
20

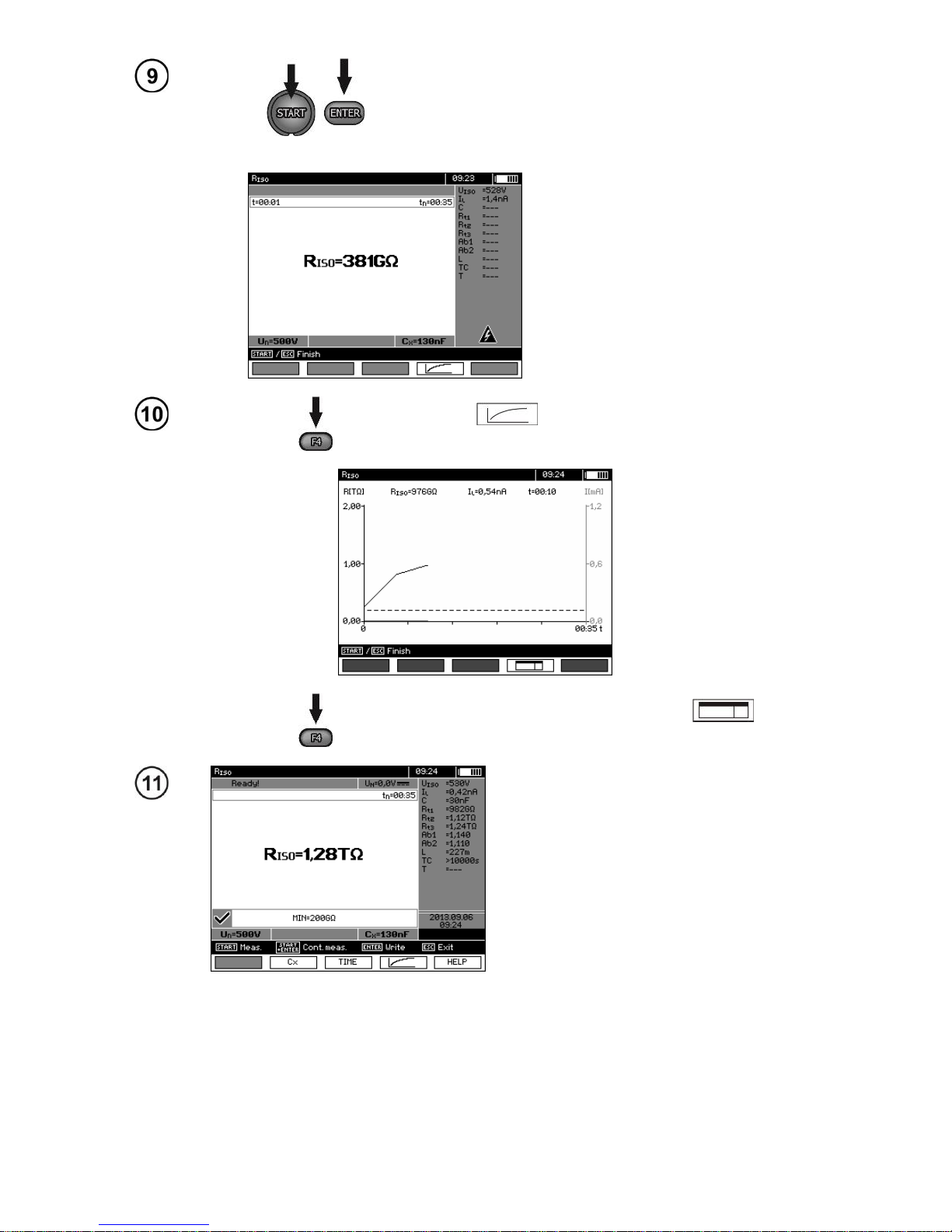

Quick start, without 5 seconds delay, can be done by
pressing the ENTER button and holding down the
START button. The measurement will be stopped
when the programmed time is reached or the ESC
button pressed.
View of the screen during measurement.
Press F4 to display a chart of the measured
resistance and current as a function of time.
When the graph is displayed, press F4 to return to the tabular view of the results.
After the measurement is completed,
read the result.
Page 25
MIC-10k1, MIC-5050 – USER MANUAL
21

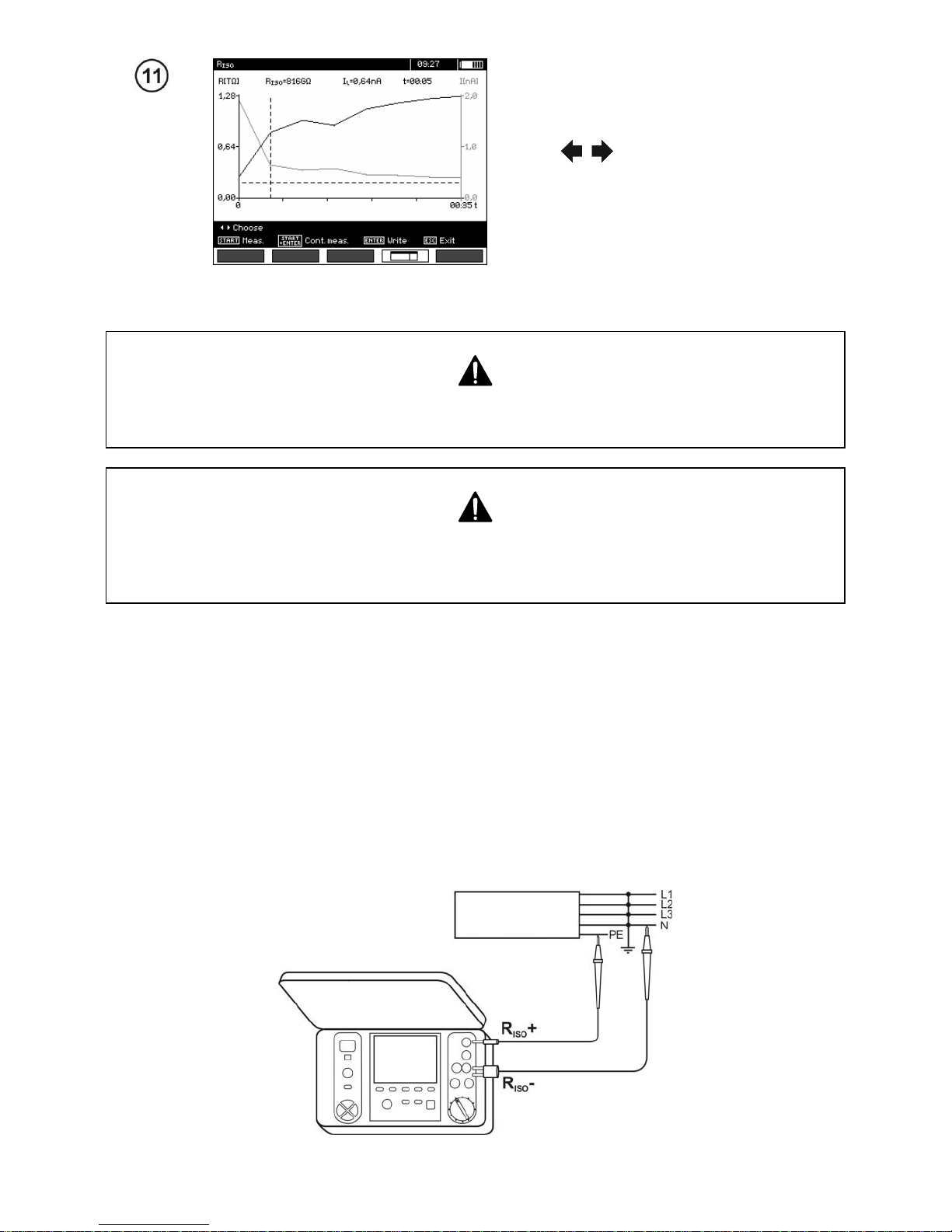

Result presented as a graph. Dashed
horizontal line shows the value of set lim-
it. Use , to move the cursor line
(vertical dashed line) - the display will
show data for the point the set R
ISO
, IL
and time.
Note:
During measurements of insulation resistance, dangerous voltage up to 10 kV (MIC-10k1) or
5 kV (MIC-5050) occurs at the ends of test leads of the meter.
It is forbidden to disconnect test leads before the measurement is completed. Failure to
obey the above instruction will lead to high voltage electric shock and make it impossible to
discharge the tested object.
- Disabling t2 will also disable t3.
- Measuring time tn is independent of the t1, t2, t3 times set in MENU and overwrites them i.e. when tn
< t3 then the measurement time will be equal to tn.
- Timer measuring the measurement time is started when U
ISO
voltage is stabilized.
- LIMIT I message means operation with limited inverter power. If this condition persists for 20 seconds, the measurement is interrupted.
- If any of the measured values of partial resistance is out of range, the value of the absorption coefficient is not displayed – the display shows dashes.
- During the measurement yellow HV LED is lit.
- After completion of measurement, the capacitance of the object tested is discharged by shorting
R
ISO
+ and R
ISO
- terminals with resistance of 100 k for MIC-5050 or 200 k for MIC-10k1, simultane-
ously the voltage of the tested object is displayed.
- In case of power cables measure the insulation resistance between each conductor and other conductors shorted and grounded (figure below).
Page 26
MIC-10k1, MIC-5050 – USER MANUAL
22
- The length of the cable is calculated on the basis of its capacity on [km] written in before the measurement.

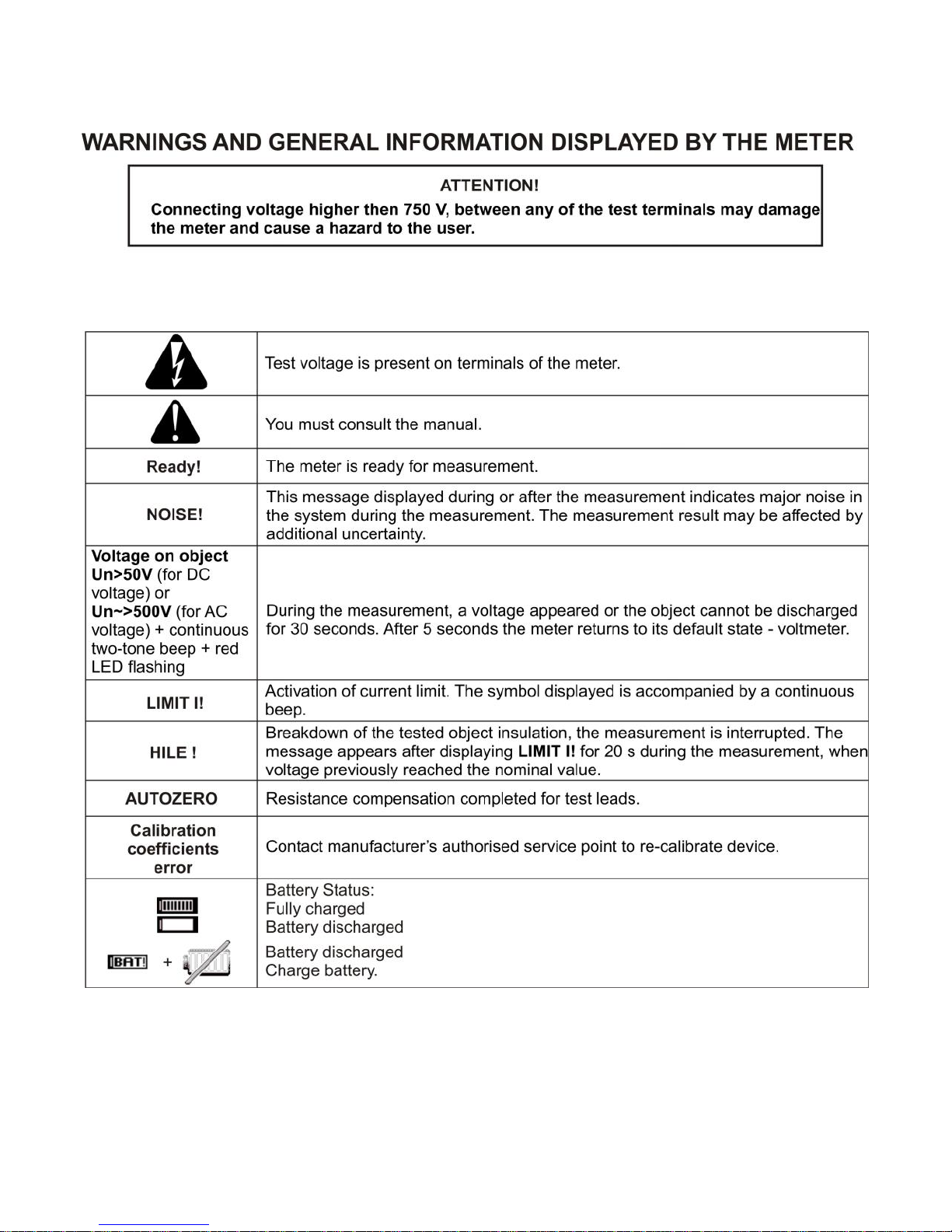

Additional information displayed by the meter
Test voltage is present on terminals of the meter.
NOISE!
Interference voltage lower than 50 V DC or 500 V AC is
present on the tested object. Measurement is possible but
may be burdened with additional uncertainty.
U>50V + two-tone
beep
The tested object is live. The measurement is blocked.
LIMIT I
Activation of current limit. The symbol displayed is accompanied by a continuous beep.
HILE !
Leakage current too high (breakdown of insulation during
the measurement.)

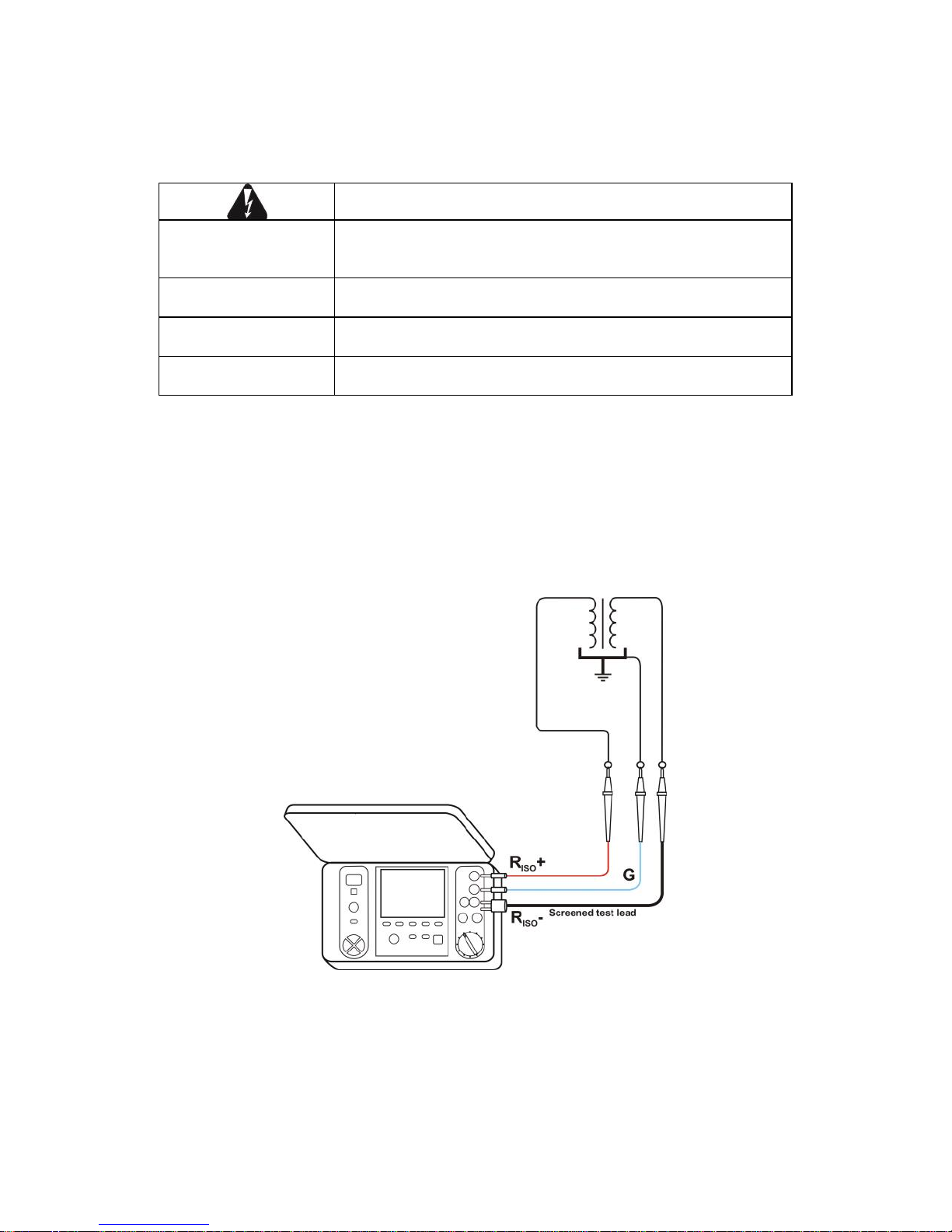

3.2.2 Three-lead measurement
In order to eliminate the influence of surface resistance in transformers, cables, etc. the threelead measurement is used, but do not connect the current measuring test lead R
ISO
- to large ground
conductors. For example:

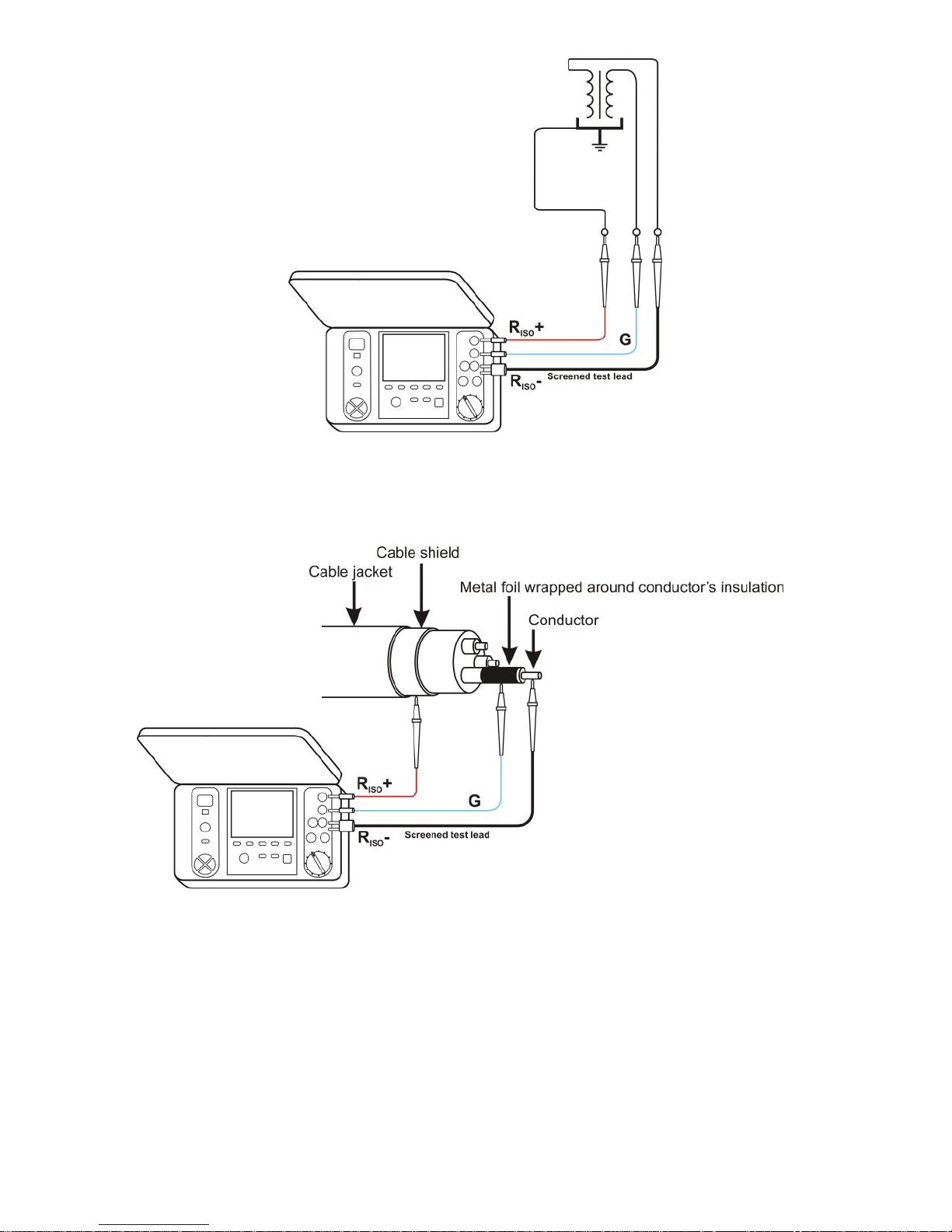

at the measurement of inter-winding resistance of a transformer, G socket of the meter should
be connected to the transformer tank;
when measuring the insulation resistance between one of the windings and the transformer’s
tank, connect G socket of the meter to the second winding:
Page 27
MIC-10k1, MIC-5050 – USER MANUAL
23
when measuring insulation resistance between one of the cable conductors and the cable jack-
et, the effect of surface resistances (important in difficult weather conditions) is eliminated by
connecting a piece of metal foil insulating the tested conductor with G socket of the meter;
The same shall apply when measuring the resistance between two conductors of the cable, attaching
to G terminal other conductors that do not take part in the measurement.

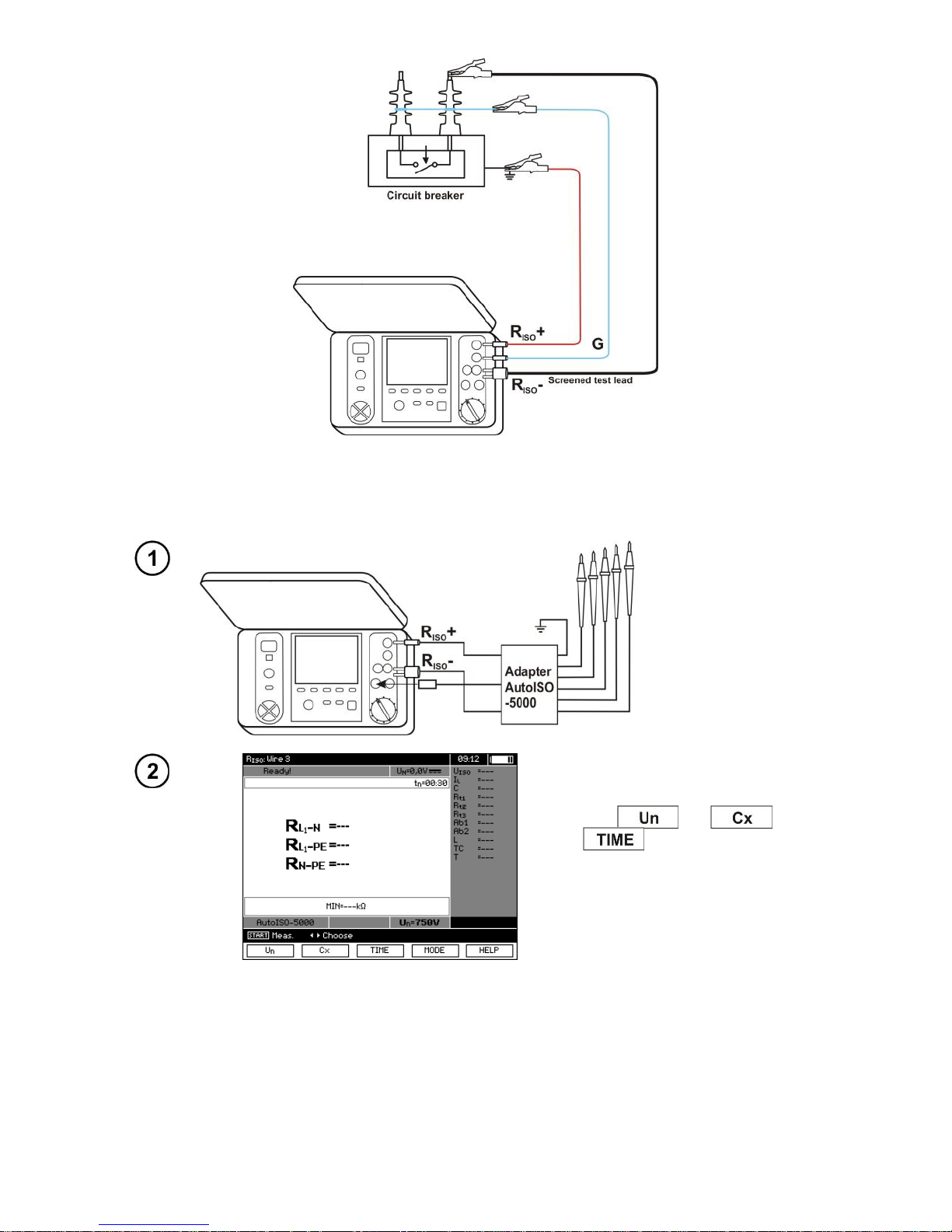

at the measurement of insulation resistance of a high voltage circuit breaker, G socket of the
meter should be connected to the terminals’ insulators of the breaker;
Page 28
MIC-10k1, MIC-5050 – USER MANUAL
24
3.2.3 Measurements with AutoISO-5000
Connect AutoISO-5000
adapter.
The meter detects this
fact automatically and
changes the appearance of the screen.
Use F1 , F2 and
F3 buttons to adjust de-
sired test voltage, capacity of the
object and measurement time, similarly as in section 3.2.2
Page 29
MIC-10k1, MIC-5050 – USER MANUAL
25
Press F4 button to
enter the selection of lead/
cable type (3-, 4- or 5-wire
lead).
Use , buttons to select an appropriate item and
confirm it by ENTER.
Use , buttons, to enter the second
group of parameters.
Press F4 to set the
minimal resistance. It is the
same for all conductor pairs of a
cable.
Use , and ENTER buttons to enter the
resistance value.
Page 30
MIC-10k1, MIC-5050 – USER MANUAL
26
Use , , , and ENTER buttons to select the
unit. Confirm by pressing F5 .
The meter is ready for measurement.
Value of interference voltage can be
read on the display.
Measurement
Connect AutoISO-5000 adapter to the tested cable.
Press START to start measurement. First, checking of voltages on
particular pairs of wires is performed.
If any of the voltages exceeds allowable voltage, symbol of this
voltage is displayed with “!” (e.g. U
N-PE
!), and the measurement is in-
terrupted.
Page 31
MIC-10k1, MIC-5050 – USER MANUAL
27
View of the screen during
measurement.
After the measurement is
completed, read the results.
Use F1 and F2 buttons to change the group of
displayed results.
Note:
- Remarks and messages are the same as in 3.2.3.

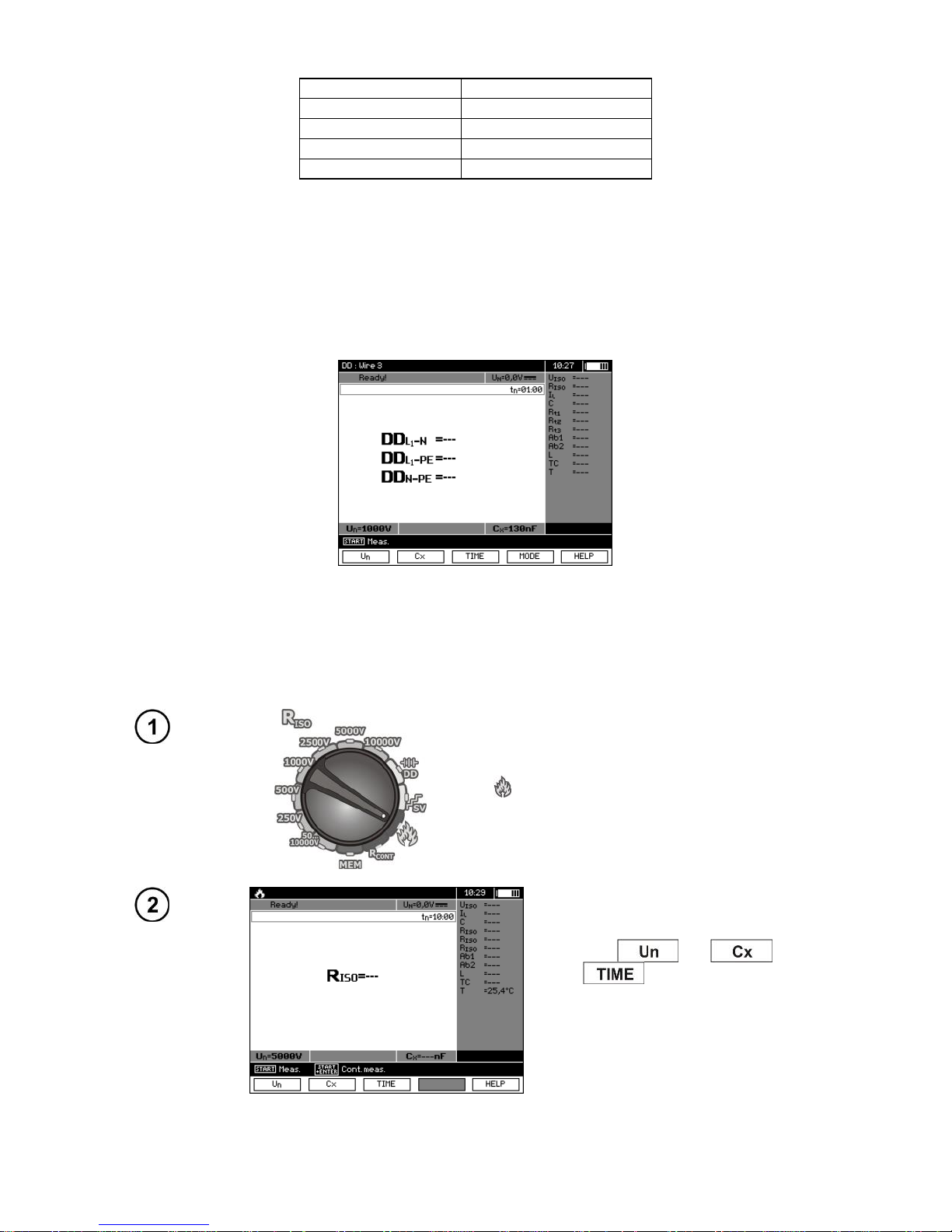

3.2.4 Measurements with increasing voltage - SV
In this mode the meter performs a series of 5 measurements with increasing voltage; the voltage
change depends on the set maximum voltage:
- 1 kV: 200 V, 400 V, 600 V, 800 V and 1000 V,
- 2.5 kV: 500 V, 1 kV, 1.5 kV, 2 kV and 2.5 kV,
- 5 kV: 1 kV, 2 kV, 3 kV, 4 kV and 5 kV,
- 10kV (for MIC-10k1): 2 kV, 4 kV, 6 kV, 8 kV, 10 kV.
The end result for each of the 5 measurements is saved which is signalled by a beep and an
appropriate icon.
Page 32
MIC-10k1, MIC-5050 – USER MANUAL
28

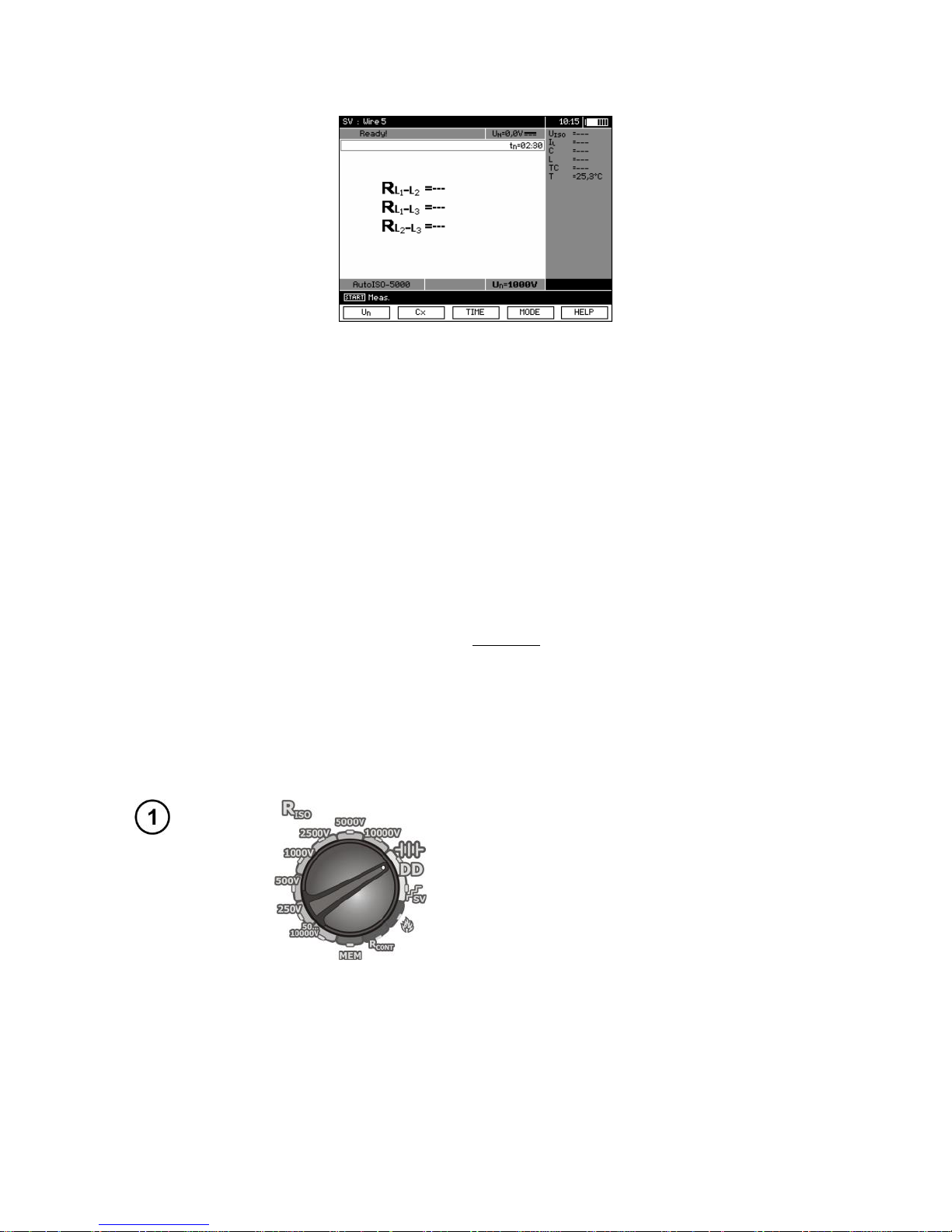

Set the rotary switch of function selection in
the SV position. The meter is in the voltage
measurement mode.
Use F1 , F2 and
F3 buttons to adjust de-
sired test voltage, capacity of the
object and measurement time, similarly as in section 3.2.2
Press and hold the START button for 5 seconds.
After 5 seconds, the measurement will be started and
continued until the programmed time is reached or
ESC button pressed.
Quick start, without 5 seconds delay, can be done by
pressing the ENTER button and holding down the
START button. The measurement will be stopped when
the programmed time is reached or the ESC button
pressed.
After the measurement is completed, read the result.
Use F4 , F5 buttons to switch between consecutive measurements for a given sequence from 1 to 5.
Press F1 to display a chart of the measured resistance
and current as a function of time.
Note:
- Other comments and displayed symbols are the same as for standard R
ISO
measurement.
5 s
Page 33
MIC-10k1, MIC-5050 – USER MANUAL
29
- In this function, it is also possible to perform the measurement with AutoISO-5000 adapter. The display of results is similar to the measurement of R
ISO
with AutoISO-5000. The screen will show the fol-
lowing:
3.2.5 Dielectric Discharge Indicator - DD
In the dielectric discharge test the discharge current is measured after 60 seconds from the end
of measurement (charging) of the insulation. The DD is a value characterising the insulation quality independent from the test voltage.
The measurement operates in the following way: first the insulation is charged with a current for
a set period. If this voltage is not equal to the set voltage the object is not charged and the meter
abandons the measurement procedure after 20 seconds. After the charging and polarisation is complete, the only current flowing through the insulation is the leakage current. Then the insulation is discharged and the total dielectric discharge current starts to flow through the insulation. Initially this current is the sum of the capacity discharge current, which fades quickly and the absorption current. The
leakage current is negligible, because there is no test voltage.
After 1 minute from closing the circuit the current is measured. The DD value is calculated using
the formula:
CU
I
DD
pr
min1
where:
I
1min
– current measured 1 minute after closing the circuit [nA],
Upr – test voltage [V],
C – capacitance [F].
Set the rotary switch of function selection at
DD. The meter is in the voltage measurement mode.
Page 34
MIC-10k1, MIC-5050 – USER MANUAL
30
Use F1 , F2 and
F3 buttons to adjust de-
sired test voltage, capacity of the
object and measurement time (1
min ...60 min), similarly as in section 3.2.2
or
Start the measurement, similarly as in section 3.2.4.
Both during and after the measurement, the user may switch between
the display of the results and the
graph by pressing F4 .
After the measurement is completed, read the result.
Press F4 to display a chart of the measured resistance
and current as a function of time.
The cursor (i.e. dashed vertical line) may be
moved by using , buttons. Measured
values are displayed for the point where the
cursor is currently positioned.
The measurement result indicates the status of the insulation, it may be compared
with the following table:
Page 35
MIC-10k1, MIC-5050 – USER MANUAL
31
DD value
Insulation condition
>7
Bad
4-7
Weak
2-4
Not the best
<2
OK
Note:
- in an environment with strong interferences the measurement may be affected by additional uncertainty.
- In this function, it is also possible to perform the measurement with AutoISO-5000 adapter. The display of results is similar to the measurement of R
ISO
with AutoISO-5000. The screen will show the fol-
lowing:
3.2.6 Damage location (after-burning)
The meter carries out the measurement as for R
ISO
, except that it is not interrupted at the breakdown. In case of a breakdown, the measurement is continued, and the damage may be located as indicated by breakdown sound.
Set the rotary switch of function selection at
. The meter is in the voltage measure-
ment mode.
Use F1 , F2 and
F3 buttons to adjust de-
sired test voltage, capacity of the
object and measurement time, similarly as in section 3.2.2
Page 36
MIC-10k1, MIC-5050 – USER MANUAL
32
or
Start the measurement, similarly as in section 3.2.2.

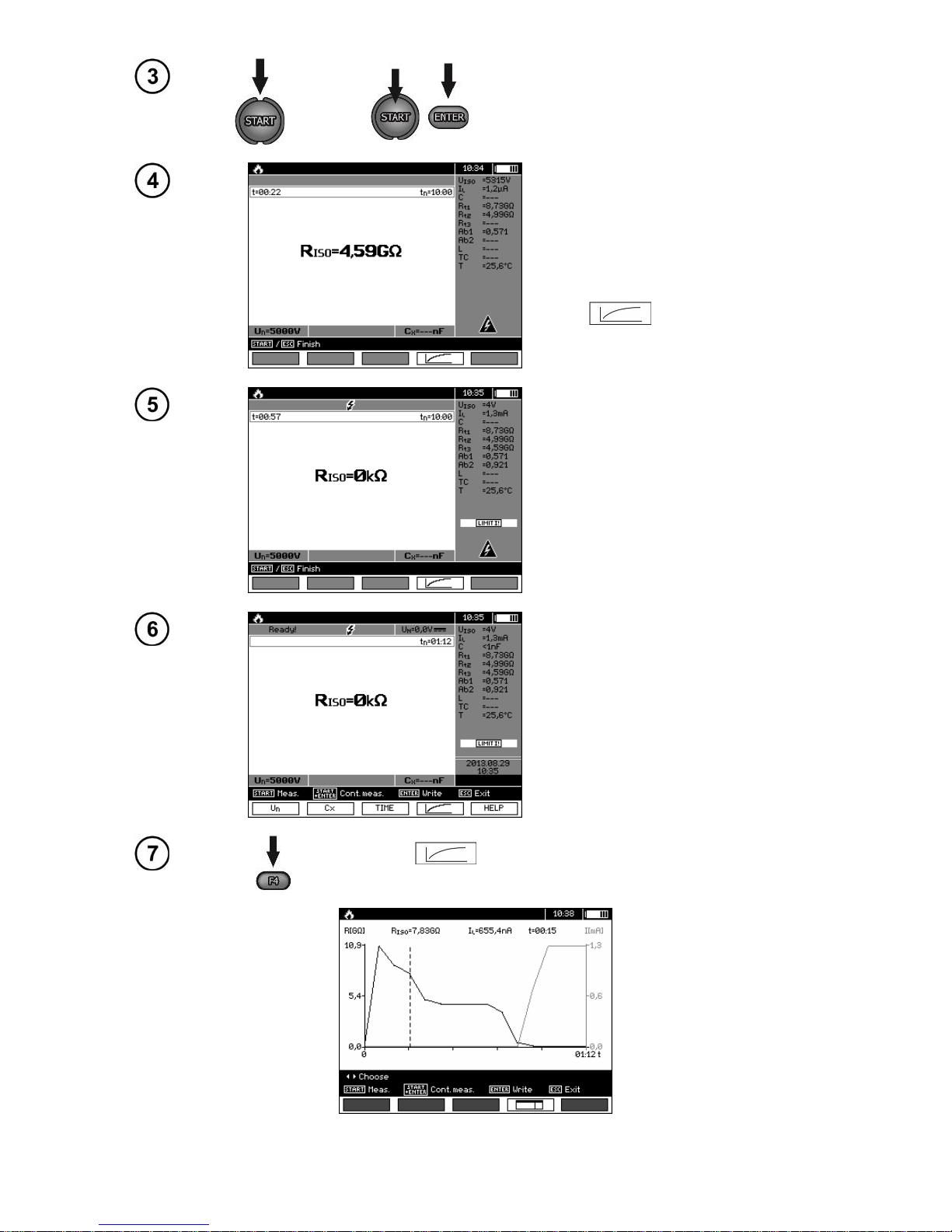

View of the screen during measurement. Both during and after
the measurement, the user may
switch between the display of the
results and the graph by pressing
F4 .
When the insulation breakdown
occurs, the meter does not interrupt the measurement (as in other
functions) and the display shows
(at the top) the corresponding
mnemonic.
After the measurement is completed, read the result.
The display shown after the
measurement with insulation
breakdown.
Press F4 to display a chart of the measured resistance
and current as a function of time.
Page 37
MIC-10k1, MIC-5050 – USER MANUAL
33
3.3 Low-voltage measurement of resistance
Note:
Low-voltage measurement of resistance (R
CONT
) is supported only in meters with specific serial num-
ber prefixes. Details in the table below.
Meter name
R
CONT
supported
R
CONT
not supported
Serial number prefix
MIC-5050
B3
EO
MIC-10k1
B4
EN
3.3.1 Measurement of resistance of protective conductors and equipoten-
tial bonding with ±200 mA current

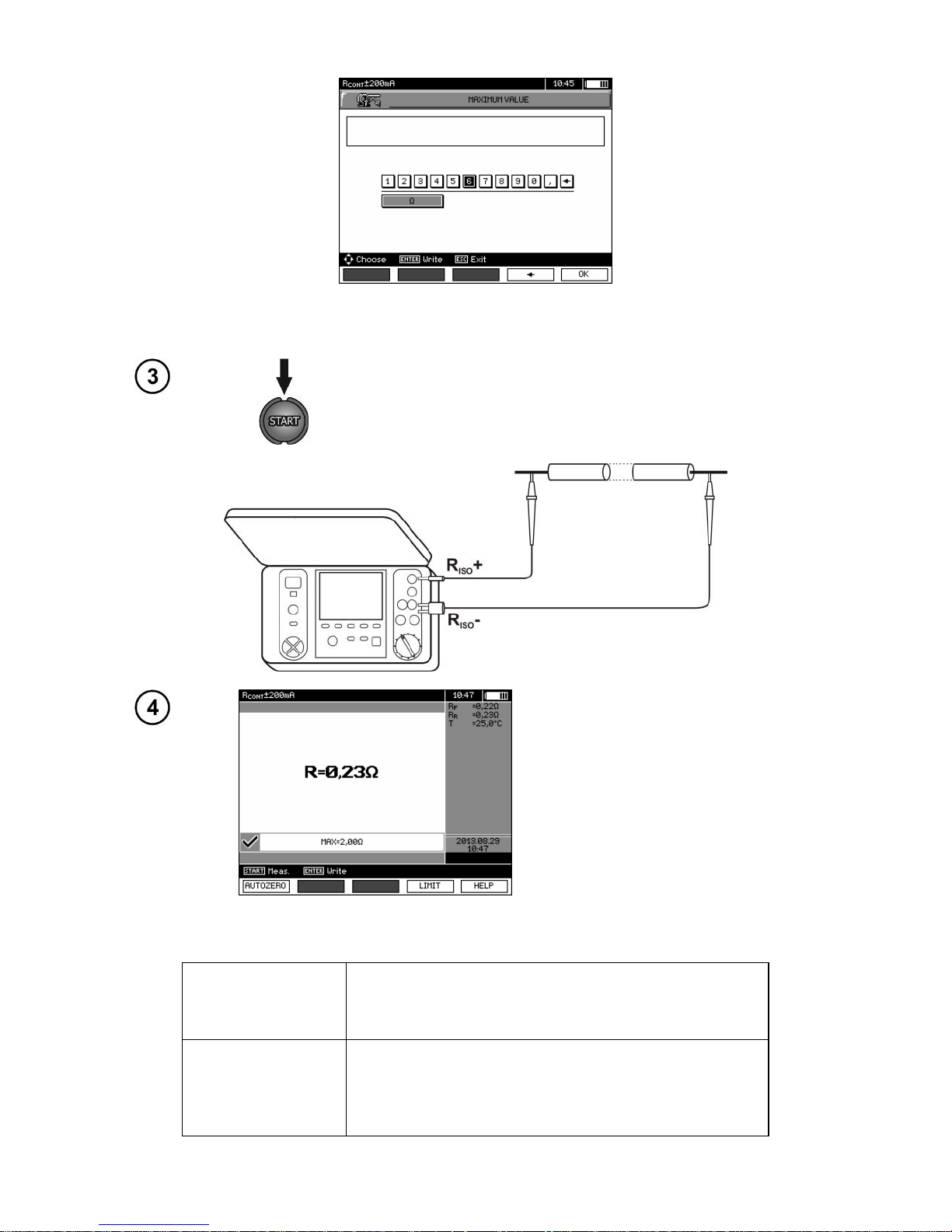

Set the rotary switch at the R
CONT
position.
The meter is ready for measurement. Press F4
to set the maximum resistance.
Page 38
MIC-10k1, MIC-5050 – USER MANUAL
34
The setting limit reflects the function: from 0.01 Ω to 999 Ω. The value of the limit set in the same
way as for R
ISO
.
Connect the meter to the tested object. Trigger the measurement by pressing the START button.
Read out the result.
Additional information displayed by the meter
NOISE!
Interference voltage occurs on the tested object. The
measurement is possible however it will be burdened
with additional uncertainty that is specified in the technical data.
Voltage on object
Un>10 V + two-
tone, continuous
beep + and LED lit
in red
Interference voltage exceeds the allowable value, the
measurement is blocked.
Page 39
MIC-10k1, MIC-5050 – USER MANUAL
35

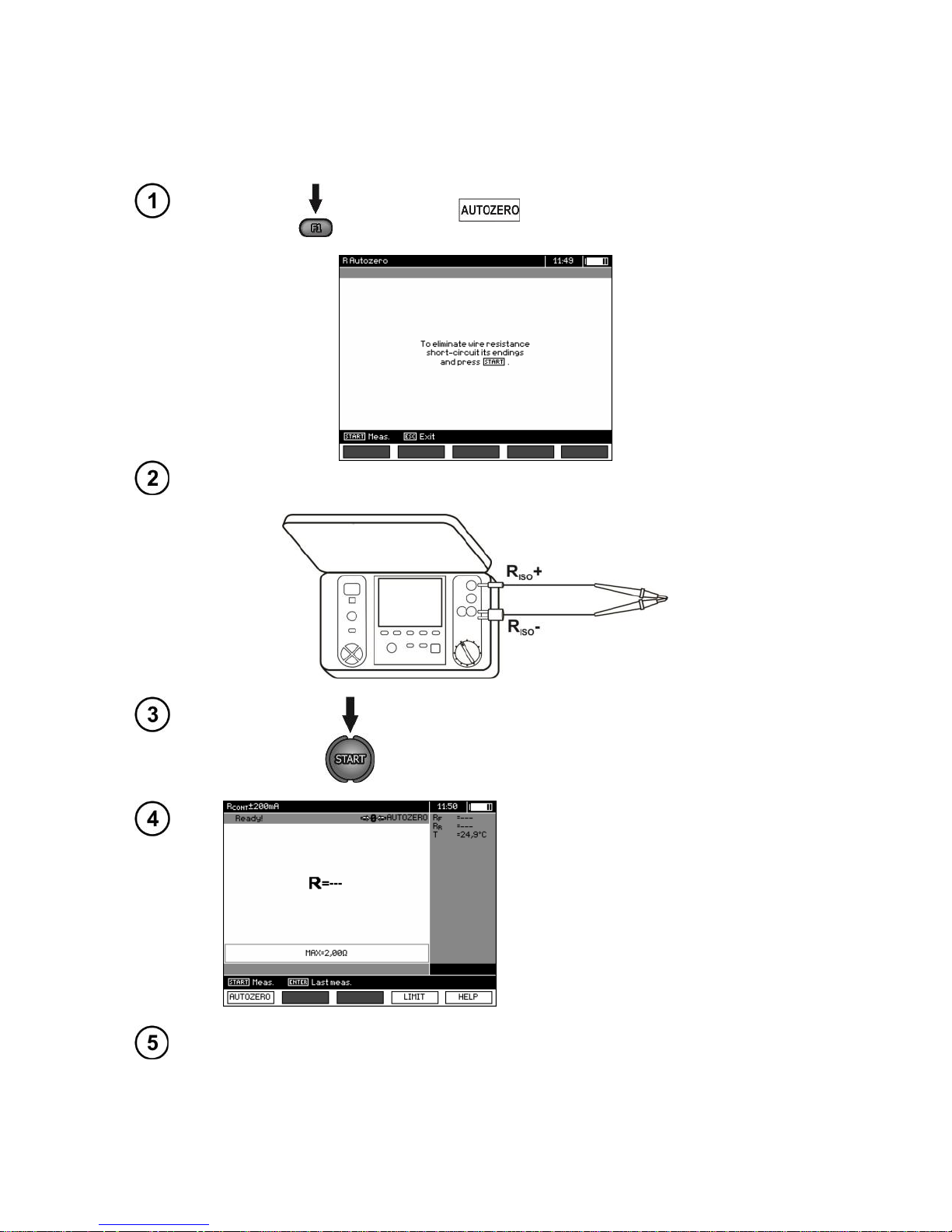

3.3.2 Calibration of test leads
In order to eliminate the impact of the resistance of test leads on measurement result, the com-
pensation (autozeroing) of resistance may be performed.
Press F1 .
Follow the instructions displayed on the screen.
Press START.
AUTOZERO message appears, confirming that the test leads' calibration
has been performed, and the meter enters the measurement mode.
AUTOZERO message remains visible
during measurements.
The compensation is active even after
the meter is switched off and on again.
In order to remove the calibration made (return to default calibration), perform the
above-mentioned activities with test leads open.
Page 40
MIC-10k1, MIC-5050 – USER MANUAL
36

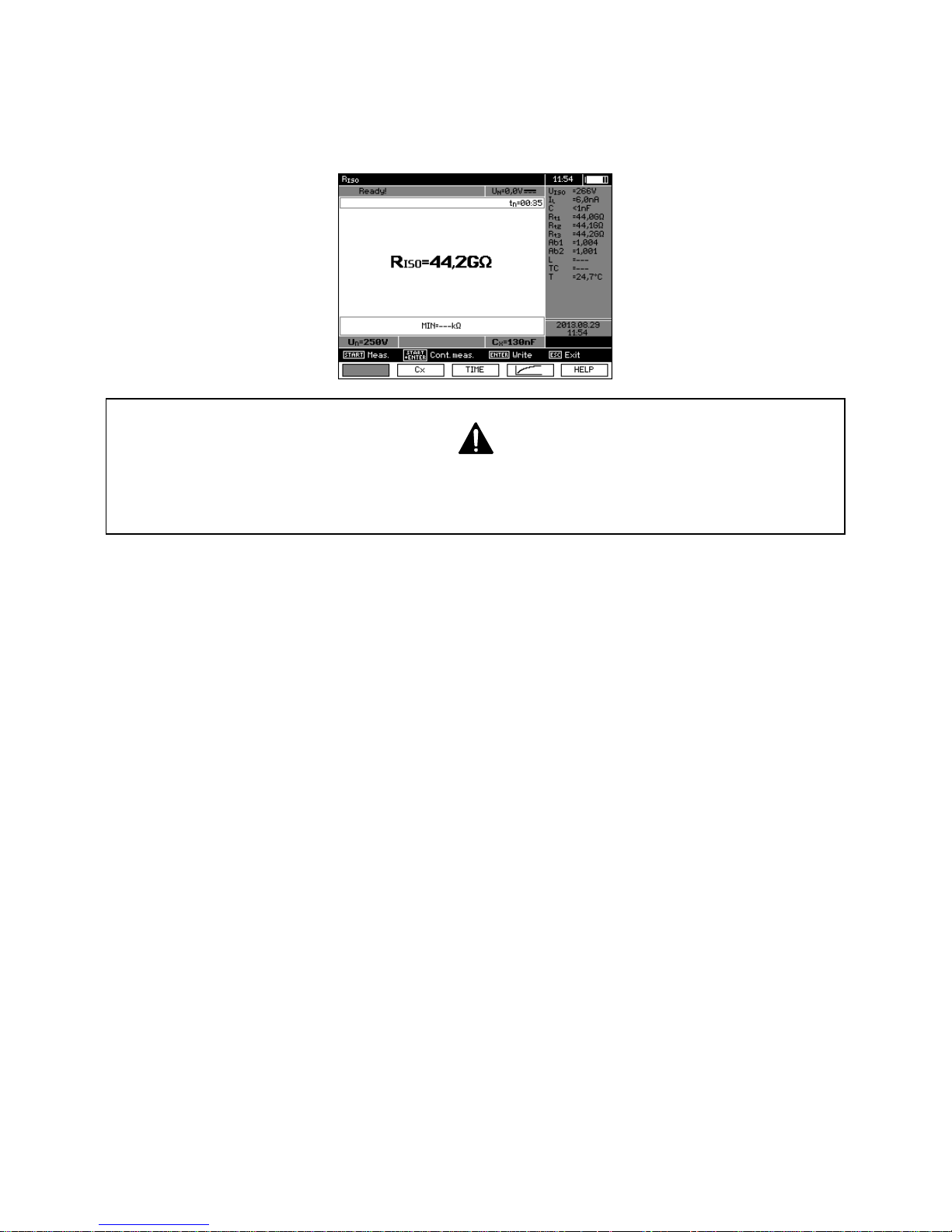

3.4 Temperature Measurement
Temperature Measurement commences after connecting the temperature probe and it is performed for each function. The display indicates the measurement by displaying the measured temperature. When the temperature is disconnected, the display shows "T=---". Values are refreshed every
second.
To ensure user safety, it is not allowed to mount ST-1 temperature probe on objects with
voltage higher than 50 V to earth. It is advisable to ground the examined object before
mounting the probe.
Page 41
MIC-10k1, MIC-5050 – USER MANUAL
37
4 Memory of measurement results
4.1 Structure of the Memory
The memory for test results has a tree-like structure (see figure below). The user has the ability
to record data for ten clients. Each client may create max. 999 objects, which may store up to three
levels of sub-objects, 999 sub-objects for each level. Each subject, and sub-object may store up to
999 measurements.
The whole structure is limited by the size of memory. The memory allows for simultaneous recording of 10 full descriptions of customers, and a minimum of: measurement sets for 10000 measuring points and 10000 names of these points, 999 names for objects, 999 descriptions of sub-objects
and remember the layout created for these objects. Additionally the memory has a space for the list of
names (selection lists) extended up to 99 entries.

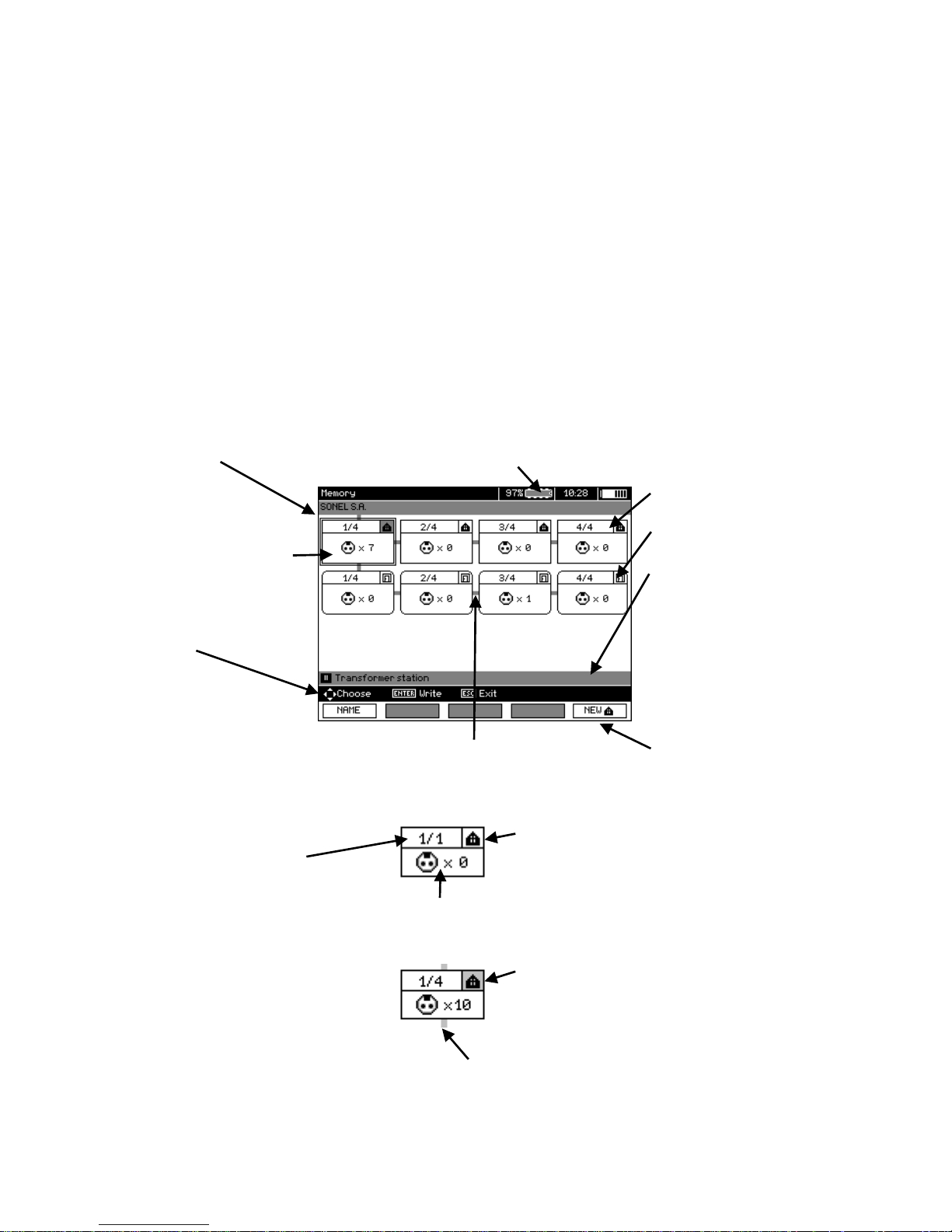

4.1.1 The appearance of main windows in the measurement recording
mode
The main folder window
Bar with a client
name / bar for menu
location
Free memory available:
all internal lines visible - 100%,
no internal line visible - 0%
Bold borders indicate
location of the cursor
Hint bar
Object icon
Sub-object icon
Bar for the name of
object and sub-object
and (when the cursor
is on the client) client
address (if entered)
Connectors indicating the ability to move
between the icons
Marking of function
buttons
Object without any sub-object
Successive number /
total number of objects
Object symbol
Symbol of the measuring point and the number of such points (for this object)
An object containing at least one sub-object
Object symbol on a grey background
Connector
Page 42
MIC-10k1, MIC-5050 – USER MANUAL
38

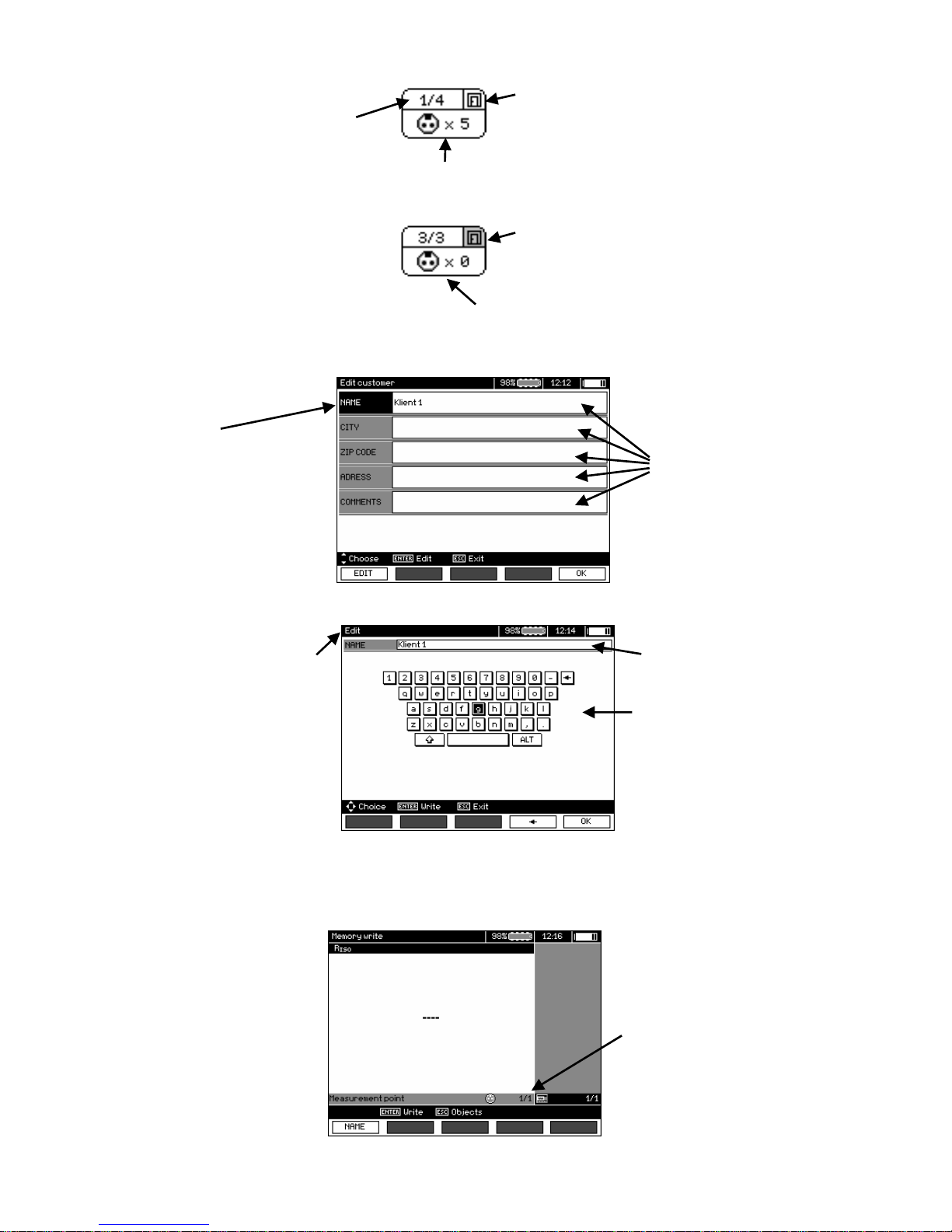

Sub-object without further sub-objects
Successive number /
total number of sub-objects in
one level
Sub-object symbol
Symbol of the measuring point and the number of such points (for this sub-object)
Sub-object containing more sub-objects
Sub-object symbol on a grey background
Connector (appears when the cursor is over
the icon.)
Client edit window
Active field
Data fields
Window for entering a name
Information on the name
entering mode
Entry field
On-screen keyboard
To obtain larger fonts set the cursor on Shift and press ENTER.
To obtain special (Polish) fonts set the cursor on ALT and press ENTER.
Window for entering the measurement result
Successive number /
total number of saved
cells
Page 43
MIC-10k1, MIC-5050 – USER MANUAL
39
Note:
- Results of measurements performed for all measuring functions can be stored in one memory cell.
- Only the results of the measurements started by pressing START key button can be stored in the
memory (except autozeroing in low-voltage measurement of resistance).
- Complete set of results (main result and supplementary results) for a given measuring function, preset measurement settings, date and time of the measurement are stored in the memory.
- Cells unsaved are not available.
- It is recommended to delete the memory after reading the data or before performing a new series of
measurements that may be stored into the same memory cells as the previous ones.
- A single cell may contain either a R
ISO
2(3)p measurement result, a R
ISO
SV, or DD.
- After entering the measurement result, the ID number of the cell is automatically increased.

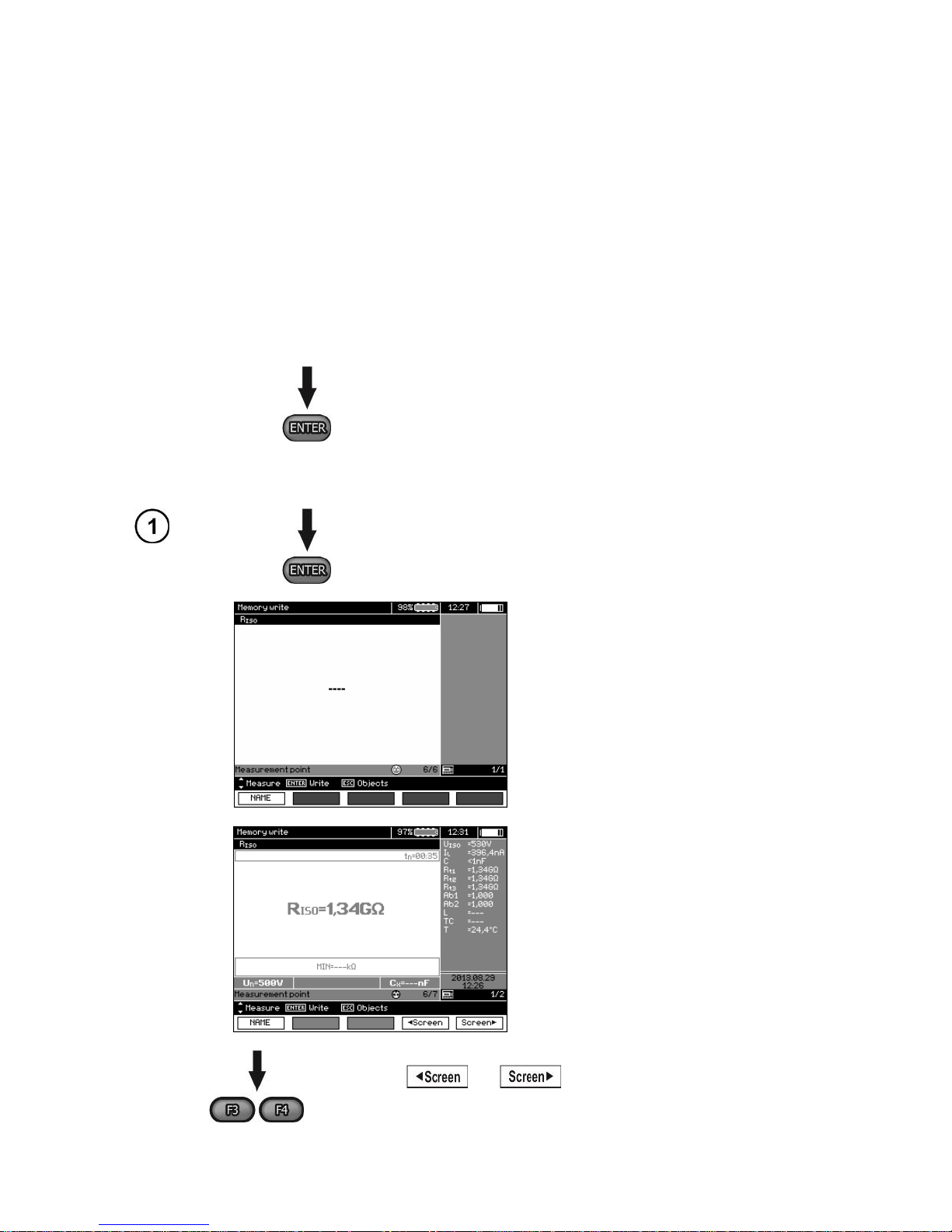

4.2 Storing the measurement results in the memory
Press ENTER after finishing the measurement.
4.2.1 Entering the results without extending the memory structure
Press ENTER again.
The cell is free for a given type of
measurement.
The cell is occupied for a given type
of measurement.
Use F4 , F5 buttons to scroll the components
of the result.
Page 44
MIC-10k1, MIC-5050 – USER MANUAL
40
In order to select a measurement point (cell), use , .
or
press ENTER, to save the result in the memory or ESC,
to return to displaying the memory structure.

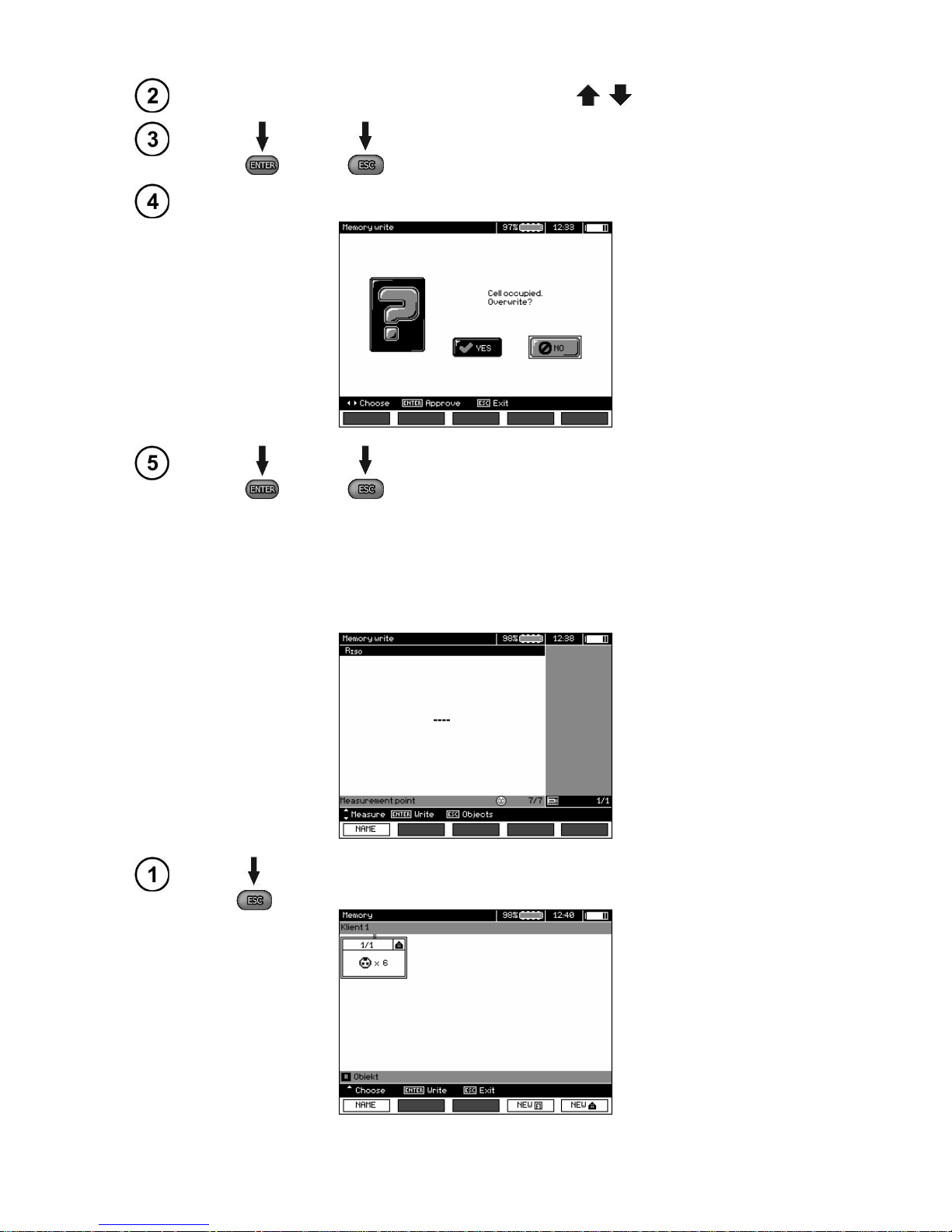

If you try to store data in an occupied memory cell, the following warning message
will appear:
or
After selecting YES press ENTER to overwrite the result or ESC, to cancel.
Note:
- Complete set of results (main result and supplementary results) for a given measuring function and
preset measurement settings are stored in the memory.
4.2.2 Extending the memory structure
Press ESC to start creating the objects.
Page 45
MIC-10k1, MIC-5050 – USER MANUAL
41

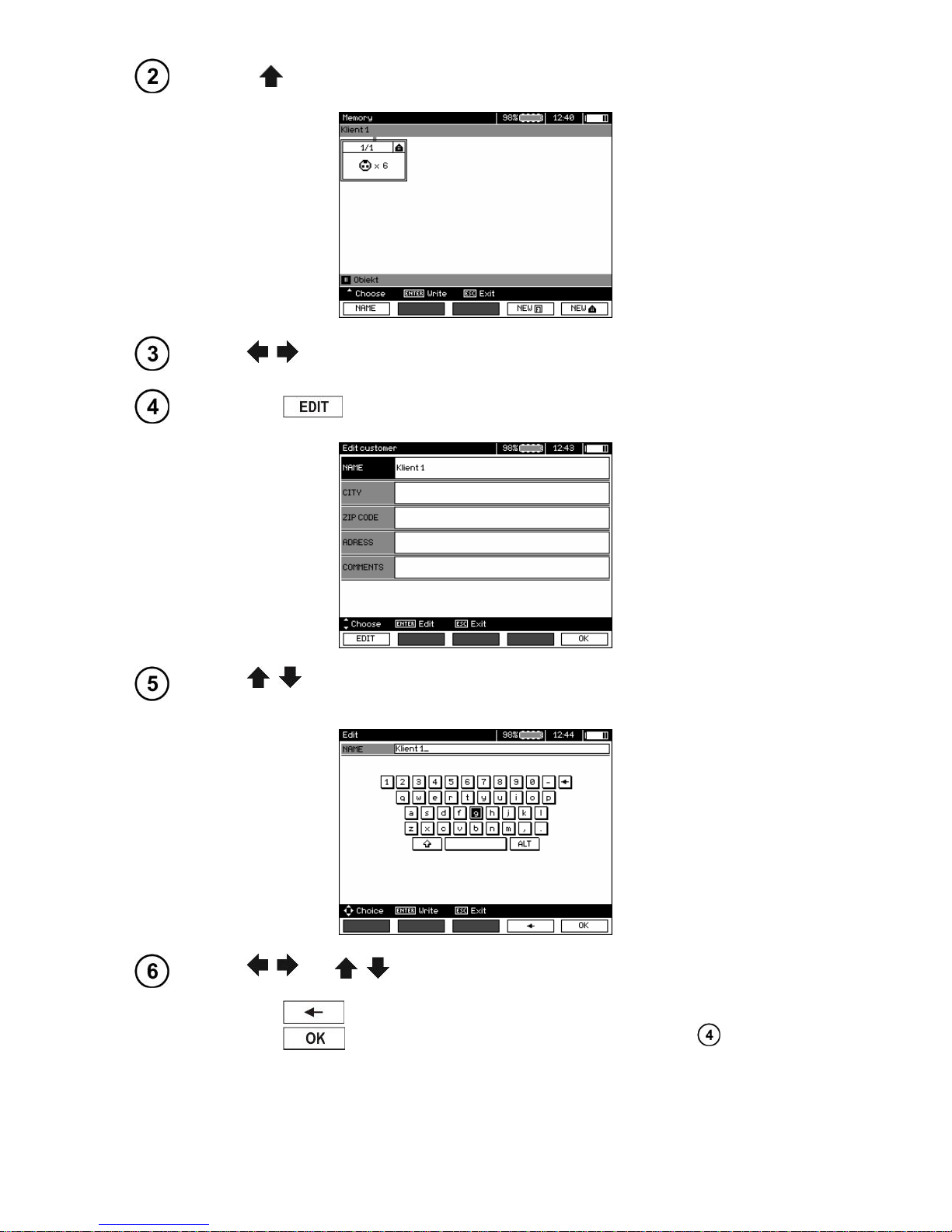

Press button to set the cursor on Client 1.
Use ,
buttons to select other clients (1 - 10)
.

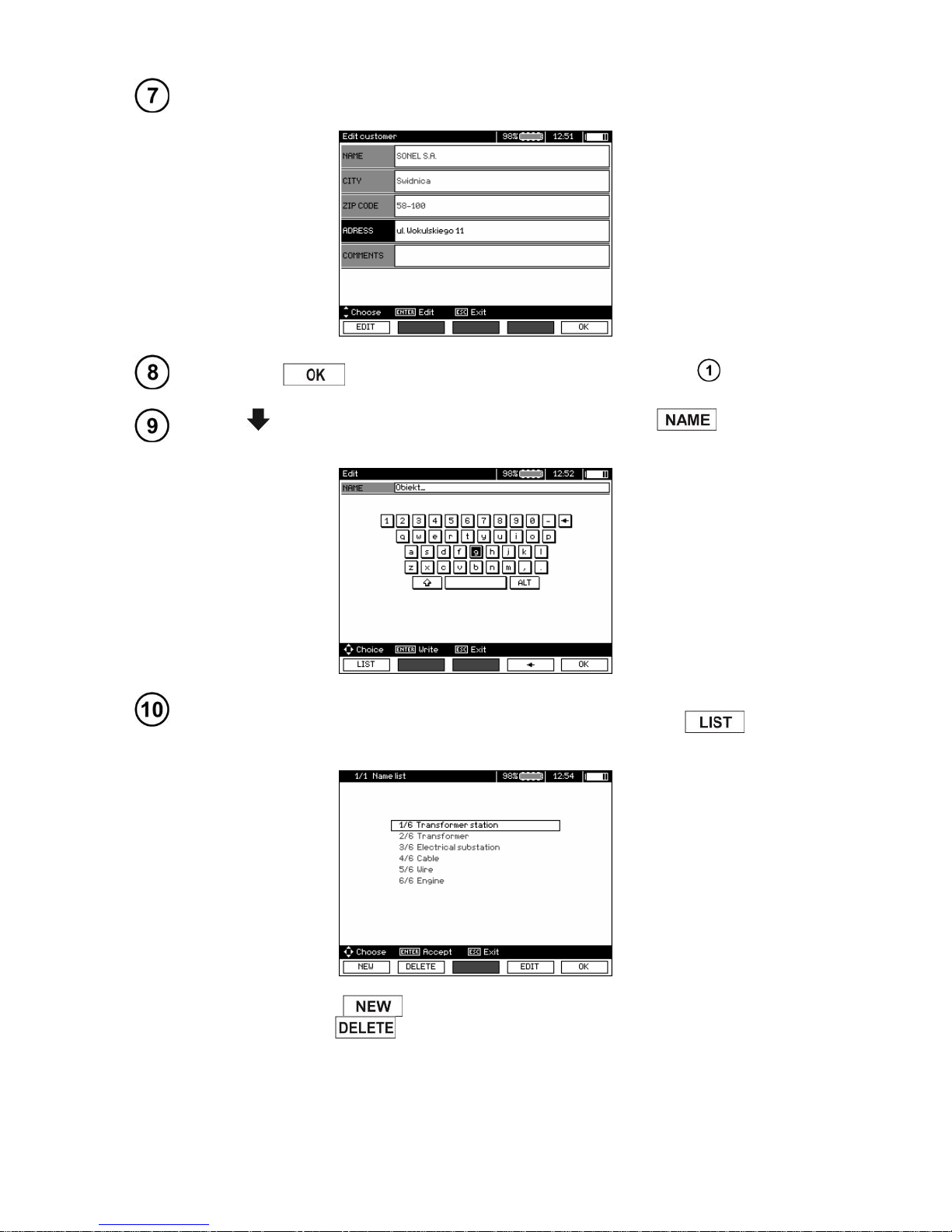

Press F1 to edit client data.
Use ,
buttons to set the cursor on each item and press ENTER to start the
editing
.
Use ,
and
,
buttons to select a character to be typed, and press
ENTER to enter it
.
Press F4 to delete typed letters.
Press F5 to confirm data and return to the screen of step .
Page 46
MIC-10k1, MIC-5050 – USER MANUAL
42
In this way, you may enter all client data.
Press F5 to confirm data and return to the screen of step .

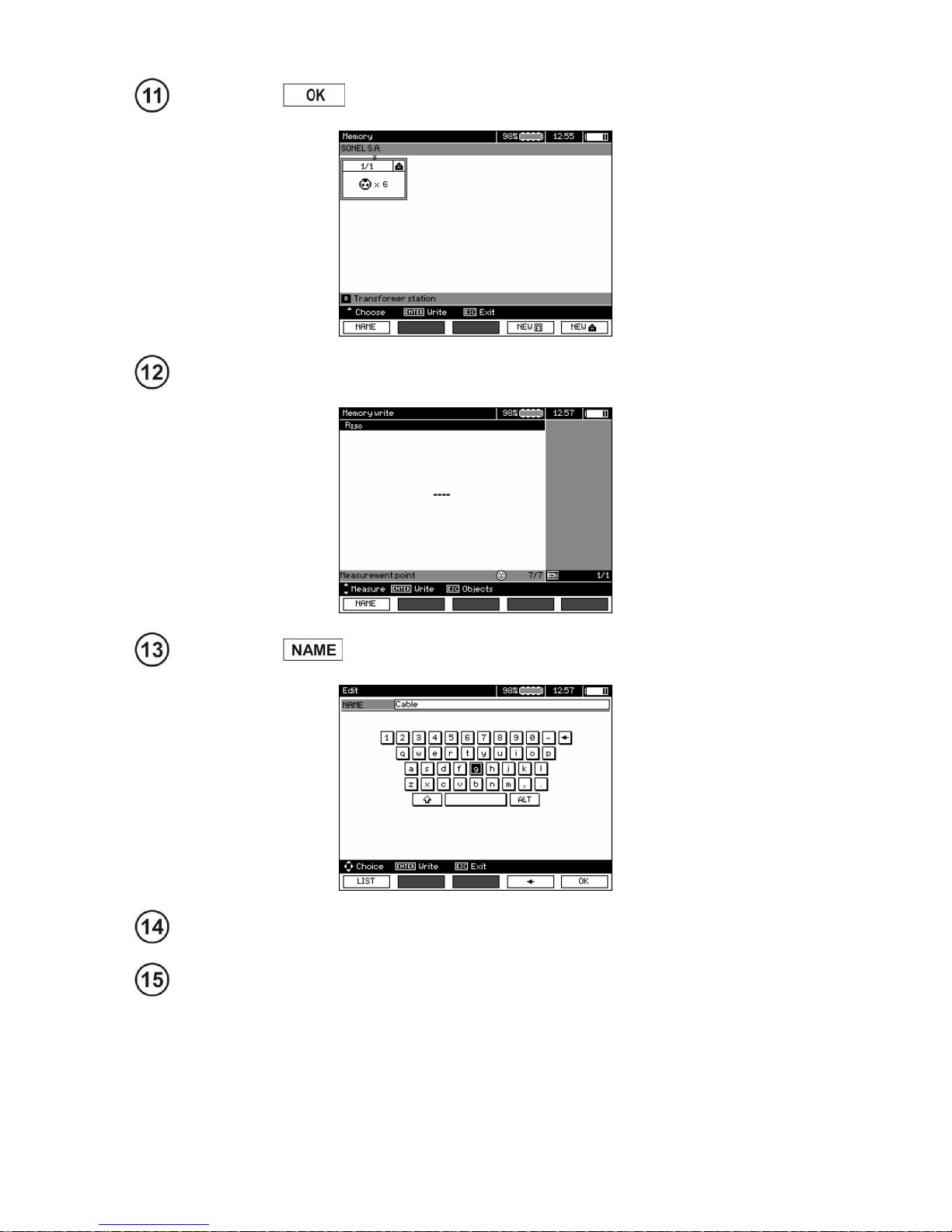

Use button to set the cursor on the object icon. Press F1 to start editing the object name.
Enter the name of the object in the same way as for the customer data. You may
use the list of proposed names that is available after pressing F1 . First the
list should be created.
After pressing F1 you may add further names to the list (up to 99 items),
and pressing F2 deletes the items.
Page 47
MIC-10k1, MIC-5050 – USER MANUAL
43
Press F5
to approve the name that appears on the screen.
Press ENTER, go to the measurement point.
Press F1 to enter the editing of the measuring point name.
Enter the name of the measuring point in the same way as the object name.
press ENTER, to save the measurement result.
Page 48
MIC-10k1, MIC-5050 – USER MANUAL
44
After entering the memory, the user may extend its structure by adding new objects and sub-
objects as needed.
To add a new object, press F5 .
To add a new sub-object, set the cursor on the chosen object and press F4
.
Using F4 and F5 you may add new objects and sub-objects (up to 5 levels).
Page 49
MIC-10k1, MIC-5050 – USER MANUAL
45
Note:
- New objects (sub-objects in a level) are added on the right side of the object marked with the cursor
(sub-object).
- The screen displays only sub-objects belonging to the object (sub-object) indicated by the cursor.
- Deleting objects and sub-objects is possible only in memory browse mode.
- The name of an object, sub-object or measurement is possible in memory browse mode or after entering entry into the memory after a measurement.
4.3 Viewing memory data
Set the rotary switch of function selection at
MEM position.
Use , buttons to select "MEMORY BROWSE AND EDIT”.
Press ENTER button.
Last saved measurement in sub-object 3,
Level 1
Page 50
MIC-10k1, MIC-5050 – USER MANUAL
46

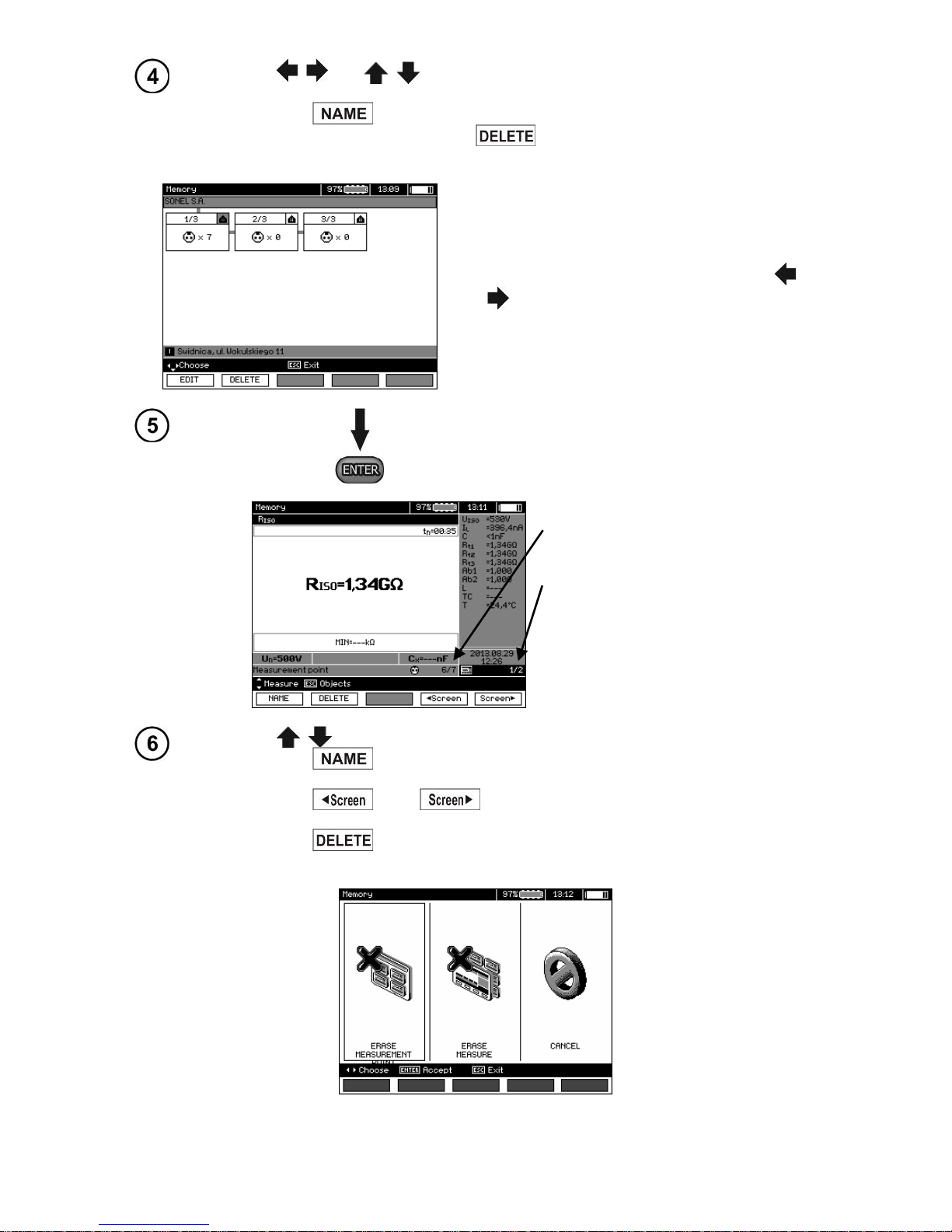

Use , and , buttons to move between objects and sub-objects using the existing connectors.
Press F1 to enter the option for editing the name of object (sub-
object) and change it. Press F2 to delete a chosen object (sub-object)
with all its results.
When the cursor is set on "Client", use ,
buttons to move to next clients.
After selecting desired object (sub-object) press
ENTER.
The number of measuring point /
number of all measuring points.
The number of measurement type /
number of all measurements types
at that point.
Use , buttons to change the measurement point.
Press F1 to enter the editing of the measuring point name and to
change it.
Press F4 or F5 to display all individual types of results for a
given point.
Press F2 to delete a chosen measurement or measuring point with all
its results:
Page 51
MIC-10k1, MIC-5050 – USER MANUAL
47

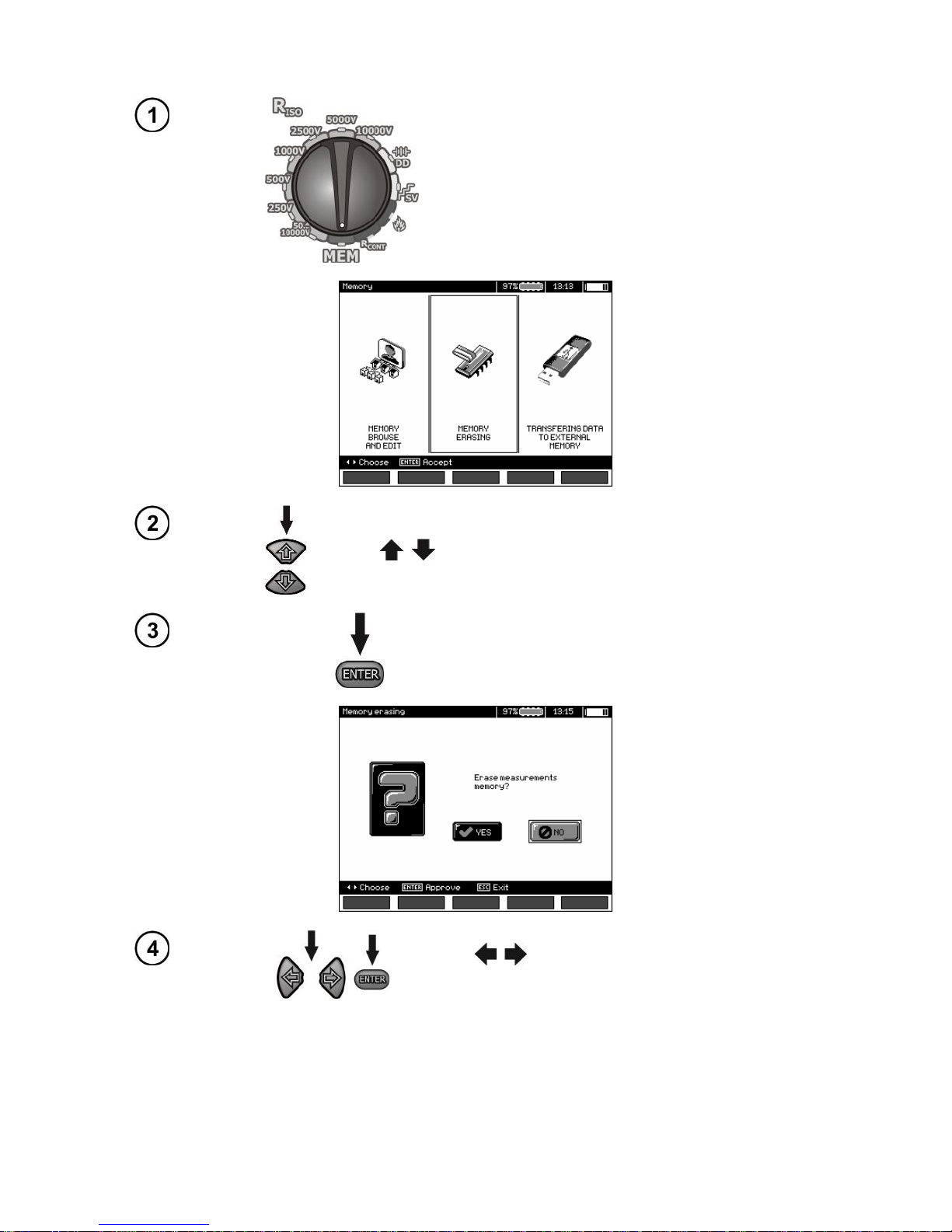

4.4 Deleting memory data
Set the rotary switch of function selection at
MEM position.
Use , buttons to select "MEMORY ERASING".
Press ENTER button.
Use , buttons to select YES or NO. Press
ENTER button.
Page 52
MIC-10k1, MIC-5050 – USER MANUAL
48
5 Data transmission
Note:
- Data transmission is not possible while charging the battery.
5.1 Set of accessories to connect the meter to a PC
In order to ensure the communication of the meter with a PC, a USB cable is required or Bluetooth module and appropriate software supplied with the meter.
The software may be used for many devices manufactured by SONEL S.A. which are equipped
with the USB interface.
Detailed information is available from the manufacturer and distributors.
5.2 Data transmission through USB port
Set the rotary switch of function selection at
MEM position.
Use , buttons to select "TRANSFERING DATA TO
EXTERNAL MEMORY".
Press ENTER button.
Connect the meter with PC or a USB flash drive using USB cable.
Start the programme.
Page 53
MIC-10k1, MIC-5050 – USER MANUAL
49

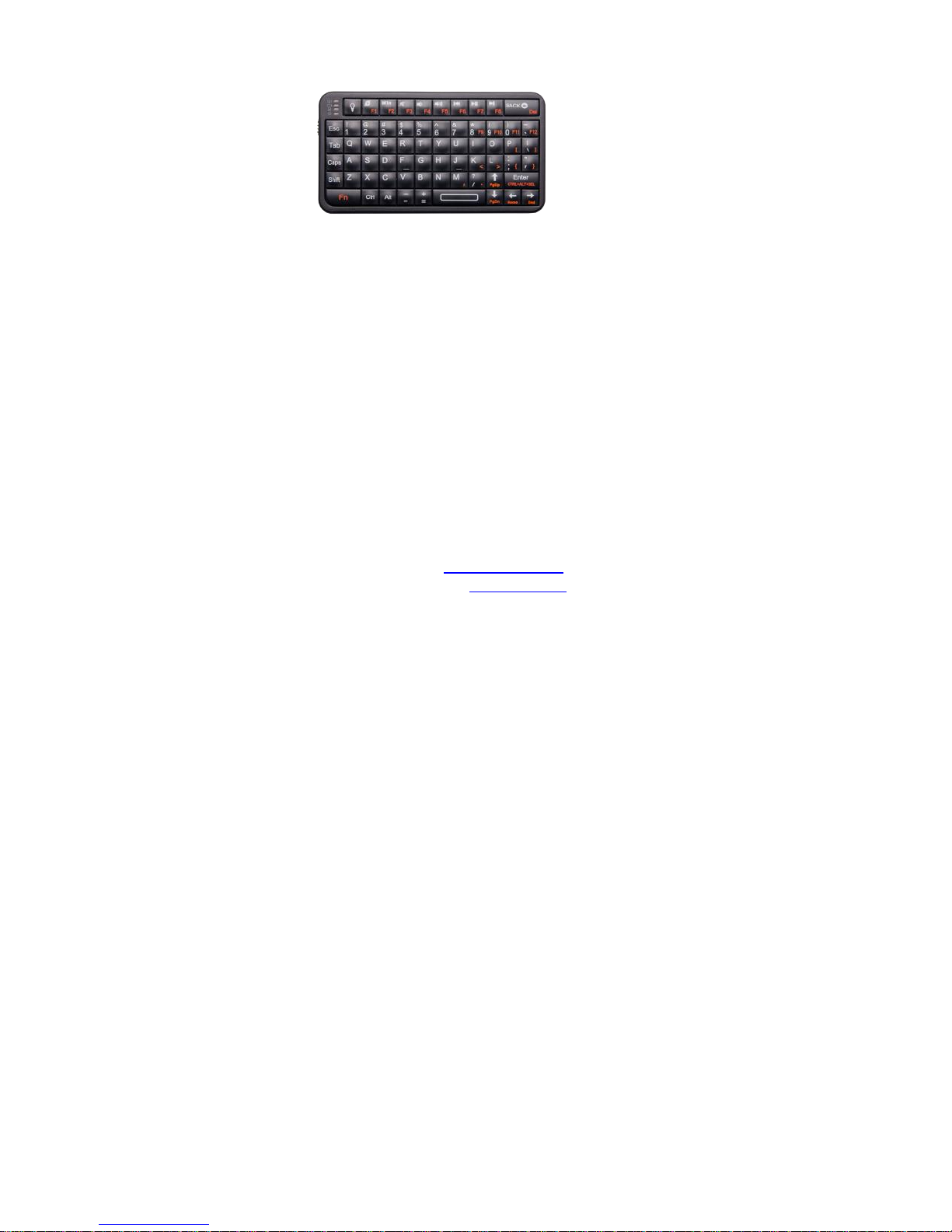

5.3 Connecting to Bluetooth mini-keyboard.
5.3.1 Manual connection
In order to connect to Bluetooth keyboard (paired keyboard), go to MENU → Wireless transmission → Wireless transmission.
Turn the keyboard on and set it in pairing mode (special button on the keyboard - please refer to the
manual of the keyboard). Select "F1 - Search" on the meter. The meter will search for available Bluetooth device, the operation time depends on the number of available devices within its range.
After completing the search process, the meter will display a list of available keyboards (other devices:
phones, palmtops, computers, etc. are not shown).
From the list of available devices, select one keyboard and press "ENTER -Connect" - the meter will
display the progress bar, counting on 30 seconds. During this time use the keyboard to enter PIN
code and confirm it by pressing "ENTER" key on the keyboard.
Page 54
MIC-10k1, MIC-5050 – USER MANUAL
50
Note: The PIN code may be read or changed in MENU → Wireless transmission → Change PIN code.
The pairing operation may end in one of three following ways:
- Wireless connection enabled - pairing was successful, the keyboard has been saved in the memory
and will not require re-entering the PIN, even if you change the PIN of the meter. Connection activity is
indicated by symbol, displayed near the clock and it may be seen on the list of available devices*.
From this moment automatic connection is available.
- Wireless connection error Wrong PIN number entered - connection failure, entered PIN code is not
compliant with the one set in the meter.
- Wireless connection error Device not found - the keyboard is no longer available for connection.
Page 55
MIC-10k1, MIC-5050 – USER MANUAL
51
The meter may store up to 16 keyboards in its memory (each of them requires the full path of manual
connection).
* The list of available devices, has also another function: the active keyboard is displayed on the list of
available devices always as the first device and it is additionally marked with "V" symbol. There is an
additional option available: "F2 - Disconnect". Disconnection removes the pairing with a given device,
and thus automatic connection is no longer available.
5.3.2 Automatic connection
If the meter is paired with at least one keyboard, it will attempt to establish a connection to this
keyboard always when the keyboard is enabled in "connect" mode. This process is automatic and always takes place, regardless of the measurement function (excluding the case of active connection to
a PC via Bluetooth and charger). Automatic connection is indicated by symbol, located near the
clock. When more than one keyboard is paired with the device and at the moment, more than one
keyboard is available in the connection mode, the connection will be made with the keyboard that first
responds to the connection call of the meter.
5.4 Data transmission using Bluetooth module
1. Activate Bluetooth on your PC (if it is an external module, it must be connected to the computer before). Follow the instructions of the module.
2. Turn on the meter and set the function switch in MEM.
3. On a PC enter Bluetooth connectivity mode, select MIC-10k1 (MIC-5050) device and establish the
connection.
4. If the connection was successful, then the meter will display the following screen:
5. Start the software to read /save data (e.g., Sonel Reader, Sonel PE) and proceed in accordance
with its instructions.
Page 56
MIC-10k1, MIC-5050 – USER MANUAL
52
5.5 Read-out and change of PIN code for Bluetooth connections
Select Wireless transmission in the main MENU of the meter,
press ENTER.
Select CHANGE PIN CODE position,
press ENTER. Read the current PIN, and change it if necessary, confirming introduced change by
pressing ENTER.
Note:
Standard PIN code for Bluetooth transmission is "123".
Page 57
MIC-10k1, MIC-5050 – USER MANUAL
53
6 Power supply of the meter
6.1 Monitoring the power supply voltage
ATTENTION!
To display the correct battery discharge status, it is necessary to completely discharge and
then fully charge the battery, before starting the regular use of the meter.
The charge level of the rechargeable battery is indicated by the symbol in the right upper corner
of the display on a current basis:
Battery charged.
Battery discharged.
Battery completely discharged.
Battery extremely discharged, all measurements
are blocked.
6.2 Battery power
MIC-10k1 and MIC-5050 meters are powered with a Li-Ion battery which may be replaced only
in a servicing point.
NOTE:
In MIC-10k1 up to SN: B40364 and MIC-5050 up to SN: B30117 gel batteries are used.
The charger is installed inside the meter and works only with the manufacturer’s rechargeable
battery pack. The charger is powered from the 230 V grid. It is also possible to power the unit from a
car lighter using an optional 12 V / 230 VAC converter.
ATTENTION!
Do not power the meter from sources other than those listed in this manual.
6.3 Charging rechargeable battery
Charging commences once the power supply has been connected to the meter regardless of the
fact whether the meter is on or off. Charging is indicated by battery symbol being filled and flashing
Page 58
MIC-10k1, MIC-5050 – USER MANUAL
54
green LED. The rechargeable battery is charged in accordance with the "quick charge” algorithm – this
process reduces the charging time to approx. 7 hours. The completion of the charging cycle is indicated by a full battery symbol and the lighting of green LED. In order to turn the device off, unplug the
power charger.
Note:
- Due to interferences in the mains, the process of battery charging may finish prematurely. When
charging time is too short, turn off the meter and start charging again.
Additional information displayed by the meter
Signalling
Condition
Green LED is flashing (once per second), display shows the battery symbol being filled.
Charging in progress.
Green LED is lit continuously, display shows
the full battery symbol.
Charging finished.
Green LED is flashing (twice per second)
Charging error.
Green LED is flashing along with the battery
symbol (twice per second), simultaneously
is displayed.
Battery temperature is too
high, the measurements are
blocked.
6.4 Power supply from mains
It is possible to carry out measurements during the charging process. To activate it, press ESC the meter enters the measurement mode, while remaining in charging mode. Similarly, the process
takes place when AC power supply is connected to the meter.
When the meter is turned off by button or by Auto-OFF, the charging process is not interrupted.
Additional information displayed by the meter
Signalling
Condition
All segments of the battery are flashing once
per second.
Charging finished.
Green LED is flashing along with the battery
symbol (twice per second), simultaneously
and are displayed.
Battery temperature is too
high.
6.5 General principles for using Li-Ion rechargeable batteries
- Store the half-charged battery pack in a plastic container placed in a dry, cool and well ventilated
place and protect them from direct sunlight. The battery pack may be damaged if stored when fully
discharged. The ambient temperature for prolonged storage should be maintained within the range of
5°C…25°C.
- Charge the batteries in a cool, well-ventilated place at a temperature of 10°C ... 28°C. Modern fast
chargers detect both too low and too high temperature of rechargeable batteries and react to the situation adequately. Too low temperature should prevent starting the process of charging, which might irreparably damage rechargeable batteries. The increase in temperature of the battery pack may cause
electrolyte leakage and even its ignition or explosion.
- Do not exceed the charging current, as it may result in ignition or "swelling" of the battery pack.
"Swollen" battery pack must not be used.
Page 59
MIC-10k1, MIC-5050 – USER MANUAL
55
- Do not charge or use the batteries in extreme temperatures. Extreme temperatures reduce the lifetime of rechargeable batteries. Always observe the rated operating temperature. Do not dispose the
battery pack into fire.
- Li-Ion cells are sensitive to mechanical damage. This kind of damage may cause its permanent
damage and thus - ignition or explosion. Any interference in the structure of Li-ion battery pack may
cause its damage. This may result in the ignition or explosion. A short-circuit of the battery poles "+"
and "-" may permanently damage the battery pack or even cause its fire or explosion.
- Do not immerse Li-Ion battery in liquids and do not store in humid conditions.
- If the electrolyte contained in the Lithium-Ion battery pack, contacts eyes or skin, immediately rinse
the affected place with plenty of water and consult a doctor. Protect the battery against unauthorised
persons and children.
- When you notice any changes in the Lithium-Ion battery pack (e.g. changes in colour, swelling, excessive temperature), stop using the battery pack. Li-Ion batteries that are mechanically damaged,
overcharged or excessively discharged are not suitable for use.
- Any misuse of the battery may cause its permanent damage. This may result in the ignition. The seller and the manufacturer shall not be liable for any damages resulting from improper handling Li-Ion
battery pack.
6.6 General principles for using gel (lead) rechargeable batteries
- Store the rechargeable batteries in a dry, cool and well ventilated place and protect them from direct
sunlight. Do not install them in a tightly closed container. While charging the batteries may produce
flammable gases, which may be the cause of explosion if proper ventilation is not available. The best
temperature for battery storage and operation is between 15°C and 25°C.
- Do not place batteries near equipment generating sparks, or store them in dusty areas.
- Do not connect the battery to any plastic elements or housing elements containing solvents. This
may cause the battery body to unseal or crack.
- During storage of lead batteries they are self-discharged. The storage time without charging is dependent on ambient temperature: from 6 months at 20 °C to 2 months at 40 °C. In order to prevent excessive battery discharge, resulting in a significant reduction of their capacity and durability it is required to recharge them in specified intervals.
- Do not discharge the battery to a voltage below that, specified by its manufacturer. An attempt to recharge an over-discharged battery may cause a thermal hazard, which results in battery deformation
or in change of the structure and distribution of the electrolyte in the battery as some of the water
evaporates. This worsens the battery parameters similar to prolonged overcharging. Always recharge
the battery immediately after discharging, even if it was not discharged to the recommended cut off
voltage. Leaving a discharged battery for a couple of hours (sometimes even less than that if the discharge was very deep) will cause sulphating.
- Charging may only be performed using a charger with specific parameters and under the conditions
set by their manufacturers. Failure to meet these conditions can lead to leakage, overheating or even
an explosion.
7 Cleaning and maintenance
ATTENTION!
Use only the maintenance methods specified by the manufacturer in this
manual.
The casing of the meter may be cleaned with a soft, damp cloth using all-purpose detergents.
Do not use any solvents or cleaning agents which might scratch the casing (powders, pastes, etc.).
Clean the probe with water and dry it. Before the probe is stored for a prolonged period of time it
is recommended to grease it with any machine lubricant.
The reels and test leads should be cleaned with water and detergents, and then dried.
The electronic system of the meter does not require maintenance.
Page 60
MIC-10k1, MIC-5050 – USER MANUAL
56
8 Storage
In the case of storage of the device, the following recommendations must be observed:
Disconnect all the test leads from the meter.
Clean the meter and all its accessories thoroughly.
Wind the long test leads onto the reels.
If meter is to be stored for a prolonged period of time, the batteries must be removed from the de-
vice.
In order to prevent a total discharge of the accumulators in the case of a prolonged storage,
charge them from time to time.
9 Dismantling and utilisation
Worn-out electric and electronic equipment should be gathered selectively, i.e. it must not be
placed with waste of another kind.
Worn-out electronic equipment should be sent to a collection point in accordance with the law of
waste electrical and electronic equipment.
Before the equipment is sent to a collection point, do not dismantle any elements.
Observe local regulations concerning disposal of packages, waste batteries and accumulators.
10 Technical specifications
10.1 Basic data
The abbreviation "m.v." used in the specification of basic uncertainty denotes a standard meas-
ured value
AC/DC voltage measurement
Display range
Resolution
Basic uncertainty
0.0 V...29.9 V
0.1 V
(2 % m.v. + 20 digits)
30.0 V...299.9 V
0.1 V
(2 % m.v. + 6 digits)
300 V…750 V
1 V
(2 % m.v. + 2 digits)
Frequency range: 45...65Hz
Measurement of insulation resistance
Test voltage accuracy (R
obc
[] 1000*UN [V]): +10% of the set value
Measurement range acc. to IEC 61557-2 for MIC-5050 UN = 5000V: 5.00M…20.0T, for MIC-10k1
UN = 10000V: 10.0M…40.0T
Page 61
MIC-10k1, MIC-5050 – USER MANUAL
57
Measurement with DC and increasing voltage (SV) for U
ISO
= 5 kV
Display range
Resolution
Basic uncertainty
000 k...999 k
1 k
(3 % m.v. + 10 digits)
1.00 M...9.99 M
0.01 M
10.0 M...99.9 M
0.1 M
100 M..999 M
1 M
1.00 G..9.99 G
0.01 G
10.0 G...99.9 G
0.1 G
100 G...999 G
1 G
(3.5 % m.v. + 10 digits)
1.00 T…9.99 T
0.01 T
(7.5 % m.v. + 10 digits)
10.0...20.0 T for MIC-5050
10.0…40.0 T for MIC-10k1
at UN = 10 kV
0.1 T
(12.5 % m.v. + 10 digits)
For other voltages the measurement uncertainty can be calculated from the following formula:
δR= ±(3 %+(U
ISO
/( U
ISO-Rzm
·21·10
-12
)-1) ·100 %) ± 10 digits
where:
U
ISO
– voltage at which the measurement is conducted [V]
Rzm – measured resistance [Ω]
Approximate maximum values of the measured resistance, depending on the test voltage, are
presented in the table below.
Voltage
Test range
Measuring range for
AutoISO-5000
MIC-10k1 and MIC-
5050
50 V
200 G
20.0 G
100 V
400 G
40.0 G
250 V
1.00 T
100 G
500 V
2.00 T
200 G
1000 V
4.00 T
400 G
2500 V
10.0 T
400 G
5000 V
20.0 T
400 G
MIC-10k1
10000 V
40.0 T
Note: For insulation resistance below R
ISOmin
there is no accuracy specified because the meter
works with the adjustable current limit in accordance with the following formula:
ISOnom
nomISO
ISO
I
U
R min
where:
R
ISOmin
- minimum insulation resistance measured without limiting the converter current
U
ISOnom
- nominal test voltage
I
ISOnom
– nominal converter current (1.2 mA, 3 mA or 6 mA)
Additional uncertainty in the three-lead measurement (impact of G terminal): 0.05% with reduced
current leakage incurred by 250 kΩ resistance during 100 MΩ measurement with 50 V measurement voltage.
Max. short-circuit current: 6 mA ±15 %
Measuring/charging current in the remaining load range shall be selected from the following val-
ues: 1.2 mA, 3 mA, 6 mA.
Page 62
MIC-10k1, MIC-5050 – USER MANUAL
58
Measurement with AutoISO-5000
Display range
Resolution
Basic uncertainty
000 k…999 k
1 k
±(3 % m.v. + 10 digits ) of
the meter ± 1 % additional
uncertainty of AutoISO-5000
1.00 M…9.99 M
0.01 M
10.0 M…99.9 M
0.1 M
100 M…999 M
1 M
1.00 G…9.99 G
0.01 G
10.0 G…99.9 G
0.1 G
100 G…up to the value
at which the additional
uncertainty of AutoISO-
5000 is 5%
1 G
±(3 % m.v. + 10 digits ) of
the meter ± 5 % additional
uncertainty of AutoISO-5000
Measurement of leakage current
Display range
Resolution
Basic uncertainty
0…1.2 mA
*
**
0...3 mA
0...6 mA
* - resolution and units result from the measurement range of individual insulation resistance.
** - calculated basing on resistance measurements
Measurement of capacitance
Display range
Resolution
Basic uncertainty
0 nF…999 nF
1 nF
(5% m.v. + 5 digits)
1.00 µF…49.99 µF
0.01 µF
Measurement of capacitance is available only during R
ISO
measurement (when discharging the
object).
Base uncertainty of measurement is met for the tested capacitance connected in parallel with
a resistance greater than 10 MΩ.
For measurement voltages below 100 V the measurement error is not specified.
The cable lenght L is calculated as C/Cx, measurement uncertainty depends on measurement
range.
Time Constant TC is calculated as Riso x C, measurement uncertainty depends on meas-
urement range.
Measurement of continuity of protective conductors and equipotential bonding with 200 mA
current
Measuring range according to IEC 61557-4: 0.12 …999
Display range
Resolution
Basic uncertainty
0.00 …19.99
0.01
±(2 % m.v. + 3 digits)
20.0 ...199.9
0.1
200 …999
1
±(4 % m.v. + 3 digits)
Voltage at open terminals: 4 V…24 V
Output current at R<15 : min. 200 mA (ISC: 200 mA...250 mA)
Current flowing bidirectionally, average resistance is displayed on the screen,
Compensation of test leads resistance, autozeroing.
Page 63
MIC-10k1, MIC-5050 – USER MANUAL
59
Temperature Measurement
Display range
Resolution
Basic uncertainty
-40.0…99.9 °C
0.1 °C
±(3% m.v. + 8 digits)
-40.0…211.8 °F
0.1 °F
±(3% m.v. + 16 digits)
Other technical data
a) type of insulation .......................................................double, EN 61010-1 and IEC 61557 compliant
b) measurement category .............................................IV 600 V (III 1000 V) according to EN 61010-1
c) degree of housing protection acc. to EN 60529.............................. IP40 (IP67 for closed enclosure)
d) power supply of the meter.................................................................... 14.8 V 5.3 Ah Li-Ion battery,
(gel battery 12 V for MIC-10k1 up to SN: B40364 and MIC-5050 up to SN: B30117), mains 90 V ÷
260 V 50 Hz/60 Hz
e) dimensions ......................................................................................... 390 mm x 310 mm x 180 mm
f) meter weight ................................... approx. 5.6 kg with Li-Ion battery; approx. 7 kg with gel battery
g) storage temperature ................................ ................................................................ . –25C...+70C
h) working temperature .................................................................................................. -20C...+50C
i) humidity .......................................................................................................................... 20%...90%
j) altitude (above sea level) ................................................................................................... ≤3000 m
k) reference temperature ................................................................................................ . +23C ± 2C
l) reference humidity .......................................................................................................... 40%...60%
m) display ............................................................................................................... LCD, segment-type
n) number of RISO measurements, acc. to EN 61557-2 with battery power supply ................. min. 1000
o) quality standard .... design, construction and manufacturing are ISO 9001, ISO 14001, PN-N-18001
compliant
p) the device meets the requirements of the EN 61010-1 and IEC 61557 standards
q) the product meets EMC requirements (immunity for industrial environment) according to the fol-
lowing standards .............................................................................. EN 61326-1 and EN 61326-2-2
ATTENTION!
MIC-10k1 and MIC-5050 meters are classified in terms of Electromagnetic
Compatibility (EMC) as instruments of Class A (for use in industrial environments - according to EN 50011). Interferences, impacting the operation of
other devices must be taken into account when the meters are used in other
environments (e.g. domestic).
10.2 Additional data
Data on additional uncertainties are useful mainly when the meter is used in non-standard condi-
tions and for metrological laboratories for the purpose of calibration.
10.2.1 Additional uncertainties according to EN 61557-2 (R
ISO
)
Significant parameter
Designation
Additional uncertainty
Position
E
1
0 %
Supply voltage
E
2
1 % ( BAT is not lit)
Temperature 0C...35°C
E
3
6 %
Page 64
MIC-10k1, MIC-5050 – USER MANUAL
60
10.2.2 Additional uncertainties according to EN 61557-4 (R
CONT
)
Significant parameter
Designation
Additional uncertainty
Position
E
1
0 %
Supply voltage
E
2
0.2% (BAT is not lit)
Temperature 0...35°C
E
3
1 %
11 Equipment
11.1 Standard equipment
The standard set of equipment supplied by the manufacturer includes:
MIC-10k1 meter – WMGBMIC10k1 or MIC-5050 – WMGBMIC5050
set of test leads:
10 kV cable, 3 m, (cat. IV 1000 V), terminated with banana plugs, red – WAPRZ003REBB10K
10 kV cable, 3 m, shielded, (cat. IV 1000 V), terminated with banana plugs, black –
WAPRZ003BLBBE10K
"E" cable 10 kV, 3 m, (cat. IV 1000 V), terminated with banana plugs, blue -
WAPRZ003BUBB10K
crocodile clip 11 kV DC (cat. IV 1000 V) – 3 pcs. (black - WAKROBL32K09, red –
WAKRORE32K09 and blue – WAKROBU32K09)
pin probe 11 kV DC with banana socket – 2 pcs. (red – WASONREOGB11 and black –
WASONBLOGB11)
temperature probe ST-1 – WASONT1
USB cable – WAPRZUSB
power supply 230V cable – WAPRZ1X8BLIEC
case L-4 for accessories – WAFUTL4
user manual
calibration certificate
ATTENTION!
11 kV DC crocodile clips and probes are designed to work only on objects without voltage.
11.2 Optional accessories
Additionally, the following items that are not included in the scope of standard equipment can be
purchased from the manufacturer or the distributors:

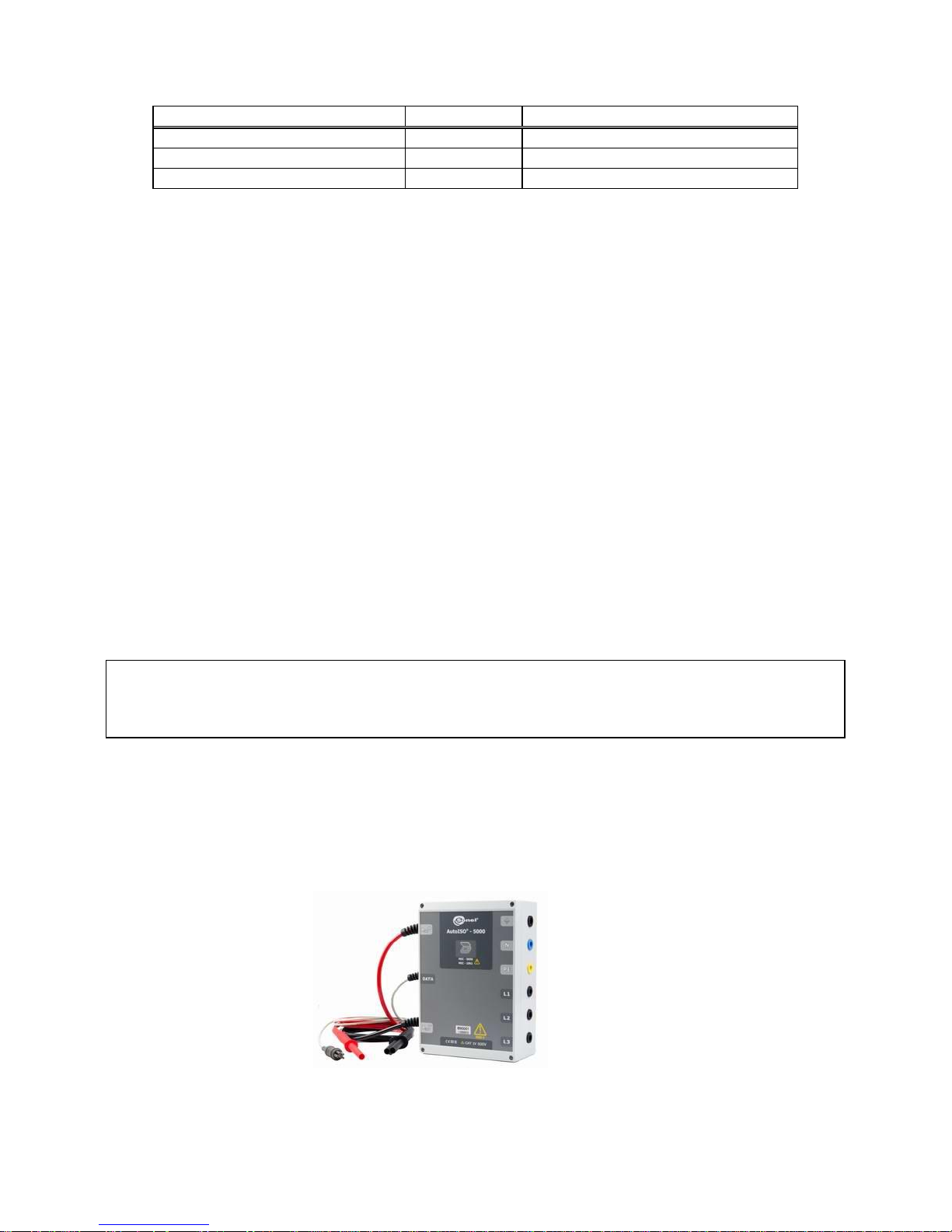

AUTO ISO-5000 ad-
apter
WAADAISO50
Page 65
MIC-10k1, MIC-5050 – USER MANUAL
61

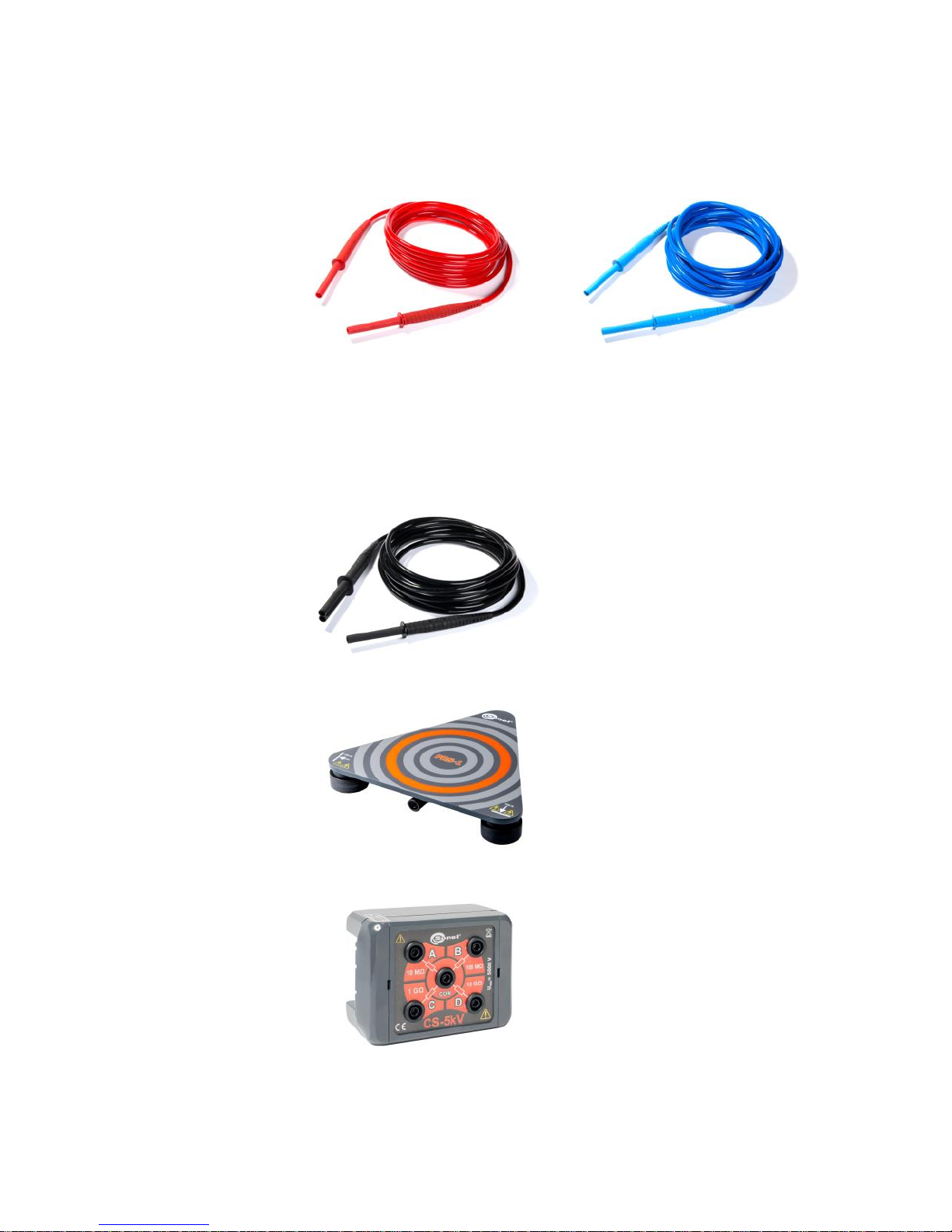

Test lead 11 kV (ba-
nana plugs)
red
1,8 m / 5 m / 10 m / 20 m
WAPRZ1X8REBB10K
WAPRZ005REBB10K
WAPRZ010REBB10K
WAPRZ020REBB10K
blue
1,8 m / 5 m / 10 m / 20 m
WAPRZ1X8BUBB10K
WAPRZ005BUBB10K
WAPRZ010BUBB10K
WAPRZ020BUBB10K
black, shielded
1,8 m / 5 m / 10 m / 20 m
WAPRZ1X8BLBBE10K
WAPRZ005BLBBE10K
WAPRZ010BLBBE10K
WAPRZ020BLBBE10K
PRS-1 resistance test
probe (resistance of
floors and walls)
WASONPRS1GB
CS-5kV calibration
box (MIC-5050 only)
WAADACS5KV
Page 66
MIC-10k1, MIC-5050 – USER MANUAL
62
Mini bluetooth keybo-
ard
WAADAMK
Calibration certificate
LSWPLMIC5050
LSWPLMIC10k1
12 Manufacturer
The manufacturer of the device and provider of guarantee and post-guarantee service:
SONEL S.A.
Wokulskiego 11
58-100 Świdnica
Poland
tel. +48 74 858 38 60
fax +48 74 858 38 09
E-mail: [email protected]
Web page: www.sonel.pl
Page 67
MIC-10k1, MIC-5050 – USER MANUAL
63
13 Laboratory services
SONEL Testing and Calibration Laboratory has been accredited by the Polish Center of Accreditation for the calibration of measuring instruments AP 173 in the following field - electrical properties in
DC and LF circuits: voltage and current (DC), voltage and current (AC), resistance (DC), electrical
power.
SONEL Testing and Calibration Laboratory offers validation and
calibration services for the following instruments used for measuring
electrical and non-electrical parameters. The following instrument
types are calibrated:
meters for measurements of electrical properties and parame-
ters of power networks:
o voltage meters,
o current meters (including clamp meters),
o resistance meters,
o insulation resistance meters,
o earthing resistance meters,
o short-circuit loop impedance meters,
o RCD meters,
o power quality analyzers,
o electrical equipment safety testers,
o active and passive electrical power meters for alternating current,
o multimeters,
o multifunction meters covering the functions of the above-mentioned instruments,
standards of electrical properties:
o calibrators,
o resistance standards,
instruments for the measurements of non-electrical:
o pyrometers,
o thermo-imaging cameras.
o lux meters.
The Calibration Certificate is a document specifying the relationship between the standard and the
instrument's indication with indication of measurement uncertainty.
According to ILAC-G24:2007 „Guidelines for the determination of calibration intervals of measuring in-
struments”, SONEL S.A. recommends periodical metrological inspection of the instruments it manufactures no less frequently than once every 13 months.
For new instruments provided with the Calibration Certificate or Validation Certificate at the factory, recalibration should be performed within 13 months from the date of purchase, however, no later than
25 months from the date of purchase.
ATTENTION !
The person performing the measurements should be absolutely sure about the efficiency of the
device being used. Measurements made with an inefficient meter can contribute to an incorrect
assessment of the effectiveness of health protection and even human life.
Measurements carried out in an accredited calibration laboratory (with competences confirmed
by PCA), it is certain that they were made in accordance with applicable standards, procedures, including the best reliability.
Page 68
MIC-10k1, MIC-5050 – USER MANUAL
64
NOTES
Page 69
Page 70
Loading...
