OPERATING MANUAL

INSULATION RESISTANCE METER

MIC-2510

SONEL SA

ul. Wokulskiego 11

58-100 Świdnica

Version 1.11 24.02.2017

OPERATING MANUAL MIC-2510 version 1.11

2

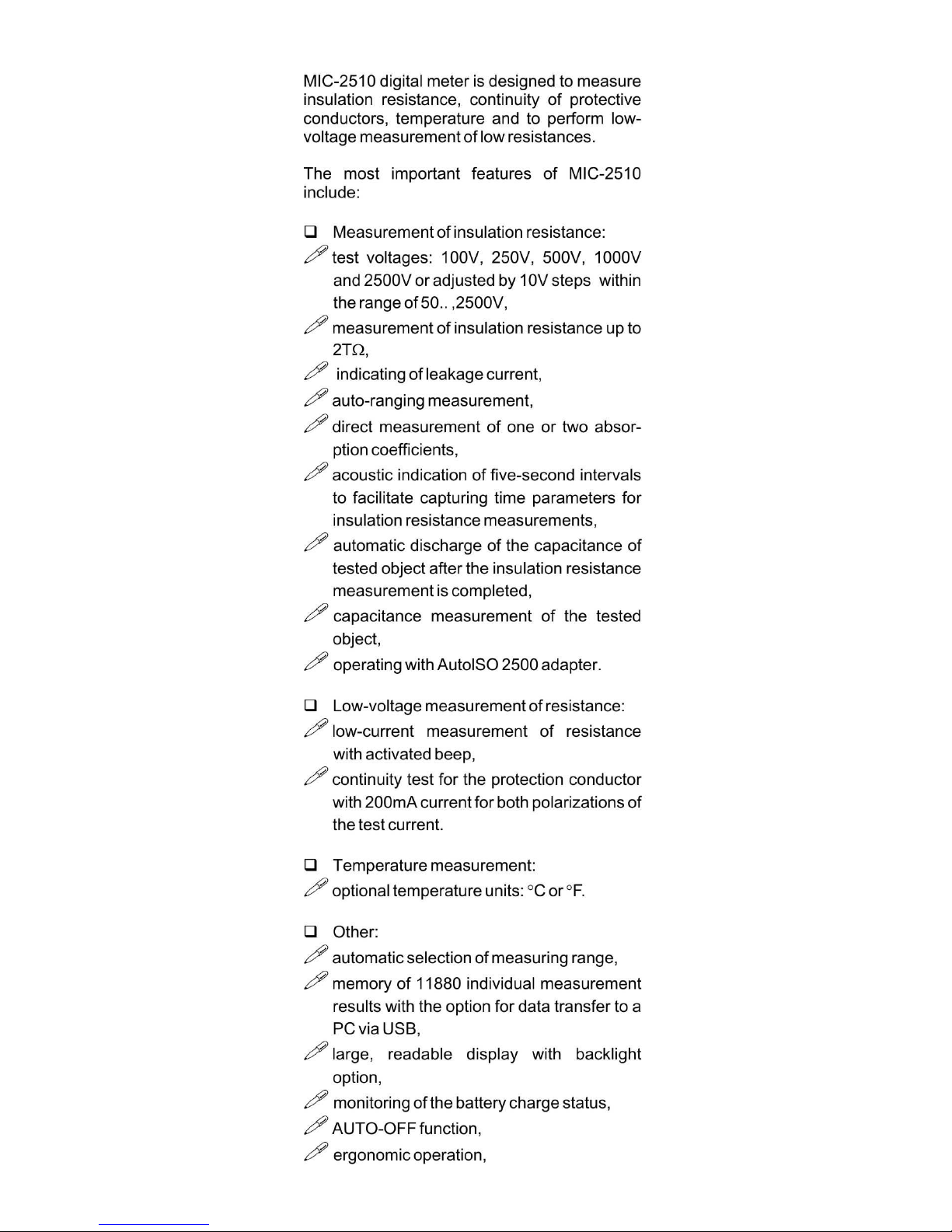

MIC-2510 meter is a modern, easy and safe measuring device. Please acquaint yourself with the pre­sent manual in order to avoid measuring errors and prevent possible problems related to operation
of the meter.

CONTENTS

1 SAFETY .................................................................................................................... 4

2 METER CONFIGURATION .................................................................................. 5

3 MEASUREMENTS .................................................................................................. 7

3.1 MEASUREMENT OF INSULATION RESISTANCE ........................................................... 7

3.1.1 Double-lead measurement ............................................................................. 8

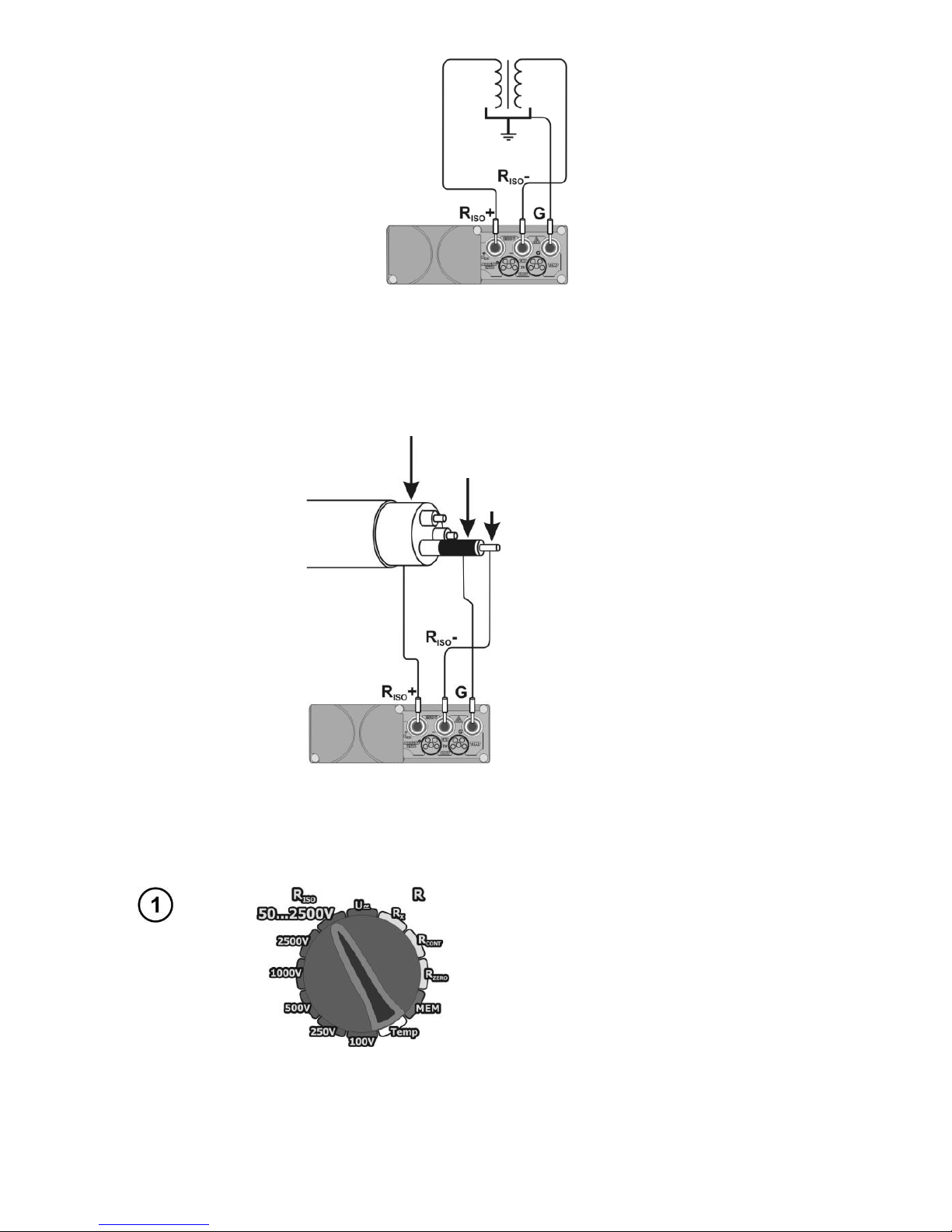

3.1.2 Three-lead measurement ............................................................................. 12

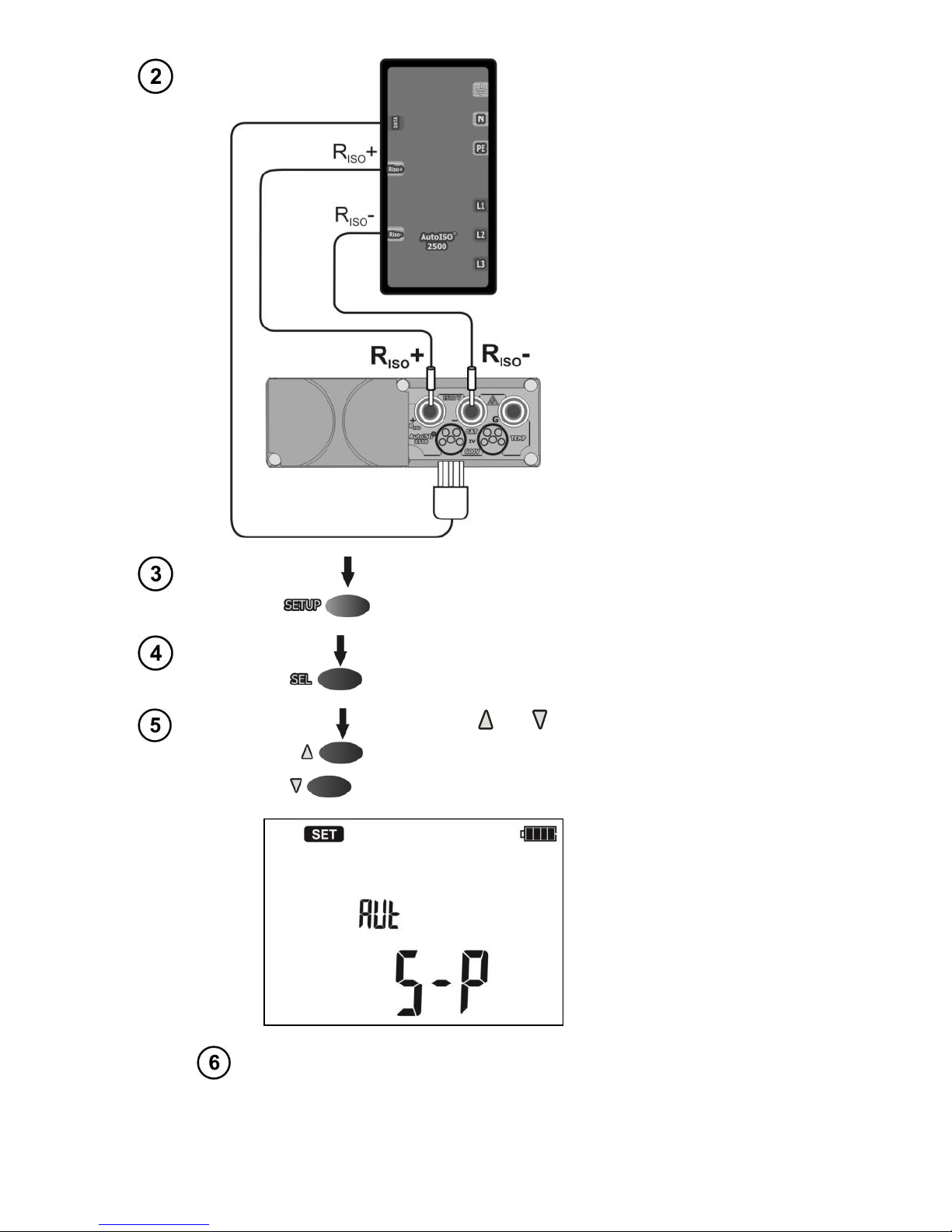

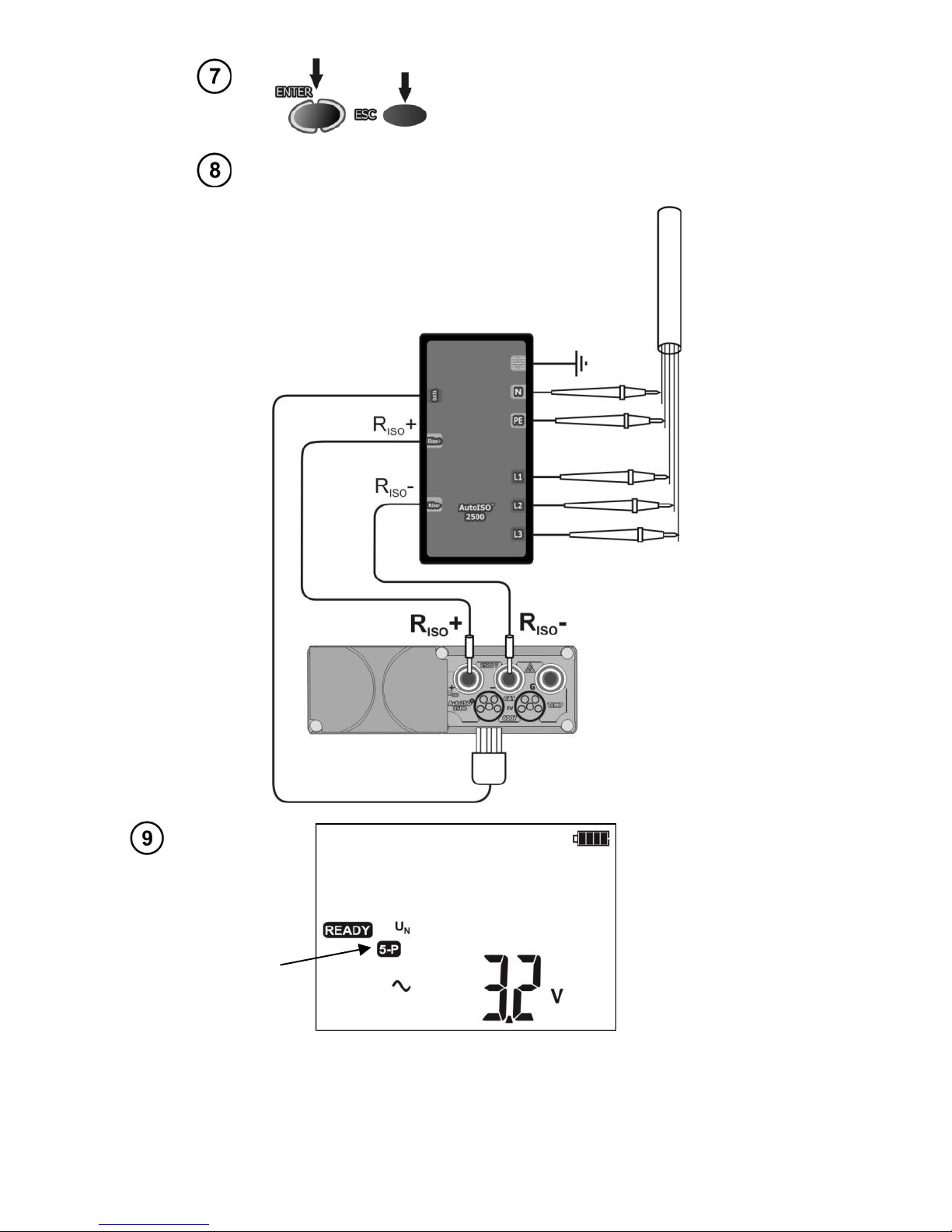

3.1.3 Measurement with AutoISO-2500 adapter .................................................. 13

3.2 LOW-VOLTAGE MEASUREMENT OF RESISTANCE ...................................................... 17

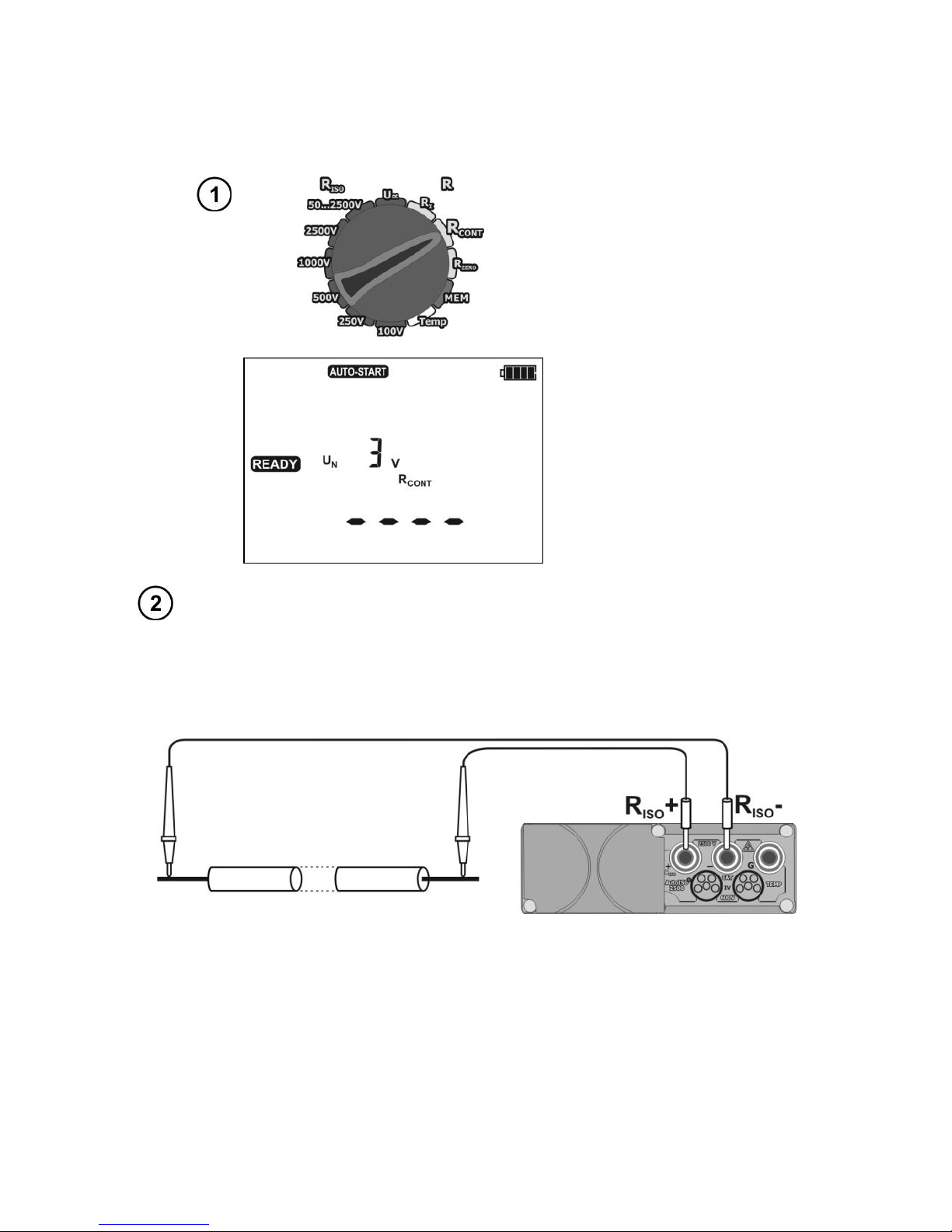

3.2.1 Measurement of resistance of protective conductors and equipotential

bonding with ±200 mA current ................................................................ .... 17

3.2.2 Measurement of resistance .......................................................................... 18

3.2.3 Calibration of test leads ............................................................................... 19

3.3 VOLTAGE MEASUREMENT ..................................................................................... 20

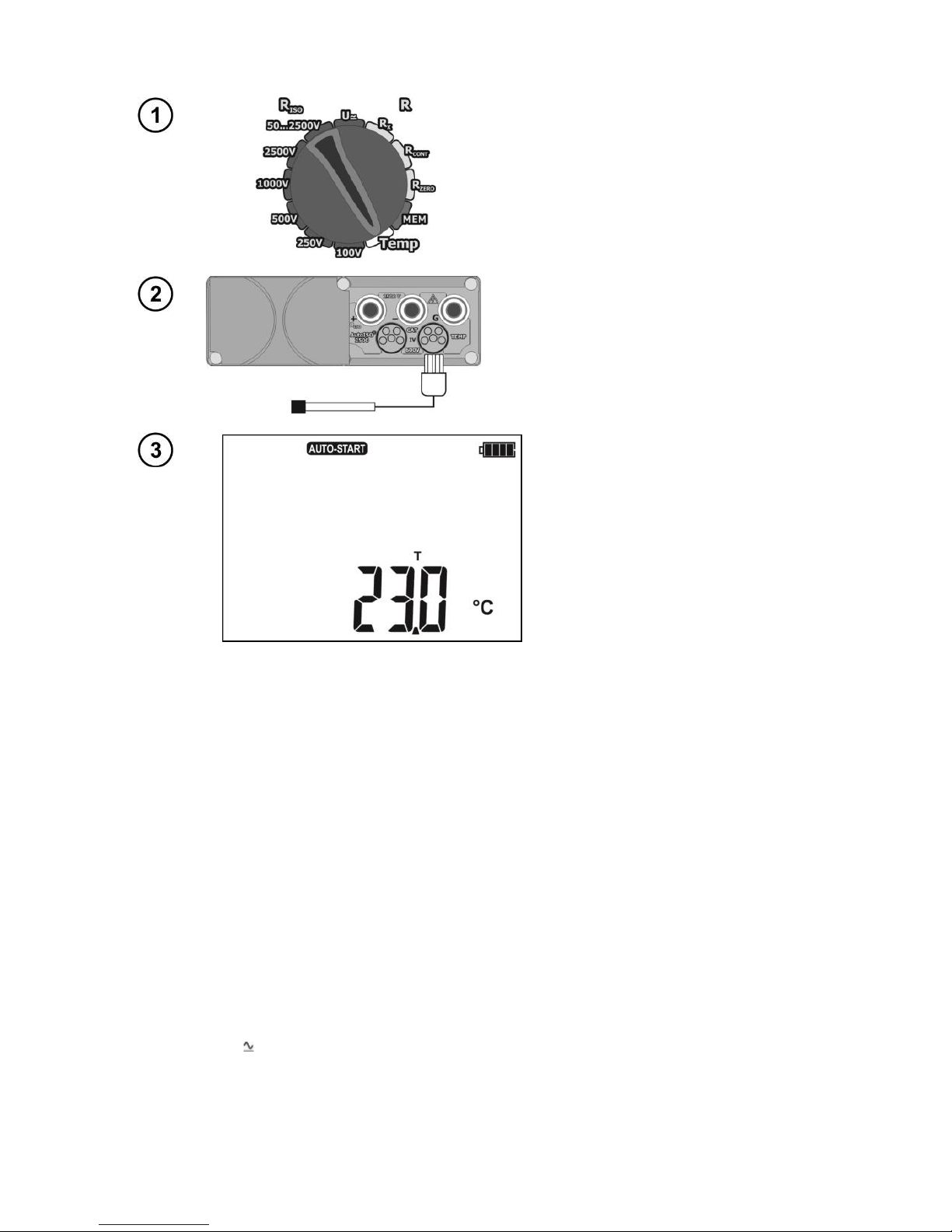

3.4 TEMPERATURE MEASUREMENT ............................................................................. 21

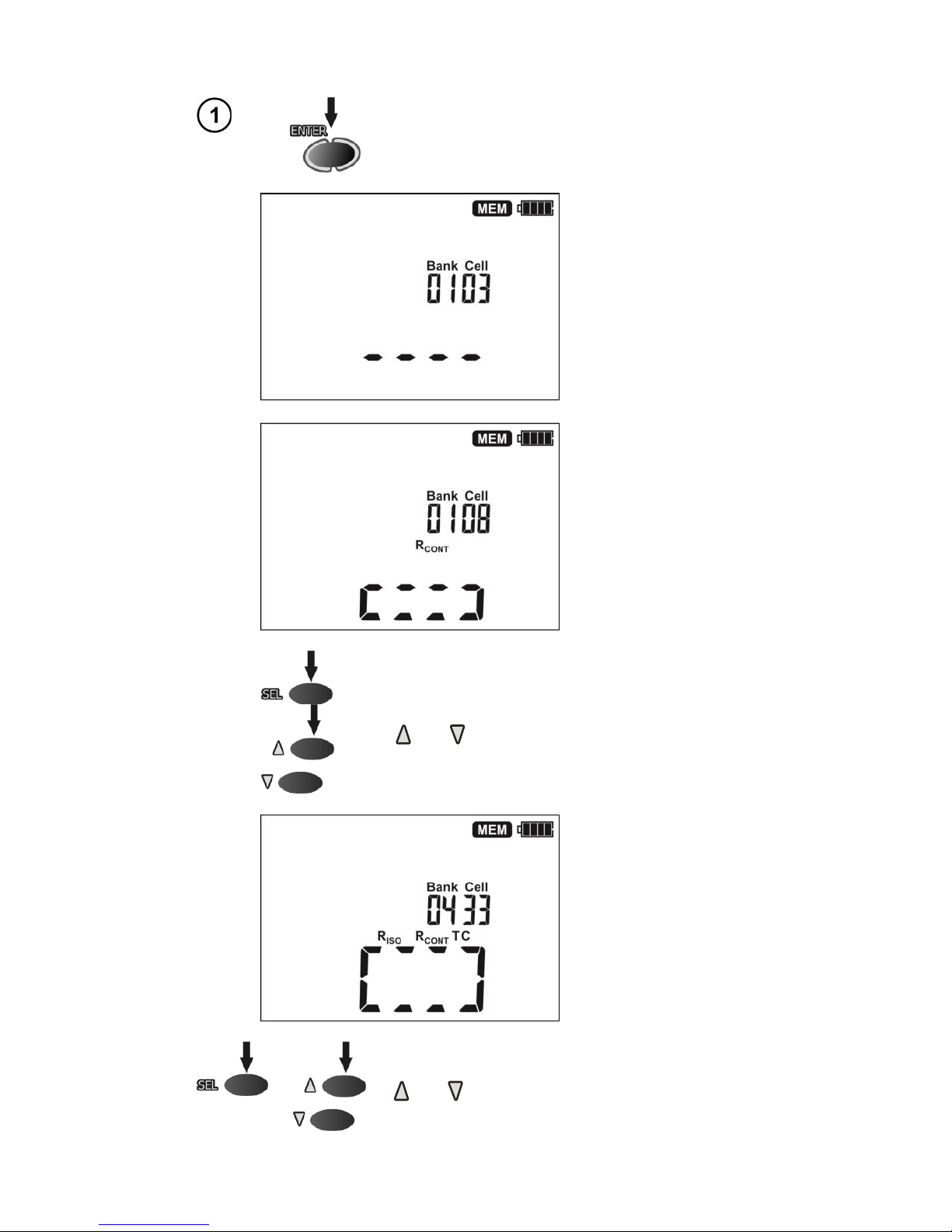

4 MEMORY OF MEASUREMENT RESULTS .................................................... 21

4.1 STORING THE MEASUREMENT RESULTS IN THE MEMORY ......................................... 22

4.2 VIEWING MEMORY DATA ....................................................................................... 24

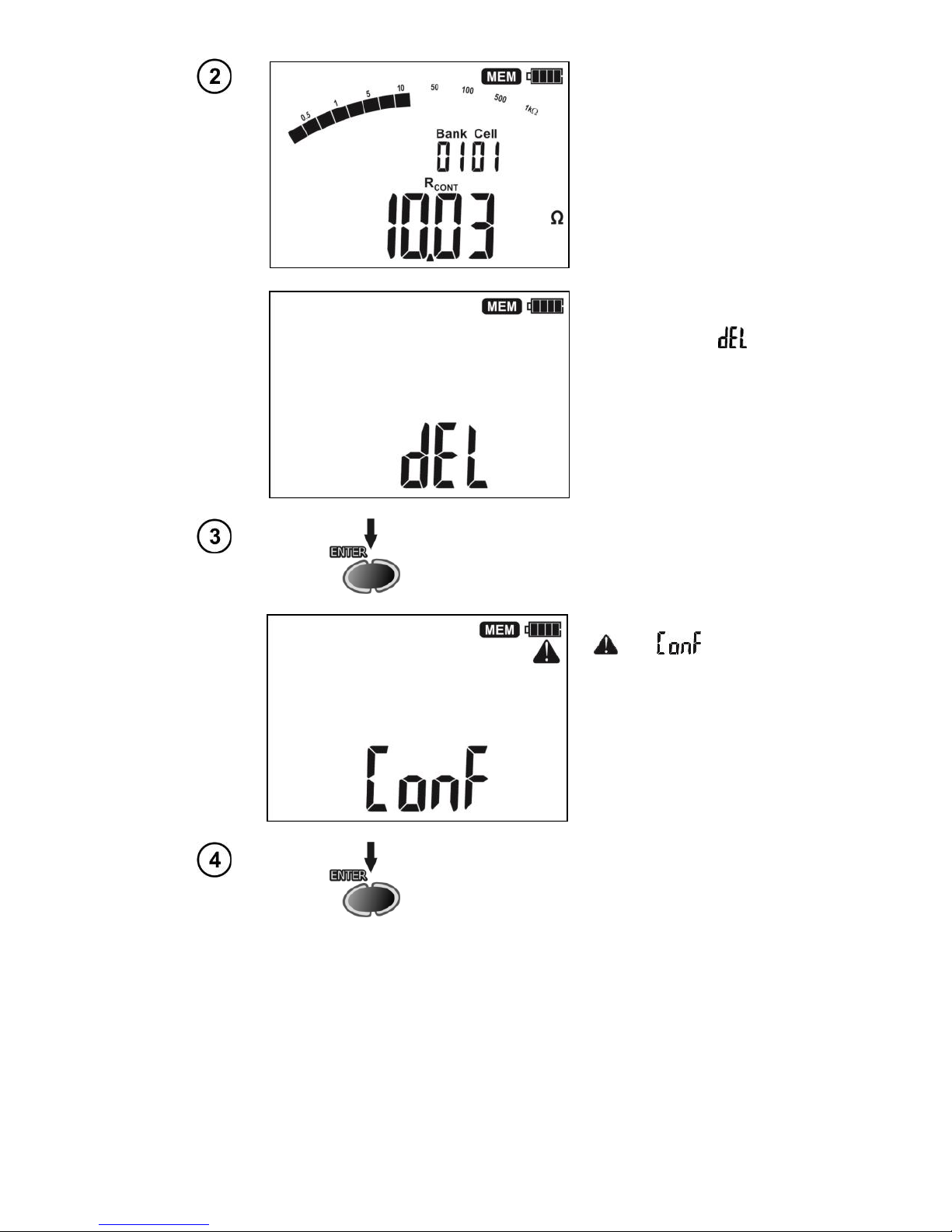

4.3 DELETING MEMORY DATA ..................................................................................... 25

4.3.1 Deleting bank data ....................................................................................... 25

4.3.2 Deleting the whole memory ......................................................................... 26

5 DATA TRANSMISSION ....................................................................................... 28

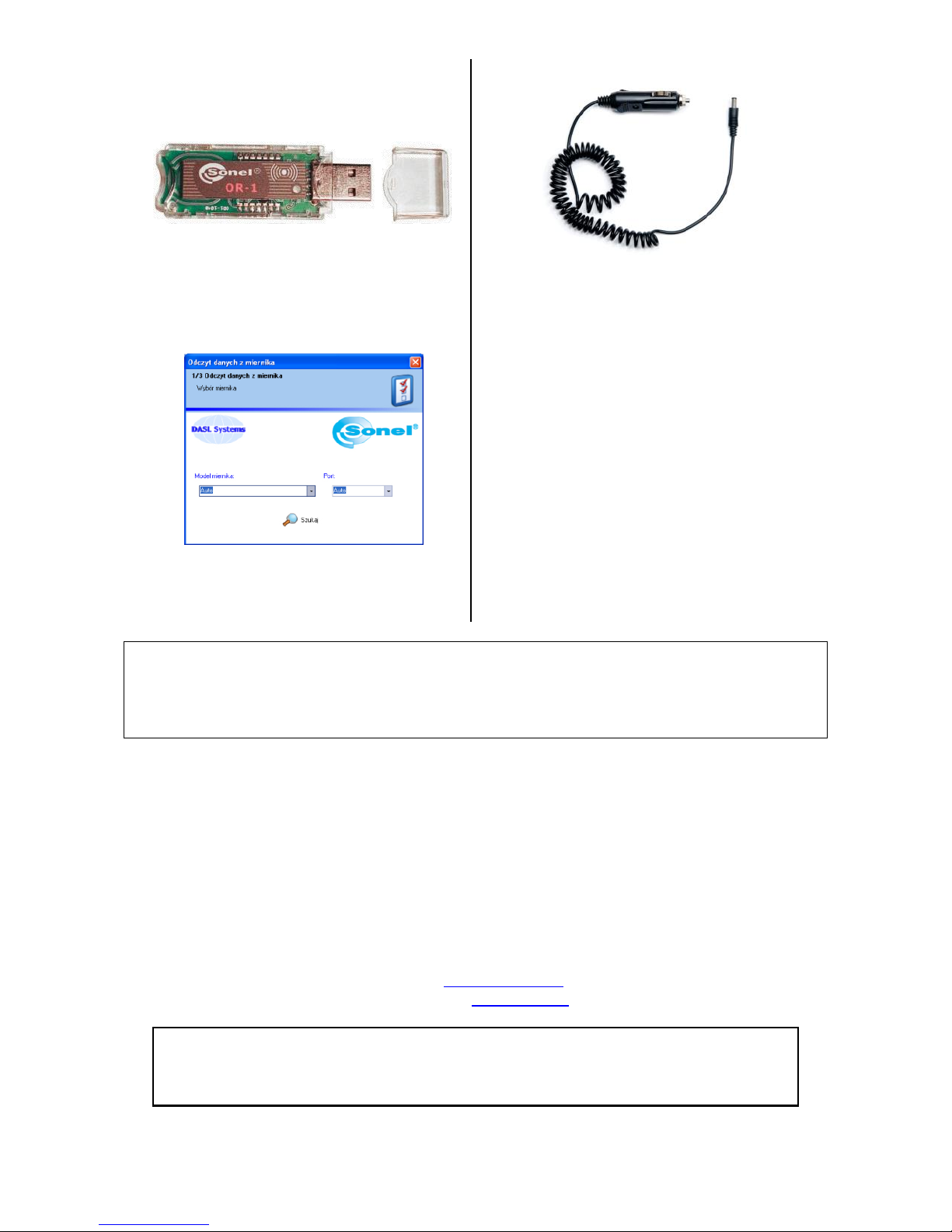

5.1 COMPUTER CONNECTION ACCESSORIES ................................................................ 28

5.2 DATA TRANSMISSION WITH USB PORT ................................................................... 28

5.3 DATA TRANSMISSION WITH OR-1 RADIO MODULE .................................................. 28

6 SOFTWARE UPDATES................................ ................................ ........................ 29

7 METER POWER SUPPLY ................................................................................... 29

7.1 MONITORING OF THE POWER SUPPLY VOLTAGE ..................................................... 29

7.2 REPLACING RECHARGEABLE BATTERIES ................................................................ 30

7.3 CHARGING RECHARGEABLE BATTERIES ................................................................. 30

7.4 GENERAL PRINCIPLES REGARDING USING NIMH RECHARGEABLE BATTERIES .......... 31

8 CLEANING AND MAINTENANCE ................................................................... 32

9 STORAGE .............................................................................................................. 32

OPERATING MANUAL MIC-2510 version 1.11

3

10 DISMANTLING AND DISPOSAL ...................................................................... 32

11 TECHNICAL SPECIFICATIONS ....................................................................... 32

11.1 BASIC DATA .......................................................................................................... 32

11.2 ADDITIONAL DATA ................................................................................................ 35

11.2.1 Additional uncertainties according to IEC 61557-2 (R

ISO

) .......................... 35

11.2.2 Additional uncertainties according to IEC 61557-4 (R ±200mA) ............... 35

12 EQUIPMENT ......................................................................................................... 36

12.1 STANDARD EQUIPMENT ........................................................................................ 36

12.2 OPTIONAL ACCESSORIES ....................................................................................... 36

13 MANUFACTURER ............................................................................................... 37

OPERATING MANUAL MIC-2510 version 1.11

4

1 Safety

MIC-2510 meter is designed for performing check tests of protection against electric shock in mains
systems. The meter is used for making measurements and providing results to determine safety of
electrical installations. Therefore, in order to provide conditions for correct operation and the correctness
of the obtained results, the following recommendations must be observed:
 Before you proceed to operate the meter, acquaint yourself thoroughly with the present manual and

observe the safety regulations and specifications determined by the producer.
 Any application that differs from those specified in the present manual may result in a damage to

the device and constitute a source of danger for the user.
 MIC-2510 meters must be operated only by appropriately qualified personnel with relevant certifi-

cates authorising the personnel to perform works on electric systems. Operating the meter by un-

authorised personnel may result in damage to the device and constitute a source of danger for the

user.
 During measurements of insulation resistance, dangerous voltage up to 2.5 kV occurs at the ends

of test leads of the meter.
 Before the measurement of insulation resistance you must be sure that tested object is disconnected

from the power supply.
 During the measurement of insulation resistance do not disconnect test leads from the tested object

before the measurement is completed (see par. 3.1); otherwise the capacitance of the object will

not be discharged, creating the risk of electric shock.
 Using this manual does not exclude the need to comply with occupational health and safety regula-

tions and with other relevant fire regulations required during the performance of a particular type of

work. Before starting the work with the device in special environments, e.g. potentially fire-risk/ex-

plosive environment, it is necessary to consult it with the person responsible for health and safety.

 It is unacceptable to operate the following:

 a damaged meter which is completely or partially out of order,

 a meter with damaged test leads insulation,

 a meter stored for an excessive period of time in disadvantageous conditions (e.g. excessive

humidity). If the meter has been transferred from a cool to a warm environment with a high level
of relative humidity, do not start measurements until the meter is warmed up to the ambient
temperature (approximately 30 minutes).

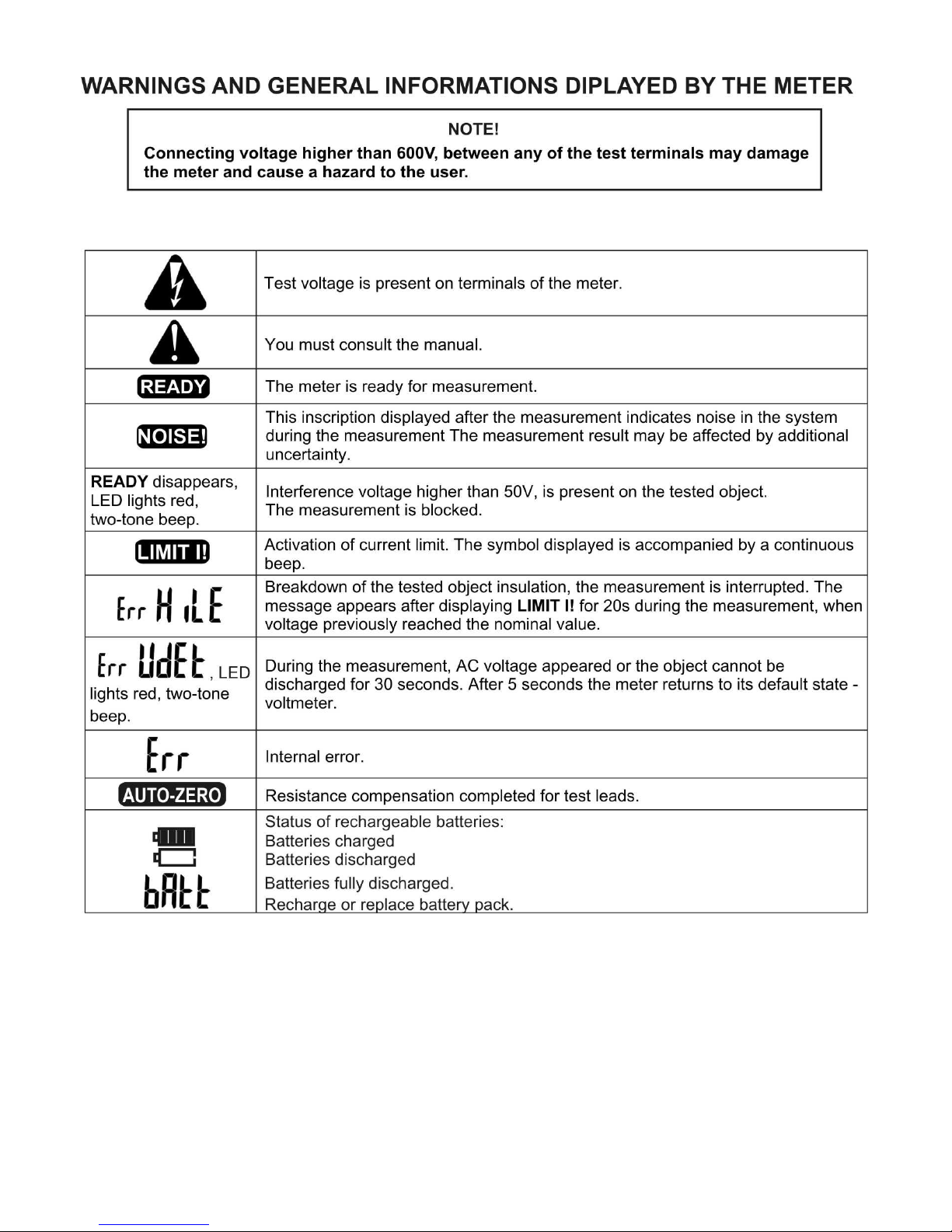

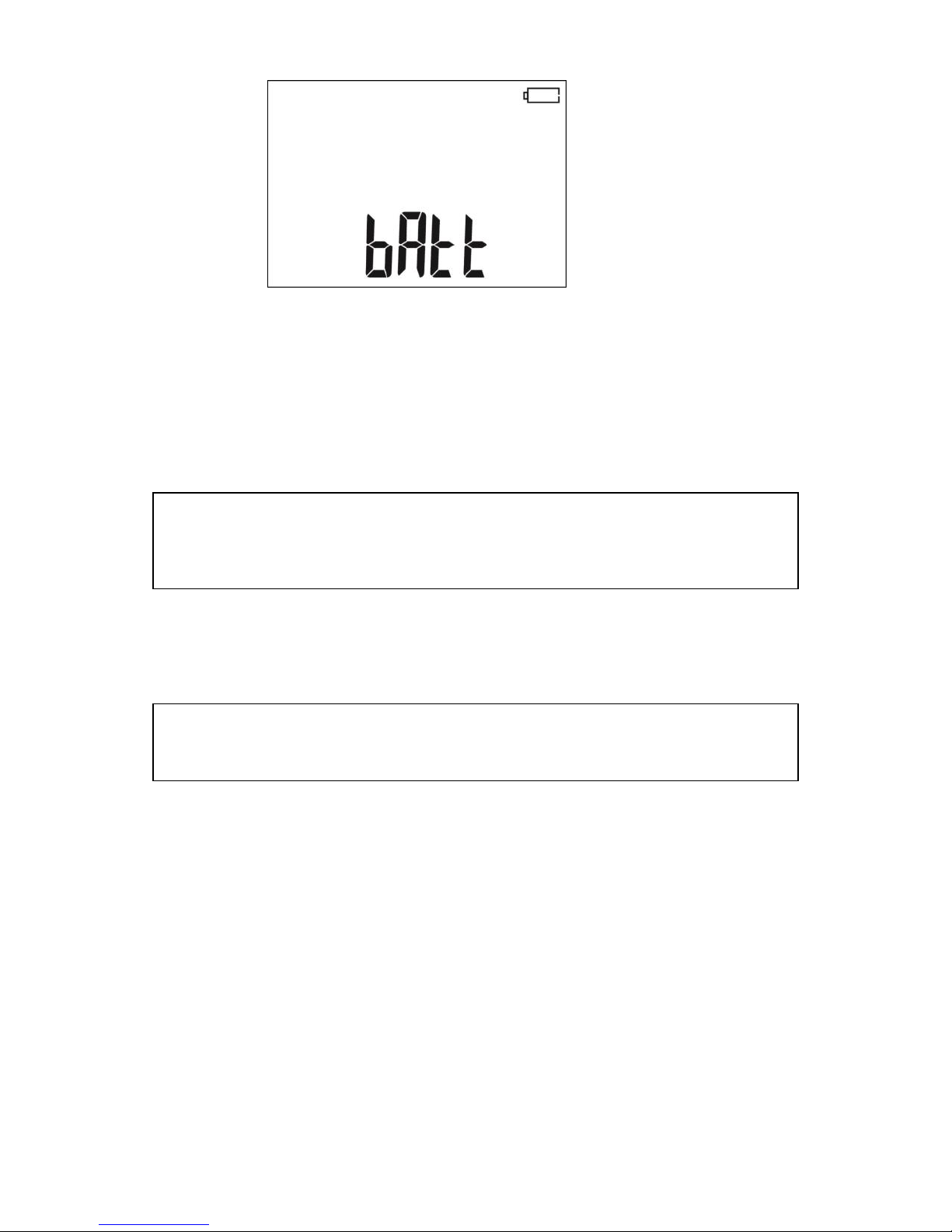

 Displayed BATT symbol indicates insufficient voltage of power supply and the need to charge the

accumulator or replace batteries.
 Symbols ErrX, where X is a number 1…9, indicate incorrect operation of the meter. If after restarting

the device this situation is repeated - it indicates that the meter is damaged.
 If after switching ON and displaying software version, message is displayed and the meter

switches OFF - send the meter for servicing. When is displayed every time after the meter is

switched ON, but the meter enters the measurement mode – update its software.
 Before measurement, choose a correct measurement function and make sure that test leads are

connected to respective measuring terminals.
 Do not operate a meter with an open or incorrectly closed battery (accumulator) compartment or

power it from other sources than those specified in the present manual.

 R

ISO

inputs are electronically protected against overloads (caused by e.g. connecting the meter to a

live circuit) up to 600 V for 60 sec.
 Repairs may be carried out only by an authorised service point.

Note:
Due to continuous development of the meter’s software, the actual appearance of the display,
in case of some of the functions, may slightly differ from the display presented in this operating
manual.

OPERATING MANUAL MIC-2510 version 1.11

5

Note:
An attempt to install drivers in 64-bit Windows 8 may result in displaying "Installation failed"
message.
Cause: Windows 8 by default blocks drivers without a digital signature.
Solution: Disable the driver signature enforcement in Windows.

2 Meter Configuration

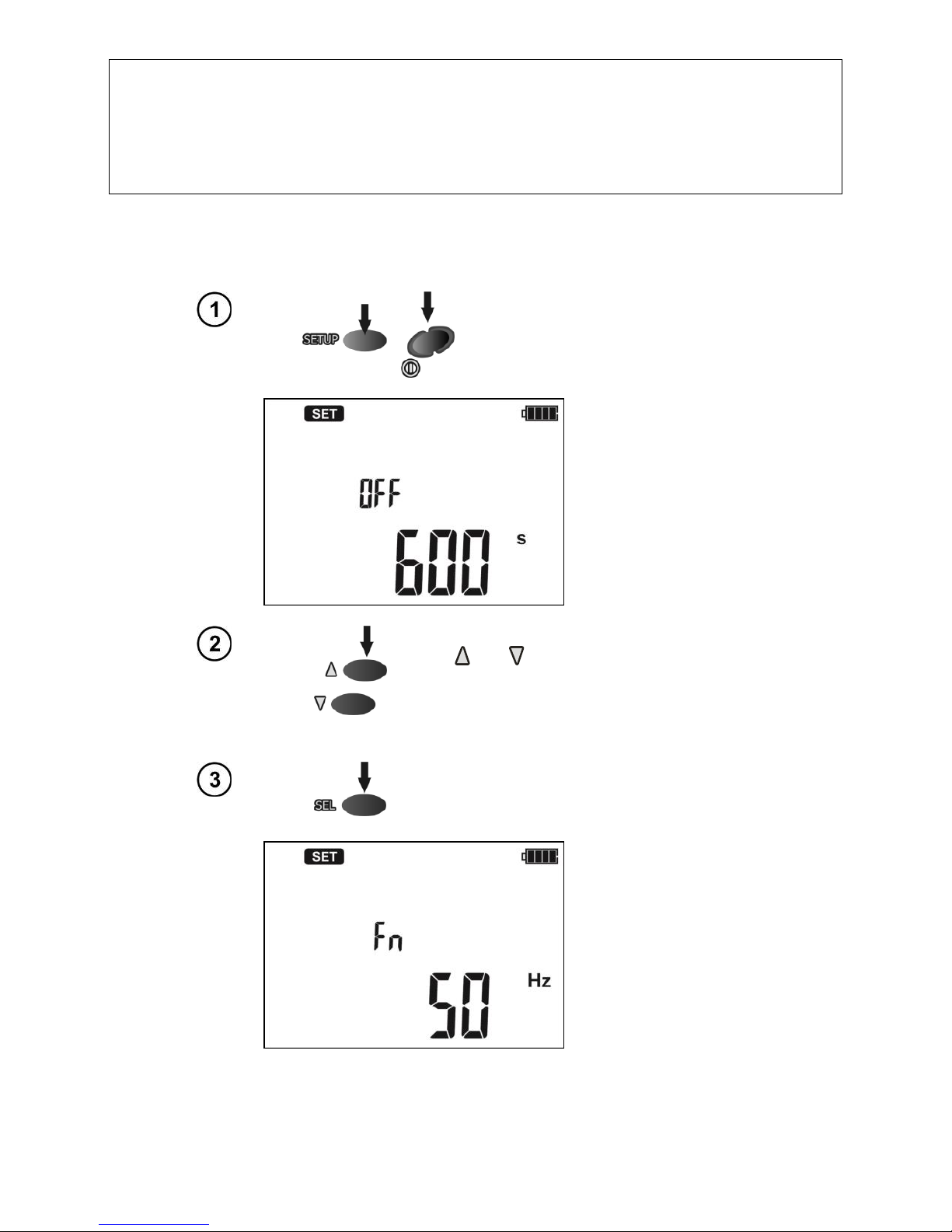

Turn on the meter keeping SETUP
button pressed.

Use and buttons to set the auto-off time
or to inactivate this function (horizontal lines –
Auto-OFF function is inactive). Auto-OFF
function is used to turn-off inactive meter after
a preselected time.

Press SEL button to enter the setting of nomi­nal network frequency.

OPERATING MANUAL MIC-2510 version 1.11

6

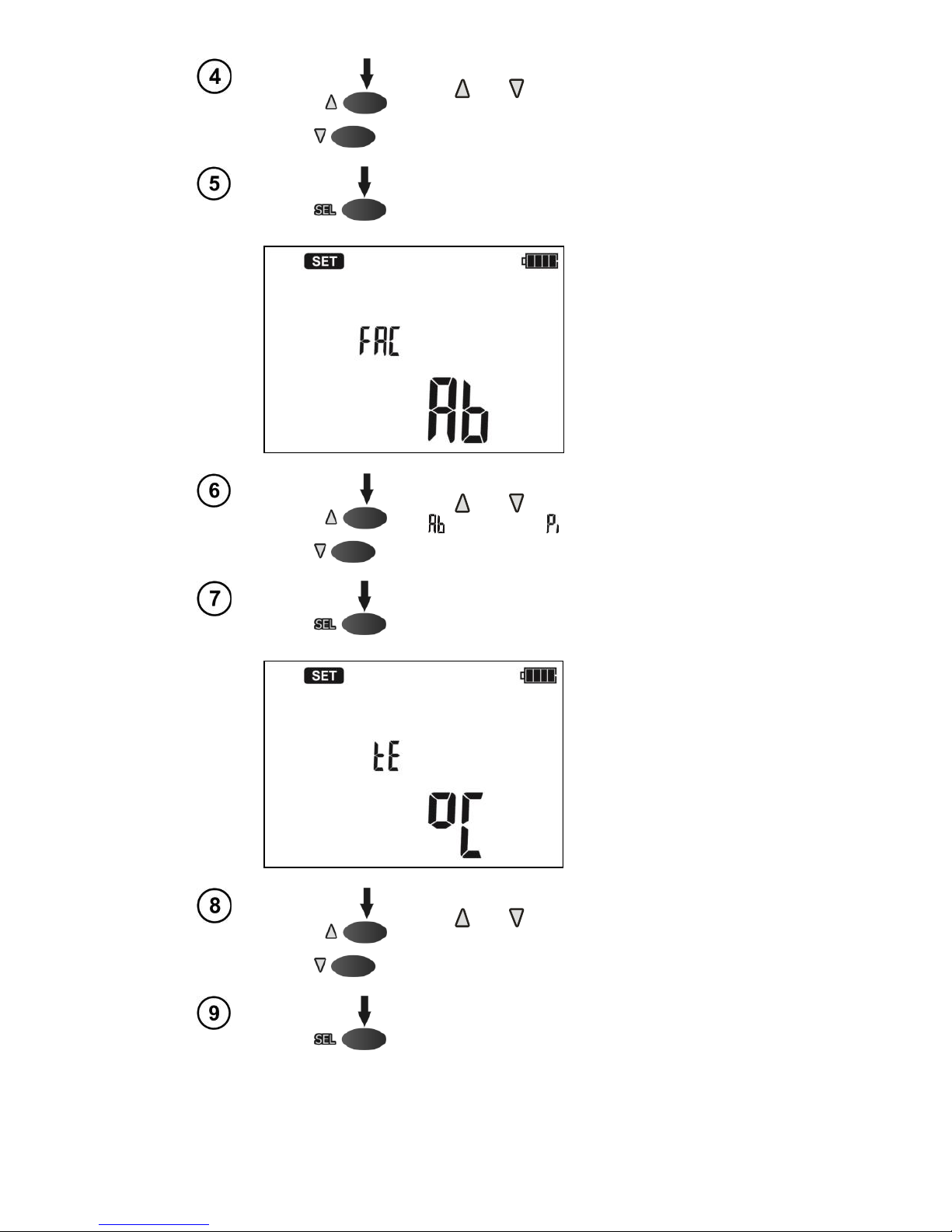

Use and buttons to set the frequency
value.

Press SEL button to enter the setting the type
of absorption coefficients.

Use and sto set Ab1, Ab2 parameters
( ) or PI, DAR ( ).

Press SEL button to enter the setting of the
temperature unit.

Use and buttons to set the temperature
unit (°C or °F).

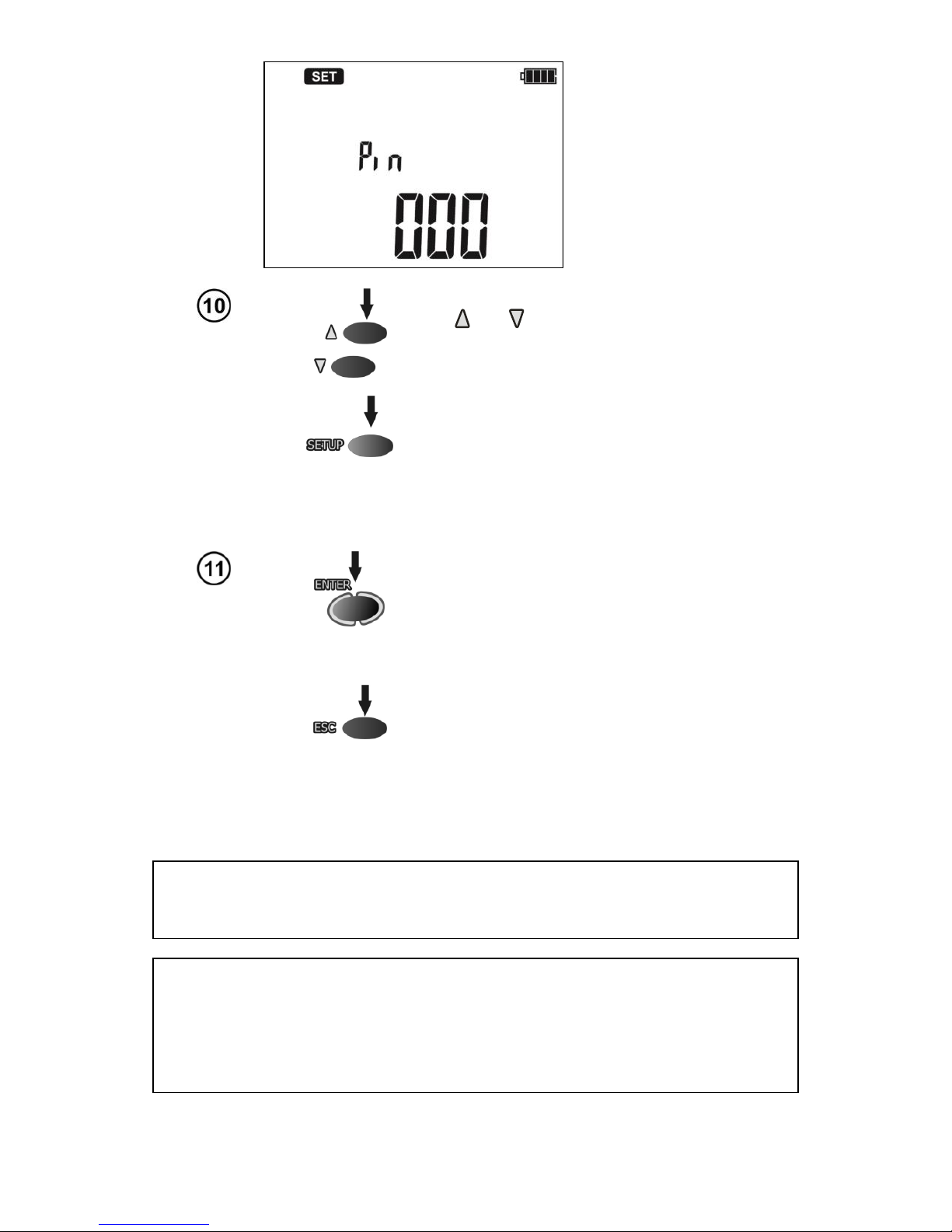

Press SEL button to enter the setting of PIN
code.

OPERATING MANUAL MIC-2510 version 1.11

7

Use and buttons to set the value of
each digit.

Use SETUP button to move between digits.

The same code must be entered in the computer programme for wireless transmis­sion. It is used to prevent access of unauthorized persons to the meter via wireless
connections (external entities).

Press ENTER to display the measurement
screen, approving introduced changes (addi­tionally t1, t2 and t3 times will be modified for

R

ISO

: for Ab1/Ab2 t1=15s, t2=60, t3=0, while

for PI/DAR t1=30, t2=60, t3=0) or…

…press ESC to go to the measurement
screen without validating the changes.

3 Measurements

3.1 Measurement of insulation resistance

WARNING:

The object tested must not be live.

Attention:
During measurement, especially of high resistances, make sure that test leads
do not touch each other and the probe (crocodile clips), because such a contact
may cause the flow of surface currents resulting in additional error in measure­ment results.

OPERATING MANUAL MIC-2510 version 1.11

8

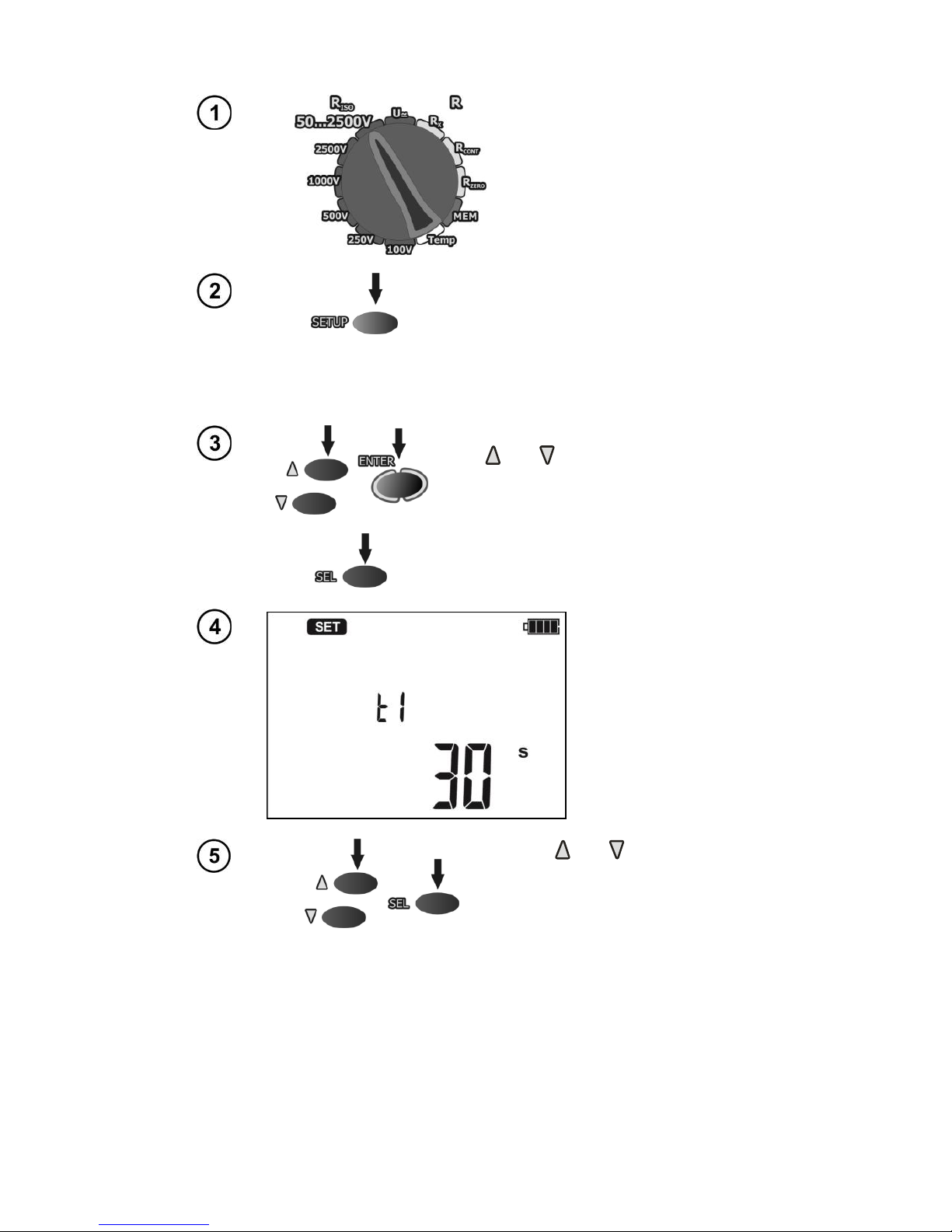

3.1.1 Double-lead measurement

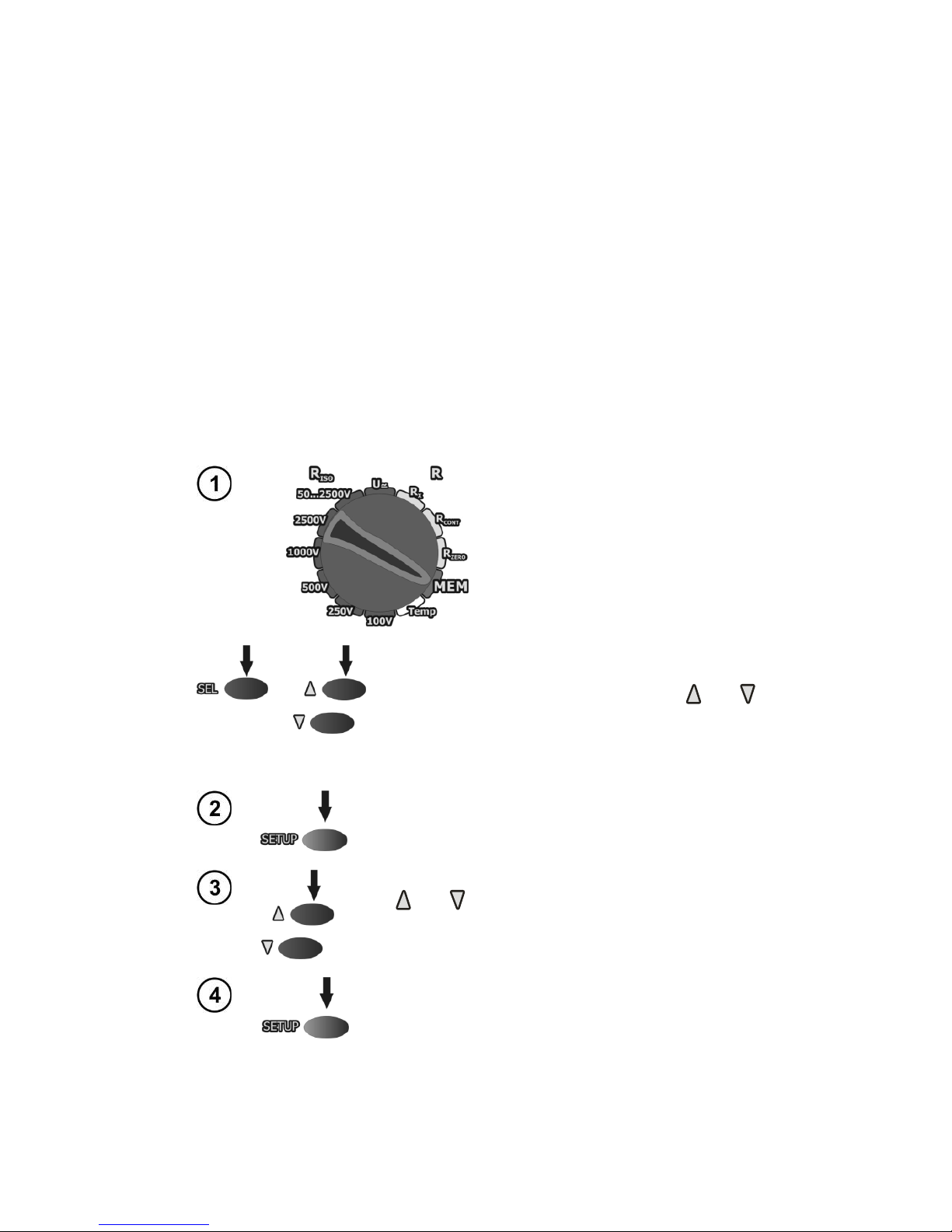

Set the rotary switch of function
selection at one of R

ISO

, choosing
measurement voltage (on posi­tion 50...2500V selected with 10V
step). The meter is in the voltage
measurement mode.

Press SETUP button to select time used for
calculating the absorption coefficients t1, t2,
t3 and the interval between the characteris­tic points.
For the position 50...2500V of the selector
an additional option is available to select the
measuring voltage UN.

Use and set UN value and confirm
by pressing ENTER or

use SEL button to enter the setting of
times for calculating the absorption coeffi­cients.

Use and to set the value
of t1, press SEL button to start
setting of t2, and then t3. Press
SEL again to enter the setting of
time interval of recording R

ISO

characteristics.

OPERATING MANUAL MIC-2510 version 1.11

9

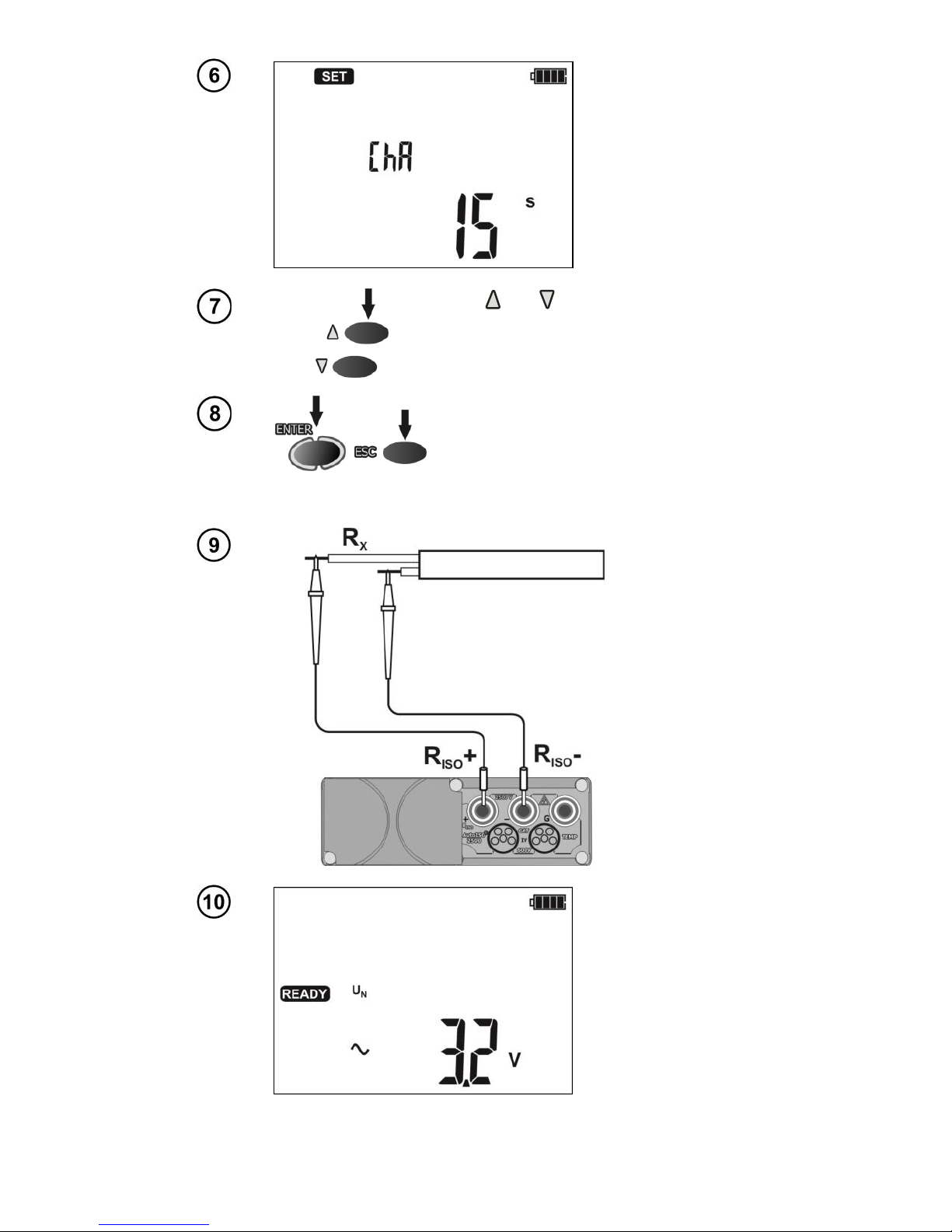

Use and to set the interval (15, 30
or 60 sec.). Horizontal lines indicate una­vailability of recording characteristics.

Press

ENTER

to confirm settings (con-

firmed by beep) or press ESC to leave
without saving the changes.

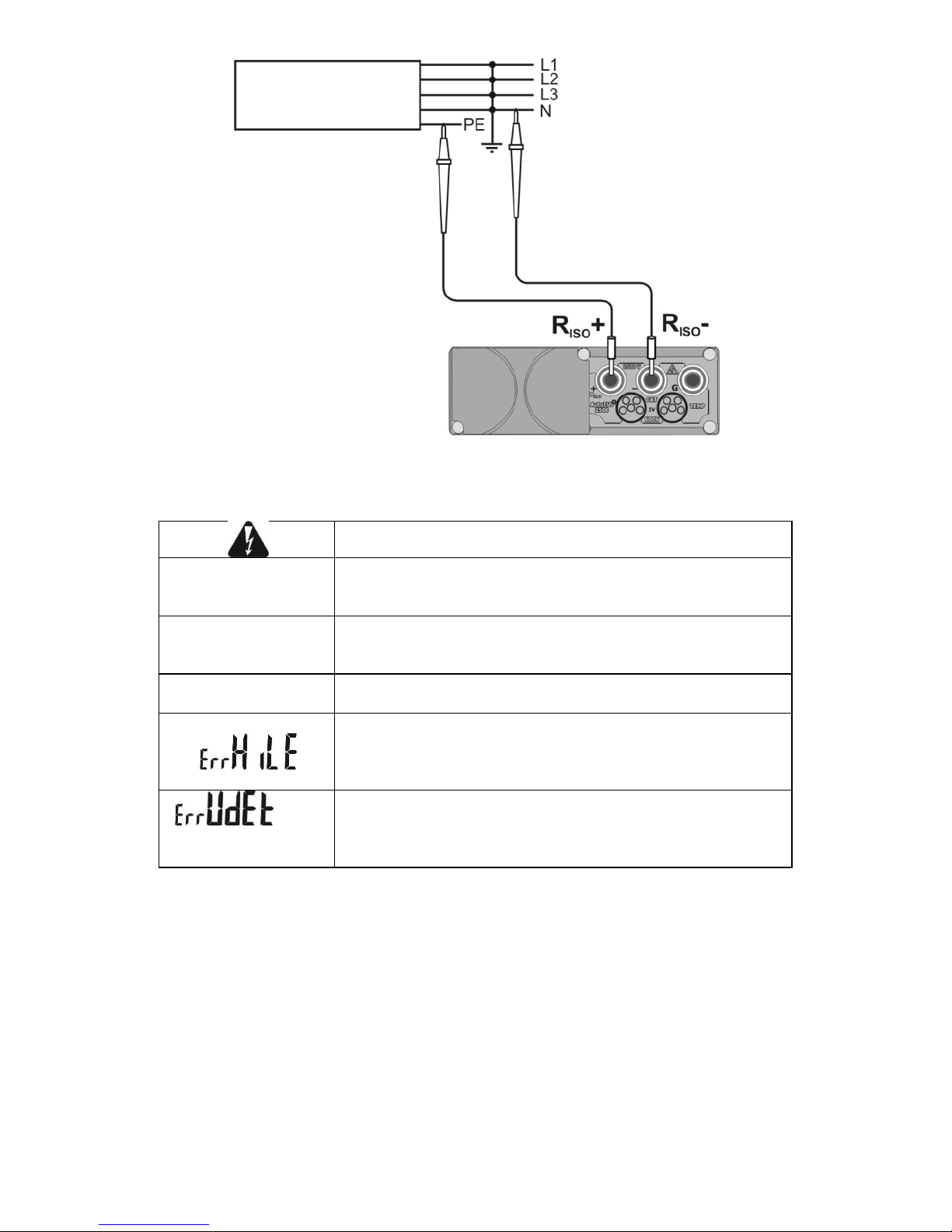

Connect test leads according to the drawing.

The meter is ready
for measurement.

OPERATING MANUAL MIC-2510 version 1.11

10

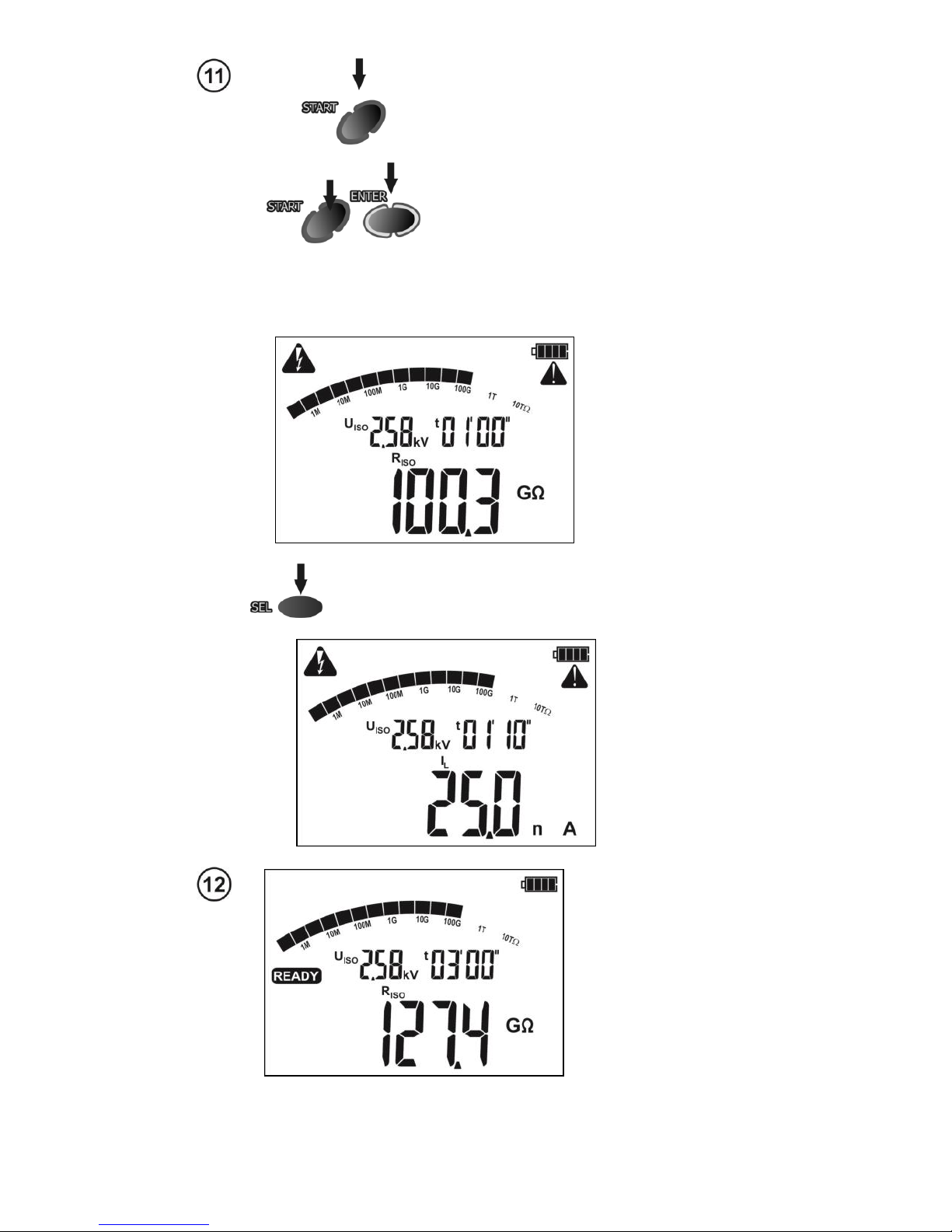

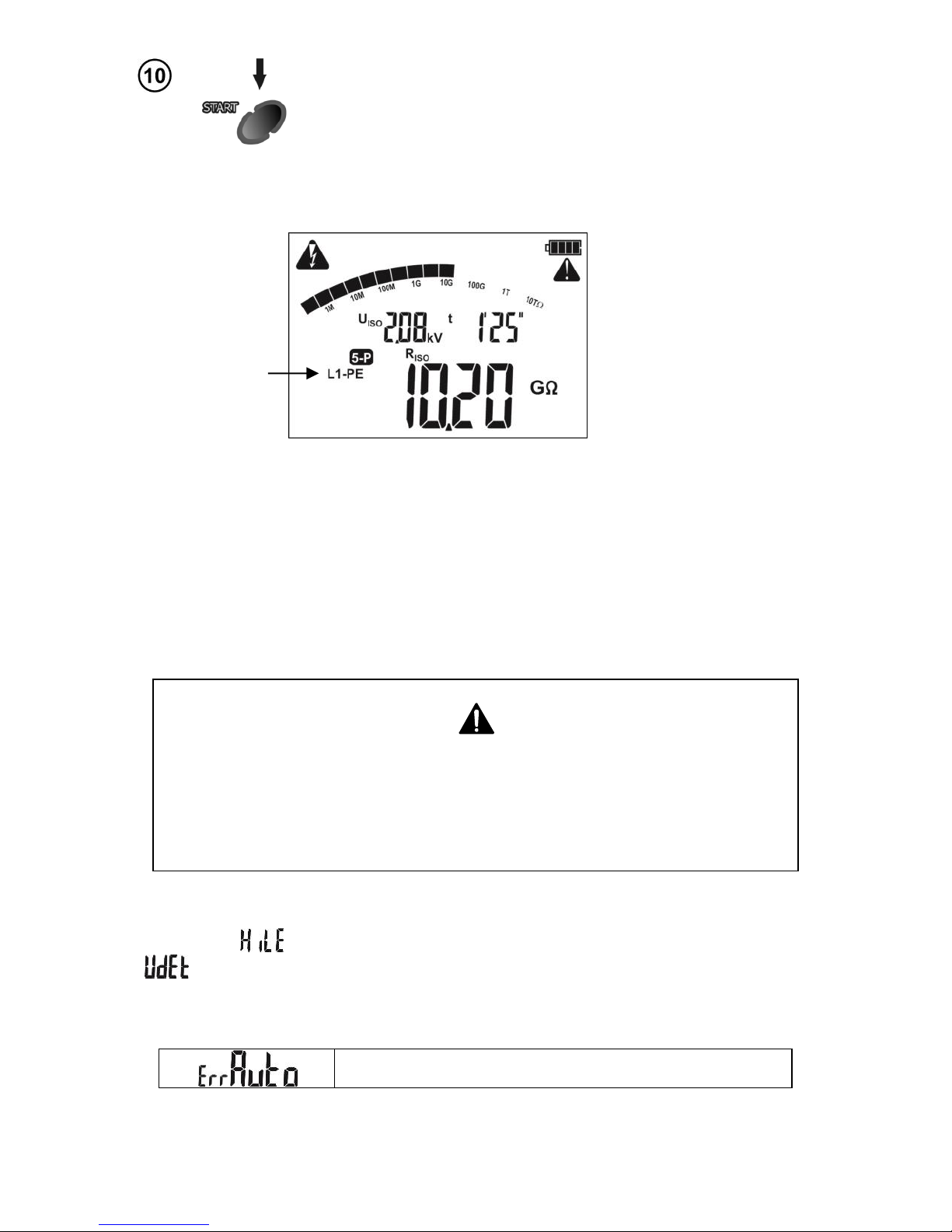

Press and hold START push-button.
The measurement is performed continu­ously until you release the button or the
pre-set time is reached.

In order to maintain (block) the measure-

ment press ENTER while holding START
button pressed - a triangle with an excla­mation mark will be displayed indicating
about automatic measurement, now the
buttons may be released. In order to in­terrupt the measurement, press START
or ESC.

View of the screen dur­ing measurement. The
triangle displayed on the
right side means that the
measurement was
started with ENTER but­ton.

Using SEL you may display the leakage
current IL.

After the measure­ment is completed or
stopped, read the re­sult. The results of all
completed measure­ments will be dis­played (even when
the measurement was
interrupted/stopped
e.g. after 60 seconds).

OPERATING MANUAL MIC-2510 version 1.11

11

Use and to see individual components of the
result in the following order: R

ISO→IL

→Ab2→Ab1→

Rt3→It3→Rt2→It2→Rt1→It1→C→R

ISO

, where C ­the capacity of the tested object.
If the measurement is stopped, the displayed values
will present the results of partial measurements that
have been completed and "---" will represent uncom­pleted partial measurements.
If the characteristic was measured, then the meas­urement results may be read between the It1 and C.

Note:

During measurements of insulation resistance, dangerous voltage up to 2.5 kV
occurs at the ends of test leads of MIC-2510 meter.

It is forbidden to disconnect test leads before the measurement is completed.
Failure to obey the above instruction will lead to high voltage electric shock and
make it impossible to discharge the tested object.

- Disabling t2 will also disable t3.

- Timer measuring the measurement time is started when U

ISO

voltage is stabilized.

- Symbol LIMIT means operation with limited converter current. If this condition persists for 20 seconds
the measurement is interrupted.

- If the timer reaches characteristic points (tx times or characteristic times), then for 1s instead U

ISO

a

symbol of this point is displayed which is accompanied by a long beep.

- If any of the measured values of partial resistance is out of range, the value of the absorption coefficient
is not displayed – the display shows dashes.

- During the measurement LED is lit in yellow.

- After completion of measurement, the capacitance of the tested object is discharged by shorting R

ISO

+

and R

ISO

- terminals with resistance of 100 k.

- If while viewing the results, voltage is applied to R

ISO

terminals, then LED will light up red.

- In case of power cables measure the insulation resistance between each conductor and other conduc­tors shorted and grounded (figure below).

OPERATING MANUAL MIC-2510 version 1.11

12

Additional information displayed by the meter

Test voltage is present on terminals of the meter.

NOISE!

Interference voltage higher than 25V but lower than 50V, is
present on the tested object. Measurement is possible but
may be burdened with additional uncertainty.

READY disappears,

LED lights red, two-

tone beep

Interference voltage higher than 50V is present on the tested
object. The measurement is blocked.

LIMIT I!

Activation of current limit. The symbol displayed is accom­panied by a continuous beep.

Breakdown of the tested object insulation, the measurement
is interrupted. The message appears after displaying
LIMIT I! for 20s during the measurement, when voltage pre­viously reached the nominal value.

LED is

lit in red, two-tone

acoustic signal

During the measurement, AC voltage appeared or the object
cannot be discharged for 30 seconds. After 5 seconds the
meter returns to its default state - voltmeter.

3.1.2 Three-lead measurement

In order to eliminate the influence of surface resistance in transformers, cables, etc. a three-lead
measurement is used. For example:
 at the measurement of inter-winding resistance of a transformer, G socket of the meter should be

connected to the transformer tank;

OPERATING MANUAL MIC-2510 version 1.11

13

 when measuring insulation resistance between one of the cable conductors and the cable jacket,

the effect of surface resistances (important in difficult weather conditions) is eliminated by con-

necting a piece of metal foil wounded around the insulation of the tested conductor with G socket

of the meter;

The same shall apply when measuring the resistance between two conductors of the cable, at­taching to G terminal other conductors that do not take part in the measurement.

3.1.3 Measurement with AutoISO-2500 adapter

Set the rotary switch of function selection at
one of R

ISO

position, choosing measurement
voltage (on position 50...2500V selected
with 10V step). The meter is in the voltage
measurement mode.

Cable jacket

Metal shielding foil wounded around the insulation of
the conductor

Conductor

OPERATING MANUAL MIC-2510 version 1.11

14

Connect AutoISO-2500
adapter. The meter automati­cally detects this state, adding
to the configuration menu an
additional option for choosing
the cable type. But the option
of recording characteristics is
removed.

With switch in 50...2500V position go to selecting
the test voltage UN by pressing SETUP.

After setting UN as in double-lead measurement,
press SEL button to set the type of the cable.

Use and to set the type of cable: 3-P, 4-P, 5­P (for objects up to 1kV) or H3-P, H4-P, H5-P (for
power cables). The figure means the number of
cable conductors.

Set times for calculating the absorption coefficients as in dou­ble-lead measurement.

OPERATING MANUAL MIC-2510 version 1.11

15

Press

ENTER

to confirm settings or press

ESC to exit without saving the changes.
Connect AutoISO-2500 adapter to the tested cable.

For H3-P,
H4-P and
H5-P-P the
symbol
flashes
every 0.5
seconds

The meter is ready
for measurement.

OPERATING MANUAL MIC-2510 version 1.11

16

Press START button to initiate the measurement (no need to hold it,
the measurement is done automatically). First, checking of voltages
on particular pairs of conductors is performed. If any of the voltages
exceeds the permissible value, then it is displayed on the display, LED
lights red and the measurement is cancelled (exceeding U

L1-N

voltage
prevents commencing the measurement).
The measurement is performed continuously until the meter reaches
the preset time for the last pair of conductors.

Symbol (mne­monic) of cur­rently measured
pair of conduc­tors

View of the screen during
measurement.

Note:

- The meter detects AutoISO connection for approx. 1 sec.

- After connecting AutoISO, a default voltage measurement is performed on a pair of conductors L1-N,
for all types of conductors

- For power cables PE means earthing cable.

- In case of measurements on power cables the adapter shorts the remaining wires to E line, e.g. 5-P
measurement for a power cable and indication of L1-PE pairs, means that the adapter connects line L1
to one of the meter's ISO inputs, while the contained lines L2, L3, N, PE, E are connected to the second
ISO input.

Due to the fact that AutoISO-2500 adapter shorts a few input lines during meas­urements on power cables, it is essential to ensure that the tested cable is dis­connected from external power sources. The meter checks for the presence of
voltage before measurement, but it does not prevent connection of voltage dur­ing the measurement. When voltage is applied in this situation, it will cause a
short circuit and will damage AutoISO-2500 module.

- Other messages, displayed symbols, results and scrolling through result components as in case of
double-lead measurement, additionally - switching between results of individual pairs with SEL button.

- In cases of errors , LIMIT ! the measurement is interrupted only for the current pair of conductors.
Error tops the measurement.

Additional information displayed by the meter

During measurement the meter has detected the error re­lated to AutoISO (e.g. disconnection).

OPERATING MANUAL MIC-2510 version 1.11

17

3.2 Low-voltage measurement of resistance

3.2.1 Measurement of resistance of protective conductors and equipotential
bonding with ±200 mA current

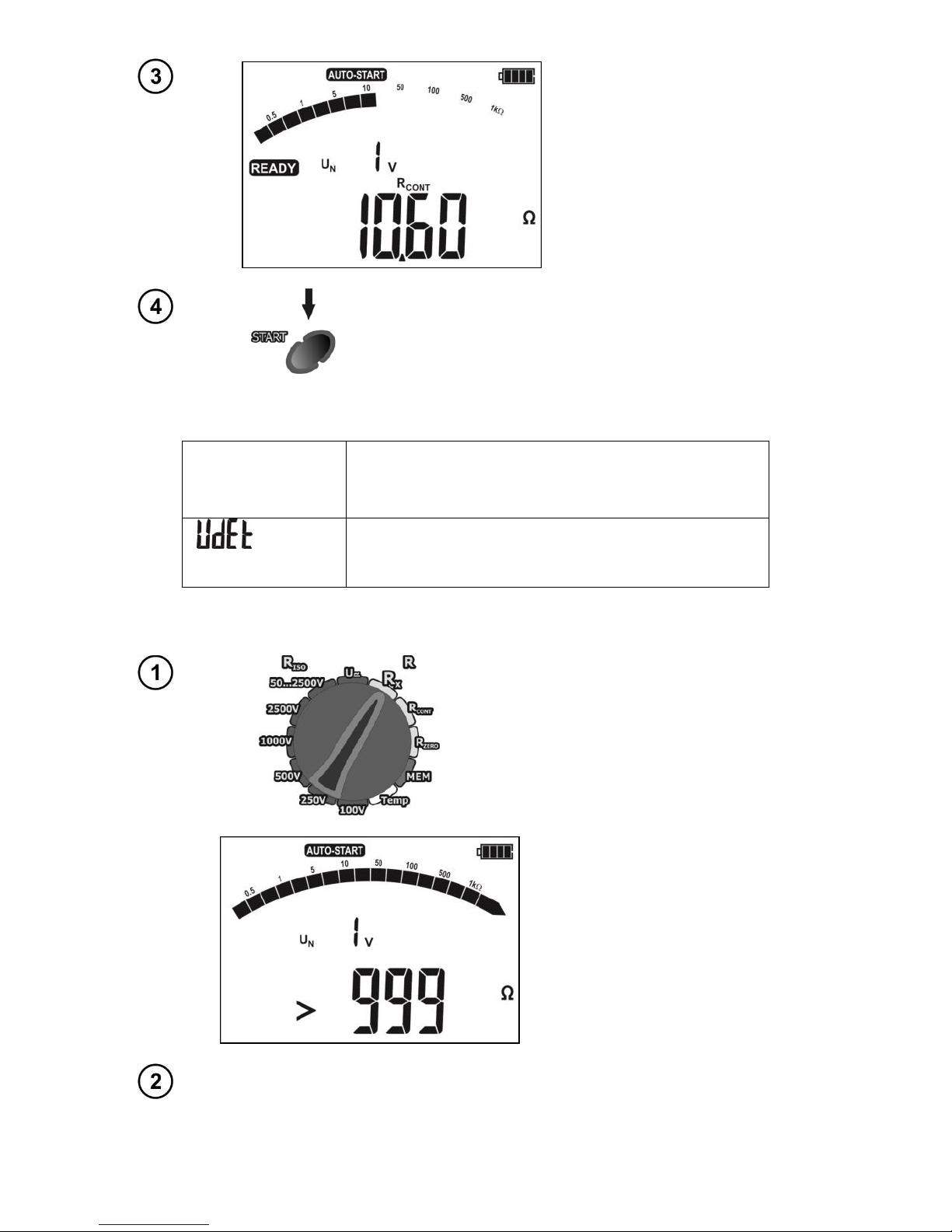

Set the rotary switch of function
selection at R

CONT

position.

The meter is ready for
measurement.

Connect the meter to the tested object.
The measurement starts automatically when the resistance
drops by 50 times or more - for example from 1k to 20 – the
meter detects the sequence: opening (activated), and closing
(triggers the measurement).
The measurement may be also triggered manually by pressing
START push-button.

OPERATING MANUAL MIC-2510 version 1.11

18

Read out the result.

Press START push-button in order to start a next measure­ment without disconnecting test leads from the object.

Additional information displayed by the meter

NOISE!

Interference voltage occurs on the tested object. The
measurement is possible however it will be burdened
with additional uncertainty that is specified in the tech­nical data.

+ two-tone,
continuous beep +
LED-lit in red

Interference voltage exceeds the allowable value, the
measurement is blocked.

3.2.2 Measurement of resistance

Set the rotary switch of function selection at
RX position.

The meter is ready for meas­urement.

Connect the meter to the tested object as in par. 3.2.1. The measurement is conti­nuous.

OPERATING MANUAL MIC-2510 version 1.11

19

Read out the result.

Note:

- For R <10Ω there is a continuous beep and LED lights green.

- Remarks and messages are the same as in par. 3.2.1.

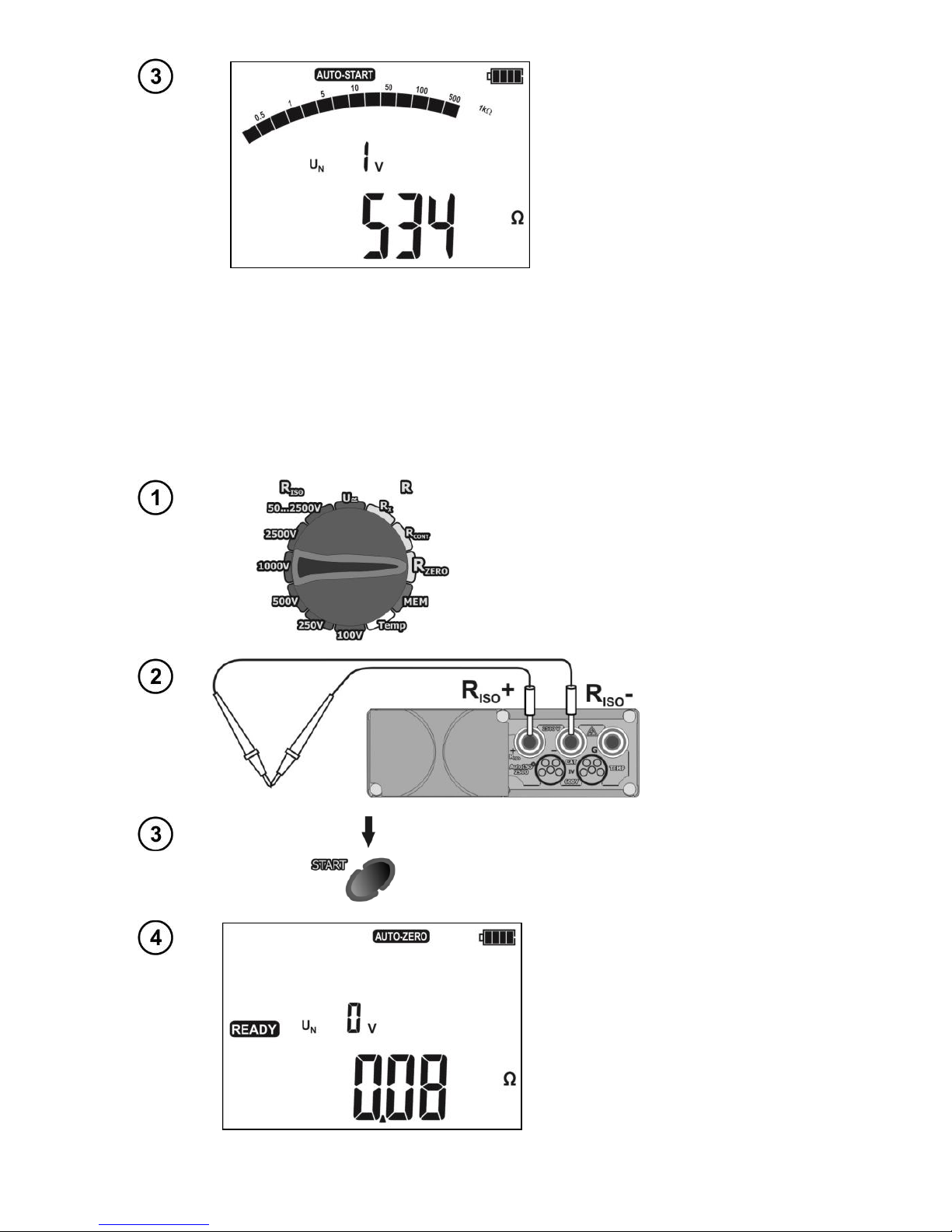

3.2.3 Calibration of test leads

In order to eliminate the impact of the resistance of test leads on measurement result (R

CONT

and

RX), the compensation (auto-zeroing) of resistance may be performed.

Set the rotary switch of function selection at

R

ZERO

position.

Short the test leads
– READY message
should be displayed.

Press START.

AUTO-ZERO message appears
that confirms completion of test
leads calibration.

The result is a compensated
value and the amendment is
available for R

CONT

and RX. The
compensation is active even after
the meter is switched off and on
again.

OPERATING MANUAL MIC-2510 version 1.11

20

In order to remove the calibration made (return to default calibration), perform the
above-mentioned activities with test leads open (without READY symbol).

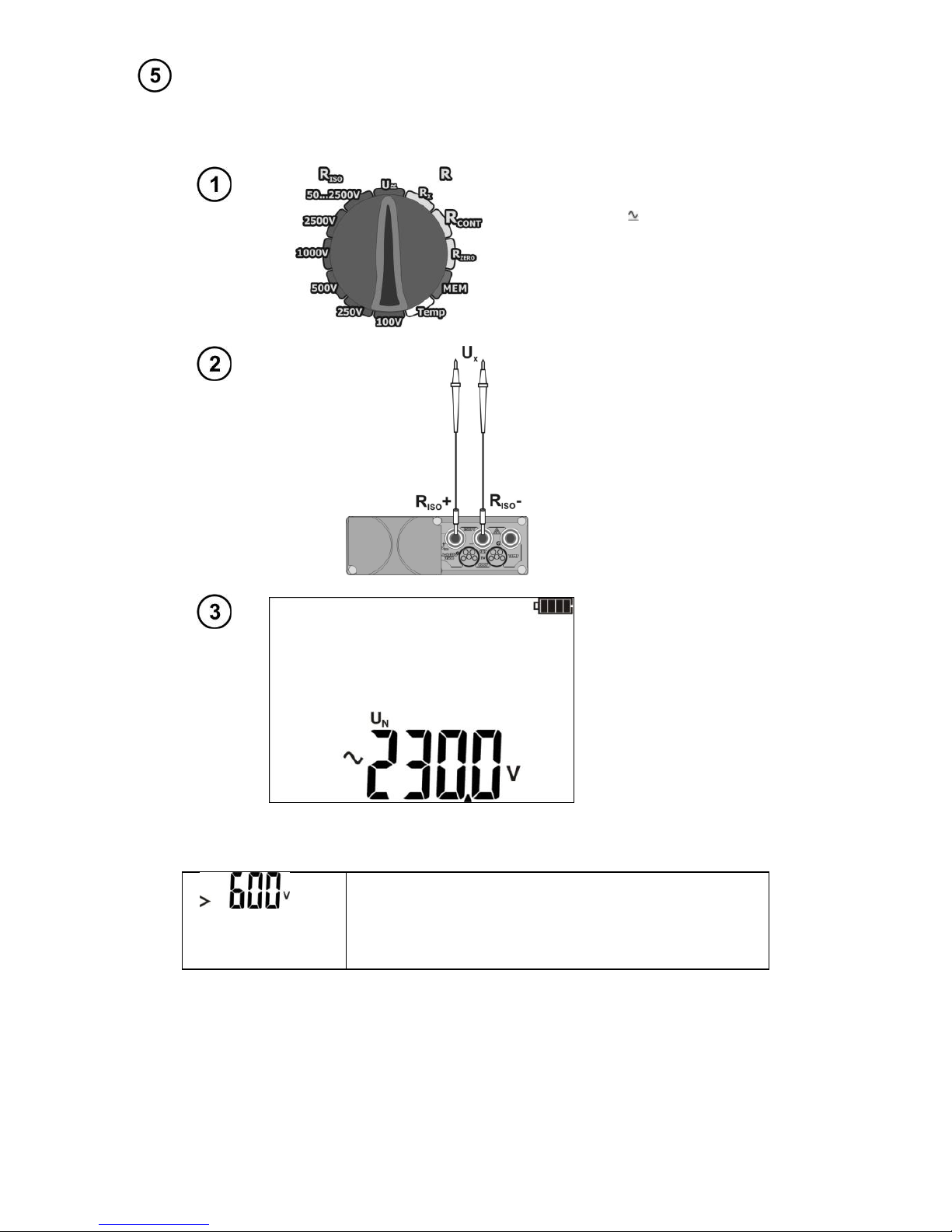

3.3 Voltage measurement

Set the rotary switch of function
selection at U position.

Connect the meter to a volt­age source.

Measurement is per­formed in a continu­ous manner.

Additional information displayed by the meter

, LED

is lit in red, two-

tone acoustic sig-

nal

Voltage is higher than acceptable.
Immediately disconnect the test leads.

OPERATING MANUAL MIC-2510 version 1.11

21

3.4 Temperature Measurement

Set the rotary switch of function selection at
Temp position.

Connect the temperature probe into
TEMP socket.

Measurement is performed in a
continuous manner.
The correct connection is con­firmed by green light of LED and
the result displayed on the LCD.

4 Memory of measurement results

MIC-2510 meters are equipped with a memory capable of storing 11880 single test results (990

cells, each of which may contain a set of measurements of R

ISO

with AutoISO, R

CONT

and temperature).
The whole memory is divided into 10 memory banks with 99 cells in each bank. Thanks to dynamic
memory allocation, each of the memory cells can contain different quantity of single measurement re­sults, depending on the needs. Optimal use of the memory can be ensured in this way. Each measure­ment result can be stored in a memory cell marked with a selected number and in a selected memory
bank. Thanks to this, the user of the meter can, at his/her option, assign memory cell numbers to indi­vidual measurement points and the memory bank numbers to individual facilities. The user can also
perform measurements in any sequence and repeat them without losing other data.

Memory of measurement results is not deleted when the meter is switched off. Thanks to this, the
data can be later read or sent to a computer. The number of a current memory cell or memory bank is
not changed either.

Note:

- Results of measurements performed for all measuring functions can be stored in one memory cell,
excluding RX and U .

- After entering the measurement result, the number of the cell is automatically increased.

- It is recommended to delete the memory after reading the data or before performing a new series of
measurements that may be stored into the same memory cells as the previous ones.

OPERATING MANUAL MIC-2510 version 1.11

22

4.1 Storing the measurement results in the memory

After completing measurement
press ENTER.

The cell is empty.

The cell is occupied,
symbols of stored val­ues are displayed.

Use

SEL

to view measurement results.

Use and to scroll the components of the result.

The cell is fully occu­pied.

Use SEL to view measurement results and use

and buttons to scroll through thee compo-

nents of the result.

OPERATING MANUAL MIC-2510 version 1.11

23

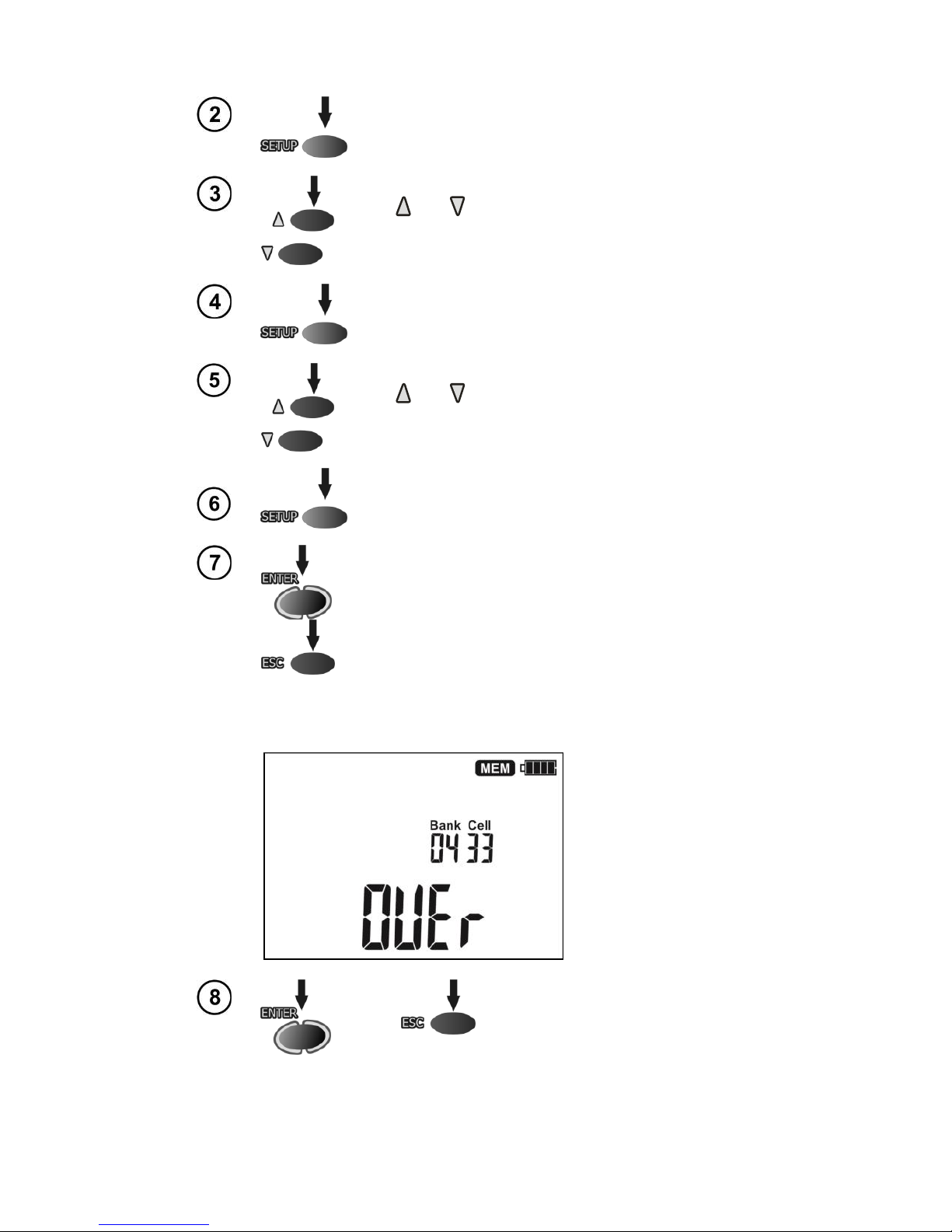

To change the cell number or bank number:

Press SETUP – cell number is flashing

Use and to set desired number of the cell.
Press SETUP – bank number is flashing.

Use and to set the desired number of the bank.

Press SETUP – bank number stops flashing. Results
may be saved in the selected cell.

Press ENTER, to save the result in the memory. Sav­ing is indicated by a triple beep and by a rectangle
displayed on the main display field.

Press ESC to return to displayed result without sav­ing.

If you try to store data in an occupied memory cell, the following warn­ing message will appear:

or

Press ENTER, to overwrite the re­sult or ESC, to cancel saving.

OPERATING MANUAL MIC-2510 version 1.11

24

Note:

- After the measurement result is shown on the display until:

 the rotary switch is rotated,
 Auto-OFF function is activated,
 the meter detects interference voltage> 50V,
 one of the following operations is performed:

o ESC button is pressed to exit to the voltmeter,
o a next measurement is performed,
o an entry into the memory is introduced.

- After exiting to the voltmeter by pressing ESC or after saving the results to the memory, the last result
may be recalled by pressing ENTER (even after power is turned off, providing that the switch position
has not been changed).

- Complete set of results (main result and supplementary results) for a given measuring function and
preset measurement settings are stored in the memory.

- In a given cell, the user may save R

ISO

measurement result only for a single measurement or only for

AutoISO-2500.

- When saving the temperature, the value currently displayed is saved.

4.2 Viewing memory data

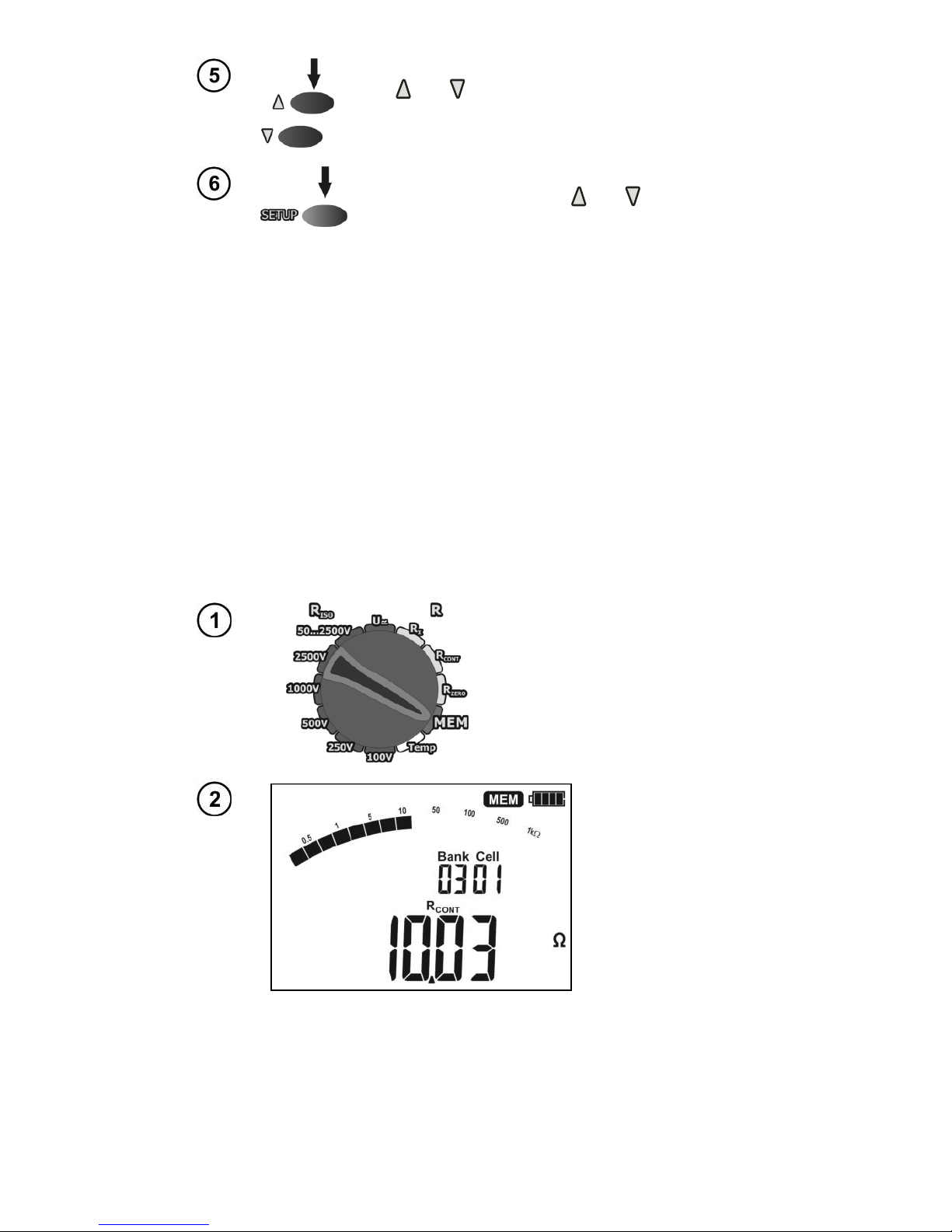

Set the rotary switch of function se­lection at MEM position.

Use SEL button to switch between
R

ISO→RCONT

→Temp→R

ISO

, and buttons and

to scroll the components of the result.

To change the cell number or bank number:

Press SETUP – Cell message is flashing

Use and to set desired number of the cell.
Press SETUP – Bank message is flashing.

OPERATING MANUAL MIC-2510 version 1.11

25

Use and set the desired number of the bank.

Press SETUP – Bank message stops
flashing. Use and to scroll the

components of the result again.

Note:

- While viewing measurement results, pressing ESC button has similar effect as pressing SETUP, but
the sequence is inverted i.e. after first pressing Bank message is flashing.

- While viewing R

ISO

results, the field of timer / memory displays alternately bank and cell numbers and

the time in which the result was entered into memory. This applies to all R

ISO

and IL measurements.

- Press ESC to immediately display basic component of the result.

- For R

CONT

and temperature, there is no option of scrolling through the components of the result.

- For measurements with AutoISO-2500, use SEL button to switch between results of individual con­ductor pairs and the meter is switched to R

CONT

, T and then returns to measurements with AutoISO-

2500.

4.3 Deleting memory data

You can delete the entire memory or its individual banks.

4.3.1 Deleting bank data

Set the rotary switch of function se­lection at MEM position.

Set the bank number
to be deleted
acc. to section 4.2.
Set the cell number
before “1”...

OPERATING MANUAL MIC-2510 version 1.11

26

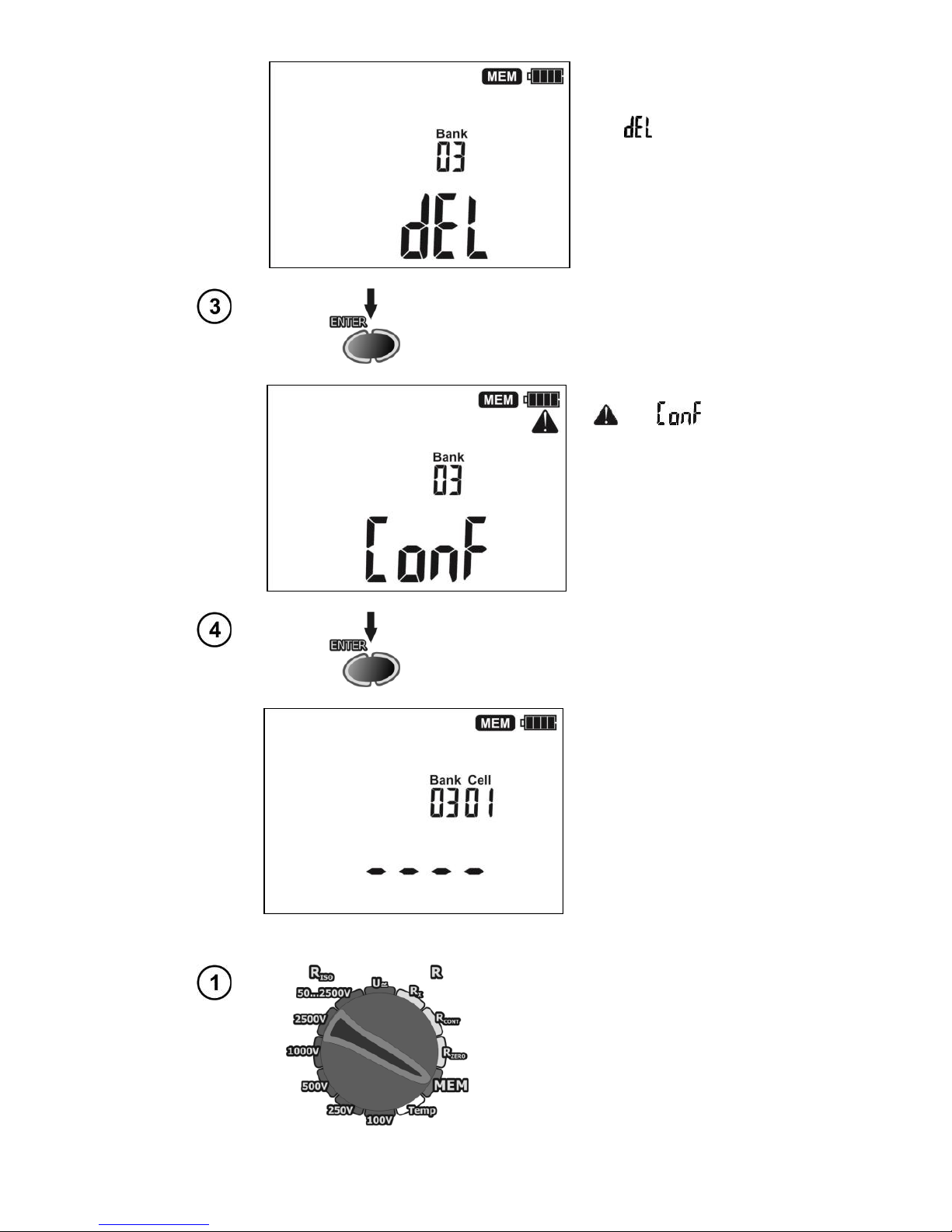

...the cell number dis­appears, and appears

the symbol indi­cating the readiness
to delete.

Press ENTER push-button.

and ask
you to confirm dele­tion.

Press ENTER again.
After deleting the bank, the meter beeps
three times.

4.3.2 Deleting the whole memory

Set the rotary switch of function se­lection at MEM position.

OPERATING MANUAL MIC-2510 version 1.11

27

Set the bank number
between “0” and “9”...

...the bank number
disappears, and

symbol is displayed,
indicating the readi­ness to delete.

Press ENTER push-button.

and ask
you to confirm dele­tion.

Press ENTER again.
After deleting the memory, the meter
beeps three times.

OPERATING MANUAL MIC-2510 version 1.11

28

5 Data transmission

Remarks:

- Data transmission is not possible during the charging of accumulators.

5.1 Computer connection accessories

What is necessary in order to operate the meter with a computer is additional accessories, namely
a USB cable or radio modul OR-1 and appropriate software. If the required accessories have not been
purchased along with the meter, then they are available from the manufacturer or an authorised distrib­utors.

The software may be used in case of many devices manufactured by SONEL S.A. which are
equipped with the USB interface and/or OR-1 modul.

Detailed information regarding software is available from the manufacturer or an authorised dis­tributors.

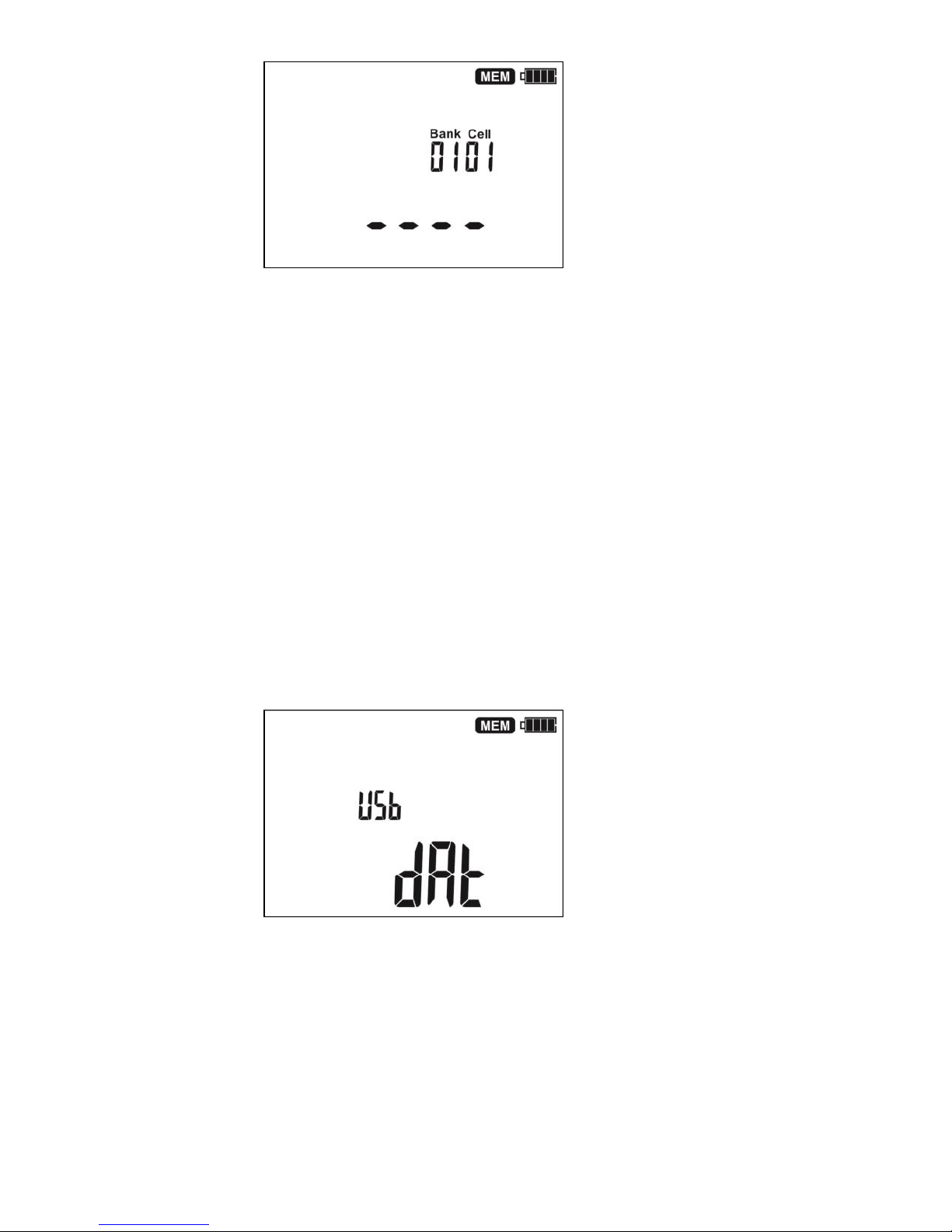

5.2 Data transmission with USB port

1. Set the rotational function selector at MEM.

2. Connect the cable to the USB port of the computer and the USB socket of the meter.

3. Start the programme.

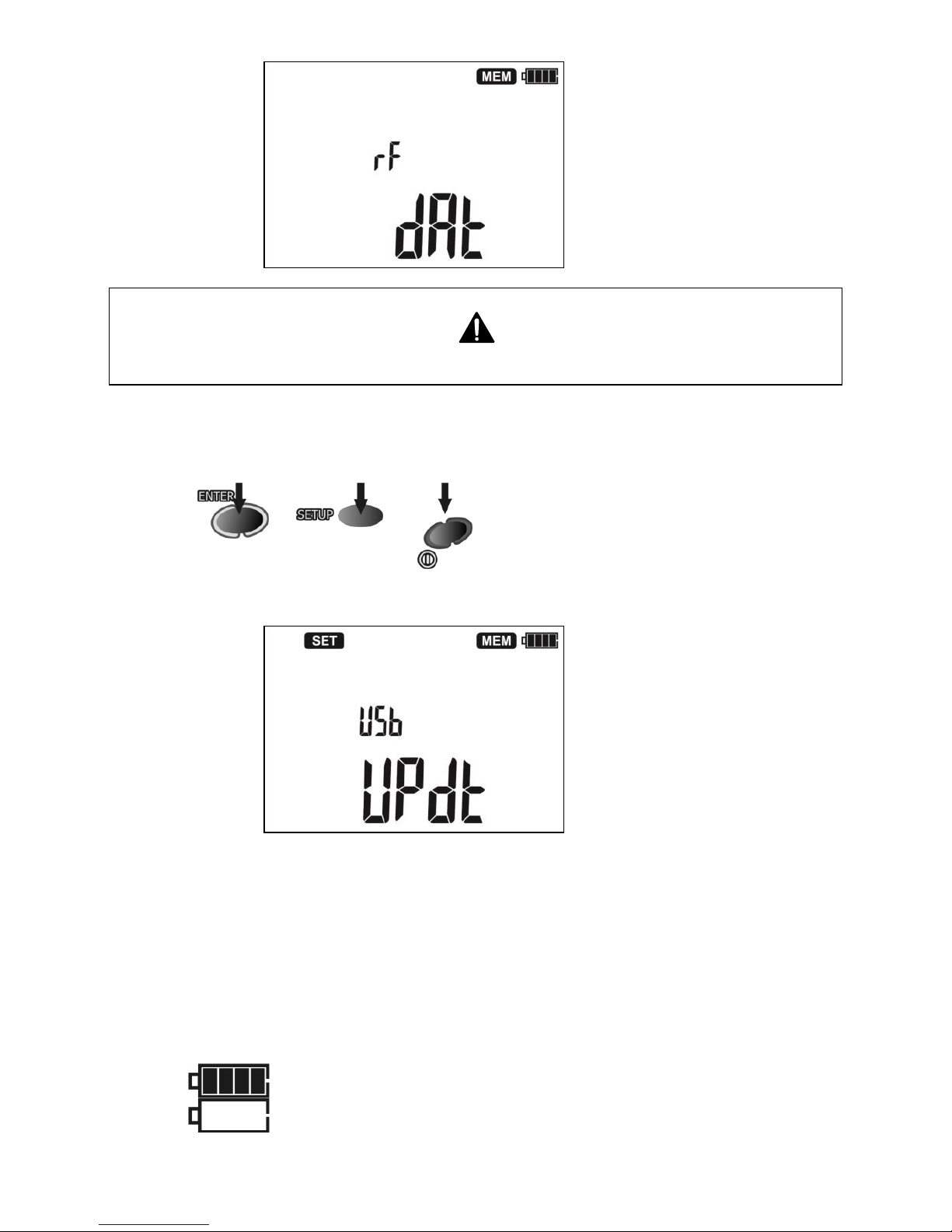

5.3 Data transmission with OR-1 radio module

1. Set the rotary switch on MEM position, the radio connection is activated automatically.

2. Connect OR-1 module to the USB socket of the PC.

3. If necessary, change PIN code (par. 2).

4. Start data storing programme.

OPERATING MANUAL MIC-2510 version 1.11

29

Standard pin for OR-1 is "123".

6 Software updates

Turn on the meter, holding
ENTER and SETUP buttons de­pressed.

The meter displays the following screen.

After connecting the meter to a PC using a
USB cable, follow the instructions of the software.

7 Meter power supply

7.1 Monitoring of the power supply voltage

The charge level of rechargeable batteries is indicated by the symbol in the right upper corner of the

display on a current basis:

Batteries charged.

Batteries low. Only voltage measurement is available.

OPERATING MANUAL MIC-2510 version 1.11

30

Batteries fully discharged,
all measurements are blocked.
The meter switches off automati­cally after 5 sec.

7.2 Replacing rechargeable batteries

MIC-2510 meter is powered from SONEL NiMH 9.6 V battery pack, including NiMH rechargeable

batteries.

Battery charger is installed inside the meter and cooperates only with the manufacturer’s battery

pack. The charger is powered by external power supply adapter. It can be also powered from the car
cigarette lighter socket, using an optional charger.

WARNING:
If the test leads are left in the terminals during replacement of the batteries, there
is a risk of electric shock with a dangerous voltage.

To replace the rechargeable batteries:

1. Disconnect the leads from the measuring circuit and turn off the meter,

2. Unscrew the 3 screws and remove the battery compartment (in the bottom of the enclosure).

3. Insert and bolt the battery compartment containing a new battery pack.

NOTE!

Do not power the meter from sources other than those listed in this manual.

7.3 Charging rechargeable batteries

Charging commences once the power supply has been connected to the meter regardless of
the fact whether the meter is on or off. Charging is indicated by changing status of battery charge. The
rechargeable batteries are charged in accordance with the algorithm of „quick charge” – this process
permits to reduce the duration of charging to approximately three hours. Completed charging process
is indicated by full battery charge status and beep. In order to turn the device off, remove the power
supply plug of the charger.

Note:

- As a result of interferences in the network it is possible that the process of charging of accumulators
will finish too fast. When charging time is too short, turn off the meter and start charging again.

OPERATING MANUAL MIC-2510 version 1.11

31

Additional information displayed by the meter

Signalling

Cause

Proceeding

Battery symbol appears as un­filled.

Temperature of the
battery pack is too
high!

Wait until the battery pack is cool. Start
charging process again.

The symbol of unfilled battery
flashes.

Emergency

Try to start the charging process again.
If this does not help, it is possible that
battery pack is damaged - replace it.

The symbol of full battery
flashes.

An attempt of recharge
fully charged battery
pack was detected.

7.4 General principles regarding using NiMH rechargeable batteries

- If you do not use the device for a prolonged period of time, then it is recommended to remove the
rechargeable batteries and store them separately.

- Store the rechargeable batteries in a dry, cool and well ventilated place and protect them from direct
sunlight. The temperature of the environment in the case of prolonged storage should not exceed 30C.
If the rechargeable batteries are stored for a long time in a high temperature, then the occurring chemical
processes may reduce their lifetime.

- NiMH batteries withstand normally 500-1000 charging cycles. These batteries reach their maximum
capacity after being formatted (2-3 charge/discharge cycles). The most important factor which influences
the lifetime of rechargeable batteries is the level of their discharge. The deeper the discharge level of
the batteries, the shorter their lifetime.

- The memory effect is limited in case of NiMH batteries. These batteries may be charged at any point
with no serious consequences. However, it is recommended to discharge them completely every few
cycles.

During storage of NiMH batteries they are self-discharged at the rate of approximately 30% per month.
Keeping rechargeable batteries at high temperatures may accelerate this process even 100%. In order
to prevent excessive discharge of rechargeable batteries, after which it would be necessary to format
them, it is recommended to charge them from time to time (even if they are not used).

- Modern fast chargers detect both too low and too high a temperature of rechargeable batteries and
react to the situation adequately. Too low temperature should prevent starting the process of charging,
which might irreparably damage rechargeable batteries. An increase of the temperature of the recharge­able batteries is a signal to stop charging and is a typical phenomenon. However charging at a high
ambient temperature apart from reducing batteries' lifetime causes an accelerated increase of their tem­perature and the result is that the batteries are not charged to their full capacity.

- Please note that when the batteries are charged with a fast-charger they are charged only to approx.
80% of their capacity - better results can be achieved by continuing charging: the charger enters trickle­charging mode and during the next few hours batteries are charged to their full capacity.

- Do not charge or use rechargeable batteries in extreme temperatures. Extreme temperatures reduce
the lifetime of batteries and rechargeable batteries. Avoid placing devices powered by rechargeable
batteries in very hot environments. The nominal working temperature must be absolutely observed.

OPERATING MANUAL MIC-2510 version 1.11

32

8 Cleaning and maintenance

NOTE!

Apply solely the maintenance methods specified by the manufacturer in this manual.

The casing of the meter may be cleaned with a soft, damp cloth using all-purpose detergents. Do
not use any solvents or cleaning agents which might scratch the casing (powders, pastes, etc.).

The electronic system of the meter does not require maintenance.

9 Storage

In the case of storage of the device, the following recommendations must be observed:

 Disconnect all the test leads from the meter.
 Clean the meter and all its accessories thoroughly.
 In the case the meter is to be stored for a prolonged period of time, batteries/rechargeable batteries

must be removed from the device.

 In order to prevent a total discharge of the rechargeable batteries in the case of a prolonged storage,

charge them from time to time.

10 Dismantling and Disposal

Used electrical and electronic equipment should be collected selectively, i.e. it must not be placed
with another kinds of waste.

Used electronic equipment should be sent to a collection point in accordance with the Used Electri-

cal and Electronic Equipment Act.

Before the equipment is sent to a collection point, do not dismantle any elements.
Observe the local regulations concerning disposal of packages and used batteries/rechargeable

batteries.

11 Technical specifications

11.1 Basic data

 Abbreviation "m.v" used in the specification of measurement uncertainty means a standard meas-

ured value

AC / DC voltage measurement

Display range

Resolution

Basic uncertainty

0…600V

1 V

(3% m.v. + 2 digits)

 Frequency range: 45...65Hz

Measurement of insulation resistance

Measuring range according to IEC 61557-2: R

ISOmin

= U

ISOnom/IISOnom

…2,000T (I

ISOnom

= 1mA)

OPERATING MANUAL MIC-2510 version 1.11

33

Double-lead measurement

Display range

Resolution

Basic uncertainty

0.0 ... 999.9 k

0.1 k 

(3 % m.v. + 20 digits)

1.000 ... 9.999 M

0.001M

10.00...99.99M

0.01 M

100.0 ... 999.9 M

0.1 M

1.000 ... 9.999 G

0.001 G

10.00 ... 99.99 G

0.01 G

100.0...999.9G

0.1 G

1.000...2.000T

0.001T

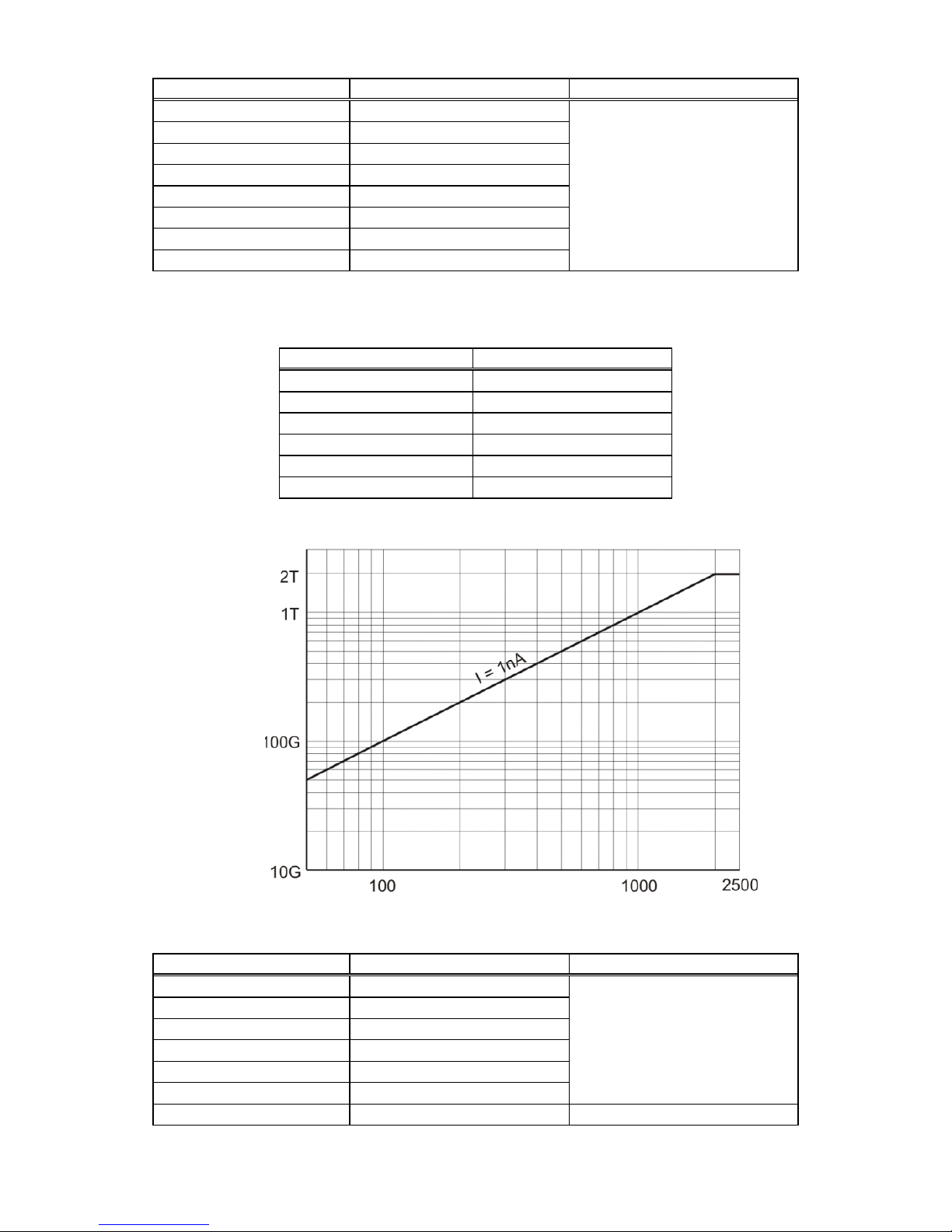

Approximate maximum values of the measured resistance, depending on the test voltage, are

presented in the table below. For other voltages the range limits may be read from the chart below.

Voltage

Test range

50V

50G

100V

100G

250V

250G

500V

500G

1000V

1.00T

2500V

2.00 T

Measurement with AutoISO-2500

Display range

Resolution

Basic uncertainty

0.0 ... 999.9 k

0.1 k

 (4 % m.v. + 20 digits)

1.000 ... 9.999 M

0.001M

10.00...99.99M

0.01 M

100.0 ... 999.9 M

0.1 M

1.000 ... 9.999 G

0.001 G

10.00 ... 99.99 G

0.01 G

100.0...400.0G

0.1 G

 (8 % m.v. + 20 digits)

Measured resistance [Ohm]
Test voltage [V]

OPERATING MANUAL MIC-2510 version 1.11

34

Approximate maximum values of the measured resistance, depending on the test voltage, are

presented in the table below.

Voltage

Test range

100V

100G

250V

250G

500V, 1000V, 2500V

400G

 Note: For insulation resistance below R

ISOmin

there is no accuracy specified because the meter

works with the adjustable current limit in accordance with the following formula

ISOnom

nomISO

ISO

I

U

R min

where:
R

ISOmin

- minimum insulation resistance measured without limiting the converter current

U

ISOnom

- nominal test voltage

I

ISOnom

- nominal inverter current (1mA)

Measurement of capacitance

Display range

Resolution

Basic uncertainty

1...999nF

1nF

(5% m.v. + 5 digits)

1.00...9.99μF

0.01μF

 Measurement of capacity is available only during R

ISO

measurement (when discharging the ob-

ject).

Low-voltage continuity and resistance measurement

Measurement of continuity of protective conductors and equipotential bondings with 200 mA
current

Measuring range according to IEC 61557-4: 0.10…999

Display range

Resolution

Basic uncertainty

0.00...19.99

0.01

(2% m.v. + 3 digits)

20.0...199.9

0.1

200...999

1

(4% m.v. + 3 digits)

 Voltage at open terminals: 8…16V
 Output current at R < 2 : I

SC

> 200mA

 Compensation of test leads resistance
 Measurements for both current polarizations

Measurement of resistance with low current

Range

Resolution

Basic uncertainty

0.0...199.9

0.1

 (2% m.v. + 3 digits)

200...999

1

(4% m.v. + 4 digits)

 Voltage at open terminals: 8…16V
 Output current >10mA
 Audio signal for measured resistance <10 ± 10%
 Compensation of test leads resistance

OPERATING MANUAL MIC-2510 version 1.11

35

Temperature Measurement

Range

Resolution

Basic uncertainty

-40.0 ... 99.9 ° C

0.1 ° C

(3 % m.v. + 8 digits)

-40.0 ... 211.8 ° F

0.1 ° F

(3 % m.v. + 16 digits)

 Measurement using an external probe

Other technical specifications

a) type of insulation .......................................................double, EN 61010-1 and IEC 61557 compliant

b) measurement category .............................................. IV 600V (III 1000V) according to EN 61010-1

c) degree of housing protection acc. to EN 60529......................................................................... IP54

d) power supply of the meter...................................................... SONEL L-1 battery pack 9.6 V, NiMH

e) parameters of AC adapter for the battery charge ............................... 100 V…240 V, 50 Hz…60 Hz

f) dimensions ........................................................................................................ 260 x 190 x 60 mm

g) meter weight .................................................................................................... approximately 1.3 kg

h) storage temperature ..................................................................................................... –20...+70C

i) working temperature ...................................................................................................... -10...+40C

j) temperature range suitable for initiating battery charging ........................................ +10C to +40C

k) temperatures at which loading is interrupted .................. below +5C and above (or equal to) +50C

l) humidity ............................................................................................................................. 20...90%

m) nominal temperature ........................................................................................................ +23 ± 2C

n) reference humidity ............................................................................................................. 40...60%

o) altitude (above sea level) .................................................................................................... <2000m

p) number of R

ISO

measurements ........................................................................... approximately 800

q) display ........................................................................................................................ LCD segment

r) memory of measurement results ................................................................. 990 cells, 11880 entries

s) data transmission ........................................................................... USB connection or wireless link

t) quality standard ........................... development, design and manufacturing are ISO 9001 compliant

u) the device meets the requirements of IEC 61557 standard
v) the product meets EMC requirements (immunity for industrial environment) according to the follow-

ing standards ................................................................. EN 61326-1:2006 and EN 61326-2-2:2006

11.2 Additional data

Data on additional uncertainties are useful mainly when the meter is used in non-standard condi-

tions and for metrological laboratories for the purpose of calibration.

11.2.1 Additional uncertainties according to IEC 61557-2 (R

ISO

)

Significant parameter

Designation

Additional uncertainty

Position

E

1

0%

Supply voltage

E

2

0% (BAT is not lit)

Temperature 0...35°C

E

3

0.1%/ºC

11.2.2 Additional uncertainties according to IEC 61557-4 (R ±200mA)

Significant parameter

Designation

Additional uncertainty

Position

E

1

0%

Supply voltage

E

2

0.5% (BAT is not lit)

Temperature 0...35°C

E

3

1.5%

OPERATING MANUAL MIC-2510 version 1.11

36

12 Equipment

12.1 Standard equipment

Standard set of equipment supplied by the manufacturer includes:

 mater MIC-2510 – WMPLMIC2510
 set of test leads:

 5kV leads, 1.8m, cat. IV 1000V terminated with banana plugs - 2 pcs. (red – WAPRZ1X8REBB

and blue – WAPRZ1X8BUBB)

 5kV shielded lead, 1.8m, cat. IV 1000V, terminated with banana plugs - ( black –

WAPRZ1X8BLBB

 USB interface cable - WAPRZUSB
 accessories

 5kV crocodile clip, cat. IV 1000V – 3 pcs. (black- WAKROBL32K07, red – WAKRORE32K07

and blue – WAKROBU32K07)

 blade probe with banana socket – 2 pcs. (red– WASONREOGB2 and black –

WASONBLOGB2)

 battery pack – WAAKU10
 adapter for battery pack charging – WAZASZ7
 CD SONEL
 meter harness – WAPOZSZE2
 carrying case L-4 – WAFUTL4
 operating manual
 calibration certificate

12.2 Optional accessories

Additionally, the following items that are not included in the scope of standard equipment can
be purchased from the manufacturer or the distributors:

WAPRZ005BLBBE5K

 5m shielded lead, black, cat. IV 1000V

WAPRZ005REBB5K

 5kV lead, 5m, red, with banana plugs

WAPRZ005BUBB5K

 5kV lead, 5m, blue terminated with ba-

nana plugs

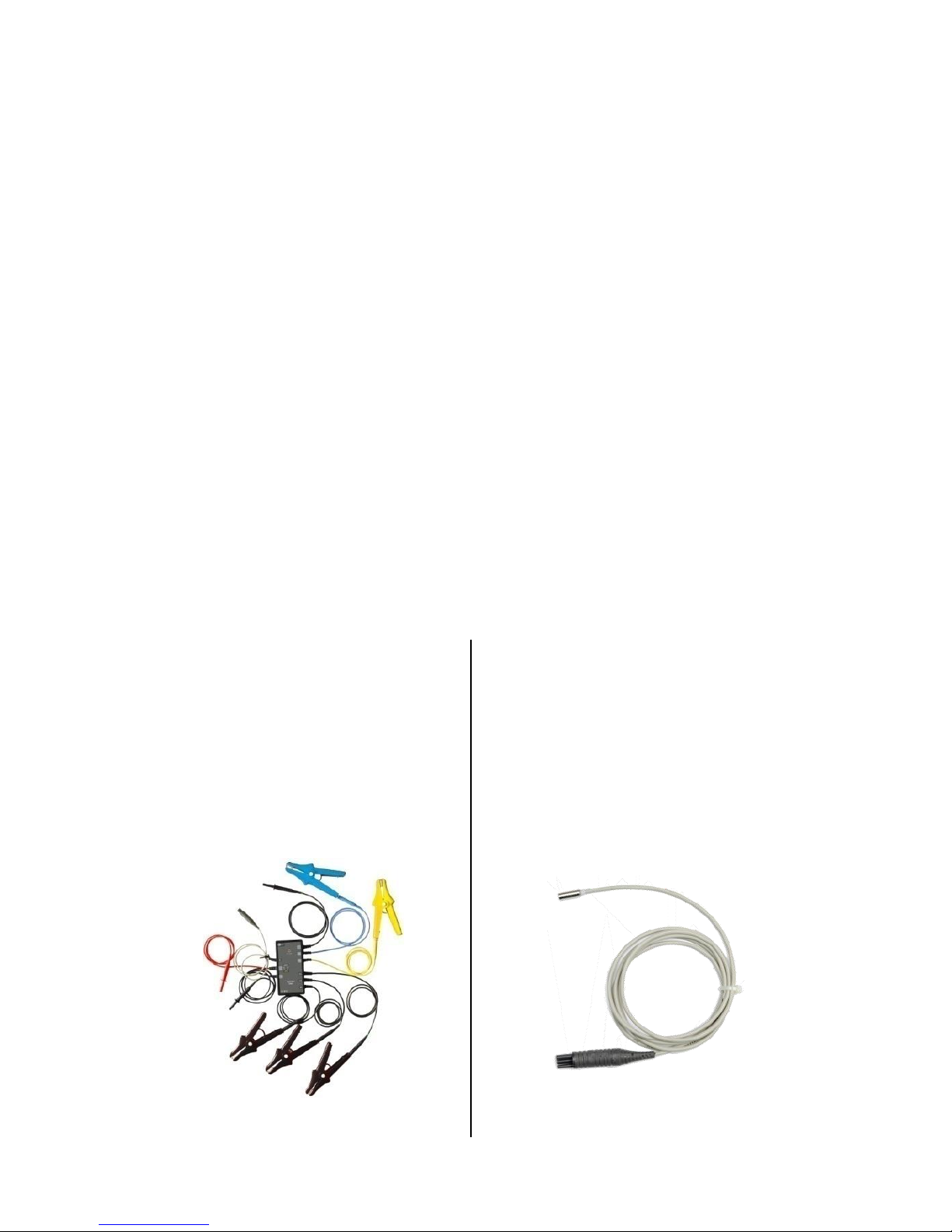

WAADAAISO25

 AutoISO-2500 adapter

WAPRZ010BLBBE5K

 10m shielded lead, black, cat. IV 1000V

WAPRZ010REBB5K

 5kV lead, 10 m, red, with banana plugs

WAPRZ010BUBB5K

 5kV lead, 10m, blue terminated with ba-

nana plugs

WASONT1

 temperature probe ST-1

OPERATING MANUAL MIC-2510 version 1.11

37

WAADAUSBOR1

 OR-1 radio receiver for data transmis-

sion

WAPROSONPE5

 "SONEL Pomiary Elektryczne" ( SONEL

Electrical Measurements) - software for
generating measurement reports

WAPRZLAD12SAM

 Cable for charging the accumulator

package from the car cigarette lighter
socket (12V)

LSWPLMIC2510

 calibration certificate

Note
The software is supported by the following systems: Windows XP (Service Pack 2), Win­dows Vista and Windows 7.

13 Manufacturer

The manufacturer of the device and provider of warranty and post-warranty service:

SONEL S.A.

ul. Wokulskiego 11

58-100 Świdnica

Poland
tel. [phone]
fax [phone]

E-mail: [email protected]

Web page: www.sonel.pl

NOTE

Service repairs must be performed solely by the manufacturer.

OPERATING MANUAL MIC-2510 version 1.11

38
