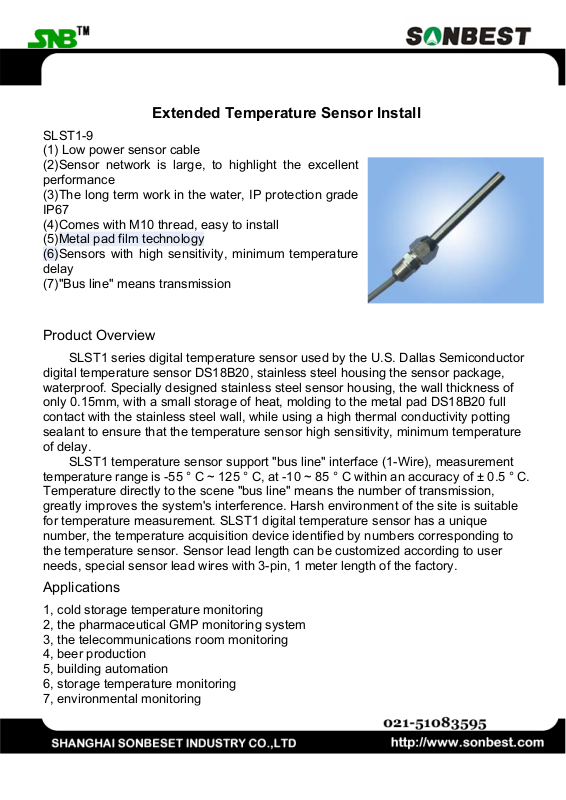

Extended Temperature Sensor Install
+086 021 51083595
Extended Temperature Sensor Install
SLST1-9
(1) Low power sensor cable
(2)Sensor network is large, to highlight the excellent
performance
(3)The long term work in the water, IP protection grade
IP67
(4)Comes with M10 thread, easy to install
(5)Metal pad film technology
(6)Sensors with high sensitivity, minimum temperature
delay
(7)"Bus line" means transmission
Product Overview
SLST1 series digital temperature sensor used by the U.S. Dallas Semiconductor
digital temperature sensor DS18B20, stainless steel housing the sensor package,
waterproof. Specially designed stainless steel sensor housing, the wall thickness of
only 0.15mm, with a small storage of heat, molding to the metal pad DS18B20 full
contact with the stainless steel wall, while using a high thermal conductivity potting
sealant to ensure that the temperature sensor high sensitivity, minimum temperature
of delay.
SLST1 temperature sensor support "bus line" interface (1-Wire), measurement
temperature range is -55 ° C ~ 125 ° C, at -10 ~ 85 ° C within an accuracy of ± 0.5 ° C.
Temperature directly to the scene "bus line" means the number of transmission,
greatly improves the system's interference. Harsh environment of the site is suitable
for temperature measurement. SLST1 digital temperature sensor has a unique
number, the temperature acquisition device identified by numbers corresponding to
the temperature sensor. Sensor lead length can be customized according to user
needs, special sensor lead wires with 3-pin, 1 meter length of the factory.
Applications
1, cold storage temperature monitoring
2, the pharmaceutical GMP monitoring system
3, the telecommunications room monitoring
4, beer production
5, building automation
6, storage temperature monitoring
7, environmental monitoring
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 1 Total 4
Page 2
Extended Temperature Sensor Install
8, process temperature monitoring
9, air monitoring
Technical parameters
+086 021 51083595
No. Project Content
1
2
3
Built-in sensor
Temperature
accuracy
Temperature
DS18B20
± 0.5 ℃ (-10 ° ~ +85 ° C range)
-55℃～+125℃
range
4
5
6
Temperature
resolution
9-12 bit (0.0625 ℃)
Temperature rate 750ms (12 bit resolution)
Power
3V-5.5V
Requirements
7
Support the
＞100m
communication
cable length
8
Operating
-55℃～+80℃
Environment
9
10
Material
Dimensions φ6mm length 60mm optional
314 stainless steel
Pin Definition
Red --- VCC power is, then the positive 5V DC
Blue --- DQ signal pin
Black --- GND power the negative, then negative DC 5V
Dimensions
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 2 Total 4
Page 3
Extended Temperature Sensor Install
+086 021 51083595
Communication protocol
Dallas Semiconductor America (DALLASSEMICONDUCTOR) specific to a single bus
(1-Wire Bus) technology uses a single signal line, can transmit the clock, and can
transfer data, but data transmission is bidirectional, so that a single bus line simple,
less hardware overhead, low cost, easy expansion and maintenance and so on the
bus.
Similar selection
SLST1-1
Industrial-type
SLST1-2 mount
SLST1-3 shielded
SLST1-4 dedicated
refrigerator
SLST1-5-specific soil
SLST1-9 installation
lengthened
SLST1-13 SMD-type
ceramic
SLST1-6 Industrial
lengthened
SLST1-10 plug-in
SLST1-14 aircraft
interpolated
SLST1-7 shield
elongated
SLST1-11 channels
dedicated
SLST1-15 bearing
special
SLST1-8 deep detection
SLST1-12 SMD type
SLST1-16 mine-specific
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 3 Total 4
Page 4
Extended Temperature Sensor Install
Ordering Information
+086 021 51083595
No. Model Order Remarks
1 SLST1-8 SLST1-8-0160 0160 01 Table length in the 1 m length stainless
steel tube 60 Table 60
