CM01-type protective T-bus connector +

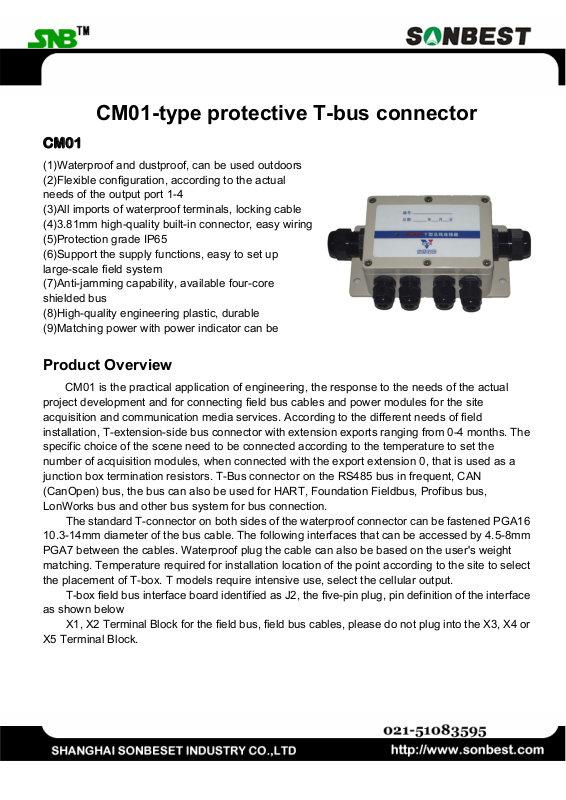

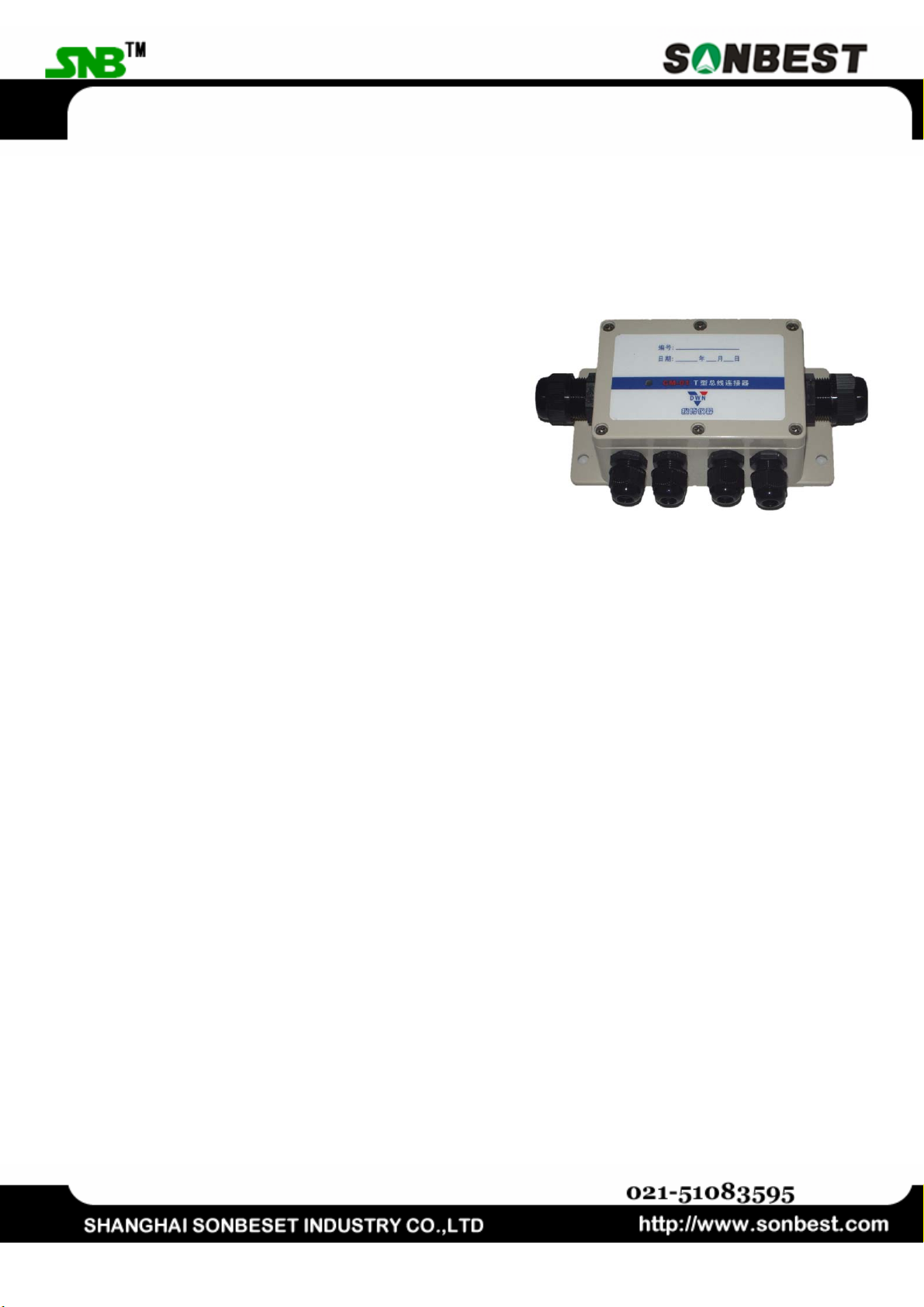

CM01-type protective T-bus connector
CM01
(1)Waterproof and dustproof, can be used outdoors
(2)Flexible configuration, according to the actual
needs of the output port 1-4
(3)All imports of waterproof terminals, locking cable
(4)3.81mm high-quality built-in connector, easy wiring
(5)Protection grade IP65
(6)Support the supply functions, easy to set up
large-scale field system
(7)Anti-jamming capability, available four-core
shielded bus
(8)High-quality engineering plastic, durable
(9)Matching power with power indicator can be
086 021 51083595
Product Overview
CM01 is the practical application of engineering, the response to the needs of the actual
project development and for connecting field bus cables and power modules for the site
acquisition and communication media services. According to the different needs of field
installation, T-extension-side bus connector with extension exports ranging from 0-4 months. The
specific choice of the scene need to be connected according to the temperature to set the
number of acquisition modules, when connected with the export extension 0, that is used as a
junction box termination resistors. T-Bus connector on the RS485 bus in frequent, CAN
(CanOpen) bus, the bus can also be used for HART, Foundation Fieldbus, Profibus bus,
LonWorks bus and other bus system for bus connection.
The standard T-connector on both sides of the waterproof connector can be fastened PGA16
10.3-14mm diameter of the bus cable. The following interfaces that can be accessed by 4.5-8mm
PGA7 between the cables. Waterproof plug the cable can also be based on the user's weight
matching. Temperature required for installation location of the point according to the site to select
the placement of T-box. T models require intensive use, select the cellular output.
T-box field bus interface board identified as J2, the five-pin plug, pin definition of the interface
as shown below
X1, X2 Terminal Block for the field bus, field bus cables, please do not plug into the X3, X4 or
X5 Terminal Block.
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 1 Total 4
Page 2
CM01-type protective T-bus connector +
086 021 51083595
Applications
1, RS485 bus 2, CAN (CanOpen) Bus 3, HART bus 4, Foundation Fieldbus
5, Profibus bus 6, LonWorks bus 7, bus cable to be connected to other occasions
Technical parameters
No. Project Description
1
2
3
4
5
6
7
Support the bus cable
diameter
Support the
extension cable
diameter
Protection class
Support the
communication cable
length
Operating
Environment
Material
Mounting Hole Size
10.3-14mm
4.5-8mm
IP65
＞100m
-55℃～+80℃
Engineering Plastics
146X50（
See detailed dimensions）
Pin Definition
When the T-box is connected with the power module to CAN bus system, for example,
the connector pins on the motherboard are defined as follows
Grade Help Cable core color
L
N
T+
T-
GND
T-Bus-site AC power input connector Red
T-Bus-site AC power input connector Black
Dominant signal field Yellow
Implicit signal field Blue
System Ground Shield
When only the system bus connection, no additional power supply module with
Grade Help Cable core color
L
N
T+
T-
GND
DC voltage input terminal (positive) Red
DC voltage input terminal (negative) Black
Dominant signal field Yellow
Implicit signal field Blue
System Ground Shield
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 2 Total 4
Page 3

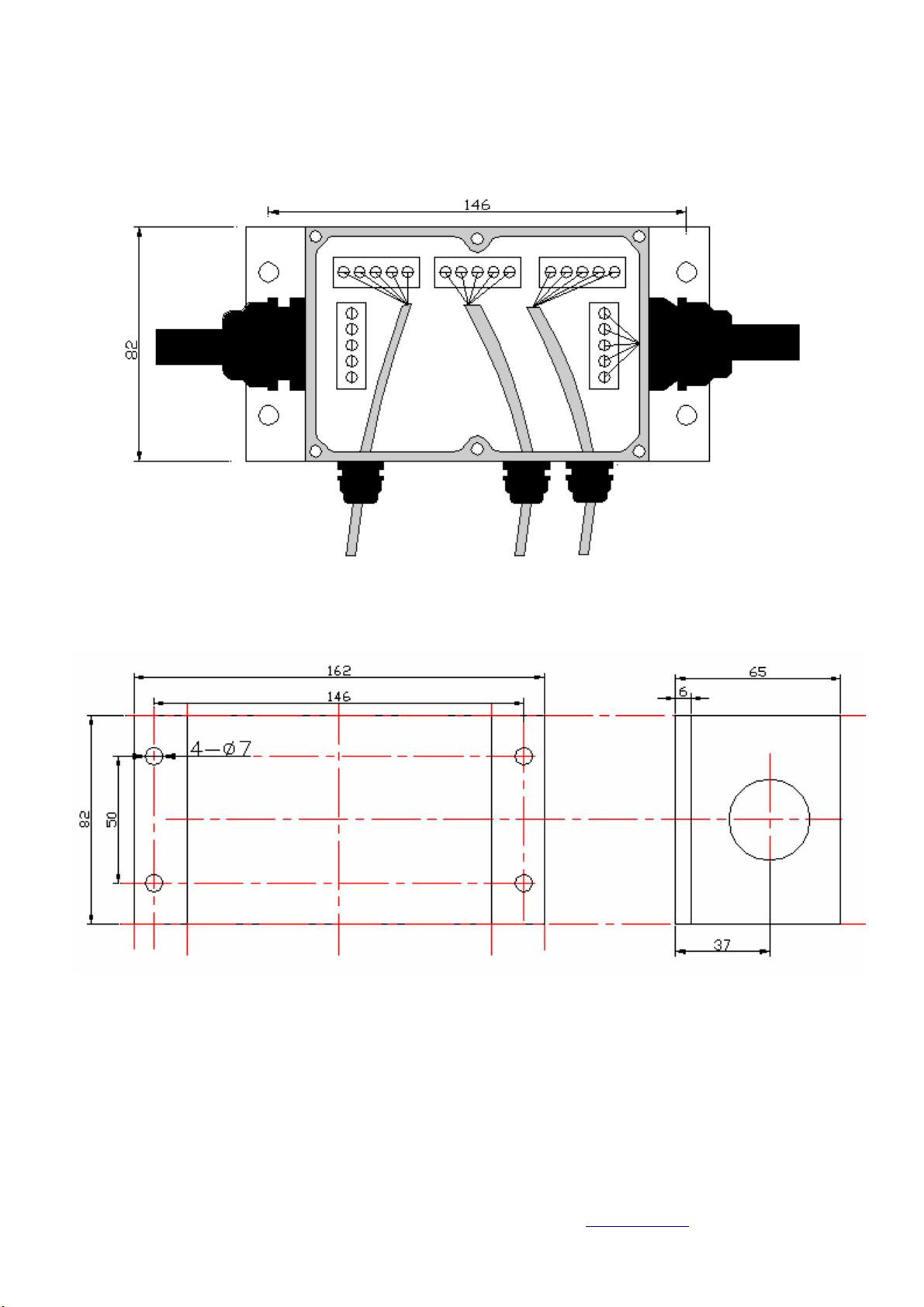

Wiring diagram
CM01-type protective T-bus connector +
086 021 51083595
Dimensions
Front Side view
Installation
Installation must be marked on the wall the size of four as shown above inflation spiral tube, and then
tighten the installation.
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 3 Total 4
Page 4
CM01-type protective T-bus connector +

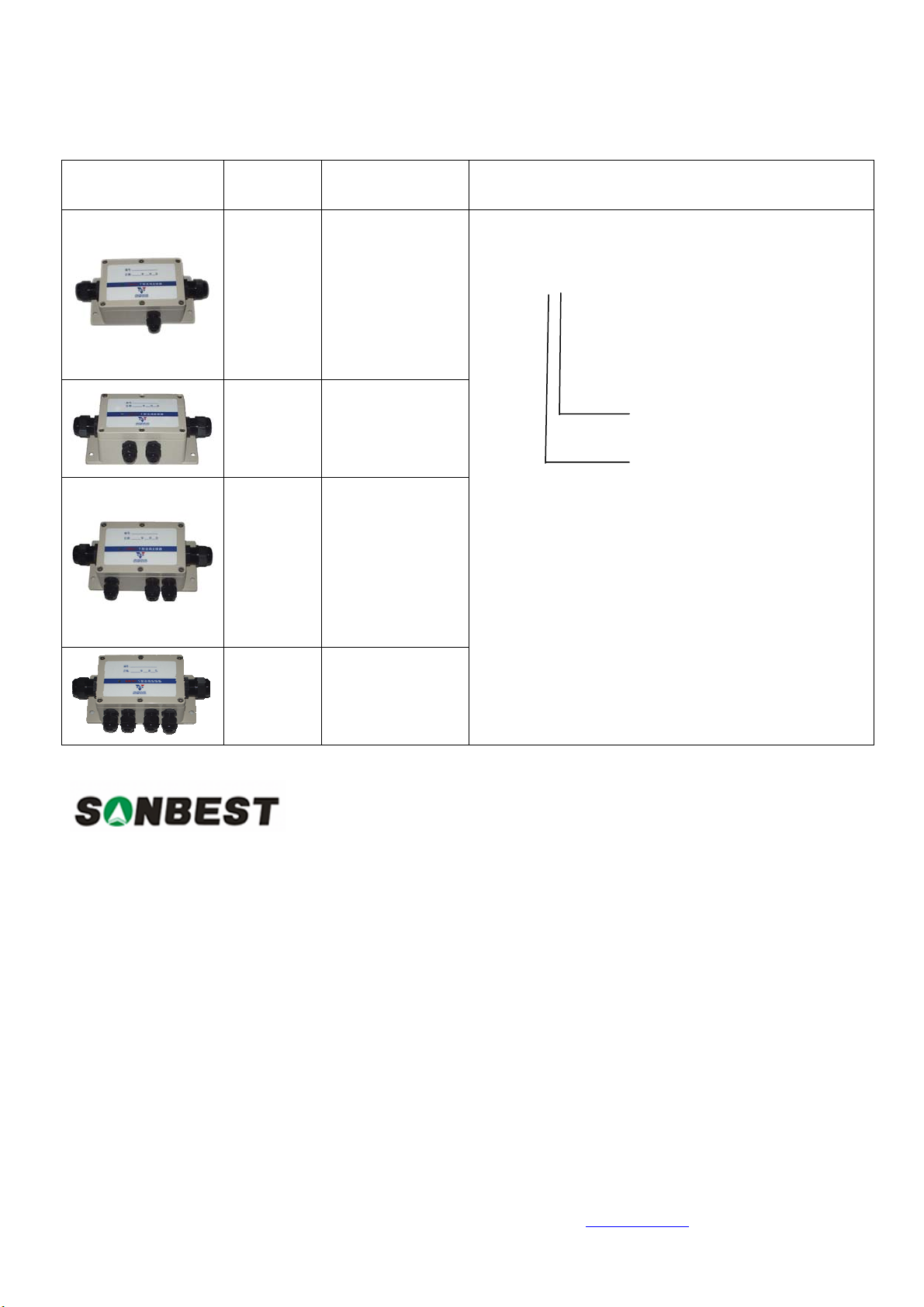

Ordering and Selection
086 021 51083595
Pictures Product
Type
CM01-1
CM01-2
CM01-3
Help Order
Single Line
Output
Dual Line
Output
Three Line Output
CM01-XX
Single Line output, with power, then the order
number:CM01-1N
Without power, the order number for the CM01-1
P with power and air power for
the non-
Extension Number
CM01-4
ShangHai Sonbest Industry Co,.Ltd
Tel：+86 021 51083595
Website：http://www.sonbest.com
ShangHai , China
Four regional
output
ShangHai Sonbest Industry Co,.Ltd Website：http://www.sonbest.com Page 4 Total 4
