1. Copyright and Disclaimer

SONASONIC and are trademarks that belong to Sonasonic Technologies Pvt. Ltd.

The user manual may be changed without prior

notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of SONASONIC, or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall SONASONIC be liable for direct, indirect, special, incidental, or consequential damages (including

but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability

or illegality to use the product or documentation.

2. Applications

3. Product Function and Specifications

3.1 Product Function

 Vehicle Real Time Tracking  Car Security/Anti-Hijack  Tracking for Motorcycles, Yachts and Boats  Fleet Management

 U-blox 6 GPS and Quad Band GSM 850/900/1800/1900Mhz  AGPS ( with GSM Base Station ID)



Waterproof (IP66)

 Inbuilt GPS and GSM Antenna  Track by SMS/GPRS (TCP/UDP)

 Track on Demand



Track by Time Interval

 Track by Distance Interval  Track on Mobile Phone  Internal 8Mb Memory for Logging  Inbuilt Motion Sensor  850mAh Internal Backup Battery  SOS Alarm  Geo-fence Alarm

3.2 Specifications

 GPS Blind Area Alarm  Low Battery Alarm  Speeding

Alarm

 Tow Alarm  External Power Cut Alarm  Mileage Report  Engine Cut (Engine immobilization)  Inbuilt Super Magnet (optional)  OTA  I/O: 2 Digital Input (1 negative triggering and 1 positive triggering), 1 Analog Input Detection, 1 Output

Items Specifications

Dimension 110x72x39mm

Weigh t 170g

Input Voltage DC 11V~36V/1.5A

Back-up Battery 850mAh/3.7V

Power consumption 65mA standby current

Operating

Temperature

-20 ℃~55℃

Humidity 5%~95%

Work Time 43 hours in power-saving mode and 10 hours in normal mode

LED 2 LED lights to show GPS, GSM and other status

Button 1 SOS and 1 power on/off

Microphone None

Memory 8M Byte

Sensor Motion Sensor

GSM Frequency GSM 850/900/1800/1900MHz

GPS Chip Latest U-blox 6 GPS chipset, 50 channels all-in-view tracking

GPS Sensitivity -161dB

Positioning Accuracy 10 meters, 2D RMS

I/O 2 Digital Input (1 negative triggering and 1 positive triggering)

1 Analog Input Detection

1 Output

1 USB port for configuration only

4. S4 and Accessories

5. View

6. First Use

6.1 Install SIM Card

Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and receive SMS);

Check that the SIM Lock code is turned off;

If you require the function of sending an SMS location report to the authorized phone number when it makes

a call to the S4, please make sure the SIM installed supports displaying caller ID.

Before installing the SIM card, turn off the power for S4.

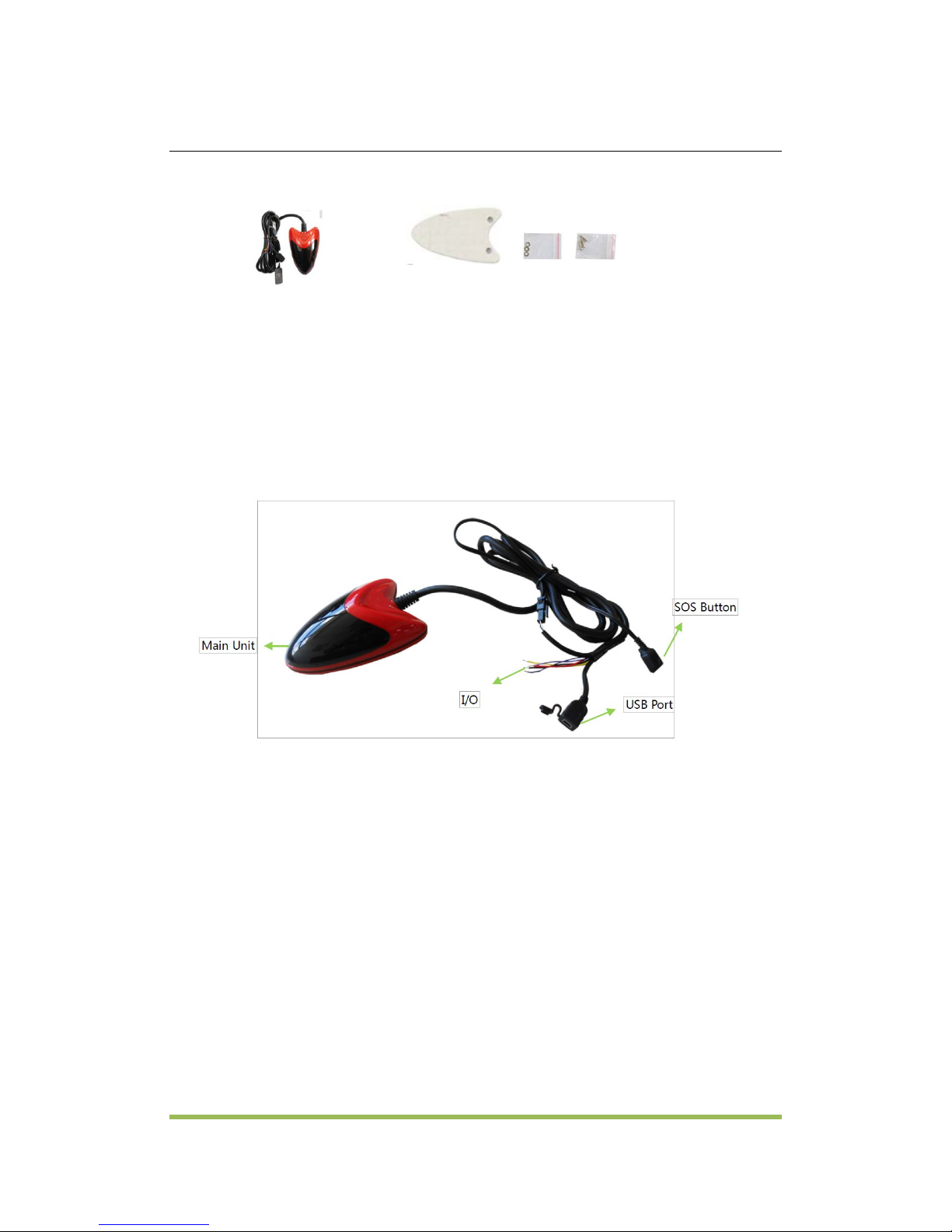

S4 with SOS

Button

Battery and I/O

Cable

3M Sticker

Screws

Unscrew and remove cover.

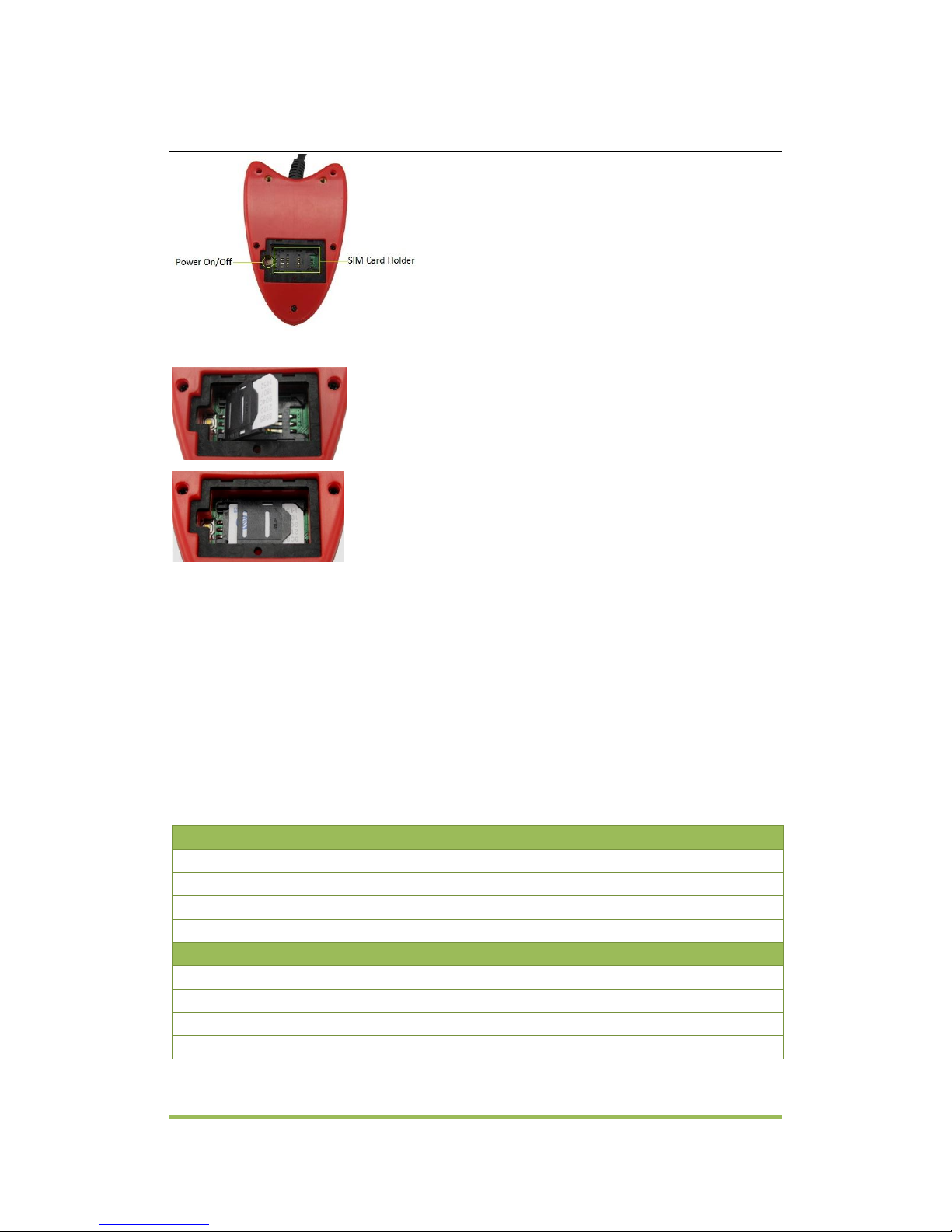

Insert the SIM card by sliding it into the card holder with the chip module facing to the connectors on PCB.

Replace the cover and screw it up.

6.2 Charging

Please connect GND (-Black) and Power (+Red) wires to 12V or 24 external power and make sure to charge the

battery for at least 3 hours. 8 hours is highly appreciated.

Configuration and testing suggested prior to installation.

6.3 LED Indications

Press and hold the Power On/Off button for 3~5 seconds to turn on/off S4

GPS LED (Blue)

On

One button is pressed or input is active.

Flashing ( every 0.1 second)

Initializing or back-up battery power is low

Flashing (0.1 second on and 2.9 seconds off)

S4 has a GPS fix

Flashing (1 second on and 2 seconds off)

S4 has no GPS fix

GSM LED (Green)

On

A call is coming in / a call is being made

Flashing ( every 0.1 second)

Initializing

Flashing (0.1 second on and 2.9 seconds off)

S4 is connected to the GSM network

Flashing (1 second on and 2 seconds off)

S4 is not connected to the GSM network

6.4 Track by Calling

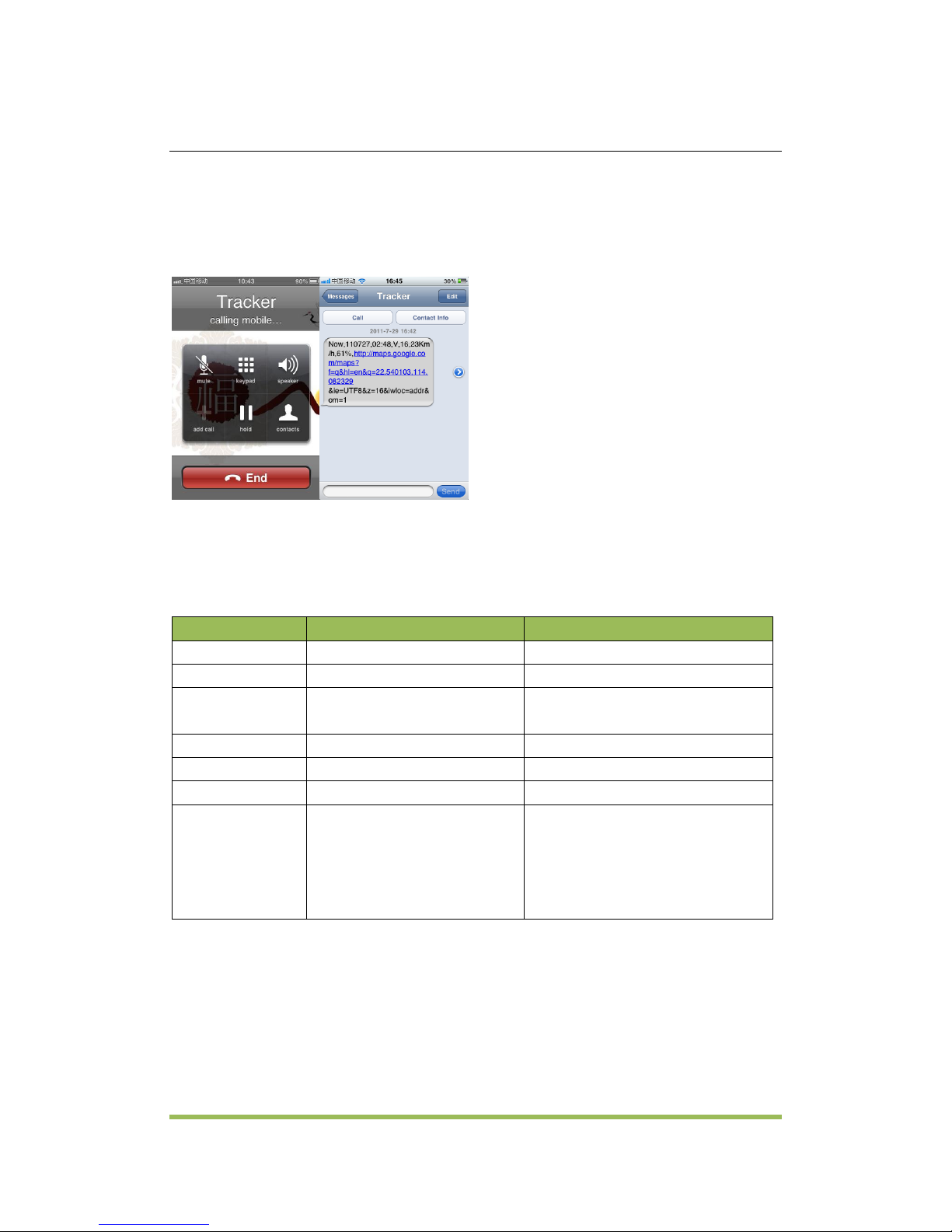

Make a call to S4 and it will report with one SMS.

For example,

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

Click on the link then the location can be shown directly on Google Maps on your mobile phone.

Report description:

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

Content

Description

Note

Now

Current Location

Alarm Type

110721 16:40

Date & Time: 21 July, 2011, 16:40pm

Date & Time in YYMMDD HH:MM

V

No GPS fixed

GPS Status Indicator:

A = valid, V = invalid

10

GSM signal=10

GSM Signal. Decimal Digit (0~31)

0Km/h

Speed=0

KM/h. Decimal digit

97%

Battery Power: 97%

Battery Power Balance (Percentage)

http://maps.google.c

om/maps?f=q&hl=en

&q=22.540103,114.0

82329&ie=UTF8&z=1

6&iwloc=addr&om=1

Latitude: 22.513015

Longitude: 114.057235

Google Maps Web Link with Latitude and

Longitude. Click on the link to get the

location.

If your mobile cannot visit HTTP websites, input the latitude and longitude into Google Maps as the following

picture shows to get the position:

Password is 4 digits only and defaulted as 0000. You can change the password by SMS command.

S4 will only accept commands from a user with the correct password and report SMS report to the user. If

preauthorized phone number was set, only this phone number can receive SMS reports.

7. Installation

7.1 Install I/O Cable

The I/O cable is a 8-pin cable including power, analog input, negative input, output and USB port for

configuration.

7.1.1 Power/GND (PIN

1, PIN2)

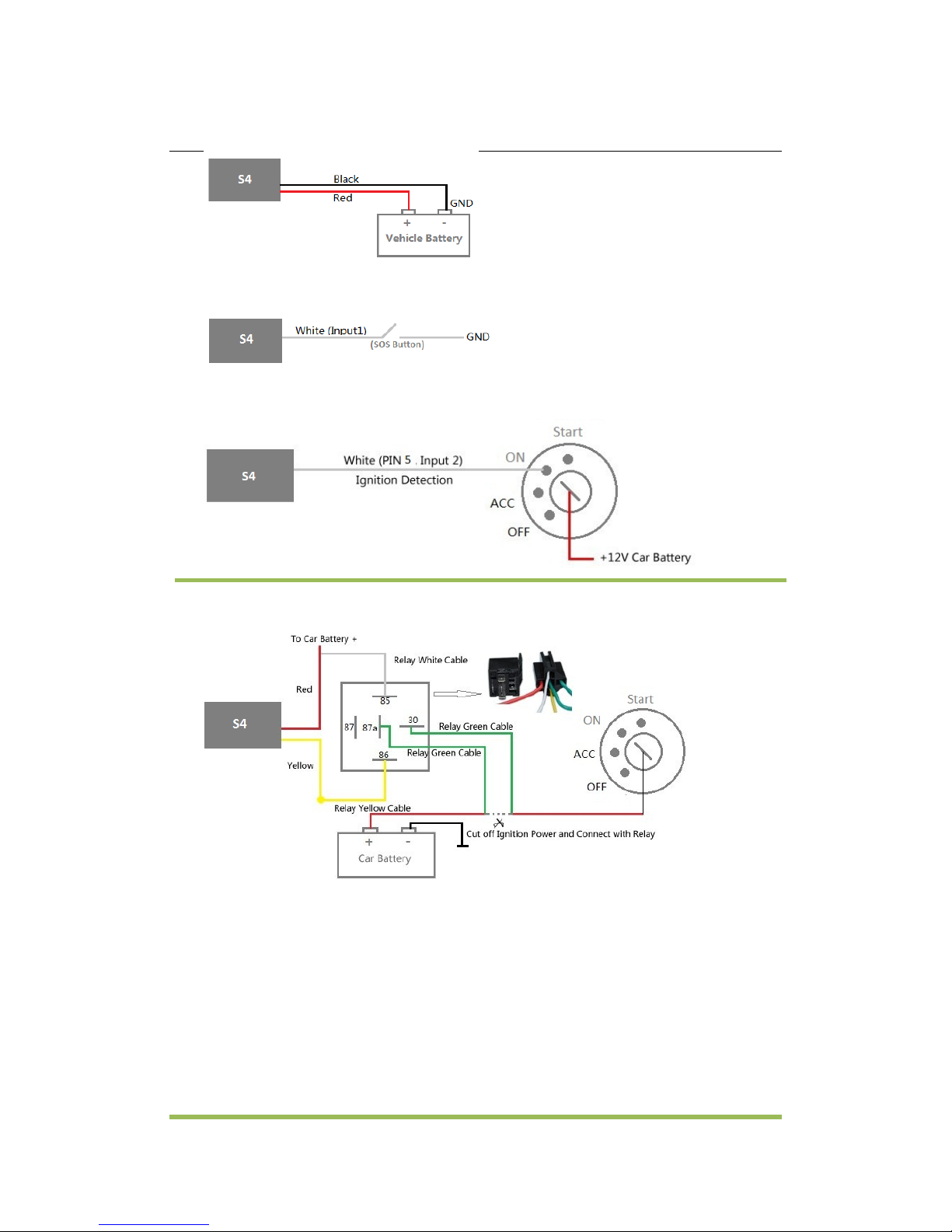

Connect GND (-Black) and Power (+Red) wires to the battery of motorcycle/vehicle.

1

Power(+)

2

GND(-)

3

GND(-) 4 Input1(-) 5 Input2(+)

6

AD1

7

Out1

8 9 10

USB Port

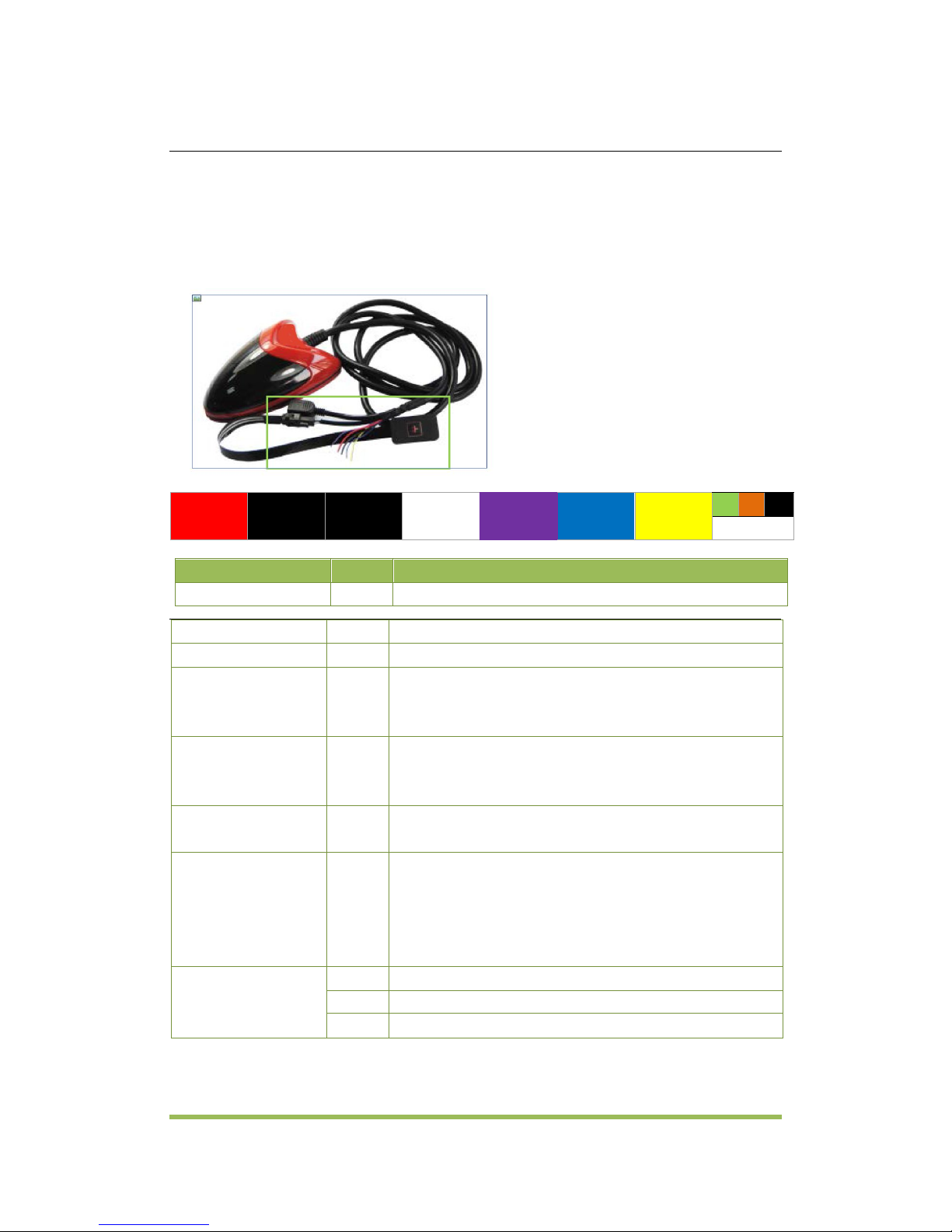

PIN Color Description

1 Power Red DC In (power source). Input voltage: 9V~36V. 12V suggested.

2 GND Black Ground

3 GND Black Ground, for connecting with temperature/fuel sensor etc.

4 Input1 White Digital Input (negative triggering). Socket for SOS panic button.

It also can be used for detecting the status of vehicle door.

Vehicles from China, Korea, Japan are normally negative triggering.

5 Input2 Purple Digital Input2 (positive triggering). It can be used for detecting ACC,

and the status of vehicle door. Vehicles from Europe, America are

normally positive triggering.

6 AD Blue 12 Bits resolution analog input. 0~6.6V DC detection.

It can be used to connect with fuel sensor etc.

7 Out Yellow Output. Low voltage (0V) when effective and open drain when

ineffective.

Output open drain sink voltage (ineffective): 45V max.

Output low voltage sink current (effective): 200mA max.

It can be used to connect with relay for engine immobilization.

8/9/10 USB Port

(For Configuration Only)

Green

TTL232 Rx (S4 Tx)

Orange

TTL232 Tx (S4 Rx)

Black Ground

7.1.4 Output (PIN7)

7.1.2 Digital Input (PIN 3, Negative Triggering)/SOS

7.1.3 Digital Input (PIN5, Positive Triggering)

7.2 Mount the S4 unit

Three mounting options:

Option 1:

Using 3M sticker

Option 2:

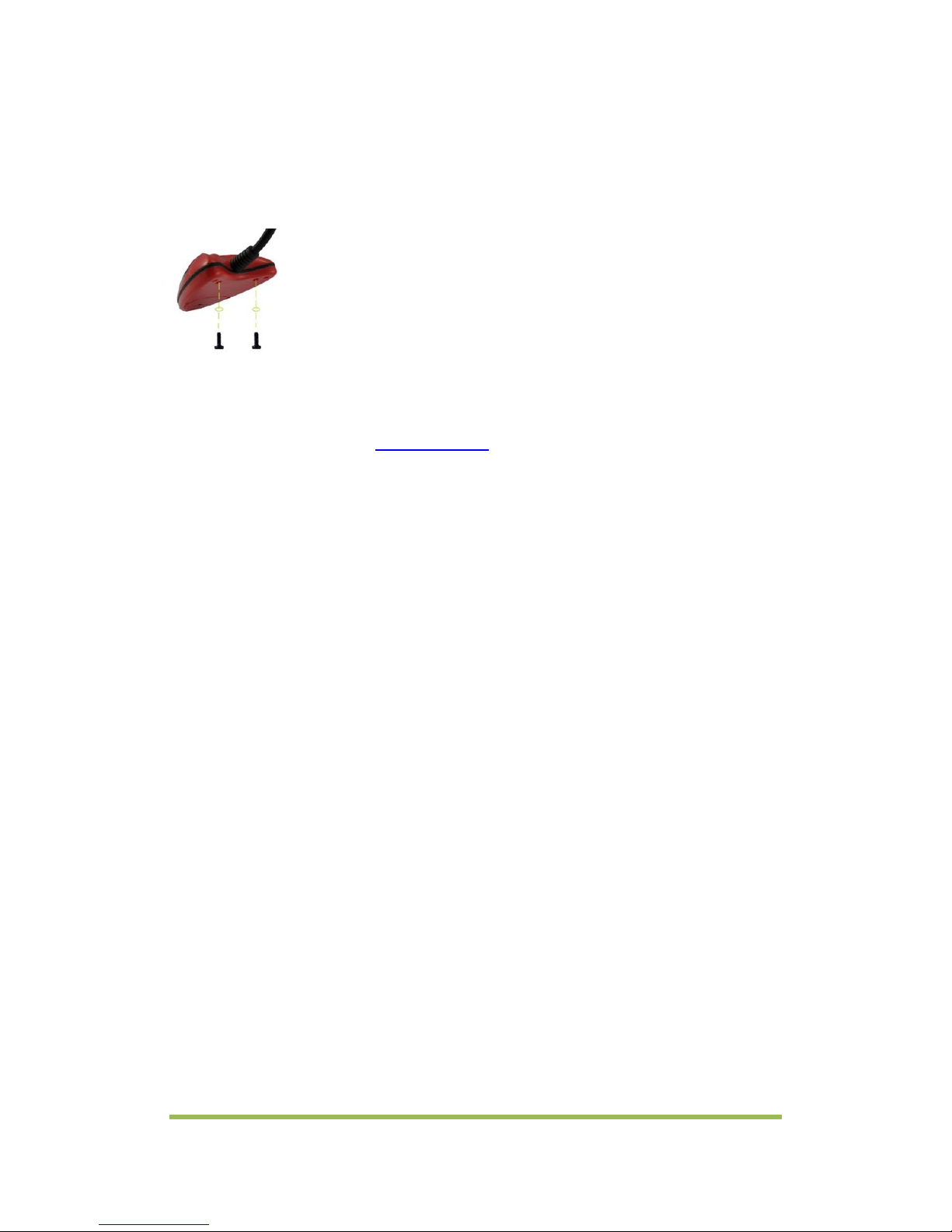

Using Screws

Option 3:

Using internal super magnet

Please do not hesitate to email us at info@sonasonic.com if you have any questions.
