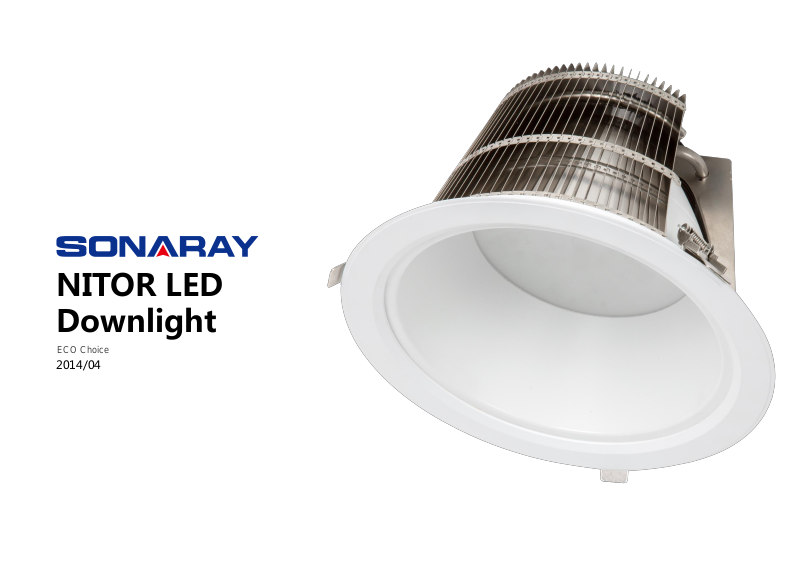

NITOR LED
Downlight
ECO Choice
2014/04
Page 2
• UGR＜19
• CRI≥85
Main Applications
NITOR LED Downlight
• Rapid and efficient liquid
cooling system
• Effective reflecting
surface coating
Specification NITOR LED Downlight
DL-3045
System Power: 45W
Luminous flux: 3375lm
Luminous efficiency: 75lm / w
CCT: 5000K (Optional 3000K)
CRI: ≥ 85
Beam angle: 75 °
UGR：＜19
Material: Aluminum
Power supply: External
Input voltage: AC90-277V, 50/60Hz
Output voltage: 30-40V
Output current：1.04A
Power factor: ≥ 0.9
Protection level：IP20
Weight: 1.5kg
Working temperature: -25 ° C ~ +40 ° C
Average life: ≥ 50000hrs
Light Distribution Map
1 5 0 ° 1 2 0 ° 1 2 0 ° 1 8 0 ° 1 5 0 °
Φ235mm
270mm
Illuminance Distribution
H(m)
E(lx)
170mm
D(cm)
Shopping Malls Atrium Airport Terminals
Show Room Hotel Lobbies
9 0 °
6 0 °
3 0 °
( c d )
400
800
1200
1600
2000
0
C0/180
C90/270
9 0 °
6 0 °
3 0 °
1
2
3
4
5
1648
412
183
103
66
244
489
733
977
1221
Page 3
NITOR LED Downlight
）
）
Applications
Design Space Size：L10 W10 H8(m)
Vertical section
2m
2m 2m 2m
10m
Design illumination ：200lx
Traditional Lamp
70W
Equivalent of one to
one replacement
110W Ceramic Metal
Horizontal illuminance distribution
150
210
240
8m
10m
※The curve graph shows the illumination unit ：（lx）
Lamp
Light Source CMH
Luminous flux（lm） 5120
Lifetime（hrs） 8000
Installation Height（m
Maintained average
illuminance（lx）
Total Power （W）
※ The traditional lamp power of light source is about 80% of the Total Power ..
※The luminous flux of whole lamp is about 50% of light source.
10m
180
120
Traditional Lamp
8
195
1740
Halide Lamp
Same
亮度
Brightness
相 同
设计照度：
20lx
Energy
saving 60％
Reduce
4 sets
of
fixture
5 times
longer
lifetime
Horizontal illuminance distribution
150
210
150
※The curve graph shows the illumination unit ：（lx）
Lamp
Light Source LED
Luminous flux（lm） 3375
Lifetime（hrs） 50000
Installation Height（m
Maintained average
illuminance（lx）
Total Power （W）
NITOR 10寸 45W LED
Downlight
( DL-3045 )
150
10m
180
150
10m
DL-3045
8
203
720
