LED High Bay Light
VARIO Series
2013/10
Page 2
LED High Bay Light VARIO Series
RoHS
IP65
A Variety type of
Combinations
Modularization
The modularization design of Vario
series High Bay Light makes the
chip can be replaced and as simple
as replacing light bulbs, we don't
have to replace the whole lamp but
easy replace to use the most
advanced LED chip in future.
Upgrade Protection
Design
IP65
The Protection range of
Vario Series High Bay Light
is upgraded to IP65 for
against harsh environment.
Ambient temperature
-25℃—﹢55℃
Anti-corrosion and oxidant
For the traffic shed, toll station
that outdoor places easy to
corrosion, or for the washing and
dyeing workshop, food factories
that easy to lead to the oxidation
resistance of indoor
environment, It is optional to
have the resistance acid dust
proof and antioxidant functions.
High Efficiency and
Environment-friendly
CCT
High Output
The luminous efficacy is high at
130lm/w ， which not only
shorten ROI but also save energy
and protect environment.
Complies to Photo-Biological
Safety Standards
EN62471:2008
Safety Assurance on human eyes
and skin.
Obtained LM-80 Certification
70% lumens maintained after
35,000 hours of operation.
Accordance with the Standard
ANSI C78.377
Complies to “3-Step MacAdam
Eclipses” (Chromaticity control
standard) ，Sonaray uses LED chip
with the best chromaticity.
High Efficiency Energy Saving
Pursuing more energy
saving ,higher efficiency, achieved
40%-80% energy saving
Convenient
maintenance
Modularization design makes
the maintenance of lamps
(simple replacement chips,
power supply) convenient and
no longer needed the mechanic,
reduce cost.
High CRI
Ra＞80, The space color have
more layers.

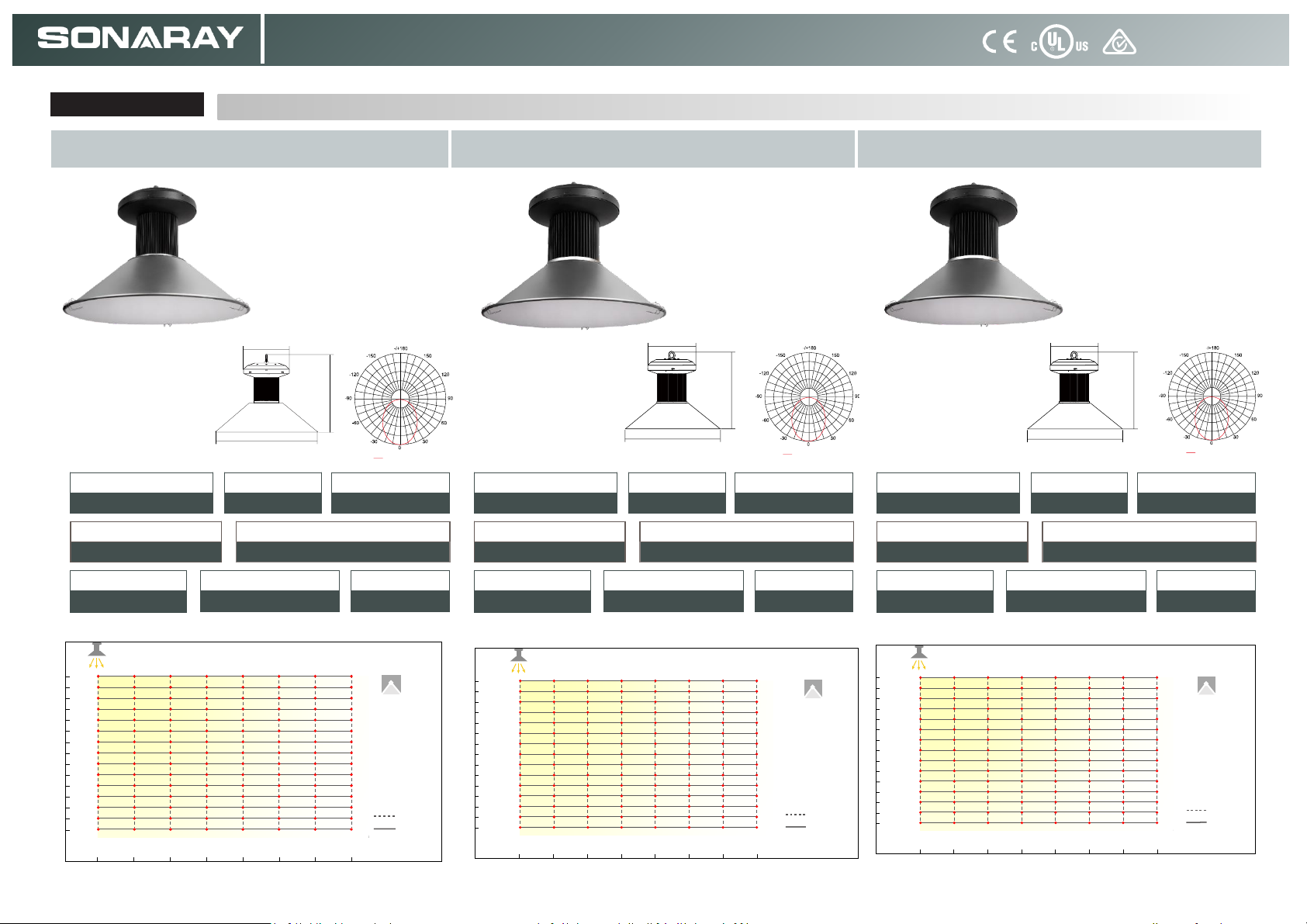

Page 3

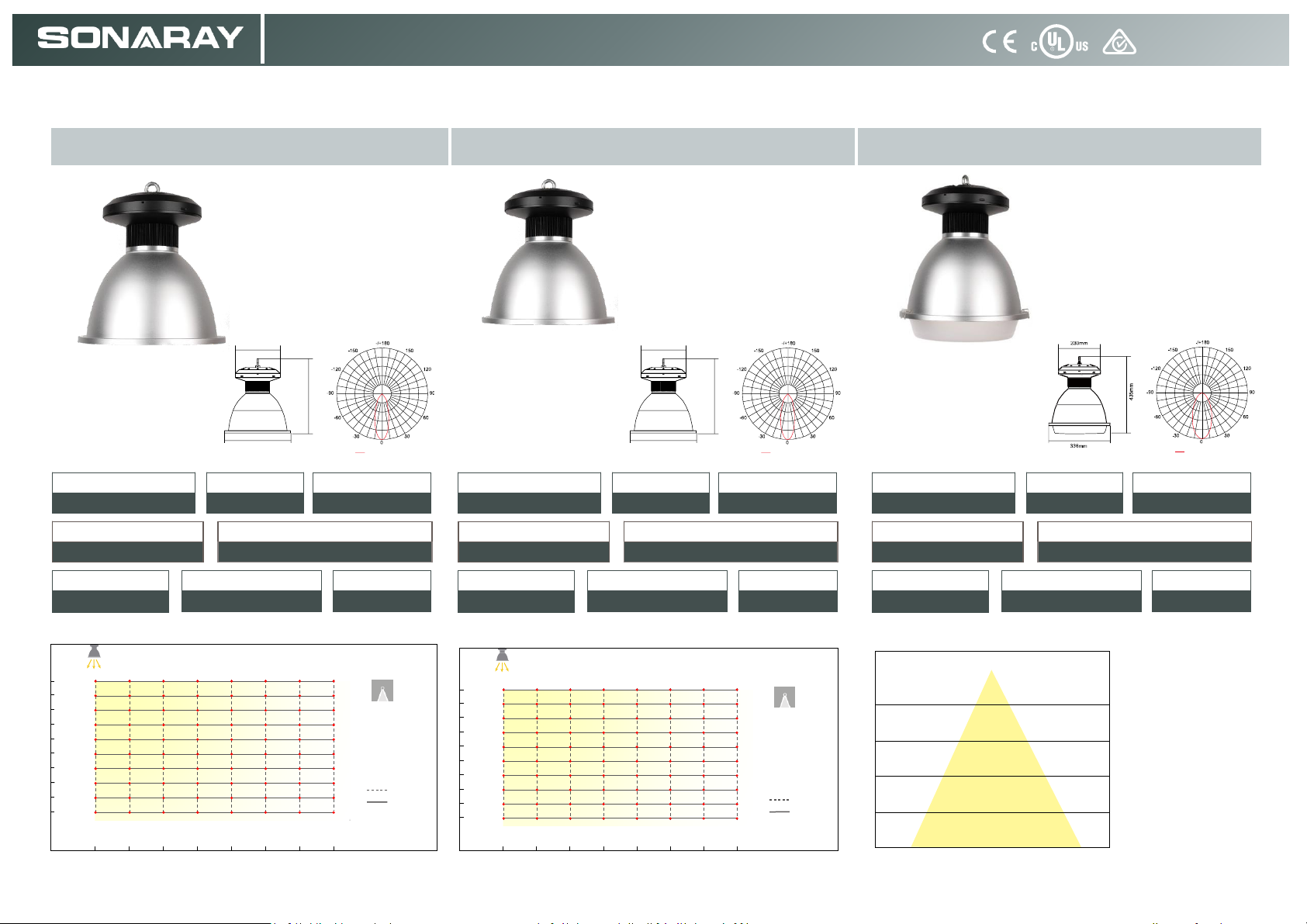

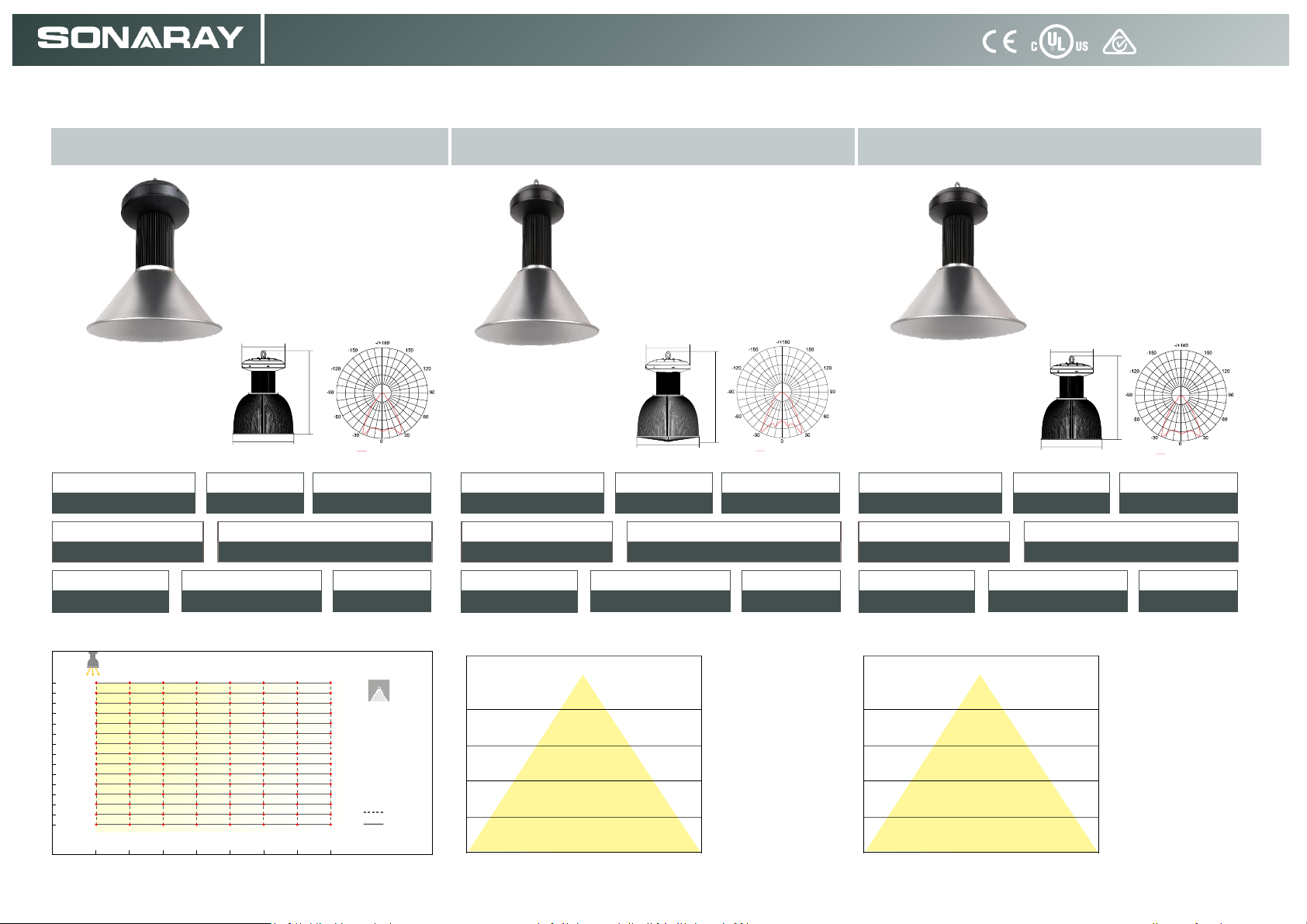

LED High Bay Light VARIO Series
510mm
230mm
310mm
C0/180 , C90/270
510mm
230mm
310mm
C0/180 , C90/270
510mm
230mm
385mm
RoHS
IP65
High Bay Light
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
2750lm
Color Temperature
5000K/3000K
Beam angle
70°
Specifications
25W 40W
180W
HB-B-2025
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
3850lm
Color Temperature
5000K/3000K
Beam angle
70°
Power
25W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
C0/180 , C90/270
Light efficiency
110lm/w
Input Voltage
CRI
80
35W
Power
35W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
HB-B-2035
Light efficiency
110lm/w
Input Voltage
CRI
80
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
4400lm
Color Temperature
5000K/3000K
Beam angle
70°
Power
40W
Design Lifetime
60000hrs
HB-B-2045
Light efficiency
110lm/w
Input Voltage
AC 100V-240V,50/60Hz
CRI
80
Lighting Distribution
1
1299 195 24 0.08 0.01 / / /
2
326 162 48 17 5.95 0.43 0.03 0.01
3
145 100 49 22 10 5.3 2.43 0.52
4
82 65 40 23 12 6.65 4.16 2.68
5
52 45 32 21 13 7.61 4.89 3.24
6
36 33 25 18 12 7.96 5.42 3.69
7
27 25 20
8
20 19 16 13 10 7.57 5.61 4.15
9
16 15 13 11 8.97 7.04 5.43 4.16
10
13 13 11 9.64 7.99 6.46 5.15 4.07
0 1 2 3 4 5 6 7
15
11 7.85 5.64 4
Beam
angle
70°
高度: m
地面长度: m
照度: lux
Lighting Distribution
1
1815 268 28 0.09 0.02 0.01 / /
2
455 219 66 23 6.98 0.29 0.03 0.01
3
203 136 66 30 14 7.31 2.81 0.47
4
114 89 54 31 17 9.13 5.75 3.68
5
73 62 43 28 17 10 6.74 4.48
6
51 45 34 24 17 11 7.44 5.07
7
37 34 28
8
29 26 23 18 14 10 7.62 5.66
9
23 21 18 15 12 9.49 7.34 5.65
10
18 17 15 13 11 8.73 6.96 5.51
0 1 2 3 4 5 6 7
21
15 11 7.69 5.49
Beam
angle
70°
高度: m
地面长度: m
照度: lux
Lighting Distribution
1
2551 339 28 0.37 0.11 0.03 0.02 0.01
2
642 286 86 30 6.99 0.72 0.09 0.04
3
286 184 85 38 19 9.36 2.8 0.69
4
160 122 71 39 21 12 7.34 4.46
5
103 84 57 36 22 13 8.56 5.77
6
71 62 46 32 21 14 9.28 6.43
7
53 47 37
8
40 37 30 24 18 13 9.56 7.16
9
32 29 25 21 16 12 9.31 7.17
10
26 24 21 18 14 11 8.92 6.95
0 1 2 3 4 5 6 7
28
20 14 9.58 6.86
Beam
angle
70°
高度: m
地面长度: m
照度: lux

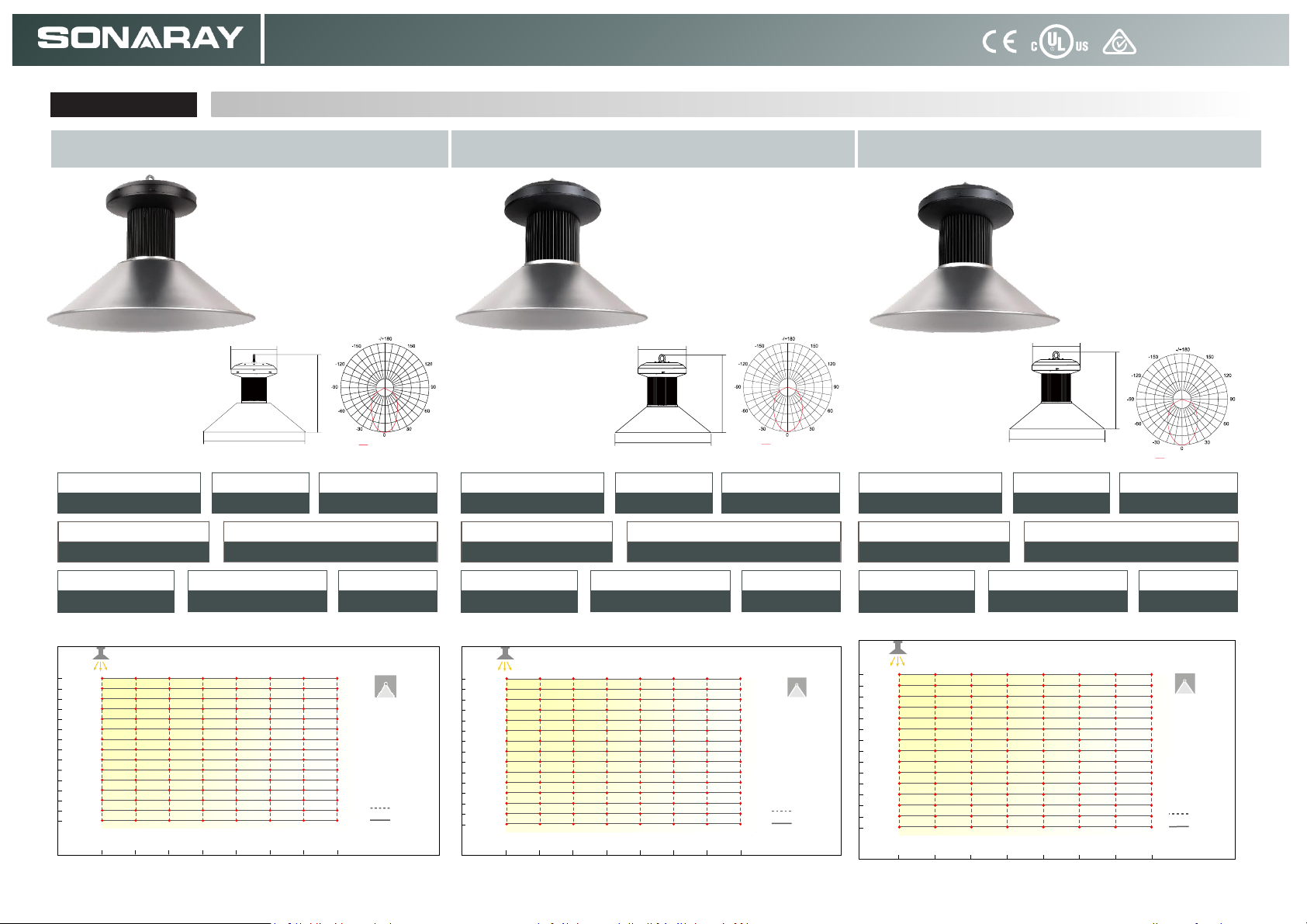

Page 4

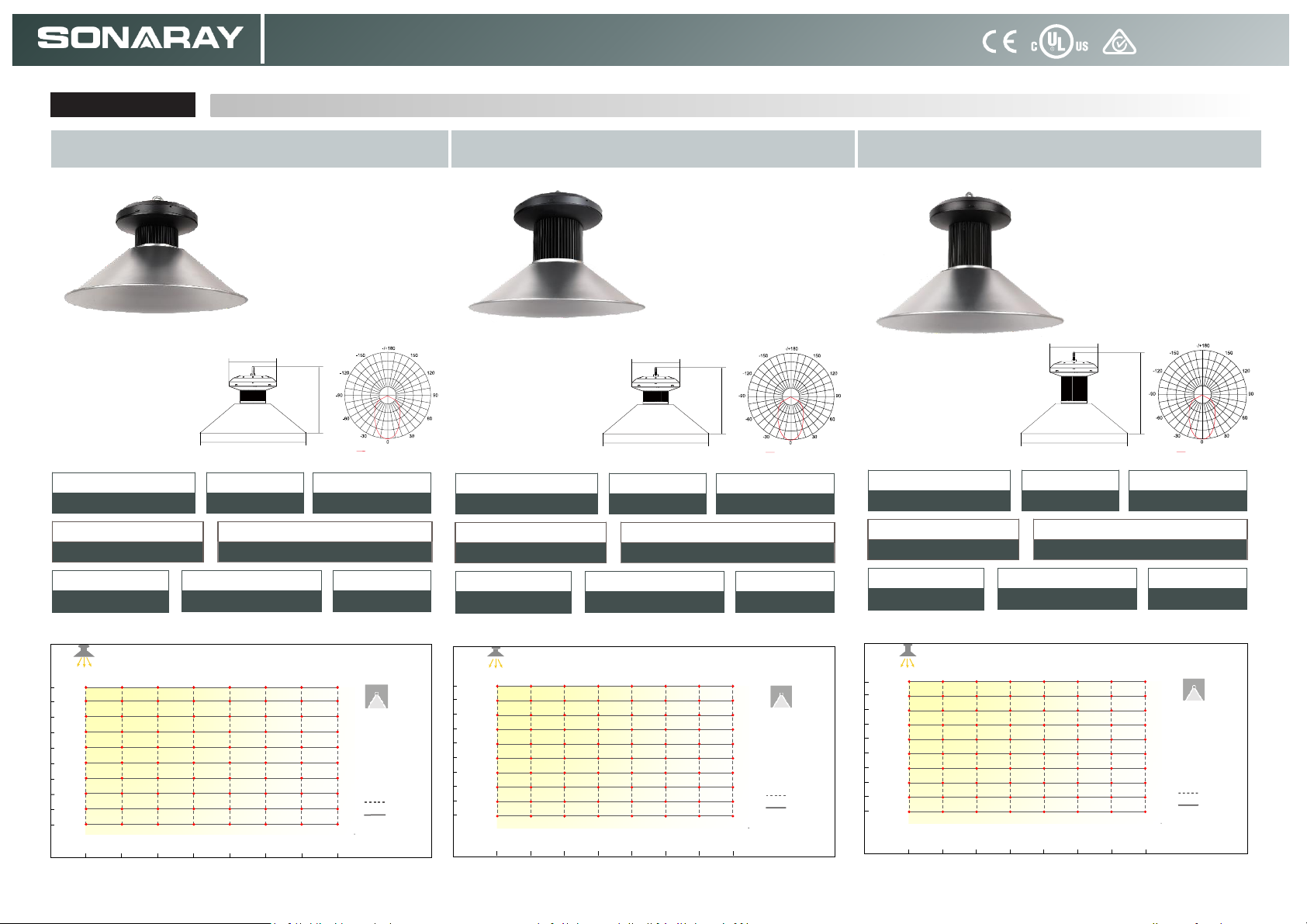

LED High Bay Light VARIO Series
C0/180 , C90/270
510mm
230mm
385mm
C0/180 , C90/270
510mm
260mm
420mm
510mm
260mm
420mm
RoHS
IP65
High Bay Light
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
7150lm
Color Temperature
5000K/3000K
Specifications
65W 100W
180W
HB-B-2065
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Power
65W
Input Voltage
AC 100V-240V,50/60Hz
Light efficiency
93lm/w
Luminous Flux
9350lm
Color Temperature
5000K/3000K
85W
HB-B-2085
Power
85W
Light efficiency
110lm/w
Input Voltage
AC 100V-240V,50/60Hz
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
11000lm
Color Temperature
5000K/3000K
Power
100W
HB-B-2100
C0/180 , C90/270
Light efficiency
110lm/w
Input Voltage
AC 100V-240V,50/60Hz
Beam angle
Lighting Distribution
1
2665 375 22 0.35 0.11 0.04 0.02 0.01
2
697 296 92 31 5.79 0.56 0.09 0.04
3
312 194 89 41 20 9.68 2.64 0.49
4
174 130 74 41 23 13 8.04 4.58
5
58 51 40 29 21 15 11 7.59
6
78 67 49 33 22 15 10 7.18
7
58 51 40
8
44 40 33 25 19 14 10 7.76
9
35 32 27 22 17 13 10 7.72
10
28 26 23 19 15 12 9.56 7.53
1 1
23 22 20 17 14 11 9 7.26
12
20 19 17 15 12 10 8.42 6.92
13
17 16 15 13 11 9.34 7.84 6.57
14
14 14 13 11 9.99 8.56 7.3 6.2
15
12 12 11 10 9.05 7.87 6.79 5.83
0 1 2 3 4 5 6 7
70°
Design Lifetime
60000hrs
29
21 15 11 7.59
CRI
80
Beam
angle
70°
高度: m
地面长度: m
照度: lux
Beam angle
70°
Design Lifetime
60000hrs
Lighting Distribution
1
3424 535 52 1.04 0.12 0.05 0.02 0.01
2
856 434 137 46 13 2.27 0.29 0.1
3
380 277 131 59 29 15 5.95 1.99
4
214 179 108 61 34 20 12 7.33
5
137 124 87 56 35 22 14 9.35
6
95 91 69 49 33 22 15 11
7
70 69 56
8
54 53 45 36 28 21 15 12
9
43 43 37 31 25 19 15 12
10
37 35 31 27 22 18 14 11
1 1
31 29 27 23 20 16 13 11
12
26 25 23 20 18 15 12 10
13
22 21 20 18 16 13 12 9.81
14
19 18 17 16 14 12 11 9.21
15
16 16 15 14 13 11 9.93 8.62
0 1 2 3 4 5 6 7
42
31 22 16 11
CRI
80
高度: m
地面长度: m
照度: lux
Beam
angle
80°
Beam angle
70°
Design Lifetime
60000hrs
Lighting Distribution
1
4472 736 96 1.76 0.14 0.04 0.02 0.01
2
1121 593 182 64 24 3.43 0.44 0.09
3
499 363 179 82 40 21 9.93 3.48
4
281 235 148 83 46 26 16 10
5
180 161 117 76 47 29 19 12
6
125 116 92 66 45 30 20 14
7
92 87 73
8
70 67 59 48 37 28 21 15
9
56 54 48 41 33 26 20 15
10
45 44 40 35 29 24 19 15
1 1
37 36 34 30 26 22 18 14
12
31 31 29 26 23 20 16 14
13
27 26 25 23 20 18 15 13
14
23 23 22 20 18 16 14 12
15
20 20 19 18 16 15 13 11
0 1 2 3 4 5 6 7
41 29 21 15
56
CRI
80
Beam
angle
80°
高度: m
地面长度: m
照度: lux

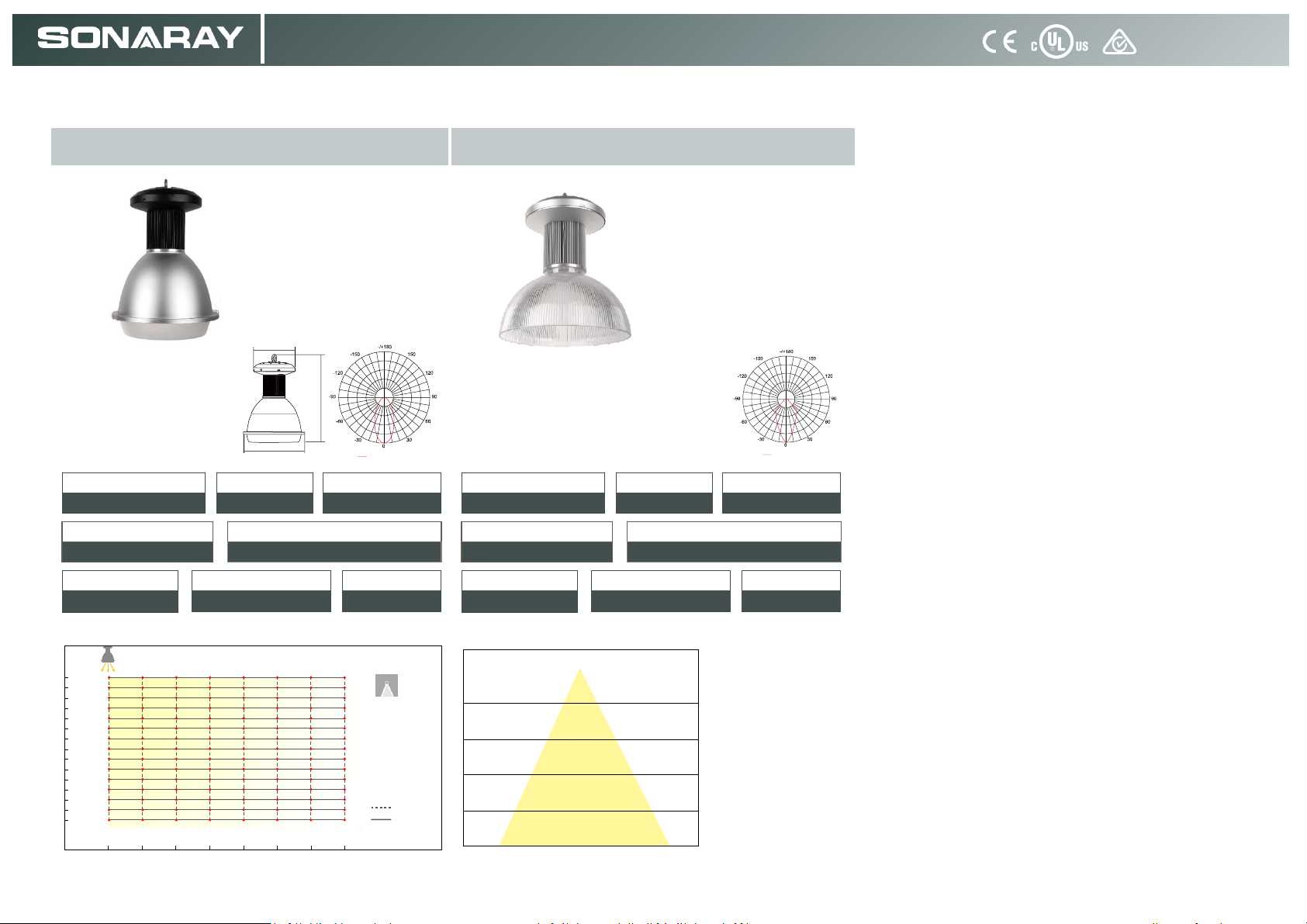

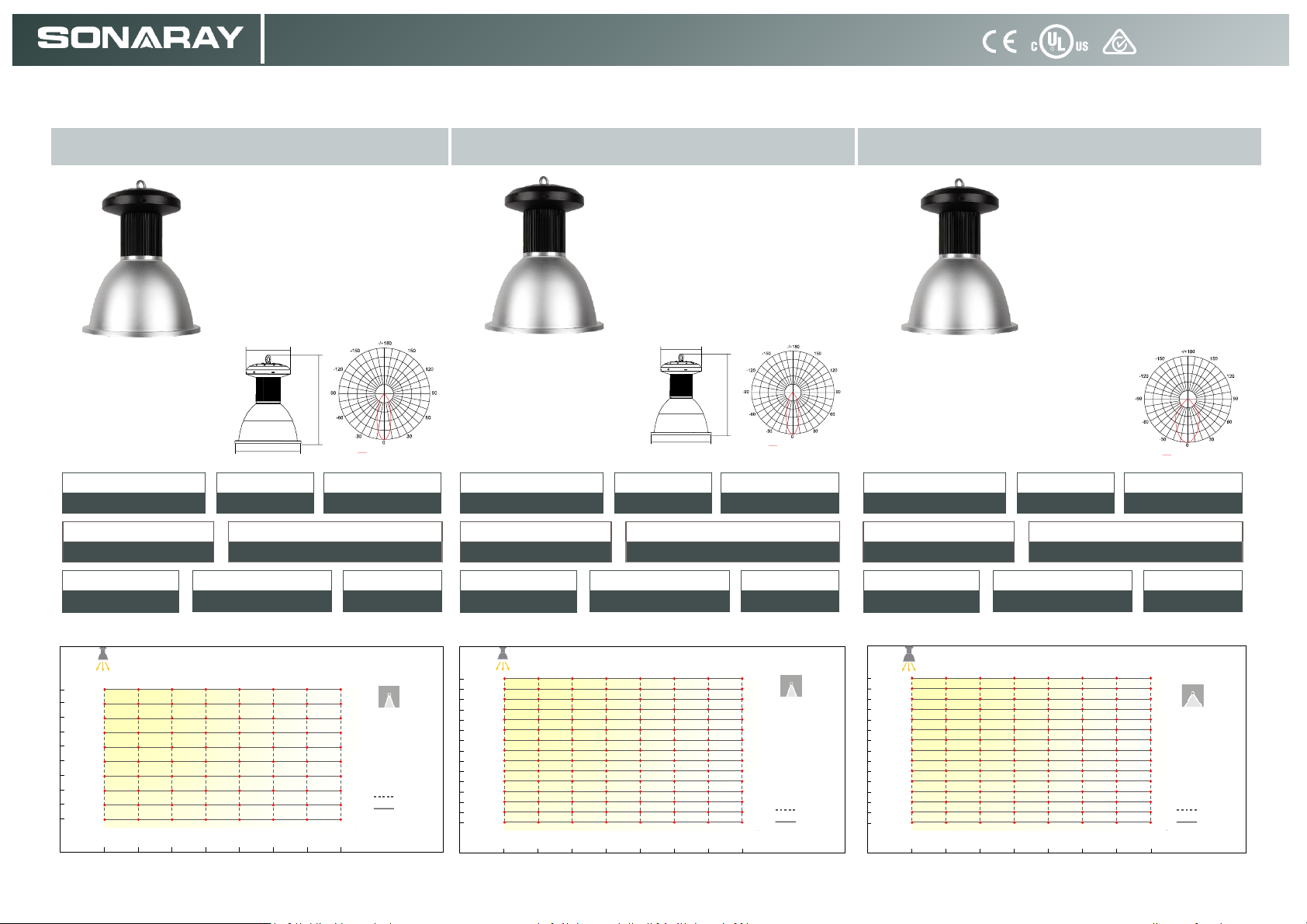

Page 5
LED High Bay Light VARIO Series
510mm
230mm
385mm
C0/180 , C90/270
C0/180 , C90/270
510mm
260mm
420mm
C0/180 , C90/270
510mm
260mm
420mm
RoHS
IP65
High Bay Light
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
7150lm
Color Temperature
5000K/3000K
Specifications
65W 85W
180W
HB-BD-2065
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Power
65W
Input Voltage
AC 100V-240V,50/60Hz
Light efficiency
110lm/w
Luminous Flux
9350lm
Color Temperature
5000K/3000K
Power
HB-BD-2085
85W
Input Voltage
AC 100V-240V,50/60Hz
Light efficiency
110lm/w
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.1kg
Luminous Flux
11000lm
Color Temperature
5000K/3000K
100W
Power
100W
HB-BD-2100
Light efficiency
110lm/w
Input Voltage
AC 100V-240V,50/60Hz
Lighting Distribution
1
2
3
4
5
6
7
8
9
10
1 1
12
13
14
15
Beam angle
70°
1809 322 40 8.75 2.64 1.05 0.48 0.26
453 252 80 26 10 4.38 2.18 1.18
202 150 78 36 17 8.04 4.46 2.56
113 96 63 36 20 11 6.57 4.01
73 65 49 33 21 13 8.1 5.24
50 47 38 28 20 13 8.93 6.1
37 35 30
28 27 24 20 16 12 9.06 6.77
22 22 20 17 14 11 8.68 6.73
18 18 16 14 12 10 8.16 6.53
15 15 14 12 11 9.11 7.59 6.24
13 12 12 11 9.47 8.23 7.01 5.89
11 11 10 9.36 8.4 7.42 6.45 5.53
9.26 9.13 8.78 8.22 7.53 6.77 5.99 5.22
8.07 7.97 7.7 7.27 6.73 6.12 5.49 4.86
0 1 2 3 4 5 6 7
Design Lifetime
60000hrs
24
18 13 9.19 6.59
CRI
80
Beam
angle
90°
高度: m
地面长度: m
照度: lux
Beam angle
70°
Design Lifetime
60000hrs
Lighting Distribution
1
2770 507 64 14 4.46 1.81 0.86 0.47
2
695 394 126 42 16 7.13 3.59 1.98
3
309 234 122 57 27 13 7.23 4.17
4
174 148 98 57 32 17 10 6.46
5
111 100 76 51 33 20 13 8.35
6
77 72 59 44 31 20 14 9.66
7
57 54 46
8
44 42 37 31 24 19 14 11
9
34 33 30 26 22 17 14 11
10
28 27 25 22 19 16 13 10
1 1
23 23 21 19 17 14 12 9.79
12
19 19 18 16 15 13 11 9.22
13
16 16 16 14 13 12 10 8.64
14
14 14 14 13 12 11 9.34 8.15
15
12 12 12 11 10 9.52
0 1 2 3 4 5 6 7
37
28 20 14 10
8.55
7.58
CRI
80
高度: m
地面长度: m
照度: lux
Beam
angle
90°
Beam angle
70°
Design Lifetime
60000hrs
Lighting Distribution
1
3233 580 73 16 4.99 2.01 0.94 0.52
2
809 453 144 48 19 8.14 4.05 2.22
3
360 269 140 65 31 15 8.25 4.76
4
203 171 113 65 37 20 12 7.35
5
130 116 87 50 37 23 15 9.53
6
90 83 68 50 35 23 16 11
7
66 62 54
8
51 48 43 36 28 22 16 12
9
40 39 35 30 25 20 16 12
10
32 31 29 26 22 18 15 12
1 1
27 26 24 22 19 16 14 11
12
23 22 21 19 17 15 13 11
13
19 19 18 17 15 13 12 9.92
14
17 16 16 15 13 12 11 9.37
15
14 14 14 13 12 11 9.83 8.72
0 1 2 3 4 5 6 7
32 23 17 12
43
CRI
80
Beam
angle
90°
高度: m
地面长度: m
照度: lux
Page 6
C0/180 , C90/270
338mm
230mm
380mm
LED High Bay Light VARIO Series
C0/180 , C90/270
338mm
230mm
380mm
C0/180 , C90/270
RoHS
IP65
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：2.7kg
Luminous Flux
2750lm
Color Temperature
5000K/3000K
Beam angle
35°
25W 35W 35W
HB-A-2025
Power
25W
Input Voltage
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
180W
Light efficiency
110lm/w
CRI
80
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：2.7kg
Luminous Flux
4025lm
Color Temperature
5000K/3000K
Beam angle
35°
HB-A-2035
Power
35W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
Input Voltage
115m/w
CRI
80
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：2.7kg
Luminous Flux
4025lm
Color Temperature
5000K/3000K
Beam angle
35°
Power
Design Lifetime
60000hrs
HB-AD-2035
35W
Input Voltage
AC 100V-240V,50/60Hz
Light efficiency
115lm/w
CRI
80
Lighting Distribution
1
2
3
4
5
6
7
8
9
10
3635 47 0.67 0.11 0.03 0.01 / /
921 187 11 0.72 0.2 0.07 0.03 0.01
410 168 46 5.37 0.59 0.22 0.09 0.04
231 132 46 20 3.12 0.47 0.2 0.1
148 101 45 21 10 1.69 0.38 0.18
103 77 42 21 12 5.54 1.23 0.32
75 61 37
58 49 33 20 12 7.28 4.92 2.34
46 40 29 19 12 7.3 5.15 3.49
37 33 25 17 12 7.33 5.17 3.78
0 1 2 3 4 5 6 7
21
12 7.18 3.47 0.93
Beam
angle
35°
高度: m
地面长度: m
照度: lux
Lighting Distribution
1
5532 90 0.84 0.16 0.04 0.01 0.01 /
2
1399 290 23 0.86 0.25 0.09 0.04 0.02
3
623 276 66 9.88 0.7 0.26 0.11 0.05
4
351 218 72 29 5.7 0.58 0.24 0.12
5
224 165 73 30 16 3.17 0.5 0.22
6
156 125 69 32 17 8.85 2.27 0.44
7
115 98 62
8
88 78 54 32 18 11 7.03 3.99
9
69 63 47 31 19 11 7.26 5.18
10
56 52 41 29 19 11 7.59 5.36
0 1 2 3 4 5 6 7
33
18 10 5.76 1.71
Beam
angle
35°
高度: m
地面长度: m
照度: lux
Lighting Distribution
1 2265
2 566
3 252
4 142
5 91
D(cm) H(m) E(lx)
99
198
296
395
494
Page 7
C0/180 , C90/270
C0/180 , C90/270
LED High Bay Light VARIO Series
338mm
230mm
455mm
C0/180 , C90/270
338mm
230mm
455mm
RoHS
IP65
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.5kg
Luminous Flux
4500lm
Color Temperature
5000K/3000K
Beam angle
68°
45W 65W
180W
HB-A-2045
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.5kg
Power
45W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
Input Voltage
100lm/w
CRI
80
Luminous Flux
6500lm
Color Temperature
5000K/3000K
Beam angle
68°
Power
65W
Design Lifetime
60000hrs
HB-A-2065
Light efficiency
100lm/w
Input Voltage
AC 100V-240V,50/60Hz
CRI
80
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.8kg
Luminous Flux
9350lm
Color Temperature
5000K/3000K
Beam angle
53°
85W
HB-A-2085
Power
85W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
110lm/w
Input Voltage
CRI
80
Lighting Distribution
1
2
3
4
5
6
7
8
9
10
5681 22 0.47 0.08 0.03 0.01 0.01 /
1440 246 5.13 0.52 0.14 0.04 0.02 0.01
642 233 57 2.34 0.44 0.16 0.07 0.03
360 191 61 19 1.35 0.38 0.15 0.06
231 149 61 27 8.01 0.82 0.3 0.13
160 115 58 27 14 3.39 0.58 0.24
118 91 53
90 74 47 27 16 9.18 4.58 1.33
71 61 42 26 16 9.51 6.16 2.89
58 50 37 25 15 9.63 6.64 4.32
0 1 2 3 4 5 6 7
28
15 7.65 1.98 0.43
Beam
angle
35°
高度: m
地面长度: m
照度: lux
Lighting Distribution Lighting Distribution
1
9412 43 0.63 0.11 0.03 0.01 0.01 /
2
2391 353 9.45 0.69 0.19 0.05 0.03 0.01
3
1066 356 84 4.37 0.63 0.21 0.1 0.04
4
600 297 88 34 2.6 0.49 0.2 0.08
5
383 235 91 38 16 1.33 0.39 0.16
6
266 183 88 39 22 7.26 1.07 0.32
7
196 146 82
8
150 118 74 41 22 14 8.28 2.91
9
119 97 66 40 23 14 9.48 5.51
10
96 81 59 38 23 14 9.58 6.89
1 1
79 69 52 36 23 14 9.68 7.02
12
67 59 46 33 22 14 9.67 7.08
13
57 51 41 31 22 14 9.99 7.14
14
49 44 37 28 21 14 10 7.24
15
43 39 33 26 20 14 10 7.34
0 1 2 3 4 5 6 7
41
22 13 4.29 0.81
Beam
angle
35°
高度: m
地面长度: m
照度: lux
1
5406 237 16 2.74 0.81 20.33 0.15 0.07
2
1359 588 58 13 4.09 1 .59 0.77 0.39
3
604 381 172 26 9.4 3.91 1.87 1.02
4
340 253 146 69 15 6.54 3.34 1.83
5
218 178 118 75 33 8.96 4.89 2.8
6
151 131 95 65 44 17 6.51 3.77
7
111 99 77
8
85 78 64 49 37 27 17 7.35
9
67 63 53 42 33 26 19 11
10
54 51 45 37 30 23 19 14
1 1
45 43 38 32 26 22 18 14
12
38 36 33 28 24 20 16 14
13
32 31 28 25 21 18 15 13
14
28 27 25 22 19 17 14 12
15
24 23 22 20 18 15 13 11
0 1 2 3 4 5 6 7
56
41 26 11 4.83
Beam
angle
70°
高度: m
地面长度: m
照度: lux
Page 8
C0/180 , C90/270
33 8m m
23 0m m
51 0m m
LED High Bay Light VARIO Series
C0/180 , C90/270
RoHS
IP65
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.8kg
Luminous Flux
7150lm
Color Temperature
5000K/3000K
Beam angle
53°
65W 45W
180W
HB-AD-2065
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.8kg
Power
65W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
110lm/w
Input Voltage
CRI
80
Luminous Flux
4950lm
Color Temperature
5000K/3000K
Beam angle
53°
Power
45W
Design Lifetime
60000hrs
HB-C-2045
Light efficiency
110lm/w
Input Voltage
AC 100V-240V,50/60Hz
CRI
80
Lighting Distribution
1
2
3
4
5
6
7
8
9
10
1 1
12
13
14
15
3688 257 24 5.3 1.72 0.75 0.41 0.23
974 329 62 16 5.87 2.49 1.26 0.74
440 253 81 28 11 4.87 2.54 1.44
250 178 82 35 16 7.23 4 2.32
161 128 74 37 19 9.53 5.49 3.26
112 96 64 37 21 11 6.83 4.21
83 73 54
63 58 45 32 21 13 8.63 5.72
50 47 38 29 20 13 9.09 6.23
41 38 33 25 19 13 9.33 6.58
34 32 28 23 17 13 9.34 6.79
28 27 24 20 16 12 9.21 6.88
24 23 21 18 15 12 8.98 6.88
21 20 18 16 13 11 8.67 6.79
18 18 16 14 12 10 8.32 6.64
0 1 2 3 4 5 6 7
35
21 12 7.88 5.04
Beam
angle
48°
高度: m
地面长度: m
照度: lux
Lighting Distribution
1 2149
2 537
3 239
4 134
5 86
D(cm) H(m) E(lx)
99
199
298
398
497
Page 9
410mm
260mm
557mm
C0/180 , C90/270
C0/180 , C90/270
C0/180 , C90/270
LED High Bay Light VARIO Series
410mm
260mm
557mm
410mm
260mm
587mm
RoHS
IP65
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：2.7kg
Luminous Flux
9775lm
Color Temperature
5000K/3000K
Beam angle
35°
85W 85W
180W
HB-C-2085
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.5kg
Power
85W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
115lm/w
Input Voltage
CRI
80
Luminous Flux
8500lm
Color Temperature
5000K/3000K
Beam angle
68°
Power
85W
Design Lifetime
60000hrs
HB-CD-2085
Light efficiency
100lm/w
Input Voltage
AC 100V-240V,50/60Hz
CRI
80
General Specifications
Material: Aluminum
Housing Color: Black body,
Silver lampshade
Ambient temperature：25℃~+45℃
Weight：3.8kg
Luminous Flux
11000m
Color Temperature
5000K/3000K
Beam angle
53°
100W
HB-C-2100
Power
100W
AC 100V-240V,50/60Hz
Design Lifetime
60000hrs
Light efficiency
110lm/w
Input Voltage
CRI
80
Lighting Distribution Lighting Distribution Lighting Distribution
D(cm) H(m) E(lx)
Beam
angle
72°
高度: m
地面长度: m
照度: lux
3 362
6 91
9 40
12 23
15 15
269
537
806
1075
1343
3 488
6 122
9 54
12 31
15 20
1
2
3
4
5
6
7
8
9
10
1 1
12
13
14
15
2552 485 35 7.63 1.8 1 0.61 0.38
650 727 123 31 8.7 3.47 1.76 0.79
292 290 179 56 21 7.47 3.75 1.96
165 183 190 68 32 14 7.41 3.48
106 122 105 83 33 20 9.7 6.33
74 81 74 85 45 20 14 7.8
54 58 56
42 44 46 42 48 28 16 10
33 35 38 33 33 33 20 11
27 29 31 27 26 31 20 14
22 24 25 23 22 23 23 15
19 20 21 21 19 18 22 16
16 17 17 18 16 16 17 18
14 15 15 16 14 14 13 16
12 13 13 14 13 12
0 1 2 3 4 5 6 7
53
51 26 14 10
12
13
D(cm) H(m) E(lx)
350
701
1051
1402
1753
Page 10
LED High Bay Light VARIO Series Applications

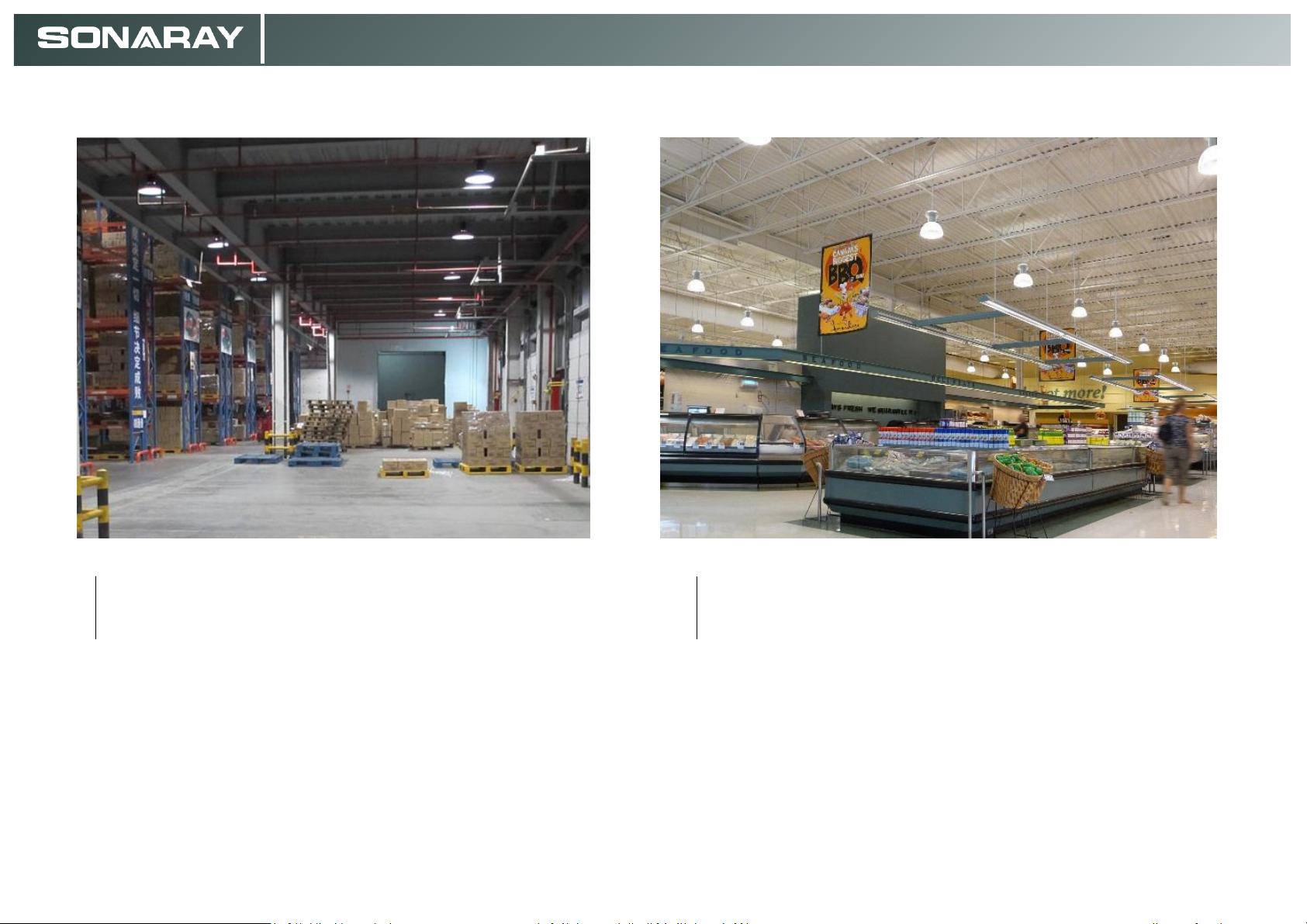

Warehouse Supermarket
Page 11
LED High Bay Light VARIO Series Applications

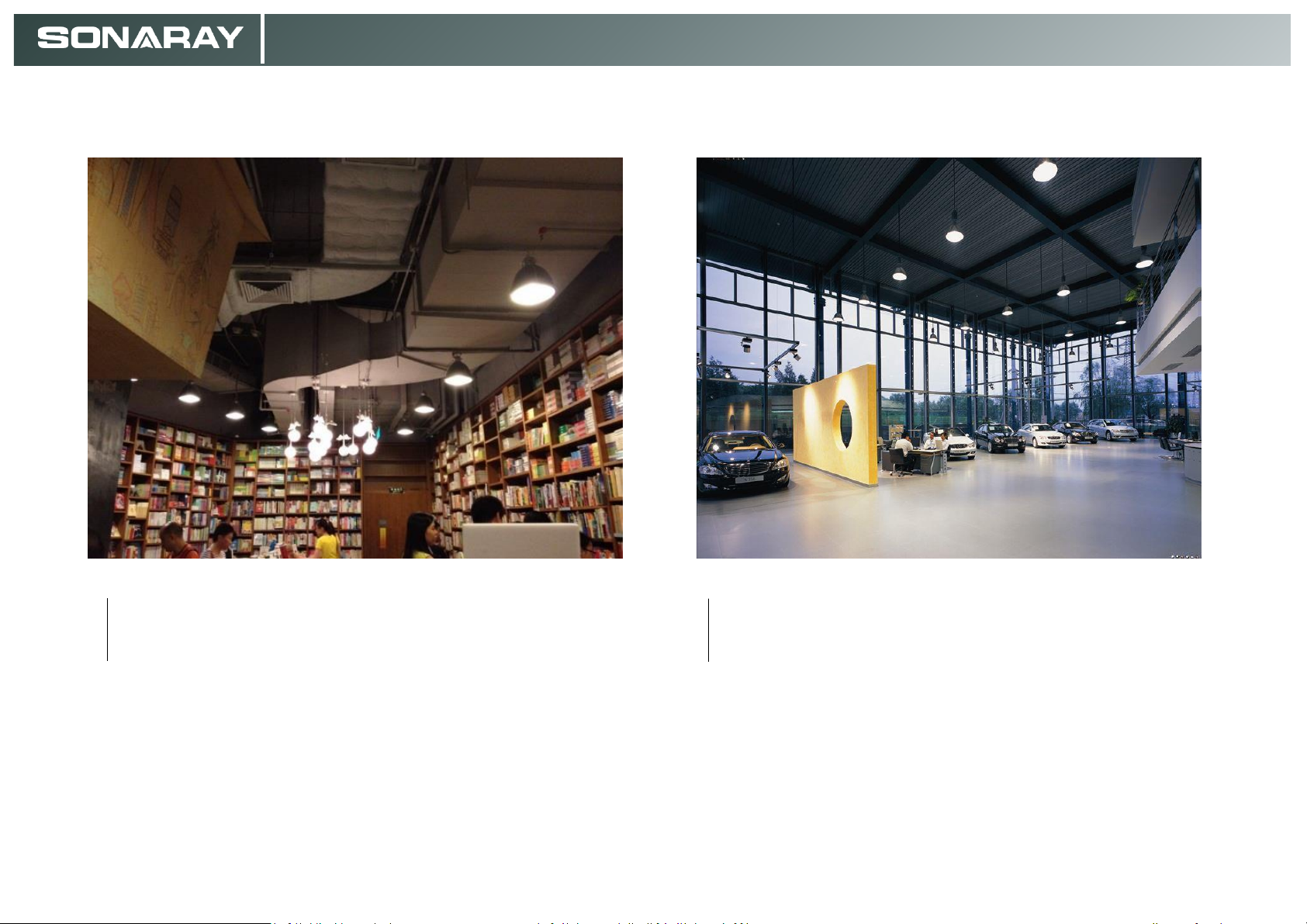

Book Vault Exhibition room
Page 12
LED High Bay Light VARIO Series Applications

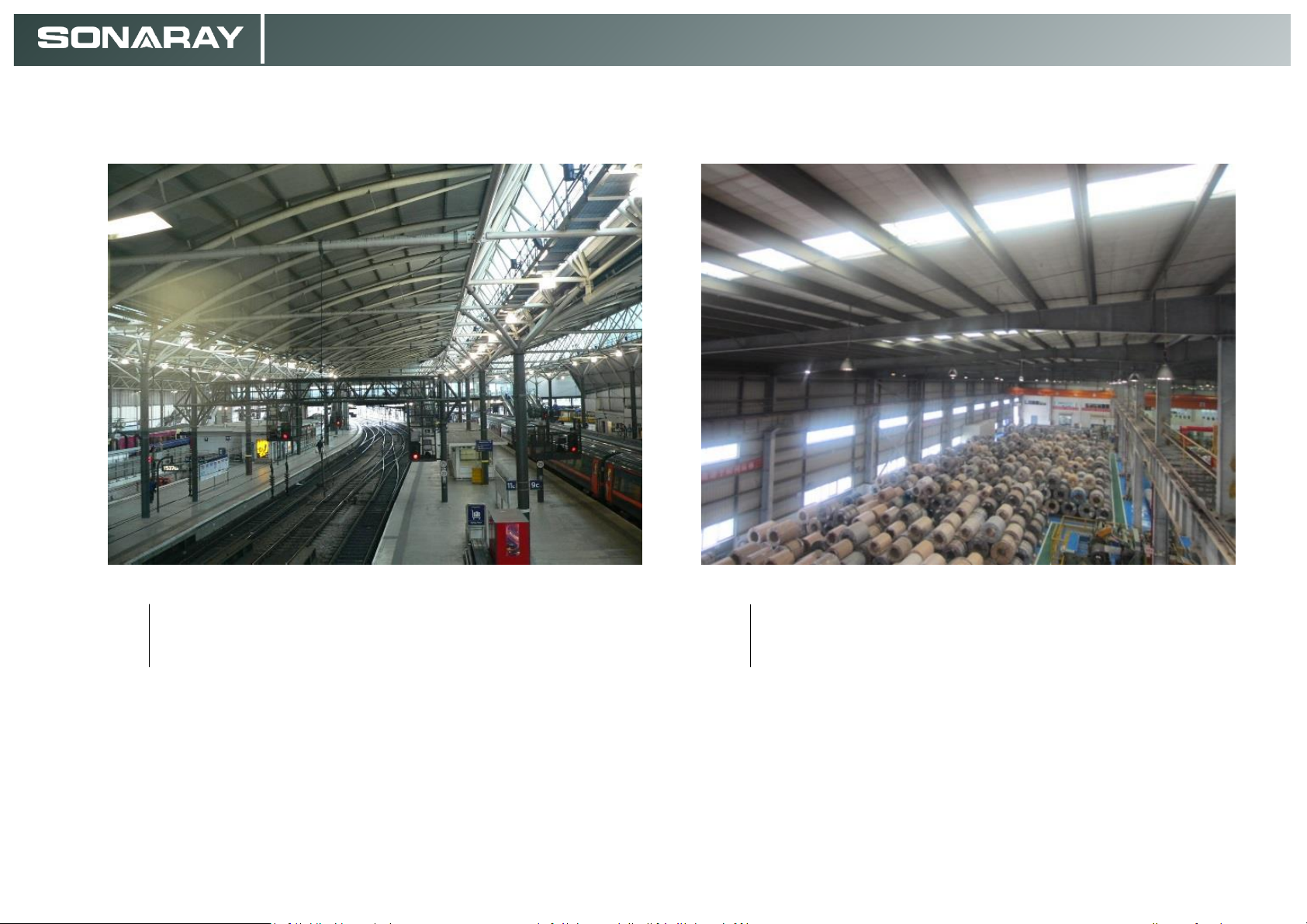

Train station Factory
Loading...
