SONANCE R10SUB In-Wall Subwoofer, R2, VP SUB In-Wall Subwoofer, R1C SUR, R1C Surround_Sound_Brochure_Website_090324.pdf
...

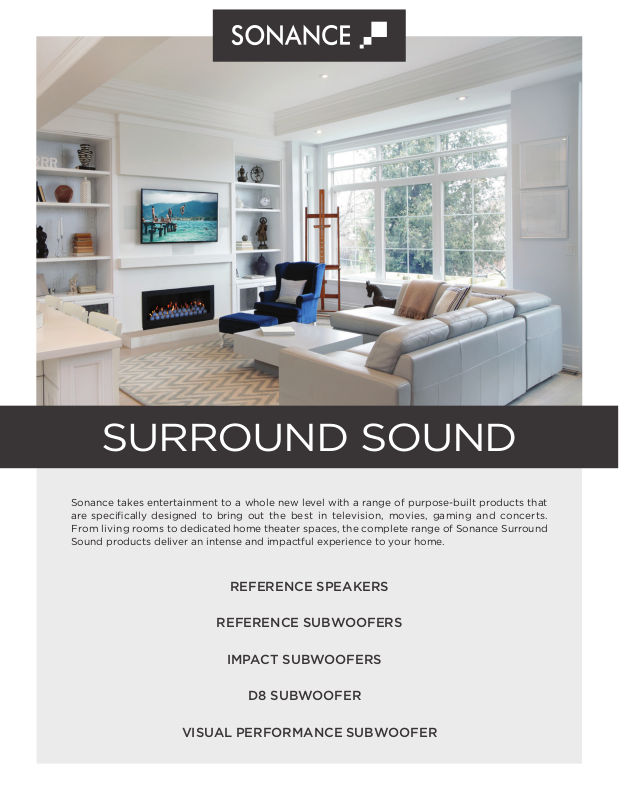

SURROUND SOUND
Sonance takes entertainment to a whole new level with a range of purpose-built products that
are specifically designed to bring out the best in television, movies, gaming and concerts.
From living rooms to dedicated home theater spaces, the complete range of Sonance Surround
Sound products deliver an intense and impactful experience to your home.
REFERENCE SPEAKERS
REFERENCE SUBWOOFERS
IMPACT SUBWOOFERS
D8 SUBWOOFER
VISUAL PERFORMANCE SUBWOOFER
REFERENCE
Inventing, Leading, and Reinventing is in our DNA and it is with this same philosophy that
we redeveloped our Surround Sound line. With a focus on achieving premium performance
for architectural surround sound, Sonance has set a new standard with Reference Speakers
and Subwoofers.
Reference Speakers and Subwoofers oers up all new driver technology and consistent
tonal matching across the line, making it simple to mix and match speaker and subwoofer
models in any configuration and still achieve optimized performance.
REFERENCE IN-WALL SPEAKERS
Tweeter:
Midrange:
Woofer:
Frequency Response:
Power Handling:
Dimensions (WxH):
Cutout Dimensions (WxH):
R2
SKU 93346
1” (25mm)
Ceramic dome,
Ferrofluid-cooled
in an acoustic
back chamber
5 1/4” (133mm)
Carbon fiber/
Rohacell laminated
cone witha rubber
surround
Four 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 200 watts maximum
8 7/8” x 34 7/8” (225mm x 886mm)
7 1/2” x 33 1/2” (191mm x 851mm)
Two 1” (25mm)
Ceramic domes,
Ferrofluid-cooled
in an acoustic
back chamber
Two 3” (76mm)
Carbon fiber/
Rohacell laminated
cones with rubber
surrounds
70Hz - 30kHz ±3dB
R2SUR
SKU 93347
R1
SKU 93344
1” (25mm)
Ceramic dome,
Ferrofluid-cooled
in an acoustic
back chamber
5 1/4” (133mm)
Carbon fiber/
Rohacell laminated
cone with a
rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
8 7/8” x 21 3/4” (225mm x 553mm)
7 1/2” x 20 1/2” (191mm x 521mm)
Two 1” (25mm)
Ceramic domes,
Ferrofluid-cooled
in an acoustic
back chamber
Two 3” (76mm)
Carbon fiber/
Rohacell laminated
cones with rubber
surrounds
70Hz - 30kHz ±3dB
R1SUR
SKU 93345
REFERENCE IN-WALL SUBWOOFERS
Woofer:
Frequency Response:
Impedance:
Sensitivity:
Required Enclosure:
Required Amplification:
Dimensions (WxHxD):
Tweeter:
Midrange:
Woofer:
Frequency Response:
Power Handling:
R12SUB
SKU 93355
12” (305mm) laminated carbon fiber
cone with a rubber surround
25Hz - 250Hz ±3dB
8 ohms nominal
90dB (2.83V/1) meter
R12SUB ENC acoustic enclosure
(sold separately)
Sonance DSP2-750
(used in Stereo setting)
12 3/8” x 12 3/8” x 3 5/32”
(314mm x 314mm x 80mm)
10” (254mm) laminated carbon fiber
cone with a rubber surround
30Hz - 250Hz ±3dB
8 ohms nominal
88dB (2.83V/1) meter
R10SUB ENC acoustic enclosure
(sold separately)
Sonance DSP2-150 or Sonance DSP8-130 MKII
(using two channels bridged)
10 7/16” x 10 7/16” x 3 5/32”
(265mm x 265mm x 80mm)
REFERENCE IN-CEILING SPEAKERS
R1C
SKU 93351
1” (25mm) Ceramic dome, Ferrofluidcooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
Two 1” (25mm) Ceramic domes, Ferrofluidcooled in an acoustic back chamber
Two 3” (76mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
R10SUB
SKU 93354
R1CSUR
SKU 93352
Dimensions (WxHxD):
Tweeter:
Midrange:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Dimensions (WxHxD):
13 25/32” x 13 25/32” x 7 9/16”
(350mm x 350mm x 192mm)
REFERENCE LCR CABINET
1” (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
8 ohms nominal; 6 ohms minimum
5 watts minimum; 150 watts maximum
90dB SPL (2.83V/1 meter)
7 1/2” x 22” x 9 1/16” (191mm x 559mm x 230mm)
13 25/32” x 13 25/32” x 7 9/16”
(350mm x 350mm x 192mm)
R1CAB
SKU 93348
SUBWOOFERS
VISUAL PERFORMANCE
Designed to fit any new construction or retro-
fit application, the VPSUB delivers cabinet-level
performance in a discreet form factor.
VPSUB
SKU 93353
Woofer:
Frequency Response:
Impedance:
Sensitivity:
Required Amplification:
Dimensions (WxHxD):
10” (254mm) laminated glass
fiber cone with a rubber
surround
34Hz - 250Hz ±3dB
8 ohms nominal
90dB SPL (2.83v/1 meter)
Sonance DSP2-150 or
Sonance DSP8-130MKII
(using two channels bridged)
15” x 15” x 3 7/8
(381mm x 381mm x 98mm)
D8
The Sonance D8 features two powerful opposable 8”
square drivers, wireless connectivity and our SONARC
DSP technology all within a sleek ultra-compact cabinet.
*Compatible with SONARC.
D8
SKU 93359 (BLK)
SKU 93374 (WHT)
Woofer:
Frequency Response:
Output Power:
Inputs:
Controls:
Dimensions (WxHxD):
Two square 8” (203mm) ultra
long throw, glass fiber cone,
rubber surround
32Hz - 250Hz ±3dB
300 watts RMS (600 watts peak)
Line-level, speaker-level
and low latency wireless
Crossover, phase and bypass
7.5”x 7.5”x 9”
(191mm x 191mm x 229mm)
Sonance Impact Subwoofers oer exceptional performance, wireless connectivity and app driven room correction,
optimizing placement of the subwoofer anywhere in the room. *Compatible with SONARC configuration app.
Woofer:
Frequency Response:
Power Output:
Inputs:
Controls:
Dimensions (WxHxD):
i12
SKU 93358
12” (305mm) ultra long throw,
glass fiber cone, rubber surround
22Hz – 250Hz ±3dB
400 watts RMS (800 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
16”x 18”x 16”
(407mm x 457mm x 407mm)
IMPACT
i10
SKU 93357
10” (254mm) ultra long throw,
glass fiber cone, rubber surround
24Hz – 250Hz ±3dB
300 watts RMS (600 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
14”x 16”x 14”
(356mm x 407mm x 356mm)
i8
SKU 93356
8” (203mm) ultra long throw,
glass fiber cone, rubber surround
30Hz – 250Hz ±3dB
200 watts RMS (400 watts peak)
Line-level, speaker-leveland low
latency wireless
Crossover, phase and bypass
12”x 14”x 12”
(305mm x 356mm x 305mm)
APP
Sonance Automatic Room Correction (SONARC) is an app based configuration
tool engineered to ensure each subwoofer is perfectly tuned for any room.
The software includes 16 variable bands of automatic parametric equalization.
