REINVENT. VISUAL PERFORMANCE SERIES SPEAKERS
from the inventors of the in-wall speaker
The Sonance Visual Perform ance®Series provides
striking updated aesthetic appeal.
A metamorphosis of
the traditional speaker,
the Visual Performance
Series emerges with
a ref ine d for m,
ble ndi ng gracefully
into any environment.
ORIGINAL SER IES - 1.2 5” VIS IBLE FL ANGE VISUAL PERFOR M ANCE S ERIES - 0 .20’’ VISIBLE TRIM
MAIN ADVANTAGES
AESTHETICALLY SUPERIOR TO TRADITIONAL SPEAKERS
SIZES AND SHAPES FOR NEARLY ANY ENVIRONMENT
THREE ACOUSTIC PERFORMANCE LEVELS AVAILABLE
ONE-STEP PAINTING PROCESS MAKES AESTHETIC
INTEGRATION SEAMLESS
FINISHING
Innovative grille design bl ends into the
en vi ronment w hi le po we rf ul ma gn et s
provide secure, simple installation.
Painting the speaker to match the environment is quick and easy.
The one-piece grille with trim is painted in one step, simplifying
the process and reducing installation time.
2
Page 3
eleg ant, modern style
outs tanding audio performance

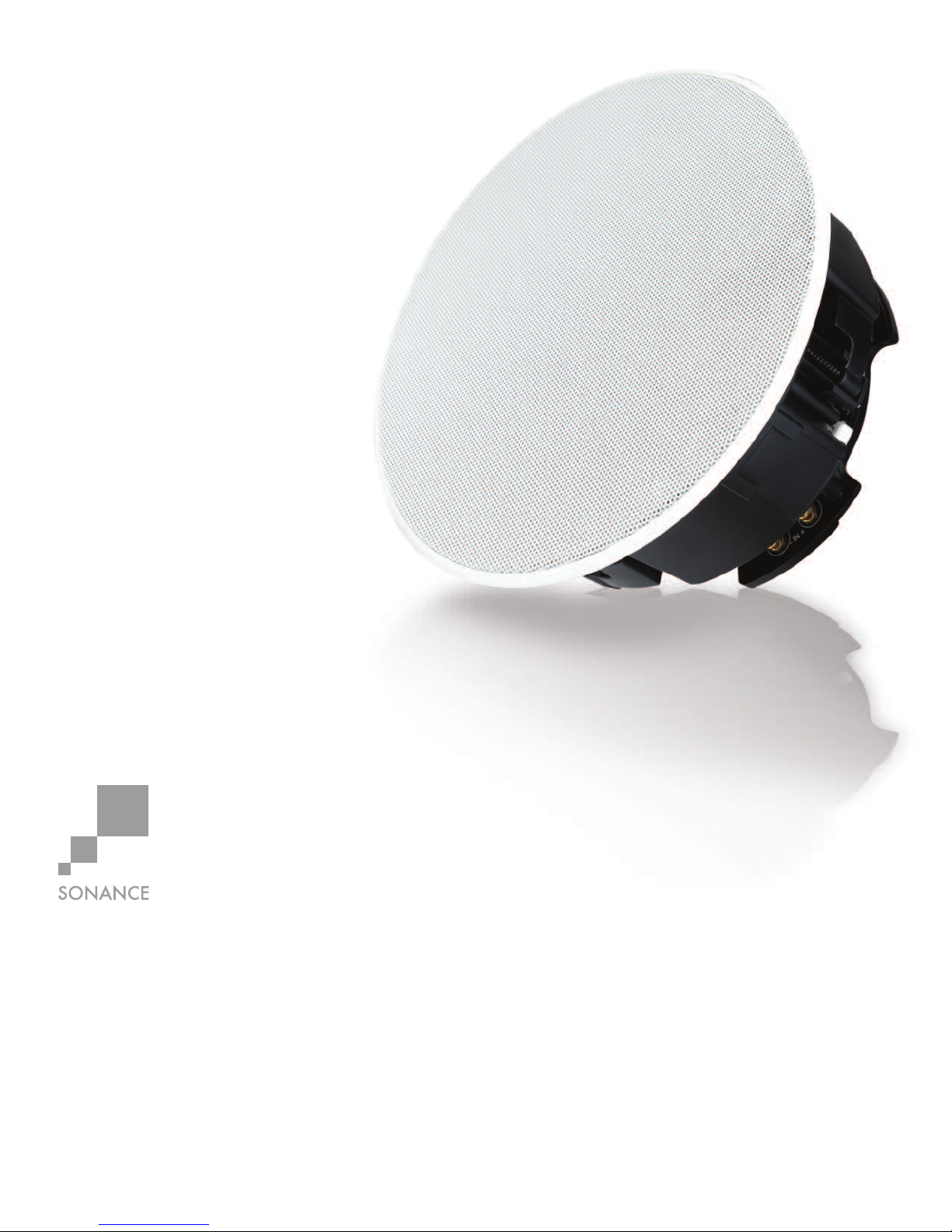

The Visual Performance Series speakers
continue the Sonance tradition of exceptional
audio performance in three performance
levels, providing the highest audio quality
for the most discriminating listener in sizes
and shapes designed to blend seamlessly
into any space.
3
Page 4
ADVANTAGE VISUAL PERFORMANCE SERIES SPEAKERS
onance Visual Performance Series speakers combine elegant, modern style with outstanding audio performance.
S
Featuring three performance levels, three sizes, and three shapes, Visual Performance Series speakers are designed to
fit the audio needs of the most discriminating listener.
Using traditional installation methods, Visual Performance Series speakers are easily installed in either new construction
or existing homes and feature a new one-piece grille and trim, making painting a simple and quick one-step process.
ACOUSTIC PERFORMANCE LEVELS
BERYLLIUM REFERENCE QUALITY SOUND
9
Represents the absolute state of the art –
the standard by which all others are measured.
Features beryllium drivers for greater
rigidity and superior sound reproduction.
7 COATED CARBON FIBER AUDIOPHILE QUALITY SOUND
Designed to please the most discriminating
and experienced listeners. Engineered with
coated carbon fiber to ensure superb
audio reproduction.
9
7
5 CARBON FIBER PERFORMANCE QUALITY SOUND
Designed with carbon fiber to provide
outstanding acoustic performance.
FEATURES AND OPTIONS
LARGE SPEAKERS
3 performance levels
8” Beryllium cone woofer/beryllium
midrange/beryllium dome tweeter
Coated carbon fiber woofer/carbon fiber
midrange/aluminum dome tweeter
Carbon fiber woofer/carbon fiber
midrange/silk dome tweeter
3 shapes
(rectangular, round, & square)
MEDIUM SPEAKERS
3 performance levels
6.5” Beryllium cone woofer/beryllium
dome tweeter
Coated carbon fiber woofer/aluminum
dome tweeter
Carbon fiber woofer/silk dome tweeter
3 shapes
(rectangular, round, & square)
5
SMALL SPEAKERS
1 performance level
4” Carbon fiber cone woofer/silk dome
tweeter
3 shapes
(rectangular, round, & square)
Compatability
All Large Visual Performance Series
speakers can be retrofitted into existing
cutouts and enclosures for Sonance
Original Series large (Virtuoso
4
®
) speakers.
Compatability & Flexibility
All Medium Visual Performance Series
speakers can be retrofitted into existing
cutouts and enclosures for Sonance
Original Series medium (Symphony
speakers.
Available in Sonance Thinline, Single
Stereo, Surround, and Extreme varieties.
Compatability
All Small Visual Performance Series
speakers can be retrofitted into existing
®
)
cutouts and enclosures for Sonance
Original Series small (Merlot
®
) speakers.
Page 5
ADVANTAGE MULTI-ROOM AUDIO EVERYWHERE

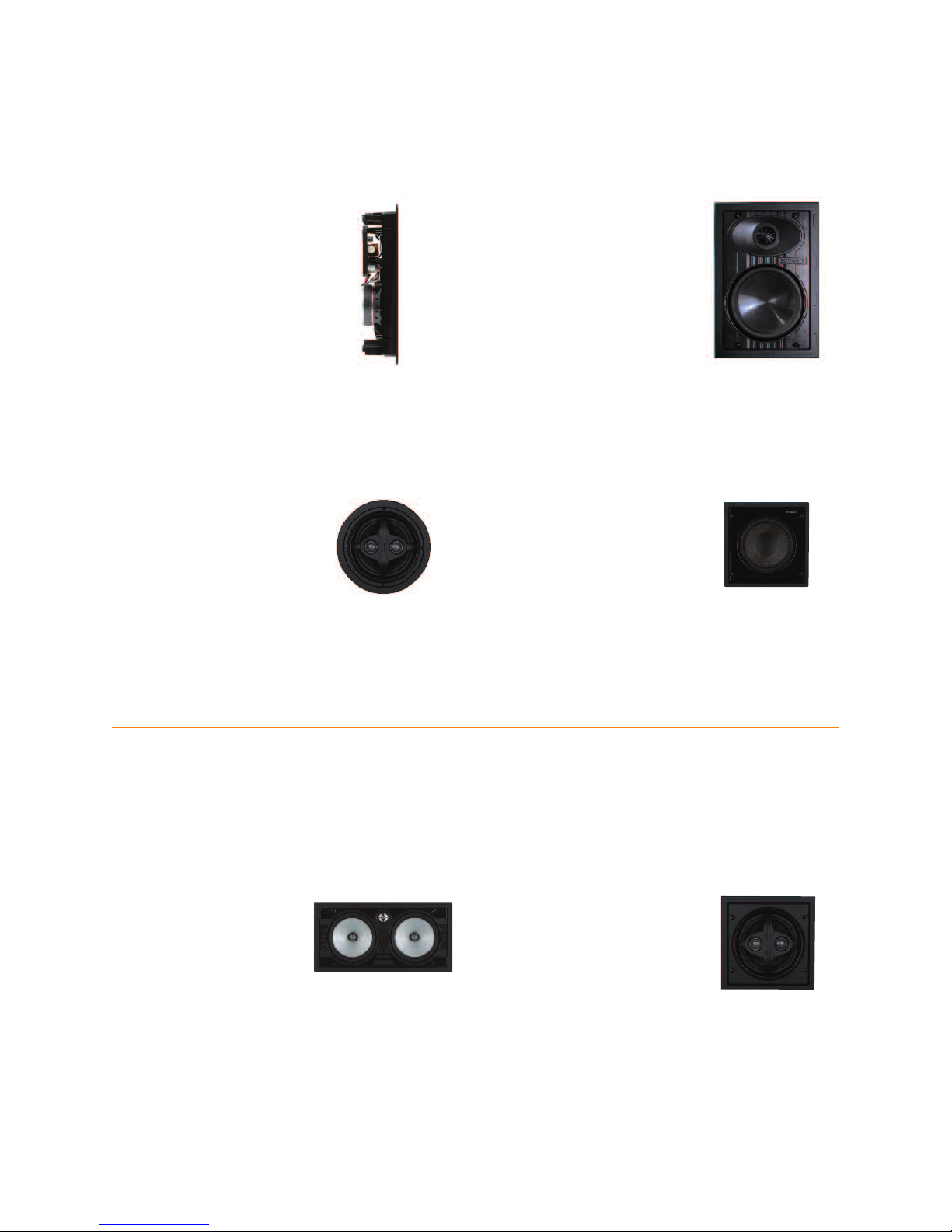

THINLINE (TL)
Featuring shallow 2-1/2”
and 3” (65mm / 77mm)
depths, Sonance ThinLine
speakers allow
nstallations in areas
i
that cannot accommodate
conventional speakers.
SINGLE STEREO
TECHNOLOGY
SST speakers combine both
left and right outputs and play
both signals from one speaker.
They are perfect for use in small
spaces, bathrooms, and hallways.
®
(SST)
65mm
EXTREME (XT)
Extreme speakers are
engineered for humid areas,
extreme temperatures, shock
resistance and they are
xcellent for marine
e
applications.
WOOFER (W)
Visual Performance Series
woofers enhance the bass
performance of any home
theater or distributed audio
system without disturbing
the designed space. Must
be used in conjunction
with Sonamp A800
(available separately).
ADVANTAGE HOME THEATER SIMPLICITY
LEFT-CENTER-RIGHT (LCR)
HOME THEATER
The VP67 LCR is perfect for
use as the left, center and
right channels in a home
theater, complimenting the
look of flat panel televisions.
SURROUND (SUR)
HOME THEATER
Precisely mounted
tweeter array creates a
diffuse sound field ideal
for in-ceiling surround
channel applications.
5
Page 6
ADVANTAGE SIMPLE TO SPECIFY & FINISH
SPEAKER NOMENCLATURE HOW TO SPECIFY
P 8 9 R
V
MULTI-ROOM
SHAPE
ERFORMANCE LEVEL
P
DRIVER SIZE
VISUAL PERFORMANCE SERIES
SHAPE
CHOOSE THE FORM FACTOR
HOOSE THE DRIVER SIZE
C
SMALL
4" DRIVERS
MEDIU M
6" DRIVERS
LARGE
8" DRIVERS
VP45
VP69
VP67
VP65
VP65 TL
VP65 SST
VP65 XT
VP89
VP87
VP85
VP85 W
ELECT SIZE
1 > S
[ small | medium | large ]
2 > SELECT SHAPE
[ rectangle | round |square ]
3 > SELECT PERFORMANCE LEVEL
carbon fiber | coated carbon fiber | beryllium ]
[
ELECT INSTALLATION PROFILE
4 > S
multi-room | theater | shallow | small space | elements ]
[
VP45R
VP69R
VP67R
VP45S
VP65S
VP65S TL
VP65R
VP65R TL
VP65R SST
VP65R XT
VP65R SST XT
VP89R
VP87R
VP85S
VP85S W
VP85R
VP85R W
SHAPE
CHOOSE THE FORM FACTOR
CHOOSE THE DRIVER SIZE
MEDIU M
6" DRIVERS
HOME THEATER
6
VP67LCR VP65R SUR VP65S SUR
Page 7

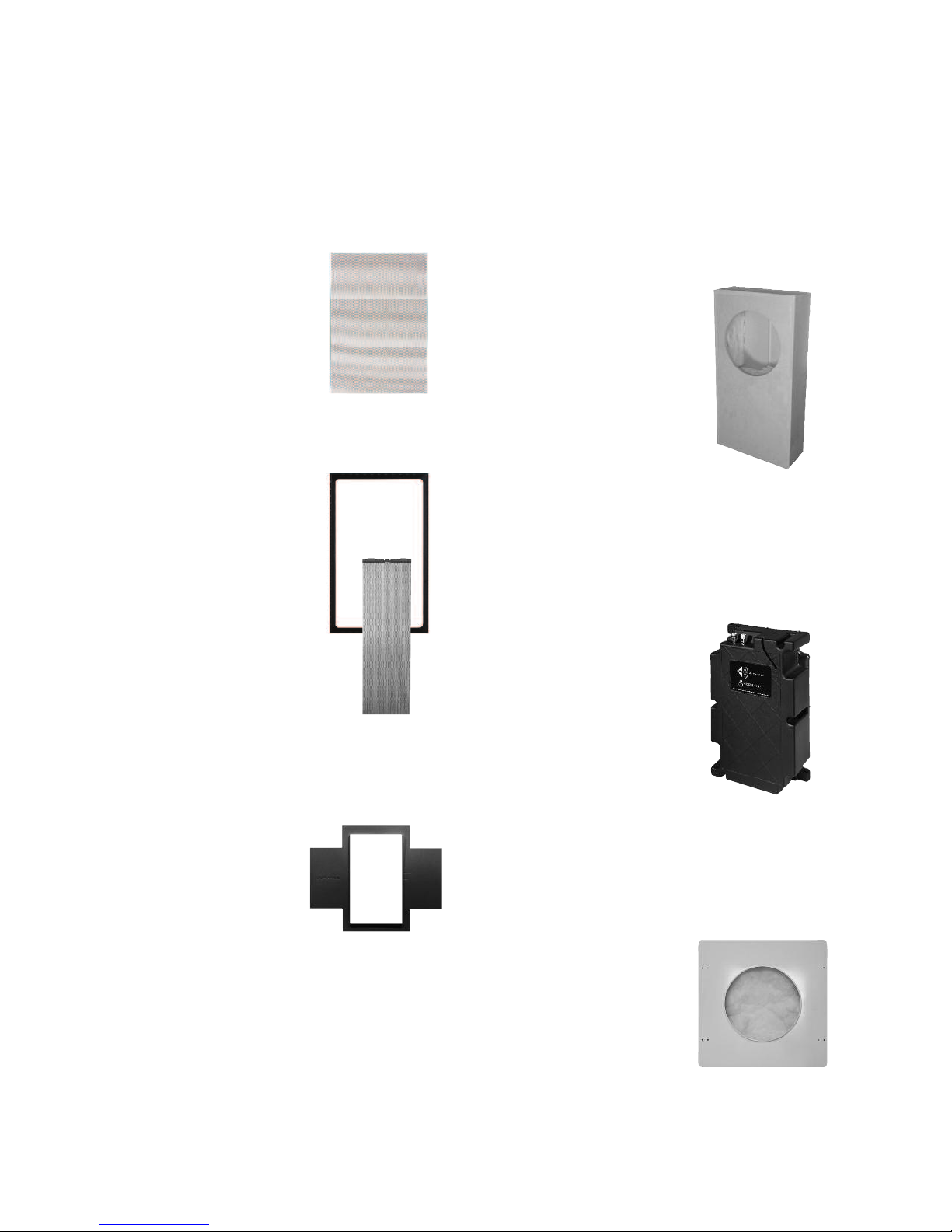

ADVANTAGE ACCESSORIES
onance Visual Performance Series speakers are designed with a spectrum of installation accessories. From
S
backboxes to flexbrackets, Sonance completes the entire installation picture.
GRILLES
One piece grille,
erforated steel and
p
plastic. Available
for all models.
FLEX BRACKETS
Thin plastic templates
for new construction
can be nailed, stapled,
or screwed to studs
before drywall is cut
and installed. Snap-on
mesh metal wings
will accommodate 24”
(610mm) on-center
installations.
Configurable
horizontally or vertically.
Centering marks.
STAPLE
TEMPLATES
ACOUSTIC
ENCLOSURES
Fully-braced 1∕2" MDF
enclosure designed
to deliver free standing
speaker performance
from Sonance Original
Series and Visual
Performance Series
in-wall speakers
and woofers.
Premium design for the
finest sonic performance.
RETROFIT
ENCLOSURES
Glass-reinforced
polypropylene enclosure
reduces sound spillover
into adjacent spaces by
20dB and reduces the
effect of wall cavity
variations. Retrofittable
on all Visual Performance
in-wall speakers.
Plastic template for new
construction can be
stapled to studs before
drywall is cut and
installed. Will only
accommodate 16”
on-center installations.
