Sonance VP42R, VP46R, VP48R Specification Sheet
Ø3.58 [91]
HEIGHT
0.16 [4.2]

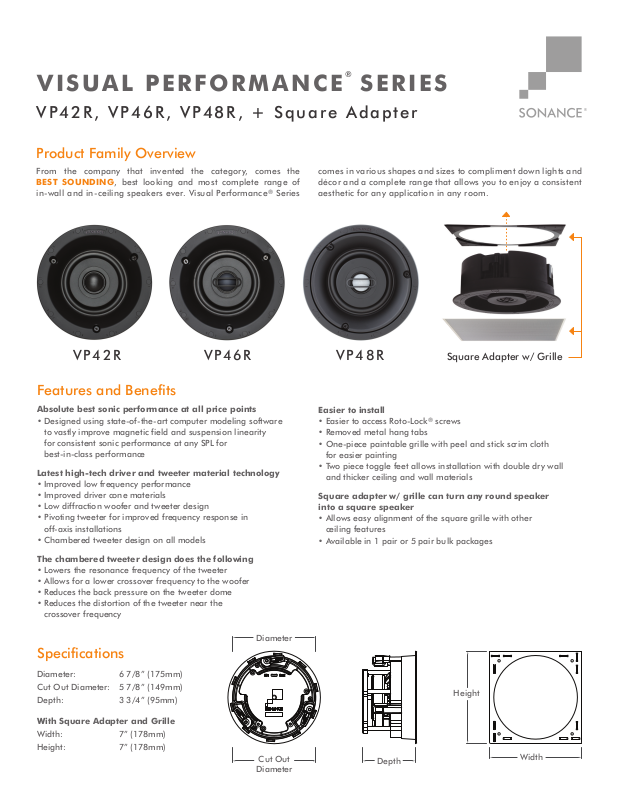

VISUAL PERFORMANCE® SERIES
VP42R, VP46R, VP48R, + Square Adapter
Product Family Overview
From the company that invented the category, comes the
BEST SOUNDING, best looking and most complete range of
in-wall and in-ceiling speakers ever. Visual Performance
®
Series
comes in various shapes and sizes to compliment down lights and
décor and a complete range that allows you to enjoy a consistent
aesthetic for any application in any room.
VP42R VP46R VP48R
Features and Benefits
Absolute best sonic performance at all price points
• Designed using state-of-the-art computer modeling software
to vastly improve magnetic field and suspension linearity
for consistent sonic performance at any SPL for
best-in-class performance
Latest high-tech driver and tweeter material technology
• Improved low frequency performance
• Improved driver cone materials
• Low diffraction woofer and tweeter design
• Pivoting tweeter for improved frequency response in
off-axis installations
• Chambered tweeter design on all models
The chambered tweeter design does the following
• Lowers the resonance frequency of the tweeter
• Allows for a lower crossover frequency to the woofer
• Reduces the back pressure on the tweeter dome
• Reduces the distortion of the tweeter near the
crossover frequency
Diameter
Square Adapter w/ Grille
Easier to install
• Easier to access Roto-Lock
• Removed metal hang tabs
• One-piece paintable grille with peel and stick scrim cloth
for easier painting
• Two piece toggle feet allows installation with double dry wall
and thicker ceiling and wall materials
Square adapter w/ grille can turn any round speaker
into a square speaker
• Allows easy alignment of the square grille with other
ceiling features
• Available in 1 pair or 5 pair bulk packages
®
screws
Specifications
Diameter: 6 7/8” (175mm)
Cut Out Diameter: 5 7/8” (149mm)
Depth: 3 3/4” (95mm)
With Square Adapter and Grille
Width: 7” (178mm)
Height: 7” (178mm)
Cut Out
Diameter
Ø3.58 [91]
Depth
Height
6.29 [159.8]
6.29 [159.8]
Width
SPECIFICATIONS
VP42R +VP4SQ
VP46R +VP4SQ VP48R +VP4SQ
SKU
UOM
Tweeter
Woofer
Frequency Response
Impedance
Power Handling
Sensitivity
Adjustments
Grille
Dimensions
(Dia. x D)
Dimensions with
Square Grille (W x H)
Cut-Out Dimensions
(Dia.)
Shipping Weight
93009
Pair
1" (25mm) cloth dome,
Ferrofluid-cooled, pivoting,
in acoustic back chamber
4 1/2" (114mm) textured
polypropylene cone with
a rubber surround
60Hz - 20kHz ±3dB
8 ohms nominal;
6 ohms minimum
5 watts minimum;
70 watts maximum
89dB SPL
(2.83V/1 meter)
- -
Perforated steel Perforated steel
6 7/8" x 3 3/4"
(175mm x 95mm)
7" x 7"
(178mm)
5 7/8"
(149mm)
6 lbs (2.8kg) pair
1" (25mm) powder coated
aluminum dome, Ferrofluid-cooled,
pivoting, in acoustic back chamber
4 1/2" (114mm) Kevlar /
Nomex laminated cone
with a rubber surround
58Hz - 20kHz ±3dB
8 ohms nominal;
6 ohms minimum
5 watts minimum;
80 watts maximum
(2.83V/1 meter)
6 7/8" x 3 3/4"
(175mm x 95mm)
6 lbs (2.8kg) pair
93010
Pair
90dB SPL
7" x 7"
(178mm)
5 7/8"
(149mm)
93011
Pair
1" (25mm) ceramic dome,
Ferrofluid-cooled, pivoting,
in acoustic back chamber
4 1/2" (114mm) carbon fiber
®
laminated cone
/ Rohacell
with a rubber surround
50Hz - 20kHz ±3dB
6 ohms nominal;
4 ohms minimum
5 watts minimum;
100 watts maximum
90dB SPL
(2.83V/1 meter)
-
Perforated steel
6 7/8" x 3 3/4"
(175mm x 95mm)
7" x 7"
(178mm)
5 7/8"
(149mm)
6 lbs (2.8kg) pair
Associated Products
VP4SQ Square Adapter w/ grille 93029
(Pair Per Box)
VP4SQ Square Adapter w/ grille 93032
(5 Pair Per Box)
Small Round Retrofit Enclosure 92443
(Pair Per Box)
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance
Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which is warranted
for five (5) years. Sonance will at its option and expense either repair the defect or replace the Product with a new or remanufactured Product
or a reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.
©2015 Sonance. All rights reserved.
Sonance, Visual Performance and Roto-Lock, are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
www.sonance.com
Small Round Flex Bracket 92471
(5 Pair Per Box)
Fire-Rated Listed Deep Backcan 92808
(Each)
