INTRODUCTION
Thank you for purchasing Sonance Symphony®TR and TSQ-series speakers. When properly installed
your new speakers will give you years of entertainment pleasure. This manual will teach you all
about your new speakers’ many innovative features and will show you how to get the very best
performance from them. Please read it thoroughly.
Since all of the Symphony TR and TSQ-series speakers have identical installation requirements, the directions
in this manual apply to each model in the series. This manual covers the following speaker mod-
els: Symphony S625TR; Symphony S624TR; Symphony S623TR; Symphony S622TR; Symphony S621TR;
Symphony S623TSQ
DESIGN AND FEATURES
• Ideal for use in multi-channel home theater, stereo music and distributed audio systems.
• Circular (-TR) and square (-TSQ) mounting flanges provide installation flexibility to compliment a wide variety of décor.
• Fully-pivoting woofers and pivoting tweeters direct the sound at listeners for clear sound and improved stereo imaging even when
speaker placement options are limited.
• Advanced woofer cone materials create robust, low-distortion bass.
• A unique tweeter acoustic back chamber widens and smooths high-frequency performance for crystal-clear, natural sound.
• A 3-position tweeter adjustment switch lets you balance the speaker’s high-frequency energy to better compliment your room’s
setup and acoustics (S625TR/S624TR/S623TR/S623TSQ).
• The RotoLock
®
mounting system makes installation quick and easy.
• The detachable mounting flange expands installation options, allowing the speaker assembly to be easily mounted in custom cabinetry.
BOX CONTENTS
Your Sonance Symphony speaker box should contain the following items:
(2) Sonance Symphony speakers (2) Plastic paint plugs (installed on fronts of speakers)
(2) Paintable grilles (1) Mounting cutout template (in packaging)
Figure 1: Sonance Symphony
®
TR-Series Speaker (left);
TSQ-Series Speaker (right)
SONANCE SYMPHONY®TR and TSQ
SAFETY WARNING:
These speakers have FastMount®tabs that prevent the speaker from falling out of the mounting hole during the installation process.
The edges of the FastMount tabs are very sharp. Use caution when handling the speaker.
See
Installation
(page 8) for complete information about the FastMount tabs.
4
SONANCE SYMPHONY®TR and TSQ
OPTIONAL ACCESSORIES
Symphony FlexBracket (TR part # 92337 / TSQ part # 92344): Plastic template to reser ve a mounting hole for Symphony TR- and TSQ-series
speakers in new construction. Designed to be used with the RotoLock®mounting system.
Symphony TR Coverplate (part # 92335): Reusable cover protects the hole made by the FlexBracket during construction until the speaker is installed.
SymphonyTR Acoustic Enclosure (part# 91688): ½” MDF enclosure that provides ideal acoustic performance and maximum
reduction of sound transmission into adjacent spaces. Designed for use only in new construction. Can be used with both Symphony TR- and TSQ-series speakers.
SymphonyTR Retrofit Enclosure (part# 92343): Molded enclosure that reduces sound transmission into adjacent rooms and spaces. Can be used in
both new construction and retrofit installations. Can be used with both Symphony TR- and TSQ-series speakers.
SymphonyTR Fire-Rated Back Can (TR part# 91906): Meets ASTM E 119 and UL2043 fire performance criteria for commercial installations .
Sonafill®In-Ceiling System (part# 91928): Retrofittable acoustical treatment consisting of two pillows and four tiles that virtually eliminates noises
produced by resonating drywall. Dramatically improves midbass sound quality and reduces sound transmission into adjacent rooms.
SPEAKER PLACEMENT
When selecting mounting locations for your speakers you should consider such things as your primary listening location, the primary use for the speakers
(distributed audio, 2-channel stereo or home theater) and aesthetic values. Your local authorized Sonance dealer is an expert in audio/video system
planning and installation. We strongly recommend that you work with your dealer to ensure that your system is properly planned, assembled and installed.
Distributed Audio Speaker Placement (Mono signal)
All Sonance Symphony TR- and TSQ-series speaker models have very smooth and predictable off-axis response, so they provide excellent coverage in distributed
audio systems from a wide variety of installation locations. The chart in
Figure 1
shows how far apart the speakers can be placed at different ceiling
heights while still providing good coverage (as shown in
Figure 2
). The distances are based on ear heights of 62” for standing listeners and 40” for seated
listeners.
Speaker Spacing (in feet) for a Distributed Audio System
Standing Listener Seated Listener
10-foot ceiling
12-foot ceiling
14-foot ceiling
8-foot ceiling
9.5'
13.5'
17.5'
21.5'
5.7'
9.7'
13.7'
17.7'
Coverage
Area
Coverage
Area
Speaker
Spacing
Figure 1: Distributed Audio Speaker Spacing
Figure 2: Distributed Audio Coverage Area
5
SONANCE SYMPHONY®TR and TSQ
Home Theater Speaker Placement
Left, Center & Right Channels
• Place the left, center and right speakers from 1 foot to 2 feet in
front of the video screen, anywhere from 6 feet to 10 feet apart,
with the center channel speaker as close to midway between the
left and right speakers as possible.
• The left & right speakers should be at least 2 feet away from the
side walls.
• The main listening position should be between 4 and 10 feet away
from the speakers.
• In some cases pivoting the woofer of each speaker towards the
listening position will help maximize the soundstage, especially
when listening to stereo music sources.
Use
Figure 3
as a guide.
Left & Right Surround Channels (5.1-Channel System)
Locate the left and right surround speakers on the ceiling between 2 feet and 6 feet behind the listening position. The speakers should be between 6 feet
and 10 feet apart. Since the surround speakers are usually called-upon to create diffuse effects like the sound of wind or rain you can mount them close
to walls without adversely affecting sound quality.
• You can create a more diffuse, spacious surround effect by pivoting the woofers towards a wall or window, away from the listeners.
Use
Figure 3
as a guide.
Left & Right Surround and Surround Back Channels
(7.1-Channel System)
• Left & Right Surround Speakers: Place the left and right
surround speakers directly to the sides of the listening position,
between 6 feet and 10 feet apart. The speakers can be placed close
to the side walls.
• Surround Back Speakers: Place the surround back speakers
between 2 feet and 6 feet behind the listening position. The
surround back speakers should be closer together than the left and
right surround speakers — between 3 feet and 6 feet apart. Like
the left and right surround speakers, the surround back speakers can
be located close to walls without adversely affecting sound quality.
• You can create a more diffuse, spacious surround effect by pivoting
the woofers towards a wall or window, away from the listeners.
Use
Figure 4
as a guide.
TV
6'– 10'
apart
6' – 10'
apart
2' – 6'
1'– 2'
Left & Right
Surround
Speakers
Left, Center
& Right
Speakers
>2’
Figure 3: 5.1-Channel Home Theater Speaker Placement
TV
6'– 10'
apart
3' – 6'
apart
2' – 6'
>2’
1'– 2'
Figure 4: 7.1-Channel Home Theater Speaker Placement
6
SONANCE SYMPHONY®TR and TSQ
Stereo (2-Channel)
• Place the left and right speakers anywhere from 6 feet to 10 feet apart, with the main listening position as close to midway between the speakers as
possible.
• The speakers should be at least 2 feet away from the side walls.
• The main listening position should be between 4 and 10 feet away from the speakers.
• In most cases pivoting the woofer of each speaker directly towards the main listening position will help maximize the stereo soundstage.
Use the left and right speaker placement in
Figures 3
and4as a guide.
SELECTING THE PROPER SPEAKER WIRE
For the best sound we recommend that you use premium Sonance
MediaLinQ®speaker cable, which also complies with UL fire rating codes .
You may also experiment with audiophile brands of speaker cable and
interconnects, but be sure to check local codes governing wire that may
be installed within walls or ceilings. Different brands of wire can have
different sonic characteristics, and some may be more compatible with the
sonic “signature” of your various audio system components.
For the best sound you should never use thin-gauge speaker wire – it will
constrict the sound and diminish bass response. Extra resistance in the
speaker wire can make a speaker sound less dynamic and reduce
definition of the bass frequencies. In extreme cases, it can even attenuate
high frequencies. Also, amplifier power is wasted in thin wire with extra
resistance, reducing your system’s maximum output level. To prevent
degrading sound quality, the total wire resistance should be less than 10%
of the speaker’s impedance. This means that for an 8-ohm speaker, the
total resistance of the wire should be less than 0.8 ohms. Refer to
Figure 5
when selecting the proper wire gauge for your system.
PREPARING THE INSTALLATION LOCATION
Building a Back Box into the Ceiling Bay
Sonance SymphonyTR speakers are designed to provide exceptionally musical performance in a wide variety of enclosure volumes. You can get the very best
performance from your speakers by partitioning a section of the ceiling bay to form a sealed back box with a specific internal volume. Building such an
enclosure will create a dramatic improvement in your speakers’ bass performance and power handling.
Ideal back box volume requirements:
Symphony S625TR: 1.5 ft
3
Symphony S622TR: 1.2 ft
3
Symphony S624
TR: 1.5 ft
3
Symphony S621
TR: 1.0 ft
3
Symphony S623
TR: 1.5 ft
3
Symphony S623
TSQ: 1.5 ft
3
Wire resistance in Ohms vs. length of cable run
Distance in Feet 50' 100' 150' 200' 250' 300'
1.04
.65
.41
.26
.16
.10
18 gauge
16 gauge
14 gauge
12 gauge
10 gauge
20 gauge
2.07
1.30
.82
.52
.32
.20
3.11
1.96
1.22
.77
.49
.31
4.14
2.61
1.63
1.03
.65
.41
5.18
3.26
2.04
1.29
.81
.51
6.22
3.91
2.45
1.55
.97
.61
Figure 5: Speaker Wire Resistance Table
7
SONANCE SYMPHONY®TR and TSQ
Optional SymphonyTR Speaker Enclosures
For installations where it isn’t possible to partition the ceiling bay into a back box, installing optional SymphonyTR Acoustic Enclosures will noticeably improve
your speakers’ bass performance and power handling and will significantly reduce sound transmission into adjacent rooms and spaces. These
enclosures are made from ½”-thick MDF and are designed to be installed in new construction only.
To reduce sound transmission into adjacent rooms in installations where it isn’t possible to install a SymphonyTR Acoustic Enclosure (such as when you’re
retrofitting the speakers into an existing ceiling), you can fit the speakers with optional SymphonyTR Retrofit Enclosures (part # 92343). This enclosure is
designed specifically to be used with SymphonyTR speakers, and will noticeably reduce sound “spillover” from the rears of the speakers into adjacent rooms
and spaces.
Insulating the Ceiling Cavity
You can also reduce sound transmission to adjacent rooms and improve speaker performance by inserting a sheet of unfaced fiberglass insulation over the
back of the speaker. To reduce mechanical noise produced by unsupported drywall, install fiberglass insulation in the ceiling bays adjacent to the speaker
location.
Sonafill
®
Sonafill (part # 91928) is a retrofittable acoustical treatment system consisting of two pillows and four tiles that virtually eliminates noises produced by resonat-
ing drywall. The tiles have pressure-sensitive adhesive and are installed on the back of the drywall on either side of the speaker between the ceiling joists; the
pillows are then stuffed in place behind the tiles. The system dramatically improves midbass sound quality and reduces sound transmission into adjacent rooms.
INSTALLING THE SPEAKERS
Before Installation: New Construction
For installations in new construction, Sonance recommends using a Symphony FlexBracket (TR part # 92337 / TSQ part # 92344) to reserve a location
for the speaker. The FlexBracket has perforated wings that can be positioned at any angle around the bracket, and is nailed or screwed to the studs. This
serves as a guide for the drywaller so that the speaker hole will be in the desired location once the drywall is installed.
Before Installation: Retrofit
1. Determine the location for the speaker (see
Speaker Placement
on page 4).
2. Perform an obstruction survey to be certain that there are no studs, conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere
with the speaker.
3. The cutout for all SymphonyTR and Symphony TSQ speakers is 8
5
/32” (207mm). There also must be at least 53/16” (152mm) depth within the ceiling
cavity for TR-series speakers and 413/16” (122mm) for TSQ speakers.
4. Position the included cutout template where the speaker is to be located and pencil an outline on the ceiling.
• If you are unsure about obstructions, drill a small hole in the center of the outline and inser t a coat hanger wire into the hole to feel-around for
possible obstructions.
5. Cut the mounting hole using a drywall saw, and run the speaker wires from the mounting hole to the amplifier location.
• Consult local building codes before running speaker wires through walls.
8
SONANCE SYMPHONY®TR and TSQ
Installation

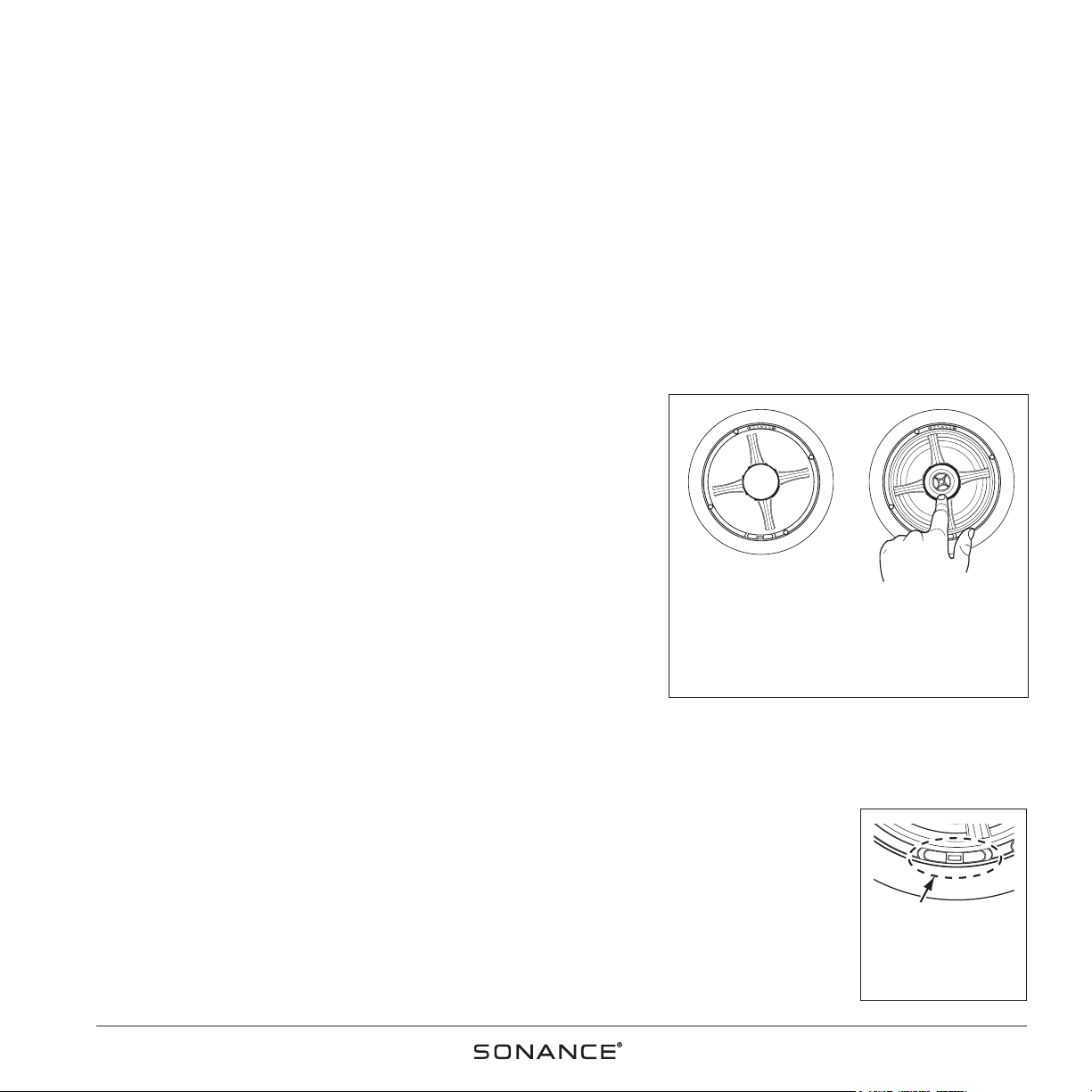

Sonance SymphonyTR and SymphonyTSQ speakers feature exclusive FastMount®tabs and an integral
RotoLock®mounting system for quick mounting directly into existing ceilings and walls.
WARNING: The edges of FastMount tabs are very sharp. Use caution when
handling the speaker.
1. Remove the paint plug from the speaker.
2. Run speaker wire from each speaker to the amplifier location.
3. Strip ¼” – ½” of insulation from each speaker lead. Twist the strands or tin the exposed wire with
solder to ensure that there are no stray strands. (Stray strands that touch each other can cause a
short-circuit that can damage your amplifier.)
4. The speaker’s connector posts are spring-loaded. Push the top of each connector post down to open
the connector and insert the exposed wires into the holes in the posts.
• The speaker’s positive post is labeled with a red dot; the negative post is labeled with a black dot.
Double-check that you connected amplifier “+” to speaker “+” and amplifier “–” to speaker “–”.
5. Make sure all the RotoLock clamps are in the full clockwise position so that they are tucked within
the mounting hole’s border. Inser t the speaker into the hole in the ceiling (
Figure 6
). The RotoLock
system can accommodate a maximum ceiling material thickness of 1¼”.
• The FastMount tabs will prevent the speaker from falling out of the mounting hole, allowing the
installer to let go of the speaker to pick-up tools or other items.
N
OTE:THEFASTMOUNT TABS ARE DESIGNED FOR ONE-TIME USE ONLY.IF THE SPEAKER IS
REMOVED FROM THE MOUNTING HOLE THE
F
ASTMOUNT TABS WILL DISCONNECT AND REMAIN
INSIDE THE CEILING
.
6. Tighten the four screws on the front of the speaker baffle. The RotoLock clamps will automatically
rotate into position and begin clamping the speaker (
Figure 7
).
• When you notice resistance on the screws the speaker has been clamped successfully (
Figure 8
).
N
OTE:THE SPEAKER FLANGE IS DESIGNED TO FLEX AND CONFORM TO ANY SMALL
IMPERFECTIONS IN THE CEILING SURFACE
.D
O NOT TIGHTEN THE SCREWS SO MUCH SO THAT
THE FLANGE BOWS
-
OUT
.
Important: Always use low-torque settings; NEVER over-tighten.
7. Attach the grille after the speaker has been installed. Insert about half of the grille into the groove at
the edge of the speaker. Gently fit the remaining half of the grille by working around the speaker,
fitting the grille into the groove as you go.
N
OTE:YOU CAN ADJUST THE TORQUE APPLIED TO THEROTOLOCK SCREWS TO ACHIEVE A
PROPER GRILLE FIT
.
RotoLock® Clamps
Figure 8:
Speaker Successfully Clamped
Figure 7:
Tighten RotoLock Clamps
FastMount® Tabs
Figure 6: Insert Speaker
Into Mounting Hole
9
SONANCE SYMPHONY®TR and TSQ
PAINTING THE SPEAKERS AND GRILLES
You can paint the speakers and grilles before installing them, which will eliminate the “paint scar” that can be left on the ceiling if the speaker ever needs
to be removed for service. You can also paint the speakers after installation, but before the grilles are attached. All Sonance Symphony speakers come from
the factory fitted with a plastic ‘paint plug’ that protects the speaker drivers while the mounting flange is being painted.
Sonance always suggests painting the grille separately from the speaker. Before painting, carefully remove the under-grille cloth. It is held in place with a
light tacking glue that makes it easy to remove.
Spray the grilles with thinned paint (5 parts thinner to 1 part paint), being careful not to plug the holes. Too heavy a coat of paint on the grille will
adversely affect the sound of the speaker.
Once the grilles and flange are painted and dry, replace the under-grille cloth, remove the paint plug from the mounting flange and install the grille.
SPEAKER ADJUSTMENTS
Pivoting Woofer and Tweeter
All Symphony TR- and TSQ-series speakers have a pivoting woofer assembly and all except
the S621
TR have a pivoting tweeter. These pivoting drivers allow you to direct sound toward
or away from the listening area, depending on how the speakers are being used:
• If you’re using the speakers in stereo or as the front left/center/right speakers in a home
theater, pivot the woofer and/or tweeter directly towards the listening area. This will help
the sound from the speakers blend into a solid soundstage even if the speakers are
widely separated.
• If you’re using the speakers as surround channel speakers in a home theater, you can
create a more diffuse, spacious surround effect by aiming the woofers and/or tweeters
towards a wall or window, away from the listeners.
To Pivot the Woofer:
Apply pressure on the outer edge of the tweeter support bracket, as shown in
Figure 9
. Do not touch or apply pressure to the woofer cone.
To Pivot the Tweeter:
Apply light pressure to the plastic ring around the outside edge of the tweeter dome, as shown in
Figure 9
. Do not touch or apply pressure to the
tweeter dome.
Tweeter Level Control
The S625TR, S624TR, S623TR and S623TSQ have a tweeter level control switch (see
Figure 10
) that lets you boost or cut the
tweeter’s level by 3dB. This allows you to adjust the speaker’s brightness to better match your listening room or personal taste.
Once you have installed the speakers, listen to a variety of music that you are familiar with. If the music all tends to sound
too bright or dull, use the Tweeter Level Control to compensate. If some recordings sound dull and some sound bright the
speaker is accurately reproducing differences in the recordings, and you should leave the control in the middle (0dB) position.
Figure 9:
Pivoting the Woofer and Tweeter
Pivoting the Woofer
Pivoting the Tweeter
Twee ter
Level Control
Figure 10:
Tweeter Level
Control
10
SONANCE SYMPHONY®TR and TSQ
SPECIFICATIONS
S625TR
Tweeter: 1" (25mm) Beryllium dome, Ferrofluid-cooled, pivoting
Woofer: 6½" (165mm) Beryllium cone, rubber surround, pivoting
Frequency Response: 40Hz – 20kHz ±3dB
Impedance: 6 Ohms nominal; 4 Ohms minimum
Power Handling: 5 watts minimum; 150 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: ±3dB Tweeter level
Dimensions (Dia. x Depth): 9¾" (248mm) x 5
3
/16" (132mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 12 lbs. (5.45kg) Pair
S624TR
Tweeter: 1" (25mm) Aluminum dome, Ferrofluid-cooled, pivoting
Woofer: 6½" (165mm) Coated carbon fiber cone, r ubber surround, pivoting
Frequency Response: 43Hz – 20kHz ± 3dB
Impedance: 6 Ohms nominal; 4 Ohms minimum
Power Handling: 5 watts minimum; 140 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: ±3dB Tweeter level
Dimensions (Dia. x Depth): 9¾" (248mm) x 5
3
/16" (132mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 11 lbs. (5.0kg) Pair
S623TR
Tweeter: 1" (25mm) Silk dome, Ferrofluid-cooled, pivoting
Woofer: 6½" (165mm) Carbon fiber cone, rubber surround, pivoting
Frequency Response: 43Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 135 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: ±3dB Tweeter level
Dimensions (Dia. x Depth): 9¾" (248mm) x 5
3
/16" (132mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 10 lbs. (4.5kg) Pair
S622TR
Tweeter: 1" (25mm) Silk dome, Ferrofluid-cooled, pivoting
Woofer: 6½" (165mm) Polypropylene cone, rubber surround, pivoting
Frequency Response: 45Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 125 Watts maximum
Sensitivity: 89dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: None
Dimensions (Dia. x Depth): 9¾" (248mm) x 5
3
/16" (132mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 10 lbs. (4.5kg) Pair
S621TR
Tweeter: ¾" (19mm) Silk dome, Ferrofluid-cooled
Woofer: 6½" (165mm) Polypropylene cone, rubber surround, pivoting
Frequency Response: 50Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 100 Watts maximum
Sensitivity: 88dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: None
Dimensions (Dia. x Depth): 9¾" (248mm) x 5
3
/16" (132mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 9 lbs. (4.1kg) Pair
S623TSQ
Tweeter: 1" (25mm) Silk dome, Ferrofluid-cooled, pivoting
Woofer: 6½" (165mm) Carbon fiber cone, rubber surround, pivoting
Frequency Response: 43Hz – 20kHz ±3dB
Impedance: 8 Ohms nominal; 6 Ohms minimum
Power Handling: 5 watts minimum; 135 Watts maximum
Sensitivity: 90dB SPL (2.83V 1 meter)
Grille Material: Perforated aluminum
Adjustments: ±3dB Tweeter level
Dimensions (W x H x D): 9¾" (248mm) x 4
13
/16" (122mm)
Cutout Diameter: 8
5
/32" (207mm)
Shipping Weight: 10 lbs. (4.5kg) Pair
11
SONANCE SYMPHONY®TR and TSQ
TECHNICAL ASSISTANCE AND SERVICE
If you any have questions about the operation or installation of this product, please call our Technical Assistance
Department on any business day at (800) 582-0772 or (949) 492-7777; from 7 a.m. to 5 p.m., PST.
If your speakers should need repair or service, contact your Sonance Authorized Dealer for help, or use the following procedure:
1. Prior to calling, note the product’s model number, serial number, purchase date, and the name and address of the dealer where you purchased the product.
2. Contact our Technical Assistance Department at the above number(s) and describe the problem the unit is experiencing. If applicable, they will issue a
Return Authorization Number.
IMPORTANT:YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN YOUR SPEAKER TO SONANCE!
3. If you’re directed to return the unit to Sonance for repair, pack the unit in its original shipping carton. If needed, you can obtain replacement packag-
ing from us for a small charge. Note: it is best if you place the box into an additional outer “overcarton” before shipment to minimize a chance of
theft in shipment. Please include a copy of the original bill of sale inside the package.
4. Contact a package delivery company such as United Parcel Service or Federal Express to arrange prepaid (not collect) shipping. Do not use the U.S. Postal
Service.
IMPORTANT: Freight collect shipments will be refused.
5 . W r i t e t h e R e t u r n A u t h o r i z a t i o n N u m b e r o n t h e o u t s i d e o f t h e s h i p p i n g c a r t o n .
6. Ship the packaged unit to:
Q
UALITYASSURANCEDEPARTMENT
S
ONANCE
212 A
VENIDAFABRICANTE
SANC
LEMENTE
, CA 92672-7531
12
SONANCE SYMPHONY®TR and TSQ
LIMITED LIFETIME WARRANTY COVERAGE (U.S. ONLY)
S
ONANCE WARRANTS TO THE ORIGINAL RETAIL PURCHASER ONLY THAT THIS
S
ONANCE PRODUCT WILL BE FREE FROM DEFECTS IN MATERIALS
AND WORKMANSHIP
,
PROVIDED THE SPEAKER WAS PURCHASED FROM ASONANCEAUTHORIZEDDEALER
.
Defective products must be shipped, together with proof of purchase, prepaid insured to the Authorized Sonance Dealer from whom they were purchased, or
to the Sonance factory at the address listed on this instruction manual. Freight collect shipments will be refused. It is preferable to ship this product in
the original shipping container to lessen the chance of transit damage. In any case, the risk or loss or damage in transit is to be borne by the purchas-
er. If upon examination at the factory or Authorized Sonance Dealer it is determined that the unit was defective in materials or workmanship at any time
during this warranty period, Sonance or the Authorized Sonance Dealer will, at its option, repair or replace this product at no additional charge, except as
set forth below. If this model is no longer available and can not be repaired effectively, Sonance, at is sole option, may replace the unit with a current
model of equal or grater value. In some cases where a new model is substituted, a modification to the mounting surface may be required. If mounting
surface modification is required, Sonance assumes no responsibility or liability for such modification. All replaced parts and product become the property of
Sonance. Products replaced or repaired under this warranty will be retur ned to the original retail purchaser, within a reasonable time , freight prepaid.
This Warranty does not include service or parts to repair damage caused by accident, disaster, misuse , abuse , negligence, inadequate packing or shipping
procedures, commercial use, voltage inputs in excess of the rated maximum of the unit, or ser vice, repair or modification of the product which has not
been authorized or approved by Sonance. This Warranty also excludes normal cosmetic deterioration caused by environmental conditions. This Warranty will
be void if the Serial Number on the product has been removed, tampered-with or defaced. This Warranty is in lieu of all other expressed warranties. If the
product is defective in materials or workmanship as warranted above, the purchaser’s sole remedy shall be repair or replacement as provided above. In no
event will Sonance be liable for any incidental or consequential damages arising out of the use or inability to use the product, even if Sonance or an
Authorized Sonance Dealer has been advised of the possibility of such damages, or for any claim by any other party.
Some states do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply. All implied warranties
on the product are limited to the duration of this expressed Warranty. Some states do not allow limitation on the length of an implied warranty. If the
original retail purchaser resides in such a state, this limitation does not apply.
EXCLUSIONS AND LIMITATIONS
The warranty set forth above is in lieu of all other warranties, express or implied, of merchantability, fitness for a particular purpose, or otherwise . The
warranty is limited to Sonance products registered herein and specifically excludes any damage to loudspeakers and other allied or
associated equipment which may result for any reason from use with this product. Sonance shall, in no event, be liable for incidental or consequential
damages arising from any breach of this warranty or otherwise. This warranty gives you specific legal rights, and you may have other rights which vary
from state to state.
13
SONANCE SYMPHONY®TR and TSQ
14
SONANCE SYMPHONY®TR and TSQ
33-4339 07/06
©2006 Sonance. All rights reserved. Sonance, Sonance Symphony, RotoLock, Sonafill and FastMount are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice . For the latest Sonance product specification information visit our website:
www.sonance.com
212 Avenida Fabricante • San Clemente, CA 92672-7531 USA • (800) 582-7777 or (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (800) 582-0772
www.sonance.com
Loading...
