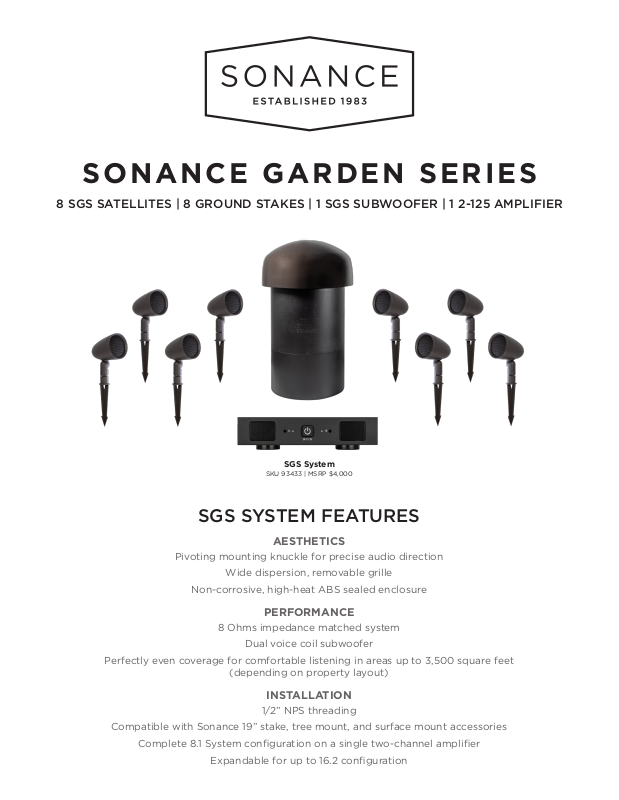

Sonance SGS SYSTEM Specifications

SONANCE GARDEN SERIES

8 SGS SATELLITES | 8 GROUND STAKES | 1 SGS SUBWOOFER | 1 2-125 AMPLIFIER

SGS System

SKU 93433 | MSRP $4,000

SGS SYSTEM FEATURES

AESTHETICS

Pivoting mounting knuckle for precise audio direction

Wide dispersion, removable grille

Non-corrosive, high-heat ABS sealed enclosure

PERFORMANCE

8 Ohms impedance matched system

Dual voice coil subwoofer

Perfectly even coverage for comfortable listening in areas up to 3,500 square feet

(depending on property layout)

INSTALLATION

1/2” NPS threading

Compatible with Sonance 19” stake, tree mount, and surface mount accessories

Complete 8.1 System configuration on a single two-channel amplifier

Expandable for up to 16.2 configuration

SONANCE GARDEN SERIES

Dimensions

SGS SAT

Speaker Diameter: 4.52” (114.8mm)
Height: 16.47” (418.28mm)
Depth: 6.73” (171mm)

Depth

Diameter

SGS SUB

Canopy Width: 14.96” (380mm)
Enclosure Width: 12.2” (310mm)
Canopy Height: 7.43” (188.75mm)
Enclosure Height: 17.4” (442mm)
Overall Height: 24.83” (630.75mm)

Canopy Width

Canopy

Height

Overall

Height

Height

Enclosure

Height

Enclosure Width

Specifications

SGS Satellite Speaker

Tweeter:

Woofer:

Frequency Response:

Crossover Frequency:

Impedance:

System Impedance:

Power Handling:

Sensitivity:

Enclosure Material:

Mounting Threads:

Dimensions (L x Dia.):

Shipping Weight:

LIMITED THREE (3) YEAR WARRANTY

Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance Dealer/
Distributor, will be free from defective workmanship and materials for the period stated above. Sonance will, at its option and expense, either repair the
defect or replace the Product with a new or remanufactured Product or a reasonable equivalent. Please visit our website and owner’s e-Manual for complete

warranty and exclusion information.

©2019 Sonance. All rights reserved. Sonance is a registered trademark of Dana Innovations.

Due to continuous product improvement, all features and specifications are subject to change without notice. For the latest Sonance product
specification information visit our website: www.sonance.com

991 Calle Amanecer • San Clemente, CA 92673 USA • [phone] • FAX: [phone] • Technical Support: [phone]

3/4” (19mm) Polyurethane dome

3.5” (98mm) Anodized aluminum
cone & Santoprene™ surround

80Hz - 20kHz +/-3dB

­30 Ohms nominal
8 Ohms nominal
50 watts minimum; 200 watts maximum
87dB 2.83V / 1 meter
Non-corrosive, high-heat ABS sealed

enclosure
1/2” NPS (National Pipe Standard)

6.5” L x 4.125” Dia. (165mm x 105mm)

5.0lbs (2.4kg) each

SGS Subwoofer

­10” (254mm) dual voice coil, polypropylene

& Santoprene surround
35Hz - 100Hz +/-3dB
100Hz
8 Ohms nominal per voice coil
8 Ohms nominal
200 Watts
90dB Sensitivity @ 2.83V / 1 meter
High Density Polyethylene (HDPE) non-corrosive

sealed enclosure

-

24.8” x 15” (630mm x 381mm)
40 lbs (19kg)

02.14.19
