Page 1

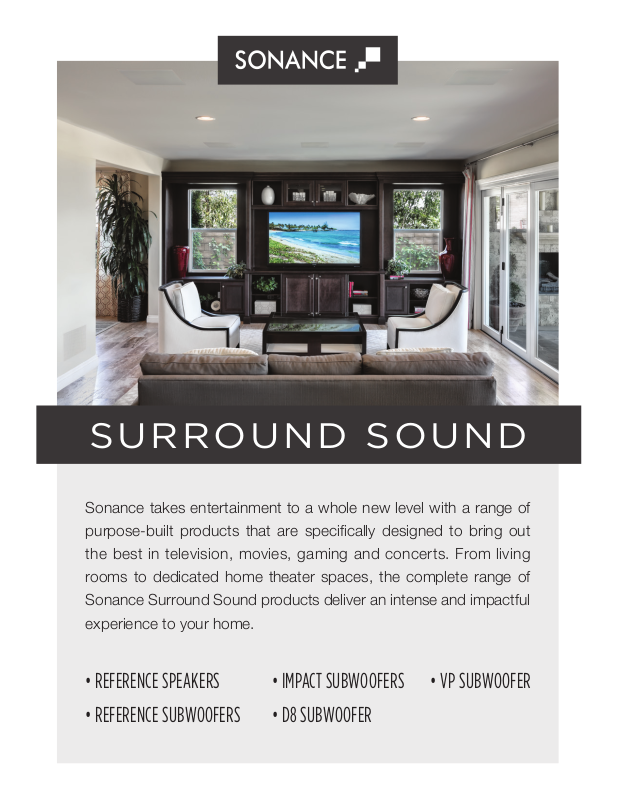

SURROUND SOUND
Sonance takes entertainment to a whole new level with a range of
purpose-built products that are specically designed to bring out
the best in television, movies, gaming and concerts. From living
rooms to dedicated home theater spaces, the complete range of
Sonance Surround Sound products deliver an intense and impactful
experience to your home.
• REFERENCE SPEAKERS
• REFERENCE SUBWOOFERS
• IMPACT SUBWOOFERS
• D8 SUBWOOFER
• VP SUBWOOFER
Page 2
SONANCE
REFERENCE SERIES
Inventing, Leading, and Reinventing is in our DNA and it is with this
same philosophy that we redeveloped our Surround Sound line.
With a focus on achieving premium performance for architectural
surround sound, Sonance has set a new standard with Reference
Speakers and Subwoofers.
Reference Speakers and Subwoofers oers up all new driver
technology and consistent tonal matching across the line, making
it simple to mix and match speaker and subwoofer models in any
conguration and still achieve optimized performance.
REFERENCE IN-WALL SPEAKERS
Tweeter:
Midrange:
R2
SKU 93346
1” (25mm) Ceramic dome,
Ferrofluid-cooled in an
acoustic back chamber
5 1/4” (133mm) Carbon fiber/
Rohacell laminated cone
with a rubber surround
Two 1” (25mm) Ceramic
domes, Ferrofluid-cooled
in an acoustic back chamber
Two 3” (76mm) Carbon fiber/
Rohacell laminated cones
with rubber surrounds
R2SUR
SKU 93347
R1
SKU 93344
1” (25mm) Ceramic dome,
Ferrofluid-cooled in an
acoustic back chamber
5 1/4” (133mm) Carbon fiber/
Rohacell laminated cone
with a rubber surround
R1SUR
SKU 93345
Two 1” (25mm) Ceramic
domes, Ferrofluid-cooled
in an acoustic back chamber
Two 3” (76mm) Carbon fiber/
Rohacell laminated cones
with rubber surrounds
Woofer:
Frequency Response:
Power Handling:
Four 5 1/4” (133mm) Carbon fiber/Rohacell laminated cones
with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 200 watts maximum
70Hz - 30kHz ±3dB
Two 5 1/4” (133mm) Carbon fiber/Rohacell laminated cones
with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
70Hz - 30kHz ±3dB
Page 3
REFERENCE IN-WALL SUBWOOFERS
Sonance Dual Spider Technology (DST) for maximum excursion in limited depth.
Woofer:
Frequency Response:
Impedance:
Sensitivity:
Required Enclosure:
Required Amplification:
Tweeter:
R12SUB
SKU 93355
12” (305mm) laminated carbon fiber cone with a
rubber surround
25Hz - 250Hz ±3dB
8 ohms nominal
90dB (2.83V/1) meter
R12SUB ENC acoustic enclosure (sold separately)
Sonance DSP2-750 (used in Stereo setting)
10” (254mm) laminated carbon fiber cone with a
rubber surround
30Hz - 250Hz ±3dB
8 ohms nominal
88dB (2.83V/1) meter
R10SUB ENC acoustic enclosure (sold separately)
Sonance DSP2-150 or Sonance DSP8-130MKII
(using two channels bridged)
REFERENCE IN-CEILING SPEAKERS
R1C
SKU 93351
1” (25mm) Ceramic dome, Ferrofluid-cooled
in an acoustic back chamber
Two 1” (25mm) Ceramic domes, Ferrofluid-cooled
in an acoustic back chamber
R10SUB
SKU 93354
R1CSUR
SKU 93352
Midrange:
Woofer:
Frequency Response:
Power Handling:
Frequency Response:
5 1/4” (133mm) Carbon fiber/Rohacell laminated
cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
REFERENCE LCR CABINET
Tweeter:
Midrange:
Woofer:
Impedance:
1” (25mm) Ceramic dome, Ferrofluid-cooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
8 ohms nominal; 6 ohms minimum
Two 3” (76mm) Carbon fiber/Rohacell laminated
cones with rubber surrounds
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz ±3dB
5 watts minimum; 150 watts maximum
R1CAB
SKU 93348
Power Handling:
Sensitivity:
5 watts minimum; 150 watts maximum
90dB SPL (2.83V/1 meter)
Page 4
SONANCE SUBWOOFERS
VISUAL PERFORMANCE
Designed to fit any new construction or retro-fit application, the VPSUB
delivers cabinet-level performance in a discreet form factor.
VPSUB
SKU 93353
Woofer:
Frequency Response:
Impedance:
Sensitivity:
Required Amplification:
Dimensions (WxHxD):
10” (254mm) laminated glass fiber
cone with a rubber surround
34Hz - 250Hz ±3dB
8 ohms nominal
90dB SPL (2.83v/1 meter)
Sonance DSP2-150 or Sonance DSP8-130MKII
(using two channels bridged)
15” x 15” x 3 7/8 (381mm x 381mm x 98mm)
Sonance Impact Subwoofers oer exceptional performance, wireless connectivity and app driven room correction,
optimizing placement of the subwoofer anywhere in the room.
IMPACT
D8
The Sonance D8 features two powerful opposable 8” square drivers,
wireless connectivity and our SONARC DSP technology all within a
sleek ultra-compact cabinet.
Woofer:
Frequency Response:
Output Power:
Inputs:
Controls:
Dimensions (WxHxD):
*Compatible with SONARC configuration app.
*Compatible with SONARC.
D8
SKU 93359
Two square 8” (203mm) ultra long throw,
glass fiber cone, rubber surround
32Hz - 250Hz ±3dB
300 watts RMS (600 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
7.5”x 7.5”x 9” (191mm x 191mm x 229mm)
Woofer:
Frequency Response:
Power Output:
Inputs:
Controls:
Dimensions (WxHxD):
i12
SKU 93358
12” (305mm) ultra long throw, glass
fiber cone, rubber surround
22Hz – 250Hz ±3dB
400 watts RMS (800 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
16”x 18”x 16”
(407mm x 457mm x 407mm)
i10
SKU 93357
10” (254mm) ultra long throw, glass
fiber cone, rubber surround
24Hz – 250Hz ±3dB
300 watts RMS (600 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
14”x 16”x 14”
(356mm x 407mm x 356mm)
8” (203mm) ultra long throw, glass
fiber cone, rubber surround
30Hz – 250Hz ±3dB
200 watts RMS (400 watts peak)
Line-level, speaker-level and low
latency wireless
Crossover, phase and bypass
12”x 14”x 12”
(305mm x 356mm x 305mm)
i8
SKU 93356
APP
Sonance Automatic Room Correction (SONARC) is an app based conguration
tool engineered to ensure each subwoofer is perfectly tuned for any room.
The software includes 16 variable bands of automatic parametric equalization.
