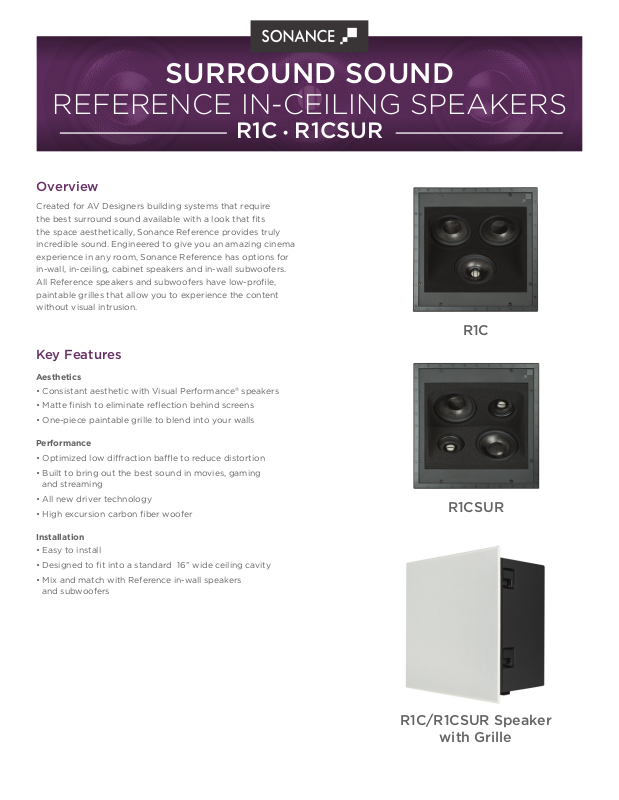

Sonance R1C, R1CSUR Specifications
SURROUND SOUND
REFERENCE IN-CEILING SPEAKERS
R1C • R1CSUR
Overview
Created for AV Designers building systems that require
the best surround sound available with a look that fits
the space aesthetically, Sonance Reference provides truly
incredible sound. Engineered to give you an amazing cinema
experience in any room, Sonance Reference has options for
in-wall, in-ceiling, cabinet speakers and in-wall subwoofers.
All Reference speakers and subwoofers have low-profile,
paintable grilles that allow you to experience the content
without visual intrusion.
R1C
Key Features
Aesthetics
• Consistant aesthetic with Visual Performance® speakers
• Matte finish to eliminate reflection behind screens
• One-piece paintable grille to blend into your walls
Performance
• Optimized low diraction bae to reduce distortion
• Built to bring out the best sound in movies, gaming
and streaming
• All new driver technology
• High excursion carbon fiber woofer
Installation
• Easy to install
• Designed to fit into a standard 16” wide ceiling cavity
• Mix and match with Reference in-wall speakers
and subwoofers
R1CSUR
R1C/R1CSUR Speaker
with Grille
Dimensions
R1C
Width: 13 25/32” (350mm)
Height: 13 25/32” (350mm)
Depth: 7 9/16” (192mm)
Cut-Out Width: 12 3/8” (314mm)
Cut-Out Height: 12 3/8” (314mm)
R1CSUR
Width: 13 25/32” (350mm)
Height: 13 25/32” (350mm)
Depth: 7 9/16” (192mm)
Cut-Out Width: 12 3/8” (314mm)
Cut-Out Height: 12 3/8” (314mm)
Specifications
Height
R1C • R1CSUR
Width
Depth
*Includes back plate
compatible with third party
seismic retention hardware.
Model:
SKU:
Unit of Measure:
Tweeter:
Midrange:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Shipping Weight:
R1C
93351
Each
1” (25mm) Ceramic dome, Ferrofluidcooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
8 ohms nominal; 6 ohms minimum
5 Watts minimum; 150 Watts maximum
90dB SPL (2.83V/1 meter)
15 lbs (7kg) each
Recommended Products
R1C & R1CSUR Flex Bracket
SKU 92800
R1CSUR
93352
Each
Two 1” (25mm) Ceramic dome, Ferrofluidcooled in an acoustic back chamber
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
8 ohms nominal; 6 ohms minimum
5 Watts minimum; 150 Watts maximum
90dB SPL (2.83V/1 meter)
15 lbs (7kg) each
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance
Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which is warranted for
five (5) years. Sonance will, at its option and expense, either repair the defect or replace the Product with a new or remanufactured Product or a
reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.
©2017 Sonance. All rights reserved.
Sonance and Visual Performance are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA
(949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777
www.sonance.com
