Sonance R10SUB, R12SUB Quick Start Guide

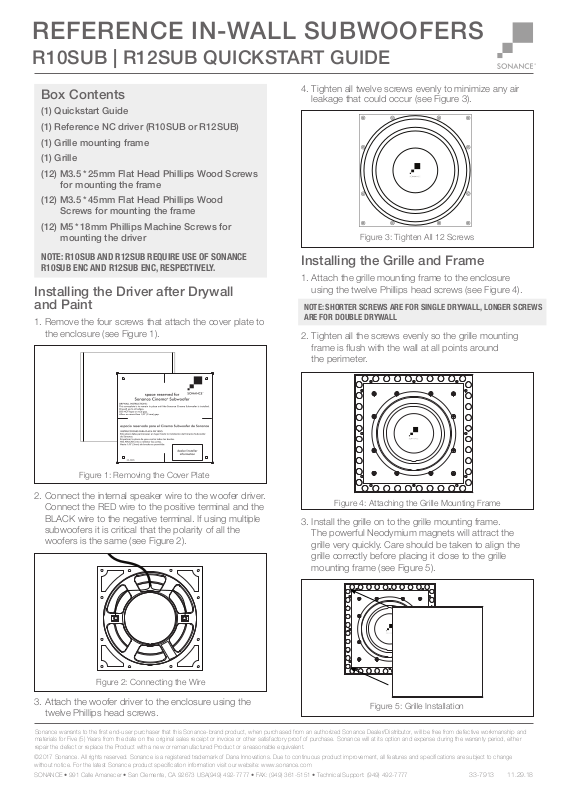

REFERENCE IN-WALL SUBWOOFERS

R10SUB | R12SUB QUICKSTART GUIDE

Box Contents

(1) Quickstart Guide

(1) Reference NC driver (R10SUB or R12SUB)

(1) Grille mounting frame

(1) Grille

(12) M3.5 * 25mm Flat Head Phillips Wood Screws
for mounting the frame

(12) M3.5 * 45mm Flat Head Phillips Wood
Screws for mounting the frame

(12) M5 * 18mm Phillips Machine Screws for
mounting the driver

NOTE: R10SUB AND R12SUB REQUIRE USE OF SONANCE
R10SUB ENC AND R12SUB ENC, RESPECTIVELY.

Installing the Driver after Drywall
and Paint

1. Remove the four screws that attach the cover plate to
the enclosure (see Figure 1).

4. Tighten all twelve screws evenly to minimize any air
leakage that could occur (see Figure 3).

Figure 3: Tighten All 12 Screws

Installing the Grille and Frame

1. Attach the grille mounting frame to the enclosure
using the twelve Phillips head screws (see Figure 4).

NOTE: SHORTER SCREWS ARE FOR SINGLE DRYWALL, LONGER SCREWS
ARE FOR DOUBLE DRYWALL

2. Tighten all the screws evenly so the grille mounting

frame is ush with the wall at all points around

the perimeter.

Figure 1: Removing the Cover Plate

2. Connect the internal speaker wire to the woofer driver.
Connect the RED wire to the positive terminal and the
BLACK wire to the negative terminal. If using multiple
subwoofers it is critical that the polarity of all the
woofers is the same (see Figure 2).

Figure 2: Connecting the Wire

3. Attach the woofer driver to the enclosure using the
twelve Phillips head screws.

Sonance warrants to the rst end-user purchaser that this Sonance-brand product, when purchased from an authorized Sonance Dealer/Distributor, will be free from defective workmanship and
materials for Five (5) Years from the date on the original sales receipt or invoice or other satisfactory proof of purchase. Sonance will at its option and expense during the warranty period, either
repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.

©2017 Sonance. All rights reserved. Sonance is a registered trademark of Dana Innovations. Due to continuous product improvement, all features and specications are subject to change
without notice. For the latest Sonance product specication information visit our website: www.sonance.com

SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA(949) 492-7777 • FAX: [phone] • Technical Support: [phone]

3. Install the grille on to the grille mounting frame.
The powerful Neodymium magnets will attract the
grille very quickly. Care should be taken to align the
grille correctly before placing it close to the grille
mounting frame (see Figure 5).

Figure 4: Attaching the Grille Mounting Frame

Figure 5: Grille Installation

33-7913

11.29.18
