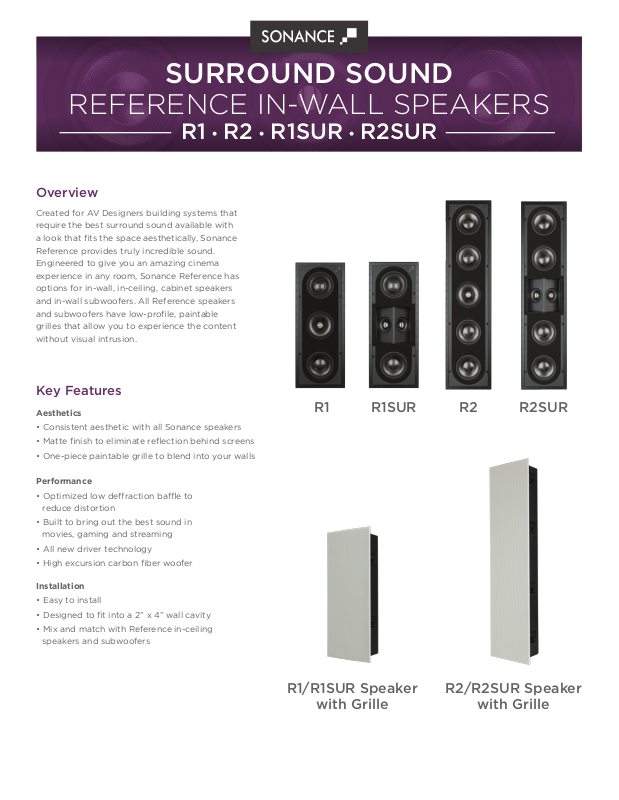

SURROUND SOUND
REFERENCE IN-WALL SPEAKERS
R1 • R2 • R1SUR • R2SUR
Overview
Created for AV Designers building systems that
require the best surround sound available with
a look that fits the space aesthetically, Sonance
Reference provides truly incredible sound.
Engineered to give you an amazing cinema
experience in any room, Sonance Reference has
options for in-wall, in-ceiling, cabinet speakers
and in-wall subwoofers. All Reference speakers
and subwoofers have low-profile, paintable
grilles that allow you to experience the content
without visual intrusion.
Key Features
Aesthetics
• Consistent aesthetic with all Sonance speakers
• Matte finish to eliminate reflection behind screens
• One-piece paintable grille to blend into your walls
Performance
• Optimized low deraction bae to
reduce distortion
• Built to bring out the best sound in
movies, gaming and streaming
• All new driver technology
• High excursion carbon fiber woofer
Installation
• Easy to install
• Designed to fit into a 2” x 4” wall cavity
• Mix and match with Reference in-ceiling
speakers and subwoofers
R1 R2R1SUR
R2SUR
R1/R1SUR Speaker
with Grille
R2/R2SUR Speaker
with Grille
Dimensions
R1
Width: 8 7/8” (225mm)
Height: 21 3/4” (553mm)
Depth: 3 7/8” (98mm)
Cut-Out Width: 7 1/2” (191mm)
Cut-Out Height: 20 1/2” (521mm)
R1 • R2
Height
R2
Width:
Height:
Depth:
Cut-Out Width:
Cut-Out Height:
8 7/8” (225mm)
34 7/8” (886mm)
3 7/8” (98mm)
7 1/2” (191mm)
33 1/2” (851mm)
Specifications
Model:
SKU:
Unit of Measure:
Tweeter:
Midrange:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Grille Material:
Shipping Weight:
Height
Width
R1
93344
Each
1” (25mm) Ceramic dome, Ferrofluidcooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
8 Ohms nominal; 6 Ohms minimum
5 Watts minimum; 150 Watts maximum
90dB SPL (2.83V/1 meter)
Perforated steel
19 lbs (8.6kg) each
Depth
R2
93346
Each
1” (25mm) Ceramic dome, Ferrofluidcooled in an acoustic back chamber
5 1/4” (133mm) Carbon fiber/Rohacell
laminated cone with a rubber surround
Four 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
6 Ohms nominal; 4 Ohms minimum
5 Watts minimum; 200 Watts maximum
92dB SPL (2.83V/1 meter)
Perforated steel
29 lbs (13.2kg) each
Width Depth
Recommended Products
R1 & R1SUR Flex Bracket
SKU 92690
R2 & R2SUR Flex Bracket
SKU 92691
Dimensions
R1SUR
Width: 8 7/8” (225mm)
Height: 21 3/4” (553mm)
Depth: 3 7/8” (98mm)
Cut-Out Width: 7 1/2” (191mm)
Cut-Out Height: 20 1/2” (521mm)
R1SUR • R2SUR
Height
R2SUR
Width: 8 7/8” (225mm)
Height: 34 7/8” (886mm)
Depth: 3 7/8” (98mm)
Cut-Out Width: 7 1/2” (191mm)
Cut-Out Height: 33 1/2” (851mm)
Specifications
Model:
SKU:
Unit of Measure:
Tweeter:
Midrange:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Grille Material:
Shipping Weight:
R1SUR
93345
Each
Two 1” (25mm) Ceramic domes, Ferrofluidcooled in an acoustic back chamber
Two 3” (76mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
Two 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
8 Ohms nominal; 6 Ohms minimum
5 watts minimum; 150 watts maximum
90dB SPL (2.83V/1 meter)
Perforated steel
19 lbs (8.6kg) each
Height
Width
Depth
R2SUR
93347
Each
Two 1” (25mm) Ceramic domes, Ferrofluidcooled in an acoustic back chamber
Two 3” (76mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
Four 5 1/4” (133mm) Carbon fiber/Rohacell
laminated cones with rubber surrounds
70Hz - 30kHz +/-3dB
6 Ohms nominal; 4 Ohms minimum
5 watts minimum; 200 watts maximum
92dB SPL (2.83V/1 meter)
Perforated steel
29 lbs (13.2kg) each
Width Depth
LIMITED LIFETIME WARRANTY
Sonance warrants to the first end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance
Dealer/Distributor, will be free from defective workmanship and materials for the life of the Product, except for the grille, which is warranted for
five (5) years. Sonance will, at its option and expense, either repair the defect or replace the Product with a new or remanufactured Product or a
reasonable equivalent. Please visit our website and owner’s e-Manual for complete warranty and exclusion information.
©2017 Sonance. All rights reserved.
Sonance and Visual Performance are registered trademarks of Dana Innovations.
Due to continuous product improvement, all features and specifications are subject to change without notice.
For the latest Sonance product specification information visit our website: www.sonance.com
