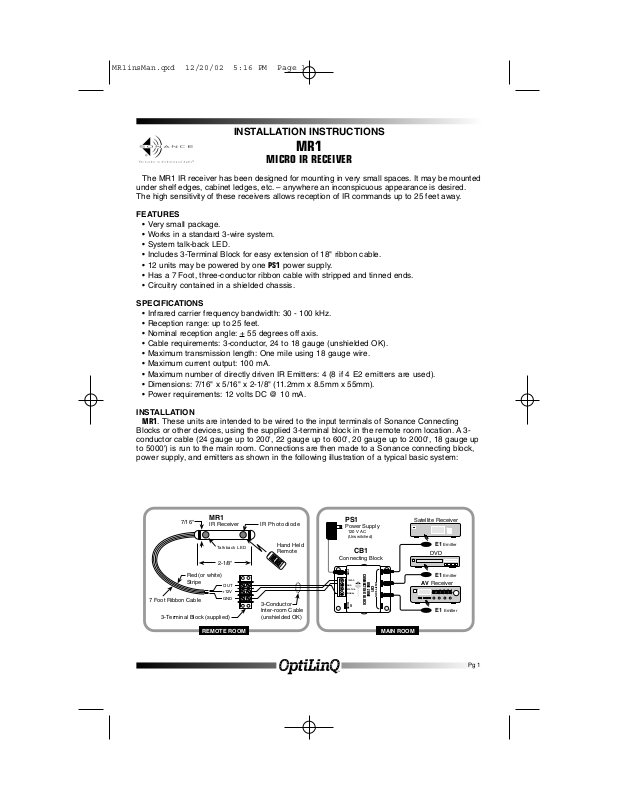

Sonance MR1 User Manual

The MR1 IR receiver has been designed for mounting in very small spaces. It may be mounted
under shelf edges, cabinet ledges, etc. – anywhere an inconspicuous appearance is desired.
The high sensitivity of these receivers allows reception of IR commands up to 25 feet away.

FEATURES

• Very small package.

• Works in a standard 3-wire system.

• System talk-back LED.

• Includes 3-Terminal Block for easy extension of 18" ribbon cable.

• 12 units may be powered by one PS1 power supply.

• Has a 7 Foot, three-conductor ribbon cable with stripped and tinned ends.

• Circuitry contained in a shielded chassis.

SPECIFICATIONS

• Infrared carrier frequency bandwidth: 30 - 100 kHz.

• Reception range: up to 25 feet.

• Nominal reception angle: +

55 degrees off axis.

• Cable requirements: 3-conductor, 24 to 18 gauge (unshielded OK).

• Maximum transmission length: One mile using 18 gauge wire.

• Maximum current output: 100 mA.

• Maximum number of directly driven IR Emitters: 4 (8 if 4 E2 emitters are used).

• Dimensions: 7/16" x 5/16" x 2-1/8" (11.2mm x 8.5mm x 55mm).

• Power requirements: 12 volts DC @ 10 mA.

INSTALLATION

MR1. These units are intended to be wired to the input terminals of Sonance Connecting
Blocks or other devices, using the supplied 3-terminal block in the remote room location. A 3­conductor cable (24 gauge up to 200', 22 gauge up to 600', 20 gauge up to 2000', 18 gauge up
to 5000') is run to the main room. Connections are then made to a Sonance connecting block,
power supply, and emitters as shown in the following illustration of a typical basic system:

INSTALLATION INSTRUCTIONS

MR1

MICRO IR RECEIVER

Pg 1

MR1insMan.qxd 12/20/02 5:16 PM Page 1

7 Foot Ribbon Cable

3-Terminal Block (supplied)

7/16"

Red (or white)
Stripe

MR1

IR Receiver

Talkback LED

2-1/8"

OUT

+12V

GND

REMOTE ROOM

IR Photodiode

Hand Held
Remote

3-Conductor
Inter-room Cable
(unshielded OK)

PS1

Power Supply

120 V AC
(Unswitched)

CB1

Connecting Block

PWR

+12VDC

GND

STATUS

SIGNAL

RCVR

IR

CONNECTING BLOCK

ONE ZONE

EMITTERS

CB1

MAIN ROOM

Satellite Receiver

E1 Emitter

DVD

E1 Emitter

AV Receiver

E1 Emitter

SONANCE • 212 Avenida Fabricante • San Clemente, CA 92672

www.sonance.com

Pg 2

©2002 Sonance. All rights reserved.

33-1276 12.02

While it is possible to make wired connections without the connecting block, it is not
recommended. The connecting block reduces installation time, helps to eliminate errors, allows
easy troubleshooting, and permits easy system upgrades later, if needed.

MOUNTING:

The MR1 can be mounted to any flat surface, using the 3/8" x 1-3/4" two-sided adhesive tape
supplied. Two screws are included for mounting the 3-terminal block provided with the MR1.
Affix the Mini-Emitters (such as the E1, E2, VE1, and VE2) to the IR sensor windows of the
controlled equipment in accordance with the instructions that come with them.

NOTE: With any of these systems, be sure the PS1 power supply is plugged into an un-
switched AC outlet. This maintains the SMR1 system in "standby" operation so that power-on
commands can be sent to the controlled equipment.

OPTILINQ RECEIVER TROUBLE SHOOTING TIPS:

1. The most common problem encountered is stray IR or electronic interference or noise
disrupting the IR signal from the remote control preventing proper transmission to the
source equipment.
Examples of such interference:

• Fluorescent, Halogen or Neon lights, and light dimmers.

• Direct or reflected sunlight.

• Electronic noise from tube or flat panel televisions.

• Infrared security sensors.

2. Determine possible sources of interference by turning off lights, TV sets, and alarm systems
as well as isolating the receiver from any sunlight. Then test the operation of the system.

• Sometimes interference will cause the talk-back LED to blink or illuminate dimly indicating

noise entering the receiver.

• The talk-back LED should ONLY blink when IR commands are sent from a remote control to

the receiver.

• When the source of interference is determined, it may be necessary to move either the

source of the noise or the receiver to achieve proper operation.

3. If the talk-back LED on the receiver does NOT blink when IR commands are sent from the
control, check the following:

• Make sure the PS1 power supply is securely plugged into a live 120V AC wall outlet.

• Be sure that if you are using a receiver with a stereo mini plug that it is plugged into the IR

RCVR jack and not any of the EMMITER jacks.

• Check to see that all mini plugs are properly seated into the jacks and that the wires are

securely attached to the screw header.

4. If using a VE1 or VE2 and it is flashing but the component is not responding, make sure that
the emmiter is located directly over the IR receiver of the component. Consult the owners
manual of the component or the manufacturer if you are having trouble locating the receiver.

5. If you continue to have problems with your OptiLinQ system, please call our Technical
Assistance Department at:

[phone] or [phone] between 7 AM and 5 PM PST.
