Sonance HS10SUB Instruction Manual

INSTRUCTION MANUAL

HS10SUB

Introduction

Thank you for purchasing a SLS Subwoofer. When properly installed,
this subwoofer will provide you with years of outdoor entertainment
pleasure. To get the most out of your new subwoofer, please read
this manual thoroughly before you begin installation.

Box Contents

SLS Hardscape Subwoofer box contains:
(1) Hardscape Subwoofer
(2) Silicon Filled Wire Nuts

Subwoofer Location Selection

The SLS is designed to deliver a seamless, evenly dispersed sound

eld in an ‘open air’ environment. An array of multiple Satellite

speakers and Subwoofers should be strategically placed to

minimize ‘hot spots’ and ‘nulls’ as you move around the outdoor

entertainment area

As a general guideline, (1) Subwoofer will cover about 2000
square feet of listening area

Figure 1 Shows The SLS placed along the perimeter of the
entertainment area.

Select a central location for the subwoofer if using only one subwoofer

(see gure 1) if using multiple subwoofers, select locations that are

the same distance from the main listening area.

HS10SUB Subwoofer

Patent Pending

Amplier Power Planning

The maximum number of satellites and subwoofers that can be

used in a system will depend on the amplier power available.

Before beginning an installation use the chart below to calculate

the amplier power your installation will require. Multiple
ampliers may be required in large installations.

Subwoofer

Figure 1

Wattage Calculator

model qty. ch1 qty. ch2 x watts total ch1 total ch2

LS47SAT x 25

LS67SAT x 25

LS10SUB x 100

LS12SUB x 100

HS10SUB x 100

total

20%
head
room

TOTAL MINIMUM WATTAGE

Amplier Selection

For systems up to 500w per channel use the CROWN CDI 1000
For systems up to 800w per channel use the CROWN CDI 2000
For systems up to 1000w per channel use the CROWN CDI 4000

1

Subwoofer Installation

70 volt audio systems allow for speakers to be daisy chained
together. In a typical system with one zone of audio you simply run a

stereo or 4 conductor wire from the amplier to the closest speaker.
Once you have designated your rst speaker as either left or right,

continue alternating the wires between the left and right channels
creating a daisy chain of stereo satellites. The Subwoofer can be
wired anywhere in the chain. See Figure 5

1. Find the best location to compliment your other speakers.

2. Decide which channel the subwoofer will go on, calculate load.
See wattage calculator.

3. Connect to amplier wiring using the supplied wire nuts, see

Figure 4

Note: Sonance strongly recommends the use of 14 gauge, or
larger, direct burial grade wire.

Caution: The amplifier should not be connected to AC power
until all connections are completed. High power 70volt
amplifiers present a serious shock hazard. Do not connect
speaker wires to the amplifier until all other connections are
completed.

4. Dig a 4” – 5” deep trench to run the speaker wires in.

5. Run the wire through the trench from your amplier to the rst

speaker location.

6. Connect the direct burial wire to each speaker wire, connections

should be made with either silicone lled wire connectors or

appropriate junction boxes. See Figure 4.

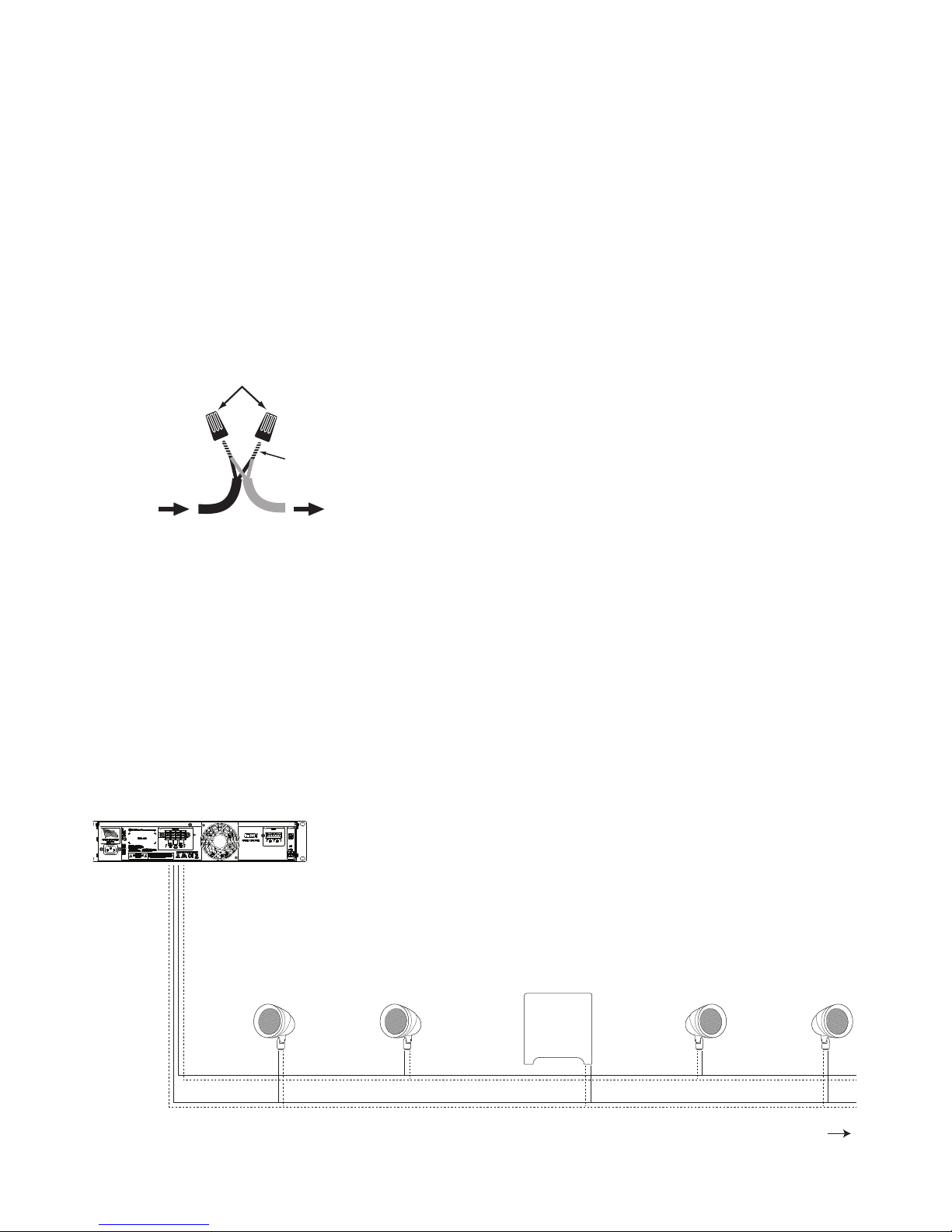

Waterproof

Wire Nuts

Positive

+

Negative

-

Twist
Wires
Together

From Speaker To Amplifier

Figure 4

SLS Wiring Diagram

IMPORTANT: Be sure not to let any stray ‘+’ and ‘–’ strands
touch each other. Touching strands can cause a short-circuit
that could damage your amplifier.

Note: Confirm that you have connected speaker “+” to
amplifier “+” and speaker “–” to amplifier “–”.

7. After all the speakers connections are completed, connect the
wires to your amplier. See Figure 5 for reference.

8. Turn your amplier on and test the system with your favorite
music. If the speakers are operating properly, rell the wire

trench and enjoy your new speakers.

Figure 5

Crown CDi Series Amplifier

Note: The subwoofer can
be connected at any point
in the daisy chain.

Expandable

2

Specications

HS10SUB

Woofer: 10” (254mm) polypropylene cone

with a rubber surround

Frequency Response: 35Hz – 100Hz ±3dB

Power Required: 100 watts

Enclosure Material: HDPVC

(High Density Polyvinyl Chloride)

Non-corrosive sealed enclosure

Crossover: 100Hz

Available Finishes: Dark brown textured enclosure

Dimensions: Enclosure

13.5” wide, 13.5” deep, 14” high
(34.29cm x 34.29cm x 35.56cm)

Shipping Weight: 42 lbs (19 kg)

14”

13.5”

13.5”

3

LIMITED FIVE (5) YEAR WARRANTY

Sonance warrants to the rst end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance

Dealer/Distributor, will be free from defective workmanship and materials for the period stated below. Sonance will at its option and expense

during the warranty period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.

EXCLUSIONS

TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF
FITNESS FOR USE, AND IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.

No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy

and Sonance’s performance shall constitute full and nal satisfaction of all obligations, liabilities and claims with respect to the Product.

IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY,
OR PERSONAL INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.

This warranty statement gives you specic legal rights, and you may have other rights which vary from state to state. Some states do not

allow the exclusion of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your state does

not allow disclaimer of implied warranties, the duration of such implied warranties is limited to period of Sonance’s express warranty.

Your Product Model and Description: SLS HS10SUB

Warranty Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory proof of purchase.

Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the initial
installation of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied or associated
equipment which may result for any reason from use with this Product, and does not include labor or parts caused by accident, disaster,
negligence, improper installation, misuse (e.g. overdriving the amplier or speaker, excessive heat or cold or humidity, outdoor installation),
or from service or repair which has not been authorized by Sonance. Obtaining Authorized Service: To qualify for the warranty, you must

contact your authorized Sonance Dealer/Installer or call Sonance Customer Service at [phone] within the warranty period, must

obtain a return merchandise number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty period, together

with the original sales receipt, or invoice or other satisfactory proof of purchase.

©2012 Sonance. All rights reserved. Sonance is a registered trademarks of Dana Innovations.

Due to continuous product improvement, all features and specications are subject to change without notice.

For the latest Sonance product specication information visit our website: www.sonance.com

SONANCE • 212 Avenida Fabricante • San Clemente, CA 92672-7531 USA

[phone] or [phone] • FAX: [phone] • Technical Support: [phone]

Patent pending.

www.sonance.com

33-5740 042613
