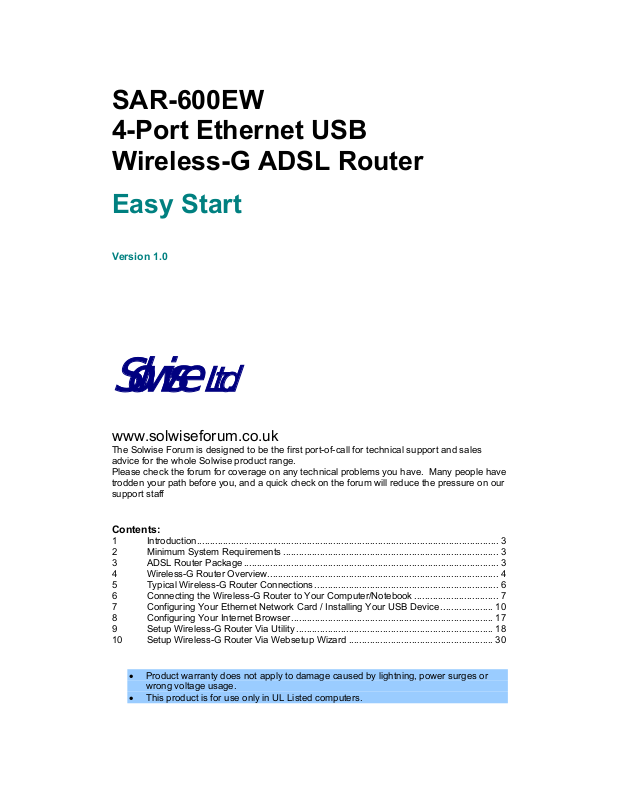

SAR-600EW
4-Port Ethernet USB
Wireless-G ADSL Router
Easy Start
Version 1.0
Solwise
Ltd.
www.solwiseforum.co.uk
The Solwise Forum is designed to be the first port-of-call for technical support and sales
advice for the whole Solwise product range.
Please check the forum for coverage on any technical problems you have. Many people have
trodden your path before you, and a quick check on the forum will reduce the pressure on our
support staff
Contents:
1
2
3
4
5 Typical Wireless-G Router Connections ...................................................................... 6
6
7
8 Configuring Your Internet Browser............................................................................. 17
9
10
•
•
Introduction................................................................................................................... 3
Minimum System Requirements .................................................................................. 3
ADSL Router Package ................................................................................................. 3
Wireless-G Router Overview........................................................................................ 4
Connecting the Wireless-G Router to Your Computer/Notebook ................................ 7
Configuring Your Ethernet Network Card / Installing Your USB Device .................... 10
Setup Wireless-G Router Via Utility ........................................................................... 18
Setup Wireless-G Router Via Websetup Wizard ....................................................... 30
Product warranty does not apply to damage caused by lightning, power surges or
wrong voltage usage.
This product is for use only in UL Listed computers.
Wireless-G Router Easy Start
Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the
R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following
conformance standards:
EN300 328, EN301 489-17, EN60950
Countries of Operation and Conditions of Use in the European
Community
This device is intends to be operated in all countries of the European Community.
Requirement is for indoors vs. outdoors operation, license requirements and allowed
channels of operation apply in some countries as described in this document.
Note: The user must use the configuration utility provided with this product to check
the current channel of operation and confirm that the devices operating in
conformance with the spectrum usage rules for the European Community countries as
described below.
If operation is occurring outside of the allowable channels as indicated in this guide, then the
user must cease operating the product and consult with the local technical support staff
responsible for the wireless network.
This device may be operated
Community using the 2.4GHz band:
In
·
operate this device outdoors.
In
·
1 – 7.
the end-user must apply for a license from the national spectrum authority to
Italy
France
outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels
indoors or outdoors
Channels 1 – 13
in all countries of the European
, except where noted below:
1 of 33
Wireless-G Router Easy Start
Solwise
13/15 Springfield Way
Anlaby
Hull HU10 6RJ
UK
Tel: 0845 458 4558 (local rate)
Fax: 0845 458 4559
Support Tel: 0845 1931320
SBV: 1100
Email sales@solwise.co.uk
Http www.solwise.co.uk
Copyright
All rights reserved. No part of this document may be reproduced in any form or by any means
without written permission from the product manufacturer.
Changes are periodically made to the information in this document. They will be incorporated
in subsequent editions. The product manufacturer may take improvement and/or changes in
the product described in this document at any time
Ltd.
2 of 33
Wireless-G Router Easy Start
1 Introduction
Thank you on your purchase of the SAR-600EW, 4-Port Ethernet USB Wireless-G ADSL
Router! The Wireless 4-Port Router allows you to share high-speed broadband connection
with multiple PC using a single device wired or wireless.
The SAR-600EW Router can be connected to any computer/notebook with a 10/100 Base-T
Ethernet card or USB port for wired connection or an IEEE 802.11b/g Wireless adapter. The
Ethernet ports have Auto MDI/MDIX feature which can allows both cross or straight UTP
cable to be utilized. The Wireless 4-port Ethernet Router has an in-built IEEE802.11g
Wireless LAN Access Point for wireless connectivity.
This documentation assumes that you have already installed an Ethernet card or a wireless
adapter on your computer/notebook
2 Minimum System Requirements
Pentium® MMX 233MHz
•
Ethernet card installed with TCP/IP Protocol (Required only if you are connecting to
•
the ETHERNET port of your DSL Router)
Single USB port
•
IEEE 802.11b Wireless adapter (Required if you are connecting to the Wireless
•
Access Point of the router)
OS independent for Ethernet
•
Microsoft Windows 98SE/ME/2000/XP for USB
•
Web Browser support:
•
Microsoft Internet Explorer 4.0 (or later versions)
Netscape® Navigator 3.02 (or later versions)
3 ADSL Router Package
For any missing items, please contact your dealer immediately.
1
POTS Splitter. The POTS Splitter is required if you are connecting a Telephone Set to the
Depending on your country of purchase, your package may or may not come with a
3 of 33
Wireless-G Router Easy Start
Ethernet Modem. Please refer to
can also be purchased from your dealer.
Connecting to the ADSL Line
4 Wireless-G Router Overview
4.1 Front Indicators
4 6
1 POWER
Lights up
when power is supplied to the ADSL Router.
2 ETHERNET (E1 ~ E4)
Lights up
Ethernet Card.
Flickers
3 WIRELESS
Flickers
4 USB
Lights up
USB slot.
Lights Off
5 DSL
LED light off
Flickers
Provider (Training).
Steady Green Light
6 Internet
Green LED Lights up
LED Light off
when the Ethernet cable is properly connected from your ADSL Router to the
when the ADSL is transmitting/receiving data.
when the Wireless LAN is operational.
when the USB cable is properly connected from your ADSL Router to the
when the USB cable is not connected or it is properly disconnected.
when no Telephone jack (RJ-11) is connected.
when the ADSL Router is trying to establish a connection with the ADSL Service
when no PPP connection.
1 2 3 5
when the ADSL connection is established.
when the PPP connection is established.
for details. POTS-Splitter
4 of 33
Wireless-G Router Easy Start
4.2 Back Panel
4 7
1 2 3 5 6
1
DSL
Telephone jack (RJ-11) to connect to your Telephone Wall Socket (DSL line).
2 USB
USB jack to connect to your PC’s USB slot.
3
RESET
To reset your ADSL Router to factory default settings. (All customised settings that you
have saved will be lost!). Please refer to the below footer2 on how to activate the reset
function.
4 ETHERNET (E1-E4)
10/100 Base-T Auto-MDI/MDIX Ethernet jack (RJ-45) to connect to your PC’s Ethernet
Network card or Ethernet Hub / Switch.
5
DC IN (9V)
To connect to the Power Adapter that comes with your package.
6
POWER SWITCH
To power on or off the modem.
I - indicates ON position
O - indicates OFF position.
7
RF Antenna
180° 2.4Ghz Wireless Antenna.
2 To activate the reset function:
- Ensure that your ADSL Router is powered on.
- Use a paper clip or a pencil tip to depress the reset button, hold for at least 5secs
5 of 33
Wireless-G Router Easy Start
and release. At this point, the Wireless indicator and DSL indicator will go off, The
reset is in progress.
- When the Wireless indicator starts blinking, it means that the reset process is
completed. The default settings are now restored.
- DSL line is synchronized once the DSL indicator colour is steady green.
5 Typical Wireless-G Router Connections
5.1 Up to 4 PCs Connections
5.2 For More than 4 PCs Connections
To connect to more than 4 computers/notebooks, you may further expand one of the Ethernet
Ports via an Ethernet Hub/Switch. For details on how to connect to the Ethernet Switch/Hub,
please refer to the documentation that comes with the unit.
With the Auto MDI/MDIX feature, both cross and straight UTP cable can be utilized.
6 of 33
Wireless-G Router Easy Start
r
6 Connecting the Wireless-G Router to Your
Computer/Notebook
6.1 Connecting to the Ethernet
Connect your computer(s)/notebook(s) to the Wireless-G ADSL Router as illustrated. The
following illustration shows the connection of a single computer.
Power off your Computer/Notebook or/and any connected devices before
connecting to the ADSL Router!
NOT SURE HOW THE ETHERNET PORT LOOKS LIKE?
The following are some tips to help you locate your Ethernet Ports on you
Computer/Notebook. Alternatively, you may refer to the documentation that comes
with your Computer/Notebook.
Locating the Ethernet Port on your Computer/Notebook
Most Computers/Notebooks have labels describing the Ports. For Ethernet Port,
you will see either ETHERNET, ETH or RJ45 labelled near the Port.
If your Computer/Notebook does not have such descriptions, try the following.
- Picture A gives the illustration of an Ethernet Port. All Ethernet Ports have
8 conductors on it. Do not mistaken with the LINE Port (Picture B) that has only 6
conductors.
- The Ethernet Port is slightly bigger than the LINE Port.
A. ETHERNET B. LINE
7 of 33
Wireless-G Router Easy Start
6.2 Connecting to the ADSL Line
6.3 (a) To connect to the ADSL line
6.4 (b) To connect to the ADSL line and Telephone Set
The POTS Splitter (with built-in Microfilter) is a device that allows you to connect both your
Telephone cable and Telephone Set to the same Telephone Wall Socket. The device at the
same time helps to eliminate background noise on the telephone line, ensuring the best
possible phone performance.
6.5 Checking Your Connections
Please check your connections before proceeding.
8 of 33
Wireless-G Router Easy Start
6.6 Connecting to the Power Outlet
6.7 Powering On
Power on the Power Outlet that is connected to your ADSL Router.
Power on your Computer(s)/Notebook(s).
Please proceed to the next chapter.
9 of 33
Wireless-G Router Easy Start
7 Configuring Your Ethernet Network Card /
Installing Your USB Device
7.1 Configuring Your Ethernet Network Card
7.1.1 For Windows
i From your Windows desktop, right-click on the
iiii From the
If your computer/notebook is connected to the
proceed with
of the ADSL Router, proceed with
connected to both the Ethernet Port and USB Port of your ADSL Router, please
proceed with both sections!
1. Proceed with this section ONLY if your computer/notebook is connected to
2. The following illustrated screen shots serve only as examples. For any
Properties
your Ethernet Card that is connected to your ADSL Router
Click
Properties
section 7.1
the Ethernet Port of your ADSL Router.
dissimilarities, please follow closely the instructions prompted on your
Computer.
®
98 Second
.
Configuration
.
. If your computer/notebook is connected to the
section 7.2
Edition
tab, select
/ Windows® Me
TCP/IP-> xxx
Ethernet Port
. If your computers/notebooks are
Network Neighborhood
where
xxx
of the ADSL Router,
icon. Select
refers to
.
the model of
USB Port
(This screen shot uses 3Com EtherLink Ethernet card model as an example).
Click the
iii
Click the option
IP Address
tab.
Obtain an IP address automatically
and click OK to save the settings.
10 of 33
Wireless-G Router Easy Start
Ensure that your ADSL Router is powered on. Restart your system.
Proceed to the next chapter.
7.1.2 For Windows® 2000 /
Windows
®
XP
i Windows® 2000:
a) From your Windows desktop, right-click on the icon My Network Places and
select Properties.
b) At the Network and Dial-up Connections window, right-click on the Local Area
Connection icon and select Properties.
Windows® XP:
(Instructions are based on default Start menu option)
a) From your Windows desktop, click Start > All Programs > Accessories >
Communications > Network Connections.
b) Right-click on the Local Area Connection icon that reflects the model of your
Ethernet Card that is connected to your ADSL Router and click Properties.
ii Ensure that the field
Connect Using
indicates the model of your Ethernet Card that is
connected to your ADSL Router.
(This is important especially if you have more than one Local Area Connection icons displayed at the
Network and Dial-up Connections / Network Connections window. Ensure that you have selected the
correct one.)
Select
Internet Protocol (TCP/IP)
and click
Properties
.
(This screen shot uses 3Com EtherLink Ethernet card model as an example).
iii Select the option
Obtain an IP address automatically
and click OK.
11 of 33
Wireless-G Router Easy Start
Click
Ensure that your ADSL Router is powered on. Restart your system.
Proceed to the next chapter.
again to close.
OK
7.2 Installing the USB Device Driver
7.2.1 Installing the
i Power on your computer to start Windows.
ii Place the
iii At the following prompt, and click
1. Proceed with this section ONLY if your computer/notebook is connected to
the USB Port of your ADSL Router!
2. The following screen shots illustrated serve only as examples. For any
dissimilarities, please follow closely the instructions prompted on your
Computer/Notebook.
3. For Windows® 98 Second Edition users, you may be prompted for your
Windows CD-ROM. Have it ready by your side.
USB Device Driver - For Windows
Installation CD
into your CD-ROM Drive
.
Next
®
98 Second Edition
iv Select
Search for the best driver for your device (Recommended)
.
Next
option and click
12 of 33
A
v Click
CD-ROM drives
Wireless-G Router Easy Start
option and click
Next
.
vi Select
The updated driver (Recommended) DSL Router USB Remote NDIS
Network Device
and click
Next
.
vii Click
to proceed installation with the indicated driver.
Next
Depending on your system configurations, you may be prompted for your Windows
CD-ROM during installation. At the prompt, replace the
ROM Drive with your
t the
Copying Files
Windows CD-ROM
dialog box, enter the path of your Windows CD-ROM and
and click OK.
click OK.
viii Click
Finish
to complete the USB driver installation.
xi Restart your system when prompted.
Proceed to the next chapter.
7.2.2 Installing the USB Device Driver - For Windows® Me
i Power on your computer to start Windows.
ii
iii At the following prompt, select
Place the
and click
Installation CD
.
Next
into your CD-ROM Drive.
Specify the location of the driver (Advanced)
Installation CD
in your CD-
option
13 of 33
iv Click
Removable Media
Wireless-G Router Easy Start
option and click
Next
v Click
vi Click
again to proceed installation with the indicated driver.
Next
Finish
to complete the USB driver installation.
vii Restart your system when prompted.
Proceed to the next chapter.
7.2.3 Installing the USB Device Driver - For Windows® 2000
i Power on your computer to start Windows.
ii Place the
Installation CD
iii At the following prompt, click
into your CD-ROM Drive.
Next
.
.
14 of 33
Wireless-G Router Easy Start
iv Select
Search for a suitable driver for my device (recommended)
.
Next
v Click
CD-ROM drives
vi At the next prompt, click
vii You may be prompted with
option and click
to proceed installation with the indicated driver.
Next
Next
.
Digital Signature Not Found
(This happens when Windows detects your driver as a new version).
Click
to proceed with the installation.
Yes
option and click
dialog box during installation.
viii
Click
when prompted. Upon completion, proceed to the next chapter
Finish
7.2.4
Installing
the USB Device Driver - For Windows® XP
i Power on your computer to start Windows.
ii Place the
Installation CD
iii At the following prompt, select
option and click
Next
into your CD-ROM Drive.
Install from a list or specific location (Advanced)
.
.
15 of 33
Wireless-G Router Easy Start
iv
Click
Search removable media
v Click
Finish
vi Repeat
to complete the first stage of the USB driver installation.
step ii and iii
.
vii You may be prompted with
Windows detects your driver as a new version).
Click
Continue Anyway
to proceed with the installation.
option and click
Next
Hardware Installation
.
dialog box. (This happens when
viii Click
when prompted. Upon completion, proceed to the next chapter.
Finish
16 of 33
Wireless-G Router Easy Start
8 Configuring Your Internet Browser
8.1 Microsoft® Internet Explorer™
i From your Windows desktop, double-click on your Internet Explorer icon to launch your
Browser.
ii From the Menu, click
iii Select the
iv Click the
v Click
You may now proceed to the next chapters.
and select
Tools
Connection
be grayed off if you have not installed an analog modem on your computer/notebook
before. Proceed with
LAN Settings...
to close the dialog box.
OK
tab. Click the field, '
).
3.1 iv
button. Ensure that your
Internet Options...
(based on IE 5.5)
Never dial a connection
Proxy Server
.
'. (This option will
is not enabled.
8.2 Netscape® Navigator
i From your Windows desktop, double-click on your Navigator icon to launch your
Browser.
ii Depending on your Netscape versions, carry out one of the following instructions:
Click
Select
OR
Click
Select
Internet
iii Click
You may now proceed to the next chapters.
Options > Network Preferences
Proxies
Edit > Preferences
Advanced
OK
. Ensure that the
and click
is enabled.
for changes to take effect.
No Proxies
.
Proxies
.
option is selected.
. Ensure that the option
Direct Connection to the
17 of 33
Wireless-G Router Easy Start
9 Setup Wireless-G Router Via Utility
9.1 For Windows 98 SE/ ME/ 2000/ XP Users ONLY
This chapter is only for Windows User, please use the Wireless-G DSL Router
Utility Installation CD provided to setup the Wireless-G DSL Router Utility
9.2 Install Wireless-G DSL Router Self-Installation Utility.
i Insert the Wireless-G DSL Router Self-Installation CD into the CD-ROM drive. The utility
will auto-run and the screen as shown below will appear. (Note: If it does not auto-run,
access to the CD-ROM drive and execute
available when you position the mouse cursor over the available options.
CDWizard.exe
). Further information will be
ii Upon Clicking on “Self-Install Wizard”, a note will be prompted to confirm whether you
are setting up the wireless router via Ethernet or USB. If you are setting up your
Wireless-G Router via USB, please click “Cancel” to go back to main menu and install
the USB driver before proceeding. If you are setting up via Ethernet, click “OK” to
continue.
18 of 33
Wireless-G Router Easy Start
iii
Please click “Next” to proceed with the installation of the wireless-G router utility.
19 of 33
Wireless-G Router Easy Start
A
fter installation, a Wireless-G DSL Connection shortcut icon,
will be created on the desktop.
It will allow the user to connect or disconnect from the Internet.
iv
Please read the relevant information and click “Next” to proceed.
v Please determine which method you want to connect the Wireless-G router to the
telephone outlet. You can choose “
Splitter
” then click “Next” to continue.
Direct Connection
” or “
Connection Via POTS
20 of 33
Wireless-G Router Easy Start
Please refer to the next screen if you select “
selected
“Connection Via POTS Splitter
vi
a) Previously if you have chosen “
instructions below. Click “Next” to continue.
Direct Connection
””, please skip to
Connection Via POTS Splitter
”, if you have
vi (b)
”, please follow the
b)
Previously if you if you have chosen “
Direct Connection
”, please follow the pictorial
directions for the next 3 screens as displayed below. Click “Next” to continue.
21 of 33
Wireless-G Router Easy Start
22 of 33
Wireless-G Router Easy Start
vii
viii
Please follow the instructions on how to switch on the power for your wireless-G
router. Click “Next” to continue.
Please make a choice on how you would like to connect to the wireless-G router. You
may choose
Ethernet
or
. Click “Next” to continue.
USB
Please refer to the next screen if you have selected “
have selected
””, please skip to
“USB
xi (b)
23 of 33
Ethernet
”, if you
Wireless-G Router Easy Start
xi
Please follow the diagram closely on how to setup the connection from your computer
a)
to the wireless-G router via Ethernet. Click “Next” to continue.
Please follow the diagram closely on how to setup the connection from your computer
b)
to the wireless-G router via USB. Click “Next” to continue.
24 of 33
Wireless-G Router Easy Start
x Status window will display the processing status of how the wireless-G router is
communicating with the computer via Ethernet or USB.
xi Upon success detection of the wireless-G router, the relevant information will be
displayed as the screen below. Click “Next” to continue.
25 of 33
Wireless-G Router Easy Start
xii
For connecting to the Internet, please enter the username and password, VPI and
VCI provided by your ISP. You need to select the protocol. Click “Next” to continue.
For BT Enter PPPoA VC-Mux, VPI 0, VCI 38.
For KC (Karoo) PPPoA LLC, VPI 1, VCI 50.
xiii You can enter the SSID or choose to generate a SSID, select country type and
wireless channel to configure your wireless settings. Click “Next” to continue.
26 of 33
Wireless-G Router Easy Start
For better security, you may choose to hide the SSID of
Note:
your wireless-G router from broadcasting to available clients.
However you must manually set you wireless client with the same
SSID.
xiv You can choose to enable your wireless security option. When enabled you will be
able to either manually enter a 26 digit HEX keys or auto-generate the encryption key
by clicking on the “Generate” button. Click “Next” to continue.
27 of 33
Wireless-G Router Easy Start
A
xv You have now completed setting up your Wireless-G router. A summary page as
shown will let you review all the settings. Click “Finish” to confirm or “Back” to make
changes.
xvi
You may want to have a reference of the wireless
Note:
information to configure your wireless client. Click on “Save
s” button to save these into a file.
Your will be prompted to save the router settings. Click “OK” to save.
28 of 33
Wireless-G Router Easy Start
xvii
After saving the configuration, Wireless-G Router Dialup screen will be prompted as
shown below. You can confirm your ISP’s Username and Password, and click on
“Connect” for connecting to the Internet.
xviii Upon successfully connection, the Dialup application will be minimize and an
will be created at the right-hand bottom of the task bar. Your home webpage will be
launched automatically and the info screen displayed below will minimize
automatically.
This icon symbolized the wireless-G router is connected to the Internet
This icon symbolized that the wireless-G router is not connected to the Internet
29 of 33
icon
Wireless-G Router Easy Start
10 Setup Wireless-G Router Via Websetup
Wizard
i From your Internet Browser, key in
hit <
ii Upon Login successfully, the Setup Wizard page will be displayed. Next click on Begin.
Enter
>
192.168.1.1
or
or
login.router
at the address bar and
iii You need to enter the Username, Password, VPI and VCI provided by the ISP.
Click on Next.
For ISPs with BT phone lines (Most UK ISPs)
For Kingston Communications (Karoo)
30 of 33
Wireless-G Router Easy Start
iv Once you have entered your ISP details then the next You can enter their SSID or let
the setup wizard auto-generate a SSID by clicking on “Generate SSID”. You are
allowed to select your country standard for wireless LAN in “Country Selection, select
a wireless channel and can choose whether to hide the SSID. Click on Next.
v You can enable wireless security, auto-generate 128 bit encryption key or define your
own key. Click on Next.
31 of 33
Wireless-G Router Easy Start
vi You are able to view the summary to check through the all the information you have
entered. It is advisable to either Save or print out the Summary information for
entering into your wireless client. Click Finish to complete the setup.
vii A notification for saving of settings and wireless device restarting will be prompted.
You must click OK to proceed.
viii A progress bar will be displayed to indicate connecting process to the Internet
32 of 33
Wireless-G Router Easy Start
ix Upon successful connecting to the Internet, this page will be displayed.
x The Home Page will display all the valid information
33 of 33
Loading...
