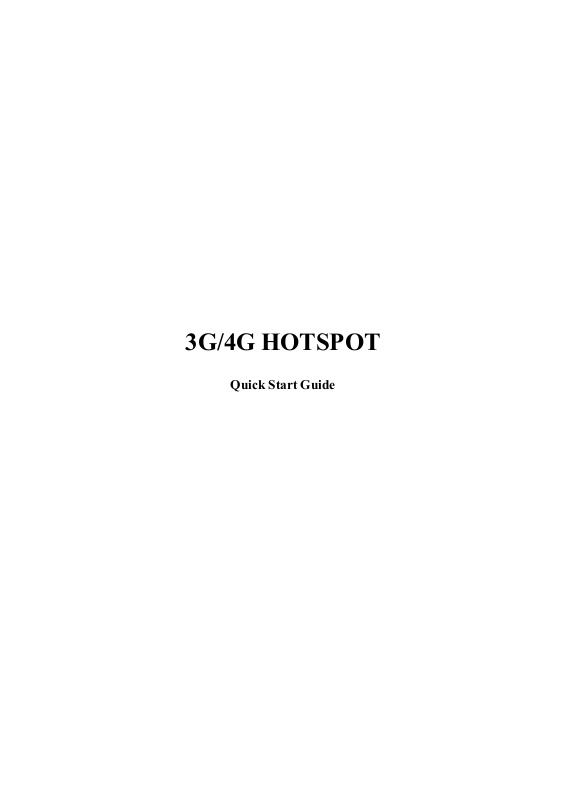

3G/4G HOTSPOT
Quick Start Guide
1 Introduction
1.1 Check Package Contents
3G Hotspot x1
USB cable x1
1500mAh Lithium (Li-ion) battery x1
Quick Start Guide x1
1.2 Appearance
1.3 LED indicators
Name LED Status Indication
Power Light Blue light Power is on
Purple light Battery power is charging
Blue light Battery power is enough or full
Battery Light
WIFI Light Blue light Wi-Fi is on
Red light
Not light
Blue light Signal is strong Signal Light
Purple light Signal is general
Battery power is low and need to be
charged in time
Battery have no power or not insert the
battery
Red light Signal is weak
Network Mode
Light
（3G connect）
Red light flashing
1time/Sec
Blue light flashing
1time/3Sec
Blue light flashing
1time/Sec
Blue light always on registered on 3G network and dialed
No UIM card or Network Registering
registered on 3G network, but not dialing
registered on 3G network and dialing
2 Product Installation
2.1 Hardware Installation
Before setting up the 3G Hotspot, please follow these steps for right connection. In order
to ensure the Hotspot to play better wireless performance, please put the Hotspot in the
central part of the network coverage area.
Step1: Insert the UIM card before power on.
: Power to the 3G Hotspot. Power supply: battery, PC, power adapter（Output
Step2
voltage 5V, output current more than 800MA）.
Introduction of the charging method:
(1) Turn off the power switch to charge: Charge the battery alone and the battery
power indicator light is on in purple. When full charged, battery indicator light will be
on in blue.
(2) Turn on the power switch to charge: Battery indicator light is always on in purple
when charging. The voltage is occupied to charge the battery, and meanwhile,
another part of voltage is supplied to hotspot, so the charging time will be longer,
accordingly.
Tip：When not using the hotspot, remove the batteries to prevent power loss or reduce
battery life.
Step3: Power On.
Step4: Connect PC though WIFI.
Tip：Before connect the hotspot through WIFI, please make sure your PC have WIFI
function and WIFI status in “ON” condition.
3 Open Web Management
After make sure the wireless connection of the device, please refer to the following steps
to set up
Step1: Open Web browser, input “http://192.168.169.1” at Address bar, then press
“Enter”.
Step2: In the following pop-up window, both input “admin” at “User name” bar and
“Password” bar, then click “OK”, for enter to the main page of the administrant mode.
Step3: When you enter the correct administrator user name and password, click “OK” to
enter the main page of the administrant mode.
Network information：Network signal, the current registering network, Hotspot name,
Connection status.
：Network signal ：Hotspot name
：The current registering network ：Disconnected
：Connected
Connection Status: Displays the current network’s upload speed and download
speed, information of the current flux and total cumulative flux.
WIFI Management：
WIFI SSID：Displays the current name of the hotspot.
If you need to modify, please click button, and then click button,
the settings will be taken effect.
WIFI Security Button: This button means the network is unlock； This button
means the network is locked. Click the icon to set the status of the WIFI encryption.
WIFI encryption settings：：：：Status of the WIFI encryption is without encryption by
default. If you need to encryption, please click button and will change to lock，
enter the password, click button, the settings be taken effect. After setting
the wireless connection, will disconnected automatically, need to re-connect.
Modify encryption password: When the Hotspot is encrypted state, click
button, enter the new password, and then click button.
WIFI decryption settings: When the Hotspot is encrypted, click the button
interface to directly decrypt.
Remark: WIFI default encryption method is WPA-PSK, the number of password
request is 8-63 bits. If you need to set other encryption methods, Please click the
upper right corner of the “Settings” button, then click “wireless” – “Security” for
entering the corresponding interface settings.
User Management: User Management displays user name and password when user
fill in, you can manually modify the login password.
Advanced Settings: If you need set more function in detail, click the upper right
corner of the “Settings” button.
：：：：
Step4
Generally, we pre-write most of the operator’s APN information to work automatically.
However, sometimes, you need to manually input the operator’s APN information by
yourself by Internet-WAN-3G and press Manual APN as follows:
4 Restoring Factory Defaults
You can choose restore factory default for reconfigure the device if you need set to factory
default or forget the changes of some parameters, two ways for setting as follows:
You can use a bent paper clip (or similar) to press the reset button for more than 5
seconds.. The Network Mode Light blinks blue for about a second and then the router
reboots to defaults.
(2) Enter the WEB management by click “settings”, then click the drop-down menu
“Admin”, select “Settings” page, click “Load Default” button.
