Quick Installation Guide
for
53R-EXT 300M 3G/Wireless Broadband
Router
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
Conventions
This Installation Guide quickly explains the WebUI-based configuration method for the 53R
router. In this guide Windows OS with Internet Explorer is used as an example.
Items list
Please check for the following items in the packing box:
300 Mbps wireless router × 1
Power adapter × 1
Quick Installation Guide × 1
2 x 2.4GHz WiFi antenna, 1 x 3G antenna
2
53R-EXT 300M Wireless Broadband Router Quick Installation Guide

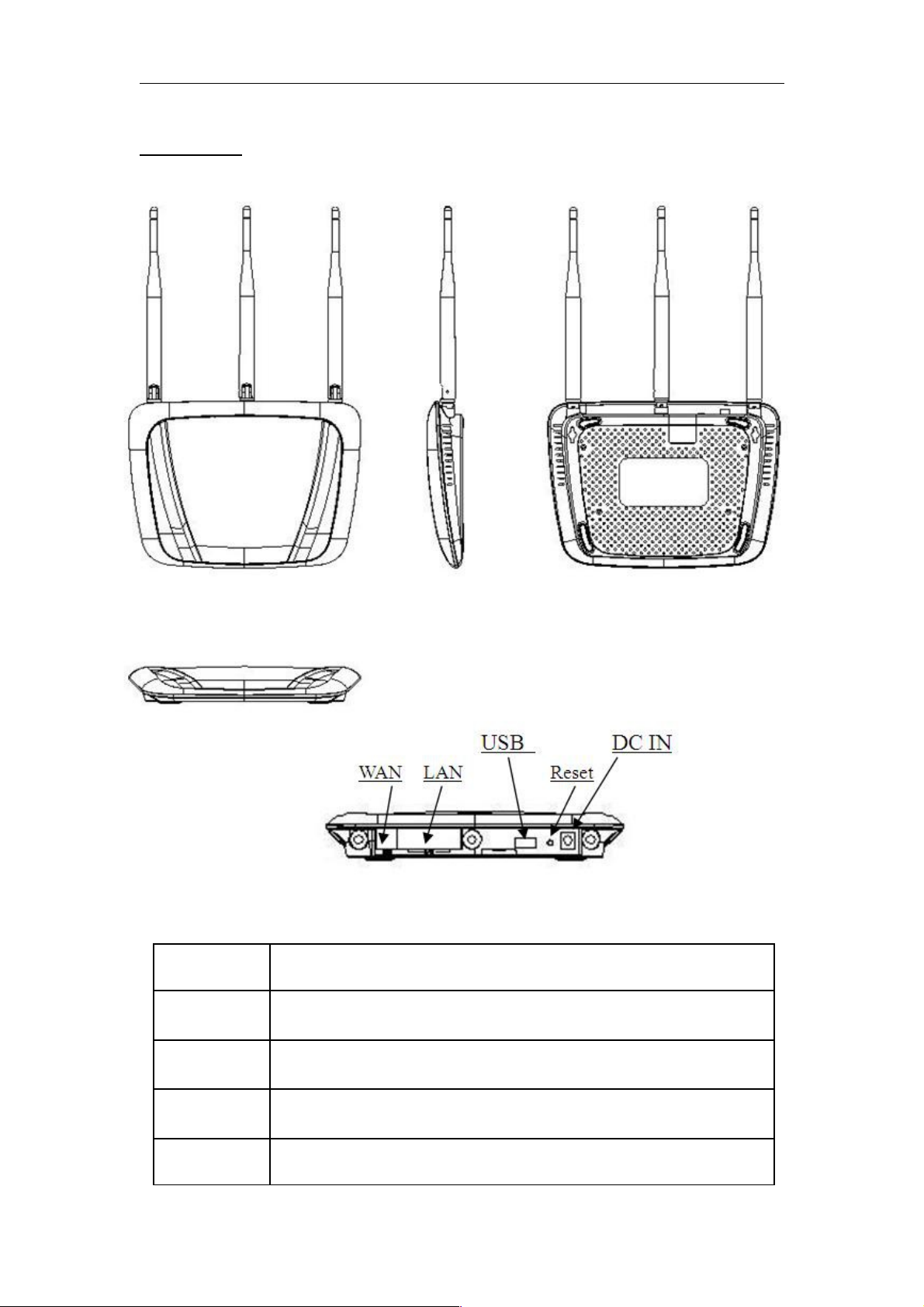

Overview
DC IN DC input, connecting to a 9V/1A or 12V/1A power adapter
RESET Reset key. Pressing this key for 5 seconds will restore the router to factory
settings.
WAN RJ45 port for connecting to an internet access device such as ADSL or
fibre router. A static or dynamic IP address can be used for this interface.
LAN LAN port 1-3, connecting to a terminal device with an RJ45 port such as a
computer or supplementary switch
USB USB port, connecting to USB mass storage device
3
53R-EXT 300M Wireless Broadband Router Quick Installation Guide

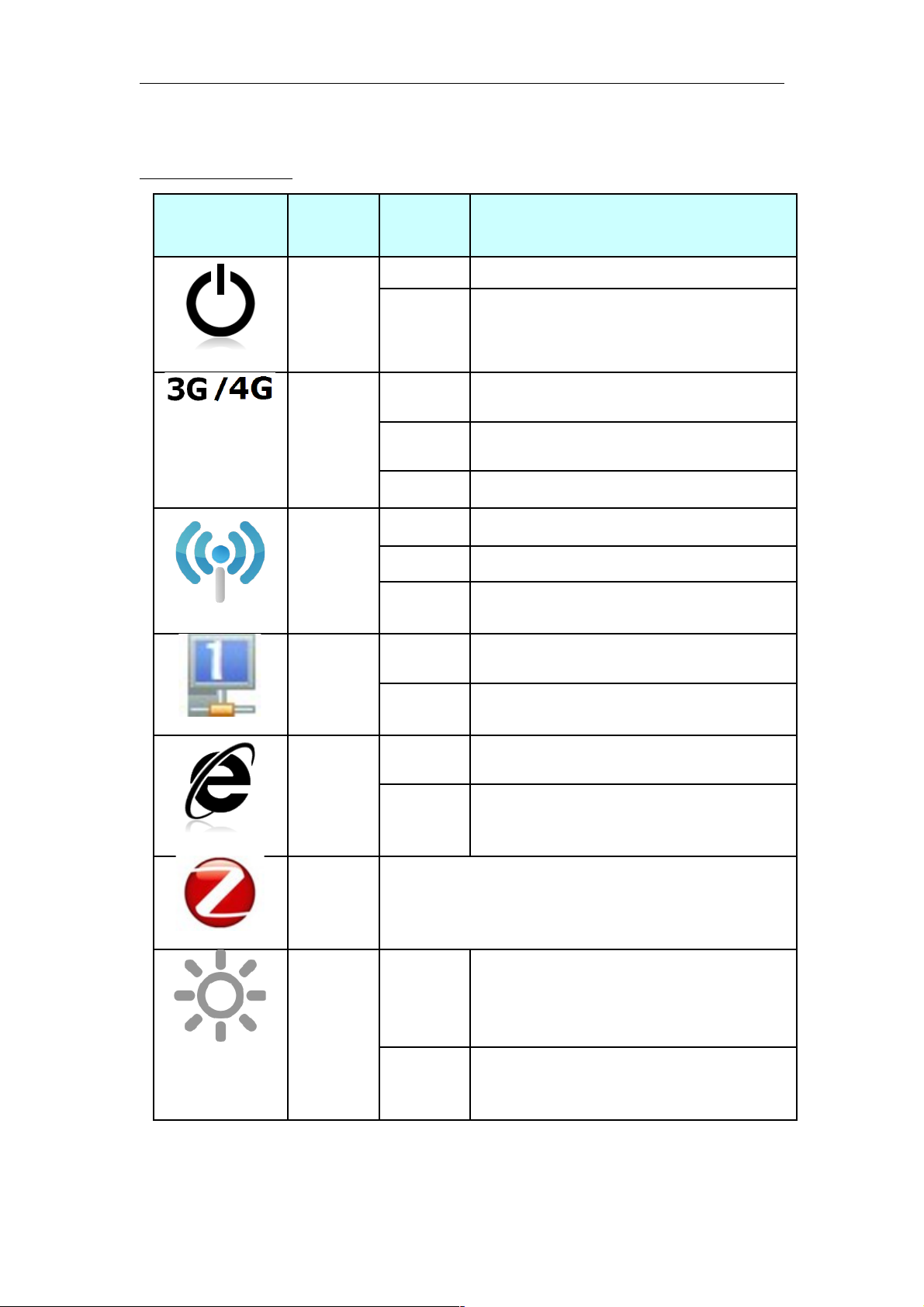

LED indicator s
Indicator Meaning State Description
Power Always on System started up and in working state
Off Not working
3G or 4G
data
indication
Always on Built-in 3G/4G modem is powered on
normally.
Flashing Built-in 3G/4G modem is receiving or sending
data.
Off Built-in 3G modem is not started.
WiFi Always on Wireless function is enabled.
Flashing Data is being received or sent via WLAN.
Off Wireless function is not enabled
RJ-45 Always on An Ethernet cable is connected to the LAN
port properly.
Flashing Data is being received or sent through the RJ-
45 port.
WAN Always on WAN port is connected to ethernet equipment
properly.
Flashing WAN port is receiving or sending data.
Zigbee Option not fitted
System
indication
Start 3G ① Quick flashing (0.5 sec/time): 3G modem
starts dialing up.
② Always on: 3G dial-up success
③ Off: 3G dial-up network is not established
Insert USB
drive
①Always on: A storage device is successfully
loaded.
② Off: A storage device is not loaded.
4
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
Installation environment
To ensure proper function of the router please ensure the router is placed away from a direct
heat source and where there is adequate ventilation. Also ensure it's not located where it would be
subject to damp or dusty conditions.
In the event that the unit or power supply is damaged by lightning or high static discharge
then do NOT dismantle the power supply or the router.
Note: please ensure a power supply of the correct voltage and rating is used. Using an
incorrect power supply could damage the router and run the risk of fire.
Operating condition
Temperature Humidity
Working status: 0-50℃ 10-85% (non-condensation)
Store status: -20-70℃ 5-90% (non-condensation)
System requirement
3G Internet service to operate as a 3G router
Internet router if you want to operate over the WAN port
Computer or similar with 2.4GHz WiFi operation if you want to connect to the router
over wireless.
Windows or iOS or Linux system that supports TCP/IP protocol with a browser such as
IE6 or Firefox for setup and configuration
Product installation
1. SIM card slot
Please see the diagrams below for details about how to insert your 3G SIM card:
5
53R-EXT 300M Wireless Broadband Router Quick Installation Guide

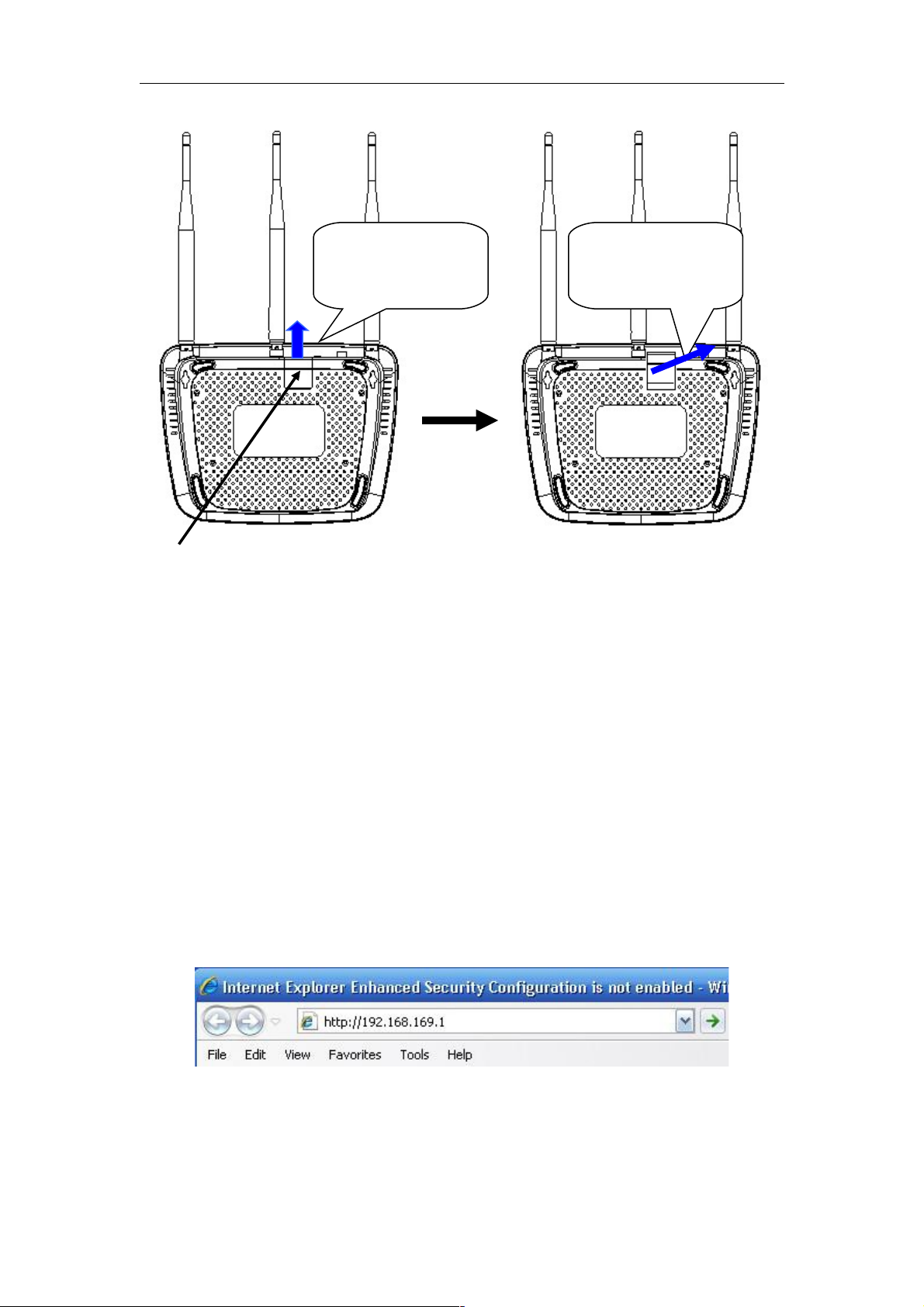

SIM card clot is located inside this area
1 Slide off the plastic cover to the SIM slot.
2 Pull the metal holder cover back and then lift is up on it's hinge. Insert your SIM. Replace
metal cover and plastic door.
(Figure 1)
2. Hardware connection
Connect the power supply to the mains and DC socket on the router. Connect one of the
lan ports to your computer or switch. If you plan to use the 53R with an internet router then
connect the WAN port to a LAN port on your router. Wait about two to three minutes for the
53R to start up.
Note you can configure the 53R over it's WiFi interface but we recommend that you do
this over the lan interface instead.
3. Log onto router configuration page

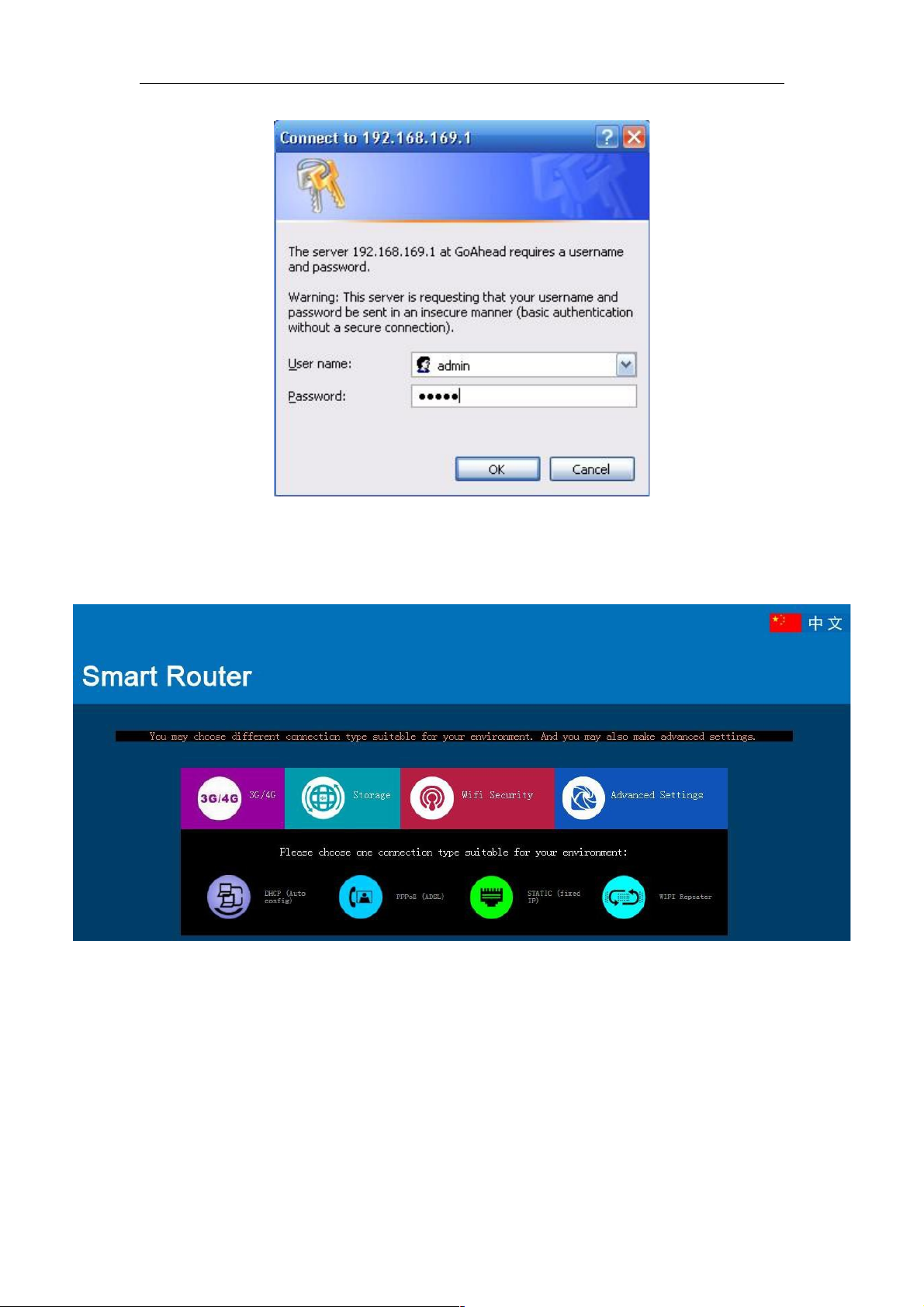

1) Open your browser and enter at address bar: 192.168.169.1,
2) In the log-in window input the administrator user name: admin; password: admin; then
click "OK”.
Pull out separation
blade (step 1):
See memo1 in
figure1
Pull out separation
blade (step 2):
See memo2 in
figure1
6
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
Note the initial administrator user name and password are: admin. This can be changed
via the system setup if required.
3) After inputting the correct user name and password the router goes into the WEB
configuration screen.
4. Select 3G/4G Connection
Step 1: Ensure SIM card in effect, in normal service;
Step 2: confirm whether 3G dial-up setting of the router meets setting requirement of your
local ISP. After you obatain the correct dial-up parameters, Specific operation procedure is as
follows:

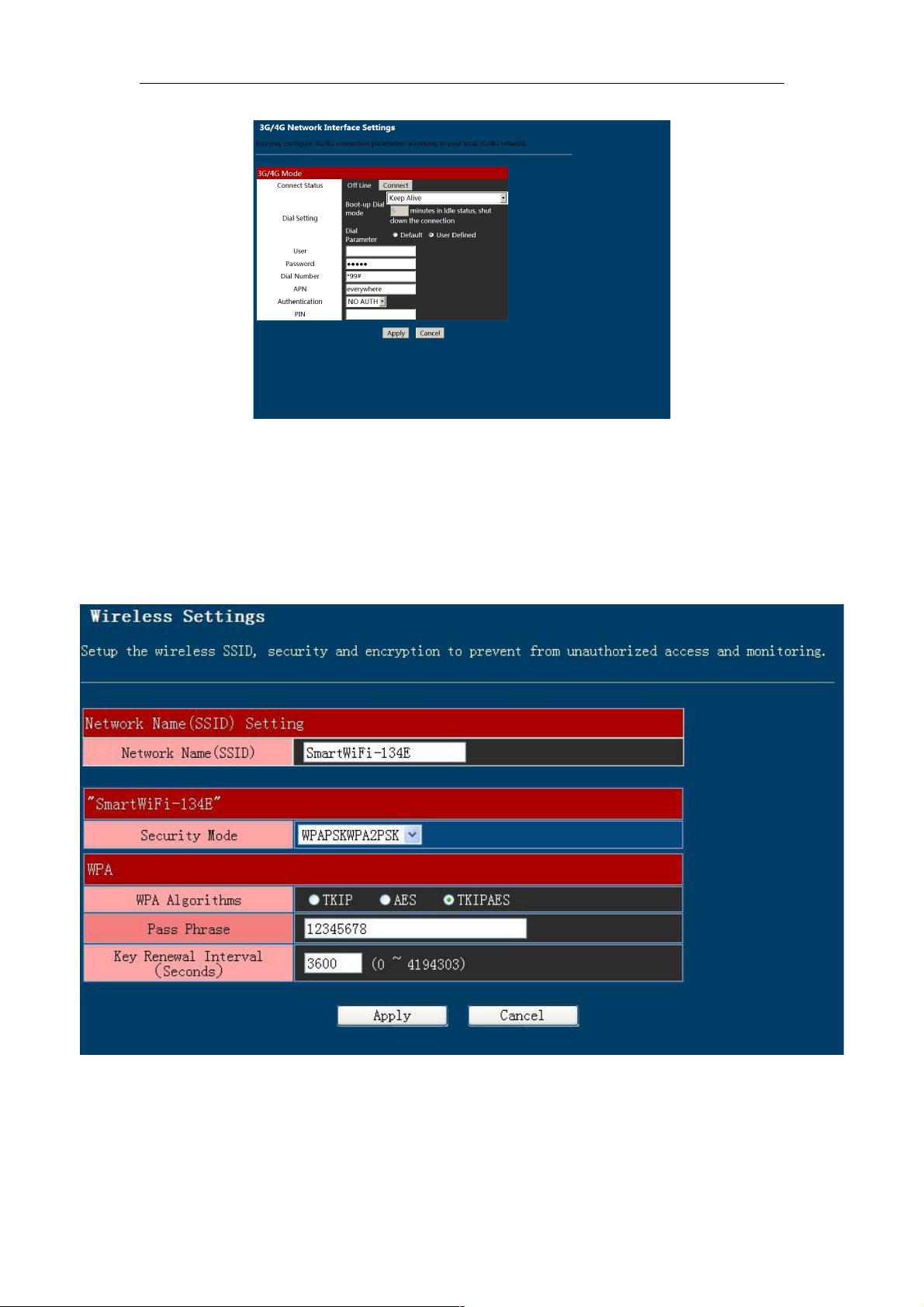

Click on the “3G" icon on home page to enter 3G dial-up settings.
7
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
In dial-up setting, select “User Defined” then input users name, password, dial number
(always *99# for the UK), and the APN parameter provided by 3G ISP (a list of the common
settings is given below), and click Apply. After settings are applied click on Cancel to exit.
Configuration for 3G connection should now work.
5. Wireless network security setting
From the Home page select WiFi Security:
Enter your preferred WiFi options.
If you need more advanced configuration then click on Advanced Settings from the Home page.
8
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
APN List
Please note this is not a definitive list and operators often change settings so this should only be
used as a starting point. Your provider should be able to give you these details.
Operator APN Username Password Authentication
(if not known then leave
as auto or blank)
3 three.co.uk guest guest
AirTel Vodafone airtel-ci-gprs.com guest guest
Jersey
Telecom
pepper abc abc
3 (broadband) three.co.uk guest guest
O2 (contract)
(optimised)
mobile.o2.co.uk faster web
O2 (contract)
(non-optimised)
mobile.o2.co.uk bypass web
O2 (pre-pay) payandgo.o2.co.uk
m-bb.o2.co.uk
payandgo
o2bb
payandgo
password
O2 mobile.o2.co.uk o2web password PAP
Orange
(Pay Monthly)
orangeinternet orange multimedia
Orange
(Pay as you go)
orangeinternet user pass
Orange
(JustTalk)
orangeinternet wap wap
Orange everywhere eesecure secure PAP
Vodafone internet
PAYG - pp.vodafone.co.uk
web web None
EE everywhere blank blank PAP
GiffGaff giffgaff.com giffgaff password
T-Mobile general.t-mobile.uk t-mobile tm PAP
Virgin goto.virginmobile.uk user blank PAP
9
53R-EXT 300M Wireless Broadband Router Quick Installation Guide
Product Specification
Hardware Configuration
Interface
1×WAN RJ-45 port,10/100Mbps
3×LAN RJ-45 port,10/100Mbps
1×USB type A host
1×SIM Card slot
Reset Button Reset router setting to factory default
Power requirements Power Jack, DC 9V/1A or 12V/1A
Antenna External 2x5 dbi 2.4G Wifi antenna
External 1x3G antenna
LEDs Status Power、LAN、WAN、WiFi、3G/4G
RF Configuration
Frequency Band 2.400~2.484GHz
Standard IEEE802.11b,IEEE802.11g，IEEE802.11n;
IEEE802.3,IEEE802.3u
Operating Channel Auto-selection,manually
Security 644/128 bit WEP Encryption
WPA-PSK,WPA2-PSK(using TKIP or AES)
Available Transmit Power 11b:19±1.0dBm@11Mbps
11g:19±1.0dBm@54Mbps
802.11n:15±1.0dBm@HT20-MSC7 @150Mbps
802.11n:15±1.0dBm@HT40-MSC7 @150Mbps
SOFTWARE FEATURES
WAN 3G,DHCP client,Static IP,Wifi Repeater
SIP Firewall MAC/IP/Port Filtering
Virtual Server Setting
DMZ
Content Filtering
Management Web-based UI.remote login,backup/restore setting
ENVIRONMENT&PHYSICAL
Temperature Range 0 to 40 -Operating,-20 to 70 -storage℃ ℃
Humidity(non-condensing) 15%~95% typical
Dimensions 21(L)*7(W)*3.5(H)cm
Weight 290kg
10
