Solvline USB Multiport User Manual

MultiPort USB
User Manual
Version 2.8
2011. 07. 16
2
Revision Date
Version
Pages
Description
2006-07-14
2.0
All
Initial Release by shlee
2007-08-02
2.1
Partial
Vista x32 added khheo
2008-05-13
2.2
Partial
Multi-1 & Win2008 added by hjnoh
2009-05-26
2.3
Partial
Auto Install Added by hjnoh
2009-10-26
2.4
Partial
Modified by ymwon
2010-2-08
2.5
Partial
Modified by ghpark
2010-10-18
2.6
Partial
Modified by Loius Kim
2010-11-16
2.7
Partial
Modified by hsjung
2011-7-19
2.8
Partial
Modified by ymwon
16th Fl. Daerung Post Tower-1, 212-8, Guro-dong, Guro-gu, Seoul, Korea
Copyright 2006 SystemBase Co., Ltd. All rights reserved.
Website: http://www.sysbas.com/
Tel: 82-2-855-0501
Fax: 82-2-855-0580
For any inquiries or comments, contact tech@sysbas.com
3
Contents
What is USB MultiPort? ................................................................................................................. 5
Multiport USB Specifications ......................................................................................................... 6
Multi-1/USB Ver4.0 ........................................................................................................................ 7
- Specification ........................................................................................................................ 7
1. RS232 Model ..................................................................................................................... 8
2. RS422, RS485 Model ........................................................................................................ 9
Multi-2/USB Ver4.0 ...................................................................................................................... 13
- Specification ...................................................................................................................... 13
1. RS232 Model ................................................................................................................... 14
2. RS422, RS485 Model ...................................................................................................... 15
Multi-4/USB Ver4.0 ...................................................................................................................... 19
- Specification ...................................................................................................................... 19
1. RS232 Model ................................................................................................................... 20
2. RS422, RS485 Model ...................................................................................................... 21
Multi-4/8 USB under V1.5 ............................................................................................................ 25
1. RS232 Model ................................................................................................................... 25
2. RS422, RS485 Model ...................................................................................................... 27
Multi-4/8 USB V1.5, V1.6 ............................................................................................................ 29
1. RS232 Model ................................................................................................................... 29
2. Combo (RS422/RS485) Model ........................................................................................ 30
Multi-4/8 USB V1.7 ...................................................................................................................... 34
1. RS232 Model ................................................................................................................... 34
2. Combo (RS422/RS485) Model ........................................................................................ 35

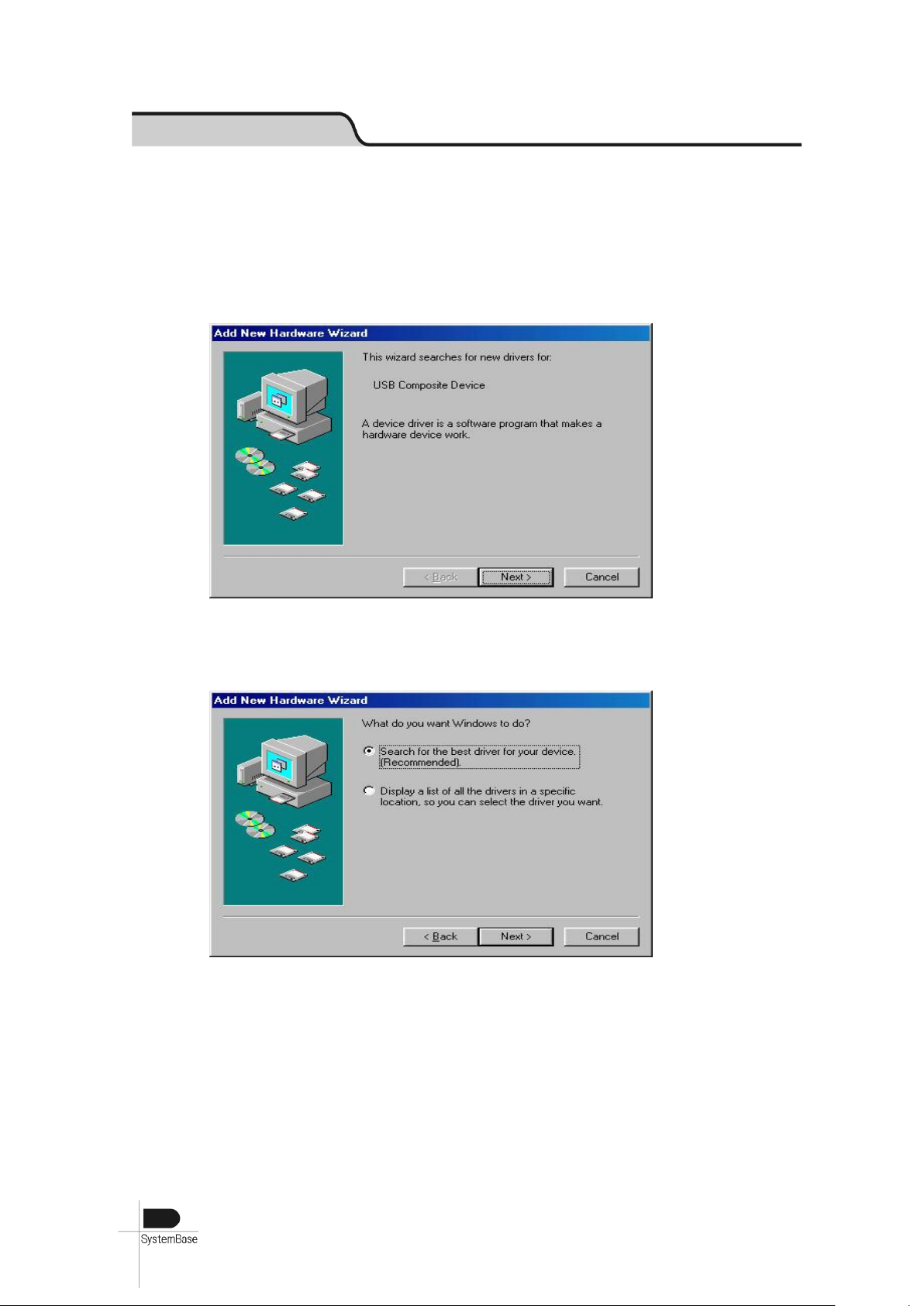

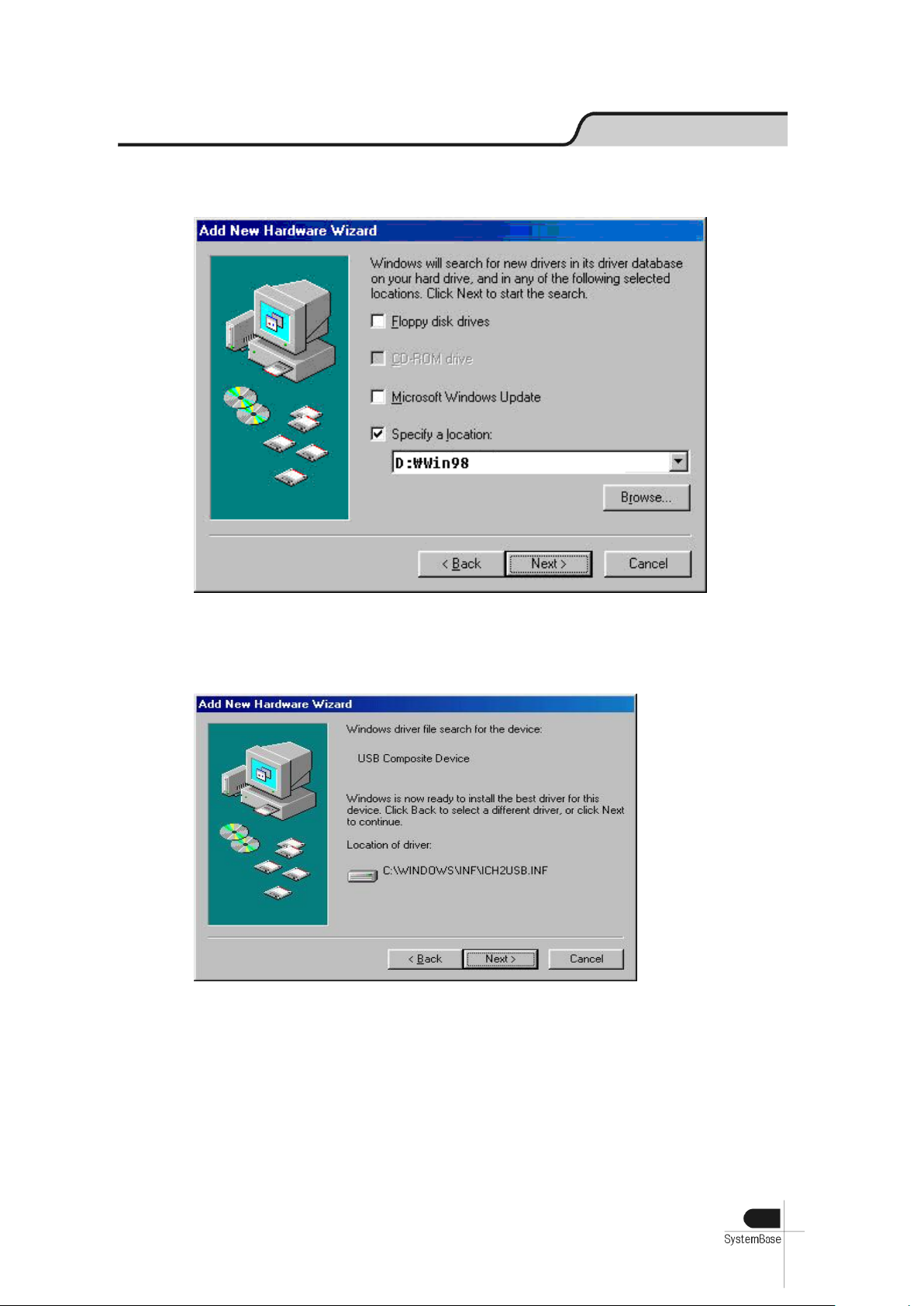

Installing Windows 98 Device Driver ........................................................................................... 39

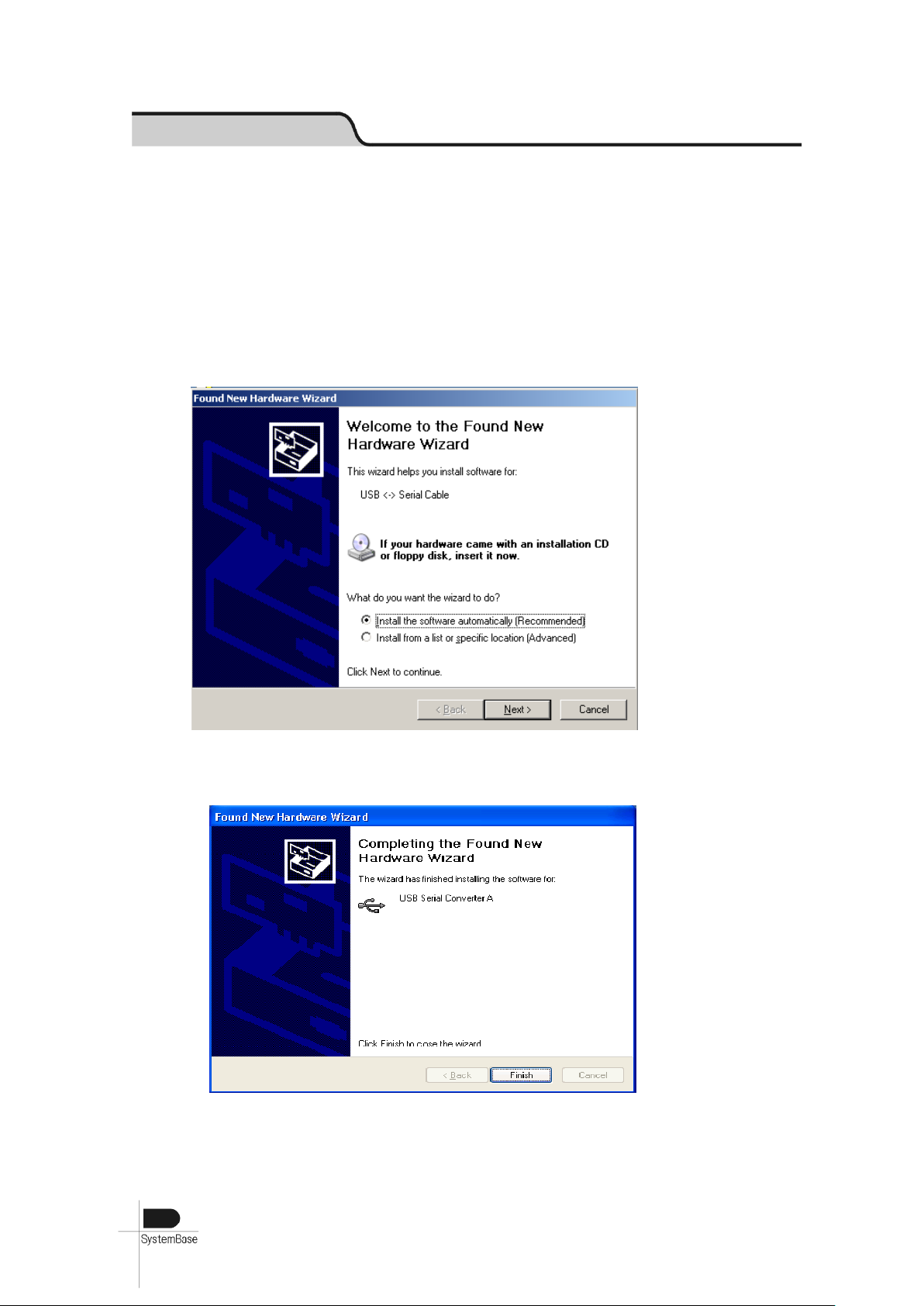

Installing Windows 2000/XP/2003 Device Driver ........................................................................ 41

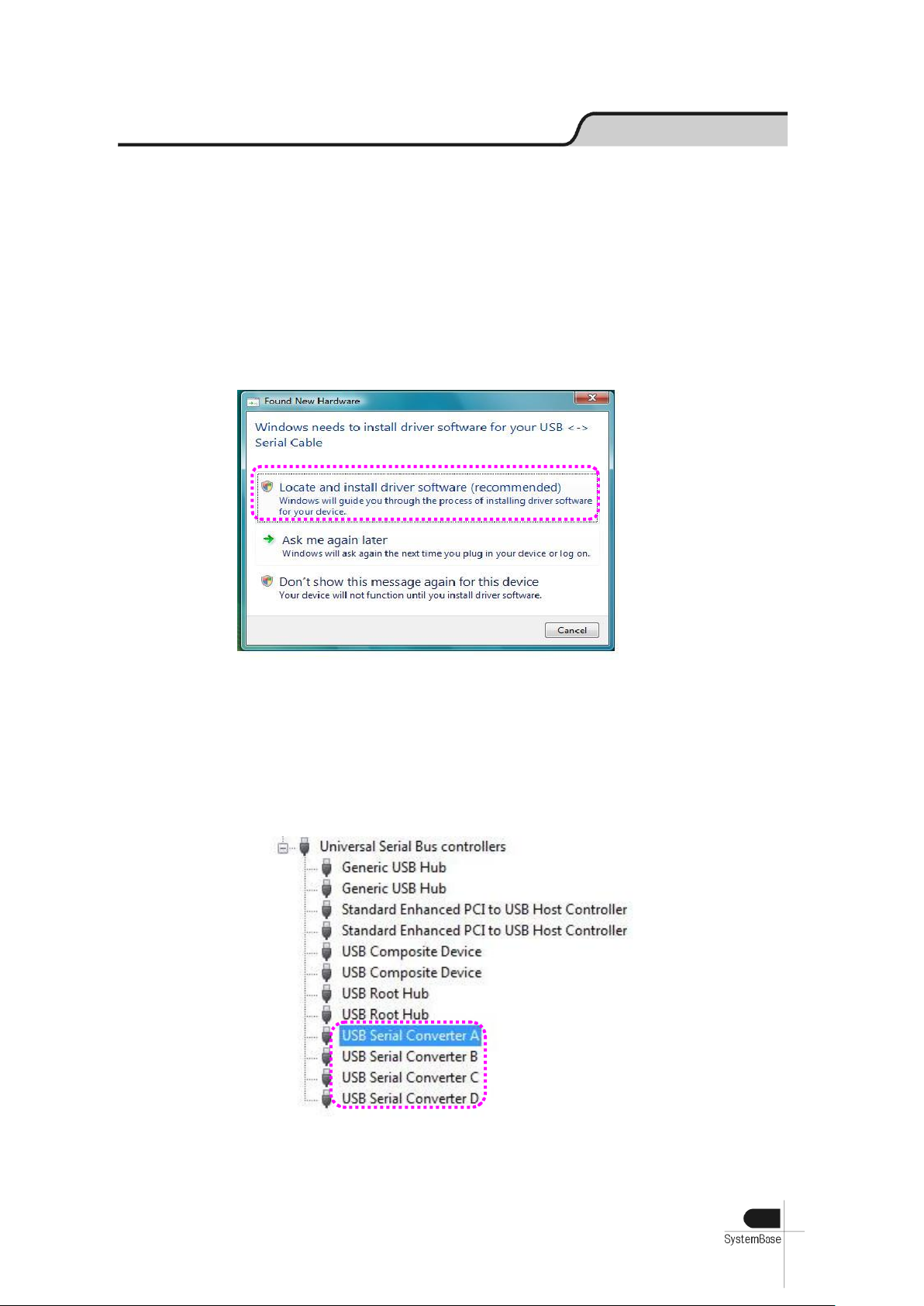

Installing Window Vista/2008 Device Driver ................................................................................ 44

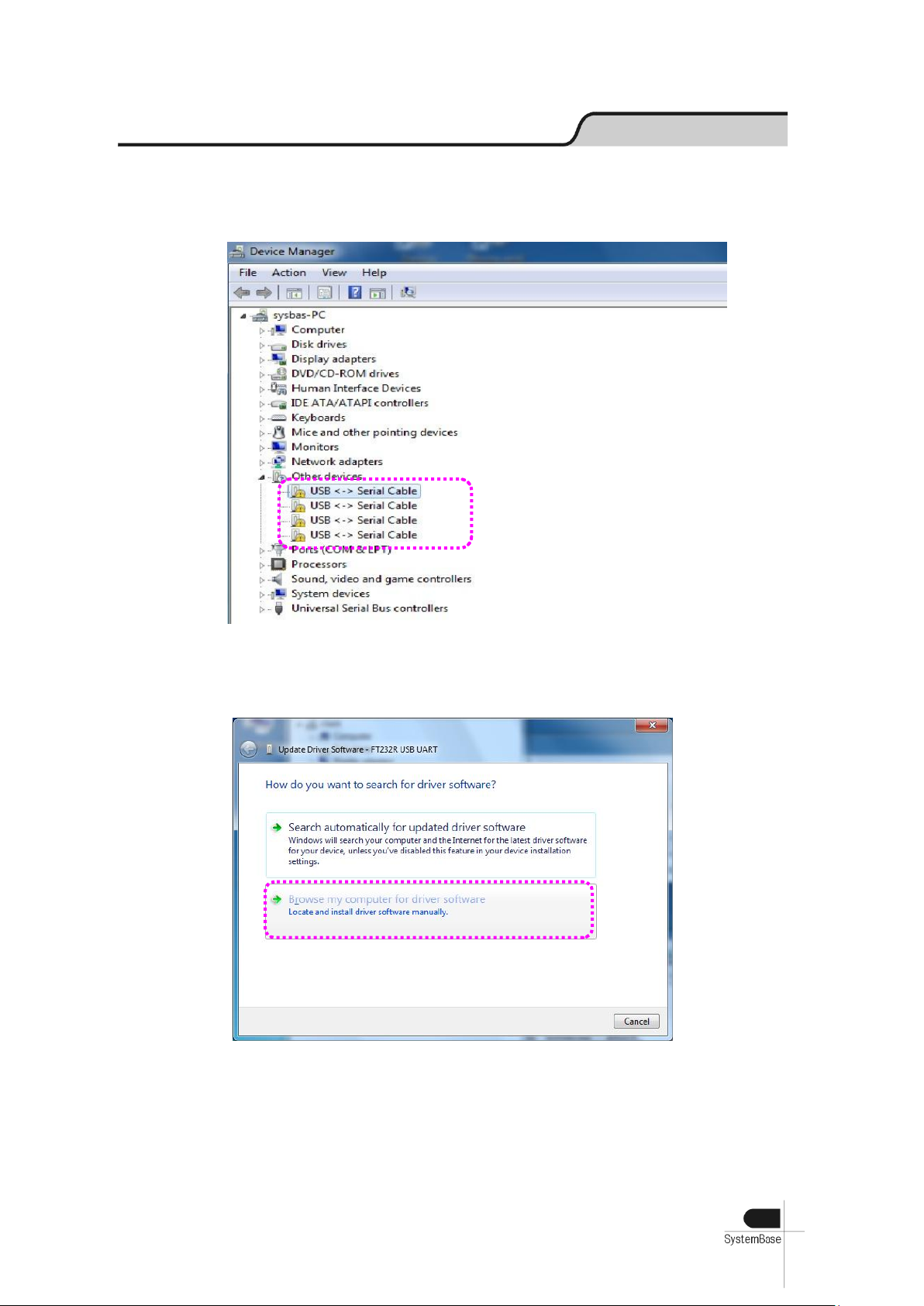

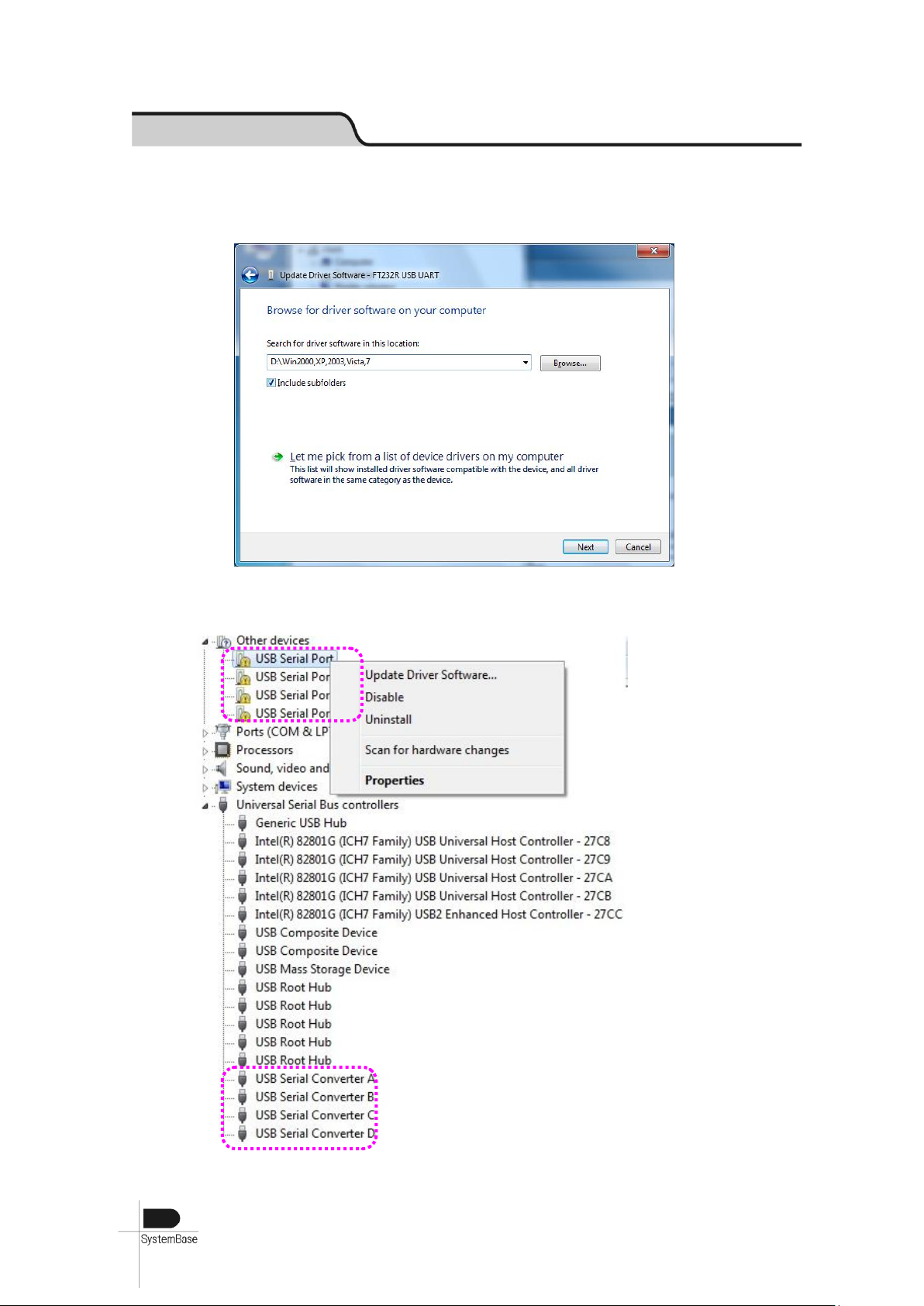

Installing Window 7 Device Driver ............................................................................................... 47

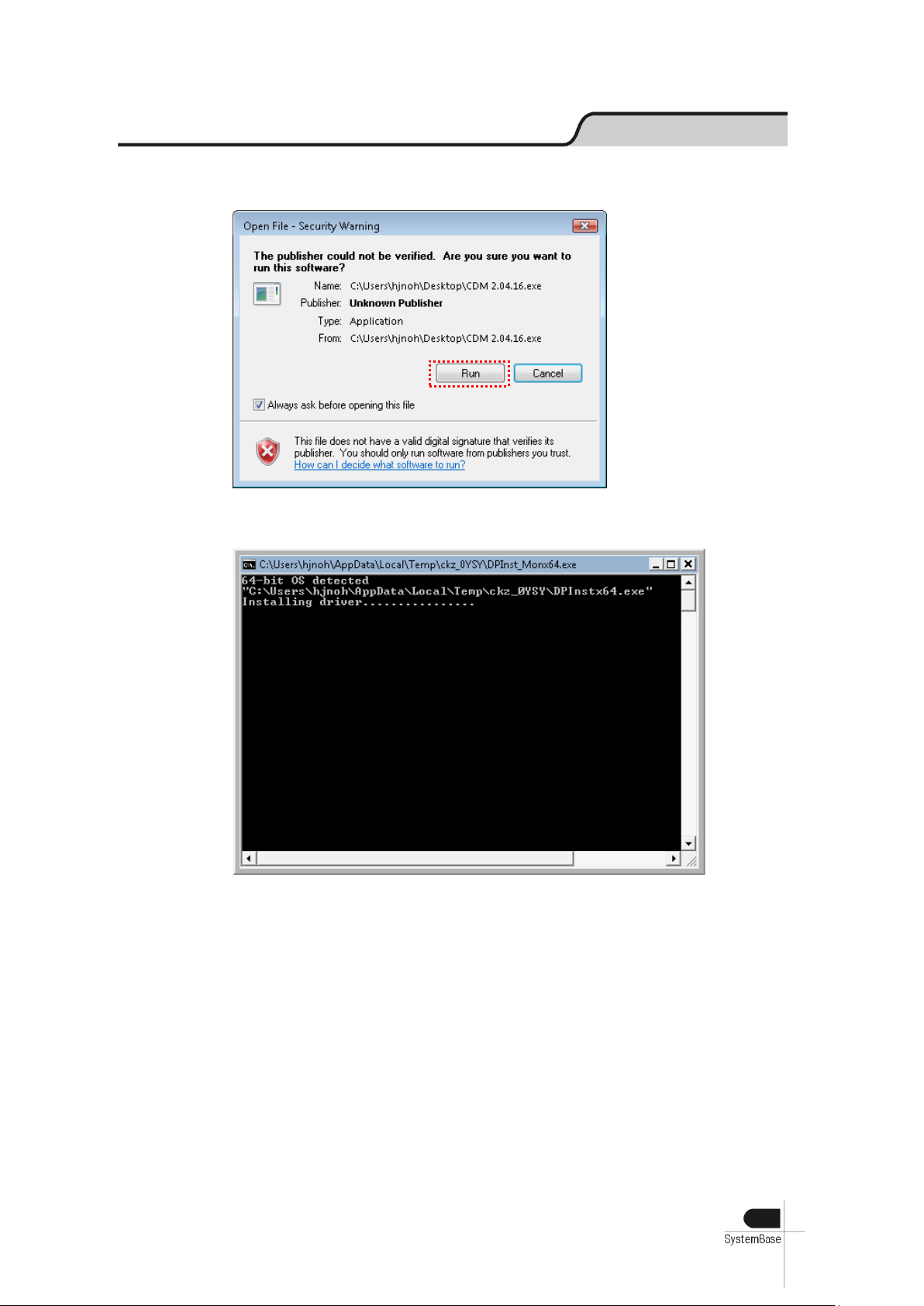

Automatic Driver Installation in Windows .................................................................................... 51

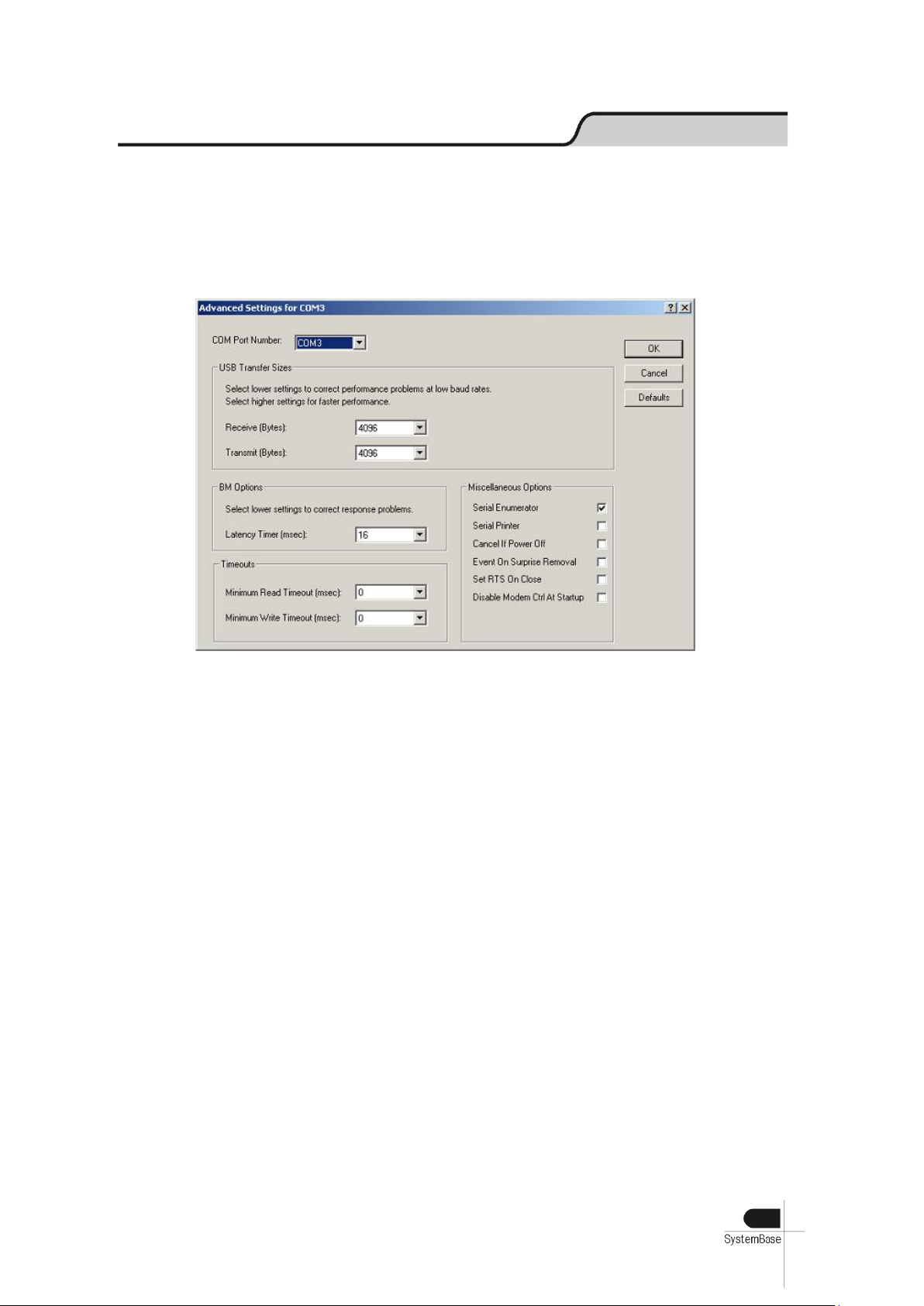

Windows Device Driver Setup ..................................................................................................... 53
Removing Windows 98/2000/XP/2003 Driver ............................................................................. 56

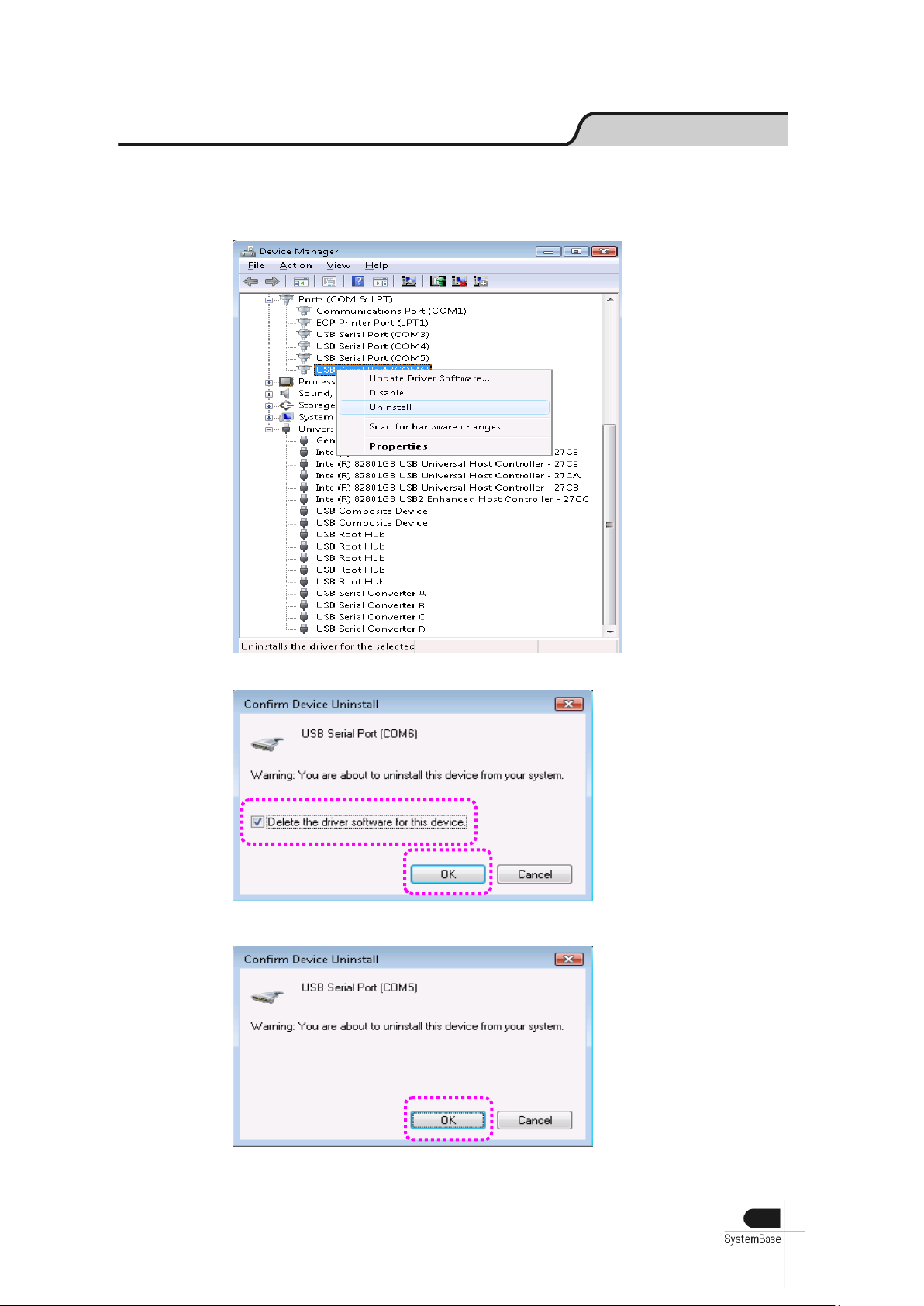

1. Remove Device Driver Using Device Manager ............................................................ 57

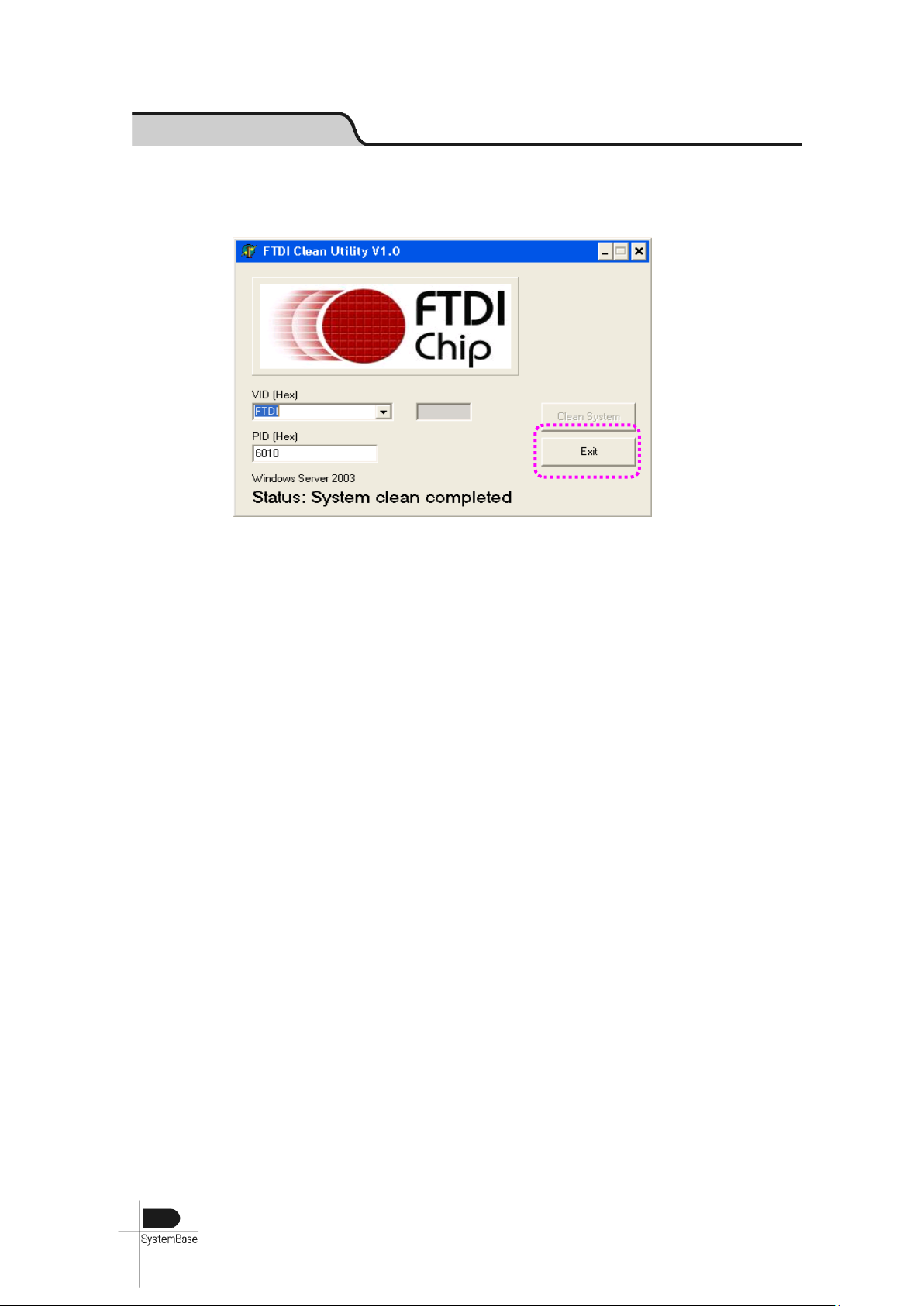

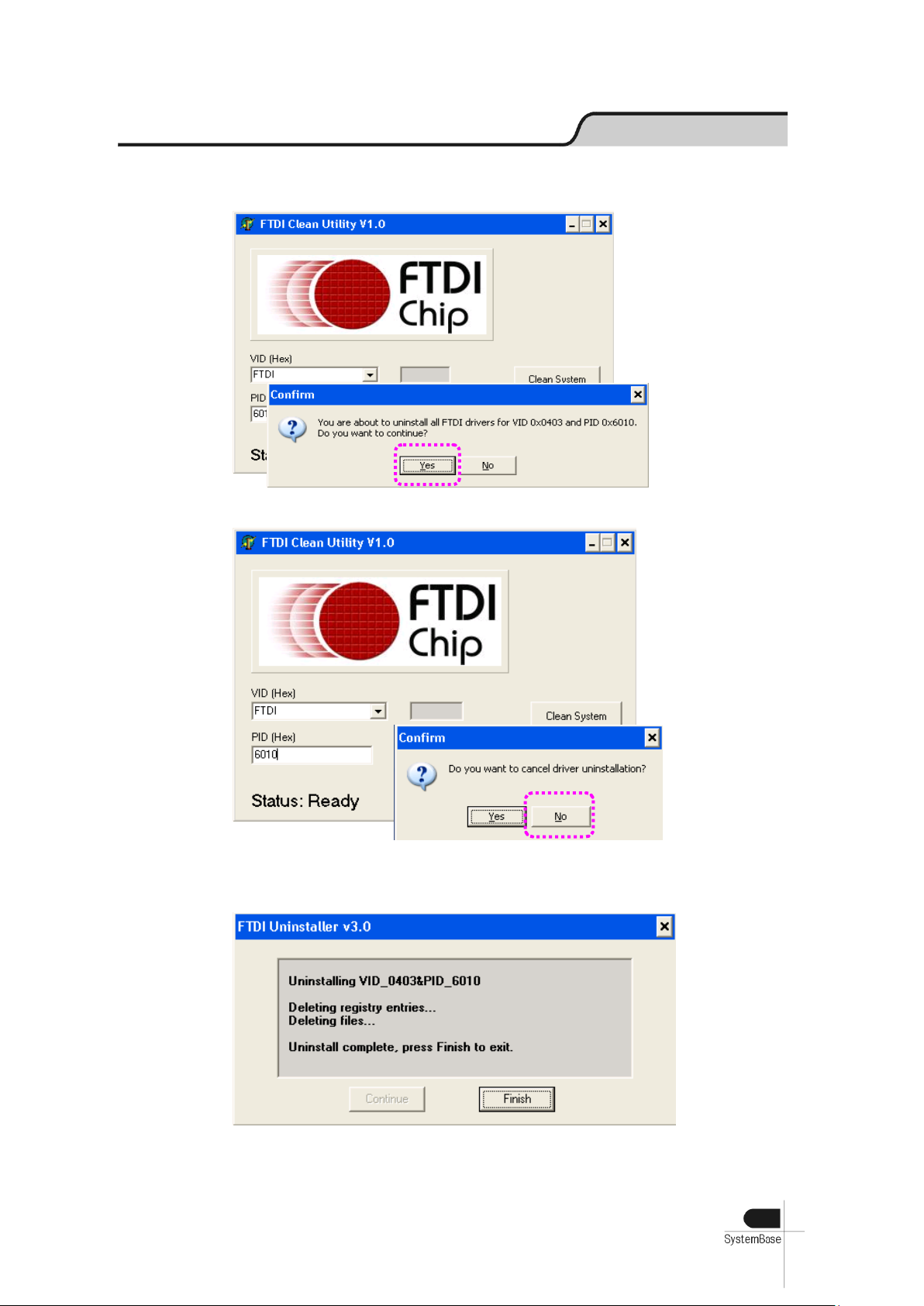

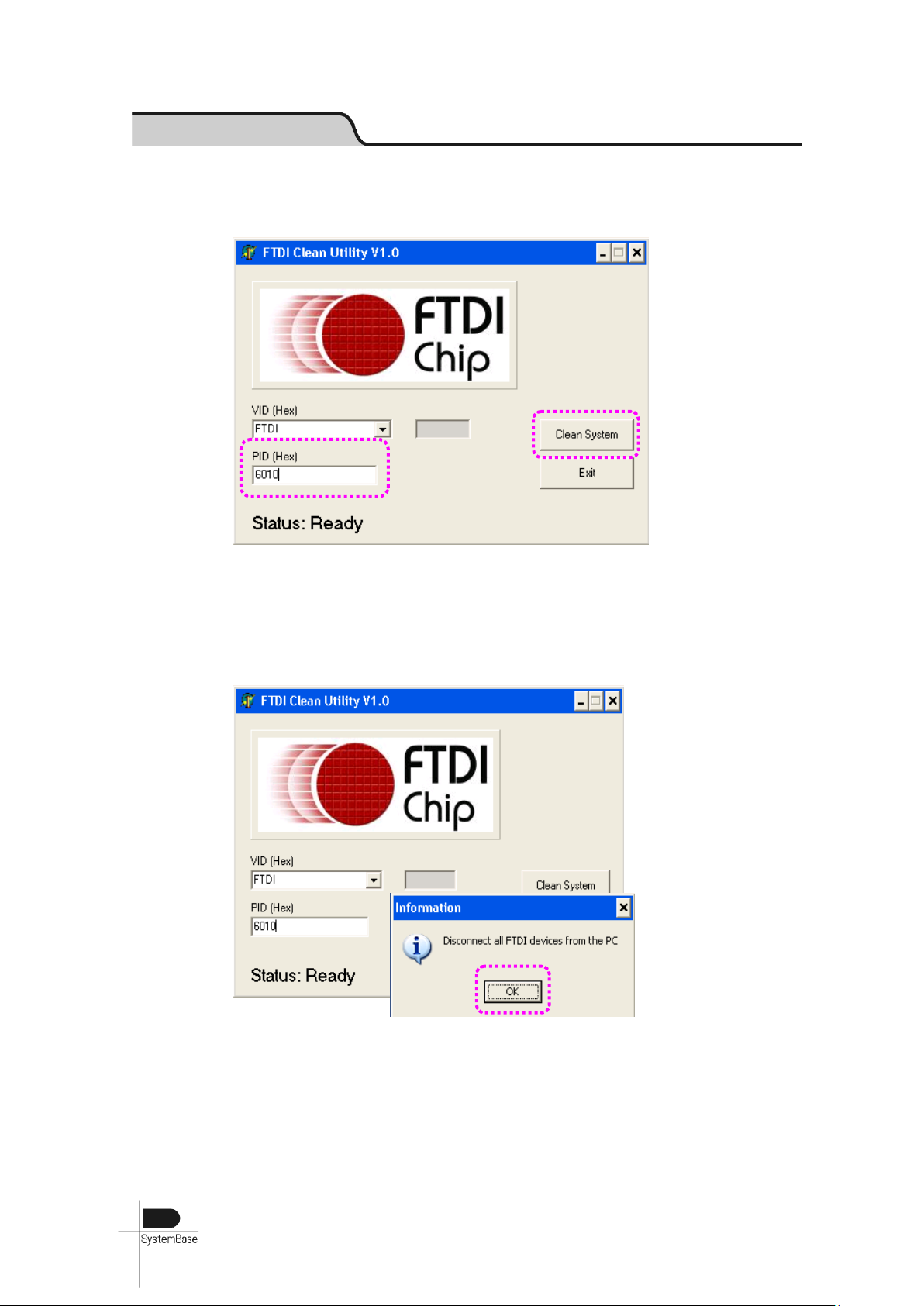

2. Using FTClean.exe ....................................................................................................... 62

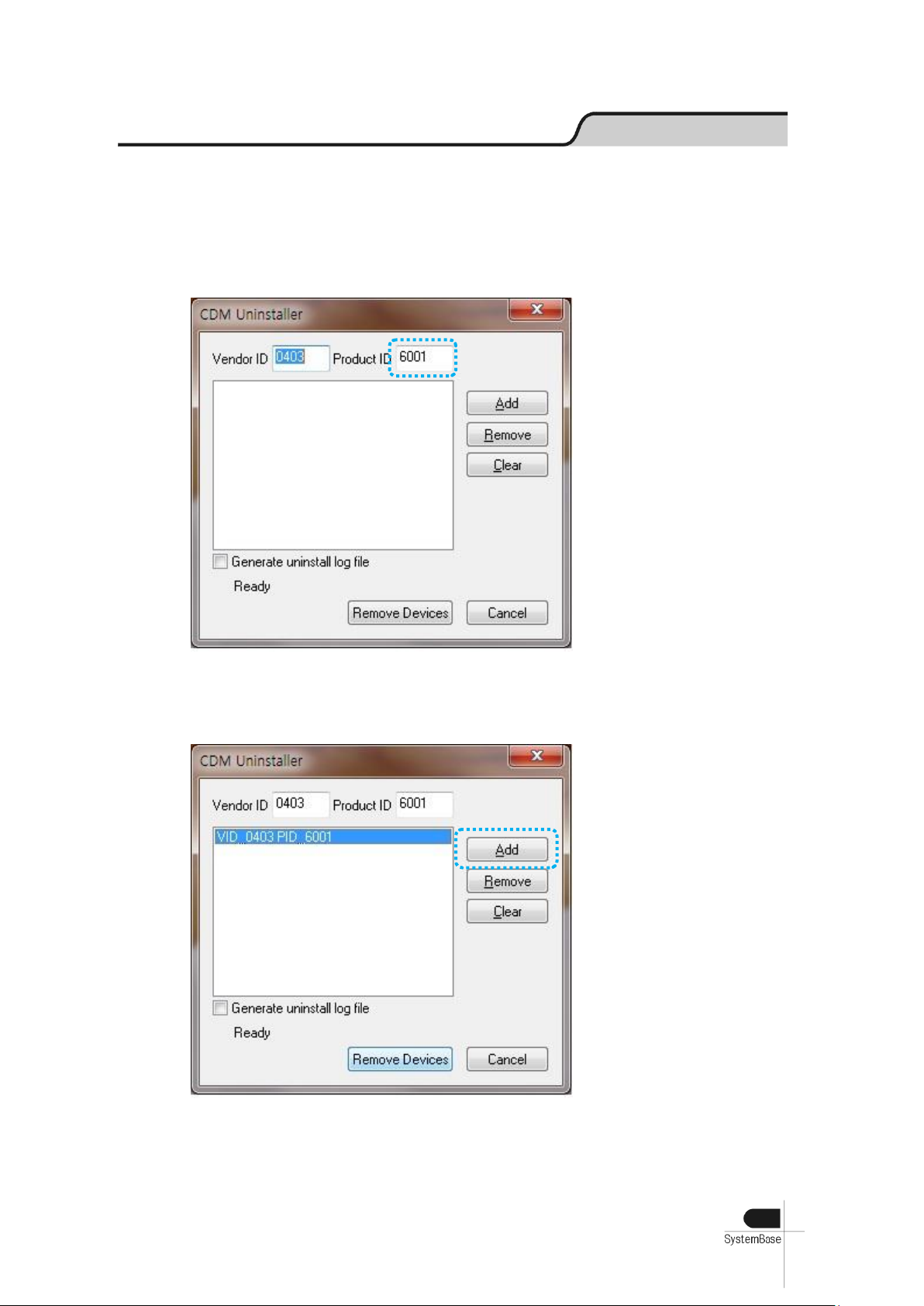

3. Using CDMUnistaller.exe .............................................................................................. 66
4
Multi-4/8 USB History .................................................................................................................. 68
5
What is USB MultiPort?
USB is a complex word of “Universal”, meaning all peripheral devices use the same connector,
and “Serial”, meaning devices are connected as a daisy chain through serial transmission. USB
is an interface suggesting a solution to inconvenience and inefficiency caused by slow speed and limited device connection of existing external ports(serial or parallel). Compared to external ports that were only used to connect devices such as modems, printers and scanners, USB is powerful in that it connects all types of basic peripheral devices that were each connected via different types. Also, when a new device is plugged, it‟s auto-detected without any rebooting or setup process, enabling 127 connections maximum. Installation is handy since PnP is perfectly supported. No extra equipment is needed since most of the main-board chipsets include the USB controller. USB cable type supported is type A, which can utilize the USB port of the PC or the USB hub. This product obtains power from USB, and this makes the product powerful since no external power supply is required.
Hardware
Multi-4/8
6
Multiport USB Specifications
- Hardware
Number of Ports: 1, 2, 4, 8  USB Interface: USB Spec 1.1/2.0  Serial Interface: RS232/COMBO(422/485)  LED: Tx and Rx per each port  Serial Connector: DB9 (Male) 1,2,4/ DB9 (Female) 4,8 Panel type  Serial Communication Speed: 921.6Kbps maximum  External Power: Selectable/Disable(*1)
- Software
Supports Windows 98/2000/XP/2003/Vista/2008/7, and Linux Driver, OS X Driver (*2)  Supports Windows XP/2003/Vista/2008/7 x64

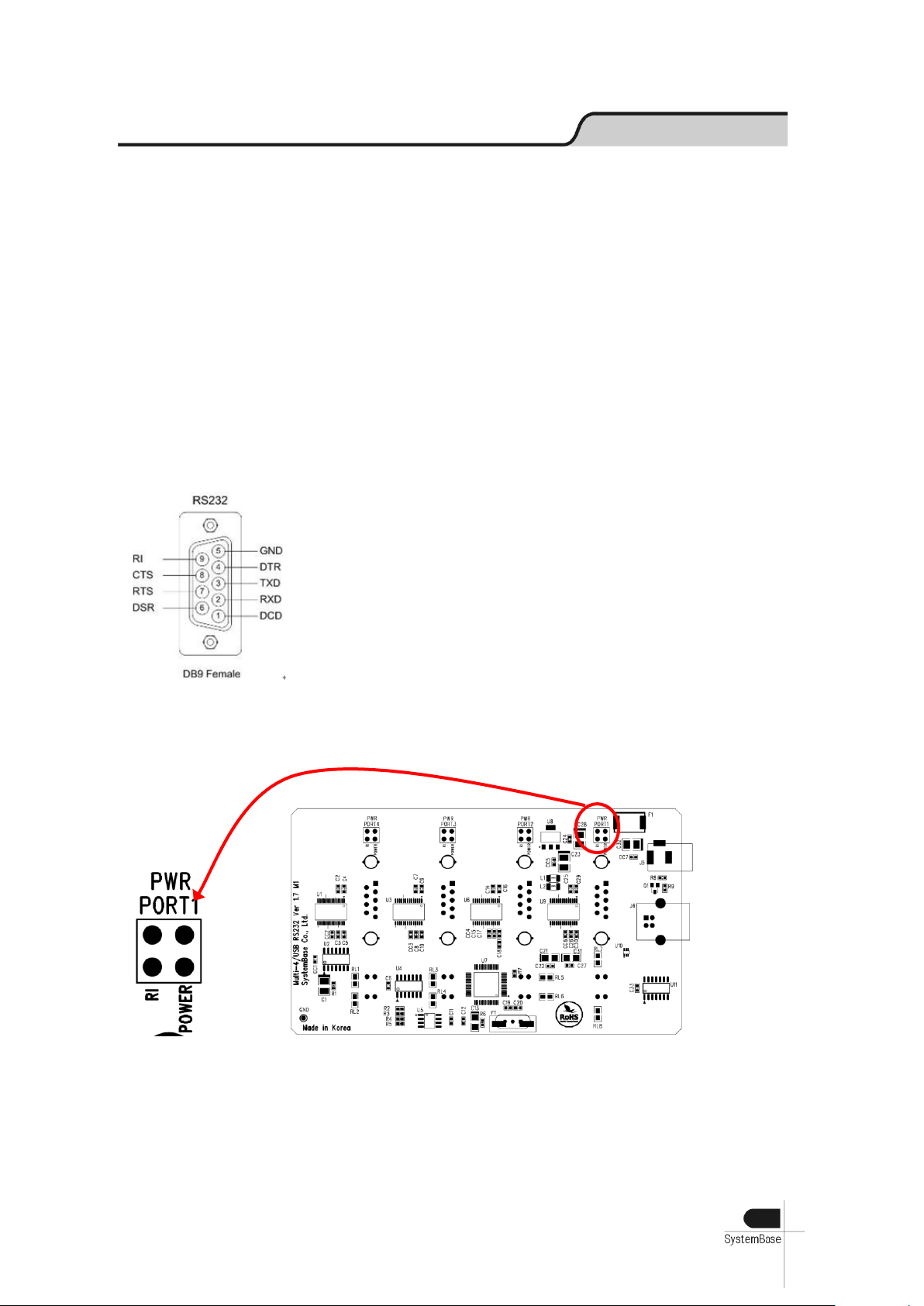

*1: You can connect external power supply to Panel type USB MultiPort H/W ver. 1.5 or above only. *2: If you would like to use USB Multiport for Linux or MAC OS X , please contact
tech@sysbas.com
7
Hardware
Multi-2/USB Ver4.0
Communication Speed
Max 921.6Kbps
Bus Interface
USB 2.0(Full Speed)
Line Interface
RS232/RS422/RS485
Controller
FTDI 232R
Connector
DB9 Male
Protection
15kV Surge Protector
O/S
Windows 98/2000/XP/2003/Vista/2008/7, Linux
Manufaturer
SystemBase Co., Ltd
Multi-1/USB Ver4.0
Multi-1/USB Ver4.0 is a model that supports USB2.0. It is detected automatically when user connects USB port with computer. It supports maximum communication speed of 921.6Kbps. Furthermore, it is equipped with surge protector to protect internal systems from outer shock. In Combo Model, user can set line interface, communication mode and terminal resistor. Also, the LED is attached outside to show the current status of signal lines.
- Specification
8
Hardware
Multi-1/USB Ver4.0
1. RS232 Model
- DB9 Male Pin Assignment

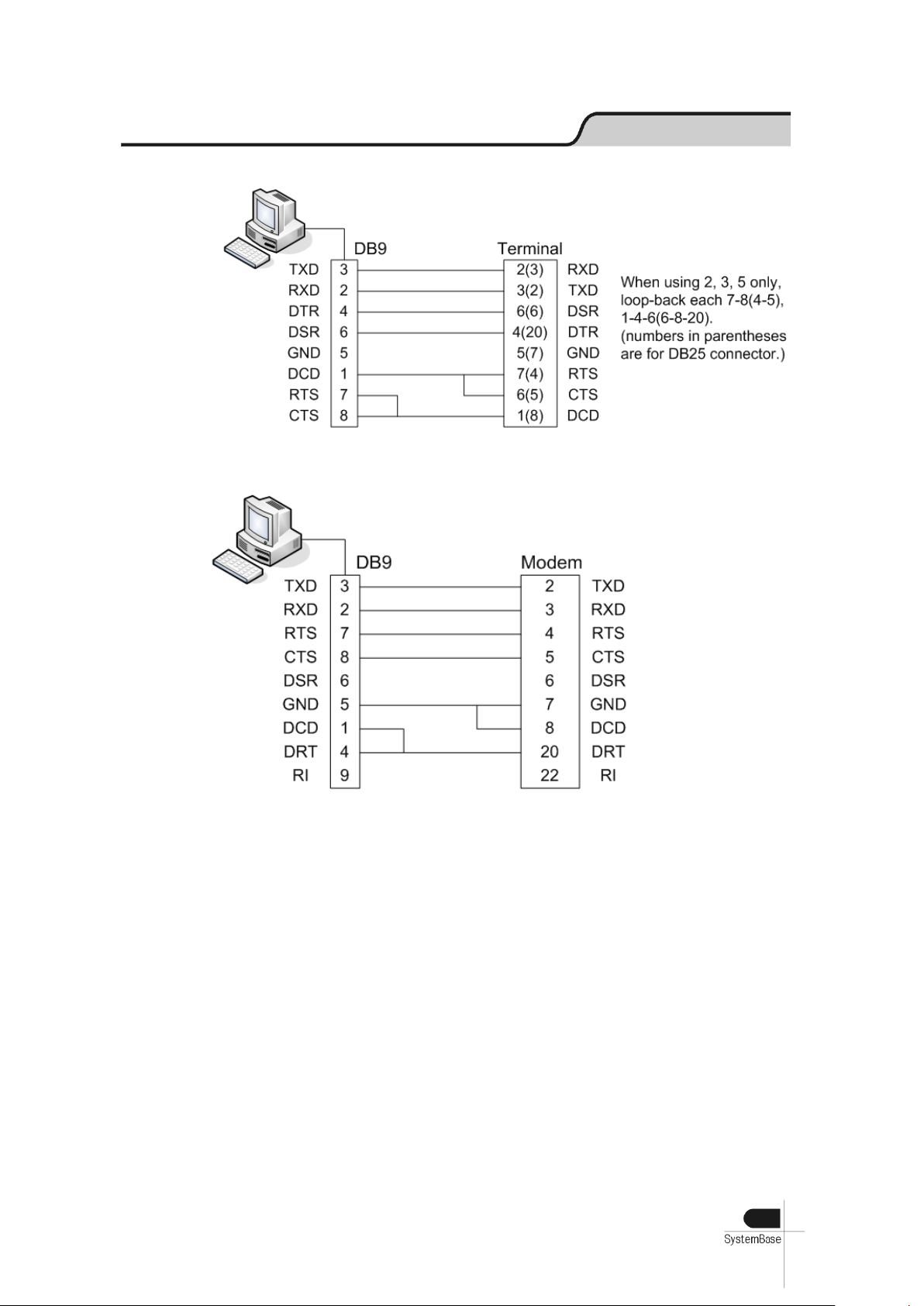

- How to connect to a Terminal
- How to connect to a Modem
9
Hardware
Multi-1/USB Ver4.0
ON
OFF
1
Interface Select
RS485
RS422
2
Echo/Non-Echo Select
Echo
Non-Echo
3
RS422 terminal resistor
Install
Uninstall
4
RS485 terminal resistor
Install
Uninstall
2. RS422, RS485 Model
- DB9 Male Pin Assignment
- DIP Switch Setting
10
Hardware
Multi-1/USB Ver4.0

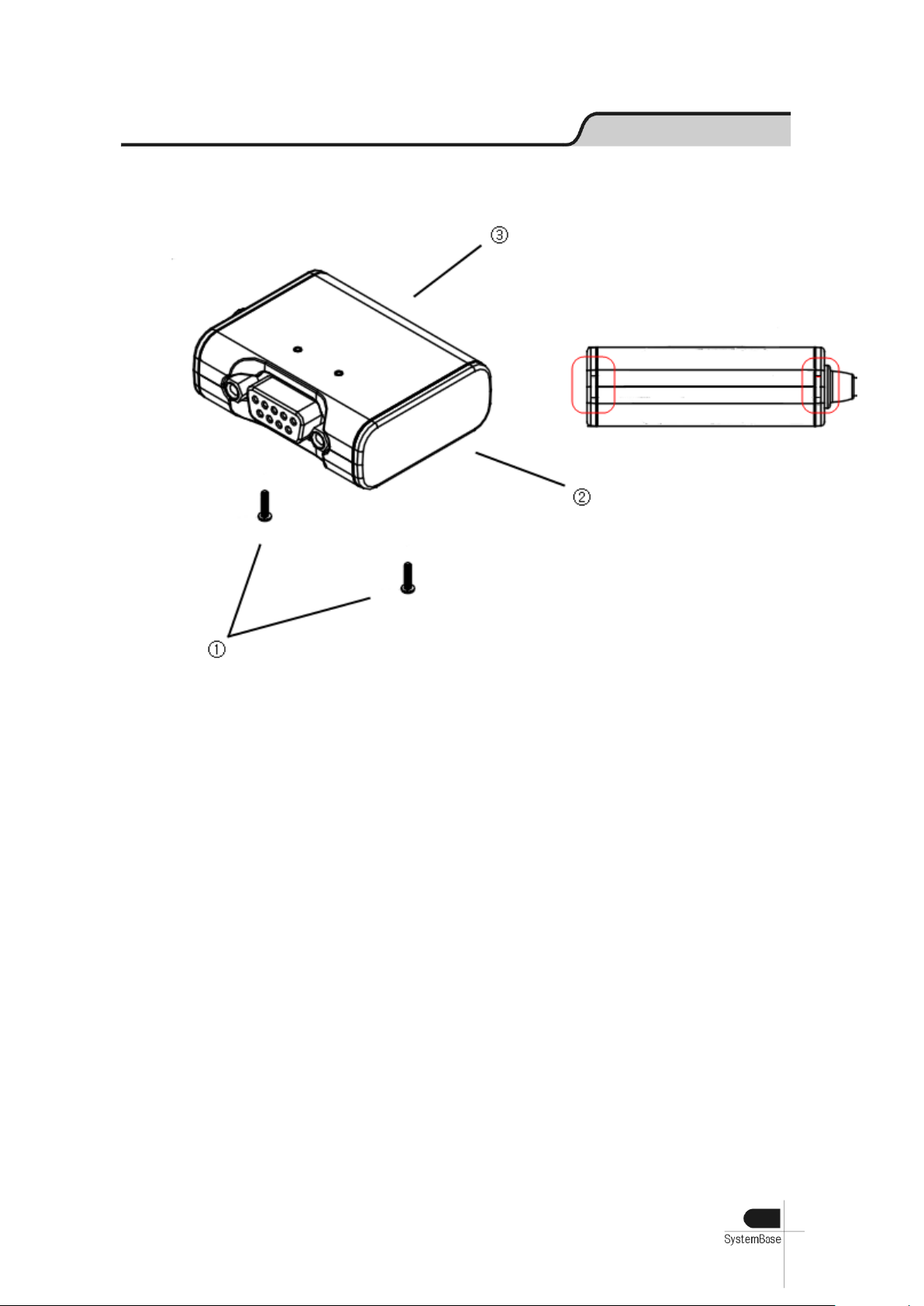

- Jumper Setting
Loosen the two screw on the bottom case.
Remove the side cap.
Look at the rear side of case, you can find the small grooved.
이곳에 일자 드라이버 같은 기구물을 넣어서 비틀면 쉽게 케이스를 벗길 수 있다.
Top cover is slid to the inside of the case.
11
Hardware
Multi-1/USB Ver4.0

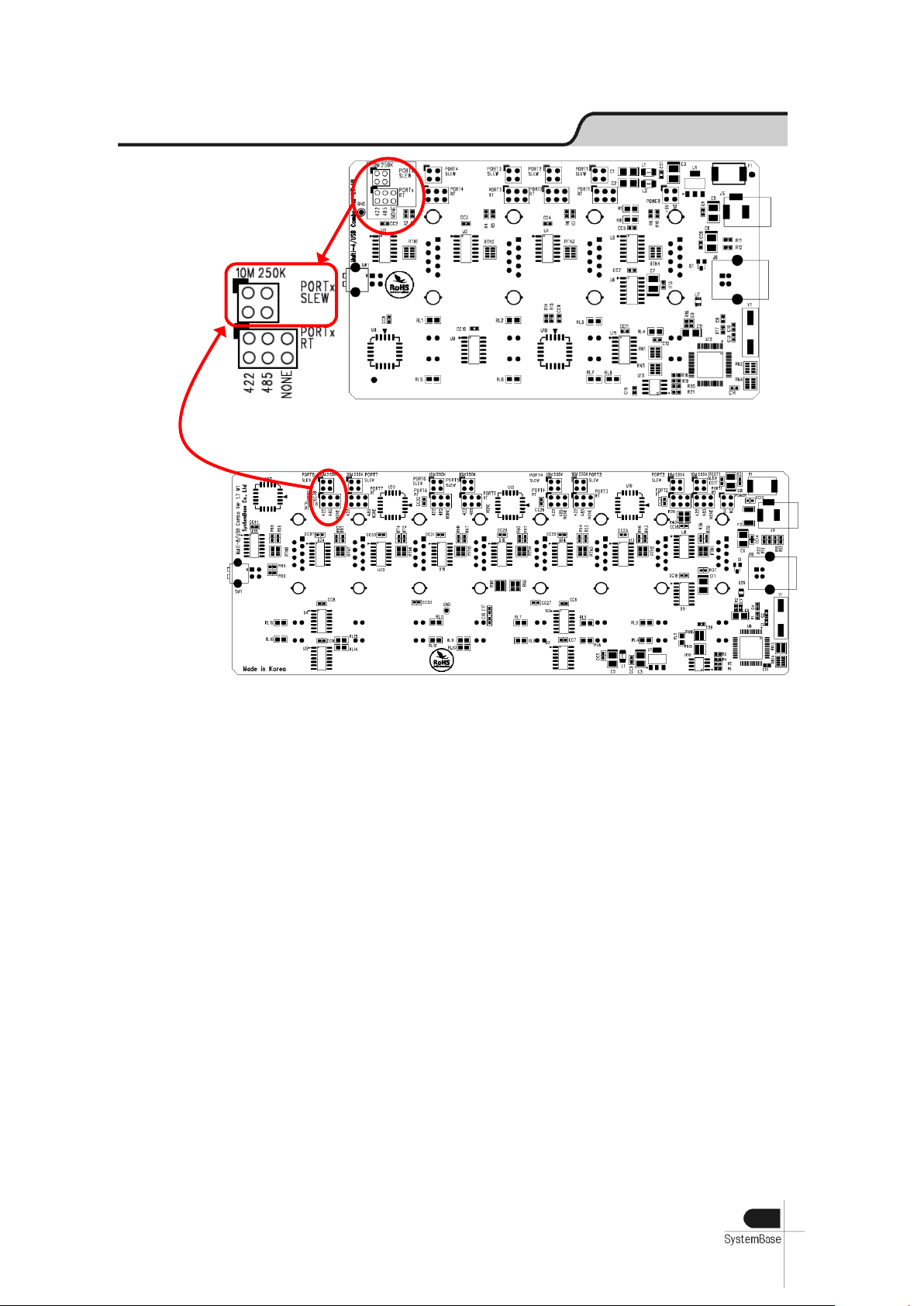

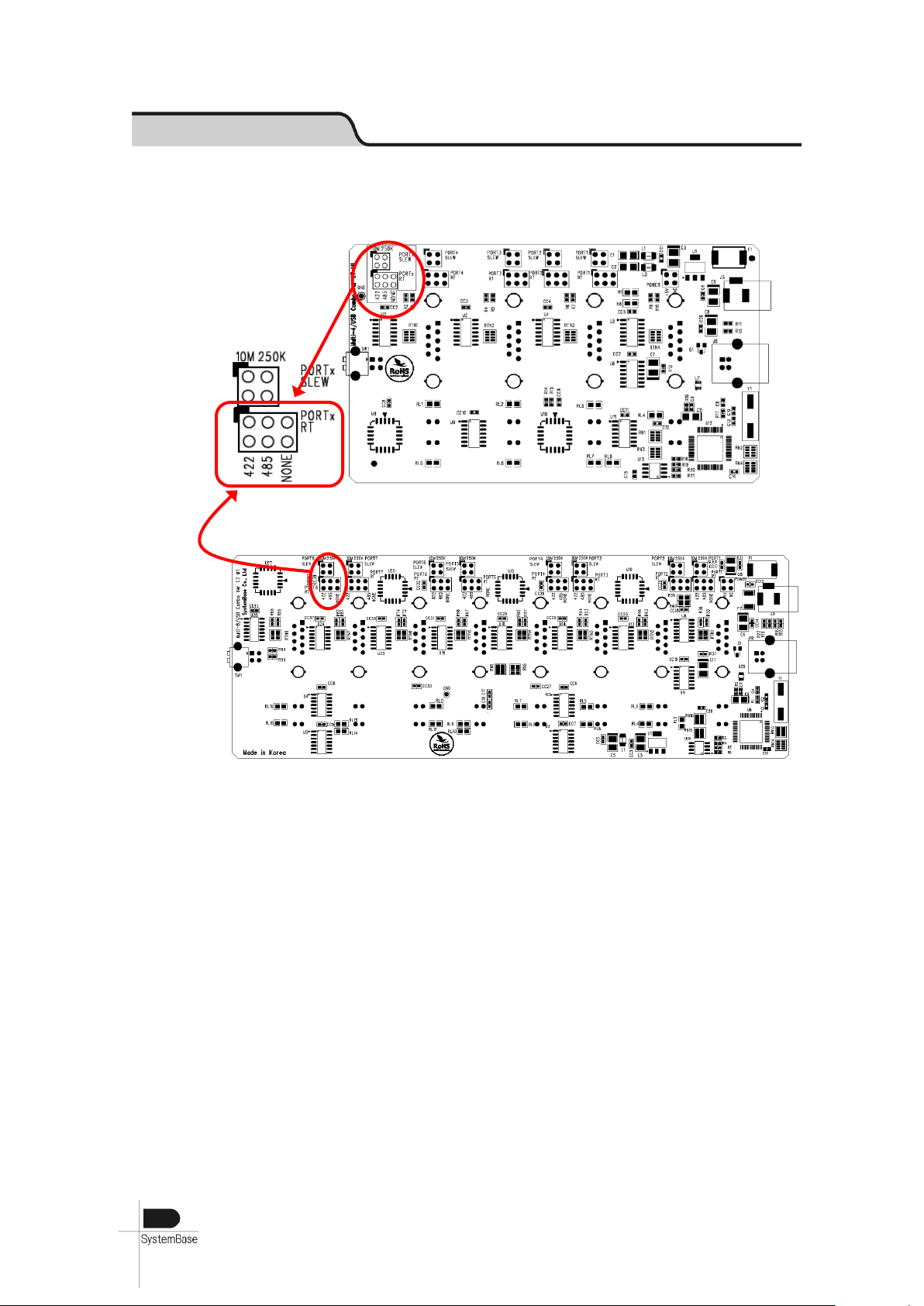

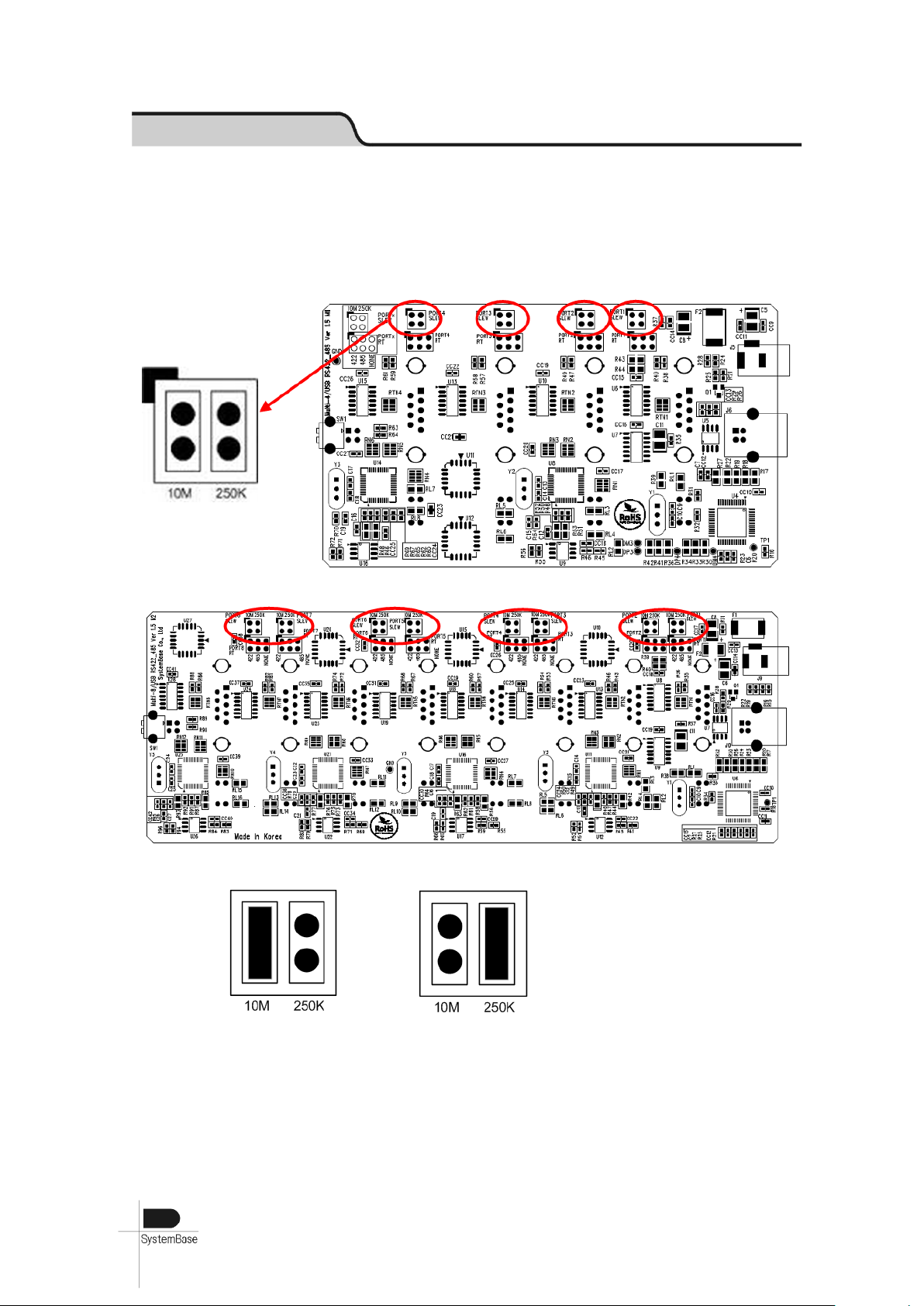

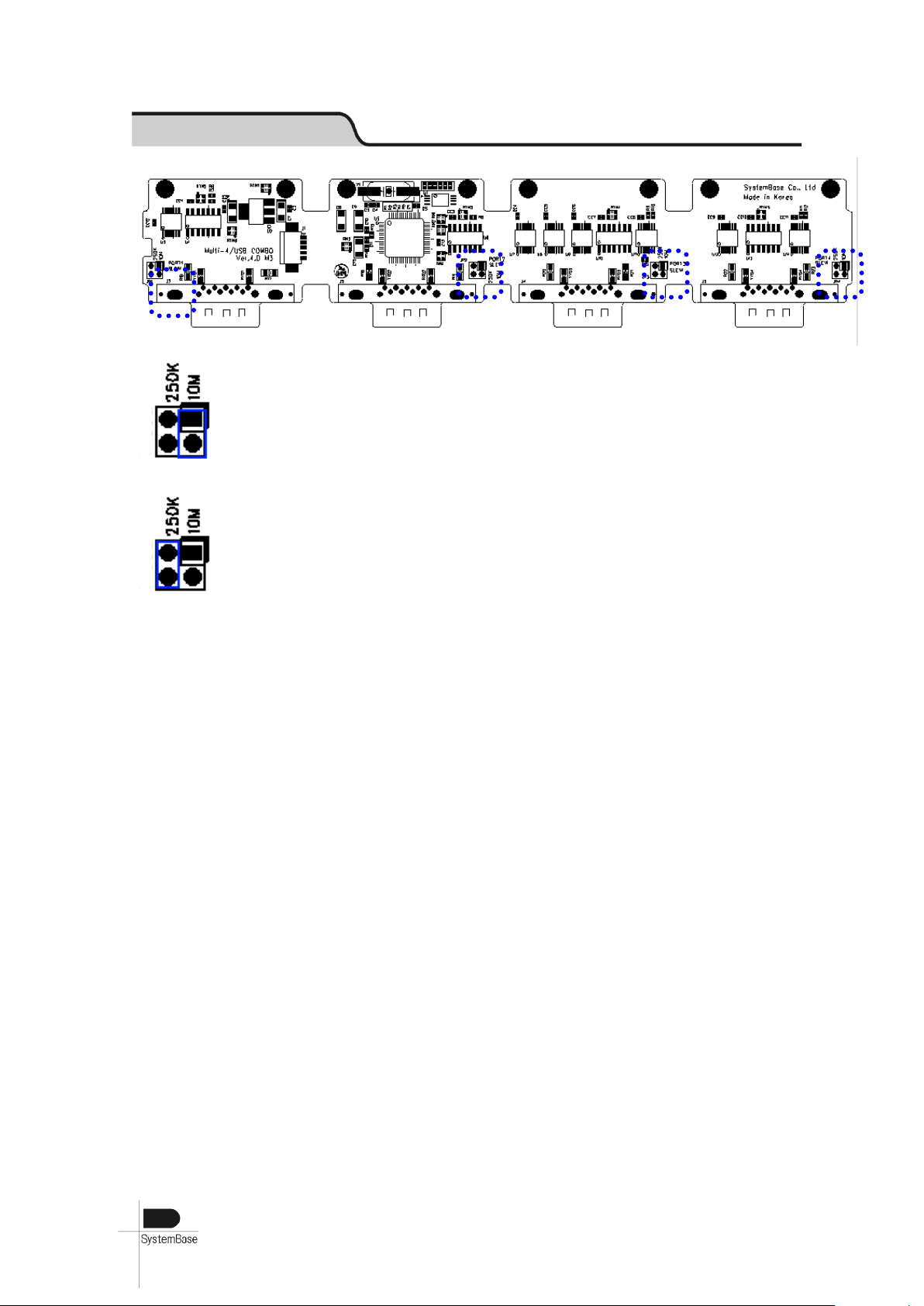

10M: Not use Slew Rate Limit ability. Maximum communication speed
921.6Kbps in this mode.
250K: Use Slew Rate Limit ability. Communication speed is limited under 250Kbps.
12
Hardware
Multi-1/USB Ver4.0

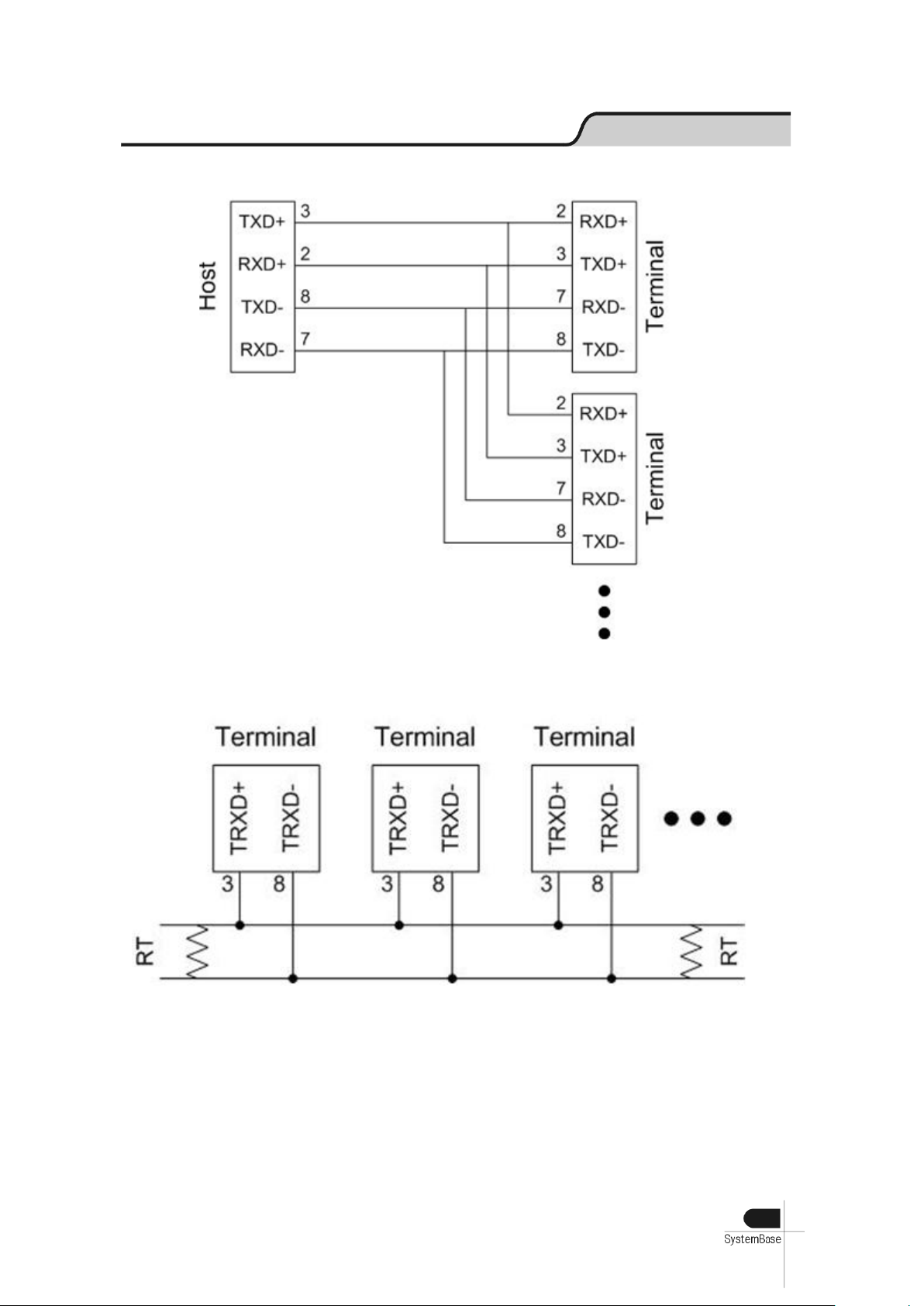

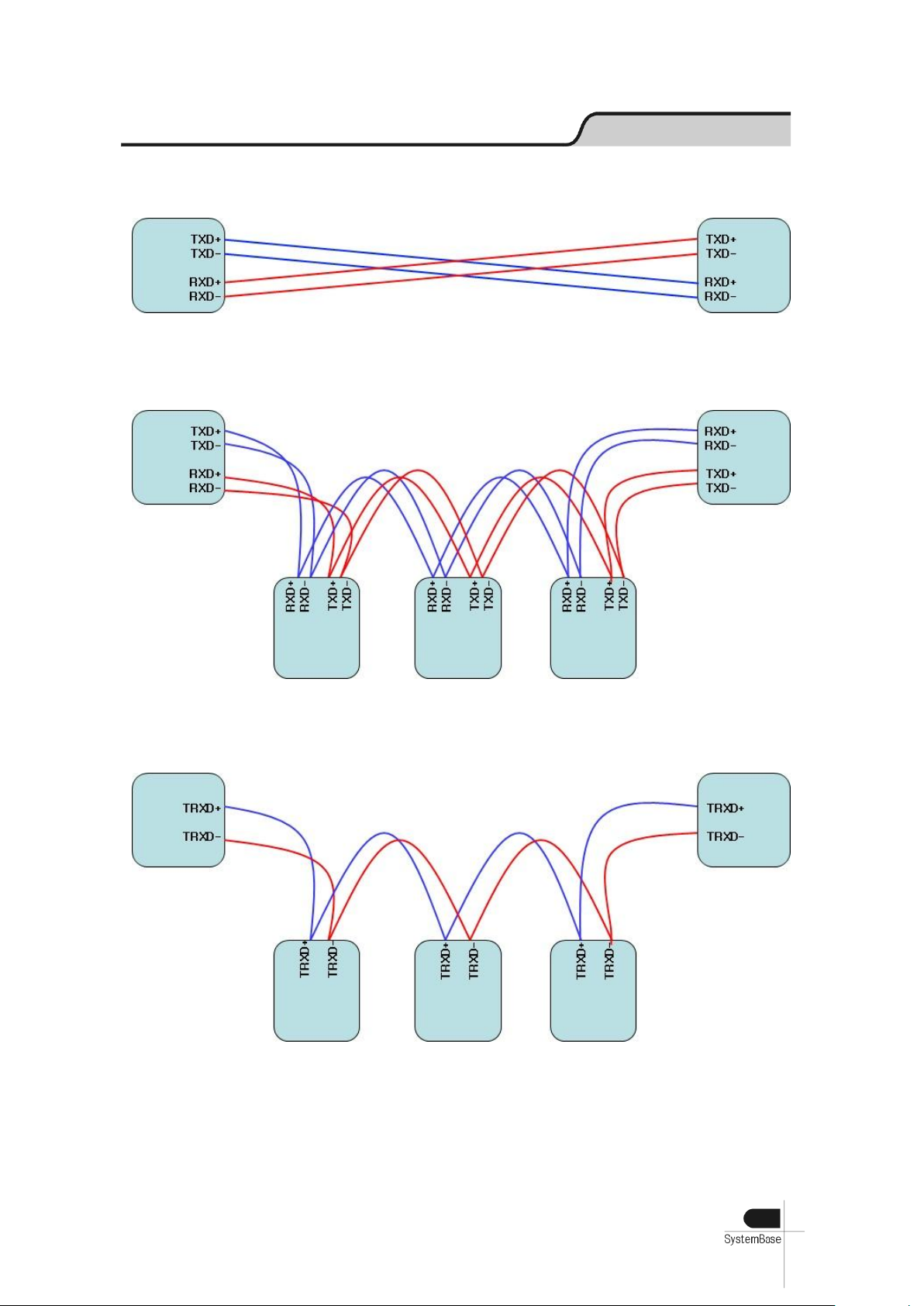

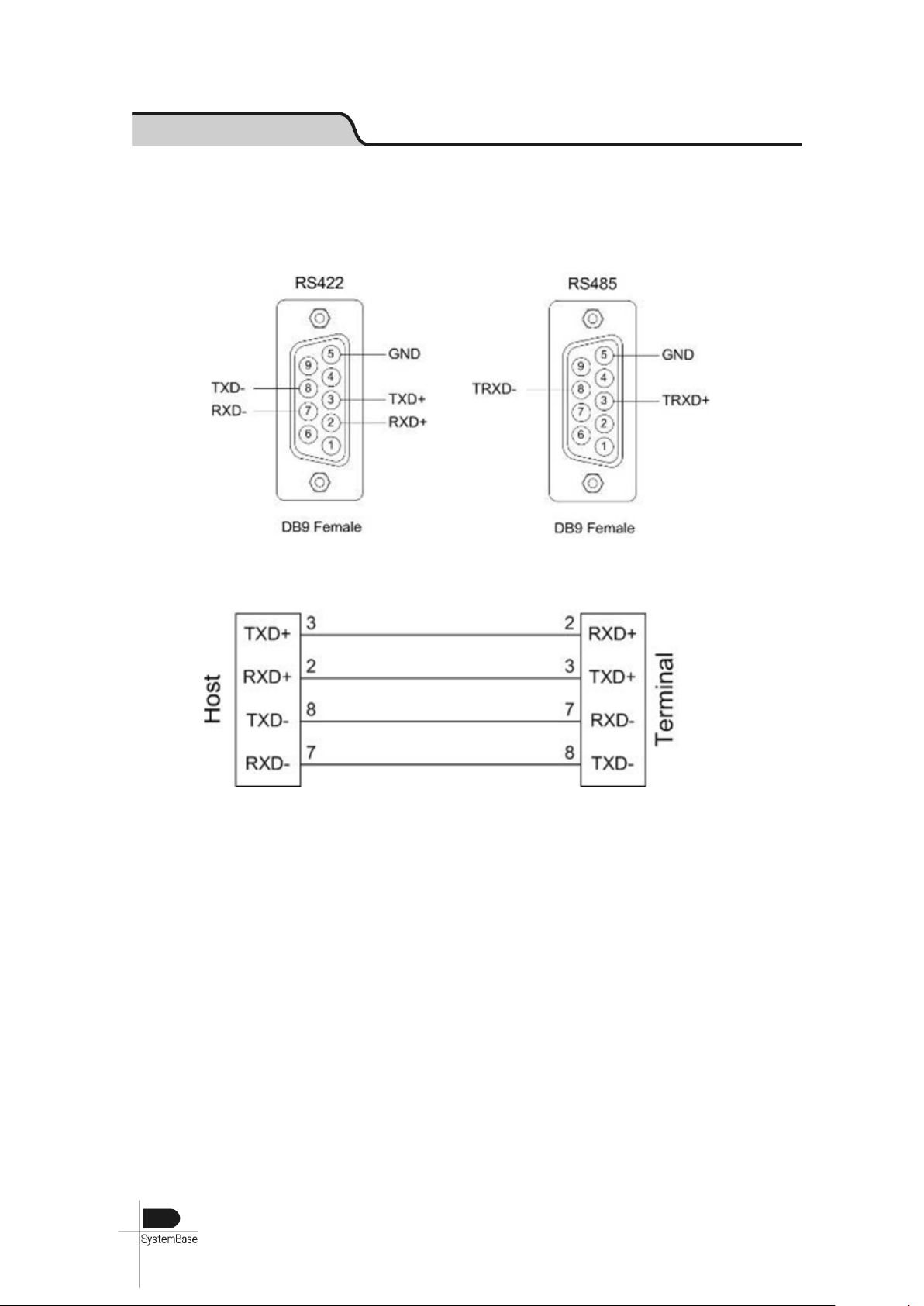

- RS422 Point-to-Point Connection
- RS422 Multi-Drop Connection
- RS485 Connection
RS485, like LAN, uses Half Duplex Bus and has no classification between host and terminal.
13
Hardware
Multi-2/USB Ver4.0
Communication Speed
Max 921.6Kbps
Bus Interface
USB 2.0
Line Interface
RS232/RS422/RS485
Controller
FTDI 2232H
Connector
DB9 Male
Protection
15kV Surge Protector
O/S
Windows XP/2003/Vista/2008/7, Linux
Manufaturer
SystemBase Co., Ltd
Multi-2/USB Ver4.0
Multi-2/USB Ver4.0 is a model that supports USB2.0. It is detected automatically when user connects USB port with computer. It supports maximum communication speed of 921.6Kbps. Furthermore, it is equipped with surge protector to protect internal systems from outer shock. In Combo Model, user can set line interface, communication mode and terminal resistor. Also, the LED is attached outside to show the current status of signal lines.
- Specification
14
Hardware
Multi-2/USB Ver4.0
1. RS232 Model
- DB9 Male Pin Assignment
- How to connect to a Terminal
- How to connect to a Modem
15
Hardware
Multi-2/USB Ver4.0
ON
OFF
1
Interface Select
RS485
RS422
2
Echo/Non-Echo Select
Echo
Non-Echo
3
RS422 terminal resistor
Install
Uninstall
4
RS485 terminal resistor
Install
Uninstall
2. RS422, RS485 Model
- DB9 Male Pin Assignment
- DIP Switch Setting
16
Hardware
Multi-2/USB Ver4.0
- Jumper Setting
Loosen the two screw on the bottom case.
Remove the side cap.
Look at the rear side of case, you can find the small grooved.
Top cover is slid to the inside of the case.
17
Hardware
Multi-2/USB Ver4.0
10M: Not use Slew Rate Limit ability. Maximum communication speed
921.6Kbps in this mode.
250K: Use Slew Rate Limit ability. Communication speed is limited under 250Kbps.
18
Hardware
Multi-2/USB Ver4.0
- RS422 Point-to-Point Connection
- RS422 Multi-Drop Connection
- RS485 Connection
RS485, like LAN, uses Half Duplex Bus and has no classification between host and terminal.
19
Hardware
Multi-2/USB Ver4.0
Communication Speed
Max 921.6Kbps
Bus Interface
USB 2.0
Line Interface
RS232/RS422/RS485
Controller
FTDI 4232H
Connector
DB9 Male
Protection
15kV Surge Protector
O/S
Windows XP/2003/Vista/2008/7, Linux
Manufaturer
SystemBase Co., Ltd
Multi-4/USB Ver4.0
Multi-4/USB Ver4.0 is a model that supports USB2.0. It is detected automatically when user connects USB port with computer. It supports maximum communication speed of 921.6Kbps. Furthermore, it is equipped with surge protector to protect internal systems from outer shock. In Combo Model, user can set line interface, communication mode and terminal resistor. Also, the LED is attached outside to show the current status of signal lines.
- Specification
20
Hardware
Multi-4/USB Ver4.0
1. RS232 Model
- DB9 Male Pin Assignment
- How to connect to a Terminal
- How to connect to a Modem
21
Hardware
Multi-4/USB Ver4.0
ON
OFF
1
Interface Select
RS485
RS422
2
Echo/Non-Echo Select
Echo
Non-Echo
3
RS422 terminal resistor
Install
Uninstall
4
RS485 terminal resistor
Install
Uninstall
2. RS422, RS485 Model
- DB9 Male Pin Assignment
- DIP Switch Setting
