Features
CPU
1. Supports Intel Pentium P54C/MMX (P55C) CPUs at 90
2. Supports Cyrix 6x86(L) CPUs at PR133+ ~ PR200+ MHz
3. Supports AMD K5: PR90 ~ PR200MHz, AMD K6: 166 ~
4. Suports IDT C6: 200 ~ 266MHz;
5. Provides SOCKET 7 ZIF Socket;
6. Supports 75MHz CPU clock;
7. Supports CPU voltage auto detect and switching circuit.
Chipset
1. VIA Apollo VPX chipset;
2. PCI Rev 2.1 and APM1.1/1.2 compliant.
Chapter 1
Introduction
~ 233 MHz;
and 6x86MX (MII) CPUs at PR166+ ~ PR333+MHz;
300MHz, and AMD K6 3D: 250 ~ 350MHz;
L2 Cache
1. Onboard supports 512k write back cache with Pipelined Burst SRAMs.
Main Memory
1. Memory range from 4MB (minimum) to 384MB (maximum) with DRAM Table Free configurations;
2. Supports Fast Page Mode/EDO/Synchronous DRAM;
3. Supports 2 pcs 72pin SIMM sockets and 2 piece of 168pin DIMM sockets (3.3V unbuffered type).
Introduction 1
BIOS
1. AWARD Plug and Play BIOS;
2. Supports Advanced Power Management Function;
3. Flash Memory for easy upgrade.
I/O Function
1. Integrated USB (Universal Serial Bus) controller with two USB ports;
2. Supports 2 IDE channels with 4IDE devices (including LS-120/ZIP IDE devices);
3. Provides PCI IDE Bus Master function;
4. One floppy port;
5. Two high speed 16550 FIFO UART ports;
6. One parallel port with EPP/ECP/SPP capabilities;
7. PS/2 mouse connector;
8. Infrared module connector.
Other Functions
1. AT Form Factor with 22cm x 19cm;
2. 3 PCI Master slots and 3 ISA slots;
3. Supports SCSI/CD-ROM Boot function;
Note: 1. Make sure that the SDRAM module not only has
to be 168 pin DIMM but designed for 3.3V unbuffered SDRAM as well. Double check with the SDRAM supplier before install any SDRAMs. The mainboard manufacturer has no obligation to any damage of the board by using the incorrect specification of SDRAM.
2. Do not mix EDO and SDRAM modules together in order to maintain the system stability.
2
Mainboard Setting for Pentium MMX-200
The default settings of the following figure is for the INTEL Pentium MMX-200 with the 512K cache.
K/B
PS/2
ISA Slot
Flash BIOS
ISA Slot
ISA Slot
13
JBAT1
IDE2
I/O Controller
PCI3
IDE1
PCI2
USB
3 1
PCI1
JP3
JP4
JP5
JP6
LPT1
COM1COM2
VT82C585VP
Clock Gen.
JP1
JP2
FDC
AT Power
TAG
Connector
SIMM 2
SIMM 1
DIMM 2
DIMM 1
HD/LED IR
J3 J4
VT82C586
J1
1
SM1
(2.8V)
T/LED
KEYLOCKRESETSPK
MMX–200
P.B .
SRAM
P.B .
SRAM
P.B .
SRAM

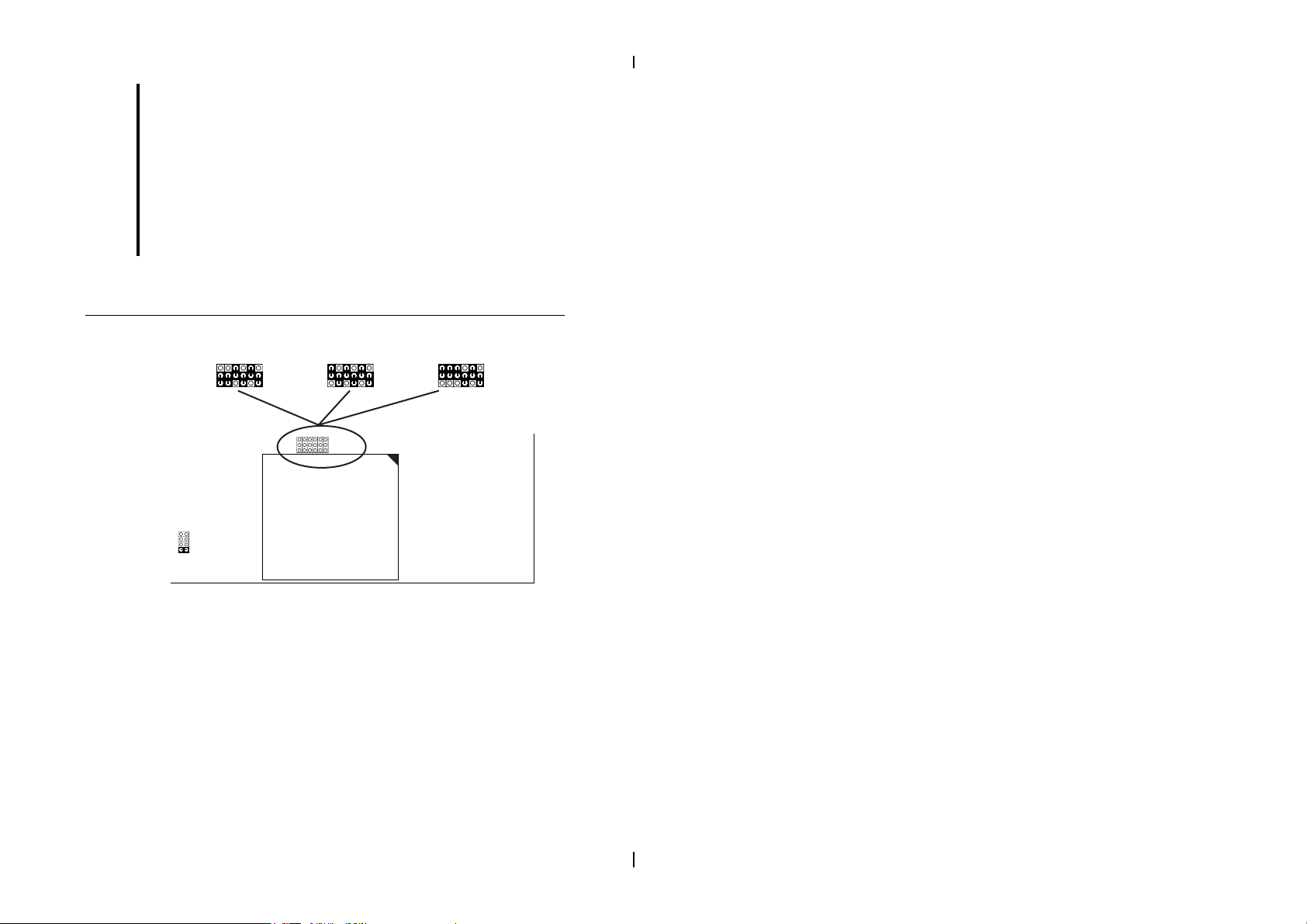

Figure 1Ð1. SLÐ53E5 Motherboard Layout
Introduction 3
Chapter 2
Hardware Setup
CPU V
CORE
J1: CPU V
V
Core
Voltage
2.0V
2.1V
2.2V
K6Ð266
(or higher
K6 3D)
2.3V
J1 J1 J1 J1
Voltage Setting
Voltage Setting
Core
V
Core
Voltage
2.4V
2.5V
2.6V
2.7V
V
Core
Voltage
2.8V
MMX, 6x86L
2.9V
K6Ð166/200
6x86MX (MII)
3.0V*
3.1V*
CPU Type V
Pentium (P54C), 6x86, K5 3.52V MMX (P55C), 6x86L 2.8V IDT C6 3.3V K6-166/200, 6x86MX (MII) 2.9V K6-233 3.2V K6-266 (or higher), K6 3D 2.2/2.1V
V
Voltage
3.2V*
K6Ð233
3.3V
IDT C6
3.4V
3.5V
Pentium (P54C)
6x86
Core
Core
K5
4
Note: 1. Refer to the table above to choose the correct
voltage for the CPU everytime that you install a CPU.
2. Make sure that your J1 is matched with the CPU voltage, otherwise will damage the CPU or make the system unstable.
3 When the new CPU is announced and is not
listed on this manual, please refer to the above table, select the correct voltage setting for it.
Intel Pentium MMX–166/200/233
MMX–166
J1
1
(2.8V)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
MMX–200
3 1
JP1
JP2
JP3
JP4
JP5
JP6
3 1
JP1
JP2
JP3
JP4
JP5
JP6
Intel MMX
CPUs
Figure 2Ð1. CPU Type Configuration
MMX–233
JP1
JP2
JP3
JP4
JP5
JP6
3 1
Hardware Installation 5
AMD K6 CPU Settings
AMD K6 – 166/200/233
K6–166
JP6
JP5
JP4
JP3
JP2
JP1
K6–200
JP2
JP3
JP4
JP5
JP6
JP1
K6–233
JP2
JP3
JP4
JP5
JP6
JP1
3 1
J1
1
3 1
J1
1
3 1
J1
1
(2.9V) (2.9V) (3.2V)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
AMD K6
J1
1
CPUs
Figure 2Ð2. CPU Type Configuration
Note: K6–233 CPU is 3.2V. Please check its spec before
using it.
6
Cyrix 6x86MX (MII) – PR200/233/300
6x86MX–PR200
(66MHz x 2.5)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
6x86MX–PR200
(75MHz x 2.0)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
6x86MX–PR233
(66MHz x 3.0)
JP6
3 1
6x86MX–PR233
(75MHz x 2.5)
JP6
3 1
JP1
JP2
JP3
JP4
JP5
JP6
3 1
JP5
JP5
JP4
JP4
JP3
JP3
JP2
JP2
JP1
JP1
MII – 300
(66MHz x 3.5)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
MII – 300
(75MHz x 3.0)
JP1
JP2
JP3
JP4
JP5
JP6
3 1
Cyrix
J1
1
(2.9V)
6x86MX (MII)
CPUs
Figure 2Ð3. CPU Type Configuration
Note: For the correct settings, you must refer to the CPU’s
surface instruction.
Hardware Installation 7
AMD K6/K6 3D – 266/300/333/366 CPU Settings
K6/K6 3D–266
JP1
JP2
JP3
JP4
JP5
JP6
3 1
K6/K6 3D–300
JP1
JP2
JP3
JP4
JP5
JP6
3 1
3 1
K6/K6 3D–333
JP1
JP2
JP3
JP4
JP5
JP6
JP1
JP2
JP3
JP4
JP5
JP6
3 1
K6/K6 3D–366
JP4
JP5
JP6
3 1
AMD
J1
1
(2.2V)
K6/K6 3d
CPUs
Figure 2Ð4. CPU Type Configuration
Note: K6-266 and K6 3D are both 2.2V CPUs.
Intel Pentium/AMD K5 – 133/166/200 CPU Settings
Pentium–133
K5–PR133
3 1
JP6
JP5
JP4
JP3
JP2
JP1
Pentium–166
K5–PR166
JP2
JP3
JP4
JP5
JP6
3 1
JP1
Pentium–200
K5–PR200
JP1
JP2
JP3
JP4
JP5
JP6
3 1
JP3
JP2
JP1
JP1
JP2
JP3
JP4
JP5
JP6
3 1
Pentium CPUs
J1
1
(3.5V)
K5 CPUs
Figure 2Ð5. CPU Type Configuration
8
IDT C6 – 200/225/233/266/300 CPU Settings
C6–200
JP2
JP3
JP4
JP5
JP6
3 1
JP1
C6–225
JP2
JP3
JP4
JP5
JP6
3 1
JP1
C6–233
JP3
JP4
JP5
JP6
3 1
JP6
3 1
JP2
JP5
JP4
JP1
JP3
JP1
JP2
IDT
J1
1
(3.3V)
C6 CPUs
Figure 2Ð6. CPU Type Configuration
System Memory Configuration
This Apollo VPX motherboard supports 72-pin SIMMs and 168pin DIMMs (3.3V unbuffered type) of 4MB, 8MB, 16MB, 32MB, or 64MB to form a memory size between 4MB to 384MB (total of 6 rows are supported).
C6–266
JP2
JP3
JP4
JP5
JP6
3 1
JP1
C6–300
JP2
JP3
JP4
JP5
JP6
3 1
JP1
The Apollo VPX chipset supports ÒTable FreeÓ configuration so that DRAM module can be installed at any capacity.
Note: Do not mix EDO and SDRAM modules together in
order to maintain the system stability.
Hardware Installation 9
Jumper Settings
JBAT1: Clear CMOS Data
Clear the CMOS memory by shorting this jumper momentarily; then remove the cap to retain new settings.
COMS Data JBAT1
Clear Data
13
Retain Data
(default)
JP4 ~ JP6: Bus Ratio Setting
1.5X
3.5X
31
JP6
JP5
4.0X
31
JP6
JP5
JP4
JP4
2.0X
31
JP6
JP4
JP5
4.5X
31
JP6
JP4
JP5
2.5X
31
JP6
JP4
JP5
5.0X
31
JP6
JP4
JP5
JP1 ~ JP3: CPU CLock Setting
50MHz
55MHz
60MHz
13
3.0X
31
JP6
JP4
JP5
5.5X
31
JP6
JP4
JP5
66MHz
75MHz
10
31
JP3
JP1
JP2
31
JP3
JP1
JP2
31
JP3
JP1
JP2
31
JP3
JP1
JP2
31
JP3
JP1
JP2
IDE LED Activity Light: (J3 pin1–4)
This connector connects to the hard disk activity indicator light on the case.
Infrared Port Module Connector (J3 pin6–10)
The system board provides a 5-pin infrared connectorÑIR1 as an optional module for wireless transmitting and receiving. Pin 6 through 10 are Transmit, GND, Receive
(low speed), Receive (high speed), and Vcc, respectively.
J3 pin12, 13: Reserved
SMI Switch (J3 pin14, 15)
Toggle this jumper forces the system to sleep and the system wonÕt wake up until the hardware event is coming. (The BIOS Power Management setting muse be Enabled.)
Speaker Connector (J3 pin1–4)
The speaker connector is a 4-pin connector for connecting the system and the speaker. (See the following drawing for jumper position.)
Reset Switch (J4 pin5, 6)
The system board has a 2-pin connector for rebooting your computer without having to turn off your power switch. This prolongs the life of the systemÕs power supply.
Power LED and Keylock Switch (J4 pin8–12)
The keylock switch is a 5-pin connector for locking the keyboard for security purposes. (See the following drawing for jumper position, and pin1~3 is connected to power LED and pin 4~5 is connected to keylock switch.)
Hardware Installation 11
Turbo LED (J4 pin14, 15)
Connect the caseÕs turbo LED to this connector.
HD/LED IR
J3 J4
KEYLOCKRESETSPK
HDLED IR
J3 J4
Power
RESETSPK
LED
SM1
T/LED
SM1
T/LEDKeylock
12
HD/LED
J3
1234 678910 12131415 123456 89101112 1415
IR CON
J4
SPK
Reset
Power
LED
Keylock
SLEEP
Turbo
LED
USB: USB Connector
This jumper connects to the USB cable to provide USB device.
USB
1
+5V
Mouse
Data
MS1 Top View
N.C.
GND
N.C.
Mouse
Clock
TX
GND
Vcc
D0–
D0
GND
Vcc
D1–
D1
GND
COM1/2 (Top View)
CD
RX
DTR
1 2 3 4 5
+
6 7 8 9
10
12
+
15 16
GND
DSR
RTS
CTS
RING
N.C.
Hardware Installation 13
J3 Switch Signal Summary
J3 Pin Signal Description
HDD LED Connector 2 HDD LED Signal
N.C. 5 No Connection
Infrared Connector 8 Infrared Receive Signal
N.C. 12 No Connection
SMI 14 GND
1 +5V
3 HDD LED Signal 4 +5V
6 Infrared Transmit Signal 7 GND
(low speed)
9 Infrared Receive Signal
(high speed) 10 +5V 11
13
15 SMI Signal
14
J4 Switch Signal Summary
J4 Pin Signal Description
Speaker Connector 2 No Connection
Reset Switch 5 Reset Signal
N.C. 7 No Connection
Power LED Connector 9 No Connection
Keylock Connector 11 Keylock Signal
N.C. 13 No Connection Turbo LED Connector 14 Turbo LED Connector
1 Speaker Signal
3 Ground 4 +5V
6 Ground
8 +5V
10 Ground
12 GND
15 Ground
Hardware Installation 15
Chapter 3
Award BIOS Setup
This VIA VPX motherboard comes with the AWARD BIOS from AWARD Software Inc. Enter the Award BIOS programÕs Main Menu as follows:
1. Turn on or reboot the system.
After a series of diagnostic checks, the following message will appear:
PRESS <DEL> TO ENTER SETUP
2. Press the <DEL> key and the main program screen appears as in the following page.
STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP PNP/PCI CONFIGURATION LOAD SETUP DEFAULTS
Esc : Quit ↑ ↓ → ← : Select Item F10 : Save & Exit Setup (Shift) F2 : Change Color
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
INTEGRATED PERIPHERALS SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION HDD LOW LEVEL FORMAT SAVE & EXIT SETUP EXIT WITHOUT SAVING
Time, Date, Hard Disk Type...
16
3. Using one of the arrows on your keyboard to select an option and press <Enter>. Modify the system parameters to reflect the options installed in the system.
4. You may return to the Main Menu anytime by press <ESC> .
5. In the Main Menu, ÒSAVE AND EXIT SETUPÓ saves your changes and reboots the system, and ÒEXIT WITHOUT SAVINGÓ ignores your changes and exits the program.
Standard CMOS Setup
Standard CMOS Setup allows you to record some basic system hardware configuration and set the system clock and error handling. You only need to modify the configuration values of this option when you change your system hardware configuration or the configuration stored in the CMOS memory got lost or damaged.
Run the Standard CMOS Setup as follows:
1. Choose ÒSTANDARD CMOS SETUPÓ from the Main Menu and a screen with a list of options appears.
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) : Thu, May 9 1996 Time (hh:mm:ss) : 15 : 45 : 10
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Primary Master : Auto 0 0 0 0 0 0 Auto
Primary Slave : Auto 0 0 0 0 0 0 Auto Secondary Master : Auto 0 0 0 0 0 0 Auto Secondary Slave : Auto 0 0 0 0 0 0 Auto
Drive A : 1.44M, 3.5 in. Drive B : None Floppy 3 Mode Support : Disabled
Video : EGA/VGA Halt On : All Errors
Esc : Quit ↑ ↓ → ← : Select Item PU/PD/+/– : Modify F1 : Help (Shift) F2 : Change Color
Base Memory: 640K
Extended Memory: 15360K
Other Memory: 384K Total Memory: 16384K
2. Use one of the arrow keys to move between options and modify the selected options by using PgUp/PgDn/+/Ð keys.
Award BIOS Setup 17
A short description of screen options follows:
Date (mm:dd:yy)
Set the current date and time.
Time (hh:mm:ss)
Primary (Secondary) Master/Slave
This field records the specifications for all non-SCSI hard disk drives installed in your system. Refer to the respective documentation on how to install the drivers.
Drive A/B Set this field to the types of floppy
disk drives installed in your system. The choices are: 360KB, 5.25 in.,
1.2MB, 5.25 in., 720KB, 3.5 in.,
1.44M, 3.5 in. (default),
2.88MB, 3.5 in., or None 120MB, 3.5in., IDE Floppy Drive (Auto detect).
Floppy 3 Mode Support
Drive A/B, Both: Enabled 3.5-inch,
1.2MB function. Disabled (default): Disabled 3.5­inch, 1.2MB function.
Video Set this field to the type of video
display card installed in the system. The choices are: Monochrome; Color 40x25; VGA/EGA (default); or Color 80x25
18
Halt On Set this filed to the type of errors
that will cause the system to halt. The choices are: All Errors (default); No Errors; All, But Keyboard; All, But Diskette; or All, But Disk/Key
3. Press <ESC> to return to the Main Menu when you finish setting up in the ÒStandard CMOS SetupÓ.
BIOS Features Setup
BIOS Features Setup allows you to improve your system performance or set up some system features according to your preference.
Run the BIOS Features Setup as follows:
1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a screen with a list of options appears.
Virus Warning : Disabled CPU Internal Cache : Enabled External Cache : Enabled Quick Power on Self Test : Enalbed Boot Sequence : A,C, SCSI Swap Floppy Drive : Disabled Boot Up Floppy Seek : Disabled Boot Up NumLock Status : On Gate A20 Option : Fast Typematic Rate Setting : Disabled Typematic Rate (Chars/Sec): 6 Typematic Delay (Msec) : 250 Security Option : Setup IDE second Channel Control: Enabled PCI/VGA Palette Snoop : Disabled OS Select for DRAMs>64MB : Non-OS/2
ROM PCI/ISA BIOS
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
2. Use one of the arrow keys to move between options and modify the selected options by using PgUp/PgDn/+/Ð keys. An explanation of the <F> keys follows:
<F1>: ÒHelpÓ gives options available for each item.
Shift <F2>: Change color.
<F5> : Get the previous values. These values are the
values with which the user started the current session.
<F6>: Load all options with the BIOS default
values.
Video BIOS Shadow : Enabled C8000-CBFFF Shadow : Disabled CC000-CFFFF Shadow : Disabled D0000-D3FFF Shadow : Disabled D4000-D7FFF Shadow : Disabled D8000-DBFFF Shadow : Disabled DC000-DFFFF Shadow : Disabled
ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
<F7>: Load all options with the Setup default
values.
Award BIOS Setup 19
A short description of screen options follows:
Virus Warning Enabled: Activates automatically
when the system boots up causing a warning message to appear if there is anything attempts to access the boot sector or hard disk partition table.
Disabled: No warning message
will appear when there is something attempts to access the boot sector or hard disk partition table
Note: Many diagnostic (or boot
manager) programs which attempt to access the boot sector table can cause the above warning message. If you will be running such a program, we recommend that you disable the virus protection first.
CPU Internal Cache
Choose Enabled (default) or Disabled. This option allows you to enable or disable the CPUÕs internal cache.
20
External Cache Choose Enabled (default) or
Disabled. This option allows you to enable or disable the external cache memory.
Quick Power On Self Test
Choose Enabled (default)or Disabled. This option allows you to speed up the Power On Self Test routine.
Boot Sequence Default is ÒA, C, SCSIÓ. This option
determines which drive to look for first for an operating system.
Swap Floppy Drive Choose Enabled or Disabled
(default). This option swaps floppy drive assignments when it is enabled.
Boot Up Floppy Seek
Enabled: During POST, BIOS checks the track number of the floppy disk drive to see whether it is 40 or 80 tracks.
Disabled (default): During POST, BIOS will not check the track number of the floppy disk drive.
Boot Up NumLock Status
Choose On (default) or Off. This option lets user to activate the NumLock function at boot-up.
Gate A20 Option Choose Normal or Fast (default).
This option allows the RAM to access the memory above 1MB by using the fast gate A20 line.
Typematic Rate Setting
Choose Enabled or Disabled (default). Enable this option to adjust the keystroke repeat rate.
Typematic Rate (Chars/Sec)
Range between 6 (default) and 30 characters per second. This option controls the speed of repeating keystrokes.
Typematic Delay (Msec)
Choose 250 (default), 500, 750, and
1000. This option sets the time interval for displaying the first and the second characters.
Award BIOS Setup 21
Security Option Choose System or Setup (default).
This option is to prevent unauthorized system boot-up or use of BIOS Setup.
IDE Second Channel Control
PCI/VGA palette Snoop
Video BIOS Shadow
C8000-CBFFF to DC000-DFFF Shadow
3. Press <ESC> and follow the screen instructions to save or disregard your settings.
Enabled: (default) Reserved IRQ15
Disabled: Release IRQ15 for other
Choose Enabled or Disabled (default). It determines whether the MPEG ISA cards can work with PCI/VGA or not.
Enabled (default): Map the VGA BIOS to system RAM. Disabled: DonÕt map the VGA
These options are used to shadow other expansion card ROMs.
Chipset Features Setup
for secondary IDE device.
devices.
BIOS to system RAM.
22
Chipset Features Setup changes the values of the chipset registers. These registers control the system options.
Run the Chipset Features Setup as follows:
1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and a screen with a list of options appears.
2. Use one of the arrow keys to move between options and
modify the selected options by using PgUp/PgDn/+/Ð keys.
DRAM Auto Configuration : Enabled DRAM Timing Control : Normal SDRAM Cycle Length : 3
Sustained 3T Write : Disabled Read Pipeline : Enabled Write Pipeline : Enabled Cache Timing : Fast Linear Burst : Disabled
Video BIOS Cacheable : Disabled System BIOS Cacheable : Disabled Memory Hole At 15Mb. Addr.: Disabled
ROM PCI/ISA BIOS
CHIPSET FEATURES SETUP
AWARD SOFTWARE, INC.
A short description of screen options follows:
DRAM Auto Configuration
OnChip USB : Disabled USB Keyboard Support* : Disabled
ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
Choose Enabled (default) or Disabled. The system sets all options on the left side of the screen automatically when choose Enabled.
DRAM Timing Control
Choose 60ns or 70ns (default). Do not change this setting unless you know the DRAM access time spec.
SDRAM Cycle
Use the default setting.
Length
Sustained 3T Write Use the default setting.
Read/Write
Use the default setting.
Pipeline
Cache Timing Use the default setting.
Linear Burst Choose Disabled (default) or
Enabled. Only when the CPU is either Cyrix or AMD then you may choose Enabled.
Award BIOS Setup 23
Video BIOS Cacheable
Choose Enabled or Disabled (default). When Enabled, the access to the VGA BIOS ROM addressed at C0000H-C7FFFH is cached.
System BIOS Cacheable
Memory Hole At 15M-16M
SDRAM Speculative Read
OnChip USB
Choose Enabled or Disabled (default). When Enabled, the access to the system BIOS ROM addressed at F0000H-FFFFFH is cached.
Choose Enabled or Disabled (default). In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memoryÕs space below 16MB.
Use the default setting. This function allows a DRAM read request to be generated slightly before the address has been fully decoded.
Enabled: Enable USB function and will occupy one IRQ.
Disabled (default): Disable USB function and will not occupy IRQ. Choose Disabled when it is not connect to an USB device.
24
USB Keyboard Support
Choose Disabled (default) or Enabled. Disabled: No USB keyboard is
installed.
Enabled: USB keyboard is
connected.
3. Press <ESC> and follow the screen instructions to save or disregard your settings.
Power Management Setup
Power Management Setup sets the systemÕs power saving functions.
1. Choose ÒPOWER MANAGEMENT SETUPÓ from the
Power Management : Disabled PM Control by APM : No Video Off option : Suspend -> Off Video Off Method : V/H SYNC+Blank Conserve Mode : Disabled Modem Use IRQ : 3
HDD Power Down : Disabled Doze Mode : Disabled Suspend Mode : Disabled
VGA : OFF LPT & COM : LPT/COM HDD & FDD : ON DMA/Master : OFF Primary INTR : ON IRQ3 (COM 2) : Primary IRQ4 (COM 1) : Primary
Main Menu and a screen with a list of options appears.
ROM PCI/ISA BIOS
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
IRQ 5 (LPT 2) : Primary IRQ 6 (Floppy Disk) : Primary IRQ 7 (LPT 1) : Primary IRQ 8 (RTC Alarm) : Disabled IRQ 9 (IRQ2 Redir) : Secondary IRQ 10 (Reserved) : Secondary IRQ 11 (Reserved) : Secondary
** PM Timers **
** PM Events **
IRQ 12 (PS/2 mouse) : Primary IRQ 13 (Coprocessor) : Primary IRQ 14 (Hard Disk) : Primary IRQ 15 (Reserved) : Disabled
ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
2. Use one of the arrow keys to move between options and modify the selected options by using PgUp/PgDn/+/Ð keys.
A short description of screen options follows:
Power Management
PM Control by APM
Choose Max. Saving, User Define, Disabled (default), or Min Saving.
Choose Yes or No (default). You need to choose Yes when the operating system has the APM functions, choose No otherwise.
Video Off Option Choose N/A (default), Doze,
Standby, or Suspend. This function determines the timing of the monitor closed down functions.
Award BIOS Setup 25
Video Off Method Choose Blank , DPMS, or V/H
Sync+Blank (default). You can chose either DPMS or V/H Sync+Blank when the monitor has the Green function. You need to choose Blank when the monitor does not have the Green function.
Note: Some VGA cards don’t
allow V/H Sync to be turned off directly.
Conserve Mode Use the default setting.
MODEM Use IRQ Assign the IRQ number to the
modem which is being used so that the ring signal can wakeup the system. The default setting is 3 (COM2).
HDD power Down Time is adjustable from 1 to 15
minutes. When the set time has elapsed, the BIOS sends a command to the HDD to power down, which turns off the motor.
Doze Mode This option sets the CPU speed
down to 33MHz during this mode.
26
Suspend Mode This option allows you to choose
the mode for the different timers. The Standby Mode turns off the VGA monitor, and the Suspend Mode turns off the CPU and saves the energy of the system.
VGA Enabled: the system can not enter
the power saving mode when monitor is on.
Disabled: the system can enter the
power saving mode when monitor is on.
LPT & COM Use the default setting.
HDD & FDD Use the default setting.
DMA/Master Use the default setting.
Primary INTR Use the default setting.
IRQ x Set these IRQs individually.
Activity detected from any enabled IRQ channel (ON) will wake up the system.
3. Press <ESC> and follow the screen instructions to save or disregard your settings.
Award BIOS Setup 27
PnP/PCI Configuration Setup
PnP/PCI Configuration Setup configures the PCI bus slots.
Run the PnP/PCI Configuration Setup as follows:
1. Choose ÒPnP/PCI CONFIGURATION SETUPÓ from the Main Menu and a screen with a list of options appears.
PNP OS Installed : No Resources Controlled By : Manual Reset Configuration Data : Disabled
IRQ-3 assigned to : Legacy ISA IRQ-4 assigned to : Legacy ISA IRQ-5 assigned to : PCI/ISA PnP IRQ-7 assigned to : PCI/ISA PnP IRQ-9 assigned to : PCI/ISA PnP IRQ-10 assigned to : PCI/ISA PnP IRQ-11 assigned to : PCI/ISA PnP IRQ-12 assigned to : PCI/ISA PnP IRQ-14 assigned to : PCI/ISA PnP IRQ-15 assigned to : PCI/ISA PnP DMA-0 assigned to : PCI/ISA PnP DMA-1 assigned to : PCI/ISA PnP DMA-3 assigned to : PCI/ISA PnP DMA-5 assigned to : PCI/ISA PnP DMA-6 assigned to : PCI/ISA PnP DMA-7 assigned to : PCI/ISA PnP
ROM PCI/ISA BIOS
PNP/PCI CONFIGURATION
AWARD SOFTWARE, INC.
CPU to PCI Write Buffer : Enabled PCI Dynamic Bursting : Enabled PCI Master 0 WS Write : Enabled
PCI IRQ Actived By : Edge PCI IDE IRQ Map to : PCI-AUTO Primary IDE INT# : A Secondary IDE INT# : B
ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
28
2. Use one of the arrow keys to move between options and modify the selected options by using PgUp/PgDn/+/Ð keys.
A short description of screen options follows:
PNP OS Installed Yes: OS supports Plug and Play
function. No (default): OS doesnÕt support Plug and Play function.
Note: BIOS will automatically
disable all PnP resources except the boot device card when select Yes on Non-PnP OS.
Resources Controlled By
Choose Manual (default) or Auto. The BIOS checks the IRQ/DMA channel number on the ISA and PCI card manually if chose Manual and the IRQ/DMA channel number will be checked automatically if choose Auto.
Reset Configuration Data
Choose Enabled or Disabled (default). Disabled means to retain PnP configuration data in BIOS and Enabled means to reset PnP configuration data in BIOS.
IRQ-x assigned to DMA-x assigned to
Legacy ISA: Manually assigns IRQ/DMA to device.
PCI/ISA PnP: BIOS assigns IRQ/DMA to device automatically.
CPU To PCI Write
Use the default setting.
Buffer
PCI Dynamic
Use the default setting.
Bursting
PCI Master 0 WS
Use the default setting.
Write
3. Press <ESC> and follow the screen instructions to save or disregard your settings.
Award BIOS Setup 29
Load Setup Defaults
Load Setup Defaults option loads the default system values to the system configuration fields. If the CMOS is corrupted the defaults are loaded automatically. Choose this option and the following message appears:
“Load Setup Defaults (Y/N)? N”
To use the Setup defaults, change the prompt to ÒYÓ and press <Enter>.
Integrated Peripherals
Integrated Peripherals option changes the values of the chipset registers. These registers control system options in the computer.
1. Choose ÒINTEGRATED PERIPHERALSÓ from the Main Menu and a screen with a list of options appears.
On-Chip IDE First Channel : Enabled On-Chip IDE Second Channel : Enabled IDE Prefetch Mode : Enabled IDE HDD Block Mode : Enabled IDE Primary Master PIO : Auto IDE Primary Slave PIO : Auto IDE Secondary Master PIO : Auto IDE Secondary Slave PIO : Auto IDE Primary Master UDMA : Auto IDE Primary Slave UDMA : Auto IDE Secondary Master UDMA : Auto IDE Secondary Slave UDMA : Auto
Onboard FDD Controller : Enabled Onboard UART 1 : Auto Onboard UART 2 : Auto Onboard UART2 Mode : Standard IR Duplex Mode* : Half Use IR Pins* : IR-RX2TX2 Fast_IR MODE Pins* : IRR3
*: These Settings are only effective under “Onboard UART 2 Mode” option is set HPSIR.
+
: These options only valid at Parallel Port Mode at ECP+EPP.
ROM PCI/ISA BIOS
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
Onboard Parallel Port : 378/IRQ7 Parallel Port Mode+ : Normal ECP Mode Use DMA+ : 3 Parallel Port EPP Type+ : EPP1.7
ESC : Quit ↑ ↓ → ←: Select Item F1 : Help PU/PD/+/– : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
2. Use one of the arrow keys to move between options and modify the selected options by using PgUp/PgDn/+/Ð keys.
30
A short description of screen options follows:
OnChip IDE First/Second
Enabled (default): Turn on the onboard IDE function.
Channel
Disabled: Turn off the onboard IDE function.
IDE Prefetch Mode Use the default setting.
IDE HDD Block Mode
Choose Enabled (default) or Disabled. If your hard disk size is larger than 540MB, choose Enabled, and, if you are using the IDE HDD Auto Detection option, the BIOS will choose this option automatically. (Note: Some old HDD models donÕt provide this feature.)
IDE Primary Master/Slave PIO IDE Secondary Master/Slave PIO
Choose Auto (default) or Mode 0~4. The BIOS will detect the HDD Mode type automatically when you choose Auto. You need to set to a lower mode than Auto when your hard disk becomes unstable.
IDE Primary Master/Slave UDMA IDE Secondary Master/Slave UDMA
Onboard FDD Controller
Choose Disabled or Auto (default). Auto: Automatically detects
the HDD Ultra DMA function.
Disabled: Disabled the HDD Ultra
DMA function.
Choose Enabled (default) or Disabled. Choose Disabled when you use an ISA card with FDD function, or , choose Enabled to use the onboard FDD connector.
Award BIOS Setup 31
Onboard UART1 Choose Auto (default), 3F8/IRQ4,
2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, or Disabled.
Do not set port 1 & 2 to the same value except for Disabled.
Onboard Serial UART2
Choose Auto (default), 3F8/IRQ4 , 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, or Disabled.
Onboard UART2
Choose Standard, HPSIR, or ASKIR.
Mode
IR Duplex Mode Choose Half (default), or Full.
Half: DoesnÕt transmit and receive
activities at the same time.
Full: Transmit and receive
activities at the same time.
Use IR Pins;
Use default setting.
FAST_IR MODE Pins
Onboard Parallel Port
Choose the printer I/O address: 378H/IRQ7 (default), 3BCH/IRQ7, 278H/IRQ5
Parallel Port Mode Choose SPP (default), ECP + EPP,
EPP, or ECP mode. The mode depends on your external device that connects to this port.
32
ECP Mode Use DMA
Choose DMA3 (default) or DMA1. Most sound cards use DMA1. Check with your sound card configuration to make sure that there is no conflict with this function.
*: This option will not be displayed
unless the EPP/ECP function is selected..
Parallel Port EPP Type
Choose EPP1.7 (default) or EPP1.9. EPP1.9 supports hardware handshake. This setting is dependent on your EPP device.
Note: The above 2 options will not
be displayed unless the EPP/ECP function is selected.
3. Press <ESC> and follow the screen instructions to save or disregard your settings.
Award BIOS Setup 33
Supervisor/User Password
These two options allows you to set your system passwords. Normally, supervisor has a higher right to change the CMOS setup option than the user. The way to set up the passwords for both Supervisor and User are as follow:
1. Choose ÒChange PasswordÓ in the Main Menu and press <Enter>. The following message appears:
“Enter Password:”
2. The first time you run this option, enter your password up to only 8 characters and press <Enter>. The screen does not display the entered characters.
3. After you enter the password, the following message appears prompting you to confirm the password:
“Confirm Password:”
4. Enter exact the same password you just typed again to confirm the password and press <Enter>.
5. Move the cursor to Save & Exit Setup to save the password.
6. If you need to delete the password you entered before, choose the Supervisor Password and press <Enter>. It will delete the password that you had before.
34
7. Move the cursor to Save & Exit Setup to save the option you did, otherwise the old password will still be there when you turn on your machine next time.
8. Press <ESC> to exit to the Main Menu.
Note: If you forget or lose the password, the only way to
access the system is to clear the CMOS RAM by setting JBAT1. All setup information will be lost and you need to run the BIOS setup program again.
IDE HDD Auto Detection
IDE HDD Auto Detection detects the parameters of an IDE hard disk drive and automatically enters them to the Standard CMOS Setup screen.
The screen will ask you to select a specific hard disk for Primary Master after you select this option. If you accept a hard disk detected by the BIOS, you can enter ÒYÓ to confirm and then press <Enter> to check next hard disk. This function allows you to check four hard disks and you may press the <ESC> after the <Enter> to skip this function and go back to the Main Menu.
Save & Exit Setup
Save & Exit Setup allows you to save all modifications you have specified into the CMOS memory. Highlight this option on the Main Menu and the following message appears:
SAVE to CMOS and EXIT (Y/N)? Y
Press <Enter> key to save the configuration changes.
Award BIOS Setup 35
HDD Low Level Format
Do not use this utility unless you have help from engineers or some technical background.
Exit Without Saving
Exit Without Saving allows you to exit the Setup utility without saving the modifications that you have specified. Highlight this option on the Main Menu and the following message appears:
Quit Without Saving (Y/N)? N
You may change the prompt to ÒYÓ and press <Enter> key to leave this option.
36
Loading...
