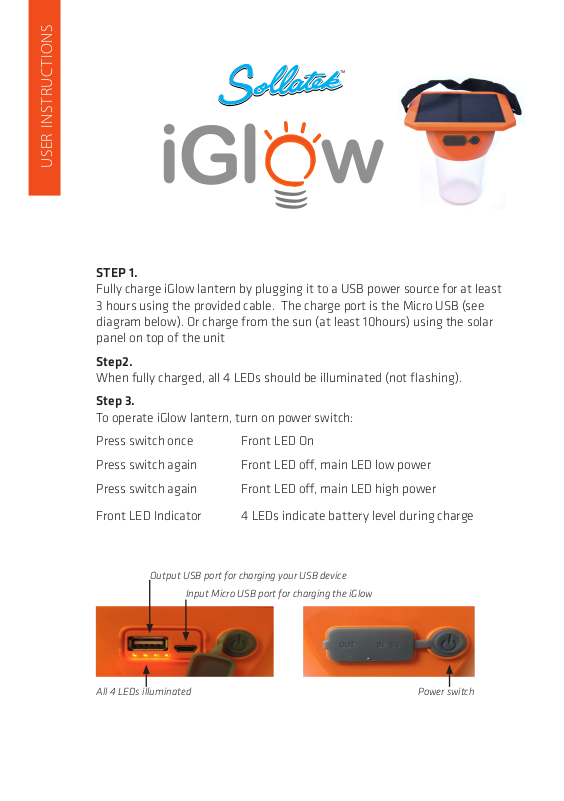

USER INSTRUCTIONS
STEP 1.
Fully charge iGlow lantern by plugging it to a USB power source for at least 3 hours using the provided cable. The charge port is the Micro USB (see diagram below). Or charge from the sun (at least 10hours) using the solar panel on top of the unit
Step2. When fully charged, all 4 LEDs should be illuminated (not flashing).
Step 3. To operate iGlow lantern, turn on power switch:
Press switch once Front LED On
Press switch again Front LED o, main LED low power
Press switch again Front LED o, main LED high power
Front LED Indicator 4 LEDs indicate battery level during charge
All 4 LEDs illuminated Power switch
Output USB port for charging your USB device
Input Micro USB port for charging the iGlow
the power to protect
Connection diagram
Charge from
the sun
Charge your mobile
phone or camera
Charge from
your laptop
Charge from
your car
Charge from
the mains
Using the Micro USB cable provided,
Technical Specifications
1.4W Solar Panel Poly-crystalline
3.7V/2200mAh Li-ion Battery
0.45W/50lm reading Light
0.9W/110lm Main Light - High Setting
0.45W/50lm Main Light - Low Setting
14hrs charge for reading light
7hrs charge for lantern at brightest setting,
14hrs charge at lowest setting
Battery fully charged from solar after 10hrs
or suitable appropriate cable, you can charge the iGlow from any USB source (Car, Laptop, Mains, etc)
Using the USB cable provided, you can charge your mobile phone.
SOLLATEK UK LTD.
Tel: +44 (1753) 214 500 sales@sollatek.com
Solar Systems
www.sollatek.com
Sollatek (UK) Ltd. Sollatek House, Waterside Drive, Langley, Slough SL3 6EZ UK
MJA 14.08.2017
ISO9001: 2008 accredited company
All weights and dimensions are approximate. Specifications are subject to change without prior notice. ©Sollatek (UK) Limited 2012. All Rights Reserved. SOLLATEK and the SOLLATEK device are the trade marks of the Sollatek group of companies.
iGlow One Instructions Manual June 2017
