Sollae CSE-H25, CSE-H55 User Manual

Sollae Systems Co., Ltd.

http://www.sollae.co.kr

Industrial Serial Device Server

CSE-H25 User’s Manual

Version 1.4

2010-04-12

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 1 - http://www.sollae.co.kr

Contents

1 Overview .................................................................................................................................. - 4 -

1.1 Overview ................................................................................................................................................................ - 4 -

1.2 Application Examples ....................................................................................................................................... - 4 -

1.3 Components ......................................................................................................................................................... - 5 -

1.4 Specification ......................................................................................................................................................... - 6 -

1.4.1 Hardware ...................................................................................................................................................... - 6 -

1.4.2 Software ........................................................................................................................................................ - 6 -

1.5 Interfaces ............................................................................................................................................................... - 7 -

1.5.1 Serial Interface ........................................................................................................................................... - 7 -

1.5.2 Ethernet Interface ..................................................................................................................................... - 8 -

1.5.3 Power .............................................................................................................................................................. - 8 -

1.6 System LED ........................................................................................................................................................... - 9 -

1.6.1 ISP Switch ..................................................................................................................................................... - 9 -

2 Installation and Test ............................................................................................................ - 10 -

2.1 Installation .......................................................................................................................................................... - 10 -

2.1.1 Setting Network Aera .......................................................................................................................... - 10 -

2.2 Simple Test ......................................................................................................................................................... - 12 -

3 Configuration ....................................................................................................................... - 15 -

3.1 Configuration with ezManager ................................................................................................................. - 15 -

3.1.1 Configuration via LAN ......................................................................................................................... - 15 -

3.1.2 Configuration via Serial ...................................................................................................................... - 16 -

3.2 AT command ..................................................................................................................................................... - 17 -

3.3 Assigning an IP address automatically ................................................................................................. - 18 -

3.3.1 Obtain an IP automatically (DHCP) ............................................................................................... - 18 -

3.3.2 Obtain an IP automatically (PPPoE) .............................................................................................. - 19 -

3.3.3 Notify IP Change ................................................................................................................................... - 20 -

4 Operation Modes ................................................................................................................ - 21 -

4.1 What is the Operation Mode? .................................................................................................................. - 21 -

4.2 How to entering each mode ..................................................................................................................... - 21 -

4.3 Comparison of each mode ......................................................................................................................... - 22 -

4.4 Normal Mode ................................................................................................................................................... - 22 -

4.5 Serial Configuration Mode ......................................................................................................................... - 23 -

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 2 - http://www.sollae.co.kr

4.6 ISP Mode ............................................................................................................................................................ - 23 -

4.6.1 Upgrading Firmware............................................................................................................................. - 23 -

4.6.2 Revoking Serurity Options................................................................................................................. - 23 -

5 Communication Modes ...................................................................................................... - 24 -

5.1 TCP Server .......................................................................................................................................................... - 24 -

5.1.1 Key parameters ....................................................................................................................................... - 24 -

5.1.2 Examples .................................................................................................................................................... - 25 -

5.2 TCP Client ........................................................................................................................................................... - 28 -

5.2.1 Key parameters ....................................................................................................................................... - 28 -

5.2.2 Examples .................................................................................................................................................... - 29 -

5.3 AT Command .................................................................................................................................................... - 32 -

5.3.1 Key parameters ....................................................................................................................................... - 32 -

5.3.2 Examples .................................................................................................................................................... - 33 -

5.4 UDP ....................................................................................................................................................................... - 36 -

5.4.1 Key parameters ....................................................................................................................................... - 36 -

5.4.2 Examples .................................................................................................................................................... - 37 -

6 System Management .......................................................................................................... - 39 -

6.1 Upgrading Firmware ...................................................................................................................................... - 39 -

6.1.1 Firmware .................................................................................................................................................... - 39 -

6.1.2 Processes ................................................................................................................................................... - 39 -

6.2 Status Monitoring ........................................................................................................................................... - 41 -

6.2.1 Using TELNET .......................................................................................................................................... - 41 -

6.2.2 Using ezManager ................................................................................................................................... - 43 -

6.2.3 Debugging Message ............................................................................................................................ - 45 -

7 Additional Functions ........................................................................................................... - 47 -

7.1 Access Restriction ........................................................................................................................................... - 47 -

7.1.1 Restriction of Access (ezTCP Firewall) .......................................................................................... - 47 -

7.1.2 Setting Password .................................................................................................................................... - 47 -

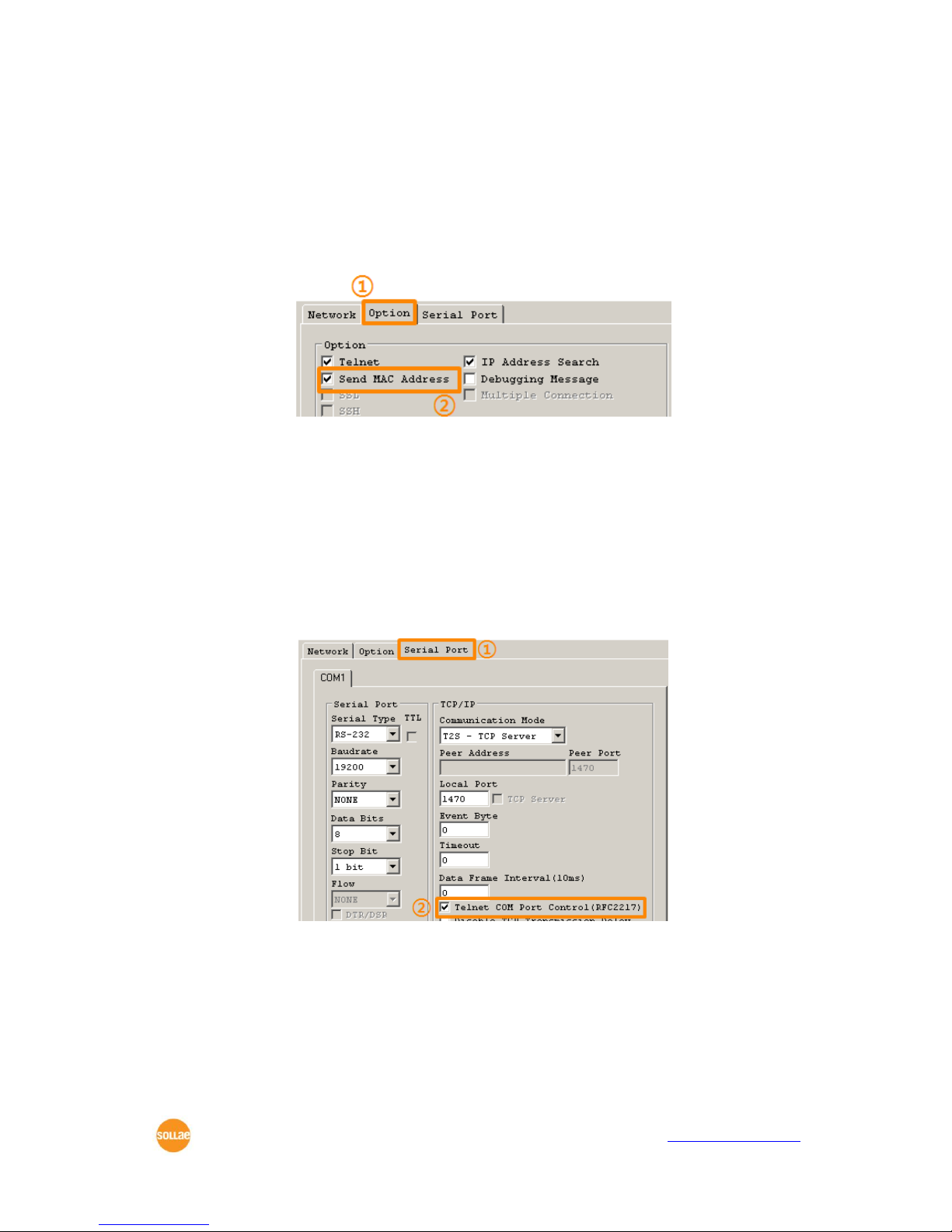

7.2 Sending MAC Address.................................................................................................................................. - 48 -

7.1 TELNET COM port Control Option (RFC 2217) ................................................................................. - 48 -

7.2 SSL (Secure Socket Layer) ........................................................................................................................... - 49 -

7.2.1 How to use as a TCP client ............................................................................................................... - 49 -

7.2.2 How to use as a TCP server ............................................................................................................. - 49 -

7.3 SSH (Secure Shell) .......................................................................................................................................... - 50 -

7.3.1 How to use ............................................................................................................................................... - 50 -

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 3 - http://www.sollae.co.kr

7.4 Multiple Connection ...................................................................................................................................... - 51 -

7.4.1 How to use ............................................................................................................................................... - 51 -

7.4.2 Diagram ...................................................................................................................................................... - 51 -

8 Self Test in Trouble ............................................................................................................. - 52 -

8.1 Searching problem with ezManager ...................................................................................................... - 52 -

8.2 Connection Problem over TCP/IP ............................................................................................................ - 53 -

8.3 Data Communication Problem on the Serial ..................................................................................... - 54 -

9 Technical Support, Warranty, and Precaution ................................................................ - 55 -

9.1 Technical Support ........................................................................................................................................... - 55 -

9.2 Warranty .............................................................................................................................................................. - 55 -

9.2.1 Refund ......................................................................................................................................................... - 55 -

9.2.2 Free Repair Services ............................................................................................................................. - 55 -

9.2.3 Charged Repair Services..................................................................................................................... - 55 -

9.3 Precaution........................................................................................................................................................... - 56 -

10 History ................................................................................................................................... - 57 -

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 4 - http://www.sollae.co.kr

1 Overview

1.1 Overview

Almost all communication devices including PC are using serial transmission. In this type,

devices send and receive data in the order of each byte. The serial communication is quite

simple to implement but has weaknesses like short distance and hard maintenance.

CSE-H25 lets the serial devices connect to the Internet. To communicate on the Internet,

devices should use TCP/IP protocol, so CSE-H25 processes the converting serial data to

TCP/IP.

1.2 Application Examples

 1:1 Connection with a PC

Fig 1-1 1:1 connection with a PC

 Applied to LANs

Fig 1-2 applied to LANs

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 5 - http://www.sollae.co.kr

 Applied to the Internet on Cable Networks

Fig 1-3 applied to the Internet on cable networks

 Applied to the Internet with an IP Share Router

Fig 1-4 applied to the Internet with an IP share router

1.3 Components

 CSE-H25’s Body
 RS232 Cross Cable (Option)
 DC 5V Power Adapter (Option)

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 6 - http://www.sollae.co.kr

1.4 Specification

1.4.1 Hardware

Power

Input Voltage

DC 5V (±10%)

Current

200mA typical

Dimension

87mm x 57mm x 24mm

Weight

About 70g

CPU

ARM7 Core

Memory

256 K Bytes Flash Memory, 64 K Bytes SRAM

Serial Port

Serial

RS232 – RTS/CTS Flow Control

(Baud Rate: 300bps ~ 230,400bps)

Network

10 Base-T / 100 Base-TX Ethernet auto-sense

Auto MDI / MDIX cable auto-sense

Temperature

Storage / Operating Temperature: -40 ~ 85℃

Certification

CE: F690501/SP-EMY000211 / KCC: SLS-CSE-H25 (A)

RoHS

RoHS Compliant

1.4.2 Software

Protocol

TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, Telnet, DNS Lookup, DDNS,

TELNET COM port Control Option (RFC 2217), SSL, SSH

Diagnose

Online Debugging Function

Operation

mode

Normal

For Normal Data Communication

ISP

For Upgrading F/W

Serial Configuration

For Configuration via Serial

Communicat

ion mode

TCP Server

TCP Passive Connection

TCP Client

TCP Active Connection

AT Command

TCP Passive / Active Connection

UDP

UDP – No Connection

Major

Utilities

ezManager

Configuration Utility for MS Windows

(Supports Downloading F/W)

ezVSP

Serial to TCP/IP Virtual driver for MS Windows

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 7 - http://www.sollae.co.kr

1.5 Interfaces

1.5.1 Serial Interface

CSE-H25 has an RS232 port for user serial device (300bps ~ 230,400bps). CSE-H25

converts serial data from user device to TCP/IP and transmits to Ethernet port.

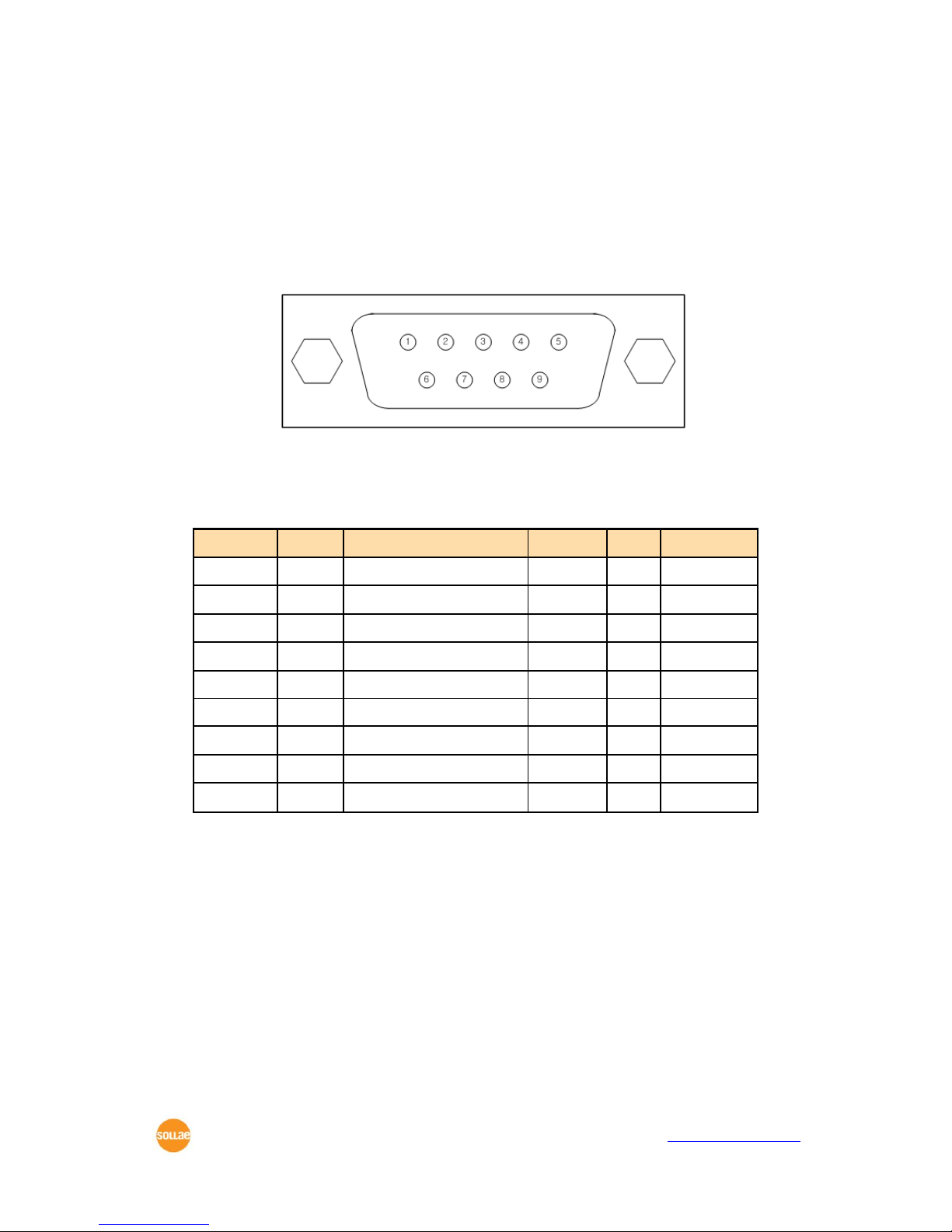

Fig 1-5 9 pins D-sub Male connector

 Pin Assignment

Table 1-1 pin assignment of the RS232 port

Number

Name

Description

Level

I/O

Etc.

1

DCD

Data Carrier Detect

RS232

IN

N/C

2

RXD

Receive Data

RS232

IN

required

3

TXD

Transmit Data

RS232

OUT

required

4

DTR

Data Terminal Ready

RS232

OUT

optional

5

GND

Ground

Ground

-

required

6

DSR

Data Set Ready

RS232

IN

optional

7

RTS

Request To Send

RS232

OUT

optional

8

CTS

Clear To Send

RS232

IN

optional

9

RI

Ring Indicator

RS232

IN

N/C



N/C: Not Connected

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 8 - http://www.sollae.co.kr

1.5.2 Ethernet Interface

Since part of CSE-H25 network is composed of Ethernet, UTP cable may be connected. It

will automatically sense 10Mbits or 100Mbits Ethernet and connect itself. It also provides

auto MDI/MDIX function that can automatically sense 1:1 cable or cross over cable.

Each Ethernet device has its own unique hardware address. The hardware address of CSE-

H25 is set in the factory before being shipped to the market. (The hardware address is also

known as the MAC address)

Fig 1-6 the Ethernet interface

1.5.3 Power

DC5V is used for the power. The specifications of the power jack are as the following:

Fig 1-7 power connector

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 9 - http://www.sollae.co.kr

1.6 System LED

CSE-H25 has several lamps to show the current system status.

Each lamp shows the following status:

Table 1-2 status of the system LED

Mode

Name

Color

Status

Description

Common

PWR

Red

On

Supplying the power

LINK

Green

On

Connecting with Ethernet

RXD

Yellow

Blinks

Receiving data from the Ethernet

TXD

Green

Blinks

Sending data to the Ethernet

Normal

mode

STS

Yellow

Blinks in every

second

Obtaining an IP address

Blinks 4 times

at once

Without obtaining an IP address

under DHCP or PPPoE network

ISP mode

STS

Yellow

Off

Entering ISP mode

Serial

Configuration

mode

STS

/RXD

/TXD

-

Blinks

simultaneously

Entering Serial Configuration mode

1.6.1 ISP Switch

There is a switch, which is named ISP switch (or button) located on the side of the

product. You can change the operation mode of CSE-H25 to ISP or Serial Configuration

mode with this switch.

Fig 1-8 ISP switch

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 10 - http://www.sollae.co.kr

2 Installation and Test

2.1 Installation

Before testing H25, users should connect both serial and Ethernet port to a PC. It will be

no problem that the Ethernet connection includes network hubs.

Fig 2-1 connection between H25 and a PC

Procedures for the test are followed.

2.1.1 Setting Network Aera

This step is for setting both CSE-H25 and users’ PC to be located the same network. If

only they are, the TCP connection between them can be established.

 Setting of the PC

Add or change the IP address of the network adapter on your PC like following.

Get into the menu of [Windows Control Panel] >> [Network Connections] >>

[Properties of the Network Adapter – with right click of your mouse]. Then, you can

show the properties of [Internet Protocol (TCP/IP). In there, press the [Advanced..]

button for adding an IP Address like the below figure.

Fig 2-2 adding / changing the IP address of users’ PC

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 11 - http://www.sollae.co.kr

 Setting of CSE-H25

CSE-H25 uses ezManager as it’s a configuration program. ezManager is for MS

Windows, and this is comfortable to use because it doesn’t need installation. First,

search your CSE-H25 via network. All the values of parameters are set the default

values in the factory. To apply it to your system, proper values should be set via

ezManager. Major parameters’ default values are listed on below table. To implement

this simple test, keep these values without any changes.

Table 2-1 default values of Major parameters

Name

Default Values

Network

Local IP Address

10.1.0.1

Subnet Mask

255.0.0.0

Option

TELNET

Checked

IP Address Search

Checked

Serial Port

(COM1)

Serial Type

RS232

Baud Rate

19,200bps

Parity

NONE

Data Bits

8

Stop Bit

1

Flow Control

NONE

Communication mode

TCP Server

Local Port

1470



Users can download the latest version of ezManager on the [Support] >> [Download] >>

[Utilities] menu of our website.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 12 - http://www.sollae.co.kr

2.2 Simple Test

If you press the [Simple Test] button, test program will be shown on your screen.

 Connecting to the CSE-H25 via LAN

Fig 2-3 settings for TCP connection

① Select [TCP Client]

② Input correct IP address and port number of CSE-H25

③ Clink the [Connect] button. (In case of TCP Server, it will be [Listen] button)

 Opening RS232 Port

Fig 2-4 opening COM Port

④ Select COM port which the CSE-H25 is connected to

⑤ Make sure that all the parameters are the same with H25

⑥ Press the [Open] button

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 13 - http://www.sollae.co.kr

 Confirm the TCP Connection and COM port status

Fig 2-5 TCP Connected message

⑦ Check the message if the TCP connection is established

Fig 2-6 COM Port open message

⑧ Check the message if the COM port has been opened

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 14 - http://www.sollae.co.kr

 Data transmission test

Fig 2-7 successful data transmission

⑨ Click the [Send data] on the LAN part

⑩ Check the data have been shown from the step ⑨

Fig 2-8 LAN → RS232

⑪ Press the [Send data] on the RS232 part

⑫ Check the data have been received from the step ⑪

Fig 2-9 RS232 → LAN

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 15 - http://www.sollae.co.kr

3 Configuration

3.1 Configuration with ezManager

Fig 3-1 initial appearance of ezManager

3.1.1 Configuration via LAN

 Checklists

Make sure the connection between your PC and CSE-H25. If they are the same

network, [MAC Address search] button can be used. If they aren’t, only [IP Address

search] is allowed to use.

 Procedures

Fig 3-2 procedures for configuration via LAN

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 16 - http://www.sollae.co.kr

3.1.2 Configuration via Serial

 Checklists

Make sure the connection between your PC and CSE-H25 using RS232 cross cable. To

use this, CSE-H25 has to be operating in the [Serial Configuration] mode. By pressing

the ISP button less than 1 second, you can enter the mode. After this, read the

setting via [Serial] tab on ezManager.

 Procedures

Fig 3-3 procedures for configuration via Serial

 Step 2, Reading

Fig 3-4 reading procedure via serial

① Choose the [Serial] tab

② Select the COM port which the H25 is connected with

③ Open the COM port with the [Open] button

④ Load the setting with [Read] button



If you want to know more specific manners of setting, please refer to the document
“ezManager Users’ Manual” on the [Support] >> [Technical Document] of our website.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 17 - http://www.sollae.co.kr

3.2 AT command

In the AT command mode, you can change some parameters through the serial port.

 Checklists

Make sure the connection between your PC and CSE-H25 using RS232 cross cable. To

use this, CSE-H25 has to be set to [AT command] mode as its communication mode.

This can be configured by ezManager.

Fig 3-5 setting the communication mode to the AT command

 Procedures

Fig 3-6 procedures for configuration with AT command

Table 3-1 parameters which are available to change with AT command

Division

Available parameters

IP Address related items

Local IP Address, DHCP, PPPoE, Subnet Mask, Gateway IP

Address, DNS IP Address, ···

TCP connection related items

Local Port, Peer Address (IP Address or Host name), Peer

Port, ···

Option

ESC code sending option, timeout, ···



Including above items, rest of parameters can be set by ezManager

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 18 - http://www.sollae.co.kr

3.3 Assigning an IP address automatically

3.3.1 Obtain an IP automatically (DHCP)

In the network environment composing DHCP server, settings related to CSE-H25’s IP

address, subnet mask, gateway, and name servers can be automatically designated using

DHCP protocol. In order to do so, you must check [Obtain an IP Automatically (DHCP)]

category on the ezManager. In this case, you can set the address of DNS server manually

or automatically.

Fig 3-7 Obtain an IP automatically via DHCP

 Procedures

① Choose [Network] tab

② Check the [Obtain an IP automatically (DHCP)] category

③ Store the setting with [Write] button

④ Check if an IP address has been assigned from status window with [Status] button

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 19 - http://www.sollae.co.kr

3.3.2 Obtain an IP automatically (PPPoE)

PPPoE is used in most ADSL and VDSL networks. To use PPPoE function, PPPoE function

should be enabled and PPPoE ID and PPPoE password should be configured. The local IP

address of CSE-H25 is assigned automatically in PPPoE environment. In this case, you can

set the address of DNS server manually or automatically.

Fig 3-8 obtain an IP automatically via PPPoE

 Procedures

① Choose [Network] tab

② Check the [Obtain an IP automatically (PPPoE)] category

③ Set correct values of [PPPoE ID] and [PPPoE Password]

④ Store the setting with [Write] button

⑤ Check if an IP address has been assigned from status window with [Status] button



Some ADSL or VDSL environments use DHCP based on the modem type. Please contact

your internet service provider (ISP) for further information.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 20 - http://www.sollae.co.kr

3.3.3 Notify IP Change

CSE-H25 can be TCP server even though it assigned IP address automatically. Using

[Notify IP Change] function, H25 sends its IP address with the host name to the designed

server. There are 3 types- DDNS, TCP and UDP- for this service.

 Dynamic Domain Name Service (DDNS)

CSE-H25 supports DDNS service offered by DynDNS to manage its changed IP

address as a host name. Because of this, you have to make an account and create

host names on the website of DynDNS before use this.

Fig 3-9 setting DDNS

① Select the [DDNS(dyndns.org)]

② 40,320 is a fixed value



If you don’t use your account for 30 days, it will be expired automatically. To prevent this,

ezManager fixes this value as 28 days (40,320 minutes).

③ Input the ID of DDNS account

④ Input the password of the account

⑤ Input a host name which you create on your account

 TCP/UDP

In case you have an own server and want to manage the information about changed

IP addresses, you allowed used TCP/UDP for using this option. The [Data Type] can be

selected as ASCII or hexadecimal, and the [Interval] is available on configuration.



For more information about this, please refer to the “Notify IP Change” on the [Support]

>> [Download] >> [Technical Document] menu of our web site.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 21 - http://www.sollae.co.kr

4 Operation Modes

4.1 What is the Operation Mode?

Each of three operation mode of CSE-H25 is defined for specific purpose, and those are

followed.

 Normal mode

This mode is for normal data communication and has 4 different connection modes.

Configuring parameters is also available in this mode.

 Serial configuration mode

This mode is for configuring environmental parameters through the RS-232 port.

 ISP mode

This mode is for upgrading firmware. In addition, you can set environmental

parameters even though the security options like password are activated by entering

this mode.

4.2 How to entering each mode

Fig 4-1 How to entering each mode

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 22 - http://www.sollae.co.kr

4.3 Comparison of each mode

Table 4-1 shows summaries of each mode

Table 4-1 comparison of each mode

Name

Entering

Serial port

Normal

Supply the power.

configured

value

Serial

Configuration

Press the ISP button shortly between 10ms and 1s.

115200/N/8/1

ISP

Supply the power with pressing the ISP button or

press the ISP button over 1 sec, in other modes.

115200/N/8/1

4.4 Normal Mode

In normal mode, there are four connection types to communication with a remote host.

 TCP Server
 TCP Client
 AT Command
 UDP

Table 4-2 comparison of four communication modes

Name

Protocol

Connection

Modifying

software of

serial devices

Serial

configuration

Topology

TCP Server

TCP

Passive

-

Unavailable

1:1

TCP Client

Active

-

Unavailable

1:1

AT Command

Either

Required

Available

1:1

UDP

UDP - -

Unavailable

N:M

TCP is a type of protocol, which has a process of connection. The connection has to be

one to one. The part who tries to make the connection is called TCP Client, and the other

part is TCP Server. On the other hand, UDP has no connection process. Because of this,

each of them can be send and receive data from multiple hosts.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 23 - http://www.sollae.co.kr

4.5 Serial Configuration Mode

This is a mode for setting environmental parameters through RS232 port. If you can’t use

the Ethernet, this mode is only way to configure the values. Once entering this mode, use

the [Read] button on the [Serial] tab of ezManager.

4.6 ISP Mode

You can enter this mode by pressing the ISP button over 1 second. There are two special

purposes in this mode.

4.6.1 Upgrading Firmware

ISP mode is for upgrading firmware which is offered by us. The upgrade is implemented

on Ethernet.



The details are followed in the “6.1 Upgrading Firmware”.

4.6.2 Revoking Serurity Options

CSE-H25 offers restriction methods for security like filtering password or MAC and IP

address. In the ISP mode, you can revoke all of these. When you forgot the password, enter

the ISP mode to solve the problem.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 24 - http://www.sollae.co.kr

5 Communication Modes

5.1 TCP Server

In this mode, CSE-H25 functions as a TCP server. CSE-H25 listens to a TCP connection

from remote host. Once a host tries to connect to CSE-H25, it responses that request. After

the connection is established, CSE-H25 converts the raw data from the serial port to TCP/IP

data and sends them to the network and vice versa.

5.1.1 Key parameters

 Local Port

This is a server’s port number which is used in the TCP connection.

 Event Byte

With setting event bytes, users can handle the serial data before a TCP connection is

established.

Table 5-1 Event Byte

Value

Description

0

CSE-H25 doesn’t send the data

Otherwise

(1~2048)

CSE-H25 sends the data right after a connection is established.

The maximum value is 2048 bytes.

 Timeout

If there is no transmission of data for amount of time which is set to this parameter,

CSE-H25 tries to terminate established TCP connection.

 Notify IP Change

This function is for notifying information about changed IP address to a server. Not

only the TCP/UDP protocol but Dynamic Domain Name Service (DDNS) can be used.

 Restriction of Access

Users can block TCP connections from unauthorized hosts by using this option. Both

IP and MAC address are available.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 25 - http://www.sollae.co.kr

5.1.2 Examples

 A situation that [Event Byte] is set to 0.

Fig 5-1 time chart for a situation that [Event Byte] is set to zero

Table 5-2 states of each points

Points

States

~

H25 is listening to connection requests

①

Remote host has sent a connection request (SYN) segment

~

Processes of the connection

②

The connection has been established

~

Data communication on both sides

Look at the blue arrow. The data “123” from the serial port had sent before the

connection is established. In this case, the data wasn’t sent because of the [Event Byte] is

set to 0

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 26 - http://www.sollae.co.kr

 A situation that [Event Byte] is set to 1.

Fig 5-2 time chart for a situation that [Event Byte] is set to 1

Table 5-3 states of each points

Points

States

~

H25 is listening to connection requests

①

Remote host has sent a connection request (SYN) segment

~

Processes of the connection

②

The connection has been established

~

The data “123” has been sent right after the end of

connection processes

As you can see, the data “123” has been sent right after the connection is established

because the value of [Event Byte] had been set to 1. If the value is not 0, the result is the

same as above example.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 27 - http://www.sollae.co.kr

 A situation that [Timeout] is set to 5.

Fig 5-3 time chart for a situation that [Timeout] is set to 5

Table 5-4 states of each points

Points

States

~

Data communication on both sides

①

The last segment has been arrived at the H25

~

5 seconds are passed with no data communication

②

H25 has sent disconnection request (FIN) to a remote host

~

Processes of the disconnection

③

The connection has been terminated

~

H25 is listening to connection requests

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 28 - http://www.sollae.co.kr

5.2 TCP Client

In this mode, CSE-H25 functions as a TCP client. CSE-H25 sends request segments to a

remote host with information of [Peer Address] and [Peer Port]. Once a host is listening and

works correctly, the connection will be established. After then, CSE-H25 converts the raw

data from the serial port to TCP/IP data and sends them to the network and vice versa.

5.2.1 Key parameters

 Peer Address

This item should be an address of a remote host who is listening TCP connections.

 Peer Port

[Peer Port] should be the port number which is designated by the remote host.

 Event Byte

CSE-H25 decides the time to send the connection request frame with this parameter.

Table 5-5 the operation of Event Byte 1

Value

Description

0

H25 sends TCP connection request segment Right after it boots up

Otherwise

(1~2048)

H25 sends the segment right after it received amount of data which

is set to the [Event Byte] from the serial port

In addition, users can handle the serial data before a TCP connection is established

with this parameter.

Table 5-6 the operation of Event Byte 2

Value

Description

0

CSE-H25 doesn’t send the data

Otherwise

(1~2048)

CSE-H25 sends the data right after a connection is established.

 Timeout

If there is no transmission of data for amount of time which is set to this parameter,

CSE-H25 tries to terminate established TCP connection.

 TCP Server

This check option is enable the TCP server / client mode. In this mode, CSE-H25 can

be operated as a TCP server or client without changing its setting.

 DNS IP Address

[DNS IP Address] needs when you use host name instead of the IP address.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 29 - http://www.sollae.co.kr

5.2.2 Examples

 A situation that [Event Byte] is set to 0.

Fig 5-4 time chart for a situation that [Event Byte] is set to 0

Table 5-7 states of each points

Points

States

~

Before the power is supplied

①

Sends TCP connection request segment right after it boots up

~

Processes of the disconnection

②

The connection has been established

~

Data communication on both sides

Look at the blue arrow. The data “123” from the serial port had sent before the

connection is established. In this case, the data wasn’t sent because of the [Event Byte] is

set to 0

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 30 - http://www.sollae.co.kr

 A situation that [Event Byte] is set to 5.

Fig 5-5 time chart for a situation that [Event Byte] is set to 5

Table 5-8 states of each points

Points

States

~

CSE-H25 has receives data from its serial port until the amount of

data is 5 bytes

①

Sends connection request segment right after receiving 5 bytes.

~

Processes of the TCP connection

②

The connection has been established

~

The “1234567” is transmitted to the remote host

As you can see in the figure 5-5, CSE-H25 sends request segment right after the serial

data had been 5 bytes. Even though those are come before the connection is established,

the data “123”, “45” and “67” are transmitted to the remote host because of the [Event Byte]

is set to 5.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 31 - http://www.sollae.co.kr

 An activated [TCP Server] option

Fig 5-6 time chart for activating [TCP Server] option

Table 5-9 states of each points

Points

States

~

H25 is listening to connection requests

①

The connection has been established

~

H25 is on line and processes of the disconnection

②

The connection has been terminated

~

Both sides are offline

③

Sends TCP connection request segment

The TCP Server / Client mode can be useful option by using [Event Byte] and [Timeout].

Note that only one TCP connection can be established at the same time, so users should

consider setting [Timeout] properly.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 32 - http://www.sollae.co.kr

5.3 AT Command

AT command is a mode which users control CSE-H25 with AT command like controlling

modem. In this mode, active and passive TCP connections are available. And users are

allowed to configure some environmental parameters with extended commands.

5.3.1 Key parameters

The configuration should be implemented via the serial port of H25

Table 5-10 some of extended commands for configuration

Commands

Description

Examples

+PLIP

Local IP Address

AT+PLIP=10.1.0.1<CR>

+PLP

Local Port

AT+PLP=1470<CR>

+PRIP

Peer IP Address

AT+PRIP=10.1.0.2<CR>

+PRP

Peer Port

AT+PRP=1470<CR>

+PDC

DHCP

AT+PDC=1 (ON)<CR>

+PPE

PPPoE

AT+PPE=1 (ON)<CR>

+PTO

Timeout

AT+PTO=10<CR>

+PWP

Store setting

AT+PWP<CR>

 Related items with IP Address and Local Port

Local port can be set as well as IP address related parameters like IP Address, Subnet

Mask and Gateway IP Address.

 Peer Address / Peer Port

IP address and local port of a remote host are can be set.

 Type of assigning IP address: Manual, DHCP, PPPoE

Not only manual setting, also automatic assigning protocol (DHCP, PPPoE) are

available.

 Others

Some of options including [Timeout] can be configured in this mode.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 33 - http://www.sollae.co.kr

5.3.2 Examples

 TCP Server – setting parameters and passive connection

Fig 5-7 TCP passive connection

Table 5-11 states of each points

Points

States

~

Set parameters in the AT command mode

①

H25 listens TCP connection requests with the ATA command

~

H25 is listening TCP connection requests

②

A remote host has sent SYN segment to H25

~

Processes of TCP connection

③

TCP connection has been established

~

CSE-H25 sends “CONNECT” message to the serial port



Most of the response messages from the serial port of CSE-H25 are omitted on above

figure.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 34 - http://www.sollae.co.kr

 TCP Client - setting parameters and active connection

Fig 5-8 TCP Active connection

Table 5-12 states of each points

Points

States

~

Set parameters in the AT command mode

①

H25 sends a TCP connection request with the ATD command

~

Processes of TCP connection

②

TCP connection has been established

~

CSE-H25 sends “CONNECT” message to the serial port

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 35 - http://www.sollae.co.kr

 Termination of online status – entering the AT command mode

Fig 5-9 Termination of online status

Table 5-13 states of each points

Points

States

~

Keeps TCP connection

①

H25 enters the AT command mode with receiving “+++”

~

Keeps AC command mode

②

H25 terminates TCP connection with ATH command

~

Processes of TCP disconnection

③

TCP connection has been terminated

~

H25 sends “NO CARRIER” with disconnection

CSE-H25 changes the mode to AT command, when receiving “+++” and sending “OK”

message. In this state, the communication with remote host is not possible because H25

processes only AT command. Whenever you want to go back to online state (TCP

connection), use “ATO” command.



For more information about this, please refer to the “ATC mode” on the [Support] >>

[Download] >> [Technical Document] menu of our web site.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 36 - http://www.sollae.co.kr

5.4 UDP

UDP has no processes of connection. In this mode, data is sent in block units. Therefore,

data that comes through CSE-H25’s serial port must be classified in block units to send it

elsewhere.

5.4.1 Key parameters

 Event Byte

[Event Byte] means the size of a block in UDP mode. Its unit is byte. The size of bytes

are come into the serial port, CSE-H25 sends them as one block to the network. The

maximum value could be 1460 bytes.

 Data Frame

[Data Frame] means the time for gathering data to make one block. Its unit is 10ms.

If there are no transmission during the time which is set to this value, CSE-H25 sends

gathered data in the buffer as one block to the network.



Once one of the parameters is sufficient, the block size is decided as the condition.

 Dynamic update of Peer host

If users set the value of [Peer Address] and [Peer Port] to 0, [dynamic update of peer

host] function is activated. By using this function, CSE-H25 can communicate to

multiple hosts without additional setting.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 37 - http://www.sollae.co.kr

5.4.2 Examples

 Event Byte: 5 bytes / Data Frame: 1s (100 by 10ms)

Fig 5-10 time chart for event byte is 5 bytes and data frame is 1s

Table 5-14 states of each points

Points

States

~

H25 is receiving data from the serial port

①

H25 Sends 5 bytes as one block based on the [Event byte]

~

Serial device sends data “678” to the H25

②

Data “678” has arrived

~

H25 sends data from the remote host to the serial device

③

1 second has passed

~

H25 sends data “678” based on the [Data frame]

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 38 - http://www.sollae.co.kr

 Dynamic Update of Peer host

This is a function that CSE-H25 automatically sets its peer host with information of

the last packet which is received from network. In the packet, the source address and

port number is used.

Table 5-15 setting for [dynamic update of peer host] function

Parameters

Values

Peer Address

0 (None)

Peer Port

0

Fig 5-11 time chart for [dynamic update of peer host]

Table 5-16 states of each points

Points

States

~

Remote host 2 sends data to H25

①

H25 sets host 2 to peer host

~

Remote host 1 sends data to H25

②

H25 updates host 1 to peer host

~

Remote host 2 sends data again to H25

③

H25 updates host 2 to peer host

~

H25 can communicate with remote host 2



The data “ABC”, “DE”, “FGH” are from the serial port of CSE-H25 in the Fig 5-11.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 39 - http://www.sollae.co.kr

6 System Management

6.1 Upgrading Firmware

6.1.1 Firmware

Firmware is a type of software for operation of CSE-H25. If there are needs for adding

function or fixing bugs, the firmware is modified and released. We recommend that users

keep use the latest released firmware.

6.1.2 Processes

 Downloading the latest released firmware

Download the newest firmware file. We update our homepage when a new firmware

is released. You can find it on our website.

 Entering ISP mode

Enter ISP mode to download firmware file to CSE-H25.

 Run a TFTP client and ready to send the F/W file

Run a TFTP client program. ezManager is equipped the client program. Click the

[Change F/W / HTML] button.

Fig 6-1 running TFTP client

① Check the [Advanced Menu] check box

② Click the [Change F/W / HTML] button to run TFTP client

③ Select the [Change Firmware] radio button

④ Input the IP address of CSE-H25 to the [Local IP Address] text box

⑤ Press the [Open Firmware / HTML] button and choose the firmware file

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 40 - http://www.sollae.co.kr

 Checking firmware file and Sending

Fig 6-2 sending firmware file

① Check if the name and path of the firmware file are correct

② Click the [Send] button

③ Confirm the completed message

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 41 - http://www.sollae.co.kr

6.2 Status Monitoring

6.2.1 Using TELNET

Once the [TELNET] option is activated, users can remotely log in to CSE-H25. If a

password is set, users should input the password.

After then, messages from CSE-H25 appear like Fig 6-3.

Fig 6-3 log in to CSE-H25 on TELNET

Followed commands let users check each state.

Table 6-1 commands for checking states

Command

Option

Description

Usage

ST

NET

Network Status

lsh>ST NET

SIO

Serial Port Status

lsh>ST SIO

UPTIME

System Uptime

lsh>ST UPTIME

sc

[OP1][OP2]

Session Control

lsh>sc com1 close

SD

[OP1][OP2]

Serial data Dump

lsh>SD 1 100

 ST NET

“ST NET” command displays present network states of all sessions.

Fig 6-4 “ST NET command”

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 42 - http://www.sollae.co.kr

 ST SIO

“ST SIO” command displays the number of bytes for the serial port.

Fig 6-5 “ST SIO” command

 ST UPTIME

“ST UPTIME” command shows amount of time since H25 boots up.

Fig 6-6 “ST UPTIME” command

 sc

“sc” command is used when users close a session. [OP1] means the name of session,

and [OP2] should be “close”.

Fig 6-7 “SC” command



In case of the “sc” command you should use only small letters.

 SD

“SD” command is for capturing serial data. [OP1] means name of the session, [OP2]

means period, which has a 10ms unit, for the capture.

Fig 6-8 “SD” command

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 43 - http://www.sollae.co.kr

6.2.2 Using ezManager

Status of CSE-H25 can be monitored by [Status] button on ezManager. By using the

[Refresh Every 1 Second] option in the status window, the status is automatically updated in

every second.

Fig 6-9 status window of ezManager

 FIRMWARE VERSION

The name of model name and the version of firmware are displayed here.

 SYSTEM UPTIME

Amount of time is displayed since CSE-H25 boots up.

 IP4 NETWORK INFORMATION

All information about related items with IP Address is shown here. It works even if the

IP address is assigned from DHCP or PPPoE.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 44 - http://www.sollae.co.kr

 TCP STATE

TCP status of each port is shown this section.

Table 6-2 TCP STATE

Message

Description

LISTEN

listening TCP connection

CLOSE

TCP connection is closed

SYN_SENT

Send “SYN” segment to make TCP connection

ESTABLISHED

When TCP connection is established

N/A

In UDP mode

 SERIAL STATUS

Amount of data in every buffer is displayed. The unit is byte.

Table 6-3 SERIAL STATUS

Buffer

Description

sio_rx

The number of data which is received from the COM port

net_tx

The number of data which is sent to the remote host

net_rx

The number of data which is received from the remote host

sio_tx

The number of data which is sent to the COM port

 ARP TABLE

This part shows ARP table on CSE-H25. When TCP connection is established or UDP

data communication is performed, the information of IP and MAC address is

automatically stored in the ARP table. This information is held for 1 minute. When 50

seconds is passed, CSE-H25 starts broadcasting the ARP packet again. If there is no

response until the time is 0, the information is removed. If there is response, the time

is updated 60 seconds again.

 TCP/IP Connection

In this section, the same information with TCP STATE is displayed with IP address and

port number. A difference is that users can terminate TCP connection. When right

click on a session, a small pop-up window is created.

 Password

This text box is activated when CSE-H25 has a password. If users want to close TCP

connection with right click of mouse on the session, this password has to be correctly

filled.

 Refresh Every 1 Second.

If this option is checked, ezManager send query in every second.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 45 - http://www.sollae.co.kr

6.2.3 Debugging Message

By using [Debugging] option, users can receive debugging messages from CSE-H25 on

the network.

 Setting debugging option

Fig 6-10 setting debugging option

① Check the [Debugging Message] option

② Press the [Write] button

③ After check the [Advanced Menu], click the [Debugging Message] button. And

then, the debugging message window is shown on your screen like figure 6-10.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 46 - http://www.sollae.co.kr

Fig 6-11 debugging message window

① Pull down menu for selecting a network adapter

② Place for showing received debugging messages from CIE-H10 over the network

③ Auto update to display the latest captured file on the screen of ②

④ MAC Address Information of a selected message

⑤ ~ ⑪ Unavailable

ⓐ To start capturing debugging messages from CSE-H25

ⓑ To stop capturing debugging messages from CSE-H25

ⓒ Unavailable

ⓓ [Load Message] is for loading a debugging log file to display

ⓔ Closing debugging message window



If you have problems with communication or connection, it can be helpful for us that you

capture the debugging messages and send us to the file.



When you use [Debugging Message] function, it can cause network traffic because the
messages are broadcasted to whole network. If you don’t use it anymore, you should

uncheck the function.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 47 - http://www.sollae.co.kr

7 Additional Functions

7.1 Access Restriction

7.1.1 Restriction of Access (ezTCP Firewall)

On the [Option] tab of ezManager, users can set restriction of access function with

filtering MAC and IP address.

 Allowed MAC Address

If this option has a value of MAC address, the device which has the MAC address is

only permitted to access.

 Allowed IP Address

This is for qualifying hosts with IP address or range of IP address. The range is

defined by multiplying [IP address] and [Network Mask] in bit unit.

 Examples

Table 7-1 examples of defining allowed IP range

IP Address

Network Mask

Allowed IP Address Range

10.1.0.1

255.0.0.0

10.1.0.1 ∼ 10.255.255.254

10.1.0.1

255.255.255.0

10.1.0.1 ∼ 10.1.0.254

192.168.1.4

255.255.255.255

192.168.1.4

 Apply to ezManager

[Apply to ezManager] is for applying above two restrictions to ezManager functions

like [Search], [Read], [Write] and etc.

7.1.2 Setting Password

A password can be used for protecting CSE-H25 from TELNET login or changing

environmental parameters by hosts which are not qualified. The maximum length is 8 bytes

of Alphabet or number.



When you want to revoke all of these restrictions, operate CSE-H25 as ISP mode. In the

mode, all restrictions are removable and communication with ezManager is revoked.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 48 - http://www.sollae.co.kr

7.2 Sending MAC Address

[Sending MAC Address] is a function that CSE-H25 sends its MAC address to the remote

host right after the connection is established. By using this function, a server can identify

multiple devices with the information.

Fig 7-1 setting of Sending MAC Address function

① Move to the [Option] tab.

② Check the [Send MAC Address] option.

7.1 TELNET COM port Control Option (RFC 2217)

This option is for sending and receiving serial port states between two devices. Users can

send and receive control signals like RTS/CTS when the states are changed.

Fig 7-2 setting of TELNET COM Port Control option

① Move to the [Serial Port] tab.

② Check the [Telnet COM Port Control (RFC2217)] option.



If you want details about the [TELNET COM port Control Option] and [Sending MAC

Address], please refer to the documents on the [Support] >> [Download] >> [Technical

Document] of our website.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 49 - http://www.sollae.co.kr

7.2 SSL (Secure Socket Layer)

Secure Socket Layer (SSL) is a security protocol over the Internet and widely used in

many communication systems.

7.2.1 How to use as a TCP client

Just check the option on ezManager.

Fig 7-3 activation of the SSL option



[Multiple Connection], [SSH] and [TELNET COM Port Control] options are unavailable while

using [SSL] option.

7.2.2 How to use as a TCP server

To use SSL option as a TCP server, you should create a certification.

Fig 7-4 processes for SSH



For the details about the SSL setting, please refer to the document on the [SUPPORT] >>

[Download] >> [Technical Documents] menu in our web site.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 50 - http://www.sollae.co.kr

7.3 SSH (Secure Shell)

Secure Shell (SSH) is a kind of logging on system of Linux and Unix, which is intensified

for the security.

7.3.1 How to use

Follow the below procedures

Fig 7-5 activation of the SSL option



[Multiple Connection], [SSH] and [TELNET COM Port Control] options are unavailable and

only TCP server can be used while using [SSL] option.

Fig 7-6 processes for SSH



For the details about the SSH setting, please refer to the document on the [SUPPORT] >>

[Download] >> [Technical Documents] menu in our web site.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 51 - http://www.sollae.co.kr

7.4 Multiple Connection

[Multiple Connection] is for receiving and monitoring a device to multiple hosts in the

same time.

7.4.1 How to use

The option is available after activating the [Multiple Connection] on ezManager.

Fig 7-7 activation of the [Multiple Connection]

7.4.2 Diagram

Fig 7-8 diagram for the [Multiple Connection]

 Data from the each host are sent to the User’s device via CSE-H25
 Data from the User’s device is sent to the all hosts(#1, 2, 3) via CSE-H25

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 52 - http://www.sollae.co.kr

8 Self Test in Trouble

When users are in trouble with CSE-H25, make sure all the followed steps first.

8.1 Searching problem with ezManager

 Confirming types of configuration utility

CSE-H25 can be configured by ezManager.

 Stopping Firewall operation

Firewalls of personal computer or network block broadcast packets. Stop all the

firewalls before searching CSE-H25



Most of vaccine programs have firewall functions so it can cause some trouble to search

CSE-H25. Stop these programs before the searching.

 Stable supply of the power

Check if the power is supplied continually. If the power is constantly supplied, the

PWR LED (Red) on the CSE-H25’s body will be turned ON.

 Connection with the network

Make sure that the network connection is fine including Ethernet cable. In this step,

we recommend that users connect CSE-H25 with PC directly or in the same network

hub.

 Checking options of restriction

In case that restriction of access is activated, the communication with ezManager can

be impossible. When users are in this situation, make CSE-H25 operate in ISP mode.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 53 - http://www.sollae.co.kr

8.2 Connection Problem over TCP/IP

 Checking parameters related with TCP/IP

When CSE-H25 has a private network IP address, personal computer’s IP address has

to be the same sub network. Check if the IP address and local port number are

correct. In case of a fixed IP address, the subnet mask, gateway IP address and DNS

IP address should be configured.

Table 8-1 major parameters related with TCP/IP

TCP Server side

TCP Client side

Local IP Address, Local Port, Subnet

Mask, Gateway IP Address, DNS IP

Address, DDNS option

Local IP Address, Peer Address, Peer Port,

Subnet Mask, Gateway IP Address, DNS IP

Address,

 PING Test

Confirm the connection over the network by PING test. If the CSE-H25 doesn’t send

any reply from the request, check the network environment.

 Firewall

In case the networks which need strong security, the access may be denied by their

firewall. Under this circumstance, users should ask the person in charge of their

network to release ports which will be used. (Ex: TCP 1470, UDP 50005)

 Operation Mode

TCP connection is not possible when CSE-H25 is operating in the ISP or Serial

Configuration mode.

 Communication Mode

To make TCP connection, both a server and client should exist. If there are only

servers or clients, TCP connection can’t be established.

 ezTCP Firewall

When users set the ezTCP firewall with MAC and IP address, any hosts can’t be

reachable to it except for the hosts which have the allowed MAC and IP address.

Inactivate the option or check the setting is correct.

 Checking the TCP status

TCP is a protocol connected one to one without multiple connection function.

Because of this, if a device is on TCP connection, other requests are denied. If users

are in this situation, check the network status by connecting on TELNET or using

ezManager.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 54 - http://www.sollae.co.kr

8.3 Data Communication Problem on the Serial

 Connection of Pins

Check if the connection of each pin is right. Using cables, users choose the right type

of cable which is suitable for the device. Transmit Data (TXD) pin should be

connected with Receive Data (RXD) pin. Look at the figure 8-1.

Fig 8-1 RS232 connection

 Setting parameters

Check if all the serial port parameters like Baud Rate, Data bit, Stop bit and Parity are

properly set.



Contact us if you have any questions about above steps or our products.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 55 - http://www.sollae.co.kr

9 Technical Support, Warranty, and Precaution

9.1 Technical Support

If you have any question regarding operation of the product, visit Customer Support FAQ

corner and the message board on Sollae Systems’ web site or send us an email at the

following address:

 E-mail: [e-mail]
 Website Address for Customer Support:

http://www.eztcp.com/en/Support/support.php

9.2 Warranty

9.2.1 Refund

Upon the customer’s request to refund the product within two weeks after purchase,

Sollae Systems will refund the product.

9.2.2 Free Repair Services

For product failures occurring within one year after purchase, Sollae Systems provides

free repair services or exchange the product. However, if the product failure is due to

user’s fault, repair service fees will be charged or the product will be replaced at user ’s

expense.

9.2.3 Charged Repair Services

For product failures occurring after the warranty period (one year) or resulting from

user’s fault, repair service fees will be charged and the product will be replaced at user ’s

expense.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 56 - http://www.sollae.co.kr

9.3 Precaution

 Sollae Systems is not responsible for product failures occurring due to user ’s

alternation of the product.

 Specifications of the product are subject to change without prior notice for

performance improvement.

 Sollae Systems does not guarantee successful operation of the product if the

product was used under conditions deviating from the product specifications.

 Reverse engineering of firmware and applications provided by Sollae Systems is

prohibited.

 Use of firmware and applications provided by Sollae Systems for purposes other

than those for which they were designed is prohibited.

 Do not use the product in an extremely cold or hot place or in a place where

vibration is severe.

 Do not use the product in an environment in which humidity is high or a lot of oil

exists.

 Do not use the product where there is caustic or combustible gas.
 Sollae Systems does not guarantee normal operation of the product under the

conditions a lot of noise exists.

 Do not use the product for a purpose that requires exceptional quality and

reliability relating to user’s injuries or accidents – aerospace, aviation, health care,

nuclear power, transportation, and safety purposes.

 Sollae Systems is not responsible for any accident or damage occurring while using

the product.

CSE-H25 User’s Manual Ver. 1.4

Sollae Systems Co., Ltd. - 57 - http://www.sollae.co.kr

10 History

Date

Version

Comments

Author

2009.07.30

1.0

○ Created

2009.09.02

1.1

○ Modified figure 4-2

2009.09.03

1.2

○ Modified Components list

2010.03.22

1.3

○ Document structure has been updated

Roy LEE

2010.04.12

1.4

○ Some wrong expressions have been corrected.

Roy LEE
