1 Introduction
1.1 Introduction
In the era of Ubiquitous Environment, many kinds of systems which use sensors like
temperature, humidity or pressure and controlling the power of remote devices have been
developing. CIE-H12A monitors those sensors and controls the remote devices. It detects
digital inputs from the sensors’ outputs and controls the relay outputs. HTTP, Modbus/TCP
and Macro mode can be used for these functions.
CIE-H12A has two input ports and one output port. One of the input ports is a drycontact type and the other one is wet-contact. Thus, you are allowed to use it under both
types of systems.
1.2 Features
⚫ Remote I/O controller
⚫ 2 Digital Input ports (Dry contact 1 port, Wet contact 1 port)
⚫ 1 Digital Output Port (Relay interface)
⚫ Supports Modbus/TCP and HTTP
⚫ Stored Web server for simple management (custom web page)
⚫ MACRO (stand-alone operation supports simple logical expressions)
⚫ Easy configuration program (ezManager)
CIE-H12A User Manual Ver. 1.0
- 6 -
https://www.ezTCP.com
1.3 Application Examples
⚫ remote I/O device server
Figure 1-1 remote I/O device server
⚫ Internet Switch
Figure 1-2 internet switch
⚫ Macro mode
Figure 1-3 macro mode
CIE-H12A User Manual Ver. 1.0
- 7 -
https://www.ezTCP.com
1.4 Components
⚫ CIE-H12A
⚫ 5V Power Adapter (optional)
1.5 Specification
1.5.1 H/W specification
Power
Input Power
DC 5V (±10%)
Current Consumption
300mA typical
Size
96mm x 57mm x 24mm
Weight
Approximately 68g
Interfaces
Digital Input
2 ports with photo couplers (2 input types)
Digital Output
1 port with relays
Network
RJ45
Network
Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
Auto MDI/MDIX(Cable Auto-sensing)
Temperature
Operate: 0 ~ 70℃ / Storage: -40 ~ 85℃
Certification
CE, KC
Environment
Follows Europe RoHS Directive
Table 1-1 H/W specification
1.5.2 S/W specification
Protocol
TCP, UDP, IP, ICMP, ARP, DHCP, DNS lookup, DDNS,
Modbus/TCP, HTTP, SMTP
Diagnose
Online Debugging Function
Operation
mode
Normal
Normal communication mode
ISP
F/W upgrade
Communicati-
on Mode
I/O server
Modbus/TCP – Slave/Master, Passive/Active
Web Browser(HTTP), Macro(Stand-alone)
Programs
ezManager
Configuration program via LAN
ModMap
Modbus/TCP Application for Windows
Table 1-2 S/W specification
CIE-H12A User Manual Ver. 1.0
- 8 -
https://www.ezTCP.com
1.6 Interface
1.6.1 Input Ports
CIE-H12A has two input ports and the each has different type with the other. The one is
a “DRY CONTACT” type and the other one is a “WET CONTACT.”
Figure 1-4 input ports (the front view)
In the front panel, the DRY IN(0) port is the dry contact type and the WET IN(1) port is
the wet contact type.
⚫ The switch input type (Dry contact)
The first input port is a dry contact type so you can give the input signal by a switch.
Basically, this port is the same with the port WET IN(1) but has additional part for dry
contact. Just use a switch for giving signal to this port.
Figure 1-5 the dry contact input port
CIE-H12A User Manual Ver. 1.0
- 9 -
https://www.ezTCP.com
⚫ The voltage input type (Wet contact)
Figure 1-6 the wet contact input port
You can give a DC voltage to input signal to this port. This port is isolated by photocouplers and you don’t have to care about the polarity. The circuit diagram of the
input port is shown in the figure below.

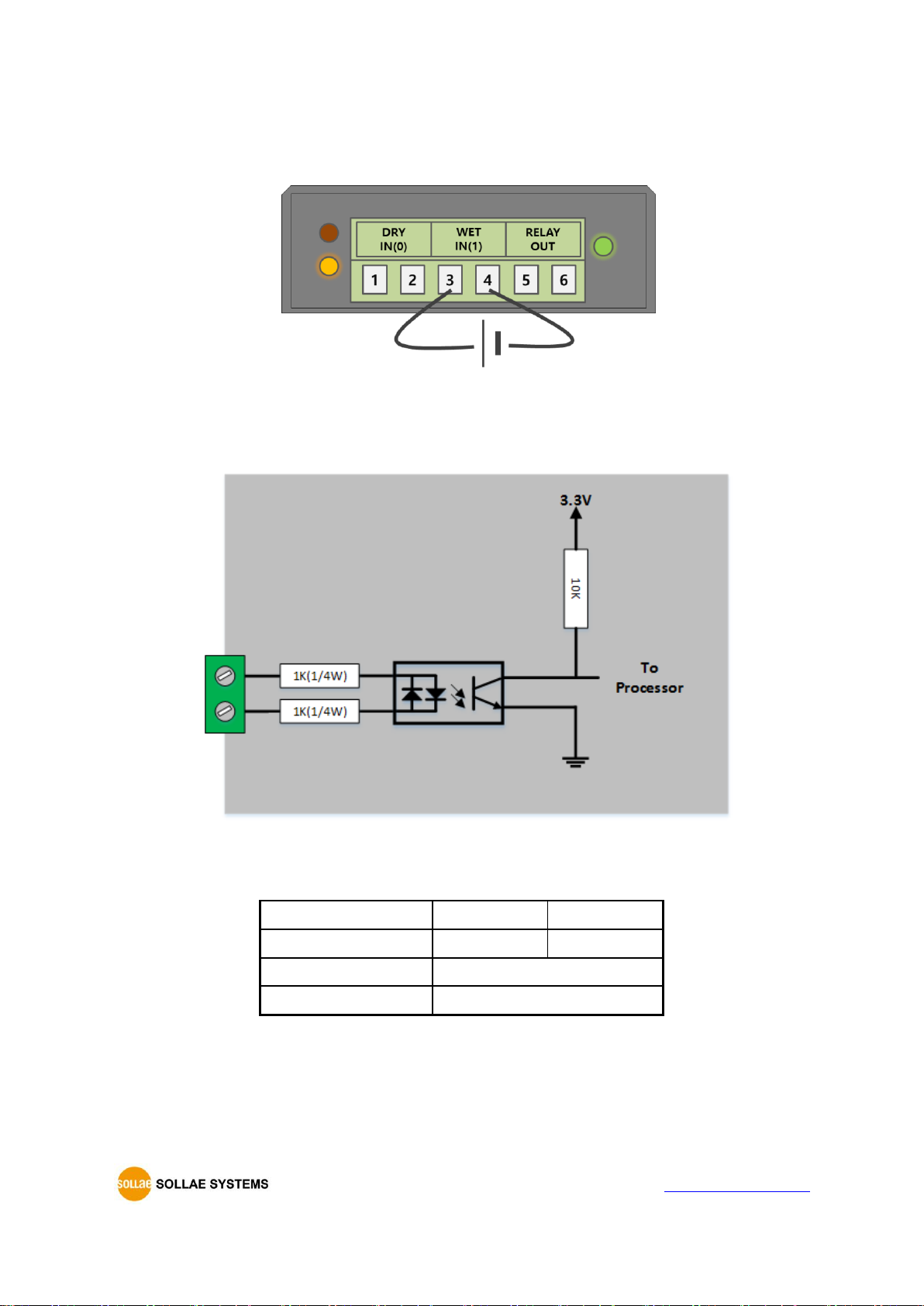

Figure 1-7 a circuit diagram of the input port
The voltage specification of the input port is as follows:
Over 2.2V
H 1 Under 1.2V
L
0
Max. Input Voltage
DC 24V
Polarity
Auto Polarity
Table 1-3 the voltage specification of the input ports
Use a (-) shaped screwdriver to connect it with users’ devices since the output ports
are interfaced with a 3.5mm terminal block,
CIE-H12A User Manual Ver. 1.0
- 10 -
https://www.ezTCP.com
1.6.2 Output Ports
Figure 1-8 the output port (the front view)
The port 5 and 6 (OUTPUT) is output port and this port is interfaced with a relay (NO :
Normal Open) as shown below.
Figure 1-9 a circuit diagram of the output port
The output port operates as in the following
Value
Relay contact
0
OFF (open)
1
ON (short)
Table 1-4 values of the output port
The allowed output ports’ electrical current of voltage conditions are as in the following:
Voltage Condition
Allowed current
DC28V
5A
Table 1-5 voltage conditions of the output port
Use a (-) shaped screwdriver to connect it with users’ devices since the output ports
are interfaced with a 3.5mm terminal block,
CIE-H12A is most appropriate for switching devices in lower voltage conditions than
that. Or High capacity relay is recommended.
CIE-H12A User Manual Ver. 1.0
- 11 -
https://www.ezTCP.com
1.6.3 Ethernet Interface
An RJ45 connector is for the network interface of CIE-H12A. You can use a UTP cable. It
automatically senses 10Mbits or 100Mbits Ethernet. It also provides auto MDI/MDIX
function that can automatically sense a 1:1 cable or cross over cable.
Each Ethernet device has its own hardware address (MAC address). CIE-H12A is shipped
to the market with the hardware address set in the factory.

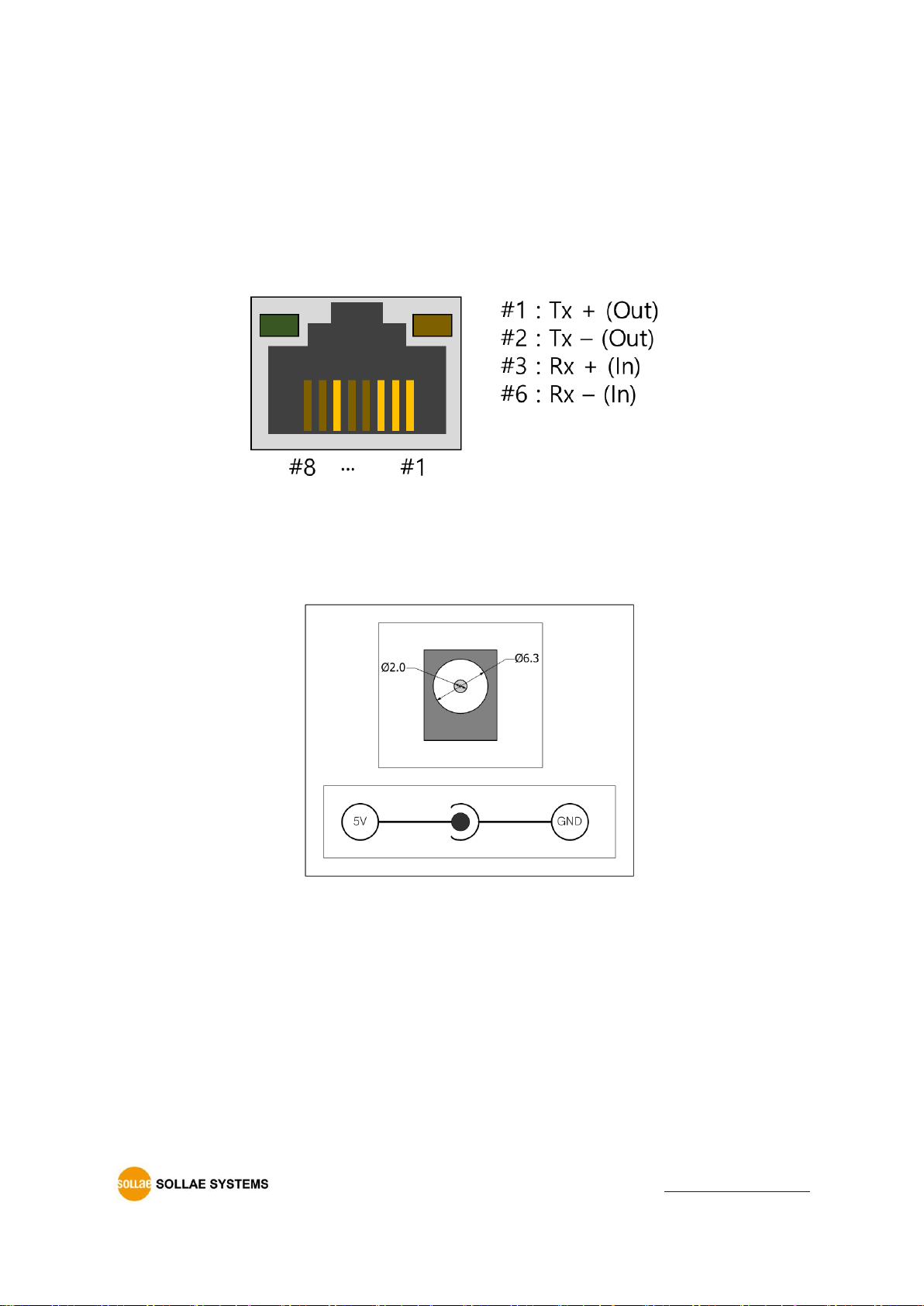

Figure 1-10 the RJ45 connector
1.6.4 Power
DC 5V is used for the power. The specification of the power jack is as following:
Figure 1-11 the power specification
CIE-H12A User Manual Ver. 1.0
- 12 -
https://www.ezTCP.com
1.6.5 System LED
CIE-H12A has 2 LEDs on RJ45 and the current system status LEDs for out port and input
ports.
Each LED represents the following status:
place
name
color
LED status
description
RJ45
STS
Yellow
blinks in
every second
assigned an IP address
blinks 4
times at
once
without being assigned an IP address
by DHCP
On
establishing a TCP connection
Off
operating for the ISP mode
LINK
Green
On
establishing a connection on a network
blinks
transferring or receiving network data
Front
panel
DI
Yellow
On
when input ports’ signal is ON
DO
Green
On
when the output port’s signal is ON
Table 1-6 status of the system LED

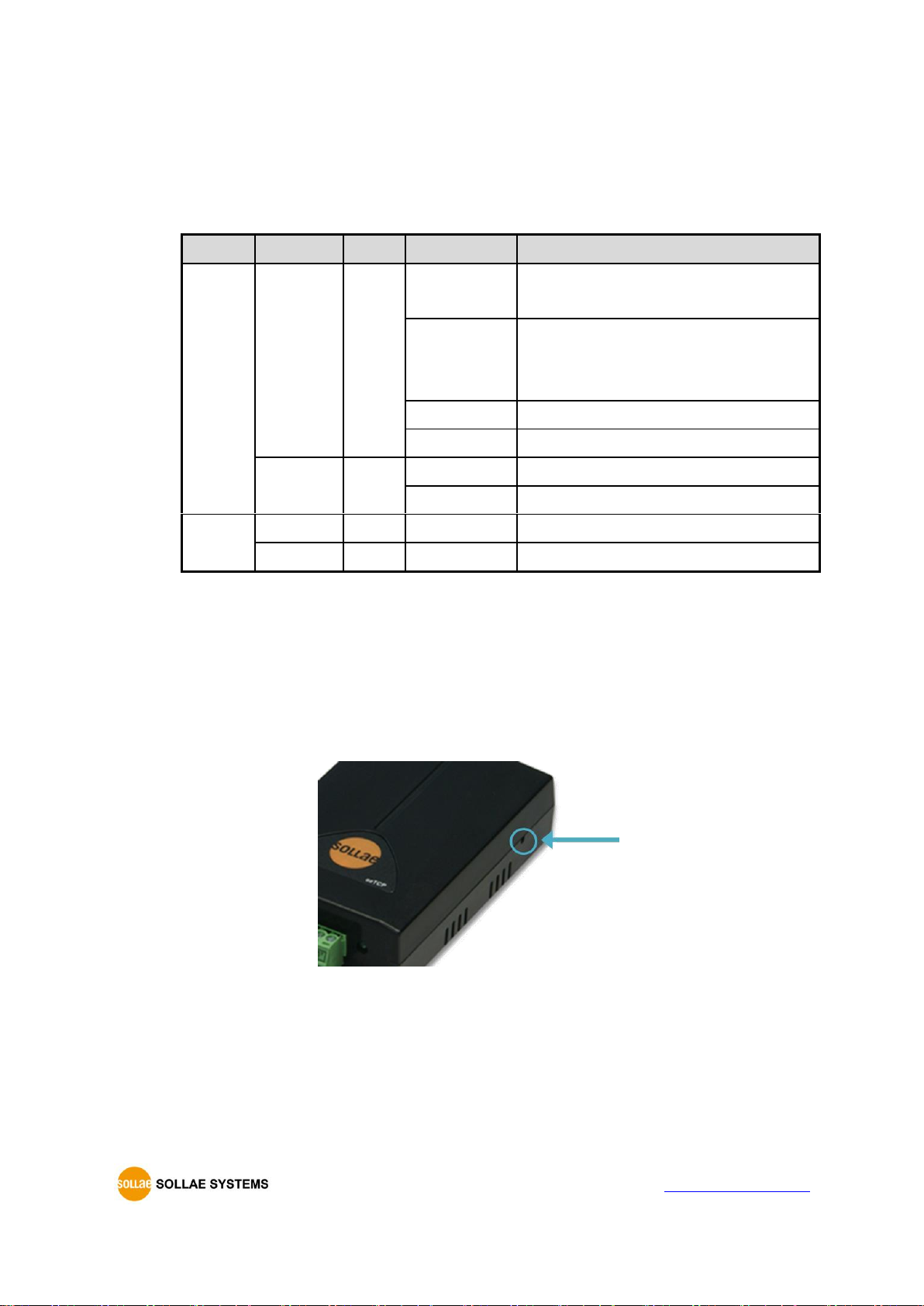

1.6.6 ISP Switch
There is an ISP switch located on the side of the product. This button is for changing the
mode to the ISP mode. If you press it over a second or supply power while pressing it, CIEH12A will be operated as the ISP mode. In this mode, you can download the firmware file
or HTML files.
Figure 1-12 ISP switch
In the ISP mode, you are allowed to reset a password or cancel access restriction. Use
these modes when you are faced with the problems.
CIE-H12A User Manual Ver. 1.0
- 13 -
https://www.ezTCP.com
2 Installation and Test
2.1 Installation
In this section, we explain the way of CIE-H12A operation through a test. Basically, its
input and output ports are independently used. Thus, you can use either the input ports
only for monitoring or the output ports only for control. However, you can also correlatively
use those ports by using the MACRO mode on the output ports.
Before testing CIE-H12A, you should connect the Ethernet port to a PC. It will be no
problem if the Ethernet connection is established through network hubs.
Figure 2-1 the connection between CIE-H12A and a PC
2.1.1 Setting Network Aera
This step is for setting both CIE-H12A and your PC to be located on the same network to
establish a TCP connection.
⚫ Setting of the PC
Add or change the IP address of the network adapter on your PC.
Click [Windows Control Panel] >> [Network Connections] and right click of your
mouse to get into [Properties of the Network Adapter], then you will see the
properties of [Internet Protocol (TCP/IP)]. Press the [Advanced Menu] button and add
an IP Address as shown below.
Figure 2-2 adding / changing an IP address
CIE-H12A User Manual Ver. 1.0
- 14 -
https://www.ezTCP.com
⚫ Setting of CIE-H12A
ezManager is the management tool for configuration of CIE-H12A. This application is
only for MS Windows and this is comfortable to use because it does not need
installation process.
First, search your CIE-H12A via network. All the values of parameters are set to the
default values in the factory. To apply it to your system, proper values should be set
via ezManager.
Default values of some major parameters are listed on the table below. To do the
following simple test, keep these values during the test.
Parameters
Values
Network
Local IP Address
10.1.0.1
Subnet Mask
255.0.0.0
Option
Telnet
Checked
IP Address Search
Checked
I/O Port
Web (HTTP)
Checked
Web (HTTP) Port
80
Modbus/TCP
Checked
Master/Slave
Slave
Connection Mode
Passive Connection
Multiple Connection
1
Local Port
502
Table 2-1 default values of some major parameters
You can download the latest version of ezManager on the [Download] >> [Utility] page
on our website.
CIE-H12A User Manual Ver. 1.0
- 15 -
https://www.ezTCP.com
2.2 Test operation
2.2.1 Modbus/TCP Test
This is for checking the operation of Input and output ports of CIE-H12A via Modbus/TCP.
In this instruction, offered Modbus/TCP test program was used.
Run ezManager. Then, you can see the window as shown below.
Figure 2-3 Modbus/TCP test program of the ezManager
① Search connected CIE-H12A with [Search All] button.
② Select a MAC address of searched product on the [search result].
③ Check the [Advanced Menu] option.
④ Press the [Modbus/TCP] button.
⑤ The test program will appear on the right side of the ezManager
In the case of using previous versions of ezManager than 3.1F the test program is
shown automatically when you success in searching the product.
CIE-H12A User Manual Ver. 1.0
- 16 -
https://www.ezTCP.com
⚫ Modbus/TCP test
Figure 2-4 Modbus/TCP test
① Input the IP address of CIE-H12A
② Input the local port for Modbus/TCP of CIE-H12A
In a local area network, ① and ② steps can be omitted.
③ Try to connect by pressing [Connect] button
④ Then, check if the input LEDs are turned on or off with signal input
⑤ Check if the output LED is turned on or off with clicking the LEDs
⑥ Click the [Disconnect] button after the test is completed
CIE-H12A User Manual Ver. 1.0
- 17 -
https://www.ezTCP.com
2.2.2 HTTP Test with a WEB browser
This is for testing the operation of Input and output ports of CIE-H12A via HTTP. The test
was implemented on a WEB browser. You can use WEB browsers such as MS Internet
Explorer, Google Chrome and Mozilla Firefox.
Figure 2-5 HTTP test

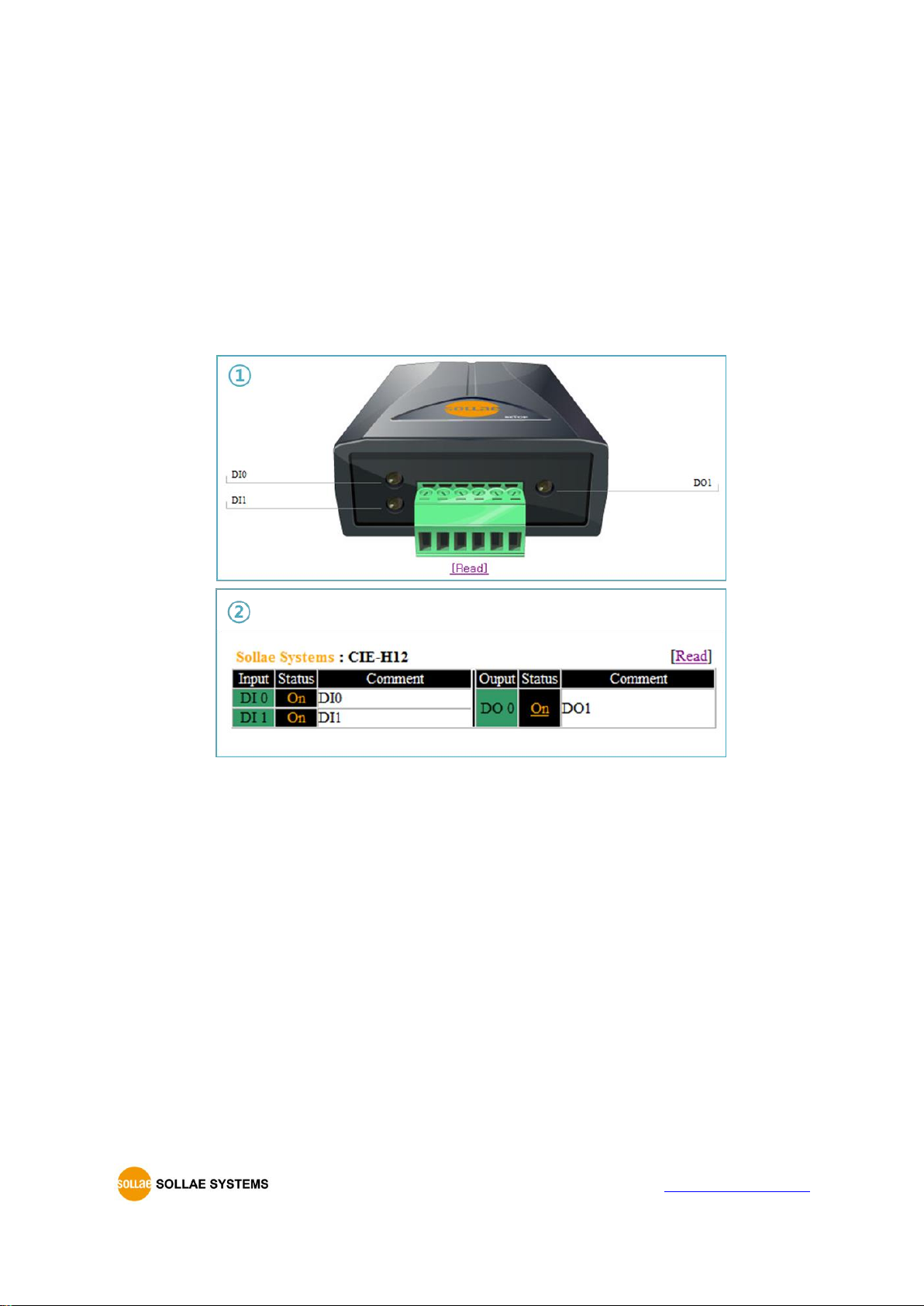

① Input the IP address of your CIE-H12A on the address field (Ex: 10.1.0.1).
② Check if the input LEDs are turned on or off with HIGH signal.
③ Check if the output LED is turned on or off with clicking the each of LEDs.
④ Press the [Read] button to update the status.
⚫ The way to control output ports manually
On/Off
Pulse
Parameter
o0 (Lower case)
p0 (Lower case)
Value
ON
OFF
Time (ms)
1 0 1~10000
Example
http://10.1.0.1/index.html?o0=1
http://10.1.0.1/index.html?p0=1000
Table 2-2 The way to control output ports manually
CIE-H12A User Manual Ver. 1.0
- 18 -
https://www.ezTCP.com
3 Configuration
3.1 Configuration with ezManager
Figure 3-1 initial appearance of ezManager
3.1.1 Configuration via LAN
⚫ Checklists
Make sure of the connection between your PC and CIE-H12A via Ethernet. If they are
in the same network, [MAC Address search] button can be used. Otherwise, only [IP
Address search] is allowed to use.
⚫ Procedures
Figure 3-2 procedures for configuration via LAN
CIE-H12A User Manual Ver. 1.0
- 19 -
https://www.ezTCP.com
4 Operation Modes
4.1 What is the Operation Mode?
Each of two operation modes are designed for specific purposes, and those are as
follows:
⚫ Normal mode
This mode is for normal data communication and has 3 communication modes.
Configuring parameters is also available in this mode.
⚫ ISP mode
This mode is for upgrading firmware and HTML files. In addition, you can set
environmental parameters even though the security options are activated. You can
also reset the security options.
4.2 How to change the mode to another
Figure 4-1 how to initiate each operation mode
① Push the function button over 1 second.
② Transfer a firmware via ezManager
CIE-H12A User Manual Ver. 1.0
- 20 -
https://www.ezTCP.com
4.3 Comparison of the each mode
The following table shows summaries of each mode.
Name
Entering
Normal
Supply the power.
ISP
Supply the power with pressing the ISP button or press the ISP
button over 1 sec in other modes.
Table 4-1 comparison of the each mode
4.4 Normal Mode
In normal mode, there are 3 types of ways to monitor and control I/O.
Type
Description
Modbus/TCP
Control and monitor the I/O of CIE-H12A via Modbus/TCP.
It supports both master and slave mode.
Macro
Users can automatically control the output ports by setting MACRO
using some basic formula of Boolean Algebra. Users can not control
the output ports through HTTP or Modbus/TCP.
WEB(HTTP)
Users can monitor and control CIE-H12A via HTTP
Table 4-2 digital I/O control types
4.5 ISP mode

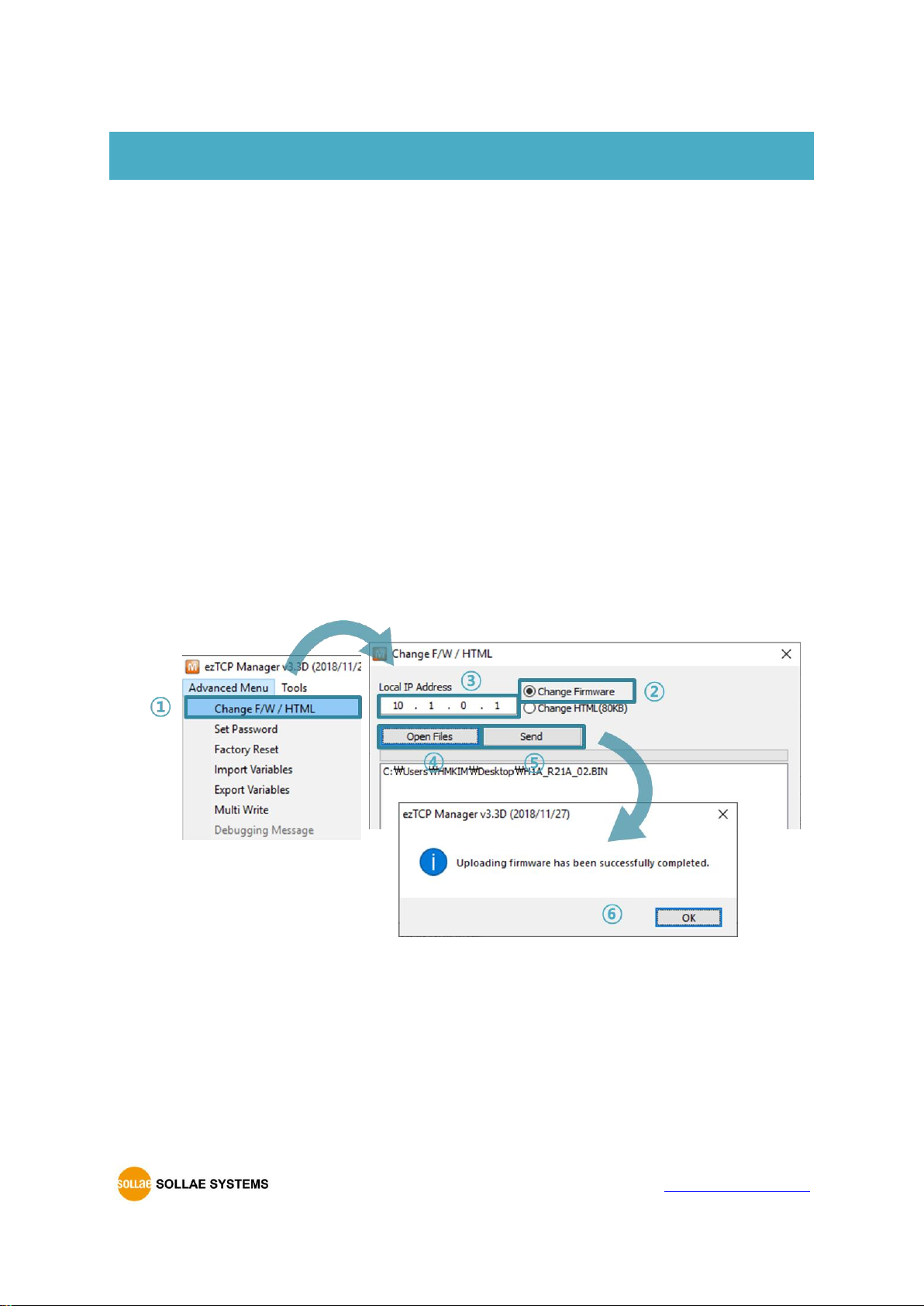

4.5.1 Upgrading Firmware
ISP mode is for upgrading firmware. Upgrading Firmware is implemented by ezManager.
For more details about this, please refer to the clause 6.1.
4.5.2 Upgrading HTML
ISP mode can also upgrade HTML files. For more details about this, please refer to the
clause 6.2.
4.5.3 Revoking Serurity Options
In the ISP mode, you can revoke all of these options like the serial configuration mode.
When you forget the password, enter this mode to change or delete it.
CIE-H12A User Manual Ver. 1.0
- 21 -
https://www.ezTCP.com
5 Methods for I/O control
5.1 MODBUS/TCP
CIE-H12A supports Modbus/TCP. By using this protocol, it remotely monitors and controls
I/O devices. To use this method, your application should support this protocol.
5.1.1 Related Parameters
Parameters
Descriptions
Modbus/TCP
Using Modbus/TCP for controlling I/O ports of CIE-H12A.
Slave
The slave responses by queries from the Master
Master
The Master sends queries to the slaves
Poll Interval
the period for sending queries (Unit: ms, Minimum value: 10)
Unit ID
ID for identifying the device or the pair of devices.
Input Port Base
Address
Initial address of the input ports
Output Port Base
Address
Initial address of the output ports
Passive Connection
waiting for accepting a Modbus/TCP connection
Active Connection
requesting a Modbus/TCP connection
Multiple Connection
The numbers for multiple Modbus/TCP connections.
Control Method of
(FC XX)
Control method for the output ports of the slave (Single /
Multiple)
Control Method of
(AND/OR)
Control method for the output ports of the master (AND / OR)
Peer Address
Peer’s IP address when CIE-H12A performs active connections
Peer Port
Peer’s local port when CIE-H12A performs active connections
Local Port
CIE-H12A’s local port when CIE-H12A performs passive mode.
Input Change
Notification
A function for immediate notification with changing the IP
address.
Initialize the output
port state
The Output port will be changed to the [Initial State] when
Modbus/TCP is disconnected. (Upper version 1.5A)
Macro
Applying macro function on the output port
Initial State
Output port value when CIE-H12A boots up.
Table 5-1 Related Parameters
We do not recommend changing the [Input Port Base Address] and [Output Port Base
Address] unless you need to.
CIE-H12A User Manual Ver. 1.0
- 22 -
https://www.ezTCP.com
5.1.2 Modbus/TCP Slave Mode
According to the standard Modbus/TCP, users can use a Modbus/TCP manager to control
and monitor their I/O devices. You can set CIE-H12A to the [Slave] item to [Slave] mode.
The [Passive] connection is recommended in this mode and the [Peer Port] should be 502.
Modbus/TCP Mode
Slave
TCP Connection
Passive
TCP Port
502
Table 5-2 values for standard Modbus/TCP
Configure the proper values of [Unit ID], [Input Port Base Address], and [Output Port Base
Address].
5.1.3 Modbus/TCP Master Mode
In this mode, CIE-H12A operates as a Modbus/TCP master. As a master CIE-H12A
transmits its input information to the salve and outputs the slave’s input value to its output
port after reading the value periodically. At this time, CIE-H12A controls the output ports
with not only bit unit (individually) but also word unit (at once)
⚫ FC 16(Multiple ports)
CIE-H12A controls the output ports and monitors the input ports of slaves with
WORD unit by FC16 (write multiple registers) and FC 03 (read holding registers)
⚫ FC 05(Single port)
CIE-H12A controls the output ports and monitors the input ports of slaves with BIT
unit by FC05 (write single coil) and FC02 (read discrete inputs).
CIE-H12A User Manual Ver. 1.0
- 23 -
https://www.ezTCP.com
5.1.4 TCP Connection Modes
In the standard of Modbus TCP, the master program makes a connection to the slave
using port number 502. However, sometimes Modbus/TCP devices try connecting to the
master actively. For this case, CIE-H12A supports the active connection mode.
The
passive
connection
- Standard Modbus/TCP.
- Remote host connects to CIE-H12A.
- Port number that is used for communication must be designated.
- Depending on the setting of multiple connections, up to 8 hosts
can be connected.
The active
connection
- CIE-H12A tries to establish a connection to the remote host.
- The IP address (or host name) and port number of the remote
host is required.
Table 5-3 the passive / active connection
5.1.5 Initial Output Value
The initial value of CIE-H12A’s output port can be configured. The output ports are set to
ON or OFF according to the value of [Initial State] at the boot time.
5.1.6 Write Pulse
By using the FC105, you can give the signal of pulse type to the output ports. This
means the output signal is kept during the specific time configured by users.
CIE-H12A User Manual Ver. 1.0
- 24 -
https://www.ezTCP.com
5.1.7 Communication with HMI
In case of communication HMI with CIE-H12A, please refer to the address table below.
CIE-H12A's default Input address is 0 and default Output address is 8.
Port
Bit/Word
R/W
Function Code
Default Modbus
Address
Default HMI Address
Di
Word
Read
03 0 40001
04
30001
Di0
Bit
Read
02 0 10001
03 0 40001.0
04
30001.0
Di1
Read
02 1 10002
03 0 40001.1
04
30001.1
Table 5-4 Digital input port address
Port
Bit/Word
R/W
Function Code
Default Modbus
Address
Default HMI Address
Do
Word
Read
03
8
40009
Write
06
16
Do0
Bit
Read
01
8
00009
Write
05
15
105
Read
03
8
40009.0
Write
06
16
Table 5-5 Digital output port address
Refer to the document [Modbus/TCP of ezTCP] on our website for details.
CIE-H12A User Manual Ver. 1.0
- 25 -
https://www.ezTCP.com
5.2 Macro Mode
This mode lets users set the values of the output ports with simple macros. Since CIEH12A reflects the values according to the macro expressions which are configured by users
in advance, it is useful to make a specific device operate automatically using signals from
various sensors. Check [Macro] options on ezManager to activate this mode.
While using the Macro mode, users can not control the output ports through
HTTP or Modbus/TCP.
5.2.1 Operator
The algorithm used in the Macro mode is Boolean algebra. In this case, the AND, OR,
NOT are used as operators. Parenthesis may also be used.
The operators are executed in order of precedence: parenthesis > NOT > AND > OR.
Each operator is represented by the following symbols.
Name
Sign
Description
Parenthesis
( )
Since calculations within the parenthesis have the
highest priority, they will be calculated first.
Nested parentheses are allowed.
NOT
/
An operand that follows a NOT operator is
toggled. (If an operand is 0, it will be changed to
1. If it is 1, it will be changed to 0.)
AND
*
If both operand values surrounding an AND
operator are 1, the result value will be 1. But if
otherwise, the result will be 0.
OR
+
If both operand values surrounding an OR
operator are 0, the result value will be 0. But if
otherwise, the result will be 1.
Table 5-6 the operators
5.2.2 Operand
Operands used in macro mode are each input port. Each input port is designated with i0
and i1 symbol based on their sequence. Since capital letters are not recognized, they can
also be written as I0 and I1.
The output ports could not be used as an operand.
CIE-H12A User Manual Ver. 1.0
- 26 -
https://www.ezTCP.com
5.2.3 An Example of Equations
Here are two examples. In the expressions, spaces between the two operands will be
ignored.
Input Port
Equations
Description
Do0-(A)
i0 + i1
Perform bit OR i0 and i1
Do0-(B)
/(i0 * i1)
Perform bit AND i0 and i1. Then, toggle the result
Table 5-7 an example of equation
The following is the output values coming out as a result of expressions of input values.
Input ports
Output port
i0
i1
Do0-(A)
Do0-(B)
0 0 0 1 0 1 1
1
1 0 1
1
1 1 1
0
Table 5-8 the logic table of the table 5-5
CIE-H12A User Manual Ver. 1.0
- 27 -
https://www.ezTCP.com
5.3 Monitoring and controlling on Web (HTTP)
After starting the web browser, type CIE-H12A’s IP address after typing http:// in the
address bar to connect to CIE-H12A.
If a password for CIE-H12A is set, the following window will be popped up.
Figure 5-1 authentication with a password
① [User name] is not required. Leave blank or put a random name.
② [Password] should be the same with a password which is set through the ezManager.
5.3.1 Changing port number for HTTP
In case you cannot use the port number 80(default port number for HTTP) because the
ISP (Internet Service Provider) blocks the port, you can change that port number.
Figure 5-2 changing port number for HTTP
① Change HTTP port number on CIE-H12A via ezManager
② Input the IP address of CIE-H12A along with the changed port number and “http://”
on a Web Browser
CIE-H12A User Manual Ver. 1.0
- 28 -
https://www.ezTCP.com
5.3.2 Uploading Users’ Webpage
This function is available to anyone who can make HTML files. If you get some simple
syntax, it is possible to monitor and control the I/O ports with your webpage made by
yourself.
⚫ Upgrading HTML files
CIE-H12A has a default webpage when it is manufactured in the factory. For
advanced users, we have been offering some examples (sample web pages) based on
various technologies such as CSS and J query.
Figure 5-3 examples of webpage
① Default image based / advanced CSS / Jquery
② Text based
For more information about the uploading Users’ Web pages, please refer to the
[Upload Users’ Homepage] document on our website for details.
CIE-H12A User Manual Ver. 1.0
- 29 -
https://www.ezTCP.com
6 System Management
6.1 Upgrading Firmware
6.1.1 Firmware
Firmware is a type of software for operation of CIE-H12A. If it is needed to add function
or fix bugs, the firmware will be modified and released. We recommend that users keep
using the latest released firmware.
6.1.2 Processes
⚫ Downloading the latest released firmware
Download the newest firmware file. We update our homepage when a new firmware
is released. You can find it on our website.
⚫ Entering ISP mode
Enter ISP mode to download firmware file to CIE-H12A.
⚫ Run a TFTP client and ready to send the F/W file
Run a TFTP client program. ezManager is equipped with the client program. Click the
[Advanced Menu] - [Change F/W / HTML] button.
Figure 6-1 running TFTP client
① Click [Advanced Menu] – [Change F/W /HTML] menu to run TFTP client.
② Select the [Change Firmware] radio button.
③ Input the IP address of CIE-H12A to the [Local IP Address] text box.
④ Press the [Open Firmware / HTML] button and choose the firmware file.
⑤ Click the [Send] button
⑥ Confirm the completed message
CIE-H12A User Manual Ver. 1.0
- 30 -
https://www.ezTCP.com
6.2 Changing Homepage
6.2.1 Webpage
CIE-H12A comes preloaded with a webpage to facilitate control and monitoring through
HTTP.
6.2.2 Processes
⚫ Making Users‘ homepage or Downloading sample files
Make your own homepage file or use sample homepage files freely available to
download at our web site.
⚫ Entering ISP mode
Enter ISP mode to send HTML files to CIE-H12A.

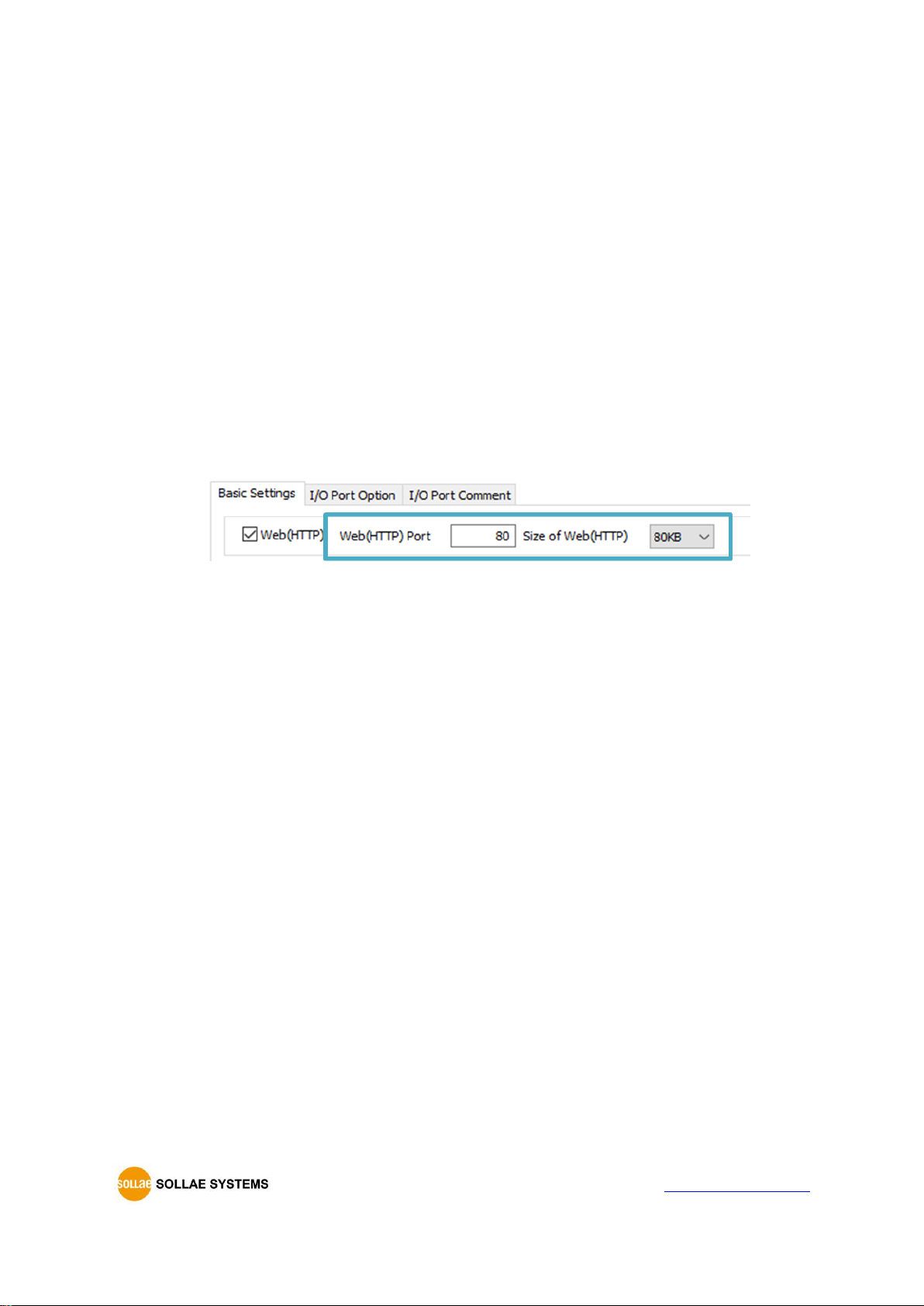

⚫ Writing Web(HTTP) port number and selecting size of Web(HTTP)
Figure 6-2 Web Basic Settings
80KB or 96KB for the Size of Web(HTTP) is allowed.
CIE-H12A User Manual Ver. 1.0
- 31 -
https://www.ezTCP.com
⚫ Running a TFTP client and ready to send the HTML files
Run a TFTP client program. ezManager is equipped with the client program. Click the
[Advanced Menu] - [Change F/W / HTML] button.
Figure 6-3 running TFTP client
① Click [Advanced Menu] – [Change F/W /HTML] menu to run TFTP client.
② Select the [Change HTML] radio button.
③ Input the IP address of CIE-H12A to the [Local IP Address] text box.
④ Press the [Open Files] button and choose the HTML files.
⑤ Click the [Send] button.
⑥ Confirm the completed message.
CIE-H12A User Manual Ver. 1.0
- 32 -
https://www.ezTCP.com
6.3 Status Monitoring
6.3.1 Using TELNET
Once the [TELNET] option is activated, users can remotely log in to CIE-H12A. If a
password is set, users should input the password.
After that, messages from CIE-H12A appear as shown in the figure below.
☞ the default password is "sollae".
Figure 6-4 Telnet log in (Command Prompt)
CIE-H12A User Manual Ver. 1.0
- 33 -
https://www.ezTCP.com
Figure 6-5 Telnet log in (ezManager)
You can check multiple states with the following commands.
command
option
description
usage
st
net
Network Status
lsh>st net
uptime
System Uptime
lsh>st uptime
sc
[OP1][OP2]
Session Control
lsh>sc com1 close
exit
Telnet Session Exit
lsh>exit
Table 6-1 Commands for checking states
CIE-H12A User Manual Ver. 1.0
- 34 -
https://www.ezTCP.com
⚫ st net
“st net” command displays the current network states of all sessions.
Figure 6-6 “st net” command
⚫ st uptime
“st uptime” command shows amount of time since CIE-H12A has booted up.
Figure 6-7 “st uptime” command
⚫ sc
“sc” command is used when users close a session. [OP1] means the name of session,
and [OP2] should be “CLOSE”.
Figure 6-8 “sc” command
Lower-case letters are only allowed to use “sc” command.
⚫ exit
“exit” command is used when users close Telnet session.
Figure 6-9 “exit” command
CIE-H12A User Manual Ver. 1.0
- 35 -
https://www.ezTCP.com
6.3.2 Checking status by ezManager
Status of CIE-H12A can be monitored by [Status] button on ezManager. By using the
[Refresh Every 1 Second] option in the status window, the status is automatically updated in
every second.
Figure 6-10 status window of ezManager
⚫ FIRMWARE VERSION
The name of model and the version of firmware are displayed here.
⚫ SYSTEM UPTIME
Operating time of CIE-H12A is displayed since it boots up.
⚫ IP4 NETWORK INFORMATION
All information about related items with IP Address including the MAC address is
shown here. It works even if the IP address is assigned from DHCP.
CIE-H12A User Manual Ver. 1.0
- 36 -
https://www.ezTCP.com
⚫ TCP STATE
TCP status of each port is shown in this section.
message
description
LISTEN
waiting for requests of a TCP connection
CLOSE
a TCP connection is closed
SYN_SENT
send “SYN” segment to make a TCP connection
ESTABLISHED
When a TCP connection is established
N/A
Not Available
Table 6-2 TCP STATE
⚫ I/O PORT STATUS
This represents I/O ports’ status. ‘1’ means HIGH(ON) and ‘0’ means LOW(OFF).
⚫ ARP TABLE
This part shows ARP table on CIE-H12A. When a TCP connection is established or
UDP data communication is performed, the information of IP and MAC address is
automatically stored in the ARP table. This information is held for 1 minute. If there is
no data communication for 1 minute, the information will be removed.
⚫ Notify Ports Change (IOTRAP STATE)
This part shows E-mail address what you entered, when you use the function [Notify
Input or Output Port Change].
⚫ TCP/IP Connection
In this section, the same information with TCP STATE is displayed with IP address and
port number. A difference is that users can terminate a TCP connection. When right
click on a session, a small pop-up window is created.
⚫ Password
This text box is activated when CIE-H12A has a password. If users want to close the
TCP connection, this password has to be correctly filled.
⚫ Refresh Every 1 Second.
If this option is checked, ezManager sends query in every second.
CIE-H12A User Manual Ver. 1.0
- 37 -
https://www.ezTCP.com
7 Additional Functions
7.1 Security
7.1.1 Restriction of Access (ezTCP Firewall)
On the [Option] tab of ezManager, users can set restriction of access function with
filtering MAC and IP address.
⚫ Allowed MAC Address
If this option has a value of MAC address, the device which has the MAC address is
only permitted to access.
⚫ Allowed IP Address
This is to define hosts with IP address or range of IP address allowed to access. The
range is defined by multiplying [IP address] and [Network Mask] in bit unit.
⚫ Examples
IP address
network mask
allowed IP address range
10.1.0.1
255.0.0.0
10.1.0.1 ∼ 10.255.255.254
10.1.0.1
255.255.255.0
10.1.0.1 ∼ 10.1.0.254
192.168.1.4
255.255.255.255
192.168.1.4
Table 7-1 examples of defining allowed IP range
⚫ Apply to ezManager
[Apply to ezManager] is for applying above two restrictions to ezManager functions
like [Search], [Read], [Write], etc.
7.1.2 Setting Password
A password can be used to protect CIE-H12A from TELNET login or changing
environmental parameters by hosts who are not designated. The maximum length is 8
bytes of Alphabet or number.
When you want to revoke all of these restrictions, change the mode of CIE-H12A to the
ISP mode. All restrictions are removable and communication with ezManager is
revoked in the ISP mode.
CIE-H12A User Manual Ver. 1.0
- 38 -
https://www.ezTCP.com
7.2 Option Tab Functions
7.2.1 Notify IP Change
CIE-H12A can be a TCP server even though it is assigned the IP address automatically.
Using [Notify IP Change] function, it sends its IP address with the host name to the specific
server. There are 3 types of functions provided: DDNS, TCP and UDP.
⚫ Dynamic Domain Name Service (DDNS)
CIE-H12A supports DDNS function offered by DynDNS to manage its changed IP
address as a host name. Therefore, you have to make an account and create host
names on the website of DynDNS before use this.
All about service usage of an account could be changed according to the policy of
DynDNS.
Homepage of DynDNS: http://dyn.com/dns/
Figure 7-1 setting DDNS
① Select the [DDNS (dyndns.org)] item.
② 40,320 is a fixed value.
③ Input the ID of DDNS account.
④ Input the password of the account.
⑤ Input one of the host names which you created on your account.
⚫ TCP/UDP
In case you have an own server and want to manage the information about changed
IP addresses, you are allowed to use TCP/UDP for using this option. The [Data Type]
can be selected as ASCII or hexadecimal, and the [Interval] is available on
configuration.
Refer to the document [Notify IP Change] on our website for details.
CIE-H12A User Manual Ver. 1.0
- 39 -
https://www.ezTCP.com
7.2.2 Debugging Message
By using [Debugging] option, users can receive debugging messages from CIE-H12A on
the network.
When you are facing a problem about the TCP connection or data communication, use
this function and send us the stored file. We can use it for finding out the reason of
your problem.
Debugging messages are broadcasted to entire network via UDP so it might cause
serious network traffic. Remember you should turn the option off after using it.
⚫ Setting debugging option
Figure 7-2 setting debugging option
① Check the [Debugging Message] option
② Press the [Write] button
③ After checking the [Advanced Menu], click the [Debugging Message] button. And
then, the debugging message window appears on your screen as shown below.
CIE-H12A User Manual Ver. 1.0
- 40 -
https://www.ezTCP.com
Figure 7-3 debugging message window
① Pull down menu for selecting a network adapter.
② Place for showing received debugging messages from CIE-H12A over the
network.
③ Auto update to display the latest captured file on the screen of ②.
④ MAC Address Information of a selected message.
⑤ ~ ⑪ Unavailable.
ⓐ To start capturing debugging messages from CIE-H12A.
ⓑ To stop capturing debugging messages from CIE-H12A.
ⓒ Unavailable.
ⓓ [Load Message] is for loading a debugging log file to display.
ⓔ Closing debugging message window.
CIE-H12A User Manual Ver. 1.0
- 41 -
https://www.ezTCP.com
7.3 I/O Tab Functions
7.3.1 Notify Input or Output Port Change
When input or output port is changed, you can receive an email for notification from
CIE-H12A using SMTP protocol. When ports you selected are changed, status of CIE-H12A
is sent to the Email address you entered.

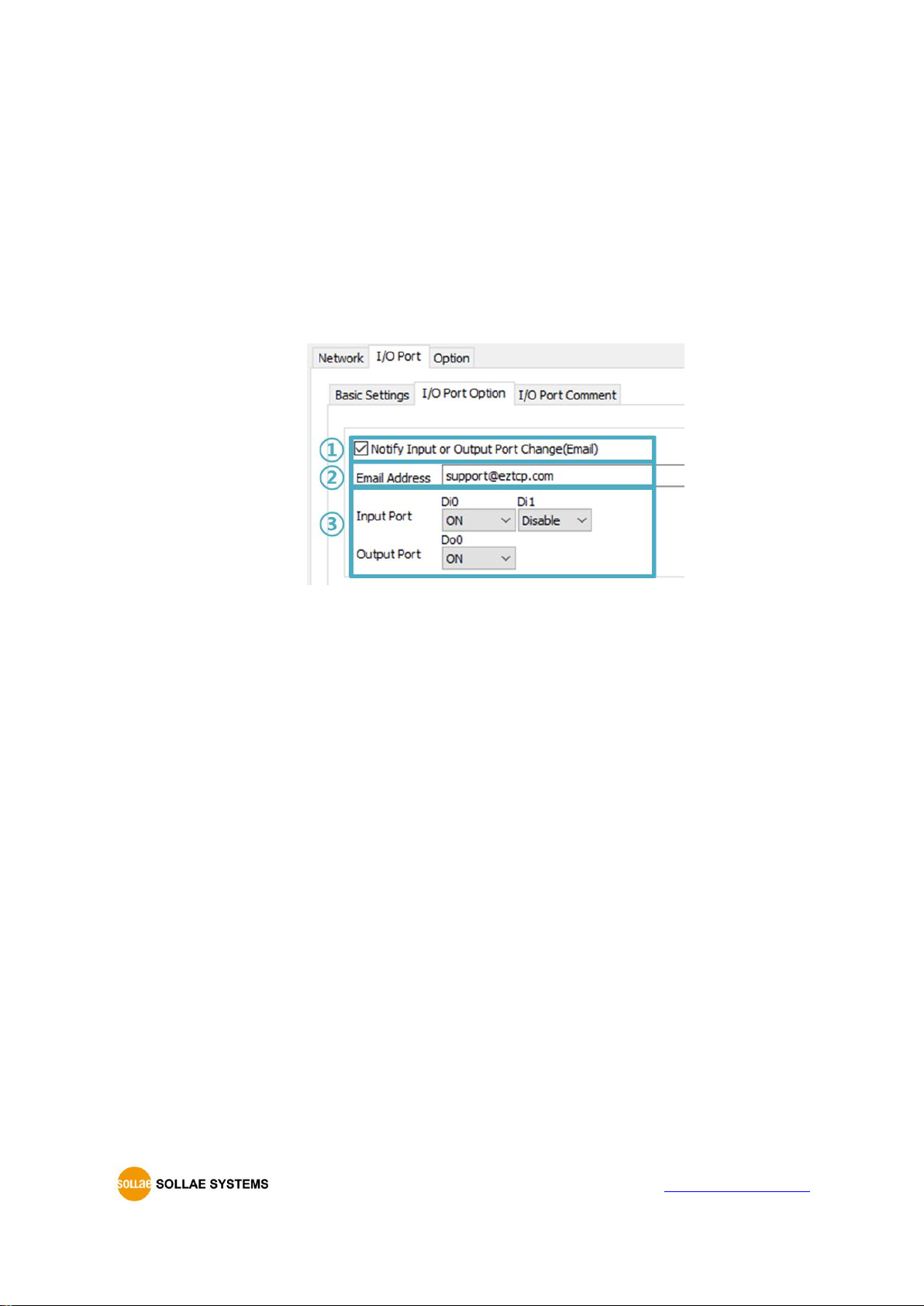

⚫ Setting E-mail notification option
Figure 7-4 Notify Input or Output Port Change
① Check Notify Input or Output port change(Email)
② Enter your Email address
③ Select input and output ports
When an event is triggered, CIE-H12A keeps trying to send E-mails until it
succeeds although they are not sent for a reason.
CIE-H12A User Manual Ver. 1.0
- 42 -
https://www.ezTCP.com
Figure 7-5 I/O port status notification email
CIE-H12A User Manual Ver. 1.0
- 43 -
https://www.ezTCP.com
7.3.2 Valid Time
CIE-H12A only recognizes signals of the input ports as the valid signals when the signal
lasts for the [Valid Time]. If the signals are not maintained for the [Valid Time], the input
signals will be ignored. The unit used for the [Valid Time] is 1ms. However, because the
accuracy is only guaranteed in 10ms, the designated values are rounded down in units of
10ms.
7.3.3 Delay
Output values are reflected to CIE-H12A’s output ports later than the time set to [Delay].
For example, if [Delay] is set to ‘0’, the output values are reflected to the output ports
immediately. Although it is allowed to set the values in 1ms, it is accurate to 10ms, rounded
down.)
If the timer for the [Delay] is already running, all the subsequent orders for giving
signals to the output ports are ignored.
7.4 Internet Switch
As one of the control methods, all of our digital I/O controllers support Modbus/TCP.
According to the standard of this protocol, a system is composed of master and slave.
Our controllers support both master and slave modes, so you can make various systems
such as 1:1 or 1:N by combining some of the products.
You can make a system that transfers input information through the TCP/IP network and
outputs the value. This function is called as “Internet Switch”.
Refer to the [Internet Switch], [Combinations of digital I/O Controllers] documents on
our web site for details.
CIE-H12A User Manual Ver. 1.0
- 44 -
https://www.ezTCP.com
8 Self-Test in Trouble
When users are in trouble with using CIE-H12A, make sure of the following steps first.
8.1 Searching problem with ezManager
⚫ Confirming types of configuration utility
CIE-H12A can be configured by ezManager.
⚫ Cancelling the Firewall operation
In case of being blocked by firewalls of a personal computer or network block, you
must cancel all the firewalls before searching CIE-H12A.
Most of vaccine programs have firewall functions so it can cause some trouble to
search CIE-H12A. Close or pause these programs before searching the product.
⚫ Stable supply of the power
Check if the power is supplied continually. If the power is constantly supplied, the LED
on RJ45(Orange) of CIE-H12A blinks slowly.
⚫ Connection with the network
Make sure that the network connection is fine including Ethernet cable. In this step,
we recommend that users connect CIE-H12A with PC directly or in the same network
hub.
⚫ Checking options of restriction
In case that restriction of access is activated, the communication with ezManager will
be unavailable. When users are in this situation, make CIE-H12A operate in ISP mode.
CIE-H12A User Manual Ver. 1.0
- 45 -
https://www.ezTCP.com
8.2 Connection Problem over Modbus/TCP
⚫ Checking parameters related with TCP/IP
When CIE-H12A has a private network IP address, personal computer’s IP address has
to be on the same sub network. Check if the IP address and local port number are
correct. In case of a fixed IP address, the subnet mask, gateway IP address and DNS
IP address should be configured.
Table 8-1 major parameters related with Modbus/TCP
Slave or Master
Local IP Address, the connection mode (Active / Passive), Peer Address and Peer
Port, Subnet Mask, Gateway IP Address, DNS IP Address, DDNS option and etc.
⚫ PING Test
Confirm the connection over the network by PING test. If CIE-H12A does not send
any reply from the request, check the network environment.
⚫ Firewall
In case the networks which need strong security, the access may be denied by their
firewall. Under this circumstance, users should ask the person in charge of their
network to release ports which will be used. (Ex: TCP 502, UDP 50005)
⚫ Operation Mode
A TCP connection is not possible when CIE-H12A is operating in the ISP or Serial
Configuration mode.
⚫ Connection Mode
To make a TCP connection, both a server (passive mode) and a client (active mode)
should exist. If there are only servers or clients, the TCP connection cannot be
established.
⚫ ezTCP Firewall
When users set the ezTCP firewall with MAC and IP address, any hosts cannot be
reachable to it except for the hosts who have the allowed MAC and IP address.
Inactivate the option or check the setting is correct.
⚫ Checking the TCP status
TCP is a protocol connected one to one without multiple connections function except
for using the Multiple-connection. Because of this, if a device is on a TCP connection,
other requests are denied. If users are in this situation, check the network status by
connecting on TELNET or using ezManager.
CIE-H12A User Manual Ver. 1.0
- 46 -
https://www.ezTCP.com
8.3 Communication Problem over Modbus/TCP
⚫ Checking Modbus/TCP parameters
Check all the related parameters that [Unit ID], [Input Port Base Address], [Output
Port Base Address], [Poll Interval] and [Notify Input change].
⚫ Checking which mode is using
In case of MACRO or serialized Modbus/TCP, you can control the outputs of CIE-H12A.
Turn the mode off if those modes are using.
Contact us if you have any questions about above steps or our products.
CIE-H12A User Manual Ver. 1.0
- 47 -
https://www.ezTCP.com
9 Related material
9.1 Technical Documents
You can find the following technical documents at our website.
⚫ Datasheet
⚫ Modbus/TCP of ezTCP
⚫ Combinations of I/O Controllers
⚫ Digital Pulse Output
⚫ IP Change Notification (DDNS)
⚫ Modmap Users’ manual
⚫ etc
9.2 Smart phone application
⚫ ezManager (iOS)
⚫ TCP Console (iOS)
⚫ TCP/IP Client (for Android)
⚫ ModMap (for Android)
CIE-H12A User Manual Ver. 1.0
- 48 -
https://www.ezTCP.com
10 Technical Support and Warranty
10.1 Technical Support
If you have any question regarding operation of the product, visit Customer Support FAQ
corner and the message board on Sollae Systems’ web site or send us an email at the
following address:
⚫ E-mail: support@eztcp.com
⚫ Website Address for Customer Support: http://www.eztcp.com/en/support/
10.2 Warranty
10.2.1 Refund
Upon the customer’s request to refund the product within two weeks after purchase,
Sollae Systems will refund the product.
10.2.2 Free Repair Services
For product failures occurring within 2 years after purchase, Sollae Systems provides free
repair services or exchange the product. However, if the product failure is due to user’s
fault, repair service fees will be charged or the product will be replaced at user’s expense.
10.2.3 Charged Repair Services
For product failures occurring after the warranty period (2 years) or resulting from user’s
fault, repair service fees will be charged and the product will be replaced at user’s expense.
CIE-H12A User Manual Ver. 1.0
- 49 -
https://www.ezTCP.com
11 Precaution and Exemption from Liability
11.1 Precaution
⚫ Sollae Systems is not responsible for product failures occurring due to user’s
alternation of the product.
⚫ Specifications of the product are subject to change without prior notice for
performance improvement.
⚫ Sollae Systems does not guarantee successful operation of the product if the
product was used under conditions deviating from the product specifications.
⚫ Reverse engineering of firmware and applications provided by Sollae Systems is
prohibited.
⚫ Use of firmware and applications provided by Sollae Systems for purposes other
than those for which they were designed is prohibited.
⚫ Do not use the product in an extremely cold or hot place or in a place where
vibration is severe.
⚫ Do not use the product in an environment in which humidity is high or a lot of oil
exists.
⚫ Do not use the product where there is caustic or combustible gas.
⚫ Sollae Systems does not guarantee normal operation of the product under the
conditions a lot of noise exists.
⚫ Do not use the product for a purpose that requires exceptional quality and
reliability relating to user’s injuries or accidents – aerospace, aviation, health care,
nuclear power, transportation, and safety purposes.
⚫ Sollae Systems is not responsible for any accident or damage occurring while using
the product.
CIE-H12A User Manual Ver. 1.0
- 50 -
https://www.ezTCP.com
11.2 Exemption from Liability
11.2.1 English version
In no event shall Sollae Systems Co., Ltd. and its distributors be liable for any damages
whatsoever (including, without limitation, damages for loss of profit, operating cost for
commercial interruption, loss of information, or any other financial loss) from the use or
inability to use the CIE-H12A even if Sollae Systems Co., Ltd. or its distributors have been
informed of such damages.
The CIE-H12A is not designed and not authorized for use in military applications, in
nuclear applications, in airport applications or for use in applications involving explosives,
or in medical applications, or for use in security alarm, or for use in a fire alarm, or in
applications involving elevators, or in embedded applications in vehicles such as but not
limited to cars, planes, trucks, boats, aircraft, helicopters, etc..
In the same way, the CIE-H12A is not designed, or intended, or authorized to test,
develop, or be built into applications where failure could create a dangerous situation that
may result in financial losses, damage to property, personal injury, or the death of people
or animals. If you use the CIE-H12A voluntarily or involuntarily for such unauthorized
applications, you agree to subtract Sollae Systems Co., Ltd. and its distributors from all
liability for any claim for compensation.
Sollae Systems Co., Ltd. and its distributors entire liability and your exclusive remedy shall
be Sollae Systems Co., Ltd. and its distributors option for the return of the price paid for, or
repair, or replacement of the CIE-H12A.
Sollae Systems Co., Ltd. and its distributors disclaim all other warranties, either expressed
or implied, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose, with respect to the CIE-H12A including accompanying
written material, hardware and firmware.
11.2.2 French version
⚫ Documentation
La documentation du boîtier CIE-H12A est conçue avec la plus grande attention. Tous les
efforts ont été mis en œuvre pour éviter les anomalies. Toutefois, nous ne pouvons garantir
que cette documentation soit à 100% exempt de toute erreur. Les informations présentes
dans cette documentation sont données à titre indicatif. Les caractéristiques techniques
peuvent changer à tout moment sans aucun préavis dans le but d'améliorer la qualité et les
CIE-H12A User Manual Ver. 1.0
- 51 -
https://www.ezTCP.com
possibilités des produits.
⚫ Copyright et appellations commerciales
Toutes les marques, les procédés, les références et les appellations commerciales des
produits cités dans la documentation appartiennent à leur propriétaire et Fabricant respectif.
⚫ Conditions d’utilisations et limite de responsabilité
En aucun cas Sollae Systems Co., Ltd. ou un de ses distributeurs ne pourra être tenu
responsable de dommages quels qu'ils soient (intégrant, mais sans limitation, les
dommages pour perte de bénéfice commercial, interruption d'exploitation commerciale,
perte d’informations et de données à caractère commercial ou de toute autre perte
financière) provenant de l'utilisation ou de l'incapacité à pouvoir utiliser le boîtier CIE-H12A,
même si Sollae Systems Co., Ltd. ou un de ses distributeurs a été informé de la possibilité
de tels dommages.
Le boîtier CIE-H12A est exclusivement prévu pour un usage en intérieur, dans un
environnement sec, tempéré (+10 °C à +40°C) et non poussiéreux. Le boîtier CIE-H12A n’est
pas prévu, ni autorisé pour être utilisé en extérieur, ni de façon embarquée dans des engins
mobiles de quelque nature que ce soit (voiture, camion, train, avion, etc…), ni en milieu
explosif, ni dans des enceintes nucléaires, ni dans des ascenseurs, ni dans des aéroports, ni
dans des enceintes hospitaliers, ni pour des applications à caractère médical, ni dans des
dispositifs de détection et d’alerte anti-intrusion, ni dans des dispositifs de détection et
d’alerte anti-incendie, ni dans des dispositifs d’alarme GTC, ni pour des applications
militaires.
De même, le boîtier CIE-H12A n’est pas conçu, ni destiné, ni autorisé pour expérimenter,
développer ou être intégré au sein d’applications dans lesquelles une défaillance de celui-ci
pourrait créer une situation dangereuse pouvant entraîner des pertes financières, des
dégâts matériel, des blessures corporelles ou la mort de personnes ou d’animaux. Si vous
utilisez le boîtier CIE-H12A volontairement ou involontairement pour de telles applications
non autorisées, vous vous engagez à soustraire Sollae Systems Co., Ltd. et ses distributeurs
de toute responsabilité et de toute demande de dédommagement.
En cas de litige, l'entière responsabilité de Sollae Systems Co., Ltd. et de ses distributeurs
vis-à-vis de votre recours durant la période de garantie se limitera exclusivement selon le
choix de Sollae Systems Co., Ltd. et de ses distributeurs au remboursement de votre
produit ou de sa réparation ou de son échange. Sollae Systems Co., Ltd. et ses distributeurs
CIE-H12A User Manual Ver. 1.0
- 52 -
https://www.ezTCP.com
démentent toutes autres garanties, exprimées ou implicites.
Tous les boîtiers CIE-H12A sont testés avant expédition. Toute utilisation en dehors des
spécifications et limites indiquées dans cette documentation ainsi que les court-circuit, les
chocs, les utilisations non autorisées, pourront affecter la fiabilité, créer des
dysfonctionnements et/ou la destruction du boîtier CIE-H12A sans que la responsabilité de
Sollae Systems Co., Ltd. et de ses distributeurs ne puissent être mise en cause, ni que le
boîtier CIE-H12A puisse être échangé au titre de la garantie.
⚫ Rappel sur l’évacuation des équipements électroniques usagés
Le symbole de la poubelle barré présent sur le boîtier CIE-H12A indique que vous ne
pouvez pas vous débarrasser de ce dernier de la même façon que vos déchets courants.
Au contraire, vous êtes responsable de l’évacuation du boîtier CIE-H12A lorsqu’il arrive
en fin de vie (ou qu’il est hors d’usage) et à cet effet, vous êtes tenu de le remettre à un
point de collecte agréé pour le recyclage des équipements électriques et électroniques
usagés. Le tri, l’évacuation et le recyclage séparés de vos équipements usagés permettent
de préserver les ressources naturelles et de s’assurer que ces équipements sont recyclés
dans le respect de la santé humaine et de l’environnement. Pour plus d’informations sur les
lieux de collecte des équipements électroniques usagés, contacter votre mairie ou votre
service local de traitement des déchets.
CIE-H12A User Manual Ver. 1.0
- 53 -
https://www.ezTCP.com
12 History
Data
Version
Comments
Author
2019.07.02
1.0
○ Initial release
Amy Kim
Loading...
