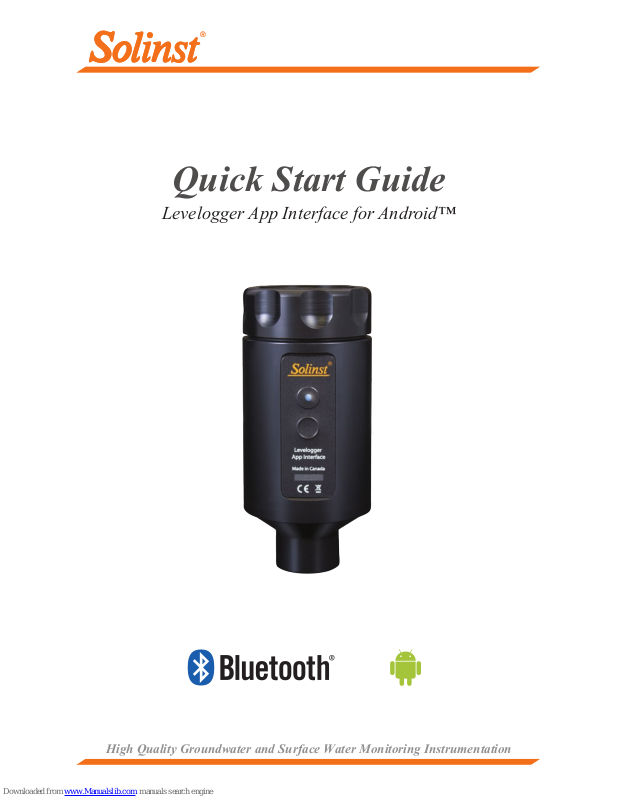

Levelogger App Interface for Android™
Introduction
The Levelogger® App Interface uses Bluetooth® wireless
technology to connect a Solinst datalogger to an Android™ smart
device running Android 4.4 or higher. Please see the list of tested
devices on the last page of this quick start guide.
Once the connection is made, you can use the Solinst Levelogger
App to interact with the datalogger. The Solinst Levelogger App
allows you to view real time data from the connected datalogger,
as well as view, download, and e-mail logged readings. You can
also program the dataloggers or apply a saved settings file.
The Levelogger App Interface works with the Levelogger Edge,
Barologger Edge, Levelogger Junior Edge, LTC Levelogger
Junior, Rainlogger Edge, and AquaVent, as well as the older
Levelogger Gold, Barologger Gold, Levelogger Junior, and
Rainlogger dataloggers.
Levelogger App Interface
Connection
The Levelogger App Interface connects to the top end of a
Levelogger’s Direct Read Cable or Adaptor, or to an AquaVent
Wellhead Connector Cable.
To connect the App Interface to a Direct Read/Connector Cable,
simply hold onto the top end of the Direct Read/Connector Cable,
and thread the coupling of the Levelogger App Interface onto the
Direct Read/Connector Cable. This connection is designed to be
stable when the Direct Read Cable is installed in a Solinst 2" Well
Cap Assembly for Leveloggers.
To connect to the Direct Read to Optical Adaptor, thread the
Levelogger App Interface to the end of the Adaptor as described
above. Line-up the optical eyes and thread the other end of the
Adaptor onto the Levelogger. A slip fit version is also available.
Battery Access
Connection to
Direct Read/
Connector Cable
or Adaptor
Direct Read Cable with Levelogger
Direct Read to
Optical Adaptor
AquaVent Wellhead and
App Connector Cable
Levelogger App Interface Quick Start Guide
Batteries
The Levelogger App Interface operates using four 1.5V AA
replaceable lithium batteries (alkaline batteries can also be used).
To install or replace the batteries:
1) Unscrew the top cap of the Levelogger App Interface to access the
battery holder.
2) Slowly remove the battery holder from the Levelogger App Interface
housing.
3) Ensure proper installation (polarity) when replacing the batteries.
4) Insert the battery holder back into the Levelogger App Interface
housing. Ensure it is lined-up properly.
5) Screw the top cap of the Levelogger App Interface firmly back onto
the housing.
Power Button and LED Light
Press and hold the power button for 1 second to turn the
Levelogger App Interface on. Press and hold the power button
for 3 seconds to turn the Levelogger App Interface off. The App
Interface will automatically turn off after 10 minutes of inactivity.
The LED indicates the status of the Levelogger App Interface:
Green light flashing every second: Ready/waiting for a Bluetooth
connection to be made from your smartphone device.
Blue light flashing every 3 seconds: Bluetooth connected/device paired
(App is open).
Yellow light: Levelogger App Interface is turning off while the button
is held pressed.
Red light flashing every 10 seconds: Batteries are low, need replacing.
Using the Levelogger App & Interface
1) Download the Solinst Levelogger App for your smart device on
Google Play™.
2) Connect the Levelogger App Interface to the top end of your
Levelogger’s Direct Read Cable or Adaptor, or AquaVent Wellhead
Connector Cable. Press the power button to turn the App Interface on.
3) Enable (turn on) Bluetooth on your smart device by going to Settings
> Bluetooth. Scan for devices. Pair the Levelogger App Interface to
your smart device by selecting it from the list of Bluetooth devices.
4) Launch the Solinst Levelogger App and connect to your datalogger.
5) Once you are finished programming or downloading your datalogger,
disconnect the Levelogger App Interface, and connect to a datalogger
at your next monitoring location.
Power
Button
LED Light
Coupling
