Solid State Logic AWS V4 User Manual

AWS V4 Logictivity

Installation Guide

This booklet contains practical information for the safe installation of this apparatus. For operational information please refer to the User Guide.

AWS. This is SSL.

Contents

1. Exchanging the Monitor PROM

2. Enabling the AWS Logictivity features on your console

3. Install the latest AWS900 or AWS900+ software

4. Install the ipMIDI driver and Logictivity browser

5. Software Installation (Macintosh)

6. Software Installation (PC)

7. Make and configure the network connection

8. Direct Network Configuration (Macintosh)

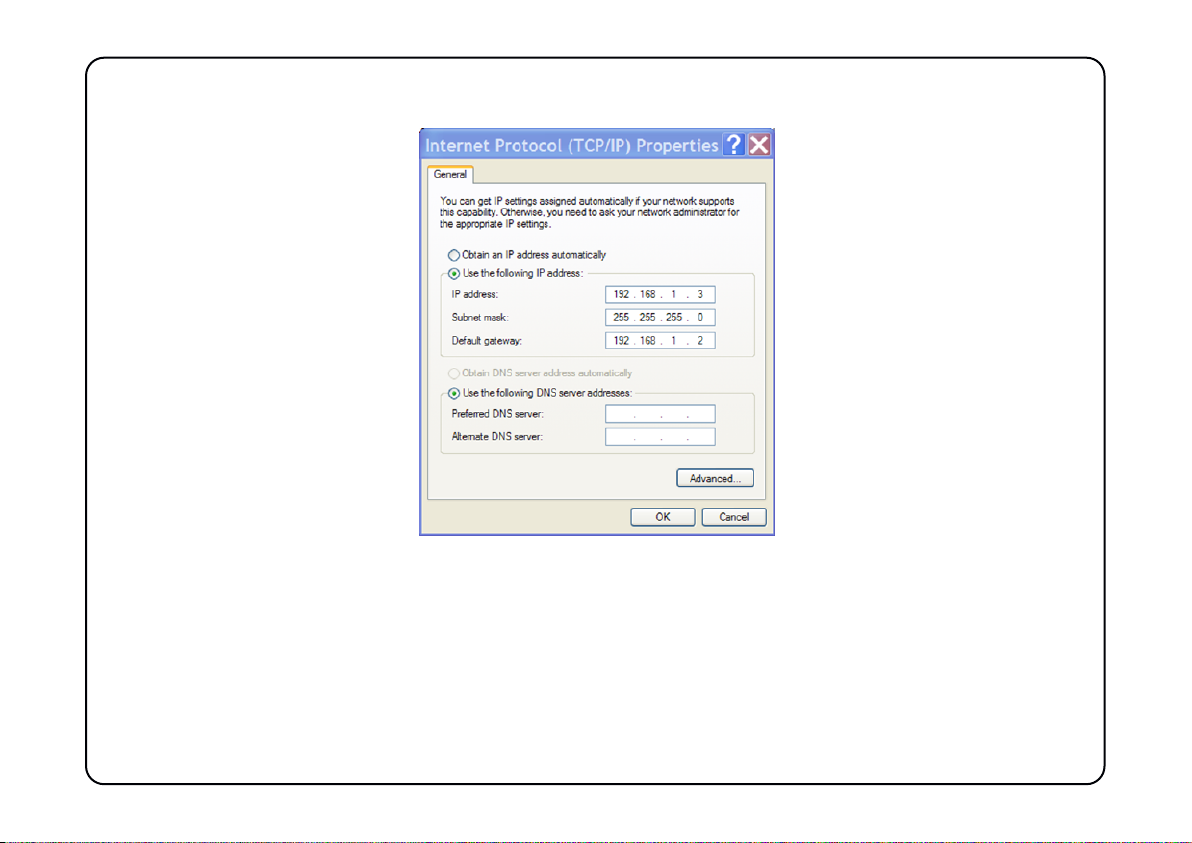

9. Direct Network Configuration (PC)

10. Enabling ipMIDI on your AWS

11. Finding the console using the AWS Remote application

12. Setting your workstation(s) to communicate via ipMIDI

13. Network troubleshooting

14. Larger Networks

15. Assigning the AWS900+ IP Address

16. SSL Logictivity Badge

17. Licence

Safety Considerations

This page contains definitions, warnings, and practical information to ensure a safe working environment.

Please take time to read this section before installing or using this unit. Please do not dispose of these instructions.

General Safety

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Do not expose this apparatus to rain or moisture.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

• Adjustments or alterations to this apparatus may affect the performance such that safety and/or international compliance standards may no longer be met.

• This apparatus is equipped with a headphone socket – excessive sound pressure from earphones and headphones can cause hearing loss.

Caution

• Hazardous voltages may be present inside this apparatus.

• Do not operate this apparatus with the covers removed.

• To reduce the risk of electric shock, do not perform any servicing other than that contained in these Installation Instructions unless you are qualified to do so. Refer all servicing to qualified service personnel and ensure that all power cords are disconnected when servicing this apparatus.

Power Safety

• Multiple power cords may be supplied with this unit – use only the power cord appropriate to your local power wiring. Alternative power cords may be used if rated 2.5A or above and fitted with a 3-pin IEC320 connector.

• An external over-current protection device is required to protect the wiring to this apparatus. This protection device must be installed according to current wiring regulations. In certain countries this function is supplied by use of a fused plug.

• If an extension power cable or adaptor is used, ensure that the total power rating of the power cable and/or adaptor is not exceeded.

• An external disconnect device is required for this apparatus. The appliance coupler is a suitable disconnect device. The appliance coupler shall remain readily operable.

• The power socket used for this apparatus should be located nearby and be easily accessible.

• Unplug this apparatus during an electrical storm or when unused for long periods of time.

• All power cords must be disconnected to isolate this apparatus completely.

Un-pack

There are two variants of the V4 Logictivity upgrade kit. One for the original AWS900 Classic Console and one for the AWS900+ Console. Depending on the model of console your V4 Logictivity Upgrade box should contain the following:

AWS900 Classic V4 Logictivity Upgrade Kit - SSL Pt No 70930SE3

1 off PLCC Removal Tool 1 off Programmed Monitor PROM 1 off V4 Software Licence Serial No 1 off Logictivity Licence Serial No 1 off Console SSL Logictivity Badge 1 off Upgrade Instructions — this document

AWS900+ V4 Logictivity Upgrade Kit - SSL Pt No 70930SE4

1 off V4 Software Licence Serial No 1 off Logictivity Licence Serial No 1 off Console SSL Logictivity Badge 1 off Upgrade Instructions — this document

To see the images shown in this booklet in full colour please visit the AWS Documention section of our website:

http://www.solidstatelogic.com/support/consoles/aws/documentation.asp

Introduction

Thank you for purchasing the AWS V4 Logictivity upgrade for your AWS console. After installation your system will benefit from the full range of AWS900+ SE V4 features. These include:

Logictivity browser allowing renaming of scribble strips, external sources, mixes, and TR setups as well as providing fast, reliable archiving and restoration of automation and TR setups over Ethernet.

Two switchable workstation layers with transport lock. A-FADA mode where motorised analogue faders follow DAW Automation data. Total Recall Autoscan and Autodetect. MIDI over Ethernet driver (ipMIDI). This driver eliminates the need for a remote MIDI interface between your AWS

console and workstation. AUTO CUE option for talkback, listen mic and red light switch. Monitor volume control calibration for film mixing and fine gain control options. Solo boost and Solo isolate. Seperate EFX and CHOP selection allows channel output to be sourced pre-fader while the EFX system feeds the

track busses to generate stereo headphone mixes. Single layer DAW mode allows two DAWs to be configured on the same layer, giving parallel access to both

machines.

IMPORTANT - PLEASE READ CAREFULLY

Before attempting the upgrade, please read these instructions in full to ensure that you have sufficient time, technical skills and the required crossover RJ45 network cable to complete the upgrade. If you would prefer an SSL technician to complete the upgrade, please contact your local SSL distributor or office.

1. Exchanging the Monitor PROM

The exchange of the CPU card’s Monitor PROM is only necessary on AWS 900 Classic consoles. The Monitor PROM on the AWS 900+ CPU already incorporates AWS Logictivity support.

The instructions on exchanging the Monitor PROM are intended for technically competent personnel. To reduce the risk of electric shock do not perform the upgrade unless you are competent to do so. If you would prefer an SSL technician to complete the upgrade, please contact your local SSL distributor or office.

Disconnect the power cord before removing any panels or modules.

Take basic antistatic precautions. Electrostatic discharge (ESD) can damage electronic components, even if you cannot feel, see, or hear it.

Please note that the console will not boot fully after the new Monitor PROM is installed. However, the console’s processor will boot into a basic download mode allowing the new SE Logictivity software to be transferred.

1) Grasp an exposed metal part of the AWS chassis with your bare hand to discharge any static charge you may have accumulated.

2) Unplug the mains power cord at the rear of the console. Wait 10 seconds to allow any residual charge in the console’s electronics to decay.

3) Working from the rear, using the Pozidrive screw driver supplied with the console, remove the four screws securing the top trim. Remove the top trim.

4) Using the Pozidrive screwdriver, remove the four screws securing meter panel 17-24 in position. Tilt the panel forward slightly and lift the panel out of its slot. Lay the panel onto channels 17-24. It is not necessary to unplug any of the meter panel’s connections.

5) On consoles shipped prior to the 3rd November 2005 (serial numbers AWS001 – 144 approximately) a screening plate covered the AWS900’s CPU card. Remove this screening plate taking care not to drop any screws into the console.

6) The AWS900’s CPU card will now be visible. With the help of the picture below locate the card’s Monitor PROM in PCB location CD.

7) Using the supplied PLCC IC puller, remove the existing PROM. Squeeze the tool to align its hooks with the slots in opposite corners of the socket. Insert the hooks fully, squeeze gently, and pull the IC straight out of the socket.

8) Note the key (angled corner) on the replacement Monitor PROM. Align the replacement PROM to match the key on the socket. Carefully ensure correct orientation of the IC then press in place. Excessive force should not be necessary.

9) Follow steps 3, 4 and 5 in reverse to reassemble the console.

10) Reconnect the mains power cord on switch on. The processor will now be in a download mode waiting for the AWS900 V4 software to be transferred via MIDI. The console will not boot fully until the new software is installed.

2. Enabling the AWS V4 Logictivity features on your console

1) Your update kit contains two licence strings, one for Logictivity and one for V4 software, both licences must be registered before downloading software.

2) Find the console’s serial number. The serial number label is located on the rear of the console adjacent to the mains power inlet connector. The serial number starts with the letters AWS followed by a three digit number. Make a note of the number for the registration process (e.g. if the serial number is AWS293, note 293).

3) If you have not registered your console on-line (or you have forgotten your username), complete the on-line registration:

http://update.solid-state-logic.com/update/public/newuser.jsp

4) Navigate to the on-line update page:

http://update.solid-state-logic.com/update/public/

Select the ‘Activate logictivity’ option. Enter your login details and when prompted, enter your Logictivity activation code and the numerical element of your console’s serial number previously noted.

5) Return to the on-line update page, select the ‘Activate V4’ option. When prompted, enter your V4 activation code and the numerical element of your console’s serial number previously noted.

Note: The activation code can only be used once. Please ensure that you enter the correct serial number.

3. Installing the V4 software update

1) After successfully activating both licences follow the link below and download the software .jar file, the release notes and either the Macintosh or Windows support files, as required. The software is packaged as a 3MB (approximately) Java archive file. The file format is compatible with both PC and Macintosh (OS X only) platforms.

http://update.solid-state-logic.com/update/public/downloadrelease.jsp

2) Check that your host computer has the correct version of Java installed.

PC users: Ensure that you have the latest version of Java installed (this can be downloaded from http://www.java.com).

Mac users: Java is included with OSX. Run your OSX Software Update to ensure that Java version 5 or above is installed on your Mac. You will also need a Java Library Extension which can be downloaded from http://www.mandolane.co.uk.

For Intel based Mac download Mandolane MIDI SPI. Open the downloaded zip file and drag the libMandoMidiJNILib.jar and libMandoMidiJNILib.jnilib files to your /Library/Java/Extensions folder.

Please note that Mandolane make a small charge for the library extension.

For Power PC based machines download Plumstone. Open the downloaded zip file and drag the plumstoneserv.jar file to your /Library/Java/Extensions folder.

You may be warned that the file cannot be moved because extensions cannot be modified. In this case click on “Authenticate” and enter your Mac OSX admin password.

3) Ensure that your AWS is powered and connected to the MIDI port on your workstation. Close all current applications on your workstation.

4) Double click on the AWS Software Update file. You should see the SSL AWS Software Update window appear.

5) Go to the In MIDI Port menu. From the drop down list, select the MIDI IN port which is connected to MIDI port 1 on your AWS console. In the example shown below this was port 1 on an 8 port interface. If the list is empty, check that you have installed the files detailed in step 2.

6) Go to the Out MIDI Port menu. From the drop down list, select the MIDI out port which is connected to MIDI port 1 on your AWS console.

Note that some Power PC based Macintosh computers will show all MIDI Inputs at the top of the list, MIDI Outputs at the bottom. You must scroll to the middle of the list to see the MIDI out ports.
