Solid State Logic 726907X1 User manual

www.solid-state-logic.com

MadiXtreme. Hi-speed MADI I/O

Multichannel Digital Audio Interface for PC and Macintosh based Digital Audio Workstations

Reference Guide

MadiXtreme. This is SSL.

Table of Contents

1. Introduction 1

ow to use this manual

H Reading conventions 1

Key commands, key combinations and key sequences 1 Screenshots 1

Safety and Installation Considerations 2

isclaimer

D Trademarks 2 Website 2

2. MadiXtreme Overview 3

Hardware 3 Software Drivers 3

PC 3 Macintosh 3

MADI 3

3. Package Contents 4

4a. Installation (PC) 5

Hardware and Software Installation Overview (PC) 5 Preparing Windows Plug and Play (Windows XP and Vista) 6 Hardware installation (Windows XP and Vista) 7 Installing the SSL Soundscape Device Driver (Windows XP) 7 Installing the WDM/KS Driver (Windows XP) 9 Installing the SSL Drivers (Windows Vista) 10 Device Manager (Windows XP and Vista) 11

4b. Installation (Macintosh) 12

Hardware Installation (Macintosh) 12 Software Installation (Macintosh) 13

5. Audio and Clock Connections 14

Audio Connections 14 Clock Connections 15

6. Audio and Clock Settings (PC) 16

Accessing the Audio and Clock Settings (PC) 16 Clock Settings 17

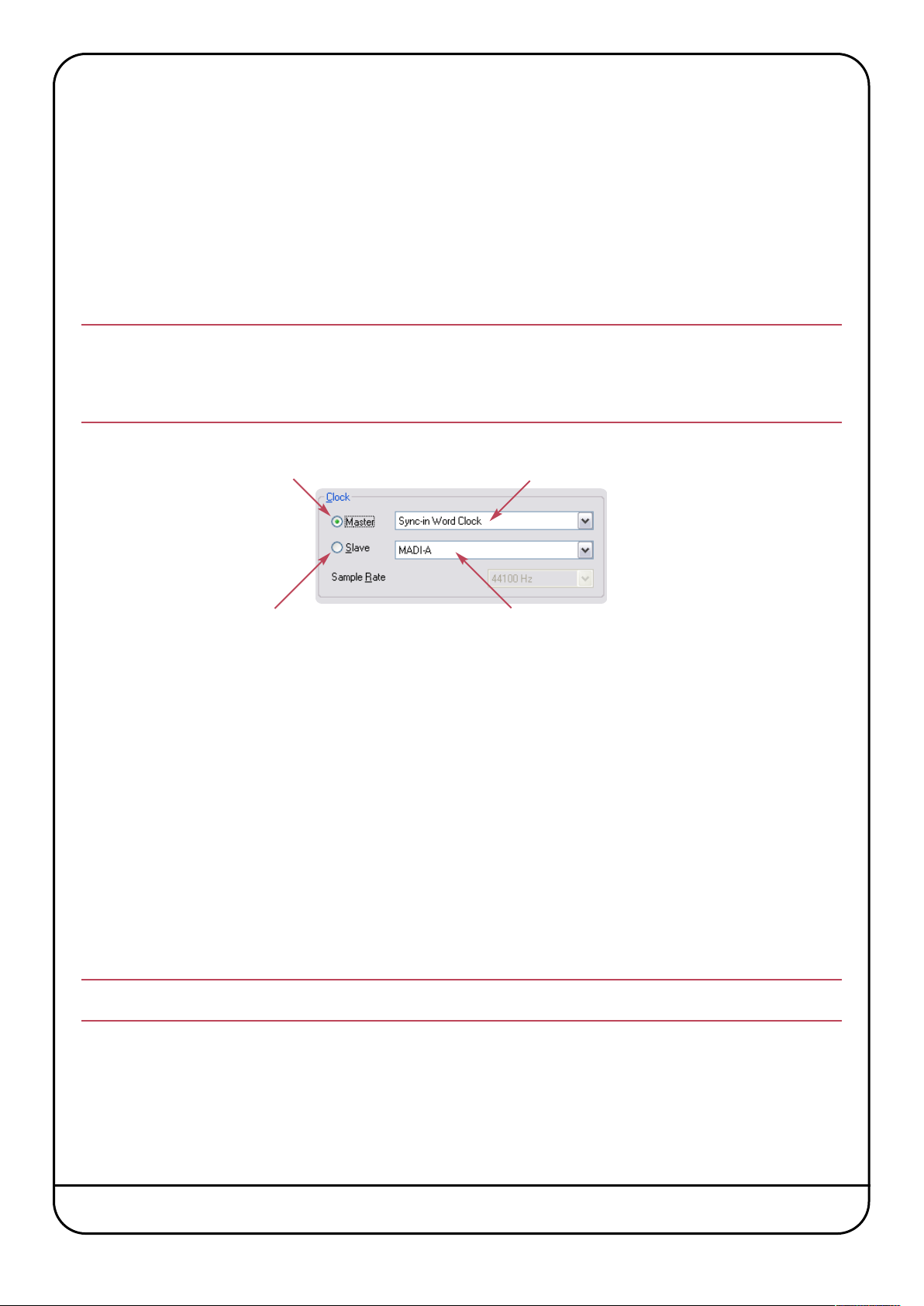

Master and Slave option boxes 17 Clock Source Selectors 17 Sample Rate Selection Menu 18

Format Settings 18

MADI A Standard SMUX 18 MADI A 56-Channel Mode 18

Status 18

Page i

7. Audio and Clock Settings (Macintosh) 19

Accessing the Audio and Clock Settings (Macintosh) 19

adiXtreme Preferences Pane (Macintosh)

Clock Master 20 Sample Rate Selection 20

ADI Channel Count

M MADI Frame Format 20

8. Driver Settings (PC) 21

Using the WDM/KS Drivers (Windows XP) 21 Using the Multimedia (MME) Drivers (Windows XP) 22 Using the WDM/KS drivers (Windows Vista) 23 Using the SSL Soundscape ASIO-2 Driver (Windows XP and Vista) 24

Multiple SSL Audio Cards and ASIO-2 26

9. Driver Settings (Macintosh) 27

10. Driver Updates and Uninstalling Older Driver Versions 28

Windows XP and Windows Vista 28

Removing the SSL Soundscape Device Driver (PC) 28

Macintosh 28

11. Firmware Updates 29

Windows XP and Windows Vista 29 Macintosh 30

12. Working With Your Audio Applications 31

Windows Applications 31 Macintosh Applications 31 Steinberg Nuendo 32

Selecting the Driver 32 Audio Connections and Clock Settings 32 Overview 33 Input Channel Strips 34 Output Channel Strips 34 Audio Channel Strips 35 An Example Configuration for Recording 35 Monitoring the Signal 35 Recording 35

Cakewalk Sonar 36

Selecting the Driver 36 Audio Connections and Clock Settings 36 Overview 37 Selecting an Input for the Track/Channel Strip 38 Selecting an Output for the Track/Channel Strip 38 Monitoring the Signal 38 Recording 38

Page ii

Magix Samplitude 39

Selecting the Driver 39

udio Connections and Clock Settings

A Overview 40 Selecting an Input for the Track/Channel Strip 41

electing an Output for the Track/Channel Strip

S Monitoring the Signal 41 Recording 41

Apple Logic Pro 42

Selecting the Driver 42 Audio Connections and Clock Settings 42 Creating a Logic Project 43 Mixer Overview 43 Selecting an Input or Output 44 Monitoring the Signal 44 Recording 44

13. Technical Specifications 45

Page iii

Page iv

1. Introduction

Congratulations on your purchase of an SSL MadiXtreme PCIe audio card.

Please be assured that the SSL MadiXtreme will provide you with many years of reliable service and, in conjunction with the SSL XLogic Alpha-Link converter series, the pristine audio quality you expect from any SSL product. Should you ever need assistance in setting up or using your MadiXtreme, Solid State Logic’s worldwide customer support team is easy to contact via the Support section of the SSL website and is always happy to help.

Please register your SSL MadiXtreme audio card on our website. This will ensure that you receive notifications of future software upgrades and other important information, and that your guarantee is registered. Registration will also make you eligible for technical support. The Solid State Logic home page is at: www.solid-state-logic.com

Solid State Logic is committed to the development and marketing of top-class solutions for native PC and Mac based digital audio recording systems.

The SSL MadiXtreme PCIe card, used in combination with our XLogic Alpha-Link audio converter products, provides a flexible, top quality, high channel count audio solution for PC and Macintosh-based audio recording and editing systems.

How to use this manual

The aim of this Reference Guide is to describe the MadiXtreme installation procedure as well as its advanced features, functionalities and setup options. Specific setup and recording examples are provided for a selection of popular DAW applications.

The SSL range of workstation partner products has been designed to make your recording life easy. As such, installing the MadiXtreme is simple and straightforward. If you are familiar with the computer environment, installing PCIe cards and the basics of recording and playing back digital audio, you can probably set your system up and feel comfortable running a session within minutes. However, reading this Reference Guide is highly recommended to make the most of the MadiXtreme’s capabilities.

Initially, please make sure you understand the Master Clock and Sample Rate concepts, and that you also understand the routing possibilities and functionalities of the Alpha-Link (or other device connected to the MadiXtreme). It is also a good idea, after installation, to have the system switched on while you read this Reference Guide, so that you can experiment with the features you read about. We trust that you will soon feel comfortable using your system. However, should you need further help, the comprehensive Table of Contents and Index (located respectively at the beginning and end of the manual) will provide convenient ways to check specific information whenever you need it.

Reading conventions

Key commands, key combinations and key sequences

Software functionalities may be accessed through the use of computer keyboard keys or key combinations or sequences, as well as by using a mouse or other input device. In this manual computer keys will be shown between square brackets. For example, the key for the letter “A” will be written: [A]. Key combinations will be written using + signs. For example, pressing the “A” key while holding the “Control” key will be written as [Ctrl]+[A]. Successive key presses will be written as a succession of key names. For example, pressing the “3” key and then pressing the “*” key will be written as [3][*].

Screenshots

The appearance of the SSL and other software on your computer screen may be different from the screenshots in this manual. This could be because your SSL Soundscape hardware configuration is different, because you are using a different version of the operating system, or because you are using different display settings. The screenshots themselves were not always made using the software’s default settings.

Page 1

Safety and Installation Considerations

This section contains definitions, warnings, and practical information to ensure a safe working environment. Please take time to read this section before installing or using this unit. Please do not dispose of these instructions.

General Safety

Read these instructions.

•

• Keep these instructions.

• Heed all warnings. Follow all instructions.

•

• Do not use this apparatus near water.

• Do not expose this apparatus to rain or moisture.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

• There are no user-adjustments, or user-serviceable items, on this apparatus.

• Adjustments or alterations to this apparatus may affect the performance such that safety and/or international compliance standards may no longer be met.

Caution

To reduce the risk of electric shock, do not perform any

• ervicing other than that contained in these Installation

nstructions unless you are qualified to do so. Refer all

ervicing to qualified service personnel.

Installation Notes

• When installing this apparatus, place the host system

into which it is to be installed on a secure level surface.

• To prevent damage from static electricity when installing

this apparatus, either to the host system or to this apparatus, always take proper anti-static precautions. Always use an anti-static wristband. If in doubt, please refer to qualified service personnel.

• Take care of rough or sharp edges when accessing the

inside of the host system.

• Never install or remove this apparatus whilst the host

system is powered. Always remove the power cord from the host system prior to accessing this apparatus.

• If in doubt about installing this apparatus, please refer to

qualified service personnel.

Disclaimer

This manual has been written with great care and attention to detail, and we have attempted to cover every operational aspect of the SSL MadiXtreme. However, it is not a contractual document. Solid State Logic and/or the writer(s) of this manual cannot be held responsible for any loss or damage arising directly or indirectly from any error or omission in this manual.

Trademarks

All trademarks are the property of their respective owners and are hereby acknowledged.

Website

The URL for the Solid State Logic website is: www.solid-state-logic.com

Page 2

2. MadiXtreme Overview

Hardware

The MadiXtreme is available in two versions; MadiXtreme 64 and MadiXtreme 128.

• MadiXtreme 64 features one MADI input and one MADI output, providing 56 or 64 simultaneous inputs and outputs at up to 48kHz, 28 or 32 simultaneous inputs and outputs at up to 96kHz, or 14 or 16 simultaneous inputs and outputs at up to 192kHz.

MadiXtreme 128 features two MADI inputs and two MADI outputs, providing 112 or 128 simultaneous inputs and outputs

•

t up to 48kHz, 56 or 64 simultaneous inputs and outputs at up to 96kHz, or 28 or 32 simultaneous inputs and

a outputs at up to 192kHz.

Software Drivers

The SSL MadiXtreme PCIe cards and associated software are compatible with the following operating systems and driver protocols:

Platform Operating System Driver Protocols

Windows XP SP2 or later

Windows Vista SP1 or later

OS X ‘Tiger’ Version 10.4.11 or greater

Macintosh

OS X ‘Leopard’ Version 10.5.4 or greater

The SSL MadiXtreme comes with Low-latency MME drivers, WDM drivers, ASIO-2 drivers, DWave drivers and GSIF drivers for Windows XP and Vista. It can be used with any PC based MIDI & Audio sequencer, recording and editing software or other audio applications. The Soundscape drivers are truly multiclient, allowing you to share your SSL audio hardware between several applications that use different driver models.

Macintosh

The MadiXtreme Macintosh driver is compliant with the Core Audio architecture.

(32bit only)

ASIO 2, WDM, MME, GSIF2, DWave

(32bit only)

Core Audio

MADI

As world leader in large format analogue and digital mixing consoles, it was natural for SSL to be among the companies that initiated the development of MADI (Multichannel Audio Digital Interface).

The MADI standard was finalized by the AES as AES10, first published in 1991 and revised in 1993. A PDF copy of the specification can be obtained from the AES website.

With outstanding digital audio workstation systems and innovative DSP-powered multichannel audio cards, the Soundscape product line has always been at the cutting edge of professional studio technology in terms of sonic performance, processing power and multiple inputs/outputs.

Featuring SSL’s revolutionary PCIe-Core Audio Pipeline technology and supported by the legendary Soundscape drivers, MadiXtreme builds on this heritage as one of the first audio devices to take full advantage of the high speeds and incredible bandwidth offered by the PCIe bus on modern computers.

Page 3

3. Package Contents

MadiXtreme. Hi-speed MADI I/O

Installation Guide

Installations-Handbuch

Guide d’Installation

Guia de Instalación

Guida di Installazione

MadiXtreme. This is SSL.

Your MadiXtreme box should contain:

The MadiXtreme card (

•

• The MadiXtreme CD

• Printed Installation Guide

adiXtreme 128 version shown here

)

Page 4

4a. Installation (PC)

Hardware and Software Installation Overview (PC)

Before proceeding with the hardware installation, please read and understand the Safety and Installation Considerations on page 2 of this manual. In addition to this, please ensure that the host computer meets the minimum system requirements listed in the Technical Specifications section before you begin.

For easy installation please follow these steps in the order indicated:

1. Make sure you have the SSL Soundscape Driver ready. The driver is available on the installation CD supplied with your MadiXtreme. However, if you have an internet connection, please download and use the most recent version, available from the SSL website.

2. Preinstall the SSL Soundscape Driver to prepare Windows Plug and Play to identify the card automatically after it has been physically installed in the computer.

3. Shut down the computer and install the MadiXtreme hardware. Connect the Alpha-Link unit(s) (or other MADI hardware) to the MadiXtreme via the MADI ports. At this point you can also connect the WordClock.

4. Start the computer again. In Windows XP, install the drivers when prompted by Windows Plug and Play (main driver files, then WDM/KS driver). In Windows Vista, this will happen automatically.

Multiple SSL MadiXtremes can be installed at the same time during step 3. If several MadiXtremes are installed in this way, the driver installation (step 4) will need to be repeated for each card. Windows XP will prompt you for that. Windows Vista will handle it automatically (assuming that you have pre-installed the driver in step 2).

All the steps above are described in greater detail on the following pages.

Page 5

Preparing Windows Plug and Play (Windows XP and Vista)

n order to make driver installation as easy as possible, we recommend that you prepare the Windows Plug and Play

ystem to recognize your SSL hardware automatically.

To do this, run the SSL Soundscape Driver Setup application (DrvSetup.exe) before physically installing the card in the computer. This application can be found on the Installation CD that came with your card but, if possible, please use the latest version that can be downloaded from our website.

The description below shows the procedure in Windows XP. In Vista the procedure is similar but more warnings are displayed. The first one appears as soon as you launch the DrvSetup application. Subsequent warnings may look different from the ones shown in XP. Always click the option that allows the procedure to continue.

• In the application window, press the Update button to copy the

driver data to your Windows installation.

• Windows will display a security warning: click Run…

…followed by a warning regarding Windows Logo testing; click Continue Anyway.

• At the end of the process you will see SSL Soundscape Driver Setup – Completed in the title bar. Click Done, shut down the computer and move on to installing the hardware.

Page 6

Hardware installation (Windows XP and Vista)

The guidelines below are general and apply in most cases. However, since all PCs are different it is advisable to check your computer’s instruction manual for specific information. For example, on some PC cases the front panel needs to be removed first in order the access the cover mounting screws.

1. Turn off all power to your computer, unplug it from the mains and disconnect all peripheral devices.

2. Remove the computer cover.

. Position the computer so that you can easily see and access its motherboard.

4. Locate a free PCIe expansion slot and remove the corresponding expansion slot cover from the back of the computer. This may involve removing a screw, which will be used later to secure the card into place.

5. With the MADI connectors facing towards the rear panel of the computer, offer up the card to the chosen socket. Gently push the card into the slot until it fits into place – do not use excessive force but ensure that the card is fully inserted into the slot before proceeding to the next step.

6. If applicable, use the screw which held the expansion slot cover to secure the card.

7. Replace the computer cover.

8. Reconnect your peripheral devices, connect the computer to the mains, and switch it on.

Installing the SSL Soundscape Device Driver (Windows XP)

• The SSL MadiXtreme card is ‘plug and play’, and is automatically detected by Windows when the computer is started.

A series of dialog boxes will be displayed. The first one allows you to choose whether to allow Windows to connect to Windows Update to search for software. Select No, not this time, and click Next:

Page 7

• Windows will then invite you to insert the

installation CD for your hardware and let you choose an automatic or manual installation. Having pre-installed the driver as described earlier, just make sure that Install the software automatically (Recommended) is selected, and click Next.

• Further windows will be displayed while

Windows copies the driver files. Depending on the specification of your system, this could take a few seconds or a few minutes.

• Eventually, the dialog box below will confirm

that the installation has been completed. Clicking Finish closes the Wizard:

Page 8

Installing the WDM/KS Driver (Windows XP)

mmediately after installing the main driver files, the Found New Hardware Wizard will start again. This time the WDM/KS

river will be installed. The series of dialogue boxes is almost identical to the one displayed for the main driver files,

ith the exception of a warning regarding Windows Logo testing.

• In the first dialogue box, select No, not this time, and click Next.

• In the second dialogue box, ensure that Install the software automatically (Recommended) is selected, and click Next.

Page 9

• Further windows will be displayed while Windows copies the WDM/KS driver files. At one point, Windows will display

a warning regarding Windows Logo testing. Click Continue Anyway:

• Eventually, a dialog box confirms that the installation has been completed. Clicking Finish closes the Wizard.

Installing the SSL Drivers (Windows Vista)

If you have run the DrvSetup.exe application as described in the Preparing Windows Plug and Play section, then Windows Vista will install the drivers automatically when you restart the computer after physically installing the MadiXtreme. This will happen in the background and you will not need to take any further action.

Page 10
