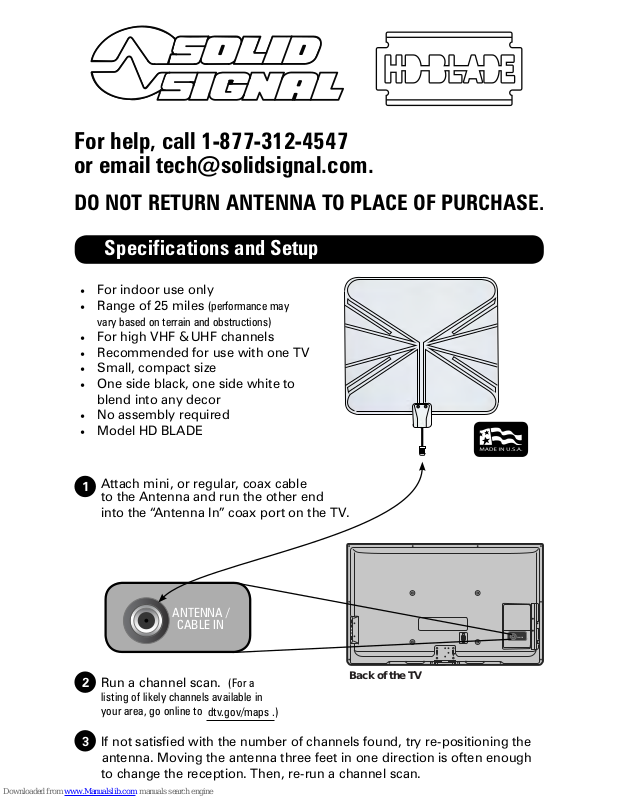

Solid Signal HD Blade User Manual

Specifications and Setup

Back of the TV

• For indoor use only

• Range of 25 miles (performance may

vary based on terrain and obstructions)

• For high VHF & UHF channels

• Recommended for use with one TV

• Small, compact size

• One side black, one side white to

blend into any decor

• No assembly required

• Model HD BLADE

Attach mini, or regular, coax cable
to the Antenna and run the other end

into the “Antenna In” coax port on the TV.

Run a channel scan. (For a

listing of likely channels available in
your area, go online to

dtv.gov/maps

.)

If not satisfied with the number of channels found, try re-positioning the

antenna. Moving the antenna three feet in one direction is often enough

to change the reception. Then, re-run a channel scan.

1

CABLE IN

2

3

For help, call 1-877-312-4547
or email [e-mail].

DO NOT RETURN ANTENNA TO PLACE OF PURCHASE.

ANTENNA /

CABLE IN

Mount the antenna on a window that faces the broadcast tower of stations
that you want to receive. The sides of the antenna have blind spots, so the

antenna may not “see” enough signal from the broadcast tower if the sides

of the antenna face the tower.

If the antenna is mounted so that it hangs vertically, the coax cable should run
from the top or bottom of the antenna. If the antenna is mounted so that it lies
flat (e.g. on a table), the coax cable should point toward the signal.

The HD BLADE antenna is small enough to hide behind a TV or picture frame.

The coax cable is running from the side of the antenna instead of the top or

bottom of the antenna. Try re-positioning the antenna so that the coax cable
runs from the top or bottom of the antenna, and run a new channel scan.

The antenna may not pick up signal when mounted near electronics, or
behind electronics, including the television itself, and may reflect the signal from
broadcast tower. If so, try mounting the antenna higher on the wall, and run a
new channel scan. The higher the antenna, the better signal you will receive.

Once you have determined the best location for the antenna,

it can be mounted with the provided VELCRO

®

brand hook

mounting to a particular surface, the antenna can also be

mounted to a surface with nails. Note that the antenna is not

.ytnarraw ruoy diov dna langis kcolb dluoc sihT .annetna e HD BLADEht tniap ton oD

DO NOT insert nail here
Okay to insert nail here

Tips for Maximizing Reception

and loop fasteners. If the fasteners are not sufficient for

meant for use in an attic.

Questions & Answers

Troubleshooting

Issue Possible Cause

I am not getting channels. Try running a new channel scan on the

TV. Try the antenna in a new location.
Something may be obstructing the signal.

One channel is missing. Try turning the antenna 10 or 20 degrees

in either direction to avoid reflection or to
better optimize the signal, or try moving
the antenna to a new location.
Try running a new channel scan on the TV.
Refer to the channel scan insert for more
information.

The picture or sound freezes
while I am watching a channel,
or there are boxes in the
picture.

This is often caused by a weak or
intermittent signal. Try moving the antenna
to a better location or aiming it directly at
the tower for this channel.

Q. What channels can the HD BLADE antenna receive?
A. The HD BLADE antenna can receive programming from all of the major local

broadcast networks (e.g. ABC, CBS, FOX, NBC, PBS) plus additional networks
(Qubo, ION, The CW, This TV, MyNetworkTV, Azteca, Telefutura, Univision, and
Telemundo). The HD BLADE antenna can also receive local news, weather and
educational programs that satellite and cable don’t offer.

Q. How can I find out what channels are broadcast in my area?
A. Check out dtv.gov/maps. On this site, you can enter your address and get a

listing of likely channels available in your area.

Q. Do I need to pay for programming?
A. No—local programming received through an over-the-air antenna is free!

Q. Does the HD BLADE antenna work with any TV?
A. The HD BLADE antenna works with any TV or device that has an ATSC

tuner. Devices that have built-in ATSC tuners include TVs, laptops, PCs, some
satellite receivers, and digital recording devices (DVRs).

TIP

Any television manufactured after March 1, 2007 is required by U.S.
government to have an ATSC tuner. If your TV menu has an option for

scanning for digital channels, then your television has an ATSC tuner.

Q. Can I connect the HD BLADE antenna to multiple televisions?
A. No—the HD BLADE antenna is designed to connect to a single television

Splitting the signal between multiple TVs will degrade the signal.

Q. How do I set up the HD BLADE antenna?
A. 1.) Place the antenna in the desired location.

2.) Connect the coax cable coming from the HD BLADE antenna to the
“Antenna In” coax port on your TV.

3.) Run a channel scan.

Questions & Answers, Cont.

Q. Is there anywhere that the antenna shouldn’t be mounted?
A. The antenna is designed for indoor use only. The HD BLADE antenna is not

meant to be mounted outdoors or in the attic.

Q. How do I know where the signal is strongest?
A. After connecting the coax cable from the HD BLADE antenna to the “Antenna

In” port on the TV, run a channel scan. Try the antenna in different locations,
making sure to run a channel scan every time you move the antenna. Finding
TV signal is similar to cell phone coverage. Sometimes walking a few feet
can make a difference. The less obstructions and the higher the antenna is
mounted, the better chance of receiving a strong signal.

Q. Can I connect the HD BLADE antenna to additional coax?
A. Yes. Connect the coax to a female-to-female barrel connector, and

then connect additional coax. We recommend a Winegard model FS-8100
barrel connector (sold separately). Depending on the length of coax cable
added, some signal degradation may be experienced.

Q. How many channels will I receive with the HD BLADE antenna?
A. The number of channels will vary from location to location. Generally

speaking if you live in or near a metropolitan area you will receive more
channels than if you live outside a metropolitan area. Each location is
different. Keep in mind that antenna reception may vary based on terrain
(including trees, buildings, hills and mountains). The fewer obstructions, the
better your chance for receiving strong digital signals.

Digital Television Facts

Your Solid Signal antenna is digital and HD ready. This means that the antenna
receives all available digital and HD local programming in your area.*

The HD BLADE antenna works with any TV or device with an ATSC tuner. As
more and more local networks are broadcasting their programs in HD, you
should experience your favorite shows in crisp, clear FREE HD! You also have
the ability to receive programming that cable and satellite companies may not
provide. It doesn’t get any better than that!

*Antenna reception may vary based on transmitting antenna tower height, lobe pattern of the
transmitter, height of the receiving antenna, weather conditions and terrain on receiving path
including trees, buildings, hills, mountains, etc.

90 DAY LIMITED WARRANTY

Solid Signal warrants this Solid Signal product against any defects in materials or workmanship within 90
(ninety) days from date of purchase. No warranty claim will be honored unless at the time the claim is made, you
present proof of purchase to an authorized Solid Signal dealer (if unknown, please contact Solid Signal , 25225
Regency Dr, Novi, MI 48375, Telephone [phone]).

Solid Signal (at its option) will either repair or replace the defective product at no charge to you. This

warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This
limited warranty does not apply if the product is damaged, deteriorates, malfunctions or fails from: misuse, improper
installation, abuse, neglect, accident, tampering, modification of the product as originally manufactured by Solid Signal,
usage not in accordance with product instructions or acts of nature such as damage caused by wind, lightning, ice
or corrosive environments such as salt spray and acid rain.

The 90 Day Warranty is provided on the condition that the equipment is properly delivered with all handling and

freight charges prepaid to your Solid Signal dealer for return to our factory for repair or replacement. Solid Signal dealers
will arrange for the replacement or repair and return to you without charge the product which failed due to defective
material or workmanship.

SOLID SIGNAL WILL NOT ASSUME ANY LIABILITIES FOR ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,

MADE BY ANY OTHER PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED OR STATUTORY INCLUDING WARRANTIES OF FITNESS

FOR A PARTICULAR PURPOSE AND MERCHANTABILITY ARE LIMITED TO THE 90-DAY PERIOD OF THIS WARRANTY.

The foregoing shall be the sole and exclusive remedy of any person, whether in contract, tort or otherwise, and

Solid Signal shall not be liable for incidental or consequential damage or commercial loss, or from any other loss or
damage except as set forth above.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion of limitation of incidental

or consequential damages, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Solid Signal • 25225 Regency Dr • Novi, MI 48375

877-312-4547• Fax [phone] • www.SolidSignal.com

Printed in U.S.A. ©2011 Solid Signal Rev2 12/11 2452248

Solid Signal is a registered trademark of Solid Signal . HD BLADE is a trademark of Solid Signal .

VELCRO

®

is a registered trademark of Velcro Industries B. V. dtv.gov is not affiliated with Solid Signal .
