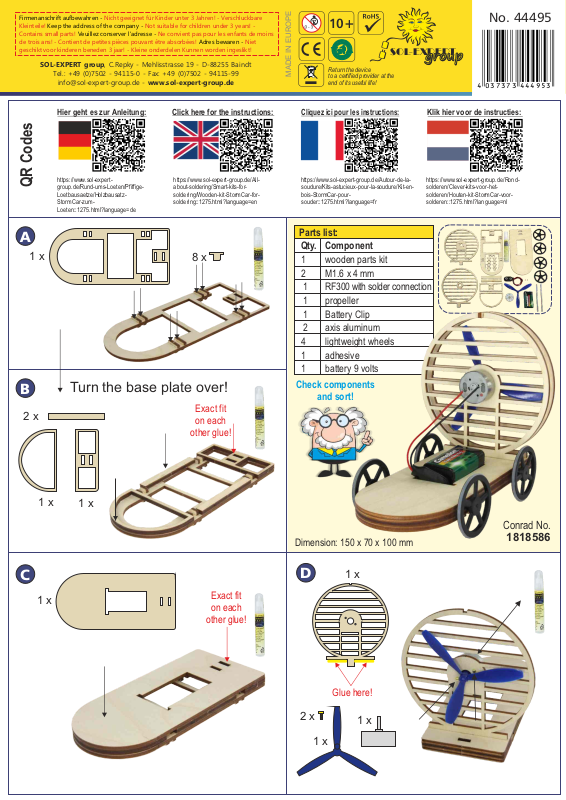

Sol Expert 44495 User Manual [en, fr, de, nl]

Firmenanschrift aufbewahren -

4 0 37 37 3 4 44 9 53

Kleinteile! Not suitable for children under 3 years! -

Keep the address of the company -

Contains small parts! Ne convient pas pour les enfants de moins
de trois ans! - Contient de petites pièces pouvant être absorbées! Niet
geschikt voor kinderen beneden 3 jaar! - Kleine onderdelen Kunnen worden ingeslikt!

SOL-EXPERT group, C.Repky - Mehlisstrasse 19 - D-88255 Baindt

Tel.: [phone] - 94115-0 - Fax: [phone]

[email protected] - www.sol-expert-group.de

Nicht geeignet für Kinder unter 3 Jahren! - Verschluckbare

Veuillez conserver l'adresse -

Adres bewaren -

10+

MADE IN EUROPE

Return the device
to a certified provider at the
end of its useful life!

SOL-EXPERT

group

group

No. 44495

Hier geht es zur Anleitung:

https://www.sol-expert-

QR Codes

group.de/Rund-ums-Loeten/Pfiffige­Loetbausaetze/Holzbausatz­StormCar-zum­Loeten::1275.html?language=de

A

1 x

B

2 x

Click here for the instructions:

https://www.sol-expert-group.de/All­about-soldering/Smart-kits-for­soldering/Wooden-kit-StormCar-for­soldering::1275.html?language=en

8 x

Turn the base plate over!

Exact fit
on each

other glue!

Cliquez ici pour les instructions:

https://www.sol-expert-group.de/Autour-de-la­soudure/Kits-astucieux-pour-la-soudure/Kit-en­bois-StormCar-pour­souder::1275.html?language=fr

Parts list:

Qty. Component

1 wooden parts kit
2 M1.6 x 4 mm
1 RF300 with solder connection
1 propeller
1 Battery Clip
2 axis aluminum
4 lightweight wheels
1 adhesive
1 battery 9 volts

Check components

and sort!

Klik hier voor de instructies:

https://www.sol-expert-group.de/Rond­solderen/Clever-kits-voor-het­solderen/Houten-kit-StormCar-voor­solderen::1275.html?language=nl

C

1 x

1 x

1 x

Exact fit
on each

other glue!

Dimension: 150 x 70 x 100 mm

D

1 x

Glue here!

2 x

1 x

1 x

Conrad No.

1818586

F

E

1 x

Glue here!

1 x

1 x

2 x

4 x

Cut the cables on the

battery clip to about

12 cm, then solder the

black cable to the
soldering contact

with the red dot.

©

Repky

Christian
/

August 2018

Changes and errors excepted,
