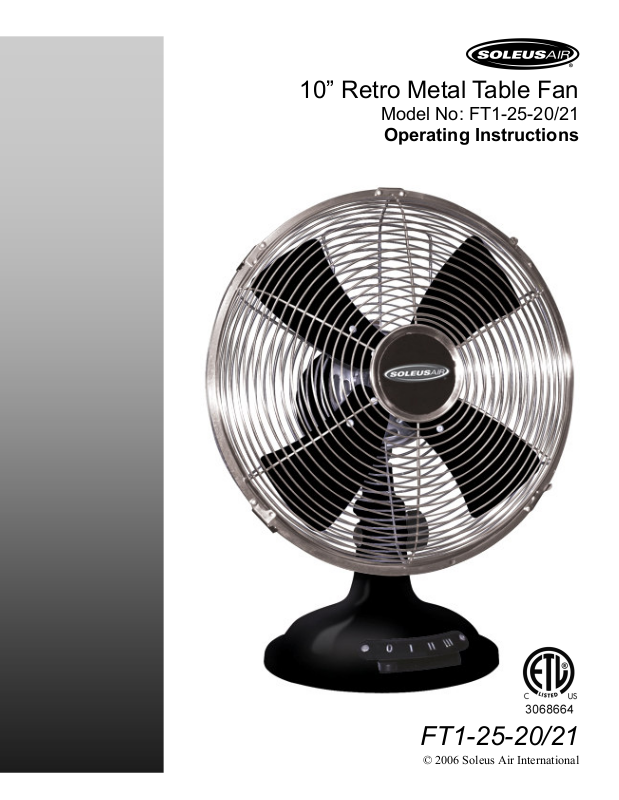

Soleus Air FT1-25-20-21 User Manual
10” Retro Metal Table Fan
Model No: FT1-25-20/21
Operating Instructions
FT1-25-20/21
© 2006 Soleus Air International
Thank you for choosing a Soleus Air 10” Table Fan. This owner’s manual will provide you
with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all
the operational aspects of your new fan.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
1. When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
2. Read ALL instructions before using this unit.
3. Use only for intended household use as described in this manual.
4. Plug the fan directly into a 120 V A/C electrical outlet.
5. Never insert your fingers, pencils, or other objects through the fan grill during operation.
6. The fan should be used on a stable and level surface.
7. Do not expose the fan to excessive heat or humidity. This could cause damage to the electrical components.
8. Do not immerse in any type of liquid. Do not use near water.
9. The fan should be kept out of the reach of children. Close supervision is necessary when the fan is used by
or near children.
10. To reduce the risk of fire or explosion, do not store or use gasoline or other flammable vapors or liquids in
the vicinity of the fan.
11. Do not operate this or any appliance with a damaged cord, if the unit malfunctions, or if it has been
dropped or damaged in any manner. Connect to properly polarized outlets only.
12. Do not cover the cord or place near heat sources. Keep the cord away from high traffic areas, and do not
submerge in water.
13. Unplug the fan before moving, cleaning or making repairs. NOTE: If for any reason this unit requires service, return appliance to manufacturer or a similarly qualified service agent to ensure safety.
14. To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
15. To disconnect, grip plug and pull from wall outlet. Never pull on the cord to unplug.
16. For indoor use only.
2
TECHNICAL SPECIFICATIONS
WARNING
This fan has a grounded three
pronged plug intended to fit into a
three slot outlet. (A) An adapter is
available for connecting three
pronged plugs into two slot outlets.
(B) When doing so, the green grounding tab extending from the adapter
must be fastened under the wall
plate’s mounting screw. The adapter
should not be used if a three-slot outlet is available.
DO NOT DEFEAT THE SAFETY
PURPOSE OF THE GROUNDED
PLUG.
Voltage Rating 120V, 60Hz
Power Consumption 26W
Unit Size 11.5 in. (W) x 8.5 in. (D) x 15.5 in. (H)
Unit Weight 5.7 lbs
