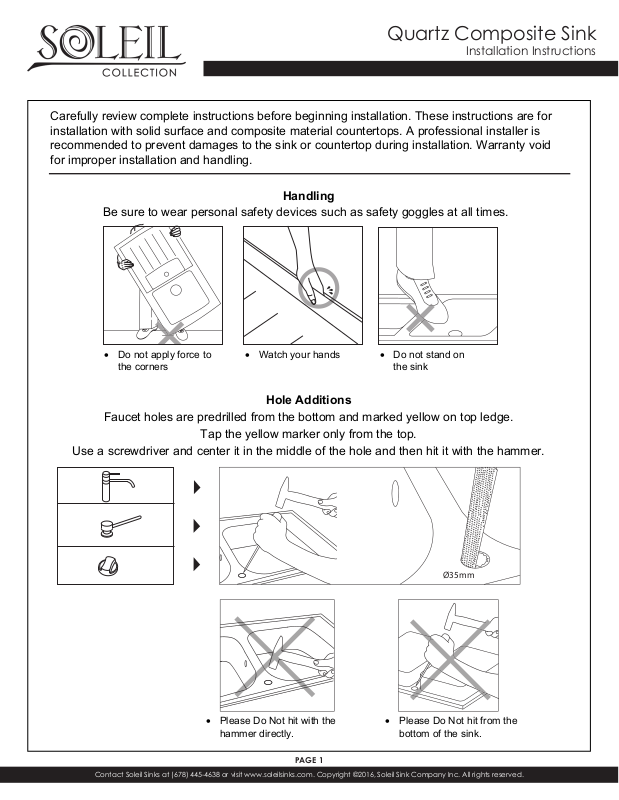

Quartz Composite Sink
GRANITE SINK INSTALLATION GUIDE
Installation Instructions
Carefully review complete instructions before beginning installation. These instructions are for
installation with solid surface and composite material countertops. A professional installer is
recommended to prevent damages to the sink or countertop during installation. Warranty void
for improper installation and handling.
Handling
Be sure to wear personal safety devices such as safety goggles at all times. !
• Do not apply force to
the corners
• Watch your hands • Do not stand on
the sink
Hole Additions
Faucet holes are predrilled from the bottom and marked yellow on top ledge.
Tap the yellow marker only from the top.
Use a screwdriver and center it in the middle of the hole and then hit it with the hammer.
Ø35mm
• Please Do Not hit with the
hammer directly.
PAGE 1
Contact Soleil Sinks at (678) 445-4638 or visit www.soleilsinks.com. Copyright ©2016, Soleil Sink Company Inc. All rights reserved.
• Please Do Not hit from the
bottom of the sink.
Page 2
Quartz Composite Sink
!
Installation Instructions
Topmount/Drop-in Installation
!
Silikon
Silikon
Topmount/Drop-in Installation
Mounting and fastening clips
B
4
6
1
2
5
3
10mm
7mm
!
Flush Mount Installation
!
1mm
≥ 2mm
Undermount Installation
!
180
Epoxy
30mm
12mm
12mm
Silikon
Epoxi
Silikon
Epoxi
PAGE 2
