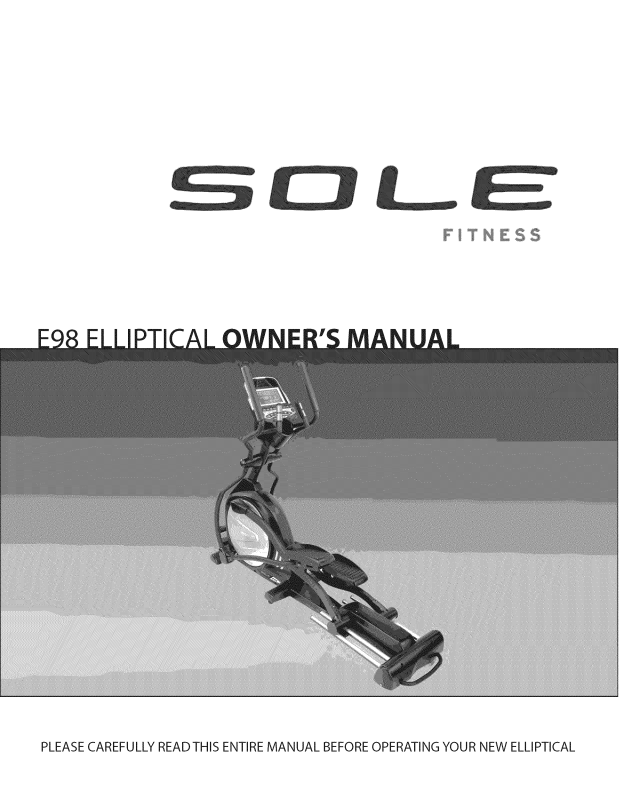

Sole E98-2011 Owner’s Manual
F_ T H E S S
PLEASE CAREFULLY READTHIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL
TALEOF T
Product Registration 1
Important Safety Instruction_ 2
Important Electrical Information 3
Important Operation Instructions 4
Transport Instructions 4
E98 Assembly Instructions 7
Elliptical Features 12
Operation of Your New Elliptical 1:3
Programmable Features 16
Using Heart Rate Monitor 22
General Maintenance 24
Manufacturer's Limited Warranty 2.S
ATTENTION
THIS ELLIPTICAL ISINTENDED FORRESIDENTIAL USE ONLY AND ISWARRANTED FORTHE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITSENTIRETY.
F TNESS
CONGRATULATIONS ON YOUR NEW ELLIPTICAL AND WELCOME TO THE SOLE FAMILY!
Thank you for your purchase of this quality elliptical trainer from SOLE. Your new elliptical has been
manufactured by one of the leading fitness manufacturers in the world and is backed by one of the
most comprehensive warranties available. SOLE will do all we can to make your ownership
experience as pleasant as possible for many years to come.
If you have any questions about your new product or questions about the warranty contact SOLE
Fitness at 1=866=780=SOLE (7653). If you have a technical problem with your new elliptical contact
SOLE technical service at 866=MYSOLE1 (697-6531).
Please take a moment at this time to record below the name of the dealer, their telephone number,
and the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and
we will always remember that you are the reason that we are in business. Please complete and mail
your registration card today and enjoy your new elliptical.
Yours in Health,
SOLE Fitness
Name of Dealer
Telephone Number of Dealer
Purchase Date
PRODUCT ST
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product
in the space provided below.
Serial Number
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to SOLE.
You can also go to wwwo$oleeilipticals.com under the support tab to register online.
E98_20101230
E98 ELLIPTICAL
IMPORTANT TYI ST UCTI
WARNING - Read all instructions before using this appliance.
DANGER -To reduce the risk of electric shock disconnect your SOLE elliptical from the electrical
outlet prior to cleaning and/or service work.
WARNING -To reduce the risk of burns, fire, electric shock, or injury to persons, install
the elliptical on a fiat level surface with access to a 110-volt, 15-amp grounded outlet with only
the elliptical plugged into the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING
IMPROPER ADAPTERS, OR IN ANYWAY MODIFY THE CORD SET.
A serious shock or fire hazard may result along with computer malfunctions. See Grounding Instructions, page 3.
II Do not operate elliptical on deeply padded, plush or shag carpet. Damage to both carpet
and elliptical may result.
II Keep children away from the elliptical.There are obvious pinch points and other caution
areas that can cause harm.
II Keep hands away from all moving parts.
II Never operate the elliptical if it has a damaged cord or plug. If the elliptical is not working
properly, call your dealer.
II Keep the cord away from heated surfaces.
II Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
II Never drop or insert any object into any openings.
II Do not use outdoors.
II To disconnect, turn all controls to the off position, then remove the plug from the outlet.
II Do not attempt to use your elliptical for any purpose other than for the purpose it is
intended.
II The hand pulse sensors are not medical devices.Various factors, including the user's
movement, may affect the accuracy of heart rate readings.The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
II Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your elliptical. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS =THINK SAFETY!
E98 ELLIPTICAL 2
IMPORTANTELECTCALl T TI
WARNING!
NEVER remove any cover without first disconnecting AC power.
If voltage varies by ten percent (10%) or more, the performance of your elliptical may be
affected. Such conditions are not covered under your warranty. If you suspect the voltage is
low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this elliptical to rain or moisture.This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity environment.The operating temperature
specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
GROUNDINGINSTRUCTIONS
This product must be grounded. If the elliptical should malfunction or breakdown, ground-
ing provides a path of least resistance for electric current, reducing the risk of electric shock.
This product is equipped with a cord having an equipment-grounding plug.The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with
all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the
product if it will not fit the outlet; have a proper outlet installed by a qualified electrician.
This product isfor use on a nominal 110-volt circuit, and has a grounding plug that looks like
the plug illustrated below. A temporary adapter that looks like the adapter illustrated below
may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded
outlet is not available.The temporary adapter should be used only until a properly grounded
outlet, (shown below) can be installed by a qualified electrician.The green colored rigid ear-lug,
or the like, extending from the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a
metal screw.
Grounded Outfet
Grounding Pin
Metai Screw'
Tab of
Screw
Grounded OutJet Box
3 E98 ELLIPTICAL
IMPORTANTOPERATIONINSTRUCTIONS
II NEVER operate this elliptical without reading and completely understanding the results of
any operational change you request from the computer.
II Understand that changes in resistance and incline do not occur immediately. Set your de-
sired resistance on the computer console and release the adjustment key.The computer will
obey the command gradually.
II NEVER use your elliptical during an electrical storm. Surges may occur in your facility or
household power supply that could damage elliptical components. Unplug the elliptical
during an electrical storm as a precaution.
II Use caution while participating in other activities while pedaling on your elliptical; such as
watching television, reading, etc.These distractions may result in serious injury.
II Always hold on to a handrail or hand bar while making control changes (incline, resistance,
etc.).
II Do not use excessive pressure on console control keys.They are precision set to function
properly with little finger pressure. Pushing harder is not going to make the unit go faster
or slower. If you feel the buttons are not functioning properly with normal pressure contact
your SOLE dealer.
POWER CONNECTOR - FRONT, LEFT SIDE OF UNIT
TRANSPORTI ST T
The elliptical is equippped with two transport wheels which are engaged when
the rear of the elliptical is lifted.
E98 ELLIPTICAL 4
PACKCHECKLIST
\
\
#158. 3/8" x 19 x 1.ST
Flat Washer (2 pcs)
#167.3/8"x 2T
Split Washer (1 pc)
#166.5/16"x 1.5T
Split Washer (4 pcs)
#154. 5/16"x 20 x 1.5T
Flat Washer (4 pcs)
#128. M5 x lOmm
Phillips Head Screw (4 pcs)
f •
#168.5/16"
Star Washer (4 pcs)
#164.3/8"x 23 x 2T
Curved Washer (2 pcs)
#145.3/8"x 7T
Nyloc Nut (2 pcs)
#116.3/8"x 3/4"
Hex Head Bolt (2 pcs)
#115.5/16"x 2-1/4"
Hex Head Bolt (4 pcs)
#118.3/8"x 2-1/4"
Hex Head Bolt (1 pc)
#117.3/8"x 1-1/2"
Hex Head Bolt (2 pcs)
5 E98 ELLIPTICAL
#163.25mm
WaveWasher(4pcs)
#160.3/8"x 30x2T
FlatWasher(2pcs)
#132.3.5x 12mm
SheetMetalScrew(8pcs)
\
#154.5/16"x 20 x 1.5T
Flat Washer (2 pcs)
HARDWARE 4
#116. 3/8"x 3/4"
HexHeadBolt(2pcs)
#143.5/16"x 7T
Nyloc Nut (2 pcs)
#1 14.5/16"x 1-1/4"
Hex Head Bolt (2 pcs)
#132.3.5 x 12mm
Sheet Metal Screw (10 pcs)
#20. Bracket (2 pcs)
E98 ELLIPTICAL 6
#129. M5 x 15mm
Phillips Head Screw (29 pcs)
#131. M6x lOmm
Phillips Head Screw (4 pcs)
#171.PhillipsHeadScrewdriver #170.ShortPhillipsHeadScrewdriver
#187.12/14mmWrench #169.13/14mm Wrench
ASSEMLYINSTRUCTIONS
PRE-AS
1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along
the dotted Line. Lift Box over the unit and unpack.
2. Carefully remove all parts from carton and inspect for any damage or missing
parts. If damaged parts are found, or parts are missing, contact your dealer
immediately.
3. Locate the hardware package. Remove the tools first. Remove the hardware
for each step as needed to avoid confusion. The numbers in the instructions
that are in parenthesis (#) are the item number from the assembly drawing
for reference.
7 E98 ELLIPTICAL
