1 Note on this Manual

1.1 Scope of Valid ity

1.2 Target Group

1.3 Symbols Used

2 Safety

2.1 Appropriate Usage

2.2 Important Safety Instructions

2.3 PE Connection and Leak age Current

2.4 Explan ation of Symbols

2.5 CE Directives

Contents

3 Introduction

3.1 Basic Features

3.2 Terminals o f the Inverter

3.3 Dimension

4 Technical Data

4.1 DC Input

4.2 AC O utput

4.3 Efficiency, Safety and Protection

4.4 General Data

5 Installation

5.1 Check for Transpor t Damage

5.2 Packing Lists

5.3 Installation Precaution

5.4 Installation Steps

5.5 Connections of the Inver ter

5.6 Run the Inverter

6 Operation Method

6.1 Control Panel

6.2 LCD Stru cture

6.3 LCD Operation

6.4 In dicator Infor mation

Not es on thi s Manua lContents

7 Troubleshooting

7.1 Troubleshooting

7.2 Routine Maintena nce

8 Decommissioning

8.1 Dismantling the Inverter

8.2 Packaging

8.3 Storage and Transpor tation

1 Notes on this Manual

1.1 Scope of Validity

This manual is an integral part of X1 Series. It describes the assembly, installation, commissioning, maintenance and failure of the product. Please read it carefully before operating.

X1-0.7-S-D (L/O) X1-1.1-S-D (L/O) X1-2.0-S-D (L/O)X1-1.5-S-D (L/O)

X1-0.7-S-N (L/O) X1-1.1-S-N (L/O) X1-1.5-S-N (L/O) X1-2.0-S-N (L/O)

Note: “0.7” means 0.7kW. ”S” means “single” or one MPPT string. “D” means with “DC Switch”, ”N” means without “DC Switch”. “L” means with “LCD

display”, ”O” means without “LCD display”.

Keep this manual at where is accessibl e all the time.

1.2 Target Group

This manual is for qualified electricians. The tasks described in this manual only can be performed by qualified electricians.

1.3 Symbols Used

The following types of safety instructions and general information appear in this document as described below:

DANGER！

“Danger” indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING！

“Warning” indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION！

“Caution” indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTE！

“Note” provides tips that are valuable for the optimal operation of your product.

2 Safety

2.1 Appropriate Usage

The X1 Series are PV inverters which have two types (with screen interface and no screen) for user to choose, both can convert the DC current of the PV generator into AC current and feed it into the public grid. Their differences are the control panel and the operation.

LED LCD

SafetySafety

Surge protection devices (SPDs) for PV installation

►

WARNING!

Over-voltage protection with surge arresters should be provided when the PV power system is installed. The grid connected inverter is fitted with SPDs in both PV input side and MAINS side.

Lightning will cause a damage either from a direct strike or from surges due to a nearby strike.

Induced surges are the most likely cause of lightning damage in majority or installations, especially in rural areas where electricity is usually provided by long overhead lines. Surge may be included on both the PV array conduction and the AC cables leading to the building.

Specialists in lightning protection should be consulted during the end use application. Using appropriate external lightning protection, the effect of a direct lightning strike into a building can be mitigated in a controlled way, and the lightning current can be discharged into the ground.

Installation of SPDs to protect the inverter against mechanical damage and excessive stress include a surge arrester in case of a building with external lightning protection system (LPS) when separation distance is kept.

To protect the DC system, surge suppression device (SPD type2) should be fitted at the inverter end of the DC cabling and at the array located between the inverter and the PV generator, if the voltage protection level (VP) of the surge arresters is greater than 1100V, an additional SPD type 3 required for surge protection for electrical devices.

Ele ctrical gri d

PV array

DC distri butio n box

Sur ge arre stor Fuse DC b reaker

Ele ctric met er, bid irect ional

NFI

Sur ge arre stor Fuse AC br eaker

AC dist ribut ion box

Load

To protect the AC system, surge suppression devices (SPD type2) should be fitted at the main incoming point of AC supply (at the consumer’s cutout), located between the inverter and the meter/distribution system; SPD (test impulse D1) for signal line according to EN 61632-1.

All DC cables should be installed to provide as short a run as possible, and positive and negative cables of the string or main DC supply should be bundled together. Avoid creating loops in the system. This requirement forshort runs and bundling includes any associated earth bundling conductors.

Spark gap devices are not suitable to be used in DC circuits once conducting, they won’t stop conducting until the voltage passes through their terminals typically less than 30 volts.

Anti-Islanding Effect

►

Islanding eﬀect is a special phenomenon that grid-connected PV system still supply power to the nearby grid when the voltage loss is happened in the power system. It is dangerous for maintenance personnel and the public. X1 series provide Active Frequency Drift(AFD) to prevent islanding eﬀect.

Safety Safety

2.2 Important Safety Instructions

DANGER!

Danger to life due to high voltages in the inverter!

All work must be carried out by qualified electrician. The appliance is not to be used by children or persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children should be supervised to ensure that they do not play with the appliance.

CAUTION!

Danger of burn injuries due to hot enclosure parts!

During operation, the upper lid of the enclosure and the enclosure body may become hot. Only touch the lower enclosure lid during operation.

CAUTION!

Possible damage to health as a result of the effects of radiation!

Do not stay closer than 20 cm to inverter for any length of time.

NOTE!

Grounding the PV generator!

Comply with the local requirements for grounding the PV modules and the PV generator. SolaX recommends connecting the generator frame and other electrically conductive surfaces in a manner which ensures continuous conduction and ground these in order to have optimal protection of system and persons.

WARNING!

Ensure input DC voltage ≤Max. DC voltage. Over voltage may cause permanent damage to inverter or other losses, which will not be included in warranty!

WARNING!

Authorized service personnel must disconnect both AC and DC power from X1 series before attempting any maintenance or cleaning or working on any circuits connected to the X1 series.

WARNING!

Do not operate the inverter when the device is running.

WARNING!

Risk of electric shock!

Prior to the application, please read this section carefully to ensure correct and safe application. Please keep the user manual properly. Use only attachments recommended or sold by SolaX. Otherwise may result in a risk of fire, electric shock, or injury to person. Make sure that existing wiring is in good condition and that wire is not undersized. Do not disassemble any parts of inverter which are not mentioned in installation guide. It contains no user-serviceable parts. See Warranty for instructions on obtaining service. Attempting to service the X1 Series inverter yourself may result in a risk of electric shock or fire and will void your warranty. Keep away from flammable, explosive materials to avoid fire disaster. The installation place should be away from humid or corrosive substance. Authorized service personnel must use insulated tools when installing or working with this equipment. PV modules shall have an IEC 61730 class A rating. Never touch either the positive or negative pole of PV connecting device. Strictly prohibit touching both of them at the same time. The unit contains capacitors that remain charged to a potentially lethal voltage after the MAINS and PV supply has been disconnected. Hazardous voltage will present for up to 5 minutes after disconnection from power supply. CAUTION-RISK of electric shock from energy stored in capacitor. Never operate on the solar inverter couplers, the MAINS cables, PV cables or the PV generator when power is applied. After switching off the PV and Mains, always wait for 5 minutes to let the intermediate circuit capacitors discharge before you unplug DC and MAINS couplers. When accessing the internal circuit of solar inverter, it is very important to wait 5 minutes before operating the power circuit or demounting the electrolyte capacitors inside the device. Do not open the device before hand since the capacitors time to sufficiently discharge! require Measure the voltage between terminals UDC+ and UDC- with a multi-meter (impedance at least 1Mohm) to ensure that the device is discharged before beginning work (35VDC) inside the device.

0706

Safety Sa fety

2.3 PE Connection and Leakage Current

The inverter incorporates a certified internal Residual Current Device (RCD) in order to protect against possible electrocution and fire hazard in case of a malfunction in the cables or the inverter. There are two trip thresholds for the RCD as required for certification (IEC 62109-2:2011). The default value for eletrocution protection is 30mA, and for slow rising current is 300mA. If an external RCD is required by local regulations, check which type of RCD is required for relevant eletric code. It recommends using a type-A RCD. The recommended RCD values is 100mA or 300mA unless a lower value is required by the specific local electric codes. When required by local regulations, the use of an RCD type B is permitted.

The device is intended to connect to a PV generator with a capacitance limit of approx 700nf.

WARNING!

•

High leakage current!

•

Earth connection essential before connecting supply.

Incorrect grounding can cause physical injury, death or equipment malfunction and increase electromagnetic. Make sure that grounding conductor is adequately sized as required by safety regulations. Do not connect the ground terminals of the unit in series in case of a multiple installation. This product can cause current with a d.c component, Where a residual current operated protective (RCD) or monitoring (RCM) device is used for protection in case of direct or indirect contact, only one RCD or RCM of type B is allowed on the supply side of this product. For United Kingdom

The installation that connects the equipment to the supply terminals shall comply with the requirements of BS 7671. Electrical installation of PV system shall comply with requirements of BS 7671 and IEC 60364-7-712. No protection settings can be altered. Installer shall ensure that equipment is so installed and operated to maintain at all times compliance with the requirements of ESQCR22(1)(a). For Australia and New Zealand

Electrical installation and maintenance shall be conducted by licensed electrician and shall comply with Australia National Wiring Rules.

2.4 Explanation of Symbols

Thi s section gives an explanat ion of all the symbols shown on t he inver ter and on the type labe l.

Symbols on the Inverter

Symbol Explanation

When the blue light is on, it indicates the inverter is working normally.

When the red light is on, it indicates an error has occurred.

Symbols on the Type Label

Symbol Explanation

CE mark. The inverter complies with the requirements of the applicable CE guildlines.

RCM remark.

SAA certification.

Beware of hot surface. The inverter can become hot during operation. Avoid contact during operation.

Danger of high voltages. Danger to life due to high voltages in the inverter!

Danger. Risk of electric shock!

Observe enclosed documentation.

The inverter can not be disposed together with the household waste. Disposal information can be found in the enclosed documentation.

Do not operate this inverter until it is isolated from mains and on-site PV generation suppliers.

Danger to life due to high voltage. There is residual voltage in the inverter which needs 5 min to discharge.

• Wait 5 min before you open the upper lid or the DC lid.

0908

Safety Int roduc tion

2.5 CE Directives

This chapter follows the requirements of the European low voltage directives, which contains the safety instructions and conditions of acceptability for the endues system, which you must follow when installing, operating and servicing the unit. If ignored, physical injury or death may follow, or damage may occur to the unit. Read this instructions before you work on the unit. If you are unable to understand the dangers, warnings, cautions or instructions, please contact an authorized service dealer before installing,operating and servicing the unit.

The Grid connected inverter meets the requirement stipulated in Low Voltage Directive (LVD) 2014/35/EU and Electromagnetic Compatibility (EMC) Directive 2014/30/EU. The unit is based on: EN 62109-1:2010; EN 62109-2:2011; IEC 62109-1(ed.1); IEC62109-2(ed.1); EN 61000-6-3:2007+A:2011; EN 61000-6-1:2007; EN 61000-6-2:2005. In case of installation in PV system, startup of the unit (i.e. start of designated operation) is prohibited until it is determined that the full system meets the requirements stipulated in EC Directive (2014/35/EU,2014/30/EU, etc.)

The grid connected inverter leave the factory completely connecting device and ready for connection to the mains and PV supply ,the unit shall be installed in accordance with national wiring regulations. Compliance with safety regulations depends upon installing and configuring system correctly, including using the specified wires. The system must be installed only by professional assemblers who are familiar with requirements for safety and EMC. The assembler is responsible for ensuring that the end system complies with all the relevant laws in the country where it is to be used.

The individual subassembly of the system shall be interconnected by means of the wiring methods outlined in national/international such as the national electric code (NFPA) No.70 or VDE regulation 0107.

3 Introduction

3.1 Basic Features

Thanks for your purchasing with SolaX X1 Series inverter. The X1 Series inverter is one of the finest inverters on the market today, incorporating state-of-the-art technology, high reliability, and convenient control features.

Advanced DSP control technology. Utilize the latest high-efficiency power component. Optimal MPPT technology.

- One MPP Tracking.

- Wide MPPT input range. Advanced anti-islanding solutions. IP65 protection level. Max. efficiency up to 97.1%. EU efficiency up to 96.5%. THD<2.4%. Safety &Reliability: transformerless design with software and hardware protection. Power factor regulation. Friendly HMI.

- LED status indications.

- LCD display technical data, Human-machine interaction through press key.

- Dry contact communication interface.

- PC remote control.

- Romote upgrade and upgrade through USB interface.

- Pocket Wi-Fi monitoring.

- Energy conservation.

10 11

Int roduc tion Int roduc tion

3.2 Terminals of the Inverter

A B C

Object

A DC Switch (optional) B C

E F

DC Connector Pocket WiFi/LAN/GPRS Ground screw USB for Upgrade RS 485/ NFI/ DRM AC Connector

Description

3.3 Dimension

Dimension

267 mm

328 mm

116 mm

Weight

NOTE!

No matter with LCD or not, the X1 series have the same functions, only different from the appearance display and operation.

Model

Net Weight

Gross Weight

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

6Kg 6Kg 6Kg 6Kg

8Kg 8Kg 8Kg 8Kg

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

WARNING!

Only authorized personnel is allowed to set the connection.

12 13

Technic al Data

4. Technical Data

4.1 DC Input

Model

Max. DC power [W ]

Max. DC voltage[V ]

Norminal DC operating voltage[V ]

MPPT voltage range [V ]

MPPT voltage range@full load [V ]

Max. input current [A]

Max. short circuit current [A]

Start input voltage [V ]

Start output voltage [V ]

No. of MPP trackers

Strings per MPP tracker

DC disconnection swtich

4.2 AC Output

Model

Rated output power [W]

Max.apparent AC power [VA]

Rated grid voltage and range [V]

Rated AC frequency and range [Hz]

Nominal AC current [A]

Max. output current [A]

Max. output fault current [A]

Max. output overcurrent protection [A]

Inrush current [A]

Output

Total harmonic distortion(THDi)

Displacement power factor

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

840

400

360

55-380

70-350

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

700

3.04

3.5

L/N/PE

<3%

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

1250

400

360

55-380

110-350

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

1100

220/230/240;180-280V

4.78

5.5

L/N/PE

<3%

0.8leading-0.8lagging

Optional

50/60; 5Hz

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

55-380

150-350

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

1650

400

360

1500

6.52

7.5

L/N/PE

<3%

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

2200

400

360

55-380

200-350

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

2000

8.70

9.5

L/N/PE

<3%

4.3 Efficiency, Safety and Protection

Model

MPPT eﬃciency

Euro eﬃciency

Max. eﬃciency

Safety & Protection

Over/under voltage protection

DC isolation protection

Monitoring ground fault protection

Grid protection

DC injection monitoring

Back feed current monitoring

Residual current detection

Anti-islanding protection

Over load protection

Over heat protection

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

99.90%

95.00%

97.10%

4.4 General Data

Model

Dimension [ W/H/D](mm)

Dimension of packing [W/H/D](mm)

Net weight [kg]

Gross weight [kg]

Installation

Operating temperature range[℃]

Storage temperature [℃]

Storage/Operation relative humidity

Altitude [m]

Ingress Protection

Night-time consumption

Cooling

Noise level

Inverter Topology

Communication interface

Standard warranty [year]

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

6 6

RS485/ WiFi(optional) /NFI(optional)/ USB/ DRM

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

99.90%

95.50%

97.10%

YES

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

267*328*116

406*328*187

Wall-mounted

-25~+60 (derating at 45)

-25~+60

0%~100%, condensation

≤2000

IP65

<1w

Natural

<25dB

Transformerless

5years (10 optional)

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

99.90%

96.00%

97.10%

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

99.90%

96.50%

97.10%

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

14 15

Insta llati on Insta llati on

5. Installation

5.1 Check for Transport Damage

Make sure the inverter is intact during transportation. If there are some visible damages, such as cracks, please contact your dealer immediately.

5.2 Packing Lists

Open the package and fetch out the product, check the accessories at first. The packing list shows as below.

User Manual

X1 Series

0.7kw - 2.0kw

The copyright of this manual belongs to Solax Power Network Technology(Zhe jiang) Co,. Ltd. Any corporation or individual should not plagiarize, partitially or fully copy (including software,etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved. SolaX Power Network Technology (Zhe jiang) Co.,Ltd. reserves the right of final interpretation.

Object

A B C D E F G H

J K L

Male DC unit×1

X1 Series 0.7KW-2.0KW

Quantity

2 2 2 2

1 1 1

1 1 1 1

Female DC unit×1

D E

I (Optional )

Description

X1 series inverter DC connector DC pin contact(1*positive, 1*negative) Expansion tube Expansion screw Cross recessed screw Earth terminal AC connector Pocket WiFi/LAN/GPRS( Optional )

Product manual Quick installation guide Warranty card

5.3 Installation Precaution

X1 Series inverter is designed for outdoor installation (IP 65). Make sure the installation site meets the following conditions: Not be exposed to glare. Not in areas where highly flammable materials are stored. Not in potential explosive areas. Not in the cool air directly. Not near the television antenna or antenna cable. Not higher than altitude of about 2000m above sea level. Not in environment of precipitation or humidity(100%) . Be sure the ventilation is good enough. The ambient temperature in the range of -25℃ to +60℃. The slope of the wall should be within ±5°.

The wall hanging the inverter should meet conditions below:

1) Solid brick/concrete, or strength equivalent mounting surface;

2) Inverter must be supported or strengthened if the wall’s strength isn’t enough(such as wooden wall, the wall covered by thick layer of decoration)

Please avoide direct sunlight, rain exposure, snow laying up during installing and operating.

Available Space Size

300mm

Table2 Available Space Size

300mm 300mm

300mm

Position Min.size

Left Right Top

Bottom Front

300mm 300mm

300mm 300mm 300mm

Insta llati on Insta llati on

5.4 Installation Steps

Preparation

Below tools are needed before installation.

Installation tools: crimping pliers for binding post , screwdriver, manual wrench and Φ10 driller.

Step 1: Unscrew the bracket from the back of the inverter.

a) The wall bracket is fixed on the inverter, and the user should remove it firstly. (Φ10 driller.torque: 0.8±0.1Nm)

Step 2: Screw the wall bracket on the wall

b) Use the wall bracket as a template to mark the position of the 3 holes on the wall. c) Drill holes with driller, make sure the holes are deep enough (at least 50mm) for installation, and then tighten the expansion tubes. d) Install the expansion tubes in the holes, and tighten them. Then install the wall bracket by using the expansion screws.(Φ10 driller.torque: 0.8±0.1Nm)

Step 3: Match the inverter with wall bracket

e) Hang the inverter over the bracket, move the inverter close to it, slightly lay down the inverter, and make sure the 3 mounting bars on the back are fixed well with the 3 grooves on the bracket.

Note: Please refer to the details from the Quick Installation Guide.

5.5 Connections of the Inverter

5.5.1 The Main Steps to Connect to the Inverter

PV String Connection

The inverter has one-string PV connector. Please select PV modules with excellent function and reliable quality. Open circuit voltage of module array connected should be ＜Max.DC (table as follow) input voltage, and operating voltage should be within the MPPT voltage range.

Table3 Max. DC Voltage Limitation

Model

Max.DC Voltage

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

DANGER!

Danger to life due to high voltages on DC conductors. When exposed to sunlight,the PV array generates dangerous DC voltage which is present in the DC conductors.Touching the DC conductors can lead to lethal electric shocks. Cover the PV modules. Do not touch the DC conductors.

WARNING!

PV module voltage is very high which belongs to dangerous voltage range, please comply with the electric safety rules when connecting.

WARNING!

Please do not make PV positive or negative ground!

NOTE!

Please follow the requirements of PV modules as below: Same type; Same quantity; Identical alignment; Identical tilt. In order to save cable and reduce the DC loss, we suggest installing the inverter near PV modules.

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

400V

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

Insta llati on Insta llati on

Connection Steps

a) Turn off the DC switch. b) Choose 12 AWG(4mm²) wire to connect the PV module. c) Trip 6mm of insulation from the wire end.

6.0 mm

12AWG

trip length

d) Separate the DC connector as below.

plug

pin contact

cable nut

e) Insert striped cable into pin contact and ensure all conductor strand are captured in the pin contact. f) Crimp pin contact by using a crimping pliers. Put the pin contact with striped cable into the corresponding crimping pliers and crimp the contact.(torque:1.2±

0.1Nm)

g) Insert pin contact through the cable nut to assemble into back of the male or female plug. When you feel or hear a “click” the pin contact assembly is seated correctly.(torque:1.2±0.1Nm)

Grid Connection

X1 series inverter are designed for single phase grid. Voltage range is 220/230/240V, frequency is 50/60Hz. Other technical requests should comply with the requirement of the local public grid.

Table 4 Cable and Micro-breaker recommended

Model

Cable

Micro-breaker

*The parameters have some differences because of different environment and material. Please according to the local conditions to choose appropriate cable and micro-breaker.

X1-0.7-S-D (L/O)

X1-0.7-S-N (L/O)

12AWG 12AWG

10A 10A

X1-1.1-S-D (L/O)

X1-1.1-S-N (L/O)

Inverter+BMU

X1-1.5-S-D (L/O)

X1-1.5-S-N (L/O)

12AWG

10A

X1-2.0-S-D (L/O)

X1-2.0-S-N (L/O)

12AWG

16A

Micro-breaker should be installed between inverter and grid, any loads should not be connected with inverter directly.

Incorrect Connection between Load and Inverter

Impedance of X1 series Inverter AC connecting dot should be less than 2Ω.To ensure reliable anti-islanding function, PV cable should be used to ensure wire loss < 1% than normal power. Moreover, length between AC side and grid connecting dot should be less than 150m. The following chart is the cable length, section area and wire loss.

h) Seperate the DC connector ①Use the specified wrench tool. ②WhenseparatetheDC+ connector, push the tool down from up side. ③When separate the DC- connector, push the tool down from the buttom side. ④Separate the connectors by hand.

This product has a professional IP65 AC waterproof connector. You have to wire AC by yourself. Please see the gure below.

20 21

Insta llati on Insta llati on

Connection Steps

a) Check the grid voltage and compare with the permissive voltage range (refer to technical data).

b) Disconnect the circuit-bricker from all the phases and secure against reconnection.

c) Trip the wires:

- Trip all the wires to 52.5mm and the PE wire to 55mm.

- Use the crimping pliers to trip 6mm of insulation from Al wire ends as below.

6mm

d) Separate the AC plug into three parts as below.

- Hold the middle part of the female insert, rotate the back shell to loose it, and datach it from female inset.

- Remove the cable nut (with rubber insert) from the back shell.

f) Insert the tripped end of each three wires into the appropriate hole in the female insert, and then tight each screw (to tight each wire in place).(PH1 cross screwdriver .torque:0.8±0.1Nm)

g) Screw down the threaded sleeve of the pressure screw.

h) Screw down the pressure screw.(torque:3±0.3Nm)

i) Connect the AC plug to the inverter.

e) Slide the cable nut and then back shell onto the cable.

Insta llati on Insta llati on



Earth Connection

RS 485/NFI/DRM

Screw the ground screw with allen wrench shown as follow. (φ4hexagon wrench.torque:1.5±0.2Nm)

WARNING!

Be sure the ground wire must be connected!

5.5.2 Communication interface

This product has a series of communication interfaces: such as WiFi, RS485/NFI, DRM and USB for upgrading for human and machine communication. Operating information like output voltage, current, frequency, faulty information, etc., can be delivered to PC or other monitoring equipment via these interfaces.

WiFi

This inverter provides a WiFi port which can collect information from inverter including status, performance and updating information to monitoring website via connecting Pocket WiFi( purchase the product from supplier if needed)

Connection steps:

1. Plug the Pocket WiFi into “WiFi/LAN/GPRS” port at the bottom of inverter.

2. Connect the WiFi with router.

3. Set the station account on the SolaX web. (Please check the Pocket WiFi user

manual for more details) (torque:0.6±0.1Nm)

a. RS 485

RS 485 is one standard communication interface which can transmit the real data from inverter to PC or other monitoring equipments.

b. NFI(optional)

The NFI, energy controller, is integrated with meter, control MCU and RS485 to communicate with the inverter. It can control the power of inverter to assure that the redundant power will not feed into Grid.

X1 series inverter

Electrical

grid

NFI

Load

The PIN denitions of RS 485/NFI interface are as below.

Definition

RefGen

Com/DRM0

GND_COM

NFI_A/ 485_A

NFI_B/ 485_B

E_Stop

GND_COM

Insta llati on Insta llati on

RS 485 Connection Steps:

Upgrade

1) Firstly unscrew the screw from the 485 port.(PH1 cross screwdriver .torque:0.8±0.1N m)

2) Prepare a communication cable and trip the insulation from it.

3) Let the communication cable pass though the waterproof connector, then insert it into the connector following the PIN definition rule.

Han d tight en.t orque :1.2±0 .1N m

4) Crimp the connector with the crimping plier.

5) Insert the cable into the 485 port of the inverter, and tighten the waterproof connector.

NFI Connection Steps:

Please see the Quick Guide and User Manual for X1-NFI Installation for details.

DRM

DRM function (for AS4777) is provided to support several demand response modes by giving control signals as below. The user should short circuit between 1 and 2 and cooperate with external equipment when using it.

DRM shares the terminal block with RS485/NFI communications. The connection steps of the DRM, user can refer to the above (b) RS485 connections.

NOTE!

As X1 series has two different tyeps: with LCD and without LCD. Please select the corresponding upgrade method according to different types.

User can update the inverter system through the USB flash dirver.

WARNING!

Make sure the input voltage is more than 100V (in good illumination condition), otherwise it may result in failing during updating.

Upgrade Steps:

1) Please contact our service support to get the update file, and extract it into your USB flash dirver as the following file path:

“update\ \618.00207.00_X1_BOOST3.0_MINI2.0_AIR2.0_ARM_Vx.xx_xxxxxxxx.usb”;ARM “update\DSP\618.00205.00_X1_BOOST3.0_MINI2.0_AIR2.0_DSP_Vx.xx_xxxxxxxx.usb ”.

Note: Vx.xx is version number, xxxxxxxx is file completion date.

WARNING!

Make sure the directory is in accordance with above form strictly!

•

Do not modify the program file name ! Or it may cause the inverter

•

not work anymore !

2) Make sure the DC switch is off and the AC is disconnected with grid. Insert USB flash driver into the “USB” port on the bottom of X1 series. Then turn on DC switch or connect the PV connector, blue light “a” and red lighgt “b” flash alternately for 10 times. Indicator light “1", “2", “3", “4" are unlit.

Note: Only DRM0 is available now, and other functions are being developed.

Insta llati on Insta llati on

*The inverter with LCD:

3) Insert USB flash drive with update program into the USB port on the bottom of

the inverter. Turn on DC switch or connect the PV connector.

4) Short press up and down key to select the one that you want to update and long

press down key to confirm.

AR M

DS P

AR M

DS P

Cancel OK

>618.00207.00... . ..

Update(D SP)

>618.00205.00... . ..

Update(ARM)

Updating--- -25%

Update (AR M )

Updating--- -25%

Update (DSP )

5) After the upgrade is complete, please remember to turn off the DC switch or

disconnect the PV connector, then pull off the USB flash dirver, screw the panel of USB port.

WARNING!

During updating, please don’t turn off the DC switch or disconnect the PV connector. If failed, please repeat the above operation again.

**The inverter without LCD:

Step (1) and Step (2) are the same with the inverter with LCD. (3) Turn on DC switch or connect the PV connector, blue light “a” and red light “b” flash alternately for 10 times. Indicator light “1”, “2”, “3”, “4” are unlit.

(A)

3 4

(B1)

3 4

(B2)

c) About seconds later, the system will be updated automatically. During this 10 period, blue light “a” is always been on and red light “b” is unlit. Indicator light “1”, “2”, “3”, “4” show the progress of system updating. Refer to figure (B1), it shows that the updating process is half-finished. Once finished completely, it shows as figure (B2).

Note: The updating process for ARM needs about 10 seconds and DSP needs about 1 minutes.

WARNING!

During updating, please don’t turn off the DC switch or disconnect the PV connector. If failed, please repeat the above operation.

ISO Alarm

The ISO alarm installed into the inverter, is the standard configuration, as required by AS 4777.2 and AS/NZS 5033, it will give an alarm once the isolation impedance of the PV arrays is less than 100KΩ .

Insta llati on Insta llati on

5.6 Run the Inverter

Start inverter after checking all below steps:

a) Check that device is xed well on the wall. b) Make sure all the DC breakers and AC breakers are disconnected. c) AC cable is connected to grid correctly. d) All PV panels are connected to inverter correctly, DC connectors which are not

used should be sealed by cover. e) Turn on the external AC and DC connectors. f) Turn on the DC switch to the “ON”position.

Start the inverter

a) Inverter will start automatically when PV panels generate enough energy. b) Check the status of LED indication and LCD screen, the LED indication should be

blue and the LCD screen should display the main interface.

c) If the LED indication is not blue, please check the below:

- All the connections are right.

- All the external disconnect switches are closed.

- The DC switch of the inverter is in the “ON” position.

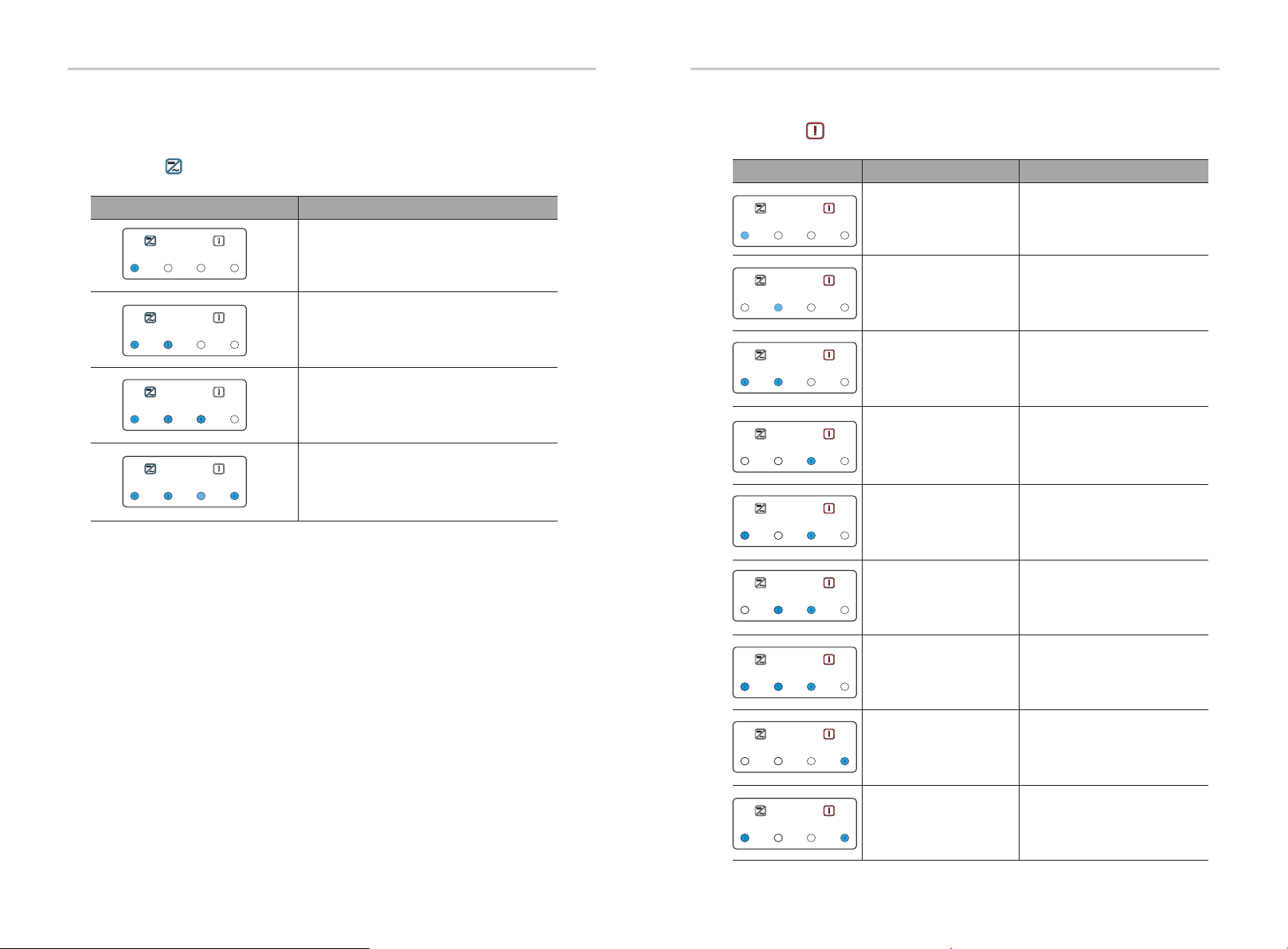

Below is the three status when operating, which means inverter starting

up successfully. And there are diﬀerence between having LCD and not having the LCD.

*The inverter with LCD can refer to the following:

Waiting: Inverter is waiting to checking when DC input voltage from panels is greater than 60V (lowest start-up voltage) but less than 70V (lowest operating voltage).

Checking: Inverter will check DC input environment automatically when DC input voltage from the PV panels exceeds 70V and PV panels have enough energy to start inverter.

Normal: Inverter begins to operate normally with blue light on. Meanwhile feedback energy to grid, LCD displays present output power.

**Below is three different states of the inverter without LCD when operating, which means inverter starting up successfully.

Waiting: Inverter is waiting to checking when output DC voltage from PV panels is greater than 60V (lowest start-up voltage) but less than 70V (lowest operating voltage). Under this mode, the blue light “a” is flickering, shown as figure (A).

Checking: Inverter will check output environment automatically when DC output voltage of PV panels. Under this mode, the blue light “a” is flickering, shown as figure (A).

Normal: Inverter begins to operate normally with blue light “a” on. Inverter will work in MPPT mode when PV voltage is in the MPPT voltage range, inverter will stop feedback to grid when PV power is not enough. Under this mode, the blue light “a” is always on, light ”1,2,3,4” represent the output power. As shown in figure (B), the output power is 0%~25%".

(A) Waiting/Checking

3 4

(B) Norm al

WARNING!

Power to the unit must be turned on only after installation work has been completed. All electrical connections must be carried out by qualied personnel in accordance with legislation in force in the country concerned.

Enter the setting interface to follow the instructions when it is rst time to start up.

NOTE!

Please set the inverter if it is the first time to start up. Above steps are for the regular start of the inverter. If it is the first time to start up the inverter, you need to setup the inverter.

ENERGY CONTROL

Equipment only to be used for the purpose outlined by SolaX.

Insta llati on Ope ratio n Method

6. Operation Method

6.1 Control panel

LCD

B D

Object Name Description

Display the information of the inverter.

Light in blue: The inverter is in normal status. Flash in blue: The inverter is in waiting status.

Light in red: The inverter is in fault status.

Up/ESC button:

Move cursor to upside or increase value. Return from current interface or function

Move cursor to downside or decrease value.

Down/Enter button:

Conrm and change the parameters.

Light in blue: The fault types or output power of the inverter.

LCD Screen

Indicator LED

Function Button

Indicator LED

Note: When the inverter with LCD and LED are in “Waiting” and “Checking” status, the blue light “B” is flickering; when in “Normal” status, the blue light “B” is always on.

LED

6.2 LCD Structure

Please refer to the inverter for the most updated structure

*User can also see the U,I & P

1 level 2 level 3 level

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Ugrid 0.0V F 0.00Hz

>English German

↓

0 0 0 0

1:xxYxxxDxxH

Error1

>Product SN:

X1xxx

>Machine Type:

Power 0W

Normal

Today 0.0KWh

Normal

Down

Total 0.0KWh

Normal

Down

Enter

>Status

Down

>Language

Down

>Setting

Down

>Error Logs

Down

>About

Back

of the PV.

Down

***Only six latest errors were kept

***

Down

xx-S

Back

Down

>Master:

xxx

Back

>Manager:

Down

xxx

Note:

Key

Enter/Down

Back/Up

Operation Long Press

Short Press Long Press Short Press

Description

Go to the next menu or confirm to change parameters

Look at the next parameter or increase the value Return the previous menu or confirm the parameters Look at the previous parameter or decrease the value

(Usolar,Isolar,Psolar)

Igrid 0.0A Pout 0W

Enter

Back

>Safety

Grid

**Go to next page

32 33

Ope ratio n MethodOperat ion Met hod

6.3 LCD Operation

• Setting function is used for setting the inverter for Safety, Grid, Power Factor and so on.

• Since this function will change the inverter's parameter, the end user with the user password as”0000” has the limited authority to change the setting. We need installer password to do most of the professional setting.

**Previous page

Enter

Country

Back

Enter

>Vac Upper

Back

Enter

>Mode Select

Back

Enter

>Mode Select

Back

Enter

> Proportion

Back

Enter

>Mode Select

Back

Enter

>Mode Select

Back

Enter

>Mode Select

Back

Enter

↓

Back

Enter

>Reset

Back

Enter

>Reset

Back

>AS4777<

0.0

Pf(P)

Enable

1.00

Disable

Enable

0 0 0 0

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Enter

Back

Enter

Back

↓

> 220.0 <

>Upper Limit

0.0

Mode Select

>Enable<

↓

> 0.80 <

Mode Select

>Disable<

Mode Select

>Disable<

Mode Select

>Enable<

Reset

>No<

Reset

>No<

Enter

Back

> 1.0 <

>Safety

Grid

Up Down

>Grid

Up Down

>Power Factor

Up Down

>P(U) Function

Up Down

>Power Limit

Up Down

>NFI Function

Up Down

>Earth Detect

Up Down

>DRM Function

Up Down

>New Password

Up Down

>Reset Errorlog

Up Down

>Reset Energy

LCD Display

• Level 1

a) The first line displays the parameters(Power, Today and Total) and the values.

b) The second line shows the running status.

Namely, “Power” means the timely output power; “ Today” means the power generated within the day. “Normal” means the status of the inverter.

• Level 2

Long press any first-level parameter can enter the sencond-level “Status” parameter interface. User can also see other parameters, such as the Language( without password ), Setting ( need password ), Error Logs of the inverter, and About ( the user can watch the information of the inverter).

• Level 3

Long press the sencond-level parameter can enter the corresponding third-level

↓

parameter interface. a) Status: The user can see the U/I/P parameters of the grid and the PV, such as

the Ugrid, Igrid, P and F of the grid, and the Usolar, Isolar and Psolar of the PV. b) Language: This inverter provides several languages for customer to choose. c) Setting: Entering the installer password, the information of the LCD interface is as the previous page shown. (1) Safety: The user can set the right safety standard here. (2) Grid: Usually end user do not need to set the grid parameters. All default

value have been set before leaving factory according to safety rules.

If need to reset, any changes should according to the requirement of local grid.

Parameter Comment

Normally

Vac upper

Vac lower Voltage low protect

Vac upper slow Voltage high slow protect

Vac lower slow Voltage low slow protect

Fac upper Frequency high protect

Fac lower

Fac upper slow Frequency high slow protect

Fac lower slow Frequency low slow protect

Vac 10m avg 10 min voltage high protect

Apply to EN50438_NL. / VDE 4105

FreqSetPoint

FreqDropRate

Apply to VDE 4105

Q_3Tau Reactive response time

Voltage high protect

Frequency low protect

Frequency set point

Frequency droop rate

Ope ratio n MethodOperat ion Met hod

(3) Power Factor: ( For specic country if required by the local grid.) There are 6 modes for selecting: Off , Under-Excited, Over-Excited, PF(p), Q( u ). All parameters are shown below.

Mode Comment

Off

Under-Excited PF value

Over-Excited PF value

PF(p)

Q( u )

Fixed Q Power

Upper limit

Lower limit

Power Upper

Power Lower QuVupRate

( EN50438_NL ) QuVlowRate ( EN50438_NL )

QUrangeV1 ( AS4777.2 )

QUrangeV4 ( AS4777.2 )

Q Power( for some local grids )

For VDE ARN 4105, curve cos φ = f(P) should refer to curve A. default values of setting are as shown in curve A. For E 8001, curve cos φ = f(P) should refer to curve B. default values of setting are as shown in curve B.

cos φ

0.9/0.95*

leading

over-excited

under-excited

lagging

0.2

0.5 1.0

curve A

p/p

0.9

Emax

0.9

Upper limit

inductive

0.2

Power Lower

capactive

Lower limit

0.3

curve B

Power Upper

0.7

0.8

f (P)

Reactive power control, Reactive standard curve Q= f(V)

Qmax

V1iV2i

V2sV1s

V2s=1.10Vn

V1s=1.08Vn=QuVlowRate

V2i=0.90Vn

V2i=0.92Vn=QuVlowRate

→The way to operate the value : a) Just watch the parameter of the mode by short pressing (Λ) and (V) . b) If you change other mode by short pressing (Λ) and (V) , you need return the Power Factor interface by long pressing the (V). Then short press (V) to confirm and enter the Upper Limit. This time you can modify the value by long pressing (Λ) ; If you only change the parameter of the mode(default), you just long press the (Λ) to modify the value. c) After setting, long press the (V) key to confirm and return the previous directly.

>Power Factor

Enter

Mode Select

→ → →

>PF(p)<

Enter Enter

>Upper Limit

0.0

↓

> 1.0 <

(4) P(u) Function: The device is suitable for Australia if the “Enable” is chosen.

(5) Power limits: User can set the power limit value of the inverter, and the default is 1. If you want to change, please refer to the method bellow. (the same operation to other setting value)

> Proportion

1.00

→

→The way to set value : a) Long press the key (V) to enter the interface, and long press again to modify . b) Short Press (Λ) or (V) to increase or decrease the value you needed. c) After setting, long press the (V) key to confirm the parameters or you can long press the (Λ) to confirm and return the previous directly.

↓

> 0.80 <

(6) NFI Function: When selecting NFI, the user should set the NFI function “Enable”, otherwise the inverter will not work.

(7) DRM Function: User can choose whether using the DRM function or not.

(8) New Password: Installer can set the new password here.

→The way to set password: a) Long press the key (V) to enter the interface, and long press again to modify . b) Short Press (Λ) or (V) to increase or decrease the value you needed. c) After setting, long press the (V) key to confirm the parameters. d) Long press (Λ) to enter next level.

(9) Reset Errorlog: The user can clear the errorlogs by this function.

(10) Reset Energy: The user can clear the power energy by this function.

(11) About: This interface shows information of the inverter, include product serial number, machine type, master and manager.

-Qmax

Ope ratio n MethodOperat ion Met hod

6.4 Indicator Information

Normal working

Blue light “a” keeps on. Light “1,2,3,4” are unlit:

Indicator Description

3 4

Output power range : 0% ~ 25%

Output power range : 25% ~ 50%

Output power range : 50% ~ 75%

Output power range : 75% ~ 100%

Working faults

Red light “b” keeps on, light “1, 2, 3, 4” are unlit :

Indicator Fault Description

3 4

PV Volt Fault PV Over Voltage Fault

Isolation Fault

3 4

Earth Fault

Temp Over Fault Over Temperature Fault

DCI Fault

DCI Device Fault

RCD Fault

Isolation Fault Earth Fault

DCI OCP Fault

RCD Fault

3 4

Mains Lost

Grid Volt Fault

Grid Freq Fault Grid Freq Fault

Consistant Fault

Grid Lost Fault

Grid Volt Fault

Sample Fault

Ope ratio n Method

Indicator Fault Description

Troublesh ootin g

7 Troubleshooting

3 4

Relay Fault Relay Fault

7.1 Troubleshooting

This section contains information and procedures for solving possible problems with X1 series inverters, and provides you with troubleshooting tips to identify

3 43

EEPROM Fault

Inv EEprom Error

Mgr Eeprom Fault

and solve most problems that could occur with the X1 series inverters. This section will help you narrow down the source of any problems you may encounter. Please read the following troubleshooting steps. Check warnings or fault messages on System Control Panel or Fault codes on the inverter information panel. If a message is displayed, record it before doing

3 4

Comms Lost

Include SPI,SCI Faults

anything further. Attempt the solution indicated in troubleshooting lists.

● If your inverter's information panel is not displaying a Fault light, check the

following list to make sure that the present state of the installation allows proper

3 4

Bus High

Bus Volt Fault

operation of the unit.

— Is the inverter located in a clean, dry, adequately ventilated place? — Have the DC input breakers been opened? — Are the cables adequately sized and short enough?

3 4

TZ Fault

SW OCP Fault

Tz Protect Fault

— Are the input and output connections and wiring in good condition? — Are the configurations settings correct for your particular installation? — Are the display panel and the communications cable properly connected and undamaged?

Other Device Fault

3 4

Other Device Fault

PLL Lost Fault

Contact SolaX Customer Service for further assistance. Please be prepared to describe details of your system installation and provide model and serial number of the unit.

3 4

AC10Min Volt Fault AC10Min Volt Fault

Troublesh ootin gTroublesh ootin g

AC10M Volt Fault

AC10Minute overvoltage Fault System will reconnect if the utility is back to normal. Or seek help from us.

NFI Fault

Check the NFI connec tion wi th the inver ter. Or seek help from u s.

Earth Faul t

Earth Fault

42 43

Check the connecti on of the i nverter. Or seek help from u s.

Troublesh ootin g Dec ommis sioni ng

7.2 Routine Maintenance

Inverters do not need any maintenance or correction in most condition,but if the inverter often loses power due to overheating,this can be the following reason:

● The cooling fins on the rear of house are coverd by dirts.

Clean the cooling fins with a soft dry cloth or brush if necessary. Only trained and authorized professional personnel who are familiar with the requirements of safety was allowed to perform servicing and maintenance work.

► Safety checks

Safety checks should be performed at least every 12 months by manufacturer's qualified person who has adequate training,kownledge,and practical experience to perform these tests.The data should be recorded in an equipment log.If the device is not functioning properly or fails any of test,the device has to be repaired.For safety check details ,refer to this manual,section 2 Safety instruction and EC Directives.

►Maintain periodically

Only qualified person may perform the following works. During the process of using the inverter,the manage person shall examine and maintain the machine regularly.The concrete operations are follow.

1) Check that if the cooling fins on the rear of house are covered by dirts, and the machine should be cleaned and absorbed dust when necessary. This work shall be check time to time.

2) Check that if the indicators of the inverter are in normal state,check if the keys of the inverter are in normal state,check if the display of the inverter is normal.This check should be performed at least every 6 months.

3) Check that if the input and output wires are damaged or aged.This check should be performed at least every 6 months.

4) You should get the inverter panels cleaned and their security checked at least every 6 months.

8 Decommissioning

8.1 Dismantling the Inverter

Disconnect the inverter from DC Input and AC output. Wait for 5 minutes for de-energizing. Disconnect communication and optional connection wirings. Remove the inverter from the bracket. Remove the bracket if necessary.

WARNING!

Before dismantling the inverter, please be sure to disconnect the DC switch, and then unplug the PV and AC cables, otherwise it will lead to an electric shock hazard.

8.2 Packaging

If possible, please pack the inverter with the original packaging. If it is no longer available, you can also use an equivalent carton that meets the following requirements.

Suitable for loads more than 30 kg. With handle. Can be fully closed.

8.3 Storage and Transportation

Store the inverter in dry place where ambient temperatures are always between

-25 °C - +60 °C. Take care of the inverter during the storage and transportation, keep less than 4 cartons in one stack.

When the inverter or other related components need to be disposed. Have it carried out according to local waste handling regulations. Please be sure to deliver wasted inverters and packing materials to certain site, which can assist relevant department to dispose and recycle.

Solax X1-1.1-S-DL, X1-0.7-S-DL, X1-0.7-S-NL, X1-0.7-S-N0, X1-1.1-S-D0 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
