Solarflare Server Adapter

Solarflare® Server Adapter User Guide

• Introduction...Page 1

• Installation...Page 18

• Solarflare Adapters on Linux...Page 39

• Solarflare Adapters on Windows...Page 109

• Solarflare Adapters on VMware...Page 236

• Solarflare Adapters on Solaris...Page 263

• SR-IOV Virtualization Using KVM...Page 307

• SR-IOV Virtualization for XenServer...Page 324

• Solarflare Adapters on Mac 0S X...Page 334

• Solarflare Boot ROM Agent...Page 344

User Guide

Information in this document is subject to change without notice.

Trademarks used in this text are registered trademarks of Solarflare® Communications Inc; Adobe is a trademark of Adobe Systems. Microsoft® and Windows® are registered trademarks of Microsoft Corporation.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Solarflare Communications Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

SF-103837-CD

Last revised: July 2014

Issue 11

Issue 11 © Solarflare Communications 2014 i

Solarflare Server Adapter

User Guide

Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Virtual NIC Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Software Driver Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.4 Solarflare AppFlex™ Technology Licensing.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.5 Open Source Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.6 Support and Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.7 Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.8 Regulatory Approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Chapter 2: Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.1 Solarflare Network Adapter Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

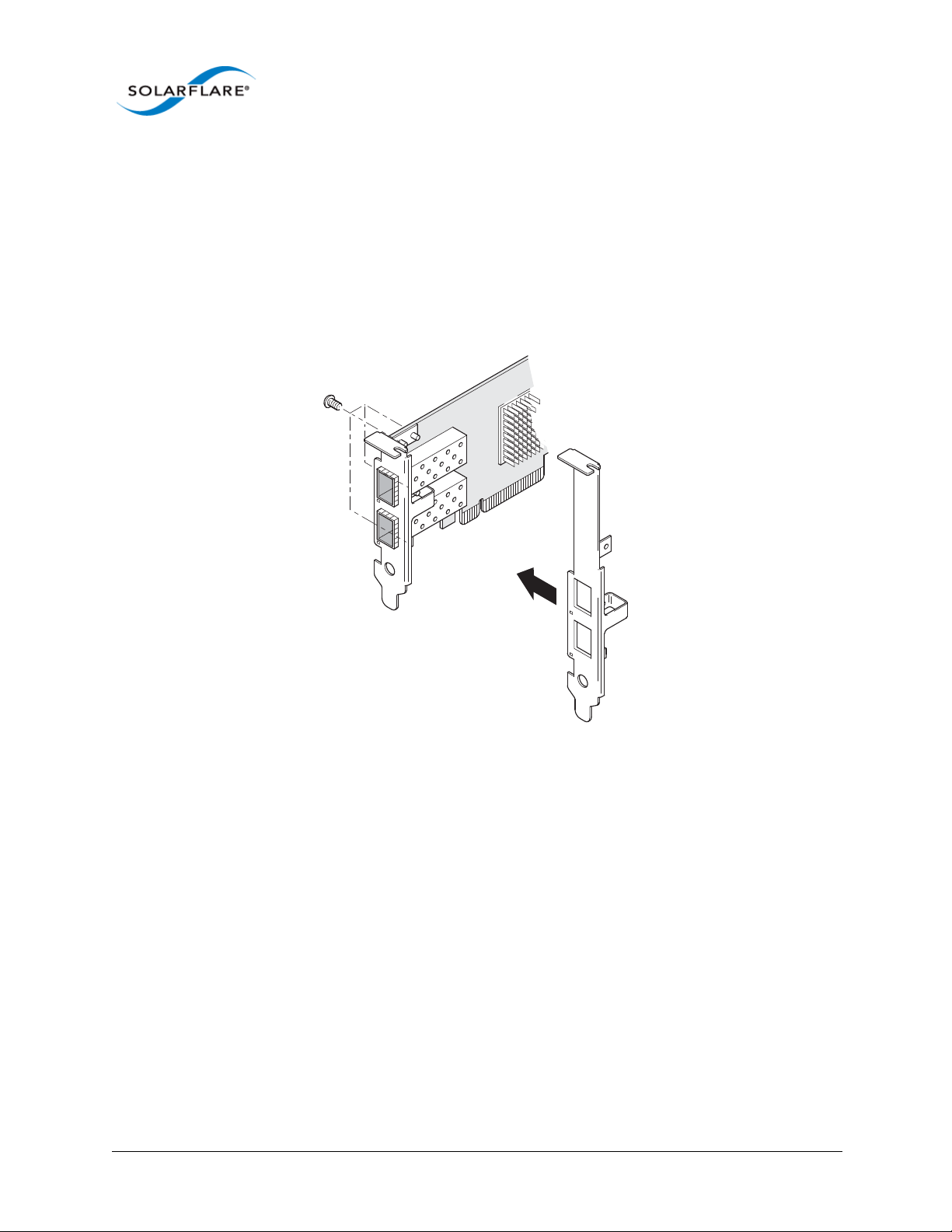

2.2 Fitting a Full Height Bracket (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.3 Inserting the Adapter in a PCI Express (PCIe) Slot . . . . . . . . . . . . . . . . . . . . . . . . . . 21

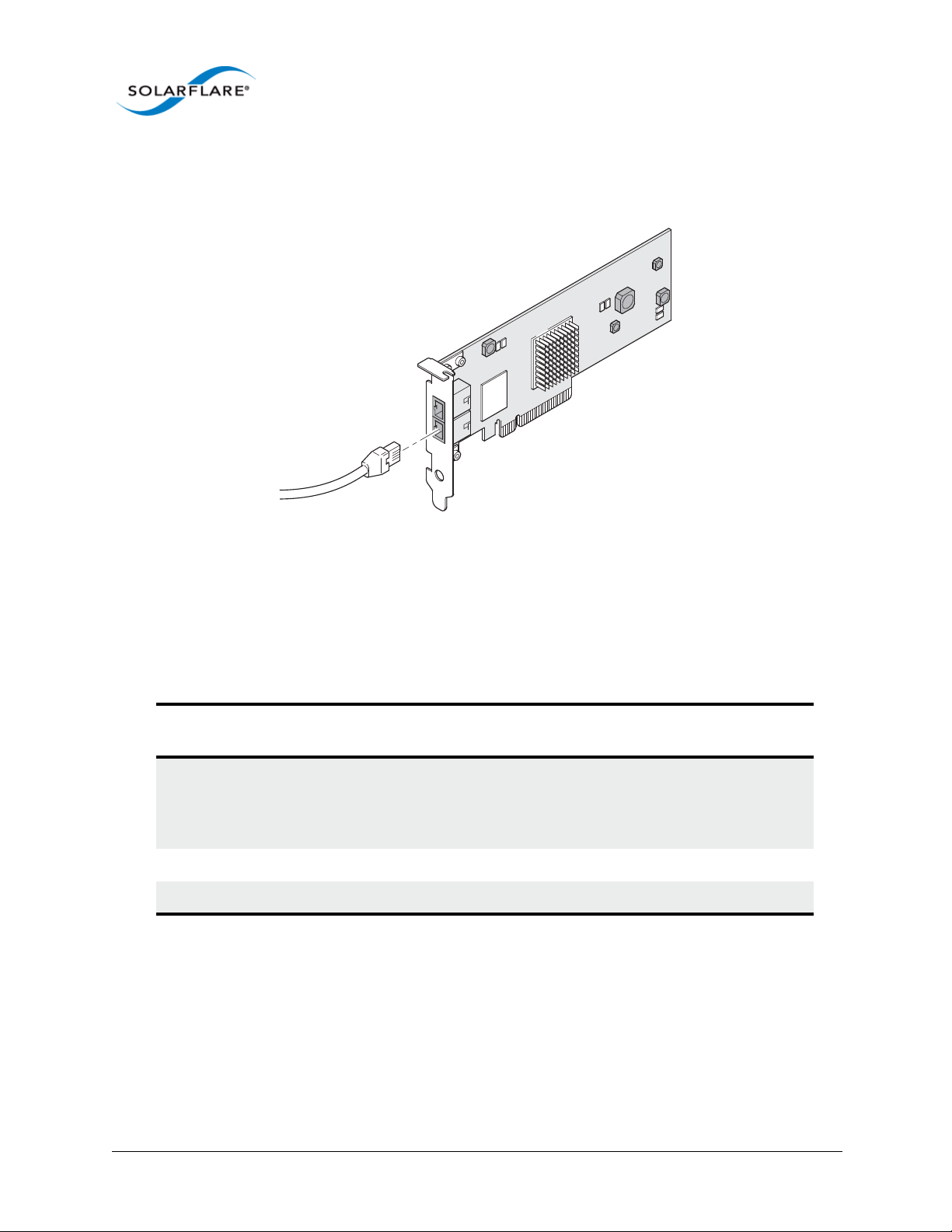

2.4 Attaching a Cable (RJ-45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.5 Attaching a Cable (SFP+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.6 Supported SFP+ Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.7 Supported SFP+ 10G SR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2.8 Supported SFP+ 10G LR Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.9 QSFP+ Transceivers and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.10 Supported SFP 1000BASE-T Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2.11 Supported 1G Optical Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2.12 Supported Speed and Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2.13 Configure QSFP+ Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

2.14 LED States. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2.15 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H. . . . . . . . . . . . . . . . . . 34

2.16 Solarflare Mezzanine Adapter SFN6832F-C61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2.17 Solarflare Mezzanine Adapter SFN6832F-C62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

2.18 Solarflare Precision Time Synchronization Adapters . . . . . . . . . . . . . . . . . . . . . . . 38

2.19 Solarflare SFA6902F ApplicationOnload™ Engine . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter 3: Solarflare Adapters on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

3.2 Linux Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3.3 Solarflare RPMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

3.4 Installing Solarflare Drivers and Utilities on Linux . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3.5 Red Hat Enterprise Linux Distributions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

3.6 SUSE Linux Enterprise Server Distributions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

3.7 Unattended Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

3.8 Unattended Installation - Red Hat Enterprise Linux . . . . . . . . . . . . . . . . . . . . . . . . . 47

Issue 11 © Solarflare Communications 2014 ii

Solarflare Server Adapter

User Guide

3.9 Unattended Installation - SUSE Linux Enterprise Server . . . . . . . . . . . . . . . . . . . . . 48

3.10 Hardware Timestamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.11 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3.12 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

3.13 Setting Up Teams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3.14 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

3.15 Running Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3.16 Linux Utilities RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

3.17 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

3.18 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

3.19 License Install with sfkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

3.20 Performance Tuning on Linux. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

3.21 Module Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

3.22 Linux ethtool Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Chapter 4: Solarflare Adapters on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

4.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

4.2 Windows Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

4.3 Installing the Solarflare Driver Package on Windows. . . . . . . . . . . . . . . . . . . . . . . 112

4.4 Adapter Drivers Only Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

4.5 Full Solarflare Package Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

4.6 Install Drivers and Options From a Windows Command Prompt . . . . . . . . . . . . . 119

4.7 Unattended Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

4.8 Managing Adapters with SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

4.9 Managing Adapters Remotely with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

4.10 Using SAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

4.11 Using SAM to Configure Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

4.12 Segmentation Offload. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

4.13 Using SAM to Configure Teams and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

4.14 Using SAM to View Statistics and State Information . . . . . . . . . . . . . . . . . . . . . . 153

4.15 Using SAM to Run Adapter and Cable Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . 154

4.16 Using SAM for Boot ROM Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

4.17 Managing Firmware with SAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

4.18 Configuring Network Adapter Properties in Windows. . . . . . . . . . . . . . . . . . . . . 167

4.19 Windows Command Line Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

4.20 Sfboot: Boot ROM Configuration Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

4.21 Sfupdate: Firmware Update Tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

4.22 Sfteam: Adapter Teaming and VLAN Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

4.23 Sfcable: Cable Diagnostics Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

4.24 Sfnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

4.25 Completion codes (%errorlevel%) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

4.26 Teaming and VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

4.27 Performance Tuning on Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

4.28 Windows Event Log Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Issue 11 © Solarflare Communications 2014 iii

Solarflare Server Adapter

User Guide

Chapter 5: Solarflare Adapters on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

5.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

5.2 VMware Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

5.3 Installing Solarflare Drivers and Utilities on VMware. . . . . . . . . . . . . . . . . . . . . . . 238

5.4 Configuring Teams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

5.5 Configuring VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

5.6 Running Adapter Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

5.7 Configuring the Boot ROM with Sfboot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

5.8 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

5.9 Performance Tuning on VMware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255

Chapter 6: Solarflare Adapters on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

6.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

6.2 Solaris Platform Feature Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

6.3 Installing Solarflare Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

6.4 Unattended Installation Solaris 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

6.5 Unattended Installation Solaris 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

6.6 Configuring the Solarflare Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

6.7 Setting Up VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

6.8 Solaris Utilities Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

6.9 Configuring the Boot ROM with sfboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

6.10 Upgrading Adapter Firmware with Sfupdate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

6.11 Performance Tuning on Solaris . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

6.12 Module Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292

6.13 Kernel and Network Adapter Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Chapter 7: SR-IOV Virtualization Using KVM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

7.1 Supported Platforms and Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

7.2 Linux KVM SR-IOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

7.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 311

7.4 Configuration Red Hat 6.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314

7.5 Configuration Red Hat 6.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317

7.6 Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

7.7 Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322

Chapter 8: SR-IOV Virtualization for XenServer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

8.1 Supported Platforms and Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

8.2 XenServer6 SR-IOV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

8.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328

8.4 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

8.5 Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330

Issue 11 © Solarflare Communications 2014 iv

Solarflare Server Adapter

User Guide

Chapter 9: Solarflare Adapters on Mac 0S X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

9.1 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

9.2 Supported Hardware Platforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

9.3 Mac 0S X Platform Feature Set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

9.4 Thunderbolt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

9.5 Driver Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

9.6 Interface Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

9.7 Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

9.8 Driver Properties via sysctl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339

9.9 Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340

9.10 Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Chapter 10: Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

10.1 Configuring the Solarflare Boot ROM Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

10.2 PXE Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345

10.3 iSCSI Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

10.4 Configuring the iSCSI Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

10.5 Configuring the Boot ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349

10.6 DHCP Server Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356

10.7 Installing an Operating System to an iSCSI target. . . . . . . . . . . . . . . . . . . . . . . . . 358

10.8 Default Adapter Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Issue 11 © Solarflare Communications 2014 v

Solarflare Server Adapter

Chapter 1: Introduction

This is the User Guide for Solarflare® Server Adapters. This chapter covers the following topics:

• Virtual NIC Interface...Page 1

• Advanced Features and Benefits...Page 2

• Product Specifications...Page 4

• Software Driver Support on page 12

• Solarflare AppFlex™ Technology Licensing....Page 12

• Open Source Licenses...Page 13

• Support and Download...Page 14

• Regulatory Information...Page 14

• Regulatory Approval...Page 15

User Guide

NOTE: Throughout this guide the term Onload refers to both OpenOnload® and EnterpriseOnload® unless otherwise stated. Users of Onload should refer to the Onload User Guide, SF-104474-CD,

which describes procedures for download and installation of the Onload distribution, accelerating and tuning the application using Onload to achieve minimum latency and maximum throughput.

1.1 Virtual NIC Interface

Solarflare’s VNIC architecture provides the key to efficient server I/O and is flexible enough to be applied to multiple server deployment scenarios. These deployment scenarios include:

• Kernel Driver – This deployment uses an instance of a VNIC per CPU core for standard operating

system drivers. This allows network processing to continue over multiple CPU cores in parallel. The virtual interface provides a performance-optimized path for the kernel TCP/IP stack and contention-free access from the driver, resulting in extremely low latency and reduced CPU utilization.

• Accelerated Virtual I/O – The second deployment scenario greatly improves I/O for virtualized

platforms. The VNIC architecture can provide a VNIC per Virtual Machine, giving over a thousand protected interfaces to the host system, granting any virtualized (guest) operating system direct access to the network hardware. Solarflare's hybrid SR-IOV technology, unique to Solarflare Ethernet controllers, is the only way to provide bare-metal I/O performance to virtualized guest operating systems whilst retaining the ability to live migrate virtual machines.

• OpenOnload™ – The third deployment scenario aims to leverage the host CPU(s) to full

capacity, minimizing software overheads by using a VNIC per application to provide a kernel bypass solution. Solarflare has created both an open-source and Enterprise class highperformance application accelerator that delivers lower and more predictable latency and higher message rates for TCP and UDP-based applications, all with no need to modify applications or change the network infrastructure. To learn more about the open source

Issue 11 © Solarflare Communications 2014 1

OpenOnload project or EnterpriseOnload, download the Onload user guide (SF-104474-CD) or contact your reseller.

Advanced Features and Benefits

Virtual NIC support The core of Solarflare technology. Protected VNIC interfaces can

be instantiated for each running guest operating system or application, giving it a direct pipeline to the Ethernet network. This architecture provides the most efficient way to maximize network and CPU efficiency. The Solarflare Ethernet controller supports up to 1024 vNIC interfaces per port.

On IBM System p servers equipped with Solarflare adapters, each adapter is assigned to a single Logical Partition (LPAR) where all VNICS are available to the LPAR.

PCI Express Implements PCI Express 3.0.

High Performance Support for 40G Ethernet interfaces and a new internal

datapath micro architecture.

Solarflare Server Adapter

User Guide

Hardware Switch Fabric Full hardware switch fabric in silicon capable of steering any

flow based on Layer 2, Layer 3 or application level protocols between physical and virtual interfaces. Supporting an open software defined network control plane with full PCI-IOV virtualization acceleration for high performance guest operating systems and virtual applications.

Improved flow processing The addition of dedicated parsing, filtering, traffic shaping and

flow steering engines which are capable of operating flexibly and with an optimal combination of a full hardware data plane with software based control plane.

TX PIO Transmit Programmed input/output is the direct transfer of data

to the adapter without CPU involvement. As an alternative to the usual bus master DMA method, TX PIO improves latency and is especially useful for smaller packets.

Multicast Replication Received multicast packets are replicated in hardware and

delivered to multiple receive queues.

Sideband management NCSI RMII interface for base board management integration.

SMBus interface for legacy base board management integration.

Issue 11 © Solarflare Communications 2014 2

Solarflare Server Adapter

User Guide

PCI Single-Root-IOV, SR-IOV, capable

127 Virtual functions per port.

Flexible deployment of 1024 channels between Virtual and Physical Functions.

Support Alternate Routing ID (ARI).

SR-IOV is not supported for Solarflare adapters on IBM System p servers.

10-gigabit Ethernet Supports the ability to design a cost effective, high performance

10 Gigabit Ethernet solution.

Receive Side Scaling (RSS) IPv4 and IPv6 RSS raises the utilization levels of multi-core

servers dramatically by distributing I/O load across all CPUs and cores.

Stateless offloads Through the addition of hardware based TCP segmentation and

reassembly offloads, VLAN, VxLAN and FCOE offloads.

Transmit rate pacing (per queue)

Provides a mechanism for enforcing bandwidth quotas across all guest operating systems. Software re-programmable on the fly to allow for adjustment as congestion increases on the network.

Jumbo frame support Support for up to 9216 byte jumbo frames.

MSI-X support 1024 MSI-X interrupt support enables higher levels of

performance.

Can also work with MSI or legacy line based interrupts.

Ultra low latency Cut through architecture. < 7s end to end latency with

standard kernel drivers, < 3s with Onload drivers.

Remote boot Support for PXE boot 2.1 and iSCSI Boot provides flexibility in

cluster design and diskless servers (see Solarflare Boot ROM

Agent on page 344).

Network boot is not supported for Solarflare adapters on IBM System p servers.

MAC address filtering Enables the hardware to steer packets based on the MAC

address to a VNIC.

Hardware timestamps The Solarflare Flareon™ SFN7000 series adapters can support

hardware timestamping for all received network packets including PTP.

The SFN5322F and SFN6322F adapters can generate hardware timestamps of PTP packets.

Issue 11 © Solarflare Communications 2014 3

Solarflare Server Adapter

1.2 Product Specifications

Solarflare Flareon™ Network Adapters

Solarflare Flareon™ Ultra SFN7142Q Dual-Port 40GbE QSFP+ PCIe 3.0 Server I/O Adapter

Part number SFN7142Q

Controller silicon SFC9140

Power 13W typical

PCI Express 8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes (factory enabled)

PTP and hardware timestamps Enabled by installing AppFlex license.

1PPS Optional bracket and cable assembly - not factory installed.

User Guide

SR-IOV Yes

Network ports 2 x QSFP+ (40G/10G)

Solarflare Flareon™ Ultra SFN7322F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

Part number SFN7322F

Controller silicon SFC9120

Power 5.9W typical

PCI Express 8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes (factory enabled)

PTP and hardware timestamps Yes (factory enabled)

1PPS Optional bracket and cable assembly - not factory installed.

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Issue 11 © Solarflare Communications 2014 4

Solarflare Server Adapter

User Guide

Solarflare Flareon™ Ultra SFN7122F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

Part number SFN7122F

Controller silicon SFC9120

Power 5.9W typical

PCI Express 8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes (factory enabled)

PTP and hardware timestamps AppFlex™ license required

1PPS Optional bracket and cable assembly - not factory installed.

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Solarflare Flareon™ SFN7002F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

Part number SFN7002F

Controller silicon SFC9120

Power 5.9W typical

PCI Express 8 lanes Gen 3 (8.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload AppFlex™ license required

PTP and hardware timestamps AppFlex™ license required

1PPS Optional bracket and cable assembly - not factory installed.

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Issue 11 © Solarflare Communications 2014 5

Solarflare Onload Network Adapters

Solarflare SFN5121T Dual-Port 10GBASE-T Server Adapter

Part number SFN5121T

Controller silicon SFL9021

Power 12.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Network ports 2 x 10GBASE-T (10G/1G/100M)

Solarflare Server Adapter

User Guide

Solarflare SFN5122F Dual-Port 10G SFP+ Server Adapter

Part number SFN5122F

Controller silicon SFC9020

Power 4.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Solarflare SFN6122F Dual-Port 10GbE SFP+ Server Adapter

Part number SFN6122F

Controller silicon SFC9020

Power 5.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV

Issue 11 © Solarflare Communications 2014 6

Yes1

Network ports 2 x SFP+ (10G/1G)

Regulatory Product Code S6102

1. SR-IOV is not supported for Solarflare adapters on IBM System p servers.

Solarflare Server Adapter

User Guide

Issue 11 © Solarflare Communications 2014 7

Solarflare Server Adapter

User Guide

Solarflare SFN6322F Dual-Port 10GbE SFP+ Server Adapter

Part number SFN6122F

Controller silicon SFC9020

Power 5.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Solarflare SFA6902F Dual-Port 10GbE SFP+ ApplicationOnload™ Engine

Part number SFA6902F

Controller silicon SFC9020

Power 25W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Network ports 2 x SFP+ (10G/1G)

Issue 11 © Solarflare Communications 2014 8

Solarflare Performant Network Adapters

Solarflare SFN5161T Dual-Port 10GBASE-T Server Adapter

Part number SFN5161T

Controller silicon SFL9021

Power 12.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s)

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload No

SR-IOV Yes

Network ports 2 x 10GBASE-T (10G/1G/100M)

Solarflare Server Adapter

User Guide

Solarflare SFN5162F Dual-Port 10G SFP+ Server Adapter

Part number SFN5162F

Controller silicon SFC9020

Power 4.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s)

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload No

SR-IOV

Yes

Network ports 2 x SFP+ (10G/1G)

1. SR-IOV is not supported for Solarflare adapters on IBM System p servers.

Issue 11 © Solarflare Communications 2014 9

Solarflare Mezzanine Adapters

Solarflare SFN5812H Dual-Port 10G Ethernet Mezzanine Adapter

Part number SFN5812H

Controller silicon SFC9020

Power 3.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Ports 2 x 10GBASE-KX4 backplane transmission

Solarflare Server Adapter

User Guide

Solarflare SFN5814H Quad-Port 10G Ethernet Mezzanine Adapter

Part number SFN5814H

Controller silicon 2 x SFC9020

Power 7.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Ports 4 x 10GBASE-KX4 backplane transmission

Solarflare SFN6832F Dual-Port 10GbE SFP+ Mezzanine Adapter

Part number SFN6832F-C61 for DELL PowerEdge C6100 series

SFN6832F-C62 for DELL PowerEdge C6200 series

Controller silicon SFC9020

Power 5.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

Issue 11 © Solarflare Communications 2014 10

Solarflare Server Adapter

User Guide

SR-IOV Yes

Ports 2 x SFP+ (10G/1G)

Regulatory Product Code S6930

Solarflare SFN6822F Dual-Port 10GbE SFP+ FlexibleLOM Onload Server Adapter

Part number SFN6822F

Controller silicon SFC9020

Power 5.9W typical

PCI Express 8 lanes Gen2 (5.0GT/s), 127 SR-IOV virtual functions per port

Virtual NIC support 1024 vNIC interfaces per port

Supports OpenOnload Yes

SR-IOV Yes

Ports 2 x SFP+ (10G/1G)

Issue 11 © Solarflare Communications 2014 11

Solarflare Server Adapter

1.3 Software Driver Support

• Windows 7.

• Windows 8 and 8.1.

• Windows® Server 2008 R2 release.

• Windows® Server 2012 - including R2 release.

• Microsoft® Hyper-V™ Server 2008 R2.

• Linux® 2.6 and 3.x Kernels (32 bit and 64 bit) for the following distributions: RHEL 5, 6, 7 and MRG. SLES 10, 11 and SLERT.

• VMware® ESX™ 5.0 and ESXi™ 5.1, vSphere™ 4.0 and vSphere™ 4.1.

• Citrix XenServer™ 5.6, 6.0 and Direct Guest Access.

• Linux® KVM.

• Solaris™ 10 updates 8, 9 and 10 and Solaris™ 11 (GLDv3).

User Guide

• Mac OS X Snow Leopard 10.6.8 (32 bit and 64 bit), OS X Lion 10.7.0 and later releases, OS X Mountain Lion 10.8.0 and later, OS X Mavericks 10.9.

Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64) running RHEL 6.4 on IBM System p servers.

The Solarflare accelerated network middleware, OpenOnload and EnterpriseOnload, is supported on all Linux variants listed above, and is available for all Solarflare Onload network adapters. Solarflare are not aware of any issues preventing OpenOnload installation on other Linux variants such as Ubuntu, Gentoo, Fedora and Debian variants.

1.4 Solarflare AppFlex™ Technology Licensing.

Solarflare AppFlex technology allows Solarflare server adapters to be selectively configured to enable on-board applications. AppFlex licenses are required to enable selected functionality on the Solarflare Flareon™ adapters and the AOE ApplicationOnload™ Engine.

Customers can obtain access to AppFlex applications via their Solarflare sales channel by obtaining the corresponding AppFlex authorization code. The authorization code allows the customer to generate licenses at the MyAppFlex page at https://support.solarflare.com/myappflex.

The sfkey utility application is used to install the generated license key file on selected adapters. For detailed instructions for sfkey and license installation refer to License Install with sfkey on page 75.

Issue 11 © Solarflare Communications 2014 12

Solarflare Server Adapter

1.5 Open Source Licenses

1.4.1 Solarflare Boot Manager

The Solarflare Boot Manager is installed in the adapter's flash memory. This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

The latest source code for the Solarflare Boot Manager can be download from https://

support.solarflare.com/. If you require an earlier version of the source code, please e-mail

support@solarflare.com.

1.4.2 Controller Firmware

User Guide

The firmware running on the SFC9xxx controller includes a modified version of libcoroutine. This software is free software published under a BSD license reproduced below:

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the author nor the names of other contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Issue 11 © Solarflare Communications 2014 13

Solarflare Server Adapter

1.6 Support and Download

Solarflare network drivers, RPM packages and documentation are available for download from

https://support.solarflare.com/.

Software and documentation for OpenOnload is available from www.openonload.org.

1.7 Regulatory Information

Warnings

Do not install the Solarflare network adapter in hazardous areas where highly combustible or explosive products are stored or used without taking additional safety precautions. Do not expose the Solarflare network adapter to rain or moisture.

The Solarflare network adapter is a Class III SELV product intended only to be powered by a certified limited power source.

The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

User Guide

If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Solarflare Communications, the party responsible for FCC compliance, could void the user's authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Underwriters Laboratory Inc ('UL') has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in the UL's Standard for Safety UL 60950-1. UL Certification does not cover the performance or

reliability of the security or signaling aspects of this product. UL makes no representations, warranties or certifications whatsoever regarding the performance or reliability of any security or signaling related functions of this product.

Issue 11 © Solarflare Communications 2014 14

Solarflare Server Adapter

Laser Devices

The laser safety of the equipment has been verified using the following certified laser device module (LDM):

User Guide

Manufactuer Model

Avago Technologies AFBR-703SDZ 9720151-072 TUV R72071411

Finisar Corporation FTLX8571D3BCL 9210176-094 TUV R72080250

When installed in a 10Gb ETHERNET NETWORK INTERFACE CARD FROM THE Solarflare SFN5000, SFN6000 or SFN7000 SERIES, the laser emission levels remain under Class I limits as specified in the FDA regulations for lasers, 21 CFR Part 1040.

The decision on what LDMs to use is made by the installer. For example, equipment may use one of a multiple of different LDMs depending on path length of the laser communication signal. This equipment is not basic consumer ITE.

The equipment is installed and maintained by qualified staff from the end user communications company or subcontractor of the end user organization. The end product user and/or installer are solely responsible for ensuring that the correct devices are utilized in the equipment and the equipment with LDMs installed complies with applicable laser safety requirements.

CDRH Accession

Mark of

conformity

File No

1.8 Regulatory Approval

The information in this section is applicable to SFN5121T, and SFN5162F Solarflare network adapters:

Category Specification Details

Europe

EMC

Safety

RoHS Europe Complies with EU directive 2002/95/EC

US FCC Part 15 Class B

Canada ICES 003/NMB-003 Class B

Europe BS EN 60950-1:2006 +A11:2009

US UL 60950-1 2nd Ed.

Canada CSA C22.2 60950-1-07 2nd Ed.

CB IEC 60950-1:2005 2nd Ed.

BS EN 55024:1998 +A1:2001 +A2:2003

BS EN 55022:2006

1. The safety assessment has been concluded on this product as a component/sub-assembly only.

Additional Regulatory Information for SFN5122F, SFN6122F, SFN6322F , SFA6902F, SFN7002F, SFN7122F, SFN7322F and SFN7142Q adapters.

ሶቯቒ㍔⫀⑵䚕孔函䷘榊㽱椫⹂呹⃊尞Ⓟ◣巿↩᧤9&&,᧥ቑ㲨䄥቎⪉ቈሲኌ዆ኖ $ ㍔⫀㔏嫢孔函ቊሼᇭሶቑ孔函ት⹅ㄼ䜿⬒ቊ∎䞷ሼቮቋ榊㽱ⰷ⹂ትㆤሰ怆ሶሼሶቋሯሥቭቡሼᇭ ቀቑቫሩቍ椫⹂ሯ䤉䞮ሺቂ椪ᇬ∎䞷劔ቒ拸⒖ቍ⺍㉫ሯ㉔尐ቋቍቮ⫃⚗ሯሥቭቡሼ

Issue 11 © Solarflare Communications 2014 15

Solarflare Server Adapter

User Guide

巵⛙∎䞷劔᧶ 抨㢾䟁櫭䤓彖岙䞱❐᧨⦷⻔⇞䤓䜿⬒₼∎䞷㣑᧨♾厌㦒抯㒟⺓櫊㄁㞍᧨⦷抨䲽㍔㽐ₚ᧨∎

䞷劔㦒嬺尐㻑㘰♥㩟K拸䠅䤓⺜䷥ $ 鞾韥韥 꽺ꓩ끞ꗞꭖ뭪겕韥韥 넩韥韥鱉꽺ꓩ끞 $ 鞾  냱ꈑ놹녅볁놶뼞麦ꈒ냹뼑

韥韥넩꿙鱽 볅ꎙ녅 鿅鱉 ꩡ끞녅鱉 넩 뇅냹 늱넍뼍겑韥 ꗉꄱꐥ  閵뇊뀭넍 덵꾢꾅꫑ ꩡ끞뼍鱉阸냹ꑞ놶냱ꈑ뼞鱽鲙

Category Specification Details

Europe

US FCC Part 15 Class B

EMC

Safety

RoHS Europe Complies with EU directive 2011/65/EU

Canada ICES 003/NMB-003 Class B

Taiwan CNS 13438:2006 Class B

Japan VCCI Regulations V-3:2010 Class B

South Korea

Australia AS/NZS CISPR 22:2009

Europe BS EN 60950-1:2006 +A11:2009

US UL 60950-1 2nd Ed.

Canada CSA C22.2 60950-1-07 2nd Ed.

CB IEC 60950-1:2005 2nd Ed.

BS EN 55022:2010 + A1:2007

BS EN 55024:1998 +A1:2001 +A2:2003

KCC KN-22, KN-24

1. The safety assessment has been concluded on this product as a component/sub-assembly only.

Additional Regulatory Information for SFN5812H, SFN5814H and SFN6832F adapters.

巵⛙∎䞷劔᧶ 抨㢾䟁櫭䤓彖岙䞱❐᧨⦷⻔⇞䤓䜿⬒₼∎䞷㣑᧨♾厌㦒抯㒟⺓櫊㄁㞍᧨⦷抨䲽㍔㽐ₚ᧨∎

䞷劔㦒嬺尐㻑㘰♥㩟K拸䠅䤓⺜䷥

Issue 11 © Solarflare Communications 2014 16

Solarflare Server Adapter

Category Specification Details

Europe

BS EN 55024:1998 +A1:2001 +A2:2003

BS EN 55022:2006

US FCC Part 15 Class B

EMC

Canada ICES 003/NMB-003 Class B

Taiwan CNS 13438:2006 Class A

Japan VCCI Regulations V-3:2010 Class A

Australia AS/NZS CISPR 22:2009

Europe BS EN 60950-1:2006 +A11:2009

Safety

US UL 60950-1 2nd Ed.

Canada CSA C22.2 60950-1-07 2nd Ed.

CB IEC 60950-1:2005 2nd Ed.

RoHS Europe Complies with EU directive 2002/95/EC

1. The safety assessment has been concluded on this product as a component/sub-assembly only.

User Guide

Issue 11 © Solarflare Communications 2014 17

Chapter 2: Installation

This chapter covers the following topics:

• Solarflare Network Adapter Products...Page 19

• Fitting a Full Height Bracket (optional)...Page 20

• Inserting the Adapter in a PCI Express (PCIe) Slot...Page 21

• Attaching a Cable (RJ-45)...Page 22

• Attaching a Cable (SFP+)...Page 23

• Supported SFP+ Cables...Page 25

• Supported SFP+ 10G SR Optical Transceivers...Page 26

• Supported SFP+ 10G LR Optical Transceivers on page 27

• Supported SFP 1000BASE-T Transceivers...Page 29

• Supported 1G Optical Transceivers...Page 30

Solarflare Server Adapter

User Guide

• Supported Speed and Mode...Page 30

• Configure QSFP+ Adapter...Page 31

• LED States...Page 33

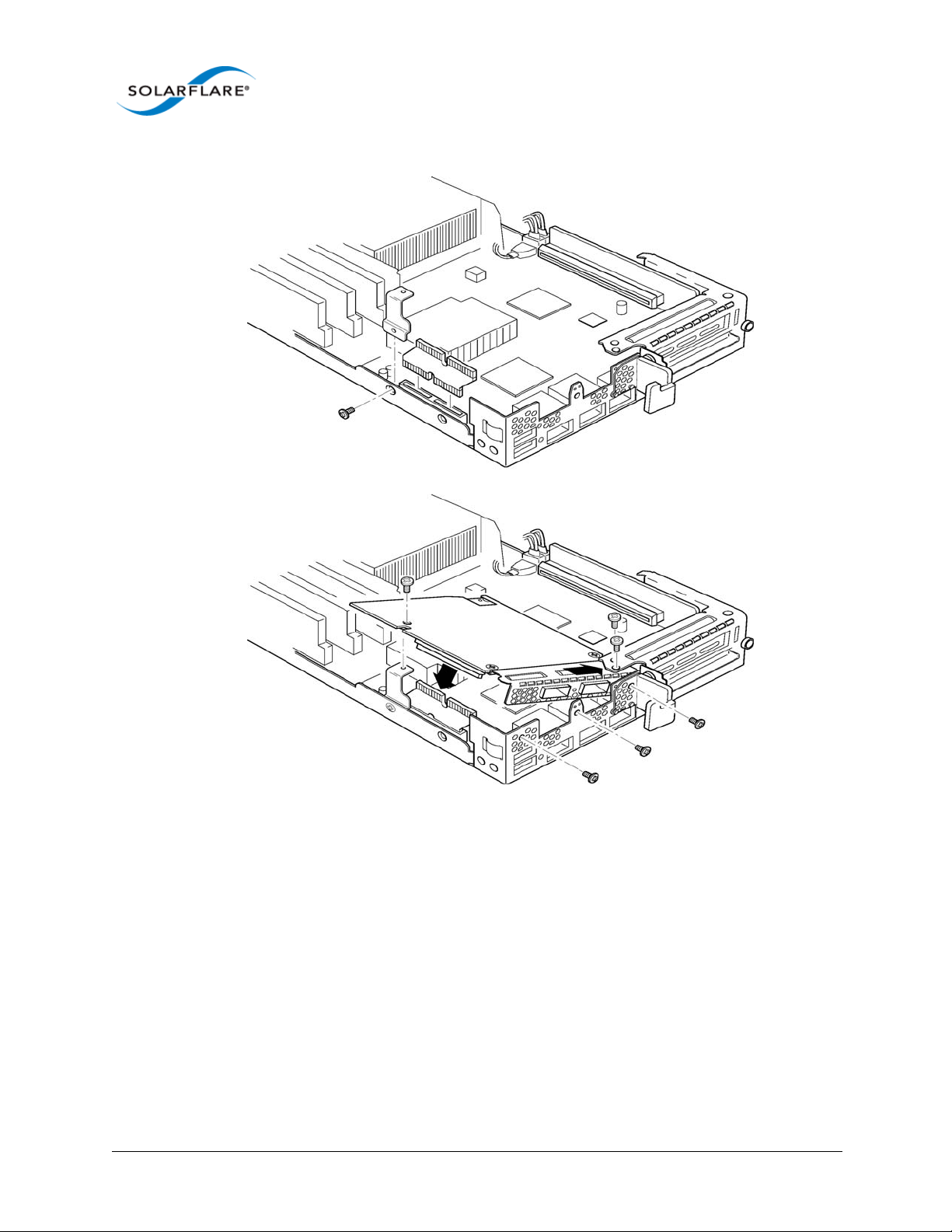

• Solarflare Mezzanine Adapters: SFN5812H and SFN5814H...Page 34

• Solarflare Mezzanine Adapter SFN6832F-C61...Page 35

• Solarflare Mezzanine Adapter SFN6832F-C62...Page 37

• Solarflare Precision Time Synchronization Adapters...Page 38

• Solarflare SFA6902F ApplicationOnload™ Engine...Page 38

CAUTION: Servers contain high voltage electrical components. Before removing the server cover, disconnect the mains power supply to avoid the risk of electrocution.

Static electricity can damage computer components. Before handling computer components, discharge static electricity from yourself by touching a metal surface, or wear a correctly fitted antistatic wrist band.

Issue 11 © Solarflare Communications 2014 18

2.1 Solarflare Network Adapter Products

Solarflare Flareon™ adapters

- Solarflare Flareon Ultra SFN7142Q Dual-Port 40GbE PCIe 3.0 QSFP+ Server Adapter

- Solarflare Flareon Ultra SFN7322F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

- Solarflare Flareon Ultra SFN7122F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

- Solarflare Flareon SFN7002F Dual-Port 10GbE PCIe 3.0 Server I/O Adapter

Solarflare Onload adapters

- Solarflare SFN6322F Dual-Port 10GbE Precision Time Stamping Server Adapter

- Solarflare SFN6122F Dual-Port 10GbE SFP+ Server Adapter

- Solarflare SFA6902F Dual-Port 10GbE ApplicationOnload™ Engine

- Solarflare SFN5122F Dual-Port 10G SFP+ Server Adapter

Solarflare Server Adapter

User Guide

- Solarflare SFN5121T Dual-Port 10GBASE-T Server Adapter

Solarflare Performant network adapters

- Solarflare SFN5161T Dual-Port 10GBASE-T Server Adapter

- Solarflare SFN5162F Dual-Port 10G SFP+ Server Adapter

Solarflare Mezzanine adapters

- Solarflare SFN5812H Dual-Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter

- Solarflare SFN5814H Quad-Port 10G Ethernet Mezzanine Adapter for IBM BladeCenter

- Solarflare SFN6832F-C61 Dual-Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge C6100 series servers.

- Solarflare SFN6832F-C62 Dual-Port 10GbE SFP+ Mezzanine Adapter for DELL PowerEdge C6200 series servers.

- Solarflare SFN6822F Dual-Port 10GbE SFP+ FlexibleLOM Onload Server Adapter

Solarflare network adapters can be installed on Intel/AMD x86 based 32 bit or 64 bit servers. The network adapter must be inserted into a PCIe x8 OR PCIe x 16 slot for maximum performance. Refer to PCI Express Lane Configurations on page 226 for details.

Solarflare SFN5162F and SFN6122F adapters are supported on the IBM POWER architecture (PPC64) running RHEL 6.4 on IBM System p servers.

Issue 11 © Solarflare Communications 2014 19

Solarflare Server Adapter

2.2 Fitting a Full Height Bracket (optional)

Solarflare adapters are supplied with a low-profile bracket fitted to the adapter. A full height bracket has also been supplied for PCIe slots that require this type of bracket.

To fit a full height bracket to the Solarflare adapter:

1 From the back of the adapter, remove the screws securing the bracket.

2 Slide the bracket away from the adapter.

3 Taking care not the overtighten the screws, attach the full height bracket to the adapter.

User Guide

Issue 11 © Solarflare Communications 2014 20

Solarflare Server Adapter

2.3 Inserting the Adapter in a PCI Express (PCIe) Slot

1 Shut down the server and unplug it from the mains. Remove the server cover to access the

PCIe slots in the server.

2 Locate an 8-lane or 16-lane PCIe slot (refer to the server manual if necessary) and insert the

Solarflare card.

3 Secure the adapter bracket in the slot.

4 Replace the cover and restart the server.

User Guide

5 After restarting the server, the host operating system may prompt you to install drivers for the

new hardware. Click Cancel or abort the installation and refer to the relevant chapter in this manual for how to install the Solarflare adapter drivers for your operating system.

Issue 11 © Solarflare Communications 2014 21

Solarflare Server Adapter

2.4 Attaching a Cable (RJ-45)

Solarflare 10GBASE-T Server Adapters connect to the Ethernet network using a copper cable fitted with an RJ-45 connector (shown below).

User Guide

RJ-45 Cable Specifications

Table 1 below lists the recommended cable specifications for various Ethernet port types.

Depending on the intended use, attach a suitable cable. For example, to achieve 10 Gb/s performance, use a Category 6 cable. To achieve the desired performance, the adapter must be connected to a compliant link partner, such as an IEEE 802.3an-compliant gigabit switch.

Table 1: RJ-45 Cable Specification

Port type Connector Media Type

10GBASE-T RJ-45 Category 6A

Category 6 unshielded twisted pairs (UTP)

Category 5E

1000BASE-T RJ-45 Category 5E, 6, 6A UTP 100m (328 ft.)

100BASE-TX RJ-45 Category 5E, 6, 6A UTP 100m (328 ft.)

Maximum Distance

100m (328 ft.)

55m (180 ft.)

Issue 11 © Solarflare Communications 2014 22

Solarflare Server Adapter

2.5 Attaching a Cable (SFP+)

Solarflare SFP+ Server Adapters can be connected to the network using either an SFP+ Direct Attach cable or a fiber optic cable.

Attaching the SFP+ Direct Attach Cable:

1 Turn the cable so that the connector retention tab and gold fingers are on the same side as the

network adapter retention clip.

Push the cable connector straight in to the adapter socket until it clicks into place.

User Guide

Removing the SFP+ Direct Attach Cable:

1 Pull straight back on the release ring to release the cable retention tab. Alternatively, you can

lift the retention clip on the adapter to free the cable if necessary.

2 Slide the cable free from the adapter socket.

Attaching a fiber optic cable:

WARNING

Do not look directly into the fiber transceiver or cables

as the laser beams can damage your eyesight.

1 Remove and save the fiber optic connector cover.

2 Insert a fiber optic cable into the ports on the network adapter bracket as shown. Most

connectors and ports are keyed for proper orientation. If the cable you are using is not keyed,

Issue 11 © Solarflare Communications 2014 23

Solarflare Server Adapter

check to be sure the connector is oriented properly (transmit port connected to receive port on the link partner, and vice versa).

Removing a fiber optic cable:

User Guide

WARNING

Do not look directly into the fiber transceiver or cables

as the laser beams can damage your eyesight.

1 Remove the cable from the adapter bracket and replace the fiber optic connector cover.

2 Pull the plastic or wire tab to release the adapter bracket.

3 Hold the main body of the adapter bracket and remove it from the adapter.

Issue 11 © Solarflare Communications 2014 24

Solarflare Server Adapter

2.6 Supported SFP+ Cables

Table 2 is a list of supported SFP+ cables that have been tested by Solarflare. Solarflare is not aware

of any issues preventing the use of other brands of SFP+ cables (of up to 5m in length) with Solarflare network adapters. However, only cables in the table below have been fully verified and are therefore supported.

Table 2: Supported SFP+ Direct Attach Cables

Manufacturer Product Code Cable Length Notes

Arista CAB-SFP-SFP-1M 1m

Arista CAB-SFP-SFP-3M 3m

Cisco SFP-H10GB-CU1M 1m

Cisco SFP-H10GB-CU3M 3m

Cisco SFP-H10GB-CU5M 5m

User Guide

HP J9283A/B Procurve 3m

Juniper EX-SFP-10GE-DAC-1m 1m

Juniper EX-SFP-10GE-DAC-3m 3m

Molex 74752-1101 1m

Molex 74752-2301 3m

Molex 74752-3501 5m

Molex 74752-9093 1m 37-0960-01 / 0K585N

Molex 74752-9094 3m 37-0961-01 / 0J564N

Molex 74752-9096 5m 37-0962-01 / 0H603N

Panduit PSF1PXA1M 1m

Panduit PSF1PXA3M 3m

Panduit PSF1PXD5MBU 5m

Siemon SFPP30-01 1m

Siemon SFPP30-02 2m

Siemon SFPP30-03 3m

Siemon SFPP24-05 5m

Tyco 2032237-2 D 1m

Tyco 2032237-4 3m

Issue 11 © Solarflare Communications 2014 25

Solarflare Server Adapter

The Solarflare SFA6902F adapter has been tested and certified with direct attach cables up to 3m in length.

2.7 Supported SFP+ 10G SR Optical Transceivers

Table 3 is a list of supported SFP+10G SR optical transceivers that have been tested by Solarflare.

Solarflare is not aware of any issues preventing the use of other brands of 10G SR transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.

Table 3: Supported SFP+ 10G Optical SR Transceivers

Manufacturer Product Code Notes

Avago AFBR-703SDZ 10G

Avago AFBR-703SDDZ Dual speed 1G/10G optic.

Avago AFBR-703SMZ 10G

User Guide

Arista SFP-10G-SR 10G

Finisar FTLX8571D3BCL 10G

Finisar FTLX8571D3BCV Dual speed 1G/10G optic.

HP 456096-001 Also labelled as 455883-B21 and

455885-001

Intel AFBR-703SDZ 10G

JDSU PLRXPL-SC-S43-22-N 10G

Juniper AFBR-700SDZ-JU1 10G

MergeOptics TRX10GVP2010 10G

Solarflare SFM-10G-SR 10G

Issue 11 © Solarflare Communications 2014 26

Solarflare Server Adapter

2.8 Supported SFP+ 10G LR Optical Transceivers

Table 4 is a list of supported SFP+10G LR optical transceivers that have been tested by Solarflare.

Solarflare is not aware of any issues preventing the use of other brands of 10G LR transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.

Table 4: Supported SFP+ 10G LR Optical Transceivers

Manufacturer Product Code Notes

Avago AFCT-701SDZ 10G single mode fiber

Finisar FTLX1471D3BCL 10G single mode fiber

2.9 QSFP+ Transceivers and Cables

The following tables identify QSFP+ transceiver modules and cables tested by Solarflare with the SFN7000 QSP+ adapters. Solarflare are not aware of any issues preventing the use of other brands of QSFP+ 40G transceivers and cables with Solarflare SFN7000 QSFP+ adapters. However, only products listed in the tables below have been fully verified and are therefore supported

User Guide

Supported QSFP+ 40GBASE-SR4 Transceivers

The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ 40GBASESR4 optical transceiver modules.

Table 5: Supported QSFP+ SR4 Transceivers

Manufacturer Product Code Notes

Arista AFBR-79E4Z

Avago AFBR-79EADZ

Avago AFBR-79EIDZ

Avago AFBR-79EQDZ

Avago AFBR-79EQPZ

Standard 100m (OM3 Multimode fiber) range.

Finisar FTL410QE2C

JDSU JQP-04SWAA1

JDSU JDSU-04SRAB1

Solarflare SFM-40G-SR4

Issue 11 © Solarflare Communications 2014 27

Solarflare Server Adapter

Supported QSFP+ 40G Active Optical Cables (AOC)

The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Active Optical Cables (AOC).

Table 6: Supported QSFP+ Active Optical Cables

Manufacturer Product Code Notes

Avago AFBR-7QER05Z

Finisar FCBG410QB1C03

Finisar FCBN410QB1C05

Supported QSFP+ 40G Direct Attach Cables

The Solarflare Flareon Ultra SFN7142Q adapter has been tested with the following QSFP+ Direct Attach Cables (DAC).

User Guide

Table 7: Supported QSFP+ Direct Attach Cables

Manufacturer Product Code Notes

Arista CAB-Q-Q-3M 3m

Arista CAB-Q-Q-5M 5m

FCI 10093084-3030LF 3m

Molex 74757-1101 1m

Molex 74757-2301 3m

Siemon QSFP30-01 1m

Siemon QSFP30-03 3m

Siemon QSFP30-05 5m

Supported QSFP+ to SFP+ Breakout Cables

Solarflare QSFP+ to SFP+ breakout cables enable users to connect Solarflare SFN7142Q dual-port QSFP+ server I/O adapters to work as a quad-port SFP+ server I/O adapters. The breakout cables offer a cost-effective option to support connectivity flexibility in high-speed data center applications.

These high performance direct-attach assemblies support 2 lanes of 10 Gb/s per QSFP+ port and are available in lengths of 1 meters and 3 meters. The SOLR-QSFP2SFP-1M, -3M copper DAC cables are fully tested and compatible with the Solarflare SFN7142Q server I/O adapter. These cables are compliant with the SFF-8431, SFF-8432, SFF-8436, SFF-8472 and IBTA Volume 2 Revision 1.3 specifications.

Issue 11 © Solarflare Communications 2014 28

Solarflare Server Adapter

Table 8: Supported QSFP+ to SFP+ Breakout Cables

Manufacturer Product Code Notes

Solarflare SOLR-QSFP2SFP-1M

Solarflare SOLR-QSFP2SFP-3M

2.10 Supported SFP 1000BASE-T Transceivers

Table 9 is a list of supported SFP 1000BASE-T transceivers that have been tested by Solarflare.

Solarflare is not aware of any issues preventing the use of other brands of 1000BASE-T transceivers with the Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.

Table 9: Supported SFP 1000BASE-T Transceivers

User Guide

Manufacturer Product Code

Arista SFP-1G-BT

Avago ABCU-5710RZ

Cisco 30-1410-03

Dell FCMJ-8521-3-(DL)

Finisar FCLF-8521-3

Finisar FCMJ-8521-3

HP 453156-001

453154-B21

3COM 3CSFP93

Issue 11 © Solarflare Communications 2014 29

Solarflare Server Adapter

2.11 Supported 1G Optical Transceivers

Table 10 is a list of supported 1G transceivers that have been tested by Solarflare. Solarflare is not

aware of any issues preventing the use of other brands of 1G transceivers with Solarflare network adapters. However, only transceivers in the table below have been fully verified and are therefore supported.

Manufacturer Product Code Type

Avago AFBR-5710PZ 1000Base-SX

Cisco GLC-LH-SM 1000Base-LX/LH

Finisar FTLF8519P2BCL 1000Base-SX

Finisar FTLF8519P3BNL 1000Base-SX

Finisar FTLF1318P2BCL 1000Base-LX

Table 10: Supported 1G Transceivers

User Guide

Finisar FTLF1318P3BTL 1000Base-LX

HP 453153-001

453151-B21

1000Base-SX

2.12 Supported Speed and Mode

Solarflare network adapters support either QSFP+, SFP, SFP+ or Base-T standards.

On Base-T adapters three speeds are supported 100Mbps, 1Gbps and 10Gbps. The adapters use auto negotiation to automatically select the highest speed supported in common with the link partner.

On SFP+ adapters the currently inserted SFP module (transceiver) determines the supported speeds, typically SFP modules only support a single speed. Some Solarflare SFP+ adapters support dual speed optical modules that can operate at either 1Gbps or 10Gbps. However, these modules do not auto-negotiate link speed and operate at the maximum (10G) link speed unless explicitly configured to operate at a lower speed (1G).

Issue 11 © Solarflare Communications 2014 30

Solarflare Server Adapter

2.13 Configure QSFP+ Adapter

QSFP+ adapters can operate as 2 x 10Gbps per QSFP+ port or as 1 x 40Gbps per QSFP+ port. A configuration of 1 x 40G and 2 x 10G ports is not supported.

User Guide

Figure 1: QSFP+ Port Configuration

The Solarflare 40G breakout cables have only 2 physical cables - for details refer to Supported QSFP+

to SFP+ Breakout Cables on page 28. Breakout cables from other suppliers may have 4 physical

cables. When connecting a third party breakout cable into the Solarflare 40G QSFP+ cage (in 10G mode), only cables 1 and 3 will be active.

The sfboot utility from the Solarflare Linux Utilities package (SF-107601-LS) can be used to configure the adapter for 10G or 40G operation.

# sfboot port-mode=40G

Issue 11 © Solarflare Communications 2014 31

Solarflare Server Adapter

User Guide

The tables below summarizes the speeds supported by Solarflare network adapters.

Table 11: SFN5xxx,SFN6xxx and SFN7xxx SFP+ QSFP+ Adapters

Supported Modes Auto neg speed Speed Comment

QSFP+ direct attach cables No 10G or 40G SFN7142Q

QSFP+ optical cables No 10G or 40G SFN7142Q

SFP+ direct attach cable No 10G

SFP+ optical module (10G) No 10G

SFP optical module (1G) No 1G

SFP+ optical module (10G/1G) No 10G or 1G Dual speed modules run at

the maximum speed (10G) unless explicitly configured to the lower speed (1G)

SFP 1000BASE-T module No 1G These modules support only

1G and will not link up at 100Mbps

Table 12: SFN5121T, SFN5151T, SFN5161T 10GBASE-T Adapters

Supported Modes Auto neg speed Speed Comment

100Base-T Yes 100Mbps Typically the interface is set

1000Base-TX Yes 1Gbps

10GBase-T Ye s 10Gbps

to auto negotiation speed and automatically selects the highest speed supported in common with it’s link partner. If the link partner is set to 100Mbps, with no autoneg, the adapter will use “parallel detection” to detect and select 100Mbps speed. If needed any of the three speeds can be explicitly configured

100Base-T in a Solarflare adapter back-to-back (no intervening switch) configuration will not work and is not supported.

Issue 11 © Solarflare Communications 2014 32

Solarflare Server Adapter

2.14 LED States

There are two LEDs on the Solarflare network adapter transceiver module. LED states are as follows:

Table 13: LED States

Adapter Type LED Description State

User Guide

QSFP+, SFP/SFP+ Link

Activity

BASE-T Speed

Activity

Green (solid) at all speeds

Flashing green when network traffic is present

LEDs are OFF when there is no link present

Green (solid) 10Gbps Yellow (solid) 100/1000Mbps

Flashing green when network traffic is present

LEDs are OFF when there is no link present

Issue 11 © Solarflare Communications 2014 33

Solarflare Server Adapter

2.15 Solarflare Mezzanine Adapters: SFN5812H and SFN5814H

The Solarflare SFN5812H Dual-Port and SFN5814H Quad-Port are 10G Ethernet Mezzanine Adapters for the IBM BladeCenter.

Solarflare mezzanine adapters are supported on the IBM BladeCenter E, H and S chassis, HS22, HS22V and HX5 servers. The IBM BladeCenter blade supports a single Solarflare mezzanine adapter.

1 The blade should be extracted from the BladeCenter in order to install the mezzanine adapter.

2 Remove the blade top cover and locate the two retaining posts towards the rear of the blade -

(Figure 2). Refer to the BladeCenter manual if necessary.

User Guide

Figure 2: Installing the Mezzanine Adapter

3 Hinge the adapter under the retaining posts, as illustrated, and align the mezzanine port

connector with the backplane connector block.

Issue 11 © Solarflare Communications 2014 34

Solarflare Server Adapter

User Guide

4 Lower the adapter, taking care to align the side positioning/retaining posts with the recesses in

the adapter. See Figure 3.

Figure 3: In position mezzanine adapter

5 Press the port connector gently into the connector block ensuring that the adapter is firmly

and correctly seated in the connector block.

6 Replace the blade top cover.

7 When removing the adapter raise the release handle (shown on Figure 3) to ease the adapter

upwards until it can be freed from the connector block.

2.16 Solarflare Mezzanine Adapter SFN6832F-C61

The Solarflare SFN6832F-C61 is a Dual-Port SFP+ are 10GbE Mezzanine Adapters for the DELL PowerEdge C6100 series rack server. Each DELL PowerEdge node supports a single Solarflare mezzanine adapter.

1 The node should be extracted from the rack server in order to install the mezzanine adapter.

Refer to the PowerEdge rack server manual if necessary.

Issue 11 © Solarflare Communications 2014 35

Solarflare Server Adapter

User Guide

Figure 4: SFN6832F-C61 - Installing into the rack server node

2 Secure the side retaining bracket as shown in Figure 5 (top diagram)

3 Fit riser PCB card into the slot as shown in Figure 5 (top diagram). Note that the riser card only

fits one way.

4 Offer the adapter to the node and ensure it lies underneath the chassis cover.

5 Lower the adapter into position making sure to connect the adapter slot with the to of the PCB

riser card.

6 Secure the adapter using the supplied screws at the positions shown in the diagram.

Issue 11 © Solarflare Communications 2014 36

Solarflare Server Adapter

2.17 Solarflare Mezzanine Adapter SFN6832F-C62

The Solarflare SFN6832F-C61 is a Dual-Port SFP+ are 10GbE Mezzanine Adapters for the DELL PowerEdge C6200 series rack server. Each DELL PowerEdge node supports a single Solarflare mezzanine adapter.

1 The node should be extracted from the rack server in order to install the mezzanine adapter.

Refer to the PowerEdge rack server manual if necessary.

User Guide

Figure 5: SFN6832F-C62 - Installing into the rack server node

2 Fit the PCB riser card to the underside connector on the adapter.

3 Offer the adapter to the rack server node ensuring it lies underneath the chassis cover.

4 Lower to adapter to connect the riser PCB card into the slot in the node.

5 Secure the adapter with the supplied screws at the points shown in the diagram.

Issue 11 © Solarflare Communications 2014 37

Solarflare Server Adapter

2.18 Solarflare Precision Time Synchronization Adapters

The Solarflare SFN7142Q1, SFN7122F1, SFN7322F and SFN6322F adapters can generate hardware timestamps for PTP packets in support of a network precision time protocol deployment compliant with the IEEE 1588-2008 specification.

Customers requiring configuration instructions for these adapters and Solarflare PTP in a PTP deployment should refer to the Solarflare Enhanced PTP User Guide SF-109110-CD.

1. Requires an AppFlex™ license - refer to Solarflare AppFlex™ Technology Licensing. on page 12.

2.19 Solarflare SFA6902F ApplicationOnload™ Engine

The ApplicationOnload™ Engine (AOE) SFA6902F is a full length PCIe form factor adapter that combines an ultra-low latency adapter with a tightly coupled ’bump-in-the-wire’ FPGA.

For details of installation and configuring applications that run on the AOE refer to the Solarflare AOE User’s Guide (SF-108389-CD). For details on developing custom applications to run on the FPGA refer to the AOE Firmware Development Kit User Guide (SF-108390-CD).

User Guide

Issue 11 © Solarflare Communications 2014 38

Solarflare Server Adapter

Chapter 3: Solarflare Adapters on Linux

This chapter covers the following topics on the Linux® platform:

• System Requirements...Page 39

• Linux Platform Feature Set...Page 40

• Solarflare RPMs...Page 41

• Installing Solarflare Drivers and Utilities on Linux...Page 43

• Red Hat Enterprise Linux Distributions...Page 43

• SUSE Linux Enterprise Server Distributions...Page 44

• Unattended Installations...Page 45

• Unattended Installation - Red Hat Enterprise Linux...Page 47

• Unattended Installation - SUSE Linux Enterprise Server...Page 48

• Hardware Timestamps...Page 49

User Guide

• Configuring the Solarflare Adapter...Page 49

• Configuring Receive/Transmit Ring Buffer Size...Page 50

• Setting Up VLANs...Page 51

• Setting Up Teams...Page 52

• Running Adapter Diagnostics...Page 53

• Running Cable Diagnostics...Page 54

• Transmit Packet Steering...Page 89

• Configuring the Boot ROM with sfboot...Page 56

• Upgrading Adapter Firmware with Sfupdate...Page 70

• License Install with sfkey...Page 75

• Performance Tuning on Linux...Page 79

• Module Parameters...Page 99

• Linux ethtool Statistics...Page 101

3.1 System Requirements

Refer to Software Driver Support on page 12 for supported Linux Distributions.

NOTE: SUSE Linux Enterprise Server 11 includes a version of the Solarflare network adapter Driver. This driver does not support the SFN512x family of adapters. To update the supplied driver, see

SUSE Linux Enterprise Server Distributions on page 44

Issue 11 © Solarflare Communications 2014 39

Solarflare Server Adapter

NOTE: Red Hat Enterprise Linux versions 5.5 and 6.0 include a version of the Solarflare adapter driver. This driver does not support the SFN512x family of adapters. Red Hat Enterprise Linux 5.6 and 6.1 includes a version of the Solarflare network driver for the SFN512x family of adapters. To update the supplied driver, see Installing Solarflare Drivers and Utilities on Linux on page 43

3.2 Linux Platform Feature Set

Table 14 lists the features supported by Solarflare adapters on Red Hat and SUSE Linux distributions.

Table 14: Linux Feature Set

Fault diagnostics Support for comprehensive adapter and cable fault diagnostics

and system reports.

• See Running Adapter Diagnostics on page 53

Firmware updates Support for Boot ROM, Phy transceiver and adapter firmware

upgrades.

User Guide

• See Upgrading Adapter Firmware with Sfupdate on page 70

Hardware Timestamps

Solarflare Flareon SFN7122F1 SFN7142Q1 and SFN7322F adapters support the hardware timestamping of all received packets - including PTP packets.

The Linux kernel must support the SO_TIMESTAMPING socket option (2.6.30+) to allow the driver to support hardware packet timestamping. Therefore hardware packet timestamping is not available in RHEL 5.

1. Requires an AppFlex license - for details refer to Solarflare AppFlex™

Technology Licensing. on page 12

Jumbo frames Support for MTUs (Maximum Transmission Units) from

1500 bytes to 9216 bytes.

• See Configuring Jumbo Frames on page 51

PXE and iSCSI booting Support for diskless booting to a target operating system via

PXE or iSCSI boot.

• See Configuring the Boot ROM with sfboot on page 56

• See Solarflare Boot ROM Agent on page 344

PXE or iSCSI boot are not supported for Solarflare adapters on IBM System p servers.

Receive Side Scaling (RSS) Support for RSS multi-core load distribution technology.

• See Receive Side Scaling (RSS) on page 85

Issue 11 © Solarflare Communications 2014 40

Solarflare Server Adapter

User Guide

Table 14: Linux Feature Set

Receive Flow Steering (RFS) Improve latency and reduce jitter by steering packets to the

core where a receiving application is running.

See Receive Flow Steering (RFS) on page 87.

SR-IOV Support for XenServer6 PCIe Single Root-IO Virtualization and

Linux KVM SR-IOV.

• See SR-IOV Virtualization for XenServer on page 324

• See SR-IOV Virtualization Using KVM on page 307

SR-IOV is not supported for Solarflare adapters on IBM System p servers.

Standby and Power Management

Task offloads Support for TCP Segmentation Offload (TSO), Large Receive

Teaming Improve server reliability and bandwidth by combining physical

Virtual LANs (VLANs) Support for multiple VLANs per adapter.

Transmit Packet Steering (XPS)

Solarflare adapters support Wake On LAN on Linux. These settings are only available if the adapter has auxiliary power supplied by a separate cable.

Offload (LRO), and TCP/UDP/IP checksum offload for improved adapter performance and reduced CPU processing requirements.

• See Configuring Task Offloading on page 50

ports, from one or more Solarflare adapters, into a team, having a single MAC address and which function as a single port providing redundancy against a single point of failure.

• See Setting Up Teams on page 52

• See Setting Up VLANs on page 51

Supported on Linux 2.6.38 and later kernels. Selects the transmit queue when transmitting on multi-queue devices. Refer to Transmit Packet Steering on page 89 for details.

3.3 Solarflare RPMs

Solarflare supply RPM packages in the following formats:

• DKMS

• Source RPM

Issue 11 © Solarflare Communications 2014 41

Solarflare Server Adapter

DKMS RPM

Dynamic Kernel Module Support (DKMS) is a framework where device driver source can reside outside the kernel source tree. It supports an easy method to rebuild modules when kernels are upgraded.

User Guide

Execute the command

dkms --version to determine whether DKMS is installed.

To install the Solarflare driver DKMS package execute the following command:

rpm -i sfc-dkms-<version>.noarch.rpm

Building the Source RPM

These instructions may be used to build a source RPM package for use with Linux distributions or kernel versions where DKMS or KMP packages are not suitable.

NOTE: RPMs can be installed for multiple kernel versions.

1 First, the kernel headers for the running kernel must be installed at

<kernel-version>/build. On Red Hat systems, install the appropriate kernel-smp- devel or kernel-devel package. On SUSE systems install the kernel-source package.

2 To build a source RPM for the running kernel version from the source RPM, enter the following

at the command-line:

rpmbuild --rebuild <package_name>

Where package_name is the full path to the source RPM (see the note below).

3 To build for a different kernel to the running system, enter the following command:

/lib/modules/

rpmbuild --define 'kernel <kernel version>' --rebuild <package_name>

4 Install the resulting RPM binary package, as described in Installing Solarflare Drivers and

Utilities on Linux.

NOTE: The location of the generated RPM is dependent on the distribution and often the version of the distribution and the RPM build tools.

The RPM build process should print out the location of the RPM towards the end of the build process, but it can be hard to find amongst the other output.

Typically the RPM will be placed in /usr/src/<dir>/RPMS/<arch>/, where <dir> is distribution specific. Possible folders include Red Hat, packages or extra. The RPM file will be named using the same convention as the Solarflare provided pre-built binary RPMs.

The command:

find /usr/src -name "*sfc*.rpm” will list the locations of all Solarflare

RPMs.

Issue 11 © Solarflare Communications 2014 42

Solarflare Server Adapter

3.4 Installing Solarflare Drivers and Utilities on Linux

• Red Hat Enterprise Linux Distributions...Page 43

• SUSE Linux Enterprise Server Distributions...Page 44

• Building the Source RPM...Page 42

Linux drivers for Solarflare are available in DKMS and source RPM packages. The source RPM can be used to build binary RPMs for a wide selection of distributions and kernel variants. This section details how to install the resultant binary RPM.

Solarflare recommend using DKMS RPMs if the DKMS framework is available. See DKMS RPM on

page 42 for more details.

NOTE: The Solarflare adapter should be physically installed in the host computer before installing the driver. The user must have root permissions to install the adapter drivers.

3.5 Red Hat Enterprise Linux Distributions

User Guide

These instructions cover installation and configuration of the Solarflare network adapter drivers on Red Hat Enterprise Linux Server. Refer to Software Driver Support on page 12 for details of supported Linux distributions.

Refer to Building the Source RPM on page 42 for directions on creating the binary RPM.

1 Install the RPMs:

[root@myhost1]# rpm -ivh kernel-module-sfc-RHEL6-2.6.32-

279.el6.x86_64-3.3.0.6262-1.x86_64.rpm

2 There are various tools that can be used for configuring the Solarflare Server Adapter:

a) The NetworkManager service and associated GUI tools. For more information about his

refer to https://wiki.gnome.org/NetworkManager.

b) Solarflare recommend using the Network Administration Tool (NEAT) to configure the new

network interface. NEAT is a GUI based application and therefore requires an X server to run.

c) Alternatively the command line program Kudzu can be used. However, you may find when

kudzu is run that you are NOT presented with an option to configure the new network interface. If this occurs, carefully clear details of the Solarflare Server Adapter from the hardware database by removing all entries with “vendor id: 1924” in the

sysconfig/hwconf file. Running kudzu again should now provide an option to configure

the newly added network interface.

3 Apply the new network settings:

a) NEAT provides an option to Activate the new interface. The new network interface can

then be used immediately (there is no need to reboot or restart the network service).

/etc/

b) If you are not using NEAT you will need to reboot, or alternatively restart the networking

service, by typing the following before the new Solarflare interface can be used:

[root@myhost1]# service network restart

Issue 11 © Solarflare Communications 2014 43

Solarflare Server Adapter

3.6 SUSE Linux Enterprise Server Distributions

These instructions cover installation and configuration of the Solarflare Network Adapter drivers on SUSE Linux Enterprise Server. Refer to Software Driver Support...Page 12 for details of supported distributions.

Refer to Building the Source RPM on page 42 for directions on creating the binary RPM.

1 The Solarflare drivers are currently classified as 'unsupported' by SUSE Enterprise Linux 10

(SLES10). To allow unsupported drivers to load in SLES10, edit the following file:

/etc/sysconfig/hardware/config

find the line:

LOAD_UNSUPPORTED_MODULES_AUTOMATICALLY=no

and change no to yes.

For SLES 11, edit the last line in /etc/modprobe.d/unsupported-modules to:

User Guide

allow_unsupported_modules 1

2 Install the RPMs:

[root@myhost1]# rpm -ivh kernel-module-sfc-2.6.5-7.244-smp-2.1.0111-

0.sf.1.SLES9.i586.rpm

3 Run YaST to configure the Solarflare Network Adapter. When you select the Ethernet

Controller, the Configuration Name will take one of the following forms:

eth-bus-pci-dddd:dd:dd.N where N is either 0 or 1.

b) eth-id-00:0F:53:XX:XX:XX

Once configured, the Configuration Name for the correct Ethernet Controller will change to the second form, and an ethX interface will appear on the host. If the incorrect Ethernet Controller is chosen and configured, then the Configuration Name will remain as

pci-dddd:dd:dd.1 after configuration by YaST, and an ethX interface will not appear on

eth-bus-

the system. In this case, you should remove the configuration for this Ethernet Controller, and configure the other Ethernet Controller of the pair.

Issue 11 © Solarflare Communications 2014 44

Solarflare Server Adapter

3.7 Unattended Installations

Building Drivers and RPMs for Unattended Installation

Linux unattended installation requires building two drivers:

• A minimal installation Solarflare driver that only provides networking support. This driver is used for network access during the installation process.

• An RPM that includes full driver support. This RPM is used to install drivers in the resultant Linux installation.

User Guide

Figure 6: Unattended Installation RPM

Figure 6 shows how the unattended installation process works.

1 Build a minimal Solarflare driver needed for use in the installation kernel (Kernel A in the

diagram above). This is achieved by defining “sfc_minimal” to rpmbuild. This macro disables hardware monitoring, MTD support (used for access to the adapters flash), I2C and This results in a driver with no dependencies on other modules and allows networking support from the driver during installation.

# as normal user $ mkdir -p /tmp/rpm/BUILD $ rpm -i sfc-<ver>-1.src.rpm $ rpmbuild -bc -D 'sfc_minimal=1' -D 'kernel=<installer kernel>' \ /tmp/rpm/SPECS/sfc.spec

2 The Solarflare minimal driver sfc.ko can be found in /tmp/rpm/BUILD/sfc-<ver>/

linux_net/sfc.ko. Integrate this minimal driver into your installer kernel, either by

creating a driver disk incorporating this minimal driver or by integrating this minimal driver into initrd.

3 Build a full binary RPM for your Target kernel and integrate this RPM into your Target (Kernel

B).

debugfs.

Issue 11 © Solarflare Communications 2014 45

Solarflare Server Adapter

Driver Disks for Unattended Installations

Solarflare are preparing binary driver disks to help avoid the need to build the minimal drivers required in unattended installations. Please contact Solarflare support to obtain these driver disks

Table 15 shows the various stages of an unattended installation process:

Table 15: Installation Stages

In Control Stages of Boot Setup needed

User Guide

BIOS PXE code on the adapter

runs.

SF Boot ROM (PXE) DHCP request from PXE (SF

Boot ROM).

SF Boot ROM (PXE) TFTP request for filename to

next-server, e.g. pxelinux.0

pxelinux TFTP retrieval of pxelinux

configuration.

pxelinux TFTP menu retrieval of Linux

kernel image initrd.

Linux kernel/installer Installer retrieves kickstart

configuration, e.g. via HTTP.

Target Linux kernel kernel reconfigures network

adapters.

Adapter must be in PXE boot mode. See PXE Support on page 345.

DHCP server filename and nextserver options.

TFTP server.

pxelinux configuration on TFTP server.

pxelinux configuration

Kernel, kernel command, initrd

Kickstart/AutoYaST configuration.

DHCP server.

Issue 11 © Solarflare Communications 2014 46

Solarflare Server Adapter

3.8 Unattended Installation - Red Hat Enterprise Linux

Documentation for preparing for a Red Hat Enterprise Linux network installation can be found at:

http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/s1begininstall-perform-nfs-x86.html

http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/ index.html

The prerequisites for a Network Kickstart installation are:

• Red Hat Enterprise Linux installation media.

• A Web server and/or FTP Server for delivery of the RPMs that are to be installed.

• A DHCP server for IP address assignments and to launch PXE Boot.

• A TFTP server for download of PXE Boot components to the machines being kickstarted.

• The BIOS on the computers to be Kickstarted must be configured to allow a network boot.

• A Boot CD-ROM or flash memory that contains the kickstart file or a network location where the kickstart file can be accessed.

User Guide

• A Solarflare driver disk.

Unattended Red Hat Enterprise Linux installations are configured with Kickstart. The documentation for Kickstart can be found at:

http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5/html/Installation_Guide/chredhat-config-kickstart.html

http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Installation_Guide/chkickstart2.html

To install Red Hat Enterprise you need the following:

1 A modified

initrd.img file with amended modules.alias and modules.dep which

incorporates the Solarflare minimal driver for the installation kernel.

modules.alias, add the following entries:

alias: pci:v00001924d00000813sv*sd*bc*sc*i* alias: pci:v00001924d00000803sv*sd*bc*sc*i* alias: pci:v00001924d00000710sv*sd*bc*sc*i* alias: pci:v00001924d00000703sv*sd*bc*sc*i*

2 Identify the driver dependencies using the modinfo command:

modinfo ./sfc.ko | grep depends depends: i2c-core,mii,hwmon,hwmon-vid,i2c-algo-bit mtdcore mtdpart

All modules listed as depends must be present in the initrd file image. In addition the user should be aware of further dependencies which can be resolved by adding the following lines to the modules.dep file:

Issue 11 © Solarflare Communications 2014 47

Solarflare Server Adapter

User Guide

sfc: i2c-core mii hwmon hwmon-vid i2c-algo-bit mtdcore mtdpart * i2c-algo-bit: i2c-core mtdpart: mtdcore

*For Red Hat Enterprise Linux from version 5.5 add mdio to this line.

3 A configured kickstart file with the Solarflare Driver RPM manually added to the

section. For example:

%post

/bin/mount -o ro <IP Address of Installation server>:/<path to location directory containing Solarflare RPM> /mnt /bin/rpm -Uvh /mnt/<filename of Solarflare RPM> /bin/umount /mnt

3.9 Unattended Installation - SUSE Linux Enterprise Server

Unattended SUSE Linux Enterprise Server installations are configured with AutoYaST. The documentation for AutoYaST can be found at:

http://www.suse.com/~ug/autoyast_doc/index.html

The prerequisites for a Network AutoYaST installation are:

• SUSE Linux Enterprise installation media.

• A DHCP server for IP address assignments and to launch PXE Boot.

• A NFS or FTP server to provide the installation source.

• A TFTP server for the download of the kernel boot images needed to PXE Boot.

%Post

• A boot server on the same Ethernet segment.

• An install server with the SUSE Linux Enterprise Server OS.

• An AutoYaST configuration server that defines rules and profiles.

• A configured AutoYast Profile (control file).

3.10 Hardware Timestamps

The Solarflare Flareon SFN7000 series adapters can support hardware timestamping for all received network packets.

The Linux kernel must support the SO_TIMESTAMPING socket option (2.6.30+) therefore hardware packet timestamping is not supported on RHEL 5.

For more information about using the kernel timestamping API, users should refer to the Linux documentation: http://lxr.linux.no/linux/Documentation/networking/timestamping.txt

3.11 Configuring the Solarflare Adapter

Ethtool is a standard Linux tool that you can use to query and change Ethernet adapter settings, including those for Solarflare adapters. Ethtool can be downloaded from http://sourceforge.net/ projects/gkernel/files/ethtool/.

The general command for ethtool is as follows:

ethtool <-option> <ethX>

User Guide

Where X is the identifier of the interface. Note that root access will be required to configure adapter settings. Refer to the Linux online manual ( available for ethtool.

man ethtool) for details of the options that are

Configuring Speed and Modes

Solarflare adapters by default automatically negotiate the connection speed to the maximum supported by the link partner. On the 10GBASE-T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE-T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link. Dual speed SFP+ modules operate at their maximum (10G) link speed unless explicitly configured to operate at a lower speed (1G).

The following commands demonstrate ethtool to configure the network adapter Ethernet settings.

Identify interface configuration settings:

ethtool ethX

Set link speed:

ethtool -s ethX speed 1000|100

To return the connection speed to the default auto-negotiate, enter:

ethtool -s <ethX> autoneg on

Configure auto negotiation:

ethtool -s ethX autoneg [on|off]

Set auto negotiation advertised speed 1G:

Issue 11 © Solarflare Communications 2014 49

Solarflare Server Adapter

ethtool -s ethX advertise 0x20

Set autonegotiation advertised speed 10G:

ethtool -s ethX advertise 0x1000

Set autonegotiation advertised speeds 1G and 10G:

ethtool -s ethX advertise 0x1020

Identify interface auto negotiation pause frame setting:

ethtool -a ethX

Configure auto negotiation of pause frames:

ethtool -A ethX autoneg on [rx on|off] [tx on|off]

Configuring Task Offloading

Solarflare adapters support transmit (Tx) and receive (Rx) checksum offload, as well as TCP segmentation offload. To ensure maximum performance from the adapter, all task offloads should be enabled, which is the default setting on the adapter. For more information, see Performance

Tuning on Linux on page 79.

User Guide

To change offload settings for Tx and Rx, use the ethtool command:

ethtool --offload <ethX> [rx on|off] [tx on|off]

Configuring Receive/Transmit Ring Buffer Size

By default receive and transmit ring buffers on the Solarflare adapter support 1024 descriptors. The user can identify and reconfigure ring buffer sizes using the ethtool command.

To identify the current ring size:

ethtool -g ethX

To set the new transmit or receive ring size to value N

ethtool -G ethX [rx N| tx N]

The ring buffer size must be a value between 128 and 4096. On the SFN7000 series adapters the maximum TX buffer size is restricted to 2048. Buffer size can also be set directly in the

modprobe.conf file or add the options line to a file under the /etc/modprobe.d directory e.g.

options sfc rx_ring=4096

Using the modprobe method sets the value for all Solarflare interfaces. Then reload the driver for the option to become effective:

modprobe -r sfc modprobe sfc

Issue 11 © Solarflare Communications 2014 50

Solarflare Server Adapter

Configuring Jumbo Frames

Solarflare adapters support frame sizes from 1500 bytes to 9216 bytes. For example, to set a new frame size (MTU) of 9000 bytes, enter the following command:

ifconfig <ethX> mtu 9000

To make the changes permanent, edit the network configuration file for <ethX>; for example,

/etc/sysconfig/network-scripts/ifcfg-eth1

directive, which specifies the size of the frame in bytes:

MTU=9000

and append the following configuration

Standby and Power Management

Solarflare adapters support Wake on LAN and Wake on Magic Packet setting on Linux. You need to ensure that Wake on LAN has been enabled on the BIOS correctly and your adapter has auxiliary power via a separate cable before configuring Wake on LAN features.

User Guide

In SUSE Linux Enterprise Server, you can use the YaST WOL module to configure Wake on LAN or you can use the

In Red Hat Enterprise Linux you can use the

ethtool wol g setting.

3.12 Setting Up VLANs

VLANs offer a method of dividing one physical network into multiple broadcast domains. In enterprise networks, these broadcast domains usually match with IP subnet boundaries, so that each subnet has its own VLAN. The advantages of VLANs include:

• Performance

• Ease of management

• Security

• Trunks

• You don't have to configure any hardware device, when physically moving your server to another location.

To set up VLANs, consult the following documentation:

• To configure VLANs on SUSE Linux Enterprise Server, see:

http://www.novell.com/support/viewContent.do?externalId=3864609

• To configure tagged VLAN traffic only on Red Hat Enterprise Linux, see:

http://kbase.redhat.com/faq/docs/DOC-8062

• To configure mixed VLAN tagged and untagged traffic on Red Hat Enterprise Linux, see:

http://kbase.redhat.com/faq/docs/DOC-8064

Issue 11 © Solarflare Communications 2014 51

Solarflare Server Adapter

3.13 Setting Up Teams

Teaming network adapters (network bonding) allows a number of physical adapters to act as one, virtual adapter. Teaming network interfaces, from the same adapter or from multiple adapters, creates a single virtual interface with a single MAC address.

The virtual adapter or virtual interface can assist in load balancing and providing failover in the event of physical adapter or port failure.

Teaming configuration support provided by the Linux bonding driver includes:

• 802.3ad Dynamic link aggregation

• Static link aggregation

• Fault Tolerant

To set up an adapter team, consult the following documentation:

General:

http://www.kernel.org/doc/Documentation/networking/bonding.txt

User Guide

RHEL 5:

http://www.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/5.4/html/Deployment_Guide/s2modules-bonding.html

RHEL6:

http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Deployment_Guide/s2networkscripts-interfaces-chan.html

SLES:

http://www.novell.com/documentation/sles11/book_sle_admin/data/ sec_basicnet_yast.html#sec_basicnet_yast_netcard_man

Issue 11 © Solarflare Communications 2014 52

Solarflare Server Adapter

3.14 Running Adapter Diagnostics

You can use ethtool to run adapter diagnostic tests. Tests can be run offline (default) or online. Offline runs the full set of tests, which can interrupt normal operation during testing. Online performs a limited set of tests without affecting normal adapter operation.

As root user, enter the following command:

ethtool --test ethX offline|online

The tests run by the command are as follows:

Table 16: Adapter Diagnostic Tests

Diagnostic Test Purpose

core.nvram Verifies the flash memory ‘board configuration’ area by

parsing and examining checksums.

core.registers Verifies the adapter registers by attempting to modify the

writable bits in a selection of registers.

User Guide

core.interrupt Examines the available hardware interrupts by forcing the

controller to generate an interrupt and verifying that the interrupt has been processed by the network driver.

tx/rx.loopback Verifies that the network driver is able to pass packets to

and from the network adapter using the MAC and Phy loopback layers.

core.memory Verifies SRAM memory by writing various data patterns

(incrementing bytes, all bit on and off, alternating bits on and off) to each memory location, reading back the data and comparing it to the written value.

core.mdio Verifies the MII registers by reading from PHY ID registers

and checking the data is valid (not all zeros or all ones). Verifies the MMD response bits by checking each of the MMDs in the Phy is present and responding.

chanX eventq.poll Verifies the adapter’s event handling capabilities by

posting a software event on each event queue created by the driver and checking it is delivered correctly.

The driver utilizes multiple event queues to spread the load over multiple CPU cores (RSS).

phy.bist Examines the PHY by initializing it and causing any

available built-in self tests to run.

Issue 11 © Solarflare Communications 2014 53

Solarflare Server Adapter

3.15 Running Cable Diagnostics

Cable diagnostic data can be gathered from the Solarflare 10GBASE-T adapters physical interface using the controller, PHY, and attached cables. To run the cable tests enter the following command:

Online tests are non-intrusive and will not disturb live traffic.

The following is an extract from the output of the ethtool diagnostic offline tests:

phy cable.pairA.length 9 phy cable.pairB.length 9 phy cable.pairC.length 9 phy cable.pairD.length 9 phy cable.pairA.status 1 phy cable.pairB.status 1 phy cable.pairC.status 1 phy cable.pairD.status 1

ethtool -t command which runs a comprehensive set of diagnostic tests on the

ethtool -t ethX [online | offline]

User Guide

Cable length is the estimated length in metres. A length value of 65535 indicates length not estimated due to pair busy or cable diagnostic routine not completed successfully.

The cable status can be one of the following values:

0 - invalid, or cable diagnostic routine did not complete successfully 1 - pair ok, no fault detected 2 - pair open or Rt > 115 ohms 3 - intra pair short or Rt < 85 ohms 4 - inter pair short or Rt < 85 ohms 9 - pair busy or link partner forces 100Base-Tx or 1000Base-T test mode.

Issue 11 © Solarflare Communications 2014 54

Solarflare Server Adapter

3.16 Linux Utilities RPM

The Solarflare Utilities RPM for Linux contains:

• A boot ROM utility. Configuring the Boot ROM with sfboot...Page 56

• A flash firmware update utility. Upgrading Adapter Firmware with Sfupdate...Page 70

• A license key install utility. License Install with sfkey...Page 75

The RPM package, is supplied as 64bit and 32bit binaries compiled to be compatible with GLIBC versions for all supported distributions.

The Solarflare utilities RPM file can be downloaded from the following location:

https://support.solarflare.com/

• SF-104451-LS is a 32bit binary RPM package.

• SF-107601-LS is a 64bit binary RPM package.

Download and copy the zipped binary RPM package to the required directory. Unzip and install (64bit package example):

User Guide

1 Unzip the package:

# unzip SF-107601-LS-20_Solarflare_Linux_Utilities_RPM_64bit.zip

2 Install the binary RPM:

# rpm -Uvh sfutils-4.0.1.6605-1.x86_64.rpm

Preparing... ########################################### [100%] 1:sfutils ########################################### [100%]

3 Check that the RPM installed correctly:

# rpm -q sfutils sfutils-4.0.1.6605-1.x86_64

Directions for the use of the utility programs are explained in the following sections:

Issue 11 © Solarflare Communications 2014 55

Solarflare Server Adapter

3.17 Configuring the Boot ROM with sfboot

• Sfboot: Command Usage...Page 56

• Sfboot: Command Line Options...Page 56

• Sfboot: Examples...Page 66

Sfboot is a command line utility for configuring the Solarflare adapter Boot ROM for PXE and iSCSI booting. Using sfboot is an alternative to using Ctrl + B to access the Boot Rom agent during server startup.

See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom agent.

PXE and iSCSI network boot is not supported for Solarflare adapters on IBM System p servers.

Sfboot: SLES 11 Limitation

Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the server after running the sfboot utility.

User Guide

Sfboot: Command Usage

The general usage for sfboot is as follows (as root):

sfboot [--adapter=eth<N>] [options] [configurable parameters]

Note that without --adapter, the sfboot command applies to all adapters that are present in the target host.

The format for the parameters are:

Sfboot: Command Line Options

Table 17 lists the options for sfboot and Table 18 lists the available options.

Table 17: Sfboot Options

Option Description

-?-h, --help

-V, --version

Displays command line syntax and provides a description of each sfboot option.

Shows detailed version information and exits.

-v, --verbose

Issue 11 © Solarflare Communications 2014 56

Shows extended output information for the command entered.

Table 17: Sfboot Options

Option Description

Solarflare Server Adapter

User Guide

-s, --quiet Aliases: --silent

-l --list

-i, --adapter =<ethX>

-c --clear

Suppresses all output, except errors; no user interaction. You should query the completion code to determine the outcome of commands when operating silently (see Performance Tuning on

Windows on page 221).

Lists all available Solarflare adapters. This option shows the ifname and MAC address.

Note: this option may not be used in conjunction with the any other option. If this option is used with configuration parameters, those parameters will be silently ignored.

Performs the action on the identified Solarflare network adapter. The adapter identifier the ifname or MAC address, as output by the -option. If

--adapter is not included, the action will

ethX can be

list

apply to all installed Solarflare adapters.

Resets all adapter options except boot-image to their default values. Note that

--clear can also be

used with parameters, allowing you to reset to default values, and then apply the parameters specified.

The following parameters in Table 18 are used to control the configurable parameters for the Boot ROM driver when running prior to the operating system booting.

Table 18: Sfboot Parameters

Parameter Description

bootimage=<all|optionrom|uefi|di sabled>

Issue 11 © Solarflare Communications 2014 57

Specifies which boot firmware images are served-up to the BIOS during start-up. This parameter can not be used if the This option is not reset if

--adapter option has been specified.

--clear is used.

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

linkspeed=<auto|10g|1g|100m>

linkup-delay=<seconds>

Specifies the network link speed of the adapter used by the Boot ROM - the default is

auto. On the

10GBASE-T adapters “auto” instructs the adapter to negotiate the highest speed supported in common with it’s link partner. On SFP+ adapters, “auto” instructs the adapter to use the highest link speed supported by the inserted SFP+ module. On 10GBASE-T and SFP+ adapters, any other value specified will fix the link at that speed, regardless of the capabilities of the link partner, which may result in an inability to establish the link.

auto Auto-negotiate link speed (default) 10G 10G bit/sec 1G 1G bit/sec 100M 100M bit/sec

Specifies the delay (in seconds) the adapter defers its first connection attempt after booting, allowing time for the network to come up following a power failure or other restart. This can be used to wait for spanning tree protocol on a connected switch to unblock the switch port after the physical network link is established. The default is 5 seconds.

banner-delay=<seconds>

Specifies the wait period for Ctrl-B to be pressed to enter adapter configuration tool.

seconds = 0-256

bootskip-delay=<seconds>

Specifies the time allowed for Esc to be pressed to skip adapter booting.

seconds = 0-256

boottype=<pxe|iscsi|disabled>

Sets the adapter boot type.

pxe – PXE (Preboot eXecution Environment) booting iscsi – iSCSI (Internet Small Computer System

Interface) booting

disabled – Disable adapter booting

Issue 11 © Solarflare Communications 2014 58

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

initiatordhcp=<enabled|disabled>

initiator-ip=<ipv4 address>

Enables or disables DHCP address discovery for the adapter by the Boot ROM except for the Initiator IQN (see

initiator-iqn-dhcp). This option is only

valid if iSCSI booting is enabled (

type=iscsi

boot-

If initiator-DHCP is set to disabled, the following options will need to be specified:

initiator-ip=<ip_address> netmask=<subnet>

The following options may also be needed:

gateway=<ip_address> primary-dns=<ip_address>

Specifies the IPv4 address (in standard “.” notation form) to be used by the adapter when

dhcp is disabled.

initiator-

Note that this option is only valid if iSCSI booting is enabled (

boot-type=iscsi).

Example:

sfboot boot-type=iscsi initiatordhcp=disabled initiatorip=<192.168.1.3>

netmask=<ipv4 subnet>

Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when

initiator-dhcp is disabled. Note that this option

is only valid if iSCSI booting is enabled (

type=iscsi).

boot-

Example:

sfboot boot-type=iscsi initiatordhcp=disabled netmask=255.255.255.0

gateway=<ipv4 address>

Specifies the IPv4 subnet mask (in standard “.” notation form) to be used by the adapter when

initiator-dhcp is disabled. Note that this option

is only valid if iSCSI booting is enabled (

type=iscsi).

boot-

Example:

sfboot boot-type=iscsi initiatordhcp=disabled gateway=192.168.0.10

Issue 11 © Solarflare Communications 2014 59

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

primary-dns=<ipv4 address>

initiator-iqndhcp=<enabled|disabled>

initiator-iqn=<IQN>

Specifies the IPv4 address (in standard “.” notation form) of the Primary DNS to be used by the adapter when

initiator-dhcp is disabled.

This option is only valid if iSCSI booting is enabled

boot-type=iscsi).

(

Example:

sfboot boot-type=iscsi initiatordhcp=disabled primary-dns=192.168.0.3

Enables or disables use of DHCP for the initiator IQN only.

Specifies the IQN (iSCSI Qualified Name) to be used by the adapter when

initiator-iqn-dhcp is

disabled. The IQN is a symbolic name in the “.” notation form; for example: iqn.2009.01.com.solarflare, and is a maximum of 223 characters long.

Note that this option is only valid if iSCSI booting is enabled (

boot-type=iscsi).

Example:

lun-retry-count=<count>

sfboot initiator-iqn-dhcp=disabled initiatoriqn=iqn.2009.01.com.solarflare adapter=2

Specifies the number of times the adapter attempts to access and login to the Logical Unit Number (LUN) on the iSCSI Target before failing. Note that this option is only valid if iSCSI booting is enabled (

type=iscsi).

boot-

Example:

sfboot lun-retry-count=3

Issue 11 © Solarflare Communications 2014 60

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

targetdhcp=<enabled|disabled>

target-server=<DNS name or ipv4 address>

Enables or disables the use of DHCP to discover iSCSI target parameters on the adapter.

target-dhcp is disabled, you must specify the

If following options:

target-server=<address> target-iqn=<iqn> target-port=<port> target-lun=<LUN>

Example - Enable the use of DHCP to configure iSCSI Target settings:

sfboot boot-type=iscsi targetdhcp=enabled

Specifies the iSCSI target’s DNS name or IPv4 address to be used by the adapter when

target-dhcp is

disabled.

Note that this option is only valid if iSCSI booting is enabled (

boot-type=iscsi).

Example:

target-port=<port_number>

target-lun=<LUN>

sfboot boot-type=iscsi targetdhcp=disabled target-server=192.168.2.2

Specifies the Port number to be used by the iSCSI target when

target-dhcp is disabled. The default

Port number is Port 3260.

Note that this option is only valid if iSCSI booting is enabled (

boot-type=iscsi).

Example:

sfboot boot-type=iscsi targetdhcp=disabled target-port=3262

This option should only be used if your target is using a non-standard TCP Port.

Specifies the Logical Unit Number (LUN) to be used by the iSCSI target when

target-dhcp is disabled.

The default LUN is 0.

Note that this option is only valid if iSCSI booting is enabled (

boot-type=iscsi).

Issue 11 © Solarflare Communications 2014 61

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

target-iqn=<IQN>

vendor-id=<dhcp_id>

chap=<enabled|disabled>

Specifies the IQN of the iSCSI target when target-

is disabled. Maximum of 223 characters.

dhcp

Note that this option is only valid if iSCSI booting is enabled (boot-type=iscsi).

Note that if there are spaces contained in <

IQN>,

then the IQN must be wrapped in double quotes (“”).

Example:

sfboot target-dhcp=disabled targetiqn=iqn.2009.01.com.solarflare adapter=2

Specifies the device vendor ID to be advertised to the DHCP server. This must match the vendor id configured at the DHCP server when using DHCP option 43 to obtain the iSCSI target.

Enables or disables the use of Challenge Handshake Protocol (CHAP) to authenticate the iSCSI connection.

Note that this option is only valid if iSCSI booting is enabled

(boot-type=iscsi).

To be valid, this option also requires the following sub-options to be specified:

username=<initiator username> secret=<initiator password>

Example:

sfboot boot-type=iscsi chap=enabled username=initiatorusername secret=initiatorsecret

Issue 11 © Solarflare Communications 2014 62

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

username=<username>

secret=<secret>

Specifies the CHAP initiator username (maximum 64 characters).

Note that this option is required if either CHAP or Mutual CHAP is enabled (

mutual-chap=enabled

chap=enabled,

Note that if there are spaces contained in <username>, then it must be wrapped in double quotes (“”).

Example:

sfboot boot-type=iscsi chap=enabled username=username

Specifies the CHAP initiator secret (minimum 12 characters, maximum 20 characters).

Note that this option is valid if either CHAP or Mutual CHAP is enabled (chap=enabled,

chap=enabled).

Note that if there are spaces contained in <

mutual-

secret>,

then it must be wrapped in double quotes (“”).

Example:

mutualchap=<enabled|disabled>

sfboot boot-type=iscsi chap=enabled username=username secret=veryverysecret

Enables/disables Mutual CHAP authentication when iSCSI booting is enabled.

This option also requires the following sub-options to be specified:

target-username=<username> target-secret=<password> username=<username> secret=<password>

Example:

sfboot boot-type=iscsi mutualchap=enabled username=username secret=veryverysecret targetusername=targetusername targetsecret=anothersecret

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

target-username=<username>

target-secret=<secret>

mpio-priority=<MPIO priority>

Specifies the username that has been configured on the iSCSI target (maximum 64 characters).

Note that this option is necessary if Mutual CHAP is enabled on the adapter (

mutual-chap=enabled).

Note that if there are spaces contained in

username>, then it must be wrapped in double

< quotes (“”).

Specifies the secret that has been configured on the iSCSi target (minimum 12 characters; maximum 20 characters).

Note: This option is necessary if Mutual CHAP is enabled on the adapter (

Note that if there are spaces contained in <

mutual-chap=enabled).

secret>,

then it must be wrapped in double quotes (“”).

Specifies the Multipath I/O (MPIO) priority for the adapter. This option is only valid for iSCSI booting over multi-port adapters, where it can be used to establish adapter port priority. The range is 1- 255, with 1 being the highest priority.

mpio-attempts=<attempt count>

msix-limit=

<8|16|32|64|128|256|512|1024>

pfiov=<enabled|disabled>

pf-count=<pf count>

sriov=<enabled|disabled>

Specifies the number of times MPIO will try and use each port in turn to login to the iSCSI target before failing.

Specifies the maximum number of MSI-X interrupts the specified adapter will use. The default is 32.

Note: Using the incorrect setting can impact the performance of the adapter. Contact Solarflare technical support before changing this setting.

Enable PF-IOV support. This allows switching of traffic between any PFs. When disabled traffic is switched only between a PF and related VFs.

This is the number of available PCIe PFs per physical network port. This setting is applied to all ports on the adapter. MAC address assignments may change after altering this setting.

Enable SR-IOV support for operating systems that support this.

Table 18: Sfboot Parameters

Parameter Description

Solarflare Server Adapter

User Guide

vf-count=<vf count>

vf-msixlimit=<1|2|4|8|16|32|64|128| 256>

port-mode=(default|10G|40G>

The number of virtual functions (VF) advertised to the operating system. The Solarflare SFC9000 family of controllers support a total limit of 127 virtual functions per port and a total 1024 interrupts. Depending on the values of msix-limit and vf-msixlimit, some of these virtual functions may not be configured.

Enabling all 127 VFs per port with more than one MSI-X interrupt per VF may not be supported by the host BIOS - in which case you may get 127 VFs on one port and none on others. Contact your BIOS vendor or reduce the VF count.

The sriov parameter is implied if vf-count is greater than zero.

The maximum number of interrupts a virtual function may use.

Configure the port mode to use. This is for SFC9140family adapters only. MAC address assignments may change after altering this setting.

firmware-variant=<fullfeature|ultra-lowlatency|capture-packedstream |auto>

insecurefilters=<enabled|disabled>

The default mode will select 40G mode.

For SFN7000 series adapters only.

The ultra-low-latency variant produces best latency without support for TX VLAN insertion or RX VLAN stripping (not currently used features). It is recommended that Onload customers use the ultralow-latency variant.

Default value = auto - means the driver will select ultra-low-latency by default.

If enabled bypass filter security on non-privileged functions. This is for SFC9100-family adapters only. This reduces security in virtualized environments. The default is disabled.

Sfboot: Examples

• Show the current boot configuration for all adapters:

fboot

Solarflare boot configuration utility [v3.0.3] Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005

eth1: Boot image Option ROM and UEFI Link speed Negotiated automatically Link-up delay time 5 seconds Banner delay time 2 seconds Boot skip delay time 5 seconds Boot type PXE MSI-X interrupt limit 32

eth2: Boot image Option ROM and UEFI Link speed Negotiated automatically Link-up delay time 5 seconds Banner delay time 2 seconds Boot skip delay time 5 seconds Boot type PXE MSI-X interrupt limit 32

Solarflare Server Adapter

User Guide

• List all Solarflare adapters installed on the localhost:

sfboot --list

Solarflare boot configuration utility [v3.0.2] Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005

eth4 - 00-0F-53-01-3C-AC, eth5 - 00-0F-53-01-3C-AD, eth6 - 00-0F-53-013C-A4, eth7 - 00-0F-53-01-3C-A5

Solarflare Server Adapter

• Enable iSCSI booting on adapter eth4. Implement default iSCSI settings:

sfboot --adapter=eth4 boot-type=iscsi

Solarflare boot configuration utility [v3.0.2] Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005

eth4: Boot image Option ROM and UEFI Link speed Negotiated automatically Link-up delay time 5 seconds Banner delay time 2 seconds Boot skip delay time 5 seconds Boot type iSCSI Use DHCP for Initiator Enabled Use DHCP for Initiator IQN Enabled LUN busy retries 2 Use DHCP for Target Enabled DHCP Vendor Class ID SFCgPXE CHAP authentication Disabled Mutual CHAP authentication Disabled MPIO priority 0 MPIO boot attempts 3 MSI-X interrupt limit 32

User Guide

Solarflare Server Adapter

User Guide

• iSCSI enable adapter eth2. Disable DHCP. Specify adapter IP address and netmask:

sfboot boot-type=iscsi --adapter=eth2 initiator-dhcp=disabled initiatorip=192.168.0.1 netmask=255.255.255.0

Solarflare boot configuration utility [v3.0.2] Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005

eth2: Boot image Option ROM and UEFI Link speed Negotiated automatically Link-up delay time 5 seconds Banner delay time 2 seconds Boot skip delay time 5 seconds Boot type iSCSI Use DHCP for Initiator Disabled Initiator IP address 192.168.0.1 Initiator netmask 255.255.255.0 Initiator default gateway 0.0.0.0 Initiator primary DNS 0.0.0.0 Use DHCP for Initiator IQN Enabled LUN busy retries 2 Use DHCP for Target Enabled DHCP Vendor Class ID SFCgPXE CHAP authentication Disabled Mutual CHAP authentication Disabled MPIO priority 0 MPIO boot attempts 3 MSI-X interrupt limit 32

• Enable PXE boot

sfboot boot-image=option rom boot-type=pxe

• Enable SR-IOV

fboot sriov=enabled vf-count=16 vf-msix-limit=1

Solarflare Server Adapter

• SFN7000 Series - Firmware Variant

sfboot firmware-variant=full-feature

Solarflare boot configuration utility [v4.0.0] Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005

eth4: Boot image Option ROM only Link speed Negotiated automatically Link-up delay time 7 seconds Banner delay time 3 seconds Boot skip delay time 6 seconds Boot type PXE MSI-X interrupt limit 32 Number of Virtual Functions 0 VF MSI-X interrupt limit 1 Firmware variant full feature / virtualization

User Guide

Solarflare Server Adapter

3.18 Upgrading Adapter Firmware with Sfupdate

• Sfupdate: Command Usage...Page 70

• Sfupdate: Command Line Options...Page 73

• Sfupdate: Examples...Page 74

Sfupdate is a command line utility to manage and upgrade the Solarflare adapter Boot ROM, Phy and adapter firmware. Embedded within the sfupdate executable are firmware images for various Solarflare adapters - the exact updates available via sfupdate depend on the adapter.

See Configuring the Solarflare Boot ROM Agent on page 344 for more information on the Boot Rom agent.

NOTE: All Applications accelerated with OpenOnload should be terminated before updating the firmware with sfupdate.

Sfupdate: Command Usage

User Guide

The general usage for sfupdate is as follows (as root):

sfupdate [--adapter=eth<N>] [options]

where:

ethN is the interface name (ifname) of the Solarflare adapter to be upgraded. option is one of the command options listed in Table 19.

The format for the options are:

Running the command sfupdate with no additional parameters will show the current firmware version for all Solarflare adapters and identifies whether the firmware within sfupdate is more up to date. To update the firmware for all Solarflare adapters run the command

Solarflare recommend the following procedure:

1 Run

2 Run

sfupdate to check that the firmware on all adapters is up to date. sfupdate --write to update the firmware on all adapters.

sfupdate --write

Sfupdate: Linux MTD Limitations

The driver supplied "inbox" within RedHat and Novell distributions has a limitation on the number of adapters that sfupdate can support. This limitation is removed from RHEL 6.5 onwards. The Solarflare supplied driver is no longer subject to this limitation on any distro/kernel.

Linux kernel versions prior to 2.6.20 support up to 16 MTD (flash) devices. Solarflare adapters are equipped with 6 flash partitions. If more than two adapters are deployed within a system a number of flash partitions will be inaccessible during upgrade.

The limit was raised to 32 in Linux kernel version 2.6.20 and removed altogether in 2.6.35.

Solarflare Server Adapter

User Guide

If issues are encountered during sfupdate, the user should consider one of the following options when upgrading firmware on systems equipped with more than two Solarflare adapters:

• Upgrade two adapters at a time with the other adapters removed.

• Upgrade the kernel.

• Rebuild the kernel, raising the value of

MAX_MTD_DEVICES in include/linux/mtd/mtd.h.

• Request bootable utilities from support@solarflare.com.

Overcome Linux MTD Limitations

An alternative method is available to upgrade the firmware without removing the adapters.

1 Unbind all interfaces from the drivers:

# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\

> /sys/bus/pci/devices/${bdf}/driver/unbind; done

2 ifconfig -a will not discover any Solarflare interfaces.

3 Identify the bus/device/function for all Solarflare interfaces:

# lspci -D -d 1924:

4 Output similar to the following will be produced (5 NICs installed in this example):

# lspci -D -d 1924: 0000:02:00.0 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:02:00.1 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:03:00.0 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:03:00.1 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:04:00.0 Ethernet controller: Solarflare Communications SFL9021

[Solarstorm]

0000:04:00.1 Ethernet controller: Solarflare Communications SFL9021

[Solarstorm]

0000:83:00.0 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:83:00.1 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:84:00.0 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

0000:84:00.1 Ethernet controller: Solarflare Communications SFC9020

[Solarstorm]

Solarflare Server Adapter

User Guide

5 There are enough resources to upgrade two NICs at a time, so re-bind interfaces in groups of

four (2x2NICs):

# echo -n "0000:02:00.0" > /sys/bus/pci/drivers/sfc/bind # echo -n "0000:02:00.1" > /sys/bus/pci/drivers/sfc/bind # echo -n "0000:03:00.0" > /sys/bus/pci/drivers/sfc/bind # echo -n "0000:03:00.1" > /sys/bus/pci/drivers/sfc/bind

6 Run sfupdate to update these NICs (command options may vary):

# sfupdate --write --yes --force

7 Run the command to unbind the interfaces again, there will be failures reported because some

of the interfaces aren’t bound:

# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\

> /sys/bus/pci/devices/${bdf}/driver/unbind; done

8 Repeat the process for the other interfaces (0000:04:00.x; 0000:83:00.x and 0000:84:00.x)

doing so in pairs until all the NICs have been upgraded.

9 Rebind all interfaces, doing so en-mass and ignoring errors from those already bound:

# for bdf in $(lspci -D -d 1924: | awk '{ print $1 }'); do echo -n ${bdf}\

> /sys/bus/pci/drivers/sfc/bind; done

10 Alternatively reload the sfc driver:

# onload_tool reload

or:

# modprobe -r sfc # modprobe sfc

11 Run ifconfig -a again to find that all the interfaces are reported and all have been

firmware upgraded without having to physically touch the server or change the kernel.

Sfupdate: SLES 11 Limitation

Due to limitations in SLES 11 using kernel versions prior to 2.6.27.54 it is necessary to reboot the server after running the sfupdate utility to upgrade server firmware.

Sfupdate: Command Line Options

Table 19 lists the options for sfupdate.

Table 19: Sfupdate Options

Option Description

Solarflare Server Adapter

User Guide

-h, --help

-i, --adapter=ethX

--list

--write

--force

--image=(filename)

Shows help for the available options and command line syntax.

Specifies the target adapter when more than one adapter is installed in the localhost.

ethX = Adapter ifname or MAC address (as obtained

with

--list).

Shows the adapter ID, adapter name and MAC address of each adapter installed in the localhost.

Re-writes the firmware from the images embedded in the

sfupdate tool. To re-write using an external image,

specify

--write fails if the embedded image is the same or a

previous version. To force a write in this case, specify

force in the command.

--image=<filename> in the command.

Force the update of all firmware, even if the installed firmware version is the same as, or more recent then, the firmware embedded in

sfupdate.

Update the firmware using the binary image from the given file rather than from those embedded in the utility.

-y, --yes

Prompts for user confirmation before writing the firmware to the adapter.

-v, --verbose

-s, --silent

Verbose mode.

Suppress output while the utility is running; useful when the utility is used in a script.

-V --version

Display version information and exit.

Sfupdate: Examples

• Display firmware versions for all adapters:

sfupdate

Solarstorm firmware update utility [v3.0.3] Copyright Solarflare Communications 2006-2010, Level 5 Networks 2002-2005

eth1 - MAC: 00-0F-53-01-39-70 Firmware version: v3.0.3 PHY type: QT2025C PHY version: v2.0.2.5 Controller type: Solarflare SFC4000 Controller version: v3.0.3.2127 BootROM version: v3.0.3.2127

The PHY firmware is up to date The BootROM firmware is up to date The controller firmware is up to date

Solarflare Server Adapter

User Guide

eth2 - MAC: 00-0F-53-01-39-71 Firmware version: v3.0.2 PHY type: QT2025C PHY version: v2.0.2.5

The PHY firmware is up to date

Solarflare Server Adapter

3.19 License Install with sfkey

The sfkey utility is distributed with the Linux Utilities RM package. This utility is used to install Solarflare AppFlex™ licenses and enable selected on-board services for Solarflare adapters. For more information about license requirements see Solarflare AppFlex™ Technology Licensing. on page 12.

sfkey: Command Usage

# sfkey [--adapter=eth<N>] [options]

If the adapter option is not specified, operations will be applied to all installed adapters.

• To view all sfkey options:

# sfkey --help

• To list (by serial number) all adapters that support licensing:

# sfkey --inventory

User Guide

• To display an adapter serial number and installed license keys:

# sfkey --adapter=eth4 --report

2-port adapter: eth4, eth5 Product name: Solarflare SFN7122F SFP+ Server Adapter Part number: SFN7122F Serial number: 712200205071133867100441 MAC addresses: 00-0F-53-21-9B-B0, 00-0F-53-22-8B-B1 Installed keys: Onload, PTP, SolarCapture Pro, SolarSecure Filter

Engine, Active keys: Onload, PTP, SolarCapture Pro, SolarSecure Filter Engine Blacklisted keys: 0 Invalid keys: 0 Unverifiable keys: 0 Inapplicable keys: 0

• To install a license:

Copy the license key data to a .txt file on the target server. All keys can be in the same key file and the file applied on multiple servers. The following example uses a license key file called key.txt created on the local server.

# sfkey --adapter=eth<N> --install key.txt

sfkey firmware update utility: v3.3.3.6330 Copyright Solarflare Communications 2006-2013, Level 5 Networks 2002-2005 Reading keys... Writing keys to eth1... Adapter: eth1

Solarflare Server Adapter

Product name: Solarflare SFN7122F SFP+ Adapter Part number: SFN7122F Serial number: 712200205071133867100591 MAC address: 00-0F-53-21-9B-B0 Installed keys: OpenOnload, PTP, SolarCapture Pro Active keys: OpenOnload, PTP, SolarCapture Pro Blacklisted keys: 0 Invalid keys: 0

License Inventory

Use the combined --inventory and --keys options to identify the licenses installed on an adapter.

sfkey --adapter=eth4 --inventory --keys

eth4, eth5: 712200205071133867100441 (Flareon), $ONL, PTP, SCP, SSFE, !PM,

License information is displayed in [Prefix] [Acronym] [Suffix] format.

Prefix: $ Factory-fitted, (may be omitted) ! Not present. Acronym: LNA Line Arbitration, ONL Onload, PCAP Packet Capture, PM Performance Monitor, PTP Precision Time Protocol, RSE Resilient Ethernet, SCP SolarCapture Pro, SSFE SolarSecure Filter Engine, An Application unknown to this version of sfkey ('n' is a placeholder for the application id). Suffix: <none> Licensed, + Site licensed, ~ Evaluation license, * Inactive license, @ Inactive site license,

- No state available.

User Guide

sfkey Options

Table 20 describes all sfkey options.

Option Description

Solarflare Server Adapter

User Guide

Table 20: sfkey options

--backup

--install <filename>

--inventory

--keys

Output a report of the installed keys in all adapters. The report can be saved to file and later used with the -install option.

Install license keys from the given file and report the result. To read from stdin use "-" in place of filename. Keys are installed to an adapter, so if an adapter’s ports are eth4 and eth5, both ports will be affected by the keys installed.

sfc driver reload is required after sfkey installs a PTP license.

To reload the sfc driver:

# modprobe -r sfc; modprode sfc

or when Onload is installed:

# onload_tool reload

List by serial number all adapters that support licensing. By default this will list adapters that support licenses. To list all adapters use the --all option. To list keys use the -keys option.

Include keys in --inventory output - see License Inventory above.

--noevaluationupdate

-a --all

Do not update evaluation keys.

Apply sfkey operation to all adapters that support licensing.

-c --clear

Delete all existing license keys from an adapter - except factory installed keys.

-h, --help

-i --adapter

Display all sfkey options.

identify specific adapter to apply sfkey operation to.

Table 20: sfkey options

Option Description

Solarflare Server Adapter

User Guide

-r --report

-s --silent

-v --verbose

-V --version

-x --xml

Display an adapter serial number and current license status (see example above).

Use with --all or with --adapter.

If an installed or active key is reported as ’An’ (where n is a number), it indicates a license unknown to this version of sfkey - use an updated sfkey version.

Silent mode, output errors only.

Verbose mode.

Display sfkey version and exit.

Report format as XML.

Solarflare Server Adapter

3.20 Performance Tuning on Linux

• Introduction...Page 79

• Tuning settings...Page 80

• Other Considerations...Page 94

Introduction

The Solarflare family of network adapters are designed for high-performance network applications. The adapter driver is pre-configured with default performance settings that have been chosen to give good performance across a broad class of applications. In many cases, application performance can be improved by tuning these settings to best suit the application.

There are three metrics that should be considered when tuning an adapter:

• Throughput

• Latency

User Guide

• CPU utilization

Different applications may be more or less affected by improvements in these three metrics. For example, transactional (request-response) network applications can be very sensitive to latency whereas bulk data transfer applications are likely to be more dependent on throughput.

The purpose of this guide is to highlight adapter driver settings that affect the performance metrics described. This guide covers the tuning of all Solarflare adapters.

In addition to this guide, the user should consider other issues influencing performance such as application settings, server motherboard chipset, additional software installed on the system, such as a firewall, and the specification and configuration of the LAN. Consideration of such issues is not within the scope of this guide.

Solarflare Server Adapter

Tuning settings

Adapter MTU (Maximum Transmission Unit)

The default MTU of 1500 bytes ensures that the adapter is compatible with legacy 10/100Mbps Ethernet endpoints. However if a larger MTU is used, adapter throughput and CPU utilization can be improved. CPU utilization is improved because it takes fewer packets to send and receive the same amount of data. Solarflare adapters support frame sizes up to 9216 bytes (this does not include the Ethernet preamble or frame-CRC).

Since the MTU should ideally be matched across all endpoints in the same LAN (VLAN), and since the LAN switch infrastructure must be able to forward such packets, the decision to deploy a larger than default MTU requires careful consideration. It is recommended that experimentation with MTU be done in a controlled test environment.

User Guide

The MTU is changed dynamically using ifconfig, where

ethX is the interface name and size is the

MTU size in bytes:

# /sbin/ifconfig <ethX> mtu <size>

Verification of the MTU setting may be performed by running ifconfig with no options and checking the MTU value associated with the interface. The change in MTU size can be made to persist across reboots by editing the file and adding

MTU=<mtu> on a new line.

/etc/sysconfig/network-scripts/ifcfg-ethX

Interrupt Moderation (Interrupt Coalescing)

Interrupt moderation controls the number of interrupts generated by the adapter by adjusting the extent to which receive packet processing events are coalesced. Interrupt moderation may coalesce more than one packet-reception or transmit-completion event into a single interrupt.

By default, adaptive moderation is enabled. Adaptive moderation means that the network driver software adapts the interrupt moderation setting according to the traffic and workload conditions. Before adjusting the interrupt interval, it is recommended to disable adaptive moderation:

ethtool -C <ethX> adaptive-rx off

Interrupt moderation can be changed using ethtool, where ethX is the interface name and

interval is the moderation setting in microseconds (s). An interval value of zero (0) will turn

interrupt moderation off.

To set RX interrupt moderation:

ethtool –C <ethX> rx-usecs <interval> rx-frames 0

ethtool –C <ethX> rx-usecs 0 rx-frames 1

The above example also sets the transmit interrupt moderation interval unless the driver module parameter

separate_tx_channels is enabled. Normally packet RX and TX completions will share

interrupts so RX and TX interrupt moderation intervals must be equal, then the adapter driver automatically adjusts tx-usecs to match rx-usecs. Refer to Table 25: Driver Module Parameters.

Solarflare Server Adapter

User Guide

To set TX interrupt moderation, if separate_tx_channels is enabled:

ethtool –C <ethX> tx-usecs 0 tx-frames 0

ethtool –C <ethX> tx-usecs 0 tx-frames 1

Interrupt moderation settings can be checked using ethtool –c .

The interrupt moderation interval is critical for tuning adapter latency:

• Increasing the moderation value will increase latency, but reduce CPU utilization and improve

peak throughput, if the CPU is fully utilized.

• Decreasing the moderation value or turning it off will decrease latency at the expense of CPU

utilization and peak throughput.

For many transaction request-response type network applications, the benefit of reduced latency to overall application performance can be considerable. Such benefits may outweigh the cost of increased CPU utilization.

NOTE: The interrupt moderation interval dictates the minimum gap between two consecutive interrupts. It does not mandate a delay on the triggering of an interrupt on the reception of every packet. For example, an interrupt moderation setting of 30s will not delay the reception of the first packet received, but the interrupt for any following packets will be delayed until 30s after the reception of that first packet.

TCP/IP Checksum Offload

Checksum offload moves calculation and verification of IP Header, TCP and UDP packet checksums to the adapter. The driver by default has all checksum offload features enabled. Therefore, there is no opportunity to improve performance from the default.

Checksum offload is controlled using ethtool:

Receive Checksum:

# /sbin/ethtool –K <ethX> rx <on|off>

Transmit Checksum:

# /sbin/ethtool –K <ethX> tx <on|off>

Verification of the checksum settings may be performed by running ethtool with the –k option. Solarflare recommend you do not disable checksum offload.

Solarflare Server Adapter

TCP Segmentation Offload (TSO)

TCP Segmentation offload (TSO) offloads the splitting of outgoing TCP data into packets to the adapter. TCP segmentation offload benefits applications using TCP. Non TCP protocol applications will not benefit (but will not suffer) from TSO.

Enabling TCP segmentation offload will reduce CPU utilization on the transmit side of a TCP connection, and so improve peak throughput, if the CPU is fully utilized. Since TSO has no effect on latency, it can be enabled at all times. The driver has TSO enabled by default. Therefore, there is no opportunity to improve performance from the default.

TSO is controlled using ethtool:

# /sbin/ethtool –K <ethX> tso <on|off>

Verification of the TSO settings may be performed by running ethtool with the –k option. Solarflare recommend you do not disable TSO.

TCP Large Receive Offload (LRO)

TCP Large Receive Offload (LRO) is a feature whereby the adapter coalesces multiple packets received on a TCP connection into a single call to the operating system TCP Stack. This reduces CPU utilization, and so improves peak throughput when the CPU is fully utilized.

User Guide

LRO should not be enabled if you are using the host to forward packets from one interface to another; for example if the host is performing IP routing or acting as a layer2 bridge. The driver has LRO enabled by default.

Solarflare Server Adapter

User Guide

NOTE: It has been observed that as RHEL6 boots the libvirtd daemon changes the default forwarding setting such that LRO is disabled on all network interfaces. This behaviour is undesirable as it will potentially lower bandwidth and increase CPU utilization - especially for high bandwidth streaming applications.

To determine if LRO is enabled on an interface:

ethtool -k ethX

If IP forwarding is not required on the server, Solarflare recommends either:

Disabling the libvirtd service (if this is not being used),

Or, as root before loading the Solarflare driver:

sysctl -w net.ipv4.conf.default.forwarding=0

(This command can be loaded into /etc/rc.local),

Or, after loading the Solarflare driver, turn off forwarding for only the Solarflare interfaces and re-enable LRO:

sysctl -w net.ipv4.conf.ethX.forwarding=0

ethtool -K ethX lro on

(where X is the id of the Solarflare interface).

Disabling the libvirtd service is a permanent solution, whereas the other recommendations are temporary and will not persist over reboot.

LRO should not be enabled if IP forwarding is being used on the same interface as this could result in incorrect IP and TCP operation.

LRO can be controlled using the module parameter

modprobe.conf or add the options line to a file under the /etc/modprobe.d directory to

lro. Add the following line to /etc/

disable LRO:

options sfc lro=0

Then reload the driver so it picks up this option:

rmmod sfc modprobe sfc

The current value of this parameter can be found by running:

cat /sys/module/sfc/parameters/lro

Solarflare Server Adapter

User Guide

LRO can also be controlled on a per-adapter basis by writing to this file in sysfs:

/sys/class/net/ethX/device/lro

To disable LRO:

echo 0 > /sys/class/net/ethX/device/lro

To enable LRO:

echo 1 > /sys/class/net/ethX/device/lro

To show the current value of the per-adapter LRO state:

cat /sys/class/net/ethX/device/lro

Modifying this file instantly enables or disables LRO, no reboot or driver reload is required. This setting takes precedence over the

lro module parameter

Current LRO settings can be identified with Linux ethtool .e.g.

ethtool -k ethX

Solarflare Server Adapter

TCP Protocol Tuning

TCP Performance can also be improved by tuning kernel TCP settings. Settings include adjusting send and receive buffer sizes, connection backlog, congestion control, etc.

For Linux kernel versions, including 2.6.16 and later, initial buffering settings should provide good performance. However for earlier kernel versions, and for certain applications even on later kernels, tuning buffer settings can significantly benefit throughput. To change buffer settings, adjust the

tcp_rmem and tcp_wmem using the sysctl command:

Receive buffering:

sysctl net.ipv4.tcp_rmem="<min> <default> <max>"

Transmit buffering:

sysctl net.ipv4.tcp_wmem="<min> <default> <max>"

(tcp_rmem and tcp_wmem can also be adjusted for IPV6 and globally with the net.ipv6 and net.core variable prefixes respectively).

User Guide

Typically it is sufficient to tune just the max buffer value. It defines the largest size the buffer can grow to. Suggested alternate values are max=500000 (1/2 Mbyte). Factors such as link latency, packet loss and CPU cache size all influence the affect of the max buffer size values. The minimum and default values can be left at their defaults minimum=4096 and default=87380.

Receive Side Scaling (RSS)

Solarflare adapters support Receive Side Scaling (RSS). RSS enables packet receive-processing to scale with the number of available CPU cores. RSS requires a platform that supports MSI-X interrupts. RSS is enabled by default.

When RSS is enabled the controller uses multiple receive queues into which to deliver incoming packets. The receive queue selected for an incoming packet is chosen in such a way as to ensure that packets within a TCP stream are all sent to the same receive queue – this ensures that packetordering within each stream is maintained. Each receive queue has its own dedicated MSI-X interrupt which ideally should be tied to a dedicated CPU core. This allows the receive side TCP processing to be distributed amongst the available CPU cores, providing a considerable performance advantage over a conventional adapter architecture in which all received packets for a given interface are processed by just one CPU core. RSS can be restricted to only process receive queues on the NUMA node local to the Solarflare adapter. To configure this the driver module option

rss_numa_local should be set to 1.

By default the drivers enables RSS and configures one RSS Receive queue per CPU core. The number of RSS Receive queues can be controlled via the driver module parameter options are supported:

rss_cpus. The following

Solarflare Server Adapter

Table 21: rss_cpus Options

Option Description Interrupt Affinity (MSI-X)

User Guide

<num_cpus> Indicates the number of RSS

queues to create.

packages An RSS queue will be created for

each multi-core CPU package. The first CPU in the package will

A separate MSI-X interrupt for a receive queue is affinitized to each CPU.

A separate MSI-X interrupt for a receive queue, is affinitized to each of the designated package CPUs.

be chosen.

cores An RSS queue will be created for

each CPU. The first hyperthread instance (If CPU has

A separate MSI-X interrupt for a receive queue, is affinitized to each of the CPUs.

hyperthreading) will be chosen.

The default option.

hyperthreads An RSS queue will be created for

each CPU hyperthread (hyperthreading must be

A separate MSI-X interrupt for a receive queue, is affinitized to each of the hyperthreads.

enabled).

Add the following line to /etc/modprobe.conf file or add the options line to a user created file under the /etc/modprobe.d directory. The file should have a .conf extension

options sfc rss_cpus=<option>

To set rss_cpus equal to the number of CPU cores:

options sfc rss_cpus=cores

Sometimes, it can be desirable to disable RSS when running single stream applications, since all interface processing may benefit from taking place on a single CPU:

options sfc rss_cpus=1

NOTE: The association of RSS receive queues to a CPU is governed by the receive queue's MSI-X interrupt affinity. See Interrupt and Irqbalance Service on page 91 for more details.

The driver must be reloaded to enable option changes:

rmmod sfc modprobe sfc

Solarflare Server Adapter

User Guide

NOTE: The rss_cpus parameter controls the number of MSI-X interrupts used by each Solarflare port. Unfortunately, some older Linux version have a bug whereby the maximum number of MSI-X interrupts used by a PCI function is fixed at the first driver load. For instance, if the drivers are first loaded with

rss_cpus=1, all subsequent driver loads will always use rss_cpus=1.

Red Hat Enterprise Linux 5 update 2 (and above), and SUSE Enterprise Linux 11 are not affected by this issue.

To workaround this issue, you must reboot the host after modifying

rss_cpus.

NOTE: RSS also works for UDP packets. For UDP traffic the Solarflare adapter will select the Receive CPU based on IP source and destination addresses. Solarflare adapters support IPv4 and IPv6 RSS except the SFN4xxx adapters which only supports IPv4 RSS.

Receive Flow Steering (RFS)

RFS will attempt to steer packets to the core where a receiving application is running. This reduces the need to move data between processor caches and can significantly reduce latency and jitter. Modern NUMA systems, in particular, can benefit substantially from RFS where packets are delivered into memory local to the receiving thread.

Unlike RSS which selects a CPU from a CPU affinity mask set by an administrator or user, RFS will store the application's CPU core identifier when the application process calls

sendmsg().

• A hash is calculated from a packet’s addresses or ports (2-tuple or 4-tuple) and serves as the

consistent hash for the flow associated with the packet.

• Each receive queue has an associated list of CPUs to which RFS may enqueue the received

packets for processing.

recvmsg() or

• For each received packet, an index into the CPU list is computed from the flow hash modulo the

size of the CPU list.

There are two types of RFS implementation; Soft RFS and Hardware (or Accelerated) RFS.

Soft RFS is a software feature supported since Linux 2.6.35 that attempts to schedule protocol processing of incoming packets on the same processor as the user thread that will consume the packets.

Accelerated RFS requires Linux kernel version 2.6.39 or later, with the Linux sfc driver or Solarflare v3.2 network adapter driver.

RFS can dynamically change the allowed CPUs that can be assigned to a packet or packet stream and this introduces the possibility of out of order packets. To prevent out of order data, two tables are created that hold state information used in the CPU selection.

Solarflare Server Adapter

• Global_flow_table: Identifies the number of simultaneous flows that are managed by RFS.

• Per_queue_table: Identifies the number of flows that can be steered to a queue. This holds

state as to when a packet was last received.

The tables support the steering of incoming packets from the network adapter to a receive queue affinitized to a CPU where the application is waiting to receive them. The Solarflare accelerated RFS implementation requires configuration through the two tables and the ethtool -K command.

The following sub-sections identify the RFS configuration procedures:

Kernel Configuration

Before using RFS the kernel must be compiled with the kconfig symbol CONFIG_RPS enabled.

Global Flow Count

Configure the number of simultaneous flows that will be managed by RFS. The suggested flow count will depend on the expected number of active connections at any given time and may be less than the number of open connections. The value is rounded up to the nearest power of two.

User Guide

# echo 32768 > /proc/sys/net/core/rps_sock_flow_entries

Per Queue Flow Count

For each adapter interface there will exist a ’queue’ directory containing one ’rx’ or ’tx’ subdirectory for each queue associated with the interface. For RFS only the receive queues are relevant.

# cd /sys/class/net/eth3/queue

Within each ’rx’ subdirectory, the flow table. If only a single queue is used then

rps_sock_flow_entries. When multiple queues are configured the count will be equal to rps_sock_flow_entries/N where N is the number of queues, for example:

rps_sock_flow_entries = 32768 and there are 16 queues then rps_flow_cnt for each queue

rps_flow_cnt file holds the number of entries in the per- queue

rps_flow_cnt will be the same as

will be configured as 2048.

# echo 2048 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt # echo 2048 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt

Disable RFS

To turn off RFS using the following command:

# ethtool -K <devname> ntuple off

Solarflare Server Adapter

Transmit Packet Steering

Transmit Packet Steering (XPS) is supported in Linux 2.6.38 and later. XPS is a mechanism for selecting which transmit queue to use when transmitting a packet on a multi-queue device.

XPS is configured on a per transmit queue basis where a bitmap of CPUs identifies the CPUs that may use the queue to transmit.

Kernel Configuration

Before using XPS the kernel must be compiled with the kconfig symbol CONFIG_XPS enabled.

Configure CPU/Hyperthreads

Within in each /sys/class/net/eth3/queues/tx-N directory there exists an ’xps_cpus’ file which contains a bitmap of CPUs that can use the queue to transmit. In the following example transmit queue 0 can be used by the first two CPUs and transmit queue 1 can be used by the following two CPUs:

User Guide

# echo 3 > /sys/class/net/eth3/queues/tx-0/xps_cpus # echo c > /sys/class/net/eth3/queues/tx-0/xps_cpus

If hyperthreading is enabled, each hyperthread is identified as a seperate CPU, for example if the system has 16 cores but 32 hyperthreads then the transmit queues should be paired with the hyperthreaded cores:

# echo 30003 > /sys/class/net/eth3/queues/tx-0/xps_cpus # echo c000c > /sys/class/net/eth3/queues/tx-0/xps_cpus

XPS - Example Configuration

System Configuration:

• Single Solarflare adapter

• 2 x 8 core processors with hyperthreading enabled to give a total of 32 cores

• rss_cpus=8

• Only 1 interface on the adapter is configured

• The IRQ Balance service is disabled

Solarflare Server Adapter

Identify interrupts for the configured interface:

# cat /proc/interrupts | grep ’eth3\ | CPU’

> cat /proc/irq/132/smp_affinity 00000000,00000000,00000000,00000001 > cat /proc/irq/133/smp_affinity 00000000,00000000,00000000,00000100 > cat /proc/irq/134/smp_affinity 00000000,00000000,00000000,00000002 [...snip...] > cat /proc/irq/139/smp_affinity 00000000,00000000,00000000,00000800

The output identifies that IRQ-132 is the first queue and is routed to CPU0. IRQ-133 is the second queue routed to CPU8, IRQ-134 to CPU2 and so on.

Map TX queue to CPU

User Guide

Hyperthreaded cores are included with the associated physical core:

> echo 110011 > /sys/class/net/eth3/queues/tx-0/xps_cpus > echo 11001100 > /sys/class/net/eth3/queues/tx-1/xps_cpus > echo 220022 > /sys/class/net/eth3/queues/tx-2/xps_cpus > echo 22002200 > /sys/class/net/eth3/queues/tx-3/xps_cpus > echo 440044 > /sys/class/net/eth3/queues/tx-4/xps_cpus > echo 44004400 > /sys/class/net/eth3/queues/tx-5/xps_cpus > echo 880088 > /sys/class/net/eth3/queues/tx-6/xps_cpus > echo 88008800 > /sys/class/net/eth3/queues/tx-7/xps_cpus

Configure Global and Per Queue Tables

• The flow count (number of active connections at any one time) = 32768

• Number of queues = 8 (rss_cpus)

• So the flow count for each queue will be 32768/8

> echo 32768 > /proc/sys/net/core/rps_sock_flow_entries > echo 4096 > /sys/class/net/eth3/queues/rx-0/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-1/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-2/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-3/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-4/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-5/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-6/rps_flow_cnt > echo 4096 > /sys/class/net/eth3/queues/rx-7/rps_flow_cnt

Solarflare Server Adapter

Interrupt and Irqbalance Service

Interrupt affinity describes the set of host cpus that may service a particular interrupt.

This affinity therefore dictates the CPU context where received packets will be processed and where transmit packets will be freed once sent. If the application can process the received packets in the same CPU context by being affinitized to the relevant CPU, then latency and CPU utilization can be improved. This improvement is achieved because well tuned affinities reduce inter-CPU communication.

Tuning interrupt affinity is most relevant when MSI-X interrupts and RSS are being used. The irqbalance service, which typically runs by default in most Linux distributions, is a service that automatically changes interrupt affinities based on CPU workload.

In many cases the irqbalance service hinders rather than enhances network performance. It is therefore necessary to disable it and then set interrupt affinities.

To disable irqbalance permanently, run:

/sbin/chkconfig -level 12345 irqbalance off

To see whether irqbalanace is currently running, run:

User Guide

/sbin/service irqbalance status

To disable irqbalance temporarily, run:

/sbin/service irqbalance stop

Once the irqbalance service has been stopped, the Interrupt affinities can be configured manually.

NOTE: The Solarflare driver will evenly distribute interrupts across the available host CPUs (based on the

rss_cpus module parameter).

To use the Solarflare driver default affinities (recommended), the irqbalance service must be disabled before the Solarflare driver is loaded (otherwise it will immediately overwrite the affinity configuration values set by the Solarflare driver).

Example 1:

How affinities should be manually set will depend on the application. For a single streamed application such as Netperf, one recommendation would be to affinitize all the Rx queues and the application on the same CPU. This can be achieved with the following steps:

1 Determine which interrupt line numbers the network interface uses. Assuming the interface is

eth0, this can be done with:

# cat /proc/interrupts | grep eth0-

123: 13302 0 0 0 PCI-MSI-X eth0-0 131: 0 24 0 0 PCI-MSI-X eth0-1 139: 0 0 32 0 PCI-MSI-X eth0-2 147: 0 0 0 21 PCI-MSI-X eth0-3

Solarflare Server Adapter

This output shows that there are four channels (rows) set up between four cpus (columns).

2 Determine the CPUs to which these interrupts are assigned to:

# cat /proc/irq/123/smp_affinity 00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000

01 # cat /proc/irq/131/smp_affinity 00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000 02 # cat /proc/irq/139/smp_affinity 00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000 04 # cat /proc/irq/147/smp_affinity 00000000,00000000,00000000,00000000,00000000,00000000,00000000,000000 08

This shows that RXQ[0] is affinitized to CPU[0], RXQ[1] is affinitized to CPU[1], and so on. With this configuration, the latency and cpu utilization for a particular TCP flow will be dependant on that flow’s RSS hash, and which CPU that hash resolves onto.

User Guide

NOTE: Interrupt line numbers and their initial CPU affinity are not guaranteed to be the same across reboots and driver reloads. Typically, it is therefore necessary to write a script to query these values and apply the affinity accordingly.

3 Set all network interface interrupts to a single CPU (in this case

# echo 1 > /proc/irq/123/smp_affinity # echo 1 > /proc/irq/131/smp_affinity

# echo 1 > /proc/irq/139/smp_affinity # echo 1 > /proc/irq/147/smp_affinity

CPU[0]):

NOTE: The read-back of /proc/irq/N/smp_affinity will return the old value until a new interrupt arrives.

Set the application to run on the same CPU (in this case CPU[0]) as the network interface’s interrupts:

# taskset 1 netperf # taskset 1 netperf -H <host>

Solarflare Server Adapter

User Guide

NOTE: The use of taskset is typically only suitable for affinity tuning single threaded, single traffic flow applications. For a multi threaded application, whose threads for example process a subset of receive traffic, taskset is not suitable. In such applications, it is desirable to use RSS and Interrupt affinity to spread receive traffic over more than one CPU and then have each receive thread bind to each of the respective CPUs. Thread affinities can be set inside the application with the

shed_setaffinity() function (see Linux man pages). Use of this call and how a particular

application can be tuned is beyond the scope of this guide.

If the settings have been correctly applied, all interrupts from eth0 are being handled on CPU[0]. This can be checked:

# cat /proc/interrupts | grep eth0-

123: 13302 0 1278131 0 PCI-MSI-X eth0-0 131: 0 24 0 0 PCI-MSI-X eth0-1 139: 0 0 32 0 PCI-MSI-X eth0-2 147: 0 0 0 21 PCI-MSI-X eth0-3

Example 2:

An example of affinitizing each interface to a CPU on the same package:

First identify which interrupt lines are servicing which CPU and IO device:

# cat /proc/interrupts | grep eth0123: 13302 0 1278131 0 PCI-MSI-X eth0-0 # cat /proc/interrupts | grep eth1131: 0 24 0 0 PCI-MSI-X eth1-0

Find CPUs on same package (have same ‘package-id’):

# more /sys/devices/system/cpu/cpu*/topology/physical_package_id :::::::::::::: /sys/devices/system/cpu/cpu0/topology/physical_package_id :::::::::::::: 1 :::::::::::::: /sys/devices/system/cpu/cpu10/topology/physical_package_id :::::::::::::: 1 :::::::::::::: /sys/devices/system/cpu/cpu11/topology/physical_package_id :::::::::::::: 0 …

Having determined that cpu0 and cpu10 are on package 1, we can assign each ethX interface’s MSIX interrupt to its own CPU on the same package. In this case we choose package 1:

Solarflare Server Adapter

# echo 1 > /proc/irq/123/smp_affinity 1hex is bit 0 = CPU0 # echo 400 > /proc/irq/131/smp_affinity 400hex is bit 10 = CPU10

Buffer Allocation Method

The Solarflare driver has a single optimized buffer allocation strategy. This replaces the two different methods controlled with the using 3.3 and previous drivers.

rx_alloc_method driver module parameter which were available

User Guide

The net driver continues to expose the and it only exists to not break existing customer configurations.

rx_alloc_method module option, but the value is ignored

TX PIO

PIO (programmed input/output) describes the process where data is directly transferred by the CPU to or from an I/O device. It’s is an alternative technique to the I/O device using bus master DMA to transfer data without CPU involvement.

Solarflare 7000 series adapters support TX PIO, where packet s on the transmit path can be “pushed” to the adapter directly by the CPU. This improves the latency of transmitted packets but can cause a very small increase in CPU utilisation. TX PIO is therefore especially useful for smaller packets.

The TX PIO feature is enabled by default for packets up to 256 bytes. The maximum packet size that can use PIO can be configured with the driver module option

piobuf_size.

Other Considerations

PCI Express Lane Configurations

The PCI Express (PCIe) interface used to connect the adapter to the server can function at different widths. This is independent of the physical slot size used to connect the adapter. The possible widths are multiples x1, x2, x4, x8 and x16 lanes of (2.5Gbps for PCIe Gen 1, 5.0 Gbps for PCIe Gen 2 Gbps for PCIe Gen 3) in each direction. Solarflare Adapters are designed for x8 lane operation.

and 8.0

On some server motherboards, choice of PCIe slot is important. This is because some slots (including slots that are physically x8 or x16 lanes) may only electrically support x4 lanes. In x4 lane slots, Solarflare PCIe adapters will continue to operate, but not at full speed. The Solarflare driver will warn if it detects the adapter is plugged into a PCIe slot which electrically has fewer than x8 lanes.

Adapters which require a PCIe Gen 2 or Gen 3 slot for optimal operation will issue a warning if they are installed in a PCIe Gen 1 slot. Warning messages can be viewed in

messages.

dmesg from /var/log/

Solarflare Server Adapter

The lspci command can be used to discover the currently negotiated PCIe lane width and speed:

lspci -d 1924: -vv

02:00.1 Class 0200: Unknown device 1924:0710 (rev 01)

...

Link: Supported Speed 2.5Gb/s, Width x8, ASPM L0s, Port 1

Link: Speed 2.5Gb/s, Width x8

NOTE: The Supported speed may be returned as 'unknown', due to older lspci utilities not knowing how to determine that a slot supports PCIe Gen. 2.0/5.0 Gb/s or PCIe Gen 3.0/8,0 Gb/s.

CPU Speed Service

Most Linux distributions will have the cpuspeed service running by default. This service controls the CPU clock speed dynamically according to current processing demand. For latency sensitive applications, where the application switches between having packets to process and having periods of idle time waiting to receive a packet, dynamic clock speed control may increase packet latency. Solarflare recommend disabling the cpuspeed service if minimum latency is the main consideration.

User Guide

The service can be disabled temporarily:

/sbin/service cpuspeed stop

The service can be disabled across reboots:

/sbin/chkconfig –level 12345 cpuspeed off

Memory bandwidth

Many chipsets use multiple channels to access main system memory. Maximum memory performance is only achieved when the chipset can make use of all channels simultaneously. This should be taken into account when selecting the number of DIMMs to populate in the server. Consult the motherboard documentation for details.

Intel® QuickData

Intel® QuickData Technology allows recent Linux distributions to data copy by the chipset instead of the CPU, to move data more efficiently through the server and provide fast, scalable, and reliable throughput.

Enabling QuickData

• On some systems the hardware associated with QuickData must first be enabled (once only) in the BIOS

• Load the QuickData drivers with

modprobe ioatdma

Server Motherboard, Server BIOS, Chipset Drivers

Tuning or enabling other system capabilities may further enhance adapter performance. Readers should consult their server user guide. Possible opportunities include tuning PCIe memory controller (PCIe Latency Timer setting available in some BIOS versions).

Solarflare SFN6122F, SFN7322F, SFN6322F, SFN5161T, SFA6902F User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Chapter 1: Introduction

1.1 Virtual NIC Interface

Advanced Features and Benefits

1.2 Product Specifications

Solarflare Flareon™ Network Adapters

Solarflare Onload Network Adapters

Solarflare Performant Network Adapters

Solarflare Mezzanine Adapters

1.3 Software Driver Support

1.4 Solarflare AppFlex™ Technology Licensing.

1.5 Open Source Licenses

1.4.1 Solarflare Boot Manager

1.4.2 Controller Firmware

1.6 Support and Download
