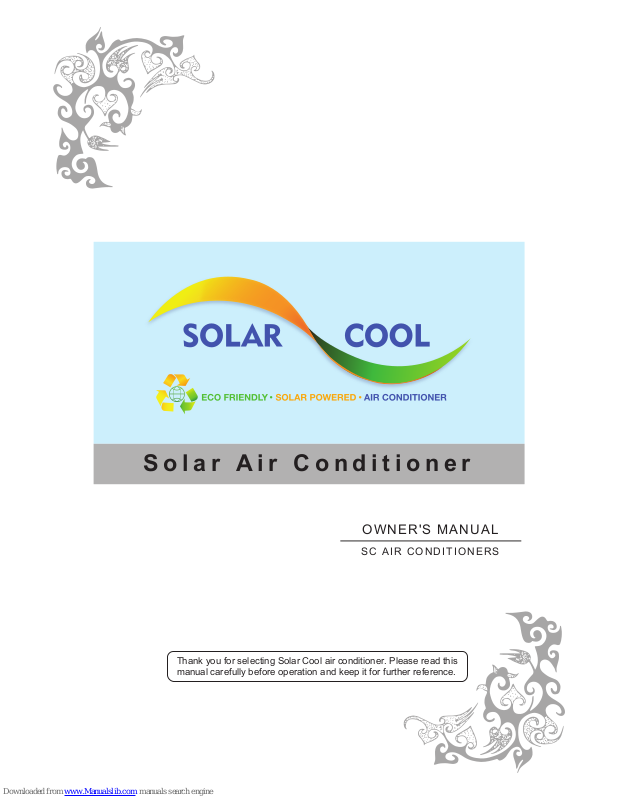

Solar Cool SCI-12G, SCO-12G Owner's Manual

OWNER'S MANUAL

SC AIR CONDITIONERS

Thank you for selecting Solar Cool air conditioner. Please read this
manual carefully before operation and keep it for further reference.

Solar Air Conditioner

SCO-12G

OUTDOOR UNIT

SCI-12G

INDOOR UNIT

CONTENTS

This symbol stands for the items
should be forbidden.

This symbol stands for the items
should be followed

■

..................................1

■

■ ................................14

■ ....................................17

■ ..........................22

■ ...................................23

■ ..................................25

■ ..................33

■ ...............34

■

■ ................................20

■ ....................................15

Operation and maintenance

Notices for operation

Notices for use

......................................3

Names and functions of each part

......................... 5

■

Operation of wireless remote control

........................6

Clean and care

Troubleshooting

Installation service

Notices for installation

Installation dimension diagram

Install indoor unit

Install outdoor unit

Check after installation and test operation

Emergency operation

Installation and Maintenance of Healthy Filter

Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.

The products in this manual may be different with the real one, according to different
models, some models have displayer and some models without displayer, the position
and shape of the displayer please refer to the real one.

This appliance is not intended for use by persons (including children) with reduced

physiced, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person reponsible for thei safety.

Children should be supervised to ensure that they do not play with the appliance.

Image shown in this operating instruction manual here is
indicative only. Actual product you receive may differ!

■ ..................................27

Install PV-module

★

★

★

Operation and maintenance-notices for operation

1

★

★

Be sure to pull out the power

★

★

★

★

Earth: The ground
be connected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water
pipe, drainage pipe or any other impr-

oper places.

plug and turn off the DC current

itioner for a long time.

Otherwise, the accumulated dust
may cause fire or electric shock.

Select the most appropriate tem-

perature.

Keep room cool-
er than outside
about 5 degree.

It can preclude the electricity wasted.

Don't leave windows and
doors open for a long time
while operating the air conditioner.

It can decrease the air conditioning
capacity.

Don't block the air intake or outlet
vents of both the outdoor and indoor
units.

It can decrease the air conditioning
capacity or cause a malfunction.

Keep combustible spray away
from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to
the fall of the unit and cause
the injury.

Please note whether the installed
stand is firm enough or not.

Don't step on the top of the
outdoor unit or place something
on it.

As falling off the outdoor unit
can be dangerous.

Don't attempt to repair
the air conditioner by yourself.

The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.

breaker of the solar power circ­uit when not using the air cond-

2

★

★

★

★

★

★

★

★

Notices for operation

If the supply cord is damaged, it must be replaced
by the manufacturer or its service agent or a

similarly qualified person in order to avoid a
hazard.

The airflow direction can be adjusted appro­priately. At operating, adjust the vertical airflow
direction by adjusting the louvers of upward/do­wnward direction. And then, hold two ends of
left and right louver to adjust the horizontal air­flow.

Louver of left/right direction Louver of upward/

downward direction.

Don't insert your hands or stick into the air
intake or outlet vents.

Otherwise it will cause accident.

Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.

Don't apply the cold wind to the body for a
long time.

It can cause the health problems.

Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.

Splashing water on the air conditioner can
cause an electric shock and malfunction.

Don't place a space heater near the air
conditioner.

Or CO toxicosis may occur for imcomplete
burning.

*

*

*

*

*

*

Notices for use

Working principle and special functions for cooling

Principle:

Anti-freezing function:

Working principle and special functions for heating

Principle:

Defrosting:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 32 , the
indoor unit microcomputer will stop compressor running and protect the unit.

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

If outdoor temperature becomes very low, please operate with other heating equipments.

When outdoor temperature is low but high humidity, after a long while running, frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 8-10mins.
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

3

F

º

4

Notices for use

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):

1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.

The operating temperature range (outdoor temperature) for cooling unit is 21℃~ 43℃；
for cooling and heating unit is -7℃~43℃.

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

Indoor sideDB/WB(oC)

Outdoor sideDB/WB(oC)

32/23

21/15

27/---

20/---

43/26

21/-

24/18

-7/-

Introduction of DC solar power management

The out-door unit can handle DC solar power input besides AC power input. If the solar
power device (poly-crystalline solar panel for instance) were connected to out-door unit,
the unit would preferentially consume the solar power. And the AC power would be
synchronously consumed as complement. The rated voltage of DC solar power should
be less than 165V and the rated current should be less than 10A.

⑹

⑸

⑵

⑻

⑼

⑽

⑷

⑺

⑶

⑴

Power cord

Remote controller

Front panel

Filter

Horizontal louver

Wall pipe

Binding tape

Connection Pipe

Drain hose

Drain connecter

Names and functions of each part

⑻

⑼

⑵

Indoor unit

⑹

⑺

：Cool

：Dry

：Heat

：Set temp.

：

Power

The icons displayed:

5

Air out

Outdoor unit

Air in

⑽

Air in

⑶

⑴

⑷

⑸

Air out

6

Name and function of wireless remote controller

ON/OFF button

Remote controller

Signal transmitter

Note: Be sure that there are no obstructions between receiver and remote control; Don't drop
or throw the remote control; Don't let any liquid in the remote control and put the remote control
directly under the sunlight or any place where is very hot.

Operation of wireless remote controller

●

Press this button, the unit will be turned
on, press it once more, the unit will be

turned off. Sleep function will be canceled,

while unit off.

TEMP button

TEMP

ON/OFF

AUTO

COOL

DRY

FAN

(only for cooling and heating unit.
As for cooling only unit, it won’t
have any action when it receives
the signal of heating operation.)

●

Press this button, Auto, Cool, Dry, Fan,
Heat mode can be selected circularly.

MODE button

MODE

Auto mode is default while powered on.
Under Auto mode the temperature will not
be displayed; Under Heat mode, the

HEAT

initial value is 28℃(82 F); Under other

o

modes, the initial value is 25℃(77 F).

o

●

Press this button, Auto, Low, Medium-low,

Medium, Medium-high, High speed can be

circularly selected. After powered on, Auto
fan speed is default. Under DRY mode, Low
fan speed only can be set up.

FAN button

FAN

Medium fan

Low fan

High fan

Medium-low fan

Medium-high fan

Note: It’s Low fan speed under Dry mode.

ATUO

●

Press this button,the following temperature
can be setted circularly: the setting
temperature, indoor ambient temperature
and outdoor ambient temperature.when the
indoor unit firstly power on, it will display the
setting temperature . If the displaying
status is changed to ,displaying the
indoor ambient temperature. is the
outdoor ambient temperature. 5s(3s) later
it will return to the setting temprature or it
depends on the other received signal within
5s(3s).
Note: Outdoor ambient temperatue display
range is 0~60℃ (32~99℉). As for the
outdoor ambient temperature below 0
it displays 0℃(32℉).

Warm tips: When operating buttons on the cover,

please make sure the cover is closed

completely.

NOTE: “ ” function is applicable to
partial of models.

7

Remote controller

Note: Be sure that there are no obstructions between receiver and remote control; Don't drop
or throw the remote control; Don't let any liquid in the remote control and put the remote control
directly under the sunlight or any place where is very hot.

●

Press this button, the clock can be set up,
signal blink and display. Within 5

CLOCK button

CLOCK

seconds, the value can be adjusted by
pressing or button, if continuously
press this button for 2 seconds above,

Operation of wireless remote controller

and signal will be displayed. If there is

current time value is Clock value, otherwise

in every 0.5seconds, the value on ten place
of Minute will be increased 1. During blinking,
repress the Clock button or Confirm button,
signal will be constantly displayed and
it denotes the setting succeeded. After
powered on, 12:00 is defaulted to display

is Timer value.

signal be displayed that denotes the

●

●

Press this button at unit On or Off status,
Light On and Light Off can be set up.

LIGHT button

LIGHT

After powered on, Light On is defaulted.

X-FAN button

X-FAN

●

Pressing X-FAN button in COOL or DRY
mode, the icon is displayed and the
indoor fan will continue operation for 10(2)
minutes in order to dry the indoor unit
even though you have turned off the unit.
After energization, X-FAN OFF is defaulted.
X-FAN is not available in AUTO, FAN or
HEAT mode.

Under Cool or Heat mode, press this
button can turn on or turn off the Turbo

TURBO button

TURBO

function. After the Turbo function turned
on, the signal of Turbo will display. The
signal will be automatically cancelled if
changing the mode or fan speed.

●

Presetting temperature can be increased.
Press this button, the temperature can be

+ button

set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃

(

o

F) signal will be displayed all the time.
The temperature adjustment is unava­ilable under the Auto mode, but the order
can be sent if pressing this button.
Temperature of Celsius degree setting:
16-30; for Fahrenheit degree setting:
61-86.

●

Presetting temperature can be decreased.
Press this button, the temperature can be

- button

set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
(

o

F) signal will be displayed all the time.
The temperature adjustment is unavailable
under the Auto mode, but the order
can be sent by if pressing this button.

QUIET

QUIET button

● Press this button, the Quiet status is

under the Auto Quiet mode (display

" " and “Auto”signal ) and Quiet mode
(display " " singal) and Quiet OFF
(there is no signal of " " displayed),
after powered on, the Quiet OFF is
defaulted. Under the Quiet mode (Display

Name and function of wireless remote controller

+

-

signal).

" "

Remote controller

buttons of this control which are not available to this unit will not be described below.

This wireless remote control is universal, and it could be used for many units, some

Operation of wireless remote controller

● One press this key to enter into TIMER

OFF setup, in which case the TIMER OFF
icon will blink. The method of setting is
the same as for TIMER ON.

TIMER OFF

TIMER OFF

button

8

SWING LEFT AND RIGHT

button

●

Press this button to set swing angle,
which circularly changes as below:

OFF

This remote controller is universal. If it
receives threes kinds of following status,
the swing angle will remain original.

If guide louver is stopped when it is
swinging up and down, it will remain its
present position.

indicates guide louver swings back and
forth in the five places, as shown in the
figure.

SWING UP AND DOWN button

●

Press this button to set left & right swing angle
cycling as below:

OFF

TIMER ON

TIMER ON

button

●

I FEEL

button

●

●

I FEEL

Timer On setting : Signal “ON” will blink
and display, signal will conceal, the
numerical section will become the timer
on setting status. During 5 seconds blink,
by pressing ＋ or － button to adjust the
time value of numerical section, every
press of that button, the value will be
increased or decreased 1 minute. Hold
pressing ＋ or －button, 2 seconds later ,
it quickly change, the way of change is:
During the initial 2.5 seconds, ten numbers
change in the one place of minute, then
the one place is constant, ten numbers
change in the tens place of minute at 2.5
seconds speed and carry. During 5s blink,
press the Timer button, the timer setting
succeeds. The Timer On has been set up,
repress the timer button, the Timer On
will be canceled. Before setting the
Timer, please adjust the Clock to the
current actual time.

HEALTHY AND SCAVENGING

button

/

Name and function of wireless remote controller

Press this button once, to turn on the
I FEEL function, then the figure of "I FEEL"
will be displayed, after every press of
other function button, every 200ms to send
I FEEL once, after this function started,
the remote control will send temperature
to the main un it in every 10 minutes. When
repress this button, this function will be
turned off.

Press this button to achieve the on and
off of healthy and scavenging functions in
operation status. Press this button for the
first time to start scavenging function;
LCD displays “ ”. Press the button for the
second time to start healthy and scavenging
functions simultaneously; LCD displays “ ”
and “ ” . Press this button for the third
time to quit healthy and scavenging functions
simultaneously. Press the button for the
fourth time to start healthy function; LCD
display “ ” . Press this button again to
repeat the operation above.
Note: Optional for some models.

9

●

●

Operation of wireless remote controller

SLEEP button

SLEEP

(1peelStcelesnac,nottubsihtsserP

), Sleep 2 (

),

Sleep 3 ( ) and cancel the Sleep, circulate between

these, after electrified, Sleep Cancel is defaulted.

Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status

after run for one hour , the main unit setting temperature will

increase 1 ℃,2 hours,setting temperature increased 2℃ , the unit will

run at this setting temperature; In Heat mode: sleep status after run

for one hour, the setting temperature will decrease 1℃, 2
hours, setting temperature will decrease 2℃, then the unit will

run at this setting temperature.

●

Sleep 2 is sleep mode 2, that is air conditioner will run according to

the presetting a group of sleep temperature curve.

In Cool mode:

(1) When setting the initial temperature 16-23℃, after turned on
Sleep function, the temperature will be increased 1℃ in every hour,
after 3 ℃ the temperature will be maintained, after 7hours,

the temperature will be decreased 1℃, after that the unit will kee

p on

running under this temperature;

(2) When setting the initial temperature 24℃～27℃, after turned

on Sleep function, the temperature will be increased 1℃ in e

very hour ,

after 2 ℃ the temperature will be maintained, after 7hours,
the temperature will be decreased 1℃, after that the unit will

keep on running under this temperature;

(3) When setting the initial temperature 28 ℃～ 29℃, after turned
on Sleep function, the temperature will be increased 1℃ in every
hour, after 1 ℃ the temperature will be maintained, after 7hours,

the temperature will be decreased 1 ℃, after that the unit will

keep on running under this temperature;

(4) When setting the initial temperature 30 ℃, under this temper-

ature setting, after 7hours, the temperature will be decreased

1℃, after that the unit will keep on running under this temperature;

In Heat mode:

(1) Under the initial presetting temperature 16 ℃, it will run under

this setting temperature all along.

(2) Under the initial presetting temperature17℃～ 20℃, after Sleep
function started up, the temperature will decrease 1℃ in every
hour, after 1 ℃ .deniatniameblliwerutarepmetsiht,desaerced

Name and function of wireless remote controller

10

+

Operation of wireless remote controller

SLEEP button

SLEEP

(3) Under the initial presetting temperature 21℃～27℃, after Sleep
function started up, the temperature will decrease 1℃ in every hour,
after 2 ℃ decreased, this temperature will be maintained.

(4) Under the initial presetting temperature 28 ℃～30℃, after
Sleep function started up, the temperature will decrease 1℃ in
every hour, after 3℃ decreased, this temperature will be maintained.

Sleep 3- the sleep curve setting under Sleep mode by DIY:

(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote

control enters into user individuation sleep setting status, at this

time, the time of remote control will display "1hour ", the setting

(2) Adjust " " and " " button, could change the corresponding

setting temperature, after adjusted, press "Trubo "button for

co

nfirmation;

(3) At this time, 1hour will be automatically increased at the timer

postion on the remote control, (that are "2 hours" or "3 hours"

(4) Repeat the above step (2) ～ (3) operation, until 8hours

temperature setting finished, sleep curve setting finished, at this

time, the remote control will resume the original timer display;

temperature "88" will display the corresponding temperature of last

setting sleep curve and blink (The first entering will display

according to the initial curve se

tting value of original factory);

or " 8 hours "), the place of setting temperature "88" will

display the corresponding temperature of last setting sleep curve

and blink;

temperature display will resume to original setting temperature.

●

●

Sleep3 - the sleep curve setting under Sleep mode by DIY could

be inquired:

The user could accord to sleep curve setting method to inquire

the presetting sleep curve, enter into user individuation sleep

setting status, but do not change the temperature, press "Turbo"

button directly for confirmation.

Note: In the above presetting or enquiry procedure, if co

ntinuously

within10s, there is no button pressed, the sleep curve setting

status will be automatically quit and resume to display the original

displaying. In the presetting or enquiry procedure, press "ON/OFF"

button, " Mode " button, " Timer " button or " Sleep " button, the sleep

curve setting or enquiry status will quit similarly.

-

Name and function of wireless remote controller

11

timer on or timer off.

Guide for operation - general operation

Operation of wireless remote controller

★

This function indicates that moisture on evaporator of indoor unit will be blowed after the unit

About X-FAN function

is stopped to avoid mould.

1. Having set X-FAN function on: After turning off the unit by pressing ON/OFF button
indoor fan will continue running for about 10 (2) min. at low speed. In this period,
press X-FAN button to stop indoor fan directly.

2. Having set X-FAN function off: After turning off the unit by pressing ON/OFF button,
the complete unit will be off directly.

Introduction for special function

When AUTO RUN mode is selected, the setting temperature will not be displayed on the

LCD, the unit will be in accordance with the room temp. automatically to select the suitable

running method and to make ambient comfortable.

About turbo function

If start this function, the unit will run at super-high fan speed to cool or heat quickly so that
the ambient temp. approachs the preset temp. as soon as possible.

★

★

About AUTO RUN

1. Press SLEEP button, to set sleep.

2. Press TIMER ON and TIMER OFF button, can set the scheduled

3. Press LIGHT button, to control the on and off of the displaying part

of the unit (This function may be not available for some units).

4. Press TURBO button, can realize the ON and OFF of TURBO function.

close automatically.)

5. Pressing and button, to select the swing.

4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW,

MEDIUM-LOW, MEDIUM, MEDIUM-HIGH and HIGH.

unnecessary to set the temp. at AUTO mode.)

2. Press MODE button, select desired running mode.

(Note: When it is powered on, the guide louver of main unit will

1. After powered on, press ON/OFF button, the unit will start to run.

Guide for operation- Optional operation

3. Pressing or button, to set the desired temperature (It is

5

1

2

3

4

1

2

3

4

12

Press buttons simultaneously to lock or unlock the keyboard. If the remote controllerand
is locked, the icon

flicker for three times. If the keyboard is unlocked, the mark will disappear.

1. Press swing + and - button continuously more than 2s, the main unit will swing back
and forth from + to - , and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.

2. Under swing + and - mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again

within 2s, the change of swing status will also depend on the circulation sequence stated above.

★

About swing + and -

★

★

★

1. Press swing left and right button continuously more than 2s, the main unit will swing back
and forth from left to right, and then loosen the button, the unit will stop swinging and present
position of guide louver will be kept immediately.

2. Under swing left and right mode, when the status is switched from off to , if press this
button again 2s later, status will switch to off status directly; if press this button again

within 2s, the change of swing status will also depend on the circulation sequence stated above.

★

About swing left and right

About lock

will be displayed on it, in which case, press any button, the mark will

Operation of wireless remote controller

About switch between Fahrenheit and Centigrade

Under status of unit off, press MODE and - buttons simultaneously to switch

℃ and ℉.

★

About Quiet function

★

About Sleep function

Under the Fan and Auto mode, the Sleep function cannot be set up, under Dehumidify

mode, only Sleep 1 can be selected. Select and enter into any kind of Sleep mode, the

★

Quiet function will be attached and stared, different Quiet status could be optional and turned off.

Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving function.
Nixie tube on the remote controller displays “SE”. Repeat the operation to quit the function.

Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start 8℃ Heating Function

.

Nixie tube on the remote controller displays “ ” and a selected temperature of “

8℃”

(46 if Fahrenheit is adopted). Repeat the operation to quit the function.

Combination of " TEMP" and "CLOCK" buttons: About 8

Combination of " TEMP" and "CLOCK" buttons: About Energy-saving Function

℃ Heating Function

℉

When quiet function is selected:

1. Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when
indoor ambient temperature≤28℃, indoor fan will operate at notch 2 speed or quiet
mode according to the comparison between indoor ambinet temperature and set
temperature.

2. Under heating mode: indoor fan operates at notch 3 speed or quiet mode according
to the comparison between indoor ambient temperature and set temperature.

3. Under dry, fan mode: indoor fan operates at quiet mode.

4. Under auto mode: the indoor fan operates at the auto quiet mode according to actual
cooling, heating or fan mode.

●

●

●

●

●

●

●

Operation of wireless remote controller

Changing batteries and notices

1.Slightly to press the place with , along the arrowhead

direction to push the back cover of wireless remote controller.

(As shown in Fig 1.)

2.Take out the old batteries.

3.Insert two new AAA1.5V dry batteries, and pay attention

NOTE:

When changing the batteries, do not use the old or

different batteries, otherwise, it can cause the malf-

unction of the wireless remote controller.

If the wireless remote controller will not be used for a

long time, please take them out, and don't let the

leakage liquid damage the wireless remote controller.

It should be placed where is 1m away from the TV

set or stereo sound sets.

The operation should be in its receiving range.

If the remote control cannot operate normally, please

take the batteries out, and then reinsert it 30s later; if

If the main unit needs to be remote controlled, please

aim remote controller at the receiver of main unit in order

to improve the receiving sensitivity of the main unit.

When the remote controller sends out signal, a mark

will flicker for about 1s. The bell will ring if the main unit

receives effective signal.

it is also abnormal, please replace the batteries.

13

to the polarity. (As shown in Fig 2.)

4. Attach the back cover of wireless remote controller

Fig.1

Fig.2

Sketch map for

changing batteries

If the wireless remote control is lost

or broken, please use the manual switch

Auto mode, but the temperature and fan

button. At this time, the unit will run at the

To open the panel, the manual switch

is on the displayer box.

It's a special selective button for the users ,who are not accustomed to the

light at sleeping.

Get the displayer indicator light on: When setting the light function,the mark will

pressing this button. In which case,the diss­player indicator light will be on if the AC receives

Get the displayer indicator light off: If cancel the light function,the mark will disap-

per on the remote controller screen by pressing this
button. In which case, the displayer indicator light will

be off if the AC receives this signal.

Displayer indicator light control of indoor unit

●

●

display on the remote controller screen by

this signal.

Emergency operation

Emergency operation

speed cannot be changed. The operation

was shown as below:

Turn on the unit: At unit turned off, press

the button,the unit will run at Auto mode

immediately.The microcomputer will accord

●

to the indoor temperature to select (Cooling,

Heating, Fan) and obtain the comfortable effect.

Turn off the unit: At unit turned on, press the

button, the unit will stop working.

●

Manual switch

Fig.3

14

℃

●

●

●

℃

② Clean the air filter

③

①

(a)

(b)

Clean and care

Caution

Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric

shock.

Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an
electric shock.

Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)

Clean the front panel

Clean the air filter (Recommended once every three months)

NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.

Take down the air filter

At the slot of surface panel to open an angle, pull the air filter

downward and take it out, please see the Fig. 4(a, b).

To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.

NOTE: Never use water above 45 to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.

Insert the air filter

Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.

Fig.4

When cleaning the front panel, please dip the cloth into the water temperature of 45 below, then to dry
the cloth and wipe the dirty part.

Note: Please do not to immerse the front panel in water, due to there are microcomputer components and

circuit diagrams on the front panel.

15

① Be sure that nothing obstructs the air outlet and intake vents.

②

③

Check that whether the batteries of air conditioner are

changed or not.

④ Check that whether the installation stand of the outdoor

unit is damaged or not. If damaged, please contact the dealer.

①

②

③

④

⑤

Clean and care

Check before use

Check that whether ground wire is properly connected or not.

Maintain after use

Turn main power off.

Clean the filter and indoor and outdoor units' bodies.

Clear dust and obstructions from the outdoor unit.

Repaint the rubiginous place on the outdoor unit to prevent it from spreading.

Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
the unit and get rust.

16

Once the air conditioner is stopped, it will
not operate in approximately 3 minutes to
protect itself.

●

●

●

●

●

●

Troubleshooting

CAUTION

Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.

Phenomenon

Troubleshooting

Not operate immediately when the air
conditioner is restarted.

There's unusual smell blowing from the outlet
after operation is started.

The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.

Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)

Sound of water flow can be heard during
the operation.

The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfuncti­ons.

In COOL mode, sometimes the mist emitted
from the air outlet vent.

When the indoor temperature and humidity
are very high, this phenomenon would
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.

Creaking noise can be heard when start or
stop the unit.

This is caused by the deformation of plastic
due to the changes of temperature.

Waiting

17

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

Troubleshooting

Phenomenon

Troubleshooting

The unit can not run.

Has the power been shut down?

Is power plug loosed?

Is the circuit protection device tripped off or not?

Is voltage higher or lower?

(Tested by professionals)

Is the TIMER correctly used?

Cooling(Heating) efficiency is not good.

Is Temp. setting suitable?

Were inlet and outlet vents obstructed?

Is filter dirty?

Are the windows and doors clothed?

Did Fan speed set at low speed?

Is there any heat sources in the room?

Wireless remote control is not available.

The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.

Is it in its receiving range? Or obstructed?

To check the voltage in wireless remote control inside

is charged, otherwise to replace the batteries.

Whether the wireless remote control is damaged.

If water leakage in the room. The air humidity is on the high side.

Condensing water over flowed.

The connection position of indoor unit drainage
pipe is loosed.

If water leakage in outdoor unit. When the unit is running in COOL mode, the pipe

and connection of pipe would be condensed due
to the water cooled down.

When the unit is running in Auto Defrosting mode
the ice thawed and flowed out.

When the unit is running in HEAT mode, the water
adhered on heat exchanger dripped off.

Noise from indoor unit emitted. The sound of fan or compressor relay is switching

on or off.

When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.

Breaking off

18

●

●

●

●

Troubleshooting

Phenomenon

Troubleshooting

Indoor unit cannot deliver air.

Moisture on air outlet vent.

If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.

Immediately stop all operations and plug out, contact
the dealer in following situations.

There is harsh sound during operation.

The terrible odors emitted during operation.

Water is leaking in the room.

Air switch or protection switch often breaks.

Carelessy splash water or something into unit.

There is an abnormal heat in power supply cord
and power plug.

Stop running and pull out of the plug.

In HEAT mode, when the temperature of indoor
heat exchanger is very low, that will stop deliver
air in order to prevent cool air. (Within 2min)

In HEAT mode, when the outdoor temperature
is low or high humidity, there are much frost be
formed on the outdoor heat exchanger, that the
unit will automatically defrost, indoor unit stop
blowing air for 3-12min.
During the defrosting, there is water flowing out
or vapor be produced.

In dehumidifying mode, sometimes indoor fan will
stop, in order to avoid condensing water be vapo-
rized again, restrain temperature rising.

19

1.

2.

Select a position where the condensing water can be easily drained out, and the place
is easily connected for outdoor unit.

4.Can select the place where is strong enough to withstand the full weight and vibration of

the unit. And will not increase the noise.

5.

6.

7.

8.

Make sure that the indoor unit installation should accord with installation dimension

diagram requirements.

1

.

Select a location from which noise and outflow air emitted by unit will not inconvenience

neighbors, animals, plants.

2

.

Select a location where there should be sufficient ventilation.

3

.

Select a location where there should be no obstructions cover the inlet and outlet vent.

4

.

The location should be able to withstand the full weight and vibration of the outdoor unit

and permit safe installation.

5

.

Select a dry place, but do not expose under the direct sunlight or strong wind.

6

.

3.

Select a location where the children can not reach.

1.The unit installation work must be done by qualified personnel according to the local

rules and this manual.

2.Before installation, please contact with local authorized maintenance center, if unit is

not installed by the authorized maintenance center, the malfunction may not solved,
due to discommodious contacts.

3.When removing the unit to the other place, please firstly contact with the authorized

Maintenance Center in the local area.

●

●

7.

8.

9.

●

●

●

●

Notices for installation

Important Notices

Basic Requirements For Installation Position

Install in the following place may cause malfunction. If it is unavoidable contact with
service center please:

Place where strong heat sources, vapors, flammable gas or volatile object are emitted.

Place where high-frequency waves are generated by radio equipment, welders and
medical equipment.
Place where a lot of salinities such as coast exists.
Place where the oil (machine oil) is contained in the air.

Place where a sulfured gas such as the hot spring zones is generated.

Other place with special circumstance.

Indoor Unit Installation Position Selection

The air inlet and outlet vent should be far from the obstruction, make sure that the air
can be blown through the whole room.

Be sure to leave enough space to allow access for routine maintenance. The height of the
installed location should be 250cm or more from the floor.

Select a place about 1m or more away from TVset or any other electric appliances.

Select a place where the filter can be easily taken out.

Outdoor Unit Installation Position Selection

Make sure that the outdoor unit installation dimension should accord with installation
dimension diagram, convenient for maintenance, repair.

The height difference of connecting the tubing within 5m, the length of connecting the
tubing within 10m.
Select a place where it is out of reach for the children.
Select a place where will not block the passage and do not influence the city appearance.

.Do not use the unit in the immediate surroundings of a laundry a bath a shower or a

swimming pool.

9

20

Notices for installation

Safety Requirements For Electric Appliances

Earthing requirements

Note:

Make sure that the Live wire or Zero line as well as the earth wire in the family power
socket can not be wrong connected, there should be reliable and no short circuit in the
diagram.

wrong connection may cause fire.

♂

♂

4. The min. distance from the unit and combustive surface is 1.5m.

1. The power supply should be used the rated voltage and AC exclusive circuit,

the power cable diameter should be satisfied.

2. Don't drag the power cable emphatically.

3.

① ②

③

④

1. Air conditioner is type I electric appliance, thus please do conduct reliable earthing
measure.

2. The yellow-green two-color wire in air conditioner is earthing wire and cannot be used

for other propose. It cannot be cut off and be fix it by screw, otherwise it would cause
electric shock.

3. The earth resistance should accord to the National Criterion.

4. The user power must offer the reliable earthing terminal. Please don't connect the
earthing wire with the following place:

Tap water pipe. Gas pipe.

Contamination pipe.

Other places that professional personnel consider them unreliable.

5. The appliance shall be installed in accordance with national wiring regulations.

An all-pole disconnection switch having a contact separation of at least 3mm in all poles

should be connected in fixed wiring.

It should be reliably earthed, and it should be connected to the special earth device,
the installation work should be operated by the professional.

The air switch must have the functions of magnetic tripping and heat tripping, in order

to protect the short circuit and overloading.

6.

5. The model and rating values for fuses according the silk print on fuse cover or related
PCB board.

21

7. Poly-crystalline solar panel is strongly recommended as solar power device. The rated

voltage of DC solar power should be less than 165V and the rated current should be less

than 10A. Take the poly-crystalline solar panel of 200W (open-circuit voltage:33V,

short-circuit current:8.12A)for instance, the maximum number in one series of of panels

is 5, and the connention method should be series connection.

Installation dimension diagram

Installation Drawing

Space to the ceiling

Space to the wall

Space to the wall

Air outlet side

Space to the floor

Above

Above

15cm

Above

Abov

22

The dimensions of the space necessary for proper
installation of the unit include the minimum
permissible distances to adjacent parts.

●

Space to the wall

Space to the obstruction

Air outlet side

Space to the wall

Air inlet side

15cm

Above

15cm

250
cm

300cm

50cm

Above

50cm Above

30cm

Above

30cm Above

200cm

Above

23

Install indoor unit

mm0 5 1

mm5 5 φ

mm5 5 φ

mm0 5 1

Ø

5 5

Install the rear panel

1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the
both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is
taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and
level should be 0 or more, that is good for condensing water drainage.

2.Fix the rear panel on the wall with screws.
(Where is pre-covered with plastic granula)

3.Be sure that the rear panel has been fixed
firmly enough to withstand the weight of an

adult of 60kg, further more, the weight should
be evenly shared by each screw.

Install the piping hole

1.Make the piping hole (Ф55) in the wall at a slight downward slant to the
outdoor side.

2.Insert the piping-hole sleeve into the hole to prevent the connection piping
and wiring from being damaged when passing through the hole.

Install the water drainage pipe

1.For well draining, the drain hose should be placed at a downward slant.

2.Do not wrench or bend the drain hose or flood its end by water.

3.When the long drainage hose passing through indoor,
should wrap the insulation materials.

Wrenched Bent

Flooded

Indoor Outdoor

Wall pipe

Seal pad

Fig.5

Wall

Wall

Mark on the middle of it

Gradienter

Left

Right

(Rear piping hole)

(Rear piping hole)

Space
to the
wall

above

Space
to the
wall

above

Fig.6

Connect indoor and outdoor electric wires

1.Open the surface panel.

2.Remove the wiring cover Fig.6.

3.Route the power connection cord and signal control wire (for cooling and heating unit only) from the

4.Connect the interconnection cord to the terminal block, and then fix the cord with cord anchorge.

5.Reassemble the clampand wiring cover.

back of the indoor unit and pull it toward the front through the wiring hole for connection.

6.Recover the surface panel.

N

(1) 2

3

YE/GN

BU BK BN

Outdoor Unit

◆If the connecting cable for the indoor and outdoor units has been fixed on the mainboard of the indoor
unit, please directly reference to the

Electric wiring part on Page 25.

24

●

●

●

After tighten the screw, slight pull the wire and confirm whether is it firm or not.

●

● The cover plate must be fixed, and tighten the connection wire, if it is poor installed, that

Install indoor unit

NOTE:

When connecting the electric wire if the wire length is not enough, please contact with
the authorized service shop to buy a exclusive electric wire that is long enough and the
joint on the wire are not allowed.

The electric wiring must be correctly connected, wrong connection may cause spare parts
malfunction.

Tighten the terminal screw in order to prevent loose.

If the earth wire is wrong connection, that may cause electric shock.

the dust, moisture may enter in or the connection terminal will be affected by outside force,
and will cause fire or electric shock.

右后

4.

2.

3.

●

1.

⑴
⑵

1.

2.

Install the indoor unit

The piping can be lead out from right, right rear, left
left rear.

When routing the piping and wiring from the left
or right side of indoor unit, cut off the tailings
from the chassis in necessary(Show in Fig.7)

Cut off the tailings 1 when routing the wiring only;

Cut off the tailings 1 and tailings 2 when routing

both the wiring and piping.
Take out the piping from body case, wrap the piping
electric wire, water pipe with tape and pull them
through the piping hole (As show in Fig.8)

Hange the mounting slots of the indoor unit on the

upper tabs of the rear panel and check if it is firm

enough.(As show in Fig.9)

The height of the installed location should be 2. m

or more from the floor.

Install the connection pipe

Align the center of the piping flare with the relevant valve.

Screw in the flare nut by hand and then tighten the

nut with spanner and torque wrench refer to the
following:

NOTE: Firstly connect the connection pipe to indoor unit, then to outdoor unit; pay attention
to the piping bending, do not damage the connection

pipe; the joint nut couldn't tighten too

much, otherwise it may cause leakage.

Spanner

Torque
wrench

Piping

Taper nut

Indoor unit piping

Fig.9

Mounting
plate

Fixing hook

Mounting
baord

Right

Right rear

Fig.8

Left rear

Left

Fig.7

Tailing 1

Tailing 2

Finally wrap it
with tape

Gas side piping
insulation

Water drainage pipe

Liquid side

Piping insulation

Gas side pipe

External connection

electric wire

Liquid side piping

(N·m)

Ф6

Ф 9.52

Ф 12

31～35

15～20

50～55

Ф 16 60～65
Ф 19 70～75

Hex nut diameter

Tightening torque

5

5.

The water drainage pipe can also be installed on the left of
the indoor-uint.

Handle

25

●

●

Install outdoor unit

Electric wiring

NOTE:

Wrong wiring may cause spare parts malfunction.
After the cable fixed, make sure there should be a free space between the connection

and connection and fixing place on the lead wire.

3.

4.

5.

1.

2.

Disassemble the handle on the outdoor unit right side plate.

Take off cord anchorage. Connect and fix power connect
cord (for cooling and heating unit,connect and fix power
connect cord and signal control wire)to terminal block.

Fix the power connection cable with cord anchorage,
(for cooling and heating unit, use the cord anchorage
to fix the power connection cable and the signal
control wire).

Ensure wire has been fixed well.

Install the handle.

●

The rated voltage of solar power should be less than 165V and the rated current of
solar power should be less than

10A.

Solar power

YE/GN

Solar Panels

DC Circuit Breaker

White

White

Red

Red

Linkage Handle

AC Electrical Source

BU

BN

Indoor Unit

BU

BK

BN

BU

BK

BN

YE/GN

Outdoor Unit

N

(1) 2

3

Indoor Unit

BU BK BN

YE/GN

Ø

Air purging and leakage test

Condensate drainage of outdoor unit (no for cooling only)

The condensate and defrosting water formd during heating
in the outdoor unit can be properly discharged by drainage
pipe .
Installation method:set the drain connection in 25 hole of the
chassis has been installed and then connect drainage pipe
with drain nozzle,so that condensate and defrosting waer can
be properly discharged

Chassis
Drain

connection

26

Install outdoor unit

5

-1.0 10 pa

(-76cmHg)..

1. Connect charging hose of manifold valve to charge end of low pressure
valve (both high/low pressure valves must be tightly shut).

2. Connect joint of charging hose to vacuum pump.

3. Fully open handle handle of Lo manifold valve.

4. Open the vacuum pump to evacuate. At the beginning, slightly

loosen joint nut of low pressure valve to check if there

is air coming inside. (If noise of vacuum pump has

been changed, the reading of multimeter is 0) Then
tighten the nut.

5. Keep evacuating for more than 15mins and make
sure the reading of multi-meter is

6. Fully open high/low pressure valves.

7. Remove charging hose from charging end of low pressure valve.

8. Tighten bonnet of low-pressure valve. (As shown in Fig.10)

Fig.10

27

Install PV-Module

PV-Module Characteristics

Current-Voltage & Power-Voltage Curve

Open - Circuit Voltage (Voc) 33.4V

Optimum Operating Voltage (Vmp) 26.2V

Short - Circuit Current (Isc) 8.12A

Optimum Operating Current (Imp) 7.63A

Maximum Power at STC (Pmax) 200Wp

Operating Temperature -40ºC to +85ºC

Maximum System Voltage 600V DC

Maximum Series Fuse Rating 20AMPS

Power Tolerance ±3 %

Solar Cell Poly-crystalline 156×156mm (6inch)

No. of Cells 54 (6×9)

Dimensions 1482×992×35mm (58.3×39.1×1.4inch)

Weight 1

6.8kg (37.0lbs.)

Front Glass 3.2 mm (0.13inch) tempered glass

Frame Anodized aluminium alloy

Junction Box IP65 rated

Output Cables

LAPP (4.0mm2), asymmetrical lengths (-)

1200mm(47.2inch) and (+) 800mm (31.5inch), MC

Plug Type IV connectors

Electrical Characteristics

Mechanical Characteristics

STC: lrradiance 1000W/m2, Module temperature 25ºC, AM=1.5

To optimise for the PV-Module ,it should have the same Current-Voltage & Power-Voltage Curve
(or as close as possible ).

28

Install PV-Module

Mechanical Installation

1. Mechanical Installation of PV-modules should be operated by professional solar photovoltaic installation
guides or reputable solar installer or systems integrator.

2.

SC

do not provide any mechanical installation guide of PV-modules, as a result, SC will not provide

any instructor or after service for the problems of mechanical installation of PV-modules.

Electrical Installation

1. General Installation

• Any hardware used must be compatible with the mounting structure material to avoid galvanic corrosion

• It is not recommended to use modules with different configurations in the same system.

• Several modules should be connected in series to form a string of modules if needed.The maximum

number of series connected modules is 5.

• MC-4 connector is the recommended connector and the recommended system wires size is AWG12 .

2. Installation Sketch

Here we suggest to

install a DC current
breaker,so the user

can cut off the solar
power when not using
the air-conditioner for
a long time.

29

Install PV-Module

Assembly of PV-wire

1.The PV-wire should be single-pole, double insulated solar cable, the length of which is due to the
distance from PV-modules to outdoor unit of AC, the recommended conductor cross section is
AWG12, and it should accord with UL4703.

Assembly of MC-4 Connector

2. The MC-4 Connectors should be assembled to the PV-wires , and the other side of the PV-wires
should be assembled with spade terminals.

1. Introduction of MC-4 Connector
The MC-4 Connector contains three Parts, male PV cable coupler(PV-KST4/6II-UR), female PV cable
coupler(PV-KBT4/6II-UR) and a safty lock clip(PV-SSH4).

Male PV cable coupler (PV-KST4/6II-UR)

Female PV cable coupler (PV-KBT4/6II-UR)

2.Assembly Method

Safty lock clip (PV-SSH4)

30

Install PV-Module

Introduction Photo

Recommended tool

Step1 Strip cable insulation.

L = 6-7,5 mm. Take

care not to cut

individual strands.

Stripping

pliers:PV-AZM-1.5/6

Interchangeable blade:

PV-M-AZM-156

Step2 Open and hold

clamping clip

(K).Insert contact in

the appropriate

cross-section range

of the crimping tool.

Turn contact till

crimping tabs face

the top. Release

clamping clip (K).

The contact is

secured.

Step3 Lightly press the

pliers together so

that the crimping

tabs lie securely

within the crimping

die.

Crimping pliers:

PV-CZM-19100

Insert: PV-ES-CZM-19100

Locator: PV-LOC

31

Install PV-Module

Step4 Insert the stripped

cable until the

insulation comes into

contact with the

crimping insert.

Close crimping tool

completely. Check

crimp.

Step5 Push the crimped

contact into the

socket resp. plug

insulator until it

engages. Pull lightly

on the lead to check

that the metal part

has engaged.

Step6 Insert the test pin

with the

corresponding side

into the socket or

plug to the end

position. If the

contact is correctly

assembled, the white

marking on the test

pin must be still

visible.

Test plug PV-PST

Step7 Screw on the cable

gland, hand-tight,

with the tools

PV-MS.

The tightening torque

must be adapted to

the solar cables used

in each specific

case. Typical values

lie in a range

between 2,5Nm to

3Nm.

Open-end spanner PV-MS

1 set = 2 pieces

32

Install PV-Module

Step8 Plug the coupling

together until they

engage. Check

correct engagement

by pulling on the

coupling.

Step9 Compress the two

snapin springs (X) by

hand or with the

PV-MS tool and

separate the

coupling.

Step10 Plugging:

Mount the plug

connection until it

engages. Check

correct engagement

by pulling on the

coupling.

Unplugging:

The plug connection

can only be unlocked

with the tool PV-MS.

PV-SSH4

1.
(1)

Do not switch on power before installation isfinished completely.

(2)

Electric wiring must be connected correctly and securely.

(3)

Cut-off valves of the connection pipes should be opened.

(4)

2.
(1)

Switch on power, press "ON/OFF" button on the wireless remote control to start

the operation.

(2)

Check after installation and test operation

Check after installation

Test Operation

Before test operation

All the impurities such as scraps and thrums must be cleared from the unit.

Test operation method

Press MODE button, to select the COOL, HEAT (Cooling only unit is not available),
FAN to check whether the operation is normal or not.

33

Items to be checked

Possible malfunction

Has it been fixed firmly?

The unit may drop, shake or emit noise.

Have you done the refrigerant leakage

test?

It may cause insufficient cooling(heating) capacity.

Is heat insulation sufficient?

It may cause condensation and dripping.

Is water drainage well?

It may cause condensation and dripping.

Is the voltage in accordance with the

rated voltage marked on the nameplate?

It may cause electric malfunction or damage the

part.

Is the electric wiring and piping

connection installed correctly and

securely?

It may cause electric malfunction or damage the

part.

Has the unit been connected to a secure

earth connection?

It may cause electrical leakage.

Is the power cord specified?

It may cause electric malfunction or damage the

part.

Is the inlet and outlet been covered?

It may cause insufficient cooling(heating) capacity.

Has the length of connection pipes and

refrigerant capacity been recorded?

The refrigerant capacity is not accurate.

Is the PV-wire installed correctly and

securely?

It may cause PV-modules not work or damage the

PV-modules.

Is the MC-4 connectors plugged correctly

and securely?

It may cause PV-modules not work.

Test the voltage of L+ and L- to ensure

the PV-modules is connected to AC

correctly.

It may cause PV-modules not work.

Fig. a

Installation Instructions

1. Forcibly pull the panel for a specific angle
from the two ends of the front panel according
to the arrow direction. Then pull the air filter

2. Mount the healthy filter onto the air filter,(as
shown in Fig.b). If the air filter cannot be in-

stalled, please mount the healthy filter on

3. Mount the air filter properly along the arrow
direction in Fig.d, and then close the panel cover.

ion filter can't be cleaned with water, while active carbon, photocatalyst,
low temperature conversion (LTC) catalyst, formaldehyde eliminator, ca-

The healthy filter commonly has its usage lifetime for one year under

normal condition. As for silver ion filter, it is invalid when its surface becomes

according to the installation instruction. Pay special attention to that silver

Take out the healthy filter before cleaning and reinstall it after cleaning

Installation and Maintenance of Healthy Filter

Cleaning and Maintenance

Service Life

●

Healthy filter

Air filter

Healthy filter

downwards to remove it. (See Fig.a)

the front case. (as shown in Fig.c)

Fig. b

Fig. c

Fig. d

techin or mite killing filter can, but can't with brush or hard things. Dry it in
the shade or sun after cleaning, but not by wiping.

black (green).

goods, the latter one shall prevail. The quantity of healthy filters shall be
based on the actual delivery.

This supplementary instruction is provided for reference to the unit with

healthy filter. If the graphics provided herein is different from the physical

34

Owner’s Manual

Owner’s Manual

COUNTRY STAR SDN BHD 437305H

www.solarcoolairconditioner.com

Product improvement, specification and appearance in this manual are subject to change without prior notice.

66129923440


