SHP Electrical Interface Application Note

AC-DC
SHP Series

Testing Result Summary

This Technical Reference Note describes how to use the power and signals available
in SHP Case and modules. SHP supported PMBus commands and it’s limitation is
not covered in this application note.

www.solahd.com [e-mail]

1

SHP Electrical Interface Application Note

]

1.0 ELECTRICAL INTERFACE to SHP Case

The SHP cases have two signal connectors located in the front panel, J1 – PFC
Input Connector and J2 – I2C Bus Output Connector, and two LEDs which serve as visual status indicators.

USB PROGRAMMING CONNECTOR

PFC INPUT CONNECTOR

I2C BUS OUTPUT CONNECTOR

Connector T ables

10 6

J2

51

15

J1

610

5.00 ± 0.02

[127.0 ± 0.5]

5.00 ± 0.03

[127.0 ± 0.9

USB PROGRAMMING CONNECTOR

ACOKDC

OK

PFC INPUT CONNECTOR

I2C BUS OUTPUT CONNECTOR

Note: The pin numbering of J1 connector is printed on the SHP chassis.

10 6J2

51

15J1

610

8.00 ± 0.02

[203.2 ± 0.5]

ACOKDC

OK

5.00 ± 0.03
[127.0 ± 0.9]

Table 1: AC Input

1
2

~

3

SH30, SH45

L

4

L

3

S3H5

2
3
4

2

L
L

S3H3

L

1

PIN #

SH30 & SH45 S3H3 & S3H5

AC neutral

1

(DC -)

2 AC line (DC +) L2

Chassis (earth)

3

ground

4—

L

1

N

BARRIER TYPE
SH30: THREE #6-32 BH SCREWS, 6 in.-lbs. (0.67 N-m) TORQUE
SH45: THREE M4 SCREWS, 7 in.-lbs. (0.79 N-m) TORQUE
S3H3: FOUR M3 SCREWS, 6 in.-lbs. (0.67 N-m) TORQUE
S3H5: THREE M3.5 SCREWS, 6 in.-lbs. (0.67 N-m) TORQUE

FUNCTION

Table 3: I2C Bus Output Connector

Connector J2

10

5

6
1

MATES WITH:
JST PHDR-10VS HOUSING
JST SPHD-002T-P0.5 TERMINAL

(FOR 24–28 AWG WIRE)
JST SPHD-001T-P0.5 TERMINAL

(FOR 24–28 AWG WIRE) OR
LAND WIN 2050S1000 HOUSING
LAND WIN 2053T011P TERMINAL

CONNECTOR KIT P/N 70-841-023

PIN # FUNCTION

1

No connection2
3
4 Serial clock signal (SCL)
5 Serial data signal (SDA)
6 Address bit 0 (A0)
7 Address bit 1 (A1)
8 Address bit 2 (A2)
9 Secondary return (GND)

10 5 VCC external bus (1A max)

L1

L3

Chassis (earth)
ground

Table 2: PFC Input Connector (Control & Signals)

PIN # FUNCTION

Connector J1

1

6

MATES WITH:
MOLEX 90142-0010

HOUSING
MOLEX 90119-2110

TERMINAL

CONNECTOR KIT P/N
70-841-004

1 Input ac OK (emitter)
2 Input ac OK (collector)

5

3 Global dc OK (emitter)

10

4 Global dc OK (collector)
5 No connection
6 Global inhibit/optional enable logic “0”
7 Global inhibit/optional enable logic “1”
8 Global inhibit/optional enable return
9 +5 VSB housekeeping (1A max)

10 +5 VSB housekeeping return

Table 4: DC Output Connector (Located on output modules)

PIN # FUNCTION

Connector J1

1
6

MATES WITH:
MOLEX 90142-0010

HOUSING
MOLEX 90119-2110

TERMINAL

CONNECTOR KIT P/N
70-841-004

1 + Remote sense (single or dual o/p main)
2 Remote margin/V. program (single o/p)

5

3 Margin high (single o/p)

10

4 - Remote sense/margin low (single or dual o/p main)
5 Spare
6 Module isolated inhibit (single or dual o/p)
7 Module inhibit return (single or dual o/p)
8 Current share (SWP) (single or dual o/p main)
9 + Remote sense V2 (dual o/p, single is spare)

10 - Remote sense V2 (dual o/p, single is spare)

Notes:
Output Module Connections: M4 x 8mm screws for all single output modules; maximum torque is 10 in.-lb. (1.13 N-m).
M3 x 8mm screws for dual output module; maximum torque is 5 in.-lb. (0.57 N-m).
36W triple output module connector mates with Molex 09-91-0600 housing and Molex 26-60-5060 terminals.

www.solahd.com [e-mail]

2

SHP Electrical Interface Application Note

1.1 Pin Description of SHP case J1 – PFC Input connector.

1.1.1 INPUT ACOK SIGNAL (ACOK_C/ACOK_E) – Pins 1, 2

Input ACOK – “Collector” and Input ACOK – “Emitter” are output of an uncommitted bipolar junction
transistor. The transistor shall turn ON when the Input Mains level is Good >85Vac, it shall turn OFF when
input voltage is <85Vac. Sink Current: 50mA max, 5ms minimum warning time. A green LED is provided
in the SHP Case as visual indicator of the status of ACOK signal.

+5V EXT

+5V EXT

SHP Case

SHP Case

AC NOTOK

AC OK

AC OK

AC NOTOK

Implementing Active Low ACOK Implementing Active High ACOK

www.solahd.com [e-mail]

3

SHP Electrical Interface Application Note

1.1.2 GLOBAL DCOK SIGNAL (DCOK_C/DCOK_E) - Pins 3, 4

Global DCOK – “Collector” and Global DCOK – “Emitter” are output signal of uncommitted bipolar
junction transistor. The transistor shall turn ON when the DC output of ALL modules are in good
regulation, otherwise it shall turn OFF. A green LED is provided as a visual indicator of the DCOK
status. Sink Current: 50mA max.

+5V EXT

+5V EXT

SHP Case

SHP Case

DC NOTOK

DC OK

DC OK

DC NOTOK

Implementing Active Low DCOK Implementing Active High DCOK

www.solahd.com [e-mail]

4

SHP Electrical Interface Application Note

1.1.3 External Sync – Pin 5

An input pin use used to synchronize connected DC-DC output modules for better EMI response, apply
an external clock frequency of 500kHz +/-20% (5V amplitude) to synchronize connected DC-DC output
modules. Since the switching frequency of the module will follow the sync signal frequency, this can be
use to adjust the switching frequency of the modules within allowable range. Note the effective switching
frequency in the module is half of the External Sync input frequency.

www.solahd.com [e-mail]

5

SHP Electrical Interface Application Note

1.1.4 GLOBAL INHIBIT/OPTIONAL ENABLE LOGIC “0” (DEFAULT) - Pin 6

This signal is a TTL input to a microcontroller inside the SHP case, an internal 2.2kohm resistor is connected
between this pin and internal 5V supply to make the signal initially HIGH.

Enable Logic “0” (DEFAULT setting), active High is the default Logic when Global Enable Option is NOT
selected. ON except the modules set to Module Option code 1 ‘Module Enable mode’.

When pin is left open or pull HIGH (2V – 5V), the modules are ON and can be disable/enable by PMBus
OPERATION command. The Modules set to Module Option Code 1 ‘Module Enable mode’ will remain OFF
until enable by its Module Inhibit Pin.

When the pin is pull LOW (<0.8V) the modules will turn OFF, the PMBus OPERATION COMMAND alone
cannot enable the modules.

SHP Case

Modules

ON

Modules

OFF

Driving J1-6 with a transistor

www.solahd.com [e-mail]

6

SHP Electrical Interface Application Note

The logic of the signal is reverse when Case Option Code 3 - ‘Global Enable option’ is selected’.

When the pin is left open or pull HIGH (2V - 5V), all the Modules are OFF, the PMBus OPERATION COMMAND
alone cannot enable the modules.

When pin is pull LOW (<0.8V), the Modules are ON and can be disable/enable by PMBus OPERATION
COMMAND. The Modules set to Module Option Code 1 ‘Module Enable mode’ will remain OFF enable by its
Module Inhibit pin.

SHP Case

Modules

OFF

Modules

ON

Driving J1-6 with a transistor with Global Enable Option

www.solahd.com [e-mail]

7

SHP Electrical Interface Application Note

1.1.5 GLOBAL INHIBIT/OPTIONAL ENABLE LOGIC “1” (DEFAULT) - Pin 7

This pin is a TTL input to a microcontroller inside the SHP case, an internal 2.2kohm resistor is connected
between this pin and ground to make the signal initially LOW.

Logic “1” (Default), active LOW is the default Logic when ‘Global Enable Option’ is NOT selected. Upon
application of correct AC input all the modules are ON except the modules set to Module Option code 1
‘Module Enable mode’.

When pin is left open or pull LOW (<0.8V), the modules are ON and can be disable/enable by PMBus
OPERATION COMMAND. The Modules set to Module Option Code 1 ‘Module Enable mode’ will remain
OFF until enable by its Module Inhibit pin.

When pin is pull HIGH (>2V- 5V), the installed modules will turn OFF, the PMBus OPERATION Command
alone cannot enable the modules. The 5V standby output can be used as external supply to drive Pin 7.

SHP Case

+5V EXT

Modules

OFF

Modules

ON

Driving J1-7 with a transistor

www.solahd.com [e-mail]

8

SHP Electrical Interface Application Note

The logic of the signal is reverse when Case Option Code3 - ‘Global Enable option’ is selected.

When pin is left open or pull LOW (<0.8V) all the Modules are OFF, the PMBus OPERATION Command alone cannot
enable the modules.

When pin is pull HIGH (>2V- 5V), the Modules will turn ON and can be disable/enable by PMBus OPERATION
COMMAND. The modules set to Module Option Code 1 ‘Module Enable mode’ will remain OFF until enable by its
Module Inhibit pin. The 5V standby output can be used to drive this pin.

Note: Pin 6 and Pin 7 are independent signals, both signals must assume the correct logic levels to turn ON the
modules.

SHP Case

Modules

ON

Modules

+5V EXT

OFF

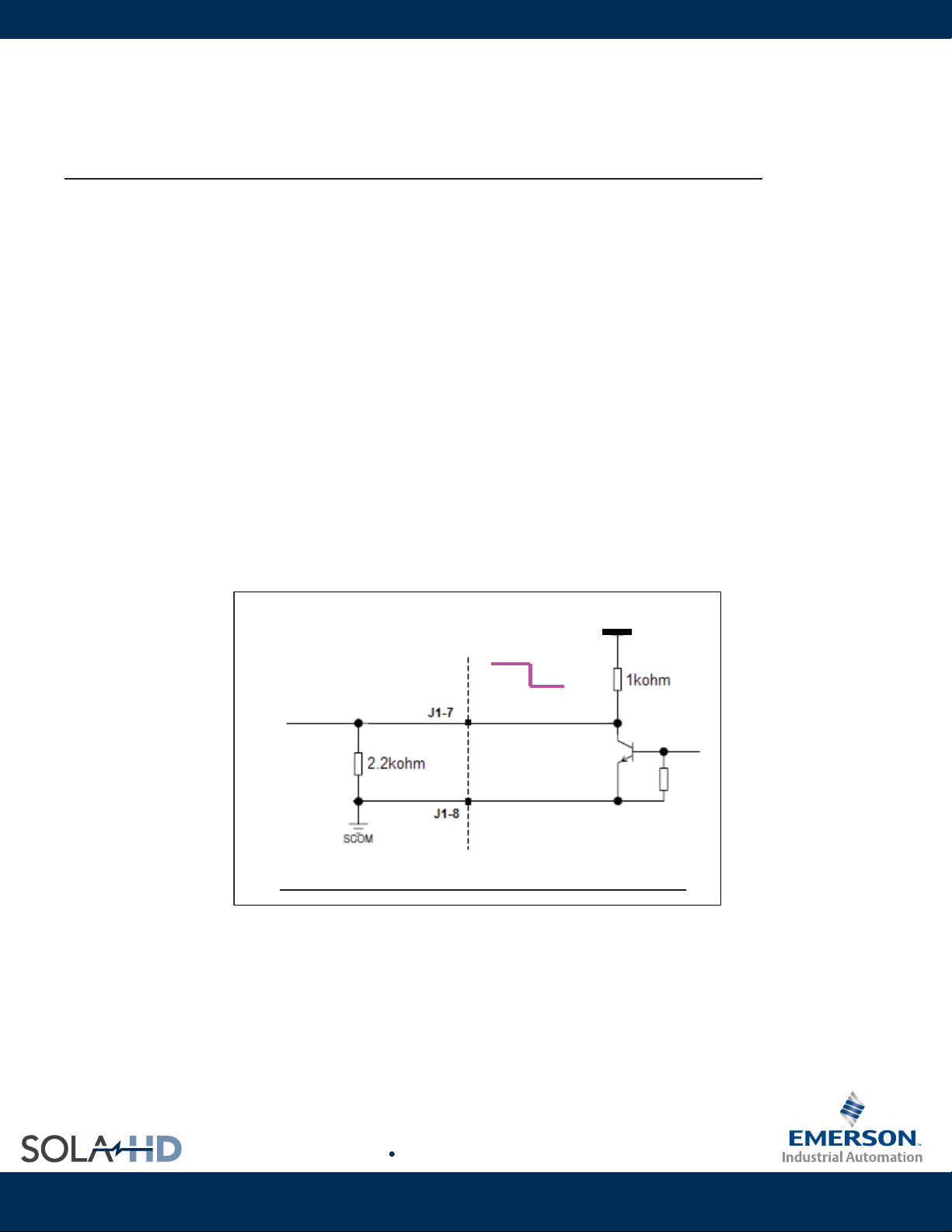

Driving J1-7 with a transistor with Global Inhibit Option

www.solahd.com [e-mail]

9

SHP Electrical Interface Application Note

1.1.6 GLOBAL INHIBIT/OPTIONAL ENABLE RETURN – Pin 8

Ground reference for Global Enable/Optional Enable. This pin is electrically connected to Pin 10 - +5Vsb
Housekeeping Return.

1.1.7 +5VSB HOUSEKEEPING – Pin 9

+5Vsb Housekeeping is the standby output of the power supply rated 5V/1A. This output is available everytime the input AC
voltage to the power supply is within 85Vac - 264Vac. This output is not affected by Global Inhibit function.

1.1.8 +5VSB HOUSEKEEPING RETURN –Pin 10

The ground reference of +5Vsb housekeeping, this ground is not connected to the chassis of the power supply.

1.2 Pin Description of SHP case J2 – I2C Bus Output connector.

1.2.1 5VCC BUS – Pin 10

This pin is an input to the SHP Case, applying 5V to this signal will provide external power to the I2C devices - EEPROM
and Microcontroller. The pin can be used to enable the I2C communication using external power supply and allow reading
of manufacturing from a non-working PSU without powering the supply. Do not supply voltage >5.5V to prevent damaging
the I2C devices.

1.2.2 SECONDARY RETURN (GND) – Pin 9

Ground Reference for the signals of J2 connector. This pin is electrical connected to Pin 10 = +5Vsb
Housekeeping Return of J1 connector.

1.2.3 SERIAL DATA SIGNAL (SDA) and SERIAL DATA CLOCK (SCL) –Pins 4, 5

These are pins for I2C communication and must be pulled-up in the system by 1K ohm resistor to 5V Housekeeping; a
current source pull-up can also be used. If multiple units are used inside a system, the 5V Housekeeping of each unit must
be connected in parallel in the system, otherwise, the SCL and SDA bus will be pulled low by the unit without AC power.

10

www.solahd.com [e-mail]

SHP Electrical Interface Application Note

1.2.4 ADDRESS PINS A0, A1, AND A2 – Pins 6, 7, 8

Multiple confi gured SHP power supplies can be used in a single system, the power supplies can have parallel outputs
or providing multiple outputs. The SHP CASE has three address pins allowing the system to assign different addresses
to multiple PSUs used within the system. The I2C devices inside the SHP-CASE are EEPROM to store FRU data and
microcontroller for PMBus. The table below listed all the possible addresses of the two I2C devices inside the PSU. Pull
the address pin to Secondary Return (COM) to set the address to “0” or High (or open) to set it the address to “1”.

www.solahd.com [e-mail]

11

SHP Electrical Interface Application Note

Inside SHP

Case

12

I2C connection diagram.

The Address A0, A1, A2 can be either pull high to Vcc or pull down to COM.

www.solahd.com [e-mail]

SHP Electrical Interface Application Note

1.3 LED Behavior

There are two green LEDs in SHP front panel that serves as visual indication of the power supply status. The table below
describes the symptom for each LED behavior.

www.solahd.com [e-mail]

13

SHP Electrical Interface Application Note

2 ELECTRICAL INTERFACE TO THE OUTPUT MODULES

2.1 Pin Description of Module J1 – Control Connector.

The following pin descriptions are applicable to single output and dual output modules.

SHP Modules
DC-DC Converter Output Modules

14

*Note:

1) All SHP modules have a green DC OK LED. (except for 36 W module)

2) 36W triple output module connector mates with Molex 09-91-0600 and
Molex 26-60-5060 terminals.

www.solahd.com [e-mail]

SHP Electrical Interface Application Note

2.1.1 Remote Sense

Pin 1 (+Remote Sense) and Pin 4 (-Remote Sense) are the pair of remote senses for single output modules, and
main output V1 for the dual output module. Pin 9 (+Remote Sense V2) and Pin 10 (-Remote Sense V2) is the pair of
remote sense for slave output V2 of the dual output module.

Connect the –RMT SENSE and +RMT SENSE to output ‘V-’ and ‘V+’ respectively at the point of load to compensate
upto 500mV of voltage drop along the power cables, note that compensating too much voltage drop can cause over­voltage and latch the output. Leaving the remote sense fl oating will not cause the module to malfunction.

SHP Module

Module 1

Module 2

Typical lmplementation of remote sensing

Remote sensing with modules in parallel

www.solahd.com [e-mail]

15

SHP Electrical Interface Application Note

2.1.2 REMOTE MARGIN/VPROG Pin 2 and MARGIN (HIGH) – Pin 3

Used to remotely adjust the output voltage regulation by +/- 4% - 6% from nominal setting. Connect Remote Margin (Pin

2) to Margin High (Pin 3) to increase output voltage by 4%- 6% of the output setting. Connect Remote Margin (Pin 2) to
–Remote Sense (Pin 4) to reduce the output voltage by 4% – 6%.

Note: The UVP and OVP threshold limits are reference to PMBus voltage setting and will not track with voltage
adjustment of Remote Margin pins. Some modules have default UVP setting of 95% of nominal which is within the
Remote Margin minimum of -6% of the nominal, adjust the UVP threshold to lower limit (e.g <90%) to avoid hitting the
UVP. The OVP limit is normally set to 115% of nominal which has enough margin from Remote Margin max
+6% of nominal, the OVP limit can be set to 120% of nominal max if more margin is desired. The UVP and OVP
can be adjusted using PMBus operation command. Adjusting the voltage using the Trim-Pot of the modules has the
same limitation as Vprog with respect to UVP and OVP setting.

Remote margining using Single
Pole Center Off switch to achieve 3
possible voltage level.

Remote margining using a
potentiometer to get voltage
adjusment range between 94% ­106% regulation of nominal rating.

16

www.solahd.com [e-mail]

SHP Electrical Interface Application Note

2.1.3 Module ISO Inhibit – Pins 6 and Module Inhibit Return - Pin 7

Isolated Inhibit input signals use to remotely enable/disable the module, apply 5V across the Module ISO Inhibit and
Module Inhibit Return to disable the module. The 5Vstandby Housekeeping output can be used to drive Module Inhibit.
When the module is turn OFF by the Inhibit pins , the PMBus MODULE OPERATION COMMAND alone CANNOT
enable the module.

Driving with 5V external supply
and bipolar transistor

When a module is set to ‘Module Enable Option 1’ the output of the module is initially OFF, the PMBus MODULE
OPERATION COMMAND alone CANNOT enable the module. The module can be enabled by applying 5V
across Pin 6 and 7, the 5Vstandby Housekeeping output can be used to drive the pins. When the external
voltage across Pin 6 and 7 is present to enable the module, the PMBus MODULE OPERATION command can
be used to disable/enable the module.

www.solahd.com [e-mail]

17

SHP Electrical Interface Application Note

2.1.4 Current Share (SWP) – Pin 8

Current Share Pin is an input/ouput signal of the module, when multiple modules are connected in parallel the Current
Share Pins of each of the parallel modules must be connected together to achieve low error current sharing. Since, the
output voltage of Current Share signal is proportional to the actual output current the pin can be used as output current

monitor, the pin will have 6V nominal output at full rated load.

18

www.solahd.com [e-mail]
