SolaHD SDN-P Series Catalog Page

4

Power Supplies

UL 508 Listed

IND. CONT. EQ.

E61379

UL 60950

E137632

CUL/CSA-C22.2

No. 234-M90

EMC and
Low Volt.
Directive

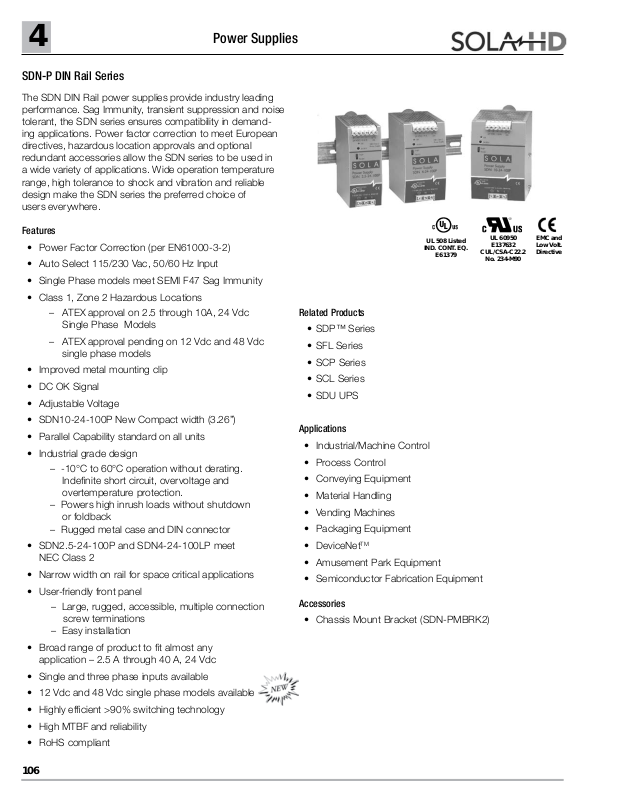

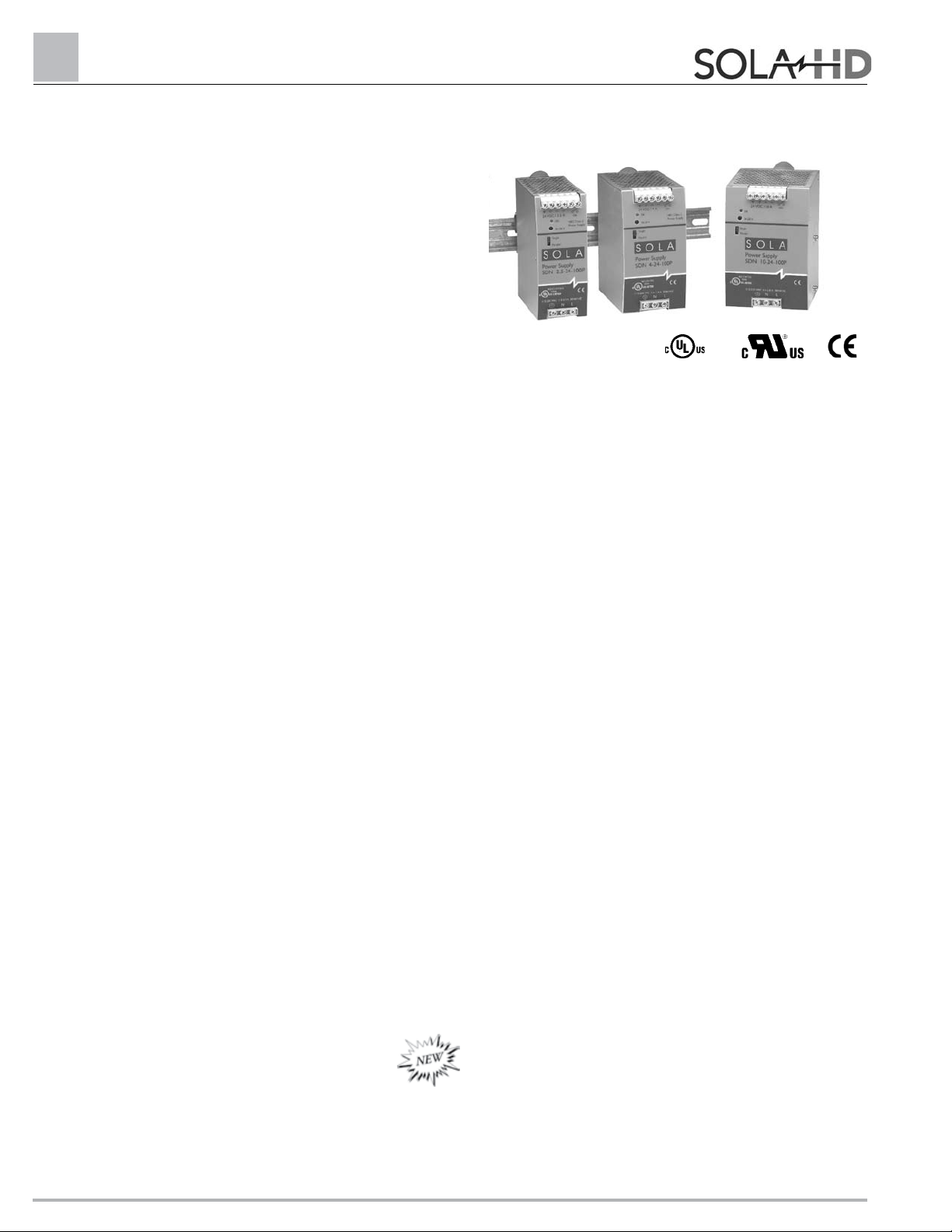

SDN-P DIN Rail Series

The SDN DIN Rail power supplies provide industry leading
performance. Sag Immunity, transient suppression and noise
tolerant, the SDN series ensures compatibility in demand­ing applications. Power factor correction to meet European
directives, hazardous location approvals and optional
redundant accessories allow the SDN series to be used in
a wide variety of applications. Wide operation temperature
range, high tolerance to shock and vibration and reliable
design make the SDN series the preferred choice of
users everywhere.

Features

Power Factor Correction (per EN61000-3-2)

•

• Auto Select 115/230 Vac, 50/60 Hz Input

•

Single Phase models meet SEMI F47 Sag Immunity

• Class 1, Zone 2 Hazardous Locations

– ATEX approval on 2.5 through 10A, 24 Vdc

Single Phase Models

– ATEX approval pending on 12 Vdc and 48 Vdc

single phase models

• Improved metal mounting clip

•

DC OK Signal

• Adjustable Voltage

•

SDN10-24-100P New Compact width (3.26”)

• Parallel Capability standard on all units

• Industrial grade design

– -10°C to 60°C operation without derating.

Indenite short circuit, overvoltage and
overtemperature protection.

– Powers high inrush loads without shutdown

or foldback

– Rugged metal case and DIN connector

• SDN2.5-24-100P and SDN4-24-100LP meet
NEC Class 2

• Narrow width on rail for space critical applications

•

User-friendly front panel

– Large, rugged, accessible, multiple connection

screw terminations

– Easy installation

• Broad range of product to t almost any
application – 2.5 A through 40 A, 24 Vdc

•

Single and three phase inputs available

• 12 Vdc and 48 Vdc single phase models available

• Highly efcient >90% switching technology

•

High MTBF and reliability

• RoHS compliant

Related Products

• SDP™ Series

•

SFL Series

• SCP Series

• SCL Series

•

SDU UPS

Applications

•

Industrial/Machine Control

• Process Control

• Conveying Equipment

•

Material Handling

• Vending Machines

• Packaging Equipment

•

DeviceNet

TM

• Amusement Park Equipment

•

Semiconductor Fabrication Equipment

Accessories

•

Chassis Mount Bracket (SDN-PMBRK2)

106

4

Power Supplies

Description Catalog Number

SDN 9-12-100P SDN 5-48-100P SDN 16-12-100P

Input

Nominal Voltage

115/230 Vac auto select

-AC Range

85-132/176-264 Vac

-DC Range

1

210-375 Vdc

-Frequency

47-63 Hz, 400 Hz

Nominal Current

2

2.0 A / 1.5 A 4 A / 2.3 A 3.3 A / 1.7 A

-Inrush current max.

Typ. < 20 A typ. < 40 A

Efficiency

2

(Losses3)

> 84% typ. (17.28 W) > 88% typ. (28.8 W) > 84% typ. (30.72 W)

Power Factor Correction

Units fulll EN61000-3-2

Output

Nominal Voltage

12 V (11.8-15.2 Vdc Adj.) 48 V (35.8 - 52 Vdc Adj.) 12 V (11.6-14.0 Vdc Adj.)

Tolerance

< ±2 % overall (combination Line, load, time and temperature related changes)

-Line Regulation

< 0.5%

-Load Regulation

< 0.5%

-Time & Temp. Drift

< 1%

Ripple

3

< 50 mVpp

Overvoltage Protection

< 16 Vdc with auto-recovery < 60 Vdc with auto-recovery < 16 Vdc with auto-recovery

Nominal Current

9 A (108 W) 5 A (240 W) 16 A (192 W)

-Current Limit

4

110% of nominal - Fold Forward (Current rises, voltage drops to maintain constant power during overload up to max peak current)

Holdup Time

5

>20 ms (Full load, 100 Vac Input @ T

amb

=+25°C) to 95% output Voltage

Parallel Operation

Supplies will not be damaged with parallel operation

Power Back Immunity

16 Vdc 60 Vdc 16 Vdc

General

EMC:

-Emissions

EN61000-6-3, EN61204-3, EN55022 Class B, EN61000-3-2, EN61000-3-3

-Immunity

EN61000-6-2, EN61204-3, EN55024, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6,
IEC61000-4-8, IEC61000-4-11

Approvals

UL508 Listed, cULus; UL 60950-1, cURus; CE (LVD 73/23 & 93/68/EEC), (EMC 89/336 & 93/68/EEC). EN61000-3-2;
UL 60079-15 pending (Class 1, Zone 2 hazardous location, Groups IIA, IIB, IIC w/ T3 temp. class up to 60°C Ambient.);
EN60079-15 (ATEX); SEMI F47 Sag Immunity, RoHS

Temperature

Storage: -25 to +85

o

C, Operation -10 to +60oC full power; with linear derating to half power from 60 to 70oC

(Convection cooling, no forced air required). Operation up to 50% load permissible with sideways or front side up mounting orientation.

Humidity

< 90% RH, non-condensing; IEC 68-2-2, 68-2-3

MTBF:

>500,000 hrs

- Standard

Telcordia/Bellcore, Issue Case 3 @25

o

C

Warranty

5 years

General Protection/Safety

Protected against Continuous short -circuit, Continuous overload, Continuous open circuit. Protection Class 1 (IEC536),
Degree of Protection IP20 (IEC 529) Safe low voltage: SELV (acc. EN60950)

Status Indicators (Visual)

Green LED on when V

out

> 75% (with ± 5% tolerance) of nominal output voltage

Status Indicators (Relay)

Normally Open solid state relay - signal active when V

out

>70% of nominal output voltage (rated up to 200 mA, 60 Vdc)

Installation

Fusing

-Input

Internally fused

-Output

Outputs are capable of providing high currents for short periods of time for inductive load startup or switching. Fusing may be required if
Nominal O/P current rating cannot be tolerated. Continuous current overload allows for reliable fuse tripping.

Mounting

Simple snap-on to DIN TS35/7.5 or TS35/15 rail system. Unit should handle normal shock and vibration of industrial use
and transportation without falling off the rail.

Connections

Input: Screw terminals, connector size range: 16-10 AWG (1.5-6mm

2

) for solid conductors.

Output: Two terminals per output, connector size range: 16-10 AWG (1.5-6mm2) for solid conductors.

Case

Fully enclosed metal housing with ne ventilation grid to keep out small parts.

-Free Space

70 mm above and below, 25 mm left and right, 15mm in front

H x W x D (inches/mm)

4.88 × 2.56 × 4.55 (124 x 65 × 116) 4.88 × 3.26 × 4.55 (124 × 83 × 116)

Weight (lbs/kg)

2.4 (1.05) 3.3 (1.48) 3.3 (1.48)

1. Input current ratings are specied with low input, line conditions and worst case efciency
values. Input current at nominal input settings will be typically half these values.

2. Losses are heat dissipation in watts at full load, nominal line.

3. Ripple/ noise is stated as typical values when measured with a 20 MHz bandwidth
scope and 50 Ohm resister.

 Ï

DEMK0 06

ATEX 05 21715U

4. Unit shall not shutdown or ‘hiccup’ during overload or short circuit. Maximum current value

shown shall be maintained indenitely without damage to the supply. Voltage shall drop

according to amount of overload to protect supply from damage.

SDNTM Specifications (Single Phase), 12 Vdc and 48 Vdc Output

108

4

24-28 V

115/230 VAC 1.3-0.7A50/60 HZ

).$#/.4 %1

USLISTED

Power Supply
SDN 2.5-24-100P

SOLA

Parallel

Single

C

(!

L

U

L

N

24 VDC/2.5A

+

+

NEC Class2
Power Supply

OK

-

-

OK

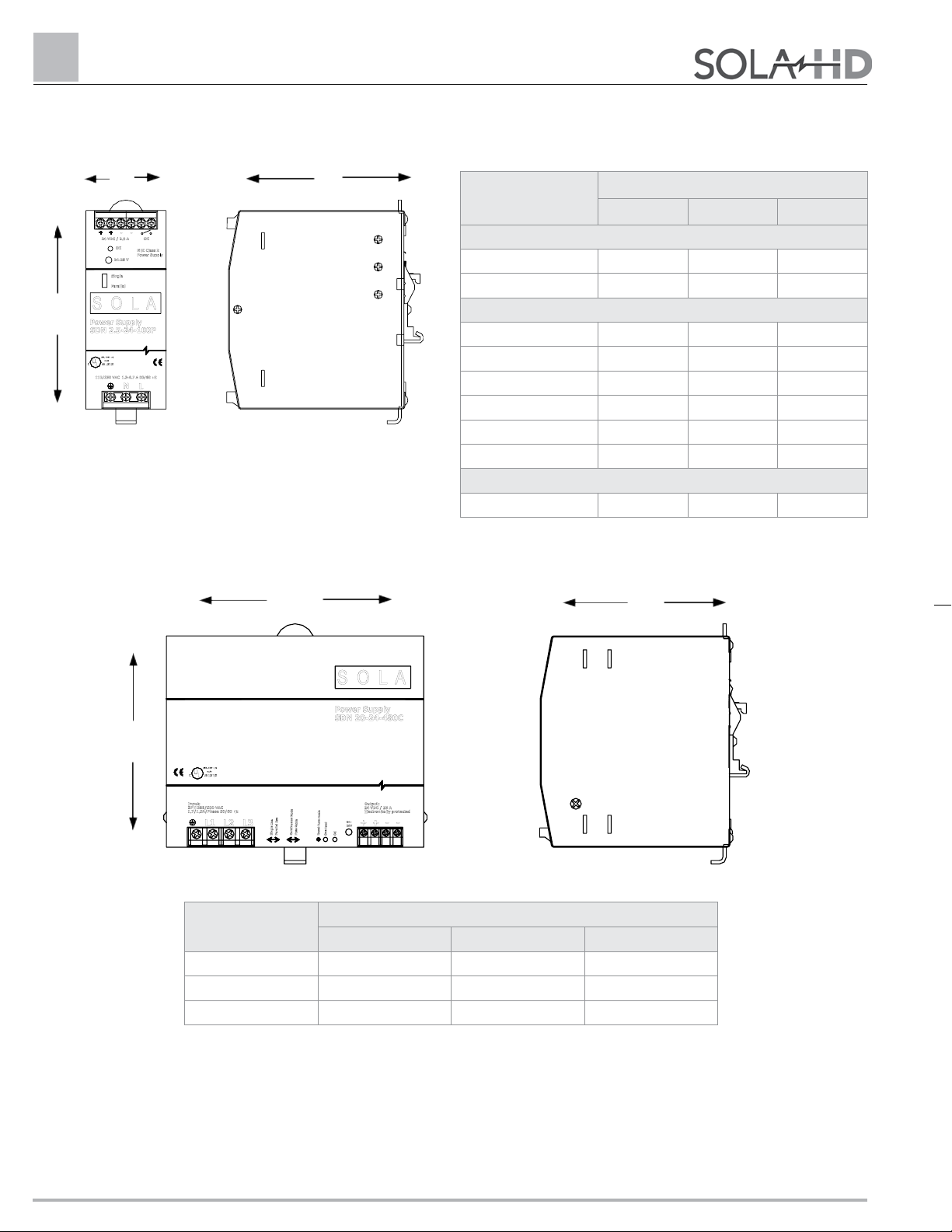

SDN™ Series Dimensions

W

D

H

Catalog
Number

Dimensions - inches (mm)

H W D

12 Vdc

SDN 9-12-100P

4.88 (124) 2.56 (65) 4.55 (116)

SDN 16-12-100P

4.88 (124) 3.26 (83) 4.55 (116)

24 Vdc

SDN 2.5-24-100P

4.88 (124) 1.97 (50) 4.55 (116)

SDN 4-24-100LP

4.88 (124) 2.56 (65) 4.55 (116)

SDN 5-24-100P

4.88 (124) 2.56 (65) 4.55 (116)

SDN 5-24-480

4.88 (124) 2.91 (73) 4.55 (116)

SDN 10-24-100P

4.88 (124) 3.26 (83) 4.55 (116)

SDN 20-24-100P

4.88 (124) 6.88 (175) 4.55 (116)

48 Vdc

SDN 5-48-100P

4.88 (124) 3.26 (83) 4.55 (116)

H

W

D

SOLA

SDN 20-24-480C

Power Supply

Electronically protected

24 VDC/20A

Output:

L1

L2

+

L3

+

-

-

24­28V

O

K

O

v

e

r

l

o

a

d

F

u

s

e

M

o

d

e

C

o

n

t

i

n

u

o

u

s

M

o

d

e

3PH 380/500VAC

1.7/1.5A/Phase 50/60Hz

Input:

S

i

n

g

l

e

U

s

e

P

a

r

a

l

l

e

l

U

s

e

R

e

s

e

t

f

u

s

e

m

o

d

e

).$ #/.4%1

USLISTED

(!

U

C

L

Catalog
Number

Dimensions - inches (mm)

H W D

SDN 10-24-480

4.88 (124) 5.90 (150) 4.55 (116)

SDN 30-24-480

4.88 (124) 9.72 (247) 4.55 (116)

SDN 40-24-480

4.88 (124) 11.10 (282) 4.55 (116)
