S5KC Series Quick-Start Guide
Screw,16 places
B
C
Guide
Rail
Insert one end
of the guide rail
into the mounting
slot on the tray

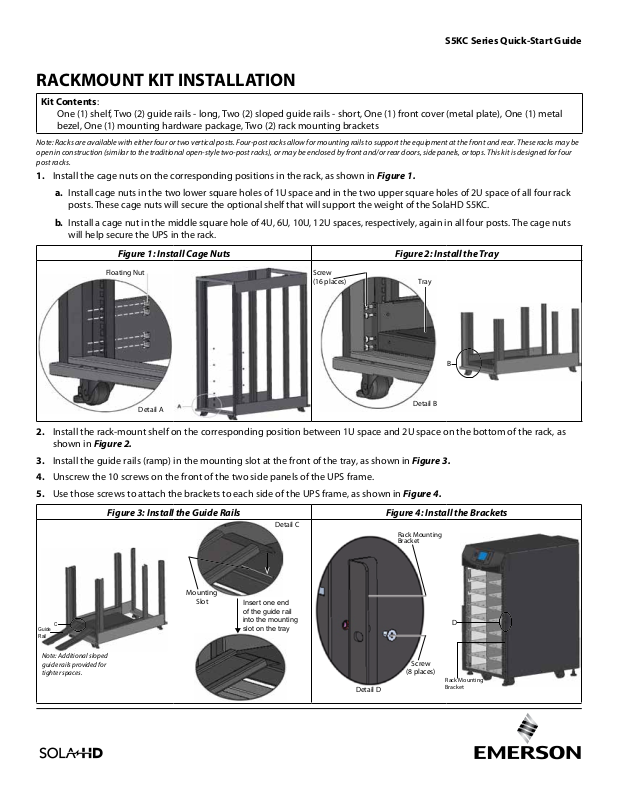

RACKMOUNT KIT INSTALLATION
Kit Contents:
One (1) shelf, Two (2) guide rails - long, Two (2) sloped guide rails - short, One (1) front cover (metal plate), One (1) metal
bezel, One (1) mounting hardware package, Two (2) rack mounting brackets
Note: Racks are available with either four or two vertical posts. Four-post racks allow for mounting rails to support the equipment at the front and rear. These racks may be
open in construction (similar to the traditional open-style two-post racks), or may be enclosed by front and/or rear doors, side panels, or tops. This kit is designed for four
post racks.
1. Install the cage nuts on the corresponding positions in the rack, as shown in Figure 1.
a. Install cage nuts in the two lower square holes of 1U space and in the two upper square holes of 2U space of all four rack
posts. These cage nuts will secure the optional shelf that will support the weight of the SolaHD S5KC.
b. Install a cage nut in the middle square hole of 4U, 6U, 10U, 12U spaces, respectively, again in all four posts. The cage nuts
will help secure the UPS in the rack.
Figure 1: Install Cage Nuts Figure 2: Install the Tray
Floating Nut
Detail A
Screw
(16 places)
Tray
B
Detail B
2. Install the rack-mount shelf on the corresponding position between 1U space and 2U space on the bottom of the rack, as
shown in Figure 2.
3. Install the guide rails (ramp) in the mounting slot at the front of the tray, as shown in Figure 3.
4. Unscrew the 10 screws on the front of the two side panels of the UPS frame.
5. Use those screws to attach the brackets to each side of the UPS frame, as shown in Figure 4.
Figure 3: Install the Guide Rails Figure 4: Install the Brackets
Detail C
Rack Mounting
Bracket
Note: Additional sloped
guide rails provided for
tighter spaces.
Mounting
Slot
Detail D
Screw
(8 places)
D
Rack Mounting
Bracket
S5KC Series Quick-Start Guide
Guide Rails
Panel Screw (8 Places)
6. Push the SolaHD S5KC frame slowly into the enclosure from the front, as shown in Figure 5. The rear of the UPS goes into the
rack rst when installing through the front of the rack.
7. Use eight panel screws to secure the UPS frame to the rack posts, as shown in Figure 6.
Figure5: Push the UPS Frame into the Rack Figure 6: Fix the UPS Frame
Panel Screw
(8 places)
E
Detail E
8. Use four screws to install the metal plate, an accessory in the rack-mount kit (Catalog Number: S5KC-RACK-KIT), on the
corresponding position on the lower front part of the UPS frame
9. Insert the provided bezel into the square holes of the metal plate, as shown in Figures 7 and 8.
Square Hole
(2 places)
Detail F
Note: It might be necessary to use the leveling feet to get the holes to align.
Figure 7: Install the Metal Plate
Front Cover
(Metal Plate)
(4 places)
Screw
Figure 8: Installation
Completed
F
Metal
Bezel
