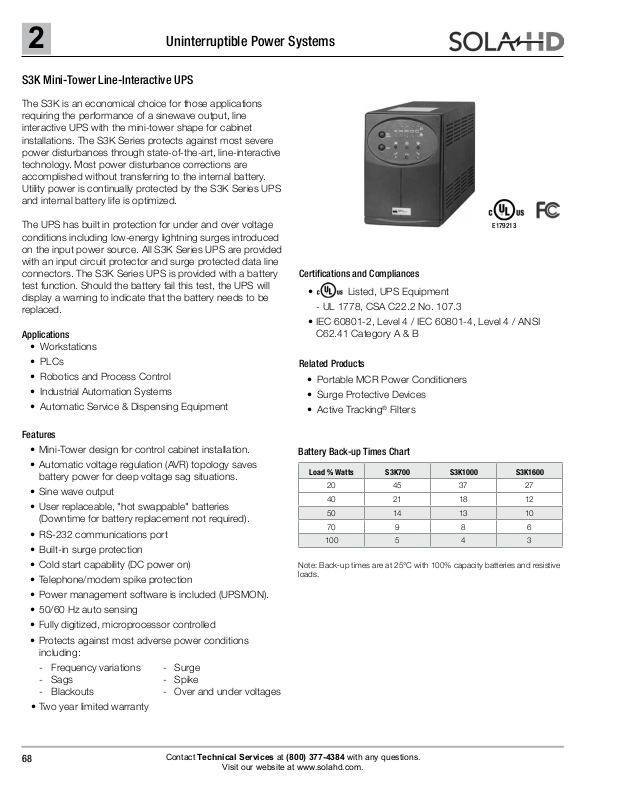

Uninterruptible Power Systems
S3K Mini-Tower Line-Interactive UPS
The S3K is an economical choice for those applications
requiring the performance of a sinewave output, line
interactive UPS with the mini-tower shape for cabinet
installations. The S3K Series protects against most severe
power disturbances through state-of-the-art, line-interactive
technology. Most power disturbance corrections are
accomplished without transferring to the internal battery.
Utility power is continually protected by the S3K Series UPS
and internal battery life is optimized.
The UPS has built in protection for under and over voltage
conditions including low-energy lightning surges introduced
on the input power source. All S3K Series UPS are provided
with an input circuit protector and surge protected data line
connectors. The S3K Series UPS is provided with a battery
test function. Should the battery fail this test, the UPS will
display a warning to indicate that the battery needs to be
replaced.
Applications
• Workstations
• PLCs
• Robotics and Process Control
• Industrial Automation Systems
• Automatic Service & Dispensing Equipment
Features
• Mini-Tower design for control cabinet installation.
• Automatic voltage regulation (AVR) topology saves
battery power for deep voltage sag situations.
• Sine wave output
• User replaceable, "hot swappable" batteries
(Downtime for battery replacement not required).
• RS-232 communications port
• Built-in surge protection
• Cold start capability (DC power on)
• Telephone/modem spike protection
• Power management software is included (UPSMON).
• 50/60 Hz auto sensing
• Fully digitized, microprocessor controlled
• Protects against most adverse power conditions
including:
- Frequency variations - Surge
- Sags - Spike
- Blackouts - Over and under voltages
• Two year limited warranty
E179213
Certifications and Compliances
•
- UL 1778, CSA C22.2 No. 107.3
• IEC 60801-2, Level 4 / IEC 60801-4, Level 4 / ANSI
C62.41 Category A & B
Related Products
• Portable MCR Power Conditioners
• Surge Protective Devices
• Active Tracking
Battery Back-up Times Chart
Load % Watts S3K700 S3K1000 S3K1600
Note: Back-up times are at 25°C with 100% capacity batteries and resistive
loads.
Listed, UPS Equipment
®
Filters
20 45 37 27
40 21 18 12
50 14 13 10
70 9 8 6
100 5 4 3
Selection Table
Capacity
(VA/W)
700/480
1000/750
1440/1200
* Full/Half Load (in minutes).
Catalog
Number
S3K700
S3K1000
S3K1600
Specifications
Catalog Number S3K700 S3K1000 S3K1600
Power Rating (VA/Watts)
Unit (H x W x D)
Shipping (H x W x D)
Approx. Shipping Weight - lbs (kg)
Voltage Range
Plug
Line to Boost Transfer
Line to Buck Transfer
Frequency
Voltage
Receptacles
Frequency
Waveform
Overload Warning
Overload Shutdown
Type
Battery Time (mins) (FL/HL)
Qty. x Voltage x Rating
Transfer Time
Back-up Time
Recharge Time
Operating Temperature
Storage Temperature
Relative Humidity
Operating Elevation
Audible Noise
EMC
Uninterruptible Power Systems
Volts, Frequency
(In/Out)
120/120, 50/60 Hz 5/14 (Detached) 5-15P / (4)5-15R 34.1 (15.50)
120/120, 50/60 Hz 4/13 (Detached) 5-15P / (4)5-15R 37.0 (16.80)
120/120, 50/60 Hz 3/10 (Attached) 5-15P / (6)5-15R 70.4 (32.00)
700/480 1000/750 1440 */1200
34.1 (15.50) 37.0 (16.80) 70.4 (32.00)
6 ft. detachable with NEMA 5-15P Attached 5-15P
5/14 4/13 3/10
Typical Back-up
Time (minutes)*
Dimensions inches (mm)
8.30 x 5.50 x 17.20
(210.0 x 140.0 x 436.0)
11.75 x 10.50 x 19.20
(300.0 x 265.0 x 492.0)
Input AC Parameters
Maintains output to 120 Vac; -14%, when input is 120 Vac, -25%
Maintains output to 120 Vac; +10%, when input is 120 Vac, +23%
Output AC Parameters
(4) NEMA 5-15R (6) NEMA 5-15R
Battery Parameters
Valve-regulated, non-spillable, lead acid
4 x 12 V x 7 AH 6 x 12 V x 7 AH
to 90% rated capacity, after full discharge into resistive load
Environmental
Up to 10,000 ft. (3000 m) at 35°C without derating
<40 dBA, (beyond 1 m) <45 dBA, (beyond 1 m)
Standards
45-55 Hz or 55-65 Hz; auto sensing
103 Vac to 132 Vac
50 Hz or 60 Hz ±0.5%
100-110% Nominal
See Battery Back-up Times Charts
0% to 95%, non-condensing
FCC Part 15, Subpart B, Class A
Input Plug/Output Receptacle
(226.0 x 170.0 x 450.0)
14.00 x 12.00 x 22.25
(358.0 x 307.0 x 581.0)
103-132 Vac
Sine wave
200% Nominal
2-4 ms typical
4 Hours
0°C to +40°C
-15°C to +50°C
Approx. Ship Weight
lbs (kg)
8.90 x 6.70 x 17.70
