Page 1

VECTOR 50

Gebrauchsanweisung

Operating instructions

Manuel d’instructions

Instruzioni d‘uso

Instrucciones de uso

Gebruiksaanwĳzing

Руководство по применению

Instrukcja obsługi

Eksploatacĳos instrukcĳa

Lietošanas instrukcĳa

Uputstvo za upotrebu

Návod k použití

Manual de utilizare

Ръководство за употреба

Használati útmutató

Page 2

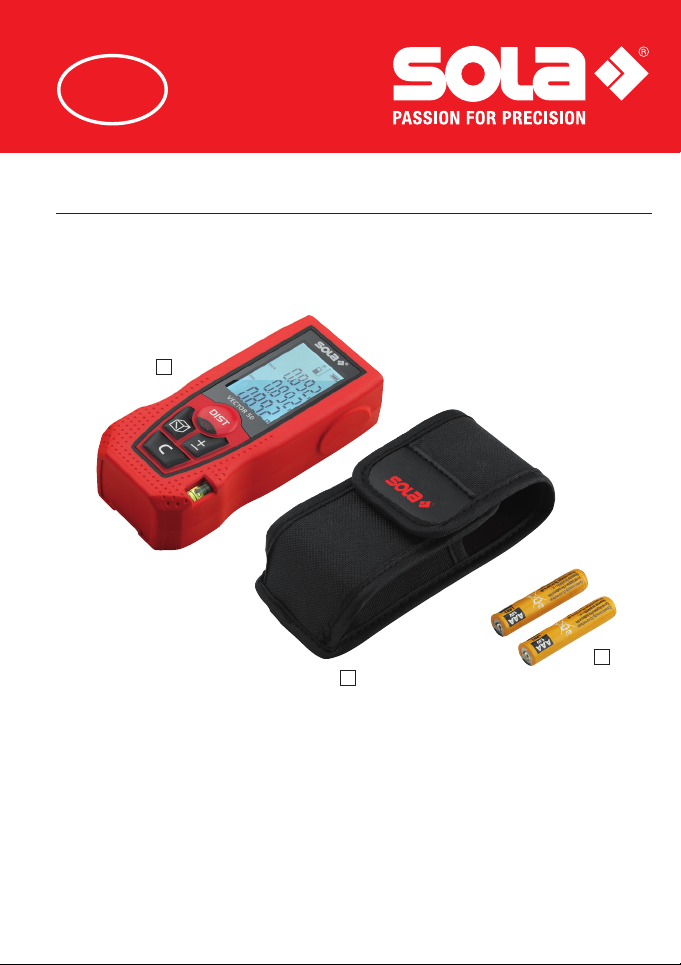

Included in delivery with the Vector50

1. Laser distance measurement instrument

2. Belt pouch

3. AAA batteries

Page 3

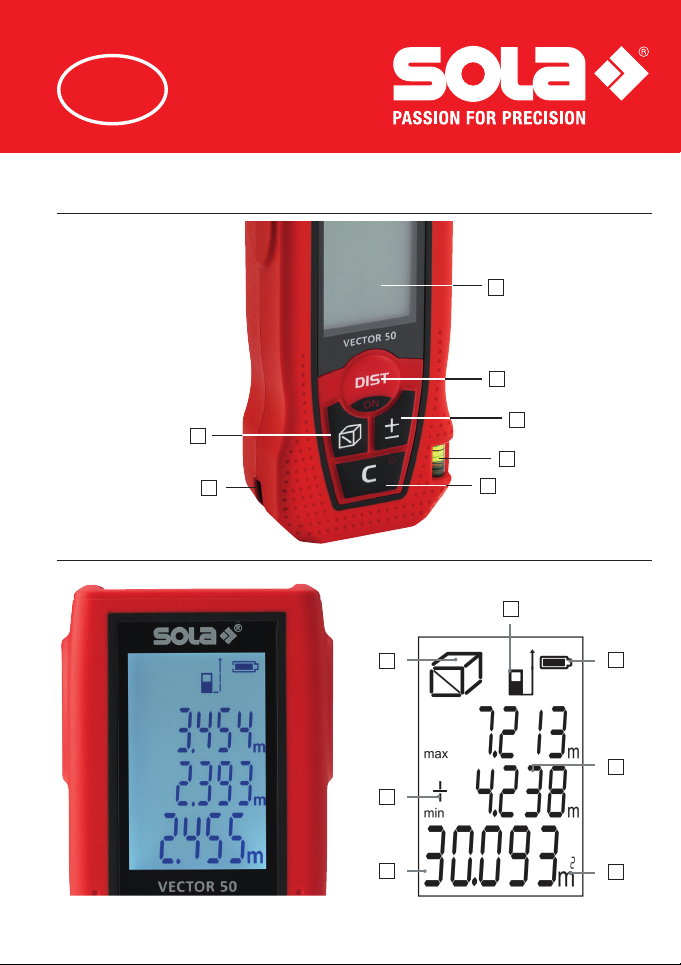

2.1 Function buttons

2.1 Display

Page 4

Operating manual Vector 50 laser distance meter (original version)

About this manual

Congratulations on the purchase of your new Vector 50! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions:

• Please read this operating manual before commissioning the device.

• Always keep the operating manual near the device.

• Only hand over the device to other persons together with the operating manual.

• Never render the attached warning signs unreadable.

Contents

1. General information

2. Description

3. Technical data

4. Safety instructions

5. Laser safety / classication

6. Getting Started

7. Operation

8. Maintenance, storage and transportation

9. Delivery contents and accessories

10. Troubleshooting

11. Disposal

12. Manufacturer’s guarantee

13. EC conformity declaration

Page 5

1. General information

1.1 Signal words and their meaning DANGER

For an imminent danger that could lead to serious injury or death.

WARNING

For a possibly dangerous situation that could lead to serious injury or death.

CAUTION

For a possibly dangerous situation that could lead to slight injury or property damage.

NOTE

For application notes and other useful information.

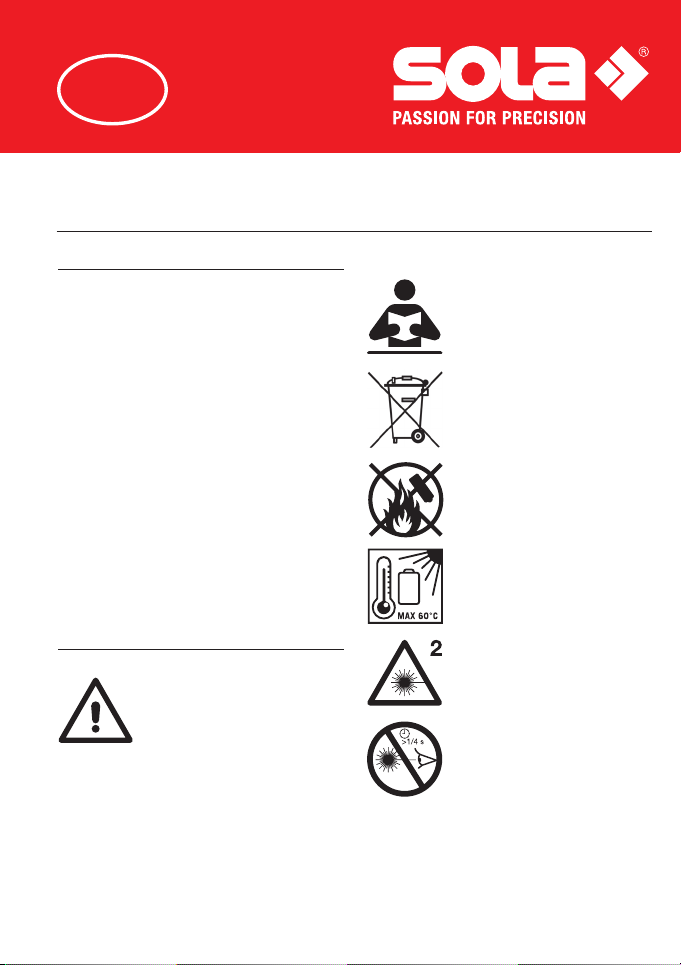

1.2 Pictograms and other information

1.2.1 Warning signs

Warning of dangers in general

1.2.2 Symbols

Read the operating manual before use

Batteries and devices must not be disposed of with household waste

Do not throw batteries into the re

Warning signs on battery Do not heat the battery above 60 °C.

Class 2 laser device

Do not look into the laser beam!

Page 6

2. Description

2.1 Function Buttons

1 Vial 2 Display 3 ON/Measure button 4 Add, subtract/signal 5 Function button 6 OFF/Delete button 7 Belt holder

2.2 Display

1 Measured values 2 Mathematical sign 3 Surface, volume, indirect measurement 4 Measured value display 5 Battery status 6 Measurement edge 7 Unit

2.3 Intended use

This instrument is designed to measure distances. The measured value, setting, and instrument status can be viewed on the display. A laser beam is emitted and then sent back to the laser distance measurement instrument from a reected surface. This is used to calculate the distance. The range depends on the model of the laser distance measurement instrument, on reectivity, and on the properties of the reective surface.

Page 7

3. Technical data

3.1 General

Measurement range 0.15–50m* Accuracy ± 1.5mm** Protection rating IP 42 Laser class 2 Laser type 650nm, < 1mW Laser auto-shutdown 45s Instrument auto-shutdown 180s Operating duration up to 5000 measurements*** Battery type 2 x AAA 1.5V Operating temperature 0–40°C Storage temperature -20–60°C Dimensions (H x W x D) 105 x 47 x 27 Weight with batteries 85g

*When measuring a target with 100% reectivity (e.g. a painted white wall), with low backlight and an operating temperature of 25°C. Under unfavorable conditions, e.g direct sunlight, non-reective surfaces or measurements on glass or shiny surfaces, the inaccuracy can increase and measuring errors can therefore occur. The reach of the visible laserpoint always depends on the ambient conditions. **This degree of precision applies when measuring distances of between 0.2 to 10 m. When measuring distances of between 10 m and 40 m, the maximum tolerance may decrease by 0.1 mm/m. ***When operated at room temperature.

3.2 Functions

Individual measurement Min/max measurement Continuous measurement Area measurement Volume measurement Indirect 2-point measurement Addition Subtraction 3-part back-lit display

Page 8

4. Safety instructions

4.1 AREA OF RESPONSIBILITY

4.1.1 Manufacturer

SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories.

4.1.2 Operator

The operator is responsible for using the product as intended, the deployment of his personnel, their training and the operational safety of the product.

The operator understands the safety information which is stated on the product and

the instructions in the operating manual.

The operator shall comply with the standard local regulations relating to safety and accident preven-

tion regulations as well as worker protection laws and regulations.

The operator shall immediately notify SOLA if safety-related issues should arise relating to the product

or during its utilization.

The operator shall ensure that the product is not utilized any further if defects become evident, and

they will have the product repaired professionally.

4.2 Improper Use

Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits Use under extreme temperature ﬂuctuations without an adequate acclimatization. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modiﬁcations or alterations to the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site.

(see Chapter 3 / Technical data)

4.3 Utilization limitations

The VECTOR 50 is suitable for continuous use in an atmosphere which can be inhabited by humans.

Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments, in

close proximity to electrical installations or similar surroundings.

Page 9

4.4 Usage Hazards

4.4.1 General

WARNING

Missing or incomplete instructions may result in improper or incorrect use. This can cause accidents with serious damage to persons, property, assets and the environment.

Follow the manufacturer’s and operator’s safety instructions. Protect equipment and accessories from being accessed by children.

WARNING

Blinding by laser radiation can indirectly lead to serious accidents, especially for people who are driving a vehicle or operating machinery. Do not look into the laser beam.

Do not set up the laser beam and the laser plane at eye level or aim at people.

CAUTION

A fall, longer storage, transportation or other mechanical eects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment.

Repairs must only be performed by SOLA.

4.4.2 Batteries

DANGER

Mechanical damage can cause batteries to leak, explode or catch ﬁre or trigger the release of toxic substances.

Batteries and rechargeable batteries must not be opened or exposed to mechanical loads. Repairs must only be performed by SOLA.

Page 10

WARNING

High ambient temperatures and immersion into liquids can cause batteries to leak, explode or catch ﬁre or trigger the release of toxic substances.

Protect batteries and rechargeable batteries from mechanical damage during transport. Do not overheat batteries and rechargeable batteries or expose them to ﬁre. Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. Perform a proper disposal

(see Chapter 11 / Disposal)

WARNING

A short-circuiting or unintended use can cause batteries to overheat and create an injury or ﬁre hazard.

Do not transport or store batteries in the pockets of garments. Do not bring the battery contacts in contact with jewellery, keys, or other electrically conductive

objects. Do not charge the batteries. Do not discharge the batteries through short-circuiting. Do not solder the batteries in the device. Do not mix old and new batteries, and do not mix batteries from dierent manufacturers or with a

diering type designation.

WARNING

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. Burning plastic components generates toxic fumes which may impair health. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized persons are able to use the product improperly.

The product must not be disposed of together with household waste. Dispose of the device and

accessories properly

(see Chapter 11 / Disposal)

Protect the product against access by unauthorized persons at all times, and especially children.

Page 11

4.5 ELECTROMAGNETIC COMPATIBILITY (EMC)

The electromagnetic compatibility is the ability of the product to function in an environment where electromagnetic radiation and electrostatic discharge are present, without causing electromagnetic interference to other devices.

4.5.1 Interference with other devices by VECTOR 50

Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as ﬁeld computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

When using computers and radio equipment, be sure to observe to the vendor-speciﬁc information

about electromagnetic compatibility. Only use original SOLA equipment and accessories.

4.5.2 Interference with the VECTOR 50 by other devices

Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot entirely exclude the possibility that intense electromagnetic radiation in the immediate vicinity of radio transmitters, two-way radios, diesel generators, etc. may distort the measurement results.

When performing measurements under these conditions, check the plausibility of the results.

Page 12

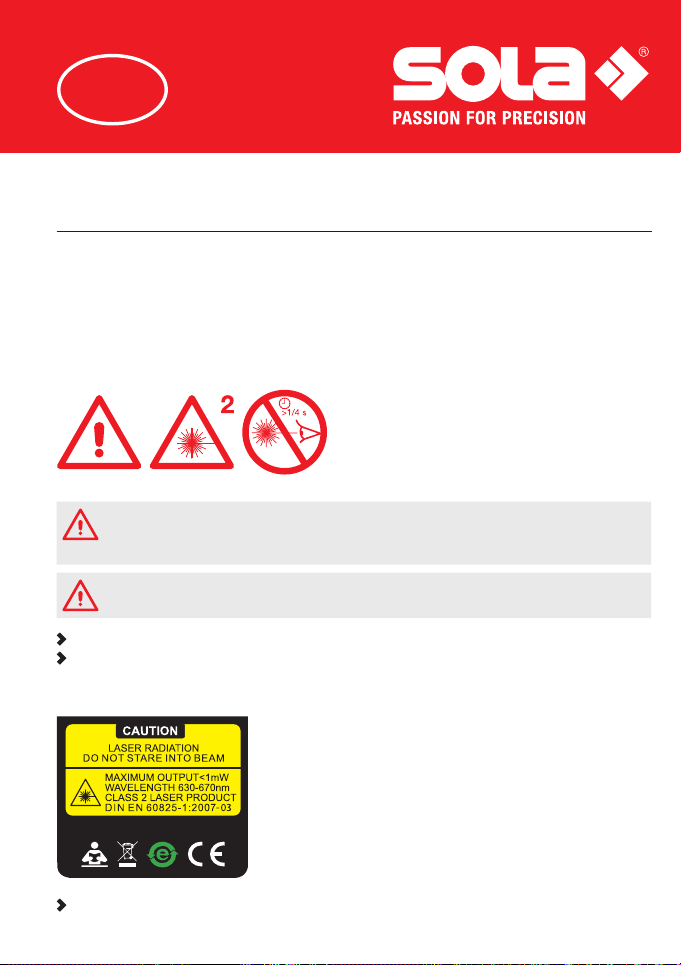

5. Laser safety / classiﬁcation

The VECTOR50 emits a visible laser point. The product corresponds to Laser Class 2 according to DIN EN 60825-1:2007-03.

Laser Class 2:

When using Class 2 laser devices, the eye is protected by the blink reﬂex or aversion reaction in the case of random and short-term exposure.

WARNING

Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be dangerous.

CAUTION

Looking into the laser beam may be hazardous to the eye.

Do not look into the laser beam. Do not aim the laser beam at other people.

Labelling on the device:

Made in PRC

Do not remove the type plate!

www.sola.at

Page 13

6. Getting Started

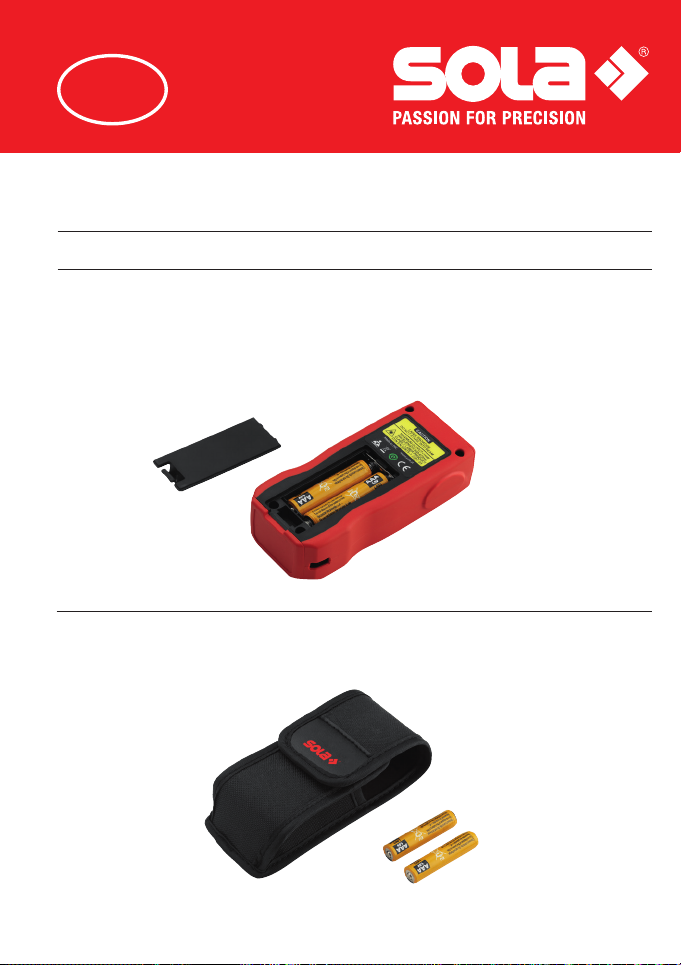

6.1 Operation with batteries

1. Open the battery compartment cover on the rear side of the device.

2. Insert the batteries into the instrument, observing the correct polarity.

3. Close the battery compartment cover. Only use type 1.5 V AAA batteries! Remove the batteries if the instrument is not used for an extended period.

6.2 Belt clip

The laser instrument can be stowed in a belt pouch for transport. It must be removed from the pouch when taking measurements.

Page 14

7. Operation

7.1 Getting Started

7.1.1 Switching the Instrument On and Off

Hold down the ON/Measure button to switch the laser instrument on. Hold down the OFF/Delete button for 2seconds to switch the laser instrument off.

7.1.2 Back

Press the OFF/Delete button once to undo the last action. Press the OFF/Delete button twice to exit the current function and return to individual measurement mode.

7.1.3 Setting the measurement plane

Hold down the function button for 2seconds to toggle between the front and the back of the instrument. The selection is indicated by an arrow on the display. The back of the instrument is set as the measurement edge by default. Each time the instrument is restarted, the back of the instrument is reset as the measurement edge.

7.1.4 Audible signal on/off

Hold down the Add/subtract button for 2seconds to switch the audible signal on or off.

7.2 Applications

7.2.1 Individual Measurement

1. Switchon the laser instrument.

2. Direct the laser point at the target.

3. Press the ON/Measure button.

As soon as an audible signal is emitted, the measurement is complete. and the distance can be seen on the display. To calculate additional distances, press the Measure button again.

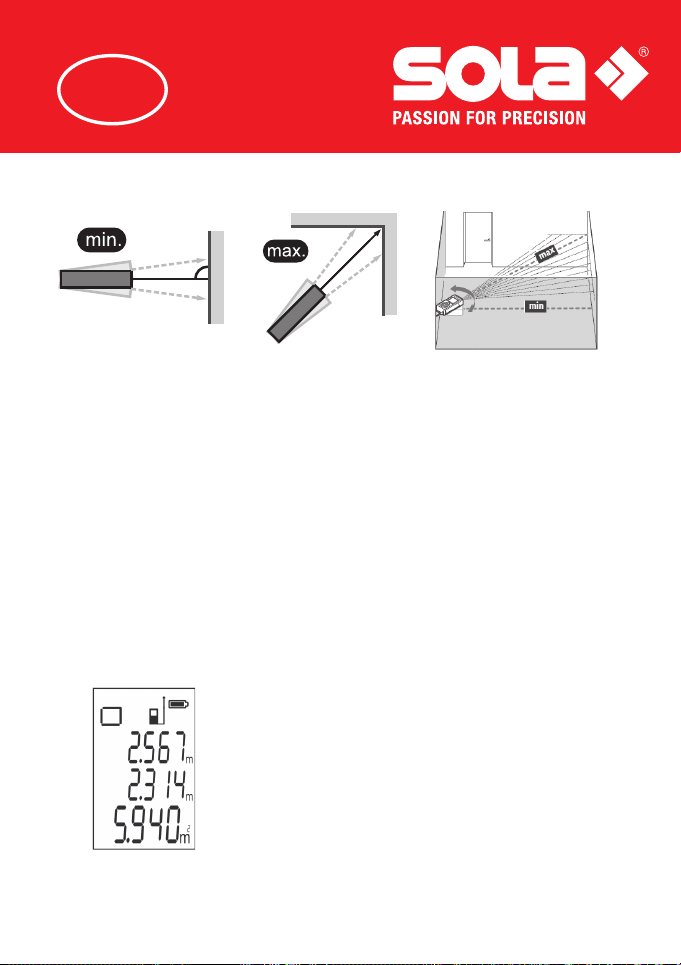

7.2.2 Min/Max Measurement

1. Switch on the laser instrument.

2. Direct the laser point at the target.

3. Hold down the ON/Measure button for 2 seconds. The minimum and maximum values are shown on the display. To stop the measurement, simply press the ON/Measure button.

Page 15

7.2.3 Continuous Measurement

1. Switch on the laser instrument.

2. Direct the laser point at the target.

3. Press the Min/Max and continuous measurement button.

The laser instrument measures the distance and shows it on the bottom line of the display.

7.2.4 Area Measurement

1. Switch on the laser instrument.

2. Press the Function button until the display for area measurement appears.

3. Measure the length and then the width separately using the individual measurement method. The laser beam remains switched on between the two measurements.

Once the second measurement is complete, the area is automatically calculated and shown on the bottom line of the display. The individual measured values are shown in measured value lines 1 and 2.

Page 16

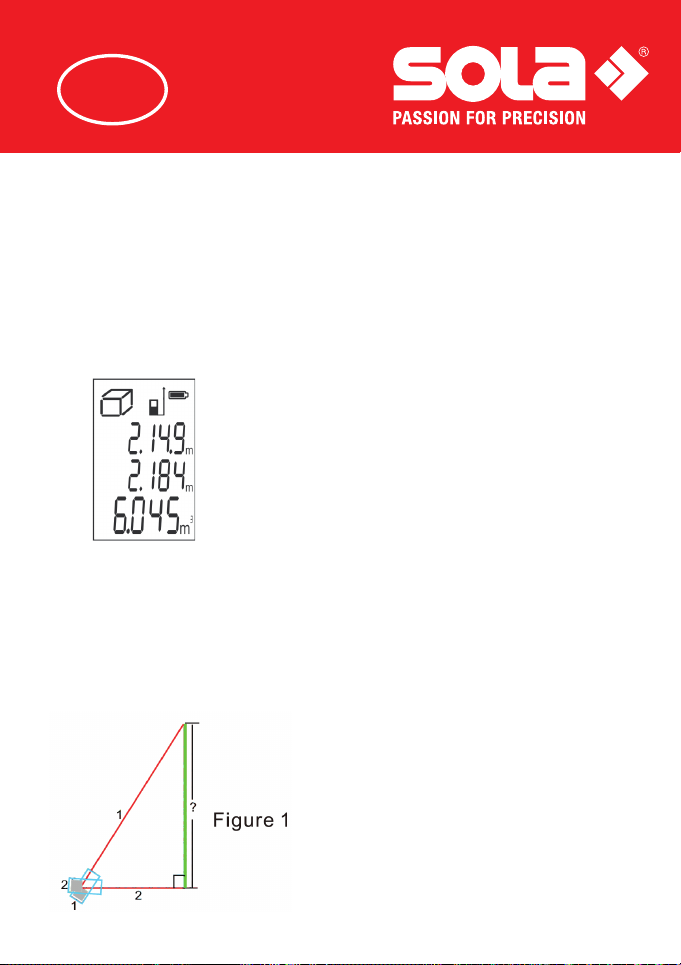

7.2.5 Volume Measurement

1. Switch on the laser instrument.

2. Press the Function button until the display for volume measurement appears.

3. Measure the length, the width, and then the height separately using the individual measurement method. The laser beam remains switched on between the three measurements.

Once the third measurement is complete, the volume is automatically calculated and shown on the bottom line of the display. The individual measured values are shown in measured value lines 1, 2, and 3.

7.2.6 Indirect 2-Point Measurement

1. Switch on the laser instrument.

2. Press the Function button until the display for indirect 2-point measurement appears.

3. Measure the two points separately using the individual measurement method. The laser beam remains switched on between the two measurements.

Once the second measurement is complete, the length is automatically calculated and shown on the bottom line of the display. The individual measured values are shown in measured value lines 1 and 2.

Page 17

CAUTION

The three points measured must run in a line and the second measurement must be taken at a right angle to the measured surface; otherwise measured values may be incorrect.

7.2.7 Addition

1. Switch on the laser instrument.

2. Direct the laser point at the target.

3. Take an individual measurement.

4. Press the Add/subtract button to add the next individual measurement. (plus symbol + appears on the display).

5. Take an individual measurement.

The laser instrument shows the result on the bottom line of the display. This process can be repeated as many times as required.

7.2.8 Subtraction

1. Switch on the laser instrument.

2. Direct the laser point at the target.

3. Take an individual measurement.

4. Press the Add/subtract button twice to subtract the next individual measurement. (minus symbol - appears on the display).

5. Take an individual measurement.

The laser instrument shows the result on the bottom line of the display. This process can be repeated as many times as required.

7.3. Guidance for operation

The laser instrument must not be moved while measuring. A xed mounting surface with a stop is therefore recommended. The laser outlet and receiving area must not be covered during measurement.

Depending on the measured surface, it cannot be guaranteed that all measurements are completely accurate. Avoid surfaces that are textured, reective, transparent, or porous.

Page 18

8. Maintenance, storage and transportation

8.1 Cleaning

Wipe off the dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary.

Do not touch the glass with your ngers. Do not use aggressive cleaning agents or solvents. Do not immerse the device in water! Clean and dry wet equipment, accessories and transport containers prior to

packaging them. Only pack equipment again when it is completely dry. Keep plug connections clean and protected from moisture.

8.2 Storage

8.2.1 General

The equipment may only be stored within the specied temperature limits

(see Chapter 3 / Technical data)

After prolonged storage, check the accuracy of the measuring device before using it.

8.2.2 Batteries

For storage, remove the batteries from the device. They should preferably be stored in a dry environment at room temperature Protect from moisture and humidity. Dry wet or damp batteries before storage before usage.

8.3 Transport

8.3.1 General

The device may be damaged if it falls or is subjected to strong vibrations.

Never transport the product loose. Always use the original packaging or an equivalent transport

container. Switch off the measuring device before transporting it. Check the unit for damage before use.

(see Chapter 3 / Technical data)

8.3.2 Batteries

When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations.

Before shipping, remove the batteries from the device.

Page 19

9. Delivery contents and accessories

9.1 Included in delivery with the Vector50

1 Laser distance measurement instrument 2 batteries 1 Belt pouch

9.2 ACCESSORIES (optional)

LB RED laser protection goggles ZSRED target

Further information on accessories can be found at www.sola.at

Page 20

10. Troubleshooting

Error Possible Cause Remedy

301

Distance outside of the

measurement range.

Stay inside the

measurement range.

302

303

304

305

306

307

308

The reected signal is

too weak.

Range outside the

display.

Calculation error in

Pythagoras.

Low battery. Put new batteries in.

Temperature too low. Warm the instrument up.

Temperature too high. Cool the instrument down.

Ambient light is too bright. Carry out the measurement in a

Measure using a more

reective surface.

Use the OFF/Delete button

to reset to zero.

Carry out measurement again.

darker environment.

Page 21

11. Disposal

Measuring tools, accessories and packaging must be recycled in an environmentally-friendly manner.

Your SOLA dealership will accept returned batteries as well as old equipment, and will ensure proper disposal.

Only for EU countries

The product as well as the accessories - especially the batteries and rechargeable batteries - must not be disposed of with household waste.

Dispose of the device and the accessories properly. Observe the country-specic disposal requirements.

Electric tools must not be disposed of with household waste! According to European Directive 2002 / 96 / EC on Waste Electrical and Electronic Equipment and its transposition into national law, electrical and electronic equipment that is no longer usable must be collected separately and recycled in an environmentally friendly manner.

Page 22

12. Manufacturers’ guarantee

"The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and/or replacements at the manufacturer’s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical aws that do not affect the usability of the equipment, are not covered by this guarantee. Claims under this guarantee can only be invoked if the device is submitted along with the guarantee card, completely lled out by the dealer, dated and provided with the company stamp. If the guarantee claim is justied, the manufacturer shall bear the transport costs. The duration of the guarantee will not be extended through repair or spare parts work which is carried out within the scope of the guarantee. Further claims are excluded, unless these are stipulated by the respective national legislation. In particular the manufacturer shall not be liable for any direct, indirect, incidental or consequential damages, losses or expenses in connection with the use or because of the inability to use the tool for any purpose whatsoever. Implied warranties for the usage or suitability for a particular purpose are expressly excluded."

Page 23

13. EC conformity declaration

Konformitätserklärung Declaration of conformity Déclaration de conformité

Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria

erklären in alleiniger Verantwortung, dass das Produkt(e)

declare under our sole responsibility that the Product(s)

déclarons sous notre seule responsabilité que le(s) produit(s)

auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.

to which this declarations relates is in conformity with the following standards.

auquel(s) se réfère cette déclaration est conforme aux normes.

Gemäss den Bestimmungen der Richtlinie(n)

Following the provisions of Directive(s)

Conformément aux dispositions de(s) Directive(s)

Electromagnetic compatibility 2014/30/EU

SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria

Phone +43(0)5523 53380, [email protected], www.sola.at

VECTOR 50

EN 61326-1: 2013

EN 61326-2-2: 2013

SOLA-Messwerkzeuge GmbH

Mag. Wolfgang Scheyer CEO
