Sola QUBO Operating Instructions Manual

Download

Page 1

Gebrauchsanweisung

Operating instructions

Manuel d’instructions

Instruzioni d‘uso

Instrucciones de uso

Gebruiksaanwijzing

Руководство по применению

Instrukcja obsługi

Eksploatacijos instrukcija

Lietošanas instrukcija

Uputstvo za upotrebu

Návod k použití

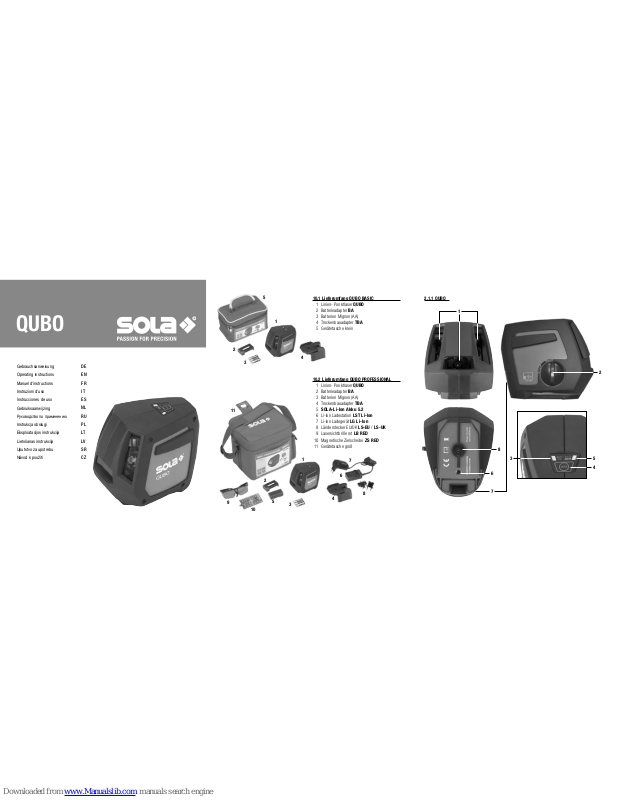

QUBO

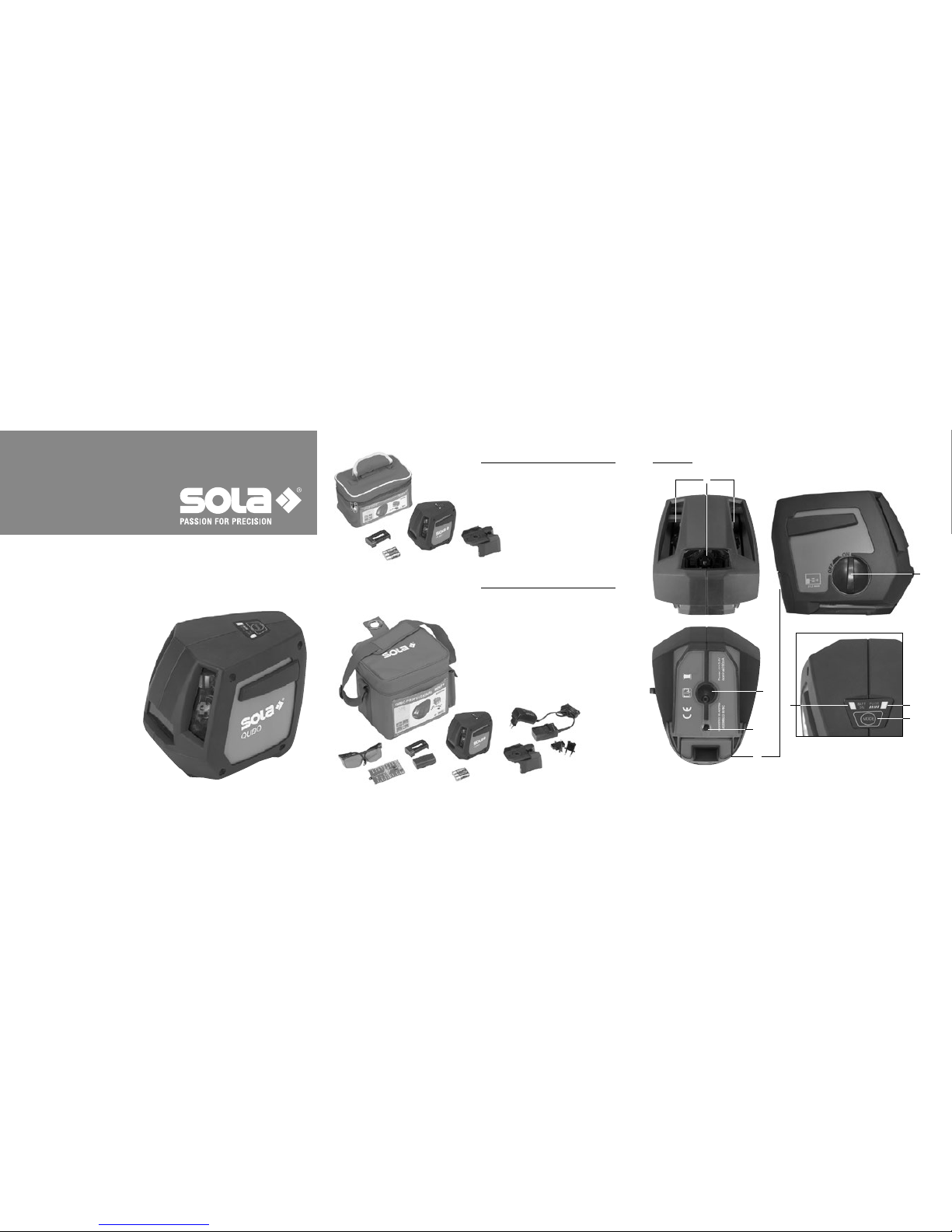

10.1 Lieferumfang QUBO BASIC

1 Linien- Punktlaser QUBO 2 Batterieadapter BA 3 Batterien Mignon (AA) 4 Trockenbauadapter TBA 5 Gerätetasche klein

10.2 Lieferumfang QUBO PROFESSIONAL

1 Linien- Punktlaser QUBO 2 Batterieadapter BA 3 Batterien Mignon (AA) 4 Trockenbauadapter TBA 5 SOLA-Li-Ion Akku 5.2 6 Li-Ion Ladestation LST Li-Ion 7 Li-Ion Ladegerät LG Li-Ion 8 Länderstecker EU/UK LS-EU / LS-UK 9 Lasersichtbrille rot LB RED 10 Magnetische Zielscheibe ZS RED 11 Gerätetasche groß

2.1.1 QUBO

Page 2

2.1.3 SOLA Li-ion Akku, Ladestation und Ladegerät

2.1.2 Trockenbauadapter TBA

Page 3

Operating manual QUBO Line / Point Laser (German original version)

About this manual

Congratulations on the purchase of your new QUBO! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions:

• Please read these operating manual before starting to use the device.

• Always keep the operating manual near the device.

• Only hand over the device to other persons together with the operating manual.

• Never render the attached warning signs unreadable.

Contents

1. General information

2. Description

3. Technical data

4. Safety instructions

5. Laser safety / classication

6. Startup

7. Operation

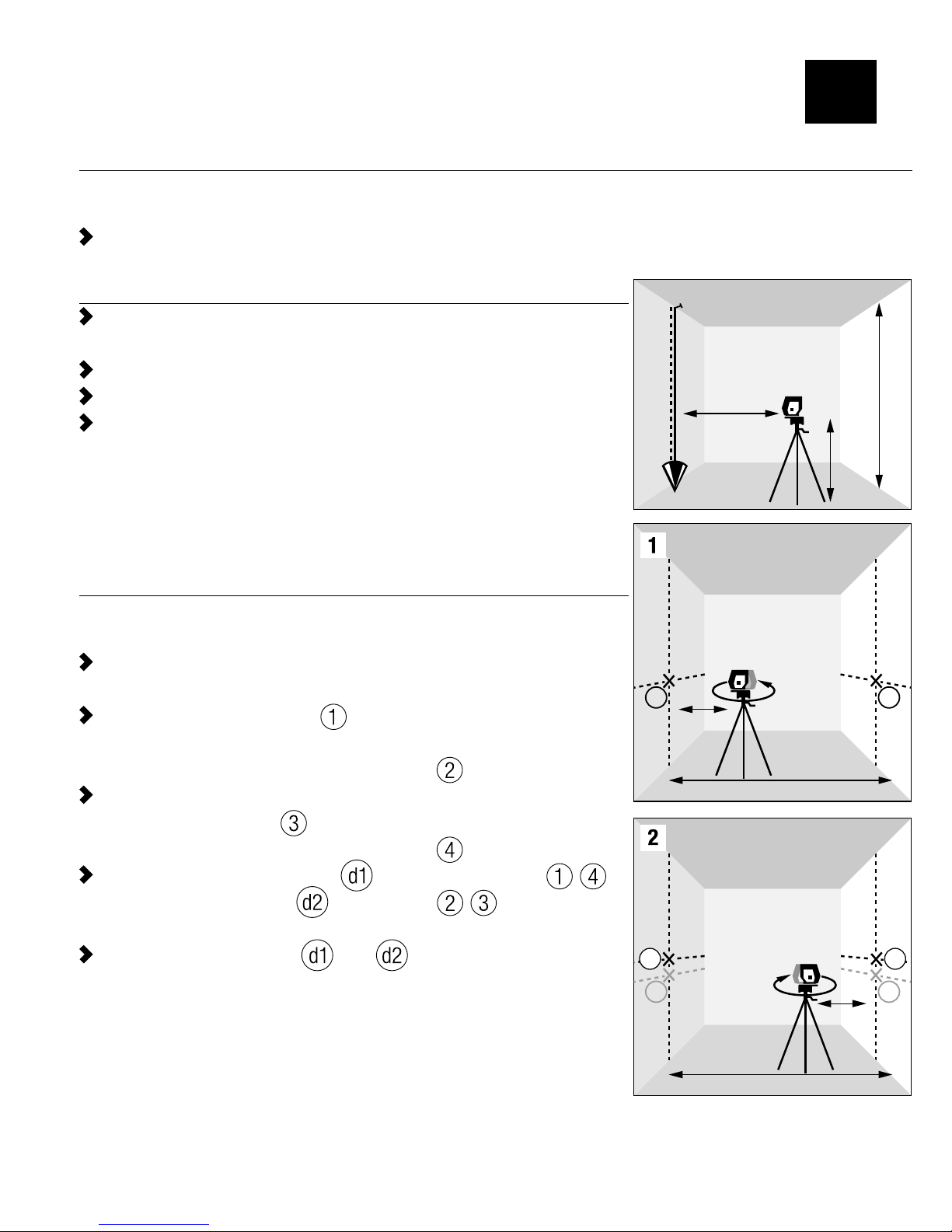

8. Checking the accuracy

9. Maintenance, storage and transportation

10. Scope of delivery and accessories

11. Troubleshooting

12. Disposal

13. Warranty

14. EC conformity declaration

Page 4

1.1 Signal words and their meaning DANGER

For an imminent danger that could lead to serious injury or death.

WARNING

For a possibly dangerous situation that could lead to serious injury or death.

CAUTION

For a possibly dangerous situation that could lead to slight injury or property damage.

NOTE

For application notes and other useful information

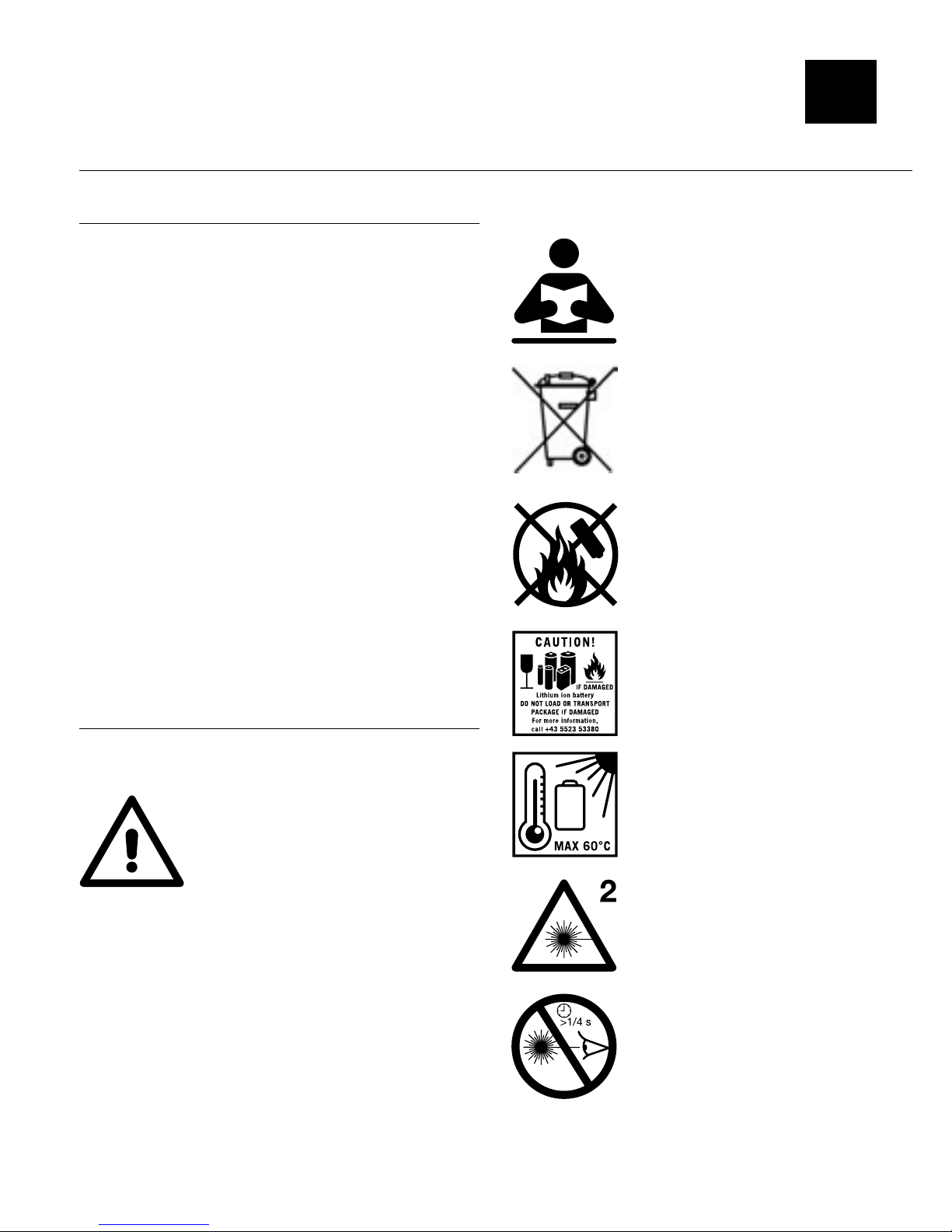

1.2 Pictograms and other information

1.2.1 Warning signs

Warning of dangers in general

1. General information

1.2.2 Symbole

Read instructions before use

Batteries and devices may not be disposed of with household waste

Do not throw batteries into the re

Warning label on packages with Li-Ion batteries

Warning signs on battery Do not heat the battery above 60 °C.

Class 2 laser device

Do not look into the laser beam!

Page 5

2.1.1 QUBO

1. Laser beam window

2. On/off switch, transport lock

3. Status/battery voltage display «BATT-ON»

4. Operating modes button «MODE»

5. Operating mode «PULSE»

6. Tripod adapter 1/4“

7. Battery compartment cover

8. Plumb point beam window

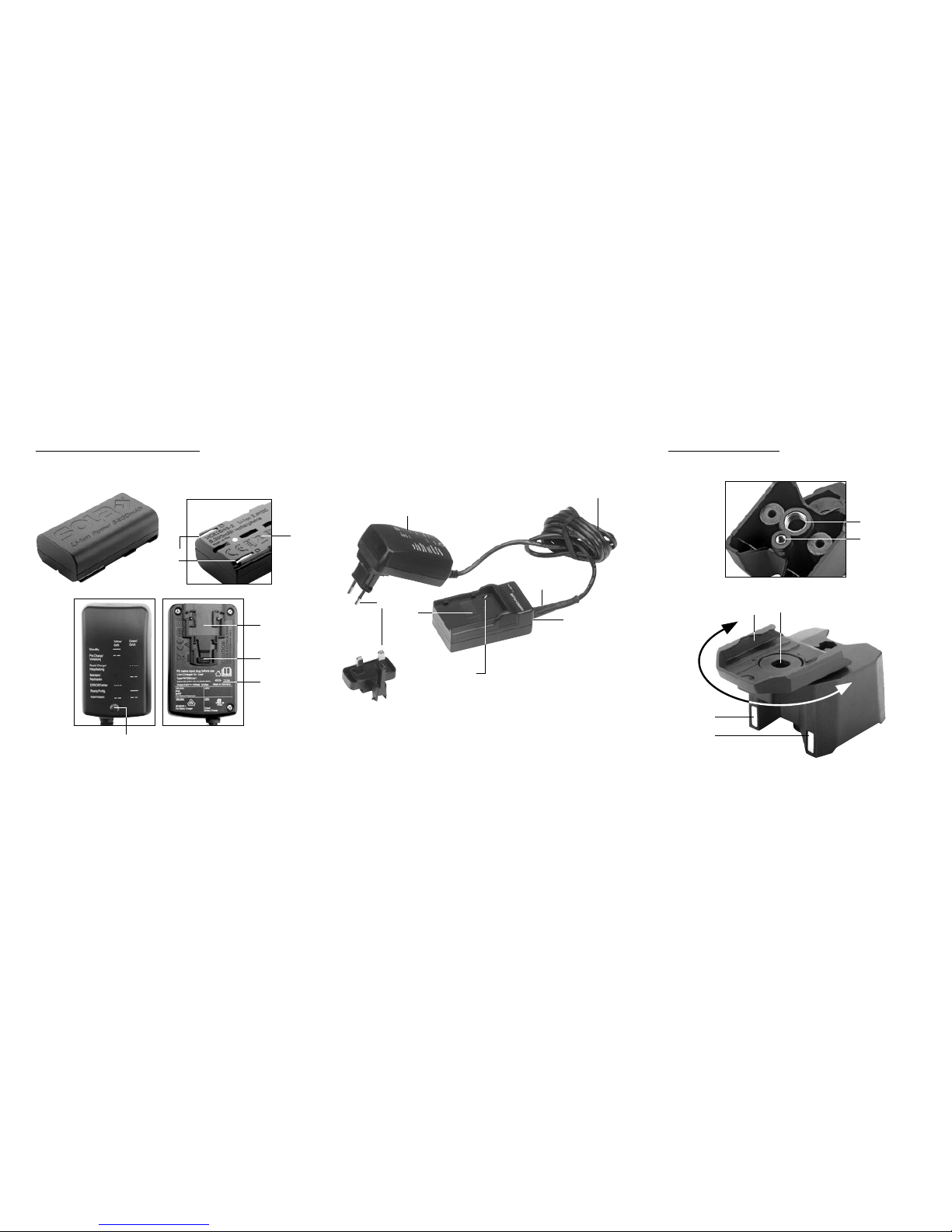

2.1.2 Drywall adapter TBA

1 Tripod thread 5/8” and 1/4“ 2 Nd magnet for drywall tracks 3 Holding xture for QUBO 4 Opening for plumb point 5 exible 360° adjustment

2.1.3 SOLA Li-Ion battery, charging station and charger

1. Li-Ion battery SOLA-Li-Ion-Akku 5.2

2. Battery contacts

3. Technical Specications / certication label

4. Li-Ion charging station

5. Charging connector for the Li-Ion battery

charging station

6. Li-Ion charging station

7. Charging cable

8. Charger plug

9. Operation indicator

10. Connection socket for the country-specic plug

11. Release button for the country-specic plug

12. Country-specic plug

2. Description

2.1 Device components, display and operating elements

Page 6

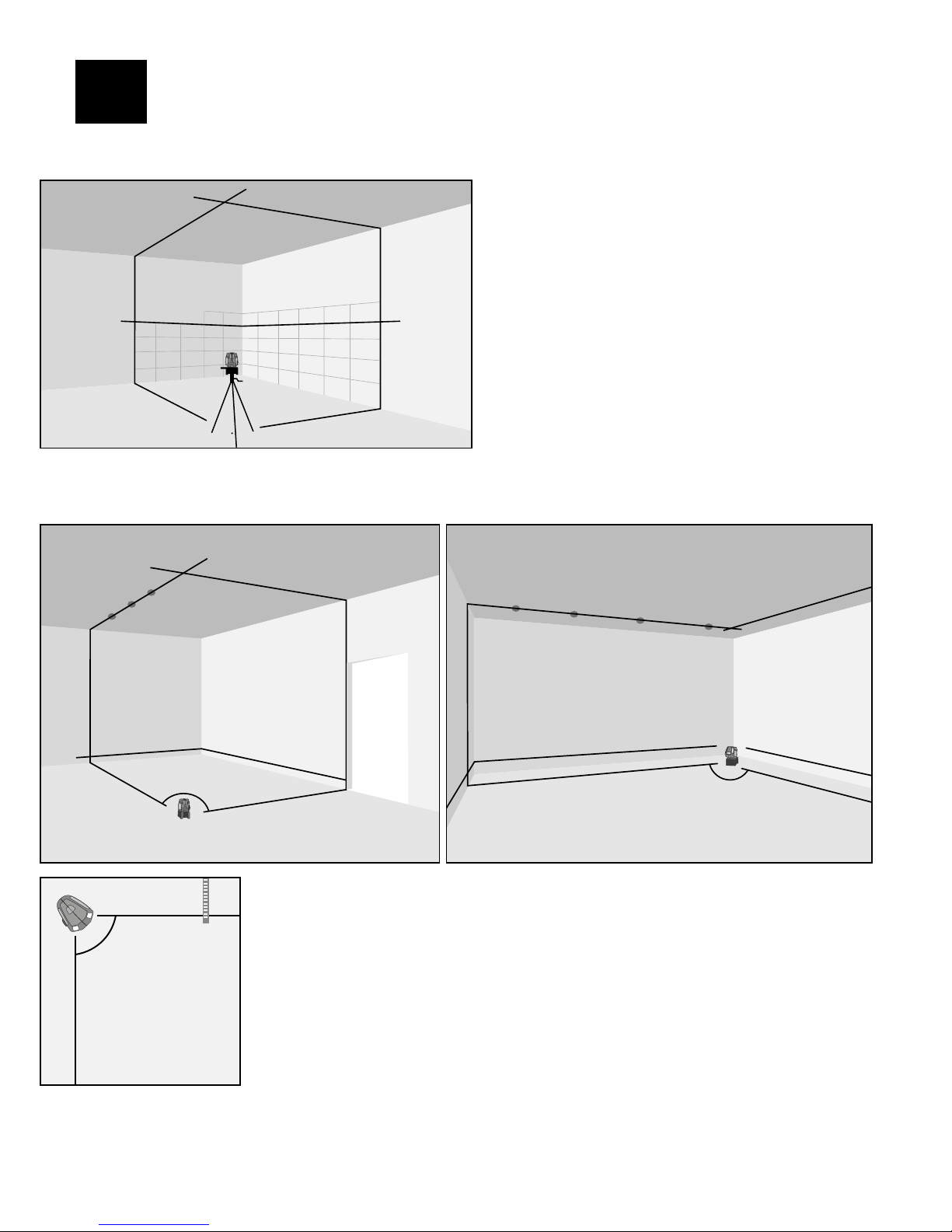

2.2 Intended use

The QUBO is a Line/Point Laser that enables a single person to level and align plumb points as well as 90 degree angles horizontally and vertically. The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors. The visibility range of the laser lines depends on the ambient conditions. In low light conditions or for long distances, the REC LRD0 hand-held receiver can be used to locate the laser line position (the REC LRD0 hand-held receiver is not included in the standard delivery, but can be ordered as an option). Follow the instructions contained in this manual. The device and accessory equipment may be a source of danger if they are utilised improperly or inappropriately by persons who are not adequately instructed.

Page 7

3. Technical data

3.1 Line / Point Laser QUBO

Application area *

- Laser lines

- Receiver

r = 20 m* r = 80 m*

- Max. Measurement tolerance

- Laser line

- Plumb point

± 0.2 mm / m

± 0.3 mm / m Protection class IP54 Cross angle 90° Levelling range (typical) ± 4° Levelling time (typical) ≤ 5 s Power supply 3 x 1.5V mignon (AA) batteries / SOLA Li-Ion battery 5.2 Operating time (at 20 °C)

- Mignon (AA) batteries

- SOLA Li-Ion battery 5.2

12 h

28 h permissible temperatures

Operating temperature Storage temperature

-10 °C to +50 °C

-20 °C to +60 °C Laser diode lines / points 635 / 650 nm < 1 mW Laser class 2, DIN EN 60825-1 : 2008 Tripod adapter ¼" Weight without battery 550 g Dimensions 115 × 103 × 135 mm

*… depending on the environmental conditions at the workplace. | Changes (drawings, descriptions and technical data) are reserved.

Page 8

3.2 SOLA Li-Ion battery 5.2

Type Li-Ion with protective electronics Cells 2 × ICR 18650 parallel Capacity 5200 mAh Voltage 3.6 VDC Performance 28 Wh permissible temperatures

Operating temperature Storage temperature (ideal)

-10 °C to +50 °C

-20 °C to +60 °C (ideal +20 °C to +25 °C) Charging temperature 0 °C to +45 °C (ideal +20 °C to +25 °C) Humidity 65 ± 20 % Charging time 3 – 5 h Weight 100 g Dimension 71 × 39 × 22 mm

3.3 SOLA charger LG Li-Ion

Nominal input voltage 100 – 240 VAC / 50 – 60 Hz Nominal input current 0.4 A @ 100 VAC - 0.2 A @ 240 VAC under maximum load Nominal input power 21 Wrms under maximum load Output voltage 3.6 VDC Charging current 3000 mA Ambient temperature -10 °C - +50 °C Protection class IP40 Power consumption during standby ≤ 0.3 W @ 100 VAC / ≤ 0.5 W @ 240 VAC

Page 9

4. Safety instructions

4.1 AREA OF RESPONSIBILITY

4.1.1 Manufacturer

SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories.

4.1.2 Operator

The operator is responsible for using the product as intended, the deployment of his personnel, their training and the operational safety of the product.

He understands the safety information which is stated on the product and

the instructions which are contained in the operating manual.

He shall comply with local regulations relating to safety and accident

prevention regulations as well as worker protection laws and regulations.

He shall immediately notify SOLA if safety-related issues should develop on the product or during

its utilization.

He shall ensure that the product is not utilized any further if defects become evident, and he will

have the product repaired professionally.

4.2 Improper Use

Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits

(see Chapter 3 / Technical data)

. Use under extreme temperature uctuations without an adequate acclimatization. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modications or alterations the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site.

4.3 Utilization limitations

The QUBO is suitable for a continuous use in an atmosphere which can be inhabited by humans.

Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments,

in close proximity to electrical installations or similar surroundings.

Page 10

4.4 Usage Hazards

4.4.1 General

WARNING

Missing or incomplete instructions may result in improper or incorrect use. This can cause accidents with serious damages to persons, property, assets and the environment.

Follow the manufacturer‘s and operator‘s safety instructions. Protect equipment and accessories from access through children.

WARNING

Blinding by laser radiation can indirectly lead to serious accidents, especially for people who are driving a vehicle or operating machinery.

Do not look into the laser beam. Do not set up the laser beam and the laser plane at eye level or aim at people.

CAUTION

A fall, longer storage, transportation or other mechanical effects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment.

Repairs have to be exclusively performed by SOLA Before use, check the accuracy of the device

(see Chapter 8 / Checking the accuracy)

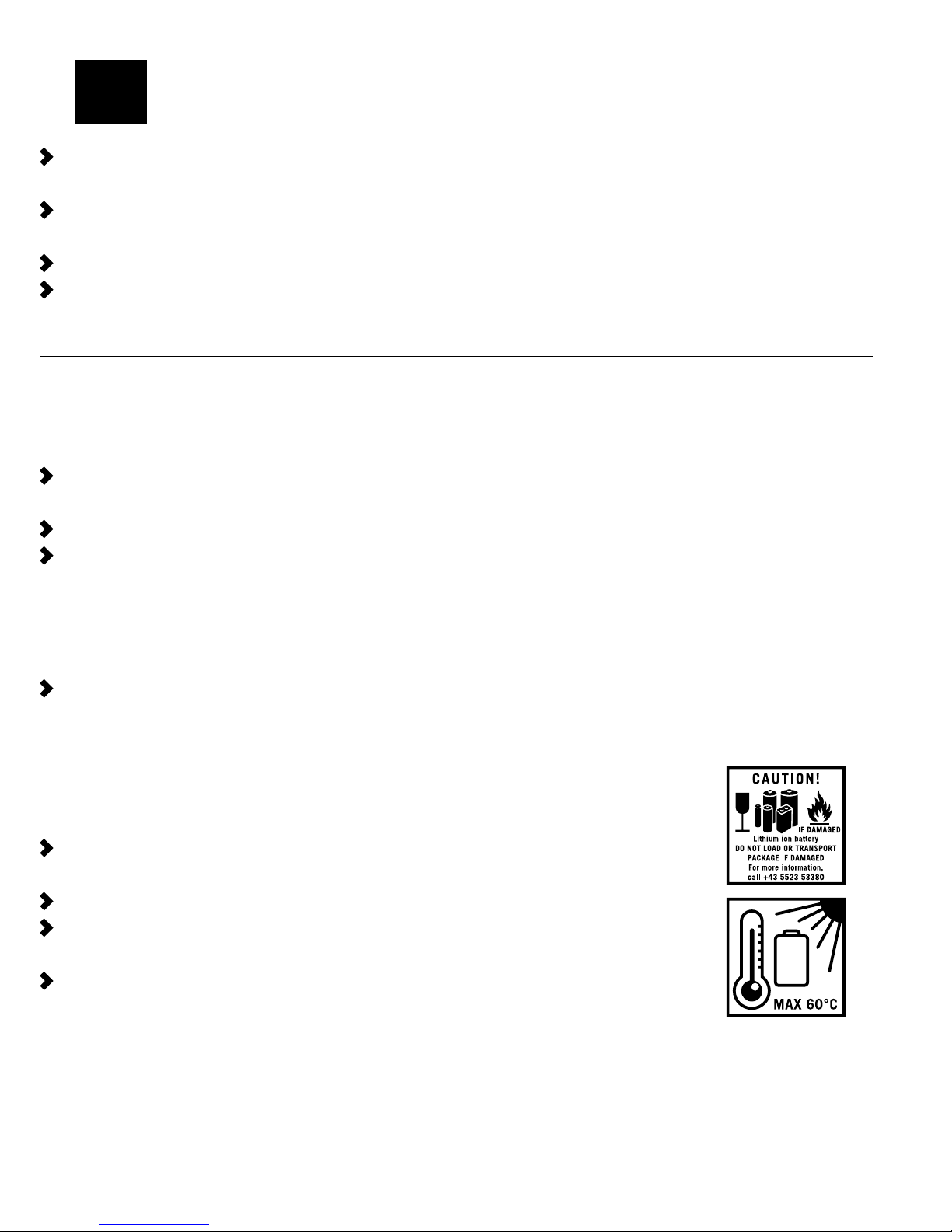

4.4.2 Charger / batteries / rechargeable batteries

DANGER

There is a risk of mortal danger from electric shock.

Never open the SOLA Li-Ion battery charger or charging station. Only use the SOLA Li-Ion battery charger and charging station in dry places and do not bring them

into contact with liquids.

DANGER

Strong mechanical inuences, can lead to a leakage, re or explosion of the batteries or trigger the release of toxic substances.

Page 11

Batteries and rechargeable batteries may not be opened or exposed to mechanical loads. Damaged batteries, chargers and charging stations may not be used. Repairs have to be exclusively

performed by SOLA

WARNING

High ambient temperatures and immersion into liquids can cause a leakage, re or explosion of the batteries or trigger the release of toxic substances.

Protect batteries and rechargeable batteries from mechanical inuences during transport. Never store the Li-Ion battery in the sun, on radiators or behind glass windows. Do not overheat batteries and rechargeable batteries or expose them to re. Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. Perform a proper disposal

(see Chapter 12 / Disposal)

WARNING

A short-circuiting or unintended use can cause batteries to overheat and create an injury or re hazard.

Do not transport or store batteries in the pockets of garments. Do not bring the battery contacts in contact with jewelery, keys, or other electrically conductive

objects. Do not charge the batteries. Do not discharge the batteries through short-circuiting. Do not solder the batteries within the device. Do not mix old and new batteries, and do not mix batteries from different manufacturers or

with a differing type designation.

WARNING

Using charging devices from other manufacturer‘s can damage the Li-Ion batteries. This can lead to a re and explosion hazard.

Only use original SOLA accessories.

Page 12

WARNING

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. The burning of plastic components generates toxic fumes which may impair health of people. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized persons are able to use the product improperly.

The product may not be disposed of together with household waste. Perform a proper disposal of the

device and the accessories

(see Chapter 12 / Disposal)

Protect the product at all times from access through unauthorized persons, and especially children.

4.5 ELECTROMAGNETIC COMPATIBILITY (EMC)

The electromagnetic compatibility is the ability of the product to function in an environment with electromagnetic radiation and electrostatic discharges were are present, without causing an electromagnetic interference for other devices.

4.5.1 Interference for other devices through QUBO

Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as eld computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

When using computers and radio equipment make sure to observe to the vendor-specic information

about electromagnetic compatibility.

Only use original SOLA equipment and accessories.

4.5.2 Interference of the QUBO through other devices

Although the product meets the strict requirements of the relevant directives and standards, SOLA can not entirely exclude the possibility that an intense electromagnetic radiation in the immediate vicinity of radio transmitters, two-way radios, diesel generators, etc. can distort the measurement results.

When performing measurements under these conditions check the plausibility of the results.

Page 13

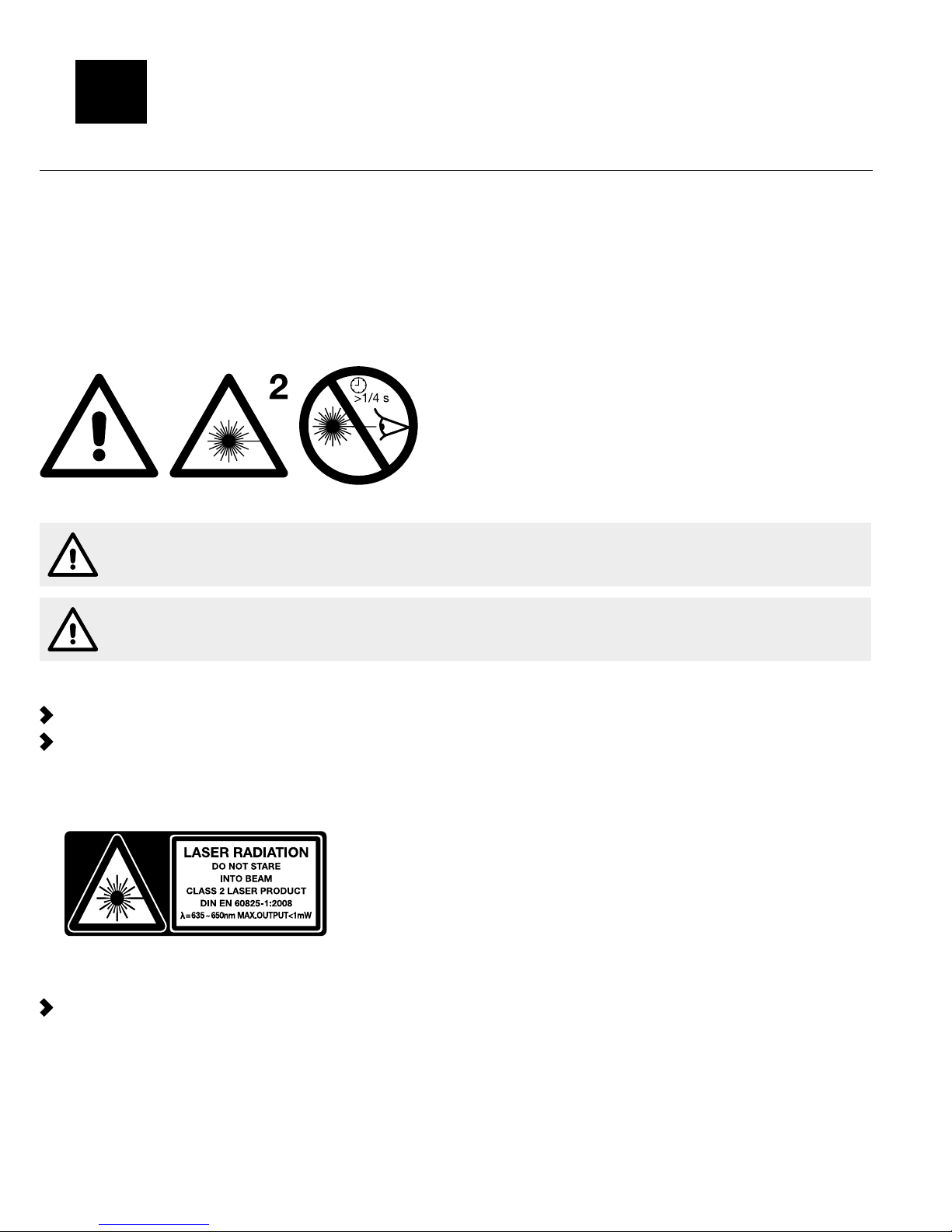

5. LASER SAFETY / CLASSIFICATION

The QUBO emits three visible laser lines and one laser point. The product corresponds to Laser Class 2 according to DIN EN 60825-1:2008.

Laser Class 2:

When using Class 2 laser devices the eye is protected by the eyelid closure reex or evasive reactions in case of a random and short-term exposure.

WARNING

Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be dangerous.

CAUTION

Looking into the laser beam may be hazardous to the eye.

Do not look into the laser beam. Do not aim the laser beam at other people.

Labeling on the device:

For the position of the type plate refere to the inside of the cover page.

Do not remove the type plate!

Page 14

6. Start-up

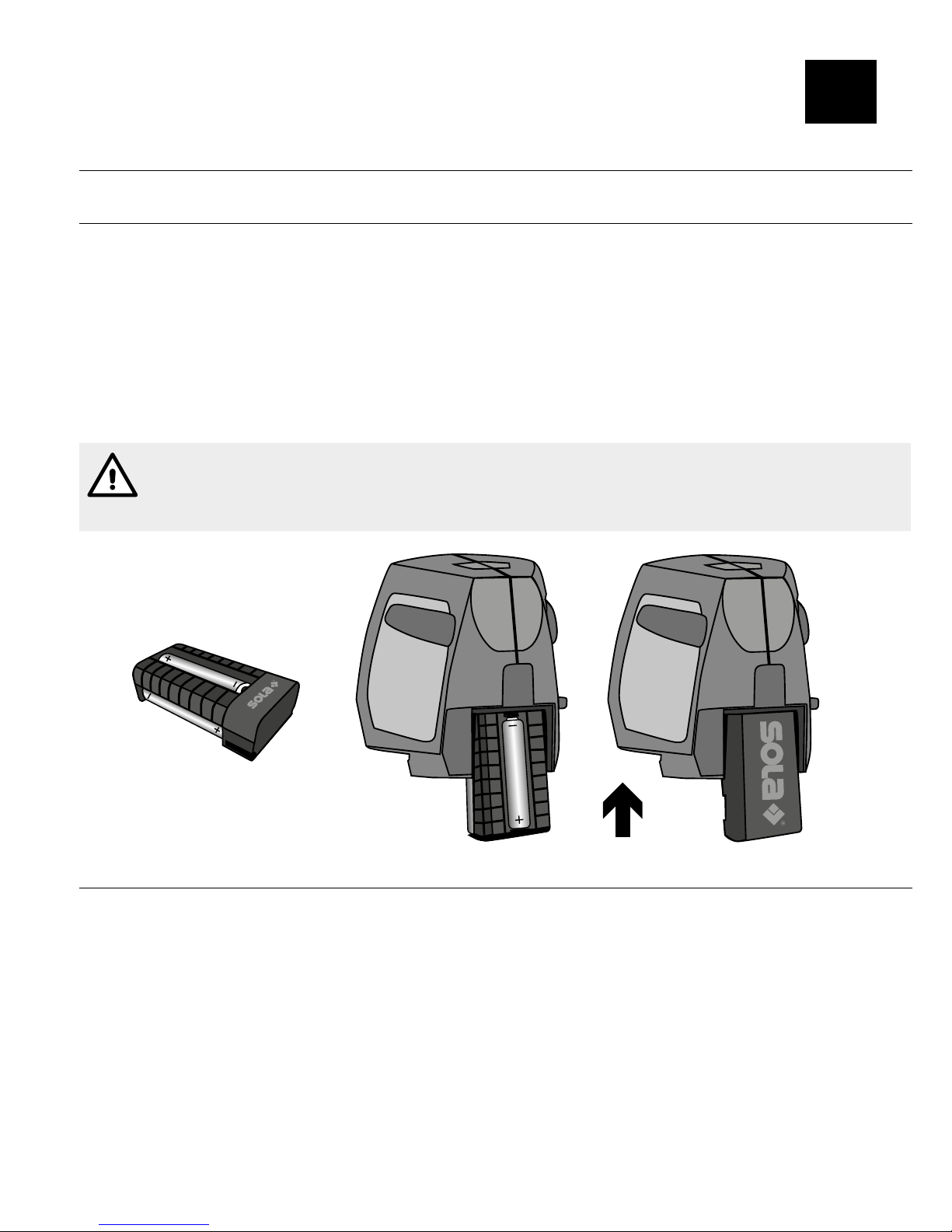

6.1 Operation with batteries

1. Open the battery compartment cover on the rear side of the device.

2. Insert batteries with the correct polarity into the SOLA battery adapter.

3. Insert the SOLA battery adapter in the correct position.

4. Close the battery compartment (audible click of the cover).

Only use 1.5V AA batteries! If the device is not used for a long period, remove the batteries.

NOTE

The intensity of the laser lines can vary depending on the battery quality. The best visibility can be achieved with the SOLA Li-Ion battery.

6.2 Operation with the SOLA Li-Ion battery

1. Fully charge the battery with the SOLA Li-Ion charger

(see Chapter 7.2)

2. Open the battery compartment cover on the rear side of the device.

3. Insert the SOLA Li-Ion battery in the correct position.

4. Close the battery compartment (audible click of the cover).

If the device is not used for a long period, remove the battery and store it in a dry location

(see Chapter 9 / Maintenance, storage and transport)

Page 15

7. Operation

7.1 QUBO

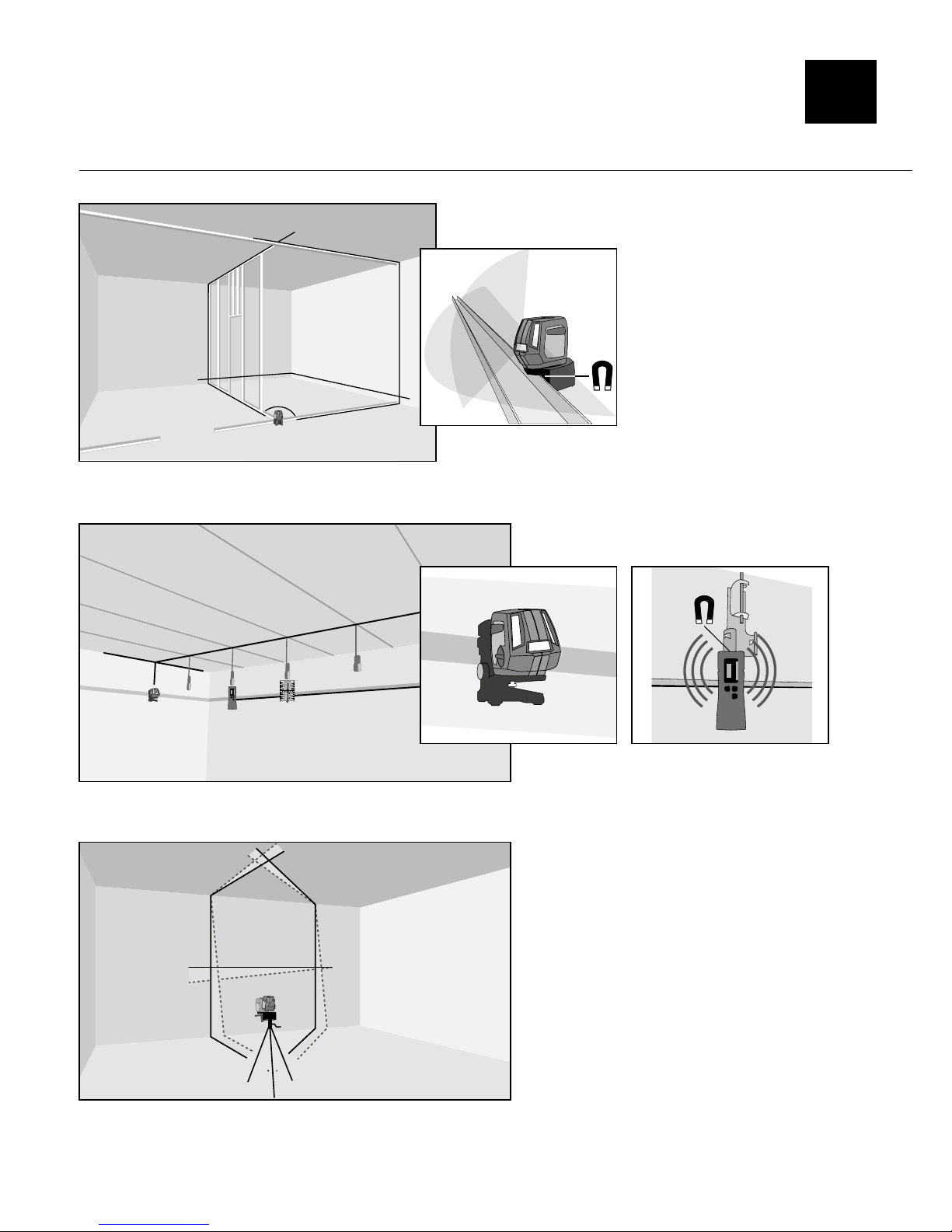

7.1.1 Switching the laser on / off On:

Turn the on/off switch to the right (ON position) and the pendulum unit will be released -

«BATT-ON» display will be lit (the device will beam all lines and points from the laser window). The instrument will level itself automatically within the specied inclination range (see Chapter 3 / Technical data).

Off:

Turn the on/off switch to the left (OFF position) and the pendulum unit will be locked «BATT-ON» display will turn off.

NOTE

Magnets can affect the measurement instrument and lead to false results.

If the vertical laser line is not projected vertically to the wall or to the target surface, uneven surfaces can lead to erroneous measurement results.

Make sure that the vertical laser line is projected vertically to the wall or to the target surface.

Severe temperature uctuations can lead to erroneous measurement results.

Before start-up, allow the device to acclimatise to the environmental conditions.

The «BATT-ON» display will ash when the battery capacity falls below 10%.

Charge the battery in time or replace with an additional SOLA Li-Ion battery.

7.1.2 PULSE mode

The REC LRD0 hand-held receiver can be used to detect the laser lines at even greater distances or in unfavourable environmental conditions. The QUBO must be used in the PULSE operating mode for this.

On:

Switch on the QUBO. Press the «MODE» button - «PULSE» display will be lit.

Off:

Press the «MODE» button - «PULSE» display will turn off.

Page 16

NOTE

Using the PULSE mode can save energy and extend battery life by up to 60%, if a particularly good visibility of the laser lines is not required.

7.1.3 Creating inclinations beyond the range of automatic levelling On:

Switch off the QUBO (on/off switch to the OFF position). Press and hold the «MODE» button for 5 seconds - «PULSE» and «BATT-ON» displays will be lit.

To indicate that the self-levelling is switched off, the lines will blink every 4 seconds.

Off:

Press and hold the «MODE» button for 5 seconds - «PULSE» display will turn off.

CAUTION

If the laser line is not projected vertically to the surface or the surface is uneven, this can lead to erroneous measurement results.

Make sure that the laser line is projected vertically to the wall or to the target surface.

7.2 SOLA Li-Ion battery, charging station & charger

Before the initial startup, the SOLA Li-Ion battery must be fully charged.

Plug the charger plug into the charging port of the Li-Ion Charger Connect the SOLA Li-Ion battery charger to a socket-outlet Insert the SOLA Li-Ion battery in the correct position. Depending on the charge state and the environmental conditions the charging time will

be between 3and 5 hours. After 10 charging cycles the battery will reach its full capacity. Ideally, the battery should always be fully charged. In urgent cases, the battery can be removed from

the charging station before the charging process has been fully completed. This does not adversely

affected the service life of the battery (no memory effect).

Page 17

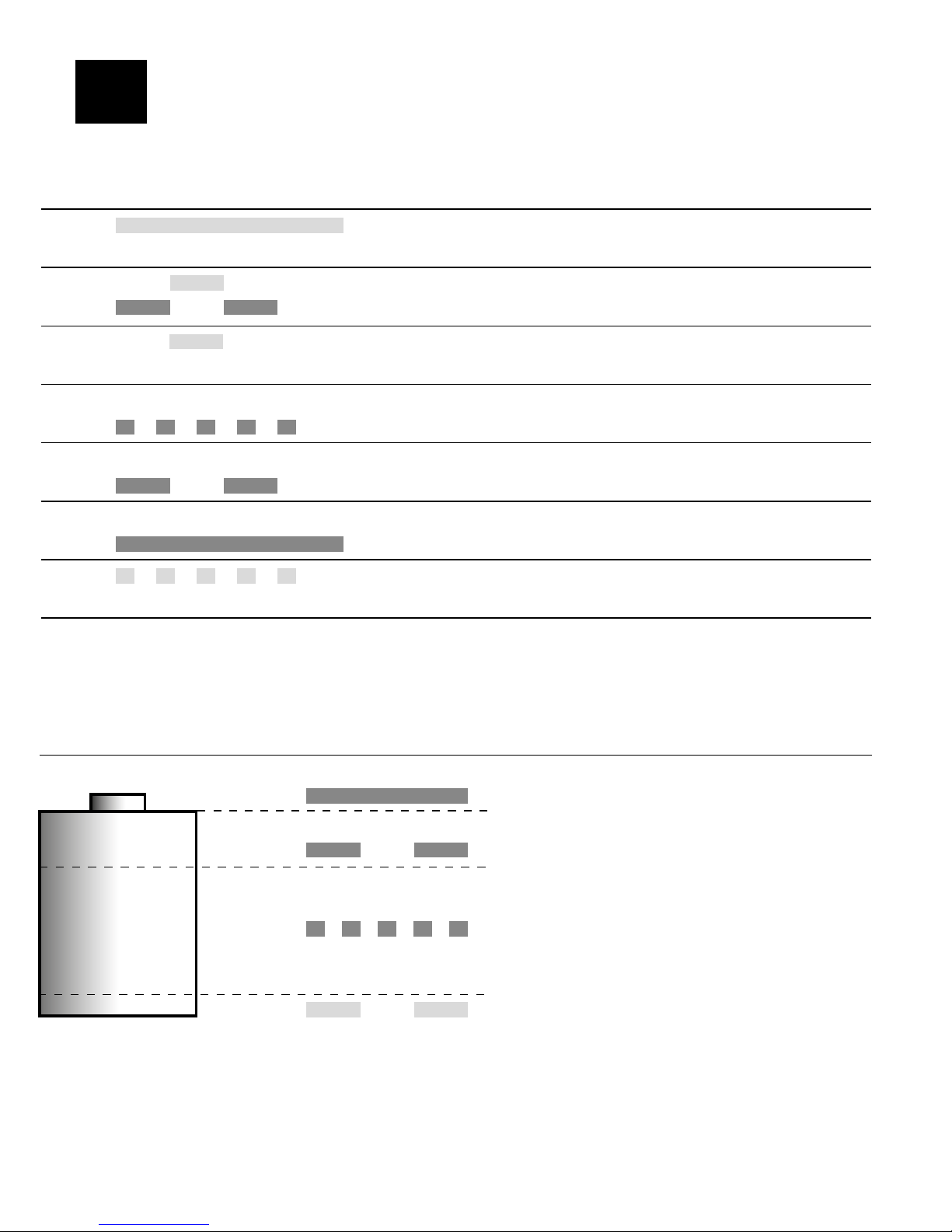

Capacity Display Mode

100 % Charging process completed

80 % Recharging

Main charge

Pre-charge

Operation indicator charger:

Colour Display Mode Description

yellow green

Standby No battery in the charger

yellow green

Wait cycle Battery temperature beyond the valid range

yellow green

Pre-charge Protective charging for deeply discharged

batteries

yellow green

Main charge Rapid charging phase with max. Power up

to 80 %

yellow green

Recharging Recharging between 80 – 100 %

yellow green

Completed Charging process completed Battery is 100 %

charged

yellow green

Error Battery too hot / too cold,let it acclimatize and

reinsert

Page 18

7.3 Applications

7.3.1 Setting up a drywall

(with drywall adapter TBA)

7.3.2 Ceiling suspension (with hand-held receiver and universal holder UH -> optional accessory)

7.3.3 Inclination

90°

Page 19

7.3.4 Horizontal and vertical levelling

(with tripod -> optional accessory)

7.3.5 Interior design with a 90° angle

90°90°

90°

Page 20

min. 3 m

ca. 1,2 m

ca. 3 m

ca. 10 m

A B

ca.

20 cm

180°

ca. 10 m

180°

A B

ca.

20 cm

1 2

8. Checking the accuracy

Check accuracy of the SOLA QUBO before each measurement.

Before starting the check let the device acclimatise to the environmental conditions.

8.1 Checking the accuracy of the vertical line

Attach a plumb line as close as possible possible to a (at least)

3 m high wall.

Mount the QUBO onto a tripod at a height of approx. 1.2 m. Position the device approx. 3 m in front of the plumb line. Switch on the QUBO and project the vertical laser line onto the

plumb line.

If the deviation is greater than 4 mm, the device must be readjusted. In this case, consult your dealer.

8.3 Checking the leveling accuracy of the horizontal line

1. Select two horizontal, at walls (A & B), which are approx. 10 meters apart.

Mount the QUBO onto a tripod and position it at a distance of

approx. 20 cm from wall A.

Mark the intersecting point of the vertical and horizontal lines

on wall A.

2. Rotate the QUBO by 180° and mark point

on wall B.

Position the laser at the same height approx. 20 cm away from

wall B and mark point

on wall B.

3. Rotate the QUBO by 180° and mark point

on wall A.

Measure the vertical distance

of the marked points

and the vertical spacing

of the points - .

Mark the center point of and .

Page 21

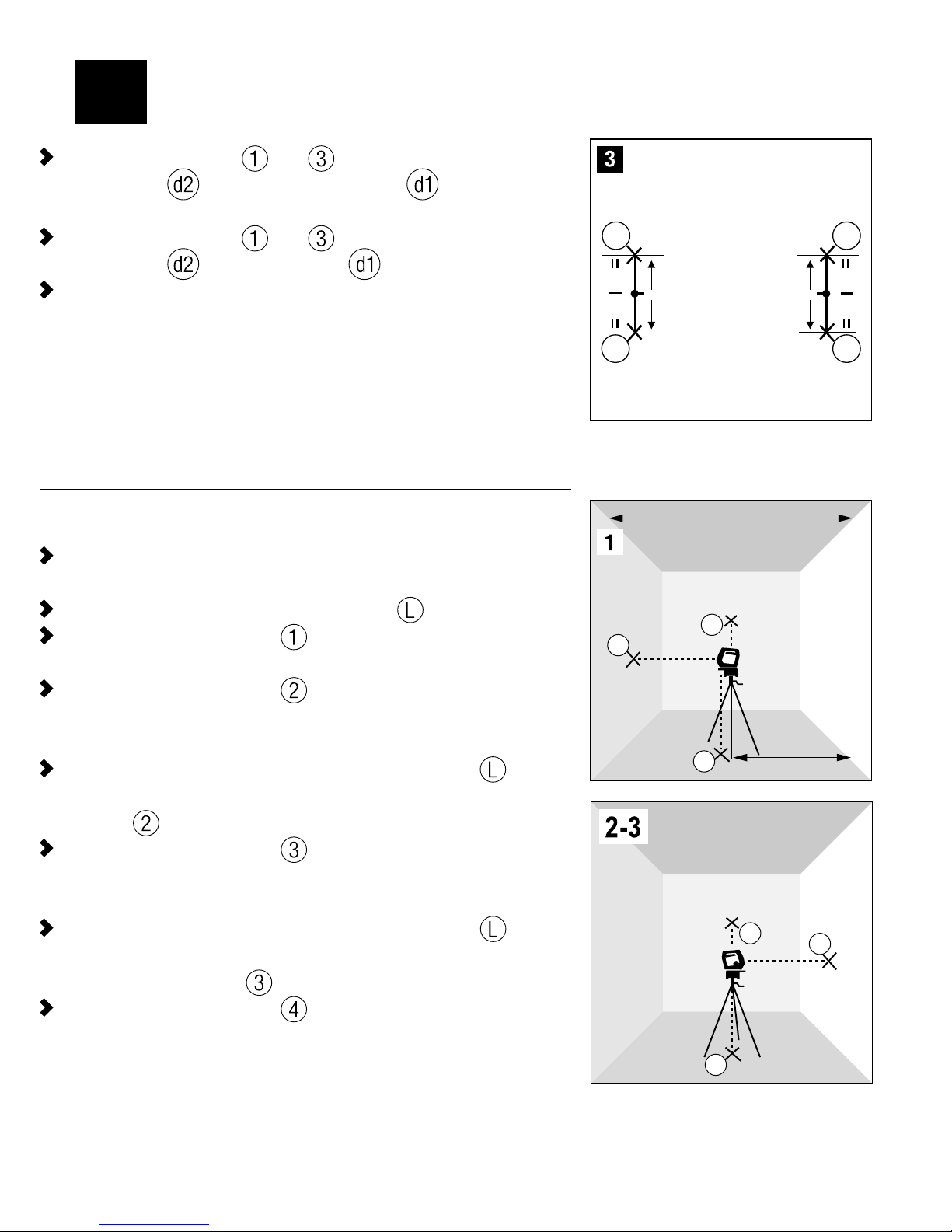

If the reference points and are on different sides of the

center point,

must be subtracted from .

If the reference points and are on the same side of the

center point,

must be added to .

Divide the results with twice the value of the room length.

If the result is greater than 4 mm, the device must be readjusted. For this, please consult your dealer.

8.3 Checking the perpendicularity of the lateral axes in a square room

1. Select a room with a square oor plan, in which the walls are approx. 10 metres apart.

Position the device on a tripod in the middle of the room and

align the vertical laser lines perpendicular to one of the walls.

Mark the centre of the lower plumb beam on the oor. Mark the intersecting point of the vertical and horizontal

laser lines.

Mark the intersecting point

of the vertical and horizontal

laser lines.

2. Rotate the device 90° clockwise. The lower plumb beam must remain on the marking and the

left lateral intersecting point must be exactly aligned to the marking

Mark the intersecting point of the vertical and horizontal

laser lines.

3. Rotate the device 90° clockwise. The lower plumb beam must remain on the marking

and the left lateral intersecting point must be exactly aligned to the marking

Mark the intersecting point of the vertical and horizontal

laser lines.

ca. 10 m

A B

ca.

20 cm

180°

ca. 10 m

180°

A B

ca.

20 cm

d 1

1 2

d 2

ca. 10 x 10 m

ca. 5 m

d 1

d 2

ca. 10 x 10 m

ca. 5 m

d 1

d 2

Page 22

9. Maintenance, storage and transportation

9.1 Cleaning

Wipe off the dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch

the glass with your ngers. Do not use aggressive cleaning agents or solvents. Do not immerse the device into water! Clean and dry wet equipment, accessories and transport containers prior to packaging them. Only

pack equipment again when it is completely dry. Keep plug connections clean and protected from moisture.

9.2 Storage

9.2.1 General

The equipment may only be stored within the specied temperature limits

(see Chapter 3 / Technical data)

After a prolonged storage check the accuracy of the measuring device before using it.

9.2.2 Batteries / rechargeable batteries

For storage, remove the batteries from the device or from the charging station. The storage should preferably be performed in a dry environment at room temperature

(see Chapter 3 / Technical data)

ca. 10 x 10 m

ca. 5 m

d 1

d 2

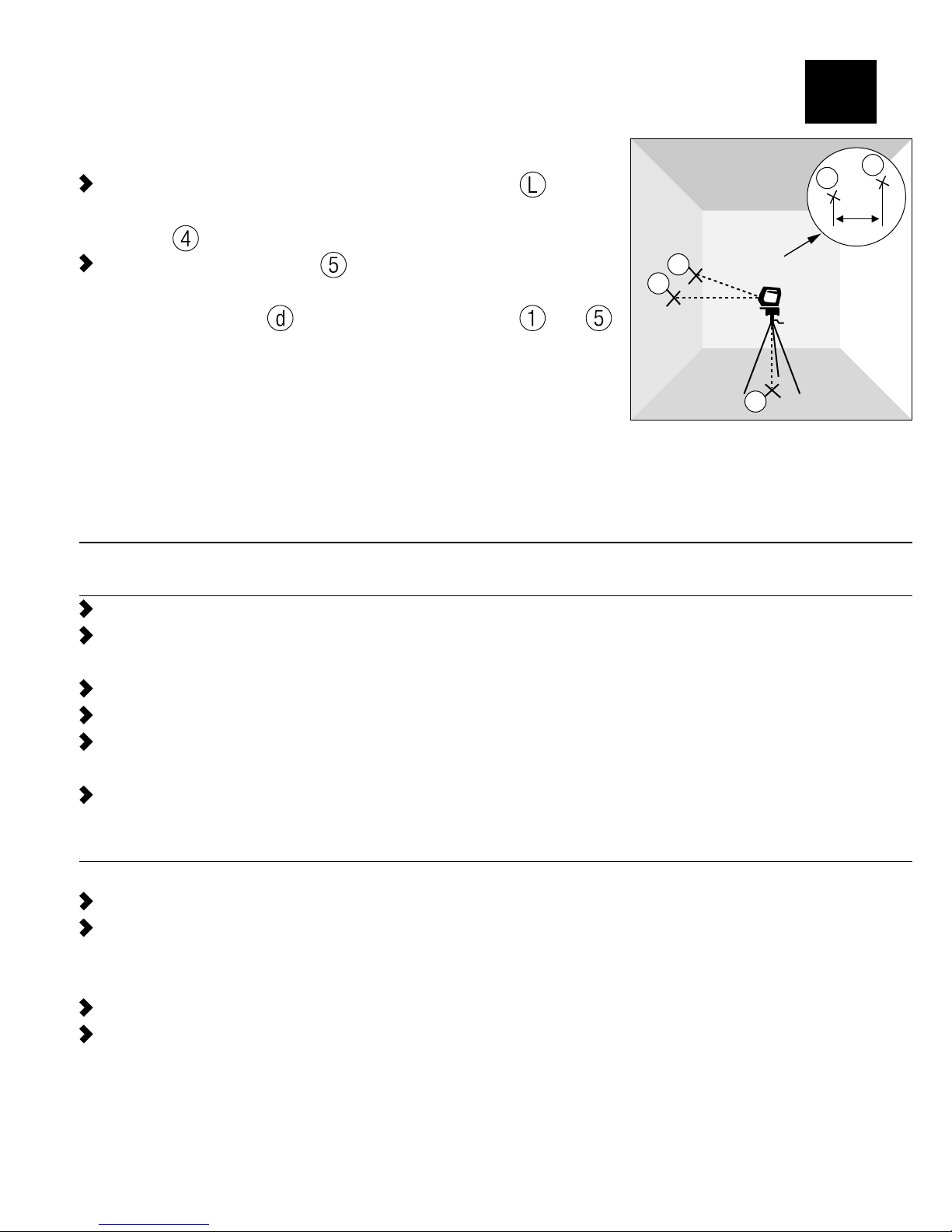

4. Rotate the device 90° clockwise. The lower plumb beam must remain on the marking and the

left lateral intersecting point must be exactly aligned to the marking

Mark the intersecting point

of the vertical and horizontal laser lines. The horizontal distance

between the marked points and

may only be a max. of 6 mm at a measuring distance of 5 m.

If the result is more than 6 mm, the device must be readjusted. Please contact your dealer.

Page 23

Protect from moisture and humidity. Dry wet or damp batteries before the storage, or respectively

before usage.

Prior to a prolonged storage charge the battery to 80 % capacity

(see Chapter 7 / operation)

. Repeat the

procedure every 6 months. After storage, fully charge the battery before use. Check the battery for damage before use. Do not use damaged batteries!

9.3 Transport

9.3.1 General

The device may be damaged through strong vibrations or by falling. Never transport the product loosely. Always use the original packaging or an equivalent transport container.

Switch off the measuring device before transporting it. During the shutdown the pendulum unit is

locked in position and protected against damage. Check the unit for damages before use. Regularly check the accuracy of the device

(see Chapter 8 / Checking the accuracy)

9.3.2 Batteries / rechargeable batteries

When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations.

Before shipping, remove the batteries from the device.

Li-ion batteries fall under the jurisdiction governing hazardous goods, but they may be transported on the road by their operator without further stipulations. When shipping through third parties (e.g. forwarding agent or air freight) the special requirements regarding the packaging and labeling must be observed.

Remove the battery from the device and ship it in its storage

condition (80 % capacity). Cover exposed contacts with tape. Package the battery in such a manner that it can not move around in

the packaging, and that it can not be damaged by external inuences. Further national and international regulations and any additional requirements

as well as the stipulations of the respective transport company must be observed.

Page 24

10.1 Scope of delivery QUBO Basic

1 Line/Point Laser QUBO 1 Battery adapter BA 3 Mignon batteries (AA) 1 Drywall adapter TBA 1 Device pouch small 1 Operating manual 1 Diagnostic form for complaints

10.2 Scope of delivery QUBO PROFESSIONAL

1 Line/Point Laser QUBO 1 Battery adapter BA 3 Mignon batteries (AA) 1 Drywall adapter TBA 1 Li-Ion battery SOLA-LI-ION AKKU 5.2 1 Li-Ion charging station LST Li-Ion 1 Li-Ion battery charger LG Li-Ion 1 Country-specic plug LS-EU / LS-UK 1 Laser googles red LB RED 1 Magnetic target ZS RED 1 Device pouch large 1 Operating manual 1 Diagnostic form for complaints

10. Scope of delivery and accessories

10.3 ACCESSORIES (optional)

Receiver with holding xture and 9V 6F22 (E-Block) battery REC LRD0

SOLA-LI-ION Battery Set:

Li-Ion battery SOLA-LI-ION AKKU 5.2 Li-Ion charging station LST Li-Ion Li-Ion battery charger LG Li-Ion Country-specic plug EU LS-EU Country-specic plug UK LS-UK

Compact tripod FST Universal holder UH Drywall adapter TBA Thread adapter set GA-SET Battery adapter BA Car adapter CC Laser googles red LB red Magnetic target ZS red

Further information regarding the accessories can be obtained at www.sola.at

Page 25

11. Troubleshooting

Error Possible cause Troubleshooting

Device is switched on, display «ON - BATT» does not light up and there is no visible laser beam.

Battery empty Rechargeable battery empty Battery / rechargeable batter y

inserted incorrectly

Device or switch defective

Replace the battery Recharge or replace battery Insert the batteries / rechar-

geable batteries correctly

Contact the dealer and have

the device repaired.

Device turns off again immediately after startup.

Battery empty Rechargeable

battery empty

Replace the battery

Recharge or replace battery

Device is switched on, display «ON - BATT» lights up, but there is no visible laser beam.

Ambient temperature too

high / low

Laser diode or laser control

defective

Allow for an acclimatization

of the device

Contact the dealer and have

the device repaired.

Device is switched on, display «ON - BATT» lights up, but some laser beams are not visible.

Laser diode or laser

control defective

Contact the dealer and have

the device repaired.

Laser lines blink in one second intervals

Device is beyond the

self-leveling range

Align the device horizontally

The «ON - BATT» indicator is blinking

Battery capacity is less than

10 %

Recharge the battery in time

Laser lines blink every 4 seconds

Device is in the manual

inclination mode

Press and hold the

«MODE» button for 4s or

switch on the laser device

Page 26

12. Disposal

Measuring tools, accessories and packaging must be recycled in an environmentally-friendly manner.

The product as well as the accessories - especially the batteries and rechargeable batteries - may not be disposed of with household waste.

Perform a proper disposal of the device and the accessories. Only dispose of batteries in a discharged state. Observe the country-specic disposal requirements.

Your SOLA dealership will take back batteries as well as old equipment, and will ensure a proper disposal.

Only for EU countries

Electric tools may not be disposed of with household waste! According to the European Directive 2002 / 96 / EC on Waste Electrical and Electronic Equipment and its implementation in national law, no longer usable electrical and electronic equipment must be collected separately and recycled in an environmentally friendly manner.

Page 27

13. Manufacturer‘s Guarantee

„The manufacturer warrants to the original purchaser who is stated on the guarantee card, the freedom from defects for the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over. The guarantee is limited to repairs and / or replacements at manufacturer‘s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical aws that do not affect the usability of the equipment, are not covered by this guarantee. Claims under this guarantee can only be invoked if the device is submitted along with the guarantee card, completely lled out by the dealer, dated and provided with the company stamp. If the guarantee claim is justied, the manufacturer shall bear the transport costs. The duration of the guarantee will not be extended through repair or spare parts work which is carried out within the scope of the guarantee. Further claims are excluded, unless there are provided by the respective national legislation. In particular the manufacturer shall not be liable for any direct, indirect, incidental or consequential damages, losses or expenses in connection with the use or because of the inability to use the tool for any purpose whatsoever. Implied warranties for the usage or suitability for a particular purpose are expressly excluded.“

Page 28

14. EC conformity declaration

Konformitätserklärung Declaration of Conformity Déclaration de Conformité

Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria

erklären in alleiniger Verantwortung, dass das Produkt(e)

declare under our sole responsibility that the Product(s)

déclarons sous notre seule responsabilité que le(s) produit(s)

QUBO, SOLA-Li-Ion Akku 5.2, LG Li-Ion

auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.

to which this declarations relates is in conformity with the following standards.

auquel(s) se réfère cette déclaration est conforme aux normes.

QUBO:

• EN 61010-1:2010

• EN 61326-1:2013

• IEC 60825-1

Li-Ion Akku 5.2:

• EN 61000-6-1: 2007

• EN 61000-6-3: 2007 + A1:2011

• UN38.3

Page 29

Gemäss den Bestimmungen der Richtlinie(n)

Following the provisions of Directive(s)

Conformément aux dispositions de(s) Directive(s)

Electromagnetic compatibility 2004 / 108 / EC

Low Voltage Directive 2006 / 95 / EC

SOLA-Messwerkzeuge GmbH

Mag. Wolfgang Scheyer CEO

SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria

Phone +43(0)5523 53380, [email protected], www.sola.at

LG Li-Ion:

• EN 60601-1: 01/2006

• EN 60335-2-26 06/2005

• EN 60335-1 11/2010

• EN 61000-6-3 09/2007

• EN 60601-1-2 10/2006

• EN 55022 05/2008

• EN 60601-1-2 10/2006

• EN 61000-6-2 03/2006

• EN 55014-1 06/2007

• EN 55014-2 06/2007

Page 30

Herstellergarantie QUBO

Limited warranty QUBO

Seriennummer / Serial no.

Firma / Company / Name

Adresse / address

Telefon / Telephone

Kaufdatum / Stempel / Unterschrift des Händler Date of purchase / Stamp / Signature (dealer)

SOLA-Messwerkzeuge GmbH

Unteres Tobel 25

A-6840 Götzis

Austria

�

9 002719 029267

R373238
