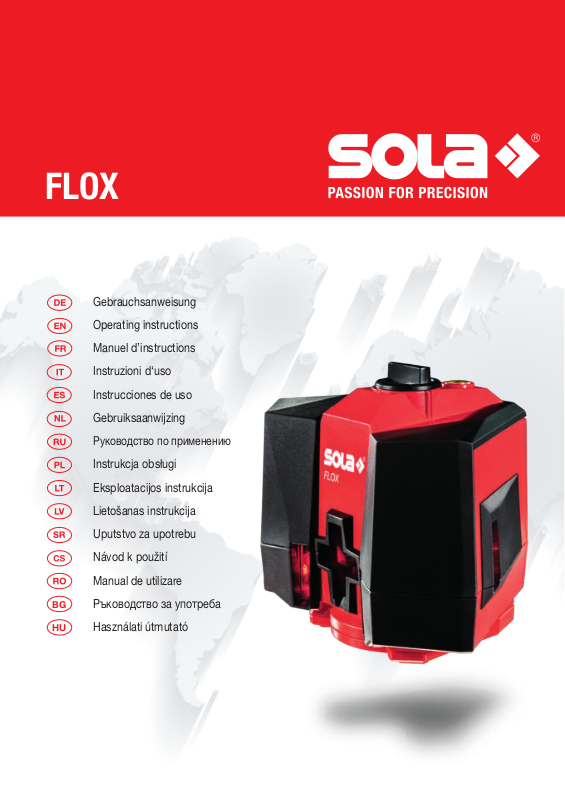

Page 1

FLOX

Gebrauchsanweisung

Operating instructions

Manuel d’instructions

Instruzioni d‘uso

Instrucciones de uso

Gebruiksaanwĳzing

Руководство по применению

Instrukcja obsługi

Eksploatacĳos instrukcĳa

Lietošanas instrukcĳa

Uputstvo za upotrebu

Návod k použití

Manual de utilizare

Ръководство за употреба

Használati útmutató

Page 2

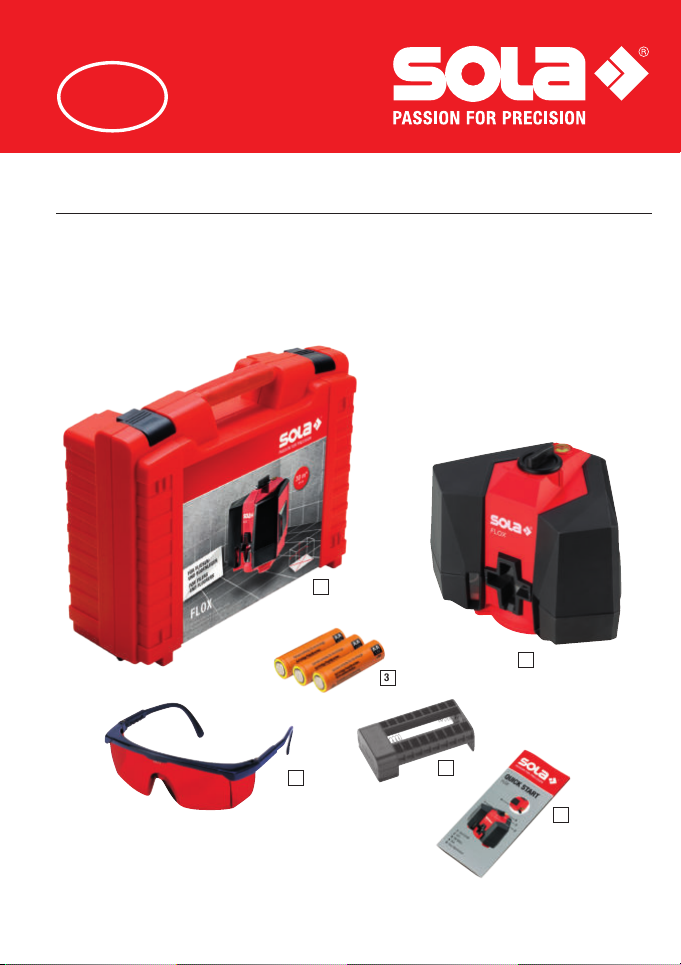

Scope of delivery for FLOX

1. FLOX line laser

2. Laser goggles LB red

3. AA batteries

4. Battery adapter BA

5. Quick start guide

6. Case

Page 3

2.1 FLOX

Page 4

FLOX operating manual

About this manual

Congratulations on the purchase of your new FLOX! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure safe operation, please observe the following instructions:

• Please read this operating manual before starting to use the device.

• Always keep the operating manual near the device.

• Only hand over the device to other people together with the operating manual.

• Never render the attached warning signs unreadable.

Contents

1. General information

2. Description

3. Technical data

4. Safety instructions

5. Laser safety / classiﬁcation

6. Startup

7. Operation

8. Checking the accuracy

9. Maintenance, storage and transportation

10. Scope of delivery and accessories

11. Troubleshooting

12. Disposal

13. Warranty

14. EC conformity declaration

Page 5

1. General information

1.1 Signal words and their meaning DANGER

For an imminent danger that could lead to serious injury or death.

WARNING

For a possibly dangerous situation that could lead to serious injury or death.

CAUTION

For a possibly dangerous situation that could lead to slight injury or property damage.

NOTE

For application notes and other useful information

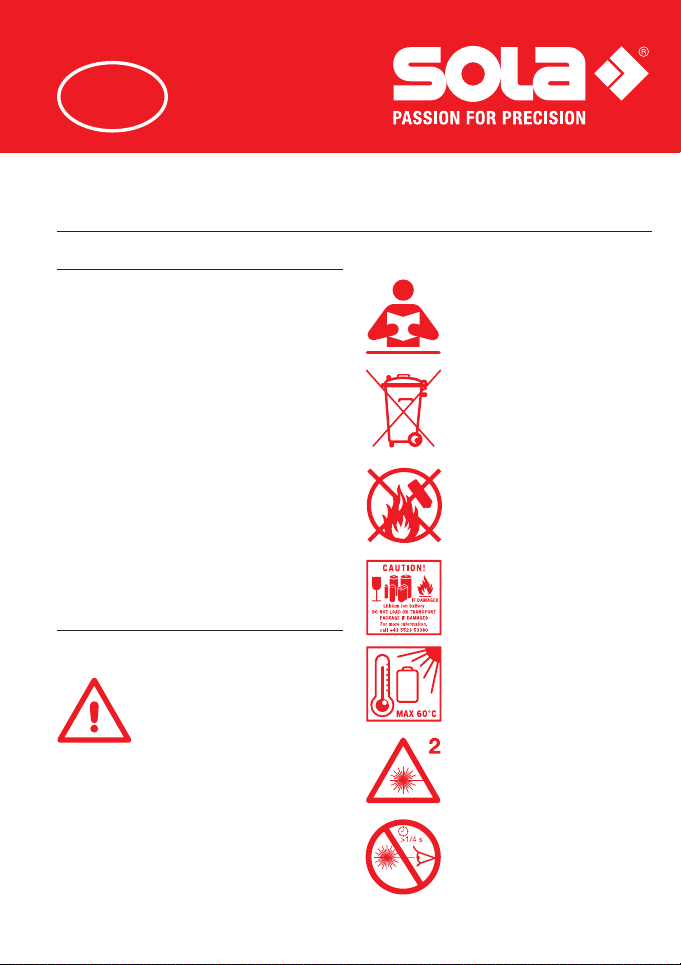

1.2 Pictograms and other information

1.2.1 Warning signs

Warning of dangers in general

1.2.2 Symbole

Read instructions before use

Batteries and devices must not be disposed of with household waste

Do not throw batteries into a ﬁre

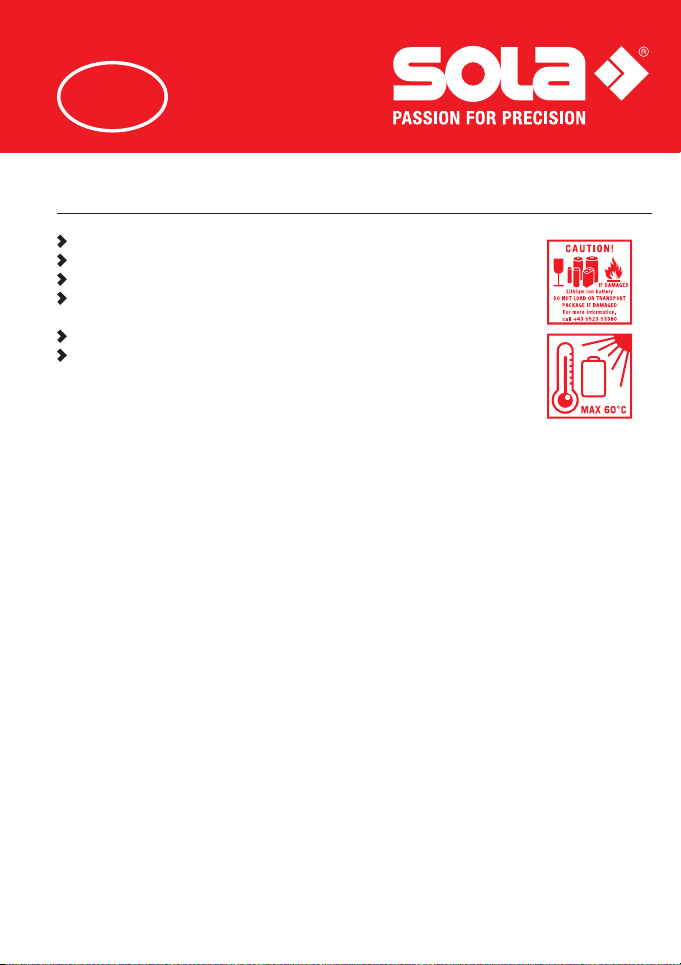

Warning label on packages with Li-Ion batteries

Warning signs on battery Do not heat the battery above 60 °C.

Class 2 laser device

Do not look into the laser beam!

Page 6

2. Description

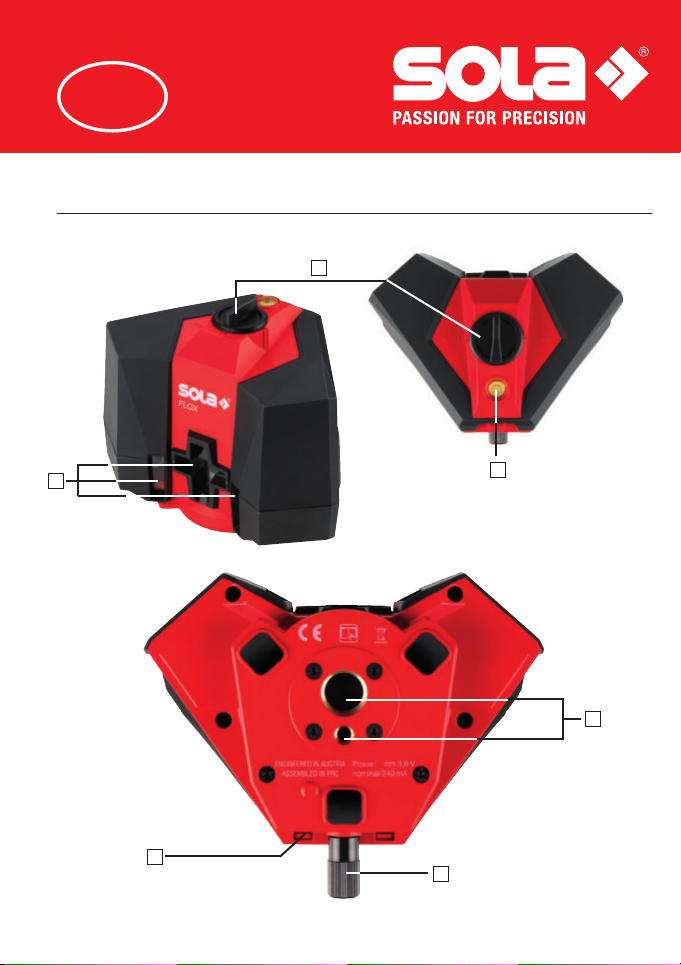

2.1 Device components, display and operating elements

1. Laser beam output aperture

2. On/o switch, transport lock

3. Tripod adapter ¼" & 5/8"

4. Battery compartment cover

5. Fine adjustment

6. Vial

2.2 Intended use

The FLOX is a line laser that enables a single person to level and align plumb points as well as 90 degree angles horizontally and vertically. Furthermore, objects can be aligned at a right angle and arranged with the cross of lines on the ﬂoor. The device is designed to be preferably used indoors. For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors. The visibility range of the laser lines depends on the ambient conditions. Follow the instructions contained in this manual. The device and accessory equipment may be a source of danger if they are utilised improperly or inappropriately by people who are not adequately instructed.

Page 7

3. Technical data

3.1 FLOX LINE LASER

Working range

- laser lines wall

- laser lines ﬂoor Max. measurement tolerance

- laser lines wall

- laser lines ﬂoor Protection class IP 54 Levelling range (typical) ± 3° Levelling time (typical) ≤ 5 s Power supply ** 3 x 1.5 V AA batteries Battery life (at 20°C)

- laser lines wall

- laser lines ﬂoor Permissible temperatures

Operating temperature Storage temperature

Laser diode lines/points 635-650 nm < 1 mW Laser class 2, DIN EN 60825-1 : 2014 Tripod adapter 1/4“ & 5/8“ Weight without batteries 630 g Dimensions H x W x L 150 x 119 x 122 mm

*... depending on the ambient conditions in the workplace. Subject to modiﬁcations (drawings, descriptions and technical data). ** the line laser FLOX can also be operated with the SOLA Li-Ion (see chapter.7.2)

r = 10 m* r = 30 m*

± 0.5 mm / m ± 0.3 mm / m

9 h 40 h

-10°C to +50°C

-20°C to +60°C

Page 8

4. Safety instructions

4.1 AREA OF RESPONSIBILITY

4.1.1 Manufacturer

SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories.

4.1.2 Operator

The operator is responsible for using the product as intended, the deployment of personnel, their training and the operational safety of the product.

The operator understands the safety information which is stated on the product and

the instructions which are contained in the operating manual.

The operator shall comply with local regulations relating to safety and accident prevention regulations

as well as worker protection laws and regulations.

The operator shall immediately notify SOLA if safety-related issues should develop on the product or

during its utilization.

The operator shall ensure that the product is not utilized any further if defects become evident, and he

will have the product repaired professionally.

4.2 Improper Use

Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits Use under extreme temperature ﬂuctuations without an adequate acclimatization. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modiﬁcations or alterations the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site.

(see Chapter 3 / Technical data)

4.3 Utilization limitations

The CROSSLINE is suitable for a continuous use in an atmosphere which can be inhabited by humans.

Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments,

in close proximity to electrical installations or similar surroundings.

Page 9

4.4 Usage Hazards

4.4.1 General

WARNING

Missing or incomplete instructions may result in improper or incorrect use. This can cause accidents with serious damages to people, property, assets and the environment.

Follow the manufacturer‘s and operator‘s safety instructions. Protect equipment and accessories from access by children.

WARNING

Blinding by laser radiation can indirectly lead to serious accidents, especially for people who are driving a vehicle or operating machinery. Do not look into the laser beam.

Do not set up the laser beam and the laser plane at eye level or aim at people.

CAUTION

A fall, longer storage, transportation or other mechanical eects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment.

Repairs have to be exclusively performed by SOLA Before use, check the accuracy of the device

4.4.2 Charger / batteries / rechargeable batteries

DANGER

There is a risk of mortal danger from electric shock

Never open the SOLA Li-Ion battery charger or charging station. Only use the SOLA Li-Ion battery charger and charging station in dry places and do not bring them

into contact with liquids.

(see Chapter 8 / Checking the accuracy)

Page 10

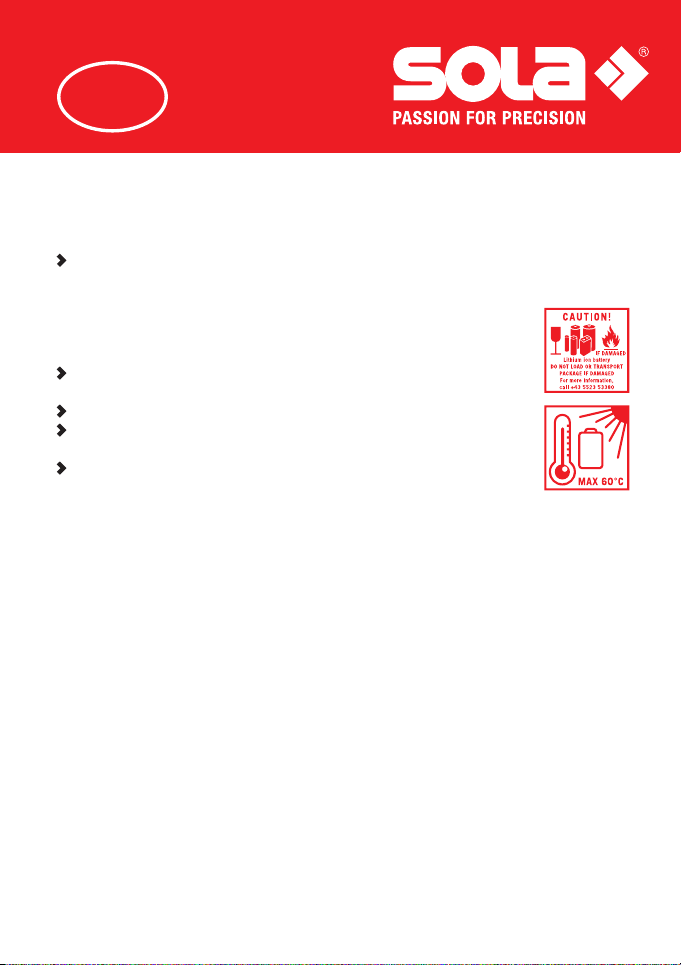

DANGER

Mechanical damage can lead to a leakage, ﬁre or explosion of the batteries or trigger the release of toxic substances.

Batteries and rechargeable batteries may not be opened or exposed to mechanical loads. Damaged batteries, chargers and charging stations may not be used. Repairs have to be exclusively performed by SOLA.

WARNING

High ambient temperatures and immersion into liquids can cause a leakage, ﬁre or explosion of the batteries or trigger the release of toxic substances.

Protect batteries and rechargeable batteries from mechanical damage during transport. Never store the Li-Ion battery in the sun, on radiators or behind glass windows. Do not overheat batteries and rechargeable batteries or expose them to ﬁre. Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. Dispose of properly.

WARNING

A short-circuiting or unintended use can cause batteries to overheat and cause an injury or ﬁre hazard.

Do not transport or store batteries in the pockets of garments. Do not bring the battery contacts in contact with jewelery, keys, or other electrically conductive

objects. Do not charge non-rechargeable batteries Do not discharge the batteries by short-circuiting. Do not solder the batteries into the device. Do not mix old and new batteries, and do not mix batteries from dierent manufacturers or

with a diering type designation.

(see Chapter 12 / Disposal)

WARNING

Using charging devices from other manufacturer‘s can damage the Li-Ion batteries. This can lead to a ﬁre and explosion hazard.

Only use original SOLA accessories.

Page 11

WARNING

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. The burning of plastic components generates toxic fumes which may damage the health of people. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized people are able to use the product improperly.

The product must not be disposed of together with household waste. Dispose of the device and

accessories properly Protect the product at all times from access by unauthorized people, and especially children.

4.5 ELECTROMAGNETIC COMPATIBILITY (EMC)

The electromagnetic compatibility is the ability of the product to function in an environment where electromagnetic radiation and electrostatic discharge are present, without causing electromagnetic iterference to other devices.

4.5.1 Interference of other devices by FLOX

Although the product meets the strict requirements of the relevant directives and standards, SOLA can not completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as ﬁeld computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

When using computers and radio equipment make sure to observe the vendor-speciﬁc information

about electromagnetic compatibility. Only use original SOLA equipment and accessories.

4.5.2 Interference of the FLOX by other devices

Although the product meets the strict requirements of the relevant directives and standards, SOLA can not entirely exclude the possibility that intense electromagnetic radiation in the immediate vicinity of radio transmitters, two-way radios, diesel generators, etc. can distort the measurement results.

When performing measurements under these conditions check the plausibility of the results.

(see Chapter 12 / Disposal)

Page 12

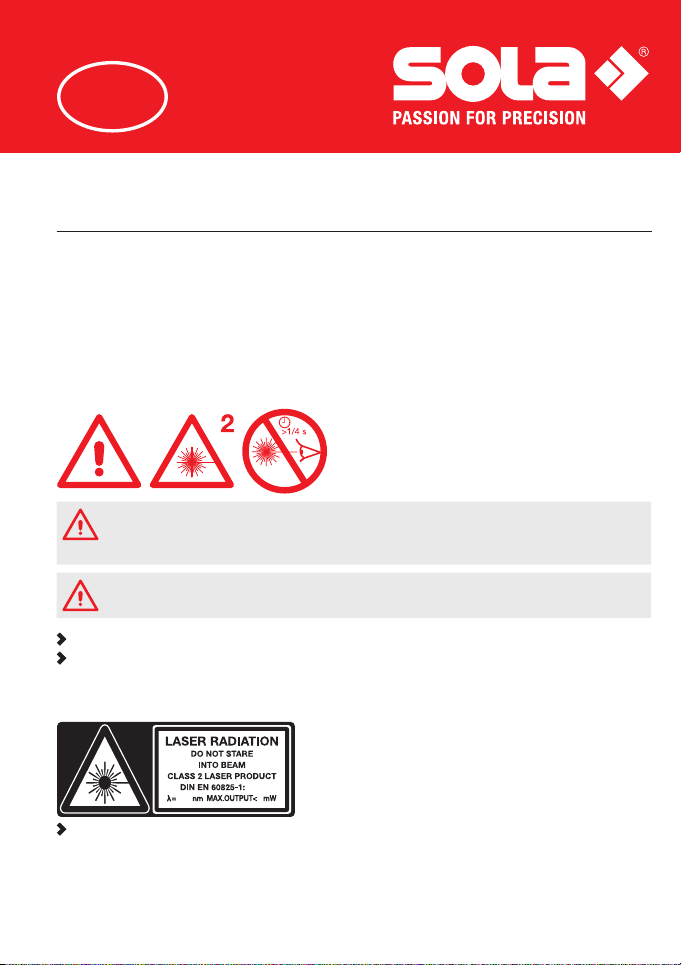

5. LASER SAFETY/CLASSIFICATION

The FLOX emits a horizontal and a vertical wall line. It also emits two ﬂoor lines that are arranged at a right angle to each other. The product corresponds to Laser class 2 according to DIN EN 60825-1:2014.

Laser class 2:

With class 2 laser devices, eyes are protected by the the blink reﬂex and/or the aversion responses in the event that a person accidentally looks at the laser for a short time.

WARNING

Looking directly into the laser beam with optical aids (such as binoculars, telescopes) can be dangerous.

WARNING

Looking directly into the laser beam can damage the eyes.

Do not look into the laser beam. Do not point the laser beam at other people.

Labelling on the device:

635 5

Do not remove the label!

2014

Page 13

6. Start-up

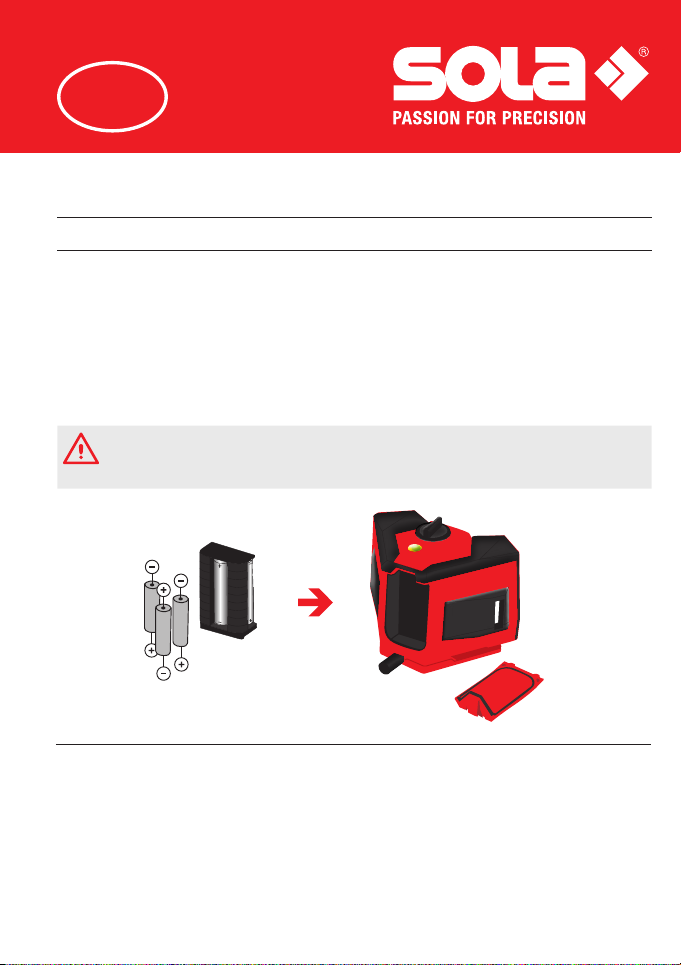

6.1 Operation with batteries

1. Open the battery compartment cover.

2. Insert batteries into the SOLA battery adapter, making sure that the polarity of the batteries is correct

3. Insert the SOLA battery adapter in the correct position.

4. Close the battery compartment cover (audible click of the cover).

Use only 1.5v AA size (Mignon) batteries. Remove the batteries if the instrument is not used for an extended period.

NOTE

The intensity of the laser lines can vary depending on the battery quality. The best visibility can be achieved with the SOLA Li-ion battery.

6.2 Operation with the SOLA Li-ion battery (optional)

1. Fully charge the battery with the SOLA Li-ion charger (see Chapter 7.2).

2. Open the battery compartment cover.

3. Insert the SOLA Li-ion battery in the correct position.

4. Close the battery compartment cover (audible click of the cover).

If the device is not used for a long period of time, remove the batteries and store in a dry place

(see Chap. 9 / Maintenance, storage and transport).

Page 14

7. Operation

7.1 FLOX Switching the laser on / o On:

Turn the on/o switch, transport lock to the left (WALL position) and the pendulum unit will be

released. The device transmits a horizontal and a vertical line from the output aperture. The device levels itself automatically within the speciﬁed inclination range (see Chapter 3/Technical data).

Turn the on/o switch to the right (FLOOR position). The device transmits two laser lines at the front

and two at the back on the ﬂoor that are angled at 90° to each other. The device does not level automatically in this state.

O:

Turn the on/o switch, transport lock to the centre (OFF position) and the pendulum unit will be

locked; the laser lines will disappear.

NOTE

Magnets can aect the measuring instrument and lead to false results.

If the vertical laser line is not projected vertically to the wall or to the target surface, uneven surfaces can lead to erroneous measurement results.

Make sure that the vertical laser line is projected vertically to the wall or to the target surface.

Severe temperature ﬂuctuations can lead to erroneous measurement results.

Before start-up, allow the device to acclimatise to the environmental conditions.

The laser lines will ﬂash every 30 seconds when the battery capacity falls below 10%.

Recharge the battery regularly or ensure additional batteries are available.

Page 15

7.2 SOLA Li-Ion battery, charging station & charger (optional)

The SOLA Li-ion battery must be completely charged prior to use.

Plug the charger plug into the charging port of the Li-Ion Charger Connect the SOLA Li-ion charger to a socket. Insert the SOLA Li-ion battery in the charging station in the correct position. The charging process takes between 3 and 5 hours, depending on the state of

charge and environmental conditions. The battery reaches its full capacity after a maximum of 10 charging cycles. The battery should, ideally, be fully charged at all times. The battery can also be

removed from the charging station before completing the charging process, the

charging process, if the need is urgent. The durability of the battery will not be

negatively aected as a result of this (no „memory eect“).

Page 16

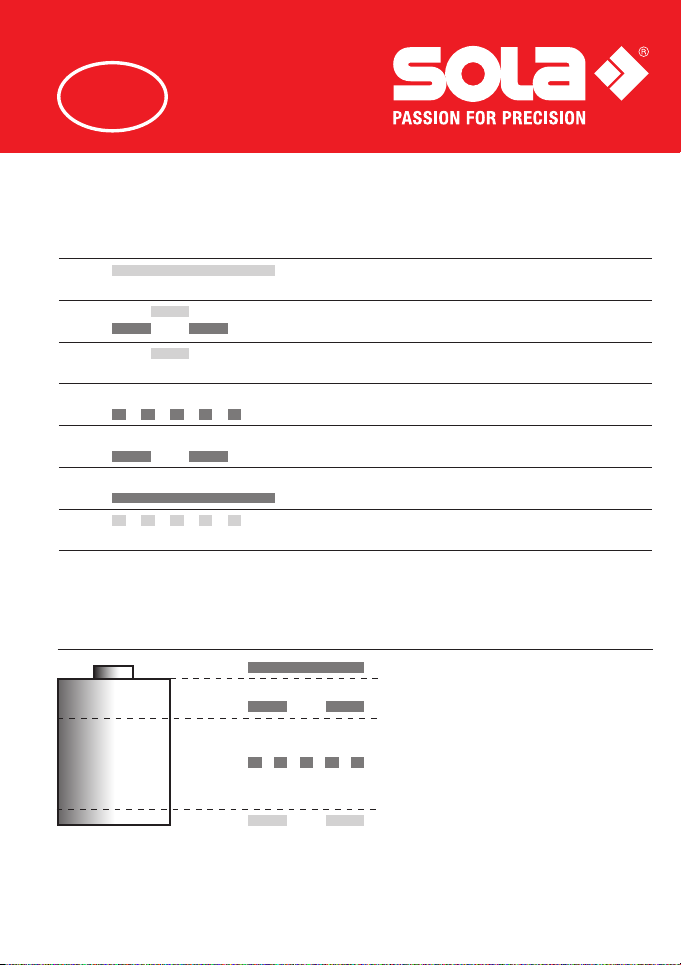

Charger operating display:

Colour Display Mode Description

yellow green

Capacity Display Mode

100 % Charging process completed

Standby No battery in the charger

Wait cycle Battery temperature beyond the valid range

Pre-charge Protective charging for deeply discharged

batteries

Main charge Rapid charging phase with max. Power up

to 80 %

Recharging Recharging between 80 – 100 %

Completed Charging process completed, battery is

100 % charged

Error Battery too hot / too cold,let it acclimatize and

reinsert

80 % Recharging

Main charge

Pre-charge

Page 17

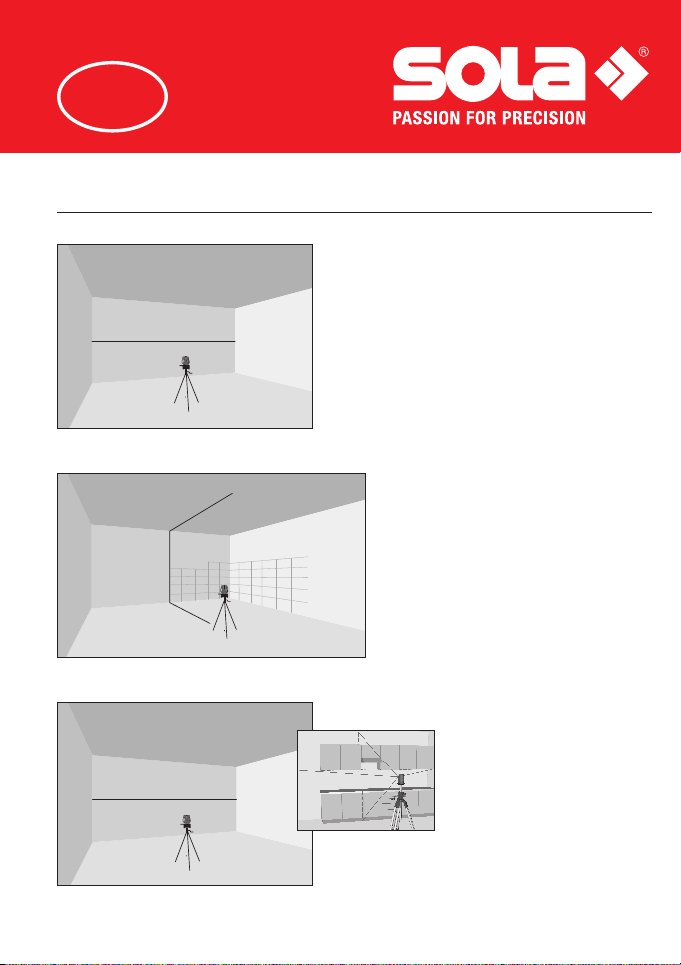

7.3 Applications

7.3.1 Horizontal levelling

7.3.2 Vertical levelling

7.3.3 90° angle

Page 18

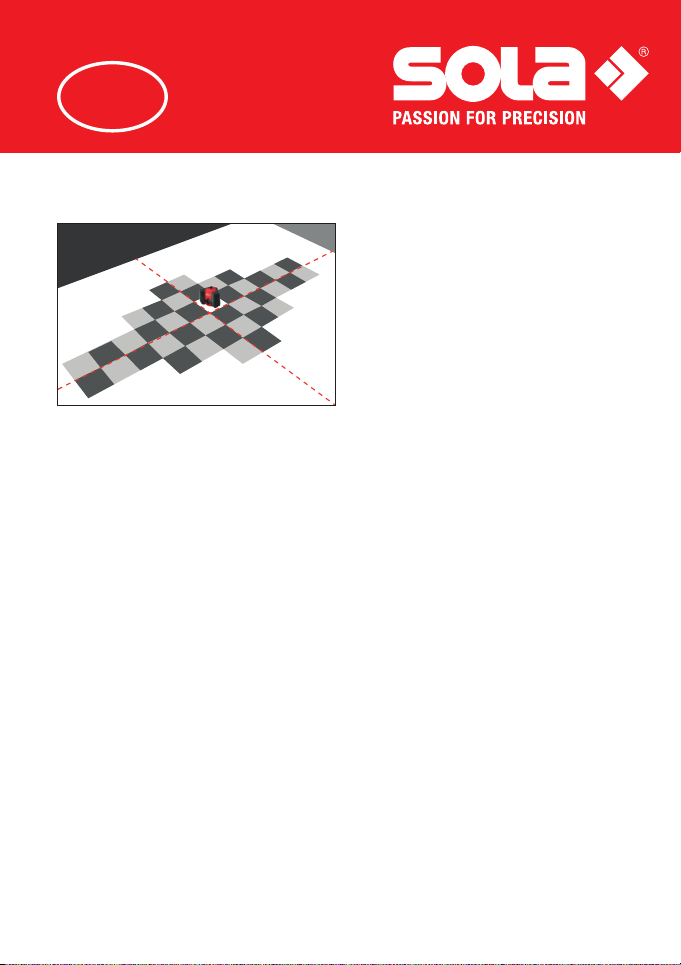

7.3.4 Floor lines

Page 19

ca. 1,2 m

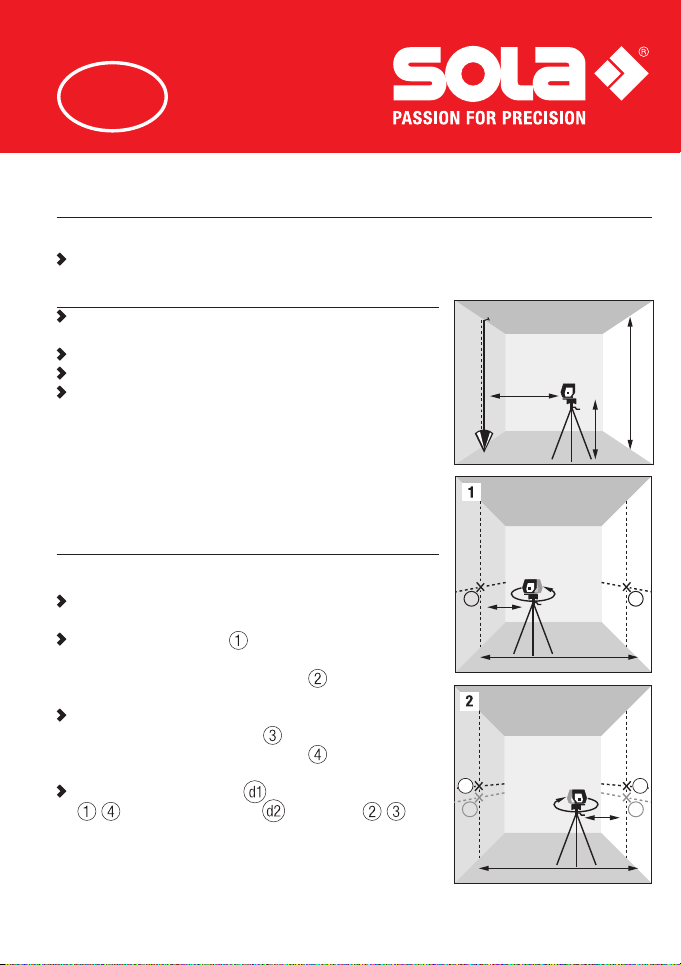

8. Checking the accuracy

Check the accuracy of the FLOX before each measurement.

Before starting the check, let the device acclimatise to the environmental conditions.

8.1 Checking the accuracy of the vertical line

Attach a plumb line as close as possible possible to a (at least)

3 m high wall.

Mount the FLOX onto a tripod at a height of approx. 1.2 m. Position the device approx. 3 m in front of the plumb line. Switch on the FLOX and project the vertical laser line onto

the plumb line.

If the deviation is greater than 4 mm, the device must be readjusted. In this case, consult your dealer.

ca. 3 m

min. 3 m

8.2 Checking the leveling accuracy of the horizontal line

1. Select two horizontal, ﬂat walls (A & B), which are approx. 10 meters apart.

Mount the FLOX onto a tripod and position it at a

distance of approx. 20 cm from wall A.

Mark the intersecting point of the vertical and horizontal

lines on wall A.

2. Rotate the FLOX by 180° and mark point

on wall B. Position the laser at the same height approx. 20 cm

away from wall B and mark point

3. Rotate the FLOX by 180° and mark point

on wall B.

on wall A.

Measure the vertical distance

- and the vertical spacing of the points - .

of the marked points

A B

1 2

ca.

20 cm

180°

ca. 10 m

A B

180°

ca. 10 m

ca.

20 cm

Page 20

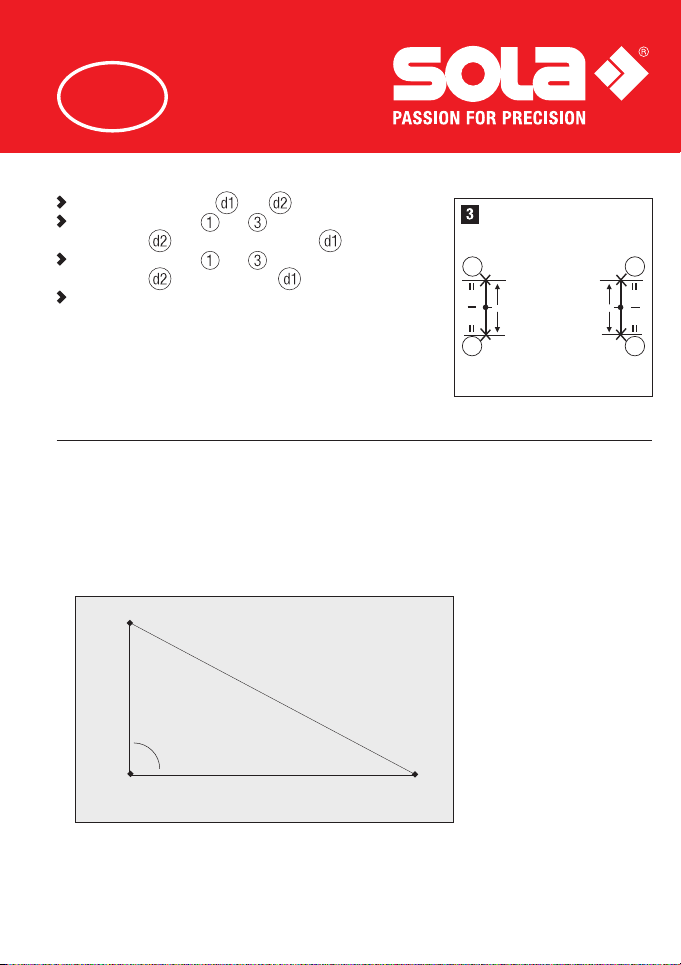

Mark the center point of and . If the reference points and are on dierent sides of the

center point,

If the reference points and are on the same side of the

center point,

Divide the results with twice the value of the room length.

If the result is greater than 4 mm, the device must be readjusted. For this, please consult your dealer.

8.3 Checking the ﬂoor lines

1. Position the instrument on even ground and turn it on.

2. Measure 50 cm from the centre of the laser cross (point X) along a line and mark down point A.

3. Measure 100 cm from the centre of the laser cross (point X) along a line, that is at a 90 degree angle to the rst line, and mark down point B.

4. The distance between point A and B should be 111.80 cm.

5. Repeat for the other two lines.

must be subtracted from .

must be added to .

d 1

d 2

50 cm

111,80 cm

90°

100 cm

Page 21

9. Maintenance, storage and transportation

9.1 Cleaning

Wipe o any dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch

the glass with your ﬁngers. Do not use aggressive cleaning agents or solvents. Do not immerse the device into water! Clean and dry wet equipment, accessories and transport containers prior to packaging them. Only

pack equipment again when it is completely dry. Keep plug connections clean and protected from moisture.

9.2 Storage

9.2.1 General

The equipment may only be stored within the speciﬁed temperature limits After a prolonged storage, check the accuracy of the measuring device before using it.

9.2.2 Batteries / rechargeable batteries

For storage, remove the batteries from the device or from the charging station. The storage should preferably be performed in a dry environment at room temperature

(see Chapter 3 / Technical data)

Protect from moisture and humidity. Dry wet or damp batteries before storage or before use. Prior to prolonged storage, charge the battery to 80 % capacity

procedure every 6 months. After storage, fully charge the battery before use. Check the battery for damage before use. Do not use damaged batteries!

(see Chapter 3 / Technical data)

(see Chapter 7 / operation)

. Repeat the

9.3 Transport

9.3.1 General

The device may be damaged by strong vibrations or by dropping.

Never transport the product loose. Always use the original packaging or an equivalent

transport container.

Switch o the measuring device before transporting it. During shutdown the pendulum unit is

locked in position and protected against damage. Check the unit for damage before use. Regularly check the accuracy of the device

(see Chapter 8 / Checking the accuracy)

Page 22

9.3.2 Batteries / rechargeable batteries

When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations.

Before shipping, remove the batteries from the device.

Li-ion batteries fall under the jurisdiction governing hazardous goods, but they may be transported on the road by their operator without further stipulations. When shipping through third parties (e.g. forwarding agent or air freight) the special requirements regarding the packaging and labeling must be observed.

Remove the battery from the device and ship it in its storage

condition (80 % capacity). Cover exposed contacts with tape. Package the battery in such a manner that it can not move around in

the packaging, and that it can not be damaged by external factors. Further national and international regulations and any additional requirements

as well as the stipulations of the respective transport company must be

observed.

Page 23

10. Delivery contents and accessories

10.1 Product contents FLOX

1 FLOX line laser 1 Laser goggles LB red 1 AA batteries 3 Batterieadapter BA 1 Quick Starter 1 Case

10.2 ACCESSORIES (optional)

SOLA Li-Ion battery set 5.2 Motor vehicle adapter CC Compact tripod FST Telescopic tripod TST Elevator tripod KST Construction tripod BST Clamp tripod KLST Flexible wall bracket FWH Wall bracket WH Thread adapter set GA-SET Laser goggles red LB RED Magnetic target ZS RED

Further information regarding the accessories can be found at www.sola.at

Page 24

11. Troubleshooting

Error Possible cause Troubleshooting

Device turns o again immediately after startup.

Laser lines blink in one second intervals

Laser lines ﬂash every 30 seconds

Battery exhausted Rechargeable battery

exhausted

Device is beyond the

self-leveling range

Battery capacity below 10% Replace batteries

Replace the battery Recharge or replace battery

Align the device horizontally

Page 25

12. Disposal

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. The burning of plastic components generates toxic fumes which may impair the health of people. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized people may be able to use the product improperly.

Measuring tools, accessories and packaging must be recycled in an environmentally-friendly manner.

Your SOLA dealership will take back batteries as well as old equipment, and will ensure proper disposal.

Only for EU countries

The product as well as the accessories - especially the batteries and rechargeable batteries - must not be disposed of with household waste.

Dispose of the device and the accessories properly Only dispose of batteries in a discharged state. Observe the country-speciﬁc disposal requirements.

Electric tools must not be disposed of with household waste! According to the European Directive 2002 / 96 / EC on Waste Electrical and Electronic Equipment and its implementation in national law, no longer usable electrical and electronic equipment must be collected separately and recycled in an environmentally friendly manner.

Page 26

13. Manufacturer‘s Guarantee

The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, as of the point in time the device is handed over. The guarantee is limited to repairs and / or replacements at the manufacturer‘s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical aws that do not affect the usability of the equipment, are not covered by this guarantee. Claims under this guarantee can only be invoked if the device is submitted along with the guarantee card, completely lled out by the dealer, dated and provided with the company stamp. If the guarantee claim is justied, the manufacturer shall bear the transport costs. The duration of the guarantee will not be extended through repair or spare parts work which is carried out within the scope of the guarantee. Further claims are excluded, unless these are stipulated by the respective by the respective national legislation. In particular the manufacturer shall not be liable for any direct, indirect, incidental or consequential damages, losses tool for any purpose whatsoever. Implied warranties for the usage or suitability for a particular purpose are expressly excluded.

or expenses in connection with the use or because of the inability to use the

Page 27

14. EC conformity declaration

Konformitätserklärung Declaration of Conformity Déclaration de Conformité

Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria

erklären in alleiniger Verantwortung, dass das Produkt(e)

declare under our sole responsibility that the Product(s)

déclarons sous notre seule responsabilité que le(s) produit(s)

auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.

FLOX

to which this declarations relates is in conformity with the following standards.

auquel(s) se réfère cette déclaration est conforme aux normes.

FLOX

• EN61326-1 :2013

• EN61326-2 :2013

• EN61000-3-2 :2014

• EN61000-3-3 :2013

• EN61010-1 :2010

• EN60825-1 :2014

SOLA-Li-Ion-battery 5.2:

• EN 61000-6-1: 2007

• EN 61000-6-3: 2007+A1:2011 UN38.3

Li-Ion charging station:

• EN 60601-1: 01/2006

• EN 60335-2-26 06/2005

• EN 60335-1 11/2010

• EN 61000-6-3 09/2007

• EN 60601-1-2 10/2006

Page 28

• EN 55022 05/2008

• EN 60601-1-2 10/2006

• EN 61000-6-2 03/2006

• EN 55014-1 06/2007

• EN 55014-2 06/2007

Gemäss den Bestimmungen der Richtlinie(n)

Following the provisions of Directive(s)

Conformément aux dispositions de(s) Directive(s)

Electromagnetic compatibility 2014/30/EC

Low Voltage Directive 2014/35/EC

SOLA-Messwerkzeuge GmbH

Mag. Wolfgang Scheyer CEO

SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria

Phone +43(0)5523 53380, [email protected], www.sola.at
