Sola Evo 360 User guide

Download

Page 1

EVO 360

Gebrauchsanweisung

Operating instructions

Manuel d’instructions

Instruzioni d‘uso

Instrucciones de uso

Gebruiksaanwĳzing

Руководство по применению

Instrukcja obsługi

Eksploatacĳos instrukcĳa

Lietošanas instrukcĳa

Uputstvo za upotrebu

Návod k použití

Manual de utilizare

Ръководство за употреба

Használati útmutató

Page 2

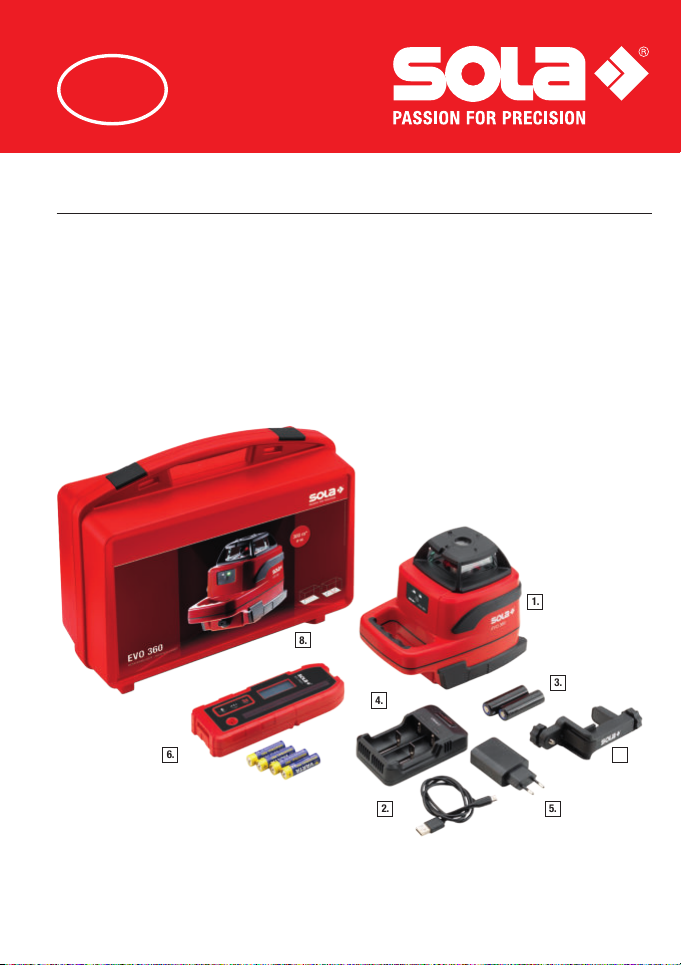

Included in delivery with the EVO360

1. Rotation laser EVO 360

2. Charging cable

3. Rechargeable batteries 18650

4. Battery charger

5. Power supply unit

6. Receiver REC RRD1

7. REC RRD1 clamp

8. Carrying case

2. 5.

Page 3

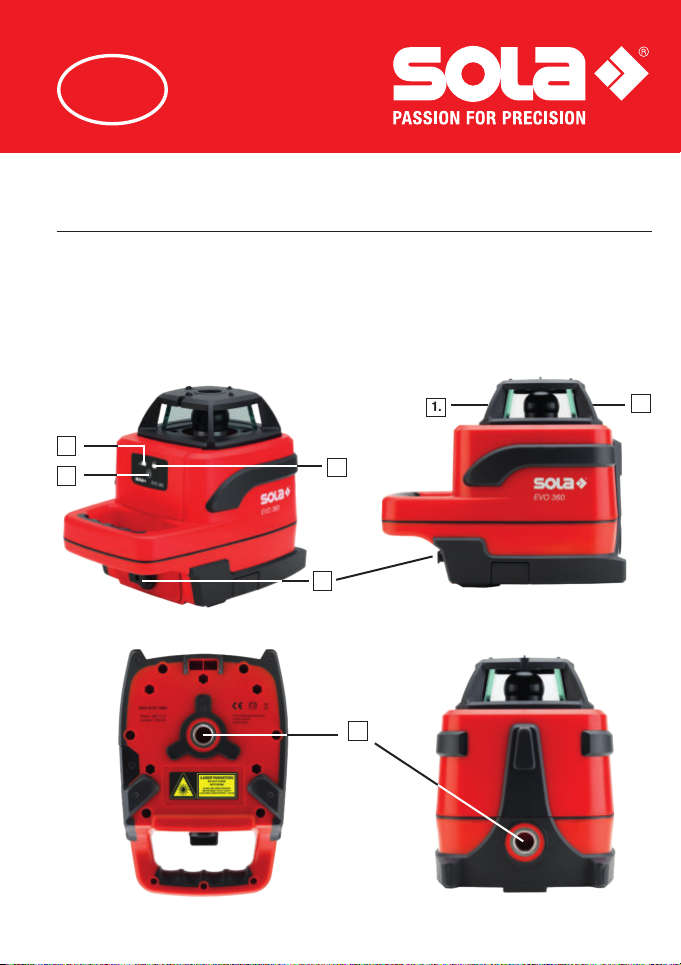

Device components, display and operating elements

1. Laser beam output aperture

2. Levelling status

3. Status/battery voltage display

4. >ON/OFF< button

5. Battery compartment cover

6. Tripod adapter 5/8"

Page 4

Operating manual EVO 360 rotation laser (original version)

About this manual

Congratulations on the purchase of your new EVO 360! You have acquired a SOLA measurement instrument, which can make your work easier, faster and more precise. To utilize the complete functionality range of this measurement instrument, and to ensure a safe operation, please observe the following instructions:

• Please read this operating manual before commissioning the device.

• Always keep the operating manual near the device.

• Only hand over the device to other persons together with the operating manual.

• Never render the attached warning signs unreadable.

Contents

1. General information

2. Description

3. Technical data

4. Safety instructions

5. Laser safety/classiﬁcation

6. Getting started

7. Operation

8. Checking the levelling accuracy

9. Maintenance, storage and transportation

10. Delivery contents and accessories

11. Troubleshooting

12. Disposal

13. Manufacturer’s guarantee

14. EC conformity declaration

Page 5

1. General information

1.1 Signal words and their meaning DANGER

For an imminent danger that could lead to serious injury or death.

WARNING

For a possibly dangerous situation that could lead to serious injury or death.

CAUTION

For a possibly dangerous situation that could lead to slight injury or property damage.

NOTE

For application notes and other useful information.

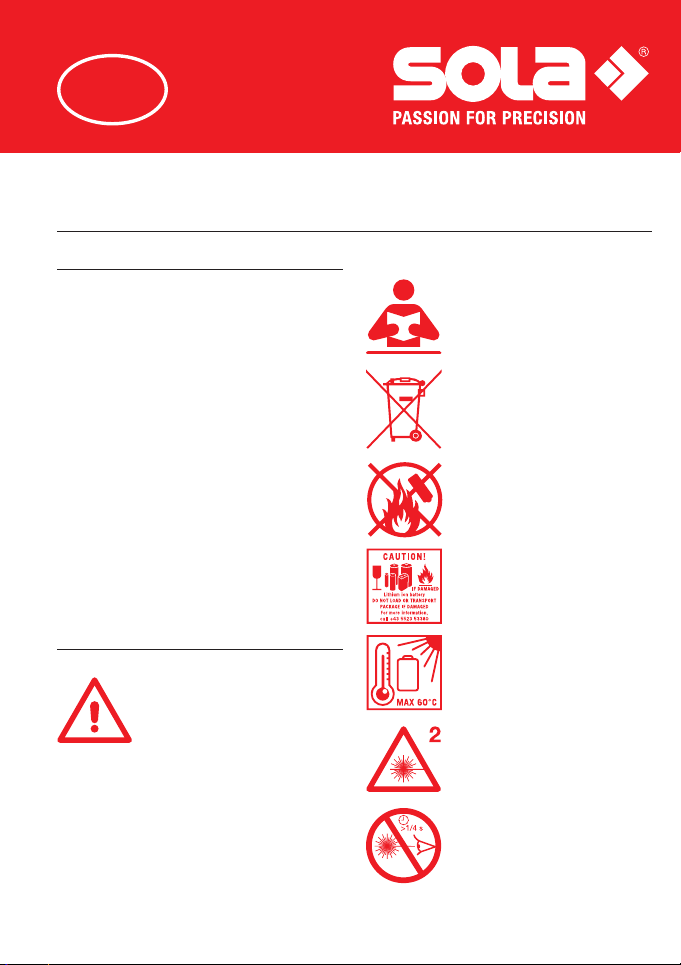

1.2 Pictograms and other information

1.2.1 Warning signs

Warning of dangers in general

1.2.2 Symbols

Read the operating manual before use

Batteries and devices may not be disposed of with household waste

Do not throw batteries into the ﬁre

Warning label on packages with Li-Ion batteries

Do not heat the battery above 60°C

Class 2 laser device

Do not look into the laser beam!

Page 6

2. Description

2.1 Device components, display and operating elements

1. Laser beam output aperture

2. Levelling status

3. Status/battery voltage display

4. >ON/OFF< button

5. Battery compartment cover

6. Tripod adapter 5/8"

2.2 Intended use

The EVO 360 is an easy-to-use, self-levelling laser device which can be used by one or more people to perform accurate horizontal and vertical measurements with the help of a receiver device. The visibility range of the laser lines depends on the ambient conditions. In low light conditions or for long distances, the receiver can be used to locate the laser line position. Follow the instructions contained in this manual. The device and accessory equipment may present a danger if they are utilised improperly or inappropriately by persons who are not instructed as required.

Page 7

3. Technical data

Working range*

- Laser line r = 20 m*

- Receiver r = 300 m* Max. measurement tolerance

- Laser line ± 0.1 mm/m Rotation speed 600 rpm Levelling range (typical) ± 5° Levelling time (maximum) ≤ 25s Power supply 2 x 3.6V Li-Ion battery (3450mAh) Battery life (at 20°C) 40h Permissible temperatures Operating temperature -10°C to +50°C Storage temperature -20 °C to +60 °C Laser diodes 635–650nm < 1mW Laser class 2M, DIN EN 60825-1:2014+A1:2017 Tripod adapter 5/8" Protection class IP 66 Weight without batteries 1600g Dimensions 179 x 143 x 211 mm

*... depending on the ambient conditions in the workplace. | Subject to modiﬁcations (drafts, descriptions and technical data).

Page 8

4. Safety instructions

4.1 Area of responsibility

4.1.1 Manufacturer

SOLA is responsible for the safe delivery condition of the product, including the operating manual and the original accessories.

4.1.2 Operator

The operator is responsible for using the product as intended, the deployment of personnel, their training and the operational safety of the product.

The operator understands the safety information which is stated on the product and

the instructions in the operating manual.

The operator shall comply with the standard local regulations relating to safety and accident preven-

tion regulations as well as worker protection laws and regulations.

The operator shall immediately notify SOLA if safety-related issues should arise relating to the product

or during its utilization.

The operator shall ensure that the product is not utilized any further if defects become evident, and

they will have the product repaired professionally.

4.2 Improper use

Use of the device and the accessories without instruction. Use of third-party accessories or additional equipment. Use outside of the intended limits Use under extreme temperature ﬂuctuations without an adequate acclimatisation. Disabling of safety devices and removal of hazard notices and labels. Unauthorized opening of the device. Performance of modiﬁcations or alterations to the device or the accessories. Deliberate blinding of third parties. Inadequate safeguarding at the installation site.

(see Chapter 3 / Technical data)

4.3 Utilization limitations

The EVO 360 is suitable for continuous use in an atmosphere which can be inhabited by humans.

Do not operate the product in explosion-prone or corrosive environments. Inform the local safety authorities and safety experts before working in hazardous environments, in

close proximity to electrical installations or similar surroundings.

Page 9

4.4 Usage hazards

4.4.1 General

WARNING

Missing or incomplete instructions may result in improper or incorrect use. This can cause accidents with serious damage to persons, property, assets and the environment.

Follow the manufacturer’s and operator’s safety instructions. Protect equipment and accessories from being accessed by children.

WARNING

Blinding by laser radiation can indirectly lead to serious accidents, especially for people who are driving a vehicle or operating machinery. Do not look into the laser beam.

Do not set up the laser beam and the laser plane at eye level or aim at people.

CAUTION

A fall, longer storage, transportation or other mechanical eects can lead to erroneous measurement results. Check the unit for damage before use. Do not use damaged equipment.

Repairs must only be performed by SOLA. Before using, check the accuracy of the device

4.4.2 Charger / batteries / rechargeable batteries

DANGER

There is a risk of mortal danger from electric shock.

Never open the SOLA Li-Ion battery charger or charging station.

Only use the SOLA Li-Ion battery charger and charging station in dry places and do not bring them

into contact with liquids.

(see Chapter 8/Checking the accuracy)

Page 10

DANGER

Mechanical damage can cause batteries to leak, explode or catch ﬁre or trigger the release of toxic substances.

Batteries and rechargeable batteries must not be opened or exposed to mechanical loads. Damaged batteries, chargers and charging stations may not be used. Repairs must only be performed by SOLA.

WARNING

High ambient temperatures and immersion into liquids can cause batteries to leak, explode or catch ﬁre or trigger the release of toxic substances.

Protect batteries and rechargeable batteries from mechanical damage during transport. Never store the Li-Ion battery in the sun, on radiators or behind glass windows. Do not overheat batteries and rechargeable batteries or expose them to ﬁre. Avoid the ingress of moisture into batteries and rechargeable batteries. Do not use damaged batteries or rechargeable batteries. Perform a proper disposal

(see Chapter 12 / Disposal)

WARNING

A short-circuiting or improper use can cause batteries to overheat and create an injury or ﬁre hazard.

Do not transport or store batteries in the pockets of garments. Do not bring the battery contacts in contact with jewellery, keys, or other electrically conductive

objects. Do not charge the batteries. Do not discharge the batteries through short-circuiting. Do not solder the batteries in the device. Do not mix old and new batteries, and do not mix batteries from dierent manufacturers or with a

diering type designation.

WARNING

Using charging devices from other manufacturers can damage the Li-Ion batteries. This can lead to a ﬁre and explosion hazard.

Only use original SOLA accessories.

Page 11

WARNING

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. Burning plastic components generates toxic fumes which may impair health. Batteries / rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized persons are able to use the product improperly.

The product must not be disposed of together with household waste. Dispose of the device and

accessories properly Protect the product against access by unauthorized persons at all times, and especially children.

4.5 Electromagnetic compatibility (EMC)

The electromagnetic compatibility is the ability of the product to function in an environment where electromagnetic radiation and electrostatic discharge are present, without causing electromagnetic interference to other devices.

4.5.1 Interference with other devices by EVO 360

Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot completely exclude the possibility of interference with other devices (for example, when using the product in combination with third-party devices, such as ﬁeld computers, personal computers, wireless devices, mobile phones, certain cables or external batteries).

When using computers and radio equipment, be sure to observe to the vendor-speciﬁc information

about electromagnetic compatibility. Only use original SOLA equipment and accessories.

(see Chapter 12 / Disposal)

4.5.2 Interference with the EVO 360 by other devices

Although the product meets the strict requirements of the relevant directives and standards, SOLA cannot entirely exclude the possibility that intense electromagnetic radiation in the immediate vicinity of radio transmitters, two-way radios, diesel generators, etc. may distort the measurement results.

When performing measurements under these conditions, check the plausibility of the results.

Page 12

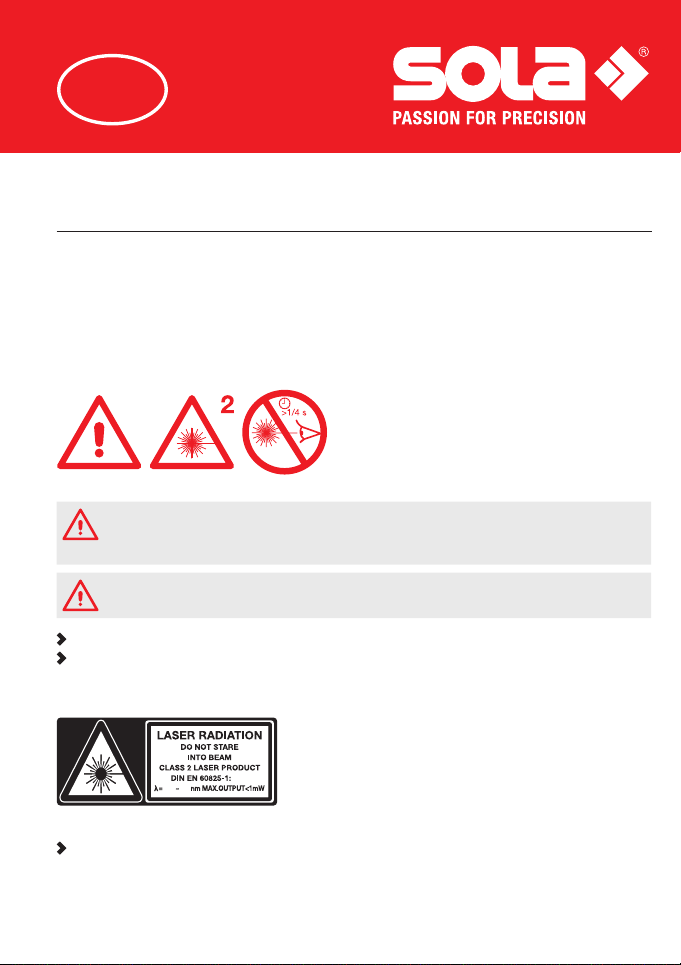

5. Laser safety/classiﬁcation

The laser is subject to Class 2M (2M, DIN EN 60825-1:2014+A1:2017).

Laser class 2–2M:

When using Class 2–2M laser devices, the eye is protected by the blink reﬂex or aversion reaction in the case of random and short-term exposure.

WARNING

Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be dangerous.

CAUTION

Looking into the laser beam may be hazardous to the eye.

Do not look into the laser beam. Do not aim the laser beam at other people.

Labelling on the device:

635

See cover page for the position of the label.

Do not remove the type plate!

2014

650

Page 13

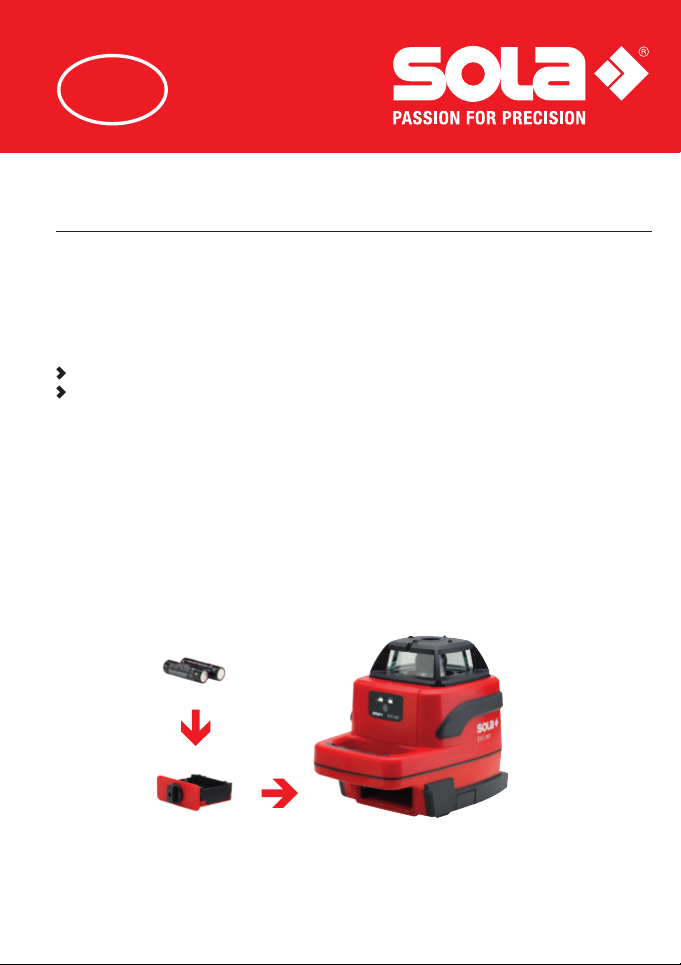

6. Getting started

1. Fully charge the battery with the charger.

2. Open the battery compartment cover.

3. Insert the battery with the correct orientation.

4. Close the battery compartment cover.

5. The voltage of the device is continuously monitored. If the residual capacity drops below 3.4V, the laser will switch to low-power mode; all the functionalities will still be provided:

if the laser is carrying out the self-levelling process, the red/green LEDs will ﬂash at the same time if the self-levelling process is completed, the green LED will be continuously illuminated and the red

LED will ﬂash. The laser will switch o automatically if the residual capacity is less than 3.0V.

6. If the device is not used for a long period of time, remove the batteries and store in a dry place (see Chap. 9/Maintenance, storage and transport).

Page 14

7. Operation

7.1 EVO 360 Switching the laser on/o

Position the laser horizontally or vertically on a stable platform, or mount it at the desired height onto a tripod or column/wall bracket using the 5/8" tripod connector.

On: Press the >ON/OFF< button. O: Press the >ON/OFF< button again.

The laser always starts in the automatic self-levelling mode.

The device is levelled, if the laser beam is lit and the levelling indicator no longer ﬂashes.

The levelling status display is continuously illuminated.

If the laser is tilted by more than 5° (self-levelling range), the status/battery voltage display will be continuously illuminated red.

Then realign the laser.

If the laser is levelled for more than 30seconds in the horizontal or vertical mode, the tilt alarm for device height monitoring (height-alarm) will be activated. If the laser is disrupted afterwards (for example the tripod is bumped) and the height of the laser beam is altered during the re-levelling, the height-alarm will switch o the laser and the rotor, and the levelling status and status/battery voltage display will light up.

To clear the height-alarm, press the ON-OFF button once. After the laser has levelled itself again,

check the original reference height.

Page 15

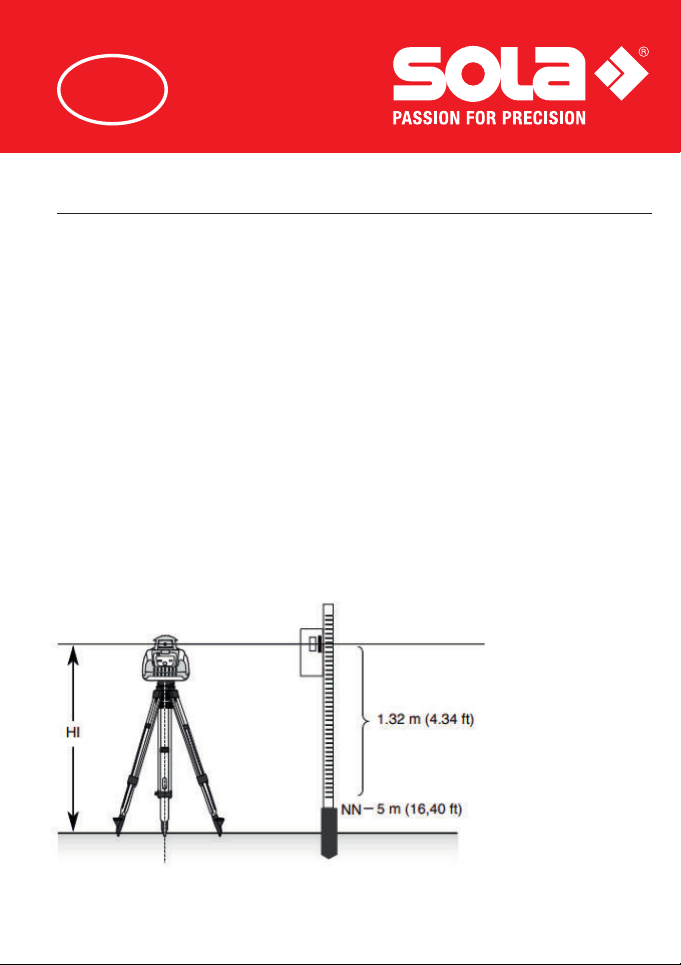

7.2 Applications

Building construction

1. The device height (HI) is the height of the laser beam.

2. It is determined by adding the measuring rod reading to a height marking or a known elevation.

3. Set-up of the laser and positioning the measuring rod with the receiver on a known height or reference peg (NN).

4. Align the receiver so it is positioned at the height of the laser beam.

5. Add the measuring rod reading to the known NN height to determine the laser height.

Example:

NN height = 5m Rod reading = +1.32m Laser height = 6.32m Use the laser height as the reference for all other height measurements.

Page 16

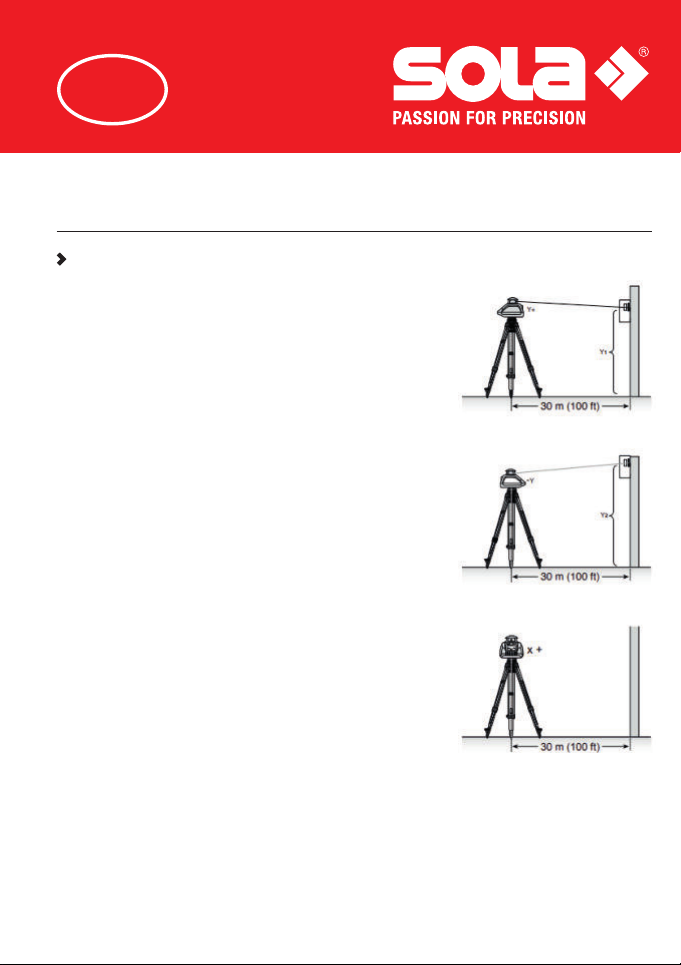

8. Checking the accuracy

Check the accuracy of the SOLA EVO 360 before each measurement.

Before starting the check, let the device acclimatise to the ambient conditions.

1. Position the laser 30m away from a wall and allow it to level itself horizontally.

2. Move the receiver up and down until the +Y-axis is positioned at the height of the laser beam. Use the marking notch as a reference and mark the height on the wall.

3. Rotate the laser by 180° (the -Y-axis must be facing the wall) and allow it to re-level itself.

4. Move the receiver up and down until the -Y-axis is positioned at the height of the laser beam. Use the marking notch as a reference and mark the height on the wall.

5. Measure the dierence between the two marks. The laser must be calibrated if the dierence is greater than 6mm at a distance of 30m.

6. After adjusting the Y-axis, rotate the laser by 90°. Repeat the steps 2–5, and start with the +X-axis pointing towards the wall.

Page 17

9. Maintenance, storage and transportation

9.1 Cleaning

Wipe o the dirt with a soft damp cloth. Check the outlet openings of the laser regularly, and thoroughly clean them if necessary. Do not touch

the glass with your ﬁngers. Do not use aggressive cleaning agents or solvents. Do not immerse the device in water! Clean and dry wet equipment, accessories and transport containers prior to packaging them. Only

pack equipment again when it is completely dry. Keep plug connections clean and protected from moisture.

9.2 Storage

9.2.1 General

The equipment must only be stored within the speciﬁed temperature limits

(see Chapter 3/Technical data).

After prolonged storage, check the accuracy of the measuring device before using it.

9.2.2 Batteries

To store the rechargeable battery remove it from the device or the charging station. The storage should preferably be in a dry environment at room temperature

(see Chapter 3/Technical data).

Protect from moisture and humidity. Dry wet or damp batteries before storage and before usage. Before storing for extended periods, charge the battery to 80% capacity (see Chapter 7/Operation).

Repeat the process every six months during storage.

After storage, fully charge the battery. Check battery for any damage before use. Do not use damaged batteries!

9.3 Transport

9.3.1 General

The device may be damaged if it falls or is subjected to strong vibrations. Never transport the product loose. Always use the original packaging or an equivalent transport

container. Switch o the measuring device before transporting it. During the shutdown the pendulum unit is

locked in position and protected against damage. Check the unit for damage before use. Regularly check the levelling accuracy of the device

(see Chapter 8/Checking the levelling accuracy)

Page 18

9.3.2 Batteries

When transporting or shipping batteries, the operator is responsible for complying with the applicable national and international laws and regulations.

Before shipping, remove the rechargeable battery from the device.

In principle, Li-ion batteries are subject to requirements for dangerous goods; nonetheless, they can be transported by the user by road without any further requirements. For dispatch via third parties (e.g. shipping companies or air freight), certain requirements for packaging and labelling must be observed.

Remove battery from the device and send in storage condition (80% capacity). Mask

open contacts.

Pack the battery so that it cannot move in the packaging and it cannot be damaged by external

impacts.

Observe other national and international regulations and, if necessary, additional requirements

of the respective transport company.

Page 19

10. Delivery contents and accessories

10.1 Included in delivery with the EVO360

1 rotation laser EVO 360 2 rechargeable batteries 18650 1 battery charger 1 charging cable 1 power supply unit 1 receiver REC RRD1 1 case

10.2 ACCESSORIES (optional)

Rechargeable batteries 18650 Battery charger Power supply unit Receiver REC RRD1

Telescopic tripod TST Elevator tripod KST Construction tripod BST Clamp tripod KLST Wall mount FWH Flexi-gauge FL Measuring rod ML Magnetic target ZS RED Laser goggles red LB RED Motor vehicle adapter CC Magnetic target ZS RED

Further information on accessories can be found at www.sola.at

Page 20

11. Troubleshooting

Error Possible cause Remedy

The device is switched on, the display is not lit up and a laser beam is not visible

Battery empty Battery inserted incorrectly Device or switch faulty

Charge or change the battery Insert the batteries correctly

Contact your dealer and arrange for the device to be repaired

The device turns itself o immediately after start-up

The device is switched on, the display is lit up but a laser beam is not visible

Status/battery voltage display ﬂashes

Battery empty Charge battery

Ambient temperature too high/low Laser diodes or laser control faulty

Low battery capacity Recharge the battery in good

Allow device to acclimatise Contact your dealer and arrange for the device to be repaired

time

Page 21

12. Disposal

If disposed of improperly third parties can possibly be seriously injured and the environment polluted. Burning plastic components generates toxic fumes which may impair health. Batteries/rechargeable batteries may explode if they are damaged or heated excessively, and thereby cause poisoning, burning, corrosion or environmental contamination. If disposed of negligently unauthorized persons are able to use the product improperly.

Measuring tools, accessories and packaging must be recycled in an environmentally-friendly manner.

The product as well as the accessories – especially the batteries and rechargeable

batteries – may not be disposed of with household waste.

Dispose of the device and the accessories properly. Only dispose of batteries when

discharged.

Observe the country-speciﬁc disposal requirements.

Your SOLA dealership will accept returned batteries as well as old equipment, and will ensure proper disposal.

Only for EU countries

Electric tools must not be disposed of with household waste! According to European Directive 2002 / 96 / EC on Waste Electrical and Electronic Equipment and its transposition into national law, electrical and electronic equipment that is no longer usable must be collected separately and recycled in an environmentally friendly manner.

Page 22

13. Manufacturer’s guarantee

‘The manufacturer warrants to the original purchaser stated on the guarantee card, freedom from defects of the device for a period of two years, with the exception of batteries, from such time as the device is handed over. The guarantee is limited to repairs and/or replacements at the manufacturer’s discretion. Defects which are caused through improper handling by the purchaser or third parties, natural wear and optical ﬂaws that do not aect the usability of the equipment, are not covered by this guarantee. Claims under this guarantee can only be invoked if the device is submitted along with the guarantee card, completely ﬁlled out by the dealer, dated and provided with the company stamp. If the guarantee claim is justiﬁed, the manufacturer shall bear the transport costs. The duration of the guarantee will not be extended through repair or spare parts work which is carried out within the scope of the guarantee. Further claims are excluded, unless these are stipulated by the respective national legislation. In particular the manufacturer shall not be liable for any direct, indirect, incidental or consequential damages, losses or expenses in connection with the use or because of the inability to use the tool for any purpose whatsoever. Implied warranties for the usage or suitability for a particular purpose are expressly excluded.’

Page 23

14. EC conformity declaration

Konformitätserklärung Declaration of conformity Déclaration de conformité

Wir / We / Nous SOLA-Messwerkzeuge GmbH, A-6840 Götzis, Austria

erklären in alleiniger Verantwortung, dass das Produkt(e)

declare under our sole responsibility that the Product(s)

déclarons sous notre seule responsabilité que le(s) produit(s)

auf das sich diese Erklärung bezieht, mit den folgenden Normen übereinstimmt.

to which this declarations relates is in conformity with the following standards.

auquel(s) se réfère cette déclaration est conforme aux normes.

EN 60825-1:2014+A1:2017 EN 61010-1:2010+A1:2019

Gemäss den Bestimmungen der Richtlinie(n)

Following the provisions of Directive(s)

Conformément aux dispositions de(s) Directive(s)

Electromagnetic compatibility 2014/30/EU

Low Voltage Directive 2014/35/EU

SOLA-Messwerkzeuge GmbH

EVO 360

EN 61326-1: 2013

Wolfgang Scheyer CEO

SOLA-Messwerkzeuge GmbH, Unteres Tobel 25, A-6840 Götzis, Austria

Phone +43(0)5523 53380, [email protected], www.sola.at
