SOFTING PS CTK1015 Datasheet

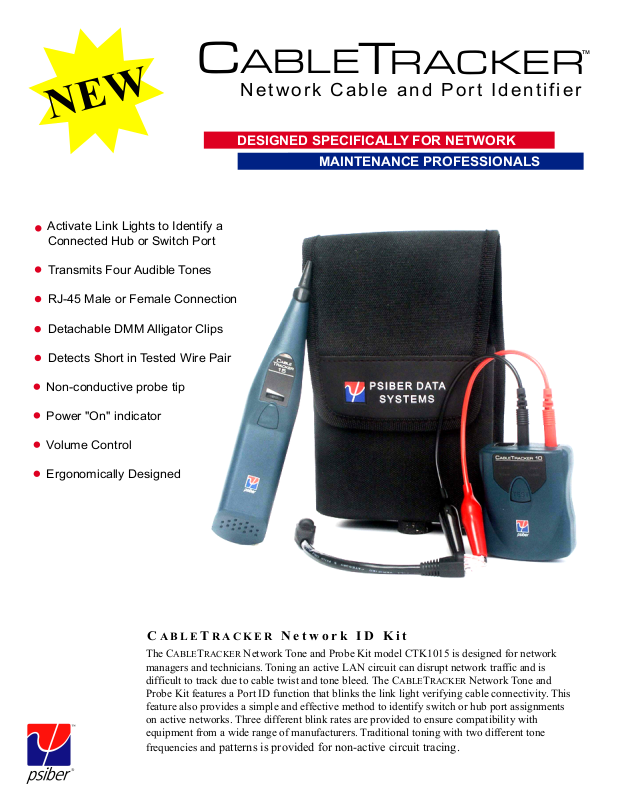

Page 1
C
NEW
Activate Link Lights to Identify a Connected Hub or Switch Port
Transmits Four Audible Tones
RJ-45 Male or Female Connection
Detachable DMM Alligator Clips
ABLE
RACKER
T
Network Cable and Port Identifier
DESIGNED SPECIFICALLY FOR NETWORK
MAINTENANCE PROFESSIONALS
Detects Short in Tested Wire Pair
Non-conductive probe tip
Power "On" indicator
Volume Control
Ergonomically Designed
C
ABLETRACKER
Network ID Kit
The CABLETRACKER Network Tone and Probe Kit model CTK1015 is designed for network managers and technicians. Toning an active LAN circuit can disrupt network traffic and is difficult to track due to cable twist and tone bleed. The C Probe Kit features a Port ID function that blinks the link light verifying cable connectivity. This feature also provides a simple and effective method to identify switch or hub port assignments
q
on active networks. Three different blink rates are provided to ensure compatibility with equipment from a wide range of manufacturers. Traditional toning with two different tone
frequencies and
patterns is provided for non-active circuit tracing.
ABLETRACKER Network Tone and
Page 2
Product Features
Blink the Lights to ID Ports
Tone and probe kits were designed for one primary mission, to identify the termination point of a cable. Unfortunately, these were designed for telephony, not network maintenance. In the Networking environment cable terminations typically end in hub or switch ports. The CableTracker incorporates three link light activation speeds (blink rates) to easily identify the cable termination port by simply looking for the corresponding blink rate on the port light. Three speeds ensure the widest compatibility available.
Easy Ethernet or Telephony Connection
Most toners on the market offer RJ-11 hard-wired modular connection. That's because they were designed mostly to be used in the Telecommunication market. This does nothing for the Lan technician who is faced with ethernet RJ-45 jacks or patch cords. The CableTracker Network ID Kit was designed to accommodate both Computer Network cabling and Telephony cabling. The Signal Generator (CT10) incorporates a female RJ-45 jack and detachable alligator clips for punch down blocks or unterminated cables.
Time Saving Features
The CableTracker incorporates several time and money saving features not found on other Tone and Probe kits. The RJ-45 male connection and the alligator clips are detachable, meaning cord failure won't obsolete the your tester. Auto Power Down extends battery life and a built-in low battery circuit warns when battery replacement is required, saving unexpected down time searching for a new battery when the tester just goes dead. The CableTracker Probe (CT15) incorporated volume control, non­conductive plastic tip and complete compatibility with existing toners on the market.
Specifications
Physical
Signal Generator - CT10 Dimensions: 3.0 in. x 2.4 in. x 1.4 in.  7.6 cm x 6.6 cm x 3.6 cm Probe - CT15 Dimensions: 8.0 in. x 1.4 in x 1.5 in  20.3 cm x 3.6 cm x 3.8 cm
Signal Frequencies - CT10
Lo Tone - 1kHz; Hi Tone - 8kHz
Reception Frequencies - CT15
Broadband 100Hz-10kHz
Power
One 9 volt Battery Each (not supplied)
Environment
Operating Temperature: 0° to 50°C Storage Temperature: -10° to 55°C
Product design and specifications subject to change without notice.
Ordering Information
C
ABLETRACKER
Model Number - CTK1015
Includes: CT10 - Signal Generator  CT15 - Probe CC2 - Carrying Case  Alligator Clip Leads  RJ-45 Patch Cable  Users Guide
C
ABLETRACKER
Model Number - CT10
Includes: CT10 - Signal Generator  Alligator Clip Leads  RJ-45 Patch Cable  Users Guide
C
ABLETRACKER
Model Number - CT15
Includes: CT15 - Probe  Users Guide
Network ID Kit
Signal Generator
Probe
Activate Link Lights to Identify a Connected Hub or Switch Port
Accessories: (sold separately)
CC2 - Carrying Case  Alligator Clip Leads (6" red/black)  RJ-45 Patch Cable (8")
Psiber Data Systems Inc
7075-K Mission Gorge Road San Diego, California 92120 USA
Phone:  619-287-9970 FAX: 619-287-9978 Internet: www.psiber.com e-mail: info@psiber.com
©
2003 Psiber Data Systems Inc. All Rights Reserved. The Psiber Logo, psiber, and C Psiber Data Systems Inc.
0101-1015-0001 4/03 Printed in U.S.A.
ABLETRACKER
are trademarks of
u
q
