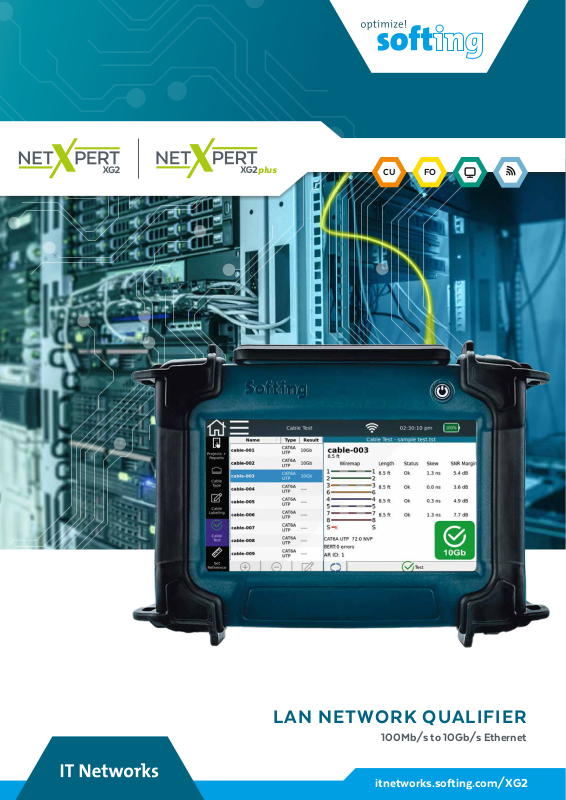

SOFTING NETXPERT XG2 Brochure

plus

CU FO

LAN NETWORK QUALIFIER

100Mb/s to 10Gb/s Ethernet

itnetworks.softing.com/XG2

PoE

++

plus

PROFILE

Model

Typical

application

Media

supported

Speed

per medium

CU

FO

1G

M Documentation
M Commissioning
M Troubleshooting

Standard office cabling

M Documentation
M Commissioning
M Troubleshooting

Bandwidth tests for the
integration of fast Wi-Fi
access points in existing
cabling systems

2.5
5G

CU FO

10G PLUS

M Documentation
M Commissioning
M Troubleshooting

Standard office and
backbone cabling

1 1 1 1

2.5 2.5 2.5 2.55 5 5 510 (Gb/s) 10 (Gb/s) 10 (Gb/s) 10 (Gb/s)

Device class

QUALIFIER

plus

M Documentation
M Commissioning
M Troubleshooting

Standard office and
backbone cabling, copper
and fiber

Performance

test

Highlights

Delay

skew

BERT

SNR Wiremap

+

Performance

test

Documentation

PDF/CSV

CU CUCU CU FO

Power over

Ethernet

Network

detection

For more information on the NetXpert XG2-PLUS, visit itnetworks.softing.com/XG2-PLUS

2

Microscope

(optional)

+

Real-time trend display

of fiber optic attenuation

Performance tester up to 10Gb/s
for all Ethernet applications

QUALIFICATION, COMMISSIONING AND TROUBLESHOOTING –
INTUITIVE, FLEXIBLE, FAST

High data transmission rates of up to 10Gb/s
Ethernet and new Power-over-Ethernet applications
up to 90W lead to completely new challenges
in structured cabling.

NetXpert XG2 provides comprehensive active
and passive network testing up to 10Gb/s for
qualification, commissioning and troubleshooting
on copper and fiber cabling.

With the largest touch display in its class,
NetXpertXG2 guarantees easy operation and
clear presentation of results.

At the same time, NetXpertXG2 offers the highest
reliability of results thanks to the unique combination
of up to four different test methods for the evaluation
of a data link.

Complete performance qualification at the touch of a button

Reliable test results through a combination of up to four measurement methods

Finding contact problems via LiveLight™ trend display of optical transmission loss

Flexible, expandable model range – upgradeable from 1 to 10Gb/s

Clear user interface with large 7 inch touch display

itnetworks.softing.com/XG2

YOUR ADVANTAGE
ACROSS ALL APPLICATIONS

Whether troubleshooting, maintenance or servicing,
the NetXpertXG2 performance tester is the
optimal device for all network testing applications
used by installers, system integrators and
industry partners.

Detailed documentation
of work results in PDF
or CSV format with
individual logo

Function and
load test of PoE
supplies up to
90W (PoE++)

Measurement and
documentation of the
maximum bandwidth
of copper and fiber optic
cabling up to 10Gb/s

Troubleshooting tool

for active networks

(copper, fiber optics,

Wi-Fi)

4

1G

››››››

NETXPERT XG2
FOR INSTALLERS

» Flexibility through upgrade options from

1Gb/s to 2.5/5Gb/s or directly to 10Gb/s,
as well as to fiber qualification

» Detailed documentation of the test results

Application example:

MEASUREMENT OF

›

MAXIMUM BANDWIDTH

To determine whether cabling is
capable of higher data rates, you
need more than just a wire map.
This information is only provided
by NetXpert XG2, for example when
used in SoHo installations, if proof
(but no acceptance measurement
according to cabling standards) is
required that higher data rates are
supported in order to integrate
modern Wi-Fi access points.

Application example:

MAINTENANCE

›

AND SERVICE

For routine testing of an existing
network, installers do not need
a cost-intensive certifier.
One qualifier is sufficient for
a simple check of function
and performance.

itnetworks.softing.com/XG2



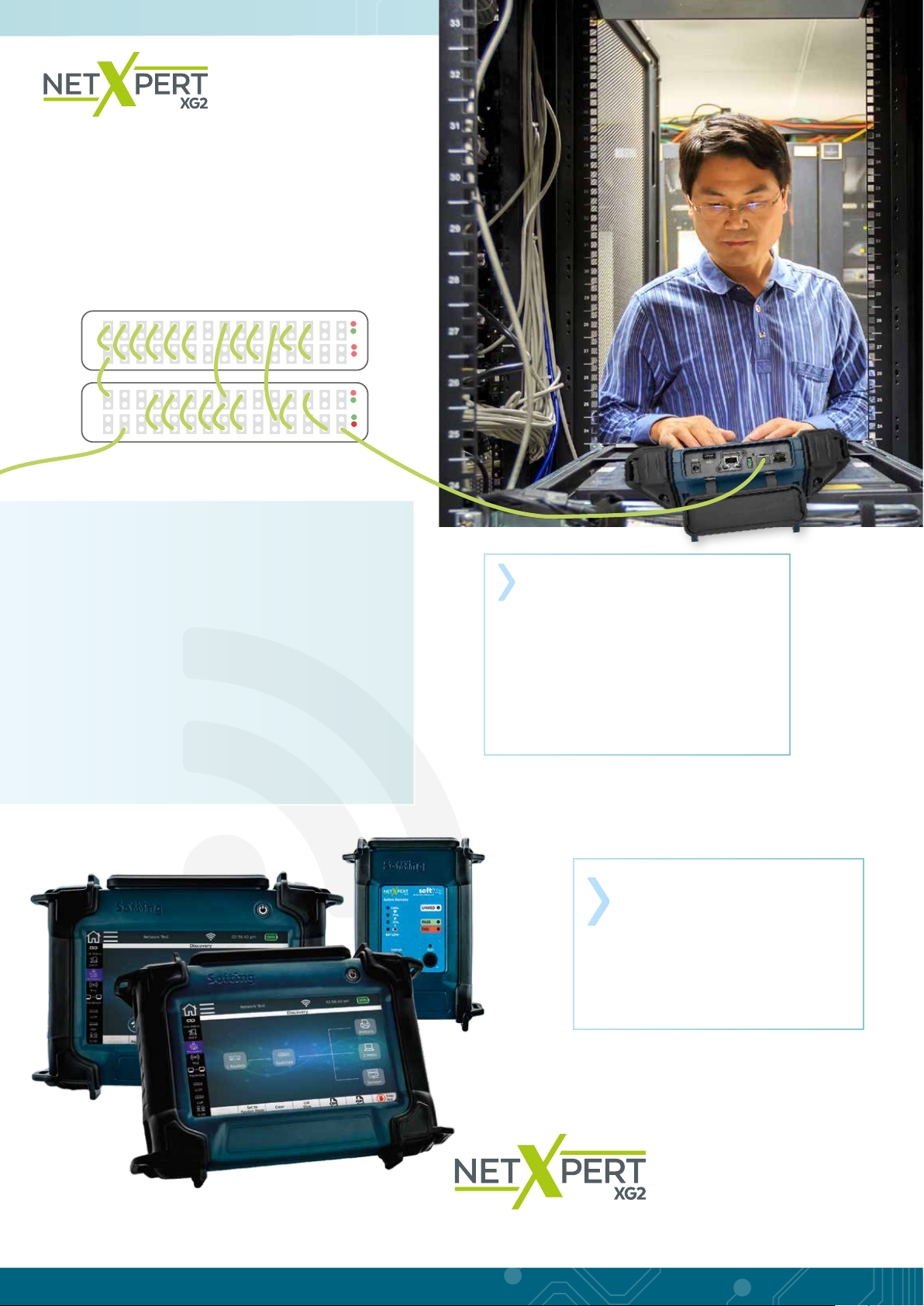

NETXPERT XG2 FOR
SYSTEM INTEGRATORS

» Combination device for testing

passive cabling and active networks

» Troubleshooting tool for active

networks including PoE++

» Function and load tests with BERT

» Detailed documentation

of the test results

Application example:

TROUBLESHOOTING

›

IT administrators and technicians in offices
and public facilities need a tool to determine
why a PC and network connection is not
working. This requires both passive and
active network test functions to determine
connectivity problems. The NetXpertXG2
combines all this in one handy test device.

Application example:

MAINTENANCE AND

›

NETWORK TESTING

System integrators must ensure that the
existing cabling supports higher speeds
(N-BaseT, 10GBase), e.g. when upgrading
to modern Wi-Fi access points.

6

plus



NETXPERT XG2
FOR THE INDUSTRY

» Adapters available for various

industrial connectors such as M12

» Troubleshooting tool for passive

cabling and active networks including
PoE++ function and load tests

» Detailed documentation of the

test results

Application example:

TROUBLESHOOTING

›

On an industrial production line, high
switching voltage spikes cause electro­magnetic interference, resulting in random
network problems. The NetXpertXG2 helps
to find the problem with long-term BERT
(up to 10Gb/s) and determination of the
signal-to-noise ratio (SNR).

1G

itnetworks.softing.com/XG2

FUNCTIONS

High Ethernet speeds of up to 10Gb/s in modern
networks require leading edge test solutions for
commissioning and fault finding, both in the passive
infrastructure and in the active network.
The NetXpert XG2 offers full flexibility, whether you
are testing fiber or copper cabling. With passive
testing, throughput testing of the fiber cabling is also
possible (with NetXpert XG2-PLUS or upgrade with
expansion set).

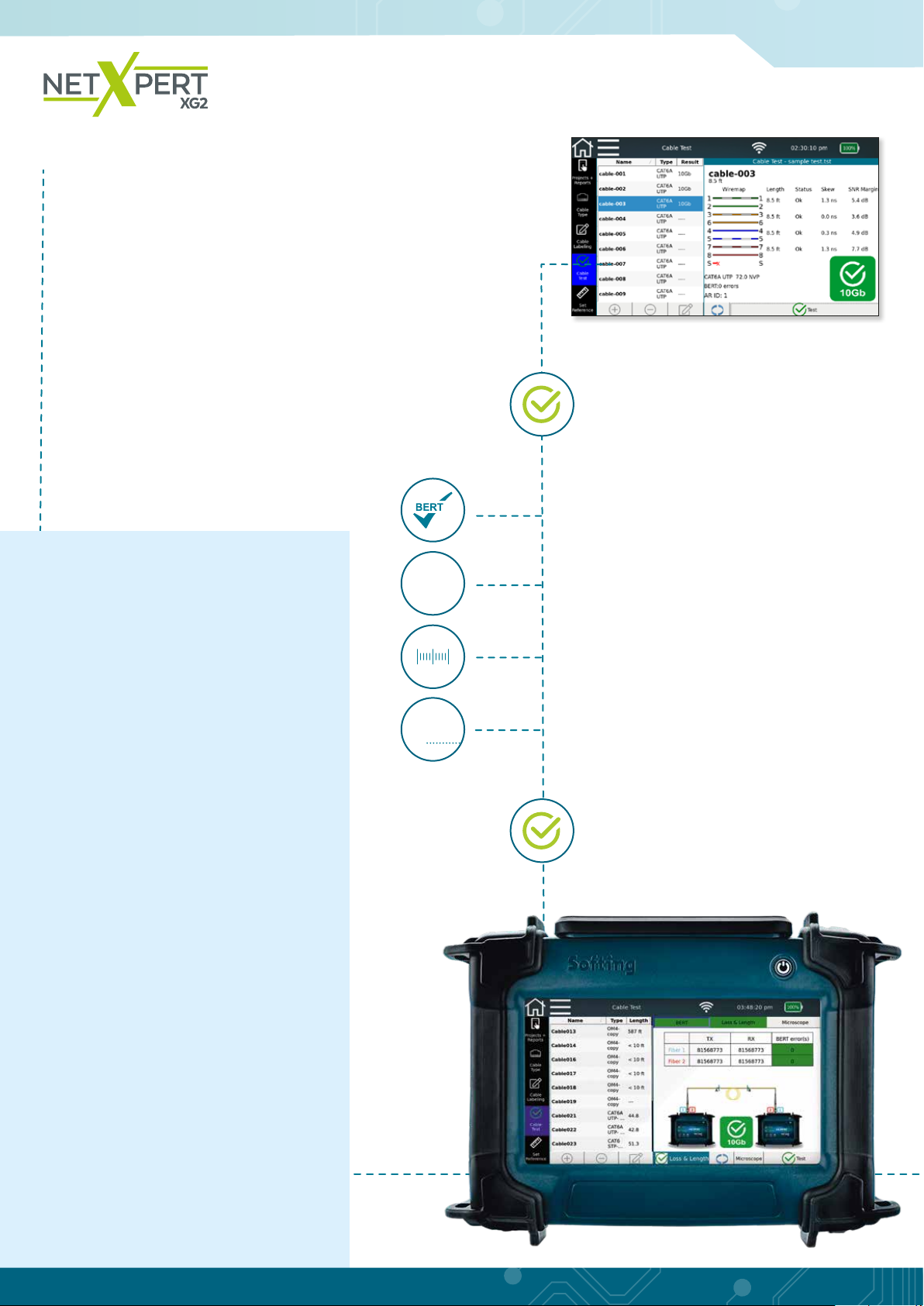

PASSIVE
QUALIFICATION

SNR

Combination of four measuring
methods achieves highest
reliability

To ensure that Ethernet transmission
works properly, the NetXpert XG2
qualifies fiber with BERT, signal
attenuation, and length, and qualifies
copper cabling with a unique
combination of up to 4 test parameters:

• Bit error rate test (BERT)

• Signal to noise ratio (SNR)

• Route length

• Delay skew

For copper networks

» Prove error-free transmission up to 10Gb/s

using a bi-directional bit error rate test
(BERT) based on the IEEE 802

» Check reliability of the data transmission

via signal-to-noise ratio (SNR) and the
delay skew

» Combined cable length measurement

from TDR and capacitive measurement
for accurate information and easy trouble­shooting, also for short circuits

» Colored wiring diagram shows inter-

ruptions, interchanges, short circuits
and split pairs so that they can be
clearly identified

For fiber optic networks

» Prove error-free transmission up to 10Gb/s

using a bit error rate test (BERT) based on
IEEE 802

» LiveLight™ real-time fiber optic signal

attenuation trend display
» Cable length measurement
» Automated evaluation and documentation

of connector end faces with optional fiber

optic microscope against IEC 61300-3-35

standard

delay
skew

Test of fiber optic cabling:
Combination of BERT, signal attenuation
and length measurement

8

Bitte hier

deutsche

Version!

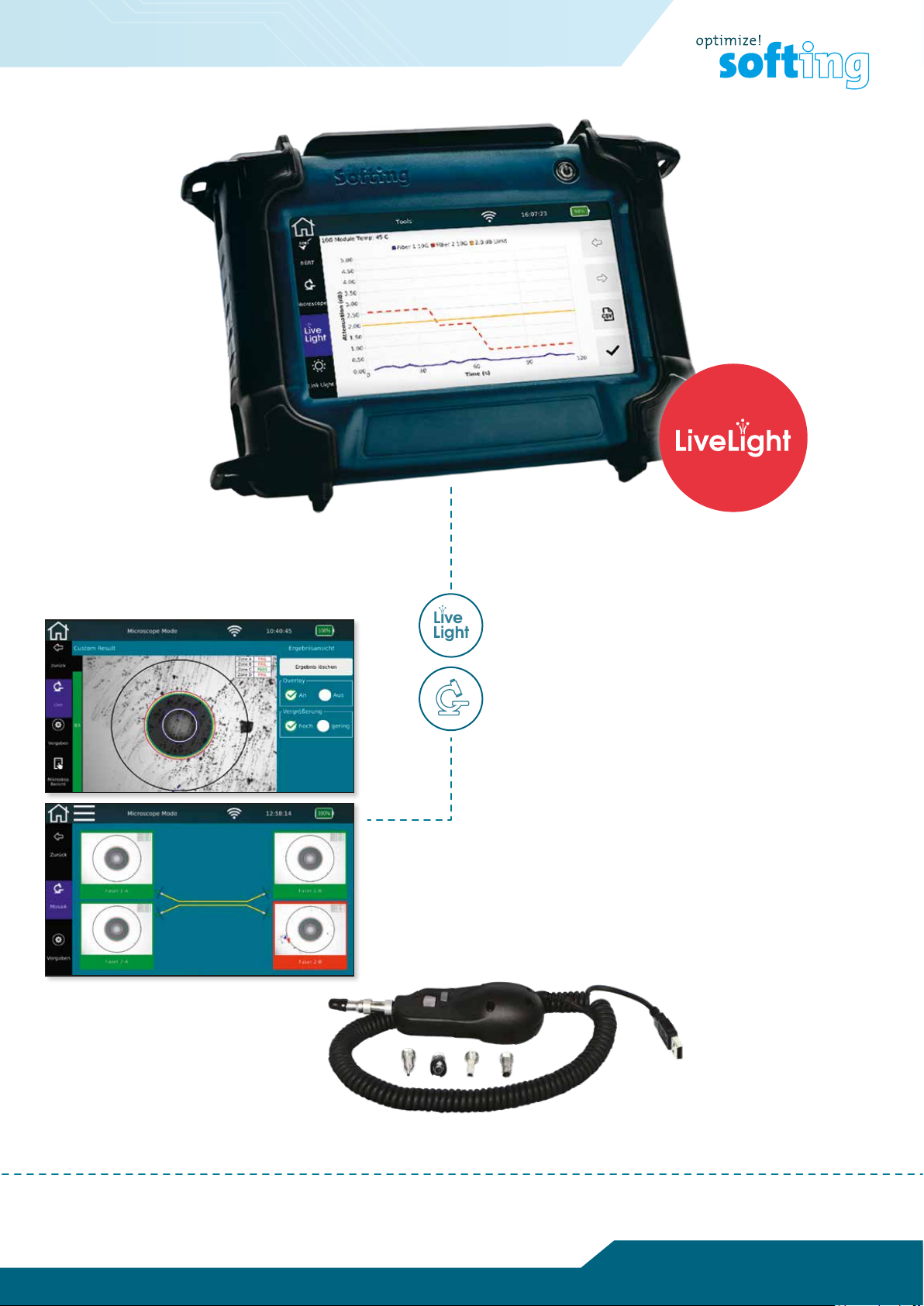

LiveLight™ - Real-time trend
display of fiber optic attenuation

The device has two SFP ports for testing
fiber optic links. Both SFP ports support
1Gb/s and 10Gb/s modules. Other useful
functions include connector microscopy
and an attenuation test (depending on
the SFP module used).

With the fiber optic microscope, the connector
end faces can be quickly and easily checked
and subjected to an automatic “Pass/Fail”
evaluation in accordance with IEC 61300-3-35.
This is automatically combined with the
qualification results in a detailed test report.

Signal attenuation can be displayed
either as a single value or as a continuous
test function (LiveLight™).

itnetworks.softing.com/XG2

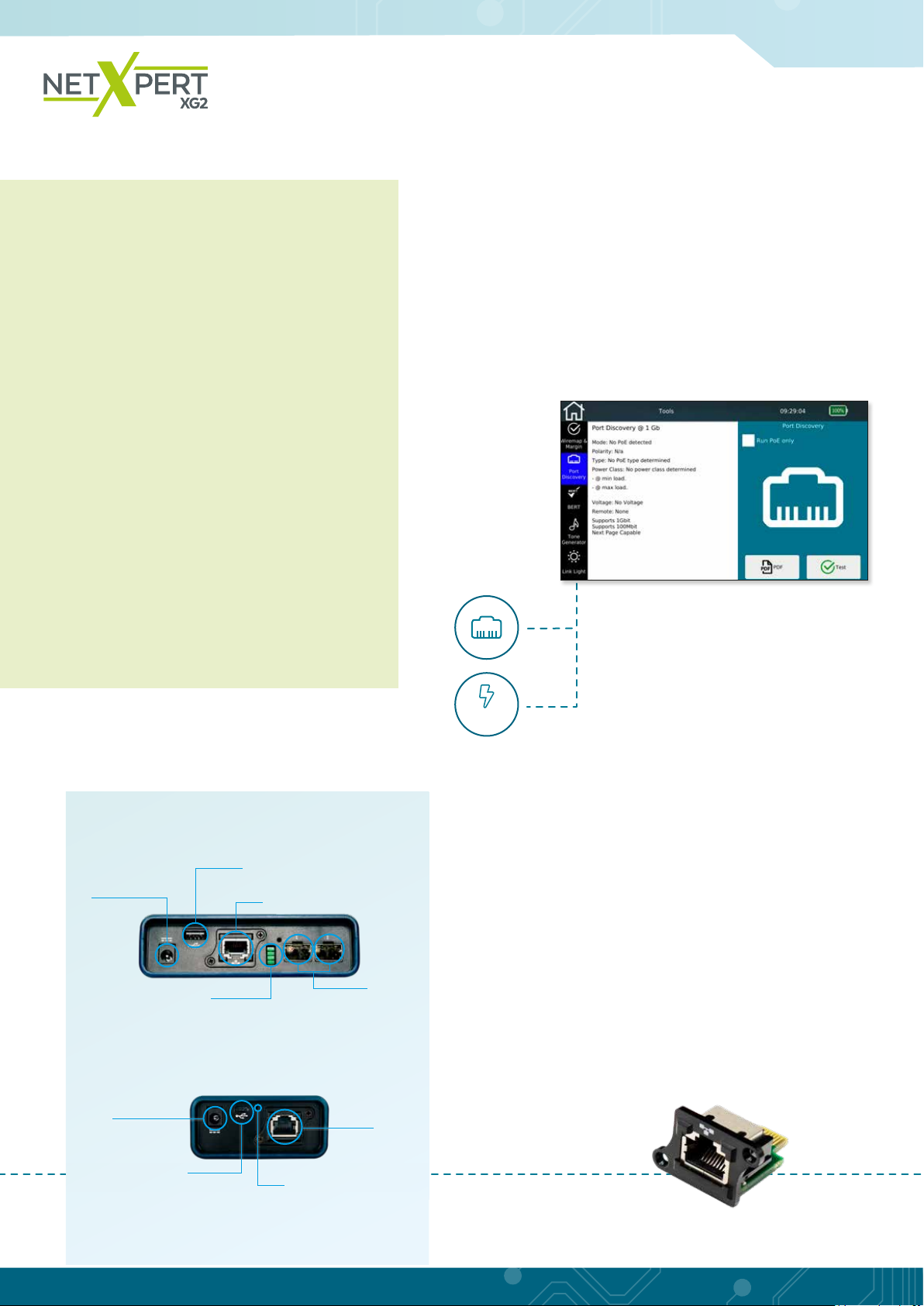

PoE load test made easy

ACTIVE
NETWORK TESTS

For copper, fiber, Wi-Fi networks

» PoE load test up to 90W (class 8)

» DHCP test with display of DHCP and DNS

server addresses and assigned IP address

» Discovery of the existing nodes in the

network (Network Discovery) with graphical
and tabular display

» Definition and storage of lists with

ping destinations

» Trace Route

» LLDP/CDP detection and display

» Wi-Fi scan of available access points

with indication of field strength and
encryption modes

» Detection and integration of VLANs

» Identifying duplicate IP addresses

» IPv4 and IPv6 support

The NetXpert XG2 has a comprehensive toolset for trouble ­shooting active networks. Particularly important for PoE testing
is both the correct detection of the available PoE classes and
voltages, and also testing the power source devices and whether
they can really deliver the requested power.

The NetXpert XG2 is able to simulate PoE devices up to PoE++
(class 8) to perform a load test on the PoE switch.

Detailed analysis of the switch port
for its PoE performance and the supported
Ethernet speeds

Battery charger

Battery
charger

MAIN UNIT PORTS

USB port

RJ45

Status LEDs

SFP ports

ACTIVE REMOTE PORTS

PoE

Replaceable RJ45 port

RJ45 sockets are subject to wear from repeated plugging and
unplugging. This lessens their transmission capacity, so that
they must be replaced regularly.

The NetXpertXG2 is the only tester in the world in its class
that allows you to change sockets without having to open
the device or send it in. You can replace the port directly and
thus avoid downtimes on the construction site due to worn
measuring sockets.

RJ45

10

USB port

Reset

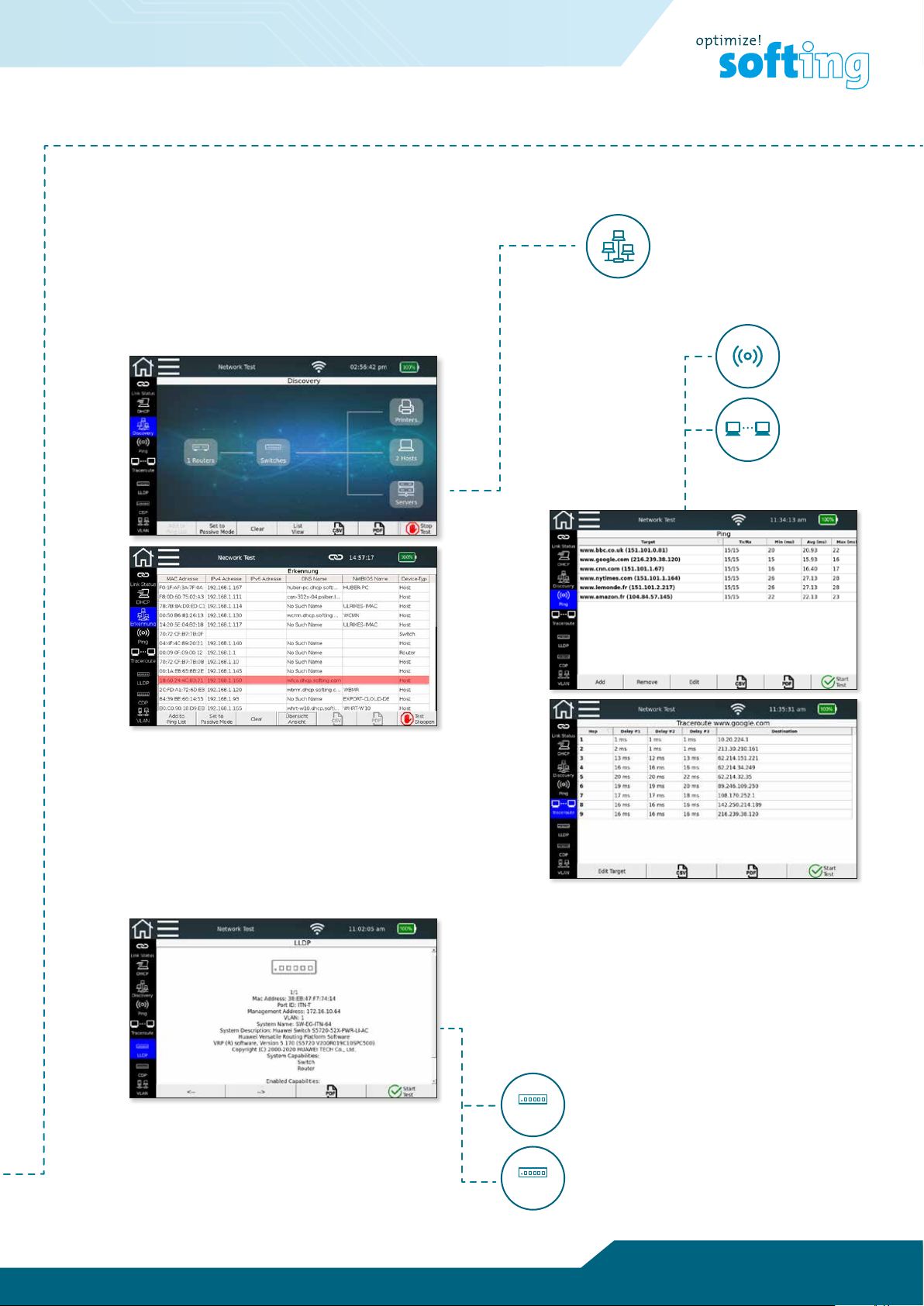

Extensive troubleshooting

Various test options for copper, fiber and
Wi-Fi such as ping test, traceroute, CDP,
LLDP and network discovery with detailed
listing of all network nodes help with
Ethernet and PoE troubleshooting.

Marking duplicate IP addresses that endanger
network operation

Display of switch port data via evaluation
of the Link Layer Discovery Protocol (LLDP)
or Cisco Discovery Protocol (CDP)

The ping function allows you to check
the accessibility of network devices such
as servers and printers as well as Internet
connectivity.

The traceroute function shows you all
intermediate steps on the way to the ping
destination. This allows you to quickly and
reliably locate the point of failure (internal
IT or external provider) in the event of
connectivity problems.

LLDP

CDP

itnetworks.softing.com/XG2

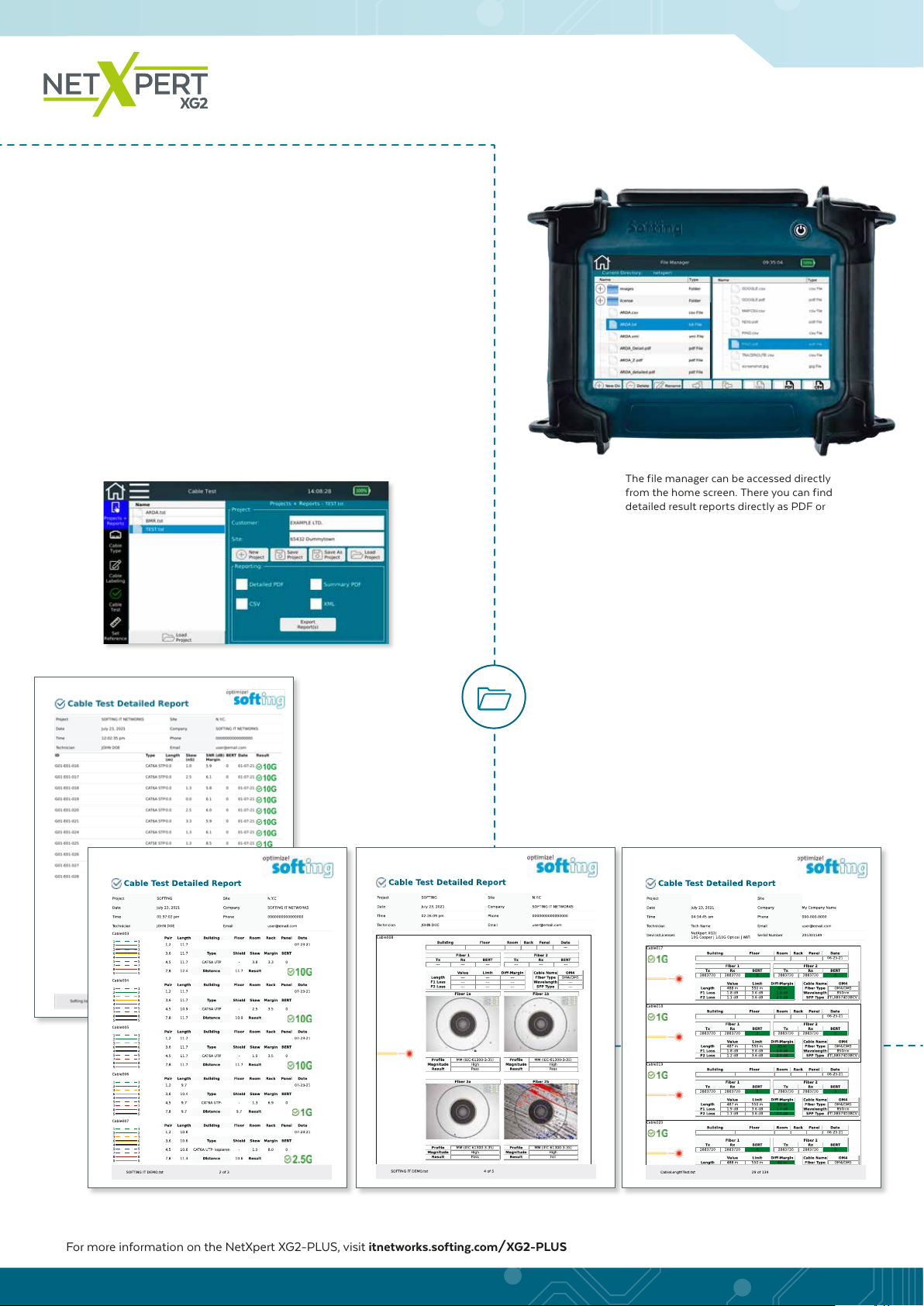

PERFECT PERFORMANCE –
PERFECTLY DOCUMENTED

With enough internal memory to document
even large projects, the NetXpert XG2 generates
finished acceptance reports with all necessary
information. Reports are generated in the device,
which can be passed on via USB stick.

The file manager can be accessed directly
from the home screen. There you can find
detailed result reports directly as PDF or
CSV documents.

Reporting on the device
makes it possible to document
projects directly on site.

For more information on the NetXpert XG2-PLUS, visit itnetworks.softing.com/XG2-PLUS

12

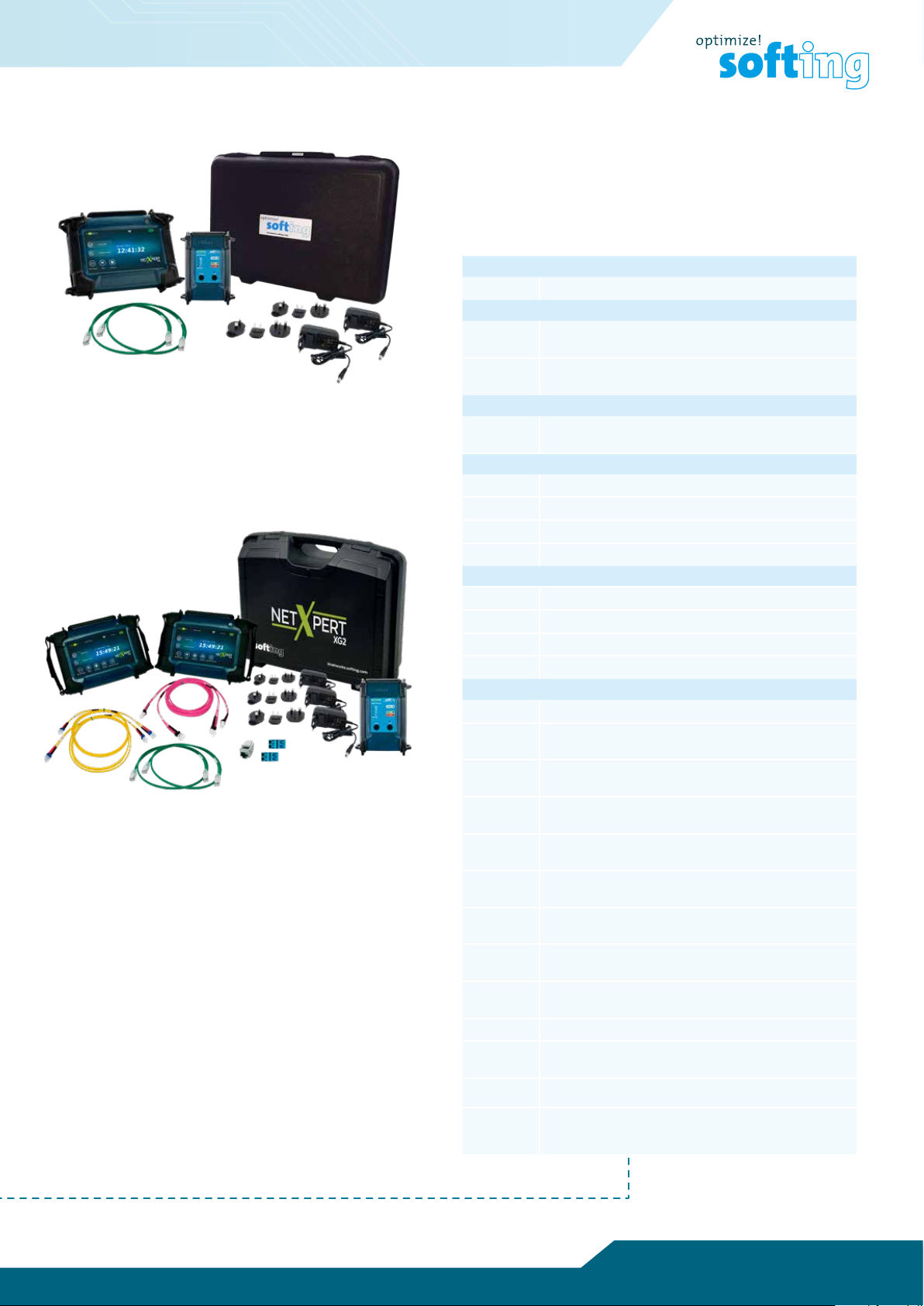

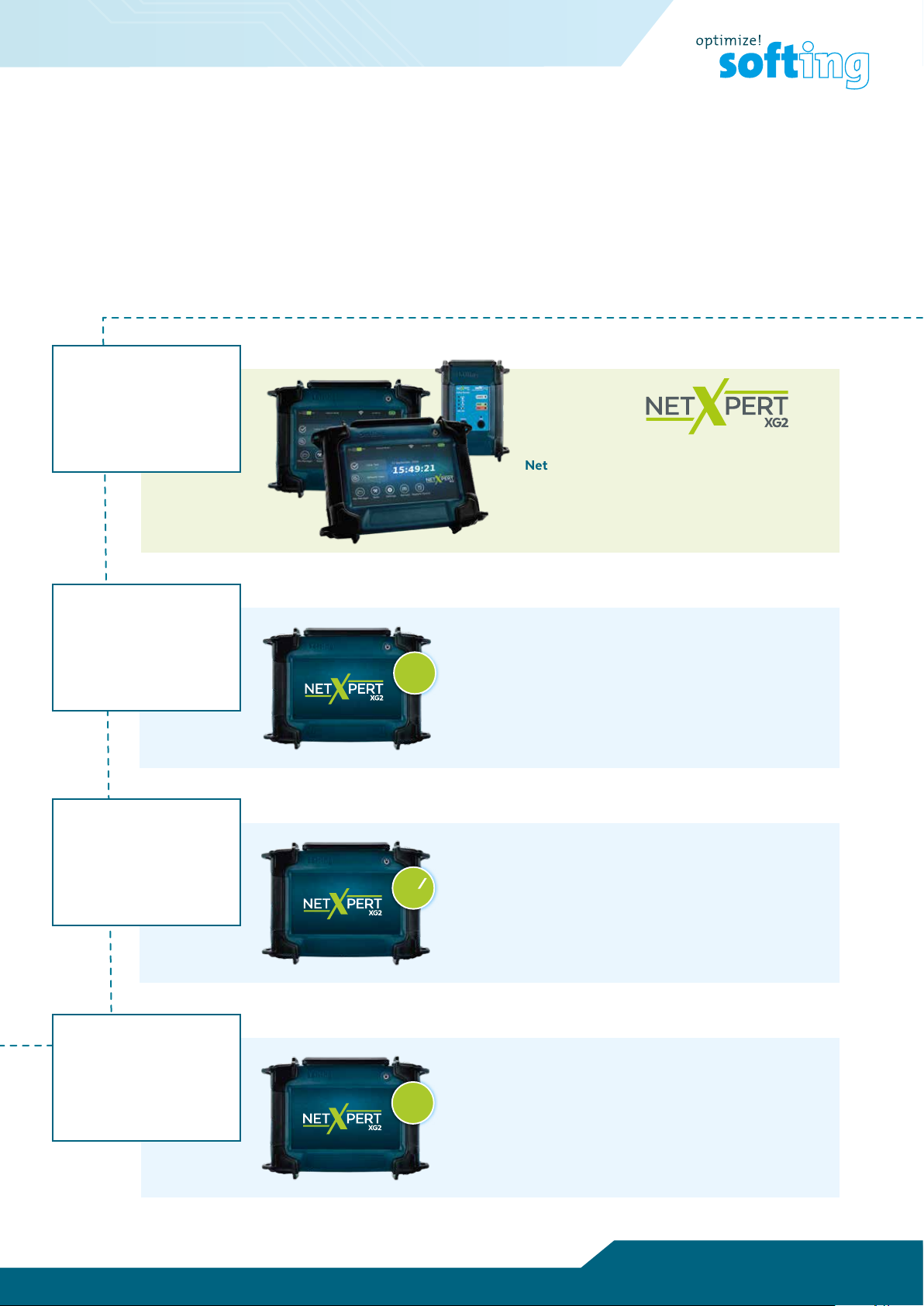

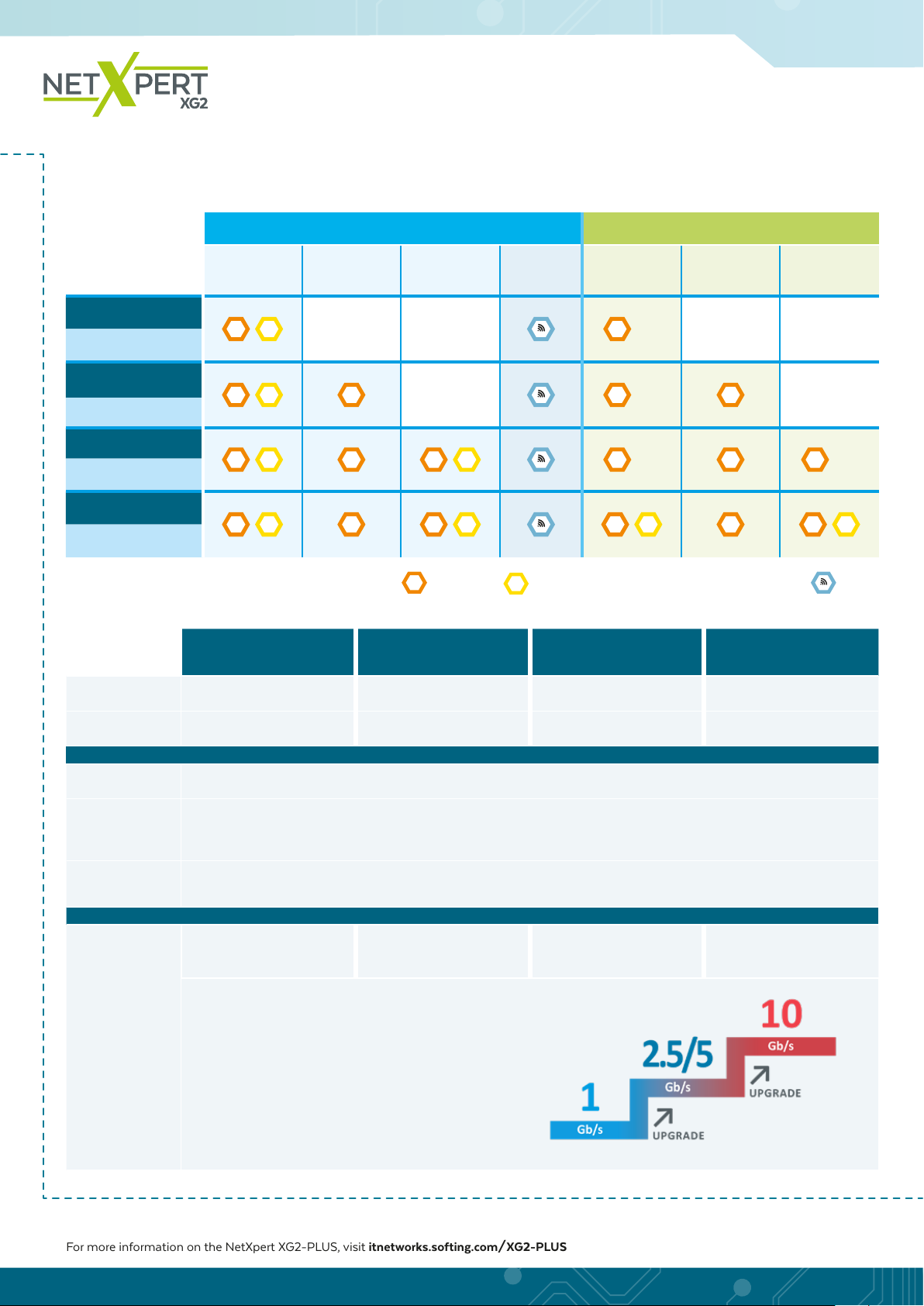

THE MODELS

The NetXpert XG2 series consists of four device models. The difference is in the
Ethernet speeds (1Gb/s to 10Gb/s) and the testable media (copper and/or fiber).
All models are upgradeable, both in terms of speed and supported media.

For installers and
operators of copper
and fiber optic
networks up to 10G

plus

NetXpert XG2-PLUS

The complete solution for passive qualification
and active network tests for copper and fiber
environments up to 10Gb/s

For installers and
operators of copper
networks up to 10G

For upgrades from
old stock cabling
to NBase-T
(2. 5/5 G b/s)

For installers of
small networks

NetXpert XG2 – 10G

10G

2.5
5G

For passive network tests of copper cabling up to 10Gb/s
and active network tests of copper and fiber networks up
to 10Gb/s

NetXpert XG2 – 2.5/5G

For passive and active network tests of copper cabling with

2.5 and 5Gb/s, as well as active network tests of fiber optic
networks up to 1Gb/s

NetXpert XG2 – 1G

1G

The low-cost entry-level model for passive network tests
of copper cabling and active network tests on copper and
fiber optic cabling up to 1Gb/s

itnetworks.softing.com/XG2

WHICH MODEL IS RIGHT FOR YOU?

Active network tests Passive qualification

Modell

1

Gb/s

2.5/5

Gb/s

10

Gb/s Wi-Fi

1

Gb/s

XG2 - 1G

Article number

226737

XG2 – 2.5/5G

Article number

226739

CU FO

CU FO CU

CU

CU CU

XG2 – 10G

Article number

226736

CU FO CU CU FO

CU CU

XG2-PLUS

Article number

226735

Main device 1 1 1 2

CU FO CU CU FO

CU

Copper

NetXpert XG2

1G

NetXpert XG2

2.5/5G

CU

FO

Fiber Optic (1 Gb/s and 10Gb/s via SPF ports)

NetXpert XG2

FO CU

10G

2.5/5

Gb/s

NetXpert XG2

CU

PLUS

10

Gb/s

CU

FO

Wi-Fi

Remote unit 1 1 1 1

Compatible with Fiber optic microscope, CableProbe (CP15), remote or link/cable identifier

Compliant with

Reporting

Upgrades

5G, 10G, and Fiber 10G and Fiber Fiber (complete solution)

• IEE 802.3an standards to support up to 10 Gbit/s

• 802.3af/at/bt to support PoE/+/++ tests

• Wi-Fi 802.11a/b/g/n/ac for Wi-Fi support

• Internal project management

• Creation of test reports (csv, pdf, xml)

The license system allows later upgrades for additional
functions at the next higher performance level.
A distinction is made between three performance levels
(1 or 2.5/5 or 10 Gbit/s Ethernet). The ‘Step-Up’ license
always extends the functional range of the device by
one performance level upwards.

For more information on the NetXpert XG2-PLUS, visit itnetworks.softing.com/XG2-PLUS

14

Standard scope of delivery

1 NetXpert XG2 main unit
1 Active Remote

1 Hard-shell case

1 Quick start guide
2 Power supplies
2 RJ45 Cat 6

test cables,

A

shielded

XG2-PLUS scope of delivery

2 NetXpert XG2 main

devices
1 Active Remote
3 Power supplies
2 RJ45 Cat 6

test cables,

A

shielded
2 OM4 LC-Duplex

multimode test cables

2 OS2 LC-Duplex

singlemode test cables

1 Copper and 2 fiber optic

couplings
1 Hard-shell case
1 Quick start guide
2 Upgrade licenses

per main device

(Please order SFP modules separately)

OPTIONAL ACCESSORIES

Upgrades

226555 Upgrade license for NetXpert XG2 for one level at a time

Extension kits

226738 NetXpert XG2 – Fiber Extension Kit – turns an XG2 – 10G

226538 Remote Kit – single NetXpert XG2 Active Remote

Warranty extension

229888 NetXpert XG2 series warranty extension from 12 months

Fiber optic accessories

400986 SFP+ Module, Singlemode, 10GBASE-LR/LW

400985 SFP+ Module, Multimode, 10GBASE-SR/SW

400982 SFP Module, Singlemode, 1000BASE-LX

400984 SFP Module, Multimode, 1000BASE-SX

General accessories

226581 RJ45 Remote Identifier Set (24 pcs, #1 - #24)

226745 2 x RJ45 exchange socket for main and remote device

226528 Link/Cable Identifier Set (8 pcs, #1 - #8)

226539 Fiber optic microscope for inspection of connector end faces

Industrial accessories

226630 E2E measuring cable RJ45 to Harting preLink® system (1 pc)

228154 RJ45 interchangeable plug for Harting preLink® system,

228155 M12 D-coded plug for Harting preLink® system CAT 5

228156 M12 X-coded plug for Harting preLink® system CAT 6

228157 M12 D-coded socket for Harting preLink® system CAT 5

228158 M12 X-coded socket for Harting preLink® system CAT 6

228159 Interchangeable V14 push-pull RJ45 plug for Harting

228160 Interchangeable Han® 3 A RJ45 plug for Harting preLink®

228293 IX socket for Harting preLink® system CAT 6

228161 Opener for Harting preLink® system (5 pcs)

228162 RJ45 CAT 6 pre link jack HIFF format for Harting preLink®

228171 Soft bag for NetXpert accessories

into an XG2-PLUS

for copper qualification

to 36 months

IP20 CAT 6

(1 pc)

(1 pc)

(1 pc)

(1 pc)

preLink® system (1 pc)

system (1 pc)

incl. housing

system, (1 pc)

(1 pc)

A

(1 pc),

A

A

A

226747 NetXpert XG2 Industrial Adapter PRO-Kit – contains the

complete industrial accessories for RJ45, M12D and M12X

itnetworks.softing.com/XG2

HEADQUARTERS

Softing ITNetworksGmbH
Richard-Reitzner-Allee 6
85540 Haar
Haar

[phone]

[e-mail]

Find your local distributor:

itnetworks.softing.com/contact

Available here:

©2021 Softing IT Networks GmbH. In line wit h our policy of continuous improvement and

enhance ment, produc t specifica tions are subje ct to change and er rors without notice. All

rights reserved. Sof ting and the S ofting logo are trademark s of Softing AG. Ne tXpert a nd

the Net Xpert Logo are t rademarks of S ofting IT Netwo rks GmbH. All oth er cited trademarks,

produc t and company nam es or logos are the s ole proper ty of their resp ective owner s.

itnetworks.softing.com/XG2

v 1.0721
