FG-200 HSE/FF Modbus

Quick Startup Guide

Version: EN-012018-1.20

Page 2

The information contained in these instructions corresponds to the technical status at the time of printing of it and is passed on with the best of our knowledge. The information in these instructions is in no event a basis for warranty claims or contractual agreements concerning the described products, and may especially not be deemed as warranty concerning the quality and durability pursuant to Sec. 443 German Civil Code. We reserve the right to make any alterations or improvements to these instructions without prior notice. The actual design of products may deviate from the information contained in the instructions if technical alterations and product improvements so require.

It may not, in part or in its entirety, be reproduced, copied, or transferred into electronic media.

Disclaimer of liability

Softing Industrial Automation GmbH

Richard-Reitzner-Allee 6 85540 Haar / Germany http://industrial.softing.com

+ 49 89 4 56 56-0 + 49 89 4 56 56-488 info.automation@softing.com support.automation@softing.com

The latest version of this manual is also available in the Softing download area at

http://industrial.softing.com/en/downloads.html

Page 3

Table of Contents

Chapter 1 ................................................................................... 6Introduction

................................................................................................................ 61.1 Intended use

................................................................................................................ 71.2 System requirements

................................................................................................................ 81.3 Scope of delivery

................................................................................................................ 81.4 Safety precautions

Chapter 2 ................................................................................... 9Hardware installation

................................................................................................................ 92.1 Installation in hazardous locations

.................................................................................................. 10

General requirements 2.1.1

.................................................................................................. 13

European and International Approval 2.1.2

.................................................................................................. 14

North American Approval 2.1.3

................................................................................................................ 152.2 Mounting and dismounting

................................................................................................................ 172.3 Connection diagram

................................................................................................................ 182.4 Connecting the power supply

................................................................................................................ 192.5 Connecting to the network

................................................................................................................ 202.6 Modbus serial connection

................................................................................................................ 202.7 FG-200 redundancy

................................................................................................................ 222.8 FF-H1 interface connection

................................................................................................................ 242.9 Powering up the device

................................................................................................................ 252.10 Adding a second FG-200 for redundancy

Chapter 3 ................................................................................... 26Commissioning FG-200 HSE/FF Modbus

................................................................................................................ 263.1 Installing comConf

................................................................................................................ 263.2 Configuring IP address and Modbus parameters

Page 4

Table of Contents

................................................................................................................ 273.3 Setting up a comConf project

Chapter 4 ................................................................................... 28Status indicators - LEDs

................................................................................................................ 294.1 PWR - power supply

................................................................................................................ 294.2 Device LED statuses in stand-alone mode

................................................................................................................ 304.3 RUN/ERR/RDL - LED statuses in redundant mode

................................................................................................................ 344.4 H1 channel status indicators

Chapter 5 ................................................................................... 35Technical data

................................................................................................................ 355.1 Specifications

................................................................................................................ 365.2 Installation positions

Chapter 6 ................................................................................... 38ATEX Type Examination Certificate

Chapter 7 ................................................................................... 41UL Certificate of Compliance

Chapter 8 ................................................................................... 42Declarations of conformity

Page 5

This page is intentionally left blank.

Page 6

FG-200 HSE/FF Modbus - Quick Startup Guide

6 © Softing Industrial Automation GmbH

Introduction

Read this manual before starting

For damages due to improper connection, implementation or operation Softing refuses any liability according to our existing warranty obligations.

1.1 Intended use

The Softing FG-200 HSE/FF Modbus is designed to integrate up to four FF H1 links into control systems supporting Modbus. The device can be used as a redundant link. It provides fast access to process data, while making use of FOUNDATION Fieldbus advantages such as reduced cabling, central field device parametrization, comprehensive diagnostics or intrinsically safe device segments. It is compatible with the R. STAHL busCarrier Series 9419 and Power Supply 9412 products for easy commissioning.

The FG-200 HSE/FF Modbus is a gateway from FOUNDATION fieldbus High Speed Ethernet (HSE) to the FOUNDATION fieldbus H1 (FF-H1). It is also called FG-200 and used for process automation. It provides a remote access of OEM Systems to FF-H1 field devices.

Use in hazardous areas

The FG-200 is an electrical equipment with degree of protection Ex nA, approved for use in hazardous areas of Zone 2 or in the safe area. The four FF-H1 interfaces are designed according to the protection method Ex ic. Only certified circuits with an according protection method shall be connected to these FF-H1 interfaces.

Page 7

Chapter 1 - Introduction

Special hints for safe use

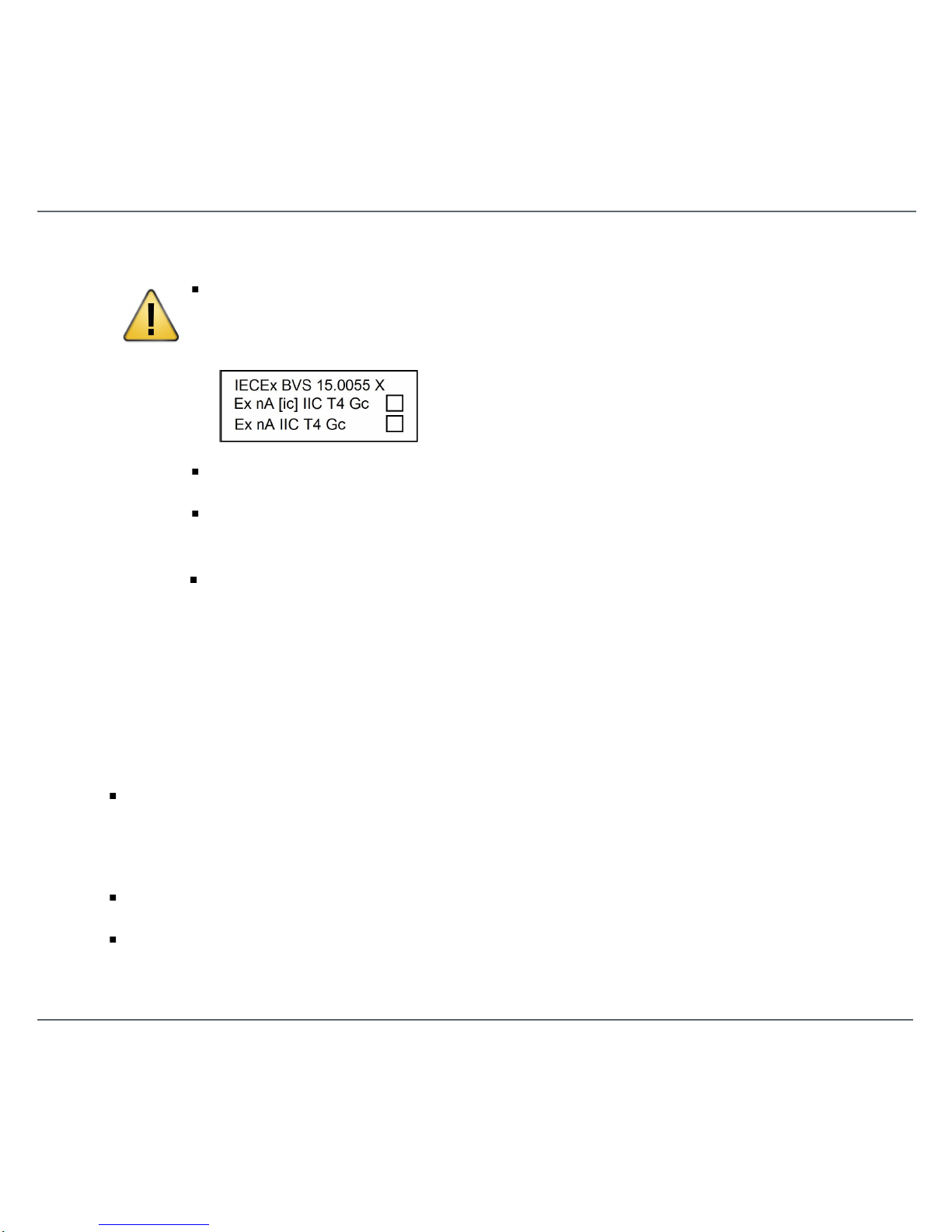

Before setting the FG-200 into operation, the corresponding marking field has to be signed (e.g. if the device is used in ic environment, the upper marking field on the type label has to be signed).

Use an appropriate permanent pen for signing, e.g. an etching pen.

More than one marking is not allowed. If you need a second marking, you must replace the existing equipment with a new one.

An equipment which has been operated under non-intrinsically safe conditions is no longer permitted to be used under intrinsically safe conditions.

The FG-200 HSE/FF Modbus is only approved for intended and appropriate use. In case of noncompliance, the warranty and manufacturer’s liability do no longer apply!

1.2 System requirements

Communication Configuration tool comConf

PC with operating system Windows 7 or Windows 8.1 (both 32 bit or 64 bit supported)

Supported browsers

Microsoft Internet Explorer version 8.0 or higher

Mozilla Firefox version version 35 or higher

Page 8

FG-200 HSE/FF Modbus - Quick Startup Guide

8 © Softing Industrial Automation GmbH

1.3 Scope of delivery

The FG-200 HSE/FF Modbus is delivered with the following:

FG-200 HSE/FF Modbus device CD-ROM including firmware and manuals Quick Startup Guide

Note

The FG-200 is available in two variants. They have identical technical specifications. Their only differentiating characteristic is their mount direction that is mirrored, i.e. rotated by 180°.

1.4 Safety precautions

CAUTION

During operation, the device's surface will be heated up. Avoid direct contact. When servicing, turn off the power supply and wait until surface has cooled down.

Note

Do not open the housing of the FG-200. It does not contain any parts that need to be maintained or repaired. In the event of a fault or defect, remove the device and return it to the vendor. Opening the device will void the warranty!

Page 9

Chapter 2 - Hardware insta llation

Hardware installation

2.1 Installation in hazardous locations

The FG-200 HSE/FF Modbus can be used in hazardous locations and is certified according to ATEX, IEC and North America Approval cULus.

WARNING

Use only according to operating conditions from instructions!

Use the FG-200 in accordance with its designated use only! Otherwise, the manufacturer’s liability and warranty will expire. The device is only to be used according to the operating conditions described in these instructions.

WARNING

Do not connect or disconnect energized conductors!

Be aware that energized conductors are not to be connected or disconnected! This can lead to danger of life if potentially explosive atmosphere is present there at that time!

Page 10

FG-200 HSE/FF Modbus - Quick Startup Guide

10 © Softing Industrial Automation GmbH

2.1.1 General requirements

Following general requirements must be observed while installing FG-200 on hazardous locations:

The details of this document must be observed along with the conditions for use and the applicable details stated on the marking and type labels of each.

Any selection and operation of the device must be done as per the technical rules.

Adequate precautions must be taken to prevent unintended actuation or impairment of the device.

Connectors must not be connected or disconnected when area is known to be hazardous. This can be life threatening in a potentially explosive atmosphere. Open or not securely closed sockets shall not be energized in the Ex-atmosphere!

Ensure the installed equipment comply with the types of protection applicable to the corresponding zones.

All connected electrical equipment must be suitable for the respective intended use.

The operator must ensure protection against lightning in compliance with the locally applicable regulations.

Electrostatic aspects must be considered when mounting the bus-modules. Electrostatic charges have to be prevented.

In explosion group IIC and Zone 2 no protected plastic surfaces > 20 cm2 are allowed; in IIB or dust-Ex, 100 cm2 may be reached.

The hazard of any objects falling onto the bus-module must be prevented.

Page 11

Chapter 2 - Hardware insta llation

The FG-200 does not meet the requirements of impact protection and IP54 (according to IEC 60529). It must be installed in a protective enclosure which meets the requirements for resistance to impact and IP as stated in section 26.4 of IEC/EN 60079-0. This enclosure must be fully mounted and intact. If the enclosure is damaged, the operation is not permitted.

The FG-200 is defined as instruments and apparatus of low energy according to clause 23 of IEC/EN 60079-15; thus the requirement stated in sub-clause C, limiting the transient characteristic to 40% above the rated voltage, has to be adhered to when erecting the equipment.

When removing the packaging ensure that no dirt can enter the enclosure or the plugs.

If any vibration during the operation may cause parts of the plugs to loosen, then the plugs have to be provided with a light firm varnish used for securing screws. An extraction force of 0.5 Nm has to be achieved at an equivalent thread.

To circuits of Zone 2 only such equipment may be connected that is suitable for operation in this zone and has been certified accordingly.

Components may only be replaced by original spare parts which are also approved for the use in Ex-atmospheres. Spare parts are ordered as complete units giving the material number stated on the device (marking, type label).

Only such auxiliary components may be used in potentially explosive atmospheres which meet all requirements of European and national directives and legislation.

The environmental conditions specified in the manual have to be followed strictly.

The FG-200 is not to be used in systems where cathodic systems for corrosion protection are in place. Although special precautions may allow the use in such systems (additional earthing bridges), the manufacturer has to be consulted in each case.

Page 12

FG-200 HSE/FF Modbus - Quick Startup Guide

12 © Softing Industrial Automation GmbH

The operator has to provide measures for protection against lightning.

According to the local conditions and in compliance with the environmental rules, the operator is responsible to visually inspect the system and to remove dust settlements in a regularly interval (every 6 months).

The company installing the device has to ensure that the transient characteristic is limited to 40% above the service voltage.

Additional precautions have to be taken, if the presence of hydrosulfide, ethylene oxide and/or carbon monoxide is to be expected: those substances are of a vary low ignition energy.

Icing is not permitted.

Pair of values for fieldbus voltage and current for Intrinsic Safety Fieldbus (ic):

Pair 1

Pair 2

Pair 3

Fieldbus Voltage

Ui = 14 Volt DC

Ui = 17.5 Volt DC

Ui = 32 Volt DC

Fieldbus Current

li = 570 mA

li = 319 mA

li = 100 mA

CAUTION

Make sure that the sum of power supply voltage and fieldbus supply voltage does not exceed 60 VDC!

Explosion hazard

Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous.

Page 13

Chapter 2 - Hardware insta llation

Observe national regulations, standards and directives

This manual does not supersede the relevant national regulations, standards and directives. These must be observed and have to be applied according to the national conditions!

2.1.2 European and International Approval

The equipment has been a based on the following standards and editions:

a) IEC 60079-0:2011 Ed. 6, modified Cor. 2012 + Cor. 2013 / EN 60079-0:2012 + A11:2013

b) IEC 60079-11:2011 Ed. 6 + Corr. 2012 / EN 60079-11:2012

c) IEC 60079-15:2010 Ed. 4 / EN 60079-15:2010

Wh indicated on the device label or in the technical documentation, the FG-200 is suitable for use in gas-Ex atmospheres of Zone 2 in the explosion groups IIA, IIB and IIC in temperature class T4, if accommodated in a tested enclosure.

IECEx marking for explosion protection: Ex nA [ic] IIC T4 Gc.

ATEX marking for explosion protection: II 3G nA [ic] IIC T4 Gc.

The Ex protection method [ic] corresponds only to the FF-H1 fieldbus interfaces.

The FG-200 HSE/FF Modbus complies with the applicable standards and regulations and meets the requirements of European Directive 94/9/EC. The requirements for erecting the device as part of the system in potentially explosive atmospheres (e.g. IEC / EN 60079-14) must be strictly adhered.

Page 14

FG-200 HSE/FF Modbus - Quick Startup Guide

14 © Softing Industrial Automation GmbH

Certificates

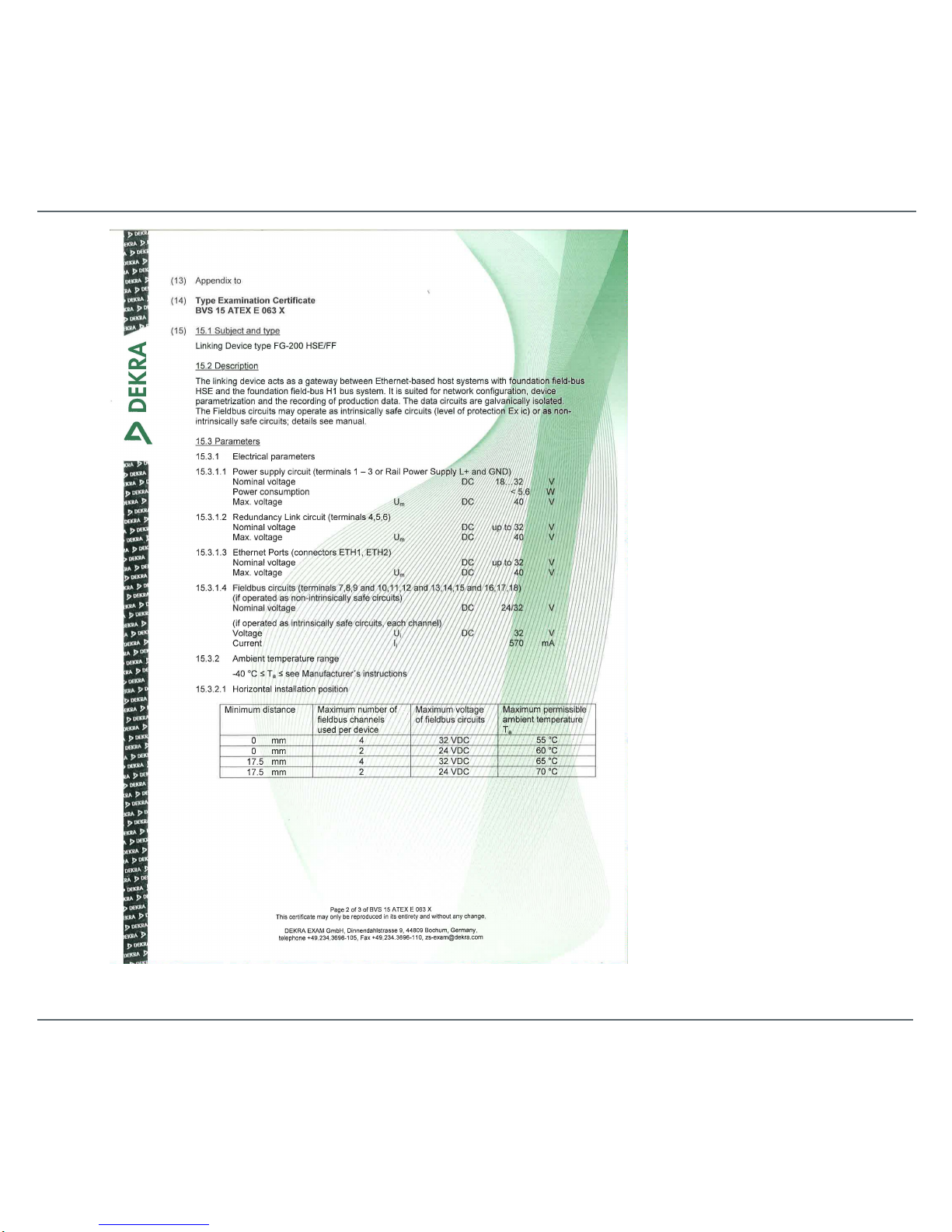

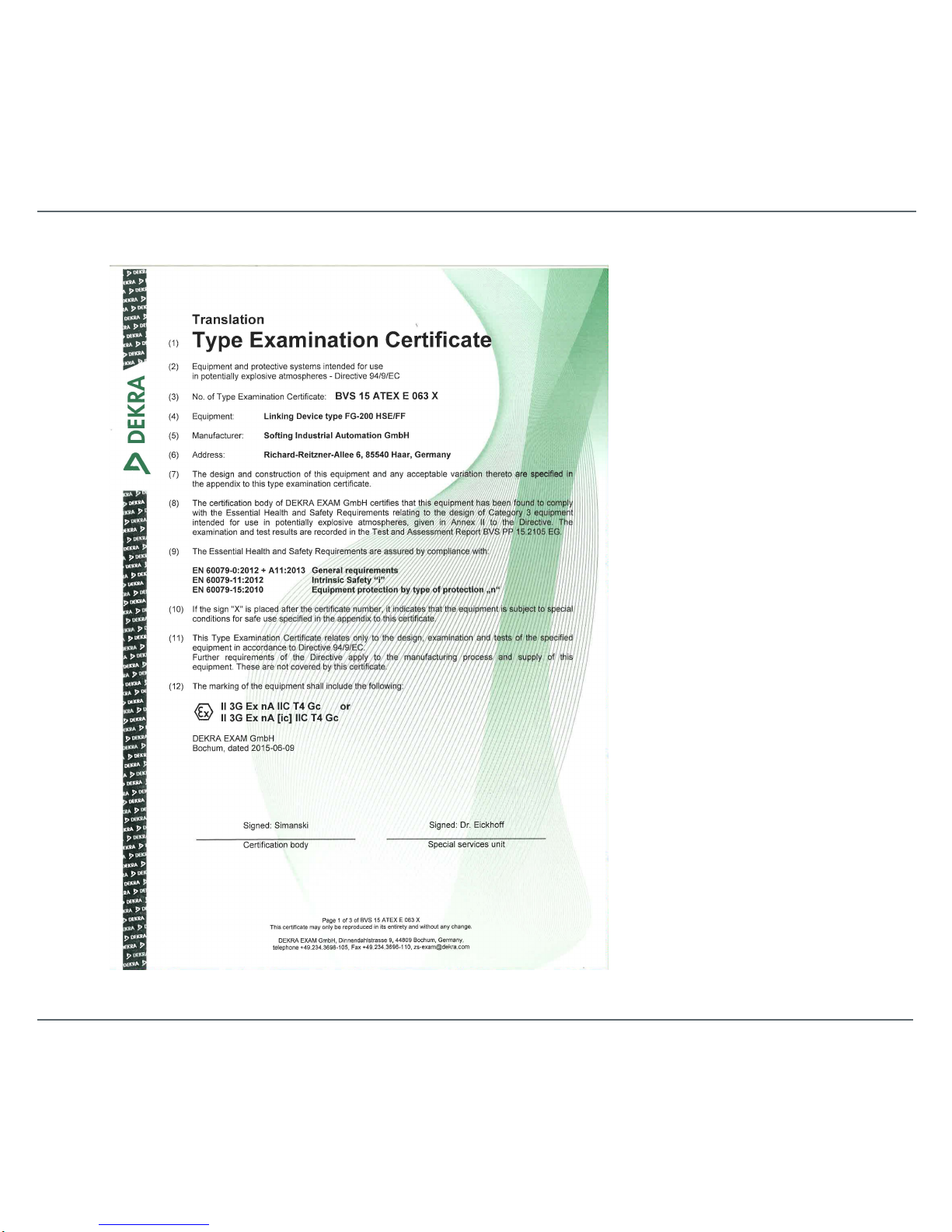

ATEX The EC type examination number for ATEX is: BVS 15 ATEX E 063 X

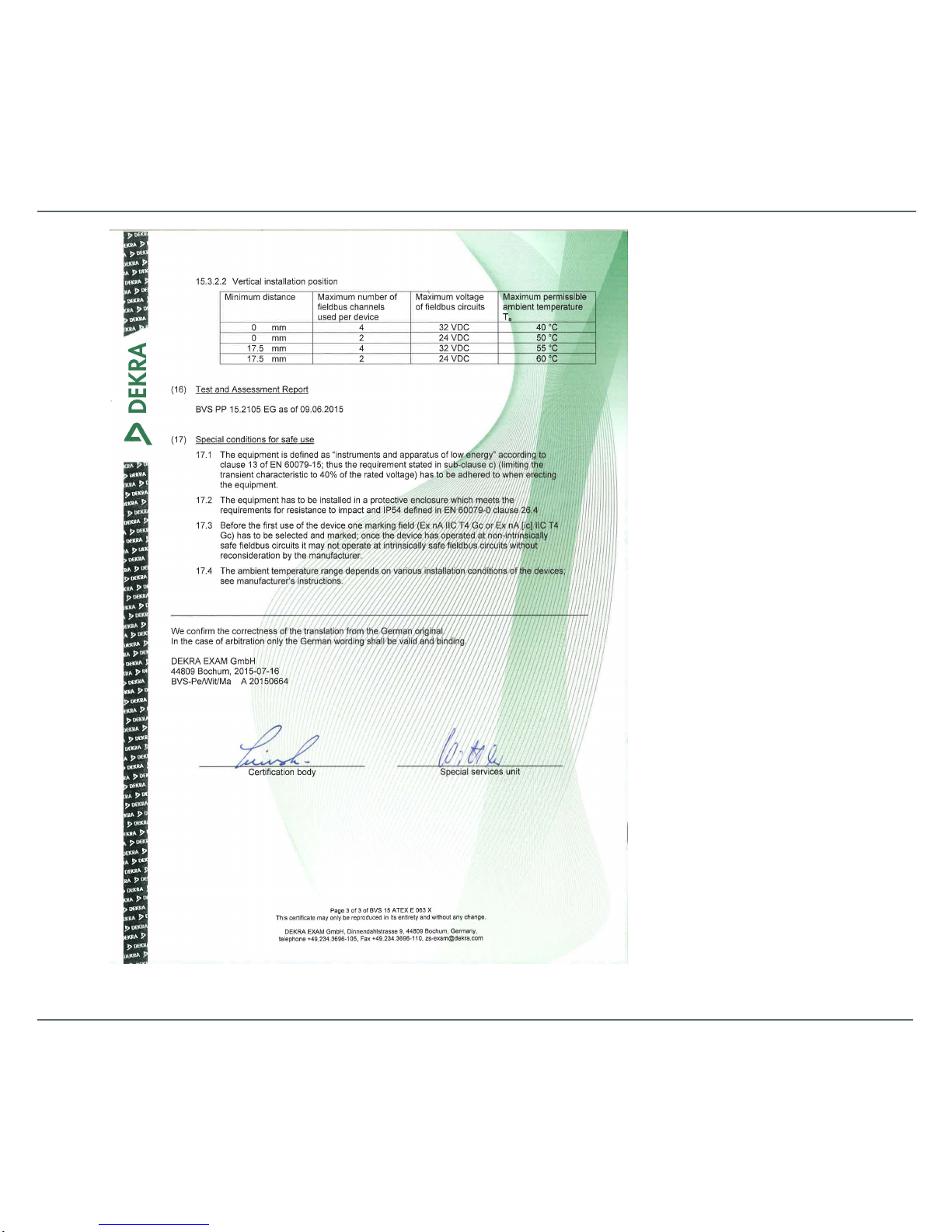

A copy of the certificate is available in section ATEX Type Examination

Certificate .

IECEx The type examination number for IECEx is: IECEx BVS 15.0055X

The certificate can be downloaded from http://iecex.iec.ch

2.1.3 North American Approval

If indicated on the device label, the FG-200 is suitable for use in Class 1, Division 2, Groups A, B, C and D hazardous or non-hazardous locations.

The device must be installed in a protective enclosure which meets the requirements for resistance to impact and IP54 according to IEC 60529.

Marking for explosion protection: Class I Div.2 Groups A,B,C,D.

Certificate

cULus The cULus Certificate of Compliance number is: 20151215-E356500

A copy of the certificate is available in section UL Certificate of Compliance

Page 15

Chapter 2 - Hardware insta llation

2.2 Mounting and dismounting

Note

Make sure the FG-200 is mounted in a manner that the power supply disconnecting device or interrupt facility can always be reached easily.

Note

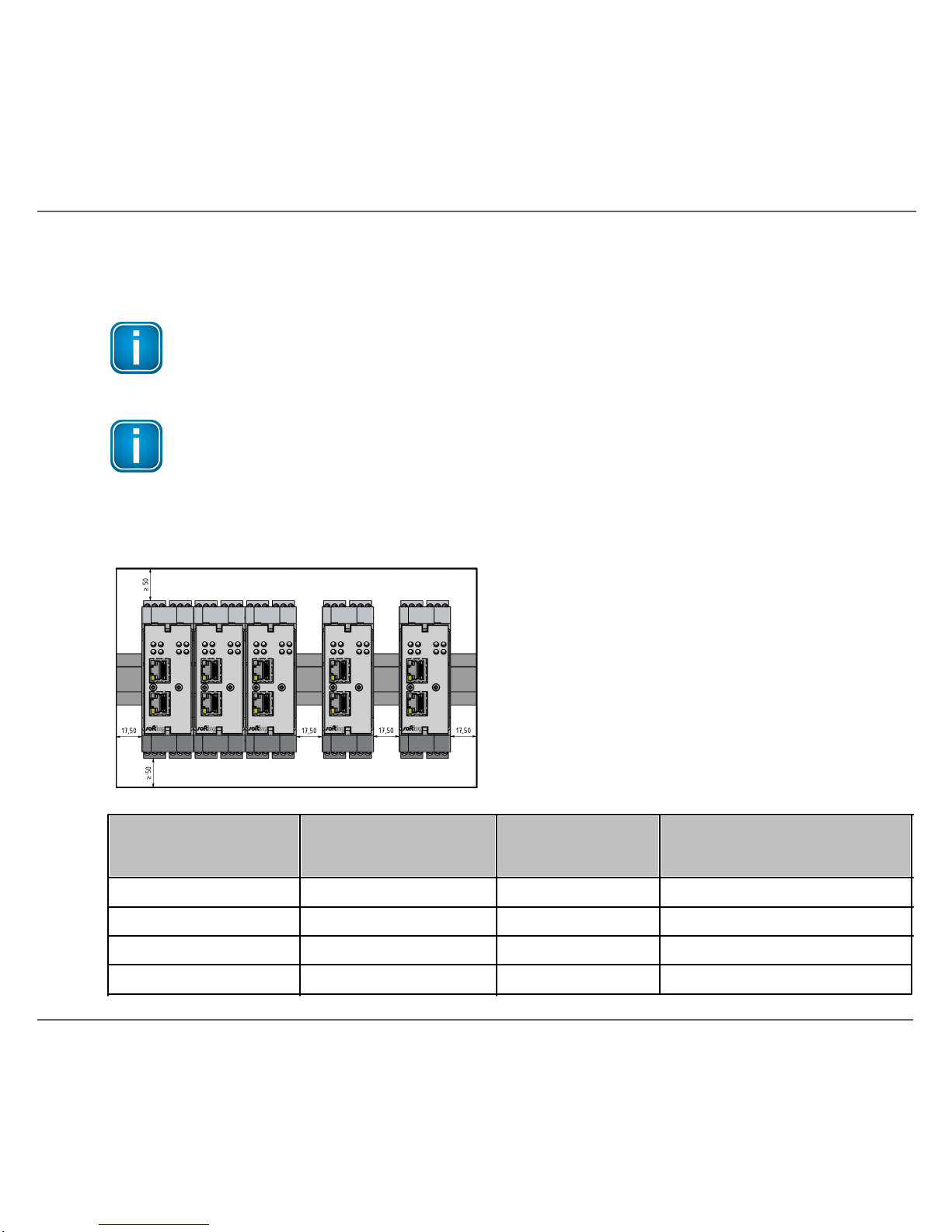

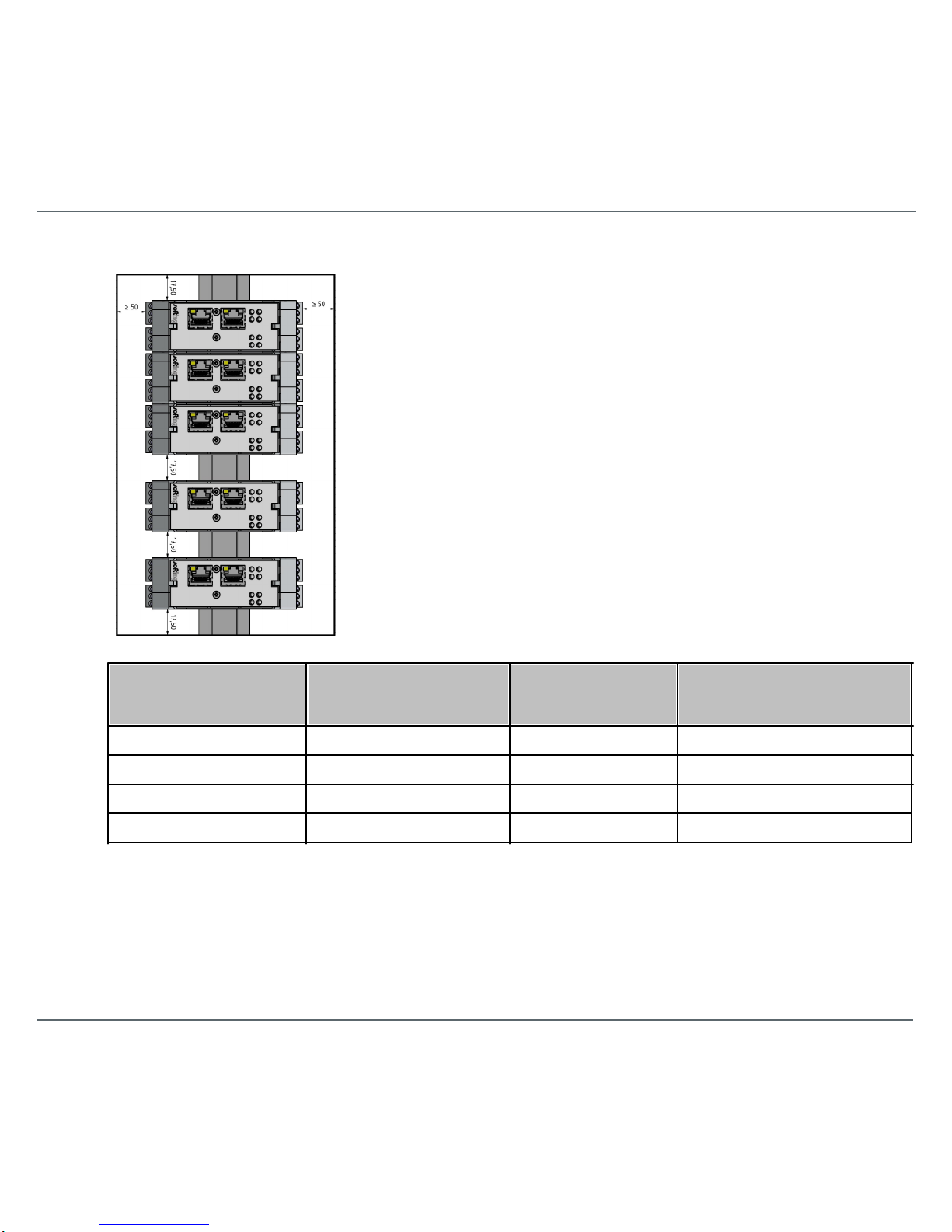

Depending on the installation position, the maximum ambient operating temperature may differ. Refer to Technical Data for detailed information.

Installation and inspection

Installation and inspection tasks must be carried out by qualified personnel only, according to TRBS 1203 or similar! The definition of terms can be found in IEC 60079-17.

Mounting

1. Hook the two upper notches to the rail to mount the FG-200 on a DIN rail (35 mm).

2. Press the device down towards the rail until it locks into place.

Page 16

FG-200 HSE/FF Modbus - Quick Startup Guide

16 © Softing Industrial Automation GmbH

Note

Do not put stress on the system by bending or torsion.

Dismounting

To dismount the FG-200 from the DIN rail, slide a screw driver horizontally underneath the housing into the locking bar, slide the bar downwards – without tilting the screw driver and fold the device upwards.

Page 17

Chapter 2 - Hardware insta llation

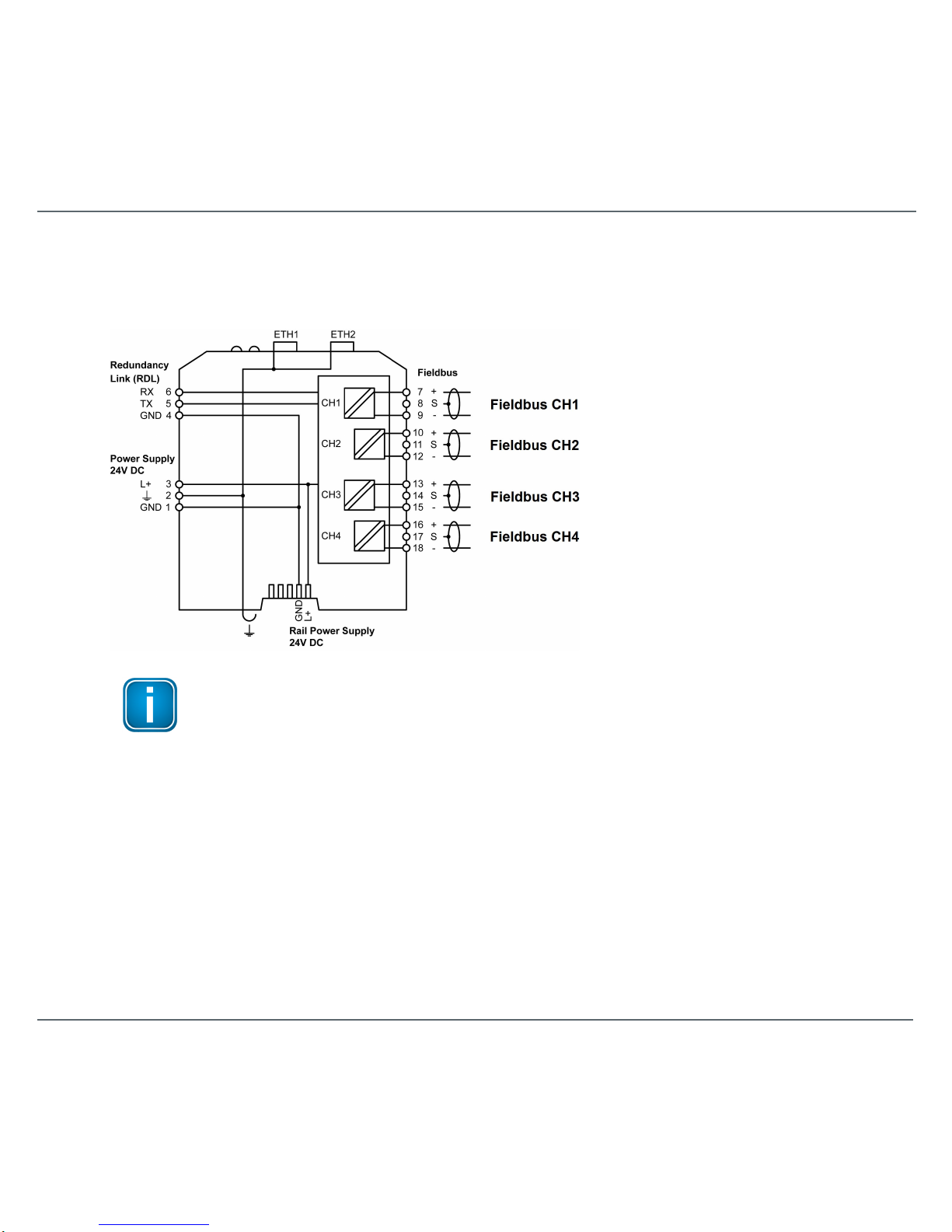

2.3 Connection diagram

The following connection diagram gives an overview about the different plugs and interfaces:

Note

If ambient temperatures exceed 55 °C at the place of installation, it may occur that the temperatures of connecting cables strongly rise if those cables have been put in place in an unfavorable condition. In such cases, either perform measurements to confirm that the service temperature of the cables is not exceeded (i.e. 80 °C), or use such variants that withstand temperatures of minimum 90 °C.

Page 18

FG-200 HSE/FF Modbus - Quick Startup Guide

18 © Softing Industrial Automation GmbH

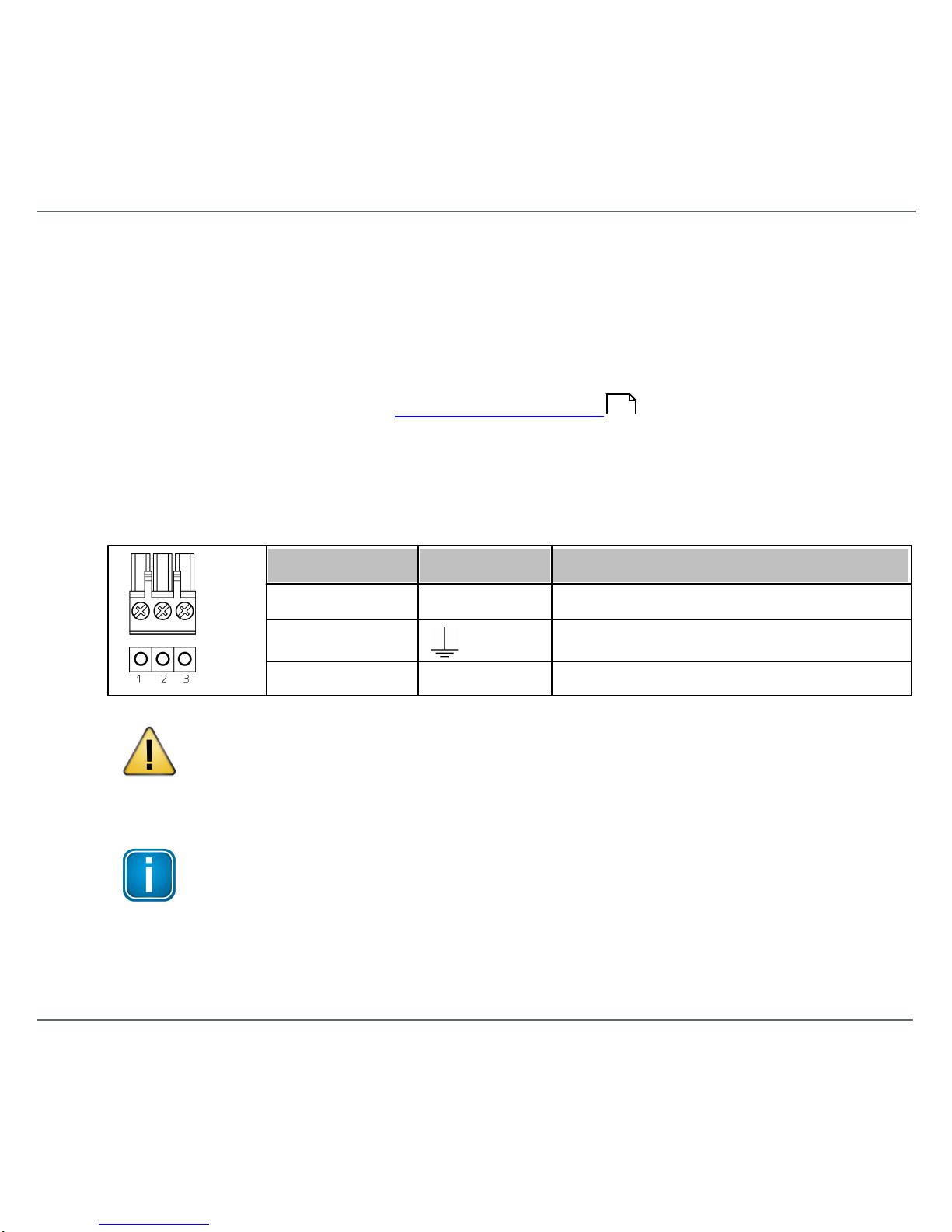

2.4 Connecting the power supply

1. Connect the FG-200 to a 24 V DC power supply.

2. Use different or redundant power supplies for redundant FG-200s.

3. Turn on the power supply. The boot process takes approx. 50 seconds. For indication of proper operation of a FG-200 acting in non-redundant mode or as primary device in redundant mode refer to Status indicators - LEDs .

The supply voltage (18 VDC .... 32 VDC) is connected by a 3-pole terminal block. The power

supply is connected to the plug connector via flexible wires with a cross section of 0.75 to

1.5 mm². The ground connection wire must have a cross section of 1.5 mm².

Signal

Description

GND

Ground

Functional earth 3

L+

Positive supply voltage

CAUTION

The Functional Earth (FE) connection of the device has to be connected at low inductance with the Protective Earth (PE) of the system.

Note

As indicated in the connection diagram, the power can be applied alternatively by a special DIN rail connector (Rail Power Supply). For further information contact Softing Industrial Automation.

Page 19

Chapter 2 - Hardware insta llation

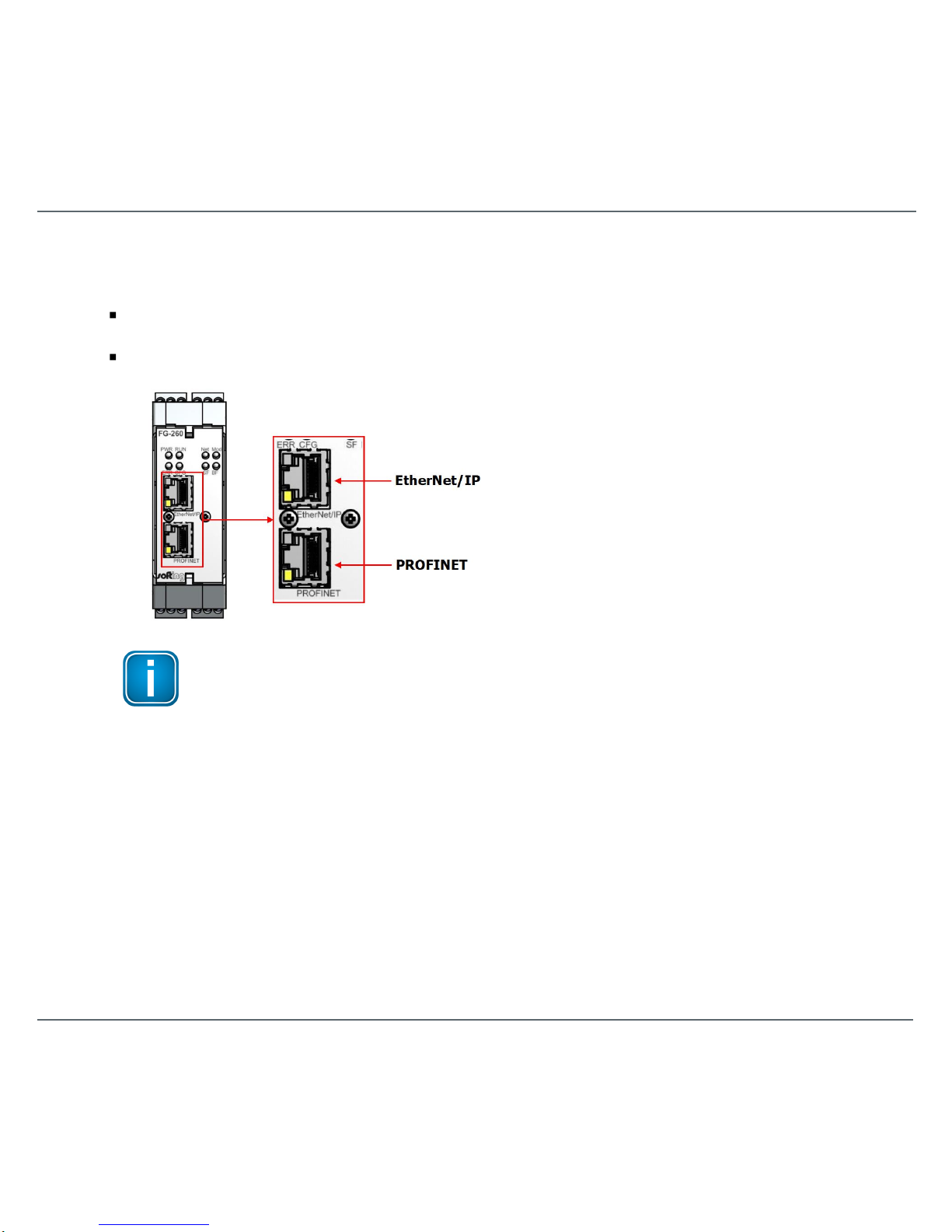

2.5 Connecting to the network

The FG-200 provides the following network connections:

EtherNet/IP and

PROFINET

Note

We strongly recommend connecting the two Ethernet interfaces to different physical LAN networks (EtherNet/IP communication system and PROFINET communication system).

Page 20

FG-200 HSE/FF Modbus - Quick Startup Guide

20 © Softing Industrial Automation GmbH

2.6 Modbus serial connection

When connecting the FG-200 via serial connection use the connector from your delivery with the following pin assignment:

Pin No.

Signal

Connector symbol

6RX+5TX

GND

Note

If you are working with two FG-200 in redundant mode, the serial connection cannot be used, refer to Section FG-200 redundancy .

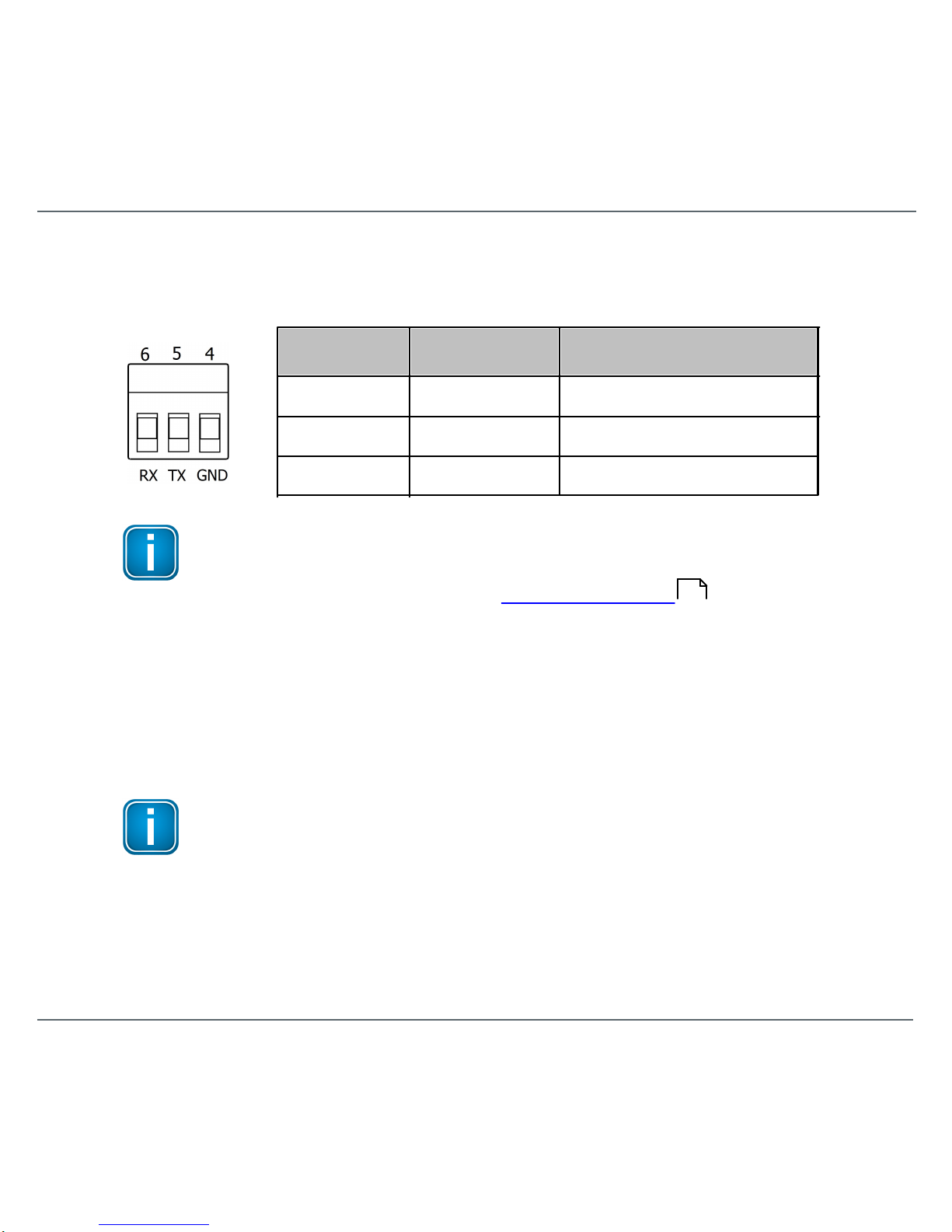

2.7 FG-200 redundancy

When using two FG-200s as a redundant set, the redundancy link interfaces (RDL) of both FG-200s (primary and secondary) must be connected by a cable, thus forming a redundancy link. If the redundancy link is not installed during start-up (power-on), the FG200 will operate in non-redundant mode.

Note

The interface is not galvanically isolated. Thus make sure that there is no potential difference between the two connected devices.

Page 21

Chapter 2 - Hardware insta llation

The maximum cable length is 0.5 m according to EMC requirements. The pin assignment is as follows:

Signal

Description

6RXReceives data from redundant device

5TXTransmits data to redundant device

GND

Ground

Note

The receive (RX) and transmit (TX) signals must be cross-linked.

Page 22

FG-200 HSE/FF Modbus - Quick Startup Guide

22 © Softing Industrial Automation GmbH

Do not power up FG-200s when serial link is missing

If the two FG-200s forming a redundant set are powered while the serial link is missing, both devices will behave like independent, non-redundant Primary Devices. If they operated in redundant mode before and therefore have identical configuration information, both will use the same H1 node addresses, which will cause problems on the H1 links. The ERR (error) LED will blink. In this case, remove the power, install the serial link and apply the power again.

First powered device operates as primary device

When using a redundant set of two FG-200s, the device which is powered first will operate as primary device. If both devices are powered at the same time, the one with the lower IP address will operate as primary device.

Before removing the power supply from primary device make sure the secondary device is operational

In a redundant set of FG-200s, removing the power supply, the Ethernet cable or the redundancy link interface cable from the primary device causes a redundancy change-over. Before doing so, make sure that the secondary device is operational (and not still booting due to a prior change-over). Otherwise the system breaks down or the configuration information might get lost. Therefore wait at least one minute between such checks.

2.8 FF-H1 interface connection

Connect the H1 links to the terminal blocks of the H1 interfaces. Since the FG-200 does not provide power to the H1 links, a power supply, a power conditioner and a bus termination is required for each H1 link. When using a redundant set of two FG-200s, make sure to connect each H1 link to the same channel (FF 1 .. FF 4) on both FG-200s.

Page 23

Chapter 2 - Hardware insta llation

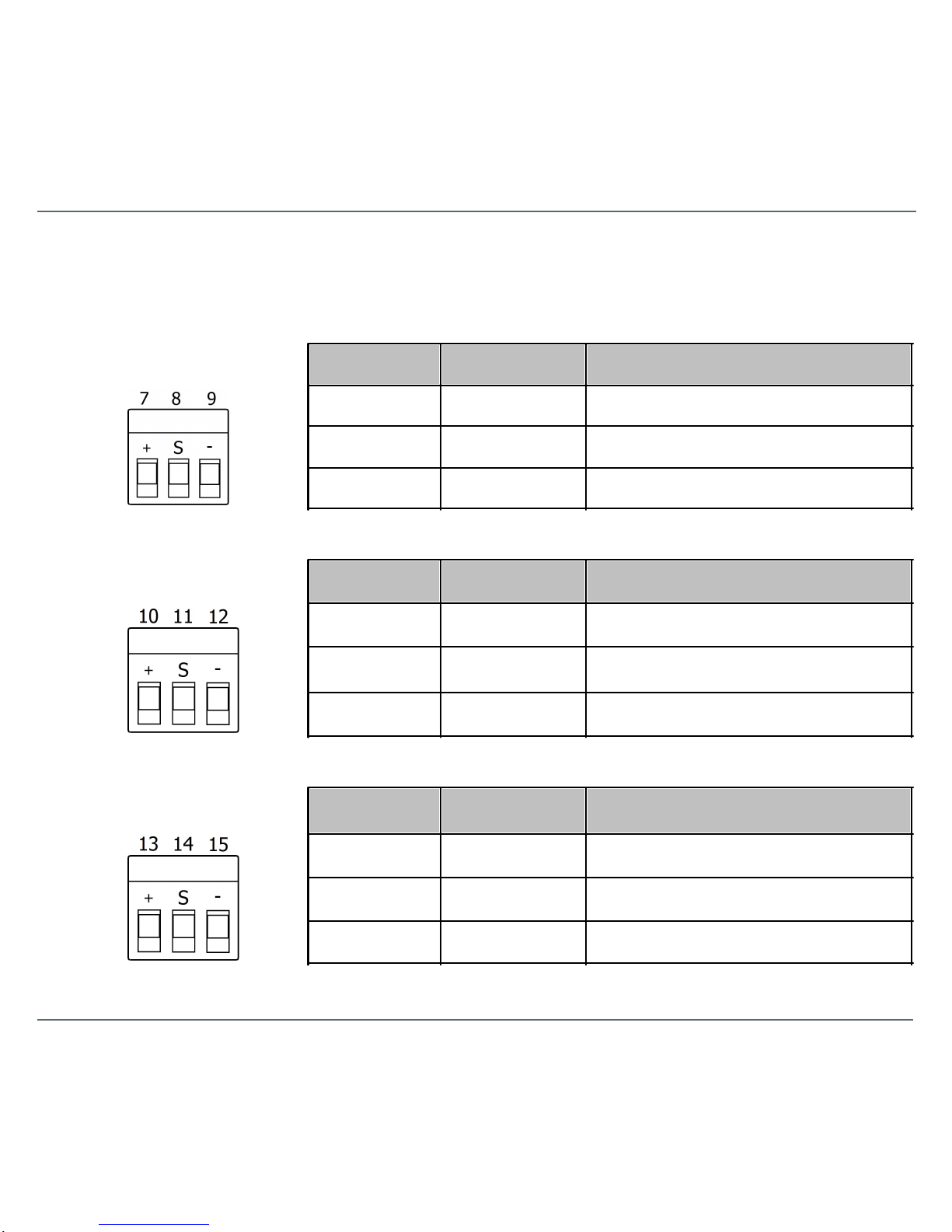

The FG-200 provides four Foundation Fieldbus H1 interfaces. These interfaces are named CH1 to CH4 and are used to connect an FF-H1 bus to the FG-200.

FF H1 bus line channel 1

CH1

Signal

Description

7+Fieldbus +

8SFieldbus shield

9-Fieldbus -

FF H1 bus line channel 2

CH2

Signal

Description

10+Fieldbus +

11SFieldbus shield

12-Fieldbus -

FF H1 bus line channel 3

CH3

Signal

Description

13+Fieldbus +

14SFieldbus shield

15-Fieldbus -

Page 24

FG-200 HSE/FF Modbus - Quick Startup Guide

24 © Softing Industrial Automation GmbH

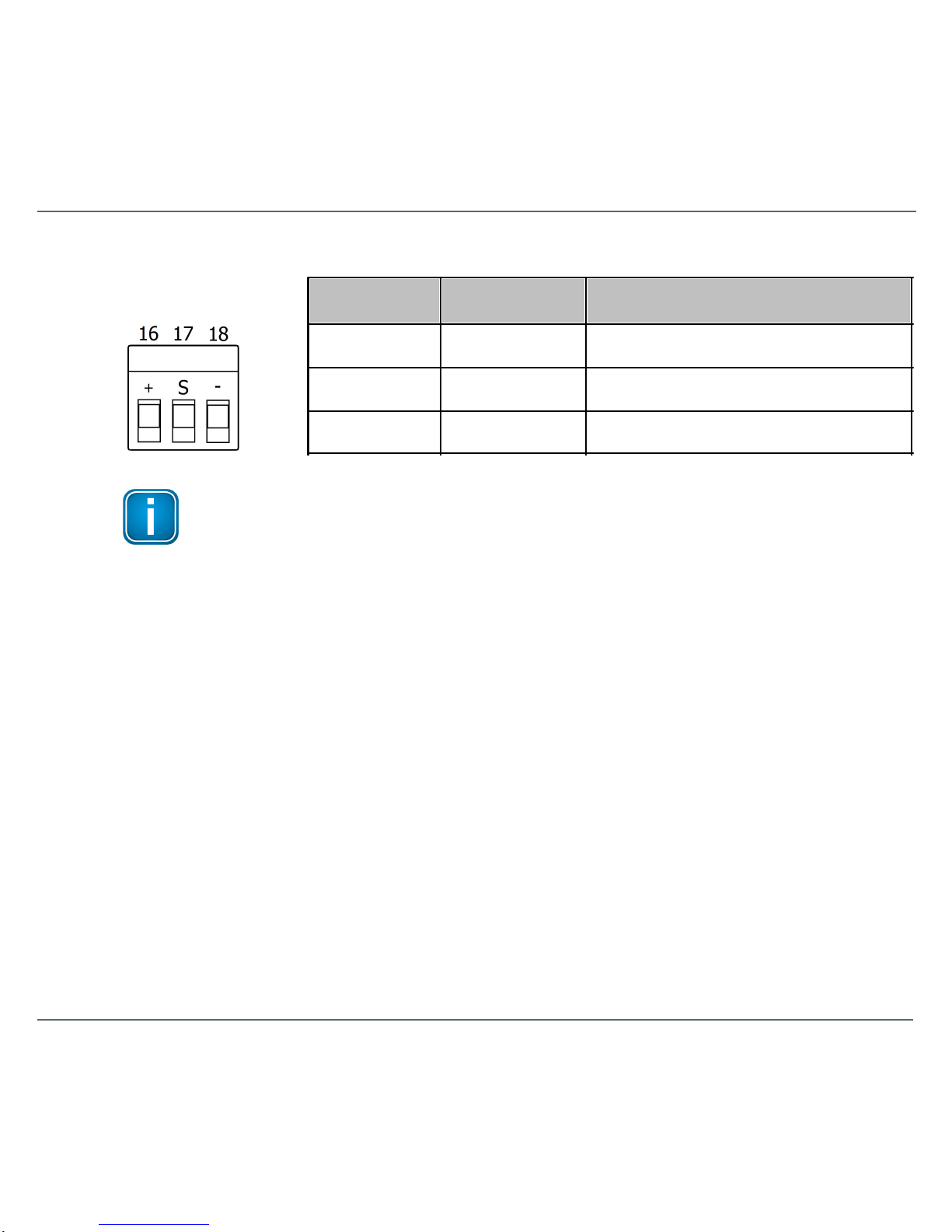

FF H1 bus line channel 4

CH4

Signal

Description

16+Fieldbus +

17SFieldbus shield

18-Fieldbus -

Note

The fieldbus shield is not connected directly to functional earth. For EMC reasons, it is only connected via a capacitor. If a direct connection to functional earth or protective earth is required, you need to implement this separately.

2.9 Powering up the device

Turn on the power supply. The boot process takes a few seconds. For indication of proper operation of a FG-200 refer to Status indicators - LEDs.

Page 25

Chapter 2 - Hardware insta llation

2.10 Adding a second FG-200 for redundancy

For adding a second FG-200 to an already commissioned FG-200 that is operating in the role "Primary, no backup", the following steps are required:

1. Set the IP configuration (IP address and subnet mask) of the second FG-200 in a way that it is in the same IP subnet as the primary device (refer to Settings - Internet Protocol).

2. Connect the H1 links to the terminal blocks of the H1 interfaces. Make sure to connect each H1 link to the same channel (FF 1 .. FF 4) on both FG-200s.

3. Connect the second FG-200 to the Ethernet switch or hub.

4. Connect both serial ports by means of a redundancy link interface cable.

5. Connect the second FG-200 to a 24 V DC power supply. Use different or redundant power supplies for redundant FG-200s.

6. After turning on the power supply the boot process takes approx. 50 seconds.

7. The second FG-200 will take over the configuration data from the primary device and will start operation in the role "secondary". For indication of proper operation as a secondary device refer to Status indicators - LEDs .

Hint

Refer to Section FG-200 redundancy for more information on the redundancy concept.

Page 26

FG-200 HSE/FF Modbus - Quick Startup Guide

26 © Softing Industrial Automation GmbH

Commissioning FG-200 HSE/FF Modbus

3.1 Installing comConf

New installation

1. Insert your Software and Documentation for Fieldbus Gateways CD into your CD drive. If Autorun is enabled on your system, the startup page is opened.

2. Select your language and Installation of the FG-200 Gateway Software.

3. If Autorun is disabled, open an Explorer window, select your CD drive and doubleclick the file start.exe located.

4. Follow the instructions from the installation wizard.

3.2 Configuring IP address and Modbus parameters

The FG-200 is delivered with the pre-configured IP address 192.168.0.10. Connect the FG200 to the PC either directly or via an Ethernet switch.

Note

Before connecting the FG-200 to your LAN network, make sure that its IP address is not used by another network station.

To assign a new IP address to your PC, you must have administrator rights.

1. Open a browser (e.g. Internet Explorer or Firefox).

2. Enter the URL address 192.168.0.10 and press Enter.

Page 27

Chapter 3 - Commi ss ioning FG-200 HSE/FF Modbus

3. Login with the following data: login name: administrator login password: fgadmin

4. Select Configuration Settings Internet Protocol.

5. Change IP Address and Subnet Mask.

6. Click [Change Settings and Reebot]

7. The FG-200 performs a reboot.

3.3 Setting up a comConf project

For information about how to set up a new project with the configuration tool comConf and working with the FG-200 Web server interface please refer to the User Manual. This document is available with your FG-200, on CD delivered with the product and the Softing download page

Page 28

FG-200 HSE/FF Modbus - Quick Startup Guide

28 © Softing Industrial Automation GmbH

Status indicators - LEDs

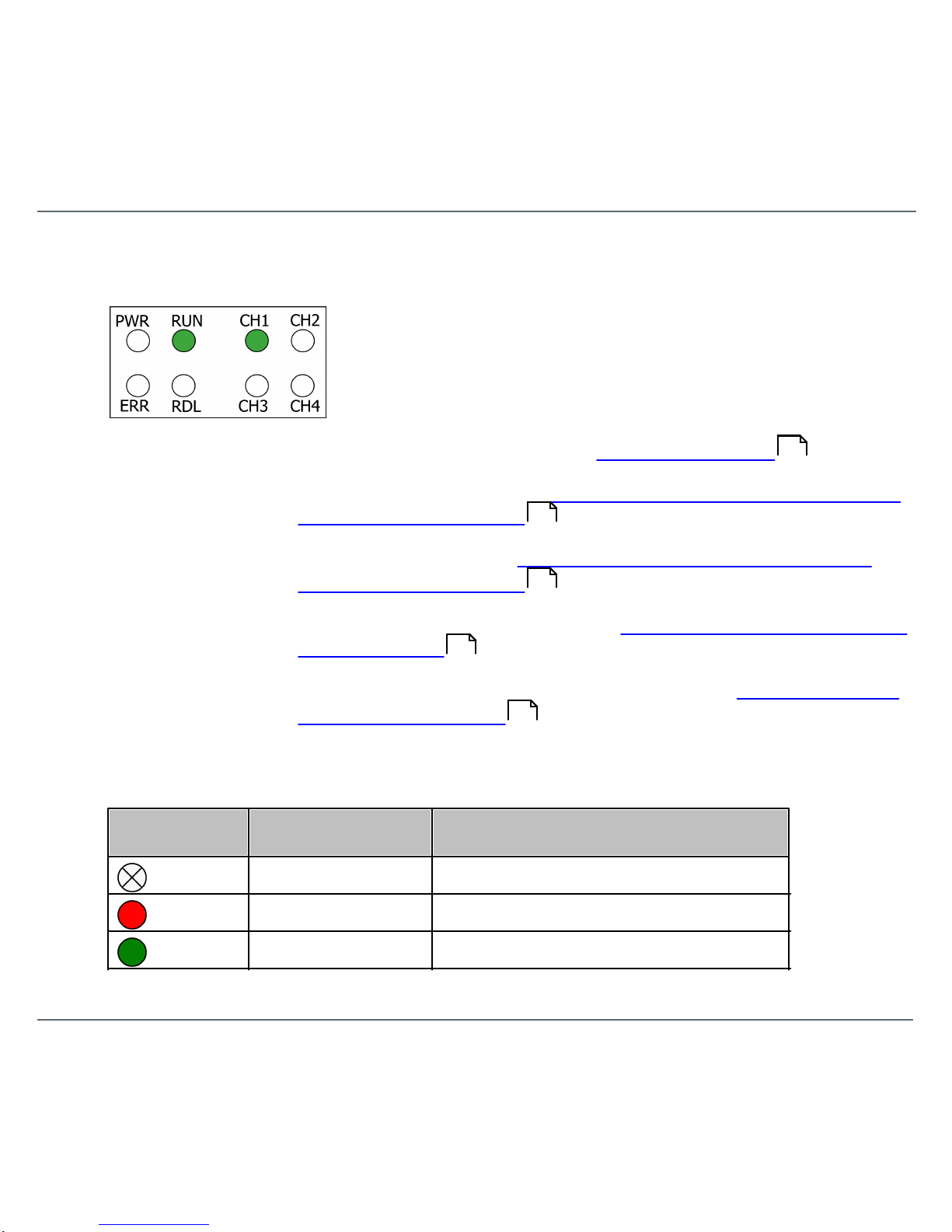

The FG-200 is equipped with eight LEDs on its front side:

PWR stands for power supply - refer to PWR - power supply

RUN stands for running - refer to Device LED statuses (PWR, RUN, ERR and

RDL) in stand-alone mode

ERR stands for error- refer to Device LED statuses (PWR, RUN, ERR and

RDL) in stand-alone mode

RDL stands for redundancy link - refer to RUN / ERR / RDL - LED statuses in

redundant mode

CH1 to CH4 stands for H1 channel 1 to H1 channel 4 - refer to Status indications

of the four H1 channels

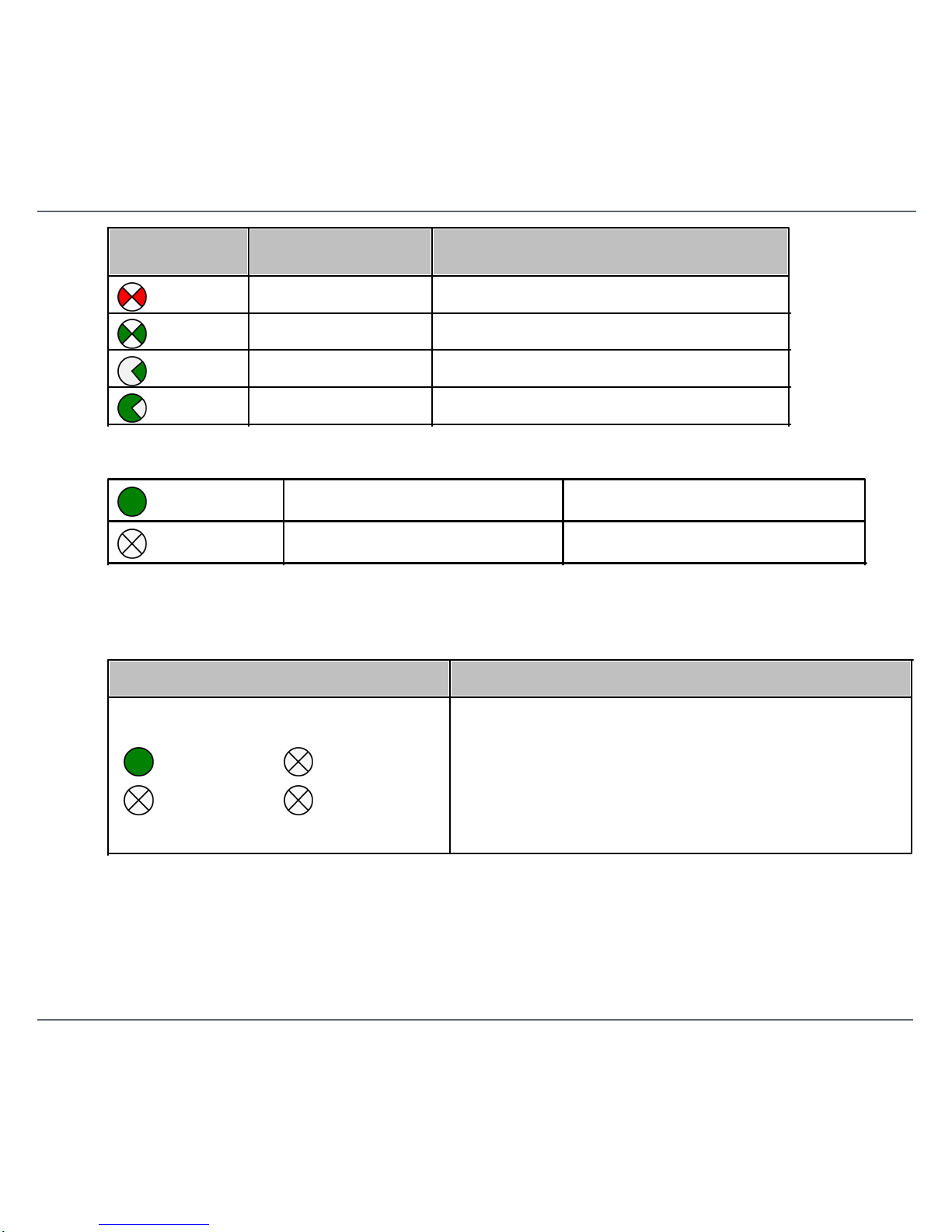

The LEDs may be on permanently or flash in different colors and frequencies. We use the following symbols:

Symbol

Color

Lighting

none

off

red

permanent

green

permanent

Page 29

Chapter 4 - Status indi cators - LEDs

Symbol

Color

Lighting

red

flashing

green

flashing

green

flashing slowly (0.5 Hz)

green

flashing quickly (5 Hz)

4.1 PWR - power supply

permanent green

24V DC power supply is ok

off

no power supply

4.2 Device LED statuses in stand-alone mode

The following table shows possible LED combinations in stand-alone mode:

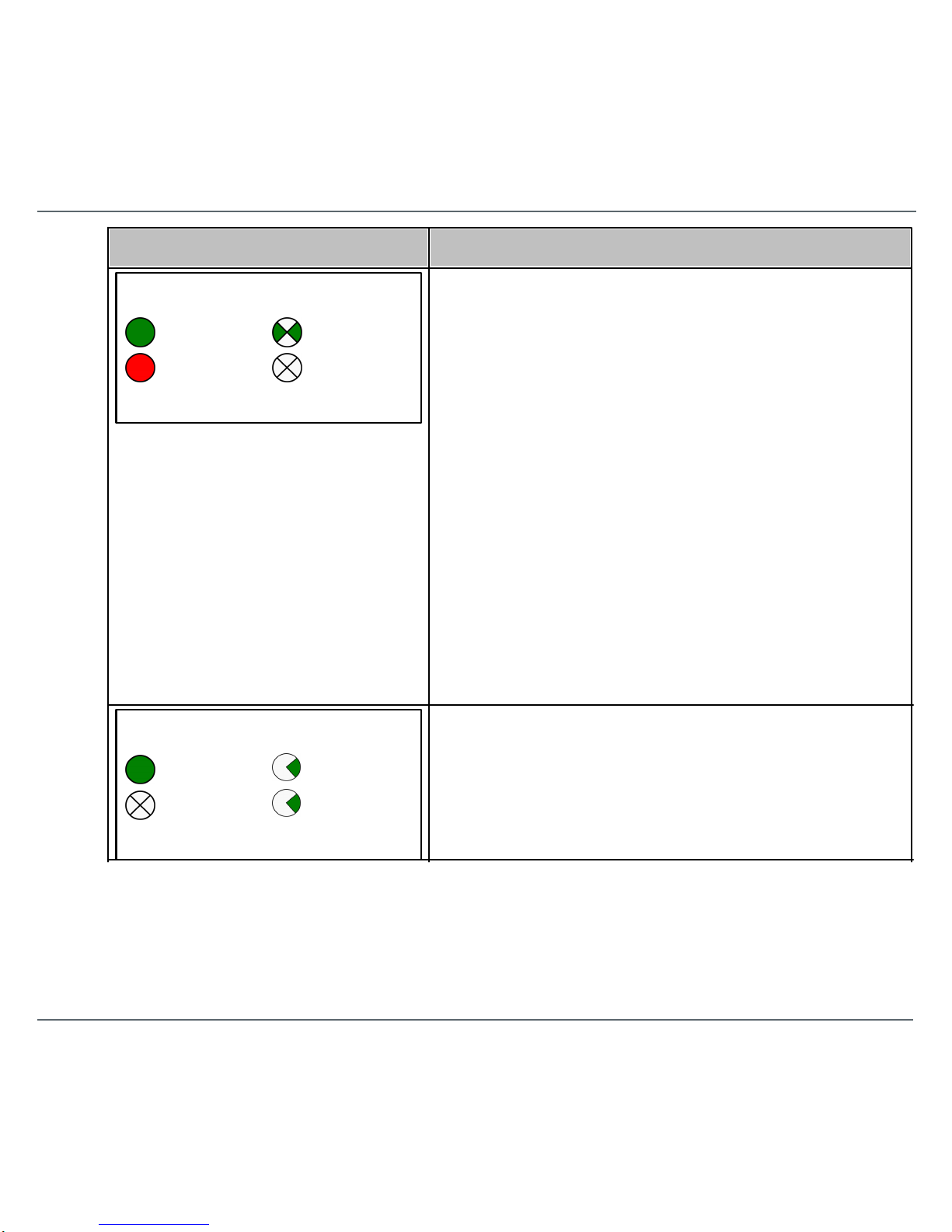

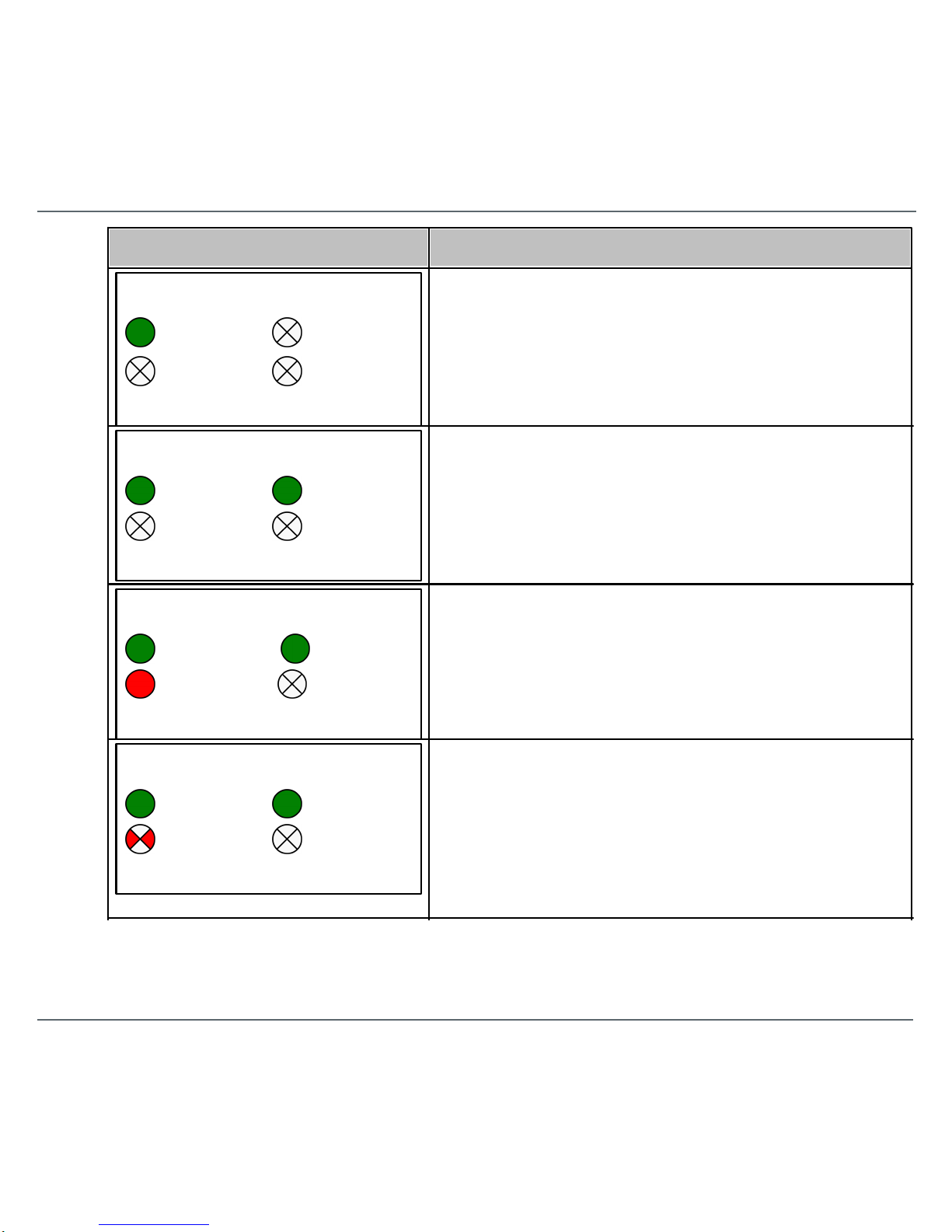

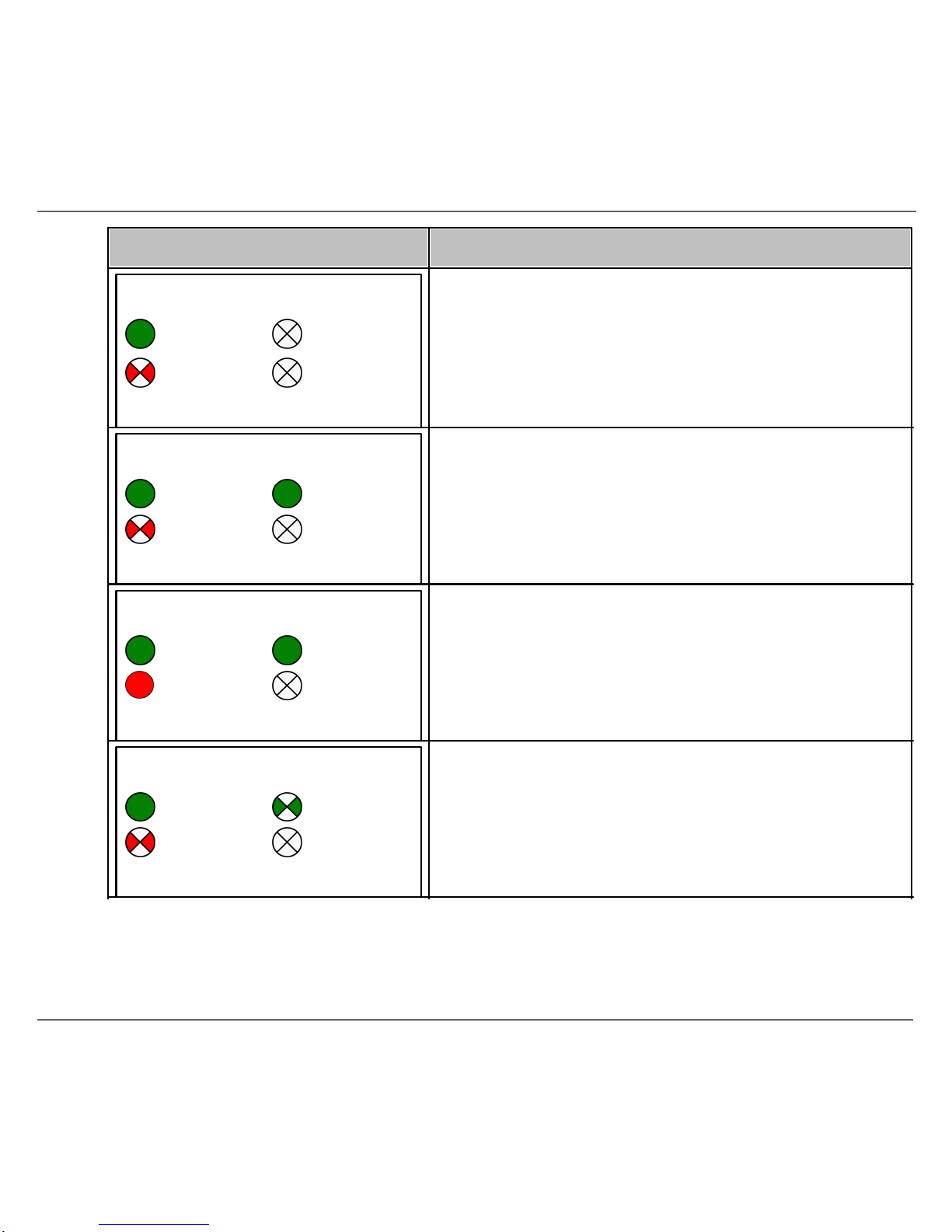

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Startup phase (approximately 7 seconds)

During this phase redundancy role is determined.

Page 30

FG-200 HSE/FF Modbus - Quick Startup Guide

30 © Softing Industrial Automation GmbH

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Non redundant device, ready.

The device is operational; it is not part of a redundant set.

PWR

RUN

green

red

ERR

RDL

Permanent hardware fault detection during startup.

A fatal error has been detected.

4.3 RUN/ERR/RDL - LED statuses in redundant mode

The redundancy link LED is used to indicate if traffic via the serial line is performed. It will flash green if a valid message is received. It will switch to red if serial communication is lost and it will be off if no serial response has been received after startup.

flashing green

redundancy link communication is ok (triggered by redundancy link packets)

red

link communication interrupted or aborted (broken down)

off

no link communication at all

Page 31

Chapter 4 - Status indi cators - LEDs

LEDs

Meaning

PWR

RUN

green

ERR

RDL

Start–up phase (approx. 7 seconds) During this phase redundancy role is determined.

PWR

RUN

green

ERR

RDL

Non redundant device, ready. The device is operational; it is not part of a

redundant set. Primary Device is redundant set. The device is operational, acting as Primary Device

in a redundant set. The secondary device is ready

PWR

RUN

green

red

ERR

RDL

Permanent hardware fault detection during startup. A fatal error has been detected. Possible failure

could be a missing Ethernet connection.

PWR

RUN

green

red

ERR

RDL

Primary device or non-redundant device, hardware failure.

The device is acting as non-redundant device, but a minor hardware failure has been detected during start-up.

In the case of a Primary Device on a redundant set, the secondary device is not ready

Page 32

FG-200 HSE/FF Modbus - Quick Startup Guide

LEDs

Meaning

PWR

RUN

green

red

ERR

RDL

Primary device or non-redundant device, failure. The device is acting as non-redundant device, but a

failure has been detected.

Secondary device, not ready. The device is acting as secondary device in a

redundant set, but it is not ready to take over the primary role due to e.g. not synchronized configuration information or a non-operational redundancy link.

Primary Device or non-redundant device, failure. The device is acting as Primary Device in a

redundant set or as non-redundant device, but a failure has been detected. In the case of a Primary Device in a redundant set or as non redundant set, the secondary device is not ready.

PWR

RUN

green

ERR

RDL

Secondary device, operational. The device is operational as secondary device in a

redundant set. The configuration information has been successfully transferred from the Primary Device and the redundancy link is operational.

Page 33

Chapter 4 - Status indi cators - LEDs

LEDs

Meaning

PWR

RUN

green

red

ERR

RDL

Secondary device, hardware failure. The device is acting as secondary device in a

redundant set, but a hardware failure has been detected. Details are available on the web page Diagnostics of the device.

PWR

RUN

green

red

ERR

RDL

Primary with H1 error state

PWR

RUN

green

red

ERR

RDL

Primary not ready

PWR

RUN

green

red

ERR

RDL

Secondary with H1 error

Page 34

FG-200 HSE/FF Modbus - Quick Startup Guide

LEDs

Meaning

PWR

RUN

green

red

ERR

RDL

Primary, configuration error

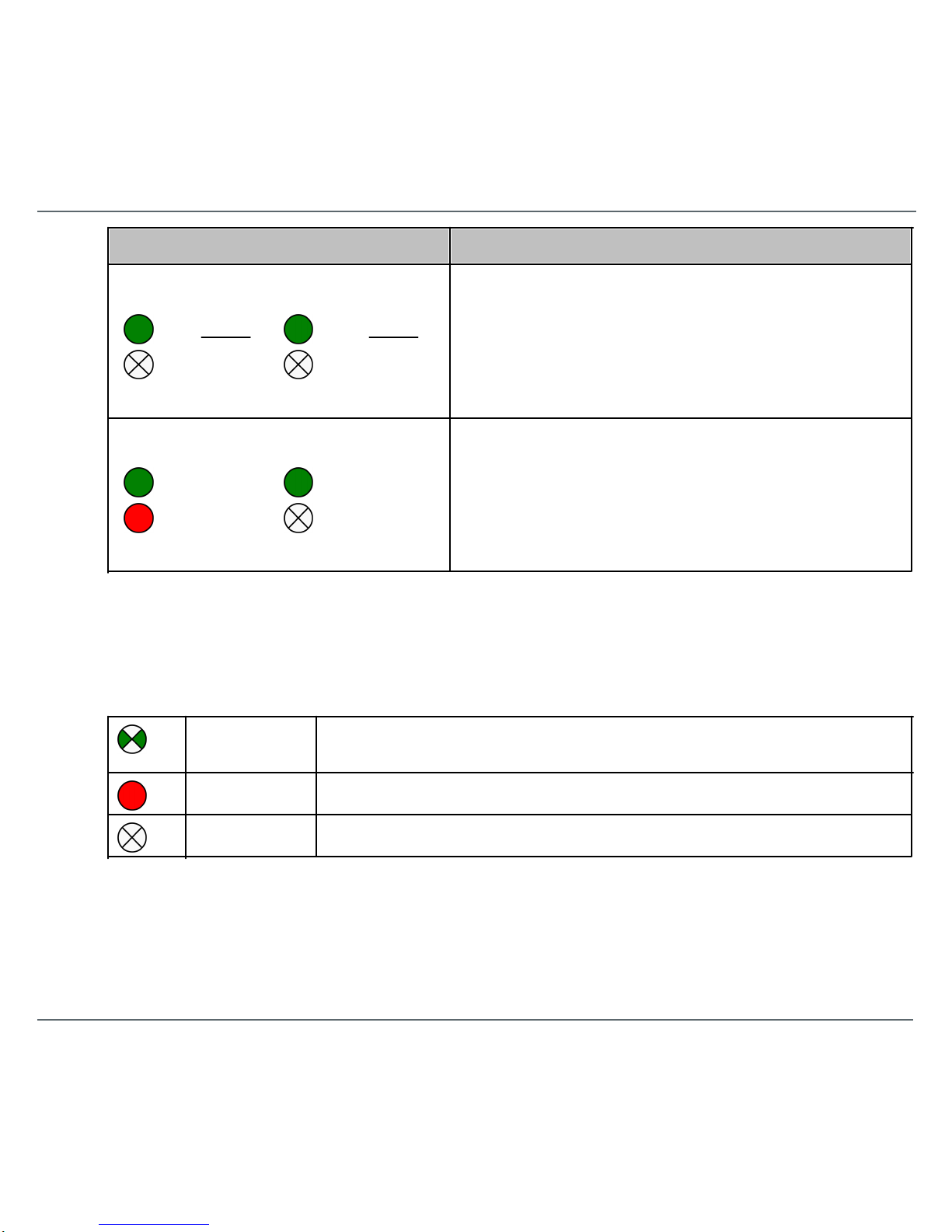

4.4 H1 channel status indicators

The following table shows the channel LEDs and their meaning of all four channels (CH1 - CH4):

Symbol

Color / frequency

Meaning

green

Visitor address

flashing slowly (0.5 Hz)

not in LAS role

flashing quickly (5 Hz)

LAS role

red

no carrier or H1 link is disconnected

flashing red

no token received

off

H1 link unused

Page 35

Chapter 5 - Technical da ta

Technical data

5.1 Specifications

Power supply

18 VDC...32 VDC; SELV/PELV supply mandatory Typical input current is 200 mA; maximum is 1 A (considering the

rush-in current at switch-on).

FF-H1

Four FF-H1 channels, compliant with type 114 of the FF physical layer profile. The Fieldbus voltage range is from 9 VDC...32 VDC. Preferred value is 24 VDC.

Ethernet

IEEE 802.3 100BASE-TX/10BASE-T Only ETH 1 is supported. Do not use ETH 2 (reserved for further use).

Minimum ambient operating temperature

-40 °C

Storage temperature

-40 °C...+85 °C

Relative humidity

10 %...95 % (non-condensing)

Altitude

Must not exceed 2,000 m

Location

Indoor use only; no direct sunlight

Coating

Conformal Coating based on ANSI/ISA-S71.04 G3

Safety standard

IEC/EN/UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 1: General requirements: IEC/EN/UL 61010-2-201 Safety requirements for electrical equipment for measurement, control and laboratory use Part 2-201: Particular requirements for control equipment (both with CB scheme).

Ingress protection

IP20

Page 36

FG-200 HSE/FF Modbus - Quick Startup Guide

5.2 Installation positions

The gateway FG-200 can be mounted horizontally and vertically. Depending on the installation position, different ambient operating temperatures (Ta) are allowed:

Minimum distance

Provide a minimum distance of 50 mm to the air inlet and air outlet to ensure natural convection.

Rotated installation position

The maximum permissible ambient temperature values also apply to a 180° rotated installation position.

Horizontal installation position

Maximum number of fieldbus channels

Maximum fieldbus voltage

Minimum distance

Maximum permissible ambient temperature T

32 VDC

0 mm

55 °C

24 VDC

0 mm

60 °C

32 VDC

17.5 mm

65 °C

24 VDC

17.5 mm

70 °C

Page 37

Chapter 5 - Technical da ta

Vertical installation position

Maximum number of fieldbus channels

Maximum fieldbus voltage

Minimum distance

Maximum permissible ambient temperature T

32 VDC

0 mm

40 °C

24 VDC

0 mm

50 °C

32 VDC

17.5 mm

55 °C

24 VDC

17.5 mm

60 °C

Page 38

FG-200 HSE/FF Modbus - Quick Startup Guide

ATEX Type Examination Certificate

Page 39

Chapter 6 - ATEX Type Examination Certificate

Page 40

FG-200 HSE/FF Modbus - Quick Startup Guide

Page 41

Chapter 7 - UL Certificate of Compliance

UL Certificate of Compliance

Page 42

FG-200 HSE/FF Modbus - Quick Startup Guide

Declarations of conformity

This device is compliant with EC directive 2014/30/EG for "Electromagnetic Compatibility" (EMC) and meets the following harmonized standards:

EN 55011

Industrial, scientific and medical (ISM) devices - radio disturbance - limits

and methods of measurement

EN 55032

Electromagnetic compatibility of multimedia equipment (MME) and interference emission

EN 61000-6-4

Electromagnetic compatibility (EMC); Part 6-4: generic standard – emission for industrial environments

EN 61000-6-2

Electromagnetic compatibility (EMC); Part 6-2: generic standard - immunity

for industrial environments

Note

To fulfill the EMC requirements, the other components of your installation (DC adapter, Industrial Ethernet devices, etc.) also have to meet the EMC requirements. A shielded cable must be used. In addition, the cable shield must be grounded properly.

CAUTION

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures!

A Declaration of Conformity in compliance with the above standards has been made and can be requested from Softing Industrial Automation.

Page 43

Chapter 8 - Declarations of conformity

ROHS

This product is ROHS compliant.

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

VCCI

This Class A product conforms to the regulations of Voluntary Control Council for Interference (VCCI) by Information Technology Equipment.

WEEE

Electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Packaging material and worn components shall be disposed of according to the regulations applicable in the country of installation.

Page 44

Softing Industrial Automation GmbH

Richard-Reitzner-Allee 6 85540 Haar / Germany http://industrial.softing.com

Tel: + 49 89 45 656-0 Fax: + 49 89 45 656-488 info.automation@softing.com
